Comparison of Morphological and Physiological Traits between Pinus brutia, Pinus halepensis, and Their Vigorous F1 Hybrids

by
Naomi Houminer
1,2,
Joseph Riov
2,
Menachem Moshelion
2,
Yagil Osem
1 and
Rakefet David-Schwartz
1,*
1
Institute of Plant Sciences, Agricultural Research Organization, The Volcani Center, Rishon Le-Zion 7505101, Israel
2
Institute of Plant Sciences and Genetics in Agriculture, The Robert H. Smith Faculty of Agriculture, Food and Environment, The Hebrew University of Jerusalem, Rehovot 7610001, Israel
*
Author to whom correspondence should be addressed.
Forests 2022, 13(9), 1477; https://doi.org/10.3390/f13091477
Submission received: 4 August 2022 / Revised: 2 September 2022 / Accepted: 10 September 2022 / Published: 13 September 2022
(This article belongs to the Special Issue Genetic Relationships and Artificial Hybridization within the Forest Trees)
Browse Figures
Review Reports Versions Notes

Abstract

:
Hybrids between Pinus brutia Ten. and Pinus halepensis Mill. have mainly been investigated with respect to their growth rate. Less attention has been paid to factors that contribute to their resistance to drought, although the hybrids have been shown to thrive over P. brutia in semi-arid regions. To understand the superior hybrid phenotype, we investigated morphological traits, growth parameters, and physiological response to drought stress in P. brutia, P. halepensis, and their vigorous hybrids. Rooted cuttings were propagated from mature trees and were examined in a high-throughput gravimetric system to evaluate their response to drought. Higher root-to-shoot ratio, needle length, and leaf mass per area (LMA) were observed in the hybrids compared to the two parental species. P. halepensis demonstrated higher transpiration rates (E) and stomatal conductance (gsc) than P. brutia, and an earlier reduction in E and gsc in response to drought stress. Similar to P. brutia, the hybrids showed low E and gsc, and an early stomatal closure in response to drought similar to P. halepensis. Our study suggests that the hybrids exhibit a unique combination of traits that may contribute to forest resilience in semi-arid regions undergoing climate change.

1. Introduction

The Mediterranean region is facing increased aridity and desertification according to the forecasts of global climate change [1,2]. Increased forest tree mortality is predicted to occur because of reduced precipitation and shorter winter rainy seasons [3,4]. Accordingly, drought-resistant trees are essential for sustainable afforestation and reforestation, especially in semi-arid regions. Traits related to drought adaptation are often expressed in semi-arid regions. Different tree species exhibit different growth rates and vigor [5]. It is expected that trees that grow more rapidly under water stress have morphological and physiological traits to support their rapid growth, and thus may be more resistant to drought.
Morphological traits, such as needle length, leaf mass per area (LMA), and root-to-shoot ratio, are known to be related to water availability and drought coping mechanisms [6,7,8,9,10]. Trees that grow under high water availability have longer needles [6,7], a larger needle cross section area [7], a larger crown, and a higher foliage density [6]. Changes in LMA occur in response to drought stress [8,9]. LMA is a proxy for plant response to drought, and it is widely used in plant ecology and forestry studies [11]. Several studies found that species with a high LMA often occur in areas with low rainfall, high temperature, and high radiation [12,13,14]. Plants with a high LMA have a higher nitrogen content per surface area, and as a result they potentially have a higher photosynthetic capacity [15]. Allocation of biomass between roots and shoots is a key plant-adaptive strategy, differing between species, physiological stages, and ecological environments [10]. Extensive deep root growth, which enables increased water supply under water-limiting conditions, may be crucial for surviving the drought season [16,17,18,19].
The rate of plant growth is influenced by morphological and physiological traits. A decline in growth is a well-known response to drought [20,21]. A high relative growth rate (RGR) under water-limited conditions is a known adaptive trait in Mediterranean species that usually results in an extensive root system [22,23,24]. However, a low RGR may also imply resistance to drought [25,26,27], and may result from allocating more resources to below-ground growth than to above-ground growth [28] or as a result of conservative water use strategy [29,30,31].
Among the physiological changes that occur in response to a changing environment, stomatal conductance (gsc) and transpiration rate (E) were shown to be indicators of drought response [32,33,34,35]. These parameters allow the estimation of the gas exchange between the plant and the atmosphere. Gas exchange parameters and weight change are used to calculate the water use efficiency (WUE), which is a proxy for the amount of water used for growth. Fluctuations in stomatal conductance occur following the opening or closure of the stomata. Open stomata allow high photosynthesis and transpiration. A high transpiration rate results from a high atmospheric demand and a high water availability. The plant starts to sense drought stress when the root water influx is lower than the leaf water outflux [36,37]. At this stage, a balance between water loss and the need for photosynthesis is achieved by regulating the stomatal aperture. Plant species vary in strategies to regulate the internal water balance at the expense of carbohydrate assimilation [30,38,39,40,41,42]. However, all plants reach a physiological stress point (θ) at which the plant starts closing stomata to minimize water loss. The physiological stress point is expressed by the soil water content value, which limits transpiration [37,38,43]. Water-saver species prevent damage by stomatal closure before any change in leaf water potential takes place, whereas water-spender species exhibit a decrease in leaf water potential, which is compensated by increased water uptake from the soil to compensate for the water loss [29].
Adaptation to drought through genetic change is a slow process that may be inadequate for coping with the speed and magnitude of climate change [44]. However, interspecific hybrids have been postulated to adapt to a wide range of environments due to their greater heterozygosity and their potential ability to buffer different kinds of environmental stressors [45]. Therefore, hybrids have the potential of playing a role in adaptation to the climate change [46,47].
Pinus brutia Ten. and Pinus halepensis Mill. are the two dominant Mediterranean conifers that are extensively used for afforestation in water limited environments [48]. The two species were planted throughout Israel over the second half of the previous century [49,50]. It was observed that P. brutia × P. halepensis hybrids occur in some P. brutia plantations [49,50,51,52]. In a previous study, we reported that the hybrid vigor was greater than that of P. brutia, and that this phenomenon was more prominent in the semi-arid region than in the sub-humid region of Israel [52]. Therefore, we hypothesized that these hybrids possess distinguishing traits allowing them to cope with drought better than their parental species. To test this hypothesis, we examined various morphological and physiological traits of rooted cuttings of P. brutia, P. halepensis, and their hybrids grown under controlled environments to identify factors related to drought resistance.

2. Materials and Methods

2.1. Plant Material and Vegetative Propagation

Verified 6- to 8-year-old mother trees were selected for vegetative propagation. Shoots were harvested in January 2019 and were used for vegetative propagation by rooted cuttings as described by Riov et al. [53]. Briefly, apical cuttings 15- to 20-cm-long were collected from the upper part of the trees and stored at 4 °C under humid conditions. After four weeks, the base of the cuttings was dipped in a rooting solution containing 5 ppm of 2-(2,4dichlorophenoxy)propionic acid-glycine methyl ester conjugate, 400 ppm of indole-3-butyric acid (IBA), and 0.025% Amistar fungicide (Syngenta) for 4 h. The cuttings were then placed in a rooting bed that contained vermiculite No. 3: styrofoam (1:1, v/v) medium heated to 25 °C, with intermittent mist applied every 12 min for 10 sec. Rooted cuttings were obtained after 6–8 weeks and transferred into separate small pots. We propagated 6 P. brutia trees, 6 P. halepensis trees, and 4 F1 vigorous hybrid trees, and from each mother tree we had 5–8 cuttings for replications. Trees were tested to verify their genotypes using markers that were developed in our laboratory [52]. All cuttings were grown in 3.9 L pots filled with a growing medium of peat: perlite (80:20, v/v) containing 1.5 g/L Osmocote slow-release fertilizer (Even Ari Green, Beit-Elazari, Israel). The cuttings were grown for 18 months under optimal conditions before being subjected to the drought experiment. Height and stem basal diameter were measured once a month.

2.2. Morphological Traits and Anatomy

Samples for plant, root, and needle dry weight (DW) were oven dried for 48 h at 65 °C before weighing.
Leaf mass per area (LMA) was determined by collecting 10 fresh needles from each plant that were scanned for surface area and then oven dried for 48 h and weighed [54].
Stem volume was calculated using the formula V = 0.428753 d2.054628 h0.843735, in which d = diameter basal area and h = height [55].
Relative growth rate (RGR) was calculated from the difference in stem volume (V) between March 2020 (t1) and September 2020 (t2), according to the following equation: R G R = l n V 2 − l n V 1 t 2 − t 1 .
Xylem cross-sectional area was measured in 2-cm-long stem segments sampled from each rooted cutting. The segments were then fixed and sectioned transversely using a sliding microtome SM2010R (Leica Biosystems, Deer Park, IL, USA). Cross sections of 50 µm thickness were stained with 0.1% toluidine blue O for 30 sec and then washed with distilled water.
Needle dimensions were evaluated by anatomical analysis. Fresh needles were first fixed in a solution containing 3.7% formaldehyde, 5% glacial acetic acid, 50% ethanol, and water (FAA) overnight, and then dehydrated by increasing ethanol concentrations (70%, 80%, 90%, and 100%, 30 min each), followed by increasing Histoclear solutions (25%, 50%, 75%, 100%, 60 min each) (Kaltek, K-clear) before embedding in paraffin. Cross sections were obtained by using a Microtome RM2245 (Leica Biosystems, Deer Park, IL, USA), and stained with safranin and fast green [56].
The sectioned material (xylem and needles) was examined using a NIKON Eclipse Ni microscope, and digital images were taken using a Nikon DS-Ri2 camera (Tokyo, Japan). All image measurements, needle length, leaf surface area, needle cross-sectional area, and tracheid lumen area were made using IMAGEJ (http://rsb.info.nih.gov/ij accessed on 15 November 2020).

2.3. Drought Experiment

The plants (18-month-old rooted cuttings) were acclimatized in the experimental greenhouse for one month prior to the drought experiment and measured for height and stem basal diameter. To determine the fresh weight (FW) of the plants entering the experiment, we calculated the correlation between the stem basal area and the total plant FW. The FW was measured in plants representing the two parental species and their hybrids (25 plants in total). The resulting equation (R2 = 0.6, y = 399.63x + 21.62) was then used to calculate the initial FW of each plant in the drought experiment.
The drought experiment included 36 plants: six different P. halepensis genotypes, six different P. brutia genotypes, and 24 plants representing four different hybrids (six rooted cuttings of each hybrid). The drought experiment was carried out for 45 days, starting at the beginning of September 2020 in a greenhouse of the iCORE Center, Faculty of Agriculture, Rehovot, Israel [37,43,57,58]. During the first 7 days, the plants were watered every day at 4:00 am up to field capacity, which corresponded to 60% soil water content (SWC). The drought treatment was initiated on the eight day and continued for the following three weeks, during which the water supply was gradually reduced. There was a significant difference in the plant weights at the beginning of the experiment (381–775 gm), with some plants having twice the weight of the others. P. brutia plants had the highest weight, and the hybrids had the lowest weight. To enable a standard drought treatment (i.e., a similar drying rate for all plants), drought scenarios were automatically controlled via the Plantarray’s system’s feedback-irrigation controller (Plantarray, PA 3.0, PlantDitech Ltd., Yavne, Israel) [59]. The plants were irrigated individually each day with a water content equal to the daily water loss through transpiration minus 100 mL. After three weeks of the drought treatment, when the SWC reached 5%, irrigation was resumed to full field capacity, and the plants were allowed to recover for the following 17 days, i.e., up to the end of the experiment.

2.4. Physiological Measurements

Using the functional telemetric platform, comprised of weighing lysimeters and soil and atmospheric sensors (Plantarray, PA 3.0, PlantDitech Ltd., Yavne, Israel), we continuously monitored the plant water balance by controlled tracking and measurement of the transpiration as described in Dalal et al. 2020 [57]. The plants were grown in the experimental greenhouse under semi-controlled conditions (natural daylight and a ventilating system) from the beginning of September 2020 up to mid-October 2020. The growing medium surface was covered with thin white plastic to minimize water loss from the medium. The weight of each pot was monitored every 30 s, and the average weight was calculated for each 3 min period and logged to a continuous data recorder. The data were processed using the SPAC analytics software embedded in the Plantarray system to calculate the whole-plant transpiration rate (E), the whole-canopy stomatal conductance (gsc), water-use efficiency (WUE), and the physiological critical stress point (θ) for each plant, which is defined as the SWC threshold at which the plant starts to assess stress and begins to close its stomata [37,57,59,60,61]. Temperature, ambient radiance, and vapor pressure deficit (VPD) in the greenhouse were continuously recorded. All data analyses of E and gsc were based on data collected at midday between 12:00 and 14:00, when the VPD was constant, and the solar radiation was at maximum. At the end of the experiment, the height, stem basal diameter, and the DW of the plant roots, stem, and needles were measured.
Predawn leaf water potential (ΨPD) during the experiment was measured by a Scholander-type pressure chamber (PMS, Corvallis, OR, USA) in order to relate the SWC to the ΨPD. Each data point plotted was from an average of three plants of the same source. ΨPD measurements began immediately after sample collection and was completed within 60 min. Samples were taken twice a week during drought stress from all plants.

2.5. Statistical Analysis

The data of the morphological and the physiological traits of P. halepensis, P. brutia, and hybrids were analyzed using one-way ANOVA. The normal distribution of errors was calculated using the Shapiro–Wilk W statistic test. For the homogeneity of variance, Levene’s and Bartlett’s tests were applied [62]. The assumptions of ANOVA were met. The Tukey–Kramer HSD test was used for post-hoc comparisons. To analyze the slopes and intercepts between ΨPD and SWC, the ΨPD measurements were converted to absolute values, then plotted logarithmically and analyzed using one-way ANOVA.

3. Results

3.1. Hybrids Exhibit Different Morphological and Growth Parameters from P. halepensis and P. brutia

RGR and DW of plants, branches, and needles of P. brutia and P. halepensis were significantly higher than those of the hybrids (Table 1). However, root-to-shoot ratio of the hybrids was higher than that of P. brutia and P. halepensis, but this difference was only significant for the hybrids versus P. halepensis. Hybrid needles were longer by 35% and 69% than those of P. brutia and P. halepensis, respectively. In addition, leaf surface area, needle cross section area, calculated needle volume, and LMA were significantly higher in the hybrids than in P. halepensis. P. brutia demonstrated intermediate, but not significantly different, values of needle surface area and needle cross section area compared to those of the hybrids and P. halepensis. No significant differences were found between the two species and the hybrids in terms of tracheid lumen area and coefficient of variation (CV), and the percentage of mesophyll area in the needle cross sections. WUE, calculated from the gravimetric system data (collected prior to the imposed drought stress), was significantly lower in the hybrids compared to those in P. brutia and P. halepensis.

3.2. Physiological Parameters in Response to Drought

During the drought experiment, the maximum daily VPD fluctuated between 1.76 and 3.85 kPa, and the maximum daily radiation fluctuated between 895 and 1150 µmol/m2/s (Figure 1a). At the beginning of the experiment, when SWC was about 60% (watering to field capacity) (Figure 1b), P. halepensis and P. brutia had a significantly higher daily transpiration rate than that of the hybrids (337, 367, and 190 g of water, respectively, Figure 1c). Under drought stress, P. halepensis lost water more rapidly (25.5 g/day) than P. brutia (19.4 g/day), whereas the hybrids lost the least water per day (9.6 g/day). At the beginning of the experiment, P. halepensis demonstrated significantly higher E (Figure 1d) and gsc (Figure 1e) than those of P. brutia and the hybrids. However, during the drought stress, the decline in both parameters started earlier and was steeper in P. halepensis (slopes were −0.0001 and −0.006 for E and gsc, respectively) than in P. brutia (slopes were −0.00005 and −0.0032 for E and gsc, respectively) and the hybrids (slopes were −0.00004 and −0.0034 for E and gsc, respectively). P. brutia and the hybrids showed similar behavior in these two parameters during the experiment. P. halepensis reached the minimum values of E and gsc on the 20th day of the experiment (after 14 days of reduced watering), whereas P. brutia and the hybrids reached the minimum values of E and gsc six days later, on the 26th day of the experiment. After 16 days of reduced irrigation, the SWC reached approximately 12%. All plants reached minimum E and gsc values (0.0001 and 0.004 gwater/gplant/min, respectively). Irrigation was resumed on day 29 for 17 days (Figure 1b). At the end of the recovery phase (day 45), the SWC was 55%, which is 91% of the initial value, while E was 41% of the initial values for P. halepensis and 54% for the hybrids and P. brutia. The gsc values were 20%, 29%, and 37% of the initial ones for P. halepensis, hybrids, and P. brutia, respectively.
The relationship between SWC and ΨPD, revealed a decline in the ΨPD when the SWC was below 38% for P. halepensis and the hybrids, whereas in P. brutia the ΨPD declined at 20% SWC (see regression lines in Figure 2). These results were in agreement with the SWC measurements in the lysimetric system (Figure 1), in which E and gsc declined when the SWC decreased below 40%. The same trend was observed for the critical stress point (θ) (Figure 3). In the hybrids, the θ was not significantly different from that of P. halepensis (44% and 37% SWC, respectively), whereas P. brutia had a significantly lower θ (30% SWC,). To examine whether the differences in ΨPD under conditions of low SWC were significant between P. brutia on one hand and P. halepensis and the hybrids on the other hand, we log transformed the two parameters and analyzed the slopes and intercepts between ΨPD and SWC. The data indicate that P. halepensis and the hybrids showed no significant differences in their slope values, whereas the P. brutia slope value was significantly lower (Table 1). The differences between the intercepts were also significant, with P. brutia being the highest, followed by the hybrids, and then by P. halepensis (Table 2).

4. Discussion

The current study focused on the comparison of morphological and physiological traits in rooted cuttings of P. halepensis, P. brutia, and their hybrids. The hybrids had a higher root-to-shoot ratio, a lower relative growth rate, longer and wider needles, and a higher LMA than both parental species. Under drought stress, the hybrids exhibited lower E and gsc, similar to P. brutia, and an early stomatal closure, similar to P. halepensis. Together, these results support our hypothesis that P. brutia × P. halepensis hybrids possess a unique combination of traits as compared to their parental species. Furthermore, their traits are advantageous in dry environments, particularly as compared to P. brutia.

4.1. Morphological Traits and Growth Parameters

Hybrids of P. brutia × P. halepensis are known for their relatively high vigor, particularly compared to that of P. brutia, as expressed in tree size, foliage density, cone length, needle length, and needle width [50,63,64]. In agreement with previous studies, the current study demonstrated that several morphological traits are distinct in the hybrids compared to P. halepensis and P. brutia. These traits include needle length, needle surface area, needle cross section area, needle volume, and LMA (Table 1). LMA is a highly plastic trait. Poorter et al. (2009) [11] found that LMA values differ significantly among terrestrial plant species, and generally range from 30 to 330 g/m2. The LMA values found in the current study were the highest in the hybrids, followed by P. brutia and P. halepensis (235, 183, and 145 g/m2, respectively. The data in the current study are in agreement with the findings of Climent et al. (2009) [65], who showed a low range of LMA values in P. brutia and P. halepensis. Species with a high LMA invest more resources in developing a higher resilient leaf tissue with a greater longevity rather than in a large leaf surface area for light capture [11]. Plant species with a high LMA have a higher capability for coping with adverse growing conditions, and often occur in unproductive dry habitats [11,14]. A high LMA is also correlated with high solar radiation [9]. As suggested in the above-mentioned reports, it is reasonable to assume that the relatively high LMA found in the hybrids in the current study might be an advantage to thrive in marginal lands characterized by low rainfall and high solar radiation.
Similar to their mother trees in the field, we expected that the hybrid rooted cuttings will grow more rapidly compared to P. halepensis and P. brutia. However, the overall size of the hybrid rooted cuttings was smaller than that of their parental species rooted cuttings (Table 1). Under a full (normal) irrigation regime, P. halepensis and P. brutia showed similar WUE, while their hybrids had a significantly lower WUE. The low WUE was in agreement with the relatively low RGR of the hybrids. In a previous study, Riov et al. (2020) [53] obtained rooted cuttings of P. halepensis trees that differ in their size in a forest stand located in a semi-arid region in Israel. Similar to the hybrid rooted cuttings, the cuttings from vigorous trees exhibited a slow growth under optimum environmental conditions, compared to that of rooted cuttings from relatively small trees. An explanation of this phenomenon could be that the higher LMA observed in the hybrids (Table 1) implies the allocation of more biomass to the leaves at the expense of stem growth [66]. In addition, the high root-to-shoot ratio indicates that the hybrids rooted cuttings allocate more biomass to their roots, probably at the expense of shoot growth at this stage. Both of these phenomena may reflect the well-known tradeoff between stress resistances versus competitiveness of plant species, as proposed by various previous studies [67,68,69]. We assume that this explanation might be relevant for the hybrids in the current study.
High root-to-shoot ratio is an advantage in environments with seasonal droughts, such as occurring in Mediterranean ecosystems [19,70]. Deep and extensive root systems help to maintain the water balance in trees [24,71]. High root-to-shoot ratio also supports the demand for nutrients, thus promoting the growth of plants in habitats with poor resources [16,17]. There are several studies that demonstrated the advantage of high root-to-shoot ratio especially in young seedlings of Mediterranean shrubs [70] and trees [19,72]. In the current study, we used rooted cuttings and not seedlings. Although Frampton et al. (2000) [73] showed a similar growth pattern between loblolly pine (Pinus taeda L.) rooted cuttings from juvenile plants to that of full-sib seedlings, we did not compare seedling growth in this study. To draw conclusions about the contribution of the root-to-shoot ratio to hybrid seedling establishment in the field, it would be necessary to germinate seeds and then genotype the naturally occurring hybrids or directly pollinated P. brutia cones by P. halepensis.
Although the hybrid needle DW was relatively low, the hybrids showed a higher LMA (Table 1). The needles had the same proportion of mesophyll in the needle cross section in the hybrids and the parental species. The hybrid plants were significantly smaller than P. halepensis and P. brutia, their shoot weight and their total needle dry weight were also significantly lower. When calculating the needle DW percentage of the total shoot DW, the hybrids had the highest percentage compared to P. brutia and P. halepensis (68%, 60%, and 54%, respectively). Again, it is evident that the hybrids allocate more resources to their needles on the expense of growth. This allocation of biomass both to the roots and to the needles may result in a plant more resilient to drought; however, further research is needed to support this assumption.

4.2. Physiological Response to Drought Stress and Recovery

To the best of our knowledge, the current study is the first to report a comparison of physiological characteristics in response to drought stress between P. halepensis and P. brutia. Before the initiation of drought stress, the daily transpiration of P. brutia plants was higher than that of P. halepensis due to their higher biomass. However, when normalizing the transpiration to the plant weight, P. halepensis demonstrated higher E and gsc than those of P. brutia. The higher E and gsc could be a result of higher stomatal density or stomatal opening; however, these parameters were not examined in the current study. It was shown that a relatively high E under soil field capacity conditions (Emax) characterizes spender versus water-saver plants [38]. In addition, E and gsc are known to be positively correlated with photosynthetic capacity [74], suggesting a higher assimilation and thus a faster growth in P. halepensis when water is available. Upon drought stress, P. halepensis reduced stomata conductance earlier than P. brutia, suggesting that P. halepensis is more sensitive to reduction in SWC than P. brutia (Figure 3). Indeed, P. halepensis was shown to have a similar behavior in previous studies [34,75], which led to an increased survival rate during drought at the cost of lower biomass production [41]. In regions with a short rainy season, high E and gsc and early stomatal closure are advantageous. Trees that maintain high growth rates for longer periods during drought due to a late stomatal closure are exposed to a greater risk of drought-induced mortality if the drought persists for a long period [37,39,43]. P. brutia is naturally distributed in areas characterized by a stable and wetter climate conditions compared to those in the semi-arid region of Israel [76]. This can explain the risk to which P. brutia might be exposed in semi-arid regions by keeping its stomata open for longer periods and reaching a lower θ point, as it is less adapted to very long dry periods.
ΨPD is commonly used as a proxy for pre-dawn soil water potential (Ψsoil) [42,77]. The current study did not detect differences in ΨPD between P. halepensis and P. brutia at high SWC. However, at low SWC (<40%), the differences in ΨPD were notable (Figure 2). The rate of ΨPD reduction at a low SWC in P. brutia was significantly lower than that of P. halepensis (Table 2). In agreement with these results, Gu et al. (2015) [77] reported that when trees were well hydrated, all species had similar ΨPD, but under dry conditions, different tree species exhibited different ΨPD [77]. P. bruita seemed to be less responsive than P. halepensis to the reduction in SWC and maintained a higher ΨPD at low SWC (Figure 2). These data are in agreement with the differences between P. halepensis and P. brutia in the reduction in E and gsc at low ΨPD. The present results are similar to those reported by Grunwald and Schiller (1988) [78], who showed that the midday water potential (ΨMD) of P. halepensis was more negative than that of P. brutia growing in the same stand located in the Mediterranean region.
Compared to the two parental species, their hybrids showed an intermediate behavior. Their E and gsc at high SWC were similar to those of P. brutia, while their θ and ΨPD regulation was similar to those of P. halepensis. In addition to the low water loss, the hybrids demonstrated a high sensitivity to the reduction of SWC, i.e., an early stomatal closure upon drought. These characteristics may indicate a unique water use strategy which is different from both of their parental species.
Although the SWC was almost fully restored at the end of the recovery stage, the gsc and E did not return to their initial values in all the plants examined (Figure 1d,e). According to the gsc and E measurements, the stomata were at their minimum conductance for 5 to 7 days before re-watering. Severe drought stress can lead to loss of stem hydraulic conductivity due to cavitation and embolism in the xylem [79]. Real-time native embolism measurements, using a new optic method, demonstrated the occurrence of embolism in P. halepensis growing in a semi-arid forest when the SWC decreased to 12% in the summer [80]. In pines, recovery from embolism requires the development of a new sapwood [71,81]. Brodribb et al. (2010) showed that lethal water potential was correlated with a tension producing a 50% loss of stem hydraulic conductivity (Ψ50) in Callitris spp. [82]. A study of seven populations of Pinus hartwegii and another 513 genotypes of Pinus pinaster showed a low genetic variation of Ψ50 between climatically contrasting populations and a very limited phenotypic plasticity [83,84]. These results suggest that Ψ50 is a relatively stable trait in pines. When studying the relationship between ΨPD and SWC, P. halepensis was shown to close its stomata at a water potential between −3 to −4 MPa, close to the water potential at which it experiences 50% loss of conductivity due to embolism [85]. Thus, it is likely that the plants in the current study experienced severe embolism. Brodribb and Cochard (2009) [81] found strong evidence in four conifer species that hydraulic limitation explains the reduction in gas-exchange rate during recovery from drought stress. As previous studies have suggested [81,82], we expect that full recovery of gsc and E will be achieved only following development of a new sapwood.

5. Conclusions

To the best of our knowledge, the current study is the first report of a direct comparison of morphological traits, growth parameters, and physiological response to drought stress between P. halepensis, P. brutia, and their hybrids. It was found that P. brutia × P. halepensis hybrids that were more vigorous than their neighboring P. brutia trees in several stands (i.e., vigorous hybrids) [52] are characterized by a unique combination of traits that can explain their vigor, particularly in semi-arid regions. It is well known that drought resistance, as well as vigorous growth, result from a combination of several traits rather than from a single dominant trait. Subsequently, we suggest that P. brutia × P. halepensis hybrids may contribute to the genetic diversity and resilience of east-Mediterranean semi-arid forests undergoing climate change. We believe that this topic should be further studied for a better understanding of this phenomenon and the development of genetic improvement programs.

Author Contributions

Conceptualization, N.H., R.D.-S., Y.O. and J.R.; Methodology, J.R. and M.M.; Software, M.M.; Formal Analysis, N.H.; Investigation, N.H.; Resources, R.D.-S. and J.R.; Data Curation, N.H.; Writing—Original Draft Preparation, N.H.; Writing—Review and Editing, R.D.-S., Y.O. and J.R.; Supervision, R.D.-S., Y.O.F and J.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by research grant 1227 from KKL—JNF, Keren Kayemeth LeIsrael—Jewish National Fund.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank Philip Rosen for proofreading.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barredo, J.I.; Mauri, A.; Caudullo, G.; Dosio, A. Assessing shifts of Mediterranean and arid climates under RCP4.5 and RCP8.5 climate projections in Europe. Pure Appl. Geophys. 2018, 175, 3955–3971. [Google Scholar] [CrossRef]
  2. Cramer, W.; Guiot, J.; Fader, M.; Garrabou, J.; Gattuso, J.; Iglesias, A.; Lange, M.; Lionello, P.; Llasat, C.; Paz, S. Climate change and interconnected risks to sustainable development in the Mediterranean. Nat. Clim. Chang. 2018, 8, 972–980. [Google Scholar] [CrossRef]
  3. Allen, C.D.; Macalady, A.K.; Chenchouni, H.; Bachelet, D.; Mcdowell, N.; Vennetier, M.; Kitzberger, T.; Rigling, A.; Breshears, D.D.; Hogg, E.H.T.; et al. A global overview of drought and heat-induced tree mortality reveals emerging climate change risks for forests. For. Ecol. Manag. 2010, 259, 660–684. [Google Scholar] [CrossRef]
  4. Anderegg, W.R.L.; Hicke, J.A.; Fisher, R.A.; Allen, C.D.; Aukema, J.; Bentz, B.; Hood, S.; Lichstein, J.W.; Macalady, K.; Mcdowell, N.; et al. Tree mortality from drought, insects, and their interactions in a changing climate. New Phytol. 2015, 208, 674–683. [Google Scholar] [CrossRef]
  5. Sánchez-Salguero, R.; Navarro-Cerrillo, R.M.; Camarero, J.J.; Fernández-Cancio, A. Drought-induced growth decline of Aleppo and Maritime pine forests in south-eastern Spain. For. Syst. 2010, 19, 458–469. [Google Scholar] [CrossRef]
  6. Dobbertin, M.; Eilmann, B.; Bleuler, P.; Giuggiola, A.; Pannatier, E.G.; Landolt, W.; Schleppi, P.; Rigling, A. Effect of irrigation on needle morphology, shoot and stem growth in a drought-exposed Pinus sylvestris forest. Tree Physiol. 2010, 30, 346–360. [Google Scholar] [CrossRef]
  7. Grill, D. Effects of drought on needle anatomy of Pinus canariensis. Flora-Morphol. Distrib. Funct. Ecol. Plants 2004, 199, 85–89. [Google Scholar] [CrossRef]
  8. John, G.P.; Scoffoni, C.; Buckley, T.N.; Villar, R.; Poorter, H.; Sack, L. The anatomical and compositional basis of leaf mass per area. Ecol. Lett. 2017, 20, 412–425. [Google Scholar] [CrossRef]
  9. Temesgen, H.; Weiskittel, A.R. Leaf mass per area relationships across light gradients in hybrid spruce crowns. Trees-Struct. Funct. 2006, 20, 522–530. [Google Scholar] [CrossRef]
  10. Qi, Y.; Wei, W.; Chen, C.; Chen, L. Plant root-shoot biomass allocation over diverse biomes: A global synthesis. Glob. Ecol. Conserv. 2019, 18, e00606. [Google Scholar] [CrossRef]
  11. Poorter, H.; Niinemets, Ü.; Poorter, L.; Wright, I.J.; Villar, R. Causes and consequences of variation in leaf mass per area (LMA): A meta-analysis. New Phytol. 2009, 182, 565–588. [Google Scholar] [CrossRef] [PubMed]
  12. Niinemets, U. Global-scale climatic controls of leaf dry mass per area, density, and thickness in trees and shrubs. Ecology 2001, 82, 453–469. [Google Scholar] [CrossRef]
  13. Villar, R.; Merino, J. Comparison of leaf construction costs in woody species with differing leaf life-spans in contrasting ecosystems. New Phytol. 2001, 151, 213–226. [Google Scholar] [CrossRef] [PubMed]
  14. De Riva, E.G.; Olmo, M.; Poorter, H.; Ubera, J.L.; Villar, R. Leaf mass per Area (LMA) and its relationship with leaf structure and anatomy in 34 Mediterranean woody species along a water availability gradient. PLoS ONE 2016, 11, e0148788. [Google Scholar] [CrossRef]
  15. Niinemets, Ü. Components of leaf dry mass per area—Thickness and density—Alter leaf photosynthetic capacity in reverse directions in woody plants. New Phytol. 1999, 144, 35–47. [Google Scholar] [CrossRef]
  16. Agathokleous, E.; Belz, R.G.; Kitao, M.; Koike, T.; Calabrese, E.J. Does the root to shoot ratio show a hormetic response to stress? An ecological and environmental perspective. J. For. Res. 2019, 30, 1569–1580. [Google Scholar] [CrossRef]
  17. Ledo, A.; Paul, K.I.; Burslem, D.F.R.P.; Ewel, J.J.; Barton, C.; Battaglia, M.; Brooksbank, K.; Carter, J.; Eid, T.H.; Jacqueline, R.; et al. Tree size and climatic water deficit control root to shoot ratio in individual trees globally. New Phytol. 2018, 217, 8–11. [Google Scholar] [CrossRef]
  18. Liu, M.; Li, D.; Hu, J.; Liu, D.; Ma, Z.; Cheng, X.; Zhao, C.; Liu, Q. Altitudinal pattern of shrub biomass allocation in Southwest China. PLoS ONE 2020, 15, e0240861. [Google Scholar] [CrossRef]
  19. Cortina, J.; Green, J.J.; Baddeley, J.A.; Watson, C.A. Root morphology and water transport of Pistacia lentiscus seedlings under contrasting water supply: A test of the pipe stem theory. Environ. Exp. Bot. 2008, 62, 343–350. [Google Scholar] [CrossRef]
  20. Granda, E.; Gazol, A.; Julio, J. Functional diversity differently shapes growth resilience to drought for co-existing pine species. J. Veg. Sci. 2018, 29, 265–275. [Google Scholar] [CrossRef]
  21. Camarero, J.J.; Gazol, A.; Sangüesa-Barreda, G.; Cantero, A.; Sánchez-Salguero, R.; Sánchez-Miranda, A.; Granda, E. Forest growth responses to drought at short- and long-term scales in Spain: Squeezing the stress memory from tree rings. Front. Ecol. Evol. 2018, 6, 9. [Google Scholar] [CrossRef]
  22. Hilbert, D.W.; Canadell, J. Biomass partioning and resource allocation of plants from Mediterranean-type ecosystems: Possible responses to elevated atmospheric CO2. In Global Change and Meditettanean Type Ecosystems; Moreno, J.M., Oechel, W.C., Eds.; Springer US: New York, NY, USA, 1995; pp. 76–101. ISBN 9788578110796. [Google Scholar]
  23. Grotkopp, E.; Rejmánek, M.; Rost, T.L. Toward a causal explanation of plant invasiveness: Seedling growth and life-history strategies of 29 pine (Pinus) species. Am. Nat. 2002, 159, 396–419. [Google Scholar] [CrossRef] [PubMed]
  24. Galmés, J.; Cifre, J.; Medrano, H.; Flexas, J. Modulation of relative growth rate and its components by water stress in Mediterranean species with different growth forms. Ecophysiology 2005, 145, 21–31. [Google Scholar] [CrossRef] [PubMed]
  25. Bussotti, F. Functional leaf traits, plant communities and acclimation processes in relation to oxidative stress in trees: A critical overview. Glob. Chang. Biol. 2008, 14, 2727–2739. [Google Scholar] [CrossRef]
  26. Csilléry, K.; Buchmann, N.; Fady, B. Adaptation to drought is coupled with slow growth, but independent from phenology in marginal silver fir (Abies alba Mill.) populations. Evol. Appl. 2020, 13, 2357–2376. [Google Scholar] [CrossRef]
  27. Ouédraogo, D.; Mortier, F.; Gourlet-fleury, S.; Freycon, V.; Picard, N. Slow-growing species cope best with drought: Evidence from long-term measurements in a tropical semi-deciduous moist forest of Central Africa. J. Ecol. 2013, 101, 1459–1470. [Google Scholar] [CrossRef]
  28. Tumber-Dávila, S.J.; Schenk, H.J.; Du, E.; Jackson, R.B. Plant sizes and shapes above and belowground and their interactions with climate. New Phytol. 2022, 235, 1032–1056. [Google Scholar] [CrossRef]
  29. Baquedano, F.J.; Castillo, F.J. Comparative ecophysiological effects of drought on seedlings of the Mediterranean water-saver Pinus halepensis and water-spenders Quercus coccifera and Quercus ilex. Trees 2006, 20, 689–700. [Google Scholar] [CrossRef]
  30. De La Mata, R.; Merlo, E.; Zas, R. Among-population variation and plasticity to drought of Atlantic, Mediterranean, and interprovenance hybrid populations of Maritime pine. Tree Genet. Genomes 2014, 10, 1191–1203. [Google Scholar] [CrossRef]
  31. Corcuera, L.; Gil-Pelegrín, E.; Notivol, E. Differences in hydraulic architecture between mesic and xeric Pinus pinaster populations at the seedling stage. Tree Physiol. 2012, 32, 1442–1457. [Google Scholar] [CrossRef] [Green Version]
  32. Mcdowell, N.; Pockman, W.T.; Allen, C.D.; Breshears, D.D.; Codd, N.; Kolb, T.; Plaut, J.; Sperry, J.; West, A.; Williams, D.G.; et al. Mechanisms of plant survival and mortality during drought: Why do some plants survive while others succumb to drought? New Phytol. 2008, 178, 719–739. [Google Scholar] [CrossRef] [PubMed]
  33. Breda, N.; Huc, R.; Granier, A.; Dreyer, E. Temperate forest trees and stands under severe drought: A review of ecophysiological responses, adaptation processes and long-term consequences. Ann. For. Sci. 2006, 63, 625–644. [Google Scholar] [CrossRef]
  34. Klein, T.; Shpringer, I.; Fikler, B.; Elbaz, G.; Cohen, S.; Yakir, D. Relationships between stomatal regulation, water-use, and water-use efficiency of two coexisting key Mediterranean tree species. For. Ecol. Manag. 2013, 302, 34–42. [Google Scholar] [CrossRef]
  35. Sperlich, D.; Chang, C.T.; Peñuelas, J.; Sabaté, S. Responses of photosynthesis and component processes to drought and temperature stress: Are Mediterranean trees fit for climate change? Tree Genet. Genomes 2019, 39, 1783–1805. [Google Scholar] [CrossRef] [PubMed]
  36. Taiz, L.; Zeiger, E. Water and Plant Cell. In Plant Physiology; Sinauer Associates, Inc.: Sunderland, MA, USA, 2010; pp. 80–81. [Google Scholar]
  37. Halperin, O.; Gebremedhin, A.; Wallach, R.; Moshelion, M. High-throughput physiological phenotyping and screening system for the characterization of plant—Environment interactions. Plant J. 2017, 89, 839–850. [Google Scholar] [CrossRef] [PubMed]
  38. Moshelion, M.; Halperin, O.; Wallach, R.; Oren, R.; Way, D.A. Role of aquaporins in determining transpiration and photosynthesis in water-stressed plants: Crop water-use efficiency, growth and yield. Plant Cell Environ. 2015, 38, 1785–1793. [Google Scholar] [CrossRef]
  39. Bhusal, N.; Lee, M.; Lee, H.; Adhikari, A.; Reum, A.; Han, A.; Seok, H. Science of the total environment evaluation of morphological, physiological, and biochemical traits for assessing drought resistance in eleven tree species. Sci. Total Environ. 2021, 779, 146466. [Google Scholar] [CrossRef] [PubMed]
  40. Hummard, R.M.; Ryan, M.G.; Stiller, V.; Sperry, J.S. Stomatal conductance and photosynthesis vary linearly with plant hydraulic conductance in Ponderosa pine. Plant Syst. Evol. 2001, 24, 113–121. [Google Scholar] [CrossRef]
  41. Sade, N.; Gebremedhin, A.; Moshelion, M. Risk-taking plants anisohydric behavior as a stress-resistance trait. Plant Signal. Behav. 2012, 7, 767–770. [Google Scholar] [CrossRef] [PubMed]
  42. Hochberg, U.; Rockwell, F.E.; Holbrook, N.M.; Cochard, H. Iso/Anisohydry: A plant—Environment interaction rather than a simple hydraulic trait. Trends Plant Sci. 2018, 23, 112–120. [Google Scholar] [CrossRef]
  43. Attia, Z.; Domec, J.C.; Oren, R.; Way, D.A.; Moshelion, M. Growth and physiological responses of isohydric and anisohydric poplars to drought. J. Exp. Bot. 2015, 66, 4373–4381. [Google Scholar] [CrossRef] [PubMed]
  44. Hoffmann, A.A.; Sgro, C.M. Climate change and evolutionary adaptation. Nature 2011, 470, 479–485. [Google Scholar] [CrossRef] [PubMed]
  45. Dungey, H.S. Pine hybrids—A review of their use performance and genetics. For. Ecol. Manag. 2001, 148, 243–258. [Google Scholar] [CrossRef]
  46. Bush, D. Long-term research reveals potential role of hybrids in climate-change adaptation. A commentary on ‘Expansion of the rare Eucalyptus risdonii under climate change through hybridisation with a closely related species despite hybrid inferiority’. Ann. Bot. 2022, 129, i–iii. [Google Scholar] [CrossRef] [PubMed]
  47. Kremer, A.; Potts, B.M.; Delzon, S. Genetic divergence in forest trees: Understanding the consequences of climate change. Funct. Ecol. 2014, 28, 22–36. [Google Scholar] [CrossRef]
  48. Chambel, M.R.; Climent, J.; Pichot, C.; Ducci, F. Mediterranean pines (Pinus halepensis Mill. and brutia Ten.). In Forest Tree Breeding in Europe. Managing Forest Ecosystems; Pâques, L., Ed.; Springer: Dordrecht, The Netherlands, 2013; pp. 229–265. ISBN 978-94-007-6146-9. [Google Scholar]
  49. Korol, L.; Shklar, G.; Schiller, G. Diversity among circum-Mediterranean populations of Aleppo pine and differentiation from Brutia pine in their isoenzymes: Additional results. Silvae Genet. 2001, 51, 35–41. [Google Scholar]
  50. Korol, L.; Madmony, A.; Riov, J.; Schiller, G. Pinus halepensis × Pinus brutia subsp. brutia hybrids? Identification using morphological and biochemical traits. Silvae Genet. 1995, 44, 186–190. [Google Scholar]
  51. Madmony, A.; Schiller, G.; Moshe, Y.; Tsabary, G.; Mendel, Z.; Riov, J. Controlled and open pollination between Pinus brutia (Ten.) and Pinus halepensis (Mill.) in Israel and hybrid performance. Isr. J. Plant Sci. 2003, 51, 213–222. [Google Scholar] [CrossRef]
  52. Houminer, N.; Doron-faigenboim, A.; Shklar, G.; La Torre, A.R.D.; Neale, D.; Korol, L.; Ashkenazi, M.; Moshe, Y.; Riov, J.; Osem, Y.; et al. Transcriptome-based single-nucleotide polymorphism markers between Pinus brutia and Pinus halepensis and the analysis of their hybrids. Tree Genet. Genomes 2021, 17, 14. [Google Scholar] [CrossRef]
  53. Riov, J.; Fox, H.; Attias, R.; Shklar, G.; Farkash-Haim, L.; Sitbon, R.; Moshe, Y.; Abu-Abied, M.; Sadot, E.; David-Schwartz, R. Improved method for vegetative propagation of mature Pinus halepensis and its hybrids by cuttings. Isr. J. Plant Sci. 2020, 67, 5–15. [Google Scholar] [CrossRef]
  54. Andivia, E.; Madrigal-Gonzalez, J.; Villar-Salvador, P.; Zavala, M.A. Do adult trees increase conspecific juvenile resilience to recurrent droughts? Implications for forest regeneration. Ecosphere 2018, 9, e02282. [Google Scholar] [CrossRef]
  55. Kitikidou, K.; Milios, E.; Radoglou, K. Single-entry volume table for Pinus brutia in a planted peri-urban. Ann. Silvic. Res. 2017, 41, 78–83. [Google Scholar] [CrossRef]
  56. Johansen, D.A. Plant Microtechnique; McGraw-Hill Book: New York, NY, USA, 1940. [Google Scholar]
  57. Dalal, A.; Shenhar, I.; Bourstein, R.; Mayo, A.; Grunwald, Y.; Averbuch, N.; Attia, Z.; Wallach, R.; Moshelion, M. A High-Throughput gravimetric phenotyping platform for real-time physiological screening of plant–environment dynamic responses. BioRxiv 2020, 31, 927517. [Google Scholar] [CrossRef]
  58. Fox, H.; Doron-Faigenboim, A.; Kelly, G.; Bourstein, R.; Attia, Z.; Zhou, J.; Moshe, Y.; Moshelion, M.; David-Schwartz, R. Transcriptome analysis of Pinus halepensis under drought stress and during recovery. Tree Physiol. 2018, 38, 423–441. [Google Scholar] [CrossRef] [PubMed]
  59. Gosa, S.C.; Gebeyo, B.A.; Patil, R.; Mencia, R.; Moshelion, M. Diurnal stomatal apertures and density ratios affect whole-canopy stomatal conductance, water-use efficiency and yield. BioRxiv 2022. [Google Scholar] [CrossRef]
  60. Negin, B.; Moshelion, M. The advantages of functional phenotyping in pre-field screening for drought-tolerant crops. Funct. Plant Biol. 2017, 44, 107–118. [Google Scholar] [CrossRef]
  61. Dalal, A.; Shenhar, I.; Bourstein, R.; Mayo, A.; Grunwald, Y.; Averbuch, N.; Attia, Z.; Wallach, R.; Moshelion, M. A telemetric, gravimetric platform for real-time physiological phenotyping of plant–environment interactions. J. Vis. Exp. 2020, 162, e61280. [Google Scholar] [CrossRef]
  62. Conover, W.J.; Iman, R.L. Rank transformations as a bridge between parametric and nonparametric statistics. Am. Stat. 1981, 35, 124–129. [Google Scholar] [CrossRef]
  63. Dangasuk, O.G.; Panetsos, K.P. Altitudinal and longitudinal variations in Pinus brutia (Ten.) of Crete Island, Greece: Some needle, cone and seed traits under natural habitats. New For. 2004, 27, 269–284. [Google Scholar] [CrossRef]
  64. Panetsos, K.P. Natural hybridization between Pinus halapensis and Pinus brutia in Greece. Silvae Genet. 1975, 24, 163–168. [Google Scholar]
  65. Climent, J.; Costa e Silva, F.; Chambel, M.R.; Pardos, M.; Almeida, M.H. Freezing injury in primary and secondary needles of Mediterranean pine species of contrasting ecological niches. Ann. For. Sci. 2009, 66, 407. [Google Scholar] [CrossRef]
  66. Westoby, M.; Falster, D.S.; Moles, A.T.; Vesk, P.A.; Wright, I.J. Plant ecological strategies: Some leading dimensions of variation between species. Annu. Rev. Ecol. Syst. 2002, 33, 125–159. [Google Scholar] [CrossRef]
  67. Collet, C.; Guehl, J.; Frochot, H.; Ferhi, A. Effect of two forest grasses differing in their growth dynamics on the water relations and the growth of Quercus petraea seedlings. Can. J. Bot. 1996, 74, 1562–1571. [Google Scholar] [CrossRef]
  68. Newton, M.; Preest, D.S. Growth and water relations of Douglas Fir (Pseudotsuga menziesii) seedlings under different weed control regimes. Weed Sci. 1988, 36, 653–662. [Google Scholar] [CrossRef]
  69. Sands, R.; Nambiar, E.K.S. Water relations of Pinus radiata in competition with weeds. Can. J. For. Res. 1984, 14, 233–237. [Google Scholar] [CrossRef]
  70. Lloret, F.; Casanovas, C.; Peñuelas, J. Seedling survival of Mediterranean shrubland species in relation to root:shoot ratio, seed size and water and nitrogen use. Funct. Ecol. 1999, 13, 210–216. [Google Scholar] [CrossRef]
  71. Choat, B.; Brodribb, T.J.; Brodersen, C.R.; Duursma, R.A.; López, R.; Medlyn, B.E. Triggers of tree mortality under drought. Nature 2018, 558, 531–539. [Google Scholar] [CrossRef]
  72. Wang, T.; Aitken, S.N.; Kavanagh, K.L. Selection for improved growth and wood quality in lodgepole pine: Effects on phenology, hydraulic architecture and growth of seedlings. Trees-Struct. Funct. 2003, 17, 269–277. [Google Scholar] [CrossRef]
  73. Frampton, J.; Li, B.; Goldfarb, B. Early field growth of Loblolly pine rooted cuttings and seedlings. South. J. App. For. 2000, 24, 98–105. [Google Scholar] [CrossRef]
  74. Pallardy, S.G.; Cermak, J.; Ewers, F.W.; Kaufmann, M.R.; Parker, W.C.; Sperry, J.S. Water transport dynamics in trees and stands. In Resource Physiology of Conifers: Acquisition, Allocation, and Utilization; Smith, W.K., Hinckley, T.M., Eds.; Academic Press: San Diego, CA, USA, 1995; pp. 301–396. ISBN 0126528705. [Google Scholar]
  75. Klein, T.; Cohen, S.; Yakir, D. Hydraulic adjustments underlying drought resistance of Pinus halepensis. Tree Physiol. 2011, 31, 637–648. [Google Scholar] [CrossRef]
  76. Quezel, P. Taxonomy and biogeography of Mediterranean pines (Pinus halepensis and P. bruita). In Ecology, Biogeography and Management of Pinus halepensis and P. brutia Forest Ecosystems in the Mediterranean Basin; Ne’eman, G., Trabaud, L., Eds.; Backhuys Publishers: Leiden, The Netherlands, 2000; pp. 1–12. ISBN 9057820552. [Google Scholar]
  77. Gu, L.; Pallardy, S.G.; Hosman, K.P.; Sun, Y. Drought-influenced mortality of tree species with different predawn leaf water dynamics in a decade-long study of a central US forest. Biogeosiences 2015, 12, 2831–2845. [Google Scholar] [CrossRef]
  78. Grunwald, C.; Schiller, G. Needle xylem water potential and water saturation deficit in provenances of Pinus halepensis Mill. and P. brutia Ten. For. Méditerr. 1988, 10, 407–414. [Google Scholar]
  79. Vilagrosa, A.; Chirino, E.; Peguero-Pina, J.-J.; Barigah, S.T.; Cochard, H.; Gil-Pelegrín, E. Xylem cavitation and embolism in plants living in water-limited ecosystems. In Plant Responses to Drought Stress: From Morphological to Molecular Features; Springer: Hidelberg/Berlin, Germany, 2012; pp. 63–109. ISBN 9783642326530. [Google Scholar]
  80. Wagner, Y.; Feng, F.; Yakir, D.; Klein, T.; Hochberg, U. In situ, direct observation of seasonal embolism dynamics in Aleppo pine trees growing on the dry edge of their distribution. New Phytol. 2022, 235, 1344–1350. [Google Scholar] [CrossRef] [PubMed]
  81. Brodribb, T.J.; Cochard, H. Hydraulic failure defines the recovery and point of death in water-stressed conifers. Plant Physiol. 2009, 149, 575–584. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Brodribb, T.J.; Bowman, D.J.M.S.; Nichols, S.; Delzon, S.; Burlett, R. Xylem function and growth rate interact to determine recovery rates after exposure to extreme water deficit. New Phytol. 2010, 188, 533–542. [Google Scholar] [CrossRef] [PubMed]
  83. Lamy, J.; Loya-rebollar, E.; Lobit, P.; Delzon, S. Genetic variation of drought-induced cavitation resistance among Pinus hartwegii populations from an altitudinal gradient. Acta Physiol. Plant. 2013, 35, 2905–2913. [Google Scholar] [CrossRef]
  84. Lamy, J.; Delzon, S.; Bouche, P.S.; Alia, R.; Vendramin, G.G. Limited genetic variability and phenotypic plasticity detected for cavitation resistance in a Mediterranean pine. New Phytol. 2014, 201, 874–886. [Google Scholar] [CrossRef]
  85. David-Schwartz, R.; Paudel, I.; Mizrachi, M.; Delzon, S.; Cochard, H.; Lukyanov, V.; Badel, E.; Capdeville, G.; Shklar, G.; Cohen, S. Indirect evidence for genetic differentiation in vulnerability to embolism in Pinus halepensis. Front. Plant Sci. 2016, 7, 768. [Google Scholar] [CrossRef]
Forests 13 01477 g001 550

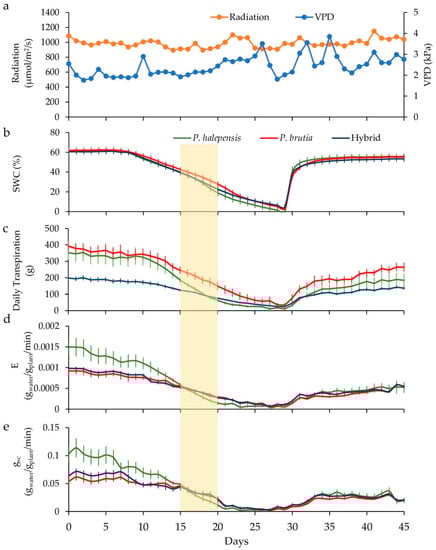

Figure 1. Environmental conditions during the drought experiment and the responses of P. halepensis (green), P. brutia (red), and their hybrids (blue) to drought stress during the 45 days of the experiment. (a) Maximum daily solar radiation and VPD, (b) soil water content (SWC), (c) daily transpiration, (d) midday whole-plant transpiration rate (E), (e) midday whole canopy stomatal conductance (gsc). The yellow column marks the start of the reduction in the leaf water potential (ΨPD) (Figure 2).
Figure 1. Environmental conditions during the drought experiment and the responses of P. halepensis (green), P. brutia (red), and their hybrids (blue) to drought stress during the 45 days of the experiment. (a) Maximum daily solar radiation and VPD, (b) soil water content (SWC), (c) daily transpiration, (d) midday whole-plant transpiration rate (E), (e) midday whole canopy stomatal conductance (gsc). The yellow column marks the start of the reduction in the leaf water potential (ΨPD) (Figure 2).
Forests 13 01477 g001
Forests 13 01477 g002 550

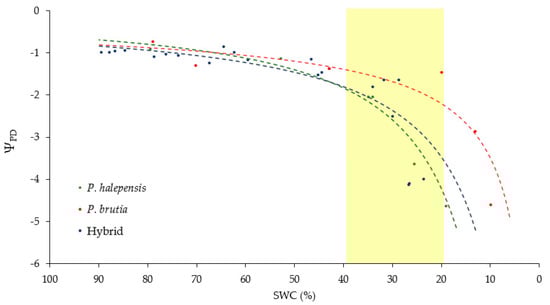

Figure 2. The relationship between soil water content (SWC) and plant predawn leaf water potential (ΨPD). The yellow region marks the range in which the plants started to reduce their leaf water potential. Each dot on the graph is an average of measurement of three different branches.
Figure 2. The relationship between soil water content (SWC) and plant predawn leaf water potential (ΨPD). The yellow region marks the range in which the plants started to reduce their leaf water potential. Each dot on the graph is an average of measurement of three different branches.
Forests 13 01477 g002
Forests 13 01477 g003 550

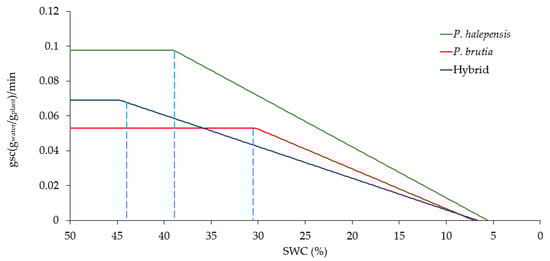

Figure 3. Midday maximum conductance of the whole canopy (gsc) as a function of soil water content (SWC) in P. halepensis (green), P. brutia (red), and their hybrids (blue). Light blue dashed lines indicate physiological critical stress points (θ).
Figure 3. Midday maximum conductance of the whole canopy (gsc) as a function of soil water content (SWC) in P. halepensis (green), P. brutia (red), and their hybrids (blue). Light blue dashed lines indicate physiological critical stress points (θ).
Forests 13 01477 g003
Table
Table 1. One-way ANOVA of the effect of P. halepensis, P. brutia, and their hybrids on morphological and growth parameters and on WUE. Data are the means of six plants of each of P. halepensis and P. brutia, and four hybrids ± standard error. Different superscript letters indicate significant differences between the various genotypes (p < 0.05).
Table 1. One-way ANOVA of the effect of P. halepensis, P. brutia, and their hybrids on morphological and growth parameters and on WUE. Data are the means of six plants of each of P. halepensis and P. brutia, and four hybrids ± standard error. Different superscript letters indicate significant differences between the various genotypes (p < 0.05).
R2p ValueP. halepensisP. brutiaHybrid
RGR (cm3/day)0.370.01860.014 a ± 0.0010.014 a ± 0.0010.011 b ± 0.001
Total plant DW (gr)0.580.0033203 a ± 19236 a ± 19107 b ± 24
Total branch DW (gr)0.570.003873 a ± 8.274 a ± 8.224.6 b ± 10
Root/Shoot ratio0.380.04640.28 b ± 0.0340.3 ab ± 0.030.4 a ± 0.034
Total needles DW (gr)0.500.011287 ab ± 10110 a ± 1052 b ± 12
Needle length (cm) 0.920.000216 c ± 0.9720 b ± 0.9727 a ± 0.84
Needle average area (cm2)0.580.04622 b ± 0.433.22 ab ± 0.433.76 a ± 0.37
Needle cross section (mm2) 0.630.03000.38 b ± 0.110.57 ab ± 0.110.86 a ± 0.09
Average needle volume (mm3)0.840.001655 b ± 2489 b ± 24233 a ± 21
Needle LMA (gr/m2) 0.840.0014145 c ± 11183 b ± 11235 a ± 9.6
Tracheid lumen area (μm2)0.320.2548180 a ± 20220 a ± 20177 a ± 17
Tracheid lumen area CV0.120.620026.3 a ± 328.5 a ± 330.4 a ± 2.6
% Mesophyll area in
needle cross section		0.050.82470.72 a ± 0.020.73 a ± 0.020.71 a ± 0.01
WUE0.420.03710.030 a ± 0.0030.032 a ± 0.0010.019 b ± 0.002
RGR, relative growth rate; DW, dry weight; LMA, leaf mass per area. CV, coefficient of variation; WUE, water use efficiency.
Table
Table 2. One-way ANOVA of the effect of P. halepensis, P. brutia, and their hybrids on the log-transformed values of ΨPD vs. SWC and their slopes and intercepts ± standard error. Different superscript letters indicate significant differences between the genotypes (p < 0.05).
Table 2. One-way ANOVA of the effect of P. halepensis, P. brutia, and their hybrids on the log-transformed values of ΨPD vs. SWC and their slopes and intercepts ± standard error. Different superscript letters indicate significant differences between the genotypes (p < 0.05).
P. halepensisP. brutiaHybrid
R20.9630.8250.77
p value0.00050.0123<0.0001
Slope1.2 a ± 0.120.66 b ± 0.150.94 a ± 0.12
Intercept−5.05 b ± 0.43−2.77 a ± 0.53−4.07 c ± 0.45
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Houminer, N.; Riov, J.; Moshelion, M.; Osem, Y.; David-Schwartz, R. Comparison of Morphological and Physiological Traits between Pinus brutia, Pinus halepensis, and Their Vigorous F1 Hybrids. Forests 2022, 13, 1477. https://doi.org/10.3390/f13091477

AMA Style

Houminer N, Riov J, Moshelion M, Osem Y, David-Schwartz R. Comparison of Morphological and Physiological Traits between Pinus brutia, Pinus halepensis, and Their Vigorous F1 Hybrids. Forests. 2022; 13(9):1477. https://doi.org/10.3390/f13091477

Chicago/Turabian Style

Houminer, Naomi, Joseph Riov, Menachem Moshelion, Yagil Osem, and Rakefet David-Schwartz. 2022. "Comparison of Morphological and Physiological Traits between Pinus brutia, Pinus halepensis, and Their Vigorous F1 Hybrids" Forests 13, no. 9: 1477. https://doi.org/10.3390/f13091477

APA Style

Houminer, N., Riov, J., Moshelion, M., Osem, Y., & David-Schwartz, R. (2022). Comparison of Morphological and Physiological Traits between Pinus brutia, Pinus halepensis, and Their Vigorous F1 Hybrids. Forests, 13(9), 1477. https://doi.org/10.3390/f13091477

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
