The Influence of Processing Conditions on the Quality of Bent Solid Wood from European Oak

Abstract

Bending of solid wood from European oak is one of the most demanding technological processes due to its specific structural and physical properties and variability. We investigated the influence of wood moisture content (MC) and stiffness, determined by NDT, as well as previous drying methods on the bending ability of the wood. The best quality was obtained with bending specimens bent at a moisture content of at least 16% and quarter- or semi-quartersawn. The number of rejected specimens increased slightly when HF bending was used. Single-stage predrying of oak to a final MC of 8% resulted in a high rejection rate (>70%) regardless of drying technique. The acceptance rate was higher for less stiff specimens where the ratio of ultrasonic velocity in the straight (v_S) and bent region (v_B) was less than 0.5 (v_B/v_S).

1. Introduction

European oak (Quercus robur L., Quercus petraea (Matt.) Liebl.) is an important commercial tree species and a widely used industrial wood for a variety of products such as veneers, furniture, interior and exterior structures, and many other items [1]. In modern production of solid oak furniture, the need for complex spatial shapes of furniture elements is common. In these cases, the reduced mechanical properties of the wood in the transverse direction can be a limiting technological and applicable factor. Difficulties in the production of complex 3D solid wood shapes also arise from the low material yield during sawing and from the demanding technological processing [2,3]. One solution that overcomes these limitations is solid oak bending.

Solid wood bending has been practiced for centuries, and the quality of the bending is judged by the proper deformation achieved without apparent failure of the wood [4]. Of particular interest in solid wood bending are the effects of creep and, to a lesser extent, relaxation. Creep is greatly enhanced by the absolute value of moisture content (MC) and by the changes in MC of the wood under bending load due to the mechanosorptive effect [5,6,7]. The rate and extent of mechanosorptive deformation correspond to the extent of MC changes and are usually independent of the time during which the MC changes occurred [8,9].

In the practice of commercial wood bending, moistened solid wood is usually bent at higher temperatures, which leads to a corresponding plasticity of the material [10]. It is assumed that under such conditions the glass transition temperature (T_g), at which the modulus of elasticity (MOE) decreases significantly, is exceeded for some or all of the basic polymeric constituents of the wood. The highest T_g in the dry state, above 200 °C, was found for cellulose, slightly lower, between 150 °C and 180 °C, for hemicelluloses, and below 150 °C for lignin [11,12]. However, several studies show that the transition from elastic to plastic mechanical behavior of wood occurs at temperatures well below 100 °C, especially at higher moisture contents [13,14]. Most explanations for this phenomenon state that the low-molecular-weight water molecules in wood act as diluents and plasticizers [7].

However, the correct MC of specimens before bending is controversial. Conditioning the material in the range of 12 to 25% MC covers most bending applications and methods [15]. Specific bending radii and severity of deformation may require different MCs, achieved by different drying and presteaming methods [16,17]. Heat and moisture plasticizing by presteaming increases the compressibility of the wood by up to 40% of the compressive strain, but has virtually no effect (up to 2%) on the tensile ductility of the wood [10,15,18]. The softening treatment shifts the neutral axis of the bent parts towards the convex side, which is axially stressed during bending. This shift significantly improves the bending deformation of the wood. In addition, a metal band with end stop is used, which is wrapped around the convex side of the sample, a method discovered by Thonet in 1856 [18].

Due to the wide variability of chemical, structural, and mechanical properties of wood species, the bending quality of wood varies, so selection is important. The highest bending quality is obtained with straight-grained pieces, free of crossgrain, of generally fast-growing and less dense species [18,19]. Some studies also report that ring-porous woods generally give better results than diffuse-porous woods. In practice, quartersawn lumber is preferred for bending, but some sources also indicate that flatsawn lumber bends better in severe bends [10,16,18].

In this study, we aimed to investigate the possibility of bending of European oak wood, which is less commonly used in industrial practice because of the good bending properties of other European hardwoods. We were particularly interested in the influence of wood moisture content and previous drying methods on the bending ability of the wood. We also wanted to see if it was possible to determine the quality of the bending using non-destructive techniques.

2. Materials and Methods

2.1. Sampling

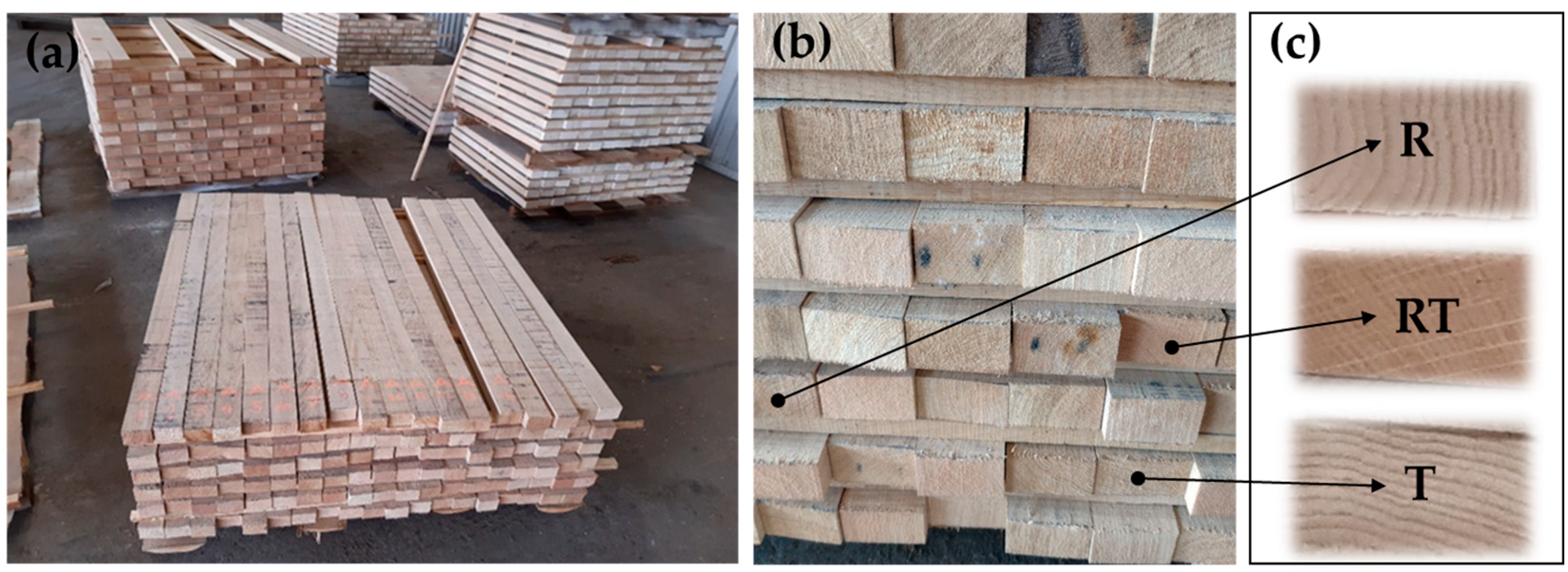

The European oak (Quercus robur L.) wood used in the study was obtained by sawing 1st-grade oak logs. The test pieces were 1300 mm long, 60 mm wide, and 38 mm thick and were straight-grained and sawn from heartwood. A total of 120 elements were taken from the mill’s own lumberyard (Spin Valis d.d., Požega, Croatia; N 45.338396°, E 17.690455°, 311 m a.s.l.), with 40% of the elements oriented radially (R; quartersawn) and semi-radially (RT) and 20% of the elements oriented tangentially (T; flatsawn) (Figure 1). The initial moisture content of the samples was 56.3% (St.dev. = 10.2%; St.dev.—Standard deviation).

2.2. Material Processing

2.2.1. Wood Drying

To optimize the organization of the industrial production process, 3 different sawnwood drying techniques were included in the study: air drying (AD), convection kiln drying (KD), and vacuum drying (VD). To achieve sufficiently short processing times, we have combined these available industrial drying techniques. We have tested the possibility of single-phase processing of oak elements to a final moisture content (MC) of 8% before bending (G₁, G₂) and two-phase processing (G₃, G₄). In the latter case, phase 1 is performed up to a wood MC of 16%, at which the wood was bent. For high wood MCs, only air drying and convection kiln drying were used, while for drying at low MCs (<16%), vacuum drying was additionally tested. By combining different drying techniques (AD, KD, VD) and the final MC achieved before the bending process (16% and 8%), 4 test groups (G₁…G₄) were formed (

Table 1. Classification into process groups (G₁…G₄) and treatment sequence of test oak samples, with target moisture content, before and/or after solid wood bending.

Test Group	Processing Procedure	No. of Samples
G1	Air drying (20…25%) → Kiln drying (8%) → Bending	30
G2	Kiln drying (20…25%) → Vacuum drying (8%) → Bending	30
G3	Kiln drying (16%) → HF Bending → Kiln drying (8%)	30
G4	Kiln drying (16%) → Bending → Kiln drying (8%)	30

).

Air drying of G₁ test samples took place in the first half of 2022 in the sawmill warehouse at the company’s site. The average drying temperature increased from 3 °C in January to 18 °C at the end of May 2022. Subsequently, the G₁ samples were conventionally dried in the kiln dryer at normal temperature (<45 °C) and moderate drying gradient (<2.5) until a target value of 8% MC was reached. The solid wood was then steamed and bent.

For the G₂ samples, standard convection kiln drying was performed at low temperature from the initial green state to 22% MC. These samples were then placed in a vacuum drying chamber where heat transfer was performed using the hot plate method. Vacuum drying was performed at a temperature as high as 70 °C and an absolute vacuum of nearly 100 mbar to achieve a final value of 8% MC. This was followed by steaming and bending of dried raw oak wood pieces.

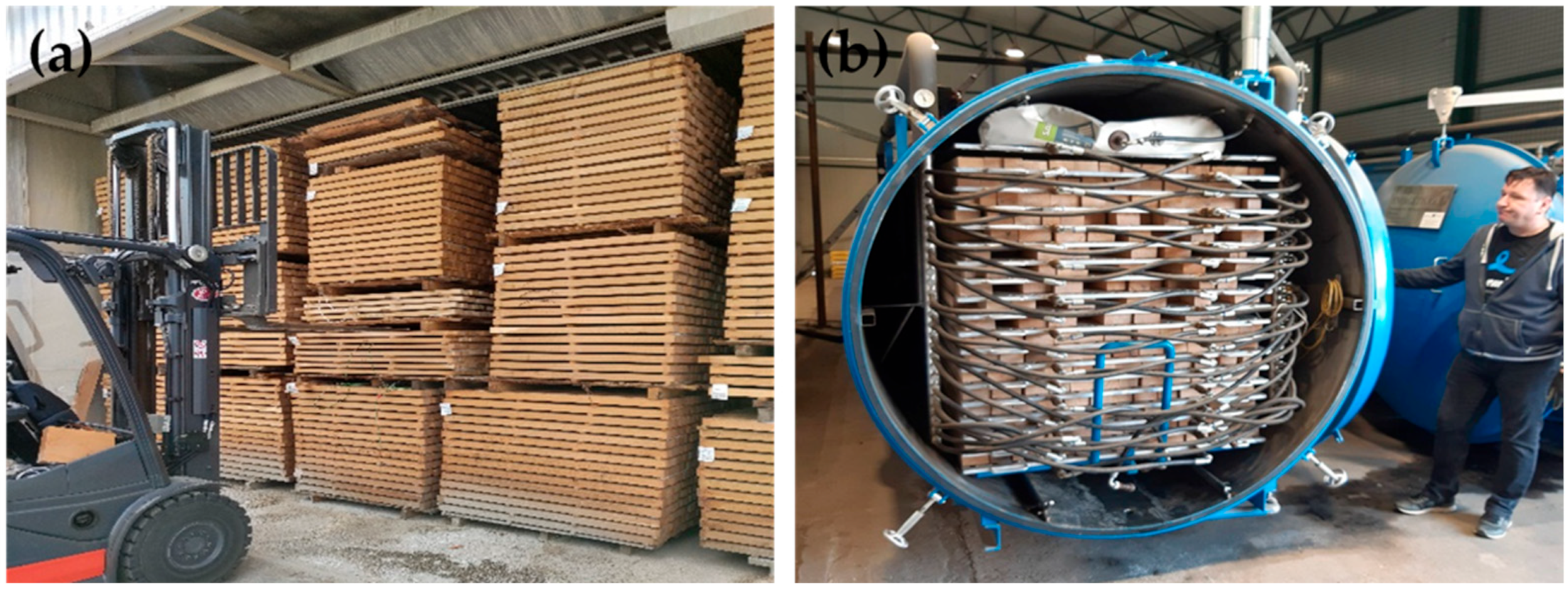

The samples in groups G₃ and G₄ were also kiln dried using the same drying equipment as for samples G₁ and G₂ (Figure 2a). However, the samples of groups G₃ and G₄ were dried in 2 stages. First, they were convection kiln-dried as raw elements at low temperature (following the same drying schedule as group G₂) until they had a final MC of 16%. The solid wood was then steamed and bent. The bent solid wood elements were then dried in the same kiln dryer at normal temperature to a final MC of 8%, as in G₁.

2.2.2. Solid Wood Steaming

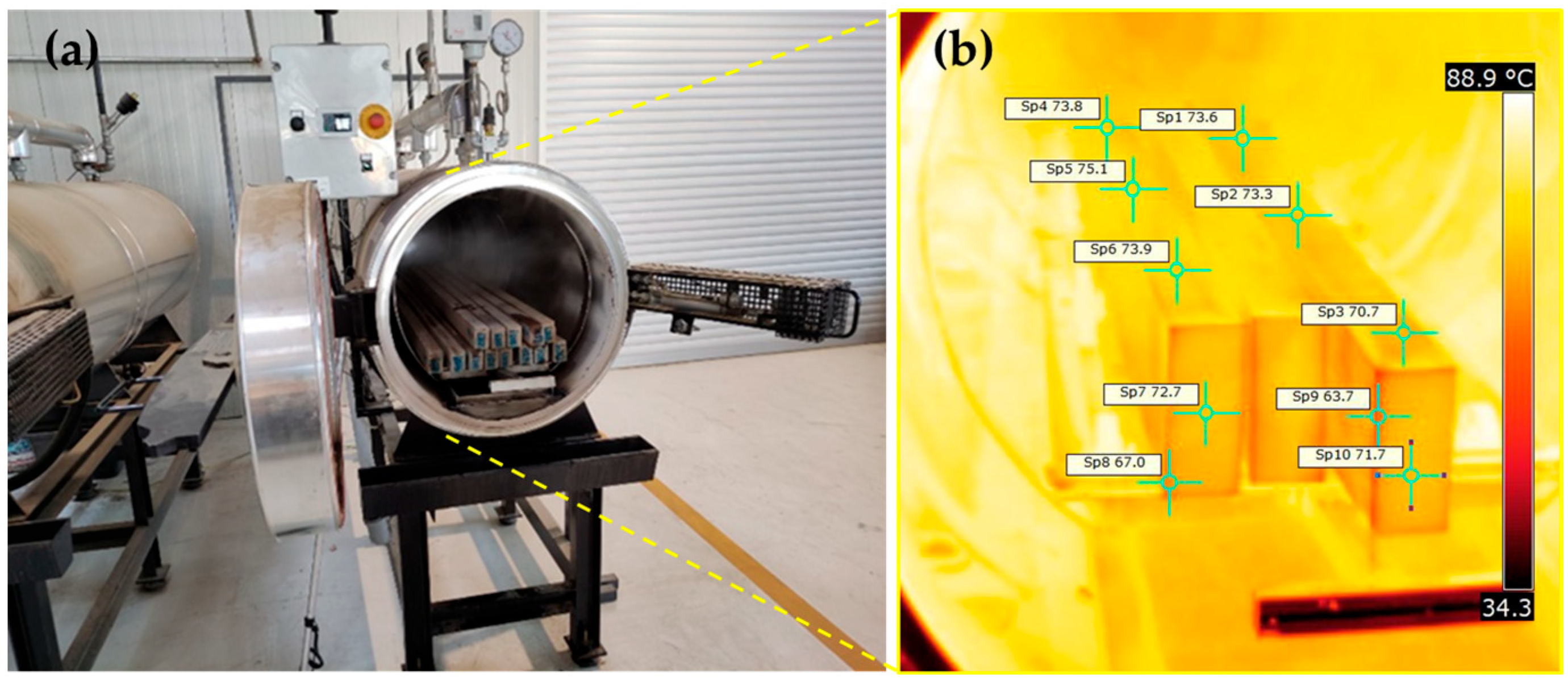

Before bending, the dried specimens were steamed. The specimens were placed in boilers heated with steam at 130 ± 3 °C and a pressure of 1.8 bar. The process took an average of 3.5 h (±0.5 h). The temperature at the end of steaming, just before the specimens were placed in the bending press, was checked with a non-contact thermal imaging camera (FLIR i60; FLIR Systems AB, Täby, Sweden). The surface temperature of the specimens was above 70 °C, while the temperature inside the specimens was even higher (Figure 3).

2.2.3. Solid Wood Bending

The bending of the oak specimens of groups G₁, G₂, and G₄ was carried out classically in the bending press using a metal belt with end stop on the convex side of the specimens. A mold with a center radius of 150 mm was used for bending. Three specimens each were placed in the press-bending mold. The angle between the two straight parts of the bent specimen was 105°, which corresponded to the desired geometry of the piece of furniture—the armchair (Figure 4). The pressing time was 30 min. Subsequently, the bent specimens were placed in stacks, either for further mechanical processing (G₁ and G₂) or for additional drying (G₄).

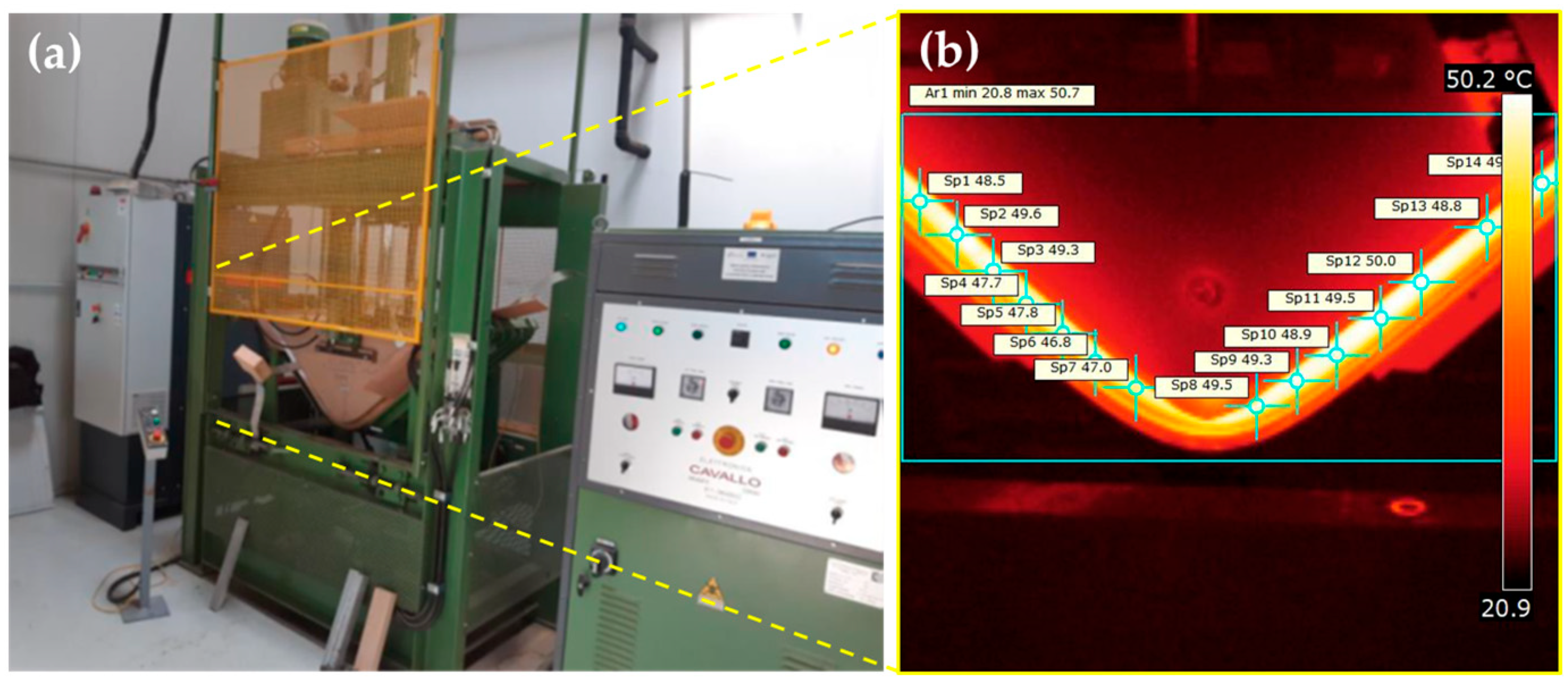

To increase productivity, G₃ samples were bent at high frequency (HF). Research on microwave drying of wood has been conducted since the early 1960s and is well-documented [20]. The same press and mold was used for HF bending as for conventional bending. With a 20 kW HF generator, the wood was bent at 10 MHz, heated, and finally dried to 8% MC. The pressing time was on average 30 min.

2.3. Quality Assessment of Bent Oak Elements

The quality of the bent oak was determined primarily visually. In the bending area, the tested specimens were carefully inspected in all planes. Bending was confirmed to be successful when the specimens showed no tensile cracks and failures on the convex side and a homogeneous structure on the concave side. Specimens with local bending, buckling, and kneading of the fibers on the concave side of the specimens were also rejected.

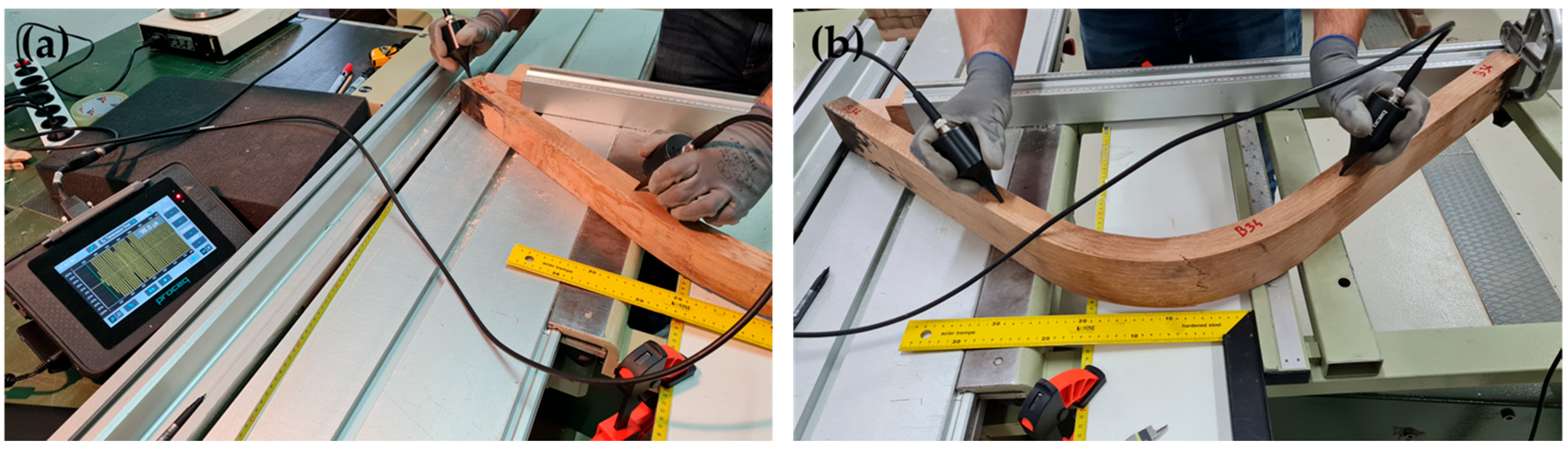

The velocity of ultrasound (v) has been added to the quality assessment of bent oak samples with twice-per-piece (v_S—straight part, v_B—bent region) measurement of the time of flight in the longitudinal direction by Proceq Pundit PL-200PE (Proceq Inc., Scharzenbach, Switzerland) pulse ultrasonic device. The exponential transducers with working 54 kHz frequency were used (Figure 5). The velocity of ultrasound in the straight part of the specimens (v_S) and wood density (ρ) were used to determine the modulus of elasticity (MOE) of bent oak specimens (Equation (1)).

$$MOE=\mathsf{\rho }·{\mathrm{v}}_{\mathrm{S}}^2$$

(1)

3. Results and Discussion

3.1. Process Kinetics

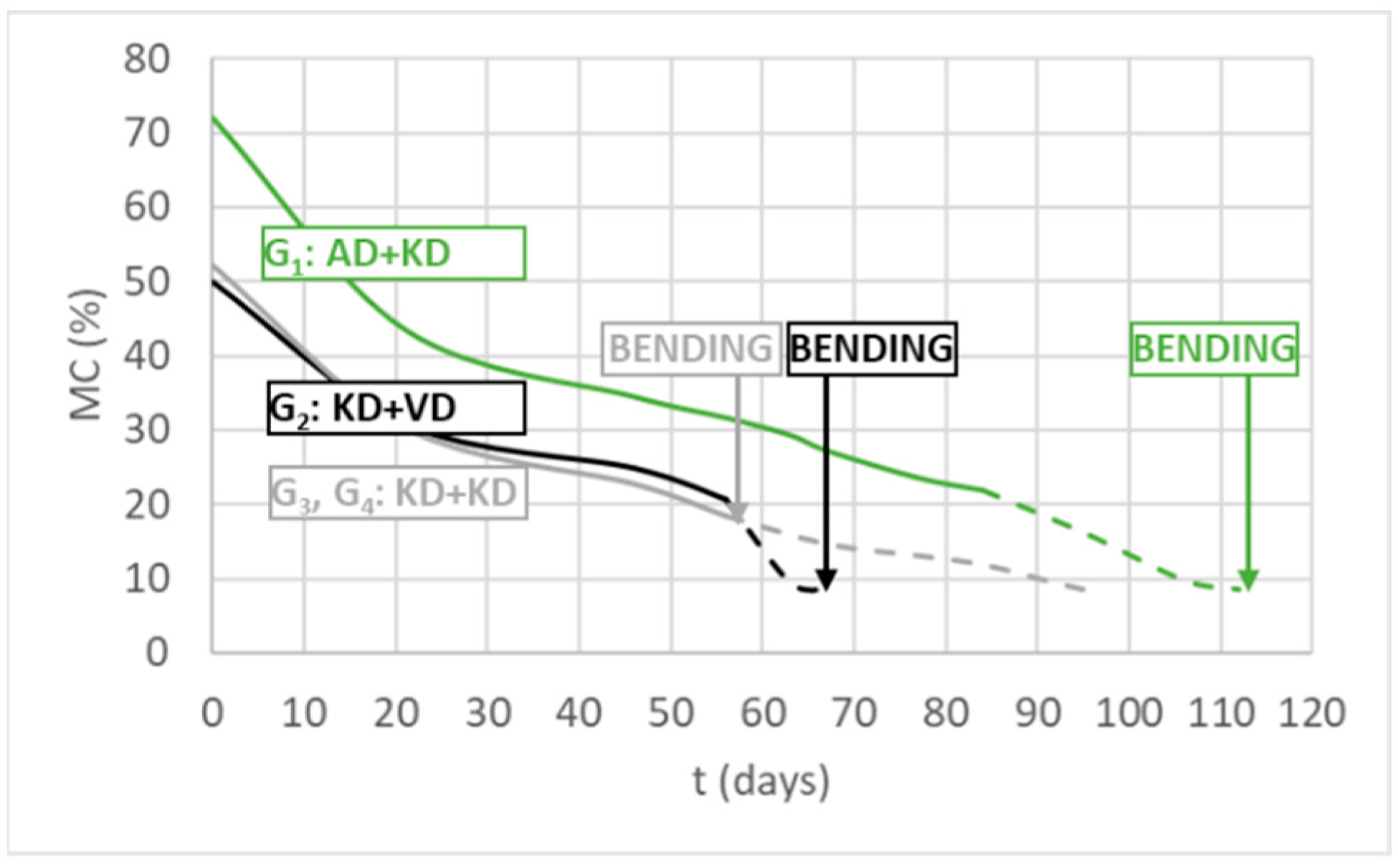

Air drying of G₁ specimens was the slowest and the longest process, depending on local climatic conditions. Air drying lasted 84 days, during which the wood reached an average MC of 21.9%. We then dried the wood in a convection kiln dryer for an additional 28 days to an average final MC of 8.7%. The drying of group G₂ was only slightly faster than that of group G₁. In the first part, drying took 56 days to an average MC of 20.8%, followed by 11 days of vacuum drying to a final MC of 8.6%. In both groups, specimen bending was performed at low MC (<10%) (Figure 6).

The drying of the G₃ and G₄ samples was carried out in the same way as that of the G₂ samples in the first phase. An average MC of 16.8% was obtained, and the wood was bent in this condition, using the HF field in group G₃ and the conventional method in group G₄. The drying of the bent wood of groups G₃ and G₄ in the second phase in a kiln dryer to a final MC of 8.6% took another 39 days.

3.2. Bending Success Rate of Oak Wood

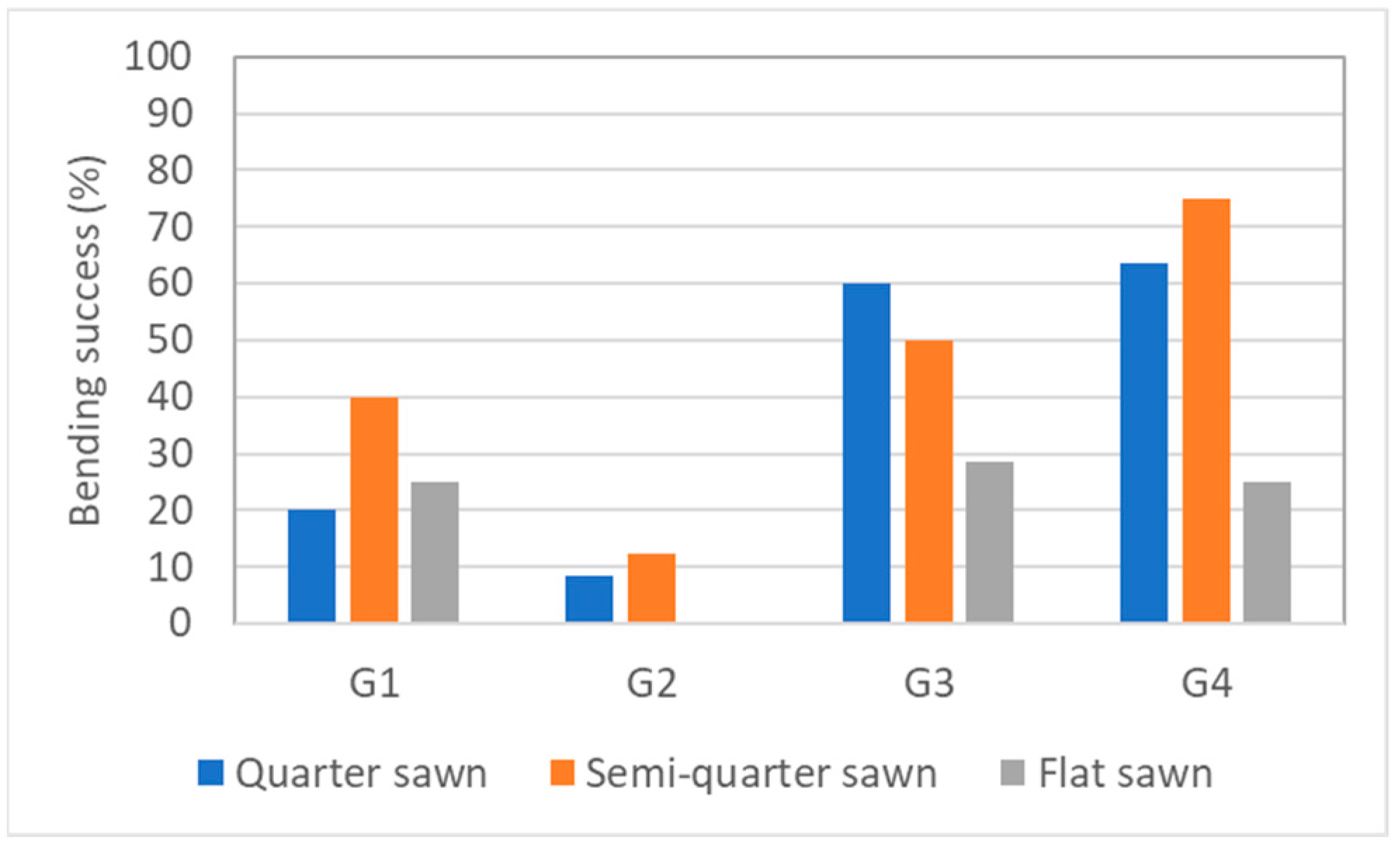

Bending success rates were highest for groups G₃ (60.9%) and G₄ (42.9%) when specimens were bent at higher MCs (>16%). In these two groups, G₃ specimens appear to have lost some success at the expense of HF bending (Figure 7). As other studies have shown, excessive energy input of HF into the bent specimens can lead to an increase in temperature and, due to trapped moisture in the specimens, an increase in vapor pressure that can break down the cellular wood structure [17]. Especially in impermeable wood species such as European oak [21], this can lead to high internal stresses and possibly failure.

However, we did not succeed in bending the G₁ (28.6%) and G₂ (8.3%) samples. It appears that the low moisture content of the bends (MC_G1 = 8.7%; MC_G2 = 8.6%) does not allow the necessary plastic deformability that can be achieved when the material exceeds the glass transition temperature [14,15]. At the same time, it is shown that accelerated vacuum drying in stage 2, from 20.8 to 8.6% MC (G₂ group), can cause high internal stresses due to the poor permeability of the oak wood tissue [22]. These can lead to additional microstructural defects, which then cause the material to fail during bending. This is reflected in the higher rejection rate of the G₂ group compared to G₁.

3.3. Appearance and Visual Assessment of Defects of Bent Oak Wood

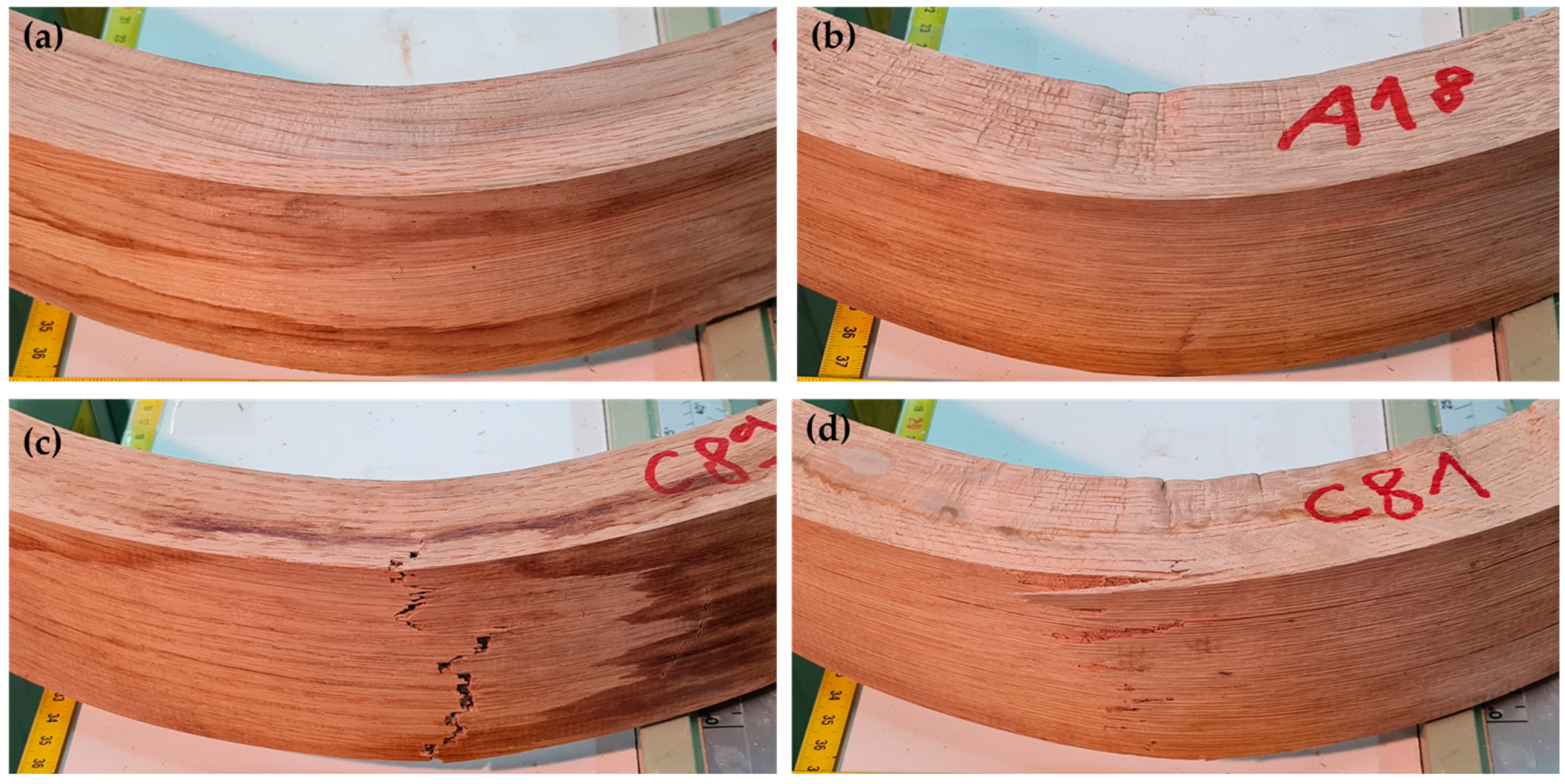

Visual inspection of the rejected bent oak specimens revealed approximately three typical defects, with material failing on the concave side (I), on the convex side (II), or on both sides (III) (Figure 8). On the concave side, local wrinkling, buckling, and kneading of the fibers were observed, most pronounced at the bottom of the curve (Figure 8b, I—failure type). On the opposite, convex side, several of the rejected bends exhibited tensile failure, with both brittle and fiber breaks (Figure 8c, II—failure type). The worst case, where bending was unsuccessful, was represented by the test specimens where local fractures occurred on both the concave and convex sides (Figure 8d, III—failure type).

The various failure modes occurred to about the same extent in all specimen groups examined (G₁…G₄). For the individual orientations (quartersawn, quarter- to flatsawn, flatsawn), we could not identify a characteristic failure mode. The main cause of structural failure appears to be poor plasticization of the specimens before or during the bending process. This is also a commonly cited reason for solid wood bending in past research [4,10,18].

3.4. Physical and Acoustic Properties of Bent Oak Wood

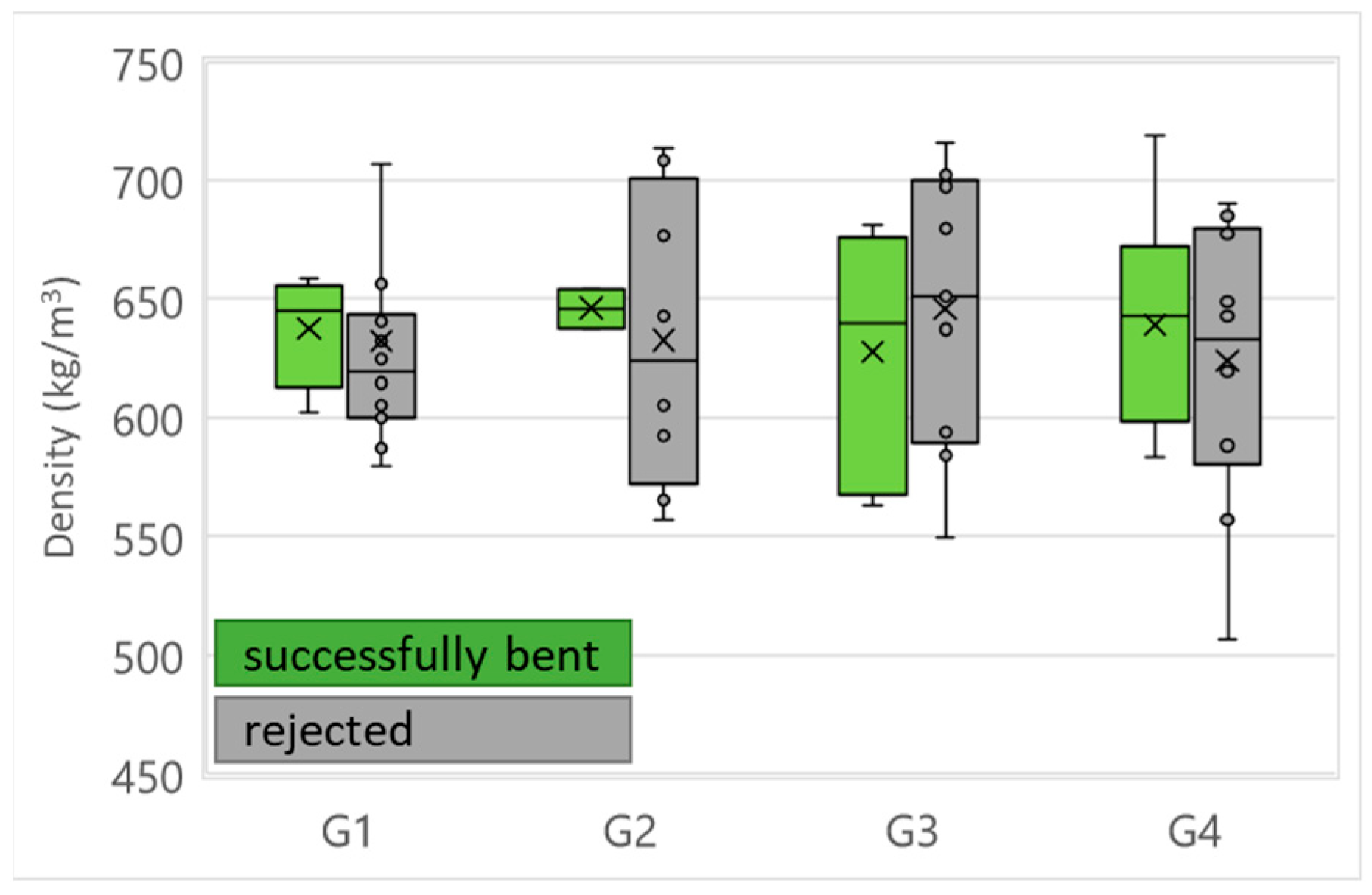

The average density of oak wood at an average final MC of 8.4% was 634 kg/m³ (CoV = 8.1%; CoV—Coefficient of Variation), which is lower compared to the results of other studies on this species [23,24,25,26]. Some studies suggest that the lignin content decreases with increasing density of oak wood, which could affect the bending capacity of the wood [27,28]. No significant differences were found between the mean values of the groups (ρ_G1 = 640 kg/m³, ρ_G2 = 635 kg/m³, ρ_G3 = 624 kg/m³, ρ_G4 = 638 kg/m³) (Figure 9), which does not directly indicate possible chemical differences between the studied specimens of each group. The latter would have to be confirmed by further investigations.

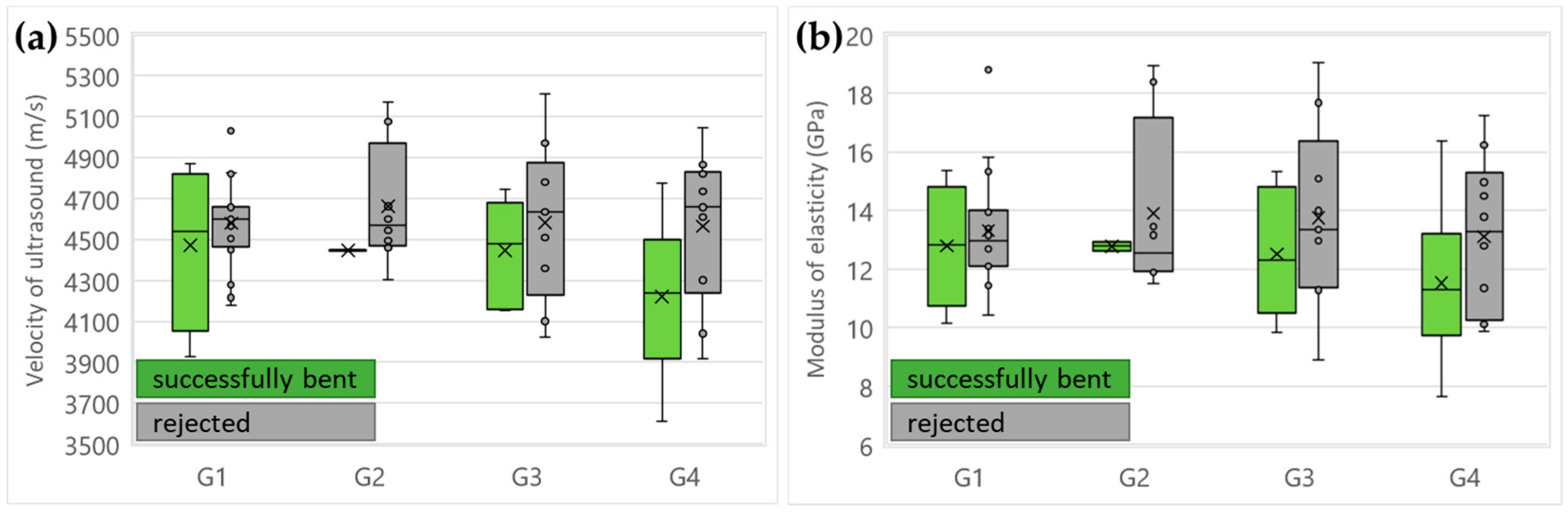

In the straight part of the successfully bent oak specimens, we determined a mean ultrasonic velocity of less than 4500 m/s (v_S) and a corresponding modulus of elasticity (MOE) of less than 13 GPa in all groups studied. There was a downward trend in the mean ultrasound velocity of specimens in groups G₁ to G₄ (v_S-G1 = 4470 m/s, v_S-G2 = 4450 m/s, v_S-G3 = 4440 m/s, v_S-G4 = 4220 m/s). We also confirmed a trend of decreasing stiffness from G₁ to G₄ (MOE_G1 = 12.8 GPa, MOE_G2 = 12.8 GPa, MOE_G3 = 12.5 GPa, MOE_G4 = 11.4 GPa). However, the differences between the means were not significant for both v_S and MOE, except for G₄, where the values were significantly lower than for the others (G₁, G₂, and G₃; ANOVA, p < 0.05) (Figure 10). It seems that part of the best bending performance we have confirmed in group G₄ is also due to the slightly lower stiffness of the specimens.

In a straight part of the rejected samples, we measured v_S above 4500 m/s and MOE above 13 GPa. We could not find any characteristic trend in the change of values between the groups of rejected specimens (v_S-G1 = 4550 m/s, v_S-G2 = 4620 m/s, v_S-G3 = 4650 m/s, v_S-G4 = 4540 m/s; MOE_G1 = 13.4 GPa, MOE_G2 = 13.7 GPa, MOE_G3 = 13.6 GPa, MOE_G4 = 13.3 GPa). However, when we compare the values of the rejected specimens with those of the successfully bent specimens, we find that v_S and MOE of these two categories are different in groups G₃ and G₄. Thus, it can be seen that the initial lower MOE of the specimens has a significant effect on the bending success. Only in groups G₃ and G₄ was the bending success significantly higher than in G₁ and G₂, which, in addition to the correspondingly high wood MC, could also be due to the lower MOE of the specimens in G₃ and G₄. Previous research has also shown that less stiff wood is easier to bend [4,15,18,19].

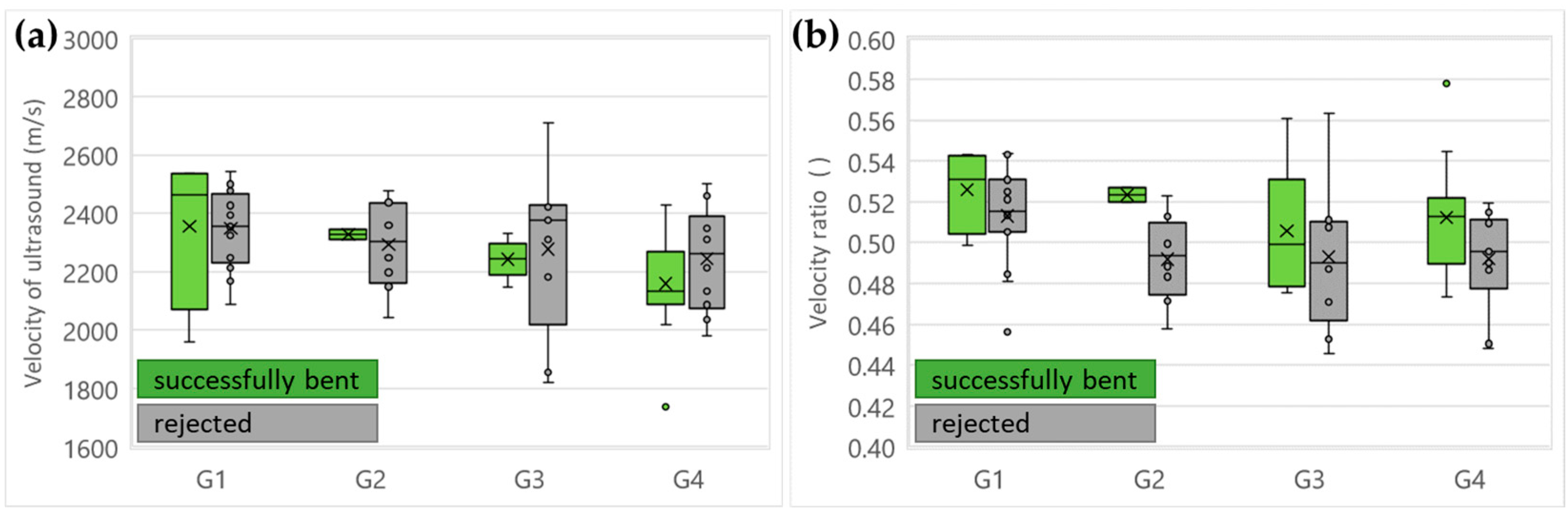

We measured a much lower average ultrasound velocity in the bent region of the specimens (v_B = 2270 m/s) than in their straight part (v_S = 4505 m/s) (Figure 11a). This is partly due to the curvature itself, as the sound waves can propagate along a shortcut between the two probes and thus across the wood grain where they would otherwise be slower [29,30,31]. The compression deformation of the wood tissue in the curved region of the specimens could also be a reason. Ultrasound velocities greater than 2300 m/s were measured in the G₁ and G₂ specimens for both the successfully bent and rejected specimens. No differences in mean values were observed between the two groups (G₁ and G₂) and the two categories (accepted and rejected). For specimens in groups G₃ and G₄, the v_B was lower and slightly below 2250 m/s. The differences between the two groups and between the two categories of specimens were also statistically insignificant (t-test; p > 0.05).

It was found that the relative ultrasound velocity in the bent region of the specimens (v_B), represented as the ratio between the ultrasound velocity in the bent region and in the straight portion (v_B/v_S), was related to the bending success of the specimens. This ratio averaged above 0.51 for successfully bent specimens and below 0.50 for rejected specimens, regardless of test group (G₁…G₄). Due to considerable variability, the v_B/v_S ratio was significantly lower in the rejected compared to the accepted specimens only in groups G₂ and G₄. Shear ultrasound waves are commonly used to detect internal defects in some other materials [32], and we intend to include them in future studies.

4. Conclusions

Bending of European oak solid wood, by studying the influence of wood moisture content and previous drying methods on bending ability in industrial tests and also using non-destructive techniques, led to the following conclusions:

• In order to achieve low rejection rate in the bending process, the process parameters, i.e., the time and the final moisture content for the different processing stages, must be well-controlled, as the margin between time and moisture content for optimal bending is very narrow.
• A method in which the oak wood is predried in one step to a nominal final moisture content of 8% and the specimens are then bent is not practical because of the low bending deformability and low compressibility on the concave side and tensile ductility on the convex side.
• The study showed that the initial lower MOE in addition to the proper moisture content before bending (MC ≥ 16%) significantly affected the bendability and acceptance rate of the oak specimens.
• In addition to visual assessment, the acceptance rate of bent solid oak can be determined non-destructively from the ratio of the ultrasound velocity in the straight and bent region (v_B/v_S) of the specimens.
