A Climate-Sensitive Transition Matrix Growth Model for Masson Pine (Pinus massoniana Lamb.) Natural Forests in Hunan Province, South-Central China

Abstract

Masson pine natural forests are ecologically and economically valuable forest ecosystems extensively distributed across China. However, they have been subject to deforestation due to human disturbance. Moreover, climate change affects the growth, mortality, and recruitment of forests, yet available forest growth models do not effectively analyze the impacts of climate. A climate-sensitive transition matrix model (CM) was developed using data from 330 sample plots collected during the 7th (2004), 8th (2009), and 9th (2014) Chinese National Forest Inventories in Hunan Province. To assess model robustness, two additional models were created using the same data: a non-climate-sensitive transition matrix model (NCM) and a fixed probability transition matrix model (FM). The models were compared using tenfold cross-validation and long-term predictive performance analysis. The cross-validation results did not show any significant differences among the three models, with the FM performing slightly better than the NCM. However, the application of the CM for long-term prediction (over a span of 100 years) under three representative concentration pathways (RCP2.6, RCP4.5, and RCP8.5) revealed distinct dynamics that demonstrated enhanced reliability. This is attributed to the consideration of climate variables that impact forest dynamics during long-term prediction periods. The CM model offers valuable guidance for the management of Masson pine natural forests within the context of changing climatic conditions.

1. Introduction

Masson pine (Pinus massoniana Lamb.), an evergreen pioneer tree species [1,2], is one of the most widely distributed native tree species throughout Southern China [3]. According to the 8th Chinese National Forest Inventory (NFI), China’s existing Masson pine forests cover 10.1 million ha, which corresponds to 6% of the total area in China. These forests encompass a stocking of 590 million m³, constituting 4% of the overall stocking volume. Among them, the area of Masson pine natural forests is 6.9 million hectares with a volume of 419 million cubic meters, accounting for 69% and 71% of the total area and the volume of Masson pine forests in China, respectively.

Masson pine, distributed across 17 provinces in China, exerts dominance over regional forests and assumes a vital role in upholding the structure and functionality of forest ecosystems within the entire subtropical zone [4]. Due to this, Masson pine is commonly used in ecological restoration projects in poor site conditions [1]. It is also an important industrial raw material wood with extensive commercial usage. It is also an important species for oleoresin production [5], medicines [6], carbon sequestration, and storage [3,4]. Masson pine natural forests cover a wide area, yet the forests are of very low quality. This is mainly attributed to over-harvesting, extensive management, and limited tending management. Research and practice have proven that the correct implementation of scientific management measures will significantly improve the productivity and various ecological functions of Masson pine forests [7].

The prediction of forest dynamics is crucial for the proposal of optimal approaches for forest management in China, and forest growth and yield models have been extensively constructed to facilitate the corresponding decision-making [8,9]. To further enhance the ecological and economic functions of forests, China has implemented the “precision forestry project”, which also necessitates accurate predictions of forest dynamics [10]. Three distinct categories of forest growth and yield models exist, including whole-stand models, size-class models, and individual-tree models, each with a different model unit resolution [11,12,13]. While whole-stand models are suitable for stands consisting of a single tree species and uniform age distribution. [12,14], they are not appropriate for uneven-aged mixed-species stands such as China’s Masson pine natural forests, as they fail to consider within-stand variability in terms of size and species composition [15]. Individual-tree models are highly accurate in predicting mixed-species forest dynamics [16,17,18,19], but necessitate specific data at the individual level, including spatial positioning and competitive rankings, making them expensive to develop [13,20]. Size-class models offer a compromise between whole-stand and individual-tree models [21]. They use classes of trees as the basic modeling unit and can effectively simulate the dynamics of uneven-aged, mixed-species forests [15,22]. Compared to individual-tree models, size-class models are more cost-effective and easier to construct, making them widely employed in uneven-aged, mixed-species forests [13,15,23]. Size-class models can be categorized as either matrix models or stand table projection methods. [12,13]. While stand table projection methods exhibit potential for short-term predictions (less than 10 years), their effectiveness diminishes for the long temporal dynamics of forests, particularly in uneven-aged forests [13,24,25]. On the other hand, matrix models serve as a logical and formalized extension of the stand table projection method, enabling long-term predictions for complex forest structures. As a result, matrix models have found extensive application in guiding the management of uneven-aged forests [26,27,28].

Climate change is widely acknowledged to have a significant impact on various aspects of forests, including stand structure, tree species composition, and forest dynamics [29,30,31,32,33]. For example, Boulanger et al. [34] conducted a study on the impacts of climate change on forest landscapes along the transition zone of the Canadian southern boreal forest, and found that climate-induced changes, such as alterations in the potential growth of dominant tree species and an increase in the frequency and intensity of forest fires, are expected to interact and exert significant effects on boreal forest landscapes. In a study on the impacts of climate change on uneven-aged mixed-species oak forests in North China, Du, Chen, Zeng, and Meng [32] revealed the impact of temperature and precipitation on tree growth and mortality. Therefore, climate change significantly influences forest ecosystems, shaping them and profoundly impacting their functioning. However, how changes in the regional climate affect the growth and death of Masson pine in subtropical China remains unclear, making it challenging to prepare for the potential consequences of climate change [4]. In addition to climate change, forest stand diversity also plays a significant role in shaping forest growth and dynamics [35,36,37]. For example, Danescu, et al. [38] observed a positive correlation between forest productivity and diversity. These findings highlight the importance of considering both climate change and stand diversity when studying and managing forest ecosystems.

In recent years, the growth models of Masson pine in Southern China generally focus on the individual tree approach [39]. For example, Wang, Bai, Jiang, Yang, and Meng [1] produced an individual-tree basal area increment model for Masson pine in Hunan Province using a linear mixed-effects approach. Fu et al. [40] employed a mixed-effects modeling approach to develop individual-tree biomass models for Masson pine for nine provinces in Southern China. Zeng et al. [41] constructed compatible single-tree biomass equations for Masson pine in Southern China using the dummy variable model approach. However, research on the transition matrix growth models for Masson pine forest in this area is limited.

Based on the gaps in the current literature, this study aimed to achieve the following objectives: (1) develop a climate-sensitive, transition matrix growth model (CM) for Masson pine natural forests in Hunan Province, Southern China; (2) analyze the effects of stand factors, topographic factors and climate factors on forest growth, mortality, and recruitment; (3) assess and contrast the effectiveness of the CM with a conventional fixed probability transition matrix model (FM) and a non-climate-sensitive transition matrix model (NCM); and (4) simulate the forest dynamics under three distinct climate scenarios using the CM.

2. Materials and Methods

2.1. Study Area and Data Pre-Analysis

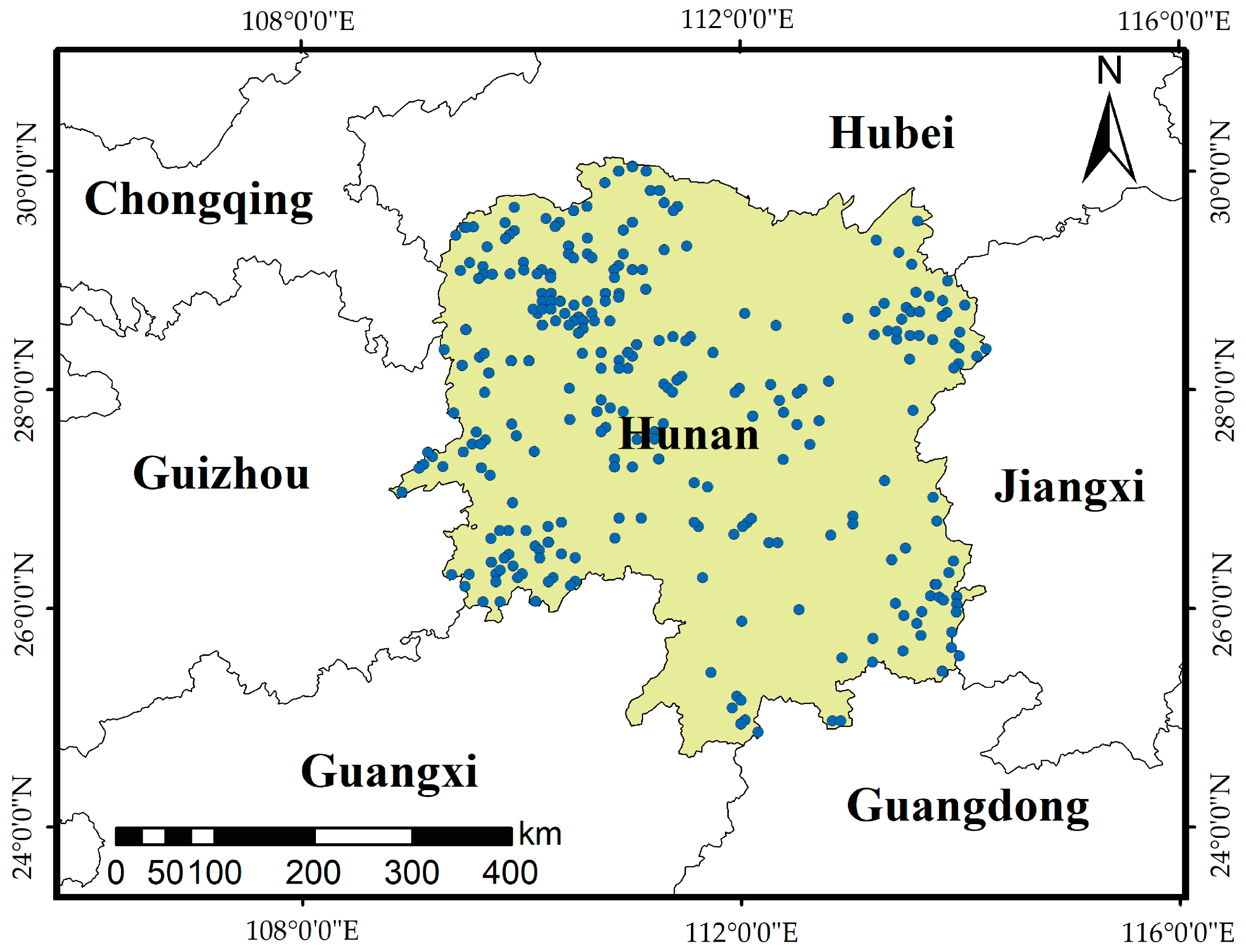

To develop our transition matrix model, 330 Masson pine natural forests sample plots with remeasurement were selected from 6615 sample plots at the 7th (2004), 8th (2009), and 9th (2014) Chinese National Forest Inventories (CNFI) conducted in Hunan Province, located in South-Central China. The CNFI plots were systematically distributed within a 4 km × 8 km grid, each forming a square shape and covering an area of 0.067 hectares (Figure 1). Individual-tree and plot information were recorded at each sample plot. The individual-tree data encompassed tree species, the status of tree survival or mortality, and diameter at breast height, while the plot information consisted of elevation, aspect, slope, soil type, soil thickness, humus thickness, forest types, dominant tree species, and canopy closure, etc. To ensure the preservation of natural growth, the chosen sample plots were situated within forests where there was no discernible indication of human interference, such as logging or artificial regeneration practices. Moreover, the model-fitting process involved the utilization of all 330 sample plots.

We categorized trees into Pinus massoniana, Quercus, Other conifers (Mainly Cunninghamia lanceolata), Other hardwood broad-leaved species, and Other softwood broad-leaved species (

Table 1. Species groups, main tree species and their survey frequency in the sample plots.

Species Group	Main Species	Frequency
Pinus massoniana (PM)	Pinus massoniana Lamb.	31.80%
Quercus (QU)	Quercus spp.	16.85%
Other conifers (OC)	Cupressus funebris Endl.	20.61%
	Taxus chinensis (Pilger) Rehd.
	Cryptomeria fortunei Hooibrenk ex Otto et Dietr.
	Pinus elliottii Engelm.
	Cunninghamia lanceolata (Lamb.) Hook.
	Keteleeria fortunei (Murr.) Carr.
Other hardwood broad-leaved species (OH)	Robinia pseudoacacia L.	17.39%
	Liquidambar formosana Hance
	Betula spp.
	Pyrus spp.
	Schima superba Gardn. et Champ.
	Phoebe zhennan S. Lee
	Ulmus pumila L.
	Cinnamomum camphora (L.) presl
Others softwood broad-leaved species (OS)	Sassafras tzumu (Hemsl.) Hemsl.	13.35%
	Tilia tuan Szyszyl.
	Melia azedarach L.
	Salix spp.
	Paulownia fortunei (Seem.) Hemsl.
	Toxicodendron spp.
	Populus spp.
	Vernicia fordii (Hemsl.) Airy Shaw

). Moreover,

Table 2. Summary statistics of sample plot data.

Variable	Mean	SD	Max	Min
N (trees ha−1)	1041.20	492.82	2460.00	165.00
Basal area (m2 ha−1)	12.23	7.53	54.45	1.55
Total stand diversity	1.84	0.54	2.94	0.00
Plot aspect (°)	155.59	99.05	315.00	0.00
Plot slope (°)	28.33	10.06	50.00	1.00
Elevation (m)	504.50	292.95	1500.00	40.00
Humus thickness (cm)	5.52	5.61	50.00	1.00
Soil thickness (cm)	59.09	20.91	150.00	14.00

and

Table 3. Summary statistics of individual tree data. The diameter was measured at the initial inventory. The diameter growth and mortality rate were based on data obtained from two inventories.

	PM	QU	OC	OH	OS
Diameter (cm)
Mean	12.46	9.53	10.52	9.57	9.15
SD	6.42	5.08	4.35	5.03	4.42
Max	77.00	57.00	38.30	53.40	46.20
Min	5.00	5.00	5.00	5.00	5.00
n	7285	3859	4722	3983	3057
Diameter growth (cm year−1)
Mean	0.44	0.34	0.34	0.37	0.38
SD	0.34	0.30	0.31	0.31	0.33
Max	2.76	3.42	2.30	3.96	2.54
Min	−0.18	−0.18	−0.16	−0.18	−0.16
n	6937	3636	4670	3759	2806
Mortality rate over 5 years
Mean	0.05	0.06	0.01	0.05	0.08
SD	0.21	0.23	0.09	0.23	0.27
Max	1.00	1.00	1.00	1.00	1.00
Min	0.00	0.00	0.00	0.00	0.00
n	7285	3859	4722	3983	3057

The statistics for diameter and diameter growth were calculated exclusively for live trees, while the statistics for mortality encompassed both live and dead trees. n represents the number of records.

summarize the plot and individual tree characteristics, respectively.

2.2. Climate Variables

Numerous variables have been employed to examine the impact of climate change on forests, notably the mean annual temperature (MAT) and mean growing season (April–September) precipitation (GSP) [42,43,44,45]. For this study, the two variables were utilized based on data obtained from ClimateAP, a specialized software application developed for dynamically downscaling historical and projected climate data specifically in the Asia Pacific region [46,47,48]. Thematic maps illustrating MAT and GSP in Hunan Province were generated (Figure 2). Sample plots were extensively distributed across Hunan Province, encompassing diverse stand conditions and climatic variations (Figure 2). Both the MAT and GSP exhibited considerable variations throughout Hunan Province (Figure 2). The spatial variability of MAT and GSP increases our understanding of the dynamics exhibited by uneven-aged, mixed-species Masson pine forests in Hunan Province across distinct climatic variations.

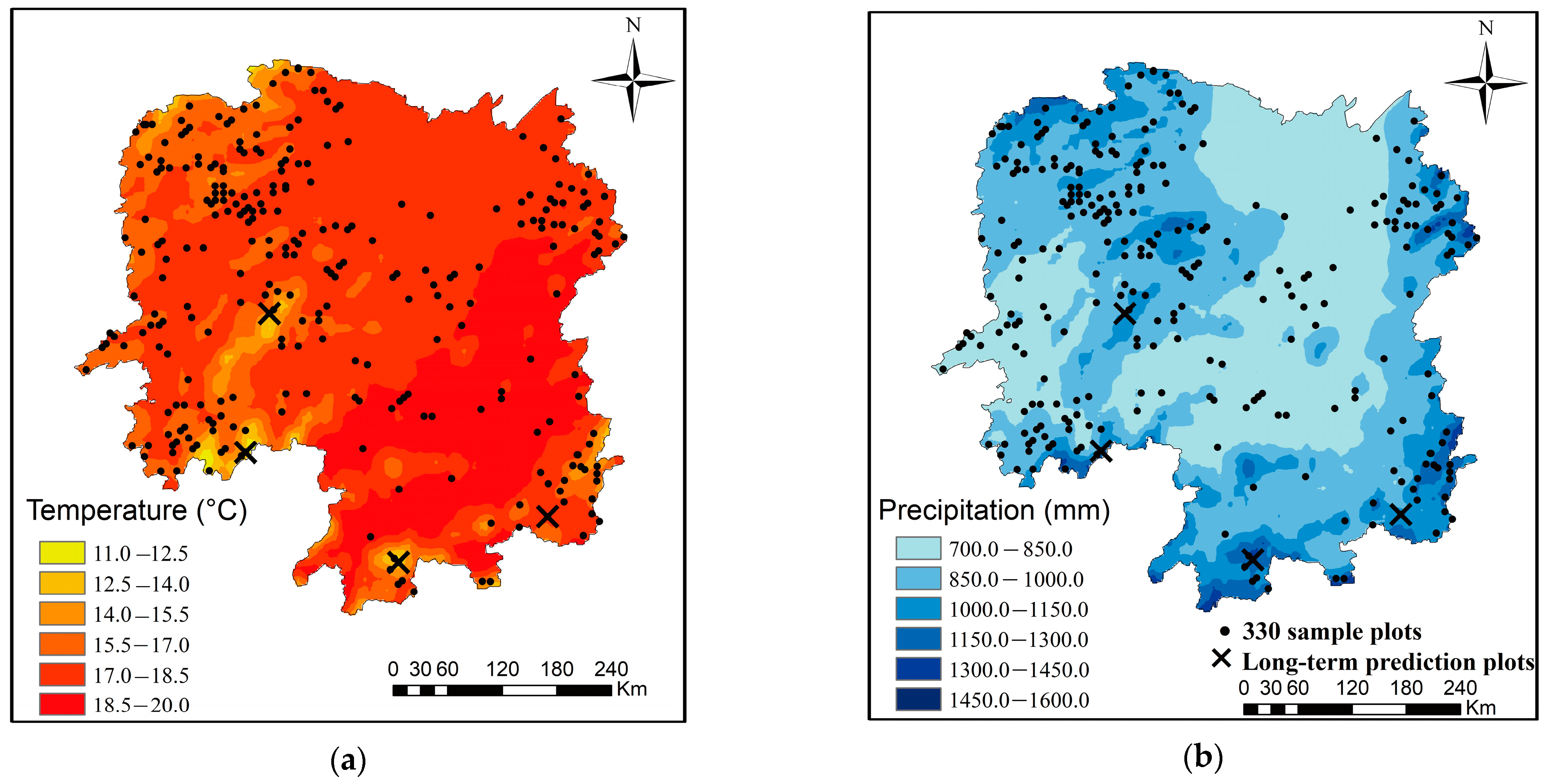

To predict the implications of MAT and GSP for forest dynamics throughout a substantial period, future climate data spanning the period from 2015 to 2100 were generated using ClimateAP. The long-term predictions relied on the general circulation model (GCM) CanESM2, developed by the Canadian Centre for Climate Modelling and Analysis. Our analysis utilized climate change scenarios outlined in the IPCC Fifth Assessment Report, encompassing three representative concentration pathways (RCPs): RCP2.6, RCP4.5, and RCP8.5 [49]. RCP8.5 represents the “high” scenario, characterized by continuous increases in radiative forcing and CO₂-equivalent. RCP4.5 corresponds to the intermediate scenario, with radiative forcing and CO₂-equivalent levels increasing until 2070, followed by stabilization thereafter. Last, RCP2.6 depicts a low peak-and-decay scenario, in which radiative forcing and CO₂-equivalent levels peak approximately by 2050, followed by a decrease [49,50,51].

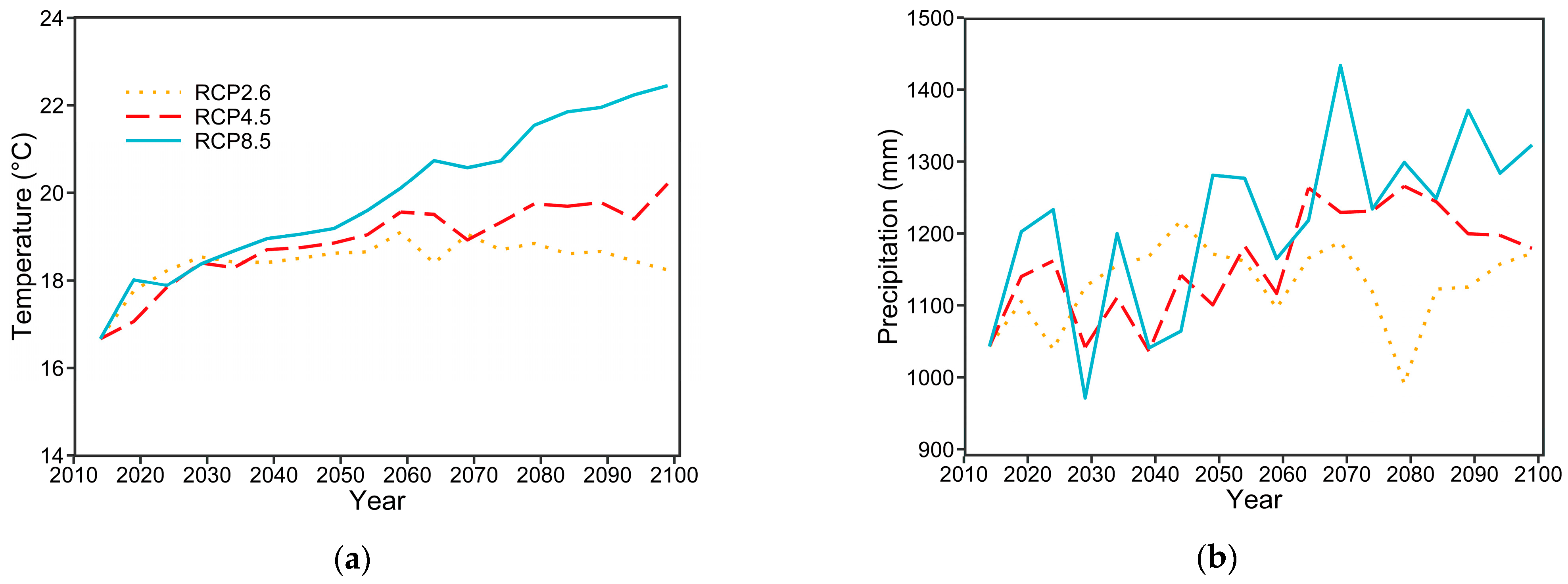

Future MAT and GSP were projected for three different RCPs (Figure 3). The mean annual temperature exhibited an overall upward trajectory across the next 100 years under all three RCPs (Figure 3a). More specifically, the predictions indicated temperature increases of 1.6 °C, 3.5 °C, and 6.0 °C for RCP2.6, RCP4.5, and RCP8.5, respectively, over the next 100 years. Similarly, the mean growing season precipitation demonstrated an overall upward trend, with some fluctuations (Figure 3b).

2.3. Model Structure

The general expression for the transition matrix growth can be formulated as follows:

$${\mathbf{y}}_{\mathrm{t}+1}={\mathbf{G}}_{\mathrm{t}}\left({\mathbf{y}}_{\mathrm{t}}-{\mathbf{h}}_{\mathrm{t}}\right)+{\mathbf{R}}_{\mathrm{t}}+{ϵ}_{\mathrm{t}},$$

(1)

where y_t = [y_ijt] is a column vector that represents the number of live trees in species group i (i = 1, 2, 3, …, sp) and diameter class j (j = 1, 2, 3, …, dc) at time t. Similarly, h_t = [h_ijt] denotes the number of trees harvested in species group i and diameter class j at time t, where h_t = 0 if there is no harvest at time t. The transition matrix G_t describes the growth or mortality of trees between time t and t + 1. Additionally, R_t signifies the number of trees recruited in the smallest diameter class of each species group between time t and t + 1, while ϵ_t represents a vector of random errors.

Matrices G and R are defined as follows:

$$\begin{gathered} \mathbf{G}=\left[\begin{array}{cccc}{\mathbf{G}}_{\mathbf{1}}& & & \\ & {\mathbf{G}}_{\mathbf{2}}& & \\ & & \ddots & \\ & & & {\mathbf{G}}_{\mathbf{m}}\end{array}\right], {\mathbf{G}}_{\mathbf{i}}=\left[\begin{array}{ccccc}{\mathbf{a}}_{\mathbf{i}\mathbf{1}}& & & & \\ {\mathbf{b}}_{\mathbf{i}\mathbf{1}}& {\mathbf{a}}_{\mathbf{i}\mathbf{2}}& & & \\ & \ddots & \ddots & & \\ & & {\mathbf{b}}_{\mathbf{i},\mathbf{n}-\mathbf{2}}& {\mathbf{a}}_{\mathbf{i},\mathbf{n}-\mathbf{1}}& \\ & & & {\mathbf{b}}_{\mathbf{i},\mathbf{n}-\mathbf{1}}& {\mathbf{a}}_{\mathbf{i}\mathbf{n}}\end{array}\right], \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\mathbf{R}=\left[\begin{array}{c}{\mathbf{R}}_{\mathbf{1}}\\ {\mathbf{R}}_{\mathbf{2}}\\ ⋮\\ {\mathbf{R}}_{\mathbf{m}}\end{array}\right], {\mathbf{R}}_{\mathbf{i}}=\left[\begin{array}{c}{R}_i\\ \mathbf{0}\\ ⋮\\ \mathbf{0}\end{array}\right] \end{gathered}$$

(2)

The survival probability α_ij indicates the likelihood of a tree in species group i and diameter class j remaining alive and staying in the same diameter class between time t and t + 1. The subscript m and n represent the total number of species groups and diameter classes, respectively. The transition probability b_ij signifies the chance of a tree surviving and growing into the next diameter class (j + 1) within species group i and diameter class j. Additionally, R_i represents the number of trees that advance to the smallest diameter class between time t and t + 1 for species group i. It is worth noting that recruitment is assumed to be zero in the higher diameter classes. The calculation of α_ij is based on the following formula:

$$a_{ij}=1-b_{ij}-m_{ij}.$$

(3)

The transition probabilities of survivorship (α_ij), growth (b_ij), and mortality (m_ij) play a crucial role in the matrix models. In fixed probability matrix models, these probabilities are presumed to be state-independent, maintaining their constancy over time [15,52]. However, this assumption often proves challenging to fulfill and can introduce potential issues, particularly in long-term projections [53,54]. Consequently, variable-parameter matrix models that account for stand state have emerged as a more dependable alternative [52]. In line with this, the present study adopted the variable-parameter method, rendering G_t a state-dependent transition matrix.

The probability b_ij was determined by dividing the annual tree diameter growth g_ij by the width of the diameter class. In our analysis, g_ij was modeled as a function of several stand variables, based on the assumption that these factors influenced the transition probability. Thus, g_ij was calculated as follows:

$$g_{ij}={\beta }_{i1}+{\beta }_{i2}·{DBH}_j+{\beta }_{i3}·{{DBH}_j}^2+{\beta }_{i4}·BA+{\beta }_{i5}·H_{sd}+{\beta }_{i6}·HT+{\beta }_{i7}·ST+{\beta }_{i8}·SLcosASP+{\beta }_{i9}·cosASPlnEL+{\beta }_{i10}·MAT+{\beta }_{i11}·GSP+{\mu }_{ij},$$

(4)

where DBH_j is diameter at breast height (cm); BA is basal area (m²·ha⁻¹); H_sd is the total stand diversity in the Shannon index; HT is humus thickness (cm); ST is soil thickness (cm); SLcosASP = Slope × cos(Aspect) [55]; cosASPlnEL = cos(Aspect) × ln(Elevation) [37,55]; MAT is mean annual temperature (°C); GSP denotes mean growing season precipitation (mm); β_s are parameters; and μ_ij is the error.

H_sd can be expressed as follows:

$$H_{sd}=-{\sum }_{i=1}^m{\sum }_{j=1}^n\frac{{BA}_{ij}}{BA}\mathit{ln}(\frac{{BA}_{ij}}{BA}),$$

(5)

where BA_ij is the basal area of the trees of diameter class j in species group i; and BA is the total stand basal area. H_sd describes the overall diversity of the tree species and size of a stand. It is a joint entropy of species evenness and size evenness, and is an effective indicator of the overall stand structural diversity [37,56]. The trees were classified into five species groups, namely, PM, QU, OC, OH, and OS (Table 1). Within each species group, all individual trees were grouped into 15 5-cm diameter classes, namely, 7.5, 12.5, 17.5, …, 72.5, and 77.5+ cm.

Stand recruitment is bounded, non-normally distributed, and constrained to positive values and zeros [57,58]. In order to address the distinct attributes of stand recruitment as a continuous variable, we utilized the Tobit model [59] to estimate recruitment R_i:

$$R_i=\Omega \left(\frac{{\gamma }_i{x}_i}{{\sigma }_i}\right){\gamma }_i{x}_i+{\sigma }_i\omega \left(\frac{{\gamma }_i{x}_i}{{\sigma }_i}\right),$$

(6)

$${\gamma }_i{x}_i={\gamma }_{i1}+{\gamma }_{i2}·N_i+{\gamma }_{i3}·BA+{\gamma }_{i4}·H_{sd}+{\gamma }_{i5}·HT+{\gamma }_{i6}·ST+{\gamma }_{i7}·SLcosASP+{\gamma }_{i8}·cosASPlnEL+{\gamma }_{i9}·MAT+{\gamma }_{i10}·GSP+v_i,$$

(7)

where N_i represents the number of trees per hectare in species group i; Ω and ω denote the standard normal cumulative and density functions, respectively; and σ_i corresponds to the standard deviation of the residuals, v_i, acquired during the estimation process of the γ parameters.

In order to account for the dependence of tree mortality (m_ij) on the stand state, we utilized the Probit model [60,61] to express the annual probability of mortality as follows:

$$\begin{gathered} m_{ij}=\frac{M_{ij}}{T}=\frac{1}{T}{\mathit{\Omega }(\delta }_{i1}+{\delta }_{i2}·{DBH}_j+{\delta }_{i3}·{{DBH}_j}^2+{\delta }_{i4}·BA+{\delta }_{i5}·H_{sd}+{\delta }_{i6}·HT+{\delta }_{i7}, \\ ST+{\delta }_{i8}·SLcosASP+{\delta }_{i9}·cosASPlnEL+{\delta }_{i10}·MAT+{\delta }_{i11}·GSP+{\epsilon }_{ij}). \end{gathered}$$

(8)

M_ij represents the probability of mortality for a tree in species group i and diameter class j within a time span of T years.; δ_s are parameters; and ξ_ij is the error.

Table 4. The variables utilized in the models for tree diameter growth, recruitment, and mortality.

Variable	Definition
g	Annual growth in tree diameter over a 5-year period (cm yr−1)
r	Recruitment, the count of trees that progress to the smallest diameter class within a year (trees ha−1 yr−1)
M	Mortality rate of living trees over a 5-year period, a value of 0 indicates the state of being alive and a value of 1 indicates mortality
DBH	Diameter at breast height (cm)
N	Number of trees per hectare (trees ha−1)
BA	Overall stand basal area of trees exceeding 5 cm in diameter (m2 ha−1)
Hsd	Total stand diversity in the Shannon index
MAT	Mean annual temperature (°C)
GSP	Mean annual growing season (April–September) precipitation (mm)
Aspect	Plot aspect, north as 0, west as 90, south as 180, and east 270 (°)
Slope	Plot slope (°)
EL	Elevation (m)
HT	Humus thickness (cm)
ST	Soil thickness (cm)

provides a detailed description of the variables involved in the models described using Equations (4)–(8).

2.4. Parameter Estimation and Variable Selection

The parameters of diameter growth (Equation (4)) were estimated through the utilization of generalized least squares (GLS) estimator. The Tobit recruitment equation (Equation (6)) was fitted using the maximum likelihood method with plot data. Likewise, the Probit equation for mortality (Equation (8)) was computed, employing the maximum likelihood method. The dependent variable was dichotomously defined, with a value of one indicating tree mortality between two inventories, and a value of zero indicating the tree’s survival. During the model selection procedure, caution was exercised to prevent compromised type-I error rates and the occurrence of severe artifacts [62]. To minimize these adverse effects, the independent variables were chosen based on three key criteria: expected biological responses, statistical significance, and parsimony in terms of the number of parameters [37,57].

2.5. Model Comparison and Validation

In order to assess the impact of climate variables on the model accuracy, we constructed three different models using the same 330 sample plots: a climate-sensitive, transition matrix growth model (CM); a non-climate-sensitive transition matrix model (NCM); and a fixed probability transition matrix model (FM). We employed the Akaike information criterion (AIC) and Bayesian information criterion (BIC) to compare the goodness-of-fit of these models.

Following this, we adopted the 10-fold cross-validation approach to evaluate the accuracy of the final CM, NCM, and FM. Model accuracy was assessed by comparing the predicted basal area of trees (by size and species category) with the actual basal area at the second inventory. The coefficient of determination (R²), root mean square error (RMSE) and mean absolute error (MAE), which can be directly calculated from prediction errors, were computed for each fold and employed as the quantitative measures of accuracy [63]. The average of the 10 resampled validation measurements for assessing the model performance was calculated as follows [63]:

Coefficient of determination (R²_CV):

$$R_{CV}^2=\frac{1}{k}\sum _{j=1}^k(R_j^2)=\frac{1}{k}\sum _{j=1}^k\left(1-\frac{{\sum }_{i=1}^{n_j}{(O_{ij}-P_{ij})}^2}{{\sum }_{i=1}^{n_j}{(O_{ij}-\overline{O_j})}^2}\right).$$

(9)

Root mean square error (RMSE_CV):

$${RMSE}_{CV}=\frac{1}{k}\sum _{j=1}^k({RMSE}_j)=\frac{1}{k}\sum _{j=1}^k\left(\sqrt{\frac{1}{n_j}\sum _{i=1}^{n_j}{(O_{ij}-P_{ij})}^2}\right).$$

(10)

Mean absolute error (MAE_CV):

$${MAE}_{CV}=\frac{1}{k}\sum _{j=1}^k({MAE}_j)=\frac{1}{k}\sum _{j=1}^k\left(\sqrt{\frac{1}{n_j}\sum _{i=1}^{n_j}\left|O_{ij}-P_{ij}\right|}\right),$$

(11)

In the equations, k represents the number of folds—here, we use k = 10; O_ij denotes the i-th observed value of the j-th fold; P_ij represents the i-th predicted value of the j-th fold; $\stackrel{-}{O_j}$ represents the average observed value of the j-th fold; n_j corresponds to the number of samples in the j-th fold; and $R_j^2$, RMSE_j, and MAE_j represent the R², RMSE, and MAE of the j-th fold, respectively.

2.6. Long-Term Prediction

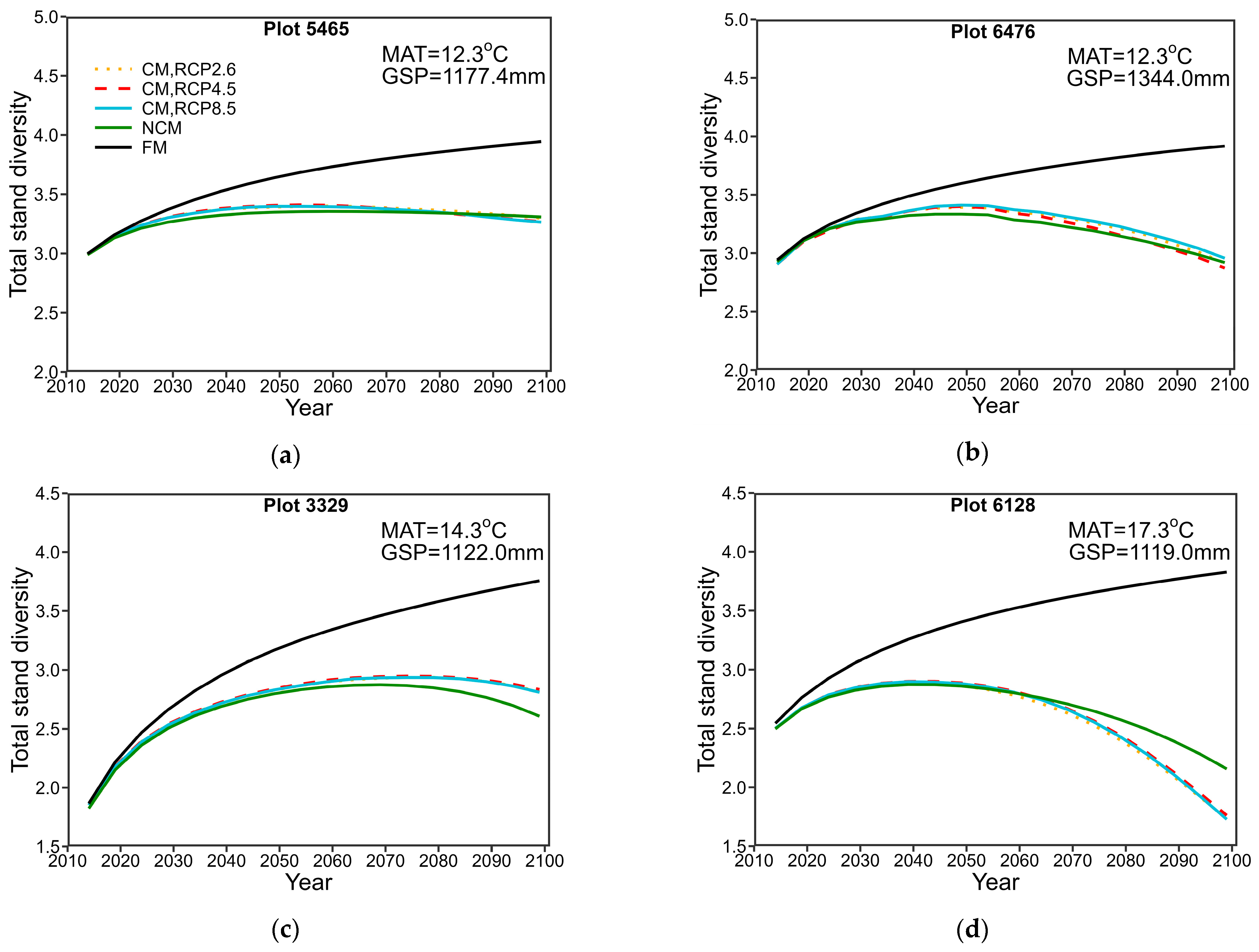

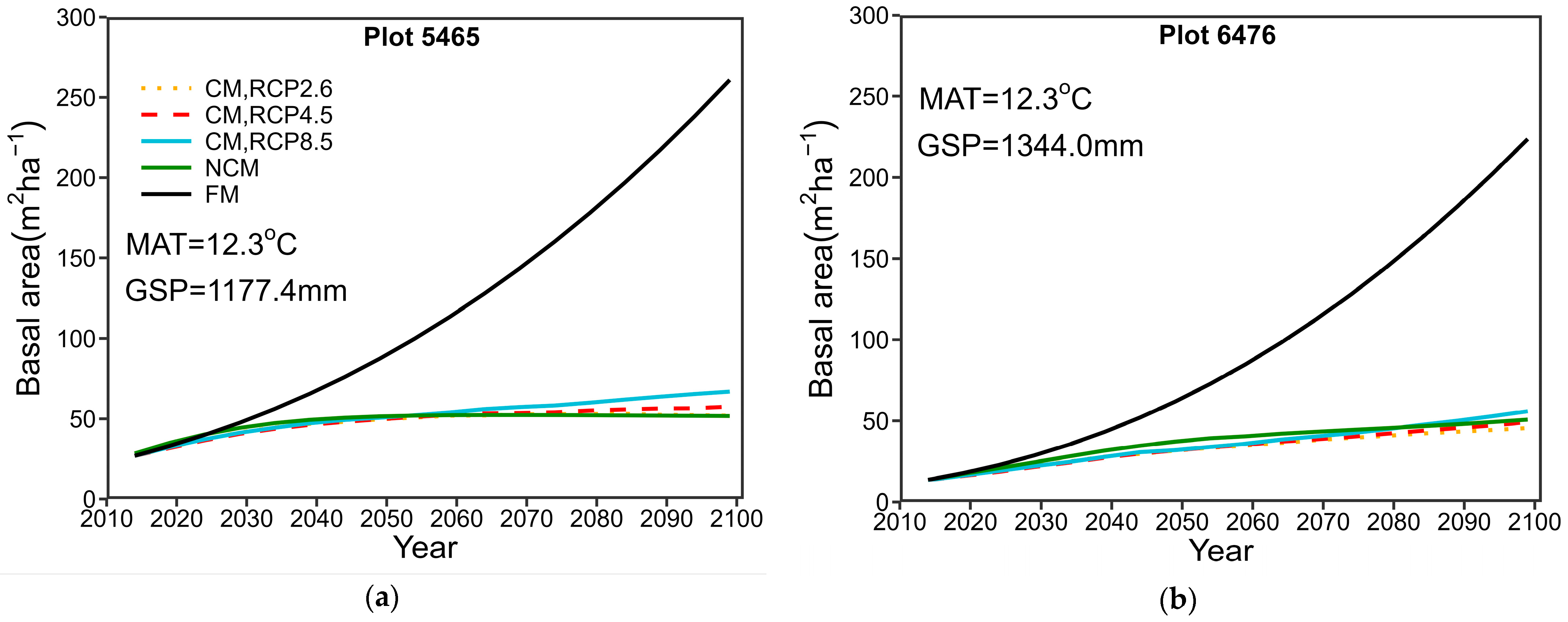

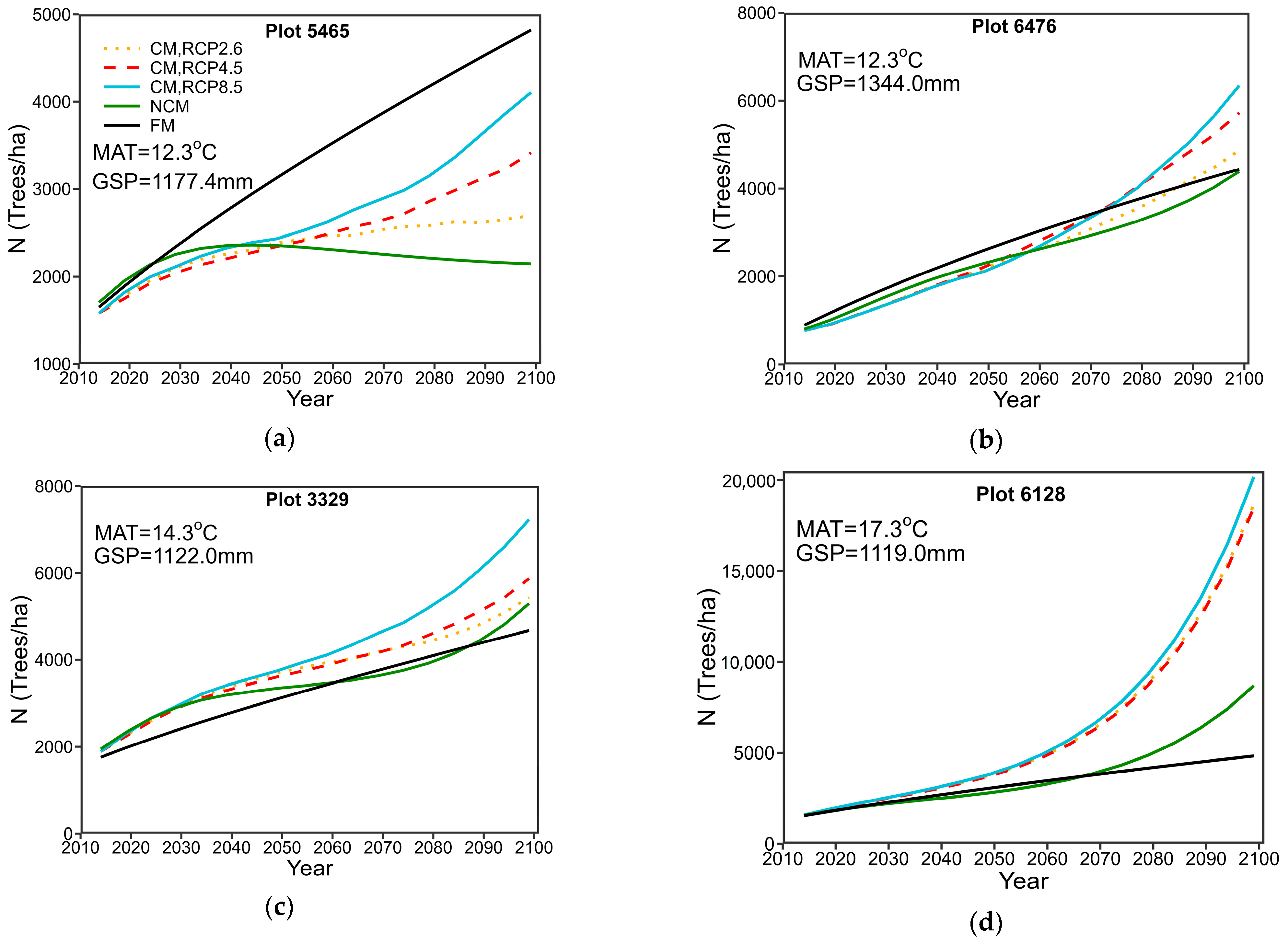

The long-term predictive performance of CM, NCM, and FM was compared. To demonstrate the influence of climate on the long-term projections of the models, the plots with CNFI numbers 3329, 5465, 6128, and 6476 in Hunan Province were selected for long-term prediction. Plots 3329 and 6128 had similar mean growing season precipitation (GSP) between 2009 and 2014 (1122.0 and 1119.0 mm, respectively), yet their mean annual temperatures (MAT) are different (14.3 and 17.3 °C). The MAT of plots 5465 and 6476 were identical between 2009 and 2014 (12.3 and 12.3 °C), but different GSP (1177.4 mm and 1344.0 mm). Figure 4 presents the corresponding diameter distribution and tree species composition of the aforementioned plots.

3. Results

3.1. Estimates of Parameters

Table 5. Parameter estimates and the associated lack-of-fit statistics for the tree diameter growth model.

	PM	QU	OC	OH	OS
Intercept	7.13 × 10−1 ***	9.85 × 10−2	7.91 × 10−1 ***	−2.23 × 10−1 **	−2.56 × 10−2
DBH	3.01 × 10−2 ***	2.07 × 10−2 ***	7.93 × 10−3 **	2.55 × 10−2 ***	3.01 × 10−2 ***
DBH2	−3.85 × 10−4 ***	−3.55 × 10−4 ***	4.57 × 10−5	−4.20 × 10−4 ***	−5.72 × 10−4 ***
BA	−1.65 × 10−2 ***	−9.28 × 10−3 ***	−1.11 × 10−2 ***	−6.73 × 10−3 ***	−7.01 × 10−3 ***
Hsd	−7.90 × 10−2 ***	3.76 × 10−2 **	−8.30 × 10−2 ***	−5.26 × 10−2 ***	−7.14 × 10−2 ***
HT	2.56 × 10−3 ***	−2.72 × 10−3 ***	−3.38 × 10−3 ***	2.49 × 10−3 ***	−9.25 × 10−4
ST	1.50 × 10−3 ***	5.36 × 10−4 *	1.14 × 10−3 ***	1.62 × 10−3 ***	8.56 × 10−4 ***
SLcosASP 1	−2.03 × 10−3 ***	−1.27 × 10−3	2.55 × 10−3 ***	−2.75 × 10−3 ***	−3.11 × 10−3 ***
cosASPlnEL 2	6.62 × 10−3 ***	8.51 × 10—3 **	−1.21 × 10−2 ***	1.33 × 10−3 ***	1.59 × 10−2 ***
MAT	−1.48 × 10−2 ***	1.52 × 10−2 ***	−2.47 × 10−2 ***	2.76 × 10−2 ***	2.75 × 10−2 ***
GSP	−7.91 × 10−5 **	−1.10 × 10−4 ***	1.48 × 10−4 ***	3.73 × 10−5	−4.60 × 10−5
R2Na 3	0.33	0.27	0.28	0.26	0.23
AIC	3492.31	1220.12	1755.46	1492.94	1390.87
BIC	3574.45	1294.50	1832.85	1567.72	1462.14
logLik 4	−1734.16	−598.06	−865.73	−734.47	−683.43
df 5	6926	3625	4659	3748	2795

Level of significance: * p < 0.10; ** p < 0.05; *** p < 0.01. ¹ SLcosASP = Slope × cos (Aspect). ² cosASPlnEL = cos(Aspect) × ln(Elevation). ³ R²_Na: Nagelkerke’s pseudo r-squared. ⁴ logLik: log-likelihood value. ⁵ df: Degrees of freedom in model fitting.

reports the estimated diameter growth model parameters (Equation (4)) and their corresponding lack-of-fit statistics. The diameter growth was observed to significantly decline with BA but increased with DBH for all species groups (p < 0.01). Furthermore, the diameter growth of all species groups exhibited a significant decrease as the DBH² increased (p < 0.01), with the exception of OC. The diameter growth exhibited a significant negative relationship with H_sd for all the species groups (p < 0.01), with the exception of QU. HT presented a significant positive relationship with diameter growth for PM and OH (p < 0.01), and significant negative relationship with QU and OC (p < 0.01). In addition, ST exhibited a positive relationship with diameter growth for all species groups (p < 0.1). SLcosASP exhibited a significant negative impact on diameter growth for all species (p < 0.01), with the exception of OC, while cosASPlnEL exerted a notable beneficial impact on diameter growth for all species groups (p < 0.01) apart from OC. Note that the climate change variables (i.e., MAT and GSP) were observed to have a significant impact on the growth of tree diameter (p < 0.01). For example, MAT was associated with a significantly reduced diameter growth for PM and OC (p < 0.01), and a significantly greater diameter growth for QU, OH, and OS (p < 0.01). Moreover, GSP was associated with a significantly reduced diameter growth for PM and QU (p < 0.05) and a significantly greater diameter growth for OC (p < 0.01).

Table 6. Parameter estimates and the corresponding lack-of-fit statistics for the recruitment model.

	PM	QU	OC	OH	OS
Intercept	9.54 × 101 *	−1.16 × 102 **	−7.28 × 101	−7.19 × 101 **	2.92 × 100
N	4.10 × 10−2 ***	5.83 × 10−2 ***	6.84 × 10−2 ***	5.31 × 10−2 ***	6.28 × 10−2 ***
BA	−1.91 × 100 ***	−1.89 × 100 ***	−1.86 × 100 ***	−1.26 × 100 ***	−1.03 × 100 ***
Hsd	−1.92 × 101 ***	1.91 × 101 ***	7.21 × 100	6.19 × 100	8.10 × 100 **
HT	−6.68 × 10−2	−1.02 × 10−1	−3.03 × 10−1	9.58 × 10−1 ***	2.50 × 10−1
ST	1.61 × 10−1	1.34 × 10−1	2.85 × 10−1 *	1.23 × 10−1	5.10 × 10−2
SLcosASP	6.01 × 10−1 **	2.15 × 10−1	1.78 × 10−2	−1.41 × 10−1	−2.43 × 10−1
cosASPlnEL	−3.96 × 100 ***	−7.08 × 10−1	1.18 × 100	4.96 × 10−1	1.45 × 100
MAT	−3.80 × 100 *	4.74 × 100 **	8.14 × 10−1	1.88 × 100	−7.01 × 10−1
GSP	−1.05 × 10−2	6.68 × 10−3	2.38 × 10−2	3.15 × 10−2 **	1.50 × 10−4
logSigma 1	3.35 × 100 ***	3.60 × 100 ***	3.79 × 100 ***	3.26 × 100 ***	3.31 × 100 ***
R2Na	0.39	0.23	0.20	0.29	0.19
AIC	1426.08	2119.95	1788.56	2292.43	2206.14
BIC	1467.87	2161.74	1830.35	2334.22	2247.93
logLik	−702.04	−1048.98	−883.28	−1135.21	−1092.07
n 2	132,330	193,330	154,330	228,330	214,330

Level of significance: * p < 0.10; ** p < 0.05; *** p < 0.01. ¹ logSigma: Log of standard deviation of residuals. ² n: number of plots with recruitment, total number of plots.

reports the results of the recruitment model (Equation (6)). The recruitment of all species groups exhibited a significant increase with N (p < 0.01), while a significant decrease was observed with BA (p < 0.01). H_sd exerted a significant positive impact on recruitment for QU and OS (p < 0.05), and a negative impact for PM (p < 0.01). A positive correlation exerted between the recruitment and HT for OH (p < 0.01). Moreover, ST exerted a positive impact on recruitment for OC (p < 0.1). No significant relationships were observed between recruitment and SLcosASP and cosASPlnEL for all species groups (p > 0.1), apart from PM. MAT showed a negative relationship with recruitment for PM (p < 0.1), and a positive relationship for the QU (p < 0.05). GSP exhibited a significant positive impact on recruitment for OH (p < 0.05).

Table 7. Parameter estimates and other statistics from the mortality equations.

	PM	QU	OC	OH	OS
Intercept	−2.61 × 100 ***	−1.57 × 100 **	−5.99 × 10−1	9.76 × 10−1	2.03 × 100 **
DBH	−1.00 × 10−1 ***	−1.56 × 10−2 ***	−1.52 × 10−1 ***	−4.91 × 10−2 **	5.97 × 10−2
DBH2	4.84 × 10−4	−3.05 × 10−4	2.91 × 10−3	8.77 × 10−4	−4.22 × 10−3 *
BA	−4.47 × 10−4	−1.08 × 10−2 *	6.40 × 10−3	1.94 × 10−2 ***	−3.47 × 10−3
Hsd	1.30 × 100 ***	2.56 × 10−1 **	4.19 × 10−1 **	−2.28 × 10−1 **	−1.22 × 10−1
HT	1.02 × 10−2	1.80 × 10−2 ***	−1.39 × 10−2	−1.30 × 10−4	−9.27 × 10−3
ST	−9.19 × 10−3 ***	5.29 × 10−5	2.58 × 10−3	−5.00 × 10−3 ***	5.35 × 10−4
SLcosASP	−5.02 × 10−3	−3.64 × 10−3	3.19 × 10−2 ***	1.27 × 10−2 **	−8.49 × 10−3
cosASPlnEL	−4.29 × 10−2 **	2.69 × 10−2	−1.41 × 10−1	−5.88 × 10−2 **	4.57 × 10−2 *
MAT	−1.29 × 10−2	−4.32 × 10−2	−1.77 × 10−1	−8.70 × 10−2 ***	−1.69 × 10−1 ***
GSP	3.82 × 10−4	3.56 × 10−4	1.06 × 10−3 **	−3.10 × 10−4	−4.44 × 10−4 *
AIC	2061.14	1663.27	403.56	1642.82	1689.46
BIC	2136.97	1732.11	474.62	1712.01	1755.74
logLik	−1019.57	−820.64	−190.78	−810.41	−833.73
df	7274	3848	4711	3972	3046

Level of significance: * p < 0.10; ** p < 0.05; *** p < 0.01.

reports the maximum likelihood estimates of the mortality model parameters (Equation (8)). DBH exhibited a pronounced negative correlation with mortality across all species groups, apart from OS (p < 0.05), while no significant correlation was found between DBH² and mortality. BA had a pronounced positive correlation with mortality for OH (p < 0.01). For PM, QU, and OC groups, H_sd exhibited a positive relationship with mortality (p < 0.05), whereas for OH, a negative relationship was identified (p < 0.05). HT had a positive effect on mortality for QU (p < 0.01) and ST exerted a negative effect on mortality for PM and OH (p < 0.05). SLcosASP was observed to be significantly positively related to mortality for OC and OH (p < 0.05), while cosASPlnEL was significantly negatively related to mortality for PM and OH (p < 0.05). Moreover, MAT exhibited a significant positive association with mortality for OH and OS (p < 0.01). GSP exerted a positive association with mortality for OC (p < 0.05).

3.2. Model Comparison and Validation

In order to assess the impact of the addition of the climate variables on the model performance, we developed two further models: the non-climate-sensitive transition matrix model (NCM) and the fixed probability transition matrix model (FM). Appendix A provides details of the estimated parameters for both the NCM and FM models.

Table 8. Goodness-of-fit of the CM and NCM models calibrated using the same 330 sample plots.

Model	PM		QU		OC		OH		OS
	AIC	BIC	AIC	BIC	AIC	BIC	AIC	BIC	AIC	BIC
Diameter growth
CM	3492.3	3574.4	1220.1	1294.5	1755.5	1832.8	1492.9	1567.7	1390.9	1462.1
NCM	3499.1	3567.6	1250.4	1312.4	1816.9	1881.3	1529.1	1591.4	1412.4	1471.8
Recruitment
CM	1426.1	1467.9	2120.0	2161.7	1788.6	1830.3	2292.4	2334.2	2206.1	2247.9
NCM	1425.0	1459.2	2120.4	2154.6	1785.6	1819.8	2294.8	2329.0	2202.4	2236.5
Mortality
CM	2061.1	2137.0	1663.3	1732.1	403.6	474.6	1642.8	1712.0	1689.5	1755.7
NCM	2062.3	2124.3	1666.1	1722.4	420.2	478.3	1646.6	1703.3	1709.2	1763.4

The model with the lowest AIC and BIC values are highlighted in bold.

reports the goodness-of-fit for CM and NCM in terms of the Akaike information criterion (AIC) and Bayesian information criterion (BIC). The results reveal that CM exhibited a superior performance compared to NCM for the diameter growth predictions. However, limited differences were observed between the results of the two models for recruitment and mortality. This is indicated by the almost identical AIC and BIC values determined across most species groups.

To assess the accuracy of the CM, NCM, and FM, we employed the 10-fold cross-validation approach. The R², RMSE, and MAE were calculated for each fold. The 10 resampled validation measurements of the model performance were then averaged using Equations (9)–(11) (

Table 9. Accuracy of the final CM, NCM, and FM determined by 10-fold cross-validation.

Species	Model	R2	RMSE	MAE
OC	CM	0.829	0.311	0.085
	NCM	0.832	0.308	0.098
	FM	0.845	0.296	0.081
OH	CM	0.765	0.268	0.085
	NCM	0.760	0.272	0.141
	FM	0.781	0.259	0.084
OS	CM	0.696	0.226	0.069
	NCM	0.691	0.228	0.105
	FM	0.745	0.207	0.064
PM	CM	0.850	0.476	0.176
	NCM	0.851	0.474	0.149
	FM	0.852	0.478	0.180
QU	CM	0.769	0.288	0.080
	NCM	0.772	0.287	0.070
	FM	0.782	0.283	0.077
All	CM	0.855	0.769	0.360
	NCM	0.855	0.769	0.360
	FM	0.868	0.739	0.340

Highest R² and lowest RMSE and MAE values for each species groups are marked in bold.

). Although the R², RMSE, and MAE for the three models indicates slight variation among different species groups, the FM generally performs the best, yet the difference is very small.

3.3. Model Application (Long-Term Prediction)

Long-term predictions spanning 100 years were conducted using the non-climate-sensitive transition matrix model (NCM) and the fixed probability transition matrix model (FM) based on the plots with CNFI numbers 3329, 5465, 6128, and 6476. The predictions made by the CM model considered three representative concentration pathways (RCPs). The projected number of trees (N) varied among the models, displaying distinct trends (Figure 5). The FM model, which is unaffected by stand and climate variables, exhibited a linear upward trend in the predicted N. The N predicted by the NCM model initially showed a slightly rising tendency until 2040, after which it grew more rapidly for plots 6476, 3329, and 6128, but exhibited a small decrease for plot 5465. Under the three RCPs, the CM model demonstrated a significantly increasing trend in the predicted N over the 100-year period, with RCP8.5 exhibiting the highest rate of increase, followed by RCP4.5 and RCP2.6.

Similar to N, the basal area (BA) predicted by FM also displayed a continuous linear growth pattern, as depicted in Figure 6. In contrast, the NCM- and CM-predicted BA initially exhibited a slightly increasing trend, and subsequently approached a steady state for all plots, with the exception of 6128. Furthermore, minor differences were observed among the three representative concentration pathways (RCPs), namely, the BA predicted by RCP8.5 was the largest, followed by RCP 4.5 and RCP2.6.

The total stand diversity (H_sd) predicted by the FM showed a pronounced increasing trend and eventually approached a stable condition (Figure 7). The H_sd predicted by NCM and CM under the three distinct RCPs revealed a marginal upward trend prior to 2050 and then decreased following this point. Almost no differences were observed in the CM-predicted H_sd values under different RCPs.

4. Discussion

In this study, a climate-sensitive transition matrix model (CM) was proposed for uneven-aged, mixed-species Masson pine forests, incorporating both climate factors and total stand diversity. The transition model encompassed tree diameter growth, mortality, and recruitment components. To assess its reliability, the model underwent validation using a 10-fold cross-validation approach across all species and diameter classes, demonstrating its accuracy.

The total stand diversity (H_sd), which indicates the overall diversity of tree species and the size of a stand, exhibited a negative correlation with tree diameter growth for all tree species (with the exception of QU). This suggests that stand diversity can result in a reduced diameter growth. A positive correlation was found between total stand diversity and tree mortality in the PM, QU, and OC species groups, and a negative association was identified between total stand diversity and tree mortality for OH. The majority of our results for the tree species groups are inconsistent with the positive relationship between biodiversity and productivity, which has been documented in numerous ecosystems [64,65,66]. This may be attributed to the unique responses of different species to competition from other species [37].

The combined influences of elevation, slope, and aspect have demonstrated their significance as valuable indicators for factors such as radiation, precipitation, and temperature, which play a crucial role in shaping species distribution and productivity [67]. Soil temperature and moisture and other physical and chemical factors that reflect moisture-fertility gradient are affected by the interacting effects of elevation, slope, and aspect [68]. In this study, we utilize the variables SLcosASP and cosASPlnEL to describe these complex effects. SLcosASP shows a significant negative impact on the growth of PM, OH, and OS, while cosASPlnEL exhibits a significant positive impact on the growth of these three tree species groups (Table 5). This suggests that these three tree species groups thrive better on steep south-facing slopes and high-elevation north-facing slopes. This preference may be attributed to the ample sunlight and good drainage on steeper south-facing slopes, which benefit the growth of these tree species groups. However, as elevation increases, north-facing slopes provide more abundant water and nutrient supply. On the contrary, for tree mortality, SLcosASP exhibits a positive impact (Table 7), which may be related to the loss of soil nutrients and moisture on steep north-facing slopes.

The mean annual temperature (MAT) was found to have a positive influence on tree diameter for QU, QC, and OS, and a negative influence on tree mortality for OH and OS. Climate change has been widely documented to have a positive effect on forest growth in subtropical forests [69]. This positive effect is generally attributed to warmer climate conditions and an extended growing season [33]. In contrast, the mean annual temperature (MAT) exhibits a negative influence on tree diameter growth in hygrophilous species such as PM and OC (mainly Cunninghamia lanceolata). This observation aligns with the findings reported by Barber et al. [70], who observed a reduction in the radial growth of Alaskan white spruce in response to rising temperatures. The authors attributed this detrimental effect to temperature-induced drought stress, which is exacerbated by inadequate precipitation and elevated temperatures [71,72]. Therefore, the adverse impact of MAT on tree diameter growth may be attributed to the occurrence of temperature-induced drought stress.

The mean growing season precipitation (GSP) exhibited a positive correlation with the tree diameter growth for OC and was positively associated with recruitment for OH. Thus, our findings support a positive association between precipitation and tree growth, which is consistent with numerous other studies [73,74]. However, we observed a negative association between GSP and diameter growth for PM and QU. This inverse relationship may be attributed to excessive precipitation, which surpasses the optimal level required for tree growth, rendering it non-limiting or even unfavorable. As noted by Clark and Clark [75], there is a point of diminishing returns in terms of precipitation’s influence on tree growth. This is evidenced by the authors’ findings for a Costa Rican tropical rainforest, where tree growth was no longer restricted by precipitation beyond a certain threshold (e.g., up to 3860 mm).

The 10-fold cross-validation revealed limited differences in the performance among the three models, although the predictive accuracy varied slightly between models. The fixed probability transition matrix model (FM) is characterized by stationary transition probabilities, meaning that these probabilities remain constant over time [52]. This assumption is typically applicable for short-term predictions. Moreover, the FM is renowned for its simplicity and user-friendly nature, rendering it a valuable tool for short-term projections [76]. However, for the long-term prediction, the assumption of stationarity may not hold true due to the interplay of forest dynamics with stand and site conditions, as well as climate variables, which undergo changes over time [15,77]. The long-term prediction experiment aligns with this concern, as depicted in Figure 5, Figure 6 and Figure 7. It reveals a linearly increasing trend in the predicted tree density and basal area over a 100-year period, which is likely an inaccurate representation. Consequently, we assert that the FM is only suitable for short-term predictions and not for long-term projections.

Over the course of a century, the CM under the three RCPs and NCM exhibited an overall upward trend in tree numbers across all four plots. Furthermore, the projected number of trees exhibited a minor upward trend under three distinct RCPs until 2050, after which substantial variations were observed. More specifically, RCP8.5 demonstrated the most pronounced increase, with RCP4.5 and RCP2.6 following suit. The basal area initially displayed a slight increase before reaching a stable state for all plots. Du, Chen, Zeng, and Meng [32] employed the CM and NCM to forecast stand dynamics for uneven-aged mixed-species oak forests in North China. The authors also found that the basal area showed a slight upward trend, followed by a gradual convergence towards a stable state in long-term predictions over a 100-year period.

The influence of temperature and precipitation on long-term forest dynamics has been the subject of much research [78,79,80]. Temperature-induced drought stress has the potential to hinder tree growth and increase mortality, particularly in arid regions [81,82,83]. However, these variables are also linked to local moisture availability [70,84]. In the present study, the analysis of tree numbers under three RCPs did not reveal any discernible declining trend, suggesting the absence of temperature-induced mortality. This observation can be attributed to the potential compensatory effect of increased precipitation, which may offset the negative impacts of temperature-induced drought stress in the future. Following 2050, the tree numbers (N) exhibited substantial variation across the three RCPs, with slightly increasing trends observed for RCP2.6 and RCP4.5, while RCP8.5 exhibited a significant upward trend. These trends are consistent with the predicted temperature patterns. Based on these findings, we can infer that mean annual temperature serves as a critical limiting factor influencing stand density dynamics in Hunan Province.

In contrast to the variation in tree numbers, the predicted basal area (BA) showed minimal distinctions across the three RCPs. More specifically, under RCP8.5, stands comprised numerous trees with smaller individual basal areas, while under RCP2.6, stands consisted of fewer trees with larger individual basal areas. In terms of economic considerations, the stand under RCP2.6 holds greater value due to the presence of larger individual trees. This implies that climate change may diminish the economic worth of this forest. Similarly, Hanewinkel, et al. [85] demonstrated that projected temperature and precipitation changes can result in significant economic implications. By the year 2100, depending on the applied interest rate and climate scenario, the potential loss ranges from 14% to 50% of the current value of European forest land, excluding Russia.

We observed a declining trend in predicted total stand diversity (H_sd) beyond 2050, irrespective of the representative concentration pathways (RCPs), suggesting the potential negative impact of climate change on total stand diversity. This adverse effect has also been documented in previous research [86,87,88]. For example, Habibullah, et al. [89] conducted a comprehensive investigation into the relationship between climate change and biodiversity loss, employing a global dataset comprising 115 countries. The findings revealed that climate change variables were associated with an increase in biodiversity loss. Conversely, other studies argue that climate change may enhance total stand diversity. Liang, Zhou, Verbyla, Zhang, Springsteen, and Malone [57], for example, attribute a positive effect to climate change, as it facilitates the increasing dominance of black spruce, leading to the redistribution of tree species and sizes. This redistribution is likely to result in an overall increase in diversity until the area reaches the climax stage.

China possesses diverse unevenly aged, mixed-species forests. However, there is a noticeable dearth of matrix models specifically designed for decision support systems aimed at managing these forests. As a result, the creation of forest growth models becomes crucial for decision-making processes and the effective management of unevenly aged, mixed-species forests across various regions.

It is worth noting that our CM model has the following usage guidelines: (1) it is applicable to the natural forests of Pinus massoniana in Hunan Province and can be extrapolated to South-Central China where Pinus massoniana natural forests are present; (2) based on the modeling data, the optimal range of input variables for the model is as follows: elevation ranging from 40 to 1500 m; slope less than 50°; humus thickness (HT) ranging from 1 to 50 cm; soil thickness (ST) ranging from 14 to 150 cm; mean annual temperature (MAT) between 11 and 20 °C; mean growing season precipitation (GSP) between 700 and 1700 mm. These ranges can be appropriately expanded based on specific circumstances.

5. Conclusions

We developed a climate-sensitive transition matrix growth model (CM) to forecast the dynamics of unevenly aged, mixed-species Masson pine forests in South-Central China. In order to demonstrate the robustness of the climate-sensitive model, we conducted a comparative analysis with a non-climate-sensitive transition matrix model (NCM) and a fixed probability transition matrix model (FM). Our findings from the 10-fold cross validation indicated minimal differences among the three predictive models. However, for long-term projections, the climate-sensitive model outperformed the fixed probability and non-climate models, providing more reliable forecasts across the three different representative concentration pathways (RCPs). Therefore, the FM model we established is only suitable for short-term predictions (5–10 years) when climate and site conditions remain stable; it is not suitable for long-term projections. We anticipate that this climate-sensitive transition matrix growth model will make a substantial contribution to the effective management of Masson pine natural forests, particularly considering the challenges posed by climate change.
