Spatial Distribution Pattern of Response of Quercus Variabilis Plantation to Forest Restoration Thinning in a Semi-Arid Area in China

by
Mengli Zhou
†,
Yuan Wang
†,
Shanshan Jin
,
Decai Wang
* and
Dongfeng Yan
College of Forestry, Henan Agricultural University, Zhengzhou 450002, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Forests 2024, 15(8), 1278; https://doi.org/10.3390/f15081278
Submission received: 19 June 2024 / Revised: 6 July 2024 / Accepted: 19 July 2024 / Published: 23 July 2024
(This article belongs to the Special Issue Estimation and Monitoring of Forest Biomass and Fuel Load Components)
Browse Figures
Versions Notes

Abstract

:
Plantations are increasing in frequency and extent across the landscape, especially in China, and forest thinning can accelerate the development of late-successional attributes, thereby enhancing plantation stand structural heterogeneity. To quantify the effect of forest restoration thinning on the spatial heterogeneity and the structure of Quercus variabilis plantations, a restoration thinning experiment in a 40-year-old Quercus variabilis plantation by removing trees from the upper canopy level was conducted; two one-hectare sample plots with thinning and a control (i.e., unlogged) were sampled; and geostatistics methods were used to analyze the spatial distribution pattern of the DBH, height, and density of the stand. We found that restoration forest thinning in the Quercus variabilis plantation had a significant impact on the average DBH and tree height of the stand. Meanwhile, the coefficient of variation and structure ratio of the DBH, tree height, and stand density in the thinning plot were larger than those in the control plot. The range and spatial autocorrelation distance of the DBH and stand density in the thinning plot were smaller than those in the control plot, but the fractal dimension showed the opposite trend. The range and spatial autocorrelation distance of tree height in the thinning plot were higher than those in the control plot. These findings suggested that, compared with the control plot, the stereoscopic distribution of the DBH and stand density in the thinning plot fluctuated less and changed gentler, and its spatial continuity was not high but its variation was significant; meanwhile, the stereoscopic distribution of the tree height in the thinning plot was highly fluctuating and changed more significantly, with a strong spatial dependence and strip gradient distribution. Hence, forest restoration thinning could improve the distribution of the DBH and stand density and adjust the spatial heterogeneity of the DBH, tree height, and stand density of Quercus variabilis plantations.

1. Introduction

Plantations need to be conscientiously managed to enhance stand quality and maintain ecosystem function and processes. Sustainable management could promote ecosystem function and accelerate the accumulation of carbon for reserves in a plantation forest, thus requiring basic scientific exploration [1]. Hence, the notion of using silviculture to help sustainably reach multiple management objectives in a sustainable manner has been evoked by generations of foresters. Forest thinning is one of the most commonly and importantly silvicultural methods of enhancing wood production [1], regulating stand structure, decreasing severe wildfire events, and increasing forest resilience for environmental disturbances, particularly during drought [2,3]. In addition, forest thinning has generally been prescribed to capture mortality, bring changes to the stand structure and herbaceous community, supply early financial return to landowners, and reallocate the growing space to fewer trees to increase the future merchantable volume and economic benefit and improve the ecological and recreational values [1,4].
Depending on the purpose of implementation, forest thinning includes restoration thinning and commercial thinning. Among them, commercial thinning mainly promotes the growth of well-growing trees to maximize commercial value by removing branched and stunted trees [5,6]. Meanwhile, restoration thinning is mainly used to reconstruct the stand structure and habitat characteristics, to improve the anti-interference ability, and to re-establish the ecosystem process by the selective removal of trees, especially in degraded stands [7,8]. However, the effect of forest thinning in promoting tree vitality and enhancing the habitat features of ecosystem restoration varies among different and limited forest types [9,10].
There is a general assumption that by redistributing the growing space and reducing competition from neighbors for the surrounding resources, forest thinning improves the growth efficiency of residual trees, compared with the same-sized trees of unthinned stands [11]. However, although forest thinning releases a certain amount of nutrient space, forest thinning can also increase tree mortality by wind damage and water stress [12,13], cause growth stagnation in residual trees, and then decrease the stand volume and increment [14,15,16,17]. Recently, correlational studies on the response of forest thinning have mainly concentrated on the growth of individual trees and stands, understory diversity, biomass, carbon sequestration and stock, the physical and chemical properties of soil nutrients, soil microbial community structure, and stand structure. It is generally believed that forest thinning can increase the growth of trees or stands (for example, relative volume growth, cumulative volume growth, and basal area growth) [18,19,20], enhance biomass accumulation and organic C input into the soil [1], and increase biomass accumulation in the short-term [21]. In terms of the influence of forest thinning on stand structure and diversity and shrub and herb diversity [22], the number of smaller trees is expected to increase rapidly [18].
The spatial pattern is a fundamental attribute of forest ecosystems and can affect many ecological processes and functions [23]; for example, within-stand tree spatial patterns can significantly affect tree recruitment and mortality [24,25]. There is broad agreement that forest management practices should address spatial aspects of forest structure and aim to conserve or restore spatial heterogeneity [26,27]. Spatial heterogeneity is of great importance in the study of populations, communities, ecosystems, and landscapes and is defined either as the variation in the spatial distribution of a point pattern [28,29] or as the variation in qualitative or quantitative values of a surface pattern [30]. It can be caused by habitat factors and their temporal variations [31,32], individual traits [33], and neutral processes [34].
There is broad agreement is that forest management should deal with the spatial aspects of forest structure and aim to conserve or restore the spatial heterogeneity of forests [26,27]. Restoring structural and spatial heterogeneity in forests as a technique to increase the supply of ecosystem services and landscape value has become a major objective of forest management and has garnered a lot of attention in forest research [5,35]. Forest thinning has been promoted as one means of enhancing heterogeneity in secondary forests [5]. Some studies think that traditional thinning methods result in a more uniform tree spacing and a narrower distribution of crop tree sizes [36]. However, more recent approaches such as variable-density thinning create a nonuniform tree spacing, thereby potentially increasing spatial heterogeneity [37]. In addition, the overall influence on the spatial variability of trees and the vertical distribution of canopy layers further depends on the forest thinning method implemented (e.g., thinning from below vs. thinning from above) [38]. In terms of the influence of forest thinning on the spatial heterogeneity, Choe et al. [39] utilized geo-statistics methods to explore the cutting disturbances on the soil nutrient spatial heterogeneity of understory plant diversity in the broadleaved-Korean pine forest in Changbai mountain, and they found that the spatial heterogeneity of soil nutrients was affected and increased by cutting intensity. Kuehne et al. [40], meanwhile, evaluated the effects of thinning on the structural heterogeneity of growth, ingrowth, and mortality in secondary coastal Douglas-fir forests, and they discovered that differences in stand structural heterogeneity between treatments are mostly nonsignificant and the variable-density thinning showed promise in increasing structural heterogeneity in young even-aged stands, despite the short-term nature of this study. In addition, Larson et al. [41] paid attention to the effect of restoration thinning on spatial heterogeneity in a mixed-conifer forest and found that restoration thinning could reduce spatial aggregation and lead to globally random tree patterns consisting of local tree clumps, openings, and widely spaced single trees, similar to reference conditions. Unfortunately, there is a certain knowledge gap on the influence of thinning on the spatial heterogeneity of broad-leaved forests or stands.
The Quercus variabilis plantation is a typical deciduous broadleaf forest in China, especially in the semi-arid areas. Meanwhile, Quercus variabilis is a valuable economic tree species with developed roots and drought resistance. Further understanding of the effects of thinning on DBH, tree height (TH), and stand density (SD) would help address how the stand structure and the spatial stability of the stand respond to restoration thinning. In this paper, we conducted a comparative experiment to reveal the general responses of the spatial distribution patterns of Quercus variabilis plantations to forest thinning. This study aimed to (1) explore the influence of thinning on the spatial heterogeneity and population dynamics; (2) understand in-depth the ecological process and mechanism of community stability of Quercus variabilis plantations responding to thinning; and (3) thus propose more effective management measures to improve the growth of Quercus variabilis plantations.

2. Materials and Methods

2.1. Study Area and Experimental Design

The research area was located on the Qingliangsi Experimental Forest Farm (112°44′–13°5′ E, 34°26′–34°33′ N), Dengfeng Forestry Bureau, Henan Province, China, which belongs to the Songshan Mountain of Funiu Mountains. The climate type is temperate continental monsoon with drought and little rain all year-round and is a typical semi-arid area. The total area and the maximum elevation are about 12,207.6 ha and 1512 m, respectively. The annual average rainfall, the annual average temperature, and the frost-free period are 614 mm, 14.2 °C, and 238 d, respectively. The area has predominantly brown and cinnamon soil. Meanwhile, the soil condition is rich in potassium, low in nitrogen, highly deficient in phosphorus, and low in organic matter content. In the research area, the main conifer tree species include Pinus tabuliformis and Platycladus orientalis, while the main broadleaf tree species include Quercus acutissima, Quercus aliena, and Robinia pseudoacacia.
Based on the distribution characteristics and growth status of vegetation, two representative stands of the Quercus variabilis plantation whose stand origin is aerial seedlings, with homogeneous stand conditions within each site, were selected as the experimental stands. The age and canopy density of these two stands were 40 years old and 0.9, respectively. Meanwhile, the tree species composition of these two stands was as follows: Quercus variabilis was dominant with a small amount of Quercus aliena and Robinia pseudoacacia. In 2013, a restoration thinning was conducted in one of the two stands, while another stand was taken as the control stand, which was unlogged. Fieldwork was performed in 2019 in the thinning and control stands. During these six years, there was no more forest management treatment for the thinning and control stands.
Field data were collected from 2 one-hectare permanent sample plots (100 m × 100 m) which were established in these two representative Quercus variabilis plantations and named the thinning plot (TP) and the control plot (CP), respectively. The following measurements were made in each plot: tree species, diameter at breast height (DBH), tree height, and relative coordinates of all living trees (DBH ≥ 2.0 cm), as well as elevation, aspect, slope, and other variables (Table 1). Hence, there were 3600 observations in total in these two plots. Based on the adjacent grid method, each one-hectare sample plot was divided into 25 continuous square subplots with an area equal to 0.04 ha, and 50 subplots from two one-hectare samples were obtained in total to determine the relative coordinates of each living tree in two 1 ha plots (Figure 1). Hence, the relative coordinates (X, Y, and Z) of each living tree in subplots were determined to the nearest 0.1 m using NTS-332R.

2.2. Spatial Autocorrelation and Distribution Analysis

2.2.1. Semi-Variance Function

A semi-variance function can be used for reflecting the overall distribution of the grayscale region and for analyzing the image self-correlation and the relationships between pixels and pixels of the neighborhood [42]. Hence, the formula of the semi-variance function is as follows (Equation (1)):
λ h = 1 2 N h × ∑ i = 1 N h Z X i − Z X i + h 2
where λ(h) is the value of the semi-variance function; h is the distance between two sample points; N(h) is the number of sample pairs whose distances are equal to h; and Z(Xi) and Z(Xi + h) are the measured values of Z(X) at the spatial positions Xi and (Xi + h), respectively.
The semi-variance function analysis contains three basic parameters: nugget value (C0), sill value (C0 + C), and range (a). The nugget value (C0) is the half-square difference, caused by many factors not equal to 0, when h = 0. The positive intercept value at the intersection of the semi-variance diagram curve and the vertical axis indicates the variation caused by random factors. The sill value (C0 + C) is the maximum value of λ(h) on the semi-variance function curve and it represents the maximum variation in the data. The range (a) is the abscissa value when the half-square tends to be stable and represents the maximum distance of spatial correlation. The structure ratio (SR) (i.e., C0/(C0 + C)) is the ratio of the nugget value to the sill value, which represents the proportion of heterogeneity caused by random factors in the total spatial heterogeneity. If SR < 25%, the spatial heterogeneity of the regionalized variable is mainly affected by structural factors, and it means that there exists a strong spatial correlation. If SR ranges from 25% to 75%, regionalized variables have a moderate spatial correlation. If SR is greater than 75%, the spatial heterogeneity is mainly influenced by random factors.
The main types of semi-variance function models are the spherical model, linear without still model, linear with still model, exponential model, and Gaussian model. The formulas of these five models are shown in Table 2. According to the sample fitting variance diagram and determination coefficients (R2) of the constructed model, the optimal semi-variance function models for the DBH, tree height, and stand density of the Quercus variabilis plantation were selected.

2.2.2. Moran’s Index

Moran’s index (I) is a method to quantify the spatial autocorrelation of stands. By comparing with the neighbors’ values, it is widely used to identify spatial clustering and outlier values of variables. The formula of the global Moran’s index is shown in Equation (2):
I = n s 0 × ∑ i = 1 n ∑ j = 1 n W i j x i − x ¯ x j − x ¯ ∑ i = 1 n x i − x ¯ 2
where Wij is the weight between the ith observation and the jth observation; xi and xj are the measured values of the variable x at the ith and jth observation points, respectively; and S0 is the sum of values of all Wij. The value of I is between −1 and 1. When I > 0, the spatial correlation is positive and the intensity of the spatial correlation increases with increasing I. When I < 0, the spatial correlation is negative and the degree of spatial difference increases with decreasing I. When I = 0, the spatial correlation is random.

2.2.3. Fractal Dimension

The formula of the fractal dimension is as follows (Equation (3)):
D = 4 − m 2
where m is the slope of the double logarithm semi-variance curve and D is the fractal dimension. Among them, the closer the value of D is to 2, the smaller the spatial heterogeneity and correlation are; the smaller the value of D is, the greater the spatial heterogeneity and correlation are.

2.2.4. Kriging Interpolation Method

Kriging is a probabilistic interpolation method based on the covariance of a dataset [43,44,45]. Kriging provides the interpolation estimates and the variances of interpolation errors that contribute to the uncertainty analysis [46]. Spatial Kriging interpolation uses the original data with regionalized variables and the structural characteristics of the semi-variance function to make the linear unbiased optimal estimation of regionalized variable values at the non-sampling points. Hence, giving measured n data values, i.e., Z(s1), Z(s2),…, Z(sn), at s1, s2, …, sn locations, Z ^ s 0 at the unknown location of s0 is estimated by the following equation (Equation (4)) [47]:
Z ^ s 0 = ∑ i = 1 n λ i Z ( s i )
where Z ( s i ) is the measured value at the si location, and λ i is the unknown weight for the measured value at the si location.

2.3. Data Processing

To calculate the stand attributes (i.e., average DBH, average tree height, stand density) and conduct spatial autocorrelation and distribution analysis, firstly, based on the adjacent grid method and relative coordinates, the thinning and control sample plots were divided into 100 subplots with an area equal to 0.01 ha (10 m × 10 m). The average DBH, tree height, stand density, and the center coordinate for each subplot in the thinning and control plots were calculated. Then, the center coordinates of these subplots were taken as the corresponding coordinates of the average DBH, average tree height, and stand density in these subplots. Next, semi-variance function analysis required the data to obey a normal distribution. If the data did not conform to the normal distribution, it would produce a proportional effect and then affect the accuracy of semi-variance and the fractal dimension. Hence, the normality of the DBH, tree height, and stand density of the TPs and CPs was tested by the Shapiro–Wilk test in SPSS 24.0 software. If PS-W > 0.05, the data obeyed a normal distribution; otherwise, the data should be transformed by the Box–Cox transformation to conform to the normal distribution. The calculation and analysis of the semi-variance function were measured by the normal distribution data and the GS+ 9.0 software, and then a 3D distribution map was obtained. In addition, the 2D distribution map was generated by Kriging interpolation in ArcGIS 10.6.0 software.

3. Results

3.1. Effect of Forest Thinning on the DBH, Tree Height, and Stand Density of Quercus Variabilis Plantation

The average DBH, average tree height, and stand density of the CP were 10.8 cm, 9.0 m, and 0.21 stems/m2, while those of the TP were 12.8 cm, 11.3 m, and 0.14 stems/m2 (Table 3). After thinning, the average values of the DBH and tree height were evidently improved, while that of stand density was decreased.
The average DBH and stand density of the TPs and CPs had a moderate variation, and the average tree height of these two sample plots (i.e., TPs and CPs) had weak variations, based on the classification of the coefficient of variation (CV, CV ≤ 10%, soft variation; 10% < CV < 100%, moderate variation; CV ≥ 100%, substantial variation) (see Table 3). However, the CV values of the average DBH and stand density in the CP were higher than those in the TP, while the CV values of the average tree height in the CP was smaller than those in the TP. In terms of the range, the range values of the average DBH, average tree height, and stand density of the CP were 8.30 cm, 5.60 m, and 0.35 stem/m2, respectively, while those of the TP were 7.20 cm, 7.40 m, and 0.21 stem/m2, respectively. Generally, thinning measures made the size distribution of the DBH and stand density more concentrated and the size distribution of the tree height more dispersed. The possible reason for this situation may be that thinning removes the trees which are branched, stunted, or competitive to promote the growth of residual trees and releases a certain nutritional space, and then makes the residual trees in the upper layer receive more light resources to promote their height growth.
In addition, the result of the Shapiro–Wilk test (see Table 3) showed that stand density conformed to the normal distribution while DBH and tree height should be transformed by the Box–Cox transformation into a normal distribution to satisfy the conditions of geo-statistics interpolation.

3.2. Influence of Forest Thinning on the Spatial Distribution Patterns of DBH, Tree Height, and Stand Density of Quercus Variabilis Plantation

3.2.1. The Semi-Variance Function Analysis of DBH, Tree Height, and Stand Density of Quercus Variabilis Plantation

The selected semi-variance function models (i.e., exponential model, linear without still model, linear with still model, spherical model, and Gaussian model) were introduced to evaluate the variation in DBH, tree height, and stand density of the TPs and CPs in the Quercus variabilis plantation, respectively. From Table 4, the exponential model was used to analyze the spatial heterogeneity of the DBH, tree height, and stand density in the TPs and CPs, with the exception of tree height in the CP and DBH in the TP. The determination coefficients (R2) of these models, with the exception of the models generated by tree height in the CP, were higher and ranged from 0.880 to 0.976. Hence, the selected models could accurately describe and better reflect the spatial correlation and structure characteristics of the DBH, tree height, and stand density of the TPs and CPs.
As shown in Table 4, the sill values of DBH, tree height, and stand density in the TP were larger than those in the CP, which indicated that the spatial variability in DBH, tree height, and stand density in the TP was higher than that in the CP. The structural ratio values of DBH, tree height, and stand density in the TPs and CPs ranged from 0.16% to 9.34%, which indicated that the proportions of spatial heterogeneity generated by random factors and structural factors ranged from 0.16% to 9.34% and from 90.66% to 98.84%, respectively. In addition, the structural ratio values of DBH, tree height, and stand density of the TP were all larger than those of the CP. In general, the spatial autocorrelation of the DBH, tree height, and stand density of the Quercus variabilis plantation were all strong and caused by structural factors (such as forest stand and soil). Hence, the forest thinning measure could decrease the spatial autocorrelation of the DBH, tree height, and stand density of the Quercus variabilis plantation. The main reason for this situation is that thinning reduces the number of neighboring trees among the residual trees and changes the resource allocation in the stand.
In addition, the semi-variance function values of DBH, tree height, and stand density in the TPs and CPs all first increased as the separation distance increased and then remained stable after a threshold (Figure 2). As shown in Figure 2, the threshold values of the semi-variance function curves of DBH, tree height, and stand density in the TP were 21.9 m, 33.0 m, and 30.3 m, respectively, and those in the CP were 28.2 m, 12.6 m, and 39.3 m, respectively. This indicated that the DBH, tree height, and stand density in the TPs and CPs had a strong spatial autocorrelation in this range. From Table 4 and Figure 2, the range of tree height in the TP was higher than that in the CP. In contrast, the DBH and stand density all showed the opposite trend, which indicated that the spatial autocorrelation scale of tree height after thinning was large. However, the tree height of the Quercus variabilis plantation after thinning showed homogeneity on a large distance scale. In addition, the range of DBH, tree height, and stand density in the TPs and CPs were all larger than the sampling distance (i.e., 10 m), which indicated that the sampling distance met the requirements of semi-variogram analysis.

3.2.2. Fractal Dimension of DBH, Tree Height, and Stand Density of Quercus Variabilis Plantation

As shown in Figure 3, the determination coefficient (R2) values of these models generated by the separation distance and the fractal dimension of DBH, tree height, and stand density in the TPs and CPs, with the exception of tree height in the CP and the DBH in the TP, ranged from 0.861 to 0.992. The regular pattern of the influence of forest thinning on the fractal dimension was similar to that of the effect of forest thinning on the range for DBH, tree height, and stand density in the Quercus variabilis plantation. The fractal dimension values of DBH, tree height, and stand density in the TP were 1.912, 1.877, and 1.886, respectively, while those in the CP were 1.893, 1.969, and 1.822, respectively (see Figure 3). This indicated that forest thinning could improve the spatial dependence and simplify the spatial distribution of tree height while weakening the spatial dependence and complicating the spatial distribution of DBH and stand density in the Quercus variabilis plantation. The main reason may be that thinning decreases the number of competitors around residual trees and leads to the release of nutrient space, changing the allocation of light resources to cause a change in tree height growth to some extent.

3.2.3. Spatial Autocorrelation of DBH, Tree Height, and Stand Density of Quercus Variabilis Plantation

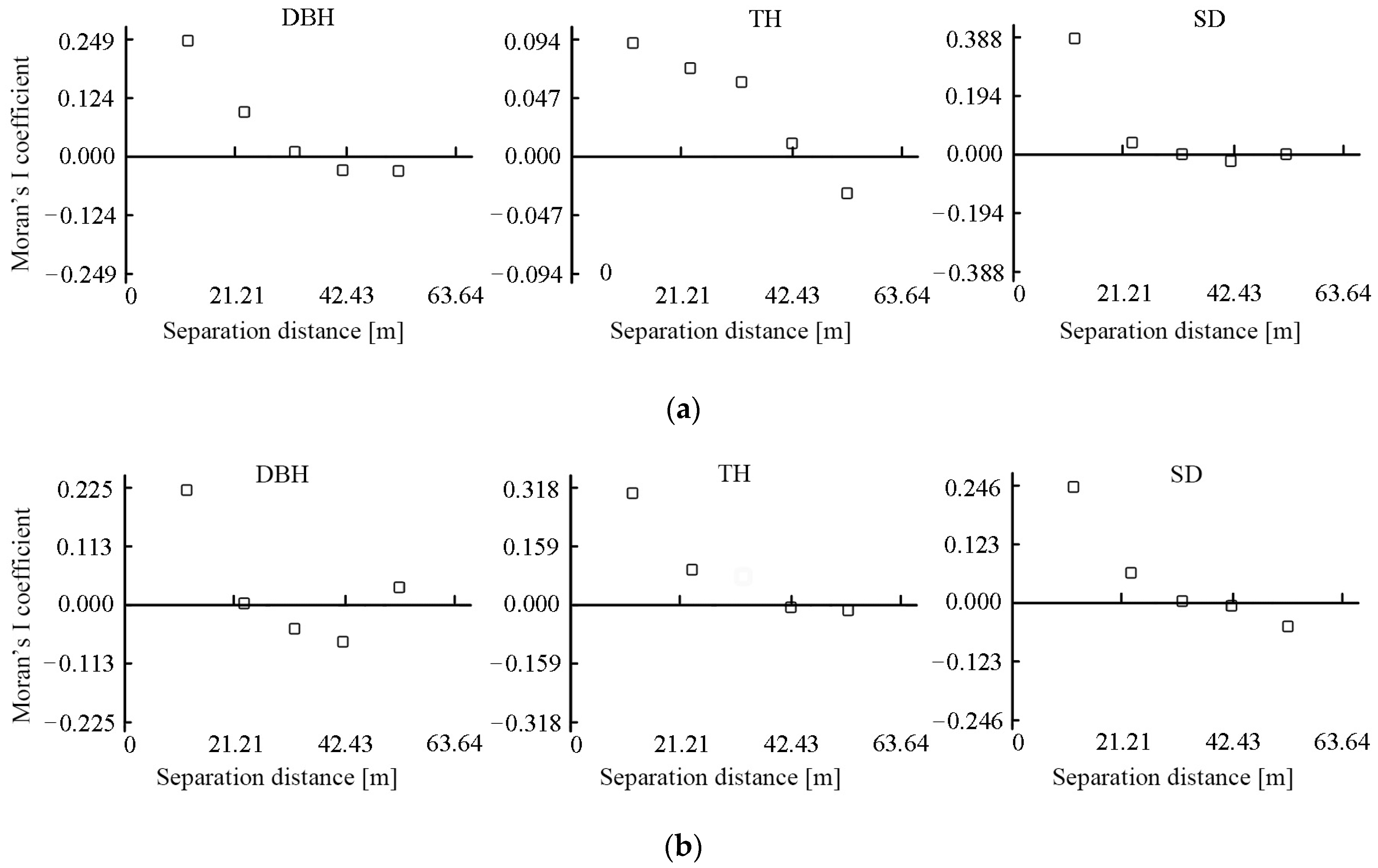

Figure 4 shows the change in Moran’s I coefficient of DBH, TH, and SD with separation distance in the Quercus variabilis plantation. Moran’s I coefficient values of the DBH and stand density in the CP were basically higher than those in the TP. Meanwhile, tree height showed the opposite trend, which indicated that the spatial correlation of tree height was larger and those of DBH and stand density were all smaller after thinning. In addition, there were two trends in the relationship between Moran’s I coefficient and separation distance. One was that Moran’s I coefficient of DBH and tree height in the TP and tree height and stand density in the CP all decreased with the increase in separation distance, and their curves had an intersection point with the horizontal axis. The other was that Moran’s I coefficient of DBH in the TP and stand density in the CP all decreased rapidly, fell slowly, and finally increased with the increase in separation distance, and their curves had two intersection points with the horizontal axis, which indicated that the DBH in the TP and the stand density in the CP all had a large plaque. Combined with the range, the plaque of DBH in the TP was about 21.9 units and that of the stand density in the CP was about 39.3 units.

3.2.4. Spatial Distribution Pattern of DBH, Tree Height, and Stand Density of Quercus Variabilis Plantation

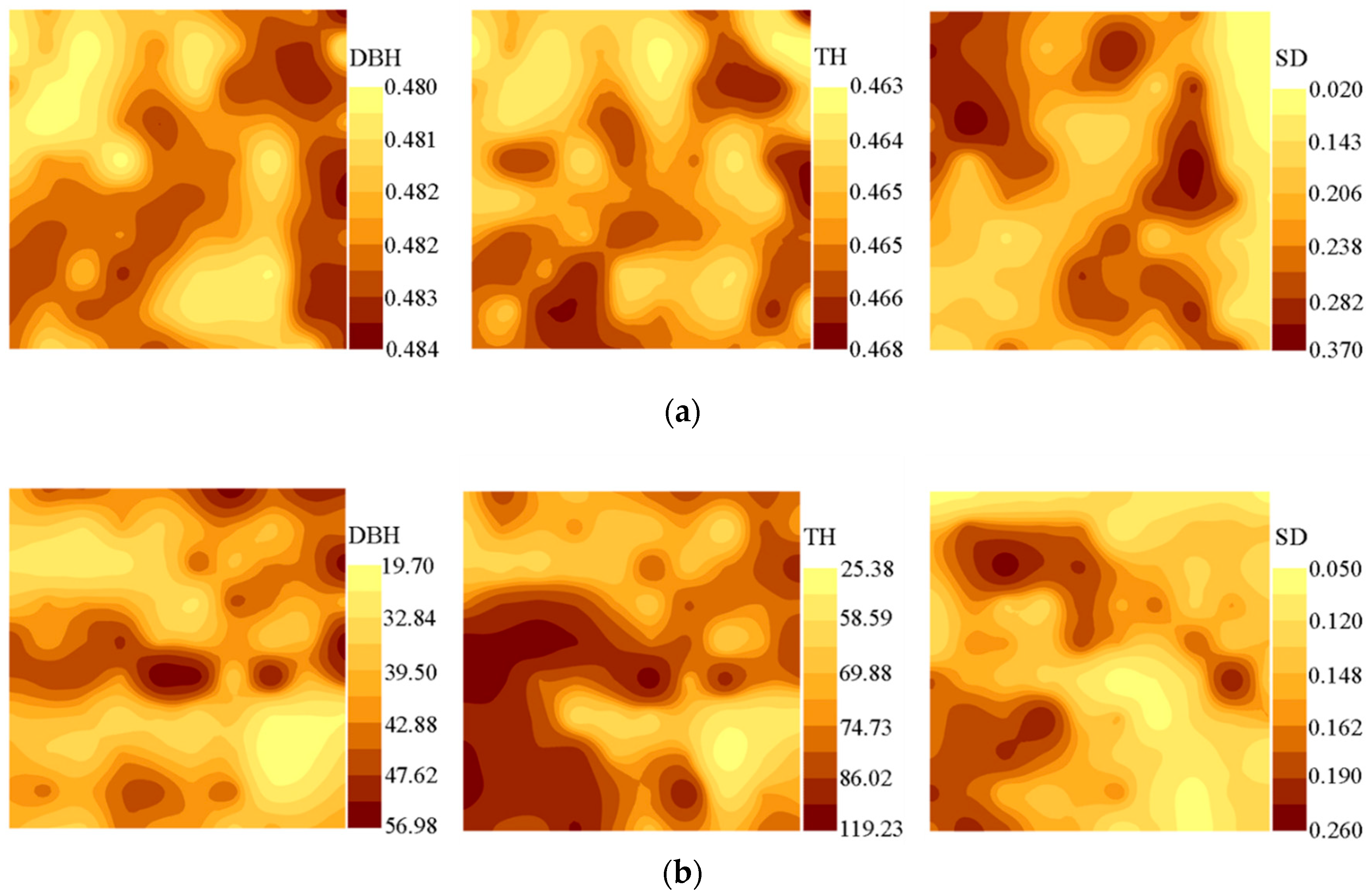

As shown in Figure 5, the spatial distributions of DBH and stand density in the CP and tree height in the TP had a strip gradient with some patches, while those of the DBH and stand density in the TP and the tree height in the CP had a patch-like gradient. Among them, in the CP, the DBH and tree height increased gradually from northwest to southwest and east, and their high-value area appeared in the east of the study area, while the spatial distribution of the stand density was opposite to those of the DBH and tree height. However, in the TP, DBH increased gradually from southwest to northeast, and its high-value area was in the northeast; tree height decreased gradually from southwest to northwest and southeast, and its high-value area was in the southwest; and stand density increased from northeast to southwest, and its high-value area appeared in the southwest. Hence, the spatial heterogeneity of tree height in the CP and those of DBH and stand density in the TP were relatively large, and their spatial continuity were high on a small scale and had substantial variance.
Further, based on the sharpness of the peaks and the transition degree of each index, the kurtosis of the 3D stereogram of DBH and stand density changed from significant fluctuations to gentle, while that of tree height changed from mild to severe, after thinning (see Figure 6). This result indicated that thinning made the spatial distribution of DBH and stand density uniform with a more negligible overall difference and spatial heterogeneity, while it made the spatial distribution of tree height uneven with a more significant overall difference and spatial heterogeneity.

4. Discussion

Many silvicultural practices such as planting cutover forest lands, vegetation management techniques, and stand thinning have been criticized for creating relatively uniform conditions with forest stands [48]. Pre-commercial thinning, in particular, tends to leave a homogeneous array of trees throughout a treated stand, and this practice contributes to both volume and quality increases in wood fiber on those crop trees selected for superior growth and form during the thinning process [49]. Forest restoration thinning is also a technique that alters the stand structure and ecological succession of understory vegetation. Conventional stand thinning generally leads to positive responses in the biomass of understory vegetation [50,51,52,53,54,55] and has the potential to increase tree growth [16,56,57,58] and reduce the competition among trees [59] while generating a gap to increase the diameters of the rest of the trees and the stability of the stand [60]. Due to the forestry characteristics in China, forest restoration thinning could not attain a high timber yield. Hence, it is necessary to analyze the effect of forest restoration thinning on the spatial heterogeneity and structure of the Quercus variabilis plantation in China.

4.1. The Effect of Thinning on the Non-Spatial Structure of Quercus Variabilis Plantation

Forest thinning plays an important role in adjusting tree species composition, reducing stand density, improving forest health, optimizing stand structure, and improving the comprehensive benefits of the stand. Our result indicated that the average DBH and average tree height of the TP were significantly higher than those of the CP. In addition, the variation coefficient and range values of DBH and stand density in the TP were smaller than those in the CP, while the variation coefficient and range values of tree height in the TP were more extensive than those in the CP. This situation showed that the distributions of DBH and stand density in the TP were relatively concentrated and better than those in the CP, while the distribution of tree height in the TP was opposite. In general, the influence of thinning on the tree growth and non-spatial structure of the Quercus variabilis plantation was positive. Our results are consistent with those of previous research [61,62]. Among them, Gradel et al. [59] researched the response of the non-spatial structure of birch and larch stands in North Mongolia to thinning and found that thinning could positively affect the total yield, although the distribution and coefficient of variation in diameter were not greatly changed by thinning. Nguyen et al. [62] studied the influence of thinning intensity on tree growth in a Pinus koraiensis plantation and found that thinning increased tree growth (diameter at breast height and crown size) with the exception of height growth, while the moderately thinning stand had the highest basal area and stock volume at the stand level. Meanwhile, Cabon et al. [61] researched the influence of thinning on tree growth in a Mediterranean evergreen oak coppice, and their result revealed that thinning increased long-term growth at the stem level but decreased the wood biomass at the stand level, while moderate thinning had a sustained beneficial influence on the growth of all stem size classes; by contrast, stronger thinning intensities increased the size asymmetry of competition and their overall effect dropped faster. However, the reason for this situation might be that thinning removed the branched, stunted, or competitive trees around residual trees; decreased the number of neighboring trees around the residual trees; and released a certain amount of nutrition space before adjusting the structure and density of the stand, improving the utilization efficiency of water and light resources, and reducing the proportion of trees with a small DBH and low tree height, resulting in the better growth and development of the remaining trees [63,64]. Due to an excellent correlation between forest growth and stand density, suitable thinning could adjust the stand density, improve the illumination, increase the nutrition of the reserved trees, and effectively promote the growth of trees. Hence, although this research analyzes the impact of thinning from multiple stand features (i.e., DBH, tree height, and stand density), it was necessary to conduct in-depth research on the canopy structure and diversity of the understory plant in the future.

4.2. The Effect of Thinning on the Spatial Heterogeneity of Quercus Variabilis Plantation

Spatial heterogeneity is the variability and complexity of the system or system attributes in space and is the main reason for the formation of spatial patterns. At present, the research on spatial patterns mainly used the crown width, crown height, tree height, DBH, and stand coverage as regionalized variables to analyze the spatial pattern of stands [65]. This study changed the previous spatial distribution pattern analysis methods, such as the distance method, angular scale, and coefficient of variation of the Voronoi method, and used the semi-variance function analysis and Kriging interpolation method to analyze the spatial heterogeneity. Our results showed that the variation range of the DBH, tree height, and stand density of the thinning and control plots were all greater than 10 m, and the sampling distance met the research requirements. The tree height, DBH, and stand density in the thinning and control plots had a strong autocorrelation. The variation ranges and the spatial autocorrelation distances of DBH and stand density in the thinning plot were all lower than those in the control plot. Meanwhile, the variation range and the spatial autocorrelation distance of tree height in the thinning plot were larger than those in the control plot. Compared with the control plot, the spatial distributions of DBH and stand density in the thinning plot fluctuated less and changed gentler; their spatial continuity was not high but their spatial variation was more significant. Meanwhile, the spatial distribution of tree height in the thinning plot was highly fluctuating, with a strong spatial dependence, simple spatial distribution, and strip gradient distribution. The reason might be that forest thinning decreases the number of competitors around the remaining trees; changes the allocation of habitat resources, especially the allocation of light resources in vertical space; and then adjusts the horizontal and vertical distribution of trees in the stand to make stand structure more stable, letting the forest environment become more suitable for plant growth and development, improving the canopy structure and light environment to make the shrubs and grass grow better, accelerating litter decomposition, increasing the soil nutrient and forest growth space, and then obtaining profit for plant growth and development. However, the slope position, topography, intraspecific competition, and other factors would lead to an uneven distribution of tree height after thinning. This reason is supported by some previous studies [65,66,67]. Among them, Liu et al. [65] studied the spatial heterogeneity of urban street trees in Harbin, China, and found that interspecific and intraspecific competition would affect the spatial heterogeneity of tree height and DBH. A large number of studies showed that the DBH and height of trees were influenced by soil factors. Li et al. [67] studied the spatial heterogeneity of the DBH growth of Korean pine and revealed that terrain factors could explain the spatial distribution of its DBH growth, to a certain extent. Meanwhile, Samra et al. [66] thought that the growth of tree height had some relationship with the soil environment by studying the spatial dependence between soil alkalinity and tree growth. Exploring the spatial heterogeneity of the DBH, tree height, and stand density of plantations in the thinning and control plots could further elucidate the influence of thinning on stand structure by geostatistical methods and provide a basis for reasonable thinning. However, slope position, soil, and human disturbance all had a certain effect on DBH, tree height, and stand density under different thinning intensities. Hence, it is necessary to further study the spatial heterogeneity of DBH, tree height, and stand density under different thinning intensities.

4.3. The Suggestion of Forest Restoration Thinning in the Semi-Arid Area

Forestry surveys have revealed that the allometric relationships among tree height, canopy area, and breast height diameter are mainly driven by light limitations [68]. However, in open forests such as semi-arid forests, the light resource is generally not a limiting factor for tree growth [69]. In semi-arid areas, there are rich radiation and heat resources but insufficient water resources, thus seriously affecting the survival, growth, and management of afforestation. Some researchers have considered that the semiarid climate conditions limit the height growth of trees [70] and generate an overall deficiency in moisture, which considerably influences the elevational forest distribution and may even control the upper forest limit [71,72,73]. Human-driven forest thinning is of primary importance for sustainable water resource management in semi-arid basins [74,75]. In China, the semi-arid area accounts for 22% of the total land area. Hence, based on the effect of thinning on the spatial heterogeneity of DBH, tree height, and stand density in Quercus variabilis plantations, forest restoration thinning in semi-arid areas is the suggested target tree management method taking into account soil and water conservation and confirming the disturbance trees around the remaining trees. Then, the competitive trees or the trees that are not conducive to the reconstruction of the stand structure around the remaining trees are selectively removed, but not the deep-rooted tree species, maintaining the water resources environment in the region. Meanwhile, the intensity of this restoration thinning should be moderate to adjust the stand structure and maintain the ecological function of the forest in the semi-arid area to meet the forest-adaptive management requirements.

5. Conclusions

The influence of forest thinning on the stand structure and spatial heterogeneity of a Quercus variabilis plantation was explored by geostatistical methods. Forest thinning could improve the distribution of the DBH and stand density and increase the effect of structural factors on the spatial heterogeneity of the DBH, tree height, and stand density. In addition, forest thinning could reduce the stereoscopic distribution fluctuation in DBH and stand density, reduce the fluctuation change, reduce their spatial continuity, and enhance the significance of their spatial difference. However, forest thinning makes the stereoscopic distribution fluctuation of tree height change severely, improves its spatial dependence, and simplifies its spatial distribution, which shows a banded gradient distribution. Forest thinning improves the allocation of light resources in the stand, promotes tree growth, and enriches the spatial heterogeneity of stand features. For the suggested forest management in the semi-arid area, moderate restoration thinning which utilizes the target tree management method considering soil and water conservation is recommended. Hence, this research will provide a reference for exploring the spatial variation and heterogeneity of stand attributes and formulating forest-adaptive management measures in semi-arid areas.

Author Contributions

Conceptualization, D.W. and D.Y.; methodology, D.W. and D.Y.; software, M.Z.; validation, M.Z., D.W. and D.Y.; formal analysis, D.W. and D.Y.; investigation, M.Z., D.W. and D.Y.; resources, M.Z., D.W. and D.Y.; data curation, M.Z., Y.W. and S.J.; writing—original draft preparation, M.Z.; writing—review and editing, M.Z., Y.W., D.W. and D.Y.; visualization, M.Z.; supervision, D.W. and D.Y.; project administration, D.W. and D.Y.; funding acquisition, D.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Research Project of Henan Science and Technology, grant numbers 201300111400 and 192102110060.

Data Availability Statement

Data are available upon request.

Conflicts of Interest

All authors declare that they have no conflicts of interest.

References

  1. Yohannes, Y. Effect of thinning on biophysical soil properties of Cupressus lusitanica stand in Munessa forest, Ethiopia. Ethiop. J. Sci. Technol. 2019, 12, 233–248. [Google Scholar] [CrossRef]
  2. Makinen, H.; Isomaki, A. Thinning intensity and growth of Scots pine stands in Finland. For. Ecol. Manag. 2004, 201, 311–325. [Google Scholar] [CrossRef]
  3. Sohn, J.A.; Saha, S.; Bauhus, J. Potential of forest thinning to mitigate drought stress: A meta-analysis. For. Ecol. Manag. 2016, 380, 261–273. [Google Scholar] [CrossRef]
  4. Curtis, R.O.; Marshall, D.D.; Bell, J.F. LOGS: A pioneering example of silvicultural research in coast Douglas-fir. J. For. 1997, 95, 19–25. [Google Scholar] [CrossRef]
  5. Bauhus, J.; Puettmann, K.; Messier, C. Silviculture for old-growth attributes. For. Ecol. Manag. 2009, 258, 525–537. [Google Scholar] [CrossRef]
  6. Di, S.J. River red gum (Eucalyptus camaldulensis): A review of ecosystem processes, seedling regeneration and silvicultural practice. Aust. For. 2002, 65, 14–22. [Google Scholar]
  7. Dagley, C.M.; Berrill, J.P.; Leonard, L.P.; Kim, Y.G. Restoration thinning enhances growth and diversity in mixed redwood/Douglas-fir stands in northern California, USA. Restor. Ecol. 2018, 26, 1170–1179. [Google Scholar] [CrossRef]
  8. Plummer, J.F.; Keyes, C.R.; Varner, J.M. Early-Stage thinning for the restoration of young redwood—Douglas-Fir forests in northern coastal California, USA. Restor. Ecol. 2012, 2012, 725827. [Google Scholar] [CrossRef]
  9. Hood, S.M.; Cluck, D.R.; Jones, B.E.; Pinnell, S. Radial and stand-level thinning treatments: 15-year growth response of legacy ponderosa and Jeffrey pine trees. Restor. Ecol. 2018, 26, 813–819. [Google Scholar] [CrossRef]
  10. Puettmann, K.; Ares, A.; Burton, J.; Dodson, E. Forest restoration using variable density thinning: Lessons from Douglas-fir stands in Western Oregon. Forests 2016, 7, 310. [Google Scholar] [CrossRef]
  11. O’Hara, K.L. Stand growth efficiency in a Douglas-fir thinning trial. Forestry 1989, 62, 409–418. [Google Scholar] [CrossRef]
  12. Lagergren, F.; Lankreijer, H.; Kucera, J.; Cienciala, E.; Molder, M.; Lindroth, A. Thinning effects on pine-spruce forest transpiration in central Sweden. For. Ecol. Manag. 2008, 255, 2312–2323. [Google Scholar] [CrossRef]
  13. Kuehne, C.; Weiskittel, A.R.; Wagner, R.G.; Roth, B.E. Development and evaluation of individual tree-and stand-level approaches for predicting spruce-fir response to commercial thinning in Maine, USA. For. Ecol. Manag. 2016, 376, 84–95. [Google Scholar] [CrossRef]
  14. Harrington, C.A.; Reukema, D.L. Initial shock and long-term stand development following thinning in a Douglas-fir plantation. For. Sci. 1983, 29, 33–46. [Google Scholar]
  15. Sharma, M.; Smith, M.; Burkhart, H.E.; Amateis, R.L. Modeling the impact of thinning on height development of dominant and codominant loblolly pine trees. Ann. For. Sci. 2006, 63, 349–354. [Google Scholar] [CrossRef]
  16. Makinen, H.; Isomaki, A. Thinning intensity and growth of Norway spruce stands in Finland. Forestry 2004, 77, 349–364. [Google Scholar] [CrossRef]
  17. Moulinier, J.; Brais, S.; Harvey, B.D.; Koubaa, A. Response of boreal jack pine (Pinus banksiana Lamb.) stands to a gradient of commercial thinning intensities, with and without N fertilization. Forests 2015, 6, 2678–2702. [Google Scholar] [CrossRef]
  18. Connell, M.J.; Raison, R.J.; Jenkins, P. Effects of thinning and coppice control on stand productivity and structure in a silvertop ash (Eucalyptus sieberi L. johnson) forest. Aust. For. 2003, 67, 30–38. [Google Scholar] [CrossRef]
  19. Primicia, I.; Artázcoz, R.; Imbert, J.B.; Puertas, F.; Traver, M.C.; Castillo, F.J. Influence of thinning intensity and canopy type on scots pine stand and growth dynamics in a mixed managed forest. For. Syst. 2016, 25, e057. [Google Scholar] [CrossRef]
  20. Bose, A.K.; Weiskittel, A.; Kuehne, C.; Wagner, R.G.; Turnblom, E.; Burkhart, H.E. Does commercial thinning improve stand-level growth of the three most commercially important softwood forest types in North America? For. Ecol. Manag. 2018, 409, 683–693. [Google Scholar] [CrossRef]
  21. Zasada, M.; Bronisz, K.; Bijak, S.; Dudek, A.; Bruchwald, A.; Wojtan, R.; Tomusiak, R.; Bronisz, A.; Wróblewski, L.; Michalak, K. Effect of the cutting age and thinning intensity on biomass and carbon sequestration—The Gubin forest district case study. Folia For. Pol. 2009, 51, 18–24. [Google Scholar]
  22. Li, X.; Li, Y.; Zhang, J.; Peng, S.; Chen, Y.; Cao, Y. The effects of forest thinning on understory diversity in china: A meta-analysis. Land Degrad. Dev. 2020, 31, 1225–1240. [Google Scholar] [CrossRef]
  23. Franklin, J.F.; Spies, T.A.; Pelt, R.V.; Carey, A.B.; Thornburgh, D.A.; Berg, D.R.; Lindenmayer, D.B.; Harmon, M.E.; Keeton, W.S.; Shaw, D.V. Disturbance and structural development of natural forest ecosystems with silvicultural implications, using Douglas-fir as an example. For. Ecol. Manag. 2002, 155, 399–423. [Google Scholar] [CrossRef]
  24. Sánchez, M.A.J.; Moore, M.M.; Bakker, J.D.; Parysow, P.F. 108 years of change in spatial pattern following selective harvest of a ponderosa pine stand in northern Arizona, USA. J. Veg. Sci. 2009, 20, 79–90. [Google Scholar] [CrossRef]
  25. Das, A.; Battles, J.; Stephenson, N.L.; Mantgem, P.J.V. The contribution of competition to tree mortality in old-growth coniferous forests. For. Ecol. Manag. 2011, 261, 1203–1213. [Google Scholar] [CrossRef]
  26. North, M.; Stine, P.; O’Hara, K.; Zielinski, W.; Stephens, S. An Ecosystem Management Strategy for Sierran Mixed-Conifer Forests, 2nd ed.; General Technical Report, PSW-GTR-220; Forest Service: Missoula, MT, USA, 2009. [Google Scholar]
  27. Larson, A.J.; Churchill, D. Tree spatial patterns in fire-frequent forests of western North America, including mechanisms of pattern formation and implications for designing fuel reduction and restoration treatments. For. Ecol. Manag. 2012, 267, 74–92. [Google Scholar] [CrossRef]
  28. Shaver, G.R. Spatial heterogeneity: Past, present, and future. In Ecosystem Function in Heterogeneous Landscapes; Springer: New York, NY, USA, 2005; pp. 443–449. [Google Scholar]
  29. Zhu, X.; He, Z.B.; Du, J.; Chen, L.F.; Lin, P.F.; Tian, Q.Y. Spatial heterogeneity of throughfall and its contributions to the variability in near-surface soil water-content in semiarid mountains of China. For. Ecol. Manag. 2021, 488, 119008. [Google Scholar] [CrossRef]
  30. Dutilleul, P.; Legendrem, P. Spatial heterogeneity against heteroscedasticity: An ecological paradigm versus a statistical concept. Oikos 1993, 66, 152–171. [Google Scholar] [CrossRef]
  31. Tscharntke, T.; Steffan-Dewenter, I.; Kruess, A.; Thies, C. Characteristics of insect populations on habitat fragments: A mini review. Ecol. Res. 2002, 17, 229–239. [Google Scholar] [CrossRef]
  32. Leyequien, E.; Verrelst, J.; Slot, M.; Schaepman-Strub, G.; Heitkönig, I.M.A.; Skidmore, A. Capturing the fugitive: Applying remote sensing to terrestrial animal distribution and diversity. Int. J. Appl. Earth Obs. Geoinf. 2007, 9, 1–20. [Google Scholar] [CrossRef]
  33. Tilman, D.; Kareiva, P. Spatial Ecology: The Role of Space in Population Dynamics and Interspecific Interactions; Princeton University Press: Princeton, NJ, USA, 1997. [Google Scholar]
  34. Rosindell, J.; Wong, Y.; Etienne, R.S. A coalescence approach to spatial neutral ecology. Ecol. Inform. 2008, 3, 259–271. [Google Scholar] [CrossRef]
  35. Franklin, J.F.; Mitchell, R.J.; Palik, B.J. Natural Disturbance and Stand Development Principles for Ecological Forestry; General Technical. Report. NRS-19; USDA Forest Service, Northern Research Station: Delaware, PA, USA, 2007. [Google Scholar]
  36. Nyland, R.D. Silviculture: Concepts and Applications; McGraw-Hill: New York, NY, USA, 2002. [Google Scholar]
  37. Churchill, D.J.; Larson, A.J.; Dahlgreen, M.C.; Franklin, J.F.; Hessburg, P.F.; Lutz, J.A. Restoring forest resilience: From reference spatial patterns to silvicultural prescriptions and monitoring. For. Ecol. Manag. 2013, 291, 442–457. [Google Scholar] [CrossRef]
  38. Peck, J.L.E.; Zenner, E.K.; Brang, P.; Zingg, A. Tree size distribution and abundance explain structural complexity differentially within stands of even-aged and uneven-aged structure types. Eur. J. For. Res. 2014, 133, 335–346. [Google Scholar] [CrossRef]
  39. Choe, C.H.; Kim, J.H.; Xu, C.Y.; Choe, J.S.; Man, H.S.; Jo, S.M. Effect of soil nutrient spatial heterogeneity by cutting disturbance on understory plant diversity in broadleaved-Korean pine forest in Changbai mountain, China. Eur. J. For. Res. 2021, 140, 603–613. [Google Scholar] [CrossRef]
  40. Kuehne, C.; Weiskittel, A.R.; Fraver, S.; Puettmann, K.J. Effects of thinning-induced changes in structural heterogeneity on growth, ingrowth, and mortality in secondary coastal Douglas-fir forests. Can. J. For. Res. 2015, 45, 1448–1461. [Google Scholar] [CrossRef]
  41. Larson, A.J.; Stover, K.C.; Keyes, C.R. Effects of restoration thinning on spatial heterogeneity in mixed-conifer forest. Can. J. For. Res. 2014, 42, 1505–1517. [Google Scholar] [CrossRef]
  42. Tian, F.; Yan, Y.B. A sift feature matching algorithm based on semi-variance function. Adv. Mater. Res. 2013, 647, 896–900. [Google Scholar] [CrossRef]
  43. Goovaerts, P. Geostatistics for Natural Resources Evaluation (Applied Geostatistics); Oxford University Press: Oxford, UK, 1997. [Google Scholar]
  44. Montero, J.M.; Fernández-Avilés, G.; Mateu, J. Spatial and Spatio-Temporal Geostatistical Modeling and Kriging. John Wiley and Sons: New York, NY, USA, 2015. [Google Scholar]
  45. Gräler, B.; Pebesma, E.; Heuvelink, G. Spatio-temporal interpolation using gstat. R J. 2016, 8, 204–218. [Google Scholar] [CrossRef]
  46. Pham, Q.H.; Gagnon, M.; Antoni, J.; Tahan, A.; Monette, C. Prediction of hydroelectric turbine runner strain signal via cyclostationary decomposition and kriging interpolation. Renew. Energy 2022, 182, 998–1011. [Google Scholar] [CrossRef]
  47. Tziachris, P.; Metaxa, E.; Papadopoulos, F.; Papadopoulou, M. Spatial modelling and prediction assessment of soil iron using kriging interpolation with ph as auxiliary information. Int. J. Geo-Inf. 2017, 6, 283. [Google Scholar] [CrossRef]
  48. Kimmins, J.P. Balancing Act: Environmental Issues in Forestry; University of British Columbia Press: Vancouver, BC, USA, 1992. [Google Scholar]
  49. Johnstone, W.D. Thinning lodgepole pine. In Lodgepole Pine: The Species and Its Management; Baumgartner, D.M., Krebill, R.G., Arnott, J.T., Weetman, G.F., Eds.; Washington State University: Spokane, WA, USA, 1985. [Google Scholar]
  50. Crouch, G.L. Effects of Thinning Pole-Sized Lodgepole Pine on Understory Vegetation and Large Herbivore Activity in Central Colorado; USDA Forest Service, Rocky Mountain Research, Station Res.: Fort Collins, CO, USA, 1986; pp. RM–268. [Google Scholar]
  51. Hungerford, R.D. Predicting Response of Understory Vegetation to Stand Treatment: Consequences for Multi-Resource Management; General Technical Report, USDA Forest Service, INT-237; Intermountain Research Station: Ogden, UT, USA, 1987. [Google Scholar]
  52. Klinka, K.; Chen, H.Y.H.; Wang, Q.L.; Montigny, L. Forest canopies and their influence on understory vegetation in early- seral stands on West Vancouver Island. Northwest Sci. 1996, 70, 193–200. [Google Scholar]
  53. Stone, W.E.; Wolfe, M.L. Response of understory vegetation to variable tree mortality following a mountain pine beetle epidemic in lodgepole pine stands in northern Utah. Vegetatio 1996, 122, 1–12. [Google Scholar] [CrossRef]
  54. Thomas, S.C.; Halpern, C.B.; Falk, D.A.; Liguori, D.A.; Austin, K.A. Plant diversity in managed forests: Understory responses to thinning and fertilization. Ecol. Appl. 1999, 9, 864–879. [Google Scholar] [CrossRef]
  55. Sullivan, T.P.; Sullivan, D.S.; Lindgren, P.M.F. Stand structure and small mammals in young lodgepole pine forest: 10-year results after thinning. Ecol. Appl. 2001, 11, 1151–1173. [Google Scholar] [CrossRef]
  56. Assmann, E. Grundflächenhaltung und zuwachsleistung bayerischer fichten-durchforstungsreihen. Forstwiss. Cent. 1954, 73, 257–271. [Google Scholar] [CrossRef]
  57. Gebhardt, T.; Haberle, K.H.; Matyssek, R.; Schulz, C.; Ammer, C. The more, the better? Water relations of norway spruce stands after progressive thinning. Agric. For. Meteorol. 2014, 197, 235–243. [Google Scholar] [CrossRef]
  58. Olivar, J.; Bogino, S.; Rathgeber, C.; Bonnesoeur, V.; Bravo, F. Thinning has a positive effect on growth dynamics and growth-climate relationships in Aleppo pine (Pinus halepensis) trees of different crown classes. Ann. For. Sci. 2014, 71, 395–404. [Google Scholar] [CrossRef]
  59. Gradel, K.O.; Jensen, U.S.; Schønheyder, H.C.; Østergaard, C.; Knudsen, J.D.; Wehberg, S.; Søgaard, M. Impact of appropriate empirical antibiotic treatment on recurrence and mortality in patients with bacteraemia: A population-based cohort study. BMC Infect. Dis. 2017, 122, 1–9. [Google Scholar] [CrossRef] [PubMed]
  60. Varmola, M.; Kolström, T.; Mehtätalo, E. The effect of release cutting on the growth and external quality of the dominant trees in a Pinus sylvestris stand established by spot sowing. Scand. J. For. Res. 1998, 13, 151–159. [Google Scholar] [CrossRef]
  61. Cabon, A.; Mouillot, F.; Lempereur, M.; Ourcival, J.M.; Simioni, G.; Limousin, J.M. Thinning increases tree growth by delaying drought-induced growth cessation in a mediterranean evergreen oak coppice. For. Ecol. Manag. 2018, 409, 333–342. [Google Scholar] [CrossRef]
  62. Nguyen, T.T.; Tai, D.T.; Zhang, P.; Razaq, M. Effect of thinning intensity on tree growth and temporal variation of seed and cone production in a Pinus koraiensis plantation. J. For. Res. 2019, 30, 95–105. [Google Scholar] [CrossRef]
  63. Park, J.; Kim, T.; Moon, M.; Cho, S.; Ryu, D.; Kim, H.S. Effects of thinning intensities on tree water use, growth, and resultant water use efficiency of 50-year-old Pinus koraiensis forest over four years. For. Ecol. Manag. 2018, 408, 121–128. [Google Scholar] [CrossRef]
  64. Tsai, H.C.; Chiang, J.M.; Mcewan, R.W.; Lin, T.C. Decadal effects of thinning on understory light environments and plant community structure in a subtropical forest. Ecosphere 2018, 9, e02464. [Google Scholar] [CrossRef]
  65. Liu, X.; Zhou, W.; Wang, W.J. Spatial Heterogeneity of Urban Street Trees in Harbin, China. Bull. Bot. Res. 2019, 39, 590–597. [Google Scholar]
  66. Samra, J.S.; Gill, H.S.; Richter, J.; Anlauf, R. Spatial dependence of soil sodicity and tree growth in a natric hapustalf. Soil Sci. Soc. Am. J. 1990, 54, 1228–1233. [Google Scholar] [CrossRef]
  67. Li, C.; Luo, P.; Li, Z.Q. Spatial heterogeneity of diameter at breast height growth for Korean pine natural forest and its relationships with terrain factors. J. Nanjing For. Univ. (Nat. Sci.) 2017, 41, 129–135. [Google Scholar]
  68. Arzai, A.H.; Aliyu, B.S. The relationship between canopy width, height and trunk size in some tree species growing in the savana zone of nigeria. Bayero J. Pure Appl. Sci. 2010, 3, 260–263. [Google Scholar] [CrossRef]
  69. Dai, J.Y.; Liu, H.Y.; Wang, Y.C.; Guo, Q.H.; Hu, T.Y.; Quine, T.; Green, S.; Hartmann, H.; Xu, C.Y.; Liu, X.; et al. Drought-modulated allometric patterns of trees in semi-arid forests. Commun. Biol. 2020, 405, 1–7. [Google Scholar] [CrossRef]
  70. Hartmann, H. Will a 385 million year-struggle for light become a struggle for water and for carbon?—How trees may cope with more frequent climate change-type drought events. Glob. Chang. Biol. 2011, 17, 642–655. [Google Scholar] [CrossRef]
  71. Miehe, G.; Miehe, S.; Will, M.; Opgenoorth, L.; Duo, L.; Dorgeh, T.; Liu, J. An inventory of forest relicts in the pastures of Southern Tibet. Plant Ecol. 2008, 194, 157–177. [Google Scholar] [CrossRef]
  72. Liang, E.Y.; Lu, X.M.; Ren, P.; Li, X.X.; Zhu, L.P.; Eckstein, D. Annual increments of juniper dwarf shrubs above the tree line on the central Tibetan Plateau: A useful climatic proxy. Ann. Bot. 2012, 109, 721–728. [Google Scholar] [CrossRef]
  73. Liu, H.; Williams, A.P.; Allen, C.D.; Guo, D.; Wu, X.; Anenkhonov, O.A.; Liang, E.; Sandanov, D.V.; Yin, Y.; Qi, Z.; et al. Rapid warming accelerates tree growth decline in semi-arid forests of Inner Asia. Glob. Change Biol. 2013, 19, 2500–2510. [Google Scholar] [CrossRef]
  74. Biederman, J.; Harpold, A.A.; Gochis, D.J.; Ewers, B.; Reed, D.E.; Papuga, S.; Brooks, P.D. Increased evaporation following widespread tree mortality limits streamflow response. Water Resour. Res. 2014, 50, 5395–5409. [Google Scholar] [CrossRef]
  75. Moreno, H.A.; Gupta, H.V.; White, D.D.; Sampson, D.A. Modeling the distributed effects of forest thinning on the long-term water balance and streamflow extremes for a semi-arid basin in the southwestern US. Hydrol. Earth Syst. Sci. 2016, 20, 1241–1267. [Google Scholar] [CrossRef]
Forests 15 01278 g001

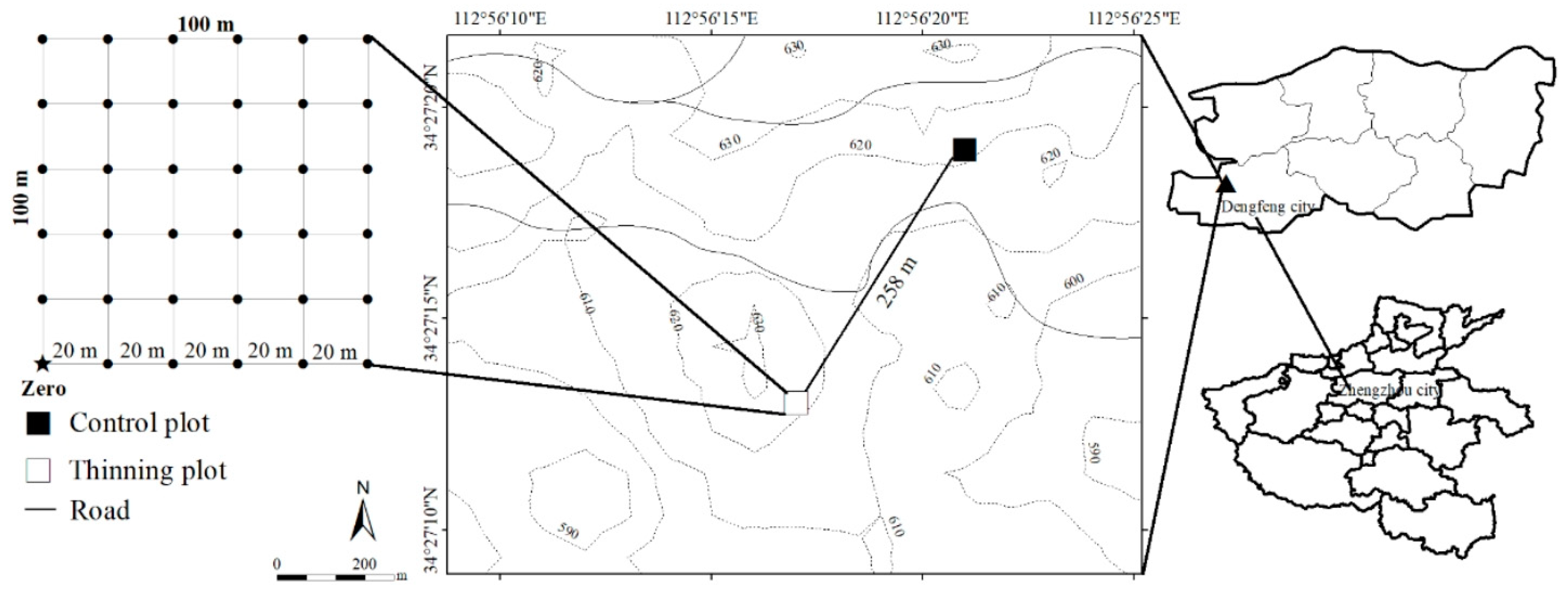

Figure 1. Location of the research area and sampling plots.
Figure 1. Location of the research area and sampling plots.
Forests 15 01278 g001
Forests 15 01278 g002
Figure 2. Semi-variograms of DBH, TH, and SD in the thinning and control plots. (a) Semi-variances of DBH, TH, and SD of the control plot; (b) semi-variances of DBH, TH, and SD of the thinning plot. (DBH, TH, and SD are the same as Table 3).
Figure 2. Semi-variograms of DBH, TH, and SD in the thinning and control plots. (a) Semi-variances of DBH, TH, and SD of the control plot; (b) semi-variances of DBH, TH, and SD of the thinning plot. (DBH, TH, and SD are the same as Table 3).
Forests 15 01278 g002
Forests 15 01278 g003
Figure 3. Fractal dimension of DBH, TH, and SD in the thinning and control plots. (a) Fractal dimension of DBH, tree height, and density of the control plot; (b) fractal dimension of DBH, tree height, and density of thinning plot. (D0, SE, and R2 represent the fractal dimension, standard error, and determination coefficient, respectively; DBH, TH, and SD are the same as those in Table 3).
Figure 3. Fractal dimension of DBH, TH, and SD in the thinning and control plots. (a) Fractal dimension of DBH, tree height, and density of the control plot; (b) fractal dimension of DBH, tree height, and density of thinning plot. (D0, SE, and R2 represent the fractal dimension, standard error, and determination coefficient, respectively; DBH, TH, and SD are the same as those in Table 3).
Forests 15 01278 g003
Forests 15 01278 g004
Figure 4. Moran’s I coefficient of DBH, TH, and SD in the thinning and control plots. (a) Moran’s I coefficient of DBH, tree height, and density of the control plot; (b) Moran’s I coefficient of DBH, tree height, and density of thinning plot. (DBH, TH, and SD are the same as those in Table 3).
Figure 4. Moran’s I coefficient of DBH, TH, and SD in the thinning and control plots. (a) Moran’s I coefficient of DBH, tree height, and density of the control plot; (b) Moran’s I coefficient of DBH, tree height, and density of thinning plot. (DBH, TH, and SD are the same as those in Table 3).
Forests 15 01278 g004
Forests 15 01278 g005
Figure 5. Two-dimensional map of spatial distribution pattern of DBH, tree height, and stand density in the thinning and control plots. (a) Spatial distribution pattern of DBH, tree height, and stand density of the control plot; (b) spatial distribution pattern of DBH, tree height, and stand density of the thinning plot. (DBH, TH, and SD are the same as those in Table 3).
Figure 5. Two-dimensional map of spatial distribution pattern of DBH, tree height, and stand density in the thinning and control plots. (a) Spatial distribution pattern of DBH, tree height, and stand density of the control plot; (b) spatial distribution pattern of DBH, tree height, and stand density of the thinning plot. (DBH, TH, and SD are the same as those in Table 3).
Forests 15 01278 g005
Forests 15 01278 g006
Figure 6. Three-dimensional map of spatial distribution pattern of DBH, tree height, and stand density in the thinning and control plots. (a) Spatial distribution pattern of DBH, tree height, and stand density of the control plot; (b) spatial distribution pattern of DBH, tree height, and stand density of the thinning plot. (DBH, TH, and SD are the same as those in Table 3).
Figure 6. Three-dimensional map of spatial distribution pattern of DBH, tree height, and stand density in the thinning and control plots. (a) Spatial distribution pattern of DBH, tree height, and stand density of the control plot; (b) spatial distribution pattern of DBH, tree height, and stand density of the thinning plot. (DBH, TH, and SD are the same as those in Table 3).
Forests 15 01278 g006
Table 1. General characteristics of the thinning and control plots.
Table 1. General characteristics of the thinning and control plots.
Plot TypeGeographical CoordinateAltitude (m)Slope (°)AspectStand Density (Stems·ha−1)
TP112°56′17″ E, 34°27′13″ N6179Northwest1487
CP112°56′21″ E, 34°27′19″ N6307Northwest2113
Note: TP and CP represent the thinning plot and control plot, respectively, and are the same as those below.
Table 2. The formal list of the semi-variance function models.
Table 2. The formal list of the semi-variance function models.
Model FormEquations
Spherical model λ h = 0 , h = 0 C 0 + C × 3 h 2 a − 1 2 × h a 3 , 0 < h ≤ a C 0 + C , h > a
Linear without still model λ h = C 0 , h = 0 C 0 + A × h , h > 0
Linear with still model λ h = C 0 , h = 0 C 0 + A × h , 0 < h ≤ a C 0 + C , h > a
Exponential model λ h = 0 , h = 0 C 0 + C × 1 − e − h a , 0 < h ≤ 3 a C 0 + C , h > 3 a
Gaussian model λ h = 0 , h = 0 C 0 + C × 1 − e − h a 2 , 0 < h ≤ 3 a C 0 + C , h > 3 a
Note: λ(h) is the value of semi-variance; h is the separation distance; C is the structural variability; C0 is the nugget variance; (C0 + C) is a constant; a is the range of variance; A is a constant.
Table 3. Descriptive statistics of community structure attribute in the thinning and control plots.
Table 3. Descriptive statistics of community structure attribute in the thinning and control plots.
Plot TypesIndexAverage ± SDMinimumMaximumCoefficient of Variation (%)SkewnessKurtosisPs-wP*s-w
CPAverage DBH (cm)10.80 ± 1.31 a17.108.8012.161.555.100.0000.455
Average TH (m)9.00 ± 0.89 a12.907.309.891.223.200.0000.877
SD (stem/m2)0.21 ± 0.07 a0.370.0235.31−0.420.180.115
TPAverage DBH (cm)12.80 ± 1.36 b15.808.4010.59−0.382.150.0320.054
Average TH (m)11.30 ± 1.13 b13.906.709.97−0.471.920.0140.138
SD (stem/m2)0.14 ± 0.04 a0.260.0527.86−0.070.590.096
Note: Different letters mean a significant difference in the community structure attributes between different plots at the 0.05 level. Ps-w is the normal test probability value of the original data; P*s-w is the probability value of the normal test after Box–Cox transformation. DBH, TH, and SD represent the diameter at breast height, tree height, and stand density, respectively.
Table 4. Types and parameters of semi-variogram model for spatial analysis of DHB, tree height and stand density in the thinning and control plots.
Table 4. Types and parameters of semi-variogram model for spatial analysis of DHB, tree height and stand density in the thinning and control plots.
Plot TypesIndexModel FormNuggetSillStructure Ratio (%)Range (m)Determination Coefficients (R2)Residual Sum of Squares (RSS)
CPDBH (cm)Exponential model<0.001<0.0010.1628.20.880<0.001
TH (m)Spherical model<0.001<0.0010.1712.60.001<0.001
SD (stem/m2)Exponential model<0.001<0.0010.2039.30.967<0.001
TPDBH (cm)Spherical model2.151.834.0521.90.88018.4
TH (m)Exponential model24.7264.49.3433.00.912407
SD (stem/m2)Exponential model<0.001<0.0016.5430.30.976<0.001
Note: DBH, TH, and SD are the same as those in Table 3.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhou, M.; Wang, Y.; Jin, S.; Wang, D.; Yan, D. Spatial Distribution Pattern of Response of Quercus Variabilis Plantation to Forest Restoration Thinning in a Semi-Arid Area in China. Forests 2024, 15, 1278. https://doi.org/10.3390/f15081278

AMA Style

Zhou M, Wang Y, Jin S, Wang D, Yan D. Spatial Distribution Pattern of Response of Quercus Variabilis Plantation to Forest Restoration Thinning in a Semi-Arid Area in China. Forests. 2024; 15(8):1278. https://doi.org/10.3390/f15081278

Chicago/Turabian Style

Zhou, Mengli, Yuan Wang, Shanshan Jin, Decai Wang, and Dongfeng Yan. 2024. "Spatial Distribution Pattern of Response of Quercus Variabilis Plantation to Forest Restoration Thinning in a Semi-Arid Area in China" Forests 15, no. 8: 1278. https://doi.org/10.3390/f15081278

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
