Elicitation of Neutralizing Antibody Responses to HIV-1 Immunization with Nanoparticle Vaccine Platforms

Abstract

A leading strategy for developing a prophylactic HIV-1 vaccine is the elicitation of antibodies that can neutralize a large fraction of circulating HIV-1 variants. However, a major challenge that has limited the effectiveness of current vaccine candidates is the extensive global diversity of the HIV-1 envelope protein (Env), the sole target for HIV-neutralizing antibodies. To address this challenge, various strategies incorporating Env diversity into the vaccine formulation have been proposed. Here, we assessed the potential of two such strategies that utilize a nanoparticle-based vaccine platform to elicit broadly neutralizing antibody responses. The nanoparticle immunogens developed here consisted of different formulations of Envs from strains BG505 (clade A) and CZA97 (clade C), attached to the N-termini of bacterial ferritin. Single—antigen nanoparticle cocktails, as well as mosaic nanoparticles bearing both Env trimers, elicited high antibody titers in mice and guinea pigs. Furthermore, serum from guinea pigs immunized with nanoparticle immunogens achieved autologous, and in some cases heterologous, tier 2 neutralization, although significant differences between mosaic and single—antigen nanoparticles were not observed. These results provide insights into the ability of different vaccine strategies for incorporating Env sequence diversity to elicit neutralizing antibodies, with implications for the development of broadly protective HIV-1 vaccines.

1. Introduction

The extreme genetic diversity of circulating HIV-1 strains has been a barrier to the development of an efficacious vaccine. This is due, in part, to variations in the envelope trimer protein (Env) of HIV-1 [1,2]. Env mediates virus-host cell fusion and is also the sole target of neutralizing antibodies [3]. This diversity, therefore, underscores the need for immunogens that can generate a protective antibody response capable of recognizing a multitude of Envs. Multiple soluble Env trimers have been used in sequence and/or simultaneously in immunizations to limited effect [4,5,6]. In addition to soluble trimers, multimerizing Env antigens on the surface of nanoparticles have also been proposed to further improve the elicited antibody responses [7,8].

Heterologous nanoparticles are capable of mimicking repetitive multimeric patterns that are recognized by the immune system, engage with antigen-presenting cells, and traffic directly to the lymphatic system [9,10]. The arrangement of antigens on a nanoparticle can effectively cross-link B-cell receptors, which improves antibody-dependent immune responses [11,12]. Spontaneously self-assembling protein nanoparticles have been particularly efficient, as their expression in culture circumvents additional steps of nanoparticle-antigen linkage [8,13,14]. Different-sized protein nanoparticles have been tested against a range of disease states, exhibiting their versatility as a scaffold for antigen presentation [15]. Heliobacter pylori ferritin, in particular, has been used as a platform for many viral antigens, including HIV-1 and influenza [8,14,16,17,18]. These particles are comprised of 24 identical monomers that spontaneously self-assemble into a ~10 nm particle that includes eight three-fold axes of symmetry, making them an optimal candidate for expressing trimeric antigens like the HIV-1 Env. Genetically fusing diverse Env protomers to the N-terminus of self-assembling protein nanoparticles like ferritin also allows individual nanoparticles to display multiple trimers; here, we refer to such particles as “mosaic” nanoparticle immunogens [19]. The mosaic nanoparticle strategy aims at generating a cross-reactive B-cell response capable of recognizing the different antigens on the surface of the nanoparticle. While mosaic nanoparticles have been successfully developed for various targets, including influenza and coronaviruses [19,20], in the case of HIV-1, it is currently not well-understood if these particles outperform cocktails of single—antigen nanoparticles or other strategies for incorporating Env diversity. To address this question, we performed immunization experiments with the goal of comparing the elicited antibody responses to mosaic nanoparticles vs. soluble trimer, soluble trimer cocktails, and single—antigen nanoparticle cocktails, with each strategy using the same two, or one of the two, underlying HIV-1 strains. Our results indicate that mosaic nanoparticles can elicit autologous, and in some cases, heterologous, HIV-1 Tier 2 neutralizing antibody responses, although significant differences with single—antigen nanoparticles were not observed for the two specific strains tested here. Overall, our results provide insights into the ability of different vaccine strategies for incorporating Env sequence diversity to elicit neutralizing antibody responses, with implications for the development of broadly protective HIV-1 vaccines.

2. Materials and Methods

2.1. Reagents

The following reagents were obtained from the AIDS Research and Reference Reagent Program, Division of AIDS (DAIDS), National Institute of Allergy and Infectious Diseases (NIAID), National Institutes of Health (NIH): Anti-HIV-1 gp120 Monoclonal (VRC01), from Dr. John Mascola (cat# 12033) [21]. The following reagents were obtained through the NIH HIV Reagent Program, Division of AIDS, NIAID, NIH: Human Immunodeficiency Virus 1 (HIV-1) JRFL gp140 Recombinant Protein (B.JRFL gp140CF), ARP-12573, contributed by Dr. Barton F. Haynes and Dr. Hua-Xin Liao; Human Immunodeficiency Virus 1 (HIV-1) gp140 Recombinant Protein (B.9021 gp140C), ARP-12575, contributed by Dr. Barton F. Haynes and Dr. Hua-Xin Liao; Human Immunodeficiency Virus 1 (HIV-1) gp140 Recombinant Protein (C.1086 gp140C), ARP-12581, contributed by Dr. Barton F. Haynes and Dr. Hua-Xin Liao; Human Immunodeficiency Virus 1 (HIV-1) gp100 Recombinant Protein (B.6240 gp140C), ARP-12572, contributed by Dr. Barton F. Haynes and Dr. Hua-Xin Liao; Human Immunodeficiency Virus Type 1 BR029 gp140 Protein, Recombinant from CHO Cells, ARP-12066, contributed by DAIDS/NIAID; produced by Polymun Scientific; Human Immunodeficiency Virus Type 1 UG21 gp140 Protein, Recombinant from CHO Cells, ARP-12065, contributed by DAIDS/NIH (Polymun Scientific, Inc., Klosterneuburg, Austria); Human Immunodeficiency Virus Type 1 UG037 gp140 Protein, Recombinant from CHO Cells, ARP-12063, contributed by DAIDS/NIAID (Polymun Scientific, Inc.); Human Immunodeficiency Virus Type 1 CN54 gp140 Protein, Recombinant from CHO Cells, ARP-12064, contributed by DAIDS/NIAID; produced by Polymun Scientific, Inc.; Human Immunodeficiency Virus Type 1 SF162 gp140 Trimer Protein, Recombinant from HEK293T Cells, ARP-12026, contributed by Dr. Leo Stamatatos.

2.2. Antigen Expression and Purification

The trimers were expressed in FreeStyle 293F mammalian cells (ThermoFisher, Waltham, MA, USA) by transfecting plasmids corresponding to either BG505.SOSIP.664sc or CZA97.SOSIP.664sc using the polyethylenimine (PEI) transfection reagent and cultured for 5–7 days. These cells were cultured at 37 °C with 8% CO₂ saturation and shaking. After transfection and 5–7 days of culture, cell cultures were centrifuged at 6000 rpm for 20 min. Supernatant was 0.45 µm filtered with PES membrane Nalgene Rapid Flow Disposable Filter Units. The filtered supernatant was run over a column containing Galanthus nivalis snow-drop lectin that had been equilibrated with PBS. The column was washed with PBS, and proteins were eluted with 30 mL of 1 M methyl-α-d-mannopyranoside. The protein elution was buffer exchanged three times into PBS and concentrated using 10 kDa or 30kDa Amicon Ultra centrifugal filter units. Concentrated protein was run on a Superose 6 Increase 10/300 GL or Superdex 200 Increase 10/300 GL on the AKTA FPLC system, and fractions were collected on an F9-R fraction collector.

CZA97-ferritin and BG505-ferritin were expressed as above. Cotransfected nanoparticles were expressed by transfecting equal parts of CZA97-ferritin and BG505-ferritin DNA, resulting in the assembly of nanoparticles bearing different ratios of each Env in a stochastic fashion, as described in [19], and were purified as above but using a Sephacryl S-500 or Superose 6 sizing column.

2.3. Enzyme-Linked Immunosorbent Assay (ELISA)

For gp140 ELISAs, soluble proteins (Aids Reagent Program) were plated at 2 μg/mL overnight at 4 °C. The next day, plates were washed three times with PBS supplemented with 0.05% Tween20 (PBS-T) and coated with 5% milk powder in PBS-T. Plates were incubated for one hour at room temperature and then washed three times with PBS-T. Guinea pig serum was diluted in 1% milk in PBS-T, starting at a 1:50 dilution, and was subsequently serially diluted 1:5 and then added to the plate. The plates were incubated at room temperature for one hour and then washed three times in PBS-T. The secondary antibody, goat anti-guinea pig IgG conjugated to peroxidase (abcam), was added at 1:25,000 dilution in 1% milk in PBS-T to the plates, which were incubated for one hour at room temperature. Plates were washed three times with PBS-T and then developed by adding TMB substrate to each well. The plates were incubated at room temperature for 10 min, and then 1 N sulfuric acid was added to stop the reaction. Plates were read at 450 nm. Due to limited amounts of recovered sera, we were unable to perform ELISAs against single—chain Envs (scEnvs) for one mouse in the group that received the mosaic immunogen.

Areas under the ELISA binding curves (AUC) were determined with GraphPad Prism 8.0.0.

2.4. Mouse Immunizations

The study was conducted with approval by the Institutional Review Board of Vanderbilt University (IACUC Approved Protocol Number M1700115). Five Female BALB/c mice 4–6 weeks old (Charles River) were used per group in our immunization studies. Mouse studies included 4 groups for a total number of 20 mice. Mice received equal-weight doses of BG505 trimer, BG505 and CZA97 trimer cocktail, BG505-ferritin and CZA97-ferritin cocktail, or BG505 and CZA97 both on ferritin. A prime dose of 20 µg of antigen in TiterMax Gold (Sigma-Aldrich, Burlington, VT, USA) was administered intramuscularly in the hind leg(s). Boosts were performed at four and eight weeks post-prime. Pre-immune blood was collected from the submandibular vein before the start of the study and two weeks after each immunization. Two weeks after the final boost, blood was collected from both a submandibular bleed as well as a cardiac puncture.

2.5. Guinea Pig Immunizations

The study was conducted according to the guidelines of Cocalico Biologicals, Inc., Reamstown, PA, USA. Animal Care and Use Committee (The IACUC Approved Protocol Number: 181024CBISTD) for the guinea pig studies. Cocalico Biologics administered vaccines by first priming with 50 µg of either the single—antigen cocktail of nanoparticles or mosaic nanoparticles in TiterMax Gold (Sigma-Aldrich) and boosting with 25 µg of either formulation every 3 weeks for a total of 3 boosts after prime. Immunizations were administered at multiple sites subcutaneously along the back and intramuscularly in the hind limbs as the routes of injection. No more than 0.1ml of the emulsion was used per site. Terminal bleeds were collected by Cocalico after guinea pigs were fully anesthetized.

2.6. TZM-bl Neutralization Assays

Serum neutralization was assessed using the TZM-bl assay as described in [22]. This standardized assay measures antibody-mediated inhibition of infection of TZM-bl cells by molecularly cloned Env-pseudoviruses. Viruses that are highly sensitive to neutralization (Tier 1) and/or those representing circulating strains that are moderately sensitive (Tier 2) were included. Murine leukemia virus (MLV) was included as an HIV-specificity control. Neutralization was measured as a reduction in luciferase gene expression after a single round infection of TZM-bl cells in a 96 well-plate. Results are presented as the serum/plasma dilution required to inhibit 50% of virus infection (ID₅₀).

2.7. Statistical Analysis

GraphPad Prism 8.0.0 was used to calculate Mann-Whitney U tests, Kruskal–Wallis tests with p-values adjusted for multiple comparisons via Dunn’s multiple comparison test, and geometric means and geometric standard deviations.

3. Results

3.1. Design and Characterization of HIV-1 Nanoparticle Immunogens

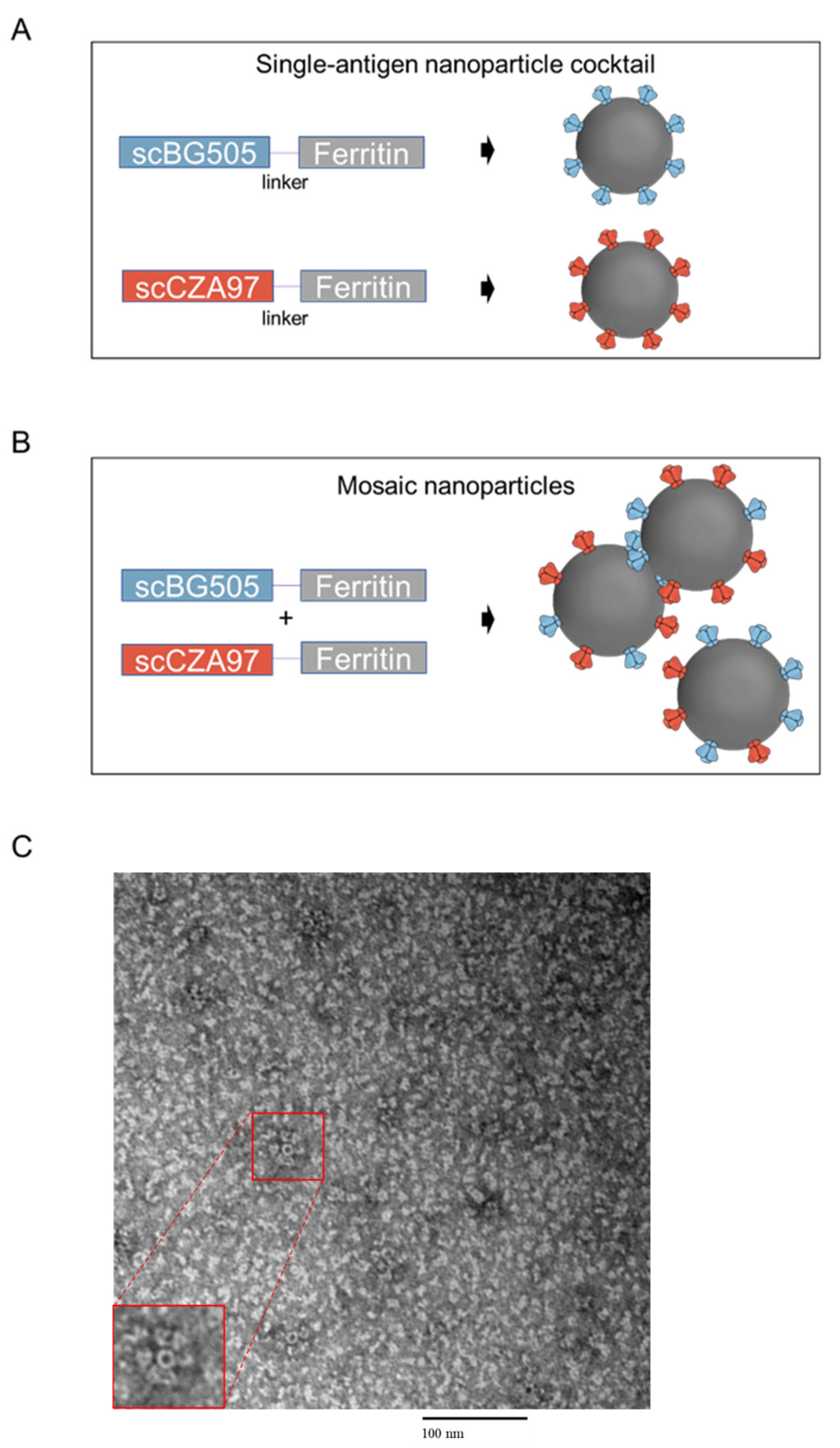

BG505 and CZA97 HIV-1 Env trimers were designed as single—chain variants (referred to as scBG505 and scCZA97) with a non-cleavable linker between gp120 and gp41 [23]. These trimers also incorporated SOSIP stabilizing mutations and truncation at residue 664, based on HXB2 numbering [24,25]. We also designed protein nanoparticles by genetically fusing either scBG505 or scCZA97 to the N-termini of Heliobacter pylori ferritin, separated by a three-residue linker [8]. The expression of the scBG505-ferritin plasmid or the scCZA97-ferritin plasmid in HEK293F cells resulted in particles multimerized with each respective trimer, as reported previously [8]. We will refer to these particles as single—antigen nanoparticle immunogens (Figure 1A). In order to multimerize both scEnvs on the same particle, we cotransfected cells with both plasmids, generating mosaic nanoparticles (Figure 1B). Size exclusion chromatography profiles were used to isolate particles of the correct size (Figure S1). Nanoparticle formation was also confirmed by negative-stain EM, which identified particles approximately 40 nm wide with trimer spikes as expected and previously reported [8] (Figure 1C).

3.2. Single—Antigen and Mosaic HIV-1 Nanoparticle Immunogens Elicit Comparable Responses in Mice

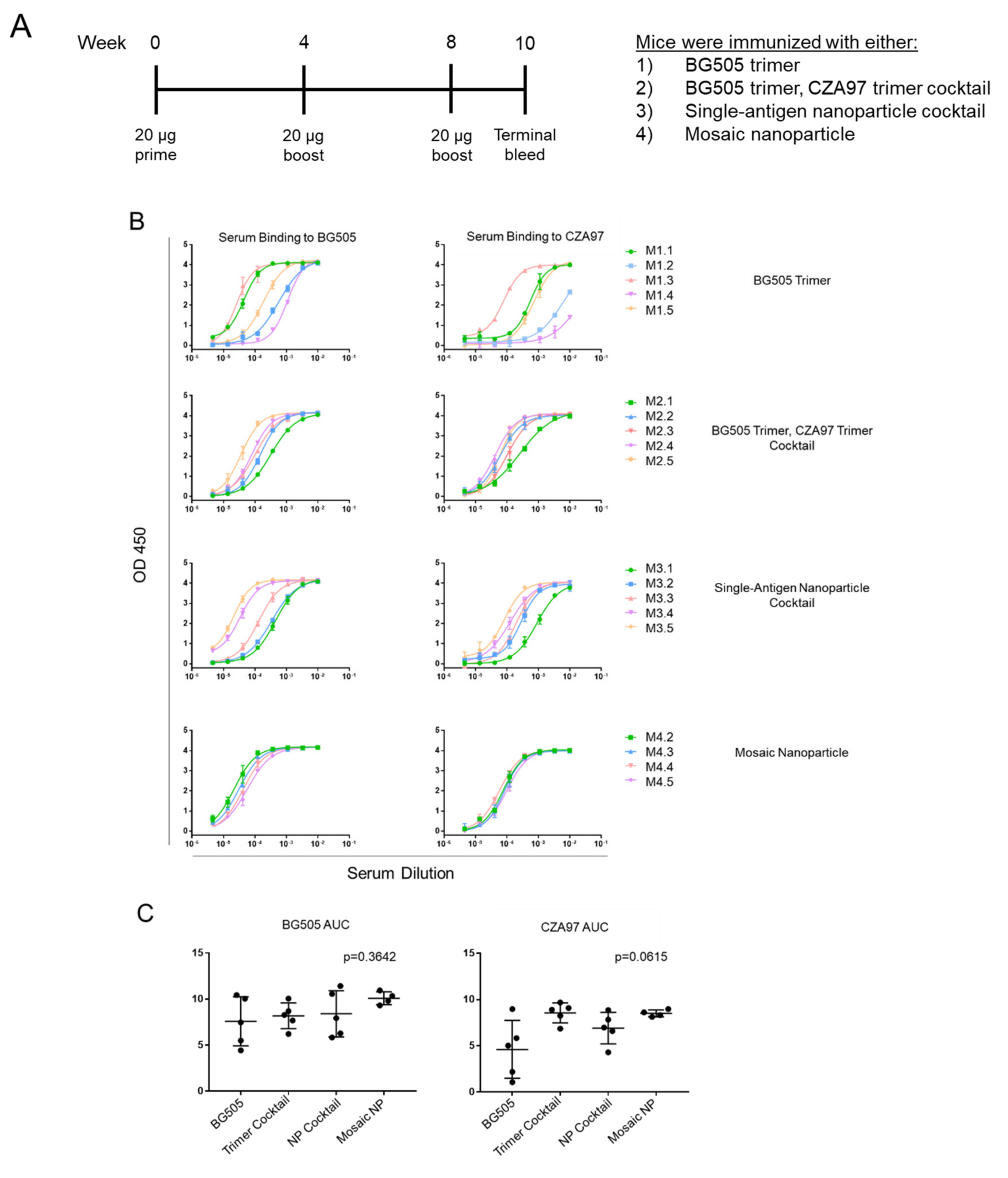

To determine the immunogenicity of the single—antigen and mosaic nanoparticles, we first immunized mice with equal-weight doses of (•) a cocktail of scBG505-ferritin and scCZA97-ferritin single—antigen nanoparticles and (•) mosaic nanoparticles expressed from the cotransfection of scBG505-ferritin and scCZA97-ferritin. Two additional control groups were also added: (•) scBG505 trimer and (•) a cocktail of scBG505 and scCZA97 trimers. Mice were boosted four and eight weeks post-prime with the same immunogens for a total of three immunizations per group. Two weeks after the final boost, mice were exsanguinated (Figure 2A). Serum from mice immunized solely with scBG505 trimer bound scBG505 and scCZA97. While not statistically significant (p = 0.222, Mann–Whitney Test), titers to scCZA97 appeared to be lower compared to titers to scBG505 (geometric mean AUC values 7.2 ± 1.5 and 3.6 ± 2.3 for scBG505 and scCZA97, respectively). In contrast, mice immunized with cocktails of trimers (geometric mean AUC values 8.1 ± 1.2, 8.5 ± 1.1), cocktails of single—antigen nanoparticles (8.1 ± 1.4, and 6.9 ± 1.3), and mosaic nanoparticles (10.1 ± 1.1, and 8.5 ± 1.0), each elicited high titers to both scBG505 and scCZA97 proteins, respectively (Figure 2B). Overall, no significant differences in immunogenicity were observed between the four groups (Figure 2C).

3.3. HIV-1 Neutralization by Vaccine—Elicited Antibody Responses in Mice

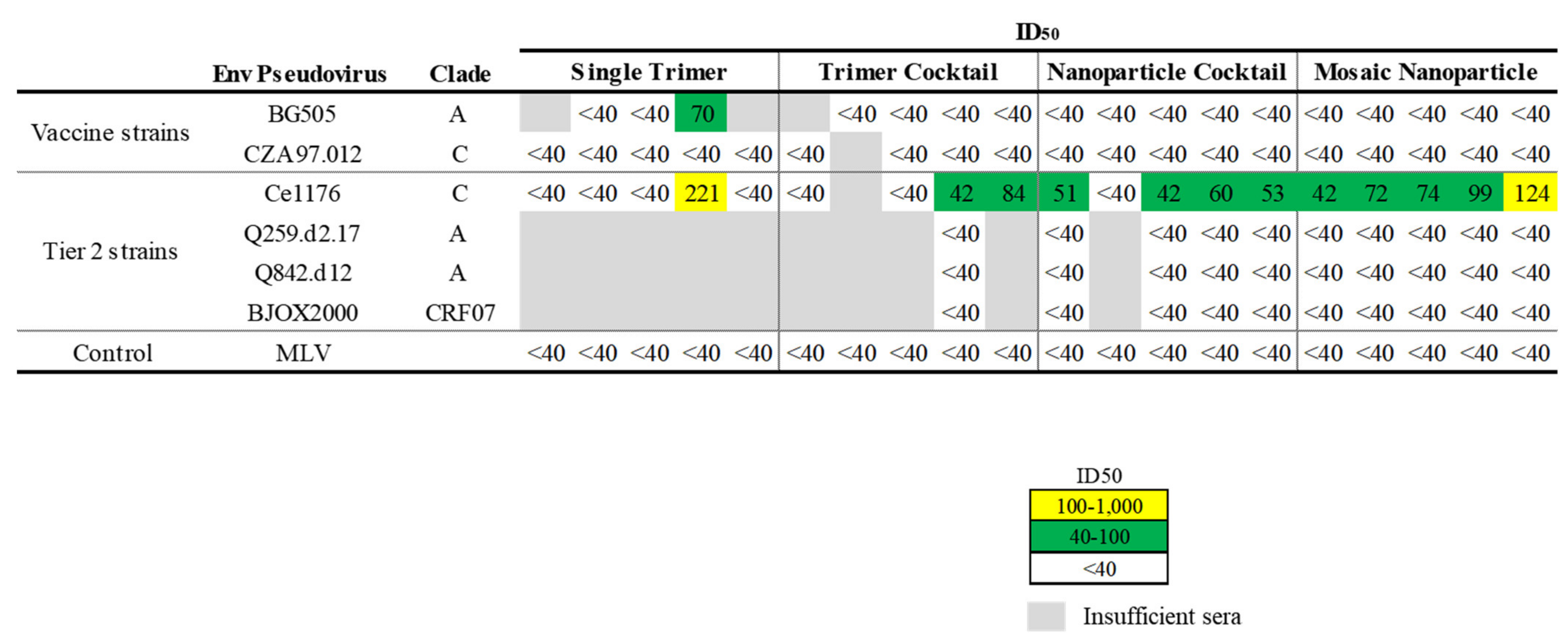

Given the robust titers of serum binding to vaccine—matched (autologous) Envs, we then asked whether differences could be observed in the breadth or potency of serum neutralization. Though serum quantities were limited from some mice, we observed autologous neutralization in one mouse solely immunized with BG505 trimer protein. No other vaccinated mice displayed neutralization of the BG505 or CZA97 autologous strains (Figure 3). Intriguingly, serum from one mouse (20%) in the single trimer group, two (40%) from the trimer cocktail group, four (80%) from the nanoparticle cocktail group, and five (100%) from the mosaic nanoparticle group neutralized a third, heterologous virus from Clade C, Ce1176, but no other Tier 2 viruses (Figure 3).

3.4. Serum from Guinea Pigs Immunized with Cocktails of Nanoparticles and Cotransfected Nanoparticles Recognize Heterologous gp140 Envs

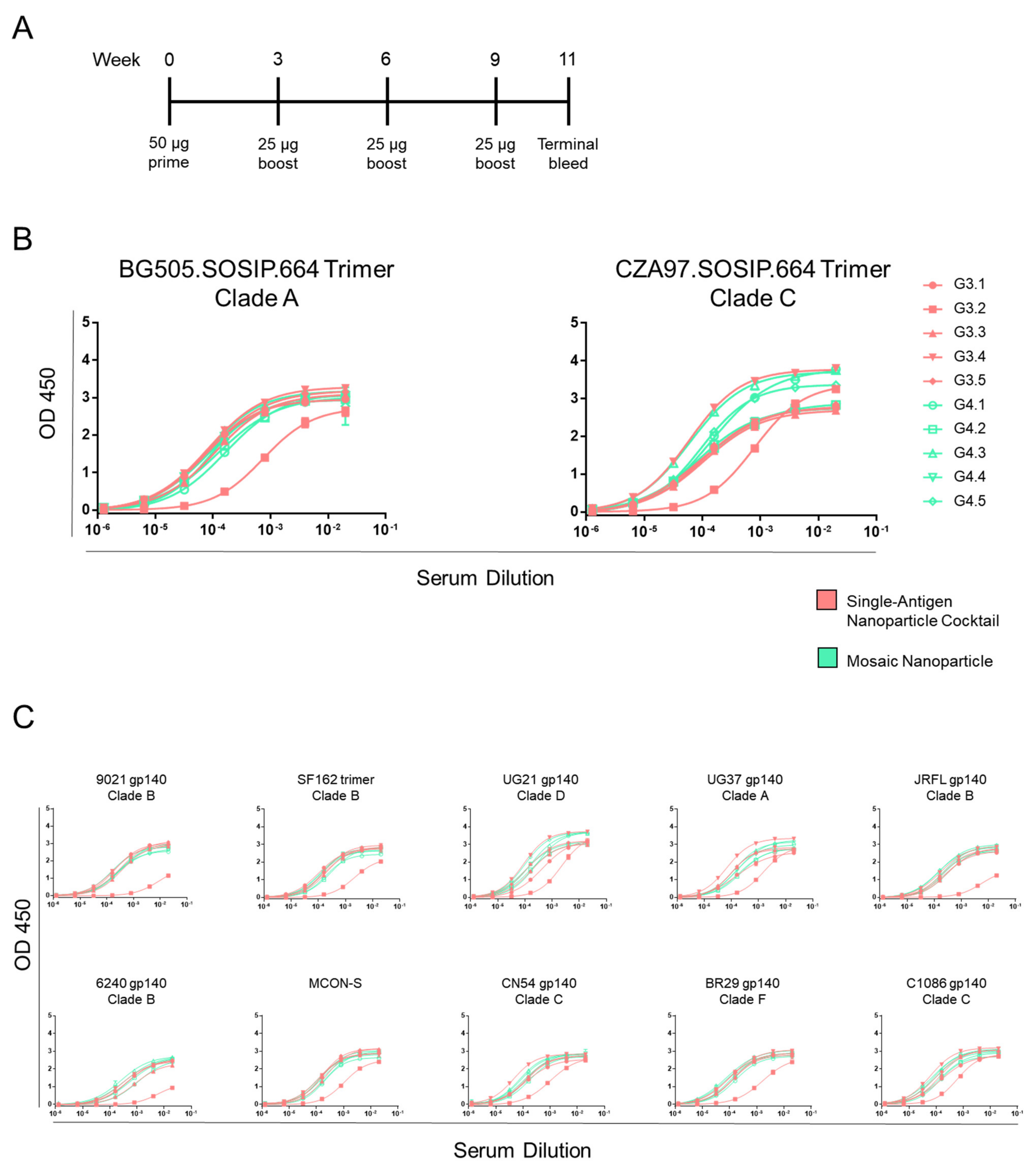

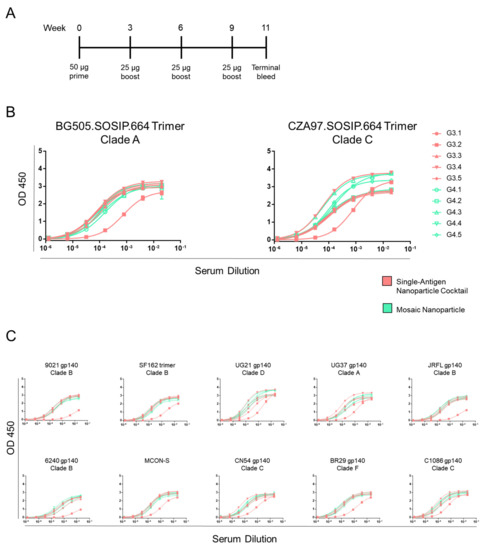

Because elicitation of broadly HIV-neutralizing antibodies has historically been a challenge in mouse models [26], we also immunized guinea pigs after confirming the immunogenicity of our two types of nanoparticle immunogens. Guinea pigs have generally shown greater ability to elicit HIV-1 neutralizing antibodies and possess more blood volume, allowing for testing larger virus neutralization panels [27,28]. Guinea pigs were immunized four times, three weeks apart, with either (•) cocktails of scBG505-ferritin and scCZA97-ferritin single—antigen nanoparticles or (•) cotransfected scBG505-ferritin and scCZA97-ferritin mosaic nanoparticles (Figure 4A). Serum from terminal bleeds was tested for binding against vaccine—matched trimers, with both groups generally eliciting high titers against vaccine—matched trimers, with the exception of one animal in the single—antigen cocktail group (Figure 4B and Figure S2A). To determine whether the two groups resulted in a different breadth of HIV-1 Env variant recognition, we tested the vaccine sera against a panel of diverse gp140 Envs (Figure 4C and Figure S2B,C). A similar pattern of antigen-binding was observed for both groups against the different antigens in the panel (again, with the exception of the same single animal from the single—antigen cocktail group). Together, these results suggest that both nanoparticle immunogen formulations can elicit antibodies capable of recognizing Envs from multiple, diverse clades.

3.5. Single—Antigen and Mosaic HIV-1 Nanoparticle Immunogens ELICIT Autologous and Heterologous Virus Neutralizing Antibodies

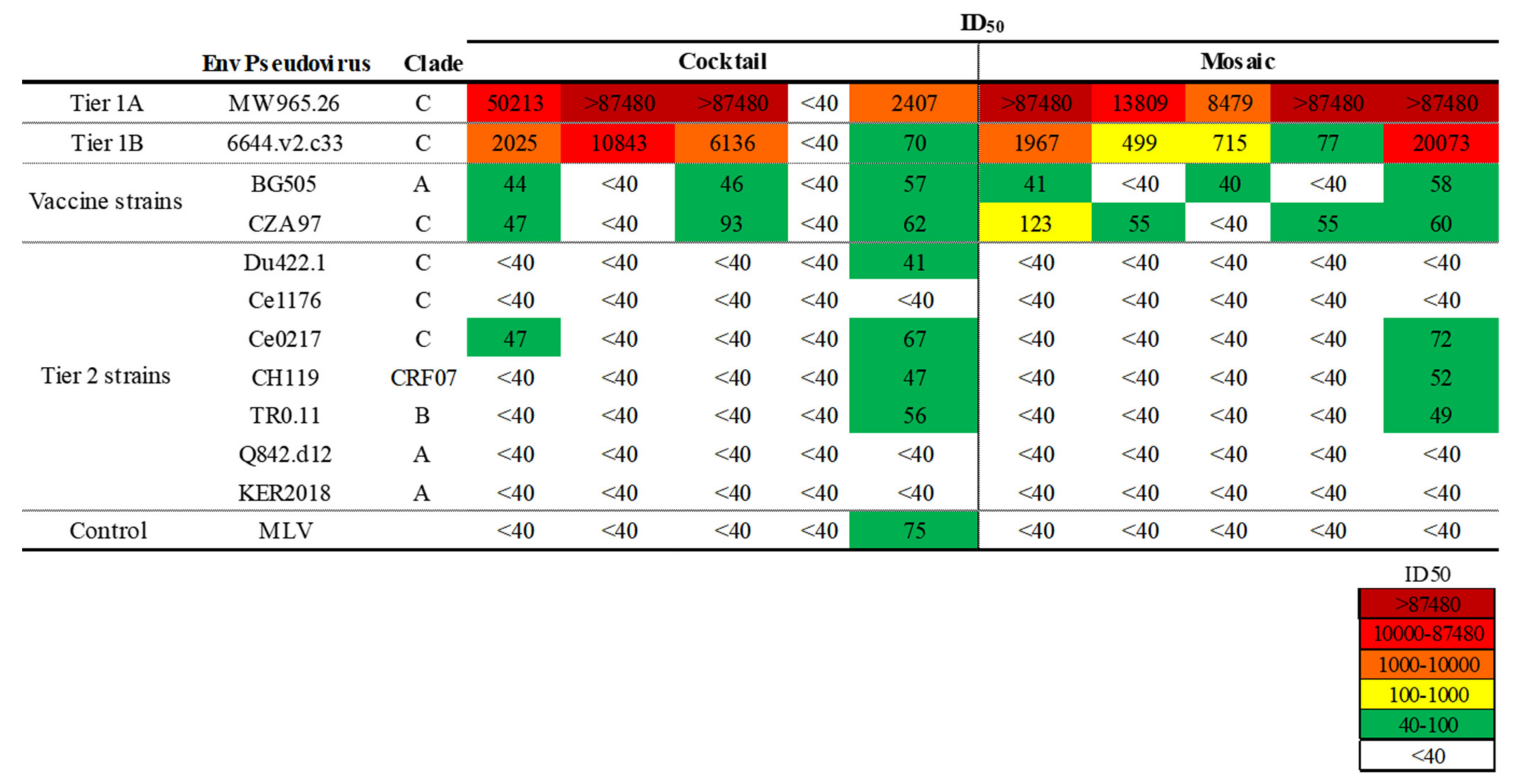

Sera from guinea pigs from both immunization groups potently neutralized tier 1A and tier 1B viruses (Figure 5), with the exception of one guinea pig from the single—antigen nanoparticle cocktail group that had displayed consistently lower binding to Envs (Figure 4B,C). We next assessed whether guinea pig sera could neutralize the two vaccine—matched (autologous) viruses used for the immunizations. In guinea pigs immunized with the mosaic nanoparticle, three (60%) neutralized BG505 and four (80%) neutralized CZA97. Autologous responses to BG505 and CZA97 viruses were observed in 3/5 (60%) guinea pigs immunized with the cocktail. One animal from the mosaic nanoparticle group exhibited some neutralization breadth by neutralizing three of seven heterologous tier 2 viruses from diverse clades at low titers (Figure 5). Low titer neutralization of a single tier 2 heterologous virus was also seen in one animal from the single—antigen nanoparticle group. Another animal from the single—antigen nanoparticle group showed neutralization of the MLV control, and thus the observed neutralization of other heterologous tier 2 viruses likely should be considered as background for that animal (Figure 5).

4. Discussion

Since antibodies that neutralize one HIV-1 virus do not necessarily confer protection against other circulating strains, heterologous neutralization is an important goal of HIV-1 vaccinology. It is therefore important to design immunogens capable of eliciting such responses. In particular, nanoparticle immunogens have emerged as viable alternatives to soluble trimers due to size, geometry, and the capacity to uniformly display antigens on the surface. Here, we compared cocktails of single—antigen nanoparticles and mosaic nanoparticles simultaneously displaying both Env proteins, showing immunogenicity in mice, and both vaccine—matched and heterologous neutralization in guinea pigs.

Our efforts provide preliminary justification for immunizing with multiple envelope proteins from different clades expressed onto nanoparticles. While no autologous responses were observed in mice, as with many other studies [8,26], this animal model has historically been useful to determine immunogenicity. Neutralization of the heterologous Ce1176 virus in mice was unexpected, considering the lack of observed autologous responses in the same mice or analogous Ce1176 neutralization in guinea pigs, although Ce1176 neutralization has been observed in other vaccine studies as well [29]. These results potentially highlight the notable differences in the ability of the immune systems of different animal models to eliciting HIV-neutralizing antibody responses.

The lack of significant differences in elicited neutralization breadth between single—antigen and mosaic nanoparticles is notable, given the established advantages of mosaic nanoparticles for a number of other pathogens [19,20]. However, a limitation of this study was the lack of comparison of the immunogenicity of nanoparticle formulations against soluble trimers in guinea pigs. More generally, given that high vaccine efficacy is required for an effective HIV-1 vaccine, additional vaccine optimization will be necessary to fully harness the power of mosaic nanoparticles for HIV-1 vaccine design, such as through specific selection of Env antigens based on broadly neutralizing antibody epitope availability, glycan coverage, and sequence diversity. Nevertheless, the autologous and, in some cases, heterologous tier 2 neutralization in guinea pigs observed in this study highlights the potential of multimerizing diverse Env variants on self-assembling protein nanoparticles as a viable direction for the design of a broadly protective HIV-1 vaccine.

5. Patents

Recombinant vaccines and methods of use thereof: MCC Ref. 10644-096US1.
