1. Introduction
Foot-and-mouth disease (FMD) is a highly transmissible viral disease that affects mostly cloven-hoofed animals of different species, such as pigs, cattle, sheep, goats, buffalo, and deer [
1]. It causes devastating economic losses due to trade restrictions and recovery efforts from outbreaks [
2,
3]. The foot-and-mouth disease virus (FMDV) is the causal agent of FMD, which is classified under the family
Picornaviridae and genus
Aphthovirus [
4]. FMDV is a non-enveloped positive-sense single-stranded RNA (ssRNA) virus, whose genome consists of 12 proteins, namely 4 structural (VP1-4) and 8 non-structural proteins (L, 2A–C, and 3A–D) [
5]. To date, seven genetically and antigenically distinct FMDV serotypes, O, A, C, Asia1, South African Territory (SAT)1, SAT2, and SAT3, have been identified [
6,
7]. FMDV serotypes O and A are present in most of the FMDV pools except for pool 6, Southern Africa. Serotype C is assumed to be extinct globally since the last detection in 2004 [
8,
9,
10,
11]. Serotypes Asia1 and SAT1-3 circulate mainly in Asia and Africa, respectively [
8]. The control of FMD primarily depends on the vaccination of susceptible animals with inactivated FMD whole-virus vaccines together with movement restrictions of infected animals [
12,
13,
14,
15,
16].
The enzyme-linked immunosorbent assay (ELISA) has been a preferred method for the serodiagnosis of different FMDV serotypes due to its efficiency, diagnostic specificity, and sensitivity [
17,
18,
19]. Various formats of ELISAs have been used to identify FMDV serotypes, including blocking ELISA (bELISA) [
20,
21], competitive ELISA (cELISA) [
22], and double-antibody sandwich ELISA (DAS-ELISA) [
23]. Serotype-specific rabbit or guineapig polyclonal antibodies (pAbs) or antiserum used as both capture and detection antibodies are the most common tools in ELISAs for FMDV serotypes [
24]. However, due to the presence of many complex components in pAbs or antisera, their use in ELISA is not ideal due to unwanted cross-reactivity. In addition, pAbs are hard to produce on a large scale and hard to standardize due to their heterogeneity, resulting in limited large-scale application [
1]. Thus, alternatives to pAbs, for example, monoclonal antibodies (mAbs), are a promising approach to making reproducible and convenient ELISAs for serological diagnostics of FMDV serotypes.
Laboratory-produced mAbs are valuable reagents in research, disease diagnosis, and therapeutic interventions [
25]. Highly specific mAbs used in diagnostic ELISAs can improve the overall accuracy, specificity, and sensitivity in comparison with pAb-based ELISAs [
25]. The application of mAbs further maintains consistent assay quality owing to their large-scale availability and minimal batch-to-batch variability [
25]. In this study, FMDV serotype-specific mAb-based blocking ELISAs (mAb-bELISAs) were developed using in-house developed mAbs compared with the conventional pAb-based competitive ELISA (pAb-cELISA). Four mAbs were identified as suitable to detect serotype-specific antibodies against FMDV in bELISAs for O, A, Asia1, and SAT2. In the mAb-bELISA, serotype-specific antibodies, if present in animal sera, bind to the specific FMDV antigens coated on the ELISA plate, which subsequently inhibits the binding of HRP (horseradish peroxidase)-conjugated mAbs at the same epitopes/regions, resulting in reduced optical density (OD) values for positive sera. The diagnostic specificity (DSp) of the mAb-bELISAs was calculated by testing negative animal sera from Canada and the diagnostic sensitivity (DSe) was estimated by testing sera from experimentally infected, contact-exposed, and/or vaccinated-challenged animals.
2. Materials and Methods
2.1. Ethics Statement
All animal studies, including animal use and study procedures (animal use document C-02-002), were approved by the Canadian Science Centre for Human and Animal Health Animal Care Committee (CSCHAH-ACC). All study procedures, including animal inoculation and care, were conducted according to the appropriate guidelines of the Canadian Council of Animal Care (CCAC).
2.2. Serum Samples
Negative sera were collected from Canadian porcine (n = 867), bovine (n = 555), ovine (n = 608), and caprine (n = 593) species. Positive porcine (n = 105), bovine (n = 93), and ovine (n = 119) sera were collected from experimentally infected, contact-exposed, or vaccination-challenged animals at different days post-inoculation (dpi) or days post-vaccination (dpv). All positive sera were raised against FMD O/A/Asia1/SAT2 serotypes, including the following strains: O/UKG/11/2001, O/Manisa/TUR/69, A24/Cruzeiro/Br/55, A22/IRQ/24/64, Asia1/Shamir, SAT2/SAU 1/2000, and SAT2/ZIM/5/81, at the National Centre for Foreign Animal Diseases, Canadian Food Inspection Agency (NCFAD/CFIA). Inoculation of FMDV strains into specific animals (cattle, sheep, and pigs) was performed as previously described [
12,
26]. In brief, the experimentally infected animal study included an infected animal group and a control group. Sera were typically collected at −1 dpi or 0 dpi (also named pre-inoculation/challenge collection), followed by regular post-inoculation collections (usually every day or every other day). Typical endpoints for this study were 21–28 dpi. Experiments involving contact-exposed animals were typically conducted by initially separating each animal group before the challenge, and then moving the contact-exposed animals into the cubicle housing with the challenged animals. Sera were collected similarly to the experimentally infected animal studies. In the case of the vaccine efficacy testing experiments, a test group (vaccinated and then challenged) and a control group (no vaccine, only challenged) were employed. Monovalent FMDV serotype-specific inactivated vaccines were mostly used to vaccinate animals in this study. Following vaccination, serum samples were collected typically at 0-, 7-, 14-, 21-, and 28-dpv. Both vaccinated and control animals were then challenged/inoculated with viruses and sera collections took place multiple times, including daily, every other day, or weekly.
2.3. Production of Monoclonal Antibodies (mAbs)
FMDV serotype-specific mAbs were produced in-house by using hybridoma technology, as previously described [
25,
27,
28]
2.4. Conjugation of FMDV Serotype-Specific mAbs with HRP
Mouse anti-FMDV serotype-specific mAbs were conjugated with HRP (horseradish peroxidase) using a Lightning-Link® kit according to the manufacturer’s instructions (Abcam, cat# ab102890). Briefly, all reagents were equilibrated at room temperature for 10–15 min and agitated before use. First, 1 µL of modifier reagent was added to 10 µL of mAb (1 mg/mL), mixed gently by inversion, and then directly added to the lyophilized HRP mix. The mixture was resuspended by pipetting up and down two times and incubated at room temperature (RT; dark room) for at least 3 h or overnight. Following incubation, 1 µL of quencher reagent was added to the antibody-HRP mixtures, mixed gently by inversion, and left in a dark room at RT for 30 min. Afterward, the conjugated antibody was used immediately or stored at 4 °C for 18 months or long-term storage with 50% glycerol at −20 °C.
2.5. Development of FMDV Serotype-Specific mAb-bELISAs
Serotype-specific mAb-based blocking ELISAs (bELISAs) for FMDV were developed as described earlier, with a few modifications [
29].
In brief, for FMDV serotype O mAb-bELISA, a 96-well Maxisorp ELISA plate was coated with 100 µL/well of rabbit anti-FMDV O1/Manisa polyclonal antibody (1:10,000), used as a capture antibody, diluted homogenously in coating buffer (0.06 M carbonate buffer, pH 9.6 ± 0.1). The plate was sealed with an adhesive plate sealer and incubated at 4 °C overnight. After 5× washes with washing buffer (PBS-T: 0.01 M PBS [phosphate-buffered saline] plus 0.05% Tween 20, pH 7.2 ± 0.1), 100 µL of inactivated FMDV antigens (O1/Manisa [1:175] diluted in 1× casein blocking buffer (Sigma Aldrich, St. Louis, MO, USA; cat#B6429) was added to each well of the plate, sealed with a plate sealer, and incubated at 37 °C for 1 h with gentle shaking (~60 rpm). Following 5× washes, 50 µL of test sera (1:5 dilution) and control sera (Q1 [C138 O1/Manisa, Q2 [1:4 C138 O1/Manisa,), Q3 [normal bovine serum-undiluted], and DC [dilution control]) diluted in blocking buffer were added to the designated wells and incubated at 37 °C for 1 h with gentle shaking. After another 5× washes, serotype-specific HRP-conjugated purified mouse anti-FMDV mAbs (F21-FMDO-64-2-1 [1:2000]) diluted in blocking buffer were added to each well and incubated at 37 °C for 1 h with gentle shaking. Following a final 5× wash, 100 µL of TMB substrates (equal volume of substrate A and B; SeraCare, Milford, MA, USA; cat# 5120-0038 and 5120-0049) were added to each well and incubated at RT (in the dark) for 10 min with gentle shaking. Immediately after incubation, the reaction was stopped by adding 100 µL of TMB stop solution (SeraCare, Milford, MA, USA; cat# 5150-0021), and the plate was read by SpectraMax PLUS (Molecular Devices, San Jose, CA, USA). The OD value was measured at 450 nm and the PI (percentage of inhibition) for each sample was calculated by using the following formula:
A set target for ODs and PIs of positive and negative controls was used in each ELISA plate. OD value ranges from 0.9 to 3.0 were considered for DC and Q3 (negative) controls and PI values of 50% (at least) and 90% were considered for Q2 and Q1 controls, respectively.
The same protocol described for FMDV/O above was used for the development of FMDV A, Asia1, and SAT2 using corresponding serotype-specific reagents at optimal dilutions, as shown in
Table 1 below.
2.6. Competitive ELISAs with mAbs (mAbs-cELISA) and pAbs (pAb-cELISA)
Competitive ELISAs using mAbs were performed similarly to the procedures applied for mAb-bELISA except for the incubation of test and control sera with mouse anti-FMDV mAbs (F21-FMDO-64-2-1, F66-A22-14, F34-Asia1, or F76-SAT2-11-2-1) at the same time, followed by the addition of goat anti-mouse IgG-HRP (1:2500 dilution; Jackson ImmunoResearch, West Grove, PA, USA; Cat# 115-035-146) for 1 h at 37 °C. Similarly, competitive ELISAs using pAb were conducted by incubating test and control sera with guineapig anti-FMD Ab (1:10,000 dilution, in-house developed) followed by incubation with donkey anti-guineapig IgG-HRP (1:2500 dilution; Jackson ImmunoResearch, West Grove, PA, USA; Cat# 706-035-148) for 1 h at 37 °C and then with SIGMAFAST OPD (o-Phenylenediamine) substrate (Sigma-Aldrich, St. Louis, MO, USA; Cat# P9187). The OPD substrate reaction was stopped by adding 100 µL of 2 M sulfuric acid.
2.7. Diagnostic Specificity (DSp) and Sensitivity (DSe) of the mAb-bELISAs
The guidelines from the World Organisation for Animal Health (WOAH)
Terrestrial Manual (2022) were followed to validate the mAb-bELISAs. For all FMDV serotype-specific mAb-bELISAs, we aimed to achieve at least 95% DSp and 95% DSe with a confidence of 95% (5% error allowed). The DSp of the assay was calculated by testing known negative serum samples (n = 760 for serotype O; n = 1108 for serotype A; n = 938 for serotype Asia1; and n = 1031 for serotype SAT2) from different animal species (porcine, bovine, ovine, and caprine), and the DSe was estimated by testing serum samples from experimentally infected or vaccinated animals (n = 99 for serotype O; n = 114 for serotype A; n = 33 for serotype Asia1; and n = 56 for serotype SAT2). The optimal assay cut-off, which provides relatively high DSp and DSe, was determined from the PI distribution according to the procedure described elsewhere [
30]. The cut-off value for all four assays was calculated as follows: mean PI of negative sera+ (3× standard deviations). An arbitrary 50% cut-off was also considered when PI values were exceptionally high for known negative sera. The optimal DSp and DSe of each serotype-specific assay were calculated based on the set PI cut-off values.
2.8. Virus Neutralization Test (VNT)
False positives in known negative sera (above the set cut-off) and false negatives in known positive sera (below the set cut-off) identified in mAb-bELISAs specific to FMDV serotypes O, A, Asia1, and SAT2 were confirmed by VNT on IB-RS-2 monolayer cells (a porcine kidney cell line) using known FMD viruses as described elsewhere [
31]. In brief, serial two-fold dilution test sera were incubated with 100 TCID
50 (tissue culture infectious dose 50) FMD viruses (serotype-specific) in a 96-well sterile tissue culture plate and incubated at 37 °C with 5% CO
2 for 1 h. Immediately following incubation, 5 × 10
4 cells/well of IB-RS-2 cells were added to each well and incubated at 37 °C with 5% CO
2 for 2–3 days. The CPE (cytopathic effect) was examined under the microscope and recorded. The endpoint titer of neutralizing antibodies was calculated as the reciprocal of the last serum dilution to neutralize 100 TCID
50 FMD viruses in 50% of the wells.
2.9. Repeatability/Reproducibility of mAb-bELISAs
To confirm the stability of FMDV serotype-specific mAb-based bELISAs, weak positive control sera (Q2) used for each serotype were examined in duplicate in the same microplate (intra-assay) and microplates in different production batches (inter-assay) under optical parameters. The percentage coefficients of variation (%CV) of replicate sera were calculated; <10% and <15% CVs were maintained for intra-assay and inter-assay repeatability/reproducibility, respectively.
2.10. Data Analysis
Raw OD values from each plate were organized and subsequently converted to PI values using Microsoft Office Excel 2016. Normalization of PI values, generation of scatter plots, and frequency (n) distribution (bar graph) for estimating cut-off line (target DSp and DSe of minimum 95% with 5% CI [confidence interval]) were also carried out in Microsoft Office Excel 2016. Receiver operating characteristic (ROC) curve and bar graph analysis were conducted in GraphPad Prism Version 10.2.2. In the ROC curve, the area under the curve (AUC) was 1.0. When the ROC curve completely hugged the top left corner of the plot, the AUC equaled 1.0, indicating a high accuracy of the assay in classifying positive and negative sera that provide optimal DSe and DSp.
4. Discussion
FMDV-infected ruminants, particularly buffalos, cattle, and sheep, develop a carrier state, and carrier African buffalos can act as a new source of infection and disease outbreaks [
32]. It is therefore critical to identify infected and/or carrier state animals for an effective control strategy to limit the spread of the virus. Vaccination of animals with inactivated FMDV vaccines is currently considered the primary means of controlling FMD worldwide [
14,
15,
16,
33]. However, the protection efficiency of the FMDV vaccines is relatively short (~6 months) and requires regular monitoring of serotype-specific antibodies to re-vaccinate animals following an initial dose [
34,
35]. The VNT is used as a “gold standard” serological assay for measuring neutralizing antibody titers against FMDV serotypes [
31]. Unfortunately, the VNT is labor-intensive, difficult to use on a large scale, highly dependent on containment facilities, time-consuming, and has a long turnaround time [
7]. In contrast, the application of ELISA for the detection of serotype-specific FMDV antibodies is faster because it does not require cell culture systems and high containment facilities [
36]. Thus, a convenient, safe, reproducible, and serotype-specific FMD screening ELISA for large-scale sero-surveillance of broad-range antibodies, is warranted to minimize diagnostic inaccuracies and turnaround time where VNT could still serve as a “gold standard” confirmatory test. It has been reported that ELISAs performed with 97% to 98% DSp are capable of detecting carrier states in vaccinated animals and infected animals with DSe ranges between 68% and 94% [
37,
38].
Since the early phase of research and diagnosis of FMDV, pAbs or antiserum have been used as primary tools in developing serotype-specific diagnostic ELISAs [
24]. Due to drawbacks of the large-scale use of pAbs [
1,
39,
40,
41], the use of mAbs to replace pAbs was evaluated to develop FMDV serotype-specific bELISAs in this study. Our primary goal was to establish mAb-based bELISAs that would provide better or equivalent assay performance compared with pAb-based competitive ELISA (pAb-cELISA) and to replace the use of pAbs in serotype-specific FMDV ELISAs in the future. In this study, four mAb-based FMDV bELISAs were developed for the serodiagnosis of O, A, Asia1, and SAT2 serotypes and monitoring of antibody titers against these serotypes following vaccination.

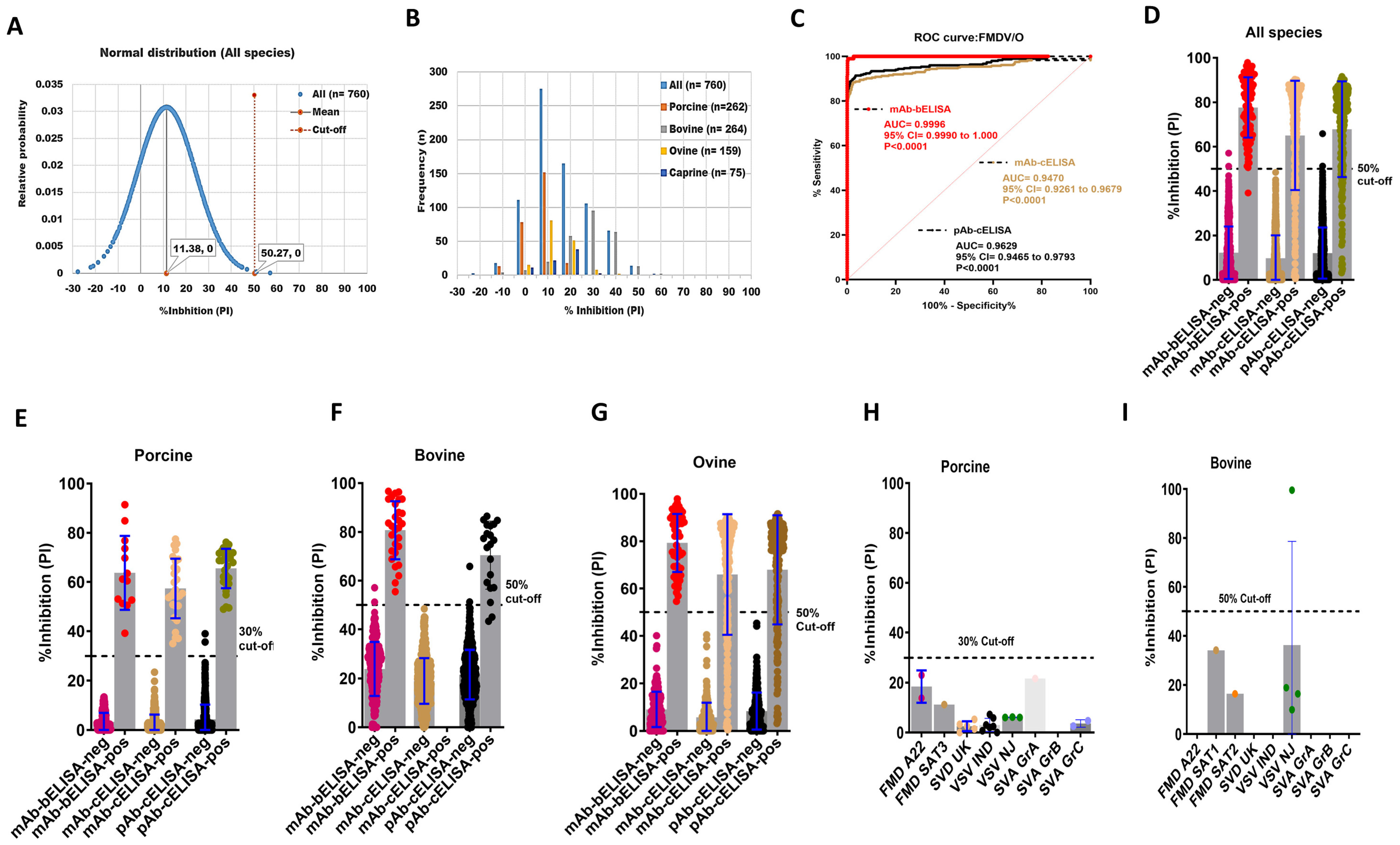

FMDV/O is highly prevalent and causes nearly 70% of global outbreaks [
8,
42]. Therefore, an FMDV/O mAb-bELISA using an inactivated FMDV/O Manisa antigen was developed. The FMDV/O mAb-bELISA showed a species-independent 99.74% DSp and 98.93% DSe in all sera examined (at 50% cut-off). The ROC curve analysis indicated an optimal DSe of the assay in detecting antibodies against FMDV/O among infected and vaccinated animals compared with mAb-cELISA and pAb-cELISA. This serotype O mAb-bELISA performed better than the previously reported assays [
21,
29]. In addition, a higher diagnostic specificity and sensitivity of mAb-bELISA in individual animal species (100% DSp for porcine, ovine, and caprine sera and 100% DSe for bovine and ovine sera) was observed in contrast to the assay reported by Paiba et al. [
22]. A study on mAb-based ELISA also recently demonstrated serotype-specific 79% sensitivity in comparison with pAb-based ELISA with 72% sensitivity [
41]. Using VLPs (virus-like particles) and rabbit hyperimmune sera, another study showed 96% assay sensitivity [
43]. Importantly, a 50% cut-off was considered ideal for separating true positive and true negative populations in our assay; however, a slightly lower cut-off further improved the DSe for porcine sera (100% DSe at a 30% cut-off;
Table 1). Although a 50% cut-off seemed to be ideal for bovine sera (100% DSe); two samples showed a PI value above the set cut-off, leaving a 99.24% DSp without interfering with DSe. Finally, our assay demonstrated a better DSe for ovine sera compared with pAb-cELISA and the cross-reactivity analysis showed that the assay was specific to FMDV serotype O.

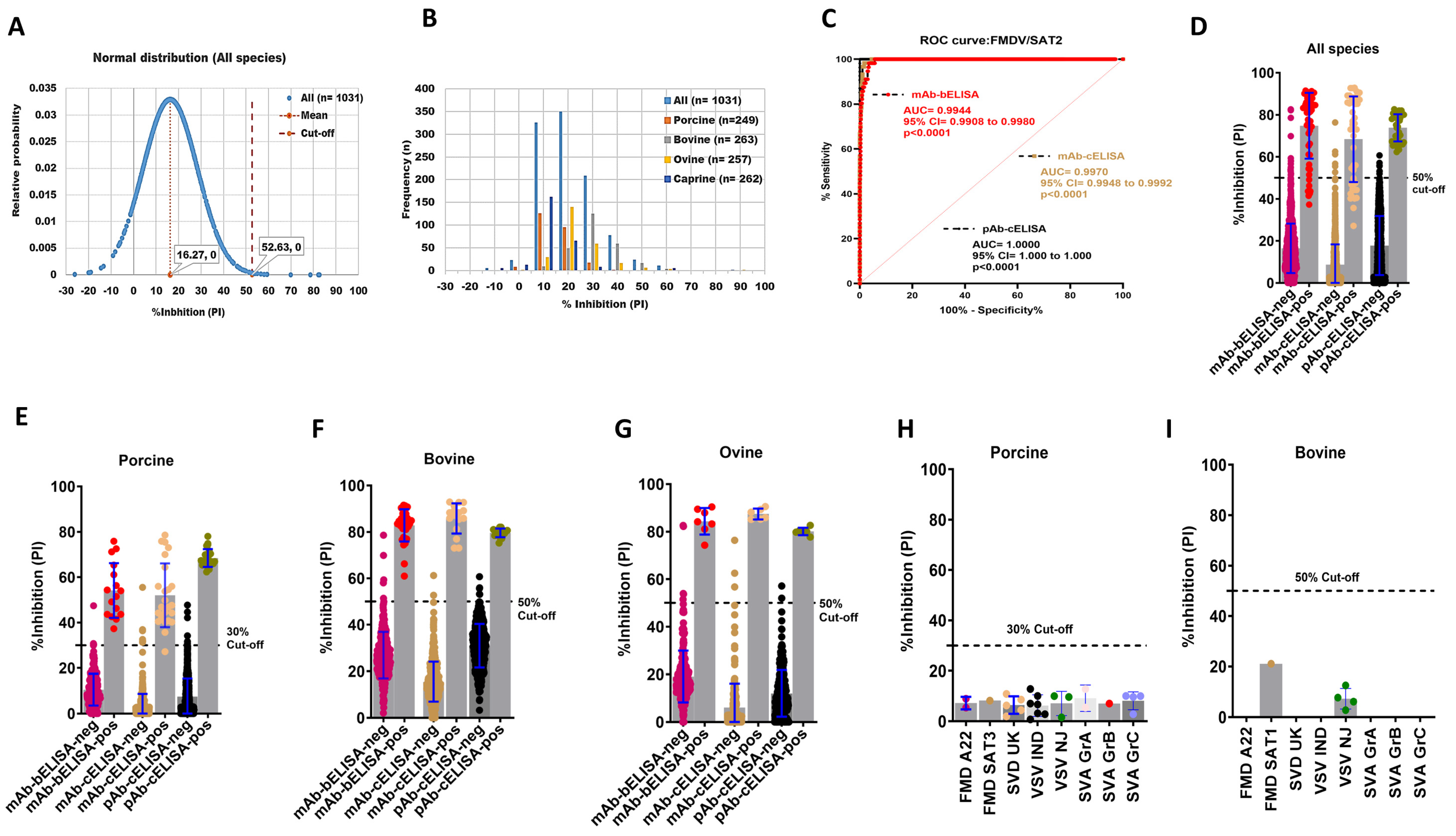

An FMDV/SAT2-specific mAb-bELISA was developed. FMDV/SAT viruses are mainly circulating and restricted in the wildlife of sub-Saharan Africa, particularly in African buffalo, where they establish a persistent infection [
44]. Few studies have been performed in developing and validating SAT2-specific ELISA [
45,
46,
47,
48]. A solid-phase competitive ELISA (SPCE) for FMDV/SAT2 using sera from cattle herds showed only 81% DSe (at 50% cut-off), and 100% DSp while the cut-off was set at 60% [
48]. However, a rapid and more sensitive ELISA to detect anti-SAT2 antibodies in large-scale samples is still desirable. The SAT2 mAb-bELISA developed in this study exhibited a species-independent 98.55% DSp and 87.5% DSe (at a 50% cut-off). It has also been shown that a high cut-off usually increases the DSp while decreasing the DSe and vice versa [
21]. Thus, an arbitrary 40% cut-off was applied to achieve a minimum DSe of the assay (at least 95%). With an adjusted 40% cut-off, we found a species-independent 98.21% DSe and 96.22% DSp (
Table 3). In addition, the source of sera demonstrated some impact on DSp and DSe in our assay. We observed a 100% DSe in bovine and ovine sera, while only 56.25% was recorded in porcine sera (at 50% cut-off). This is not an indication of the assay’s inability to provide optimal DSe in porcine sera, rather it highlights the relative sensitivity of the assay in detecting antibodies against SAT2 with a low cut-off margin (~30%), since most of the negative porcine sera stayed below the 30% cut-off. As a result, a 30% cut-off is important to achieve 100% DSe for porcine sera (
Table 3). It is also important to note that lowering the cut-off to 30% was only needed for the porcine sera and was not likely essential for bovine and ovine sera. Furthermore, mAb-bELISA scored a similar DSe to pAb-cELISA, suggesting that it can be used as a replacement for FMDV/SAT2-specific pAb-cELISA.

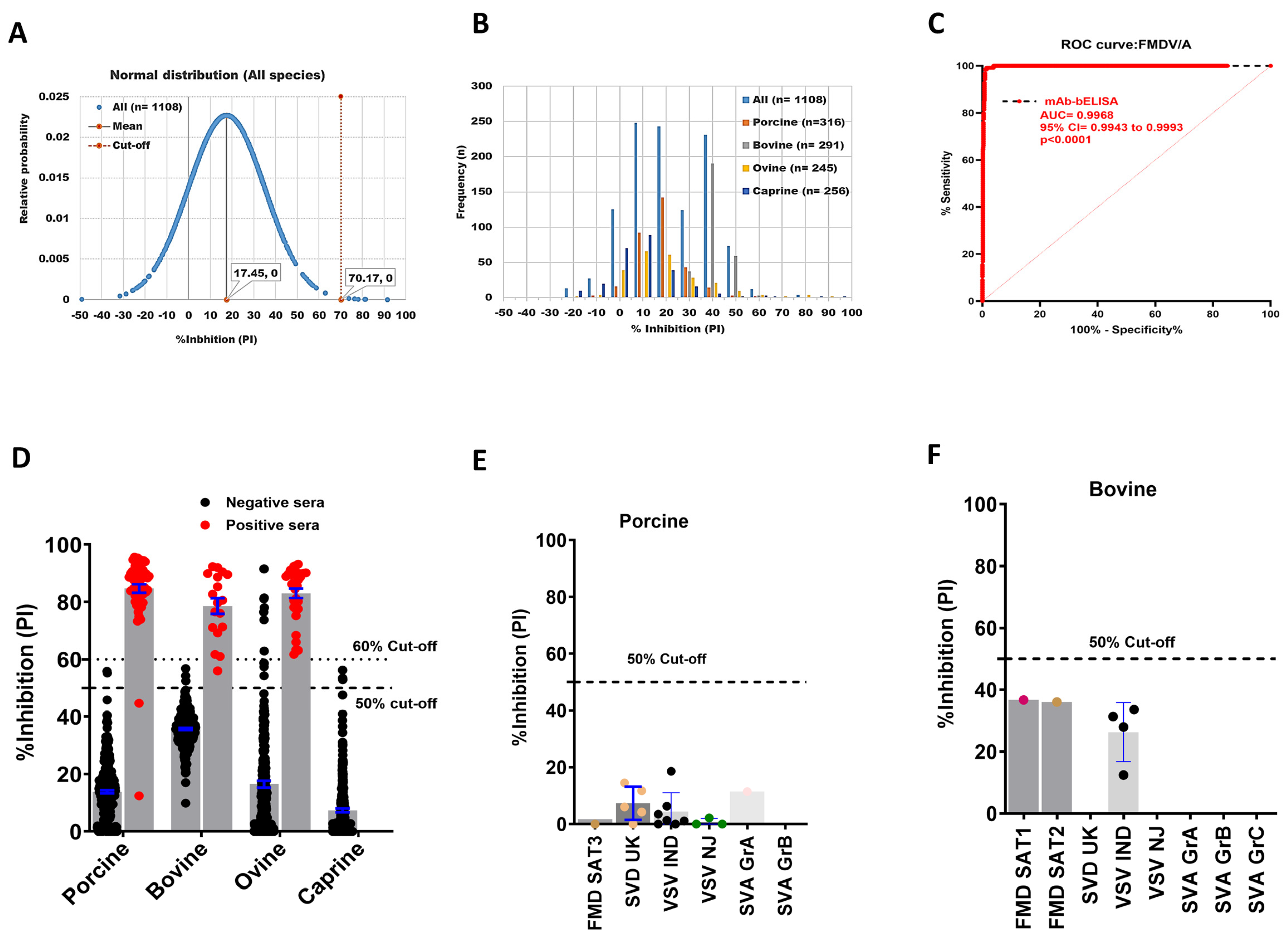

The FMDV/A serotype is present in most regions with other FMDVs and is establishing many new subtypes [
49]. The mAb-bELISA for FMDV/A was developed with an optimal diagnostic sensitivity found in ROC curve analysis (AUC = 0.9968;
p < 0.0001). Using 1108 known negative sera of different origins, this assay displayed an average 70.17% cut-off, ranging between 45.28% and 74.74%. Exceptionally high PI values were recorded for 14 ovine-negative sera (at 50% cut-off) causing an overall high baseline for species-independent assay. Therefore, we also applied an arbitrary cut-off of 50% (22 samples were above the cut-off), resulting in a species-independent 98.01% DSp and 98.24% DSe to detect antibodies against FMDV/A. Interestingly, this assay showed better diagnostic performance than the assay developed by Hosamani et al. [
29], who reported assay specificity and sensitivity of 98% and 95%, respectively. The assay developed by Grazioli et al. [
41] also recorded only 79% specificity. Two porcine sera were recorded below the cut-off line in our assay, which were confirmed as true negatives by VNT (
Table S1). Removing these two porcine sera from the analysis would provide 100% DSe for a species-independent assay, which corroborates the assay developed by Cao et al. [
50]. Additionally, the FMDV/A mAb-bELISA is found to be specific for serotype A according to the cross-reactivity analysis.

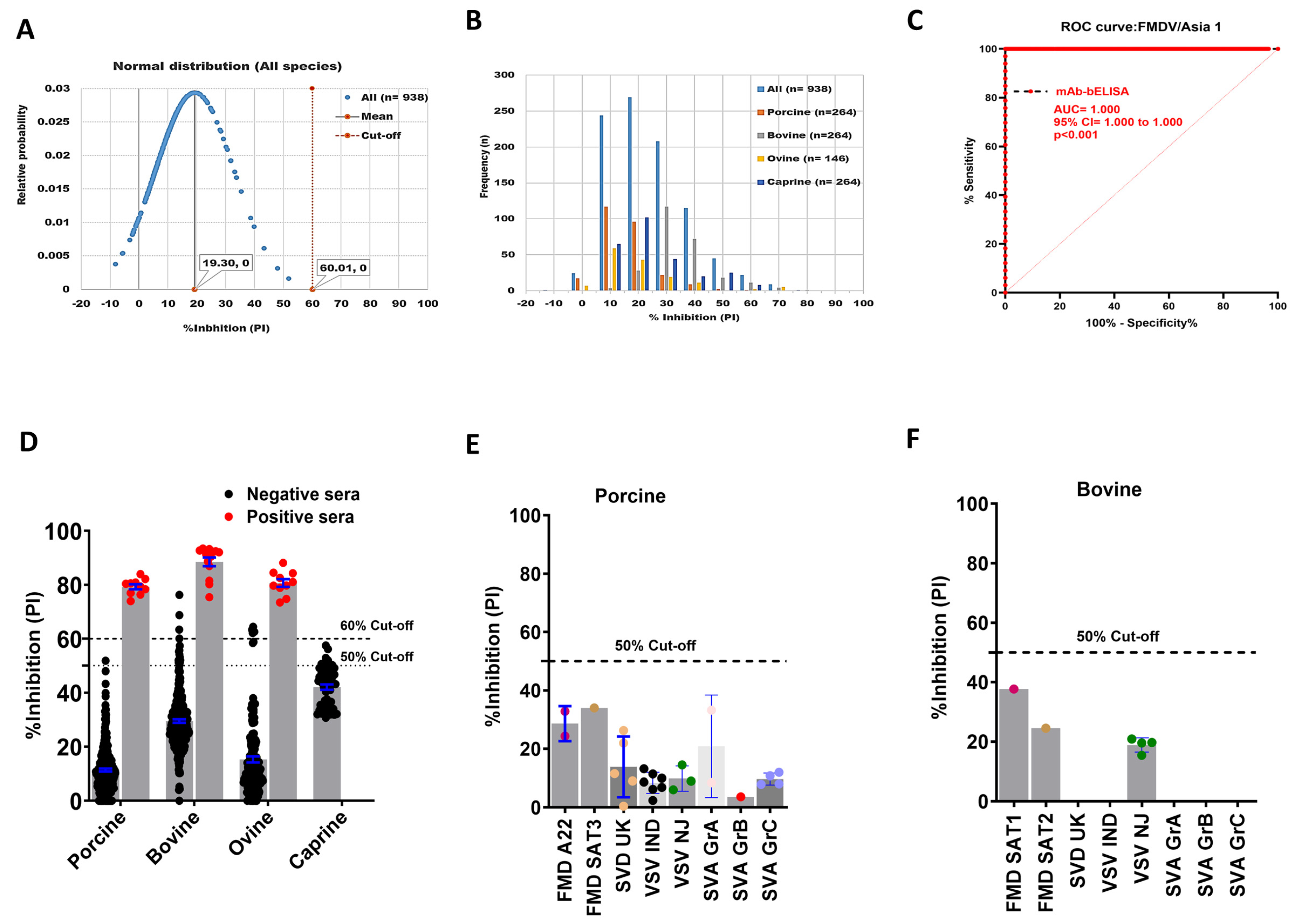

Finally, an FMDV/Asia1-specific mAb-bELISA was developed. Serotype Asia1 mainly circulates in Asia, with sporadic outbreaks in Europe and the Middle East [
41]. The Asia1 mAb-bELISA demonstrated a species-independent DSp of 96.59% (cut-off at 50%) or 98.93% (cut-off at 60%) in all examined negative animal sera with a DSe of 100%. No changes in DSe were observed when the cut-off was switched from 50% to 60%, which was further supported by ROC curve analysis, showing an optimal diagnostic sensitivity (AUC: 1.000;
p < 0.0001). Although the assay identified a cut-off range between 37.79% (porcine) and 61.79% (bovine), a 60% cut-off would be an ideal choice for species-independent use of this assay against FMDV/Asia1 antibodies. Our FMDV/Asia1 mAb-bELISA had better diagnostic performance than previously defined assays [
5,
41]. A recent multiplex mAb-ELISA for serotypes O, A, C, and Asia1 reported only 79% sensitivity [
41], which was much lower than our assay. Cross-reactivity analysis further exhibited a 100% specificity of our assay against FMDV/Asia1 antibodies.

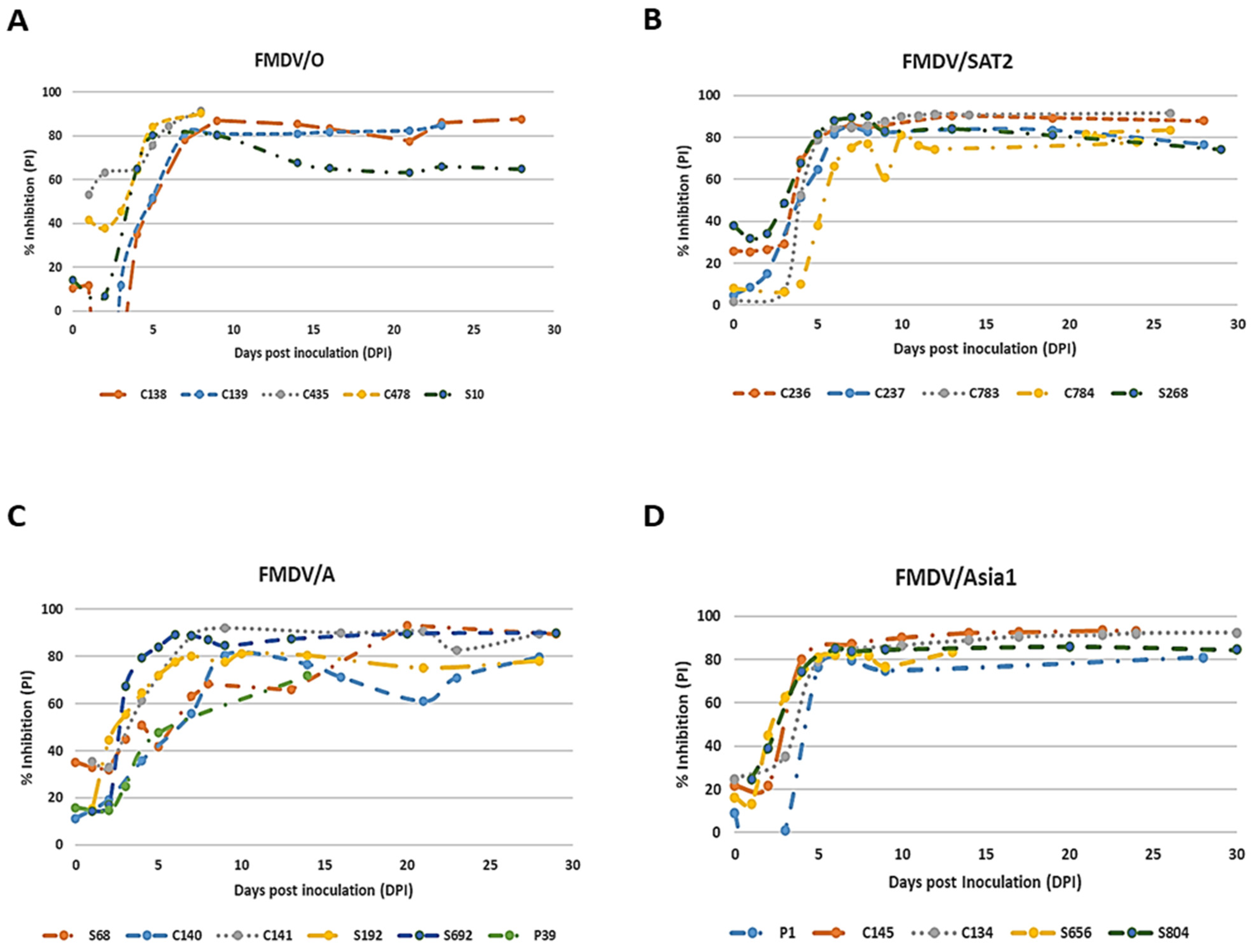

The mAb-bELISAs developed in this study successfully detected antibody response in serially bled sera as early as 5 dpi, with a relatively high ratio of negative results until 9 dpi. Sera showing negative results were mostly collected from contact-exposed animals in transmission studies between 5 and 9 dpi, where lack of antibody detection by serotype-specific mAb-bELISAs suggested that these animals were most likely not infected by the test viruses or had undetectable levels of antibody response. Therefore, up to 9 dpi can be considered a critical zone, and 10 dpi and above could be ideal for a strong antibody response to be detected by our assays. Several studies have also shown that approximately 10 dpi sera were perfect for actual positivity detection by ELISA [
26,
37,
51,
52]. In addition, all our assays showed a strong repeatability/reproducibility by producing %CVs within the set assay range for inter-plate and intra-plate assay variabilities (
Table 6).
