Research on Dual-Phase Non-Salient Pole Receiver for EV Dynamic Wireless Power Transfer System

Abstract

Dynamic wireless power transfer (DWPT) technology shows a vast development prospect for EV application, with advantages of reducing the demand for battery capacity and improving the user experience. However, the need to improve output performance leads to a challenge in receiver design with limited space and allowable load on the EV side. In this paper, a design of a dual-phase non-salient pole (NSP) receiver for the EV DWPT system with bipolar transmitter is proposed, aiming at providing a solution to the contradiction between reducing the volume or cost and improving the misalignment tolerance of the receiver. The coupling principle of the proposed receiver is analyzed. The structure parameters are optimized by the finite-element simulation method. Combined with specific design indexes, it is proven by comparison with the existing dual-phase receiver that the proposed receiver is 35.4% smaller in volume and needs 47.0% shorter wires. Moreover, the significant advantage of the proposed dual-phase NSP receiver in misalignment tolerance is verified by simulations and experimental comparisons.

1. Introduction

Dynamic wireless power transfer (DWPT) technology is a kind of non-contact power supply method to moving receivers. It shows a vast development prospect because it reduces the demand for battery capacity and improves the user experience [1,2,3].

Magnetic coupler, which is basically classified into long-rail type [4,5,6], coil array type [7,8] and bipolar type [9,10,11], is a key component of a DWPT system [12,13]. The bipolar type has good application prospect because it reduces the difficulty of deployment and cost by using a narrow transmitter to realize the transmission of a large amount of power [9]. However, the disadvantage is that the need to compensate the weak-coupling area and improve misalignment tolerance leads to the larger size and higher cost of the receiver [14]. In order to solve the problem, a dual-phase non-salient pole (NSP) receiver is proposed in this paper.

The name of non-salient pole comes from motor theory and is opposite to salient pole (SP). The typical SP structure [15] consists of a pole shoe, pole body and yoke. Each winding is wound around the pole body and produces a magnetic pole. In contrast, a pole shoe and pole body are not needed in the typical NSP structure [16]. The winding is wound around the yoke and produces a pair of opposite magnetic poles. According to the analysis of the relationship between winding deployment and magnetic pole distribution, the introduced bipolar type can be classified into SP and NSP forms. Therefore, the existing I-type [9], S-type [10] and N-type [11] transmitters belong to SP form and DD type [17], sandwich type [11] or DD-OQO type [18,19] receivers, which match the transmitter and can also be regarded as SP form with the special case of an extremely thin pole shoe and pole body.

In this paper, the coupling principle of the proposed dual-phase NSP receiver is analyzed by a magnetic circuit. The relationship between structure parameters and coupling characteristics is discussed, and the performance is compared by a finite-element simulation and an experiment under the same design indexes.

2. Analysis of Basic Principle

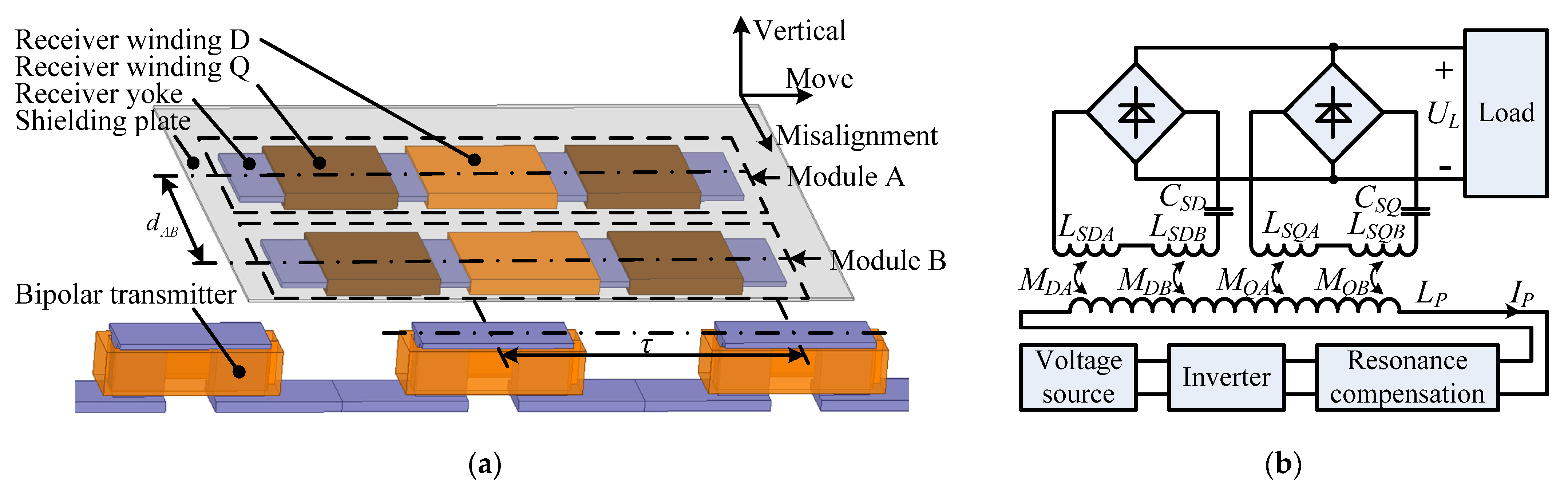

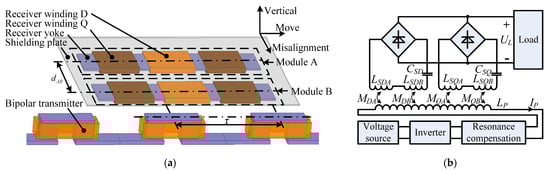

The overall configuration of the dual-phase NSP receiver is shown in Figure 1. The design of the transmitter is the same as that in [18], ensuring fair comparison with the designed dual-phase NSP receiver and the existing dual-phase DD-OQO receiver. The dual-phase NSP receiver consists of two of the same modules and a shielding plate above the modules. In a module, Q winding consists of two sub windings with opposite winding directions. The connection of the dual-phase NSP receiver in the system is shown in Figure 1b. All D windings are in series to the D-phase receiver and all Q windings are in series to the Q-phase receiver.

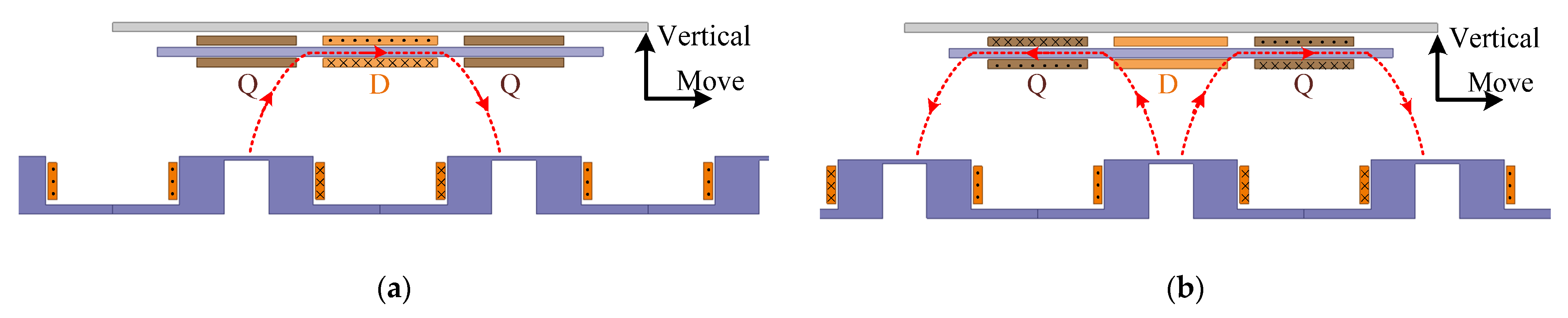

When moving along the bipolar transmitter, the dual-phase NSP receiver varies between two modes, as shown in Figure 2. In Mode 1, the coupling is stronger in the D-phase receiver. In Mode 2, the coupling is stronger in the Q-phase receiver. According to the system in Figure 1b, the load voltage with moving distance x is calculated by:

$$\begin{array}{cc}{U}_L\left(x\right)& ={\omega }_0{I}_P{k}_{dc-ac}\max (M_{DA}\left(x\right)+M_{DB}\left(x\right), M_{DA}\left(x\right)+M_{DB}\left(x\right))\\ & =\frac{\pi }{2\sqrt{2}}{\omega }_0{I}_P\max \left(M_{DA}\left(x\right)+M_{DB}\left(x\right), M_{DA}\left(x\right)+M_{DB}\left(x\right)\right)\end{array}$$

(1)

where ω₀ is the resonant frequency, I_P is RMS current of the transmitter and k_dc−ac is the gain from the average voltage of the DC side to the RMS voltage of the AC side [20].

The characteristic of mutual inductance of the dual-phase NSP receiver with moving distance is shown in Figure 3a. τ is the center distance between the adjacent magnetic poles in the transmitter. The weak coupling area is compensated and the fluctuation factor [12] is reduced. In addition, it is obvious that D-phase and the Q-phase receivers are decoupled to avoid nonideal power reduction.

The misalignment tolerance of a receiver varies with moving distance, and it is weakest in the exchange position of Mode 1 and Mode 2. The characteristic of mutual inductance of the dual-phase NSP receiver with misalignment is shown in Figure 3b, where d_AB is the center distance between two modules. Two modules compensate each other and reduce the sensitivity of the mutual inductance to the misalignment. It is possible for mutual inductance to be unchanged within a certain range of misalignment through optimized design.

3. Parameter Optimization Analysis

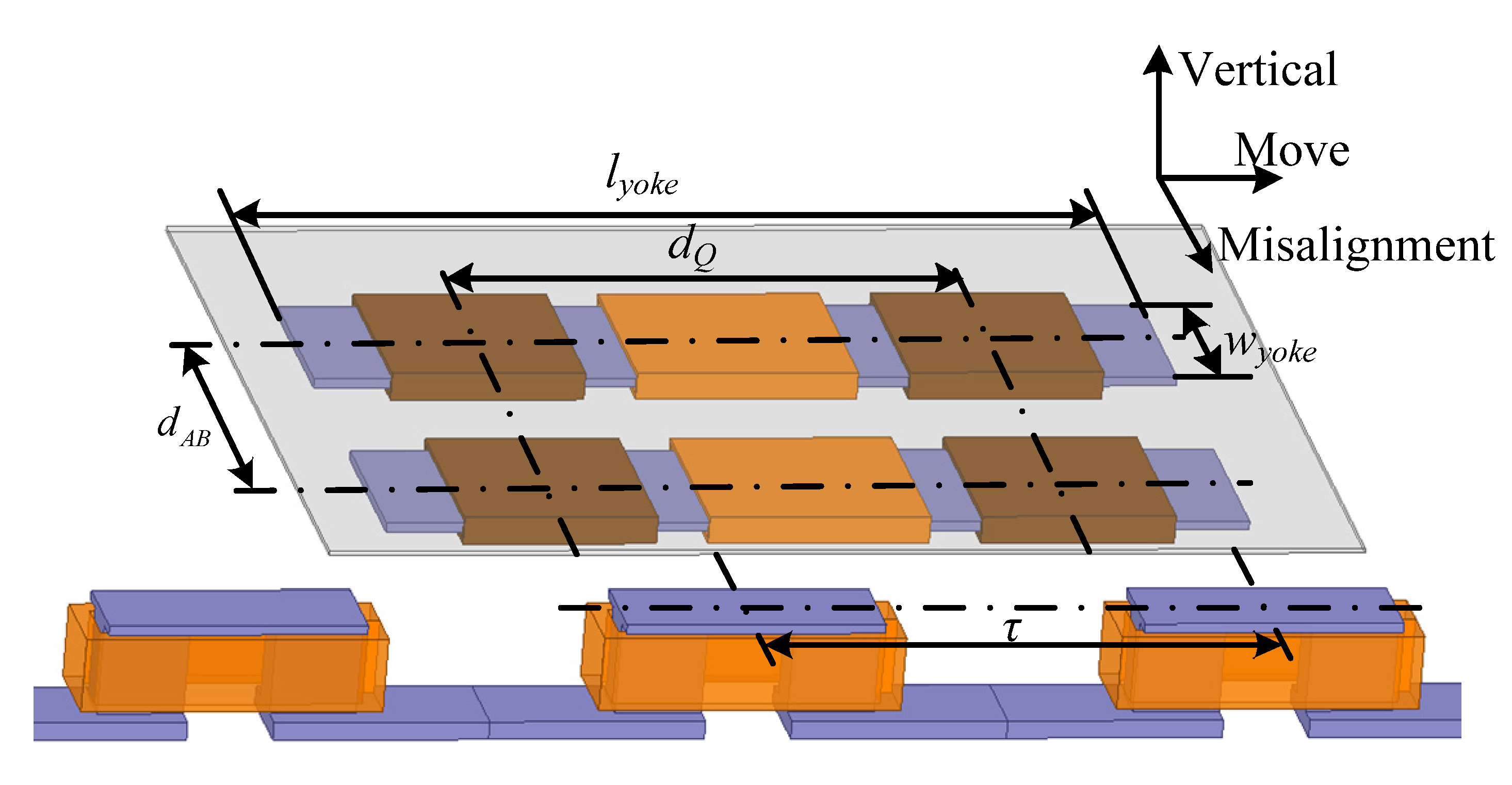

The main structure parameters of a dual-phase NSP receiver is shown in Figure 4, and a design case is given in

Table 1. The design case of the dual-phase NSP receiver.

Structure Parameter	Symbol	Value
Center distance between adjacent magnetic poles	τ	600 mm
Length of receiver yoke	lyoke	1000 mm
Width of receiver yoke	wyoke	200 mm
Center distance of receiver winding Q	dQ	600 mm
Center distance between receiver module A and B	dAB	400 mm

to provide a reference point for analyzing the influence of structure parameters on the performance of a dual-phase NSP receiver by finite-element simulation. In order to simplify the analysis, parameters such as wire diameter, winding width, magnetic core thickness and distance between module and shielding plate are not discussed, but the values of these parameters are ensured to meet the design requirements.

3.1. Length and Width of the Receiver Yoke

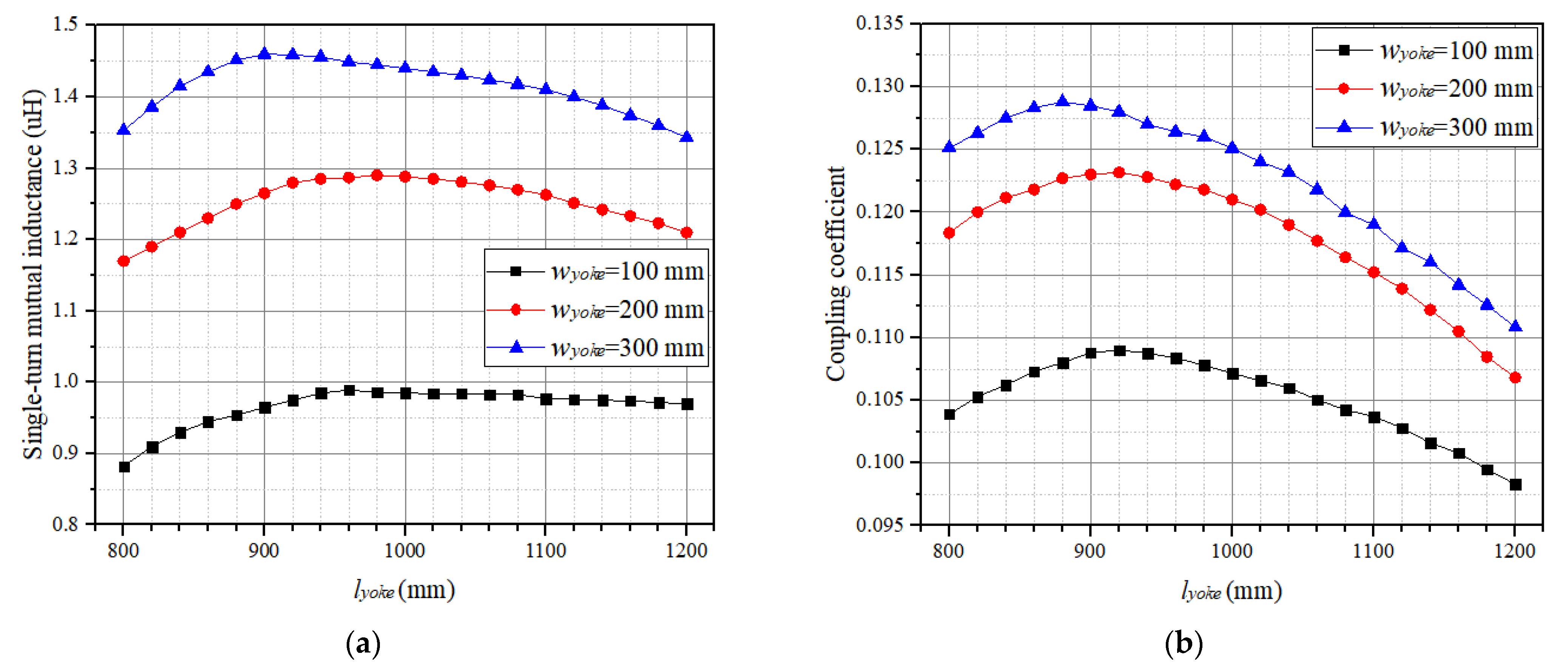

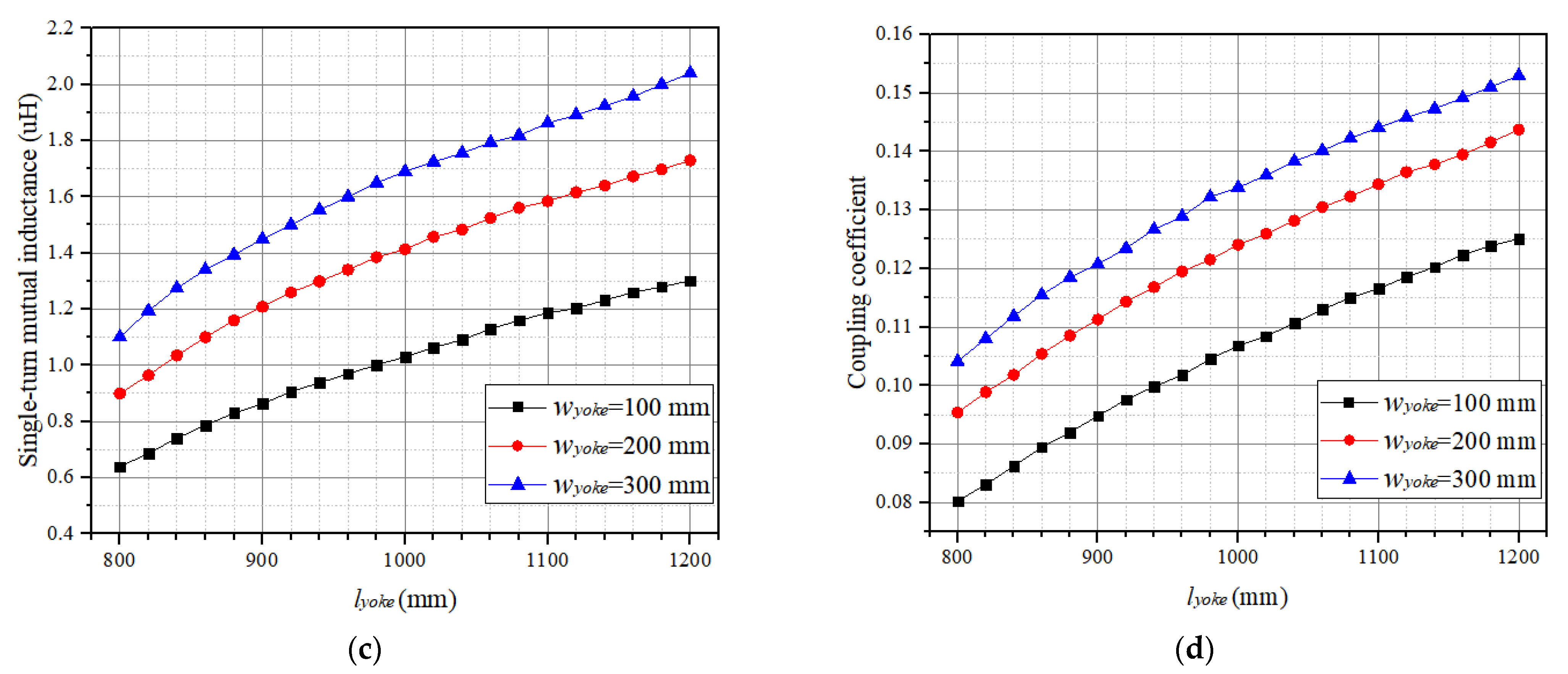

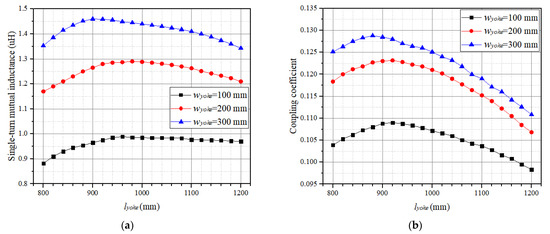

Figure 5 shows the mutual inductance and the coupling coefficient of single-turn winding D in Mode 1 and single-turn winding Q in Mode 2 with different lengths of receiver yoke l_yoke and widths of receiver yoke w_yoke. Obviously, a larger w_yoke leads to a larger end face of the coupling flux, and then, the mutual inductance and the coupling coefficient are increased. However, the influence is weakened along with a larger w_yoke. In Figure 5a, l_yoke has little effect on the mutual inductance of winding D; due to that, a pair of adjacent magnetic poles is mostly covered by the receiver yoke in Mode 1. However, the coupling coefficient decreases in Figure 5b with too large l_yoke because it provies a leakage flux path for other magnetic poles of the transmitter. A winging Q consists of two sub windings, and the mutual inductance of each sub winding is weaker because of smaller covered area of adjacent magnetic poles by the receiver yoke in Mode 2. This also means that l_yoke has a larger effect on the mutual inductance and the coupling coefficient, which are shown in Figure 5c,d. In summary, under the spacing limitation of the receiver in engineering design, the receiver yoke is preferred to be longer and narrower, to significantly improve the mutual inductance of winding Q with less sacrifice of winding D and to reduce the wire consumption under the same design requirements.

3.2. Center Distance of Receiver Winding Q

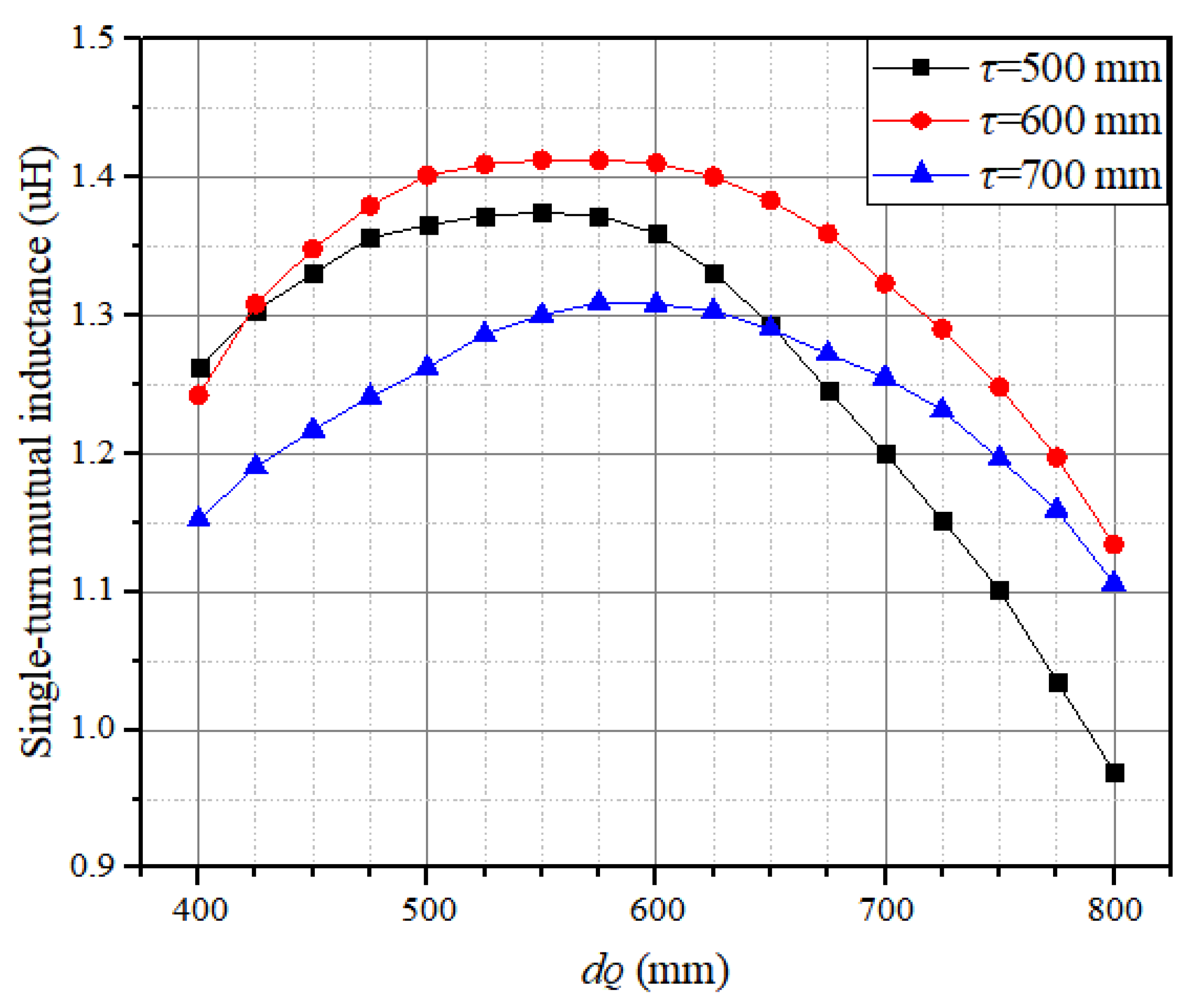

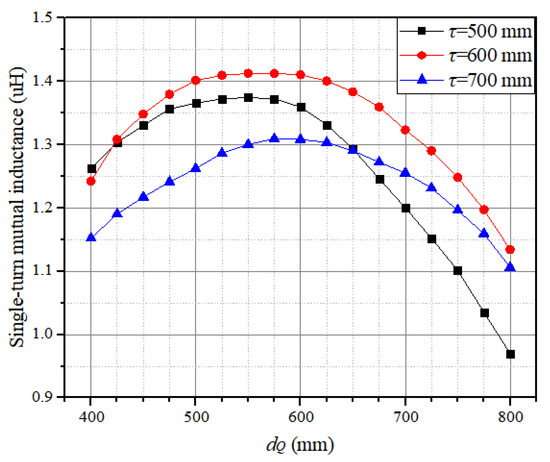

It is revealed in Figure 2 that adjusting the center distance of receiver winding Q d_Q has no effect on the coupling mode of the dual-phase NSP receiver. To optimized d_Q, the inner magnetic flux of the position in the receiver yoke surrounded by the winding Q should be larger when the magnetic flux is generated by only one transmitter. It is shown in Figure 6 that the optimized d_Q is close to the center distance between adjacent magnetic poles τ of transmitter. It should be noticed that when d_Q is 600 mm, the mutual inductance is less effected by τ, which shows possible interoperability between the dual-phase NSP receiver and different designs of the transmitter.

3.3. Center Distance between Receiver Module A and B

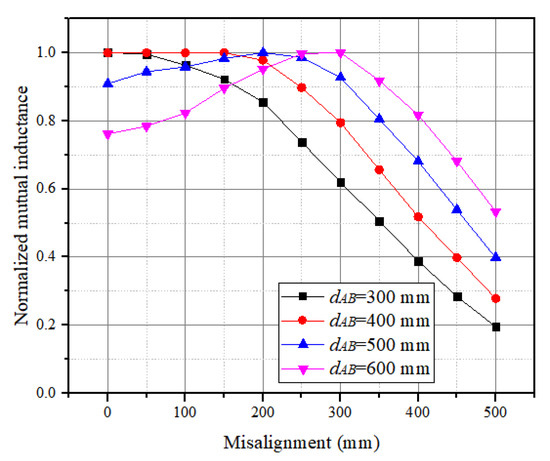

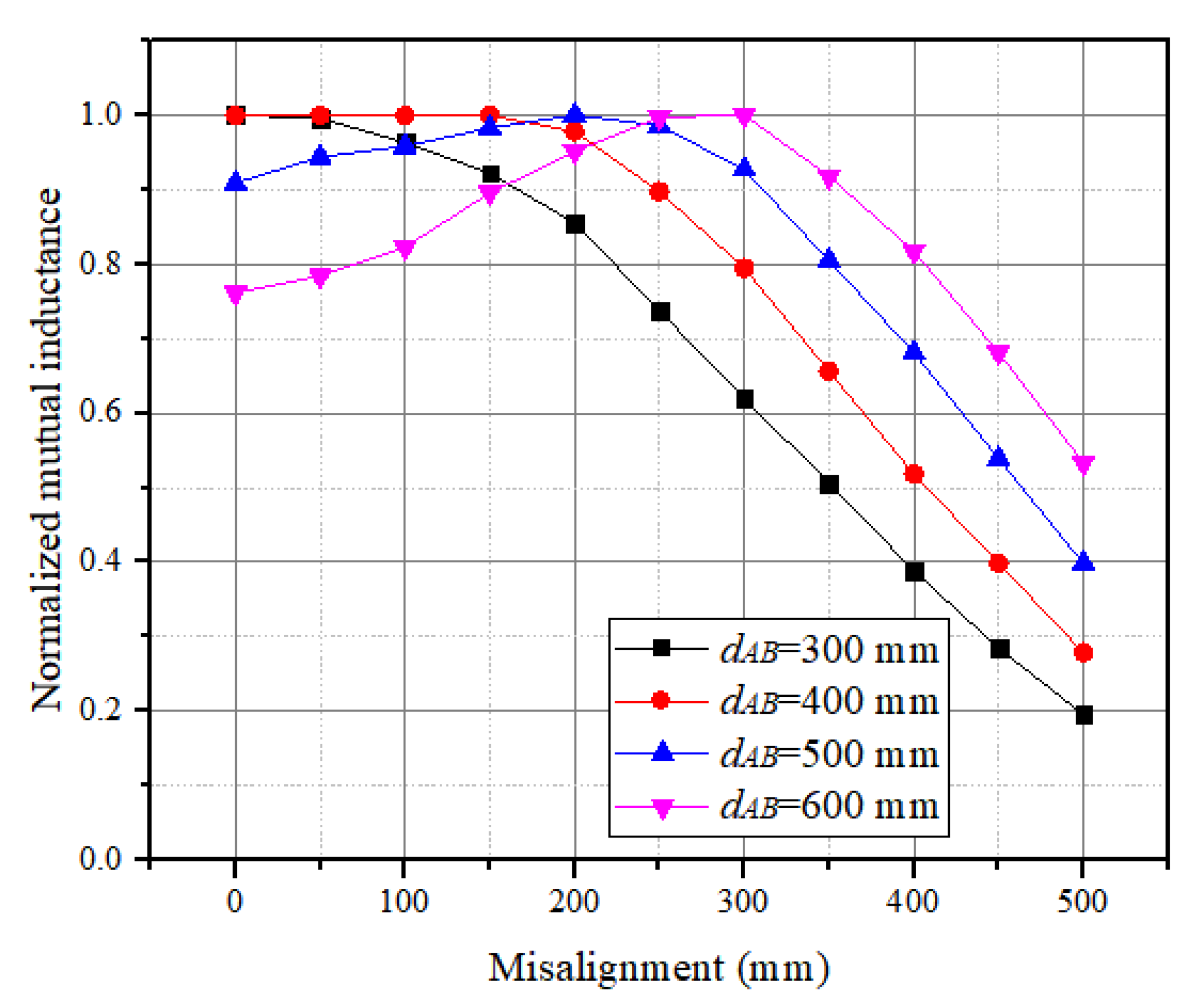

The characteristic of normalized mutual inductance in misalignment with different center distances between receiver module A and B d_AB is shown in Figure 7. According to the principal analysis of coupling compensation by two modules in Figure 3b, it is shown that when d_AB is smaller than 400 mm, it is in a compensation state, when d_AB is equal to 400 mm, it is in a critical compensation state, and when d_AB is larger than 400 mm, it is in an overcompensation state. In the critical compensation state, the mutual inductance is unchanged within 160 mm of misalignment, which is quite valuable for improving misalignment tolerance.

4. Design and Simulation Verification

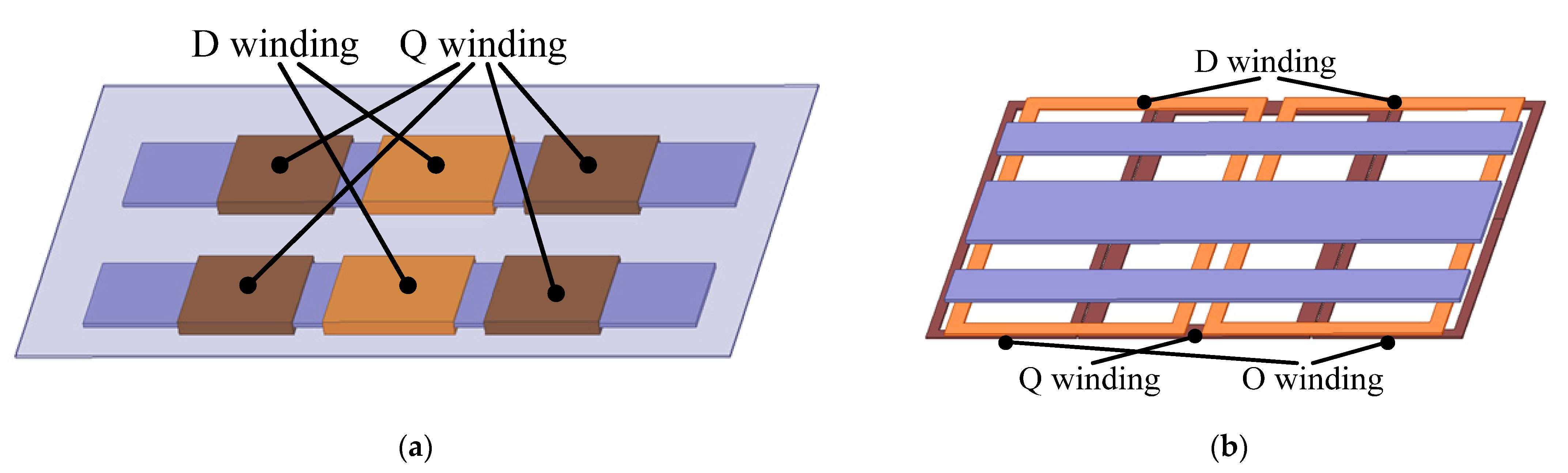

To evaluate the performance and the practicability of the dual-phase NSP receiver, a dual-phase DD-OQO receiver [18] shown in Figure 8, which is the latest structure of the dual-phase receiver, is considered as reference. These two receivers are designed by the finite-element simulation method. Design indexes and the information of the design results are shown in

Table 2. Design indexes and the information of the design results.

Type of Receiver	Dual-Phase NSP	Dual-Phase DD-OQO
Resonant frequency	20 kHz
Transmission distance	200 mm
Rated transmitter current	70 A (RMS)
Specification of Litz wire	0.1 mm × 2500 strands
Material of magnetic cores	PC95
Overall area (including shielding)	1200 mm × 800 mm	1200 mm × 800 mm
Size (except shielding)	1000 mm × 220 mm × 30 mm (1 module)	1200 mm × 800 mm × 30 mm
Width of the receiver (except shielding)	620 mm	800 mm
Number of turns	D winding: 16 turns Q winding: 14 turns	D winding: 6 turns Q winding: 7 turns O winding: 4 turns
Length of wires	36.96 m	69.80 m
Volume of magnetic cores	4000 cm3	4800 cm3

. In the comparison, the length and the width of the shielding plate in the dual-phase NSP receiver are the same as those of DD-OQO receiver, indicating same area needed under the chassis of a vehicle. However, the module size and the overall size of the dual-phase NSP receiver are significantly smaller than those of the dual-phase DD-OQO receiver. Using dual-phase, the NSP receiver can reduce 35.4% of the occupied volume and 47.0% of the wire consumption, which also indicates lighter weight of the receiver.

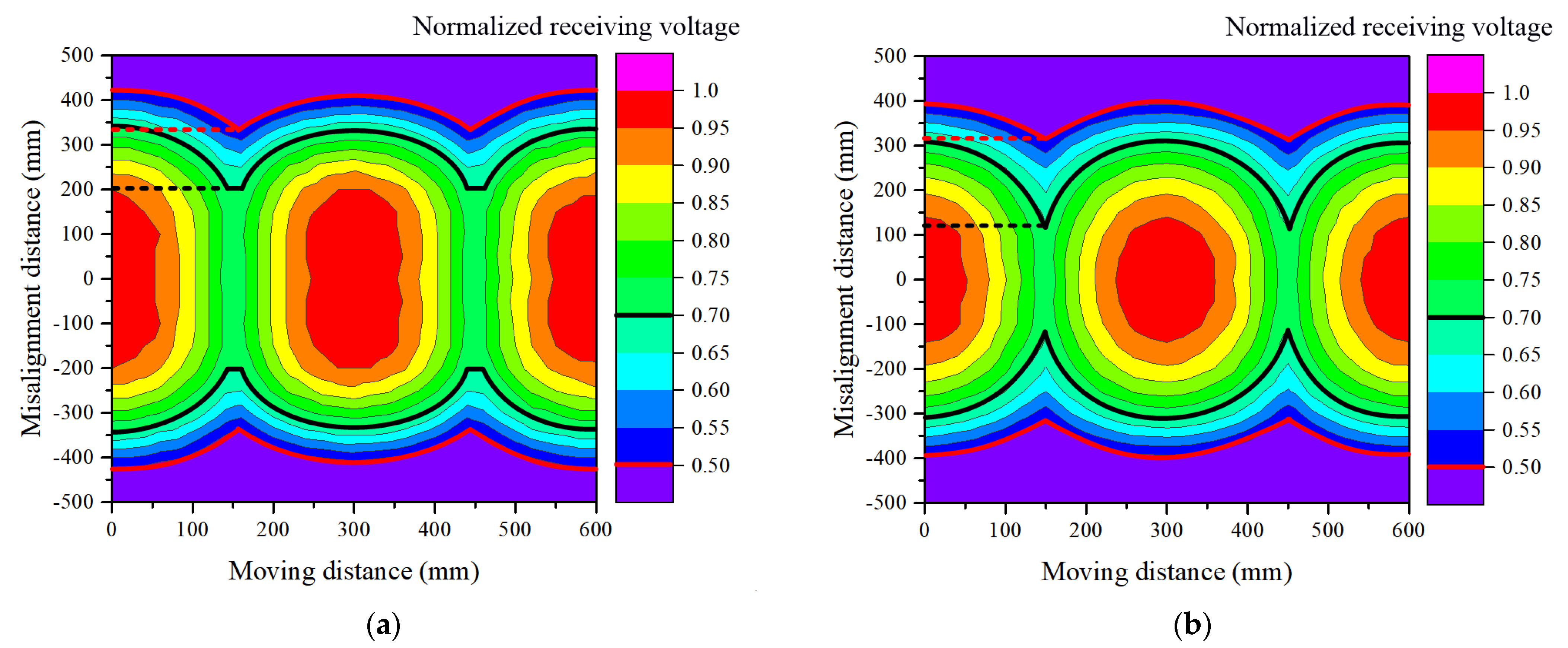

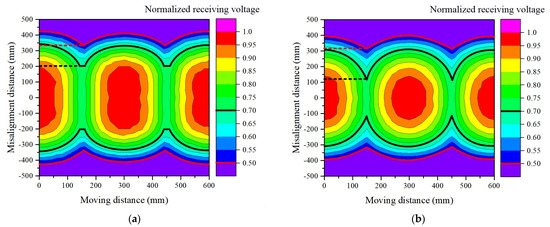

To compare the misalignment tolerance of these two receivers, the normalized receiving voltage with different moving distances and misalignments is shown in Figure 9. It is obtained that the higher the allowable lower limit of the normalized receiving voltage is, the more obvious advantage the dual-phase NSP receiver will have. For example, the weakest misalignment tolerance of the dual-phase NSP receiver is about 10% larger when the normalized allowable lower limit is 0.5 and about 67% larger when the normalized allowable lower limit is 0.7.

5. Experiment

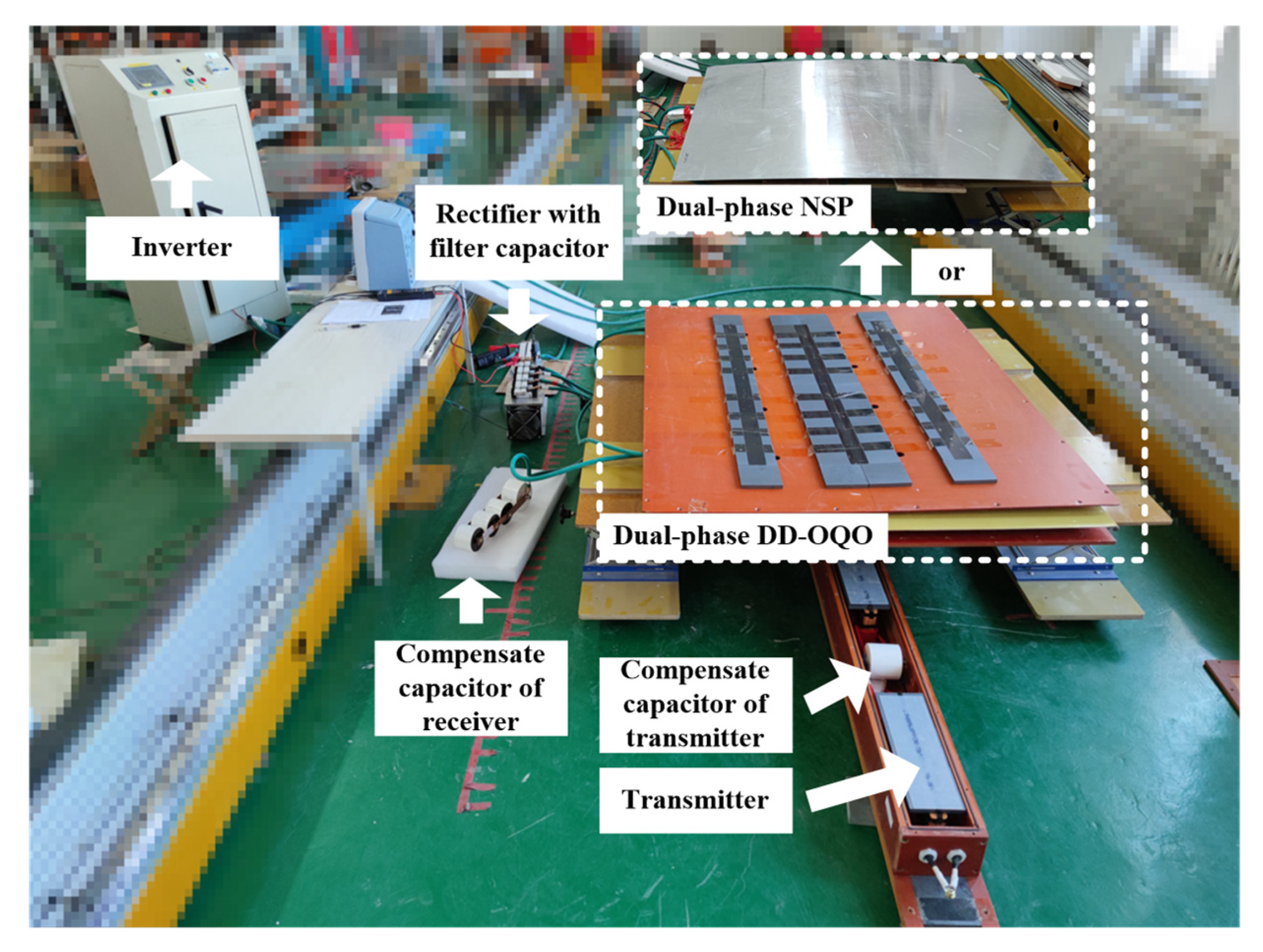

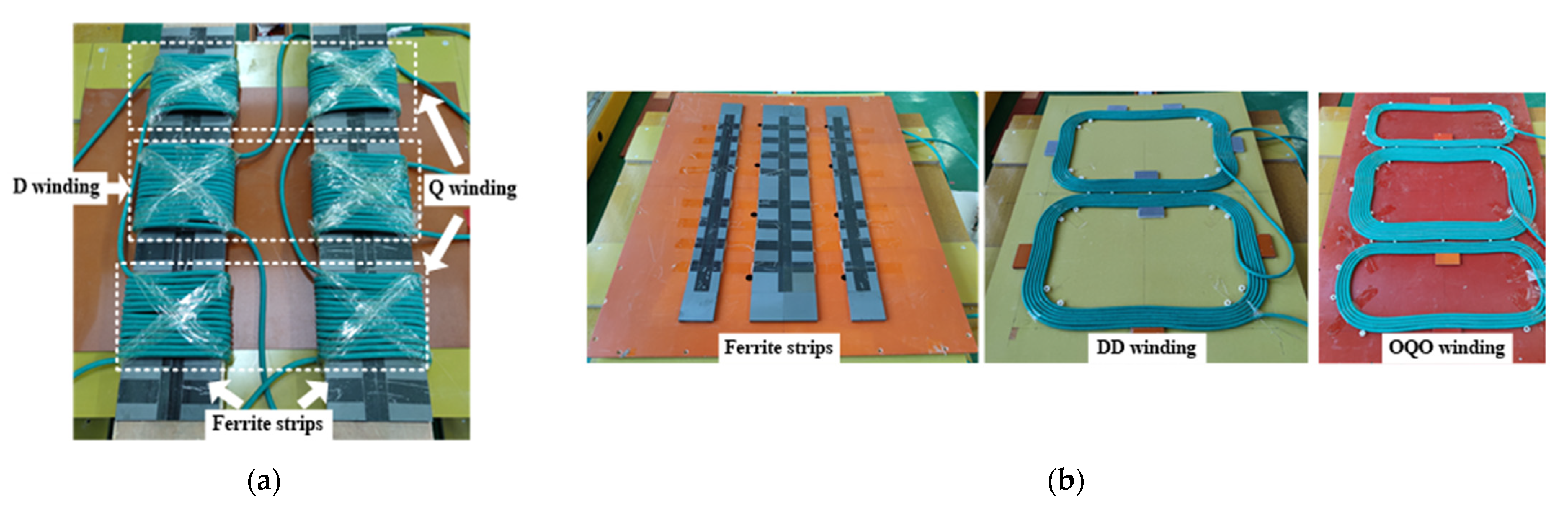

The experimental system used to compare the dual-phase NSP receiver and the dual-phase DD-OQO receiver is shown in Figure 10. The experimental conditions of the two receivers are the same, and the experimental parameters are consistent with Table 2. Figure 11 shows the details of two receivers, which are made according to the design dimensions in Table 2. Measured parameters of the magnetic coupler with the dual-phase NSP receiver or the dual-phase DD-OQO receiver are shown in

Table 3. Measured parameters of the magnetic coupler.

Parameter	Symbol	Value
Inductance of transmitter	LP	210 µH
Inductance of dual-phase NSP receiver	LSDA + LSDB LSQA + LSQB	236.0 µH 262.2 µH
Inductance of dual-phase DD-OQO receiver	LS-DD LS-OQO	153.7 µH 172.9 µH
AC internal resistance of transmitter	rP	60 mΩ
AC internal resistance of dual-phase NSP receiver	rSDA + rSDB rSQA + rSQB	63 mΩ 78 mΩ
AC internal resistance of dual-phase DD-OQO receiver	rS-DD rS-OQO	65 mΩ 80 mΩ
Max mutual inducatance with dual-phase NSP receiver	MNSP	16.0 µH
Max mutual inducatance with dual-phase DD-OQO receiver	MDD-OQO	17.0 µH

. The maximum mutual inductance of the two receivers is close, indicating that the power output capacity of the two receivers is similar under the same experimental conditions. In Table 2, the wire consumption of the dual-phase NSP receiver is significantly shorter than that of the DD-OQO receiver. However, the AC internal resistance of the dual-phase NSP receiver is not correspondingly smaller in the measure result. It is implied that the structure of the receiver has a non-ignorable influence on the AC internal resistance characteristics of the winding.

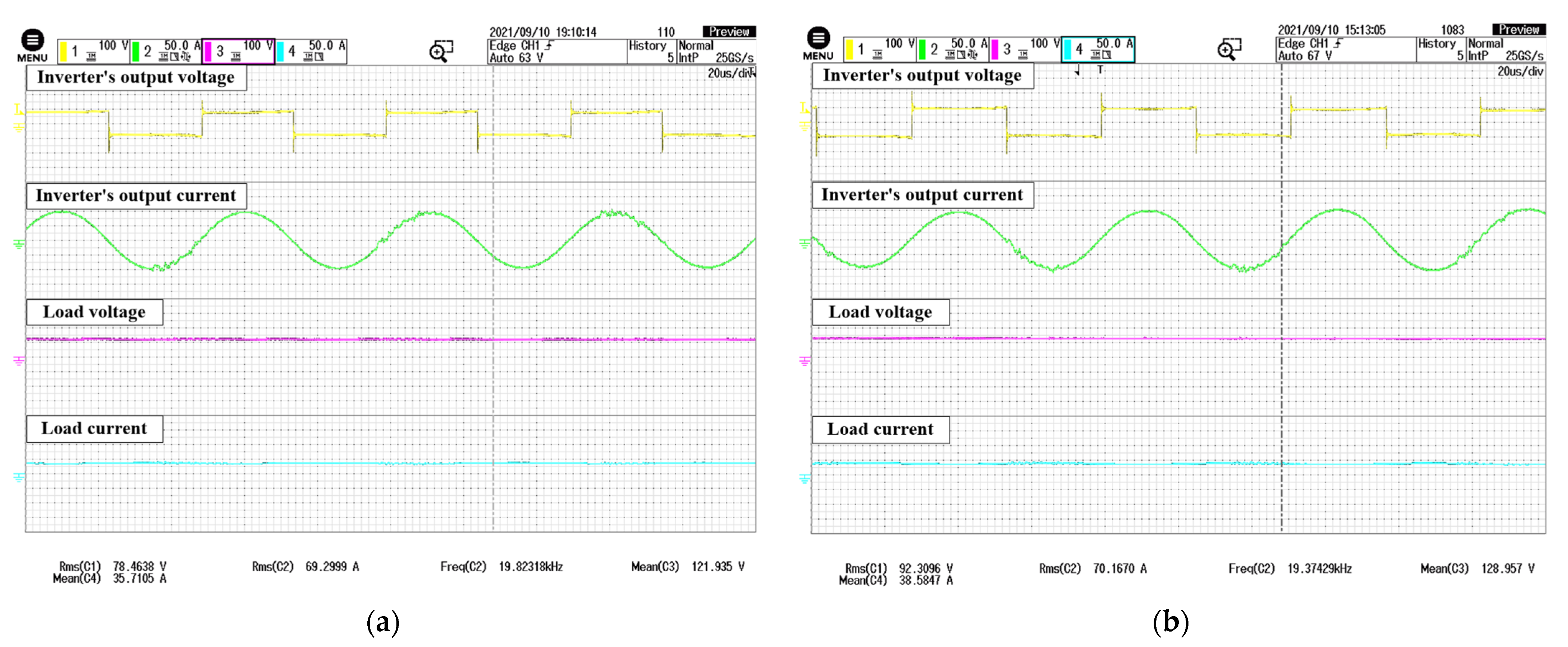

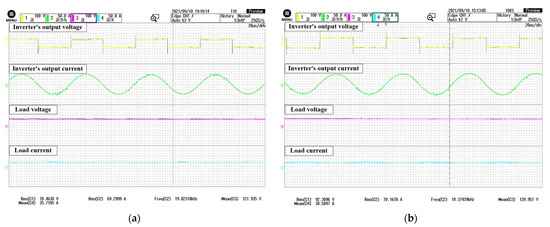

The position where the maximum mutual inductance is obtained is taken as the initial position of the receiver. In this position, power waveforms of the system with two receivers are shown in Figure 12. The calculated mutual inductance according to the load voltage and transmitter current in two systems are close to measured values in Table 3. In general, the system states with two receivers are near the same. In fact, the mutual inductance with the dual-phase DD-OQO receiver is slightly larger than that with the dual-phase NSP receiver, and thus, the output power with the dual-phase DD-OQO receiver is slightly larger correspondingly.

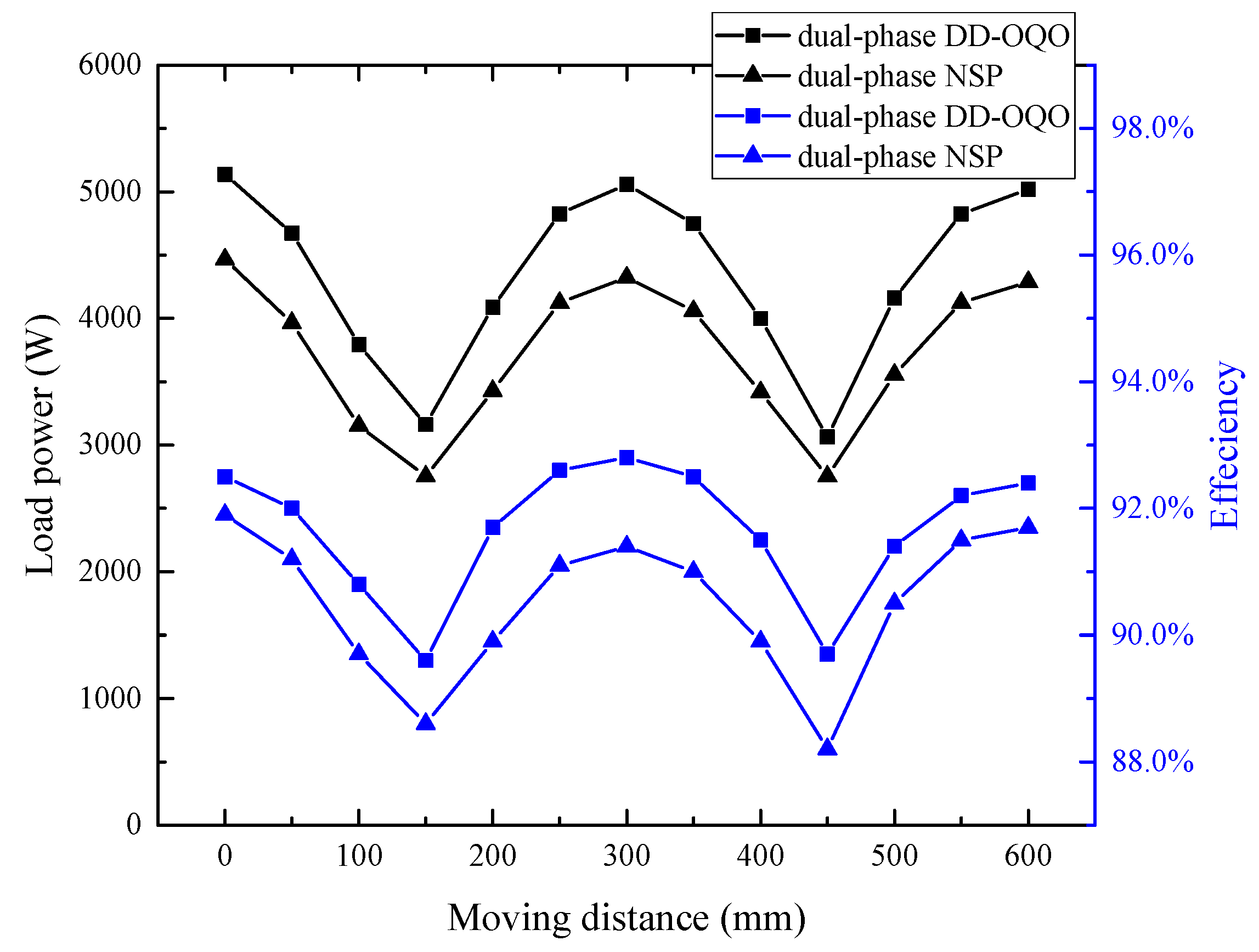

In order to verify and compare the dynamic performance of the two receivers, the output characteristics of the two receivers under different moving distances and misalignments from the initial position are measured and shown in Figure 13 and Figure 14. In the experiment, the load resistance is fixed. In Figure 13, the fluctuation characteristics of the output power of two receivers are consistent with the general dual-phase receiver. Since the mutual inductance of the dual-phase DD-OQO receiver is slightly larger than that of the dual-phase NSP receiver, the output power of the dual-phase DD-OQO receiver is a little larger correspondingly. Although the measured AC internal resistance of the dual-phase NSP receiver is close to that of the dual-phase DD-OQO receiver, the additional shielding loss of the dual-phase NSP receiver further reduces the efficiency of the dual-phase NSP receiver.

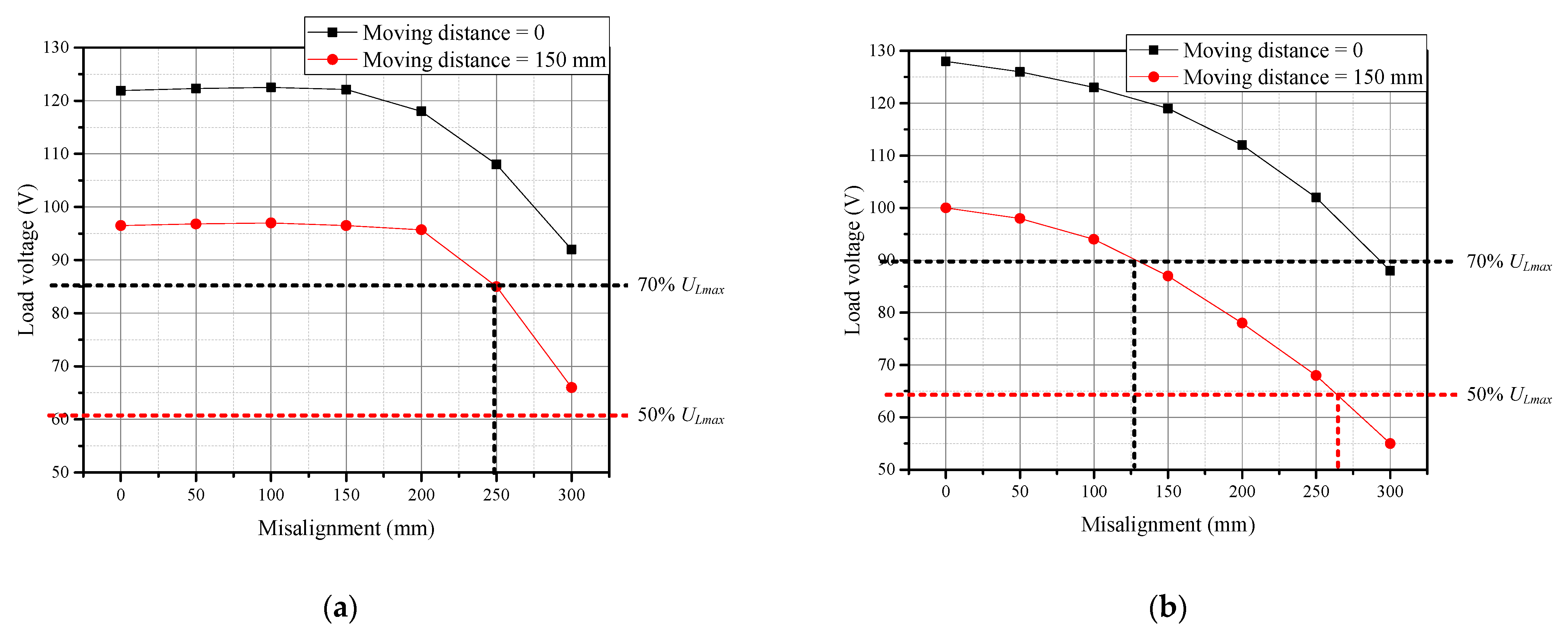

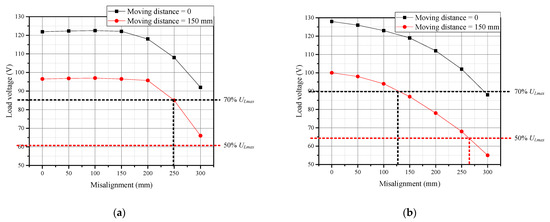

The output characteristics of two receivers with different misalignments from the maximum mutual inductance position and the minimum mutual inductance position are shown in Figure 14. The experimental results of the dual-phase NSP receiver are basically consistent with the simulation analysis. Obviously, the output stability of the dual-phase NSP receiver is better than that of the dual-phase DD-OQO receiver within 200 mm of misalignment. Combined with the discussion of different allowable lower limits of the received voltage in Figure 9, when the allowable lower limit is 70% of the maximum value, the weakest misalignment tolerance of the dual-phase NSP receiver is about 250 mm, but that of the dual-phase DD-OQO receiver is about 127 mm. When the allowable lower limit is 50% of the maximum value, the weakest misalignment tolerance of the dual-phase NSP receiver is approximately larger than 300 mm, but that of the dual-phase DD-OQO receiver is approximately 264 mm.

6. Conclusions

In this paper, the design of a dual-phase NSP receiver for an EV DWPT system with bipolar transmitter is proposed, compatible with existing dual-phase receivers, but with a smaller size, lower cost, and better misalignment tolerance. In essence, it reduces the fluctuation factor and decouples the two-phase windings. The sensitivity of mutual inductance to a certain misalignment is greatly reduced by using a dual-module structure. The advantages of the dual-phase NSP receiver are verified by comparing design, simulation and experiment results with the existing dual-phase DD-OQO receiver under the same design indexes. In the simulation results, the dual-phase NSP receiver is 35.4% smaller in volume, 47.0% shorter in wire consumption, and had a 10–67% improvement in misalignment tolerance according to different allowable lower limits of receiving voltage.

The effectiveness of the design and simulation results was verified by experimental comparison; however, an additional problem was found. Although the wire consumption of the dual-phase NSP receiver is significantly less, the AC internal resistance and total loss have no obvious advantage compared with the dual-phase DD-OQO receiver. Thus, further research will need to focus on the influence on AC internal resistance characteristics of the winding from the receiver structure, as well as the optimization of shielding loss of the dual-phase NSP receiver.
