Article

Can BPA Analogs Affect Cellular and Biochemical Responses in the Microalga Phaeodactylum tricornutum Bohlin?

by
Jacopo Fabrello
,
Maria Ciscato
,
Emanuela Moschin
,
Francesca Dalla Vecchia
,
Isabella Moro
and
Valerio Matozzo
*
Department of Biology, University of Padova, Via Basssi 58/B, 35131 Padova, Italy
*
Author to whom correspondence should be addressed.
J. Xenobiot. 2023, 13(3), 479-491; https://doi.org/10.3390/jox13030030
Submission received: 6 August 2023 / Revised: 5 September 2023 / Accepted: 6 September 2023 / Published: 8 September 2023
(This article belongs to the Section Ecotoxicology)
Browse Figures
Versions Notes

Abstract

:
Bisphenol A analogs (BPA analogs) are emerging contaminants with a rising production caused by the replacement of BPA with these compounds. The increased production of BPA analogs is leading to their increased release into various ecosystems, including marine ones. The aim of this study was to evaluate the biological effects of BPA analogs on a primary producer, the diatom Phaeodactylum tricornutum Bohlin. Three different BPA analogs (BPAF, BPF, and BPS) and their mixture were tested at the environmental relevant concentration of 300 ng/L. Growth, cell size and several biomarkers of oxidative stress and oxidative damage were measured. Our results indicated that the tested compounds caused a reduced growth rate and induced oxidative stress, altering many antioxidant enzymes in P. tricornutum. However, no oxidative damages were observed.

1. Introduction

Among the emerging contaminants, bisphenols have been the subject of much interest by researchers. The main bisphenol is bisphenol A (BPA), which is used as a plasticizer in polycarbonate plastic production (Figure 1).
BPA has many other uses, such as in thermal paper as a color developer, in epoxy resins, in medical equipment, and in consumer electronics [1]. Recently, BPA has been restricted in some industrial activities. Indeed, it is known that it can cause oxidative stress and toxic effects on the reproductive system in both humans and animals [2,3]. The main restrictions regard the ban of BPA in the manufacturing of baby bottles in the USA, Canada, the EU, and Australia. In addition, the BPA usage was settled to less than 0.02% in thermal paper in the EU [4]. These restrictions have led to the replacement of BPA with other bisphenols called bisphenol A analogs (BPA analogs). The main BPA analogs that are currently used are bisphenol F (BPF), bisphenol S (BPS), and bisphenol AF (BPAF) (Figure 2A–C). These compounds have many uses, such as in food packaging, water pipes, industrial floors, plastics, adhesives, epoxy glues, thermal receipt papers, and in common polymer applications [3]. Besides their increasing use, data on the production of BPA analogs are scarce, even if many studies have shown that it is increasing [5,6]. Indeed, BPS production increased twofold between 2016 and 2017, with a reported annual production of 1000–10,000 tons [7,8]. Similarly, the annual production of BPAF significantly increased between 1986 and 2002 in the USA, and its manufacturing/import in the EU yields 100–1000 tons per year [9,10].
Bisphenols reach the aquatic environment from discharges from urban and industrial areas, as well as by plastic degradation. Indeed, due to their use as plasticizers, they are released by microplastics that can also transfer these compounds into other environments. Bisphenols are mainly biodegraded, even if their half-lives in water are highly variable due to the environmental conditions. However, some bisphenols can be rapidly degraded in river water, such as BPF, which was completely biodegraded in 37 days, while others (BPAF, BPE, and BPB) are more persistent [11]. The EU settled guidelines to classify the toxicity of a compound according to the EC50 value: very toxic to aquatic organisms (<1 mg/L), toxic to aquatic organisms (1–10 mg/L), harmful to aquatic organisms (10–100 mg/L); compounds with an associated EC50 value above 100 mg/L are not classified [12]. In many studies BPS has been classified as harmful for the different microalgal species tested with an EC50 after 96 h of 85.48 mg/L [13,14], while BPAF was considered as toxic with an EC50 value of 1.78 mg/L and 3 mg/L after 96 and 72 h, respectively [14,15]. However, some studies on other algae have reported that BPS is more toxic whereas BPAF showed a lower toxicity [16,17]. Regarding the BPF, its toxic classification varies from toxic to harmful for aquatic organisms, with reported EC50 values that range from 9.2 mg/L to 12.3 mg/L [18,19]. The environmental concentrations of BPA analogs are often in the range of a few ng/L [20]. However, recent studies have indicated higher concentrations, with levels of hundreds and thousands of ng/L in both fresh and marine environments [20]. These values exceed the predicted no-effect concentration (PNEC) of BPA settled by the EU at 1500 ng/L for freshwater and 150 ng/L in marine water [21]. For instance, BPAF was recorded at a mean concentration of 140 ng/L in freshwater in China [22], while BPF reached 2850 ng/L and BPS reached 65,600 ng/L in the freshwater of Japan and China, respectively [23,24]. In the marine environment, bisphenol analogs have a common concentration from very few ng/L up to tens of ng/L, even if they reach higher concentrations, as in the case of BPF, which had maximum concentrations of 282 ng/L and 1470 ng/L in seawater in South China and in the Tokyo Bay, respectively [24,25]. The high interest and concern regarding BPA analogs, along with the consequences of their rising production/release, collides with the limited data available on their toxicity to microalgae and primary producers in general. In this study, for the first time, we evaluated the effects of single BPAF, BPF, BPS, and their mixture at environmentally realistic concentrations on the growth, cell size, and biochemical parameters of the microalga Phaeodactylum tricornutum Bohlin 1897, a diatom taxon commonly present in seawater as a primary producer.

2. Materials and Methods

2.1. Microalga Exposure

P. tricornutum was purchased from the Culture Collection of Algae at Goettingen University (SAG) and was grown in the F/2 medium [26]. The stock culture was acclimated to the experimental conditions in a culture chamber at 16 °C, a light intensity of 40.5 µmol photons m−2s−1, and a photoperiod of 12:12 light/dark. The stock solutions (1 mg/L) of BPAF and BPF were made in methanol, while the BPS was dissolved in distilled water. Stocks of microalgal cultures were inoculated in Erlenmeyer flasks containing 200 mL of F/2 medium and exposed in triplicate to the bisphenols BPAF, BPF, and BPS, as well as to their mixture. A concentration of 300 ng/L of each bisphenol or 100 ng/L of each of them in the mixture treatment was adopted. In addition, a control plus methanol was tested. Cells from the stock culture (inoculum) were added to obtain an initial concentration of 5 × 105 cells/mL. The cell concentration was measured through a Scepter™ 2.0 Automated Cell Counter (Millipore, Berlington, MA, USA); the data had previously been validated using a Neubauer hemocytometer through a light microscope (Leica, Wetzlar, Germany). All the biochemical analyses were carried out in two different growth phases: exponential and at the beginning of the stationary phase, corresponding to 5 and 9 days of exposure, respectively.

2.2. Growth Curve and Growth Rate

Microalgal growth, diameter, and volume were measured using a Scepter™ 2.0 Automated Cell Counter (Millipore, Berlington, MA, USA) every day of exposure. Briefly, 20 µL of cell culture was added to 2 mL of Coulter Isoton II diluent. The diatom concentration was expressed as the number of cells (105)/mL of the medium, while the diameter and volume were expressed in µm and picoliters (pL), respectively. In addition, growth rates were calculated according to the following equation:
µ = ln   ( N 1 / N 0 ) / ( t 1 − t 0 )
where N 1 and N 0 represent cell concentrations at t 1 and t 0 [27].

2.3. Biochemical Assays

Culture cells were centrifuged at 6000 g, and the pellets were frozen in liquid nitrogen and stored at −80 °C. Analyses were performed in triplicate. Prior to the biochemical assays, the pellets were sonicated in four volumes of 10 mM Tris-HCl buffer, pH 7.5, containing 0.15 M KCl, 0.5 M sucrose, 1 mM EDTA, and protease inhibitor cocktail (1:10 v/v) (Merck, Milano, Italy). The protein concentration was quantified according to Bradford et al. [28].
The total antioxidant capacity was measured according to the CUPRAC method [29]. Briefly, the reaction produced cupric ions that reacted with a specific indicator, and the complex was measured at 450 nm using a microplate reader. The results are expressed as mM of Trolox equivalents.
The total superoxide dismutase (SOD) activity was measured according to the method proposed by Crapo et al. [30] using the xanthine oxidase/cytochrome c reaction. Enzyme activity was expressed as U/mg protein, and one unit of SOD was defined as the amount of sample causing 50% inhibition under the assay conditions.
Catalase (CAT) activity was measured following the method proposed by Aebi [31]. The enzyme activity in a volume of 30 µL of tissue SN was measured at 240 nm and expressed as U/mg protein; one unit of CAT was defined as the amount of enzyme that catalyzed the detoxification of 1 μmol of H2O2/min.
Glutathione reductase (GR) activity was evaluated according to Smith et al. [32], by measuring the (5-thio (2-nitrobenzoic acid)) TNB production at 412 nm. The enzyme activity was expressed as U/mg protein.
Glutathione S-transferase (GST) activity was measured according to the method described by Habig et al. [33], using 1-chloro-2,4-dinitrobenzene (CDNB) and reduced glutathione (GSH) as the substrate. GST activity was expressed as nmol/min/mg protein.
Selenium-dependent glutathione peroxidase (GPX) activity was measured following the method of Lawrence and Burk [34], by measuring the decreased absorbance at 340 nm caused by the NADPH oxidation. GPX Se-dependent activity was expressed as mmoli/min/mg protein.
Ascorbate peroxidase (APX) activity was evaluated according to Nakano and Asada [35] and modified by Janknegt et al. [36] using the ascorbate and hydrogen peroxide as the reactives. APX activity was expressed as U/mg protein.
Oxidative damage was measured in both proteins, using the protein carbonyl content assay (PCC), and in lipids, measuring the level of peroxidation (LPO). Briefly, PCC was measured using the method of Mecocci et al. [37], following the reaction with 2,4-dinitrophenylhydrazide (DNPH). The results were expressed as nmol carbonyl group/mg protein. The LPO was quantified using the malondialdehyde (MDA) assay, according to the method of Buege and Aust [38]. Absorbance was read spectrophotometrically at 532 nm, and the results were expressed as nmoles of thiobarbituric reactive substances (TBARS)/mg protein. TBARS, considered as “MDA-like peroxide products”, were quantified by reference to MDA absorbance (ε = 156 × 103 M−1 cm−1) [39].

2.4. Statistical Analysis

The effects of the independent factors, namely “treatment”, “growth phase”, and their interaction (treatment * growth phase), were evaluated by means of a two-way ANOVA analysis for each biomarker, using OriginPro software (OriginPro, Version 2022. OriginLab Corporation, Northampton, MA, USA). The post hoc test (Fisher’s test) was performed for pairwise comparisons. All results are expressed as the mean ± standard deviation (SD).

3. Results

During the exposure to different bisphenols, the growth curve was altered by the factors of “growth phase”, “treatment”, and their interaction (p < 0.001) (Table S1 in Supplementary Materials). The bisphenols caused a general reduction in growth during the exponential phase (4–6 days); however, the post hoc test revealed that only BPAF caused a significant decrease in microalgal growth after 7 and 8 days of exposure. In detail, we recorded growth inhibition percentages of 10.86% and 12.66% caused by BPAF after 7 and 8 days, respectively, with respect to the control. Moreover, at the stationary phase (9 days), both BPAF and BPS caused a significant decrease in the growth, with a growth inhibition percentage of 16.37% and 8.7%, respectively (Figure 3) (Table S2 in Supplementary Materials). Interestingly, the mixture did not have any effect on the growth. Moreover, we calculated the growth rates of the six different treatments for each day of exposure (Table S3 in Supplementary Materials), and we also calculated the growth rates during the exponential phase and the stationary phase (Table S4 in Supplementary Materials).
During the exposure, both the mean cell diameter and mean cell volume of the microalgae were measured daily. Both of the two cellular parameters were affected by the “growth phase” factor (p < 0.001) and its interaction with “treatment” (p < 0.05 and p < 0.01, respectively) (Table S1). The post hoc test revealed that both BPAF and MIX caused a significant decrease in cell diameter and volume after 6 days of exposure (p < 0.001 and p < 0.05, respectively) (Tables S5 and S6 in Supplementary Materials; Figure 4 and Figure 5).
The total antioxidant capacity, measured using the CUPRAC assay, was significantly altered by the factors “growth phase” and “treatment”, as well as their interaction (p < 0.001) (Table S7 in Supplementary Materials). In addition, the post hoc test revealed a significant reduction in the total antioxidant capacity with both BPS and MIX treatment during the exponential phase (Figure 6A). Similarly, a significant reduction in total antioxidant capacity was observed in all the bisphenol treatments during the stationary phase, with respect to the controls (Figure 6A).
As for SOD and CAT activity, the independent factors (growth phase, treatment, and their interaction) exerted effects on enzyme activities. In detail, the two-way ANOVA demonstrated that the factors “growth phase” and “treatment” significantly affected (p < 0.001) SOD activity, as well as their interaction (p < 0.01) (Table S7 in Supplementary Materials). CAT activity was influenced by growth phase (p < 0.001), treatment (p < 0.01), and their interaction (p < 0.05) (Table S7 in Supplementary Materials). In detail, SOD activity was significantly increased after 5 days of exposure to BPAF, BPF, and MIX, while no differences in SOD activity were observed after 9 days of exposure (Figure 6B). As for CAT activity, exposure to MIX increased the enzyme activity during the exponential phase, whereas no differences were recorded during the stationary phase (Figure 6C).
Regarding the glutathione-related enzymes, GR activity was influenced only by the factor “growth phase” (Table S7 and Figure S1 in Supplementary Materials), while GST activity was altered by both “treatment” and its interaction with “growth phase” (p < 0.001) (Table S7 in Supplementary Materials). Moreover, GST activity was significantly affected only during the stationary phase, with a marked increase in the BPAF-treated group, followed by a significant reduction in the BPF-, BPS-, and MIX-treated groups (Figure 6D).
The two peroxidase enzymes, GPX and APX, were altered by the factors “growth phase” (p < 0.001 and p < 0.01, respectively) and “treatment” (p < 0.05) (Table S8 in Supplementary Materials). In detail, the GPX activity was significantly increased in the stationary phase by exposure to BPF and MIX (Figure 6E), while the ascorbate peroxidase was increased by exposure to MIX after 9 days of treatment (Figure 6F).
Lastly, statistical analysis indicated that LPO was altered only by the factor “growth phase” (p < 0.01) (Table S8 and Figure S2A in Supplementary Materials), while the PCC value was not affected by any of the independent factors (Table S8 and Figure S2B in Supplementary Materials).

4. Discussion

4.1. Growth and Cell Size

In this study, we tested the effects of three of the main BPA analogs (BPAF, BPF, and BPS) and their mixture on the diatom P. tricornutum. The growth curves were mainly affected by BPAF during the last phase of exposure. In addition, the BPS also caused a reduction in the cell density at day 9. The BPF did not cause any effect, while with the MIX treatment, a general reduction in growth was observed, even if it was non-significant. Indeed, the absence of a significant reduction in cell density values and a contemporary significant effect observed in the BPAF treatment suggest a sort of antagonistic interaction between the three BPA analogs in the MIX treatment. In addition, we speculated that the BPAF concentration was too low to induce a significant reduction in cell density. Other studies indicate that many algal species are very tolerant to BPA exposure in term of cell growth. Indeed, the EC50 values are in the order of mg/L [40], even if some species can be more sensitive [41]. Our results are in accordance with those of Ding et al. [16], which reported no significant effects on the growth rate of Chlorella vulgaris after exposure to environmentally relevant concentrations (≤0.5 mg/L) of BPS and BPA, even if the growth decreased at higher concentrations. In other studies, the tested concentrations showed effects on the growth curve; however, the tested concentrations were higher than the environmental levels. Indeed, Tišler et al. [15] recorded a value of 50% inhibition of growth in Desmodesmus subspicatus after 72 h of exposure to both BPA and BPF (22.1 and 19.6 mg/L, respectively). In that study, BPAF showed a 50% inhibition of growth at 3.0 mg/L, which is 1000 times higher than the concentration tested in the present study. A summary of studies on the effects of bisphenols on the growth of microalgae is reported in Table 1.
We observed that both the cell diameter and cell volume were altered by the “growth phase” factor and its interaction with “treatment”. In detail, both diameter and volume increased during the experiment and reached the highest values after seven days of exposure; then, they decreased. Interestingly, both BPAF and MIX caused a significant decrease in both cell diameter and volume after 6 days of exposure. Recently, Li et al. [43] observed that bisphenols caused a decrease in the cell size of Tetrahymena thermophila. Indeed, BPA (2.6 and 13.0 μM), BPAF (13.0 μM), BPB (13.0 μM), and BPS (13.0 μM) caused a significant reduction in cell volume after 12 h of exposure in the adaptive growth phase, and this trend was maintained after 30 h of exposure. Furthermore, after 60 h of exposure in the stable growth phase, the cell volume was reduced in all the treatments, except for the BPE at a concentration of 2.6 μM [43]. P. tricornutum was used in another study to evaluate the effects of six different bisphenols BPA, BPS, BPAP, BPAF, BPFL, and BPC were tested at various concentrations, namely, 5, 20, 40, 80, 150, and 300 μM [47]. The authors observed that the growth of this microalga was inhibited by all the concentrations at all times of exposure, except for bisphenol C at 5 μM and 72 h. The authors ranked the toxicity levels of the bisphenols to this species as follows: BPC < BPA < BPS < BPFL ≈ BPAF ≈ BPAP after 72 h of exposure. In the same study, the authors also evaluated the effects of bisphenols on two other species of microalgae: Tetraselmis suecica, which was the most sensitive species, and Nannochloropsis gaditana, which was the species most resistant to bisphenols, even if some effects have been observed on this species as well [47]. Interestingly, the authors observed that almost all of the tested bisphenols caused reductions in the cell volume of P. tricornutum, apart from BPS, which provoked a significant increase in this parameter at the highest concentrations, and BPFL, which did not cause any effect. On the contrary, T. suecica cells showed a significant increase in cell size, mainly at higher concentrations and after 72 h of incubation, while N. gaditana was less affected than the other two species.

4.2. Biomarker Responses

In the present study, several biomarkers indicative of oxidative stress were measured in P. tricornutum treated with bisphenol analogs. Regarding the total antioxidant capacity, a reduction was observed in the microalga exposed to BPS and MIX for five days. Moreover, the same effect was also observed in the microalga after nine days of exposure to BPAF, BPF, BPS, and MIX. The SOD activity was significantly increased by BPAF, BPF, and MIX exposure during the exponential growth phase. However, in the stationary phase, all treatments caused effects. Similarly, in the case of CAT activity, it was significantly increased only by MIX after five days, while during the stationary phase, there were no alterations. To our knowledge, our study adopted the lowest concentrations which have been tested in the literature. Indeed, many other studies observed alterations to the antioxidant system, but with very high concentrations of bisphenols, mainly BPA. However, our observations of an impairment in the microalgal antioxidant system are in accordance with the bisphenols’ capacity to produce ROS, which has been reported in many studies. Indeed, recently, P. tricornutum showed an increase in ROS production for most of the tested bisphenols (BPC, BPS, BPA, BPAF, BPAP, and BPFL) over 72 h at different dosages (5, 20, 40, 80, 150 and 300 μM). In detail, BPAP showed the highest ROS production, followed by BPFL > BPAF > BPA > BPS > BPC [47]. Similarly, in Chlorella pyrenoidosa, BPA caused ROS increases at concentrations of 5, 8, 11, and 15 mg/L, while BPS caused an increase in ROS levels at higher concentrations, such as 15, 20, and 40 mg/L. Moreover, the mixture of the two bisphenols at a ratio of 1:1 caused increased ROS only at the two lowest concentrations [13]. Recently, the activities of both SOD and CAT were measured in two freshwater algae, Chlorella vulgaris and Navicula sp., which had been exposed to BPS [48]. The authors observed that in C. vulgaris, the SOD activity increased significantly at 1, 5, 10, 20, and 50 mg/L of BPS, while CAT activity increased at 20 and 100 mg/L of BPS. In an opposite way, in Navicula sp., there was a significant increase in the activity of these two enzymes at 1 mg/L only [48]. Similarly, after 4 and 8 days of exposure, all the tested concentrations of BPA (4, 6, 8, 10, and 12 mg/L) increased the SOD activity in Cyclotella caspia. However, such an increment, with respect to the control, was lower after 12, 16, and 20 days of exposure [49]. Interestingly, all of the tested concentrations caused an increase in the activity of both SOD and CAT after 96 h of exposure of C. pyrenoidosa to BPA [45]. In another study with the cyanobacterium Microcystis aeruginosa, the authors observed that SOD activity was not altered by BPA at a concentration range of 0.1–1.0 μM. However, higher concentrations (5−50 μM) caused a significant increase in SOD activity. Moreover, the authors observed that the GSH content was significantly increased by the BPA-tested concentrations after 3, 9, and 15 days of exposure [50]. The effects of another bisphenol analog, namely, bisphenol BHPF, were tested in the microalga Chlorella vulgaris [51]. Contrary to our results, the authors found that SOD activity significantly decreased at 1, 10, and 20 mg/L of BHPF, while CAT activity remained unchanged after 72 h of exposure. Alterations in both SOD and CAT activity were also observed during chronic exposure. Indeed, with long-term exposure, SOD activity increased after 15 days at 1 mg/L and 10 mg/L of BPA, while after 30 days, only 1 mg/L of BPA had an effect, increasing the SOD activity in C. pyrenoidosa [45]. In the case of Scenedesmus obliquus, only after 15 days of exposure to 1 mg/L of BPA was there an increase in SOD activity [45]. Moreover, the two algae showed increased CAT activity at 50 mg /L of BPA after 15 and 30 days, and, in the case of S. obliquus, the CAT activity also increased at 10 mg/L after 15 days and at 1 mg/L and 10 mg/L of BPA after 30 days of exposure [45]. The GST enzyme is an antioxidant enzyme involved in the detoxification activity of xenobiotics. In our study, GST activity was increased after exposure to BPAF during the stationary phase, while BPF, BPS, and MIX caused a significant reduction in enzyme activity. Conversely, the exposure of Navicula incerta—another marine diatom species—to BPA increased both SOD and GST activity in a dose-dependent manner, while the peroxidase activity decreased at 5 mg/L of BPA [52]. In addition, increased activity of both CAT and GST was reported in Picocystis sp. exposed to 25, 50, and 75 mg/L of BPA [53]. As for GR, which is an enzyme involved in the glutathione cycle, we did not observe any effects of the tested compounds during exposure. On the contrary, Jiefeng et al. [54] observed a reduction in SOD, CAT, peroxidase, and GR activity at all the BPA treatments (1, 5, 20, and 50 mg/L), with a contemporary general increase in GSH levels. However, much higher concentrations were tested in that study. Moreover, the authors observed that 20 mg/L and 50 mg/L of BPA caused significant reductions in the total antioxidant capacity (Jiefeng et al. [54]). Another two important enzymes that we assessed are glutathione peroxidase (GPX) and ascorbate peroxidase (APX). These two enzymes are fundamental antioxidant enzymes. Indeed, they detoxify hydrogen peroxide, an important ROS species, using glutathione or ascorbate, respectively. The GPX activity was increased after exposure to BPF and MIX during the stationary phase, while APX increased after nine days of exposure to MIX. Similarly, APX activity was increased by BPA exposure in the microalga Picocystis sp. when it was treated for 1, 2, 3, 4, and 5 days with 25, 50, and 75 mg/L; in addition, after 4 and 5 days, the APX activity was also increased by 10 mg/L of BPA. However, at 1 mg/L of BPA, no alterations in APX activity were recorded [53]. In the latter study, the activity of APX measured in Graesiella sp. showed an opposite pattern of variation with respect to that of Picocystis sp., with decreased enzyme activity at higher BPA concentrations [53].
Oxidative damage to macromolecules is caused by an excessive presence of ROS species that are not efficiently removed by the antioxidant system. The oxidative damage can be evaluated by measuring the levels of carbonyl groups in proteins using a PCC assay and the level of lipid peroxidation through an LPO assay. Based on the results of PCC and LPO assays, we can exclude the notion that bisphenol analogs can induce oxidative damage in P. tricornutum, at least under the experimental conditions adopted in our study. However, other studies have reported that bisphenols can cause oxidative damage [40]. For instance, Yang et al. [50] reported oxidative damage to lipids (increased MDA level) after 3, 9, and 15 days of exposure of the cyanobacterium M. aeruginosa to 0.1, 1, 5, 10, and 50 mg/L of BPA. However, the MDA levels decreased during the time course [50]. BPA was able to increase the MDA levels at doses above 5 mg/L in both the green alga Scenedesmus quadricauda and the cyanobacterium Cylindrospermopsis raciborskii, even if there were decreased MDA levels in the cyanobacterium at a concentration of 20 mg/L [55]. In addition, in C. vulgaris, all of the tested concentrations of BPS increased the MDA content, while in Navicula sp., there was an increased MDA level only at the two highest tested concentrations (50 mg/L and 100 mg/L) [48]. In this study, our results on the effects of MIX agree with those of previous studies [12,15]. Indeed, a higher toxicity of the mixture than that of the single compounds was recorded, with a synergistic effect between them. This result reveals that the antioxidant systems of marine microalga can be markedly affected by BPA analogs, which may be present in aquatic environments either individually or as mixtures. As for cell growth, we hypothesized that antagonist interactions between the tested BPA analogs occurred during the MIX treatment. This condition did not cause significant cell density reduction when compared to the BPAF treatment.

5. Conclusions

In the present study, we observed that bisphenol analogs, at environmentally realistic concentrations, affected the growth and the cell size of the diatom species P. tricornutum. In addition, we observed alterations to the antioxidant systems, with some antioxidant enzyme activities being affected. We observed that the mixture caused higher alterations to the measured biochemical parameters in comparison to the single bisphenols. In conclusion, the bisphenol A analogs tested in this survey can be harmful for the microalga P. tricornutum, as previously observed for BPA. Studies on the molecular interactions of bisphenols and their impact on the ultrastructures of microalga are needed in order to better determine the ecotoxicological profiles of these compounds.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jox13030030/s1. Table S1 Results of the two-way ANOVA analysis performed on cell density, cell diameter and cell volume. Significant values (p < 0.05) are in red; Table S2 Results obtained from the post-hoc test performed on the cell density values. Each cell reports the p value of the corresponding treatment in comparison to the control of the same day. Significant values (p < 0.05) are in red; Table S3 Growth rate (µ) calculated for each of the six treatments during the nine days of exposure; Table S4 Growth rate of exponential phase (µ EXP) and stationary phase (µ STAT) calculated for each of the six treatments; Table S5 Results of the post-hoc test performed on the cell diameter values. Each cell reports the p value of the corresponding treatment in comparison to the control of the same day. Significant values (p < 0.05) are in red; Table S6 Results of the post-hoc test performed on the cell volume values. Each cell reports the p value of the corresponding treatment in comparison to the control of the same day. Significant values (p < 0.05) are in red; Table S7 Results of the two-way ANOVA analyses performed on the various biomarkers analyzed, namely the total antioxidant capacity (CUPRAC), superoxide dismutase (SOD), catalase (CAT), glutathione reductase (GR) and glutathione s-transferase (GST). Significant values (p < 0.05) are in red; Table S8 Results of the two-way ANOVA analyses performed on the various biomarkers analyzed, namely glutathione peroxidase (GPX), ascorbate peroxidase (APX), protein carbonyl content (PCC), and lipid peroxidation (LPO). Significant values (p < 0.05) are in red; Figure S1 glutathione reductase activity (GR), expressed as U/mg protein; the two growth phases are indicated as EXP and STAT. The values are mean ± SD (n = 3). Different letters indicate statistically significant differences in comparison with the related control (p < 0.05); Figure S2 protein carbonyl content (PCC), expressed as nmol/mg protein (A), and lipid peroxidation (LPO), expressed as nmol TBARS/mg protein (B); the two growth phases are indicated as EXP and STAT. The values are mean ± SD (n = 3). Different letters indicate statistically significant differences in comparison with the related control (p < 0.05).

Author Contributions

Conceptualization, V.M., I.M. and F.D.V.; methodology, J.F., M.C. and E.M.; formal analysis, J.F., M.C. and E.M.; writing—original draft preparation, J.F.; writing—review and editing, J.F., V.M., I.M., F.D.V. and E.M.; supervision, V.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this article and supplementary materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vandenberg, L.N.; Hauser, R.; Marcus, M.; Olea, N.; Welshons, W.V. Human exposure to bisphenol A (BPA). Reprod. Toxicol. 2007, 24, 139–177. [Google Scholar] [CrossRef] [PubMed]
  2. Matuszczak, E.; Komarowska, M.D.; Debek, W.; Hermanowicz, A. The Impact of Bisphenol A on Fertility, Reproductive System, and Development: A Review of the Literature. Int. J. Endocrinol. 2019, 2019, 4068717. [Google Scholar] [CrossRef] [PubMed]
  3. Gassman, N.R. Induction of oxidative stress by bisphenol A and its pleiotropic effects. Environ. Mol. Mutagen. 2017, 58, 60–71. [Google Scholar] [CrossRef] [PubMed]
  4. EU. Commission regulation 2016/2235 of 12 December 2016 amending annex XVII to regulation (EC) No 1907/2006 of the European parliament and of the council concerning the registration, evaluation, authorisation and restriction of chemicals (REACH) as regards bisphenol A. Off. J. Eur. Union 2016, L337, 3–5. [Google Scholar]
  5. Chen, D.; Kannan, K.; Tan, H.; Zheng, Z.; Feng, Y.L.; Wu, Y.; Widelka, M. Bisphenol analogues other than BPA: Environmental occurrence, human exposure, and toxicity—A review. Environ. Sci. Technol. 2016, 50, 5438–5453. [Google Scholar] [CrossRef] [PubMed]
  6. Usman, A.; Ikhlas, S.; Ahmad, M. Occurrence, toxicity and endocrine disrupting potential of Bisphenol-B and Bisphenol-F: A mini-review. Toxicol. Lett. 2019, 312, 222–227. [Google Scholar] [CrossRef]
  7. EFSA; FitzGerald, R.; Van Loveren, H.; Civitella, C.; Castoldi, A.F.; Giovanni Bernasconi, G. Assessment of New Information on Bisphenol S (BPS) Submitted in Response to the Decision under REACH Regulation (EC) No 1907/2006; EFSA Supporting Publication; European Food Safety Authority (EFSA): Parma, Italy, 2020; p. 39. [Google Scholar]
  8. ECHA. Inclusion of BPA as a Substance of Very High Concern (Reason for Inclusion: Endocrine Disrupting Properties—Article 57f Environment) in the Candidate List for Eventual Inclusion in Annex XIV; Decision of the European Chemicals Agency; European Chemicals Agency: Helsinki, Finland, 2018. [Google Scholar]
  9. Hu, Y.; Zhu, Q.; Yan, X.; Liao, C.; Jiang, G. Occurrence, fate and risk assessment of BPA and its substituents in wastewater treatment plant: A review. Environ. Res. 2019, 178, 108732. [Google Scholar] [CrossRef]
  10. ECHA; Bisphenol, A.F. Substance Infocard. Available online: https://echa.europa.eu/substance-information/-/substanceinfo/100.014.579 (accessed on 15 July 2023).
  11. Frankowski, R.; Zgoła-Grześkowiak, A.; Smułek, W.; Grześkowiak, T. Removal of bisphenol A and its potential substitutes by biodegradation. Appl. Biochem. Biotechnol. 2020, 191, 1100–1110. [Google Scholar] [CrossRef]
  12. Commission of the European Communities. Technical Guidance Document in Support of Commission Directive 93/67/EEC on Risk Assessment for New Notified Substances and Commission Regulation (EC) No 1488/94 on Risk Assessment; Part II; Environmental Risk Assessment; Office for Existing Substances; Office for Official Publications of the European Communities: Luxembourg, 1996. [Google Scholar]
  13. Li, J.; Wang, Y.; Li, N.; He, Y.; Xiao, H.; Fang, D.; Chen, C. Toxic effects of bisphenol A and bisphenol S on Chlorella pyrenoidosa under single and combined action. Int. J. Environ. Res. Public Health 2022, 19, 4245. [Google Scholar] [CrossRef]
  14. Yadav, N.; Ahn, H.J.; Kurade, M.B.; Ahn, Y.; Park, Y.K.; Khan, M.A.; Salama, E.S.; Li, X.; Jeon, B.H. Fate of five bisphenol derivatives in Chlamydomonas mexicana: Toxicity, removal, biotransformation and microalgal metabolism. J. Hazard. Mater. 2023, 454, 131504. [Google Scholar] [CrossRef]
  15. Tišler, T.; Krel, A.; Gerželj, U.; Erjavec, B.; Dolenc, M.S.; Pintar, A. Hazard identification and risk characterization of bisphenols A, F and AF to aquatic organisms. Environ. Pollut. 2016, 212, 472–479. [Google Scholar] [CrossRef] [PubMed]
  16. Ding, T.; Li, W.; Yang, M.; Yang, B.; Li, J. Toxicity and biotransformation of bisphenol S in freshwater green alga Chlorella vulgaris. Sci. Total Environ. 2020, 747, 141144. [Google Scholar] [CrossRef] [PubMed]
  17. Czarny-Krzymińska, K.; Krawczyk, B.; Szczukocki, D. Toxicity of bisphenol A and its structural congeners to microalgae Chlorella vulgaris and Desmodesmus armatus. J. Appl. Phycol. 2022, 34, 1397–1410. [Google Scholar] [CrossRef]
  18. Elersek, T.; Notersberg, T.; Kovačič, A.; Heath, E.; Filipič, M. The effects of bisphenol A, F and their mixture on algal and cyanobacterial growth: From additivity to antagonism. Environ. Sci. Pollut. Res. 2021, 28, 3445–3454. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, Y.; Zhao, T.; Yang, X.; Liu, H. Insight into The Aquatic Toxicity and Ecological Risk of Bisphenol B, And Comparison with That of Bisphenol A. Res. Artic. 2021. 22 November 2021, available at Research Square. [Google Scholar] [CrossRef]
  20. Fabrello, J.; Matozzo, V. Bisphenol analogs in aquatic environments and their effects on marine species—A review. J. Mar. Sci. Eng. 2022, 10, 1271. [Google Scholar] [CrossRef]
  21. EU. European Union Updated Risk Assessment Report. Environment Addendum of April 2008 (To be Read in Conjunction with Published EU RAR of BPA, 2003) 4,4′-ISOPROPYLIDENEDIPHENOL (Bisphenol-A) Part 1 Environment; European Commission; Joint Research Centre; Institute for Health and Consumer Protection: Luxembourg, 2008. [Google Scholar]
  22. Wang, Q.; Chen, M.; Shan, G.; Chen, P.; Cui, S.; Yi, S.; Zhu, L. Bioaccumulation and biomagnification of emerging bisphenol analogues in aquatic organisms from Taihu Lake, China. Sci. Total Environ. 2017, 598, 814–820. [Google Scholar] [CrossRef]
  23. Huang, C.; Wu, L.H.; Liu, G.Q.; Shi, L.; Guo, Y. Occurrence and ecological risk assessment of eight endocrine-disrupting chemicals in urban river water and sediments of South China. Arch. Environ. Contam. Toxicol. 2018, 75, 224–235. [Google Scholar] [CrossRef]
  24. Yamazaki, E.; Yamashita, N.; Taniyasu, S.; Lam, J.; Lam, P.K.; Moon, H.B.; Jeong, Y.; Kannan, P.; Achyuthan, H.; Munuswamy, N.; et al. Bisphenol A and other bisphenol analogues including BPS and BPF in surface water samples from Japan, China, Korea and India. Ecotoxicol. Environ. Saf. 2015, 122, 565–572. [Google Scholar] [CrossRef]
  25. Zhao, X.; Qiu, W.; Zheng, Y.; Xiong, J.; Gao, C.; Hu, S. Occurrence, distribution, bioaccumulation, and ecological risk of bisphenol analogues, parabens and their metabolites in the Pearl River Estuary, South China. Ecotoxicol. Environ. Saf. 2019, 180, 43–52. [Google Scholar] [CrossRef]
  26. Guillard, R.R. Culture of phytoplankton for feeding marine invertebrates. In Culture of Marine Invertebrate Animals: Proceedings—1st Conference on Culture of Marine Invertebrate Animals Greenport; Springer: Boston, MA, USA, 1975; pp. 29–60. [Google Scholar]
  27. Moheimani, N.R.; Borowitzka, M.A.; Isdepsky, A.; Fon Sing, S. Standard methods for measuring growth of algae and their composition. In Algae for Biofuels and Energy; Borowitzka, M., Moheimani, N., Eds.; Developments in Applied Phycology; Springer: Dordrecht, The Netherlands, 2013; Volume 5, pp. 265–284. [Google Scholar]
  28. Bradford, M.M. A Rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef] [PubMed]
  29. Apak, R.; Güçlü, K.; Özyürek, M.; Karademir, S.E. Novel total antioxidant capacity index for dietary polyphenols and vitamins C and E, using their cupric ion reducing capability in the presence of neocuproine: CUPRAC method. J. Agric. Food Chem. 2004, 52, 7970–7981. [Google Scholar] [CrossRef] [PubMed]
  30. Crapo, J.D.; McCord, J.M.; Fridovich, I. Preparation and assay of superioxide dismutases. Methods Enzymol. 1978, 53, 382–393. [Google Scholar]
  31. Aebi, H. Catalase in Vitro. Methods Enzymol. 1984, 105, 121–126. [Google Scholar]
  32. Smith, I.K.; Vierheller, T.L.; Thorne, C.A. Assay of glutathione reductase in crude tissue homogenates using 5,5′-Dithiobis(2-Nitrobenzoic Acid). Anal. Biochem. 1988, 175, 408–413. [Google Scholar] [CrossRef]
  33. Habig, W.H.; Pabst, M.J.; Jakoby, W.B. Glutathione S Transferases. The first enzymatic step in mercapturic acid formation. J. Biol. Chem. 1974, 249, 7130–7139. [Google Scholar] [CrossRef]
  34. Lawrence, R.A.; Burk, R.F. Glutathione peroxidase activity in selenium-deficient rat liver. Biochem. Biophys. Res. Commun. 1976, 71, 952–958. [Google Scholar] [CrossRef]
  35. Nakano, Y.; Asada, K. Hydrogen Peroxide Is Scavenged by Ascorbate-Specific Peroxidase in Spinach Chloroplasts. Plant Cell Physiol. 1981, 22, 867–880. [Google Scholar]
  36. Janknegt, P.J.; De Graaff, C.M.; Van de Poll, W.H.; Visser, R.J.; Rijstenbil, J.W.; Buma, A.G. Short-term antioxidative responses of 15 microalgae exposed to excessive irradiance including ultraviolet radiation. Eur. J. Phycol. 2009, 44, 525–539. [Google Scholar] [CrossRef]
  37. Mecocci, P.; Fanó, G.; Fulle, S.; MacGarvey, U.; Shinobu, L.; Polidori, M.C.; Cherubini, A.; Vecchiet, J.; Senin, U.; Beal, M.F. Age-dependent increases in oxidative damage to DNA, lipids, and proteins in human skeletal muscle. Free Radic. Biol. Med. 1999, 26, 303–308. [Google Scholar] [CrossRef] [PubMed]
  38. Buege, J.A.; Aust, S.D. Microsomal lipid peroxidation. Methods Enzymol. 1978, 52, 302–310. [Google Scholar]
  39. Damiens, G.; Gnassia-Barelli, M.; Loquès, F.; Roméo, M.; Salbert, V. Integrated biomarker response index as a useful tool for environmental assessment evaluated using transplanted mussels. Chemosphere 2007, 66, 574–583. [Google Scholar] [CrossRef] [PubMed]
  40. Azizullah, A.; Khan, S.; Gao, G.; Gao, K. The interplay between bisphenol A and algae–A review. J. King Saud Univ. Sci. 2022, 34, 102050. [Google Scholar] [CrossRef]
  41. M’Rabet, C.; Pringault, O.; Zmerli-Triki, H.; Gharbia, H.B.; Couet, D.; Yahia, O.K.D. Impact of two plastic-derived chemicals, the Bisphenol A and the di-2-ethylhexyl phthalate, exposure on the marine toxic dinoflagellate Alexandrium pacificum. Mar. Pollut. Bull. 2018, 126, 241–249. [Google Scholar] [CrossRef] [PubMed]
  42. Naveira, C.; Rodrigues, N.; Santos, F.S.; Santos, L.N.; Neves, R.A. Acute toxicity of Bisphenol A (BPA) to tropical marine and estuarine species from different trophic groups. Environ. Pollut. 2021, 268, 115911. [Google Scholar] [CrossRef]
  43. Li, J.; Wang, J.; Hou, S.; Huang, Y.; Chen, H.; Sun, Z.; Chen, D. Exposure to bisphenol analogues interrupts growth, proliferation, and fatty acid compositions of protozoa Tetrahymena thermophila. J. Hazard. Mater. 2020, 395, 122643. [Google Scholar] [CrossRef]
  44. Duan, L.; Chen, Q.; Duan, S. Transcriptional analysis of Chlorella pyrenoidosa exposed to bisphenol A. Int. J. Environ. Res. Public Health 2019, 16, 1374. [Google Scholar] [CrossRef]
  45. Zhang, W.; Xiong, B.; Sun, W.F.; An, S.; Lin, K.F.; Guo, M.J.; Cui, X.H. Acute and chronic toxic effects of bisphenol a on Chlorella pyrenoidosa and Scenedesmus obliquus. Environ. Toxicol. 2014, 29, 714–722. [Google Scholar] [CrossRef]
  46. Li, R.; Chen, G.Z.; Tam, N.F.Y.; Luan, T.G.; Shin, P.K.; Cheung, S.G.; Liu, Y. Toxicity of bisphenol A and its bioaccumulation and removal by a marine microalga Stephanodiscus hantzschii. Ecotoxicol. Environ. Saf. 2009, 72, 321–328. [Google Scholar] [CrossRef]
  47. Sendra, M.; Moreno-Garrido, I.; Blasco, J. Single and multispecies microalgae toxicological tests assessing the impact of several BPA analogues used by industry. Environ. Pollut. 2023, 333, 122073. [Google Scholar] [CrossRef] [PubMed]
  48. Li, J.; Li, W.; Huang, X.; Ding, T. Comparative study on the toxicity and removal of bisphenol S in two typical freshwater algae. Environ. Sci. Pollut. Res. 2021, 28, 36861–36869. [Google Scholar] [CrossRef] [PubMed]
  49. Li, R.; Liu, Y.; Chen, G.; Tam, N.F.; Shin, P.K.; Cheung, S.G.; Luan, T. Physiological responses of the alga Cyclotella caspia to bisphenol A exposure. Bot. Mar. 2008, 51, 360–369. [Google Scholar] [CrossRef]
  50. Yang, M.; Fan, Z.; Xie, Y.; Fang, L.; Wang, X.; Yuan, Y.; Li, R. Transcriptome analysis of the effect of bisphenol A exposure on the growth, photosynthetic activity and risk of microcystin-LR release by Microcystis aeruginosa. J. Hazard. Mater. 2020, 397, 122746. [Google Scholar] [CrossRef] [PubMed]
  51. Zhang, H.; Ding, T.; Luo, X.; Li, J. Toxic effect of fluorene-9-bisphenol to green algae Chlorella vulgaris and its metabolic fate. Ecotoxicol. Environ. Saf. 2021, 216, 112158. [Google Scholar] [CrossRef] [PubMed]
  52. Liu, Y.; Guan, Y.; Gao, Q.; Tam, N.F.Y.; Zhu, W. Cellular responses, biodegradation and bioaccumulation of endocrine disrupting chemicals in marine diatom Navicula incerta. Chemosphere 2010, 80, 592–599. [Google Scholar] [CrossRef]
  53. Ben Ouada, S.; Ben Ali, R.; Leboulanger, C.; Zaghden, H.; Choura, S.; Ben Ouada, H.; Sayadi, S. Effect and removal of bisphenol A by two extremophilic microalgal strains (Chlorophyta). J. Appl. Phycol. 2018, 30, 1765–1776. [Google Scholar] [CrossRef]
  54. Jiefeng, L.; Xufa, M.; Yu, L.; Shenjuan, Z.; Boli, Z.; Jie, H. Effects of bisphenol A on growth, photosynthesis pigment and antioxidant system of Spirodela polyrrhiza. Asian J. Ecotoxicol. 2019, 6, 144–151. [Google Scholar]
  55. Xiang, R.; Shi, J.; Yu, Y.; Zhang, H.; Dong, C.; Yang, Y.; Wu, Z. The effect of bisphenol A on growth, morphology, lipid peroxidation, antioxidant enzyme activity, and PS II in Cylindrospermopsis raciborskii and Scenedesmus quadricauda. Arch. Environ. Contam. Toxicol. 2018, 74, 515–526. [Google Scholar] [CrossRef]
Jox 13 00030 g001

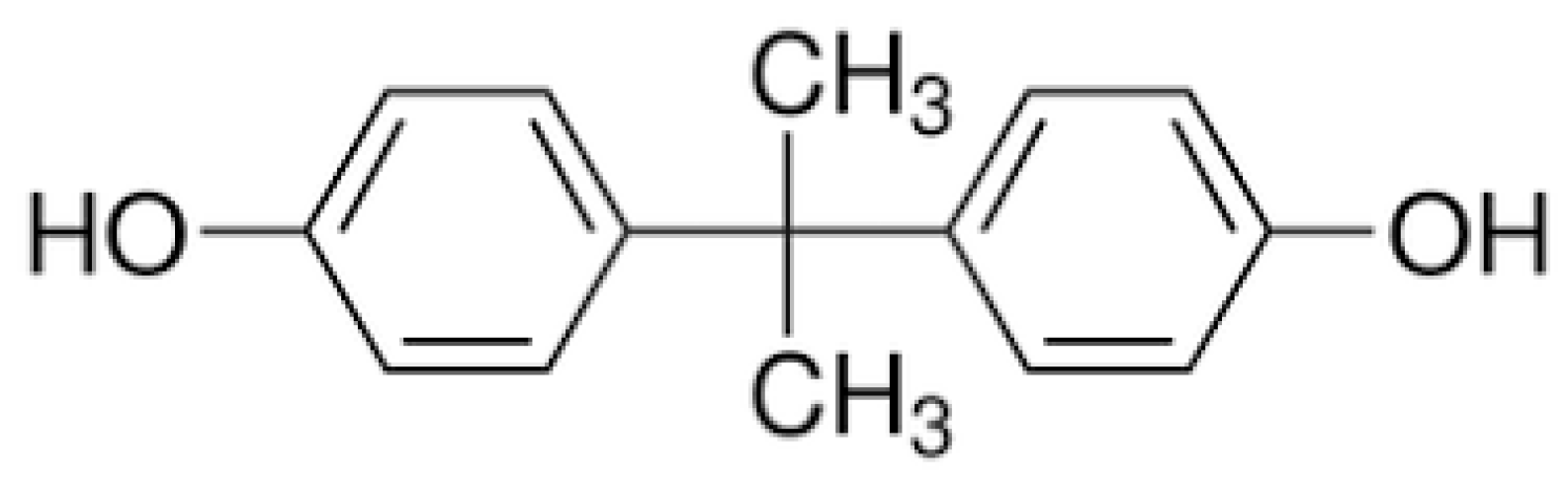

Figure 1. Structural formula of bisphenol A.
Figure 1. Structural formula of bisphenol A.
Jox 13 00030 g001
Jox 13 00030 g002
Figure 2. Structural formula of bisphenol F (A), bisphenol S (B), and bisphenol AF (C).
Figure 2. Structural formula of bisphenol F (A), bisphenol S (B), and bisphenol AF (C).
Jox 13 00030 g002
Jox 13 00030 g003
Figure 3. Growth of P. tricornutum, expressed as number of cells × 10 4 /mL, during exposure to bisphenols BPAF, BPF, and BPS, as well as to their mixture (MIX). Control is reported as CTR; control + solvent (methanol) is reported as MeOH. Each point is the mean of three replicates ± SD.
Figure 3. Growth of P. tricornutum, expressed as number of cells × 10 4 /mL, during exposure to bisphenols BPAF, BPF, and BPS, as well as to their mixture (MIX). Control is reported as CTR; control + solvent (methanol) is reported as MeOH. Each point is the mean of three replicates ± SD.
Jox 13 00030 g003
Jox 13 00030 g004

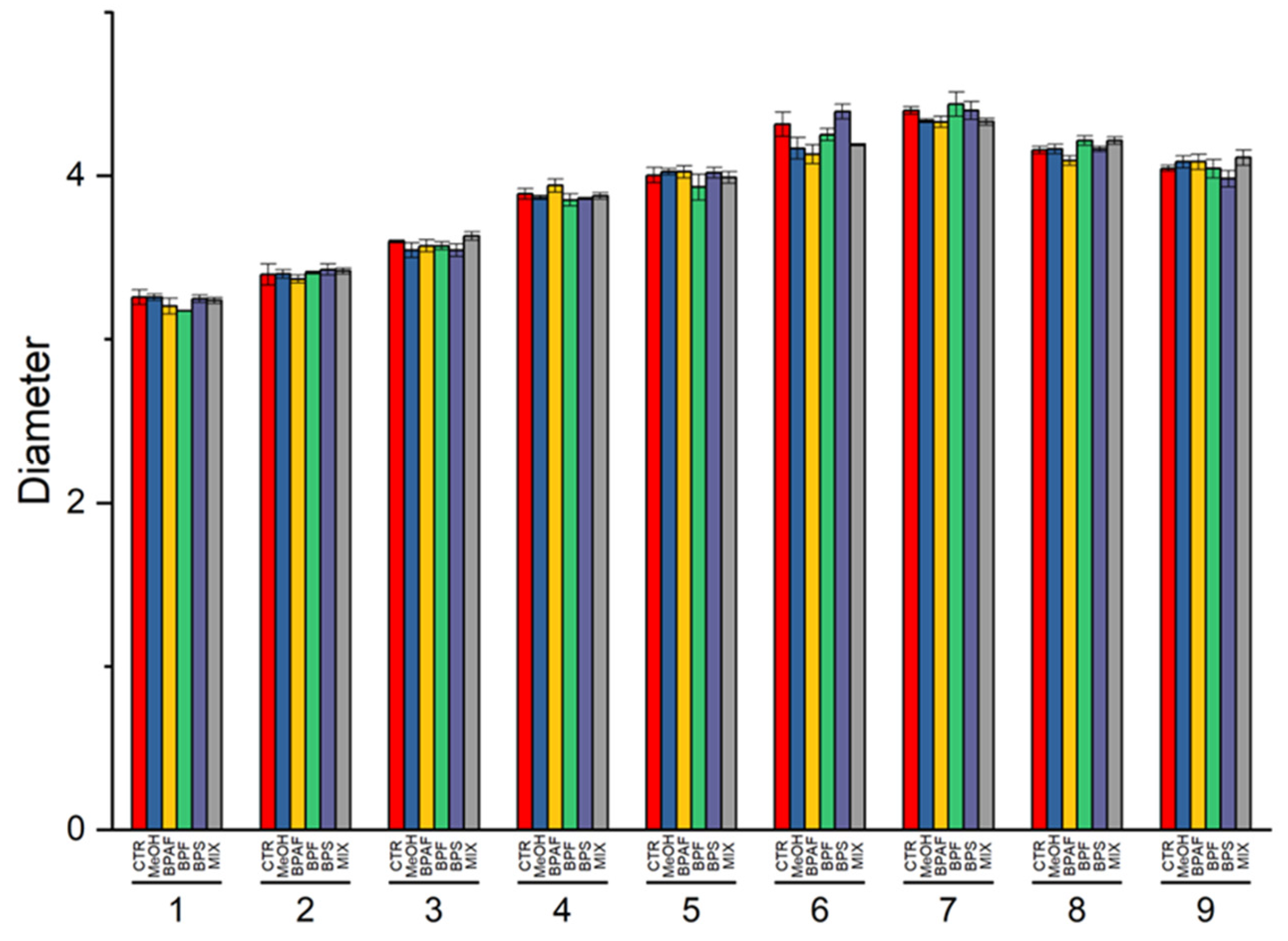

Figure 4. Diameter values of cells, expressed as μm, during the nine days of exposure. The values are mean ± SD (n  =  3).
Figure 4. Diameter values of cells, expressed as μm, during the nine days of exposure. The values are mean ± SD (n  =  3).
Jox 13 00030 g004
Jox 13 00030 g005
Figure 5. Volume values of cells, expressed as pL (picolitres), during the nine days of exposure. The values are mean ± SD (n = 3).
Figure 5. Volume values of cells, expressed as pL (picolitres), during the nine days of exposure. The values are mean ± SD (n = 3).
Jox 13 00030 g005
Jox 13 00030 g006

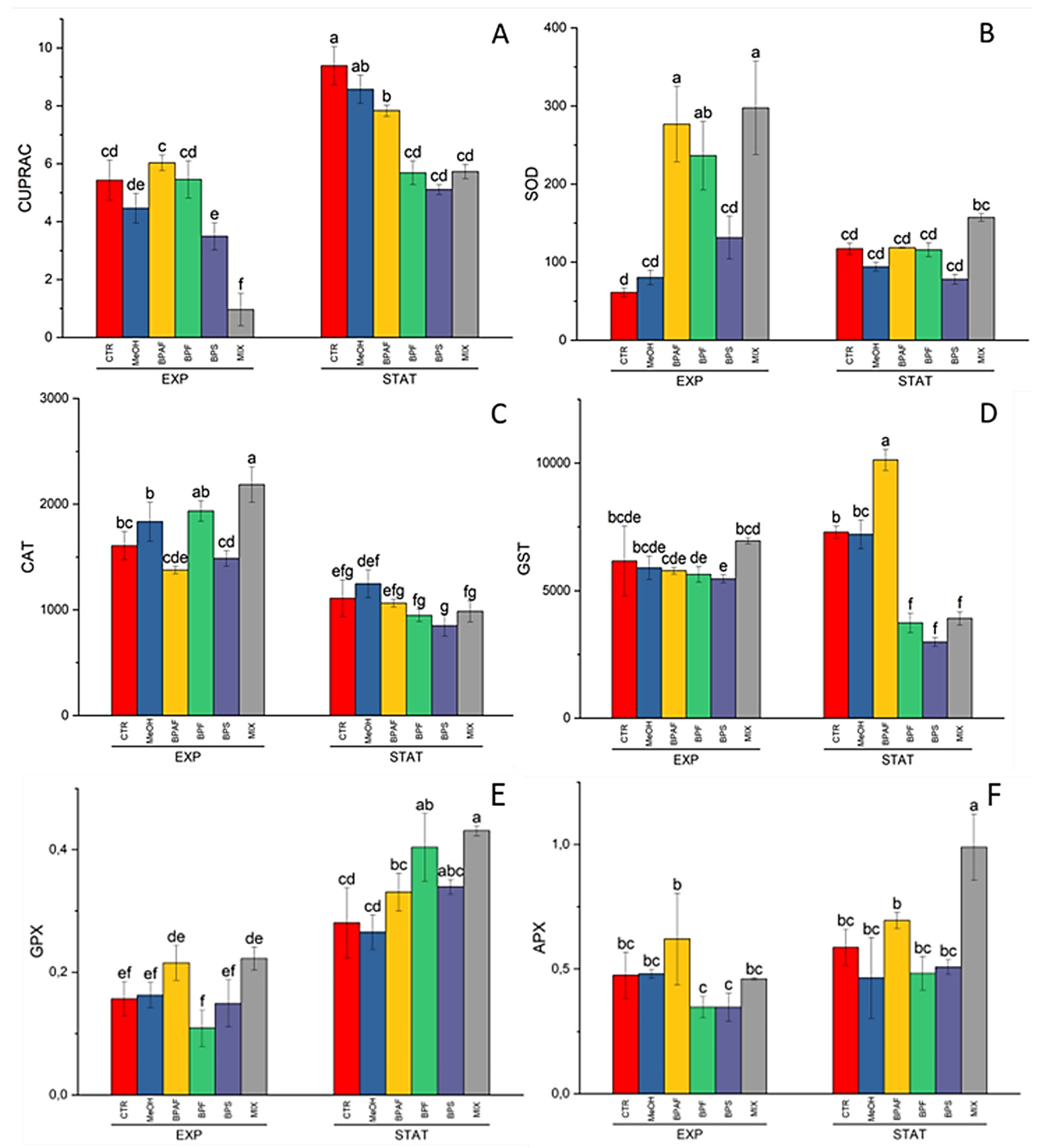

Figure 6. CUPRAC levels, expressed as mM of Trolox equivalents/mg protein (A); SOD activity, expressed as U SOD/mg protein (B); CAT activity, expressed as U CAT/mg protein (C); GST activity, expressed as nmol/min/mg protein (D); GPX activity, expressed as U GPX/mg protein (E); and APX activity, expressed as U APX/mg protein (F) in the exponential (EXP) and stationary (STAT) growth phases. The values are mean ± SD (n = 3). Different letters indicate statistically significant differences in comparison with the related control (p < 0.05).
Figure 6. CUPRAC levels, expressed as mM of Trolox equivalents/mg protein (A); SOD activity, expressed as U SOD/mg protein (B); CAT activity, expressed as U CAT/mg protein (C); GST activity, expressed as nmol/min/mg protein (D); GPX activity, expressed as U GPX/mg protein (E); and APX activity, expressed as U APX/mg protein (F) in the exponential (EXP) and stationary (STAT) growth phases. The values are mean ± SD (n = 3). Different letters indicate statistically significant differences in comparison with the related control (p < 0.05).
Jox 13 00030 g006
Table 1. Effects of bisphenols on the growth of microalgae. The following information is reported: compound, species, concentration (reports all the tested concentrations), effects on growth (reports the concentration used, the time of exposure, and the effect), time (reports the total time of exposure), and Ref.
Table 1. Effects of bisphenols on the growth of microalgae. The following information is reported: compound, species, concentration (reports all the tested concentrations), effects on growth (reports the concentration used, the time of exposure, and the effect), time (reports the total time of exposure), and Ref.
CompoundSpeciesConcentrationEffects on GrowthTimeRef.
BPAChlorella pyrenoidosa2, 5, 8, 11, 15 mg/L2 mg/L (1, 2, 3 d): increased
2 mg/L (4, 5, 6 d): inhibition
5, 8, 11, 15 mg/L: inhibition		6 days[13]
BPSC. pyrenoidosa5, 10, 15, 20, 40 mg/L 5 mg/L (1, 2, 3, 4 d): inhibition
5 mg/L (5, 6 d): increased
10, 15, 20, 40 mg/L: inhibition 		6 days[13]
BPA + BPSC. pyrenoidosa0.05 P, 0.1 P, 0.2 P, 0.3 P, 0.4 P, 0.5 P0.05 P (1, 5, 6 d): increased
0.1 P (5, 6 d): inhibition
0.2, 0.3, 0.4, 0.5 P: inhibition		6 days[13]
BPATetraselmis sp.2.34, 4.69, 9.38, 18.75, 37.5, 75, 150, 300 mg/LInhibition24, 48, 72, 96 h[42]
BPA, BPAF, BPB, BPETetrahymena thermophila2.6–13.0 μMBPA (13 μM): inhibition
BPAF (13 μM): inhibition
BPB (2.6–13 μM): inhibition
BPE (2.6–13 μM): inhibition		30 h[43]
BPAC. pyrenoidosa0.1, 1, 10 mg/L0.1 mg/L (2–5 d): increased
1 mg/ (4–5 d): inhibition
10 mg/L (1–5 d): inhibition		5 days[44]
BPAC. pyrenoidosa1, 5, 10, 25, 50 mg/L1, 5 mg/L (96 h): inhibition
10 mg/L (72, 96, 144 h):
inhibition
25 mg/L (48, 72, 96 h):
inhibition
50 mg/L (24, 48, 72, 96 h):
inhibition 		144 h[45]
BPAScenedesmus obliquus1, 5, 10, 25, 50 mg/L10 mg/L (24, 96 h): inhibition
25 mg/L (24, 48, 72, 96 h):
inhibition
50 mg/L (24, 48, 72, 96 h):
inhibition 		144 h[45]
BPAC. pyrenoidosa1, 10, 50 mg/L1, 50 mg/L (30 d): increased30 d[45]
BPAStephanodiscus hantzschii0.01, 0.1, 1, 3, 5, 7, 9 mg/L≤1 mg/L: no effects
3 mg/L (4 d): inhibition
3 mg/L (8, 12, 16 d): increased
5, 7, 9 mg/L: inhibition		16 d[46]
