The Prospective of Nuclear Power in China

Abstract

From scratch to current stage, China’s nuclear power technology has experienced rapid development, and now China has begun to export nuclear power technology. As a kind of highly efficient and clean energy source, nuclear energy is also a priority option to solve energy crisis, replace traditional fossil fuels and reduce air pollution. By analyzing the short-term and long-term development trend of nuclear power in China, the paper has reached the following conclusions: (1) Under the current situation of excess supply, due to high investment cost of first-kind reactors, the decline of utilization hours and the additional cost of ancillary service obligations, the levelized cost of energy (LCOE) of the third generation nuclear power will significantly increase, and the internal rate of return (IRR) will significantly fall. In the short term, market competitiveness of nuclear power will be a major problem, which affects investment enthusiasm. (2) With technology learning of third generation technology, the LCOE of nuclear power will be competitive with that of coal power in 2030. (3) The CO₂ emissions reduction potential of nuclear power is greater than coal power with CCS and the avoided CO₂ costs of nuclear power is much lower. Therefore, nuclear power is an important option for China’s long-term low-carbon energy system transition. The paper proposes to subsidize the technical learning costs of new technology through clean technology fund at the early commercialization stage. When designing power market rules, the technical characteristics of nuclear power should be fully considered to ensure efficient operation of nuclear power.

1. Introduction

Most of China’s electricity is produced from coal. Rapid growth in demand has given rise to power shortages frequently in China, and the reliance on fossil fuels has led to substantial greenhouse gases (GHG) emissions and serious air pollution. Chronic and widespread smog in the eastern regions of the country is attributed to coal burning. In 2012, China became the world’s largest carbon emitter with –9.64 Gt CO₂, and its increment at that year was about 70% of world total increase [1]. In August 2013, the State Council announced that China would reduce its carbon emissions by 40–45% by 2020 from 2005 levels, and would aim to boost non-fossil energy to 15% of its total primary energy consumption by 2020 [2]. In March 2014, China declared a “war on pollution” and would accelerate closing inefficient coal-fired power stations [3]. In November 2014, in the “China-U.S. Joint Presidential Statement on Climate Change”, China officially proposed to peak carbon emissions around 2030, and planned that the proportion of non-fossil energy in primary energy will increase to 20% in 2030 [4]. In addition to a series of domestic environmental protection and pollution control policy documents, China is more active in global climate change governance. In June 2017, Premier Li Keqiang said that the Chinese government has actively participated in the signing of the Paris Agreement, and is the first batch of countries to the United Nations to address climate change program. Premier Li Keqiang also stated that China will continue to fulfill the commitments of the Paris Agreement and contribute to global environmental governance with Chinese wisdom [5].

Wu (2017) discussed the public acceptance of constructing coastal/inland nuclear power plants (NPPs) in China in post-Fukushima period, and revealed that the public still took relatively optimistic attitude although there was a slight decrease just after Fukushima and the public’s confidence recovered four years later [6]. Wang, Ma and Fang (2016) introduced the design philosophy, overall performance, safety, and economics of third generation pressurized water reactors, EPR, AES2006, and CAP1400 [7]. Zeng et al. (2016) analyzed the external environment and historical stages of nuclear power industry in China and proposed policy recommendations from the aspects of industrial distribution optimization, regional resources integration, technical standard system, industrial organization mode and so on [8]. Guo and Guo (2016) simulated the growth rate, development scale and evolvement path of China’s nuclear power by establishing system dynamics models in the new-round construction [9]. Kang, Yao and Zhu (2016) analyzed the variation laws of construction period and construction costs for nuclear power in different period with different technology or the same technology with different reactors [10]. Zhang and Li (2015) illustrated the positive role nuclear power played in reducing CO₂ emissions, optimizing energy structure and ensuring energy security. The conclusion is that, when considering the externality of CO₂ emissions, if discount rate was as low as 5%, nuclear power would be very competitive [11]. Cai, Wang and Liu (2016) analyzed the causes and impact of the new energy power development and domestic NPPs status. Relevant data and recommendations are proposed for promoting nuclear technology export [12]. Qu (2008) presented the objectives and missions of China’s medium- and long-term nuclear power development program and China’s achievements in technology localization, industry capability, efforts to catch up with world advanced level, and future outlook [13]. Kang et al. (2012) introduced China’s medium- and long-term planning for nuclear and renewable energy, and discussed that the Fukushima accident changes the trajectory of nuclear power development and further affects the China’s strategic of energy structure adjustment [14]. Yuan et al. proposed that nuclear power technology is a good option for energy conservation and emissions reduction in China [15,16,17,18].

Nuclear power has been an important part in China’s national energy strategy due to its safety, reliability characteristics and strong supply capacity. Furthermore, nuclear power as a clean energy source does not emit SO₂, NOx and greenhouse gases. However, it should be noted that nuclear waste management has become a dangerous burden, and the nuclear power industry needs to attach great importance to solving the safe disposal of spent fuel.

The purpose of this paper is to conduct a comprehensive assessment on the short-term and long-term development trend of nuclear power in China. Specifically, the first question that is answered is the reason for the lack of investment enthusiasm for nuclear power in the short term. The second contribution is that the LCOE of third generation nuclear power technology will be competitive with that of coal power in 2030. The third contribution is to prove that the nuclear power is an important option for China’s long-term low-carbon energy system transition by comparing the avoided CO₂ costs for nuclear power and coal power +CCS. The last contribution is to propose the policy implications to speed up the technology learning and improve the market competitiveness of nuclear power.

The remainder of the paper is organized as follows. Section 2 presents a brief overview of China’s nuclear power industry. Section 3 analyzes the short-term issues of nuclear power development in China. Section 4 presents the long-term prospective of nuclear power in China. Section 5 puts forward policy implications. Section 6 is the conclusion.

2. A Brief Overview of China’s Nuclear Power Industry

2.1. Rapid Growth in Capacity Installation

In the early 1980s, for the first time, the Chinese government developed its nuclear power development policy, and decided to develop the Pressurized Water Reactor (PWR) NPPs. China’s nuclear power industry began to develop since then. In 1991, a 300 MW PWR NPP in Qinshan marked a new step in China’s nuclear industry. In 1994, a 1 GW PWR NPP in Daya Bay was commissioned successfully, representing leapfrog towards international advanced level and the foundation of China’s nuclear power. After the experimental nature of Qinshan and the commercial start-up of Daya Bay, China has built Qinshan II, Lingao, Qinshan III, Tianwan and other NPPs. Through decades of hard work, China’s construction and operation technology has basically entered the mature stage. With the 2011 Fukushima nuclear accident in Japan, China suspended project approval and conducted comprehensive security checks on existing plants. In May 2012, the executive meeting of the state council examined and approved the “Nuclear Safety Inspection Report” and “Nuclear Safety Plan”, and pointed out that China’s civilian nuclear safety and quality was guaranteed, marking the official restart of nuclear power [19].

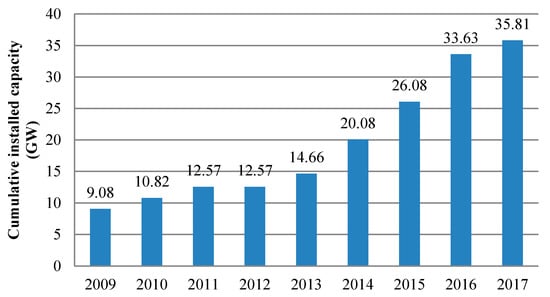

According to the China Nuclear Energy Association (CNEA) statistics, in recent years, the speed of commercialization was significantly faster than before. As shown in Figure 1 and Figure 2, as of the end of 2017, China has put into commercial operation 37 nuclear power reactors, with 35.81 GW capacity at operation, accounting for about 2% of total generation capacity [20].

At present, the enterprises with owners’ identities of nuclear power in China include China General Nuclear Power Corporation (CGN), China National Nuclear Corporation (CNNC) and State Power Investment Corporation (SPIC). The investment pattern of nuclear power is that the central enterprises hold controlling interest and the local state-owned enterprises participate in shares. China accounts for a large proportion of the new NPPs in the world. According to the 13th Five-Year Power Planning, the installed capacity of nuclear power in China will reach 58 GW by 2020 while capacity under construction will reach 30 GW [21]. According to “The Medium and Long term Development Plan of Nuclear Power”, by 2030, the installed capacity will reach 120–150 GW [22]. The report by BMI Research shows that China will vigorously develop nuclear power over the next 10 years, and the installed capacity is expected to nearly double to 100 GW. At present, the strong willingness to reduce coal power generation and to promote clean energy is the driving force of nuclear power. By 2026, China is expected to become the largest nuclear power developer, and coal’s share in total power supply will gradually decrease from the current 70% to slightly less than 54% [23]. The potential of nuclear power is enormous. On the one hand, the mandatory target of clean energy ratio is conducive to expanding the proportion of nuclear power. On the other hand, nuclear power is profitable due to its long service life and sufficient cash flow in the long run.

2.2. Low Share in Total Electricity Production

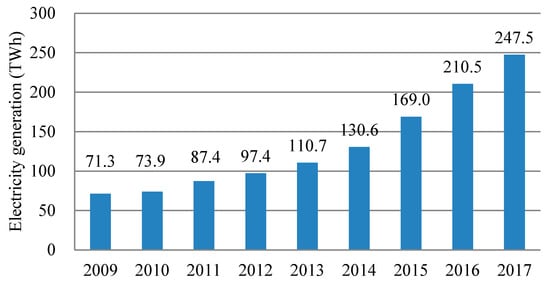

According to China Nuclear Energy Association (CNEA) statistics, in 2017, the electricity generation of nuclear power was 247.5 TWh, accounting for about 3.94% of total electricity generation, increased by 17.55% compared to 2016 levels (Figure 3). Compared with coal-fired power generation, nuclear power supply in 2017 is equivalent of saving 76.47 million tons standard coal (Mtce) and reducing CO₂ emissions by 200.35 million tons, SO₂ by 0.65 million tons, and NOx by 0.57 million tons [20].

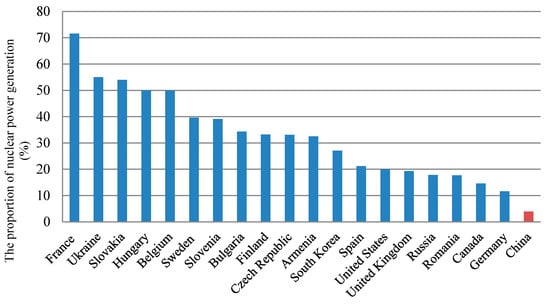

The share of nuclear in the fuel mix of power generation still has a wide gap with other countries. In 2016 and 2017, nuclear power accounted for 3.56% and 3.94% of power supply in China [20]. In 2017, there were 19 countries with share of nuclear power exceeding 10% (Figure 4), among which France has the highest nuclear share of 71.6%, followed by Ukraine and Slovakia at 55% and 54%, respectively [24] (Figure 4).

2.3. Largest Capacity under Construction in the World

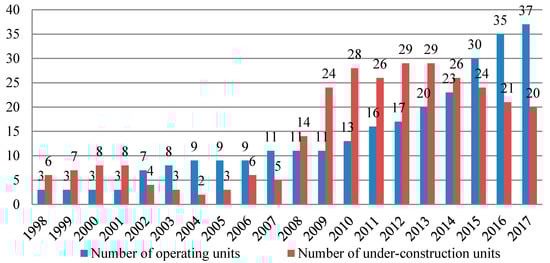

As of the end of 2017, there are 37 commercial operatiing reactors and 20 under-construction nuclear power reactors in China. The majority of reactors that have been commercialized are CNP series of the second generation and the second generation+ reactors, while the majority of reactors under construction are ACPR1000 and AP1000. There are 20–24 AP1000 power plants to be built in the 13th Five-Year Plan (FYP) period [25,26] (Figure 5).

At present, the second generation technology is quite mature, and the construction cycle of such a nuclear power plant is about five years. Among the third generation reactors under construction, the reactors in Sanmen, Haiyang and Taishan have entered the thermal test phase. The first one is expected to be commissioned in 2018. The total capacity of these reactors is 8.5 GW, accounting for about 64% of third generation reactors under construction [27].

According to the WNA data, as of 1 April 2018, 48 countries in the world are running 449 nuclear power reactors (

Table 1. Development status of nuclear power reactors around the world (as of 1 April 2018) [28].

Country	Operable Reactors		Under-Construction Reactors
	Number	Net Installed Capacity (MW)	Number	Net Installed Capacity (MW)
USA	99	99,647	2	2500
France	58	63,130	1	1750
Japan	58	63,130	1	1750
China	38	34,647	20	21,546
Russia	37	28,961	5	3634
South Korea	24	22,505	4	5600
India	22	6219	6	4350
Canada	19	13,553	0	0
Ukraine	15	13,107	0	0
Germany	7	9444	0	0
UK	7	9444	0	0
UAE	0	0	4	5600
World	449	394,137	57	61,640

), and 16 countries are constructing 57 nuclear power reactors. The capacity of 57 under-construction reactors is 61.64 GW, among which the top five are China (21.5 GW), South Korea (5.6 GW), the United Arab Emirates (UAE) (5.6 GW), India (4.3 GW), and Russia (3.6 GW), totaling of 39 reactors (40.6 GW), accounting for 66% of the total under-construction capacity [28].

2.4. Technology Import and Independent Innovation

In the early stages of development, China introduced and absorbed the overseas advanced technology to gradually achieve independent design and equipment localization. However, the variety of technology paths also resulted in issues with standardization, serialization and localization. Afterwards, the government began to accelerate independent design and equipment localization and thus entered a new stage of active development.

At this stage, China’s second generation nuclear power technology with independent design, manufacturing, construction and operation, as well as the equipment localization rate greatly improved, which laid a solid foundation for mastering the third generation technology, training core talent, and promoting the autonomy of nuclear power industry.

In 2007, China decided to use the idea of “introduction, digestion, absorption, re-innovation” for developing the third generation AP1000 design from the Westinghouse Electric Corporation (WEC). In April 2009, the world’s first AP1000 nuclear power unit started construction in Sanmen of Zhejiang Province. The initial design of the CAP1000 reactor reflects what has been learned from the independent design and deployment by Chinese firms of the AP1000 technology. At the same time, the initial design and implementation forms the standard design model for CAP1000 and provides a strong support and protection for the follow-up AP1000 independent construction and implementation [29].

China’s operating and under-construction reactors are mainly PWR, including CP series, AES-91, M310, CPR1000, AP1000, and EPR, and other technologies, including Candu6 heavy water reactor, high temperature gas cooled reactor (HTGR), etc. [30] (

Table 2. Nuclear power technology pathway in China [31].

Technical Distinction			CNNC	CGNPC	SPIC
Second generation	Russia technology	Independent R&D CNP300	France technology M310		USA technology
			CNP600	International advanced technology in the 90s
Second generation plus	AES91		CP1000	CPR1000
Third generation			ACP1000	ACPR1000	AP1000
			Hualong 1		CAP1400

). At present, CNP1000 and CPR1000, as representative “second generation plus” reactors with completely independent intellectual property rights, comprise the majority of operable reactors and under-construction reactors in China. CPR1000 is the most frequently used technology by China in the under-construction reactors based on M310 technology, known as the “China improved PWR” with completely domestic manufactured main equipment.

In addition, independent nuclear plant construction capability continues to improve with the localization rate reaching 85%, forming the annual manufacturing capacity for eight sets of nuclear equipment. The nuclear power construction companies in China now have a comprehensive grasp of construction technology for a variety of reactor types and a variety of unit sizes, able to construct more than 30 nuclear power reactors at the same time [30].

In sum, China’s nuclear power technology is based on technology from France, the United States, and Russia. Three major nuclear power companies, namely China National Nuclear Corporation (CNNC), China Guangdong Nuclear Power Company (CGNPC), and State Power Investment Corporation (SPIC), have learned, absorbed and improved to form their own designs. Currently, the mainstream third generation designs include Hualong 1 (with independent intellectual property rights) of CNNC and CGNPC, AP1000 of SPIC (WEC’s intellectual property rights), and CAP1400 (with independent intellectual property rights). For the technology route options of China’s new reactors, firstly, 30 reactors select AP1000 technology, accounting for 48%; the second is for Hualong 1 with a total of 8 reactors, accounting for 13%; and the third is for ACPR1000 with 6 reactors, accounting for 10%. Thus, the mainstream nuclear power technology in the future will be AP1000. Of the 18 reactors planned for export, six reactors are Hualong 1, accounting for 33% of the total [31].

2.5. Nuclear Fuel and Spent Fuel Treatment

As the fuel for nuclear power generation, uranium resource and its efficiency are an issue that must be considered in advance for sustainable nuclear power development in China. Natural uranium resources are limited in production and are different from direct combustion of coal. Natural uranium must be mined, purified and converted, and then concentrated to nuclear fuel component factory for producing nuclear fuel. Therefore, the recycling of uranium resources is a strong guarantee for the long-term development of nuclear power.

In the power generation process, when the nuclear fuel fission cannot maintain a certain power level, spent fuel will be produced. The uranium content of this fuel is so low that it cannot sustain a nuclear reaction. The spent fuel, also known as irradiated nuclear fuel, is the nuclear fuel that has been irradiated and used, which contains a large amount of radioactive elements. If not handled properly, it will seriously affect the environment and the health of the people who contact them. Therefore, the spent fuel treatment of nuclear power industry is of great significance. At present, there are mainly two kinds of spent fuel treatment methods in the world. One is to treat spent fuel as nuclear waste for deep disposal directly without post-processing. Another is the use of a closed-loop treatment method to reprocess the spent fuel. One of the main purposes of spent fuel reprocessing is the resources recycling. Rolf Westgard, commissioner of the United States Nuclear Energy Institute, argued that only 5% of radioactive fission material in spent fuel needs to be stored, and the remaining 95% can be reused as a fuel for a new generation process through separation and extraction [32].

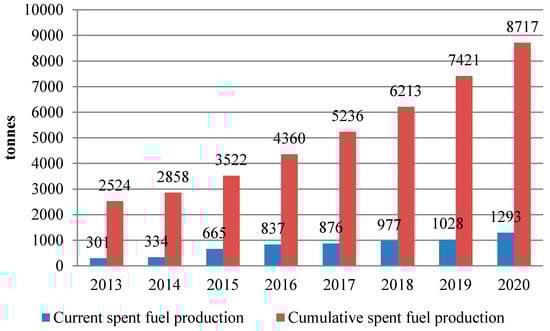

According to existing planning, nuclear power operation will bring forth 1000 tons of spent fuel annually by 2020. According to the current growth rate, 7500–10,000 tons of spent fuel will accumulate by 2020, and 20,000–25,000 tons by 2030 (Figure 6). With the large-scale development of nuclear power in China, the amount of spent fuel is increasing quickly [33]. In China, the spent fuel is temporarily stored in the self-built boron pools of nuclear power plant. However, the designed service life of the pools is 10 years. Currently, the spent fuel storage pools of most nuclear power plants are overload capacity. Thus, the country is facing the problem of how to solve the problem of spent fuel.

In July 2010, the government issued “Interim measures for the use of spent fuel treatment funds for NPPs”. The spent fuel treatment funds are collected according to the actual electricity sales of nuclear power plants which have been put into commercial operation for more than five years, with a levy rate of 0.026 yuan/KWh [35]. Thus far, the collected funds are 11.7 billion yuan, providing adequate financial input to carry out spent fuel transportation, storage, reprocessing and other works. Spent fuel reprocessing is beneficial to improve the uranium resource utilization. It is estimated that the utilization rate of uranium resources will be increased by about 60 times if the fast reactor and post-processing closed cycle can be realized. In addition, the volume and toxicity of radioactive waste can be significantly reduced. In recent years, the National Atomic Energy Agency (IAEA) has carried out several studies around the autonomous mastery of reprocessing technology for spent fuel, and has actively promoted the large-scale reprocessing process and key equipment R&D on the third generation nuclear power technology, providing an important guarantee for the improvement of reprocessing technology in China [33].

Now China’s spent fuel reprocessing, storage and transportation research have made positive progress. However, it is undeniable that, under the background of rapid development of nuclear power in China, the construction of spent fuel reprocessing capability lags behind. The spent fuel processing plant is a complex system with huge investment, long construction period (10 years) and other technical difficulties. China should further improve the regulatory standards for spent fuel reprocessing, and explore its own development path for spent fuel safety management and equipment manufacturing.

2.6. Project Siting and Public Concern

Scientific project siting is a prerequisite to ensure the safe operation of NPPs. International experiences show that the development of inland nuclear power is inevitable. Thus far, there are more than 20 provinces having carried out the siting work for NPPs in China. With the increasing scarcity of the site resources, the site selection is more complicated. There are few differences in the level of safety impacts between coastal and inland NPPs siting, but the problems faced by inland NPP sites on environmental impacts are far more complex. It is necessary to carry out site planning, investigation and evaluation work based on comprehensive analysis of the safety impact, environmental impact and the feasibility of implementing the contingency plans, among which special attention should be paid to the environmental impacts of inland NPPs siting.

The development of nuclear power is related to national economic development and people’s lives. In fact, after the nuclear accident in Fukushima, increasinng attention is focused on inland nuclear, and also triggered a new social unease. Actually, China has always kept close track of foreign regulatory standards to improve the domestic system on nuclear power and ensure that the whole process of siting, design, construction, operation and decommissioning is safe and reliable. The performance is reflected in the continuous improvement on the supervision basis and supervision mechanism. Based on the accumulated accident experience, the independence of regulatory system is further strengthened, and the matching degree between regulatory funding and unit scale is improved, and the monitoring equipment and information system have been continuously upgraded, and personnel qualification management has been strengthened.

From the legislative level, the country is making efforts to improve the legal system and ensure the healthy development of nuclear power [36]. In September 2016, NDRC and National Energy Administration (NEA) drafted the “Nuclear Power Management Regulations (draft)” for comments. According to the draft, before the construction of NPPs, social stability risk assessment should be conducted. Hearings or other means must be taken to consider public consent. Clearly, the country has adopted strict access system for controlling shareholder or actual controller of the nuclear power project [37].

2.7. Nuclear Technology Export

China’s nuclear technology export has contributed to China’s international cooperation of nuclear industry and the concrete implementation of “Belt and Road Initiatives (BRI)” [38]. Industry estimates also identify very promising potential on international market and job creation. At present, there are more than 40 countries planning the nuclear power construction, and reactors under planning are more than 300. Among them, 28 BRI countries have planned to develop nuclear power projects totaling 150 GW [39].

On 29 September 2016, CGNPC signed a package contract on UK new nuclear power projects with Electricite De France (EDF) and the UK government, and made a historic breakthrough in the “going out” of nuclear power. Among which, Bradwell B project will use “Hualong 1” design with independent intellectual property rights [40]. China has become the country with an independent third-generation nuclear power technology after the US, France, Russia and other countries.

At present, all the key equipment of Hualong 1, including main pump, steam generator, container and fuel element, have reached 90% of domestic manufacturing. There are over 300 enterprises participating in R&D and manufacturing [41]. Currently, the overseas projects for nuclear power are mostly linked to politics, such as the Pakistani project. Therefore, China has not yet obtained the overseas markets for nuclear power, and failed to export in a real sense. In overseas markets, the competitiveness of China’s nuclear power has not been shown. Many standards of China’s autonomous nuclear power have not yet been matched.

3. Short-Term Issues of Nuclear Power in China

3.1. Overcapacity and Deterioration in Utilization Hour

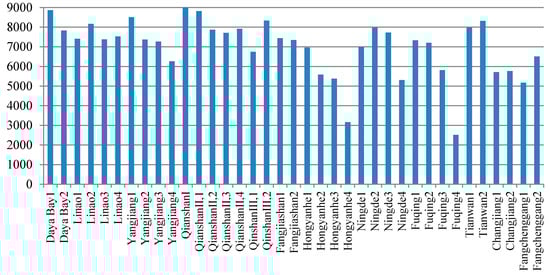

China’s economy has entered a period of new normal, and power consumption has also shown a deceleration trend. The power demand growth has slowed down significantly in 2014. Due to the declining industrial production, industrial restructuring, industrial transformation and upgrading, the electricity consumption increased by 1% [42] in 2015. In 2016 and 2017, the real economy has shown steady growth, and the electricity consumption increased by 5.0% and 6.6% separately. In contrast to the rise in power generation and on-grid electricity, currently. The largest challenge to China’s nuclear power is weak demand and poor utilization. According to China Electricity Council, in 2014, the national average utilization hour of nuclear reactors is 7489 h, down by 385 h since 2013 [42]. In 2015, the figure was 7350 h. In some nuclear plants, the utilization hour was less than 5000 h [43]. In 2016, the figure went down to 6987 h, a record low since the 1990s. In 2017, the figure went up to 7108 h, and the average utilization rate was 81.14% [44]. Nuclear plants at Fuqing (Fujian), Hongyanhe (Liaoning) and Changjiang (Hainan) are the reactors with lowest utilization hour, mainly due to weak power demand in these areas. Because Hongyanhe nuclear plant is located in the northeast with strong heating demand in the winter, and coal power overcapacity is very serious in the same region, most nuclear power reactors have to make way for combined heat and power generation (CHP) of thermal power. Hongyanhe plant has the lowest utilization rate in China. Except for factors such as refueling and overhaul, several nuclear plants including Changjiang 1, Hongyanhe 2–4, Ningde 4 and Fuqing 3 were confronted with issues of “reducing power load or temporarily shutting down as backup power according to dispatch orders” in 2017 [45]. It is very unusual considering the technical and economic characters of nuclear power (Figure 7).

3.2. Commercialization of Third Generation Technology and Learning Curve

At present, Shidao Bay HTGR nuclear plant in China is the world’s first commercial demonstration project of fourth generation technology. According to field survey, the unit investment cost of HTGR in the demonstration stage is as high as 40,000 yuan/KW, and it will be reduced to 30,000 yuan/KW with technology learning (Figure 8).

Sanmen plant in Zhejing is the first project in China to adopt AP1000 technology, and was commissioned in 2015. The unit investment cost of the first AP1000 reactor is 21,000 yuan/KW. With accumulated experience in equipment building and construction, the unit investment cost of subsequent reactors will gradually lower to 15,000 yuan/KW.

“Hualong 1” is the integration of ACP1000 and ACPR1000+ designs. On 25 May 2017, the first demonstration project of “Hualong 1” in the world, Fuqing nuclear power V unit, was successfully performed. According to field survey, the unit investment cost of the first reactor is 20,000 yuan/KW, and follow-up reactors will lower to 17,000 yuan/KW.

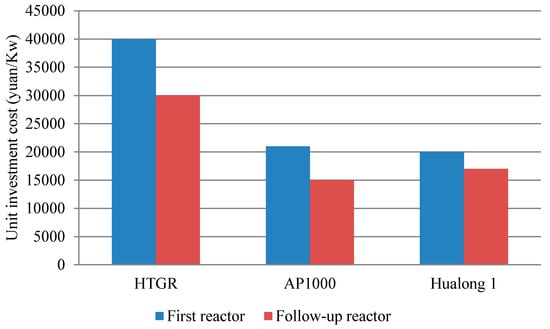

With learning by research and learning by doing, investment cost of third generation nuclear technology will continue to go down. The unit investment could decrease to 13,000 yuan/KW by 2030 [46]. Several factors contribute to cost reduction. The first is improvement in localization level driven by the batch construction, which will reduce the cost of key equipment as steam generator, the regulator and the main pump quickly. The second is standardization promoted by batch construction will drive down cost. The third is cost reduction of design fee and technology transfer fee. The fourth is active learning in early projects to shorten construction time. Finally, with scale effect, the unit investment cost comes down.

3.3. Power Market and Ancillary Service Obligation

The economic feasibility of an electricity generation project can be evaluated by various methods, but the equilibrium model of LCOE is the most frequently used when comparing electricity generation technologies or considering grid parities for emerging technologies. Making use of a life-cycle technique to estimate the LCOE, the expenses and sales revenues that occur in a future time have to be accounted for the present time value of money. This is done using discounted cash flow (DCF) techniques by calculating the present value of the cash flows by means of a discount rate. In this context, the LCOE is determined when the present value of the sum of the discounted revenues is equivalent to the discounted value of the sum of the costs during the economic lifetime of the system, that is:

$${\displaystyle \sum _{n=0}^N\frac{\mathrm{Re}venue{s}_n}{{(1+r)}^n}}={\displaystyle \sum _{n=0}^N\frac{\mathrm{Cos}{t}_n}{{(1+r)}^n}}$$

(1)

$$NPV={\displaystyle \sum _{n=0}^{N}PV}=0$$

(2)

$${\displaystyle \sum _{n=0}^N\frac{(LCO{E}_n)\times (E_n)}{{(1+r)}^n}}={\displaystyle \sum _{n=0}^N\frac{\mathrm{Cos}{t}_n}{{(1+r)}^n}}$$

(3)

$$LCOE=({\displaystyle \sum _{n=0}^N\frac{\mathrm{Cos}{t}_n}{{(1+r)}^n}})/({\displaystyle \sum _{n=0}^N\frac{E_n}{{(1+r)}^n}})$$

(4)

Based on Equations (1)–(4), the complete calculation method of LCOE can be inferred as Equation (5):

$$LCOE=\left({\displaystyle \sum _{n=1}^N\frac{(CAPE{X}_n+OPE{X}_n+TA{X}_n+D_n)}{{(1+r)}^n}}\right)/\left({\displaystyle \sum _{n=1}^N\frac{{(C\times H\times (1-o_u))}_n}{{(1+r)}^n}}\right)$$

(5)

where CAPEX_n is the annual value of the initial capital expenditure, OPEX_n is the annual operation expenditure, TAX_n is the annual tax, D_n is the annual decommissioning and disposal cost, C is installed capacity, H is annual utilization hours, o_u is own usage rate, N is service life of the plant, and r is discount rate. The key parameters for the economic analysis of nuclear power are shown in

Table 3. Key parameters for the economic analysis of nuclear power.

Parameter	Set Value	Parameter	Set Value
Own capital ratio	80%	Insurance rate (%)	0.25%
Loan period (years)	40	Maintenance rate	2.5%
Loan interest rate	6%	Workers (persons)	600
After-tax internal rate of return	8%	Worker salary (yuan/yr)	150,000
Weighted average cost of capital	6.4%	The growth rate of worker’s salary (%)	6%
Service life (years)	60	Salary benefit adder (%)	60%
Deprecation years	40	Cleaning and other operation rate (%)	1%
Discount rate (%)	8%	Fuel cost (yuan/kWh)	0.08–0.10
Value added tax	17%	Education surcharge (central government)	3%
Urban construction tax	5%	Education surcharge (local government)	1%

Source: The data for CAPEX and OPEX are compiled base on the field survey, and the tax is based on the national policy.

.

Renewable integration demands additional ancillary service in the power systems. In 2016, NEA approved a special pilot reform of regional ancillary services market in the northeast to ensure system reliability when integrating more renewable power in the power grid. According to the pilot reform, nuclear power will also assume part of the cost of ancillary service [47]. As the base-load, the nuclear power reactors in China do not participate in the grid peaking. Nuclear power requires flexible power supply such as pumped storage and gas power to participate in the auxiliary service, so the nuclear power plants need to pay the auxiliary service fee to these flexible power sources. According to the international experience, the paper assumed 7000 h annual utilization hour and 0.09 yuan/kWh fuel cost. The LCOE of nuclear power with ancillary services cost is estimated to increase by 0.01–0.02 yuan/KWh (1% of the nuclear power plant’s operating income). Based on Equation (5), using Excel software, the LCOE and the LCOE with ancillary service of nuclear power are shown in

Table 4. The LCOE with ancillary service of nuclear power.

Region/Type	Unit Investment Cost (Yuan/KW)	LCOE (Yuan/KWh)	LCOE with Ancillary Service (Yuan/KWh)
HTGR (Shandong)	40,000 (First reactor in Shidao Bay)	0.76	0.76–0.78
	30,000 (Follow-up reactor)	0.61	0.61–0.63
AP1000 (Zhejiang)	21,000 (First reactor in Sanmen)	0.48	0.48–0.50
	15,000 (Follow-up reactor)	0.39	0.37–0.38
Hualong 1 (Fujian)	20,000 (First reactor in Fuqing)	0.46	0.46–0.48

.

3.4. Short-Term Focus: Economics and Market Competitiveness

We then estimate the economics of nuclear power with prevailing advanced technology under new power market condition. The utilization hour of nuclear power is set at 7500 h, 7000 h and 6000 h, and the corresponding fuel cost is set at 0.08, 0.09 and 0.10 yuan/KWh. The LCOE of the first AP1000 reactor is estimated at 0.43, 0.46 and 0.53 yuan/KWh, while, for Hualong 1, the LCOE is 0.41, 0.45 and 0.52 yuan/KWh. The LCOE of the first HTGR reactor (Shandong) is estimated at 0.69, 0.74, and 0.88 yuan/KWh.

We then compare the LCOE of nuclear power with that of coal power. With average utilization hour of coal power in east China (4317 h) and current steam coal price (519 yuan/ton, 5000 Kcal/kg), the LCOE of coal power in the East China is estimated at 0.32 yuan/KWh and significantly lower than the cost of nuclear power (

Table 5. The LCOE of nuclear power and coal power in China.

Technology	Region/Type	Unit Investment Cost (Yuan/KW)	Utilization Hour (h)	Fuel Price (yuan)	LCOE (yuan/KWh)
1 GW USC	East China	3400	4317	519	0.32
Nuclear power	HTGR (Shandong)	40,000 (First reactor in Shidao Bay)	7500	0.08	0.71
			7000	0.09	0.76
			6000	0.1	0.88
	AP1000 (Zhejiang)	21,000 (First reactor)	7500	0.08	0.45
			7000	0.09	0.48
			6000	0.1	0.55
	Hualong 1 (Fujian)	20,000 (First reactor)	7500	0.08	0.43
			7000	0.09	0.46
			6000	0.1	0.54

).

With the learning of nuclear power technology, its LCOE will be reduced to 0.32 yuan/KWh in the ideal conditions and comparable with coal power even without considering carbon cost. Therefore, in the long term, the economy of nuclear power continues to increase, and its competitiveness in the power market will continue to enhance.

This article focuses on comparing two base-load power supplies to highlight the importance of nuclear power in replacing coal power in the supply-side reform. Energy storage as complement to wind and solar might also be an option to support the power transition. Based on the authors’ literature review and field survey, the LCOE of wind power (0.4–0.5 yuan/kWh) and solar power (0.6–0.7 yuan/kWh) is relatively higher than nuclear power and coal power. In addition, the cost of energy storage technology is about 0.8–1.0 yuan/kWh and has not been commercialized. Thus, it is lacking in market competitiveness [48,49,50,51].

However, the question is the short-term market competitiveness. We assume three scenarios to study the project return of nuclear power in the near future. Based on Eqaution (6) and

Table 6. The average income and expenses for three scenarios.

Region/Type	Utilization Hour (h)	S1 (Million Yuan)		S2 (Million Yuan)		S3 (Million Yuan)
		Income	Expense	Income	Expense	Income	Expense
HTGR (Shandong)	7500	383	294	383	300	285	284
	7000	357	297	357	303	266	288
	6000	306	304	306	310	228	295
AP1000 (Zhejiang)	7500	383	190	383	193	285	185
	7000	357	194	357	197	266	188
	6000	306	201	306	204	228	191
Hualong 1 (Fujian)	7500	383	185	383	188	285	179
	7000	357	188	357	191	266	183
	6000	306	195	306	198	228	190

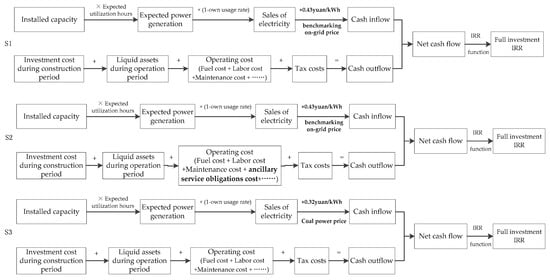

Scenario 1: The policy of benchmarking on-grid price for nuclear power will persist. The tariff is 0.43 yuan/KWh [52]. Scenario 2: In addition to the benchmarking price, nuclear power will assume the extra cost of ancillary service obligations. Scenario 3: In power market, nuclear power will have to compete with coal power and take the same price as coal power. The cost calculation for three scenarios is shown in Figure 9.

, the full investment IRR of GIII for three scenarios is shown in

Table 7. The full investment IRR of GIII for three scenarios.

Region/Type	Utilization Hour (h)	Full Investment IRR
		S1	S2	S3
HTGR (Shandong)	7500	3.88%	2.99%	0.32%
	7000	2.96%	2.04%	−0.61%
	6000	0.93%	−0.99%	−2.77%
AP1000 (Zhejiang)	7500	13.39%	12.15%	8.67%
	7000	12.10%	10.85%	7.56%
	6000	9.41%	8.15%	5.19%
Hualong 1 (Fujian)	7500	14.30%	13%	9.41%
	7000	12.96%	11.67%	8.27%
	6000	10.17%	9.16%	5.84%

.

$$FNPV(IRR)={\displaystyle \sum _{t=0}^n{(CI-CO)}_t{(1+IRR)}^{-t}}=0$$

(6)

where IRR is the internal rate of return, FNPV (IRR) is the financial net present value of the discount rate by IRR, CI is the cash inflow, CO is the cash outflow, (CI-CO)_t is the net cash flow at t_th year, and n is the calculation period, including construction period and operation period.

With no surprise, because of the very high cost of fourth generation technology, HTGR has no positive economic return at the prevailing market environment. For AP1000 design, its IRR will be lower than industry return requirement (8%) with high possibility. The same conclusion may apply to Hualong 1# design at low utilization hour scenario.

Hence, in the near future, due to high investment cost and poor utilization rate, nuclear power is at disadvantage compared with coal power. If benchmarking price policy is to be implemented continually, the economic return of third generation nuclear power is still acceptable with high utilization rate. However, if the benchmarking price is cancelled, the economic return of nuclear power will be certainly unacceptable. Because nuclear power is capital intensive in investment and operation, without firm return expectation, new investment is unlikely to take place. Without sufficient new installation, the technology learning of nuclear power will be blocked.

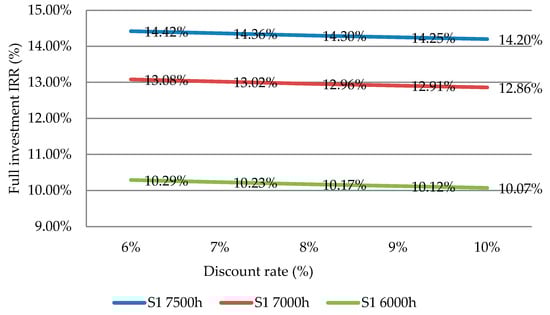

The sensitivity analysis (Figure 10) of GIII for S1 reveals that, when the discount rate goes up by 1%, the full investment IRR will decline by 0.05%, and, when the discount rate decreases by 1%, the full investment IRR will increase by 0.06%.

4. Long-Term Prospective of Nuclear Power in China

4.1. Global Climate Change Policy

In 2016, China made many policy highlights in the field of green development. The leading group of deepening reform of the Communist Party of China (CPC) Central Committee held 12 meetings and introduced 19 reform programs on ecological civilization, marking the new era of China in environmental protection [53].

On 4 November 2016, the Paris Agreement came into effect, marking the opening of a new era of global climate governance and the action arrangements of global response to climate change after 2020. On the same day, China released a new national emissions reduction five-year program on greenhouse gas. China committed to peak its GHG emissions by 2030 and as early as possible.

On 1 June 2017, US President Trump announced that the US would withdraw from the Paris Agreement. The withdrawal of the US has caused serious setbacks in global efforts to tackle climate change, and the burden of reducing emissions and costs on China will increase. Therefore, countries around the world are concerned about the future evolution of the US energy and climate change policies. Even with uncertainty, global trend of clean energy development is unaltered and green development has come with consensus by sovereign nations.

4.2. Avoided Carbon Cost: Nuclear vs. CCS

With certainty in global climate change policy, China must find the least cost pathway of GHG abatement. Here, we define the avoided CO₂ cost as the total cost incurred for CO₂ emissions reduction. Because of the intermittency of renewable energy, the only technology that can replace coal power as the base load is nuclear power. The coal power can be subject to desulfurization and denitrification process, but carbon capture and storage (CCS) is the only option for coal power to achieve near-zero emissions of CO₂. Thus, this paper considers the 1 GW USC unit with CCS facility for comparison. We assume roughly 60% increase in capital cost and the unit investment cost will increase by 2000 yuan/KW. The decarburization efficiency is set at 85%. Thus, the LCOE of USC + CCS is estimated at 0.53 yuan/KWh, or about 0.16 yuan/KWh higher than 1 GW USC without CCS. Under these assumptions, the avoided CO₂ cost of CCS is about 750 yuan/ton.

Under the conditions of the unit investment cost at 17,000 yuan/KW and utilization hour at 7000 h, the LCOE of nuclear power is 0.40 yuan/KWh. Compared with the LCOE of 0.37 yuan/KWh for USC coal power, the cost increase translates into corresponding avoided CO₂ cost at 214 yuan/ton. Therefore, nuclear power is an important choice for replacing coal power. In the long run, with technology learning, the unit investment cost and LCOE will decrease, and the avoided CO₂ cost can be more competitive (

Table 8. Avoided CO₂ cost of USC and Nuclear power.

	1 GW USC	1 GW USC + CCS	Nuclear Power
Unit investment cost (yuan/KW)	3600	3600 + 2000	17,000
Utilization hour	5000	5000	7000
Heat rate (generation) (gce/KWh)	270	270	-
Energy penalty	-	30%	-
Decarbonization efficiency	-	85%	-
LCOE (yuan/KWh)	0.37	0.53	0.4
Avoided CO2 cost (yuan/ton)	-	750	214

Note: gce = 1 g of standard coal equivalent.

).

4.3. The Role of Nuclear in China’s Energy Transition

China’s commitment to peaking carbon emissions around 2030 and China’s important role in global climate change will lead to great pressures on low-carbon or even zero-carbon energy system transition. China has made it clear that promoting the hydropower development, developing the nuclear power safely and efficiently, vigorously developing wind power, accelerating the development of solar power, and actively developing geothermal, biomass and ocean energy will be key options of China’s national energy policy. However, in terms of resource availability, hydropower will soon reach its upper limit, while renewable wind and PV energy alone is not able to provide reliable power supply. For biomass energy, the potential is limited. Therefore, from the perspective of entire power system, nuclear power has an important role in the transition.

According to our previous research [54,55], the prediction of the nuclear power installed capacity, electricity generation are shown in

Table 9. The prediction of nuclear power generation [54,55].

	GDP Growth Rate (%)	Electricity Demand Growth Rate (%)	Installed Capacity of Nuclear Power (GW)	Electricity Generation of Nuclear Power (TWh)	The Proportion of Nuclear Power Generation (%)
2015	7.20%	1.00%	26.43	169	3%
2016	6.80%	5.00%	33.63	210.5	3.56%
2017	6.60%	6.60%	34.73	247.5	3.94%
2020	6.10%	5.50%	53	345–396	4.4–5.1%
2025	5.30%	4.00%	120	780–900	8.5–9.8%
2030	4.70%	2.00%	190	1235–1425	12.8–14.8%

.

5. Policy Implications

5.1. Standardized Technology Roadmap

China’s nuclear power has multiple technology routes and the technical standards are not unified. Because of the failure in system integration, the technology progress and localization process are blocked. Now AP1000, Hualong 1, HTGR, CAP1400, EPR, etc. are competing with each other and this fierce competition can have negative impact on technology learning in the nuclear power industry. The inconsistency of technology route has influenced on the nuclear power equipment manufacturing industry, which is the most critical part of the nuclear power industry chain. Different technical standards and different localization requirements caused the great difficulties for the future development planning of equipment manufacturing industry. With the increase in the installed capacity of nuclear power in China, the weak technical base of autonomous nuclear power and the decentralized R&D forces will gradually emerge. In addition, the internal competition in China’s nuclear power technology route has caused customers to feel distrust. However, the largest part of nuclear LCOE is the initial investment, so the most important measure is to reduce the unit investment cost by technical learning.

Standardization is the most effective way to reduce the investment cost. The government needs to timely develop related technology route guidelines, so that various NPPs can realize integrated optimization. Unified reactor type and batch production can make the construction process duplicable and cut down technical support and service cost. In addition, the scale effect of nuclear power generation can achieve intensive effects on equipment procurement, technical services and other aspects. Unified maintenance companies and technology centers can reduce the construction costs and operating costs, significantly reduce the LCOE of nuclear power and improve the market competitiveness. In addition, the unified technology path can also benefit Chinese enterprises in occupying a more favorable position in the international competition.

5.2. Public Financial Support of Technology Learning

Learning costs of developing new technology can be reflected in the government’s R&D investment policy, electricity tariff policy and finance tax policy so that a mechanism is in place for the commercialization of nuclear power. In the early commercialization stage, extra high cost will affect capital injection and scale expansion. Therefore, from the perspective of promoting the development of nuclear power, the government’s public finance fund can be used to support research, development and demonstration. By the leverage effect of government fund, social capital can be mobilized to finance nuclear power industry. A capacity payment mechanism for the first-kind reactors can be employed to lower capital cost and enhance the competitiveness of nuclear power. In this way, nuclear can escape the current dilemma and expand its capacity to further lower investment cost.

Finance and tax policy incentives are the policy instruments that must be taken in the early stage of new nuclear power project. During the repayment period, the generation cost of nuclear power is very high, but, after the repayment period, the generation cost is even lower than coal power. Therefore, for nuclear power, at the beginning of the repayment period, the tax should be as little as possible. In addition, for the income tax of the nuclear power equipment enterprises and NPPs, preferential tax can be used in reference to the standard of high-tech enterprises. It is noteworthy that the learning cost of pre-commercialization of nuclear power should be solved by public financial support, rather than higher benchmark price assumed by local governments where NPPs are located in.

5.3. Proper Positioning in Power Market

Nuclear power working as the base load is conducive in improving its fuel efficiency. In the operation process, the frequent and deep power regulation will reduce the reliability of the reactive control system, resulting in the inadequate fuel consumption to produce waste, and increase the difficulty and cost of waste processing. In addition, nuclear power as the base load is also conducive in promoting energy conservation and emissions reduction [56].

There are two typical modes of nuclear power operation in the world. France is a country with the largest nuclear share in its fuel mix. Due to shortage of other peak regulation resources, nuclear power reactors in France operate in a way of load-following. The other type is represented by the US, Canada and Japan. With a diversified mix of power sources, nuclear power reactors in these countries mainly operate as base load. In China, from the policy perspective, it should be clear that nuclear power is operating as base load to ensure high operational efficiency. However, due to the penetration of intermittent renewable energy such as wind power and PV, a market mechanism should be established to provide proper incentive for flexible resources. Nuclear power should be designed with as much load-following ability as possible. However, a balance is important in its operational efficiency and provision of system flexibility.

5.4. Mature Nuclear Industry Chain

The industry chain of nuclear power is long, mainly consisting of three parts: upstream (fuel assemblies and related components), midstream (nuclear island, conventional island and auxiliary equipment), and downstream (NPP operation and spent fuel treatment).

(1) Upstream supply of nuclear fuel and fuel components

Due to high correlation between nuclear power and national security, as well as high technology standards and requirements, China’s nuclear fuel and component supply industry is highly concentrated. Overall, China has a certain R&D and production capacity in the front-end nuclear fuel cycle. However, compared with developed countries, there is still a big gap in terms of technical capacity and fuel economy. In some key areas, China has not yet fully formed its own technology design capabilities, and some core technologies and components still rely on import. Therefore, China should actively promote the construction of large uranium base, and establish natural uranium resources protection system with domestic production, overseas development and international uranium trade to provide adequate supply.

(2) Midstream nuclear equipment production

China has basically grasped the third generation nuclear power, and the equipment production capacity has overtaken foreign advanced levels with annual production capacity of 6–8 nuclear power reactors. The acceleration of localization rate for nuclear power equipment has greatly reduced the construction cost of NPPs. However, there are still some technical bottlenecks in the manufacturing of nuclear power reactors. Therefore, the government should actively build the intensive manufacturing bases and industrial parks of nuclear power equipment to improve integration, form complete PWR manufacturing capacity and establish a better quality assurance system.

(3) Downstream nuclear power investment and operation

The operation of NPP is in an oligopoly position. At present, there are three NPP operators: CNNC, CGNPC and SPIC. On the other hand, the operation of NPPs is also facing security challenge. Currently, core technology competency in downstream nuclear waste and spent fuel reprocessing does not exist. A decade ago, China started the international cooperation on nuclear waste and spent fuel reprocessing, but the progress is very slow. The government should speed up the research and development on nuclear waste and spent fuel reprocessing technology, and formulate relevant standards and rules for nuclear safety operation.

5.5. Nuclear Safety and Public Concern

Nuclear safety is an important part of national security and an important area of environmental protection. Siting resources are very precious and the government should carefully promote the inland siting work and pay close attention to public concerns. Therefore, China should further improve the nuclear emergency system, standard system of laws and regulation, promote the construction of nuclear emergency infrastructure, strengthen nuclear emergency training and exercise, and deepen international exchanges and cooperation on nuclear emergency. In addition, it is very urgent to speed up the legislation of “nuclear safety law”.

6. Concluding Remarks

As a highly efficient energy source, nuclear power has become a major solution to solve the energy crisis, replace traditional fossil fuels and reduce environmental pollution. Through the analysis of short-term and long-term development trend of China’s nuclear power, this paper finds that, in the current situation of excess power, due to high investment cost, the decrease of utilization hour and additional cost of ancillary service obligations, the generation cost of third generation nuclear power will be significantly higher, and economic return will fall below the benchmark level, which negatively affects the investment enthusiasm in nuclear power. With the acceleration of technology learning, the nuclear power can be competitive with the coal power in 2030 with full market competitiveness. Further, the GHG reduction costs of nuclear power are more competitive than that of coal power + CCS, so nuclear power is an important option for China to achieve long-term low carbon energy transition. To ensure the long-term healthy development of China’s nuclear power, it is recommended to share the technical learning cost at the early commercialization stage through clean technology subsidies. Full consideration of the characteristics of nuclear power should be taken in the design of power market rules to ensure its efficient operation. The healthy development of nuclear power in China also depends on solid industrial system and nuclear safety legislation. Furthermore, the government should pay attention to spent fuel and its pollution. In addition, with the gradual maturation of various energy storage technologies, continuous reduction of energy storage costs, and gradual improvement of related policies, large-scale energy storage technologies can control the instability and discontinuity of wind power and solar power, and realize the safe and stable power supply. Thus, energy storage as complement to wind and solar power is a core technology option to nuclear for base power for achieving energy diversification.
