Microbial Strategies for Cellulase and Xylanase Production through Solid-State Fermentation of Digestate from Biowaste

Abstract

Solid-state fermentation (SSF) is a promising technology for producing bioproducts from organic wastes. The objective of this study is to assess the feasibility of using digestate as substrate to produce hydrolytic enzymes, mainly cellulase and xylanase, by exploring three different inoculation strategies: (i) SSF with autochthonous microbiota; (ii) non-sterile SSF inoculated with Trichoderma reesei and (iii) sequential batch operation to select a specialized inoculum, testing two different residence times. Native microbial population did not show a significant cellulase production, suggesting the need for a specialized inoculum. The inoculation of Trichoderma reesei did not improve the enzymatic activity. On the other hand, inconsistent operation was achieved during sequential batch reactor in terms of specific oxygen uptake rate, temperature and enzymatic activity profile. Low cellulase and xylanase activities were attained and the main hypotheses are non-appropriate biomass selection and some degree of hydrolysis by non-targeted proteases produced during fermentation.

1. Introduction

The EU has, over the years, defined stronger directives to reduce biowaste diversion to landfill (199/31/EC), due to the gaseous emissions generated (up to 3% of the total GHG emissions) [1]. Anaerobic digestion (AD) is a well-established technology that successfully treats biowaste, stabilizing the organic matter to produce energy, while also generating another product: digestate. The latter is a nutrient-rich material mainly composed of microbial biomass and recalcitrant organic matter, formed from the degradation of readily biodegradable compounds by the AD process. Characteristics of digestate make it an ideal replacement of inorganic fertilizers [2]. However, digestate is not fully stabilized and this necessitates a hygienization and stabilization process (such as composting) of the material, prior to its use as soil amendment [3]. Although digestate from sewage sludge has been widely studied, only a few studies assess the potential uses of digestate from biowaste and its potential effect on soil in agronomic applications [4,5]. In this framework, the DECISIVE project (www.decisive2020.eu) aims at providing a new solution to biowaste management based on decentralized anaerobic digestion and the valorisation of digestate through solid-state fermentation.

Solid-state fermentation (SSF) is described as the biotransformation that takes place in a solid matrix in the absence or near absence of free water [6]. SSF has received extra attention over the last few years as researchers explored the production of added-value compounds such as enzymes, antibiotics, bioactive compounds, biological control molecules, etc., by using biomass or by-products from other processes [7,8]. Several studies have reported the optimization of cellulases and hemicellulases’ production due to their role in biofuel production and associated costs [9,10].

Cellulases and xylanases’ production is mainly associated with microorganisms that are able to fully degrade lignocellulosic materials; it is, therefore, is of great relevance to determine the most-adequate strain or specialized inoculum to enhance cellulase production [11]. In this context, several inoculation strategies have been proposed for the production of different enzymatic compounds; they include the use of autochthonous microbiota for protease production [12], development of a specialized mixed consortium [13], and the use of specific cellulose-producing strains (mainly fungi) such as Trichoderma reseei [14,15,16,17,18]. T. reseei is a widely-referred to fungus for cellulase production using agroindustrial or agricultural wastes with a significant fibre content (cellulose > 25%) as substrates [13]. An initial approach to the use of digestate as a substrate was reported by Santi et al. [19], where four white-rot fungi species were grown on 15 g of sterilized digestate. Pleurotusos treatus was able to use digestate as a sole nutrient source, with positive results in enzymatic production on 15–20 days of fermentation. However, developing a biorefinery process to valorise digestate remains a challenge.

The main goal of this work is to perform preliminary screening to determine the feasibility of valorising digestate into hemicellulolytic enzymes through a low-cost process based on SSF and avoiding biomass pretreatments; however, research on inoculum requirements must be first performed. To achieve this goal, SSF will be performed using different microbial strategies: (i) using the autochthonous microbiota present in the digestate; (ii) inoculating T. reseei and, (iii) developing a specialized inoculum.

To the best of the authors’ knowledge, this is the first work focused on different inoculation strategies for the valorisation of digestate to produce high-value bioproducts at a lab and bench scale.

2. Materials and Methods

2.1. Substrate Characterization

Digestate and compost were kindly provided by a waste treatment facility in Granollers (Spain). The digestate used in this work came from the treatment of source-selected organic fraction of municipal solid waste (OFMSW) through a process that consisted of a mesophilic wet anaerobic digestion, followed by a solid/liquid separation with a screw press.

Both materials were stored at 4 °C for a maximum period of 15 days. Prior to its use, the digestate was hygienised at 70 °C for 1 h, as it is a legal requirement specified in Regulation (EC) No 1069/2009 [20]. After hygienisation, digestate presented an average characterisation (n = 10) of dry matter 42 ± 5 (%w.b), organic matter 70 ± 8 (%d.b), pH 8.7 ± 0.3, C/N ratio 11.8 ± 0.7, cellulose content 10 ± 1 (%d.b), hemicellulose content 10.1 ± 0.9 (%d.b) and lignin content 18 ± 2 (%d.b).

2.2. Inoculum Preparation

Trichoderma reesei ATCC 26921 was purchased from “Colección Española de Cultivos Tipo” (CECT, Valencia, Spain). The strain was resuspended in liquid medium, as recommended by the providers (20 g/L malt extract, 20 g/L glucose, 1 g/L soy peptone) and stored frozen at −80 °C in cryo-vials with 10% (v/v) of glycerol until use.

For growth of pellets, the cryopreserved T. reseei suspension was inoculated to sterile liquid medium (20 g/L malt extract, 20 g/L glucose, 1 g/L soy peptone). The culture was stirred at 140 rpm, over 48 h at 30 °C to be used as inoculum for SSF.

2.3. Solid-State Fermentation (SSF)

2.3.1. Experimental Set-Up

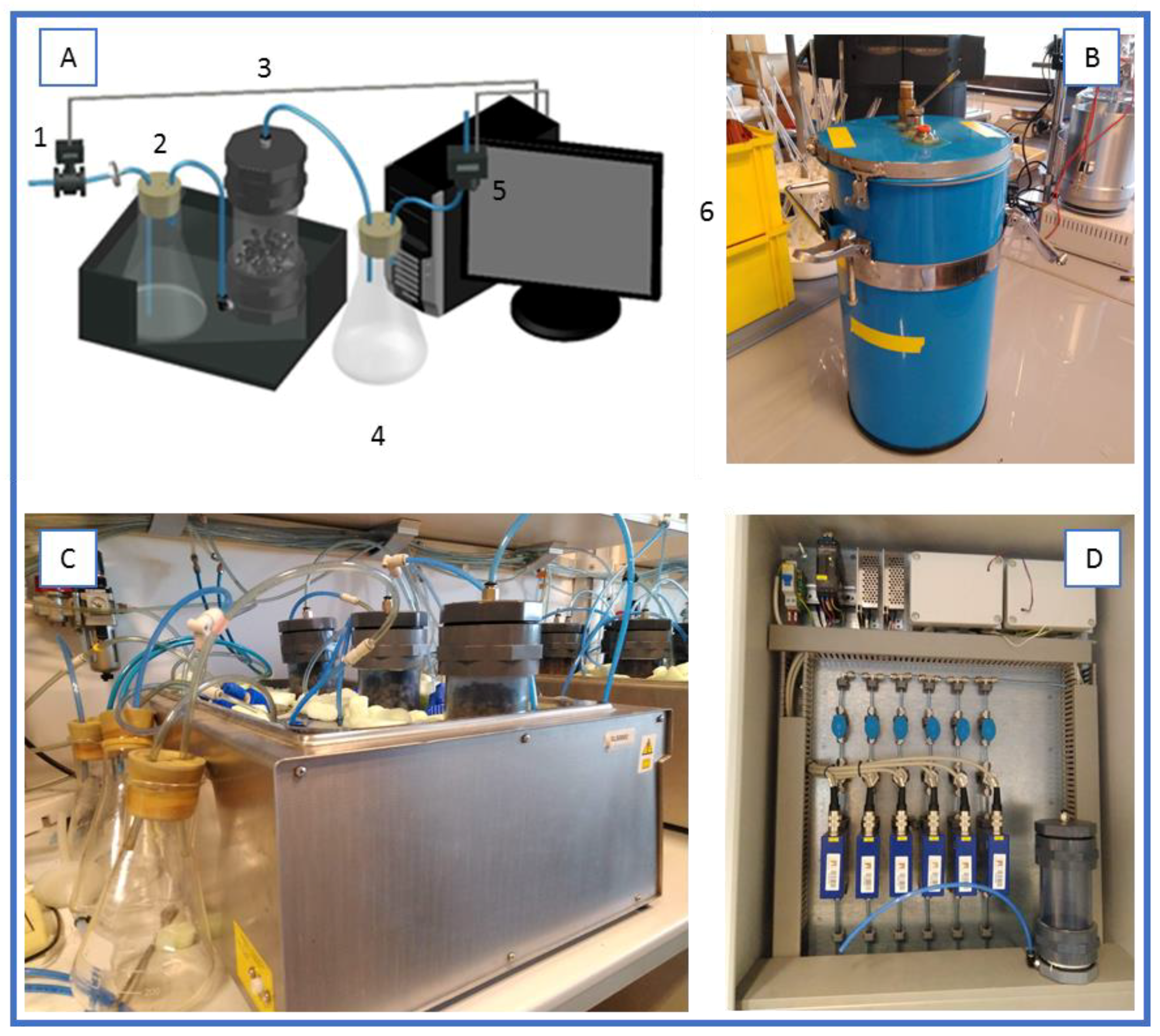

Two different set-ups were used in this work. The lab scale set-up consisted of a series of 0.5 L reactors, placed in a water bath at constant temperature, with an inlet of water saturated airflow and an outlet of exhausted gases that passed through a dehumidifier water trap and then to an oxygen sensor (Figure 1).

A bench scale set-up consisted of a series of 4.5L air-tight packed bed reactors (adapting Dilvac glasses, Dewar, Day Impex Ltd., Essex, UK) thermally isolated to work under near-to-adiabatic conditions. Exhaust air came out from the top of the reactor and flowed to a dehumidification water trap and later to an oxygen sensor. Air flow and oxygen were monitored in both set-ups using a self-made data acquisition system based on Arduino^®. With these data, the specific oxygen uptake rate (sOUR) and cumulative oxygen consumption (COC) was calculated.

2.3.2. Monitoring Parameters

Oxygen content and temperature was continuously monitored during SSF. Specific oxygen uptake rate (sOUR) was calculated by the following Equation (1) [21]:

$$\mathrm{sOUR}=\mathrm{F}\cdot (0.209-{\mathrm{y}}_{\mathrm{O}2})\cdot \frac{\mathrm{P}\cdot 32\cdot 60\cdot {1000}^{\mathrm{a}}}{\mathrm{R}\cdot \mathrm{T}\cdot \mathrm{DW}\cdot {1000}^{\mathrm{b}}}$$

(1)

where sOUR is the specific oxygen uptake rate (g O₂ kg⁻¹ DM h⁻¹); F, airflow into the reactor (mL min⁻¹); y_O2, oxygen molar fraction in the exhaust air (mol O₂ mol⁻¹); P, pressure of the system assumed constant at 101,325 (Pa); 32, oxygen molecular weight (g O₂ mol⁻¹ O₂); 60, conversion from minutes to hours; 1000^a, conversion from mL to L; R, ideal gas constant (8310 Pa L K⁻¹ mol⁻¹); T, temperature at F (K); DW, dry weight of solids in the reactor (g); 1000^b, conversion from g to mg.

Cumulative oxygen consumption (COC, g O₂ kg⁻¹ DM) was calculated through the numerical integration of continuous sOUR data obtained, according to Equation (2) [21]:

$$\mathrm{COC}={\int }_0^{\mathrm{t}}\mathrm{sOURdt}$$

(2)

2.3.3. Experimental Methodology

Bulking agent and digestate were mixed in a 1:1 (v/v) ratio to ensure appropriate porosity [22]. The bulking agent used for the lab scale and bench scale experiments were toothpicks and wood chips, respectively.

(a) Determination of inoculum requirements

Two sets of experiments were performed to assess the inoculum requirements of 95 g of hygienised digestate to produce cellulase and xylanase using the lab scale set-up, under constant temperature (30 °C) and aeration (20 mL min⁻¹).

The first one studied the effect of autochthonous microorganisms on enzyme production. The fermentations were performed using non-sterile mixtures. Additionally, considering that digestate comes from an anaerobic digestion process, it is likely that some easily assimilated nutrients may have been depleted; hence, nutrient supplementation with liquid medium was also analyzed, adding 10 mL of a nutrient solution (20 g/L malt extract; 1 g/L soy peptone) to the mixture.

The second set of experiments assessed the use of T. reseei as inoculum for enzyme production. With this objective, fermentations were performed using non-sterile mixture with T. reseei pellets in a 7% (w/w, on wet basis). After inoculation, the solid matrix was manually homogenized.

Summarizing, four set of reactors were run: (a) hygienised digestate without inoculation, i.e., autochthonous microbiota (AM); (b) hygienised digestate without inoculation and supplemented with nutrients (AMS); (c) supplemented hygienised digestate inoculated with T. reseei under static conditions (TSS); (d) supplemented hygienised digestate inoculated with T. reseei with daily manual mixing (TSM).

These four set of experiments were performed in quadruplicates and one reactor was sacrificed and sampled at 48, 65, 84 and 120 h of operation. Manual mixing was performed to obtain a representative sample. Cellulase and xylanase activities and other routine parameters were measured in the samples. sOUR profiles in figures and sOURmax values corresponded to values of the last reactor sampled to include all the experimental period for comprehension purposes. Furthermore, the standard deviation of the quadruplicates of sOUR did not surpass the 10% in any case.

(b) Development of a specialized microbiome

A sequential batch operation (SB) was performed as an alternative to achieve an adapted inoculum containing a specialized microbiome for cellulase and xylanase production. In the proposed system, compost was added at an early stage of the process, as it is a material with high intrinsic biodiversity [23] that could promote the production of the targeted enzymatic activity.

These experiments were conducted in duplicates using the bench scale set-up (4.5 L reactors). The solid mixture initially consisted of 90% of digestate and 10% compost as the inoculum (w/w ratio) and wood chips as the bulking agent (1:1 v/v ratio), resulting in a total mass of 1.1 kg. The duration of each batch was previously determined (data not shown), where the maximum sOUR and enzyme production were achieved at 1 and 3.5 days, respectively. Consequently, both periods were assessed as residence times for SB operation: SB1, using a residence time of 1 day (maximum sOUR) and SB2 using a retention time of 3.5 days (maximum enzymatic activity).

Once the first batch was completed, the operation began in cycles, where one part of the fermented solid acted as the inoculum for a new batch. This enabled adaptation of the microbiome in each batch [13,24]. To prepare a new batch, the reactor was opened and 90% of the material mass was removed for further analysis. The remaining 10% of the fermented solid was mixed with 90% of fresh digestate with a bulking agent to form a new batch. Digestate was stored at 4 °C for a maximum of 15 days. During this experiment, when a residence time of 3.5 days was assessed, it was found necessary to collect digestate twice from the biowaste industrial facility.

2.4. Analytical Methods

2.4.1. Enzyme Extraction

Cellulase and xylanase activities were performed in aqueous extracts obtained by mixing the fermented solids with 0.05 M citrate buffer (pH 4.8) in a ratio 1:15 (w/v) and stirring at 200 rpm for 30 min [25]. The extract was then centrifuged at 10,000 rpm for 10 min and filtered at 0.22 µm.

For protease determination, extraction was done by mixing the fermented solids with 50 mM HCl-Tris ((hydroxymethyl) aminomethane) buffer (pH 8.1) in a ratio 1:5 (w/v) and stirred at 200 rpm for 45 min. Later, the extract was centrifuged at 4 °C and 10,000 rpm over 10 min and later filtered at 0.45 µm [12].

2.4.2. Enzymatic Activity Determination

Total cellulase activity was measured using filter paper assay (FPase), as recommended by IUPAC [26]. Final reducing sugars were measured using dinitrosalicylic acid reagent (DNS). The substrate was 1 cm × 6 cm Whatman filter paper in 0.05 M citrate buffer (pH 4.8) and the reaction run for 1 h at 50 °C. One unit of FPase (FPU) was expressed as the amount of enzyme that releases 1 µmol of reducing sugars from Whatman filter paper per minute. Xylanase activity (Xyl) was determined according to Ang et al. [27]. The final product, xylose, was also measured with dinitrosalicylic acid reagent. One unit of xylanase activity (UA) was expressed as 1 µmol of xylose released from xylan birch wood per minute. Cellulase activity is expressed as FPU g⁻¹ DM, while xylanase activity is expressed as UA g⁻¹ DM.

Alkaline protease activity was determined following the methodology previously described [28]. The substrate was sodium caseinate in HCl-Tris buffer (pH 8.1) and the reaction run for 2 h at 50 °C. TCA-soluble tyrosine derivatives were measured using the Folin-Ciocalteu reagent. Protease activity was expressed as UA g⁻¹ DM, and one unit of protease activity (UA) was defined as 1 µg of tyrosine released from casein per minute.

2.4.3. Routine Methods

Moisture, total and volatile solids contents, and pH were determined according to standard procedures [29]. Cellulose, hemicellulose and lignin contents were determined by the method described in Van Soest et al. [30] using the Ankom200 Fibre Analyser incubator (Ankom Technology, Macedon, NY, USA).

2.4.4. Statistics

Means among treatments were statistically compared with ANOVA using equal variances and applying the Tukey’s pairwise comparison test (p < 0.05) with software MINITAB^TM v17 (© 2013 Minitab Inc., Pennsylvania, USA).

3. Results and Discussion

3.1. Inoculation Requirements Determination

A set of four experiments were performed to determine the inoculum requirements to produce cellulases and xylanases from digestate. Results are presented in Figure 2. In Figure 2A, the complete profile of biological activity and enzymatic production without inoculation under non-sterile conditions is presented, i.e., considering autochthonous microbiota (AM). Maximum average sOUR achieved was 1.4 g O₂ kg⁻¹ DM h⁻¹, reached at 12 h of SSF. This value demonstrates the moderate biodegradability of digestate [31], implying that it was not necessary to apply a pretreatment in this first work. Maximum cellulase activity was observed in Figure 2A at 72 h of fermentation (1.2 ± 0.2 FPU g⁻¹ DM), showing a decreasing trend until almost negligible values. In this sense, digestate seemed to not be a suitable substrate for cellulase production [13], given that the maximum production values are in the lower rage of the reported references in

Table 1. Compilation of studies of cellulase production through SSF using filamentous fungi as inoculum.

Reference	Enzyme	Microorganism	Substrate	SSF Time	Temperature	pH	Fermentation Sample	Max. Enzymatic Activity
[15]	Cellulase	Trichoderma reesei RUT C30	Wheat bran	72 h	30 °C	-	5 g	22.8 FPU/g DS
	Betaglucosidase	Aspergillus niger MTCC 7956	Wheat bran				5 g	21.39 U/g DS
[37]	Endoglucanase	Aspergillus terreus M11	Wheat straw	96 h	45 °C	-	5 g (plus mineral solution)	417 U/g DM
	Cellulase							166 U/g DM
	Beta-glucanase							87 U/g DM
[33]	Cellulase	Trichoderma reesei (ATCC 26921) Aspergillus oryzae (ATCC 12892)	Soybean hulls and wheat bran	96 h	30 °C	5	100 g	10.78 FPU/ g DS
	Betaglucosidase							10.71 U/g DS
	Endoglucanase							100.67 U/g DS
	Xylanases							504.98 U/g DS
[16]	Cellulase	Trichoderma reesei ZU-02	Corn cob residue and wheat bran + mineral solution	5 days	30 °C	4.5 (initial)	Trays (thickness about 30 cm)	40–158 FPU/g (depending on fermentation time)
[38]	Cellulase	Aspergillus fumigatus Z5	Cornmeal	4 days	50 °C	9	Substrate (plus mineral medium)	98.1 FPU/g dw
	Endoglucanase							341.3 U/g dw
[39]	Xylanase	Aspergillus foetidus MTCC 4898	Agricultural waste + wastewater from anaerobic digestion	72–96 h	30 °C	-	5 g (plus liquid medium)	100–40,000 U/g (depending on the agricultural residue)
[40]	Endoglucanase	Trichoderma asperellum	Agave atrovirens fibres	210–310 h	29 °C	-	-	12,860 U/g
	Exoglucanase							3144.4 U/g
	Betaglucosidase							384.4 U/g
[19]	Endoglucanase	Pleurotus ostreatus	Corn silage digestate	15–20 days	-	-	15 g	2.3 U/mg prot
	Cellobiohydrolase							0.7 U/mg prot
	Xylanase							3 U/mg prot
[17]	Cellulase	Trichoderma reesei Aspergillus oryzae	Soybean hull	70 h	30	5	10.24 kg	5.4 FPU/g
	Endoglucanse							58.6 U/g
	Betaglucosidase							18.4 U/g
	Xylanase							242 U/g
[18]	Cellulase	Trichoderma reesei Aspergillus oryzae	Rice straw and wheat bran	120 h	30	-	500 g	35.8 FPU/g
	Endoglucanse							132.3 U/g
	Betaglucosidase							33.7 U/g
	Xylanase							3106 U/g

. For xylanase production, a peak was observed at 3.5 days of operation with a value of 81 ± 7 UA g⁻¹ DM. These results suggest that the process of fermentation of digestate and autochthonous microorganisms is not suitable to produce cellulase, but it is suitable for xylanase production. It is likely that although digestate is rich in nutrients such as nitrogen, it lacks components that may induce cellulase production, such as cellobiose [32], or that xylanase is favored under these conditions and with this process time. Figure 2B shows the effect of the nutrient supplementation of digestate on biological parameters and enzyme production (AMS). sOUR presented a slight increase of nearly 20%; however, both cellulase and xylanase reached lower values than in AM. This may be attributed to the fact that non-hemicellulolytic microorganisms could have used the added nutrients and diverted the substrate uptake for bioconversion to other products, as reflected by the increase of sOUR. Another aspect to consider is the initial pH of digestate around 8. This will be a determinant for the proper proliferation of hemicellulolytic microorganisms, especially when using T. reseei as the inoculum [13].

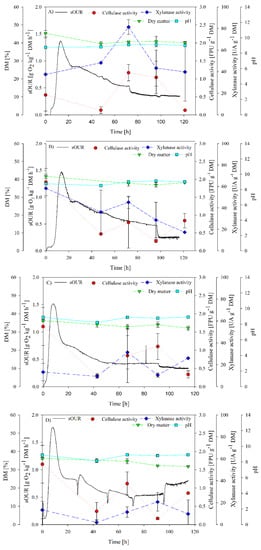

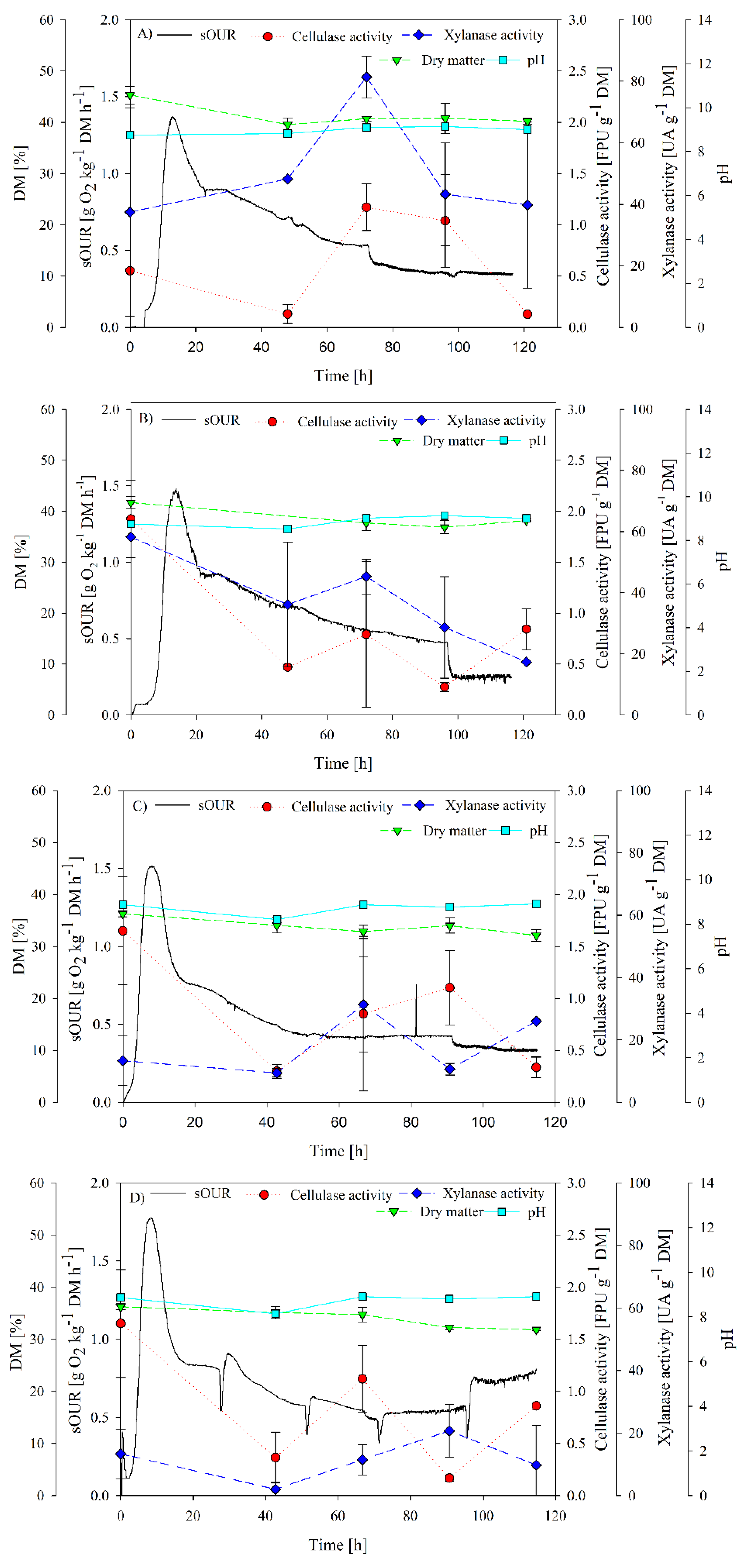

Figure 2C,D show SSF performance using T. reseei. It was expected that inoculating T. reseei would improve cellulase production due to the promising results reported by Santi et al. [19]. Additionally, as reported by Flodman and Noureddini [33], a positive effect on cellulase production was expected after nutrient supplementation and mixing. However, the results did not show any remarkable improvement.

Experiments considering T. reseei under static conditions (TSS) (Figure 2C) showed an average maximum sOUR of 1.5 g O₂ kg⁻¹ DM h⁻¹. An increase of enzyme activity was observed at 90 h for cellulase production, but not higher than initial activity (1.1 ± 0.3 FPU g⁻¹ DM). However, a xylanase activity peak occurred at 66 h, being 31.3 ± 15.8 UA g⁻¹ DM.

Finally, experiments with daily mixing (TSM) (Figure 2D) presented an average maximum sOUR of 1.8 g O₂ kg⁻¹ DM h⁻¹. Again, mixing did not improve cellulase and xylanase production, obtaining xylanase peak at 90 h with a slightly lower value of 21 ± 8 UA g⁻¹ DM in comparison with the static fermentation. These results are in accordance with those reported by Deschamps et al. [34], where a reduction of cellulase activity was observed between static and mixed SSF, decreasing from 18 to 11 FPU per gram of substrate. In an agitated solid matrix, aerial hyphae may be squashed sufficiently to reduce sporulation and growth [35]. In any case, cellulase activity did not surpass the value of 2 FPU g⁻¹ DM. Although this cellulase activity value is in the lower range of the reported enzyme production (Table 1), some authors using crude extracts reported lower enzymatic activities around 0.5 FPU g⁻¹ DM [36]. None of the inoculated experiments (TSS and TSM) showed a visual growth of T. reesei at the end of the experiment.

Cumulative oxygen consumption (COC) was also assessed as a biological activity indicator. COC values were 67.4 g O₂ kg⁻¹ DM, 70.4 g O₂ kg⁻¹ DM, 60.8 g O₂ kg⁻¹ DM and 80.7 g O₂kg⁻¹ DM for AM, AMS, TSS and TSM experiments, respectively. No significant differences were observed in the first three experiments; however, the mixing seemed to have a positive effect on the global biological activity, improving the stabilization of organic matter.

One of the main hypothesis for the low cellulase and xylanase production using T. reseei as the inoculum is that alkaline pH values between 8 and 9 hindered fungus growth. T. reseei has been consistently reported as a cellulase producer in a range of pH between 5 and 7 [41,42]; hence, the alkaline pH could be the reason for the low enzyme productivities achieved. Digestates, either being liquid inside the anaerobic digester or solid after dehydrating, have a very high buffer capacity. This means that a large amount of weak acid solution must be applied to decrease the pH. Some preliminary studies were done in order to lower the digestate pH; however, as expected, high amounts of acid solution were required, increasing operational costs and obtaining a semi-solid solution not suitable for SSF performance. Thus, acid pre-treatment was not a suitable strategy in the framework of the project and was discarded.

Additionally, digestate showed a low content of fiber (<10%) when compared with the most common substrates used for T. reseei, which ranged between 28–58% of cellulose content [13,14,16,37]. This indicates a low concentration of cellulase/xylanase inducers, which led to low enzyme production. Finally, longer process times as those reported in literature (Table 1) were not evaluated. In Cerda et al. [43], maximum enzymatic activity was achieved before the fifth day of process using non-pretreated lignocellulosic biomass and a consortium of bacteria and fungi. Observing the trends of enzymatic activity, longer process times were not considered, as it would not improve the process yield but would increase operation costs.

3.2. SBR as Strategy to Obtain a Specialized Inoculum for Cellulase and Xylanase Production

As autochthonous microbiota and T. reseei did not show significant positive effects on cellulase and xylanase production, a different approach was assessed, consisting of the development of a specialized inoculum by sequential batch operation, based on previous work [13].

In a preliminary experiment, a non-inoculated batch was performed in a 4.5L reactor in order to analyze the biological activity present in the digestate. Digestate is a material coming from an anaerobic digestion process and for this reason, it could have low easily available organic matter or even poor biodiversity of aerobic biomass [3]. In consequence, a low self-heating capacity at pilot or industrial scale is expected. Results showed a maximum sOUR and temperature of 1.8 g O₂ kg⁻¹ DM h⁻¹ at 12 h and 41.34 °C at 53 h, respectively. The obtained conditions reflected that digestate provided a proper environment for the microorganisms to develop.

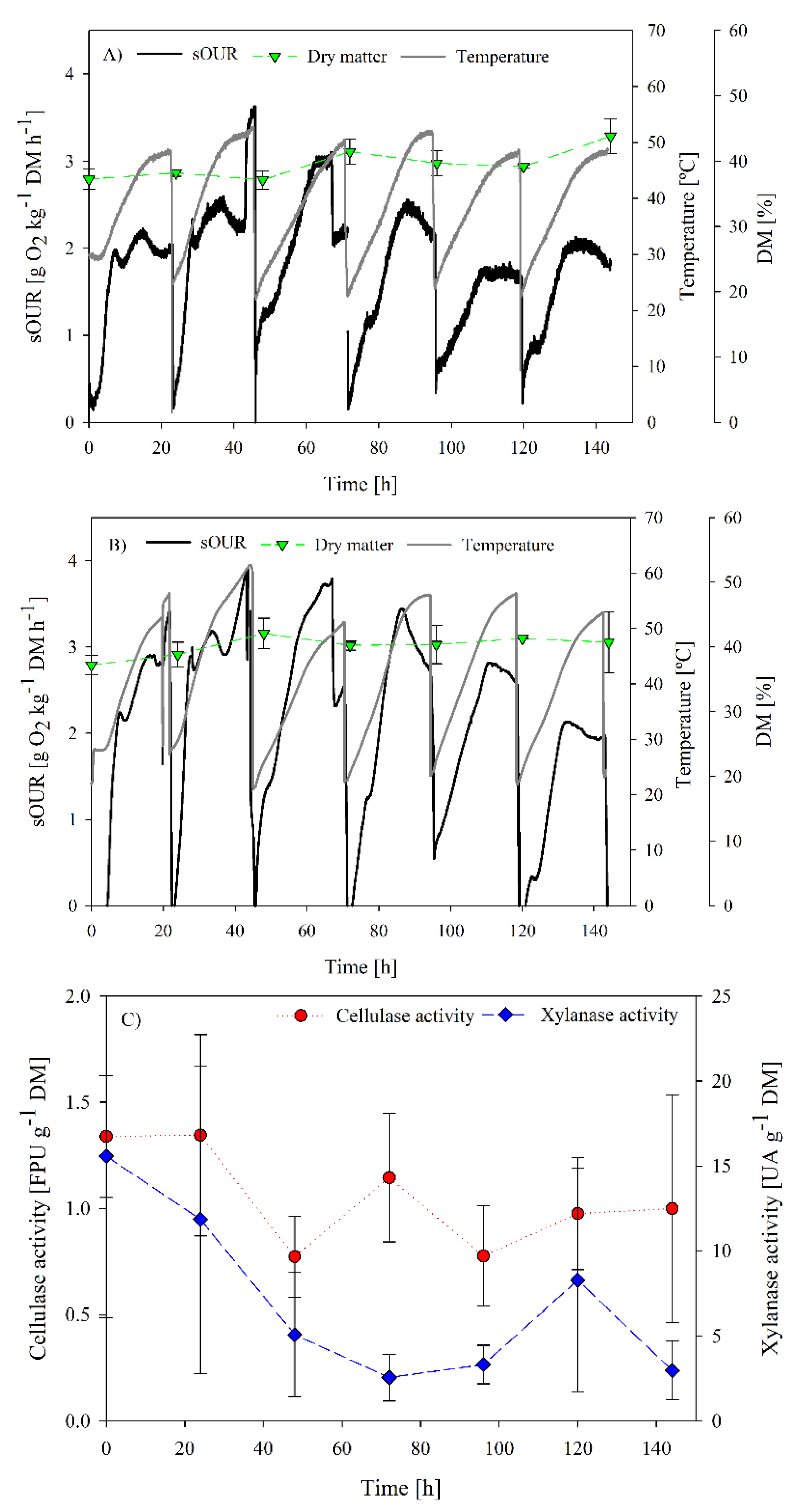

Figure 3 and Figure 4 show the results of both assessed strategies SB1 and SB2, respectively. In SB1, the maximum sOUR in the first batch (2 g O₂ kg⁻¹ DM h⁻¹) occurred at 12 h. After this first batch (inoculated with 10% compost), it was expected that the biological activity (sOUR) would either increase or maintain, as reported by other authors [13,44] and the lag phase would shorten. However, after the third batch, the sOUR profile substantially decreased. This decrease could be related to the storage of digestate at 4 °C; part of the remaining easily biodegradable organic matter could have been consumed by native microorganisms or the proliferation of non-hemicellulolytic microorganisms could have taken place, as described by Cerda et al. [43]. Temperature reached values over 45 °C in all batches. Correlation studies were performed to relate oxygen consumption and maximum temperature reached. However, acceptable correlations were not found.

No significant increase of enzymatic activity was observed during the SB1 operation. Basically, maximum activities were observed at the initial time of the experiment with values of 1.4 ± 0.3 FPU g⁻¹ DM and 15.6 ± 9.5 UA g⁻¹ DM for cellulase and xylanase activities, respectively. Additionally, the range of enzymatic activity was lower than the ranges reported by other authors using specific strains (Table 1) or mixed specialized inocula [43]. These results suggested that the process of adaptation by means of the SB1 operation did not favor cellulase nor xylanase production. However, other enzymatic or non-enzymatic products could be produced. In this sense, it has been reported that a variety of bioproducts are being produced at the same time in non-sterile fermentations, as a result of the metabolic activity of the complete microbiome in the solid matrix [23,43]. Protease is an enzyme that is commonly produced from organic solid wastes, especially in those with high protein content such as the digestate (C/N ratio of 11.8 ± 0.7) [12]. Therefore, one of the reasons for the low recovery of enzymatic activity could be the presence of non-targeted proteases that hydrolyse the produced enzymes in the aqueous extract. Other reasons could be related to the complex system of cellulases enzymatic groups. Cellulase activity recovery from the solid matrix can be extremely hindered by the attachment of the enzyme to lignin hydrolysates or even to the crystalline section of the cellulose [45]. In Marin et al. [46], different extraction strategies were tested, in terms of extraction ratio, agitation and solvent type, to maximize cellulase recovery after SSF.

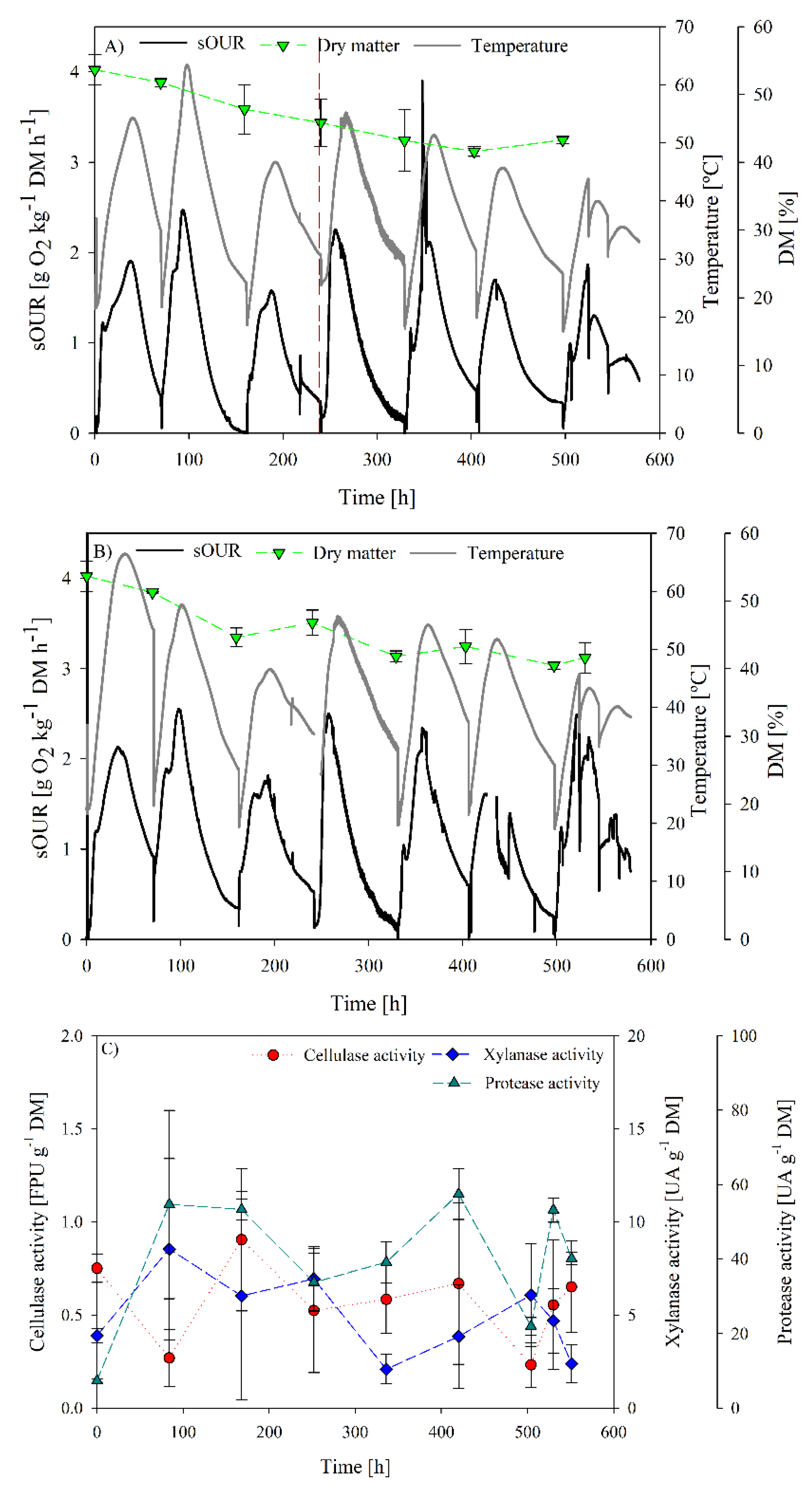

SB2 operational and enzyme production profiles are presented in Figure 4. In Cerda et al. [13], a more robust and reproducible operation was observed on increasing residence time. In that way, the microbiome has more time to adapt to the substrate. In addition, as observed in Figure 2A, a xylanase activity peak was obtained at 3.5 days of operation, hence, it is likely that the biomass present at that moment could be more adapted for xylanase production.

In Figure 4, it is observed that a more unstable operation was obtained with remarkable variation in maximum temperature and sOUR between batches, probably related to substrate variations due to longer storage periods. This variation of the maximum temperature reached can affect the selection of microbial population. In Cerda et al. [13], a stable temperature profile was obtained, allowing for clear microbial population change, obtaining a robust cellulase-producer inoculum.

Maximum sOUR in the second batch (2.4 and 2.5 g O₂ kg⁻¹ DM h⁻¹) was higher than in the first one, followed by the decrease of this value in the third batch. The same trend was observed from the fourth batch until the end of the experiment, as the fourth batch was fed with a fresh sampled digestate. Nevertheless, visual fungi growth was observed at the end of each batch.

Dry matter evolution showed a decrease over time. It can be explained as water produced during hydrolytic reactions condensed on the top of the reactor, modifying dry matter of the mixture. This can affect microbiome development due to oxygen transfer limitations generated by the compaction of the solid matrix [12,13,47].

Cellulase activity measured was low with a discrete maximum of 0.9 ± 0.4 FPU g⁻¹ DM observed at 168 h. However, this production is not significantly different to that observed at the beginning of the fermentations. In the case of xylanase production, a maximum of 8.5 ± 4.8 UA g⁻¹ DM was obtained at day 3.5. Again, these values are in the lower range of the reported xylanase production by SSF, which normally range between 20 up to 3000 UA g⁻¹ DM depending on the inoculum and substrates used [48]. After the respective production peaks, enzyme activity decreased until negligible values in both cases.

Finally, protease activity was measured in the crude extracts in order to assess the influence of proteases production and low enzyme recovery in the SB2 operation. Results are presented in Figure 4C. Protease activity profiles showed a significant increase from initial values to maximum values of 77 and 50 UA g⁻¹ DM. However, this activity range was also low when compared to those reported by other authors [12,49]. In spite of the magnitude of protease activity levels, it is likely that their presence could have affected enzyme recovery during the SB2 operation.

4. Conclusions

Several strategies to develop a proper inoculum for cellulase and xylanase production were evaluated, assessing the feasibility to perform novel digestate valorization. Autochthonous microbiota and Trichoderma reseei addition to digestate showed no positive results. Digestate characteristics make it not suitable for T. reesei growth, and cellulase and xylanase production. The substrate composition variation due to the storage period supposes a drawback in the operation. The unstable temperature and sOUR profile in the SB operation probably interfered with the selection of a specific biomass and, thus, the achievement of specialized inoculum.

During sequential batch operation, cellulase and xylanase activity productions were very low compared to other literature values. Hydrolysis of enzymes by non-targeted protease and a poorly adapted biomass have resulted in critical aspects to consider when working with digestate as a substrate for SSF. In addition, the low recovery of enzymatic activity could also be attributed to different aspects, such as adsorption of cellulase into cellulose/lignin structure, or presence of inhibitors, among others.

Further research will be focused on the study of the inhibition of protease activity and assessment of endoglucanase, betaglucosidase and cellulase activity instead of sole analysis of total cellulase activity (FPase) to observe possible inhibition in the cellulose degrading process.
