Circular Innovation Framework: Verifying Conceptual to Practical Decisions in Sustainability-Oriented Product-Service System Cases
Abstract
:1. Introduction
- Which are the known strategies that enable circularity?
- Which of these strategies are applied in PSS solutions? Does their application differ among PSS types?
- What are the practices that enable operationalizing such strategies in PSS solutions?
2. Research Methodology

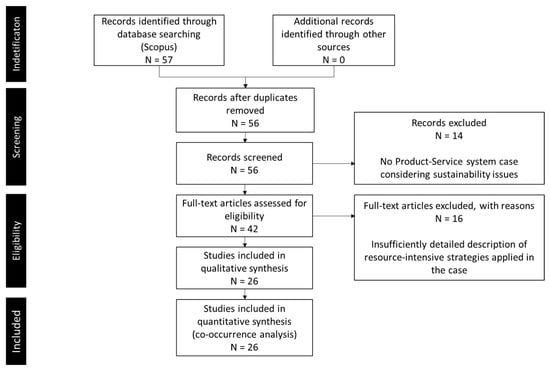

2.1. Systematic Literature Review for Cases Identification and Selection

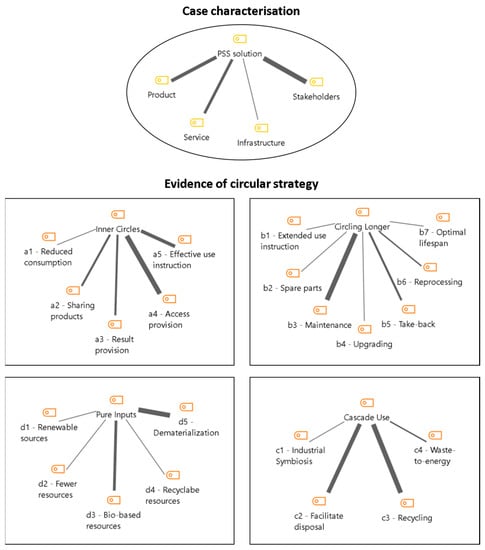

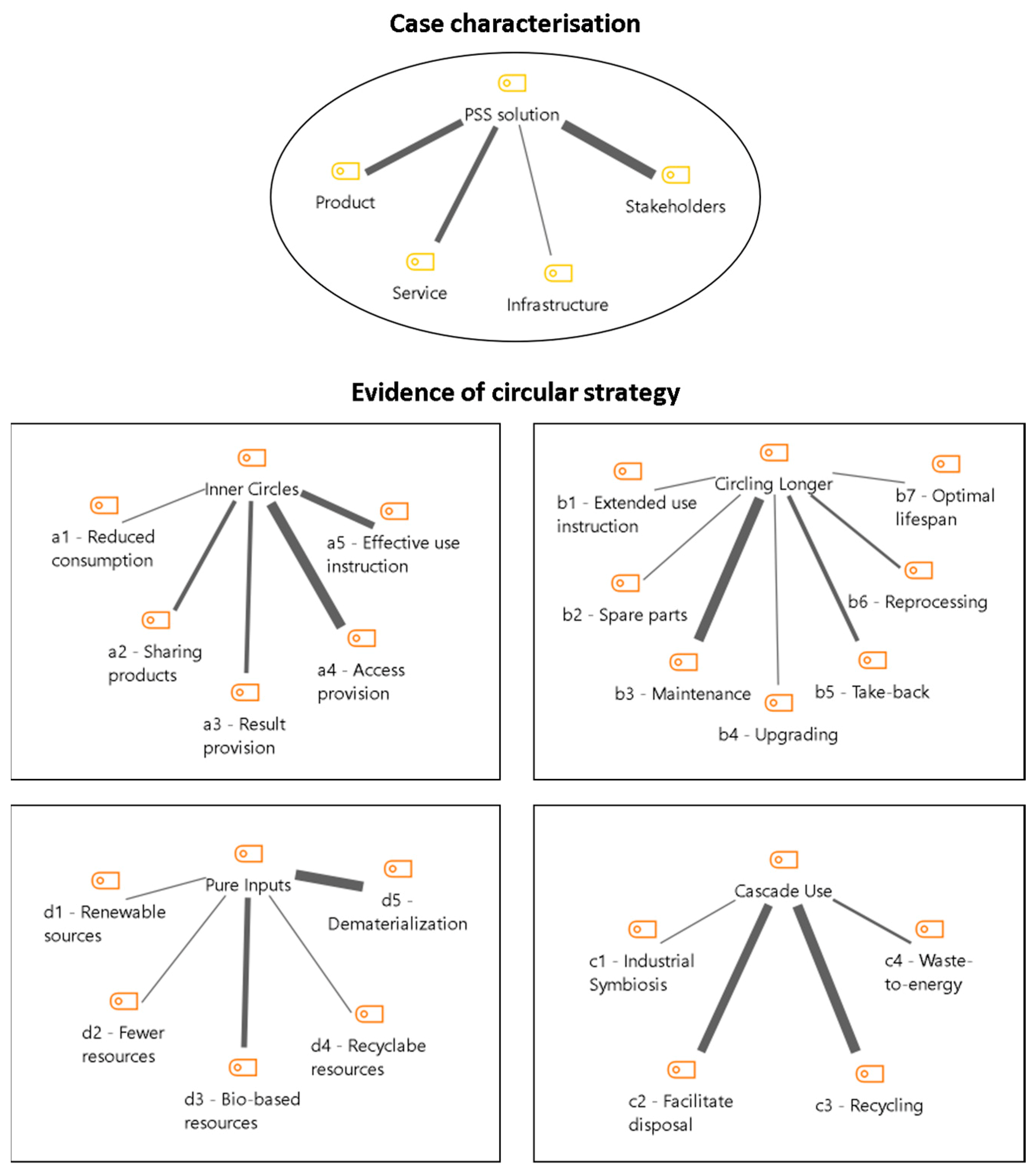

2.2. Content Analysis of Identified Cases

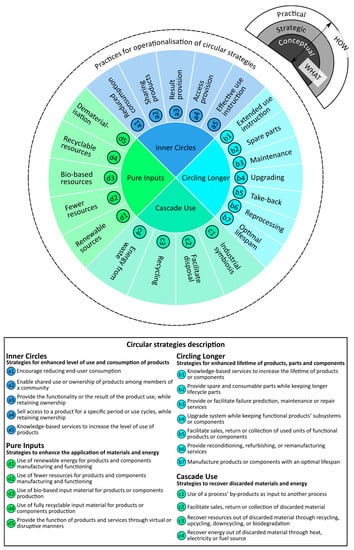

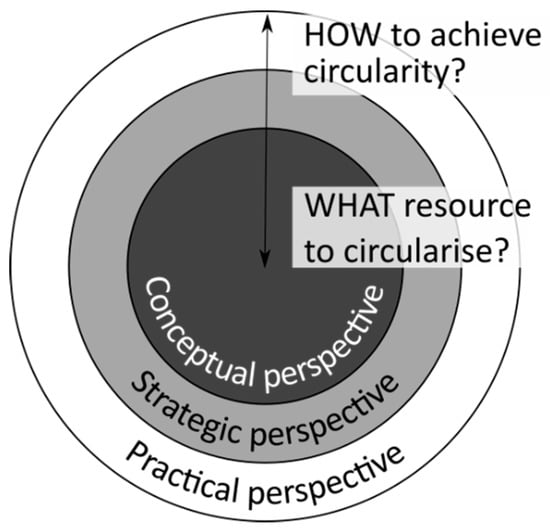

3. Circular Innovation Framework: Bridging Concept to Practice
4. Practices for the Operationalization of Circular Strategies
4.1. Practices for Operationalization of Circular Strategies in the Inner Circle
4.2. Practices for the Operationalization of Circular Strategies for Circling Longer
4.3. Practices for the Operationalization of Circular Strategies through Cascade Use
4.4. Practices for Operationalisation of Circular Strategies through Pure Inputs
5. Circular Strategy Occurrence and Co-Occurrence in Sustainability-Oriented PSS Cases
6. Conclusions and Research Limitations
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Geissdoerfer, M.; Savaget, P.; Bocken, N.M.P.; Hultink, E.J. The Circular Economy—A new sustainability paradigm? J. Clean. Prod. 2017, 143, 757–768. [Google Scholar] [CrossRef]
- Ellen MacArthur Foundation. Towards the Circular Economy: Economics and Business Rationale for an Accelerated Transition; MacArthur Foundation: Cowes, UK, 2012; p. 96. [Google Scholar]
- Kirchherr, J.; Reike, D.; Hekkert, M. Conceptualizing the circular economy: An analysis of 114 definitions. Resour. Conserv. Recycl. 2017, 127, 221–232. [Google Scholar] [CrossRef]
- Bocken, N.M.P.; de Pauw, I.; Bakker, C.A.; van der Grinten, B. Product design and business model strategies for a circular economy. J. Ind. Prod. Eng. 2016, 33, 308–320. [Google Scholar] [CrossRef] [Green Version]
- Linder, M.; Williander, M. Circular Business Model Innovation: Inherent Uncertainties. Bus. Strateg. Environ. 2015, 26, 182–196. [Google Scholar] [CrossRef]
- Antikainen, M.; Valkokari, K. A Framework for Sustainable Circular Business Model Innovation. Technol. Innov. Manag. Rev. 2016, 6, 5–12. [Google Scholar] [CrossRef]
- Osterwalder, A.; Pigneur, Y. Clarifying Business Models: Origins, Present, and Future of the Concept Clarifying Business Models: Origins, Present, and Future of the Concept. Commun. Assoc. Inf. Syst. 2005, 15, 1–125. [Google Scholar]
- Richardson, J. The business model: An integrative framework for strategy execution. Strateg. Chang. 2008, 17, 133–144. [Google Scholar] [CrossRef]
- Lahti, T.; Wincent, J.; Parida, V. A definition and theoretical review of the circular economy, value creation, and sustainable business models: Where are we now and where should research move in the future? Sustainability 2018, 10, 2799. [Google Scholar] [CrossRef]
- Brandstotter, M.; Haberl, M.; Knoth, R.; Kopacek, B.; Kopacek, P. IT on demand–towards an environmental conscious service system for Vienna (AT). In Proceedings of the Third International Symposium on Environmentally Conscious Design and Inverse Manufacturing–EcoDesign, Tokyo, Japan, 8–11 December 2003; pp. 799–802. [Google Scholar]
- Baines, T.S.; Lightfoot, H.W.; Evans, S.; Neely, A.; Greenough, R.; Peppard, J.; Roy, R.; Shehab, E.; Braganza, A.; Tiwari, A.; et al. State-of-the-art in product-service systems. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2007, 221, 1543–1552. [Google Scholar] [CrossRef] [Green Version]
- Goedkoop, M.J.; Van Halen, C.J.G.; Te Riele, H.R.M.; Rommens, P.J.M. Product Service Systems, Ecological and Economic Basics; Ministry of Environment: The Hague, The Netherlands, 1999.
- Manzini, E.; Vezzoli, C. A strategic design approach to develop sustainable product service systems: Examples taken from the “environmentally friendly innovation” Italian prize. J. Clean. Prod. 2003, 11, 851–857. [Google Scholar] [CrossRef]
- Mont, O.K. Clarifying the concept of product–service system. J. Clean. Prod. 2002, 10, 237–245. [Google Scholar] [CrossRef]
- Reim, W.; Parida, V.; Örtqvist, D. Product-Service Systems (PSS) business models and tactics—A systematic literature review. J. Clean. Prod. 2015, 97, 61–75. [Google Scholar] [CrossRef]
- Tukker, A.; Tischner, U. Product-services as a research field: Past, present and future. Reflections from a decade of research. J. Clean. Prod. 2006, 14, 1552–1556. [Google Scholar] [CrossRef]
- Stahel, W.R. Circular Economy. Nature 2016, 435–438. [Google Scholar] [CrossRef] [PubMed]
- Pieroni, M.P.; Blomsma, F.; McAloone, T.C.; Pigosso, D.C.A. Enabling circular strategies with different types of product/service-systems. Procedia CIRP 2018, 73, 179–184. [Google Scholar] [CrossRef]
- Gaiardelli, P.; Resta, B.; Martinez, V.; Pinto, R.; Albores, P. A classification model for product-service offerings. J. Clean. Prod. 2014, 66, 507–519. [Google Scholar] [CrossRef] [Green Version]
- Tukker, A. Product services for a resource-efficient and circular economy—A review. J. Clean. Prod. 2015, 97, 76–91. [Google Scholar] [CrossRef]
- Michelini, G.; Nunes, R.N.; Cunha, R.N.; Costa, J.M.H.; Ometto, A.R. PSS conducting the transition to circular economy. Procedia CIRP 2017, 2–6. [Google Scholar] [CrossRef]
- Bocken, N.; Strupeit, L.; Whalen, K.; Nußholz, J. A Review and Evaluation of Circular Business Model Innovation Tools. Sustainability 2019, 11, 2210. [Google Scholar] [CrossRef]
- Casadesus-masanell, R.; Ricart, J.E. From Strategy to Business Models and onto Tactics. Long Range Plann. 2010, 43, 195–215. [Google Scholar] [CrossRef]
- Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G.; Altman, D.; Antes, G.; Atkins, D.; Barbour, V.; Barrowman, N.; Berlin, J.A.; et al. Preferred reporting items for systematic reviews and meta-analyses: The PRISMA statement. PLoS Med. 2009, 6, e1000097. [Google Scholar] [CrossRef] [PubMed]
- Elo, S.; Kyngäs, H. The qualitative content analysis process. J. Adv. Nurs. 2008, 62, 107–115. [Google Scholar] [CrossRef] [PubMed]
- Pereira, Á.; Carballo-Penela, A.; González-López, M.; Vence, X. A case study of servicizing in the farming-livestock sector: Organisational change and potential environmental improvement. J. Clean. Prod. 2016, 124, 84–93. [Google Scholar] [CrossRef]
- Song, W.; Sakao, T. An environmentally conscious PSS recommendation method based on users’ vague ratings: A rough multi-criteria approach. J. Clean. Prod. 2018, 172, 1592–1606. [Google Scholar] [CrossRef]
- Chen, D.; Chu, X.; Yang, X.; Sun, X.; Li, Y.; Su, Y. PSS solution evaluation considering sustainability under hybrid uncertain environments. Expert Syst. Appl. 2015, 42, 5822–5838. [Google Scholar] [CrossRef]
- Lindahl, M.A.; Sundin, E.B.; Sakao, T.A. Environmental and economic benefits of Integrated Product Service Offerings quantified with real business cases. J. Clean. Prod. 2014, 64, 288–296. [Google Scholar] [CrossRef] [Green Version]
- Salazar, C.; Lelah, A.; Brissaud, D. Eco-designing product service systems by degrading functions while maintaining user satisfaction. J. Clean. Prod. 2015, 87, 452–462. [Google Scholar] [CrossRef]
- Xing, K.; Wang, H.F.; Qian, W. A sustainability-oriented multi-dimensional value assessment model for product-service development. Int. J. Prod. Res. 2013, 51, 5908–5933. [Google Scholar] [CrossRef]
- Peruzzini, M.; Germani, M. Design for sustainability of product-service systems. Int. J. Agil. Syst. Manag. 2014, 7, 206–219. [Google Scholar] [CrossRef]
- Gelbmann, U.; Hammerl, B. Integrative re-use systems as innovative business models for devising sustainable product-service-systems. J. Clean. Prod. 2015, 97, 50–60. [Google Scholar] [CrossRef]
- Stål, H.I.; Jansson, J. Sustainable Consumption and Value Propositions: Exploring Product–Service System Practices Among Swedish Fashion Firms. Sustain. Dev. 2017, 25, 546–558. [Google Scholar] [CrossRef]
- Allais, R.; Gobert, J. A multidisciplinary method for sustainability assessment of PSS: Challenges and developments. CIRP J. Manuf. Sci. Technol. 2016, 15, 56–64. [Google Scholar] [CrossRef]
- Sousa-Zomer, T.T.; Cauchick Miguel, P.A. Sustainable business models as an innovation strategy in the water sector: An empirical investigation of a sustainable product-service system. J. Clean. Prod. 2018, 171, S119–S129. [Google Scholar] [CrossRef]
- Shokohyar, S.; Mansour, S.; Karimi, B. A model for integrating services and product EOL management in sustainable product service system (S-PSS). J. Intell. Manuf. 2014, 25, 427–440. [Google Scholar] [CrossRef]
- Chun, Y.Y.; Lee, K.M. Environmental impacts of the rental business model compared to the conventional business model: A Korean case of water purifier for home use. Int. J. Life Cycle Assess. 2017, 22, 1096–1108. [Google Scholar] [CrossRef]
- Sousa-Zomer, T.T.; Magalhães, L.; Zancul, E.; Cauchick-Miguel, P.A. Exploring the challenges for circular business implementation in manufacturing companies: An empirical investigation of a pay-per-use service provider. Resour. Conserv. Recycl. 2018, 135, 3–13. [Google Scholar] [CrossRef]
- Mourtzis, D.; Vlachou, A.; Zogopoulos, V. Cloud-Based Augmented Reality Remote Maintenance through Shop-Floor Monitoring: A Product-Service System Approach. J. Manuf. Sci. Eng. 2017, 139, 061011. [Google Scholar] [CrossRef]
- Pagoropoulos, A.; Laumann Kjær, L.; Axel Bejbro Andersen, J.; McAloone, T.C. The influence of costs and benefits’ analysis on service strategy formulation: Learnings from the shipping industry. Cogent Eng. 2017, 4. [Google Scholar] [CrossRef]
- Fargnoli, M.; Costantino, F.; Di Gravio, G.; Tronci, M. Product service-systems implementation: A customized framework to enhance sustainability and customer satisfaction. J. Clean. Prod. 2018, 188, 387–401. [Google Scholar] [CrossRef]
- Scheepens, A.E.; Vogtländer, J.G.; Brezet, J.C. Two life cycle assessment (LCA) based methods to analyse and design complex (regional) circular economy systems. Case: Making water tourism more sustainable. J. Clean. Prod. 2016, 114, 257–268. [Google Scholar] [CrossRef]
- Firnkorn, J.; Müller, M. Selling Mobility instead of Cars: New Business Strategies of Automakers and the Impact on Private Vehicle Holding. Bus. Strateg. Environ. 2012, 21, 264–280. [Google Scholar] [CrossRef]
- Firnkorn, J.; Müller, M. What will be the environmental effects of new free-floating car-sharing systems? The case of car2go in Ulm. Ecol. Econ. 2011, 70, 1519–1528. [Google Scholar] [CrossRef]
- Catulli, M.; Cook, M.; Potter, S. Product Service Systems Users and Harley Davidson Riders: The Importance of Consumer Identity in the Diffusion of Sustainable Consumption Solutions. J. Ind. Ecol. 2017, 21, 1370–1379. [Google Scholar] [CrossRef]
- Amaya, J.; Lelah, A.; Zwolinski, P. Design for intensified use in product–service systems using life-cycle analysis. J. Eng. Des. 2014, 25, 280–302. [Google Scholar] [CrossRef]
- Lee, S.; Geum, Y.; Lee, H.; Park, Y. Dynamic and multidimensional measurement of product-service system (PSS) sustainability: A triple bottom line (TBL)-based system dynamics approach. J. Clean. Prod. 2012, 32, 173–182. [Google Scholar] [CrossRef]
- Zhang, W.; Guo, J.; Gu, F.; Gu, X. Coupling life cycle assessment and life cycle costing as an evaluation tool for developing product service system of high energy-consuming equipment. J. Clean. Prod. 2018, 183, 1043–1053. [Google Scholar] [CrossRef]
- Pascual, R.; Siña, M.; Santelices, G.; Román, M.; López Droguett, E. Optimal channel coordination in use-based product-service system contracts. Int. J. Prod. Res. 2017, 55, 6946–6956. [Google Scholar] [CrossRef]
- Kanda, W.; Sakao, T.; Hjelm, O. Components of business concepts for the diffusion of large scaled environmental technology systems. J. Clean. Prod. 2016, 128, 156–167. [Google Scholar] [CrossRef] [Green Version]
- Tukker, A. Eight types of product-service system: Eight ways to sustainability? Experiences from suspronet. Bus. Strateg. Environ. 2004, 13, 246–260. [Google Scholar] [CrossRef]
- Hsieh, H.-F.; Shannon, S.E. Three Approaches to Qualitative Content Analysis. Qual. Health Res. 2005, 15, 1277–1288. [Google Scholar] [CrossRef]
- Lewandowski, M. Designing the Business Models for Circular Economy—Towards the Conceptual Framework. Sustainability 2016, 8, 43. [Google Scholar] [CrossRef]
- Moreno, M.; de los Rios, C.; Rowe, Z.; Charnley, F. A Conceptual Framework for Circular Design. Sustainability 2016, 8, 937. [Google Scholar] [CrossRef]
- Planing, D.P. Business Model Innovation in a Circular Economy—Reasons for Non-Acceptance of Circular Business Models. Open J. Bus. Model Innov. 2015, 1. [Google Scholar]
- Ellen MacArthur Foundation. Towards a Circular Economy: Business Rationale for an Accelerated Transition; Ellen MacArthur Foundation: Cowes, UK, 2015; p. 19. [Google Scholar]
- Lacy, P.; Rutqvist, J. Waste to Wealth, 1st ed.; Palgrave Macmillan: Basingstoke, UK, 2015; ISBN 9781137530684. [Google Scholar]
- Hamers, L.; Hemeryck, Y.; Herweyers, G.; Janssen, M.; Keters, H.; Rousseau, R.; Vanhoutte, A. Similarity measures in scientometric research: The Jaccard index versus Salton’s cosine formula. Inf. Process. Manag. 1989, 25, 315–318. [Google Scholar] [CrossRef]
- Osterwalder, A.; Pigneur, Y. Business Model Generation, 1st ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2010; ISBN 9780470876411. [Google Scholar]
- Ayres, R.U. Industrial metabolism: Theory and practice. In The Greening of Industrial Ecosystems; National Academy Press: Washington, DC, USA, 1994; pp. 23–37. [Google Scholar]
- King, A.M.; Burgess, S.C.; Ijomah, W.; McMahon, C.A. Reducing waste: Repair, recondition, remanufacture or recycle? Sustain. Dev. 2006, 14, 257–267. [Google Scholar] [CrossRef]
- Stahel, W.R. The Utilization-Focused Service Economy. Resource Efficiency and Product Life Extension. In The Greening of Industrial Ecosystems; National Academy Press: Washington, DC, USA, 1994; pp. 178–190. ISBN 0309049377. [Google Scholar]
- Thierry, M.; Salomon, M.; Van Nunen, J.; Van Wassenhove, L. Strategic Issues in Product Recovery Management. Calif. Manage. Rev. 1995, 37, 114–136. [Google Scholar] [CrossRef] [Green Version]
- Bocken, N.M.P.; Short, S.W.; Rana, P.; Evans, S. A literature and practice review to develop sustainable business model archetypes. J. Clean. Prod. 2014, 65, 42–56. [Google Scholar] [CrossRef]
- Gutowski, T.G.; Sahni, S.; Boustani, A.; Graves, S.C. Remanufacturing and Energy Savings. Environ. Sci. Technol. 2011, 45, 4540–4547. [Google Scholar] [CrossRef]
- Intlekofer, K.; Bras, B.; Ferguson, M. Energy implications of product leasing. Environ. Sci. Technol. 2010, 44, 4409–4415. [Google Scholar] [CrossRef]
Industry Sector | ||||
---|---|---|---|---|
Relat. | PSS Type | Article—Case # (If Two or More Cases) | Case Description—Name or Provider (If Available) | Country/Region |
Agriculture | ||||
B2B | UO | ([26]—Case 1) | Farming machinery cooperative | Spain |
B2B | UO | ([26]—Case 2) | Heifer breeding cooperative | Spain |
B2B | UO | ([26]—Case 3) | Fodder provision cooperative | Spain |
Built environment | ||||
B2B | PO | [27] | Elevator provision | China |
B2B | PO | ([28]—Case 2) | Crane-related services | China |
B2B | UO | ([29]—Case 3) | Soil compactor provision—Swepac | Sweden |
B2B | UO | [30] | Monitoring solution for urban services—Azimut Monitoring | France |
B2B | RO | ([29]—Case 2) | Building exteriors cleaning—Qlean Scandinavia | Sweden |
B2C | UO | [31] | Hybrid energy heating system provision | Australia |
B2C | UO | [32] | Hot water provision | Italy |
Clothing | ||||
B2C | PO | ([33]—Case 3) | ‘Trash design’ ECO WISE—Heidenspass | Austria |
B2C | PO | ([34]—Case 1) | Clothes lifecycle care—H&M | Sweden |
B2C | PO | ([34]—Case 2) | Clothes lifecycle care—KappAhl | Sweden |
B2C | PO | ([34]—Case 3) | Clothes lifecycle care—Lindex | Sweden |
B2C | PO | ([34]—Case 4) | Clothes lifecycle care—Gina Tricot | Sweden |
B2C | PO | ([34]—Case 5) | Clothes lifecycle care—Indiska | Sweden |
B2C | PO | ([34]—Case 6) | Clothes lifecycle care—Boomerang | Sweden |
B2C | PO | ([34]—Case 7) | Clothes lifecycle care—Nudie Jeans | Sweden |
B2C | UO | ([34]—Case 8) | Clothes rental—Filippa K | Sweden |
B2C | UO | ([34]—Case 9) | Clothes rental—UFTD | Sweden |
Consumer goods | ||||
B2B2C | UO | [35] | Small household equipment renting | France |
B2B2C | RO | [36] | Community drinking water system | Brazil |
B2C | PO | ([33]—Case 1) | Re-use network ECO WISE—ReVital | Austria |
B2C | PO | ([33]—Case 2) | Re-use enterprise ECO WISE—BAN | Austria |
B2C | PO | [37] | Keyboard-related services | Iran |
B2C | UO | [38] | Water purifier rental | South Korea |
B2C/B2B | UO | [39] | Provision of water purifier | Brazil |
Industrial machinery | ||||
B2B | PO | [40] | Remote maintenance system for machine tools | Greece * |
B2B | RO | ([29]—Case 1) | Paper mill plugs provision—Polyplank | Sweden |
Maritime industry | ||||
B2B | RO | ([41]—Case 1) | Hull cleaning contract | Denmark * |
B2B | RO | ([41]—Case 2) | Steam system audit | Denmark * |
Medical devices | ||||
B2G | UO | [42] | Provision of haemodialysis equipment | Italy * |
Mobility | ||||
B2C | UO | [43] | Family boats rent for water tourism | Netherlands |
B2C | UO | ([28]—Case 1) | Car rental | China |
B2C | UO | [44,45] | Car sharing—car2go | Germany |
B2C | UO | [46] | Car sharing—Zipcar | North America and Europe |
B2C | UO | [47] | Bike sharing—Velo’v | France |
B2G | UO | [48] | Bike sharing—Seoul municipality | South Korea |
Oil, gas, and mining | ||||
B2B | UO | ([49]—Case 1) | Air separation equipment provision—Hangyang Co. | China |
B2B | UO | [50] | Truck tires as a service | Chile |
B2B | RO | ([49]—Case 2) | Oxygen provision—Hangyang Co. | China |
Waste management | ||||
B2G | PO | ([51]—Case 1) | Waste-to-energy systems—Usitall AB | Sweden |
B2G | PO | ([51]—Case 3) | Waste-to-energy and recycling systems—VafabMiljo | Sweden |
B2G/B2B | PO | ([51]—Case 2) | Biogas production—Swedish Biogas International | Sweden |
B2G/B2B | RO | ([51]—Case 4) | Biogas-related solutions—Svensk Biogas | Sweden |
Providers Domain | Product Domain | Customers Domain | ||
---|---|---|---|---|
Key Partners With whom and how to cooperate in providing a solution that enhances resource-effectiveness? | Key Activities What do we need to do to produce, market, and distribute a solution that enhances resource-effectiveness? | Product Features What do we need to change in the physical product to enable a solution that enhances resource-effectiveness? | Customer Relationships How should we communicate and connect to our market to enable a solution that enhances resource-effectiveness? | Channels How should we reach and deliver our solution to our market to enhance resource-effectiveness? |
Key Resources What are the main assets we need to have to produce, market, and distribute a solution that enhances resource-effectiveness? |
CBM Classification | Resource Effectiveness | |||
---|---|---|---|---|
Enhance the Level of Use and Consumption of Products | Enhance the Lifetime of Products, Parts, and Components | Recover Discarded Materials and Energy | Enhance the Application of Materials and Energy | |
Sources of value creation [57] |
|
|
|
|
BMs for circular growth [58] |
|
|
|
|
BMI in a CE [56] |
|
|
| --- |
Circular BM strategies [4] |
|
|
| --- |
Circular BM Types [54] |
|
|
|
|
Circular BM archetypes [55] |
|
|
|
|
Providers Domain | Product Domain | Customers Domain | ||
---|---|---|---|---|
Key Partners With whom and how to cooperate in providing a solution that enhances the level of use and consumption of products? P1 (a1)—Partner with governments or NGOs to raise awareness of customers about wasteful practices of consumption P4 (a2)—Set up intermediate distribution partners to facilitate access to shared products P5 (a2)—Facilitate collective ownership of infrastructure for mutual and local use P10 (a3)—Facilitate risk and responsibility sharing among manufacturer and service providers P14 (a4)—Facilitate risk and responsibility sharing among manufacturer and service providers | Key Activities What do we need to do to produce, market, and distribute a solution that enhances the level of use and consumption of products? P7 (a2)—Consistently track and relocate shareable products among stations to facilitate shared distribution P19 (a5)—Identify and facilitate clients’ process optimisation through consulting, auditing, or training P20 (a5)—Provide installation service to ensure performance | Product Features What do we need to change in the physical product to enable a solution that enhances the level of use and consumption of products? P2 (a1)—Apply design for attachment so that customers desire products less often, e.g., classic style clothes P7 (a2)—[see Key Activities] P8 (a2)—Use IoT solutions to enable sharing without the need for physical stations P11 (a3)—Enable remote monitoring of product functionality or performance to guarantee service provision | Customer Relationships How should we communicate and connect to our market to enable a solution that enhances the level of use and consumption of products? P1 (a1)—[see Key Partners] P3 (a1)—Provide incentives for clients to use or acquire more sustainable options P12 (a3)—Elaborate clear rules and contracts to clarify expected function or performance P13 (a3)—Elaborate rules for service provision that minimise the use of resources while maintaining customers’ satisfaction P15 (a4)—Elaborate service fees and conditions considering length or cycles of product use that are competitive with ownership-based offers P16 (a4)—Offer different service levels for customers to choose from P17 (a4)—Create incentives (e.g., decreased fees) for clients that enable longer lifetimes of products P21 (a5)—Provide knowledge to consumers for improved experience and energy-saving behaviour | Channels How should we reach and deliver our solution to our market to enhance the level of use and consumption of products? P9 (a2)—Develop online platform to facilitate selecting, locating, collecting, and retrieving shareable products P18 (a4)—Develop an online platform to enable service provision from the use of products P22 (a5)—Develop a web-based platform to facilitate access to instructions |
Key Resources What are the main assets we need to have to produce, market, and distribute a solution that enhances the level of use and consumption of products? P6 (a2)—Set up physical stations to facilitate access to shared products |
Providers Domain | Product Domain | Customers Domain | ||
---|---|---|---|---|
Key Partners With whom and how to cooperate in providing a solution that enhances the lifetime of product, parts, and components? P23 (b1)—Provide instruction and training for providers’ workforce for services that enhance product lifetime P31 (b3)—Define maintenance system structure—centralized, decentralised, or distributed P32 (b3)—Identify and develop partners for maintenance provision P33 (b3)—Establish a close relationship between the service provider and manufacturer to facilitate obtaining knowledge for maintenance P40 (b5)—Identify and develop partners for product collection P41 (b5)—Identify and develop partners for the second life of products—e.g., repair shop, second-hand store, charity P47 (b6)—Establish a close relationship between the service provider and manufacturer to facilitate obtaining knowledge for reprocessing | Key Activities What do we need to do to produce, market, and distribute a solution that enhances the lifetime of product, parts, and components? P29 (b2)—Identify and adjust spare parts replacement to part and product lifecycles separately P42 (b5)—Elaborate reverse-logistic schemes building upon forward-logistics capabilities | Product Features What do we need to change in the physical product to enable a solution that enhances the lifetime of product, parts, and components? P34 (b3)—Enable remote monitoring of product condition to predict failure P35 (b3)—Enable remote maintenance of products through virtual reality P36 (b3)—Provide repair kits for consumers P38 (b4)—Enable upgrading by designing easy-to-upgrade products P43 (b5)—Redesign packaging to facilitate product retrieval P48 (b6)—Enable remanufacturing by designing easy-to-remanufacture products P50 (b7)—Use extended-lifetime materials that require less maintenance than their counterparts P51 (b7)—Design robust products for longer lifetimes P52 (b7)—Redesign packaging for optimal lifespan considering multiple uses of transported products | Customer Relationships How should we communicate and connect to our market to enable a solution that enhances the lifetime of product, parts, and components? P24 (b1)—Provide knowledge to consumers to keep products in good condition P25 (b1)—Raise awareness of consumers for behaviours that enhance product lifetime P26 (b1)—Share maintenance guidelines and reliable service providers with clients P27 (b1)—Elaborate and disseminate instructions to prevent improper use of products by clients P36 (b3)—[see Product Features] P37 (b3)—Elaborate clear rules and contracts for maintenance—e.g., define product and part conditions, frequencies, and responsibilities P39 (b4)- Elaborate clear rules and contracts for product upgrading—e.g., define product and part conditions, frequencies, and responsibilities P44 (b5)—Accept products of different manufacturers—e.g., multiple brands P45 (b5)—Encourage consumers to bring their own packaging/container for consumable products P49 (b6)—Elaborate clear rules for reconditioning, refurbishing, or remanufacturing—e.g., define product and part conditions and responsibilities | Channels How should we reach and deliver our solution to our market to enhance the lifetime of product, parts, and components? P28 (b1)—Develop a web-based platform to facilitate access to instructions P30 (b2)—Facilitate selection and acquisition of spare parts P46 (b5)—Enable retrieving products after customer–provider contract is over for new customer use |
Key Resources What are the main assets we need to have to produce, market, and distribute a solution that enhances the lifetime of product, parts, and components? P31 (b3)—[see Key Partners] |
Providers Domain | Product Domain | Customers Domain | ||
---|---|---|---|---|
Key Partners With whom and how to cooperate in providing a solution that recovers discarded materials and energy? P53 (c2)—Identify and develop partners for material collection P58 (c3)—Identify and understand local legal framework, incentives, and waste streams to set up recycling operations P59 (c3)—Identify and develop partners for material recycling, e.g., waste managers or organisations that use specific collected streams as input P61 (c4)—Identify and understand local legal framework, incentives, partners and waste streams to set up energy from waste operations | Key Activities What do we need to do to produce, market, and distribute a solution that recovers discarded materials and energy? P54 (c2)—Enable retrieving products after customer–provider contract is over for recycling P55 (c2)—Develop processes to enable sorting specific material from the collected stream P58 (c3)—[see Key Partners] P60 (c3)—Develop chemical and biological recycling processes and structure P61 (c4)—[see Key Partners] | Product Features What do we need to change in the physical product to enable a solution that recovers discarded materials and energy? --- | Customer Relationships How should we communicate and connect to our market to enable a solution that recovers discarded materials and energy? P54 (c2)—[see Key Activities] P56 (c2)—Accept products of different manufacturers—e.g., multiple brands P57 (c2)—Create incentives for clients or customers to obtain specific material | Channels How should we reach and deliver our solution to our market to recover discarded materials and energy? --- |
Key Resources What are the main assets we need to have to produce, market, and distribute a solution that recovers discarded materials and energy? P60 (c3)—[see Key Activities] P62 (c4)—Develop chemical and biological technology to transform discarded material into heat, energy, or fuel source P63 (c4)—Set up waste to energy infrastructure |
Providers Domain | Product Domain | Customers Domain | ||
---|---|---|---|---|
Key Partners With whom and how to cooperate in providing a solution that enhances the application of materials and energy? P68 (d3)—Develop and implement material and product certification systems (with or without an external partner) P71 (d4)—Develop and implement material and product certification systems (with or without an external partner) | Key Activities What do we need to do to produce, market, and distribute a solution that enhances the application of materials and energy? P66 (d2)—Develop low-impact manufacturing processes that use less water, energy, or toxic material P68 (d3)—[see Key Partners] P71 (d4)—[see Key Partners] | Product Features What do we need to change in the physical product to enable a solution that enhances the application of materials and energy? P65 (d1)—Design/utilise products and components that capture, generate, and function on renewable energy P67 (d2)—Design lighter, smaller, and less powerful products P69 (d3)—Provide bio-based consumables to maintain other products’ lifetimes P70 (d3)—Design products, components, or consumables applying bio-based material only—organic or biodegradable inputs P72 (d4)—Design products, components or consumables applying recycled materials P73 (d4)—Design products for material recovery P74 (d4)—Design for upcycling, e.g., the ‘trash design’ approach for high-end products P75 (d5)—Substitute or eliminate the need for products or functions P76 (d5)—Design for non-optimal product functionality but for system functionality | Customer Relationships How should we communicate and connect to our market to enable a solution that enhances the application of materials and energy? P69 (d3)—[see Product Features] | Channels How should we reach and deliver our solution to our market to enhance the application of materials and energy? P77 (d5)—Favour the use of online platforms and virtual reality to enable access to services and interaction among clients |
Key Resources What are the main assets we need to have to produce, market, and distribute a solution that enhances the application of materials and energy? P64 (d1)—Develop infrastructure to charge fleet using renewable energy |
Circular Strategies (Strategic and Conceptual Levels) | Occurrence in Considered PSS Cases | |||
---|---|---|---|---|
PO PSS 17 Cases | UO PSS 21 Cases | RO PSS 7 Cases | All PSS 45 Cases | |
a1—Reduced consumption | 0% | 14% | 0% | 7% |
a2—Sharing products | 0% | 38% | 14% | 20% |
a3—Result provision | 6% | 5% | 86% | 18% |
a4—Access provision | 0% | 81% | 14% | 40% |
a5—Effective use instruction | 41% | 38% | 43% | 40% |
A—Inner Circles | 41% | 100% | 100% | 78% |
b1—Extended use instruction | 18% | 24% | 14% | 20% |
b2—Spare parts | 6% | 14% | 14% | 11% |
b3—Maintenance | 41% | 62% | 57% | 53% |
b4—Upgrading | 6% | 5% | 14% | 14% |
b5—Take-back | 41% | 29% | 29% | 33% |
b6—Reprocessing | 18% | 19% | 14% | 18% |
b7—Optimal lifespan | 0% | 14% | 29% | 11% |
B—Circling Longer | 65% | 76% | 57% | 69% |
c1—Industrial Symbiosis | 0% | 0% | 0% | 0% |
c2—Facilitate disposal | 59% | 10% | 43% | 33% |
c3—Recycling | 41% | 19% | 43% | 33% |
c4—Energy from waste | 12% | 0% | 14% | 7% |
C—Cascade Use | 59% | 19% | 57% | 40% |
d1—Renewable sources | 0% | 19% | 0% | 9% |
d2—Fewer resources | 6% | 14% | 0% | 9% |
d3—Bio-based resources | 35% | 5% | 29% | 20% |
d4—Recyclable resources | 18% | 10% | 14% | 22% |
d5—Dematerialisation | 6% | 38% | 14% | 22% |
D – Pure Inputs | 47% | 52% | 57% | 51% |
St./St. | a1 | a2 | a3 | a4 | a5 | b1 | b2 | b3 | b4 | b5 | b6 | b7 | c1 | c2 | c3 | c4 | d1 | d2 | d3 | d4 | d5 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
a1 | 1.00 | 0.09 | 0.17 | 0.05 | 0.14 | 0.04 | 0.06 | 0.10 | 0.06 | 0.06 | 0.17 | 0.09 | 0.13 | 0.08 | |||||||
a2 | 1.00 | 0.06 | 0.23 | 0.17 | 0.13 | 0.18 | 0.09 | 0.14 | 0.13 | 0.27 | 0.10 | 0.08 | 0.18 | 0.58 | |||||||
a3 | 1.00 | 0.18 | 0.13 | 0.08 | 0.19 | 0.10 | 0.05 | 0.07 | 0.08 | 0.10 | 0.16 | 0.10 | 0.13 | 0.06 | |||||||
a4 | 1.00 | 0.16 | 0.13 | 0.21 | 0.40 | 0.05 | 0.27 | 0.18 | 0.21 | 0.10 | 0.14 | 0.22 | 0.10 | 0.04 | 0.14 | 0.27 | |||||
a5 | 1.00 | 0.29 | 0.15 | 0.24 | 0.10 | 0.08 | 0.05 | 0.27 | 0.23 | 0.11 | 0.10 | 0.16 | 0.23 | 0.04 | 0.22 | ||||||
b1 | 1.00 | 0.27 | 0.32 | 0.09 | 0.21 | 0.08 | 0.04 | 0.08 | 0.06 | ||||||||||||
b2 | 1.00 | 0.21 | 0.11 | 0.18 | 0.11 | 0.11 | 0.12 | 0.10 | |||||||||||||
b3 | 1.00 | 0.13 | 0.30 | 0.33 | 0.21 | 0.18 | 0.27 | 0.04 | 0.04 | 0.03 | 0.03 | 0.17 | |||||||||
b4 | 1.00 | 0.13 | 0.22 | 0.14 | 0.06 | 0.17 | 0.08 | ||||||||||||||
b5 | 1.00 | 0.28 | 0.25 | 0.20 | 0.26 | 0.06 | 0.20 | 0.24 | 0.14 | ||||||||||||
b6 | 1.00 | 0.30 | 0.10 | 0.16 | 0.13 | ||||||||||||||||
b7 | 1.00 | 0.05 | 0.19 | 0.10 | 0.25 | ||||||||||||||||
c1 | 0.00 | ||||||||||||||||||||
c2 | 1.00 | 0.61 | 0.20 | 0.06 | 0.26 | 0.17 | |||||||||||||||
c3 | 1.00 | 0.06 | 0.15 | 0.18 | 0.09 | ||||||||||||||||
c4 | 1.00 | 0.20 | |||||||||||||||||||
d1 | 1.00 | 0.14 | 0.27 | ||||||||||||||||||
d2 | 1.00 | 0.08 | 0.11 | 0.27 | |||||||||||||||||
d3 | 1.00 | 0.25 | |||||||||||||||||||
d4 | 1.00 | ||||||||||||||||||||
d5 | 1.00 |
Type/Type | A | B | C | D |
---|---|---|---|---|
A—Inner Circles | 1.00 | 0.57 | 0.33 | 0.49 |
B—Circling Longer | 1.00 | 0.29 | 0.32 | |
C—Cascade Use | 1.00 | 0.28 | ||
D—Pure Inputs | 1.00 |
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Guzzo, D.; Trevisan, A.H.; Echeveste, M.; Costa, J.M.H. Circular Innovation Framework: Verifying Conceptual to Practical Decisions in Sustainability-Oriented Product-Service System Cases. Sustainability 2019, 11, 3248. https://doi.org/10.3390/su11123248
Guzzo D, Trevisan AH, Echeveste M, Costa JMH. Circular Innovation Framework: Verifying Conceptual to Practical Decisions in Sustainability-Oriented Product-Service System Cases. Sustainability. 2019; 11(12):3248. https://doi.org/10.3390/su11123248
Chicago/Turabian StyleGuzzo, Daniel, Adriana Hofmann Trevisan, Marcia Echeveste, and Janaina Mascarenhas Hornos Costa. 2019. "Circular Innovation Framework: Verifying Conceptual to Practical Decisions in Sustainability-Oriented Product-Service System Cases" Sustainability 11, no. 12: 3248. https://doi.org/10.3390/su11123248
