Analysis of Production Safety in the Construction Industry of China in 2018

by
Xin-Hui Zhou
1,
Shui-Long Shen
2,*,
Ye-Shuang Xu
1 and
An-Nan Zhou
3
1
State Key Laboratory of Ocean Engineering, Department of Civil Engineering, School of Naval Architecture, Ocean, and Civil Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2
Department of Civil and Environmental Engineering, College of Engineering, Shantou University, Shantou 515063, China
3
Civil and Infrastructure Engineering Discipline, School of Engineering, Royal Melbourne Institute of Technology (RMIT), Victoria 3001, Australia
*
Author to whom correspondence should be addressed.
Sustainability 2019, 11(17), 4537; https://doi.org/10.3390/su11174537
Submission received: 8 July 2019 / Revised: 16 August 2019 / Accepted: 18 August 2019 / Published: 21 August 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
Construction accidents are a significant hazard to the community, affecting sustainable development. This paper summarizes the safety situation of the construction industry in China over the past ten years. Detailed analysis is performed on fatal accidents that occurred in 2018 to reveal the spatiotemporal distribution pattern and characters of construction safety accidents. The construction failures are mainly attributed to management aspects rather than technical aspects. A case involving a major accident during shield tunnel construction in Foshan, Guangdong, in 2018 is investigated in detail. Strategic environmental assessment (SEA) is used to analyze the management issues of the Foshan metro project during planning, geological investigation, design, and implementation of construction works. The SEA result shows that the safety risk was very high with a low total SEA score. Based on the analysis, a guideline for safety construction management for sustainability is proposed.

1. Introduction

China has experienced rapid economic development over the last two decades, especially in urban infrastructure construction, which is a miracle of human achievement. Currently, the construction industry plays a crucial role in the national economy of China. The GDP output value from the construction industry was 23.5 trillion RMB¥ ($USD3.4 trillion) in 2018 [1], whereas China’s total GDP was 90 trillion RMB¥ ($USD13 trillion) [2]. In 2018, the housing construction area increased to 14.09 billion square meters [1]. However, this rapid development came at the cost of the collapse of the environment and human health. Although China’s construction industry has continued to develop in recent years, it is still labor-intensive and serves as a typical example of an extensive economy, due to its low technology use and unbalanced development. Some situations caused the collapse of ecosystems and even loss of life due to safety failures [3,4,5]. In recent years, not only natural hazards [6] but also construction-induced accidents have threatened safety and sustainable development [7,8]. Thus, this is not a sustainable development mode for the environment, the economy, and society. Sustainability means making sustained improvements to peoples’ quality of life. Kelly [9] stated that “the construction and engineering sectors have a hugely important role to play in delivering the infrastructure for a sustainable future”. The Institution of Civil Engineers [10] state that “sustainable development is now absolutely central to civil engineering and we must organize ourselves accordingly”.
The construction industry in China features scattered construction sites, complex construction environments, a large number of personnel, and high mobility [11]. These features of China’s construction industry result in high frequency of safety accidents during construction activities. However, the safety of construction engineering is of great significance for the sustainable development of the economy and social stability. The Chinese government identified these problems and tried to change this development mode recently. In recent years, the Chinese government issued and amended several Laws and regulations on environmental protection and sustainable development, e.g., Construction Law [12], Safety Production Law [13], Environmental Protection Law [14], and Urban and Rural Planning Law [15]. These laws and regulations tried to decelerate the construction speed and advocated strategic environmental assessment (SEA) during the planning, design, and implementation of construction works [16,17].
The construction industry is high-risk and can cause significant impacts to the environment and human health [18,19,20]. In response, with the rapid development of the construction industry, there have been many studies on various topics aiming to improve safety in the construction industry. The research topics can be mainly clustered into three major groups, namely, the safety management process, the impact of individual and group or organizational characteristics, and accident data [21]. From the perspective of the safety management process, research has become more comprehensive on safety measures [22,23], safety assessments [24,25], safety knowledge [26,27], safety monitoring [28,29], etc. The study on the characteristics of stakeholders’ involvement in construction, namely, site workers [30,31] and groups or organizations [30,32], is crucial to enhance construction safety. Moreover, accident data is the basis of many studies, including accident statistics [20,33], accident cost analysis [34], and accident causation [35]. This paper belongs to the latter research group, though incorporates accident statistics and management analysis.
This paper summarizes the fatal accidents in the construction industry in China over the past ten years. The objectives of this study are: (i) to recognize the status quo and trends of safety in the construction industry in China; (ii) to analyze the features of accidents; (iii) to provide a basis for the government to establish the management regulations for sustainable development by reporting and analyzing the only major accident based on SEA; and (iv) to propose the mitigation measures for project management regarding accidents.

2. Background

Figure 1 summarizes the fatal accidents related to production safety in the construction industry in the past ten years in China. As shown in Figure 1, from 2009 to 2015, the numbers of accidents and fatalities showed a clear decreasing trend annually, which indicates that production safety gradually improved in general. However, the number of accidents per annum from 2016 to 2018 increased significantly. A reason for the sudden increase in accidents in 2016 is that the way accident data is reported was adjusted [36]. The validation date of the former reporting regulations for production safety accidents, established in 2014, became invalid in 2016. A more comprehensive statistical report regulation on production safety accidents was issued and implemented in 2016 [37]. The number of non-fatal, small accidents and number of deaths after an accident should be included in the report data under the new reporting regulations, which led to a significant increase in the number of reported accidents and deaths. However, the main reason for the annual increase in the numbers of accidents and fatalities since 2016 is the ineffective governance in the safety management. It is worth noting that the data in Figure 1 is from MOHURD [36], which does not fully cover all accidents for the problems in the accident reporting system and its implementation in China. Although some less serious accidents may not be reported, the data is still important for research on the overall trends.
Table 1 shows the accident classification standards in China. The classifications are defined according to the following three aspects: death toll, seriously injured toll, and direct economic loss [38]. As summarized in Table 1, accidents are classified into four levels: particularly serious accidents, major accidents, large accidents, and general accidents. The data in Figure 1 includes four levels of accidents. According to Table 1, in 2018 there were 734 production accidents and 840 deaths in construction engineering projects, which include 1 major accident and 21 large accidents, with a total of 87 deaths. The number of large accidents decreased by two but the total number of accidents increased by 42 from those in 2017. There were no particularly serious accidents in China in 2018. Overall, within the past 10 years the situation of production safety in construction projects was generally stable in China, whereas the past 3 years has seen an increasing number of accidents and fatalities.

3. Analysis on Safety Accidents

3.1. Accident Types

According to MOHURD (2018), the production safety accidents related to construction engineering can be divided into the following six types: collapse accidents, falling from heights, struck by objects, mechanical injury accidents, crane-related accidents, and other types of accidents [39]. The “other” types include vehicle injuries, electric shocks, poisoning, fires, and explosions. Figure 2 shows the number and proportion of various types of accidents in China in 2018, including the four levels of accidents. As shown in Figure 2, the percentage of falling accidents is the largest, accounting for 52.18%, while being struck by objects and mechanical injury accidents reached 15.2% and 5.86%, respectively. The percentages of crane-related accidents and collapse accidents were similar (both around 7.4%), whereas the percentage of other types of accidents was 11.85%. Falling from heights was the most frequent type of accident in the construction industry, accounting for more than half of the total number of accidents occurring in 2018.
Figure 3 illustrates the number and proportion of large accidents in 2018. As shown in Figure 3, 21 large accidents in 2018 included 9 collapse accidents, 4 crane-related accidents, 2 falling from heights accidents, 1 case of mechanical injury accident, 5 cases of other types of accident, including 1 case of electric shock, 1 case of landslide, and 3 cases of poisoning and asphyxiation. Although there were 112 cases of people being struck by objects, no large accidents of this type occurred in 2018. The number of collapse accidents was ranked fourth among the total accidents, however, first in the category of large accidents, which implies that the consequences of collapse accidents are often more serious.

3.2. Time Period of Accidents

Figure 4 demonstrates the monthly distribution of four levels of accidents with death numbers in 2018. As shown in Figure 4, the accidents in 2018 mainly occurred in April to September, whereas the number of accidents was lower after October and before March. The month with the lowest number of accidents was February. This can likely be attributed to the traditional Chinese Spring Festival in February, during which most construction projects were suspended.
The time distribution for large accidents with deaths in 2018 is presented in Figure 5. As shown in Figure 5, the large accidents in 2018 mainly occurred in the morning. No accidents were reported around noon, because in China, midday is generally a rest time. There were still some accidents reported after 18:00, which may be due to overtime work during tight construction periods.

3.3. Provincial Distribution of Accidents

The provincial distribution of production safety accidents was uneven in 2018. The provincial distribution was closely related to the economic development status and supervision intensity of each province. Figure 6 shows the number of accidents and gross domestic product (GDP) in different provinces of mainland China from 2016 to 2018. The top ten provinces in terms of number of accidents were Jiangsu, Guangdong, Chongqing, Sichuan, Anhui, Zhejiang, Fujian, Heilongjiang, Gansu, and Hubei, according to the accident statistics in 2018. It is noted that four provinces (Sichuan, Heilongjiang, Fujian, and Gansu) were newly ranked in the top ten in 2018. Furthermore, the number of accidents in these four provinces increased annually from 2016 to 2018. This statistical result can be attributed to the fast-booming economy and inadequate security awareness in these provinces from 2016 to 2018.
Although the number of accidents in Jiangsu, the second province in terms of provincial GDP, was the highest in recent years, its safety situation has improved, as the trend shows a clear decrease. In addition, the number of accidents and deaths in 2018 in Ningxia, Hebei, Hainan, Shaanxi, Beijing, Qinghai, Shanghai, Shandong, and Liaoning increased compared to in 2017. Most of these provinces, such as Beijing, Shanghai, and Shandong, feature high GDP outputs. Generally, the economically developed provinces are at greater risk of production safety accidents due to the large number and large scale of construction projects. Some areas with relatively low economic development, such as Hainan, Ningxia, and Qinghai, experienced rapid development due to the increase in government investment in recent years, and therefore, the construction industry in these provinces expanded accordingly. However, the technology and management of production activities in these provinces did not develop simultaneously. As a result, the number of production safety accidents also increased.
In 2018, fifteen provinces in China suffered from large or major safety accidents in the construction industry. One major accident and two large accidents occurred in Guangdong Province, with a total of 19 deaths. Although there was only one major accident in China in 2018, it still caused great loss to life and property—this was the Foshan shield tunnel collapse accident. The details of this major accident are reported in the following chapter to explain the background, development process, and causes of this accident.

4. A Case Study of Major Accident

On February 7, 2018, a collapse accident occurred (8:40 p.m.) during the shield tunnel construction of Huyong Station to Ludaohu Station in the first phase of rail transit line 2 in Foshan City, Guangdong Province. Figure 7 illustrates the geographical location of this safety accident, showing the ground collapse. The ground collapse was approximately 6 m to 8 m in depth. The area of the ground collapse was about 4192 m2 and the volume of the collapse was close to 25,000 m3 [40]. Based on the standards shown in Table 1, this accident was classified as a major accident, which resulted in 11 deaths, 1 missing person, 8 injuries, and about 53.238 million RMB¥ ($USD7.724 million) direct economic loss. Yu et al. [41] investigated the technical issues related to the accident. The results showed that this accident was caused by the leakage of the brush seals at the tail of the shield machine [41]. This collapse accident was the only major accident in the construction industry in 2018. The post-accident report showed that there were many management problems in this project [40].

4.1. Accident Process

Table 2 tabulates the development process of the accident over time. On 7 February 2018, the shield machine was located in a complex geological environment at a depth of about 30.5 m, where the ground contains mucky silt, silty sand, and medium sand, with confined water. During the assembly operation of the segment, the soil warehouse pressure suddenly increased and the tail of the shield machine appeared to sink with the seepage. Although the construction workers immediately took urgent plugging measures, the leakage and sand blasting area continued to expand, which caused the shield machine and segment structure to deform downward. Once the tunnel structure failed, a huge amount of the muddy sand suddenly poured into the tunnel, which pushed the shield machine trolley back approximately 700 m. Meanwhile, the mud-sand flow and the associated air waves knocked down or buried some of the workers, which caused heavy casualties.

4.2. Accident Causes

According to the investigation from the Guangdong Provincial Government [40], there are three direct technical causes of the accident [41]: (i) the geological and hydrological conditions at the site were very challenging, and therefore the risk of groundwater leakage was high when the shield machine passed through this section; (ii) the sealing device at the tail of the shield machine did not work well during the construction process. Some seepage channels were generated under high external water and earth pressures; and (iii) after the tunnel structure failed, a large amount of muddy sand swiftly entered the tunnel, forming strong mud-sand flows and air waves along the longitudinal direction of the tunnel.
In addition, the government investigation showed the management causes of the accident [40]. This was an engineering procurement construction (EPC) project. Figure 8 shows the EPC management relationship chart. For comparison, the original mode of EPC project management is also presented in Figure 8a. As shown in Figure 8b, there were 12 parties involved in the construction management of this project, involving investment, construction, supervision, operation, exploration, design, and labor dispatch. As shown in Figure 8, compared to the original EPC mode, there are many management levels, resulting in increasing safety and environmental risks. For example, the right-line shield machine experienced several instances of shield tail leakage before the accident, which presented great risk to the shield tunneling. The construction party did not eliminate this safety hazard. As a violation of the Labor Law [42], the working hours of construction site staff were extended in this project. Moreover, safety production inspections were not carried out regularly. There was inadequate supervision of some government departments, such as the transportation bureau, fire station, and production safety supervision bureau. The project was a safety production risk point in Foshan city, nevertheless it was constructed without the relevant formalities, such as construction project planning permit, and fire design plan reviews. Even worse, some construction workers continued to carry out rescue work in the tunnel in this dangerous situation, which led to serious casualties. Technical problems were the direct cause of this collapse accident, whereas adequate safety management could have avoided the accident.

4.3. SEA Analysis

Strategic environmental assessment (SEA) was proposed and applied to analyze sustainable development problems related to the social, economic, cultural, human health, and environmental [43] factors at a strategic level. Shepherd and Ortolano [44] summarized six principles for SEA effectiveness in promoting sustainable urban development. To check the risks of metro tunnel construction at the strategic level, SEA analysis was used in this paper and applied to the construction management of Foshan metro line 2.
The evaluation of the project management of Foshan Line 2 is presented in Table 3. The score is given according to the following management factors: (1) sustainability principles were considered in municipal management and urbanization phases, but were insufficient during the construction phase; (2) there was no simultaneous assessment of the impact on the surrounding environment after the construction started; (3) many factors were not considered relating to the cumulative impacts; (4) there was a problem with sealing of the shield machine that was not effectively solved; (5) land subsidence monitoring was carried out, with 19 alarms issued from 1 June 2017, to 7 February 2018, but inappropriate disposal methods were taken when dangerous situations occurred; (6) although there were a lot of government and company regulations, they are not well implemented during the construction process, and the supervision work was inadequate. As shown in Table 3, only 12 out of a total of 30 points are obtained, indicating that the environmental and construction risk of Foshan Line 2 was very high based on the SEA analysis.

5. Discussion

To ensure sustainable development, it is crucial to analyze previous accidents. This collapse was judged a liability accident by the Guangdong provincial government [40]. This accident revealed some potential project management weaknesses. With a low total score of only 12 out of 30 for the SEA assessment, the safety risk of this project was very high. The contractor showed insufficient management of safety risks, improper emergency response, and untimely evacuation of personnel, which were all responsible for this accident. In addition, effective technical and management measures were not taken to eliminate hidden risks, e.g., the defective performance of shield tail seals. To avoid similar accidents in the future, the following guidelines for risk management based on the conducted analysis are proposed (see Figure 9).
(i)
Step I: Incorporation of SEA. We propose the SEA concept be incorporated into project management. Strategic risk assessment should be conducted at the project level. The total score of the SEA should be higher than 24. He et al. [14] verified that when an SEA score increased from 16 to 24, the environmental risk (land subsidence) was reduced greatly.
(ii)
Step II: Limitation of Construction Speed. Based on SEA results, the appropriate construction speed of the project should be discussed and determined by the supervising government body, the client, and the contractor.
(iii)
Step III: Strengthen Safety Management. There are many subcontractors with loose connections, and it is crucial to reduce the numbers of subcontractors. The training of the laborers should be improved. However, when the number of subcontractors cannot be reduced, supervision and monitoring should be improved during implementation. An operational manual should be distributed to all engineers and workers in the field. Moreover, overtime work in the field should be limited.
(iv)
Step IV: Establishment of Monitoring and Early Warning System. The full monitoring system should include not only field monitoring but should also establish a working group application for cell phones. An overview of the field situation should be uploaded each day, and when a risk warning is received, this information should be uploaded every minute. A comprehensive safety early warning system should be established to replace the passive after-the-fact safety management model with active advanced warning.
After these guidelines are implemented, the risks will be reduced greatly.

6. Conclusions

This paper analyzed the production safety in the Chinese construction industry. The management reasons were investigated in detail via the SEA concept. Guidelines for risk-control management in construction were proposed to ensure community sustainability. Major conclusions are drawn as follows:
(1)
Safety accidents cause great losses of life and property, which expose the problems in construction management hindering the sustainable development of society. Over the past ten years, the number of fatal accidents first steadily declined from 2009 to 2015, however the production safety situation during the most recent three years became worse. In addition, large accidents that cause mass casualties have not been completely prevented in China.
(2)
The analysis of the accidents in 2018 shows that safety development was distributed unevenly in China. Jiangsu province had the largest number of fatal accidents in recent years, but the situation improved in 2018. The seasonal distribution of fatal accidents shows that the lowest number of accidents occurred in February, and the accidents mainly occurred in the morning over a one-day period. The most frequent accident type was falling from heights; nevertheless, the most common large accidents were collapses.
(3)
The management reasons were investigated through a field failure case study of the shield tunnel construction in Foshan, Guangdong Province. SEA was used in an environmental impact assessment to analyze the safety risks for this case. According to the SEA results, inadequate management of this project led to high safety risks. Inadequate safety management often leads to the deterioration of other factors, e.g., personnel, facilities, and environmental factors, and ultimately lead to accidents. At the same time, proper safety management can identify and eliminate various potential hazards. Therefore, it is important to enhance safety management during construction.
(4)
To ensure production safety in the future, a guideline based on SEA was proposed, including the following 4 aspects: (i) an SEA score over 24; (ii) limitation of construction speed; (iii) strengthened safety management.; (iv) establishment of monitoring and early warning systems. Moreover, the accident reporting system is crucial in studying accidents, which is closely related to the experience of the accidents. Thus, an integral accident reporting system, including fatal, trivial, and even potential accidents, detailed classification, and comprehensive impacts, is also highly recommended.

Author Contributions

This paper represents a result of collaborative teamwork. S.-L.S. developed the concept of the manuscript. X.-H.Z. drafted the manuscript. Y.-S.X. provided constructive suggestions and revised the manuscript. A.-N.Z. revised the manuscript. The four authors contributed equally to this work.

Funding

The research was funded by the Innovative Research Funding of the Science and Technology Commission of Shanghai Municipality (Grant No. 18DZ1201102), and the National Natural Science Foundation of China (NSFC) (973 Program: 2015CB057802).

Acknowledgments

The authors would like to express their sincere appreciation to the anonymous reviewers and editors, whose constructive suggestions helped the authors to rethink and rework the manuscript to improve the quality greatly.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. China Construction Industry Association (CCIA). Statistical Analysis of Construction Industry Development in 2018. Available online: http://www.zgjzy.org/menu20/newsDetail/2010.html (accessed on 11 April 2019). (In Chinese).
  2. National Bureau of Statistics of People’s Republic of China (NBSPRC). The Statistical Communique of the National Economic and Social Development of the People’s Republic of China. Available online: http://data.stats.gov.cn/publish.htm?sort=1 (accessed on 28 February 2019). (In Chinese)
  3. Lyu, H.M.; Shen, S.L.; Zhou, A.N.; Yang, J. Perspectives for flood risk assessment and management for mega-city metro system. Tunn. Undergr. Space Technol. 2019, 84, 31–44. [Google Scholar] [CrossRef]
  4. Lyu, H.M.; Shen, S.L.; Zhou, A.N.; Zhou, W.H. Flood risk assessment of metro systems in a subsiding environment using the interval FAHP-FCA approach. Sustain. Cities Soc. 2019, 101682. [Google Scholar] [CrossRef]
  5. Wu, Y.X.; Lyu, H.M.; Han, J.; Shen, S.L. Dewatering-induced building settlement around a deep excavation in soft deposit in Tianjin, China. J. Geotech. Geoenviron. Eng. 2019, 145, 2045. [Google Scholar] [CrossRef]
  6. Lyu, H.M.; Wu, Y.X.; Shen, J.S.; Zhou, A.N. Assessment of social-economic risk of Chinese dual land use system using fuzzy AHP. Sustainability 2018, 10, 2451. [Google Scholar] [CrossRef]
  7. Chai, J.C.; Shen, S.L.; Ding, W.Q.; Zhu, H.H.; Cater, J.P. Numerical investigation of the failure of a building in Shanghai, China. Comput. Geotech. 2014, 55, 482–493. [Google Scholar] [CrossRef]
  8. Wang, Z.F.; Shen, S.L.; Modoni, G. Enhancing discharge of spoil to mitigate disturbance induced by horizontal jet grouting in clayey soil: Theoretical model and application. Comput. Geotech. 2019, 111, 222–228. [Google Scholar] [CrossRef]
  9. Institution of Civil Engineers (ICE). Sustainable Development Goals and Civil Engineering. Available online: https://www.designingbuildings.co.uk/wiki/Sustainable_Development_Goals_and_civil_engineering#Sustainable_futures (accessed on 26 July 2019).
  10. Institution of Civil Engineers (ICE). Council puts Sustainability Top of Education Curriculum. Available online: https://www.ice.org.uk (accessed on 17 December 2002).
  11. Zhang, S.L.; Yuan, S. A study on spatial differences of housing and municipal works safety accidents in China and their evolution. China Saf. Sci. J. 2014, 24, 133–137. [Google Scholar] [CrossRef]
  12. Ministry of Justice of the People’s Republic of China (MJPRC). Construction Law of People’s Republic of China. Available online: http://www.moj.gov.cn/Department/content/2019-06/11/592_236649.html (accessed on 11 June 2019). (In Chinese)
  13. Ministry of Justice of the People’s Republic of China (MJPRC). Safety Production Law of People’s Republic of China. Available online: http://www.moj.gov.cn/Department/content/2014-09/02/592_201265.html (accessed on 2 September 2014). (In Chinese)
  14. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). Environmental Protection Law of the People’s Republic of China. Available online: http://zfs.mee.gov.cn/fl/201404/t20140425_271040.shtml) (accessed on 25 April 2014). (In Chinese)
  15. Ministry of Ecology and Environment of the People’s Republic of China (MEEPRC). Urban and Rural Planning Law of the People’s Republic of China. Available online: http://fgs.mee.gov.cn/fl/201906/t20190605_705768.shtml (accessed on 23 April 2019). (In Chinese)
  16. Xu, Y.S.; Shen, S.L.; Ren, D.J.; Wu, H.N. Analysis of factors in ground subsidence in Shanghai: A view based on a strategic environmental assessment. Sustainability 2016, 8, 573. [Google Scholar] [CrossRef]
  17. He, X.C.; Yang, T.L.; Shen, S.L.; Xu, Y.S.; Arulrajah, A. Land subsidence control zone and policy for environmental protection of Shanghai. Int. J. Environ. Res. Public Health. 2019, 16, 2729. [Google Scholar] [CrossRef]
  18. Zhao, X.H.; Cheng, W.C.; Shen, J.S.; Arulrajah, A. Platform collapse incident of a power plant in Jiangxi, China. Nat. Hazards 2017, 87, 1259–1265. [Google Scholar] [CrossRef]
  19. Lyu, H.M.; Cheng, W.C.; Shen, J.S. Investigation of collapsed building incidents on soft marine deposit: Both from social and technical perspectives. Land 2018, 7, 20. [Google Scholar] [CrossRef]
  20. Meng, W.L.; Shen, S.L.; Zhou, A.N. Investigation on fatal accidents in Chinese construction industry between 2004 and 2016. Nat. Hazards 2018, 94, 655–670. [Google Scholar] [CrossRef]
  21. Zhou, Z.; Goh, Y.M.; Li, Q. Overview and analysis of safety management studies in the construction industry. Saf. Sci. 2015, 72, 337–350. [Google Scholar] [CrossRef]
  22. Liu, P.; Li, Q.; Bian, J.; Song, L.; Xiahou, X. Using interpretative structural modeling to identify critical success factors for safety management in subway construction: A china study. Int. J. Environ. Res. Public Health 2018, 15, 1359. [Google Scholar] [CrossRef] [PubMed]
  23. Mahfuth, K.; Loulizi, A.; Al Hallaq, K.; Tayeh, B.A. Implementation Phase Safety System for Minimising Construction Project Waste. Buildings 2019, 9, 25. [Google Scholar] [CrossRef]
  24. Gunduz, M.; Ahsan, B. Construction safety factors assessment through frequency adjusted importance index. Int. J. Ind. Ergon. 2018, 64, 155–162. [Google Scholar] [CrossRef]
  25. Lyu, H.M.; Sun, W.J.; Shen, S.L.; Zhou, A.N. A newly designed expert system of triangular fuzzy AHP and its application to risk analysis for metro tunnel construction. J. Constr. Eng. Manag. 2019, 1757. [Google Scholar] [CrossRef]
  26. Bożena, H.; Mariusz, S. Methodology of Analysing the Accident Rate in the Construction Industry. Procedia Eng. 2017, 172, 355–362. [Google Scholar] [CrossRef]
  27. Hossain, M.A.; Abbott, E.L.; Chua, D.K.; Nguyen, T.Q.; Goh, Y.M. Design-for-safety knowledge library for BIM-integrated safety risk reviews. Autom. Constr. 2018, 94, 290–302. [Google Scholar] [CrossRef]
  28. Kim, D.; Liu, M.; Lee, S.; Kamat, V.R. Remote proximity monitoring between mobile construction resources using camera-mounted UAVs. Autom. Constr. 2019, 99, 168–182. [Google Scholar] [CrossRef]
  29. Umer, W.; Li, H.; Lu, W.; Szeto, G.P.Y.; Wong, A.Y. Development of a tool to monitor static balance of construction workers for proactive fall safety management. Autom. Constr. 2018, 94, 438–448. [Google Scholar] [CrossRef]
  30. Low, B.K.L.; Man, S.S.; Chan, A.H.S.; Alabdulkarim, S. Construction worker risk-taking behavior model with individual and organizational factors. Int. J. Environ. Res. Public Health 2019, 16, 1335. [Google Scholar] [CrossRef] [PubMed]
  31. Chi, S.; Han, S.; Kim, D.Y. Relationship between unsafe working conditions and workers’ behavior and impact of working conditions on injury severity in US construction industry. J. Constr. Eng. Manag. 2012, 139, 826–838. [Google Scholar] [CrossRef]
  32. Fargnoli, M.; Lombardi, M. Preliminary Human Safety Assessment (PHSA) for the Improvement of the Behavioral Aspects of Safety Climate in the Construction Industry. Buildings 2019, 9, 69. [Google Scholar] [CrossRef]
  33. Altunkaynak, B. A statistical study of occupational accidents in the manufacturing industry in Turkey. Int. J. Ind. Ergon. 2018, 66, 101–109. [Google Scholar] [CrossRef]
  34. Umar, T. Briefing: Cost of accidents in the construction industry of Oman. Proc. Inst. Civ. Eng. Munic. Eng. 2017, 170, 68–73. [Google Scholar] [CrossRef]
  35. Hoła, A.; Sawicki, M.; Szóstak, M. Methodology of classifying the causes of occupational accidents involving construction scaffolding using pareto-lorenz analysis. Appl. Sci. 2018, 8, 48. [Google Scholar] [CrossRef]
  36. Ministry of Housing and Urban-Rural Development of the People’s Republic of China (MOHURD) (2009–2018). Circular on the Situation of Production Safety Accidents in Housing Municipal Engineering. Available online: http://www.mohurd.gov.cn/wjfb/index.html (accessed on 22 March 2019). (In Chinese)
  37. Ministry of Emergency Management of the People’s Republic of China (MEMPRC). Available online: http://www.chinasafety.gov.cn/gk/gwgg/201612/t20161208_241624.shtml (accessed on 8 December 2016). (In Chinese)
  38. General Office of the State Council of the People’s Republic of China (GOSCPRC). Report on Production Safety Accident and Regulations of Investigation and Treatment. Available online: http://www.gov.cn/flfg/2007-04/19/content_589264.htm (accessed on 19 April 2007). (In Chinese)
  39. Ministry of Housing and Urban-Rural Development of the People’s Republic of China (MOHURD). Safety Standards for Prevention and Control of Construction Accidents, JGJ/T429-2018. Available online: http://www.mohurd.gov.cn/wjfb/201808/t20180821_237293.html (accessed on 14 February 2018). (In Chinese)
  40. Emergency Management Bureau of Foshan (EMBF). Investigation Report on “2.7” Leakage and Collapse Accident in the First Phase of the Rail Transit Line 2 Project of Foshan City, Guangdong Province. Available online: http://fssyjglj.foshan.gov.cn/ajdt/gzdt/201808/t20180802_7172561.html (accessed on 1 August 2018). (In Chinese)
  41. Yu, C.; Zhou, A.N.; Chen, J.; Arulrajah, A.; Horpibulsuk, S. Analysis of a tunnel failure caused by leakage of the shield tail seal system. Undergr. Space 2018. [Google Scholar] [CrossRef]
  42. Ministry of Justice of the People’s Republic of China (MJPRC). Labor Law of People’s Republic of China. Available online: http://www.moj.gov.cn/Department/content/2019-01/17/592_227066.html (accessed on 17 January 2019). (In Chinese)
  43. Therivel, R. Systems of Strategic Environmental Assessment. Environ. Impact Assess. Rev. 1993, 13, 145–168. [Google Scholar] [CrossRef]
  44. Shepherd, A.; Ortolano, L. Strategic environmental assessment for sustainable urban development. Environ. Impact Assess. Rev. 1996, 16, 321–335. [Google Scholar] [CrossRef]
Sustainability 11 04537 g001 550

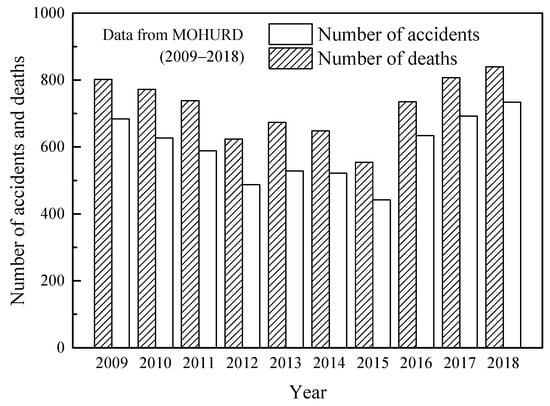

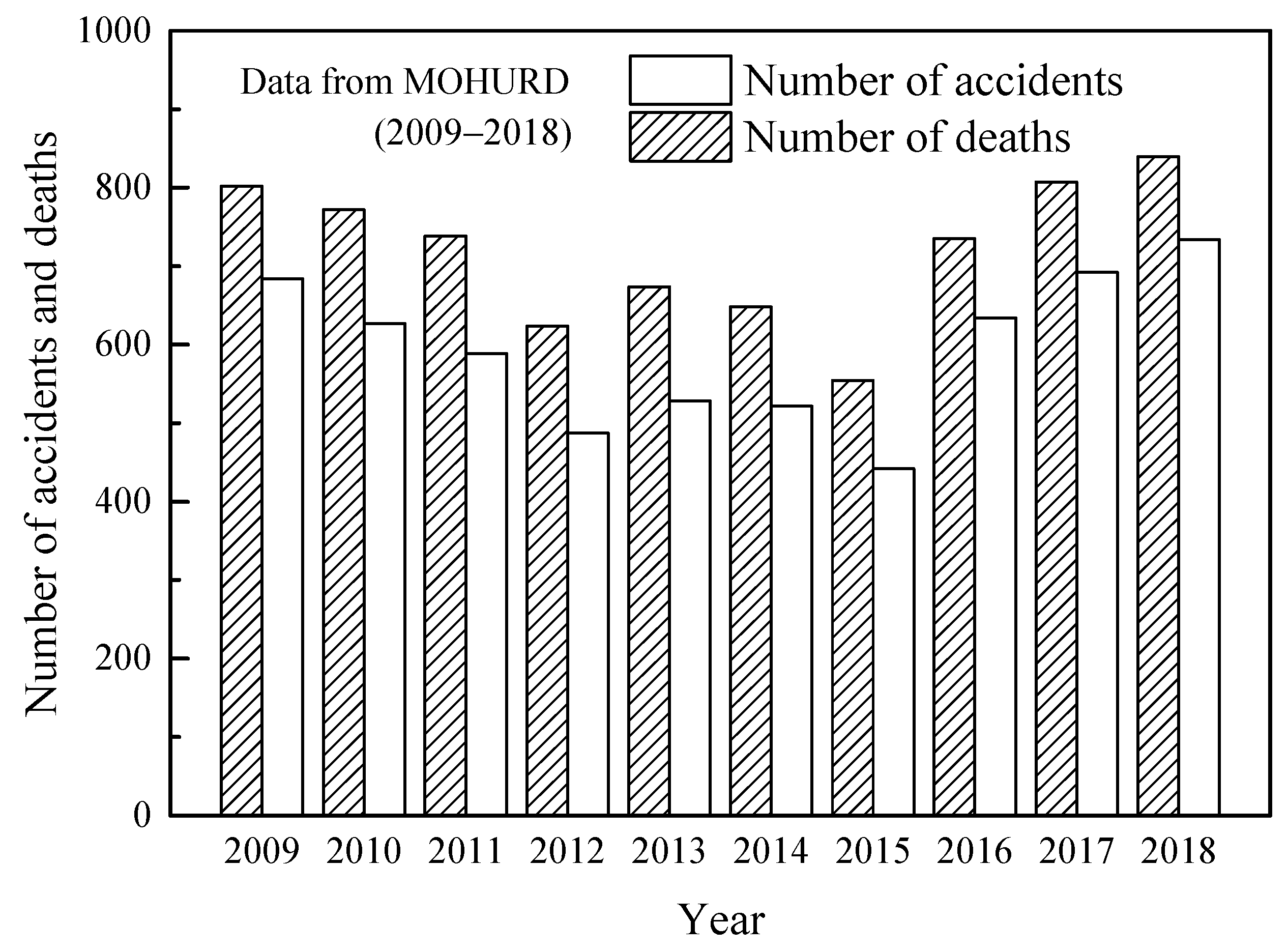

Figure 1. Fatal accidents related to production safety from 2009 to 2018 in China.
Figure 1. Fatal accidents related to production safety from 2009 to 2018 in China.
Sustainability 11 04537 g001
Sustainability 11 04537 g002 550

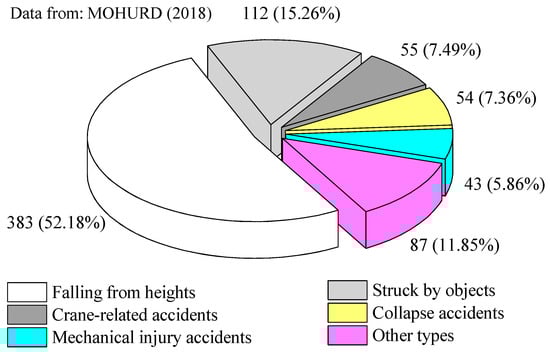

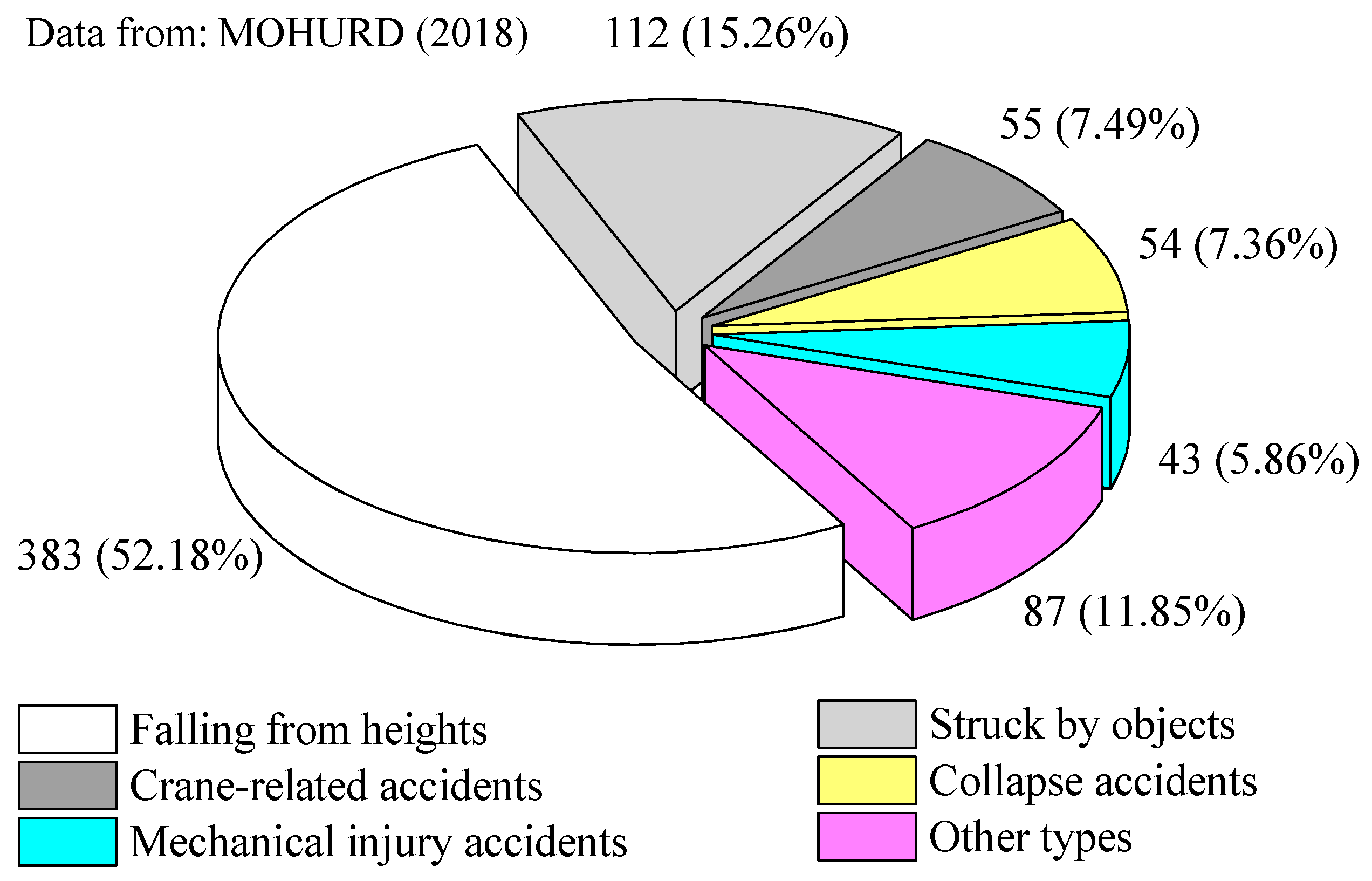

Figure 2. Accident types in 2018.
Figure 2. Accident types in 2018.
Sustainability 11 04537 g002
Sustainability 11 04537 g003 550

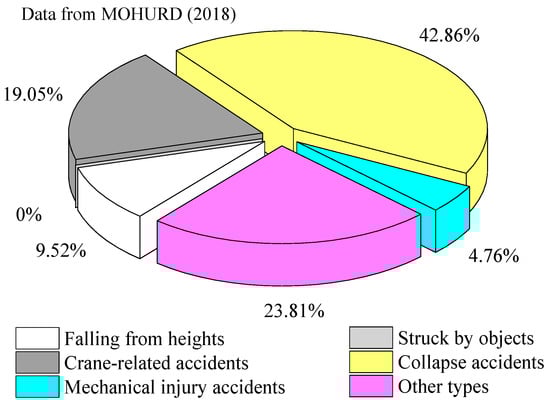

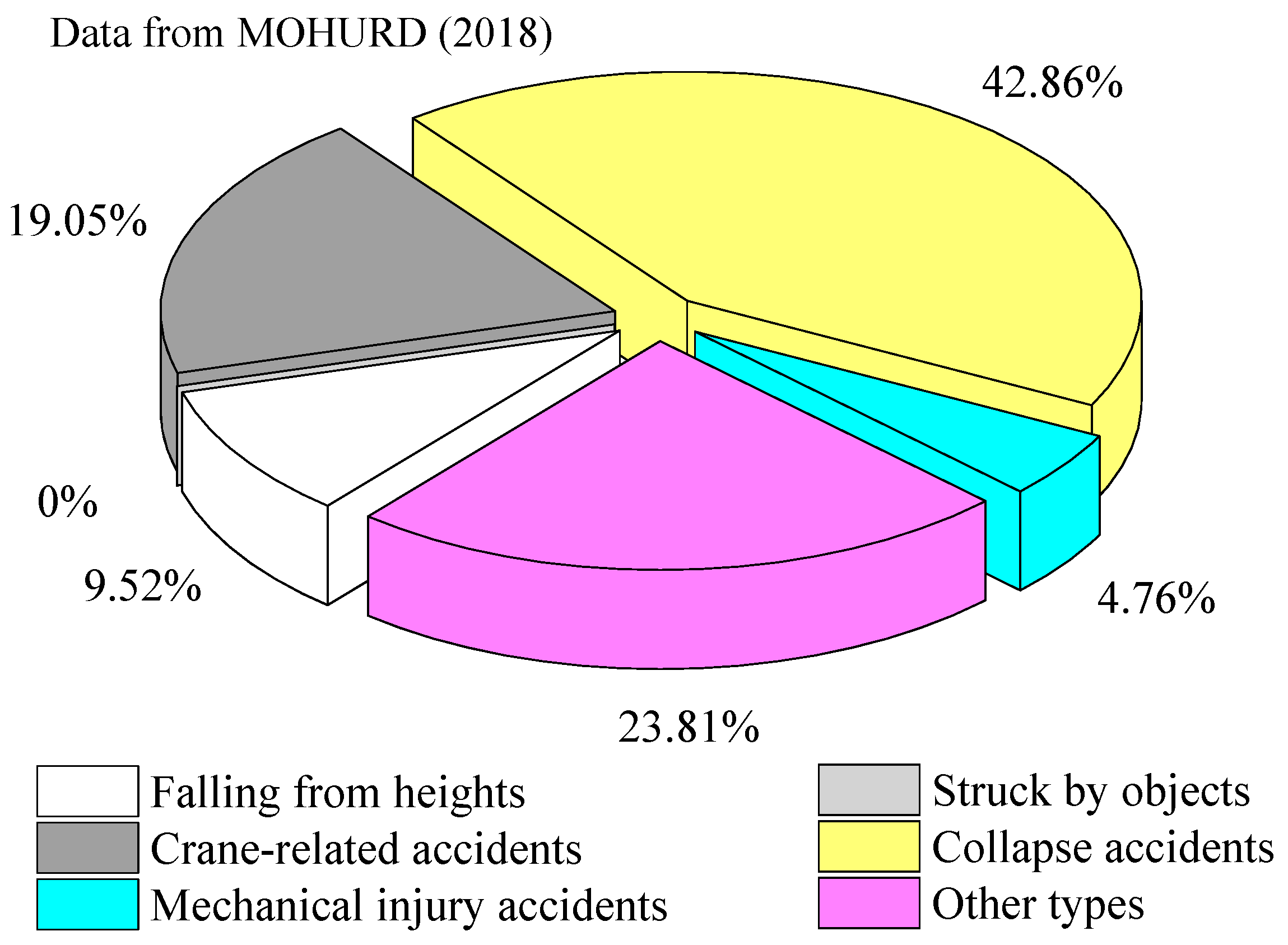

Figure 3. Proportion of large accidents in 2018.
Figure 3. Proportion of large accidents in 2018.
Sustainability 11 04537 g003
Sustainability 11 04537 g004 550

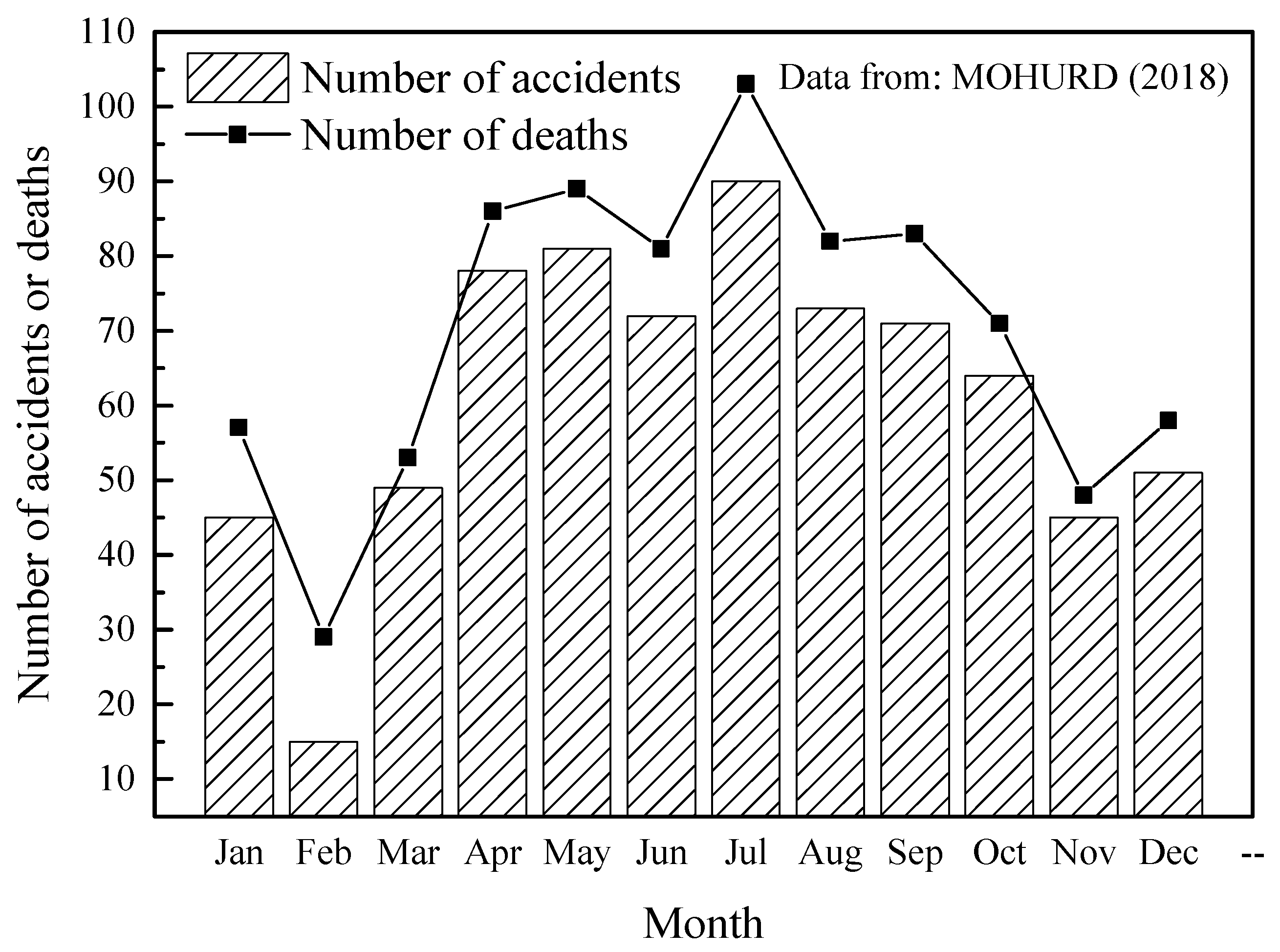

Figure 4. Monthly distribution of accidents with death number in 2018.
Figure 4. Monthly distribution of accidents with death number in 2018.
Sustainability 11 04537 g004
Sustainability 11 04537 g005 550

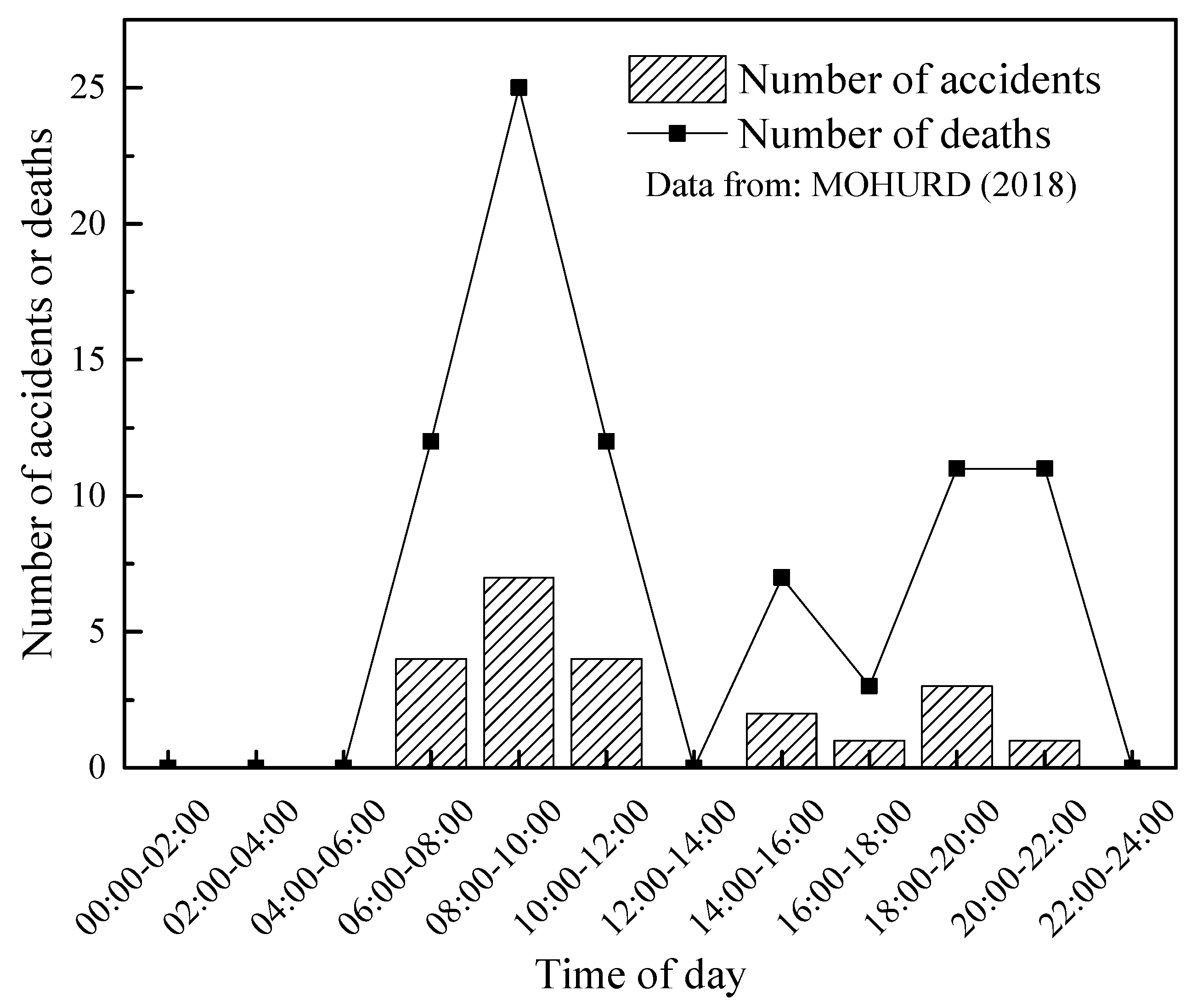

Figure 5. Daily distribution of large accidents in 2018.
Figure 5. Daily distribution of large accidents in 2018.
Sustainability 11 04537 g005
Sustainability 11 04537 g006 550

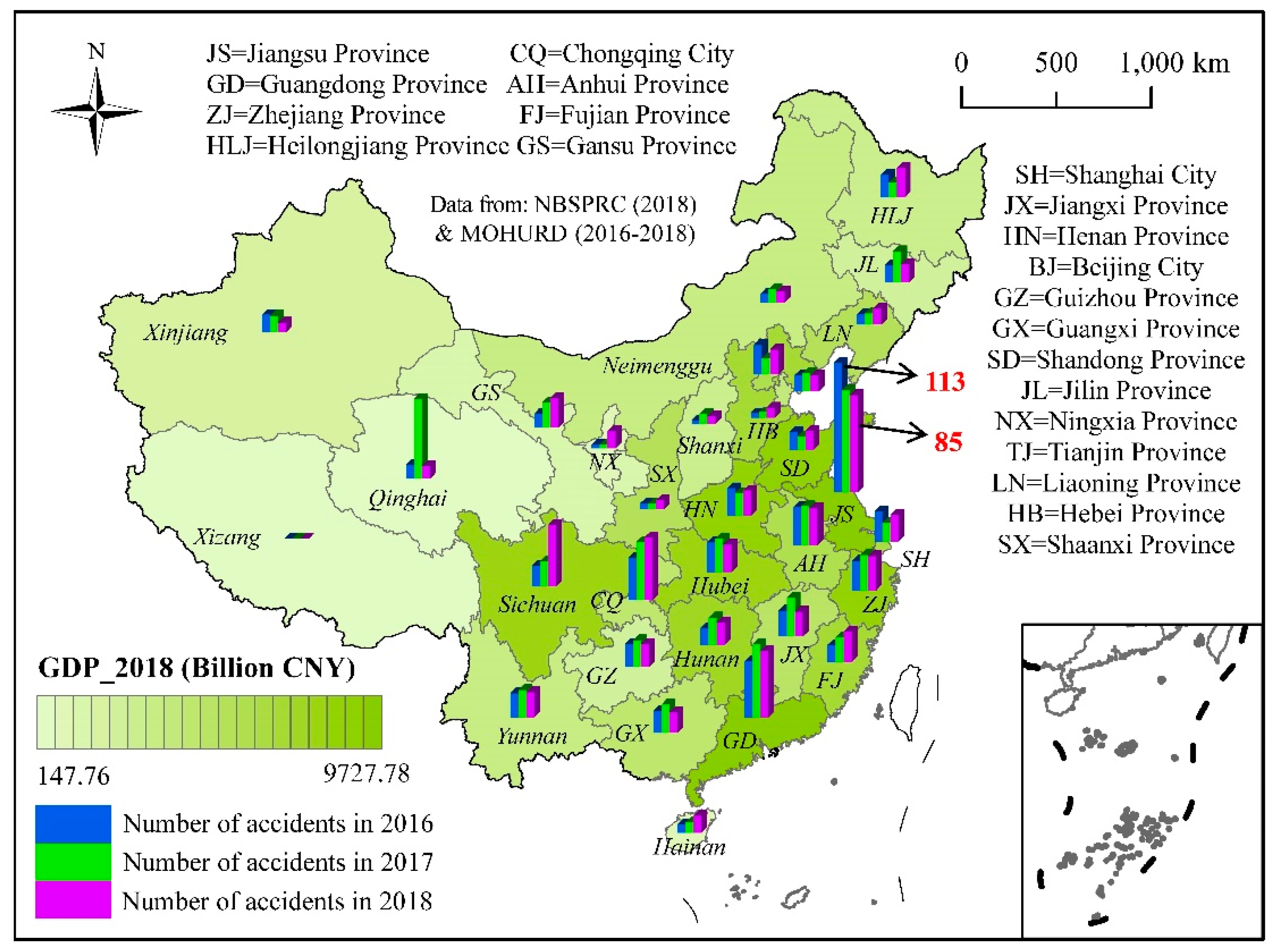

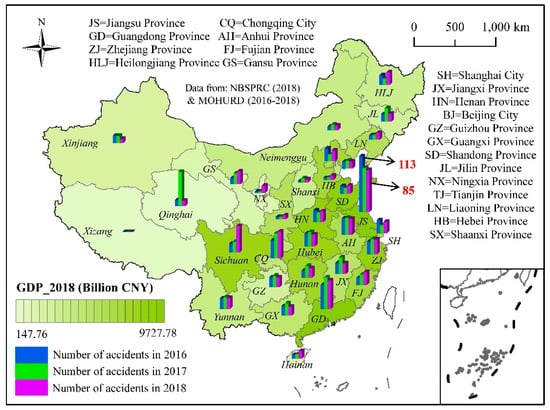

Figure 6. Number of accidents in 31 regions of China from 2016 to 2018.
Figure 6. Number of accidents in 31 regions of China from 2016 to 2018.
Sustainability 11 04537 g006
Sustainability 11 04537 g007 550

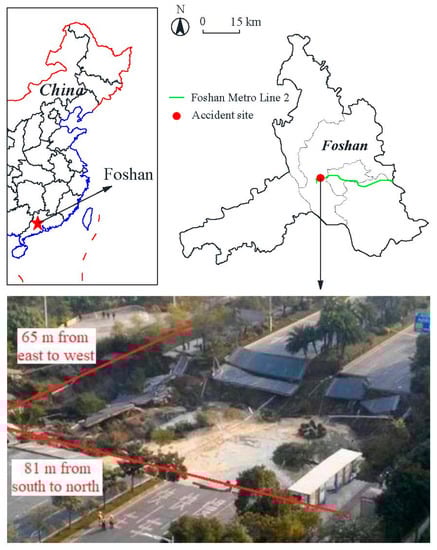

Figure 7. The collapse during tunnelling in Foshan metro line 2 in 2018, induced by groundwater leakage.
Figure 7. The collapse during tunnelling in Foshan metro line 2 in 2018, induced by groundwater leakage.
Sustainability 11 04537 g007
Sustainability 11 04537 g008 550

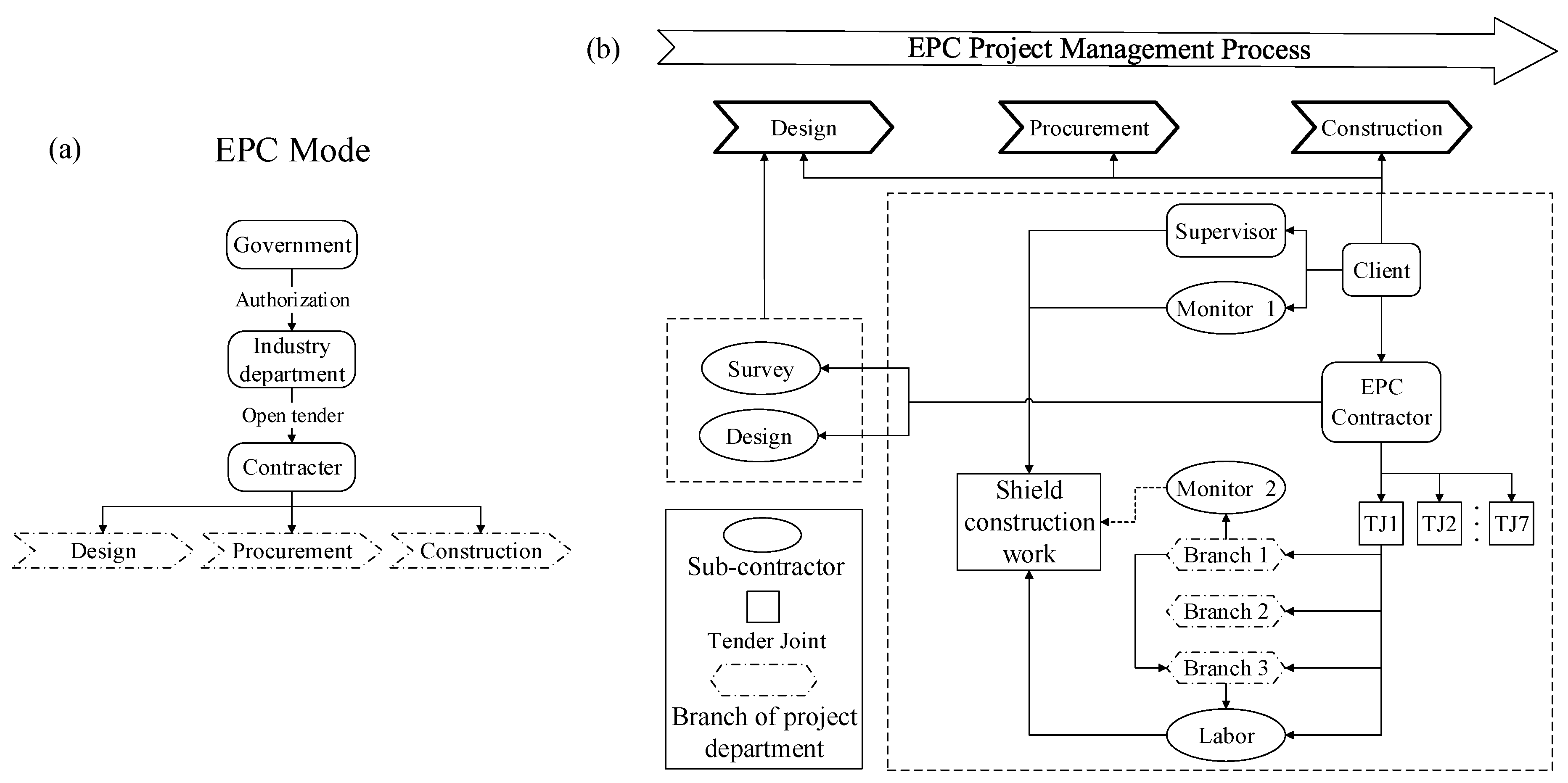

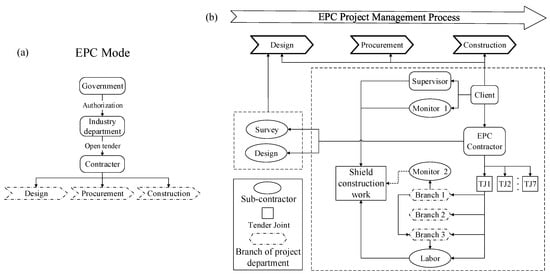

Figure 8. The EPC project management relationship chart (data from EMBF, 2018 [40]). (a) the original mode of EPC project management, (b) the EPC management situation of Foshan Metro Line 2.
Figure 8. The EPC project management relationship chart (data from EMBF, 2018 [40]). (a) the original mode of EPC project management, (b) the EPC management situation of Foshan Metro Line 2.
Sustainability 11 04537 g008
Sustainability 11 04537 g009 550

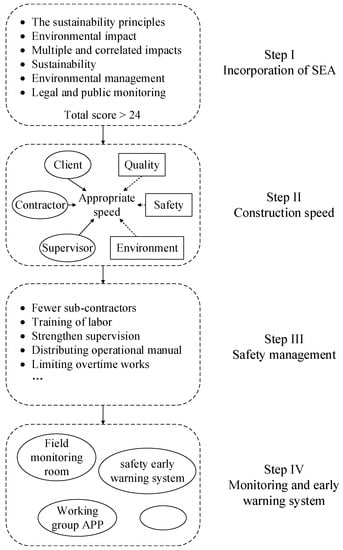

Figure 9. The guidelines for risk management.
Figure 9. The guidelines for risk management.
Sustainability 11 04537 g009
Table
Table 1. Accident Classification Standard (data from GOSCPRC, 2007 [38]).
Table 1. Accident Classification Standard (data from GOSCPRC, 2007 [38]).
Accident LevelDeath Toll (D)Seriously Injured Toll (SI)Direct Economic Loss (DEL, in Million RMB¥)
Particularly serious accident30 ≤ D100 ≤ SI100 m ≤ DEL
Major accident10 ≤ D < 3050 ≤ SI < 10050 m ≤ DEL < 100 m
Large accident3 ≤ D < 1010 ≤ SI <5010 m ≤ DEL < 50 m
General accidentD < 3SI < 3DEL < 10 m
Table
Table 2. Development of the collapse accident in Foshan metro line 2 on February 7, 2018 (data from EMBF, 2018 [40]).
Table 2. Development of the collapse accident in Foshan metro line 2 on February 7, 2018 (data from EMBF, 2018 [40]).
Time LineCritical Events
18:10Excavation of the 905th ring was finished and shield tail was cleaned.
18:52The first piece of the segment was assembled. The pressure of the soil chamber increased from 233 kPa to 276 kPa. The tail of the shield machine began sinking. The right side of the first segment burst upward.
18:54The slurry flowed over the surface of the remaining segments.
19:03The situation was reported and emergency measures were taken.
19:47Personnel failed to control the danger.
20:03The vertical deviation of shield tail reached −460 mm.
20:35Personnel in the tunnel began to evacuate.
20:36The muddy sand flow sprayed around the 899th ring segment. The shield tail sank 463.5 mm.
20:40A large area of ground collapsed. A huge amount of muddy sand poured into the tunnel. The mud-sand flow and air waves hurt some workers trying to escape.
Table
Table 3. Specific evaluation of Foshan line 2 using SEA principles [44].
Table 3. Specific evaluation of Foshan line 2 using SEA principles [44].
SEA PrincipleProject Management of Foshan Line 2Score Out of 5
1Yes: Sustainability principles were generally considered.3
2Not perfect: Most of the assessment was conducted just before the project.2
3Not perfect: Multiple and correlated impacts were not considered comprehensively.2
4Not perfect: Did not adhere to the principle of sustainability during the construction process.2
5Not perfect: The ground settlement was monitored during construction. However, there was no appropriate feedback or disposal measures.2
6Not perfect: Legal and public monitoring mechanisms were not implemented1
Total score 12
Note: If SEA principles are fully and positively followed, a full score of 5 is awarded for each principle; the total score for the SEA principles is out of 30.

Share and Cite

MDPI and ACS Style

Zhou, X.-H.; Shen, S.-L.; Xu, Y.-S.; Zhou, A.-N. Analysis of Production Safety in the Construction Industry of China in 2018. Sustainability 2019, 11, 4537. https://doi.org/10.3390/su11174537

AMA Style

Zhou X-H, Shen S-L, Xu Y-S, Zhou A-N. Analysis of Production Safety in the Construction Industry of China in 2018. Sustainability. 2019; 11(17):4537. https://doi.org/10.3390/su11174537

Chicago/Turabian Style

Zhou, Xin-Hui, Shui-Long Shen, Ye-Shuang Xu, and An-Nan Zhou. 2019. "Analysis of Production Safety in the Construction Industry of China in 2018" Sustainability 11, no. 17: 4537. https://doi.org/10.3390/su11174537

APA Style

Zhou, X. -H., Shen, S. -L., Xu, Y. -S., & Zhou, A. -N. (2019). Analysis of Production Safety in the Construction Industry of China in 2018. Sustainability, 11(17), 4537. https://doi.org/10.3390/su11174537

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
