Are Personal Electric Vehicles Sustainable? A Hybrid E-Bike Case Study

by
Mihai Machedon-Pisu
* and
Paul Nicolae Borza
Department of Electronics and Computers, Transilvania University of Brașov, 500036 Brașov, Romania
*
Author to whom correspondence should be addressed.
Sustainability 2020, 12(1), 32; https://doi.org/10.3390/su12010032
Submission received: 22 November 2019 / Revised: 12 December 2019 / Accepted: 14 December 2019 / Published: 18 December 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
As the title suggests, the sustainability of personal electric vehicles is in question. In terms of life span, range, comfort, and safety, electric vehicles, such as e-cars and e-buses, are much better than personal electric vehicles, such as e-bikes. However, electric vehicles present greater costs and increased energy consumption. Also, the impact on environment, health, and fitness is more negative than that of personal electric vehicles. Since transportation vehicles can benefit from hybrid electric storage solutions, we address the following question: Is it possible to reach a compromise between sustainability and technology constraints by implementing a low-cost hybrid personal electric vehicle with improved life span and range that is also green? Our methodology consists of life cycle assessment and performance analyses tackling the facets of the sustainability challenges (economy, society, and environment) and limitations of the electric storage solutions (dependent on technology and application) presented herein. The hybrid electric storage system of the proposed hybrid e-bike is made of batteries, supercapacitors, and corresponding power electronics, allowing the optimal control of power flows between the system’s components and application’s actuators. Our hybrid e-bike costs less than a normal e-bike (half or less), does not depend on battery operation for short periods of time (a few seconds), has better autonomy than most personal electric vehicles (more than 60 km), has a greater life span (a few years more than a normal e-bike), has better energy efficiency (more than 90%), and is much cleaner due to the reduced number of batteries replaced per life time (one instead of two or three).

1. Introduction

In the context of the recent expansion of urban transportation systems, followed by rapid development of road infrastructure and motorization, the increase in the number of vehicles is completely justified [1,2]. Hopefully, in the near future, these will be seen as both smart and green transportation systems [3], and the corresponding infrastructure will be provided [4]. This could lead to the implementation of smart cities. Until that day, one has to wonder whether these transportation systems are sustainable [5,6,7,8]. In order to sustainably develop transportation systems, the following factors must be taken into account—economic growth, society demands, and environmental impact.

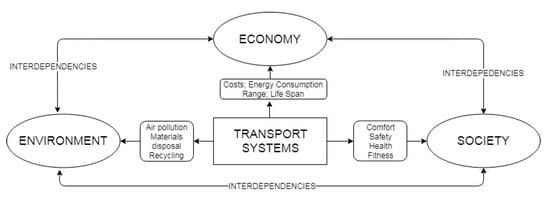

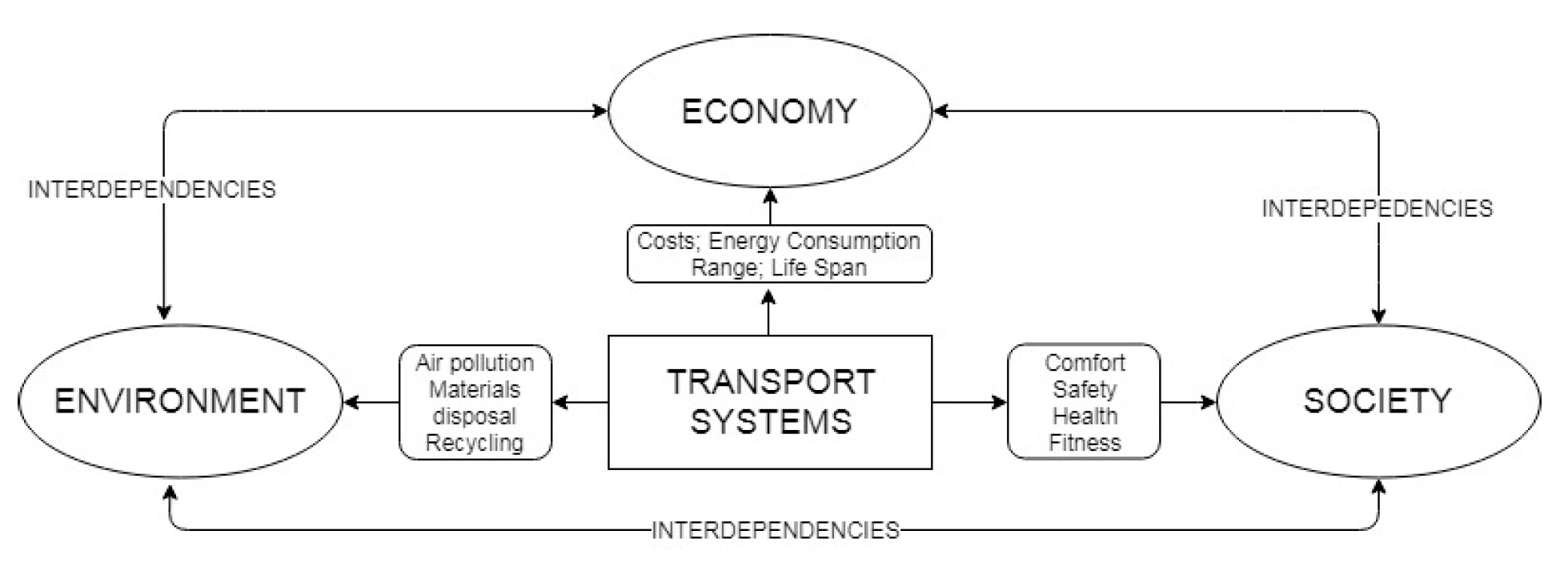

Figure 1 illustrates these sustainability challenges and their relation to transport systems, which need to be considered in order to develop sustainable, green and resilient cities [9]. Figure 1 also hints out at the need to use the appropriate methodology for implementing the vehicles of tomorrow (EVs), according to the sustainability challenges mentioned above. Going back in time, the first electric vehicles have appeared in the first half of the 19th century thanks to Aynos Jedlik in 1828 [10]. In 1834, Thomas Davenport built a small electric car [11]. Between 1832 and 1839, Robert Anderson invented the first crude electric vehicle powered by non-rechargeable chemical cells. In 1859, Gaston Planté invented the first rechargeable battery (lead-acid), thus paving the way for electric cars. In 1901, Ferdinand Porsche invented the first hybrid electric car, the Lohner-Porsche Mixte. Since 1969, General Motors has been preoccupied on developing hybrid driving cars (see GM XP-883 in 1969), and in 1973, they proposed a hybrid car prototype due to pollution issues, based on the previous model of the Buick Skylark. This prototype was designed by Victor Wouk. In 1997, Toyota developed the Prius, the first mass production hybrid car.
The technologies for transport systems have always looked for compromises that can smooth the transition from motor vehicles with ICE to electric cars. Thus, “mild hybrid” cars have been developed, which are capable of reducing fuel consumption by 5–7%. This is done by recovering the braking energy and by optimizing the operating curves of the ICE as a result of adding a certain power supply from a small electric car [12]. The demand for energy storage on board has led to the increase in the standard voltage of the electrical energy sources energy per vehicle from 12 or 24 V to 48 V, respectively, above hundreds of volts for pure electric vehicles. Also, plug-in electric vehicles with increased range when operating in an electric regime have been proposed, being known as “extended ranger” systems. They can increase the range of the vehicle, but with a sacrifice in nominal performance [13].
The main types of EVs can be classified in two categories—(i) heavy-duty and medium EVs, like electric trams, trains, trucks, buses and e-cars, and (ii) light EVs (LEVs) or personal electric vehicles (PEVs), like electric motorcycles, scooters, and bikes. PEVs can be also split into medium battery EVs (BEVs), such as e-motorcycles, big e-scooters, and small BEVs, like e-bikes and small e-scooters.
Heavier EVs are made up of electric motors and batteries together with or without ICE or fuel cells, while smaller EVs, such as PEVs, use only motors and batteries and possibly also other storage elements. For example, e-bikes can be electric assisted, battery-based, or hybrid (e.g., batteries and supercapacitors (SCs), batteries and fuel cells (FCs)). A clear distinction should be made between these terms, as it is not always clear, as in reference [14]. Electric assisted bikes, or electrically power assisted bikes (EPAC), or pedelecs, get propulsion by means of an electric motor connected to batteries and still can be pedaled by the rider. E-motorcycles cannot be pedaled, as they are only battery-based. They are also known as BEVs. Hybrid e-bikes, or HESS bikes [15], which belong to the class of assisted hybrid vehicles (AHVs), use additional storage elements, like supercapacitors, to drive the motor when battery operation is not required.
Unfortunately, the current development of vehicles can have a damaging effect on the environment [16]. Air pollution caused by different classes of vehicles is discussed in references [17,18,19,20]. In order to reduce the effects of pollution and the dependence on oil, electric vehicles (EVs) should replace conventional cars (diesel and gasoline) in the future [21,22]. The high traffic can be diverted in large cities by opting for smaller EVs (PEVs and LEVs), such as electrical two-wheelers (e.g., e-bikes and e-scooters) that consume and pollute less, instead of heavier vehicles, such as cars and buses [23]. As discussed in reference [19], greenhouse gas (GHG) emissions are much lower for e-bikes than for other EVs. As seen in Table 1, e-bikes have less energy consumption, lower maintenance and purchase costs, require less travel time in congested traffic, and are beneficial to human health and fitness. E-bikes and other EVs present several limitations and issues such as lack of infrastructure and unitary regulations in safety, speed, and power; reduced autonomy and life span. But, crowded cities still require solutions that should imply green and sustainable smart transportation systems [16] that are also beneficial to human health and fitness, or at least not damaging. Of course, the traditional bike is also green and does not consume any energy except for human effort. However, human effort is very limited, and older people, those with health issues, or those not fit enough can reduce the trip time significantly and cut the benefits of owning a bicycle. Some health benefits of e-bikes are presented in reference [24]. E-bikes and e-motorcycles are compared to the conventional ones in reference [25]. Reductions in human effort and variations of heart rate were reported for these small EVs. Reduction in travel time was also observed for e-bikes, but not for e-motorcycles. As mentioned in reference [26], e-bikes were reported with the shortest travel time in congested traffic: less than 5 km. It is also possible to transform a conventional bike into an electrical assisted bike, as mentioned in reference [27], but one has to think about costs and gain in performance, as you cannot always get the best of both worlds.
Performance is rather a complex task to quantify, as it comprises of various facets. Many studies have tried to cover a least a part of these facets, such as dynamic performance (speed, power, range and acceleration, according to local regulations, see Table 1) [17,21,31], energy consumption analysis (stored vs. used energy, autonomy, charging time, storage characteristics, see Table 2 and Table 3) [21,25,26,33], functional performance (energy efficiency, temperature domain and other environmental parameters, route optimization, and minimizing daily accelerations and braking) [25,26], and sustainability (cyclability/durability that affects life span, state of charge characteristics) [29,34]. Most of these facets area direct result of the constraints on the design of EVs [35]. As seen in Figure 2, the e-Mobility design [36] is based on a reservoir of energy (energy source) powering an actual vehicle. Even if the design is simplified, its implementation is not that simple due the performance constraints discussed previously, which can become difficult to comply with.

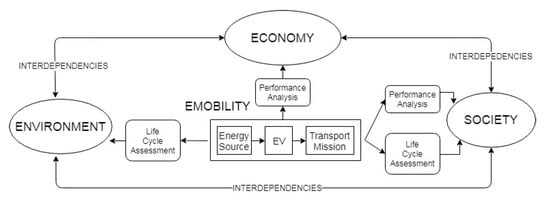

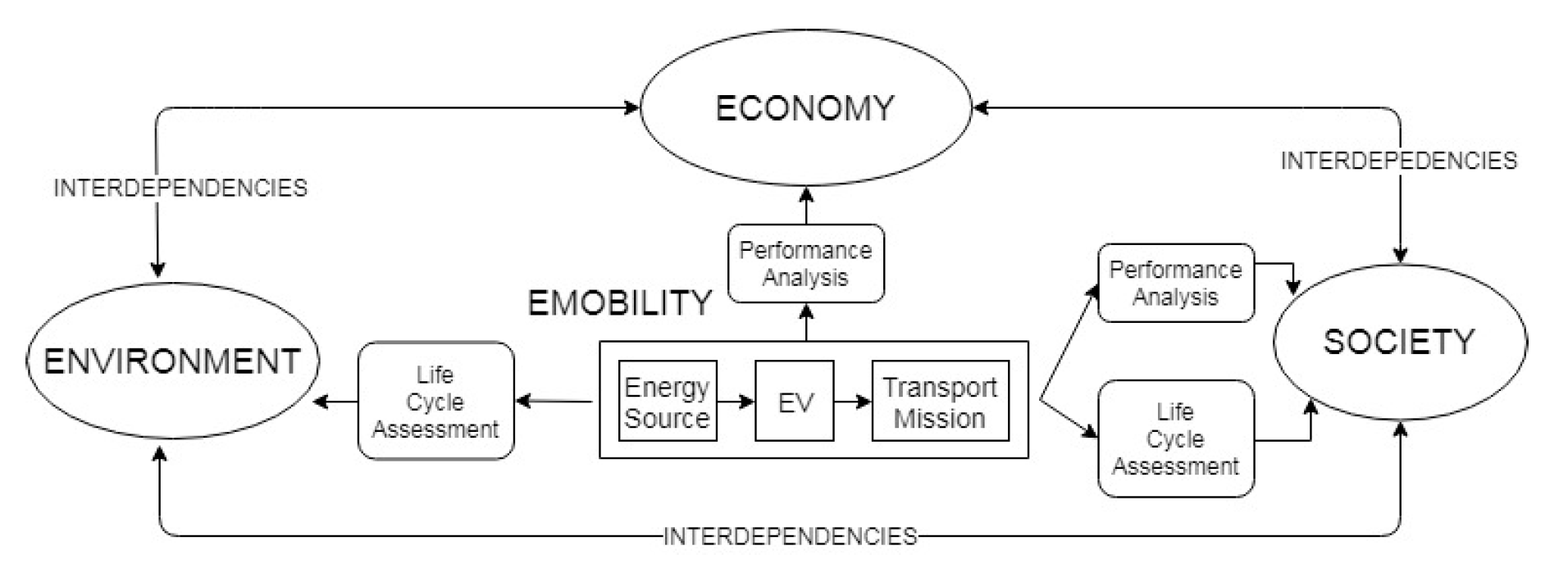

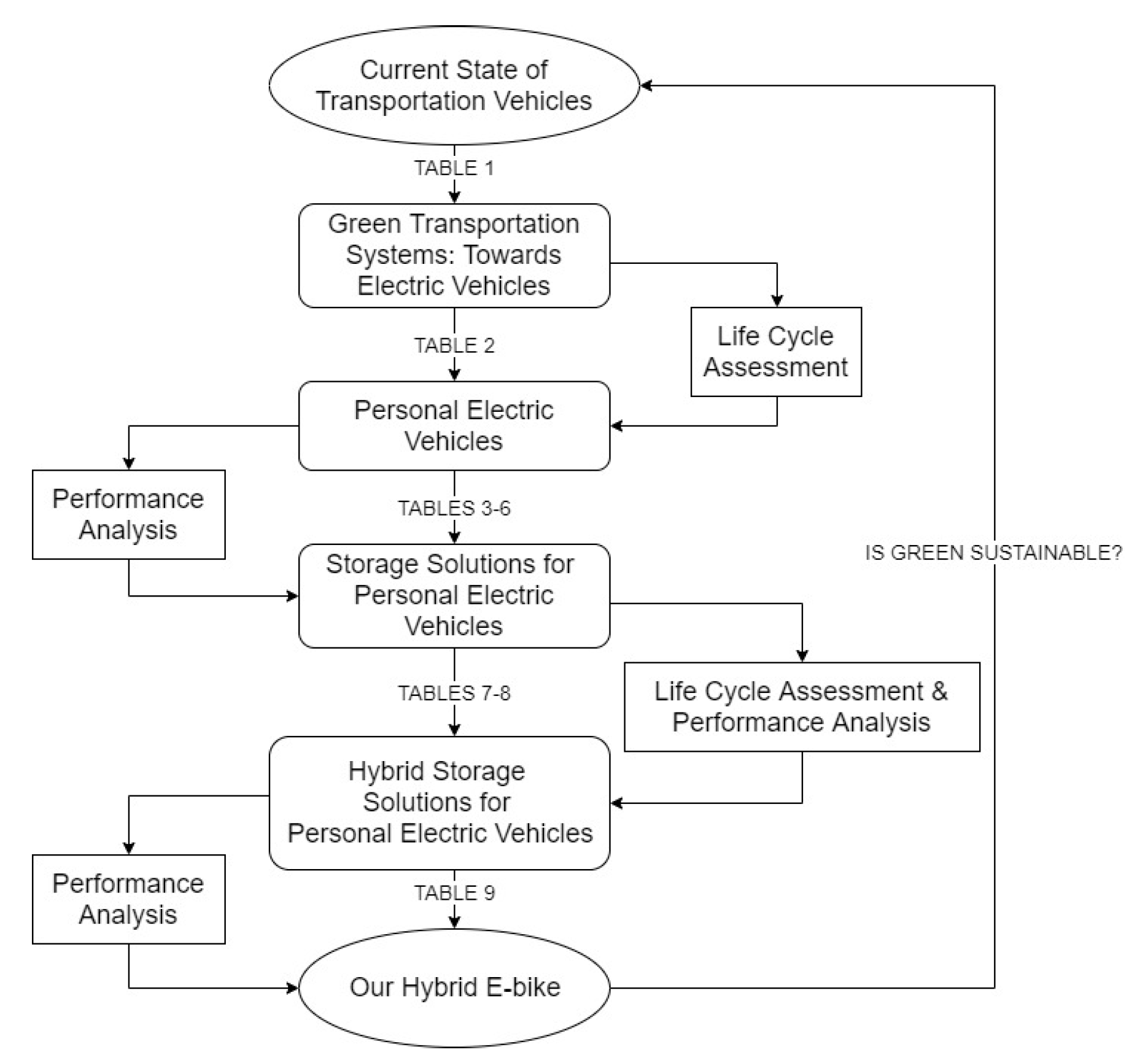

Starting from Figure 2, state the research question of this paper is whether it possible to provide an appropriate methodology for implementing a sustainable design of hybrid electric transportation systems in the context of current storage solutions (Li-ion batteries, SC, FC) [42] in order to increase their autonomy, on one hand, and reduce the costs and impact on environment, on the other. In order to provide an answer, the paper is organized as in Figure 3.
In the introduction, we presented the current state of vehicles in terms of sustainability, emphasizing on the vehicles of the future—EVs, as justified in Table 1. In Section 2, the performance of small and medium EVs, which include PEVs, is analyzed in terms of life cycle assessment (LCA), thus addressing the society requirements (and the need for compromise) for building green transportation systems, with less lead batteries, as justified in Table 2 and Table 3. Section 3 presents the characteristics of the storage elements used for such EVs underlining their limitations, presented in Table 4, Table 5 and Table 6. Section 4 analyzes the possibility to employ a hybrid storage system based on supercapacitors (SC) and/or fuel cells for PEVs in terms of LCA, as seen in Table 7. This section and the next emphasize the methods that can provide the right balance between the benefits and limitations of such storage elements (SC and FC) in conjunction with Li-Ion batteries, in order to implement hybrid storage systems for PEVs, as illustrated in Table 8. Section 5 proposes a low-cost hybrid bike that tackles most sustainability issues of PEVs, as demonstrated in Table 9. Section 6 presents and discusses the guidelines for designing green and sustainable vehicles containing hybrid electric storage systems (HESS), based on the findings of the paper. Section 7 presents the main findings of this paper, related to the used methodology for designing sustainable PEVs and the performance of our solution for PEVs—a hybrid e-bike with SC and Li-Ion battery storage.

2. Life Cycle Assessment

Apart from the immediate consequences of safety, health, range, and cost on EV usage, aspects already presented in Table 1, another aspect, life cycle assessment (LCA) is relevant for EVs, especially in terms of environmental impact and energy consumption. PEVs consume less energy and cause less pollution than heavier EVs.
Table 2 presents the LCA impact of PEVs and can be seen as an extension of Table 1. Although this type of analysis implies some uncertainty due to changes in technology, rider behavior [38], lack of standard methodology, and metrics for dynamic performance [33,39], it can still be used for testing the sustainability of an EV, but only if it is correlated with other types of analysis that can guarantee the static and dynamic performance metrics related to the application’s requirements. Today, from the application point of view, the advances in power electronics permit cheap and very efficient commutation solutions [36]. In this sense, PEVs could be seen as the right candidate for testing the control strategies of EVs at a smaller scale. In order to meet the sustainability challenges, e-bikes, which are one of the most promising PEVs, permit the appropriate compromise between most performance metrics due to their customizable design.
A European study analyzed the economic and social impact of owning an e-bike, in reference [43], reporting fuel savings of ~300 € per year, an acceptance rate of 70%, and a safe operation since no incidents were reported.

3. Performance Analysis of Main Storage Solutions for PEVs

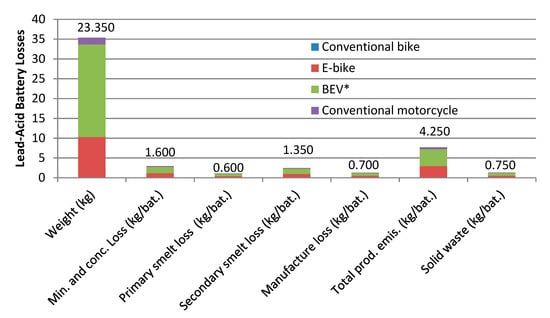

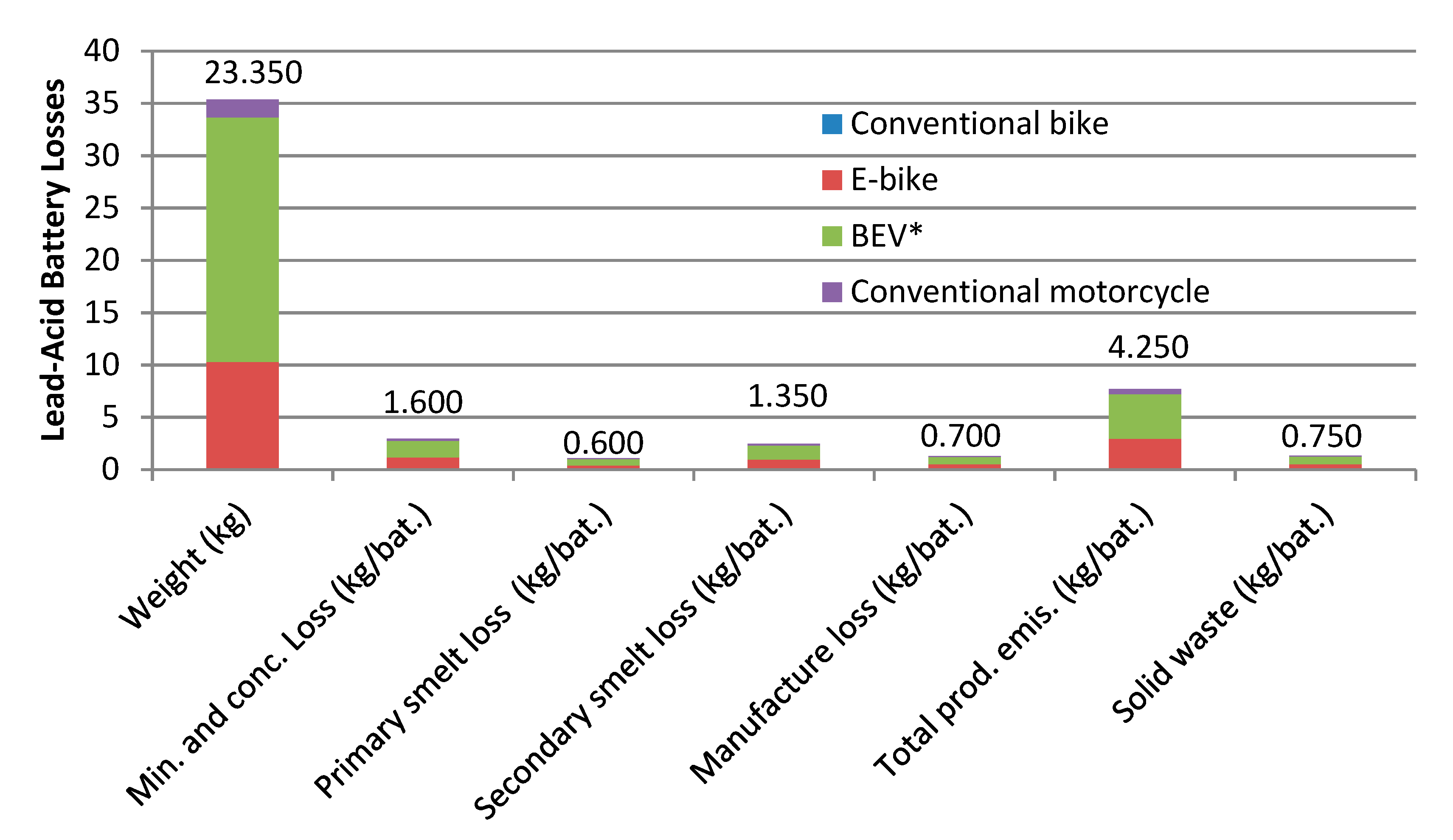

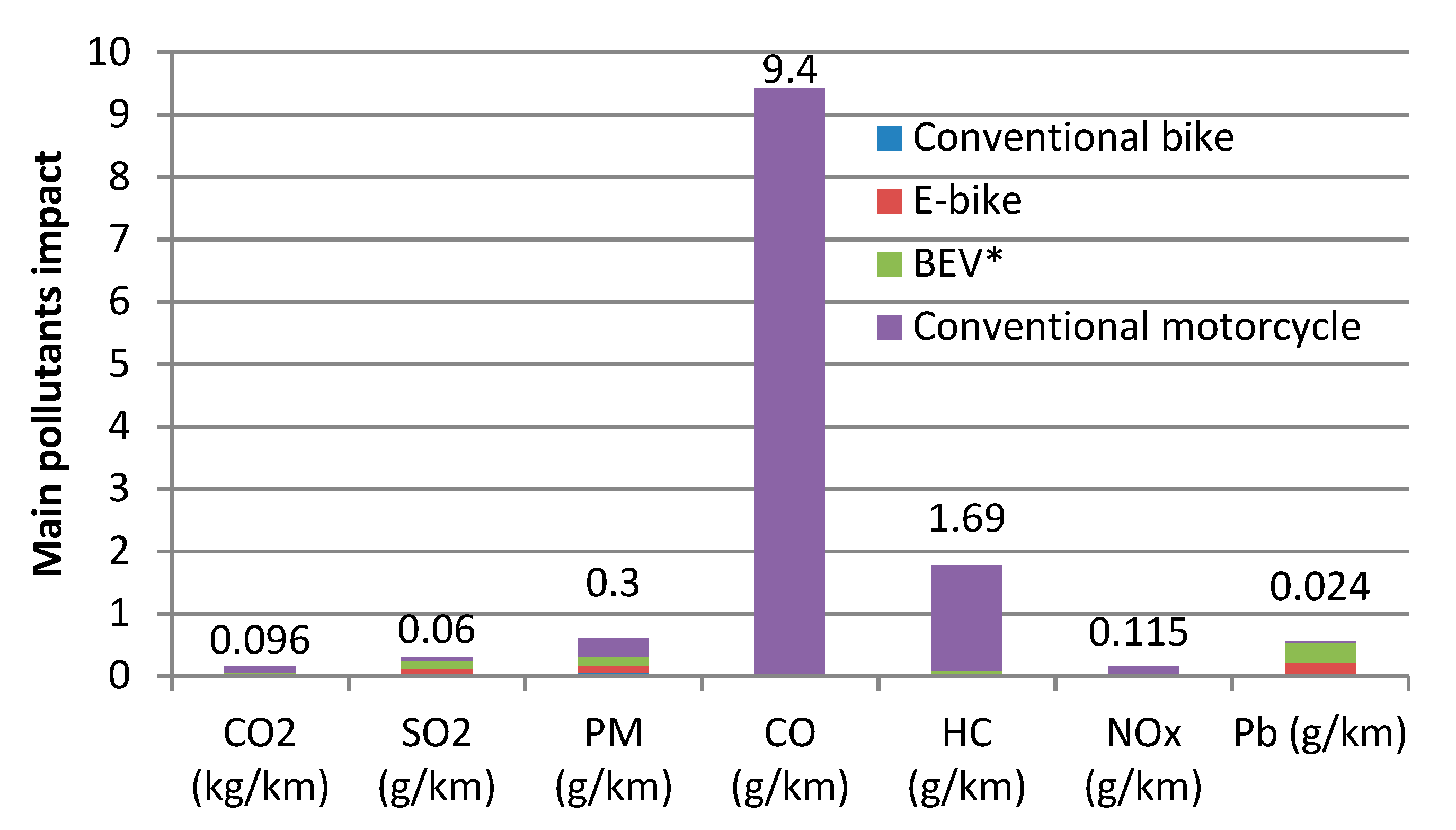

As can be observed in Figure 4, when comparing lead-acid battery–based conventional motorcycles to e-bikes and heavier PEVs, such as e-scooters, the latter have a more negative impact on life cycle in terms of Pb (mg/km) and SO2 (mg/km) [23]. E-bikes and other PEVs have a short life span, and therefore the disposal of batteries can have a very negative impact on environment [44]. When it comes to energy consumption, energy use (kWh) has the largest impact, as seen in Figure 5. This can be attributed to the influence of EV storage. Table 4 analyzes the main performance metrics of the most used storage elements that provide the necessary energy and power for the propulsion of PEVs.
One storage solution that is absent from Table 4 is Li polymer. It is a promising lithium battery that presents good power density, but their calendar life is modest, as detailed in reference [45]. There are also other types of battery and storage solutions that were not considered in Table 4. Ni-iron, Ni-zinc, Ni-cadmium, aluminum-air, and zinc-air batteries are analyzed in reference [46]. Nickel’s low operating voltage is similar with that of Ni-MH, while Zinc-air has a reduced number of life cycles. Li-oxygen, Li-sulfur [46], and magnesium-ion batteries are even better than Li-ion batteries in energy density, as discussed in [47], in the 300–1000 Wh/kg range. However, these are only predicted values since they are not commercially available. Other types of storage—pumped hydroelectric storage (PHS), compressed air energy storage (CAES), flywheels, capacitors, sodium-sulfur (NaS) batteries, vanadium redox (VRB), zinc-bromine (ZnBr) and polysulfide bromine (PSB) flow batteries, superconducting magnetic energy storage (SMES), solar fuel, thermal energy storage (TES), and liquid air storage are analyzed in reference [34]. Most of these solutions are incompatible to EVs both in terms of costs and deployment issues, as well as (lack of) maturity, or they have poor performance, such as energy or power density.

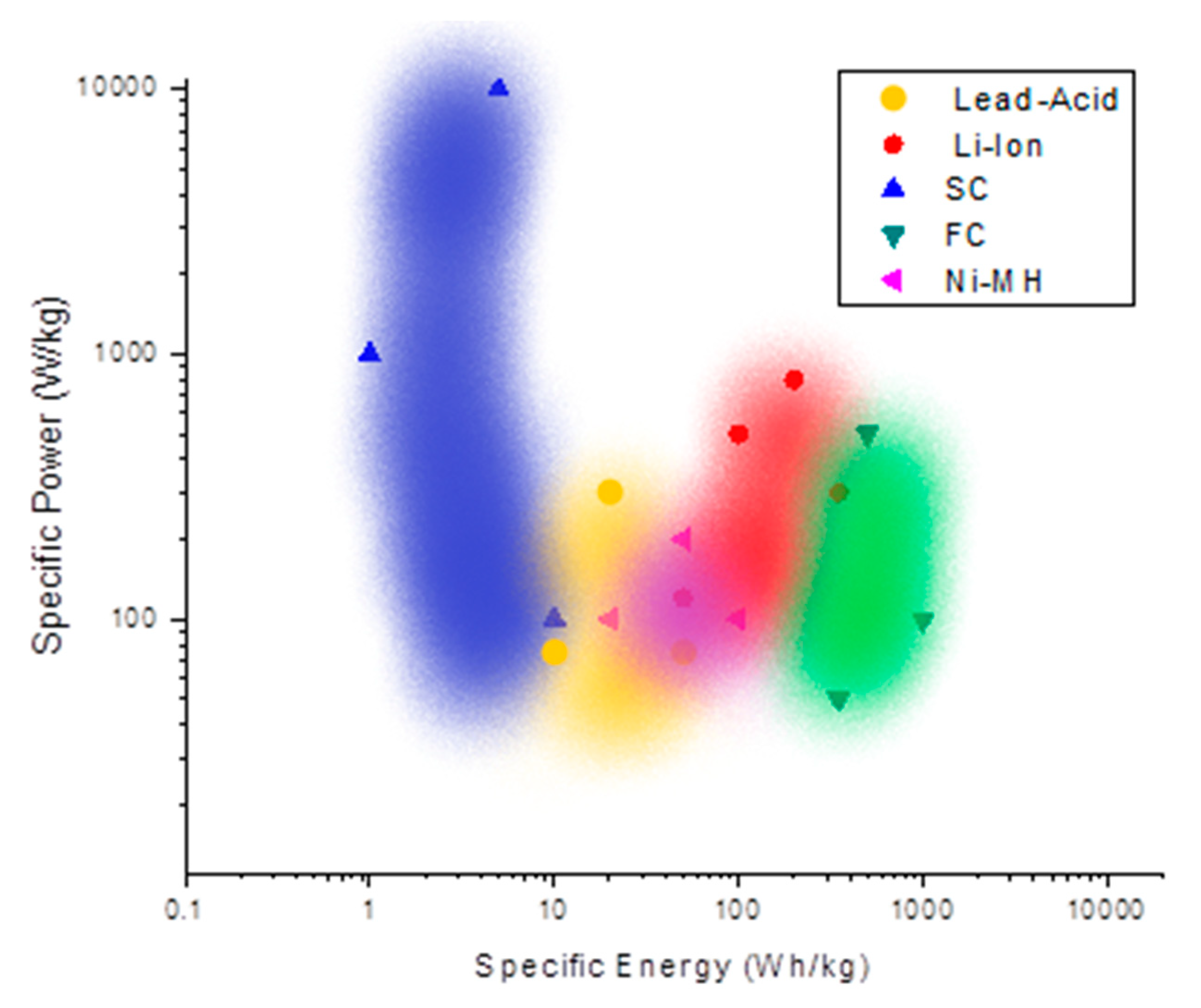

Figure 6 provides a visual representation of the power and energy densities of the main types of storage, according to the characteristics detailed in Table 4, emphasizing on range (cycle life) associated to specific energy, and acceleration, associated to specific power.
Table 4 presents both the disadvantages and advantages of the batteries used for providing propulsion to small EVs. In Table 5, the performance of other types of lithium and nickel batteries is analyzed.
Due to the increased weight of lead-acid-based batteries, the losses associated to lead can become 5 to 10 times greater for smaller EVs than for conventional motorcycles, as seen in Table 3. In a similar fashion, the losses associated to lithium-based and nickel-based batteries, presented in Table 4 and Table 5, can become very relevant in terms of environmental impact. As recommended in [29], for a large-scale deployment of EVs, less lithium must be used per unit of battery storage, or a suitable type of energy storage system that does not use lithium must be developed. This is justified by the cumulative demands of EV/PHEVs that could exhaust the whole lithium reserve by 2050, even with extensive recycling. The main alternatives to batteries are supercapacitors (SC) and hydrogen fuel cells (FC). In Table 6, their characteristics are compared to Li-ion batteries.
Due to the low operating voltage, symmetric hybrid supercapacitors were not considered for analysis in Table 6, as discussed in reference [65]. Also, according to reference [66], Li-ion batteries cannot withstand more than 1000 cycles per lifetime, which contradicts many other studies that claim thousands of life cycles.

4. Life Cycle Assessment of Hybrid Storage Implementations/Solutions

One approach to avoid battery losses is to use other storage elements, such as FC and SC. For example, by using hydrogen fuel cells, one can implement a hydrogen bike. An e-bike is compared with a hydrogen bike in terms of environment, health and energy impact in Table 7.
The possibility to develop a hybrid e-bike, based on fuel cells and batteries, is analyzed in Table 7. In reference [68], different stages of hybridization for a 54 kW light electric vehicle (LEV) are discussed in terms of costs. The storage solutions and combinations include three storage elements: batteries, supercapacitors and hydrogen fuel cells. The costs range from approximately $23,000–34,000 USD, depending on the hybrid combination (SC-FC, battery-FC, and SC-battery) or standalone storage solution (FC and battery). The lowest prices were obtained for the hybrid storage implementations (battery-FC and SC-FC) and the highest for the FC implementation.

5. Hybrid E-Bike Sizing and Performance Analysis

As discussed in reference [68] and shown in the last rows of Table 7, EV operation can be split between the battery and other storage elements. This is the second approach that aims to reduce the battery dependence. Table 8 compares hybrid e-bikes to e-bikes, e-scooters, and e-motorcycles in terms of performance. According to the eco-indicators detailed in [39], both e-bikes and conventional bikes have the lowest impact on environment. One of the main reasons for these results can be attributed to the reduced demand of energy of these vehicles. E-bikes also have a battery disposal impact that is two to three times higher than that of big and medium e-scooters. In order to reduce the battery dependency even more, hybrid e-bikes could be seen as a better alternative.
Most e-bikes (pedelecs) present the following features: the motor is placed on the rear wheel [17], have a 26 inch wheel [17,18], the charging time is between 4 and 6 h [17,18,72], the number of life cycles is between 500 and 1000 [17,18,69], and the overall efficiency is 86% [75]. There are also e-bikes that use SC as a storage element, such as [58,60,74]. SCs have a greater number of life cycles (see Table 5) and the charging time is much lower: below 1 min [74]. In order to comply with the different power regulations for e-bikes throughout the world, mainly in the 250–750 W range, many implementations have considered 250 W as the maximum power delivered to the e-bike, such as references [17,18,72].
Other implementations have considered greater power ratings in order to increase the speed and, thus, the range. In reference [73], for reaching speeds of 25 km/h, the maximum power delivered was 950 W. In reference [76], for a speed of 32 km/h and a slope of 3% the maximum power reached was 1018 W, which is similar to reference [74]. Bigger e-bikes, like the one presented in reference [75], go up to 2000 W. Based on the second approach, we have designed a hybrid e-bike that splits the operation between the SC and the Li-ion battery, as illustrated in Figure 7. For the design of our hybrid e-bike, the ratio between battery and SC capacitances was set in order to compensate for the e-bike’s maximum kinetic energy by functional SC capacitance. The performance and economic impact of this implementation is compared to other PEVs and medium BEVs, known also as LEVs, in Table 9 and Figure 8.

6. Discussion

The current state of transportation vehicles has revealed the necessity to develop cleaner electric vehicles especially due to the growing global impact of traffic and air pollution on human health, mainly associated with urban environments, as seen in Table 1. Many EVs have been developed by the industry. Most of these implementations, such as e-cars, try to cover issues like driver safety and comfort, range, and life span. But the price tag is too high when compared to conventional vehicles. Trip autonomy is very limited in comparison with conventional transportation systems. By employing batteries, this can cause also other problems, like reduced lifespan (10 years, on average). The lack of practical battery recycling solutions leads to this limit in life span. There is also a lot of suspicious advertising related to lifespan. Many consider that their batteries have the best life span, but this is relative due to the sensitivity of these devices and thus leading to a certain level of distrust when taking design decisions. In recycling, the “second life” of batteries is of utter importance, especially for traction batteries. These are used in cheap stationary systems, when the threshold is around 20–30% of the initial nominal capacity.
Other issues include lack of infrastructure and no benefits to fitness. Because 90% to 95% of its time a car is not in operation, in the future, car sharing could be a solution to cut costs and reduce the impact of batteries by splitting it to the number of users. However, until that day, we must look for cheaper and cleaner alternatives for personal transportation vehicles, especially in congested traffic. PEVs represent one such solution, as justified in Table 1. The reduced price of these vehicles also comes with a considerable loss in range, comfort and safety (mainly due to the lack of infrastructure). Yet, many e-bikes have been deployed in China. In reference [81], the environmental impact and safety of e-bikes are compared to that of other transport modes. One can applaud the cost reduction of these lead-acid-based e-bikes and not think about the consequences on environment associated with the lead battery losses [82,83]. We tacklethese issues by means of life cycle assessment (LCA) in Table 2 and Table 3. As shown in Figure 4 and Figure 5, the dependence on batteries cuts the benefits of owning a personal electric vehicle, especially for small to medium BEVs, due to their reduced life span (3–4 years). So, even if lead-acid batteries are replaced by other batteries, battery disposal is still a problem for the environment. A much cleaner solution is Li-ion, not only for e-bikes but also for other vehicles such as e-scooters and e-motorcycles, as well as heavier EVs. It is important to mention that LCA tackles the environmental and health impacts and the energy consumption aspects, but it tells nothing about the dynamic performance, especially its sensitivity at wrong charging/discharging cycles or the combination of more negative factors.
In Table 4, Table 5 and Table 6, we have analyzed the performance metrics and limitations of the main storage solutions for PEVs, which also include SCs and FCs, as alternatives to Li-ion batteries. Energy harvesting (e.g., PV panels) is another option, but this is out of our paper’s scope. LCA does provide a certain methodology and thus an almost predictable uncertainty associated with the changes in the driver’s behavior and in technology. Yet, in the case of our performance analyses in Table 4, Table 5 and Table 6, we have observed a large uncertainty. This can be attributed to the great discrepancy between studies, and it can be observed in Table 4, Table 5 and Table 6 and Table 8 and Table 9. For example, in reference [84], the proposed e-bike has a total weight of 111.4 kg. The bicycle and motor weigh 41.4 kg. The payload weighs 43.6 kg, and the batteries (made of 2 Ni-MH 522Wh packs) 26.4 kg. However, most e-bikes are much lighter (usually 20–30 kg). Big e-bikes go up to 60–65 kg. Thus, these e-bikes have a subunit ratio (e-bike mass/rider mass), such as references [85,86,87]. In these references, a clear distinction should be made between pedelecs and hybrid e-bikes. In reference [88], one can see the limitations of Ni-MH batteries, such as reduced cycle life—only 200–300 cycles. In reference [89], it is stated that battery life of LFP batteries is 10 years. These batteries usually do not exceed 1000 cycles per lifetime. By looking at these examples, we consider that the absence of a standard testing methodology from these articles is one of the main reasons for obtaining such uncertainty. Another reason is the vagueness related to the load demands or charging behavior, random variations of temperature, and overvoltage that can cause significant problems to batteries’ reliability and life span. These are still complicated issues, which not many are willing to tackle.
Coming back to dynamic performance, which is another neglected aspect, life expectancy is a result of both the chemical interactions and temperature of operation which affect the batteries. Future research should address issues such as battery aging, and thus underline the sustainability question: Is green also sustainable? This question was also stated in Figure 3. The performance of battery packs, mostly Li-Ion batteries, are discussed in terms of aging in [55,57,90,91,92,93], in terms of temperature impact in [94,95] and also of state of balance/ health [96], in terms of both aging and temperature of operation in [56], in terms of both aging and sizing in [97], and in terms of both aging and energy management/power estimation in [98,99,100]. Also, the experimental settlement has a strong influence on the outcomes reported, and for that reason we can find out contradictory results in many papers.
In Figure 6 one can observe the main differences between Li-ion batteries, SCs, and FCs in terms of specific energy (Wh/kg) and specific power (W/kg) and get a general idea on how the demands of a PEV in terms of range and acceleration can be fulfilled, which represents mainly the chemist’s point of view. If batteries and FCs provide a good autonomy due to high energy, SCs provide fast accelerations due to high power. FCs and batteries cannot supply such accelerations. Various studies have either considered standalone implementations with one of these storage elements (mainly Li-ion batteries for pedelecs) or combinations between two of these three storage elements (as hybrid vehicles). Storage hybridization has already been proven beneficial for larger EVs. Such implementations include tramways [59,61], buses [101,102], and light rail vehicles [103].
An e-bike (based on Li-ion batteries) and a hydrogen bike (based on FC) are compared in Table 7 in terms of LCA. Also, a combination between the two, a hybrid e-bike is compared in the same table with the two standalone storage implementations. Such combinations can be beneficial not only in terms of environmental impact and energy efficiency but also in terms of costs, as several studies have shown. SCs have much better energy efficiency (97–98%) than Li-Ion batteries (86%) and FC (usually 40%), a large number of life cycles (100,000 to 1,000,000), whereas both FC and Li-Ion are modest (500 to 10,000), large power ratings (thousands of W/kg), whereas both FC and Li-Ion go up to hundreds of W/kg, and a fast charging time (seconds) which is incredible when compared to Li-Ion batteries (5 h). Batteries and FCs have a much better specific energy (hundreds to thousands of Wh/kg), whereas SCs do not exceed 10 Wh/kg.
One can see that, when designing a vehicle with HESS, one of the best compromises in overall performance can be found between SCs and batteries, especially in terms of dynamics. Table 8 analyzes the performance metrics of hybrid e-bike implementations compared to other implementations for PEVs—e-bikes, e-scooters, and e-motorcycles. Table 9 proves that our hybrid e-bike presents a good sustainability. We should mention that this was obtained as a result of several measures taken during the design of the system, consisting in replacement of batteries with a hybrid storage solution, adequate sizing of the fast release storage component (SC capacitance) that fully covers the dynamic kinetic energy variation during the e-bike’s operation and also appropriate design of the power electronics functions that ensure that the maximum limits are respected by the hybrid storage system.

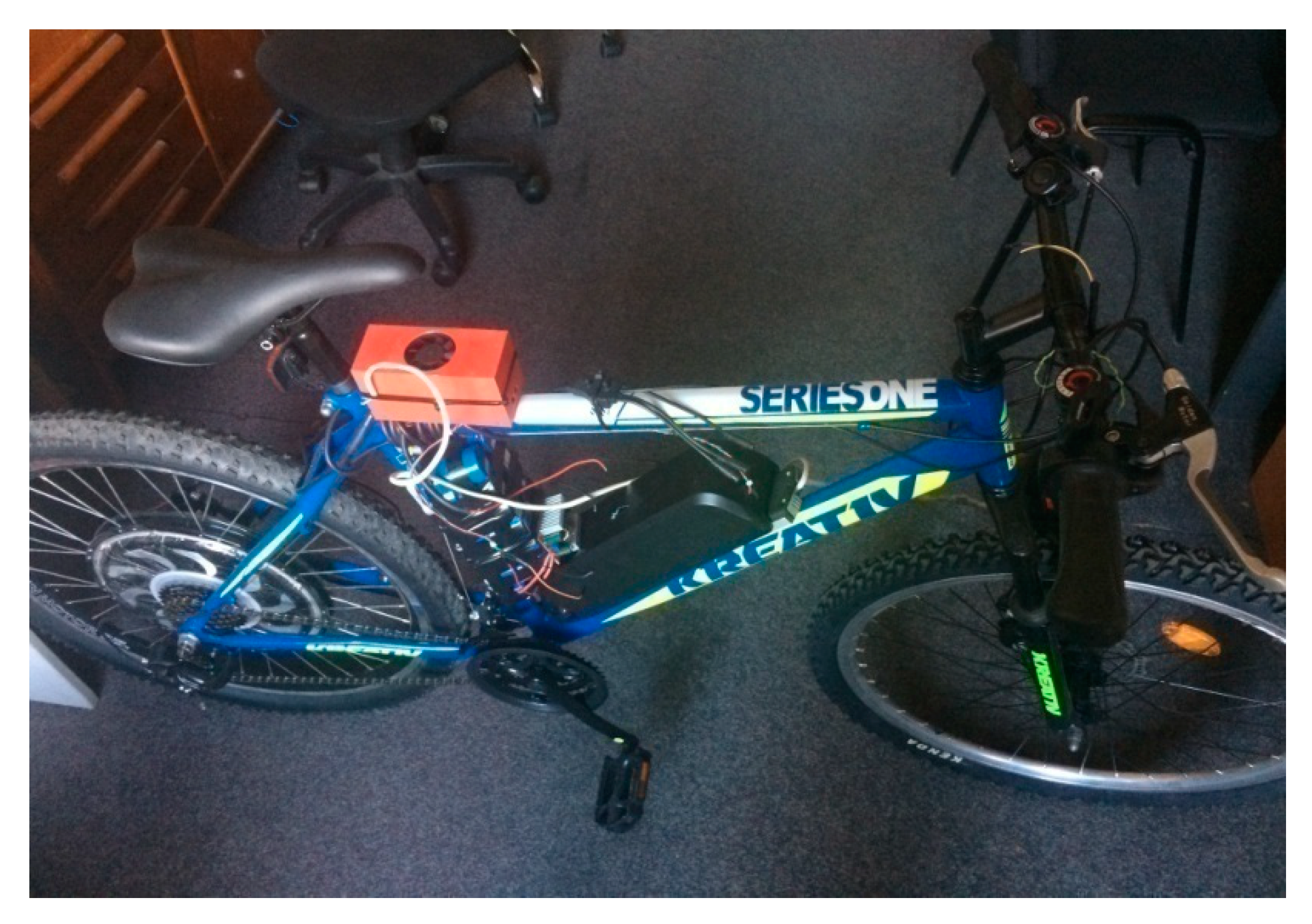

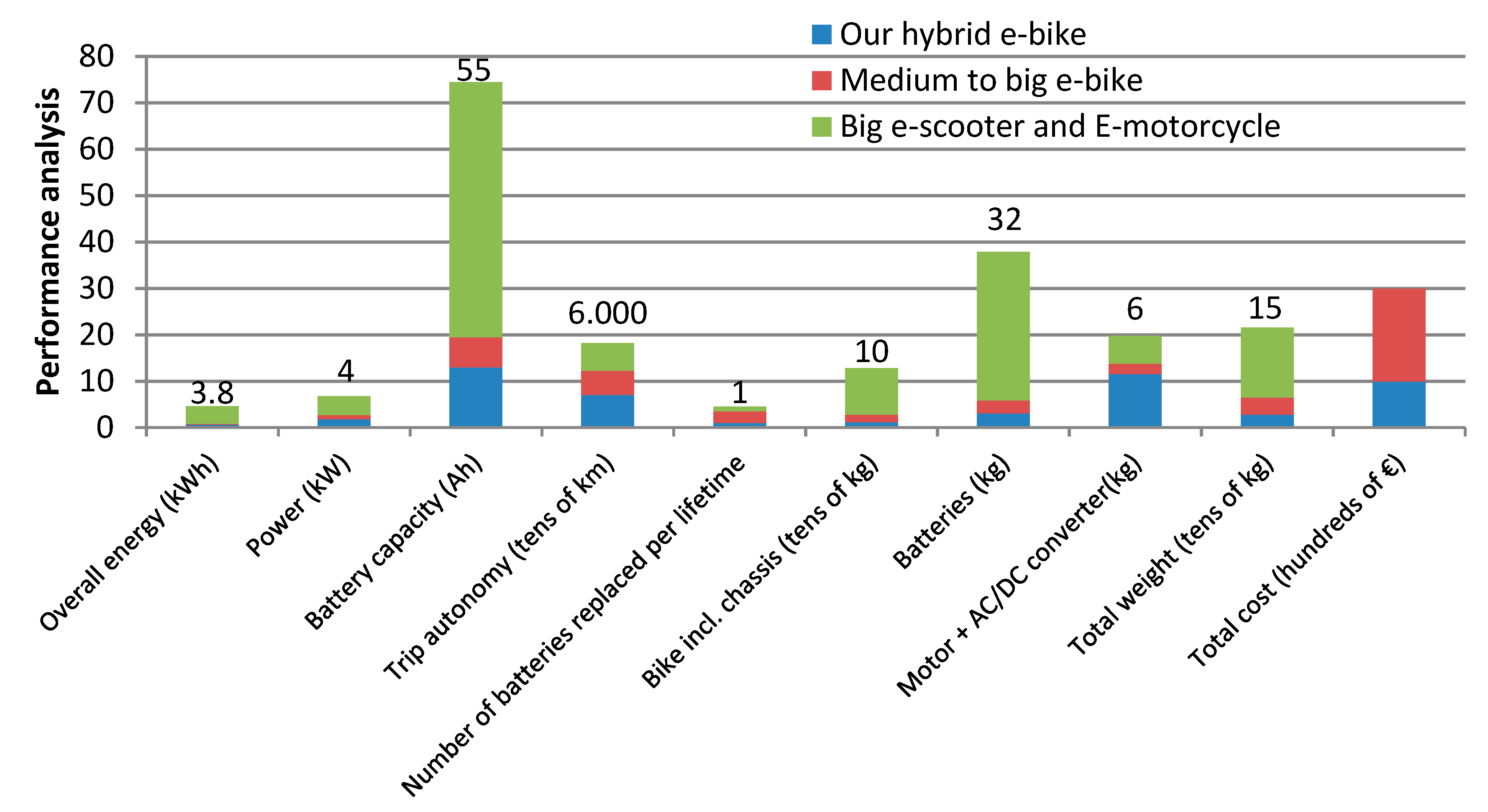

The sizing process, as shown in the preliminary results obtained for our e-bike, satisfies the reliability and life span requirements foreseen initially. The e-bike’s life span depends on exploitation conditions, such as biker’s speed profile, daily traveled distance, and thermal behavior of the e-bike’s storage system. These interdependences have a major influence on product life cycle (LPC or LLC), reflected by LCA and the performance analyses, as discussed in our paper.
For the design of our hybrid e-bike, the control of power flows is essential for ensuring the system’s energy efficiency, by means of power electronics. The majority of applications, such as hybrid e-bike, are related to electric mobility. From the application point of view, the existing standards based on statistical data for speed profile, such as Artemis Cycles, New European Driving Cycle (NDEC), and Worldwide Harmonized Light Vehicle Test Procedure (WLTP), have inherent deviations in reality. In the case of vehicles equipped with ICE these deviations are damped without affecting their reliability. In the case of electric vehicles, the deviations from the “real world” can easily affect the reliability and the lifetime of the EV’s energy sources. As mentioned previously, we have observed that the variations in the setting of the experimental test conditions influence the experimental results, sometimes even significantly.
An important remark is related to the necessity to unify the visions of chemists and engineers in the field of electric storage solutions. This should consider not only the power and energy density but also the technology of the devices, packaging, and the control functions of the attached power electronic system. This could lead to a better compromise solution that will increase the sustainability of mobile applications.
At the end of this discussion, we should think also about the changes in customers’ habits. By a deep understanding of the necessity to adjust the comfort conditions, an improvement of ecologic footprints should result from using personal electric vehicles instead of electric cars for the transport needs of a single person.

7. Conclusions

Due to the shortages in the methodologies used for improving the sustainability of e-mobility (EVs) and lack of solutions for designing hybrid EVs that can offer the right balance (or compromise) between sustainability challenges (economic, societal, and environmental) and performance and technology constraints (dependent on application), the main findings of this paper tackle these issues, consisting in the proposal of an appropriate framework based on LCA and performance analyses for testing the sustainability of EVs, for most sustainability challenges and the sizing of HESS for a hybrid e-bike, based on SC and Li-Ion batteries storage, for optimal personal electric vehicle operation. This can be seen as an e-mobility solution.
The research question we have addressed in the introduction can be easily reformulated—is our hybrid e-bike sustainable? In Table 9, we have analyzed our solution in terms of sustainability, mainly energy consumption, autonomy, costs, and battery disposal. Improvements were observed in all of these categories, plus the life span of such electric vehicle is much better than that of a conventional e-bike from 1–2 years to 2–4 years, as a result of storage hybridization in conjunction with its appropriate sizing.
A compromise was obtained by modifying the ratio between the two storage system component capacitances (battery and SC). This can represent an optimization method for reaching an overall performance of EVs, and implicitly the sustainability goals. We have put in practice this method by developing a hybrid e-bike that is similar in weight to a normal e-bike (<30 kg), but it is able to deliver more power (up to 1800 W, instead of 250–750 W for an e-bike), which is at the same level with a big e-bike that weighs around 60–100 kg. The sustainability goals discussed and delivered by the article were compared to that of other implementations, in order to highlight the strengths of our solution. The methodology we have used was adapted to the application’s requirements (hybrid PEVs for e-mobility), paving the way to the deployment of new strategies and procedures necessary to fulfill the sustainability challenges presented herein.

Author Contributions

Conceptualization, M.M.-P., and P.N.B.; methodology, M.M.-P.; software, P.N.B.; validation, M.M.-P., and P.N.B.; formal analysis, M.M.-P., and P.N.B.; investigation, M.M.-P., and P.N.B.; resources, P.N.B.; data curation, M.M.-P.; writing—Original draft preparation, M.M.-P., and P.N.B.; writing—Review and editing, M.M.-P., and P.N.B.; visualization, M.M.-P.; supervision, P.N.B.; project administration, P.N.B.; funding acquisition, P.N.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We like to thank Transilvania University of Brașov.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ling, Z.; Cherry, C.R.; Yang, H.; Jones, L.R. From e-bike to car: A study on factors influencing motorization of e-bike users across China. Transp. Res. Part D Transp. Environ. 2015, 41, 50–63. [Google Scholar] [CrossRef] [Green Version]
  2. Cherry, C.R.; Yang, H.; Jones, L.R.; He, M. Dynamics of electric bike ownership and use in Kunming, China. Transp. Policy 2016, 145, 127–135. [Google Scholar] [CrossRef] [Green Version]
  3. Wu, Z.; Wang, C.; Wolfram, P.; Zhang, Y.; Sun, X.; Hertwich, E. Assessing electric vehicle policy with region-specific carbon footprints. Appl. Energy 2019. [Google Scholar] [CrossRef]
  4. Fahimnia, B.; Bell, M.G.H.; Hensher, D.A.; Sarkis, J. Green Logistics and Transportation: A Sustainable Supply Chain Perspective; Springer: Cham, Switzerland, 2015. [Google Scholar]
  5. Miller, P.; de Barros, A.G.; Kattan, L.; Wirasinghe, S.C. Public transportation and sustainability: A review. KSCE J. Civ. Eng. 2016. [Google Scholar] [CrossRef]
  6. Van Nunen, A.E.E.; Huijgrebts, P.; Rietveld, P. Transitions towards Sustainable Mobility: New Solutions and Approaches for Sustainable Transport Systems. In Transitions Towards Sustainable Mobility; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
  7. Maes, J. The Potential of Cargo Bicycle Transport as a Sustainable Solution for Urban Logistics. Master’s Thesis, University of Antwerp, Antwerp, Belgium, 1 December 2017. [Google Scholar]
  8. Ramani, T.; Zietsman, J.; Eisele, W.; Rosa, D.; Spillane, D.; Bochner, B. Developing Sustainable Transportation Performance Measures for TxDOT’s Strategic Plan. In Security; Texas Transportation Institute: College Station, TX, USA, 2009. [Google Scholar]
  9. Sachs, J.D. The Age of Sustainable Development; Columbia University Press: New York, NY, USA, 2016. [Google Scholar]
  10. Thoughtco. History of Electric Vehicles. Available online: https://www.thoughtco.com/history-of-electric-vehicles-1991603 (accessed on 8 December 2019).
  11. Earlyelectric. Time Line. Available online: http://earlyelectric.com/timeline.html (accessed on 8 December 2019).
  12. Küng, L.; Bütler, T.; Georges, G.; Boulouchos, K. How much energy does a car need on the road? Appl. Energy 2019. [Google Scholar] [CrossRef]
  13. Matthé, R.; Eberle, U. The Voltec System-Energy Storage and Electric Propulsion. Lithium-Ion Batter. Adv. Appl. 2014. [Google Scholar] [CrossRef]
  14. Spagnol, P.; Corno, M.; Mura, R.; Savaresi, S.M. Self-sustaining strategy for a hybrid electric bike. In Proceedings of the American Control Conference (ACC), Washington, DC, USA, 17–19 June 2013; pp. 3479–3484. [Google Scholar]
  15. Wu, Y.; Huang, Z.; Liao, H.; Chen, B.; Zhang, X.; Zhou, Y.; Peng, J. Adaptive power allocation using artificial potential field with compensator for hybrid energy storage systems in electric vehicles. Appl. Energy 2020. [Google Scholar] [CrossRef]
  16. Diez, C.; Palanca, J.; Sanchez-Anguix, V.; Heras, S.; Giret, A.; Julián, V. Towards a persuasive recommender for bike sharing systems: A defeasible argumentation approach. Energies 2019, 12, 662. [Google Scholar] [CrossRef] [Green Version]
  17. Abagnale, C.; Cardone, M.; Iodice, P.; Strano, S.; Terzo, M.; Vorraro, G. Power requirements and environmental impact of a pedelec. A case study based on real-life applications. Environ. Impact Assess. Rev. 2015, 53, 1–7. [Google Scholar] [CrossRef] [Green Version]
  18. Abagnale, C.; Cardone, M.; Iodice, P.; Strano, S.; Terzo, M.; Vorraro, G. A dynamic model for the performance and environmental analysis of an innovative e-bike. Energy Procedia 2015, 81, 618–627. [Google Scholar] [CrossRef] [Green Version]
  19. Mrkajic, V.; Vukelic, D.; Mihajlov, A. Reduction of CO2 emission and non-environmental co-benefits of bicycle infrastructure provision: The case of the University of Novi Sad, Serbia. Renew. Sustain. Energy Rev. 2015, 49, 232–242. [Google Scholar] [CrossRef]
  20. Bucher, D.; Buffat, R.; Froemelt, A.; Raubal, M. Energy and greenhouse gas emission reduction potentials resulting from different commuter electric bicycle adoption scenarios in Switzerland. Renew. Sustain. Energy Rev. 2019. [Google Scholar] [CrossRef]
  21. Baptista, P.; Pina, A.; Duarte, G.; Rolim, C.; Pereira, G.; Silva, C.; Farias, T. From on-road trial evaluation of electric and conventional bicycles to comparison with other urban transport modes: Case study in the city of Lisbon, Portugal. Energy Convers. Manag. 2015, 92, 10–18. [Google Scholar] [CrossRef]
  22. Kroesen, M. To what extent do e-bikes substitute travel by other modes? Evidence from the Netherlands. Transp. Res. Part D Transp. Environ. 2017, 53, 377–887. [Google Scholar] [CrossRef]
  23. Cherry, C.; Weinert, J.; Xinmiao, Y. Comparative environmental impacts of electric bikes in China. Transp. Res. Part D 2009, 14, 281–290. [Google Scholar] [CrossRef] [Green Version]
  24. Dill, J.; Rose, G. E-bikes and transportation policy: Insights from early adopters. Transp. Res. Rec. 2012, 2314, 1–6. [Google Scholar] [CrossRef]
  25. Mendes, M. On-Road Evaluation of Conventional and Electric Motorcycle and Bicycles Performance in Urban Context. Master’s Thesis, Instituto Superior Técnico, Lisbon, Portugal, 2013. [Google Scholar]
  26. Cipriani, G.; Di Dio, V.; Miceli, R.; Ricco Galluzzo, G.; Russo, M. Evaluation of performance and efficiency and type approval of an electrically assisted bicycle drive. In Proceedings of the 2013 International Conference on Renewable Energy Research and Applications (ICRERA), Madrid, Spain, 20–23 October 2013. [Google Scholar]
  27. Roemer, F.; Mrosek, M.; Schmalfuss, S.; Lienkamp, M. New approach for an easily detachable electric drive unit for off-the-shelf bicycles. World Electr. Veh. J. 2018, 9, 37. [Google Scholar] [CrossRef] [Green Version]
  28. Fishman, E.; Cherry, C. E-bikes in the Mainstream: Reviewing a Decade of Research. Transp. Rev. 2016, 36, 72–91. [Google Scholar] [CrossRef]
  29. IEA. Energy technology perspectives: 2010. Scenarios & strategies to 2050. Int. Energy Agency 2010. [Google Scholar] [CrossRef]
  30. Dozza, M.; Werneke, J.; Mackenzie, M. e-BikeSAFE: A Naturalistic Cycling Study to understand how electrical bicycles change cycling behaviour and influence safety. In Proceedings of the International Cycling Safety Conference, Helmond, The Netherlands, 20–21 November 2013. [Google Scholar]
  31. Adhisuwignjo, S.; Siradjuddin, I.; Rifa’I, M.; Putri, R.I. Development of a solar-powered electric bicycle in bike sharing transportation system. IOP Conf. Ser. Earth Environ. Sci. 2017, 70. [Google Scholar] [CrossRef] [Green Version]
  32. Salmeron-Manzano, E.; Manzano-Agugliaro, F. The electric bicycle: Worldwide research trends. Energies 2018, 11, 1894. [Google Scholar] [CrossRef] [Green Version]
  33. Cycle Assessment of Two Wheel Vehicles. Available online: http://treeze.ch/fileadmin/user_upload/downloads/Publications/Case_Studies/Mobility/leuenberger-2010-TwoWheelVehicles.pdf (accessed on 16 November 2019).
  34. Luo, X.; Wang, J.; Dooner, M.; Clarke, J. Overview of current development in electrical energy storage technologies and the application potential in power system operation. Appl. Energy 2015, 137, 511–536. [Google Scholar] [CrossRef] [Green Version]
  35. Petrillo, A.; Mellino, S.; De Felice, F.; Scudo, I. Design of a Sustainable Electric Pedal-Assisted Bike: A Life Cycle Assessment Application in Italy. New Front. Life Cycle Assess. Theory Appl. 2018. [Google Scholar] [CrossRef] [Green Version]
  36. Abu-Rub, H.; Malinowski, M.; Al-Haddad, K. Power Electronics for Renewable Energy Systems, Transportation and Industrial Applications; John Wiley & Sons Ltd.: Chichester, UK, 2014. [Google Scholar]
  37. Dai, D.; Leng, R.; Zhang, C.; Wang, C. Using hybrid modeling for life cycle assessment of motor bike and electric bike. J. Cent. South Univ. Technol. 2005, 12, 77–80. [Google Scholar] [CrossRef]
  38. Dave, S. Life Cycle Assessment of Transportation Options for Commuters; Massachusetts Institute of Technology (MIT): Cambridge, MA, USA, 2010; pp. 1–16. [Google Scholar]
  39. Asaithambi, G.; Treiber, M.; Kanagaraj, V. Life Cycle Assessment of Conventional and Electric Vehicles. Int. Clim. Prot. 2019, 161–168. [Google Scholar] [CrossRef]
  40. Messagie, M. Life Cycle Analysis of the Climate Impact of Electric Vehicles. Transp. Environ. 2014, 2014, 1–14. [Google Scholar]
  41. Guanetti, J.; Formentin, S.; Corno, M.; Savaresi, S.M. Optimal energy management in series hybrid electric bicycles. Automatica 2017, 81, 96–106. [Google Scholar] [CrossRef]
  42. Borza, P.N. Application of the Energy Storage Systems. In Emerging Nanotechnologies in Rechargeable Energy Storage Systems; Rodriguez-Martinez, L.M., Omar, N., Eds.; Elsevier: Amsterdam, The Netherlands, 2017. [Google Scholar]
  43. Assessment of Environmental Impact, Economic and Societal Competitiveness. Available online: http://www.pro-e-bike.org/wp-content/uploads/2016/02/D-6-4-Assessment-of-environmental-impact-economic-and-societal-competitiveness_December-2015.pdf (accessed on 16 November 2019).
  44. Coelho, M.C.; Almeida, D. Cycling mobility—A life cycle assessment based approach. Transp. Res. Procedia 2015, 10, 443–451. [Google Scholar] [CrossRef] [Green Version]
  45. Mahmoudzadeh Andwari, A.; Pesiridis, A.; Rajoo, S.; Martinez-Botas, R.; Esfahanian, V. A review of Battery Electric Vehicle technology and readiness levels. Renew. Sustain. Energy Rev. 2017, 71, 414–430. [Google Scholar] [CrossRef]
  46. Deng, Y.; Li, J.; Li, T.; Gao, X.; Yuan, C. Life cycle assessment of lithium sulfur battery for electric vehicles. J. Power Sources 2017, 343, 284–295. [Google Scholar] [CrossRef] [Green Version]
  47. Li, Y.; Yang, J.; Song, J. Electromagnetic effects model and design of energy systems for lithium batteries with gradient structure in sustainable energy electric vehicles. Renew. Sustain. Energy Rev. 2015, 52, 842–851. [Google Scholar] [CrossRef]
  48. Hannan, M.A.; Lipu, M.S.H.; Hussain, A.; Mohamed, A. A review of lithium-ion battery state of charge estimation and management system in electric vehicle applications: Challenges and recommendations. Renew. Sustain. Energy Rev. 2017, 78, 834–854. [Google Scholar] [CrossRef]
  49. Wang, Q.; Jiang, B.; Li, B.; Yan, Y. A critical review of thermal management models and solutions of lithium-ion batteries for the development of pure electric vehicles. Renew. Sustain. Energy Rev. 2016, 64, 106–128. [Google Scholar] [CrossRef]
  50. Zakeri, B.; Syri, S. Electrical energy storage systems: A comparative life cycle cost analysis. Renew. Sustain. Energy Rev. 2015, 42, 569–596. [Google Scholar] [CrossRef]
  51. Libich, J.; Máca, J.; Vondrák, J.; Čech, O.; Sedlaříková, M. Supercapacitors: Properties and applications. J. Energy Storage 2018, 17, 224–227. [Google Scholar] [CrossRef]
  52. Cusenza, M.A.; Bobba, S.; Ardente, F.; Cellura, M.; Di Persio, F. Energy and environmental assessment of a traction lithium-ion battery pack for plug-in hybrid electric vehicles. J. Clean. Prod. 2019, 215, 634–649. [Google Scholar] [CrossRef]
  53. Gandoman, F.H.; Jaguemont, J.; Goutam, S.; Gopalakrishnan, R.; Firouz, Y.; Kalogiannis, T.; Van Mierlo, J. Concept of reliability and safety assessment of lithium-ion batteries in electric vehicles: Basics, progress, and challenges. Appl. Energy 2019, 251. [Google Scholar] [CrossRef]
  54. Marques, P.; Garcia, R.; Kulay, L.; Freire, F. Comparative life cycle assessment of lithium-ion batteries for electric vehicles addressing capacity fade. J. Clean. Prod. 2019, 229, 787–794. [Google Scholar] [CrossRef]
  55. Jiang, Y.; Jiang, J.; Zhang, C.; Zhang, W.; Gao, Y.; Guo, Q. Recognition of battery aging variations for LiFePO4 batteries in 2nd use applications combining incremental capacity analysis and statistical approaches. J. Power Sources 2017, 360, 180–188. [Google Scholar] [CrossRef]
  56. Oeser, D.; Ziegler, A.; Ackva, A. Single cell analysis of lithium-ion e-bike batteries aged under various conditions. J. Power Sources 2018, 397, 25–31. [Google Scholar] [CrossRef]
  57. Rahe, C.; Kelly, S.T.; Rad, M.N.; Sauer, D.U.; Mayer, J.; Figgemeier, E. Nanoscale X-ray imaging of ageing in automotive lithium ion battery cells. J. Power Sources 2019, 433, 126631. [Google Scholar] [CrossRef]
  58. Hatwar, N.; Bisen, A.; Dodke, H.; Junghare, A.; Khanapurkar, M. Design approach for electric bikes using battery and super capacitor for performance improvement. In Proceedings of the IEEE Conference on Intelligent Transportation Systems, Proceedings, ITSC, The Hague, The Netherlands, 6–9 October 2013; pp. 1959–1964. [Google Scholar]
  59. Herrera, V.I.; Milo, A.; Gaztañaga, H.; Etxeberria-Otadui, I.; Villarreal, I.; Camblong, H. Adaptive energy management strategy and optimal sizing applied on a battery supercapacitor based tramway. Appl. Energy 2016, 169, 831–845. [Google Scholar] [CrossRef]
  60. Manoj, E.; Isa, D.; Arelhi, R. Supercapacitor/battery hybrid powered electric bicycle via a smart boost converter. World Electr. Veh. J. 2011, 4, 280–286. [Google Scholar] [CrossRef] [Green Version]
  61. García, P.; Fernández, L.M.; Torreglosa, J.P.; Jurado, F. Operation mode control of a hybrid power system based on fuel cell/battery/ultracapacitor for an electric tramway. Comput. Electr. Eng. 2013, 39, 1993–2004. [Google Scholar] [CrossRef]
  62. Li, X.; Yu, L.; Cui, Y.; Li, A.; Shao, H.; Shao, Z. Enhanced properties of LiFePO4/C cathode materials co-doped with V and F ions via high-temperature ball milling route. Int. J. Hydrog. Energy 2019, 44, 27204–27213. [Google Scholar] [CrossRef]
  63. Li, Y.; Wang, J.; Yao, J.; Huang, H.X.; Du, Z.Q.; Gu, H.; Wang, Z.T. Enhanced cathode performance of LiFePO4/C composite by novel reaction of ethylene glycol with different carboxylic acids. Mater. Chem. Phys. 2019, 224, 293–300. [Google Scholar] [CrossRef]
  64. Hu, G.; Gan, Z.; Peng, Z.; Du, K.; Wang, W.; Cao, Y. Enhancing the high rate performance of synergistic hybrid LiFePO4·LiVPO4 F/C cathode for lithium ion battery. Solid State Ion. 2019, 335, 142–150. [Google Scholar] [CrossRef]
  65. Muzaffar, A.; Ahamed, M.B.; Deshmukh, K.; Thirumalai, J. A review on recent advances in hybrid supercapacitors: Design, fabrication and applications. Renew. Sustain. Energy Rev. 2019, 101, 123–145. [Google Scholar] [CrossRef]
  66. Baptista, J.M.; Sagu, J.S.; KG, U.W.; Lobato, K. State-of-the-art materials for high power and high energy supercapacitors: Performance metrics and obstacles for the transition from lab to industrial scale—A critical approach. Chem. Eng. J. 2019, 374, 1153–1179. [Google Scholar] [CrossRef]
  67. Mellino, S.; Petrillo, A.; Cigolotti, V.; Autorino, C.; Jannelli, E.; Ulgiati, S. A Life Cycle Assessment of lithium battery and hydrogen-FC powered electric bicycles: Searching for cleaner solutions to urban mobility. Int. J. Hydrog. Energy 2017, 42, 1830–1840. [Google Scholar] [CrossRef]
  68. Ortúzar, M.; Moreno, J.; Dixon, J. Ultracapacitor-based auxiliary energy system for an electric vehicle: Implementation and evaluation. IEEE Trans. Ind. Electron. 2007, 54, 2147–2156. [Google Scholar] [CrossRef]
  69. Saponara, S.; Moras, R.; Roncella, R.; Saletti, R.; Benedetti, D. Performance measurements of energy storage systems and control strategies in real-world e-bikes. In Proceedings of the SAS 2016—Sensors Applications Symposium, Proceedings, Catania, Italy, 20–22 April 2016. [Google Scholar]
  70. Alli, G.; Formentin, S.; Savaresi, S.M. On the suitability of EPACs in urban use. IFAC Proc. Vol. 2010, 43, 277–284. [Google Scholar] [CrossRef]
  71. Corno, M.; Berretta, D.; Spagnol, P.; Savaresi, S.M. Design, Control, and Validation of a Charge-Sustaining Parallel Hybrid Bicycle. IEEE Trans. Control Syst. Technol. 2016, 24, 817–829. [Google Scholar] [CrossRef]
  72. Tal, I.; Ciubotaru, B.; Muntean, G.M. Vehicular-Communications-Based Speed Advisory System for Electric Bicycles. IEEE Trans. Veh. Technol. 2016, 65, 4129–4143. [Google Scholar] [CrossRef]
  73. Ba Hung, N.; Jaewon, S.; Lim, O. A study of the effects of input parameters on the dynamics and required power of an electric bicycle. Appl. Energy 2017, 204, 1347–1362. [Google Scholar] [CrossRef]
  74. Malan, K.; Coutlakis, M.; Braid, J. Design and development of a prototype super-capacitor powered electric bicycle. In Proceedings of the ENERGYCON 2014—IEEE International Energy Conference, Cavtat, Croatia, 13–16 May 2014. [Google Scholar]
  75. Lee, J.; Kim, J.; Woo, B. Optimal design of in-wheel motor for an E-bike. In Proceedings of the 2016 IEEE Transportation Electrification Conference and Expo, Asia-Pacific, ITEC Asia-Pacific, Busan, Korea, 1–4 June 2016. [Google Scholar]
  76. Nasiri-Zarandi, R.; Ebrahimi, M. Extracting requirements for design a two-wheels electric vehicle and proposing a design procedure. In Proceedings of the 9th Annual International Power Electronics, Drive Systems, and Technologies Conference, PEVSTC, Tehran, Iran, 13–15 February 2018. [Google Scholar]
  77. Designing of Improved Hybrid Electric Bikes. Available online: https://pdfs.semanticscholar.org/52f0/4bfd49590859113d8628f050c77a144a7c6e.pdf (accessed on 16 November 2019).
  78. Lencwe, M.J.; Chowdhury, S.P.; Olwal, T.O. A multi-stage approach to a hybrid lead acid battery and supercapacitor system for transport vehicles. Energies 2018, 11, 2888. [Google Scholar] [CrossRef] [Green Version]
  79. Vitols, K.; Poiss, E. Development of electric scooter battery pack management system. In Proceedings of the 2018 IEEE 59th Annual International Scientific Conference on Power and Electrical Engineering of Riga Technical University, RTUCON, Riga, Latvia, 12–14 November 2018. [Google Scholar]
  80. Corno, M.; Busnelli, F.; Savaresi, S.M. Design and control of an electrically assisted kick scooter. In Proceedings of the American Control Conference, Boston, MA, USA, 6–8 July 2016. [Google Scholar]
  81. Leger, S.J.; Dean, J.L.; Edge, S.; Casello, J.M. “If I had a regular bicycle, I wouldn’t be out riding anymore”: Perspectives on the potential of e-bikes to support active living and independent mobility among older adults in Waterloo, Canada. Transp. Res. Part A Policy Pract. 2019, 123, 240–254. [Google Scholar] [CrossRef]
  82. Liu, W.; Sang, J.; Chen, L.; Tian, J.; Zhang, H.; Olvera Palma, G. Life cycle assessment of lead-acid batteries used in electric bicycles in China. J. Clean. Prod. 2015, 108, 1149–1156. [Google Scholar] [CrossRef]
  83. Elliot, T.; McLaren, S.J.; Sims, R. Potential environmental impacts of electric bicycles replacing other transport modes in Wellington, New Zealand. Sustain. Prod. Consum. 2018, 16, 227–239. [Google Scholar] [CrossRef]
  84. Timmermans, J.M.; Lataire, P.; Van Mierlo, J. Optimization of the energy consumption of the electric drive for a postal delivery bicycle. In Proceedings of the 2010 IEEE Vehicle Power and Propulsion Conference, VPPC, Lille, France, 1–3 September 2010. [Google Scholar]
  85. Corno, M.; Berretta, D.; Savaresi, S.M. Human machine interfacing issues in SeNZA, a Series Hybrid Electric Bicycle. In Proceedings of the American Control Conference, Chicago, IL, USA, 1–3 July 2015. [Google Scholar]
  86. Brankovic, A.; Berretta, D.; Formentin, S.; Corno, M.; Savaresi, S.M. Modeling and speed limitation control of an electric kick scooter. In Proceedings of the 2015 European Control Conference, ECC, Linz, Austria, 15–17 July 2015. [Google Scholar]
  87. Sankaranarayanan, V.; Ravichandran, S. Torque sensorless control of a human-electric hybrid bicycle. In Proceedings of the 2015 International Conference on Industrial Instrumentation and Control, ICIC, Pune, India, 9 July 2015. [Google Scholar]
  88. Caruso, M.; Cecconi, V.; Cipriani, G.; Di Dio, V.; Di Tommaso, A.O.; Genduso, F.; Trapanese, M. A photovoltaic charging system of an electrically assisted tricycle for touristic purposes. In Proceedings of the AEIT Annual Conference 2013: Innovation and Scientific and Technical Culture for Development, Mondello, Italy, 3–5 October 2013. [Google Scholar]
  89. Study & Development of Wind Energy Powered Hybrid Cycle. Available online: http://www.ijirset.com/upload/2016/march/174_39_Study_new.pdf (accessed on 16 November 2019).
  90. Khalik, Z.; Romijn, T.C.J.; Donkers, M.C.F.; Weiland, S. Effects of Battery Charge Acceptance and Battery Aging in Complete Vehicle Energy Management. IFAC-Pap. Line 2017, 50, 2145–2151. [Google Scholar] [CrossRef]
  91. Wu, J.; Wang, X.; Li, L.; Qin, C.; Du, Y. Hierarchical control strategy with battery aging consideration for hybrid electric vehicle regenerative braking control. Energy 2018, 145, 301–312. [Google Scholar] [CrossRef]
  92. Redondo-Iglesias, E.; Venet, P.; Pelissier, S. Calendar and cycling ageing combination of batteries in electric vehicles. Microelectron. Reliab. 2018, 80–90, 1212–1215. [Google Scholar] [CrossRef] [Green Version]
  93. Lucu, M.; Martinez-Laserna, E.; Gandiaga, I.; Camblong, H. A critical review on self-adaptive Li-ion battery ageing models. J. Power Sources 2018, 401, 85–101. [Google Scholar] [CrossRef]
  94. Maures, M.; Zhang, Y.; Martin, C.; Delétage, J.-Y.; Vinassa, J.-M.; Briat, O. Impact of temperature on calendar ageing of Lithium-ion battery using incremental capacity analysis. Microelectron. Reliab. 2019, 100–101, 113364. [Google Scholar] [CrossRef]
  95. Zhou, X.; Huang, J.; Pan, Z.; Ouyang, M. Impedance characterization of lithium-ion batteries aging under high-temperature cycling: Importance of electrolyte-phase diffusion. J. Power Sources 2019, 426, 216–222. [Google Scholar] [CrossRef]
  96. Wang, S.L.; Fernandez, C.; Zou, C.Y.; Yu, C.M.; Chen, L.; Zhang, L. A comprehensive working state monitoring method for power battery packs considering state of balance and aging correction. Energy 2019, 171, 444–455. [Google Scholar] [CrossRef]
  97. Jafari, M.; Khan, K.; Gauchia, L. Deterministic models of Li-ion battery aging: It is a matter of scale. J. Energy Storage 2018, 20, 67–77. [Google Scholar] [CrossRef]
  98. Zhang, S.; Hu, X.; Xie, S.; Song, Z.; Hu, L.; Hou, C. Adaptively coordinated optimization of battery aging and energy management in plug-in hybrid electric buses. Appl. Energy 2019, 256, 113891. [Google Scholar] [CrossRef]
  99. Esfandyari, M.J.; Esfahanian, V.; HairiYazdi, M.R.; Nehzati, H.; Shekoofa, O. A new approach to consider the influence of aging state on Lithium-ion battery state of power estimation for hybrid electric vehicle. Energy 2019, 176, 505–520. [Google Scholar] [CrossRef]
  100. Bai, Y.; He, H.; Li, J.; Li, S.; Wang, Y.; Yang, Q. Battery anti-aging control for a plug-in hybrid electric vehicle with a hierarchical optimization energy management strategy. J. Clean. Prod. 2019, 237, 117841. [Google Scholar] [CrossRef]
  101. Hu, X.; Johannesson, L.; Murgovski, N.; Egardt, B. Longevity-conscious dimensioning and power management of the hybrid energy storage system in a fuel cell hybrid electric bus. Appl. Energy 2015, 137, 913–924. [Google Scholar] [CrossRef]
  102. Herrera, V.I.; Saez-de-Ibarra, A.; Gaztañaga, A.; Camblong, H. Optimal Energy Management of a Hybrid Electric Bus with a Battery-Supercapacitor Storage System using Genetic Algorithms. In Proceedings of the Electrical Systems for Aircraft, Railway, Ship Propulsion and Road Vehicles ESARS, Aachen, Germany, 3–5 March 2015. [Google Scholar]
  103. Cheng, L.; Wang, W.; Wei, S.; Lin, H.; Jia, Z. An improved energy management strategy for hybrid energy storage system in light rail vehicles. Energies 2018, 11, 423. [Google Scholar] [CrossRef] [Green Version]
Sustainability 12 00032 g001 550
Figure 1. Sustainability challenges for transport systems.
Figure 1. Sustainability challenges for transport systems.
Sustainability 12 00032 g001
Sustainability 12 00032 g002 550
Figure 2. Methodology for developing sustainable EVs (e-Mobility).
Figure 2. Methodology for developing sustainable EVs (e-Mobility).
Sustainability 12 00032 g002
Sustainability 12 00032 g003 550
Figure 3. Methodology proposed in paper for developing sustainable PEVs.
Figure 3. Methodology proposed in paper for developing sustainable PEVs.
Sustainability 12 00032 g003
Sustainability 12 00032 g004 550

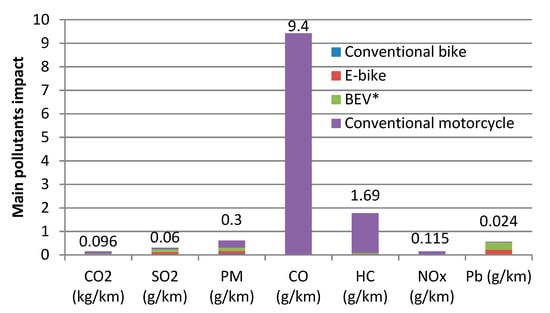

Figure 4. Environmental impact of lead-acid battery–based transportation vehicles, according to the average values from Table 2. The values on top are for a conventional motorcycle. * E-cars and small e-scooters are excluded.
Figure 4. Environmental impact of lead-acid battery–based transportation vehicles, according to the average values from Table 2. The values on top are for a conventional motorcycle. * E-cars and small e-scooters are excluded.
Sustainability 12 00032 g004
Sustainability 12 00032 g005 550
Figure 5. Battery losses (kg per battery) of lead-acid battery–based transportation vehicles, according to the average values from Table 3. The values on top are for a BEV. * E-cars and small e-scooters are excluded.
Figure 5. Battery losses (kg per battery) of lead-acid battery–based transportation vehicles, according to the average values from Table 3. The values on top are for a BEV. * E-cars and small e-scooters are excluded.
Sustainability 12 00032 g005
Sustainability 12 00032 g006 550
Figure 6. Relation between specific power and energy (Ragone plot) for the main types of storage for PEVs, according to the average values from Table 4.
Figure 6. Relation between specific power and energy (Ragone plot) for the main types of storage for PEVs, according to the average values from Table 4.
Sustainability 12 00032 g006
Sustainability 12 00032 g007 550
Figure 7. Hybrid e-bike.
Figure 7. Hybrid e-bike.
Sustainability 12 00032 g007
Sustainability 12 00032 g008 550

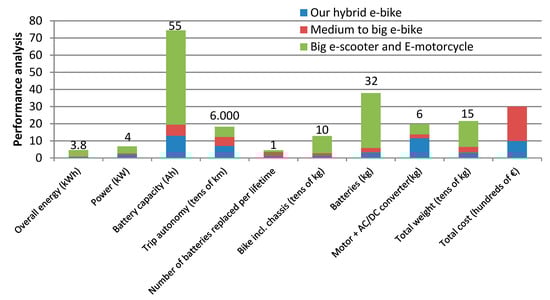

Figure 8. Performance analysis and costs of our hybrid e-bike, compared to other PEVs, according to the average values from Table 8 and Table 9. The values on top are for big e-scooter and e-motorcycle.
Figure 8. Performance analysis and costs of our hybrid e-bike, compared to other PEVs, according to the average values from Table 8 and Table 9. The values on top are for big e-scooter and e-motorcycle.
Sustainability 12 00032 g008
Table
Table 1. Typical characteristics of different types of transportation vehicles.
Table 1. Typical characteristics of different types of transportation vehicles.
CharacteristicCars, Trains, Trams, Trucks, BusesMedium and Heavy-Duty EVsMotorcycles, Big Scooters, MopedsBikes, Small ScootersE-Bikes
Air pollution4–30 1 kilotons/year2–5 1 kilotons/year10 1 kilotons/yearNegligible *1–2 1 kilotons/year
Health & fitness factorNo impact on fitness, no health benefits *Beneficial to both 7
InfrastructureYes *Conditional Yes: Road *Cond. Yes: Bike lane/road *
SafetyHigh (industry regulations) to medium (when on road) *Medium (when on road) *Medium to low 3 (when on road + high speed)
Limits in speed, power, weightNo*mopeds: 45 km/h *, motorcycle: Tens of kW *100–300 W *25–32 km/h,100–750 W, <45kg 2
Energy consumption10–40 MJ/user 4;
2778–11,111 Wh/user		5–15MJ/user 4;
1389–4667Wh/user		5–30MJ/user *;
1389–8333Wh/user		Negligible *<1MJ/user *;
278Wh/user
Life span10–20 years *8–10 years*Up to 3–4 years *
Life expectancy>160,000 km *(cars);
0.5–1*10 6 km (trucks)		>160,000 km *(e-cars); –(e-trucks)25,000–50,000 8 km15,000 8 km4000–15,000 8 km
Recharging time-Tens of minutes to few hours **--5–8h6
RangeHigh: Up to thousands of km * (infrastructure & storage-dependent)High to medium: A few hundreds of km *(storage-dependent, max. 500 km)Medium: Daily use, hundreds of km *-Medium to low: Hours, 45–50 km 5
Trip time(Congested) 15–35 min 4; (Light traffic) 5min *(Cong.) 15–20 min *; (Light tr.) 5–10 min *30min–1h *15–20 min 4
Purchase costsTens/hundreds of thousands € *3000 to 10,000 € *below 1000€ *500 to 5000 € *
Maintenance costsHigh: Up to tens of thousands €Medium: Hundreds to thousands of € *Low to medium: Hundreds of € *
* According to estimations; ** dependent on charger and battery type; 1 according to references [2,17,19,20], based on average values for the sum of main pollutants: CO (carbon monoxide), NOx (nitrogen oxides), VOC (volatile organic compounds), and PM10 (particulate matter that have 10 micrograms per cubic meter or less in diameter); 2 according to reference [28]; 3 according to references [29,30]; 4 according to reference [26], based on average values for car/bus and e-bike, up to 5 km; 5 according to reference [21], based on average values; 6 according to references [31,32]; 7 according to reference [25]; 8 according to reference [33].
Table
Table 2. Life cycle assessment (LCA) for personal electric vehicles (PEVs) and medium battery electric vehicles (BEVs).
Table 2. Life cycle assessment (LCA) for personal electric vehicles (PEVs) and medium battery electric vehicles (BEVs).
MetricConventional BikeE-BikeBEV *Conventional Motorcycle
Environmental impact (emissions and other products)
Main Pollutants
CO (g/km)-0.02 32.1–8.47 21.7–5 6; 12.5–18 3
NOx (g/km)-0.06 30.11–0.37 20.05–0.15 3;
0.1–0.34 6
HC (g/km)--0.29–1.16 20.56–4.69 6
PM10 (g/km)-0.02 3-0.06–0.33 3
PM2.5 (g/km)-0.01 3-0.03–0.16 3
SO2 (g/km)-0.13 3-0 3
HC (g/km)-0.007 3--
CO2 (g/km)-21.5 320.2–40.53; 30840–553; 68–1056
Production/Manufacturing Processes
SO2 (kg)0.275 21.563 22.198 21 2
PM (kg)1.176 25.824 28.173 24 2
GHG(tones SCE)0.097 20.603 20.875 20.284 2
Waste water (kg)393 21488 22092 21397 2
Solid waste (kg)0.641 24.463 27.139 23 2
Life Cycle of Lead Acid Battery Based Vehicles
CO2 (g/km)4.7 315.6–31.2 320.2–40.5 364–128 3
SO2 (g/km)0.01 30.07–0.14 30.09–0.17 30.04–0.08 3
PM (g/km)0.06 30.07–0.14 30.1–0.19 30.2–0.4 3
CO (g/km)-0.007–0.014 30.009–0.017 36.3–12.5 3
HC (g km)-0.027–0.053 30.032–0.064 31.13–2.25 3
NOx (g/km)-0.01–0.02 30.014–0.027 30.08–0.15 3
Pb (mg/km)0 3145–290 3210–420 316–32 3
Energy impact
Energy Used When Operating
Energy consumption (MJ/user)0.25 10; 69.44 Wh0.19 9–0.52 1; 52.77–144.4 Wh4.68–14.97 1;
1300–4160 Wh		-
Energy per km (MJ/km)0.013 1; 3.62 Wh/km0.028 1;
7.78 Wh/km		0.73 9;
203 Wh/km		0.67–0.85 9;
186–236 Wh/km
Energy use (kWh/100 pax-km)4.88 33.8–7.6 34.9–9.9 3; 5.7 721–42 3
Battery (kWh)-0.36 91.68–5.4 9-
Energy Used Per Activity(KJ/PKT)
Fuel production0 51.25 5-50–150 **
Infrastructure126 5126 5-200–500 **
Maintenance5.5 55.5 5-60–150 **
Manufacturing66 587 5-140–200 **
Operation0 50 5-600–700 **
Energy Used Per Life Cycle (MJ)
Manufacture-12,000 420,000 4-
Use-87,000 4265,000 4-
Disposal-1200 43000 4-
Life cycle energy consumption-102,000 4288,000 4-
* E-cars and small e-scooters are excluded, ** according to estimations, 1 according to Reference [21] for Well-to-Wheel (WTW) analysis, 2 according to Reference [17] for test scenarios in Italy, 3 according to Reference [23] for the models used, lead losses are considered for a recycle rate from 100 to 90%, 4 according to Reference [37], 5 according to Reference [38], PKT is passenger occupancy-km-traveled, 6 according to Reference [18] for test scenarios in Switzerland, 7 according to Reference [39], 8 according to Reference [40], 9 according to Reference [25], 10 according to Reference [41].
Table
Table 3. Environmental impact of lead-acid battery-based vehicles—materials and battery losses.
Table 3. Environmental impact of lead-acid battery-based vehicles—materials and battery losses.
MetricConventional BikeE-BikeBEV *Conventional Motorcycle
Weight of materials used
Total weight (kg)15 6;17 3; 18 223 4–24 3;
26 1–41 2		65.8 2; 140 4–144 3; 80–208 590 3,4; 94 2
Steel13 218.2 226.2276.4 2
Plastic2 25.7 215.229.1 2
Lead-10.3 214.721.7 2
Nickel---0.3 3
Fluid-2.924.22-
Copper-2.623.521 2
Rubber2 21.1 21.2 23.2 2
Aluminum1 20.5 20.6 21.5 2
Maintenance50%Plastic, 5%Steel 450%Plastic, 5%Steel 410%Steel, 10%Aluminum 410%Steel, 10%Aluminum 4
Lead Acid Battery Losses (kg Per Battery)
Battery weight-10.3 kg 214.7 kg 2; 32 kg 41.7 kg 2
Mining and concentration loss-1.1–1.2 21.5–1.720.17–0.19 2
Smelt loss (primary)-0.4 20.6 20.06–0.07 2
Smelt loss (sec.)-0.9–1 21.3–1.4 20.14–0.16 2
Manufacture loss-0.5 20.7 20.082
Total production emissions-2.9–3 24.2–4.3 20.48–0.49 2
Solid waste-0–1 20–1.5 20–0.17 2
* E-cars and small e-scooters are excluded, 1 according to reference [17] for test scenarios in Italy, 2 according to reference [23] for the models used, lead losses are considered for a recycle rate from 100 to 90%, 3 according to reference [33], 4 according to reference [39], 5 according to reference [25], 6 according to reference [41].
Table
Table 4. Characteristics of the main storage solutions for PEVs.
Table 4. Characteristics of the main storage solutions for PEVs.
CharacteristicLead AcidLi Ion SupercapacitorsHydrogen Fuel CellsNi-MH & Ni-Cd
Energy density (Wh/l)50–70 1; 50–90 4150–200 1; 150–500 410–30 4; 3–180 6500–3000 4200 1; 170–420 4
Power density (W/l)10–400 41500–10,000 4100,000+ 4500+ 480–600 4
Specific energy (Wh/kg)20–40 1; 35 2; 25–50 4100–200 1;<120–150 2; >200 3; 75–200 4; 150–350 50.05–15 4100 5–10,000 440–60 1; <70 2; 70–100 4; 15–300 5
Specific power (W/kg)300 1; 150–900 2; 75–300 4,5300–800 1; <120–150 2; <150–2000 4500–10,000 45–800 4; 500 5130–500 1;<200 2
Power range (MW)0–40 4; <20 50–100 4; <0.001 50–0.3 410–58.8 4; 0.3–50 50–40 4,5
Rated energy capacity (MW h)0.001–40 40.004–10 40.0005 40.3–39 46.75 4
Voltage (V)2.1 1,23.6 1,22.3–2.8 6-1.2 1,2
Overall efficiency (%)85 1; 70–90 593 1; 85–95 582–98 533–42 560–73 5; 80 1
Cycle efficiency (%)63–90 475–97 484–97 420–66 460–83 4
Discharge efficiency (%)85 485 495–98+ 459 485 4
Cycle life @80%DOD200 1; 500–1000 2< 2500 1;>1000 2100,000–1,000,000 6-> 2500 1; >2000 2
Lifetime (years)5–15 4,55 5–16 410–30 45–20+ 43 4–20 5
Life cycles (cycles)200–1800 4; 2000–4500 51000–20,000 4; 1500–4500 5>50,0005; >100,000 41000–20,000+ 42000 5–3500 4
Self-discharge (%/Day)0.1–0.3 4,50.1 5–5 45–40 4Almost 0 4,50.03–0.6 4
Fastest 80% recharge time (min)15 2<60 2--35 2
Response timeMilliseconds, 1/4 cycle 4Seconds, <1/4 cycle 4,*Milliseconds, <1/4 cycle 4
Suitable storage durationMinutes-days (short to medium term) 4,5Minutes-days (short to med. term) 4,5Seconds-hours (short term, <1 h) 4Hours-months 4,**Minutes-days 4,5
Discharge time at power ratingseconds-hours (up to 10 h) 4,5minutes-hours (1–8 h) 4,5miliseconds-1 h 4seconds-24 h+ 4seconds-hours (1–8 h) 4,5
Operating and maintenance cost50 $/kW/year 4-0.005–6 $/kW-year 40.0019–0.0153 $/kW-year 450 $/kW/year 4
Total capital cost, per unit of power rating (€/kW)1388–3254 52109–2746 5214–247 52395–4674 52279–4182 5
Total capital cost, per unit of storage capacity (€/kWh)346–721 5456–560 5691–856 5399–779 5596–808 5
MaturityMature 4Demonstrated 4Demo./Developing 4Demo./Developing 4Demo. 4
* Response time refers to reactivity of fuel cells (FCs) after the startup period, which depends on the FC type, ** storage duration depends on the reservoir capacity, 1 according to reference [48], 2 according to reference [49], 3 according to reference [47], 4 according to reference [34], 5 according to reference [50], 6 according to reference [51].
Table
Table 5. Typical characteristics of other lithium and nickel based batteries.
Table 5. Typical characteristics of other lithium and nickel based batteries.
CharacteristicNCALMO/LTOLFPNMCLMO-NMC
Nickel Cobalt Aluminum OxideLithium Manganese/Titanium OxideLithium Iron PhosphateNickel Manganese Cobalt Oxide-
Specific energy (Wh/kg)200–260 250–80 290–120 2150–220 2-
Energy density (Wh/kg)130 7857(LTO), 114 3–120 7 (LMO)93 3–130 7(poor 8)170 7120–170 *
PowerAcceptable 7: 100–200 WGood7: 200–500 W (LTO), Acceptable 7Acceptable 7Average 7: 50–100 W, AccepTable 8-
Energy consumption (Wh/km)-105–214 3114–223 3--
Energy capacity (kWh)−24–34.2 118.5 4,5–24 326.6 1;63.5 324 1
Nominal capacity (Ah)--60 4; 40 9; 2.3 10; 90 122.3–12.4 5;40–50 6-
Nominal current (A)--18.3 11; 40 4--
Nominal voltage (V)3.6 2; 3.65 72.4 2,7 (LTO); 3.8 2–4 7 (LMO)3.2 2,3; 3.3 23.6 (3.7) 2; 3.8–4 73.6–4 *
Charge (C-rate)0.7 C, (4.2 V), typical charge time 3 h 21 C, (2.85 V) 21 C typical, max.10 C 13 (3.65 V 4), typical charge time 3 h 20.7–1 C, (4.2 to 4.3 V), typical charge time 3 h 2-
Discharge (C-rate)1 C (3 V) 210 C (1.8 V) 21 C (2.5 V) 2,4; max.5 C-15 C 141 C, 2 C (2.5 V) 2-
Battery efficiency (%)-95 182.3 (1.2 C)–94.5 (0.1 C) 495–96 195–96 *
Depth of discharge (%)-70 370 3--
Cycle life500 22000–25,000 2; 1400–1500 31000–200021000–2000 2; 1500 5-
Cost ($ per kWh)~350 2~1005 2~580 2~420 2-
SafetyAverage 7, poor 8Good 7 (LTO), acceptable 7Good 7, acceptable 8Average 7, poor 8-
* According to estimations, 1 according to reference [52], 2 according to reference [53], 3 according to reference [54], 4 according to reference [55], 5 according to reference [56], 6 according to reference [57], 7 according to reference [49], 8 according to reference [45], 9 according to reference [58], 10 according to reference [59], 11 according to reference [60], 12 according to reference [61], 13 according to reference [62], 14 according to references [62,63,64].
Table
Table 6. Typical characteristics of supercapacitors, compared to Li-ion batteries and fuel cells.
Table 6. Typical characteristics of supercapacitors, compared to Li-ion batteries and fuel cells.
CharacteristicSupercapacitors (SC)Li-Ion BatteryHydrogen Fuel Cells
EDLC SCPseudo SCHybrid SCAsymmetric
Type of electrolyteAprotic or protic 1Protic 1Aprotic 1Aprotic 1-
Energy density (Wh/kg)5–20 4; 3–5 1; <6.5 210 1; <25 2180 1; 20–30 2; <125 2250 1; 120–200 2100 3–10,000 6
Power density (W/kg)1500 4; Up to 6000 2Up to 6000 210–1000 2300–800 4; <120–150 5; <150–2000 65–800 6; 500 3
Cell voltage (V)2.5 4; 2.7 12.3–2.8 12.3–2.8 13.6 1-
Charge time (s)1–10 11–10 1100 1600 1-
Life Cycles1,000,000 1100,000 1500,000 1500 1; <2500 4; >1000 51000–20,000+ 6
Overall efficiency (%)97 4; 82–98 382–98 3<90 285–95 433–42 3
Self discharge per month (%)30 4; 60 160 1-4 1; 1–5 420 4
Temperature of operation (°C)−30–65 4; −40–65 1−40–65 1−40–65 1−20–60 1; −20–55 4-
Cost per kWh ($)~10,000 1; <1000 3;
2200 4		~10,000 1; <1000 3<1000 3;
300–2000 3		140 1; 500–600 3; 8004; 150 5; 600–3800 6450–900 3
Cost per kW ($)55 4; 100–450 655 5–4; 100–450 655 4; 100–450 655–80 5; 900–4000 620 4; 500–1500 6
1 According to Reference [51], 2 according to reference [65], 3 according to reference [50], 4 according to reference [48], 5 according to reference [49], 6 according to reference [34].
Table
Table 7. LCA of Li-ion battery only, FC only and hybrid (battery-FC) bikes.
Table 7. LCA of Li-ion battery only, FC only and hybrid (battery-FC) bikes.
MetricLi-Ion BatteryFuel Cells
Health (1) and Environmental Impact (2) for Production Phase
UnitE-bikeHydrogen bike
(1) Carcinogenskg C2H3Cleq0.0028 10.003 1
(1) Non-carcinogenskg C2H3Cleq0.0035 10.0035 1
(1) Respiratory inorganicskg PM2.5eq0.039 10.051 1
(1) Ionizing radiationBq C-14 eqBelow 0.0001 1Below 0.0001 1
(1) Ozone layer depletionkg CFC-11 eqBelow 0.0001 1Below 0.0001 1
(1) Respiratory organicskg C2H4eqBelow 0.0001 1Below 0.0001 1
(1) Human toxicitykg 1.4-DB eq230 1581 1
(1) Particulate matter formationkg PM10 eq0.52 11.04 1
(1) Photochemical oxidant formationkg NMVOC0.67 11.21 1
(2) Aquatic ecotoxicitykg TEG waterBelow 0.0001 1Below 0.0001 1
(2) Terrestrial ecotoxicitykg TEG soil0.0035 10.0039 1
(2) Terrestrial acid/nutrikg SO2 eq0.0005 10.0007 1
(2) Land occupationm2org.arable0.0002 10.0002 1
(2) Aquatic acidificationkg SO2 eq0.0001 10.0001 1
(2) Aquatic eutrophicationkg PO4 P-lim0.0001 10.0001 1
(2) Fossil depletionkg oil eq41.2 166.2 1
(2) Metal depletionkg Fe eq118.5 1176 1
Climate Change (3) and Resources (4) for Production Phase
(3) Global warmingkg CO2 eq0.02 1; 165.2 20.023 1; 276.35 2
(4) Non-renewable energyMJ primary0.0155 10.018 1
(4) Mineral extractionMJ surplus0.0005 10.0013 1
Health (1), Environmental Impact (2), and Climate Change (3) for Use Phase
Hybrid e-bike (Battery-FC)E-bikeHydrogen bike (FC)
(1) Photochemical oxidant formation0.002 20.004 20.001 2
(1) Particulate matter formation0.002 20.003 20.001 2
(1) Human toxicity0.9 21.07 20.55 2
(2) Fossil depletion0.2 20.4 20.07 2
(2) Metal depletion0.49 20.51 20.31 2
(3) Global warming0.8 21.42 20.31 2
1 According to Reference [35], 2 according to Reference [67].
Table
Table 8. Performance analysis of hybrid bikes compared to other PEVs and BEVs.
Table 8. Performance analysis of hybrid bikes compared to other PEVs and BEVs.
MetricHybrid E-Bikes (SC-Battery and FC-Battery) E-Bike (Pedelec/Battery only, SC only) and Small E-ScooterBig E-Scooter and E-Motorcycle (Battery only)
Specific energy (Wh/kg)-32.7–51.4 1-
Energy expenditure (Wh/km)-59.8 2 (CB:69.8 2); 6.92–8.57 6202.86 2 (big EM)
Battery energy (MJ)4.52 19(SC-bat)0.25–0.52 12(CB: 0.1212);4.67 18 (SC only)5 12 (LEV)
SC energy (MJ)0.071 13 (SC only)-
Overall energy (Wh)-155 1–360 1,2; 160 81680–2880 2; 5400 2 (big EM)
Power (W)max.693 20 (SC-bat)250 7(small e-scooter); 250 1,3,8,9–800 1; max.: 539 3; max.: 731–950 11; 143–1018 15; 2 000 14 (big e-bike); 150–500 13 (SC only);2000 2–6000 2,21; 20,020 2 (big EM)
Battery capacity (Ah)12 19 (SC-bat)5.2 7 (small e-scooter); 5.4 1–10 1,3,9; 75 2040–80 21 (big e-scooter);
Voltage (V)15–48 18;12–16 20 (SC-bat)48 3; 30 8; 36 1,9,10; 29.6 1; 12.73 20; 70–78 13 (SC only);74 21 (big e-scooter)
Current (A)8.816 (FC-Bat); 12.23 19 (SC-bat)18.39 19-
Charging time (hours)-5 3-
Life CyclesSC: 100,000–1,000,000 7; Li-Ion Battery: 500 4–800 3Li-Ion Battery:500 4–800 3-
Life expectancy (km)15,000 415,000 4,5; 24,000 2250,000 4,5
Trip autonomy (km)-37–55 2; 46–82 12(CB: real, 4–8 2); real:25–30 10; 13–80 13 (SC only)26.6 2 (big EM); 100 21 (big e-scooter)
Battery typeLi-Ion 16 (FC-Bat)Li-Po 3; Li-Ion 13Lithium-based, Lead-based 2
Total weight (kg)23 5; 27.1 16(FC-Bat)18 19; 23 2–26 3,2; 20.2–28 1; 41.3–65.8 17 (big e-bike)90–144 3; ~140 5; 208 2 (big EM)
Weight ratio (vehicle/80 kg rider)0.28–0.34 *0.23–0.35 *; 0.51–0.82 * (big e-bike)1.12–1.8 *; 2.6 * (big EM)
* According to estimations and average values, 1 according to reference [69], 2 according to reference [25], 3 according to reference [17], for the tested pedelec, 4 according to reference [33], 5 according to reference [39], for the tested models, 6 according to reference [70], 7 according to reference [49], 8 according to reference [71], 9 according to reference [22], 10 according to reference [72], 11 according to reference [73], 12 according to reference [21], 13 according to reference [74], 14 according to reference [75], 15 according to reference [76], 16 according to reference [77], 17 according to reference [23], 18 according to reference [58], 19 according to reference [60], 20 according to reference [78], 21 according to reference [79], 22 according to reference [67].
Table
Table 9. Performance analysis and costs of our hybrid bike (SC-battery) compared to other implementations.
Table 9. Performance analysis and costs of our hybrid bike (SC-battery) compared to other implementations.
MetricOur Hybrid E-Bike E-Bike (in %)Big E-Scooter and E-Motorcycle (in %)
Battery energy (MJ)2.190; 608.33 Wh12–24% 1(CB: 6% 1)228% 1 (LEV)
SC energy (MJ)0.0148; 4.11 Wh--
Overall energy (Wh)612.4426 10–59% 2,10276–473% 2; 887% 2 (big EM)
Maximum power (W)18008–56.5% 12; 14% 6(small e-scooter); 111% 11 (big e-bike)111 2–333% 2,15; 1112% 2 (big e-motorcycle)
Battery capacity (Ah)1342 10–77% 3,8,10; 40% 6 (small e-scooter)308–616% 15 (big e-scooter)
Voltage (V)46.864 10–102% 3158% 15 (big e-scooter)
Current (A)42 *44% 14-
Trip autonomy (km)~70*53–78.5% 2; 66–102% 1 (CB: real, 10% 2); real:40% 938% 2 (big EM); 142% 15 (big e-scooter)
Battery typeLi-IonLi-Po 3; Li-Ion 10Lithium-based, Lead-based 2
Number of batteries replaced per lifetime1275% 5100% 4
Life time (years)2–4 **33–50% **-
Bike incl. chassis ($& kg)200$; 11.6 kg144% in kg 5861% in kg 5
Batteries ($& kg)250$; 3.1 kg84 5–97 9 % in kg; 332 13 % in kg1030% in kg 5
SC + DC/DC converter ($& kg)250$;1.3 kg--
Motor + AC/DC converter($& kg)400$; 11.5 kg18–22% in kg 546–56% in kg 5
Total cost ($)1100~200% 7-
Total weight (kg)27.565–101% 10; 140–234% 13 (big e-bike)324–518% 3; 720% 2 (big EM)
* Limited by power electronics, ** according to estimations and average values, 1 according to reference [21], 2 according to reference [25], 3 according to reference [17], for the tested pedelec, 4 according to reference [33], 5 according to reference [39], for the tested models, 6 according to reference [80], 7 according to reference [27], 8 according to reference [18], 9 according to reference [72], 10 according to reference [69], 11 according to reference [75], 12 according to reference [76], 13 according to reference [23], for a lead-acid e-bike, 14 according to reference [60], 15 according to reference [79].

Share and Cite

MDPI and ACS Style

Machedon-Pisu, M.; Borza, P.N. Are Personal Electric Vehicles Sustainable? A Hybrid E-Bike Case Study. Sustainability 2020, 12, 32. https://doi.org/10.3390/su12010032

AMA Style

Machedon-Pisu M, Borza PN. Are Personal Electric Vehicles Sustainable? A Hybrid E-Bike Case Study. Sustainability. 2020; 12(1):32. https://doi.org/10.3390/su12010032

Chicago/Turabian Style

Machedon-Pisu, Mihai, and Paul Nicolae Borza. 2020. "Are Personal Electric Vehicles Sustainable? A Hybrid E-Bike Case Study" Sustainability 12, no. 1: 32. https://doi.org/10.3390/su12010032

APA Style

Machedon-Pisu, M., & Borza, P. N. (2020). Are Personal Electric Vehicles Sustainable? A Hybrid E-Bike Case Study. Sustainability, 12(1), 32. https://doi.org/10.3390/su12010032

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
