L-Arginine-Incorporated Cement Mortar as Sustainable Artificial Reefs

by
Hyun-Min Yang
1,2,
Nosang V. Myung
1,
Han-Seung Lee
3,* and
Jitendra Kumar Singh
2,*
1
Department of Chemical and Environmental Engineering, University of California-Riverside, Riverside, CA 92521, USA
2
Innovative Durable Building and Infrastructure Research Center, Department of Architectural Engineering, Hanyang University, 1271 Sa-3-dong, Sangnok-gu, Ansan 15588, Korea
3
Department of Architectural Engineering, Hanyang University, 1271 Sa 3-dong, Sangnok-gu, Ansan 15588, Korea
*
Authors to whom correspondence should be addressed.
Sustainability 2020, 12(16), 6346; https://doi.org/10.3390/su12166346
Submission received: 8 June 2020 / Revised: 4 August 2020 / Accepted: 4 August 2020 / Published: 6 August 2020
Browse Figures
Versions Notes

Abstract

:
L-arginine is one of the amino acids found in plant seeds. In the present study, various amounts (i.e., 3%, 5%, 10%) of L-arginine were added to cement mortar to investigate the compressive strength, workability, leaching behavior, and pH change in distilled and natural seawater, as well as dissolved nitrogen and growth of chlorophyll-a (Chl-a) by immersion in natural seawater. The compressive strength of the cement mortar is decreased with increase in L-arginine content owing to the high flow/slump and air content. A concentration of 10% L-arginine significantly promoted the growth of Chl-a on the cement mortar for up to 56 days of immersion in natural seawater. This is due to the availability of high dissolved nitrogen and pH inside the pores. This study recommends the use of L-arginine in artificial reef structures where marine ecosystems can be maintained.

1. Introduction

Coastal ecosystems must be stabilized in underwater environments where marine algae, fish, and shellfish are found. Unfortunately, construction of artificial marine structures (e.g., artificial reef, seawall, tide embankment, tetrapod) causes extensive damage to the marine ecosystem [1]. They not only cause the loss of marine habitats and habitat fragmentation, but also restrict biodiversity more than natural rocks [2,3,4,5,6]. Artificial marine structures, which were constructed similarly to conventional structures, lead to maintenance of the alkalinity of concrete owing to the attached organism [7]. Moreover, freshly installed normal concrete may leach KOH, NaOH, and Ca(OH)2) into the sea, which inhibit the growth of marine life and decrease the mechanical properties of the concrete [8]. In addition, the pozzolanic materials can maintain the surface pH, mechanical properties [9,10], and chemical stability of the concretes.
The concrete structures installed in mountainous terrain and river water are free from dissolved ions. Therefore, this water is aggressive for the health of immersed concrete where the hydration products of concrete, such as Ettringite and calcium silicate hydrate (C-H-S), are leached out from the pore system and transported away by diffusion or water flow [11]. Once the hydration products leach out, then ultimately, the porosity and permeability of the concrete would increase, resulting in a decrease in compressive strength. However, the leaching may influence the permeability, amount of calcium—i.e., Ca(OH)2—and CO2 content in the water, and hardness of the water. If all these are high, then leaching would be high. The leaching of pore water can be reduced by adding aluminum ferrite [11] and making dense concrete. Ekström (2001) has mentioned that pure water, which has the ability to dissolve the Ca(OH)2, percolating into the concrete specimens results in leaching by diffusion and convection [11]. This depends on the water/cement ratio and curing conditions. A high water/cement ratio encourages one to make the concrete more porous, resulting in higher water permeability. However, incorporation of nano silica particles reduces the porosity, transforming portlandite into C-S-H gel through a pozzolanic reaction and increasing the average chain length of the silicate, resulting in durable concrete that reduces the leaching of calcium ions [12]. The addition of nano silica induces the pozzolanic reaction, which transforms the more susceptible Ca(OH)2 into C-S-H gel. Therefore, leaching of Ca(OH)2 is reduced.
The diffusion of Ca(OH)2 can be reduced using additives such as wet biofilm, freeze-dried biofilm powder, and bacterial suspensions, which can prevent ingress of water into the concrete [13]. The bacteria can improve the durability of the concrete in a sulfate environment, which is attributed to the increase of the bulk density and lowering of the voids [14]. Sporosarcina pasteurii [15] and Bacillus megaterium [16] bacteria precipitate into the cement mortar, resulting in improvement of compressive strength.
L-arginine is one of the naturally existing amino acids that is present in plant seeds [17,18,19,20]. Moreover, L-arginine can act as an inhibitor to mitigate the corrosion of steel [21]. Gowri et al. (2014) studied the synergistic effect of L-arginine with Zn2+ to enhance the corrosion resistance properties of steel exposed in seawater [22]. They found that 250 ppm L-arginine with 25 ppm Zn2+ showed 91% inhibition efficiency. This study revealed that L-arginine can be used as an inhibitor for the protection of embedded steel rebar in concrete.
There have been many studies on leaching of inorganic elements from the concrete into water [23,24,25,26]. However, there are no studies on the leaching behavior of L-arginine-containing concrete in marine environments. Moreover, the effect of L-arginine on durability of the cement mortar has not yet been studied for application in an artificial reef.
In this manuscript, systematic studies were conducted to investigate the effect of L-arginine on various materials and chemical properties of cement mortar, including the compressive strength, workability, leaching behavior, and pH change in distilled and natural sea water, as well as dissolved nitrogen and growth of chlorophyll-a (Chl-a) by immersing into an actual sea for an artificial reef.

2. Materials and Methods

2.1. Materials

L-arginine (≥99.00%) was purchased from Sigma-Aldrich, and the properties are shown in Table 1. The cement mortar was prepared using standard Portland cement [27]. The specific gravity and specific surface area of the cement were 3150 kg/m3 and 395 m2/kg, respectively. The chemical composition of cement is shown in Table 2. Natural sand was used as the fine aggregate according to ASTM C33 [28]. The size, apparent density, and water absorption of the fine aggregate were less than 4.75 mm, 2461 kg/m3, and 2.6%, respectively.

2.2. Specimen Preparation

Mortar specimens were prepared using a 0.5 water/binder (W/B) ratio with different L-arginine contents (i.e., 0%, 3%, 5%, and 10%). The details of the mixing proportions of mortar with different L-arginine replacement ratios are shown in Table 3. L-arginine acts as a binder in cement mortar. In order to evaluate the mechanical properties and environmental activity of L-arginine mortars, the specimens were subjected to curing at 20 (±2.5) °C and 60% (±5%) relative humidity for 24 h thereafter they were demolded and cured in tap water as well as natural seawater at 20 (±2.5) °C for up to 56 days.

2.3. Test Methods

2.3.1. Flow/Slump Value and Air Content

In order to evaluate the workability of mortar with L-arginine, a flow test was performed according to ASTM C1437 [29] and compared with ASTM C230 [30]. The same fresh cement mortars were measured three times, and the average value was reported. The evaluation of air content in the mortar with L-arginine was carried out by ASTM C185 [31].

2.3.2. Compressive Strength

The cement mortar with 50 × 50 × 50 mm dimensions was prepared for the compressive strength measurement. The cement mortar specimen was cured in tap water and seawater. The compressive strength of the cement mortar at 3, 7, 14, 28, and 56 days cured at 20 (±2) °C was measured according to ASTM C109 [32]. At each curing duration, three identical specimens were measured and the average value was taken as a result.

2.3.3. Leaching Test for L-Arginine

The cement mortar specimens with 50 × 50 × 50 mm dimensions were prepared to analyze the leaching behavior of L-arginine. The cement mortar was cured in a closed/dark chamber at 20 °C and 60% (±5%) relative humidity for 28 days; thereafter, they were removed. The cured mortar was pulverized to less than 100 μm and dispersed by taking 1 g each in 25, 50, 100, 300, 500, and 1000 mL distilled water and stirring for 1 h. The obtained suspension was separated by glass fiber filter (GF/C, 1.2 μm); then, the L-arginine content of the liquid (solution) was analyzed by high-performance liquid chromatography (HPLC, Agilent 1100 High-Performance Liquid Chromatography, Waldbronn, Germany). In addition, the remaining part (residue or undissolved) of L-arginine on the filter paper was washed with acid–alkali solution (acetonitrile); thereafter, it was dissolved in 100, 300, and 500 mL of 0.1, 0.5, and 1 M HCl solution for 1 h.

2.3.4. pH Determination

The pH (Thermo Scientific Orion, Waltham, Massachusetts, United State America) determination of L-arginine-containing cement mortar was carried out in distilled water and seawater with different immersion times at 20 (±2.5) °C. The pH meter was directly dipped in the abovementioned water to measure the pH of the solution [33,34,35] at designated durations of immersion. The cylindrical cement mortar specimens of Ø 100 × 200 mm were directly immersed in a 5-L polypropylene plastic container with 300 × 400 mm dimensions for determination of the solution pH.

2.3.5. Dissolved Nitrogen

The amount of dissolved nitrogen in L-arginine-containing cement mortar was determined according to ASTM D8083 [36]. In this procedure, 100 g homogenized powder of each specimen (0%, 3%, 5%, and 10% L-arginine) was centrifuged in a 5-L glass beaker by adding 1000 mL distilled water for 20 min; then, it was filtered. It was measured for up to 56 days. The supernatant was recovered and stored in a polypropylene bottle. The total dissolved nitrogen was measured using a Shimadzu TOC-V analyzer (Shimadzu Corp., Kyoto, Japan). This experiment was performed with triplicate sets of specimens and the average values were reported.

2.3.6. Evaluation of Chlorophyll-A Amount

The amount of chlorophyll-a (Chl-a) in L-arginine-containing cement mortar specimens was evaluated by immersing them in a natural sea near the Sihwa tide embankment lake located at Ansan city, South Korea according to ASTM D3731 [37].
It was observed that after immersion of the cement mortar specimens in the sea, generally, Chl-a started to be attached or to float. The attached Chl-a was removed from the surface of the cement mortar immersed in the sea with distilled water using a sterilized semi-aromatic polyamide-based brush on a 5 cm2 surface area for different durations of immersion, as shown in Figure 1.
The collected Chl-a was stored in a non-light polypropylene bottle with 1 mL of magnesium carbonate suspension. The stored Chl-a was filtered through the glass fiber filter (GF/C, 1.2 μm) using 15 KPa or less pressure for 20 min within 24 h of storing. The residue and filter paper were ground and homogenized in 5 mL acetone solution (acetone: 90%, distilled water: 10%) for 3 min. The ground specimen was placed in a centrifuge tube, sealed, and stored for 24 h in a light-free environment at 4 °C. The specimen was then centrifuged for 20 min to prepare a supernatant. This sample was transferred to a 10 mm absorption cell. Acetone was considered as a control solution, and the optical density (OD) of the specimen using a Cary® 50 UV-Vis Spectrophotometer (Varian Inc., Palo Alto, CA, USA) was measured at 664, 647, 630, and 750 nm. The concentration of Chl-a on the mortar surface was calculated using the Jeffrey and Humphrey equation [38].
Chl − a   ( μ g / cm 2 ) = ( 11.64 X 1 − 2.16 X 2 + 0.01 X 3 ) × V 1 A
where X1 is OD 664–OD 750, X2 is OD 647–OD 750, and X3 is OD 630–OD 750. V1 is the volume of supernatant (mL) and A is the surface area of the cement mortar (cm2).

3. Results and Discussion

3.1. Properties of Cement Mortar with L-Arginine

3.1.1. Flow/Slump and Air Content of Fresh Cement Mortar

The workability (flow/slump) and air content tests were performed with different amounts of L-arginine. Figure 2 shows the results of the flow/slump and air content of the L-arginine cement mortar. The workability of the mortar with L-arginine showed that the flow/slump value is increased as the amount of L-arginine in the cement mortar is increased owing to the higher dissolution [39]. It was observed that 3%, 5%, and 10% L-arginine-containing cement mortar exhibited increases in slump value of about 3.5%, 10%, and 21%, respectively, compared to without cement mortar L-arginine, i.e., 0%. The air content also increased as the amount of L-arginine increased (Figure 2) owing to the characteristics of L-arginine, which include water absorption [40,41]. The increase in air content values of L-arginine-containing cement mortar is due to the increase in the interfacial effect between non-hydrated cement particles and L-arginine. L-arginine acts as an acid–base cationic surfactant where it reduces the surface tension and allows the formation of stable bubbles [42,43,44,45] on the surface of the cement and sand particles. Thus, flow and air content are increased with addition of L-arginine in cement mortar.

3.1.2. Compressive Strength

The compressive strength of L-arginine-containing cement mortar was measured by curing in tap water and seawater, and the results are shown in Figure 3 and Figure 4, respectively. It is observed from these figures that the compressive strength of the cement mortar specimens is gradually increased with curing duration. The compressive strength of the specimens after 28 days of curing in tap water was found to be 28.6, 26.9, 24.6, and 22.9 MPa for 0%, 3%, 5%, and 10% L-arginine replacement, respectively (Figure 3). The increase in compressive strength with curing duration could be attributed to the hydration reaction. The decrease in compressive strength of specimens (Figure 3) with increase in L-arginine replacement can be attributed to the higher flow/slump value and air content (Figure 2), which leads to the increase of the micro-cracks/defects inside of the cement mortar. If the air content is higher, the compressive strength of the specimen would be lower owing to the inward diffusion of water molecules. Thus, 10% L-arginine-containing cement mortar (Figure 3) shows the lowest compressive strength compared to the other specimens. Moreover, there is a possibility that the softening effect of cement mortar may occur upon loading for compression, and the preexisting micro-cracks propagate and form new one. Therefore, the load carrying capacity of the cement mortar decreases as the peak load of deformation increases in L-arginine-containing cement mortar [46,47].
In the case of seawater curing, the compressive strength of 0%, 3%, 5%, and 10% L-arginine-containing cement mortar after 28 days of curing was found to be 29.9, 28.2, 27.7, and 26.9 MPa, respectively (Figure 4). As the amount of L-arginine replacement increased, the compressive strength of the cement mortar decreased. The reduction in compressive strength of L-arginine-containing cement mortar is due to the higher content of entrained air during curing in seawater. The compressive strength of seawater-cured cement mortar was higher compared to tap water for all curing durations. This is attributed to the formation of Friedel’s salt by the hydration products i.e., Al2O3–Fe2O3-mono (AFm) or –tri (AFt) [48]. Moreover, the Cl- ions from seawater can infiltrate during curing [49,50,51]. Thus, the filling ability of pores by Friedel’s salt evidently improved the compressive strength of the cement mortar [47,52].

3.2. L-Arginine Extraction from Hardened Cement Mortar

3.2.1. Extraction of L-Arginine in Distilled Water

Figure 5 shows the recovery of L-arginine leached from 1 g of cement mortar in distilled water. From this figure, it can be seen that the recovery of L-arginine started to occur from 65% for 3% L-arginine-containing cement mortar in 25 mL distilled water. As the amount of L-arginine was increased up to 10%, the recovery was found to be around 69% in 25 mL distilled water. In addition, when the volume of distilled water reached up to 500 mL, the recovery was found to be 78% and 84% for 3% and 10% L-arginine-containing cement mortar, respectively. Moreover, it can be observed from Figure 5 that once the volume of distilled water is increased beyond 500 mL, there is no significant recovery of L-arginine in any L-arginine-containing cement mortars. As a result, 500 mL of distilled water was sufficient to extract L-arginine. Moreover, when the volume of distilled water was same, i.e., 25, 50, 100, 300, 500, and 1000 mL for a particular L-arginine-containing mortar, the recovery rate increased owing to the solubility of L-arginine in distilled water. Since L-arginine is soluble and mostly remained in the pore water, it could be extracted with distilled water. It is not possible to recover 100% L-arginine; therefore, another solution is required to recover it completely. Therefore, we used 100, 300, and 500 mL of 0.1, 0.5, and 1 M HCl solution. In the subsequent paragraph, we will discuss the recovery of L-arginine in HCl solution.

3.2.2. Recovery of Undissolved L-Arginine in HCl

The residue (remaining part of undissolved L-arginine-containing cement mortar in distilled water) can be dissolved in 0.1 M HCl solution. L-arginine can dissolve in distilled water, but owing to the cement and sand in cement mortar, some L-arginine was adsorbed on the surface and not dissolved in distilled water; therefore, HCl was used to dissolve the remaining L-arginine. It was observed from Figure 5 that the recovery of L-arginine is optimum in 500 mL distilled water; thus, we selected only 500 mL of 0.1 M HCl solution to recover the remaining L-arginine from the residue.
Figure 6a shows the recovery of L-arginine leached into the 0.1 M HCl solution. It can be seen in this figure that, as the volume of 0.1 M HCl solution increased, the recovery of L-arginine increased. The maximum recovery was found to be 8.27% by the 10% L-arginine-containing cement mortar specimen, followed by 5% and 3% L-arginine around 8.15% and 8.05%, respectively. Figure 6b shows the recovery of 5% L-arginine with respect to the concentration of HCl solution. It can be observed from Figure 6a that 5% L-arginine exhibited the optimum amount of recovery. Thus, it was our prudent thought to consider only this specimen for the recovery of L-arginine with different concentrations of HCl solution. It can be observed from Figure 6b that, as the concentration of HCl increased from 0.1 to 1 M, the recovery was almost constant. Therefore, from this result, it is suggested that the leaching of L-arginine into the mortar is found to be more sensitive to the volume of HCl solution rather than concentration.

3.3. Evaluation of the Impact of the Environmental Activity of L-Arginine-Containing Mortar

3.3.1. Change of pH Value According to the Type of Water Used to Immerse Cement Mortar with L-Arginine

The changes in pH of the cement mortar immersed in distilled water and seawater are shown in Figure 7a,b, respectively. The pH of each data point is normally an average of three measurements. Figure 7a shows the change in pH of L-arginine-containing cement mortar immersed in distilled water according to duration. During immersion of L-arginine cement mortar in distilled water, the pH of the distilled water was measured, and it was found to be 7.3. It can be observed from Figure 7a that, as the amount of L-arginine-containing cement mortar is increased, the pH is increased. The pH value of each specimen initially increased for up to seven days; thereafter, it was marginally reduced. Initially, i.e., on day 0, L-arginine did not react with water; thus, it shows tap water pH, but as the immersion time increased, L-arginine started to dissolve and pH was increased (Figure 7a). After seven days’ immersion of 0%, 3%, 5%, and 10% L-arginine-containing cement mortar, the pH values of distilled water are found to be 12.13, 12.55, 12.71, and 12.76, respectively. It is observed from Figure 7a that the pH was gradually reduced after seven days of immersion owing to several factors, such as carbonation from the external atmosphere, slow equilibrium, dilution from the excessive volume of water in the pores, and leaching of pore water, i.e., KOH, NaOH, and Ca(OH)2 [53].
Figure 7b shows the change in pH of L-arginine-containing cement mortar immersed in seawater. It can be seen from this figure that the pH gradually increased for up to seven days, as similarly observed in tap water (Figure 7a), but after seven days of immersion, it decreased. The pH value of the seawater was 8.14. Therefore, initially, all specimens showed identical pH, i.e., 8.14. For seven days of immersion, the pH of seawater was found to be 10.45, 9.78, 9.69, and 9.36 for 0%, 3%, 5%, and 10% L-arginine-containing cement mortar, respectively. It can be seen from Figure 7b that without L-arginine-containing cement mortar, i.e., 0% L-arginine, the cement mortar exhibited higher pH values compared to L-arginine-containing cement mortar. This is a contradictory result in the pH of seawater-immersed specimens compared to tap-water-immersed specimens. There is a probability that Ca(OH)2 can leach out from the pores of 0% L-arginine cement mortar into seawater; thus, higher in pH is observed (Figure 7b). On the other hand, L-arginine-containing mortar attracts marine organisms, which attach to the surface of the cement mortar specimen. The marine organisms prevent the ingress of water molecules from the seawater and maintain the inside pH of the cement mortar. Moreover, there are fewer chances to diffuse the Ca(OH)2 from the cement mortar into the seawater; thus, it the seawater pH is shown. However, there were some bacteria present in seawater that catalyzed the hydrolysis of urea or amino acids into ammonia and caused the increase in pH up to seven days of immersion [13]. In the meantime, they also produce CO2 or carbonic acid, which induce calcite (CaCO3) formation. Thus, reduction in pH was observed from 14 to 28 days (Figure 7b). There is another possibility that atmospheric CO2 can cause reduction in the pH of seawater after seven days of immersion for all specimens. This experiment was conducted in the absence of sunlight; thus, the microorganisms of seawater could not photosynthesize, resulting in higher amounts of CO2. Therefore, lower pH was observed compared to distilled water.

3.3.2. Time Required to Change the Color of River Water after Immersion of L-Arginine-Containing Cement Mortar

Figure 8 shows the change in color of L-arginine-containing cement mortar immersed in seawater according to duration. It is believed that marine organisms can consume nutrients, e.g., nitrogen in the presence of CO2 and sunlight from the atmosphere by photosynthesis. Therefore, they float on the surface of water to obtain the nutrients from the air. It can be seen from Figure 8a,b that initially, i.e., three days and seven days of immersion, there was no significant difference in the color of seawater for all concentrations of L-arginine-containing cement mortars. However, after seven days of immersion, change in the color of seawater was observed. Therefore, it is required to provide oxygen for survival of marine lives. We artificially provided air bubbles in the seawater to make oxygen available. Once the immersion duration was extended up to 14 days, the change in color of seawater from colorless to green (Figure 8c) with low amounts, i.e., 0% and 3%, of L-arginine in cement mortar was observed owing to the lack of nitrogen (an essential element for growth of organisms), which cannot significantly diffuse from the pores of cement mortar. Thus, the chlorophyll-a (green color) floats in seawater to take nutrients (nitrogen) and light from the atmosphere. However, once the amount of L-arginine in the cement mortar was increased from 5% to 10% (high amount of nitrogen), after 14 days of immersion, there was no change in the color of seawater (Figure 8c), which can be attributed to the consumption of nutrients by chlorophyll-a in the water.

3.3.3. Total Dissolved Nitrogen in Distilled Water

L-arginine can leach out in water from cement mortar; therefore, it is of utmost importance to determine the content of nitrogen with immersion duration. Figure 9 shows the results of dissolved nitrogen in distilled water with L-arginine replacement. From this figure, it can be seen that, as the amount of L-arginine in the cement mortar increased, the total dissolved nitrogen also increased in distilled water with different immersion periods. This result correlates with the recovery of L-arginine in distilled water (Figure 5). It can be inferred from Figure 9 that the amount of dissolved nitrogen is not increased significantly after 28 days of immersion. This result can be correlated with the change in pH (Figure 7a) of distilled water, where after 14 days of immersion, there was no significant change in value. Up to seven days of immersion, the pH increased gradually due to leaching of nitrogen. Therefore, regardless of the L-arginine replacement ratio, maximum L-arginine was leached within 28 days of immersion. There was no dissolved nitrogen found in 0% L-arginine cement mortar owing to the absence of L-arginine.

3.3.4. Growth of Chlorophyll-A on Mortar Surface

In order to examine the effect of L-arginine cement mortars on growth of chlorophyll-a, the cement mortar specimens were immersed in the natural sea near the tide embankment located at Ansan city, South Korea. The amount of Chl-a on the cement mortar surface was measured for up to 56 days of exposure. Figure 10 shows the digital image taken during removal of Chl-a from the surface of the cement mortar. Figure 10a,b shows the digital images of Chl-a removed on filter paper after 7 and 28 days of immersion in sea water, respectively. It can be seen that, as the amount of L-arginine increased, the color became gray with the exposure period. The 10% L-arginine specimen shows deep gray color (specimen dipped in sea water where Chl-a was attached on the surface), whereas the 0% specimen, i.e., that without L-arginine, exhibited a light yellow color owing to the scarcity of nitrogen; thus, Chl-a floats in water rather than being deposited onto the cement mortar after 28 days of immersion. This result suggests that, as the amounts of L-arginine and immersion duration are increased, the formation of Chl-a on the surface of the cement mortar specimen is increased.
Figure 11 shows the amount of Chl-a extracted from the surface of L-arginine cement mortar according to immersion duration. The amount of Chl-a extracted from 0%, 3%, 5%, and 10% L-arginine cement mortars surface after seven days of immersion in sea water was found to be 0.47, 0.53, 1.25, and 1.58 μg/cm2, respectively. It can be observed in Figure 11 that, as the amount of L-arginine increased in cement mortar, the amount of Chl-a increased with immersion duration, which correlates with the visual observation (Figure 10), where the 10% L-arginine specimen shows a deep gray color on the paper. It can be seen after 56 days of immersion that the amount of Chl-a extracted from 0%, 3%, 5%, and 10% L-arginine cement mortar was found to be 1.15, 1.84, 3.81, and 4.82 μg/cm2, respectively.
Figure 12 shows the Chl-a growth rate on the L-arginine cement mortars versus the mortar without L-arginine. This result shows that 3% L-arginine mortar increases the rate of Chl-a growth by 112%, whereas 5% and 10% L-arginine show 226% and 336%, respectively, after seven days of exposure. It was observed after 14 days of immersion that the rate of Chl-a slightly decreased.

4. Conclusions

Since L-arginine is water soluble, it can easily mix with cement and sand to make cement mortar. Therefore, flow and air content are higher once the L-arginine amount is increased in cement mortar, which leads to a decrease in compressive strength. L-arginine in cement mortar is mostly soluble in a pore solution, which can easily leach out from cement mortar. Thus, the pH is increased for up to seven days of exposure in distilled water. As the amount of L-arginine is increased in a cement mortar, the amount of dissolved nitrogen increases, which encourages the deposition of Chl-a onto the cement mortar surface. The amount of Chl-a formed on 10% L-arginine cement mortar was found to be 4.82 μg/cm2, which was highest among all specimens after 56 days of immersion in natural sea. This showed a growth rate of Chl-a 4.2 times higher than that found with 0% L-arginine cement mortar. Therefore, this process can be recommended for artificial reefs. In addition, the optimum performance can be achieved by controlling the surface roughness, area, and porosity of the cement mortar or concrete.

Author Contributions

Data curation, H.-M.Y.; Formal analysis, H.-M.Y., N.V.M., and J.K.S.; Funding acquisition, H.-S.L.; Investigation, H.-M.Y.; Methodology, H.-M.Y., H.-S.L., and J.K.S.; Supervision, H.-S.L. and J.K.S.; Writing—original draft, H.-M.Y., N.V.M., H.-S.L., and J.K.S.; Writing—review and editing, H.-M.Y., N.V.M., H.-S.L., and J.K.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This research was supported by a basic science research program through the National Research Foundation (NRF) of Korea, funded by the Ministry of Science, ICT, and Future Planning (No. 2015R1A5A1037548).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Firth, L.B.; Knights, A.M.; Thompson, R.C.; Mieszkowska, N.; Bridger, D.; Evans, A.J.; Moore, P.J.; O’Connor, N.E.; Sheehan, E.V.; Hawkins, S.J. Ocean sprawl: Challenges and opportunities for biodiversity management in a changing world. Oceanogr. Mar. Biol. Annu. Rev. 2016, 54, 193–269. [Google Scholar]
  2. Aguilera, M.A.; Broitman, B.R.; Thiel, M. Spatial variability in community composition on a granite breakwater versus natural rocky shores: Lack of microhabitats suppresses intertidal biodiversity. Mar. Pollut. Bull. 2014, 87, 257–268. [Google Scholar] [CrossRef] [PubMed]
  3. Chapman, M.G.; Bulleri, F. Intertidal seawalls–new features of landscape in intertidal environments. Landsc. Urban Plann. 2003, 62, 159–172. [Google Scholar] [CrossRef]
  4. Chapman, M.G. Paucity of mobile species on constructed seawalls: Effects of urbanization on biodiversity. Mar. Ecol. Prog. Ser. 2003, 264, 21–29. [Google Scholar] [CrossRef] [Green Version]
  5. Firth, L.B.; Thompson, R.C.; White, F.J.; Schofield, M.; Skov, M.W.; Hoggart, S.P.G.; Jackson, J.; Knights, A.M.; Hawkins, S.J. The importance of water-retaining features for biodiversity on artificial intertidal coastal defence structures. Divers. Distrib. 2013, 19, 1275–1283. [Google Scholar] [CrossRef] [Green Version]
  6. Moschella, P.S.; Abbiati, M.; Åberg, P.; Airoldi, L.; Anderson, J.M.; Bacchiocchi, F.; Bulleri, F.; Dinesen, G.E.; Frost, M.; Gacia, E.; et al. Low-crested coastaldefence structures as artificial habitats for marine life: Using ecological criteria in design. Coast. Eng. 2005, 52, 1053–1071. [Google Scholar] [CrossRef]
  7. McManus, R.S.; Archibald, N.; Comber, S.; Knights, A.M.; Thompson, R.C.; Firth, L.B. Partial replacement of cement for waste aggregates in concrete coastal and marine infrastructure: A foundation for ecological enhancement? Ecol. Eng. 2018, 120, 655–667. [Google Scholar] [CrossRef] [Green Version]
  8. Müllauer, W.; Beddoe, R.E.; Heinz, D. Leaching behavior of major trace elements from concrete: Effect of fly ash and GGBS. Cem. Concr. Compos. 2015, 58, 129–139. [Google Scholar] [CrossRef]
  9. Warati, G.K.; Darwish, M.M.; Feyessa, F.F.; Ghebrab, T. Suitability of scoria as fine aggregate and its effect on the properties of concrete. Sustainability 2019, 11, 4647. [Google Scholar] [CrossRef] [Green Version]
  10. Amin, M.N.; Murtaza, T.; Shahzada, K.; Khan, K.; Adil, M. Pozzolanic potential and mechanical performance of wheat straw ash incorporated sustainable concrete. Sustainability 2019, 11, 519. [Google Scholar] [CrossRef] [Green Version]
  11. Ekström, T. Leaching of concrete: Experiments and modeling. In Division Building Materials; University of Lund: Lund, Sweden, 2001. [Google Scholar]
  12. Gaitero, J.J.; Campillo, I.; Guerrero, A. Reduction of the calcium leaching rate of cement paste by addition of silica nanoparticles. Cem. Concr. Res. 2008, 38, 1112–1118. [Google Scholar] [CrossRef] [Green Version]
  13. Ertelt, M.J.; Raith, M.; Eisinger, J.; Grosse, C.U.; Lieleg, O. Bacterial additives improve the water resistance of mortar. ACS Sustain. Chem. Eng. 2020. [Google Scholar] [CrossRef]
  14. Nosouhian, F.; Mostofinejad, D.; Hasheminejad, H. Concrete durability improvement in a sulfate environment using bacteria. J. Mater. Civ. Eng. 2016, 28. [Google Scholar] [CrossRef]
  15. Al-Salloum, Y.; Abbas, H.; Sheikh, Q.I.; Hadi, S.; Alsayed, S.; Almusallam, T. Effect of some biotic factors on microbially-induced calcite precipitation in cement mortar. Saudi J. Biol. Sci. 2017, 24, 286–294. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Achal, V.; Pan, X.; Özyurt, N. Improved strength and durability of fly ash-amended concrete by microbial calcite precipitation. Ecol. Eng. 2011, 37, 554–559. [Google Scholar] [CrossRef]
  17. Rose, W.C. The nutritional significance of the amino acids. Physiol. Rev. 1938, 18, 109–136. [Google Scholar] [CrossRef]
  18. Górska-Warsewicz, H.; Laskowski, W.; Kulykovets, O.; Kudli ´nska-Chylak, A.; Czeczotko, M.; Rejman, K. Food products as sources of protein and amino acids—the case of Poland. Nutrients 2018, 10, 1977. [Google Scholar] [CrossRef] [Green Version]
  19. Chen, Q.-F.; Huang, X.-Y.; Li, H.-Y.; Yang, L.-J.; Cui, Y.-S. Recent progress in perennial buckwheat development. Sustainability 2018, 10, 536. [Google Scholar] [CrossRef] [Green Version]
  20. Schier, H.E.; Eliot, K.A.; Herron, S.A.; Landfried, L.K.; Migicovsky, Z.; Rubin, M.J.; Miller, A.J. Comparative analysis of perennial and annual phaseolus seed nutrient concentrations. Sustainability 2019, 11, 2787. [Google Scholar] [CrossRef] [Green Version]
  21. Khaled, K.F.; Al-Mhyawi, S.R. Electrochemical and density function theory investigations of l-arginine as corrosion inhibitor for steel in 3.5% NaCl. Int. J. Electrochem. Sci. 2013, 8, 4055–4072. [Google Scholar]
  22. Gowri, S.; Sathiyabama, J.; Rajendran, S. Corrosion inhibition effect of carbon steel in sea water by l-arginine-Zn2+ system. Int. J. Chem. Eng. 2014, 2014, 1–9. [Google Scholar] [CrossRef] [Green Version]
  23. Ootsuki, N.; Hirayama, S.; Miyazato, S.; Yokozeki, Y. Fundamental study on estimating of Ca leaching from mortar and the deterioration of mortar. J. Constr. Manag. Eng. JSCE 1999, 634, 293–302. [Google Scholar]
  24. Haga, K.; Toyohara, M.; Sutou, S.; Kaneko, M.; Kobayahi, Y.; Kozawa, T. Alteration of cement hydrate by dissolution, (I)alteration test of hydrate cement paste by water-permeation using centrifugal force. Trans. At. Energy Soc. Jpn. 2002, 1, 20–29. [Google Scholar] [CrossRef]
  25. Hartwich, P.; Vollpracht, A. Influence of leachate composition on the leaching behaviour of concrete. Cem. Concr. Res. 2017, 100, 423–434. [Google Scholar] [CrossRef]
  26. Sun, Z.; Vollpracht, A.; Sloot, H.A. pH dependent leaching characterization of major and trace elements from fly ash and metakaolin geopolymers. Cem. Concr. Res. 2019, 125, 1–14. [Google Scholar] [CrossRef]
  27. ASTM C150. Standard Specification for Portland Cement; ASTM International: West Conshohocken, PA, USA, 2019. [Google Scholar]
  28. ASTM C33. Standard Specification for Concrete Aggregates; ASTM International: West Conshohocken, PA, USA, 2018. [Google Scholar]
  29. ASTM C1437. Standard Test Method for Flow of Hydraulic Cement Mortar; ASTM International: West Conshohocken, PA, USA, 2013. [Google Scholar]
  30. ASTM C230. Standard Specification for Flow Table for Use in Tests of Hydraulic Cement; ASTM International: West Conshohocken, PA, USA, 2014. [Google Scholar]
  31. ASTM C185. Standard Test Method for Air Content of Hydraulic Cement Mortar; ASTM International: West Conshohocken, PA, USA, 2015. [Google Scholar]
  32. ASTM C109. Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; ASTM International: West Conshohocken, PA, USA, 2016. [Google Scholar]
  33. Rowell, D.L.; Vo-Dinh, T.; Gauglitz, G. Chemical and Biological Sensing Technologies Ii, Soil Science: Methods and Applications, Soil Acidity and Alkalinity; Longman Scientific and Technical: Harlow, UK, 1996; Volume 3, pp. 153–174. [Google Scholar]
  34. ASTM D4972-13. Standard Test Method for pH of Soils; ASTM International: West Conshohocken, PA, USA, 2013. [Google Scholar]
  35. Behnood, A.; Tittelboom, K.V.; Belie, N.D. Methods for measuring pH in concrete: A review. Constr. Build. Mater. 2016, 105, 176–188. [Google Scholar] [CrossRef]
  36. ASTM D8083. Standard Test Method for Total Nitrogen, and Total Kjeldahl Nitrogen (TKN) by Calculation in Water by High Temperature Catalytic Combustion and Chemiluminescence Detection; ASTM International: West Conshohocken, PA, USA, 2016. [Google Scholar]
  37. ASTM D3731. Standard Practices for Measurement of Chlorophyll Content of Algae in Surface Waters; ASTM International: West Conshohocken, PA, USA, 1987. [Google Scholar]
  38. Jeffrey, S.W.; Humphrey, G.F. New spectrophotometric equations for determining chlorophylls a, b, c1 and c2 in higher plants, algae and natural phytoplankton. Biochem. Physiol. Pflanz. 1975, 167, 191–194. [Google Scholar] [CrossRef]
  39. Behbahani, A.E.; Soltanzadeh, F.; Jomeh, M.E.; Zadeh, Z.S. Sustainable approaches for developing concrete and mortar using waste seashell. Eur. J. Environ. Civ. Eng. 2019. [Google Scholar] [CrossRef]
  40. Hellier, M.D.; Thirumalai, C.; Holdsworth, C.D. The effect of amino acids and dipeptides on sodium and water absorption in man. Gut 1973, 14, 41–45. [Google Scholar] [CrossRef] [Green Version]
  41. Wapnir, R.A.; Wingertzahn, M.A.; Teichberg, S. L-arginine in low concentration improves rat intestinal water and sodium absorption from oral rehydration solutions. Gut 1997, 40, 602–607. [Google Scholar] [CrossRef]
  42. Bordes, R.; Holmberg, K. Amino acid-based surfactants–do they deserve more attention? Adv. Colloid Interface Sci. 2015, 222, 79–91. [Google Scholar] [CrossRef] [PubMed]
  43. Negim, E.S.; Kozhamzharova, L.; Khatib, J.; Bekbayeva, L.; Williams, C. Effects of surfactants on the properties of mortar containing styrene/methacrylate superplasticizer. Sci. World J. 2014, 10. [Google Scholar] [CrossRef] [PubMed]
  44. Sylvie, C.-A.; Isabelle, C. Foams: Structure and Dynamics; Cantat, I., Cohen-Addad, S., Elias, F., Graner, F., Hhler, R., Pitois, O., Rouyer, F., Saint-Jalmes, A., Cox, S., Eds.; Oxford University Press: Walton Street, UK, 2013. [Google Scholar]
  45. Du, L.; Folliard, K. Mechanisms of air-entrainment in concrete. Cem. Concr. Res. 2005, 351, 463–1471. [Google Scholar] [CrossRef]
  46. Shah, S.P.; Choi, S.; Janse, D.C. Strain softening of concrete in compression. Proc. Fract. Mech. Concr. Struct. 1996, 3, 1827–1841. [Google Scholar]
  47. Zheng, X.; Ji, T.; Easa, S.M.; Ye, Y. Evaluating feasibility of using sea water curing for green artificial reef Concrete. Constr. Build. Mater. 2018, 187, 545–552. [Google Scholar] [CrossRef]
  48. Chen, C.; Ji, T.; Zhuang, Y.; Lin, X. Workability, mechanical properties and affinity of artificial reef concrete. Constr. Build. Mater. 2015, 98, 227–236. [Google Scholar] [CrossRef]
  49. Jones, M.R.; Macphee, D.E.; Chudek, J.A.; Hunter, G.; Lannergrand, R. Studies using 27 Al MAS NMR of AFm and AFt phases and the formation of Friedel’s salt. Cem. Concr. Res. 2003, 33, 177–182. [Google Scholar] [CrossRef]
  50. Suryavanshi, A.J.; Scantlebury, J.D.; Lyon, S.B. Mechanism of Friedel’s salt formation in cements rich in tri-calcium aluminate. Cem. Concr. Res. 1996, 26, 717–727. [Google Scholar] [CrossRef]
  51. Yang, Y.; Ji, T.; Lin, X.; Chen, C.; Yang, Z. Biogenic sulfuric acid corrosion resistance of new artificial reef concrete. Constr. Build. Mater. 2018, 158, 33–41. [Google Scholar] [CrossRef]
  52. Ramesh, K.G.B.; Kesavan, V. A review analysis of cement concrete strength using sea water. Mater. Today Proc. 2020, 22, 983–986. [Google Scholar] [CrossRef]
  53. Sagi, A.A.; Moreno, E.I.; Andrade, C. Evolution of pH during in-situ leaching in small concrete cavities. Cem. Concr. Res. 1997, 27, 1747–1759. [Google Scholar]
Sustainability 12 06346 g001 550

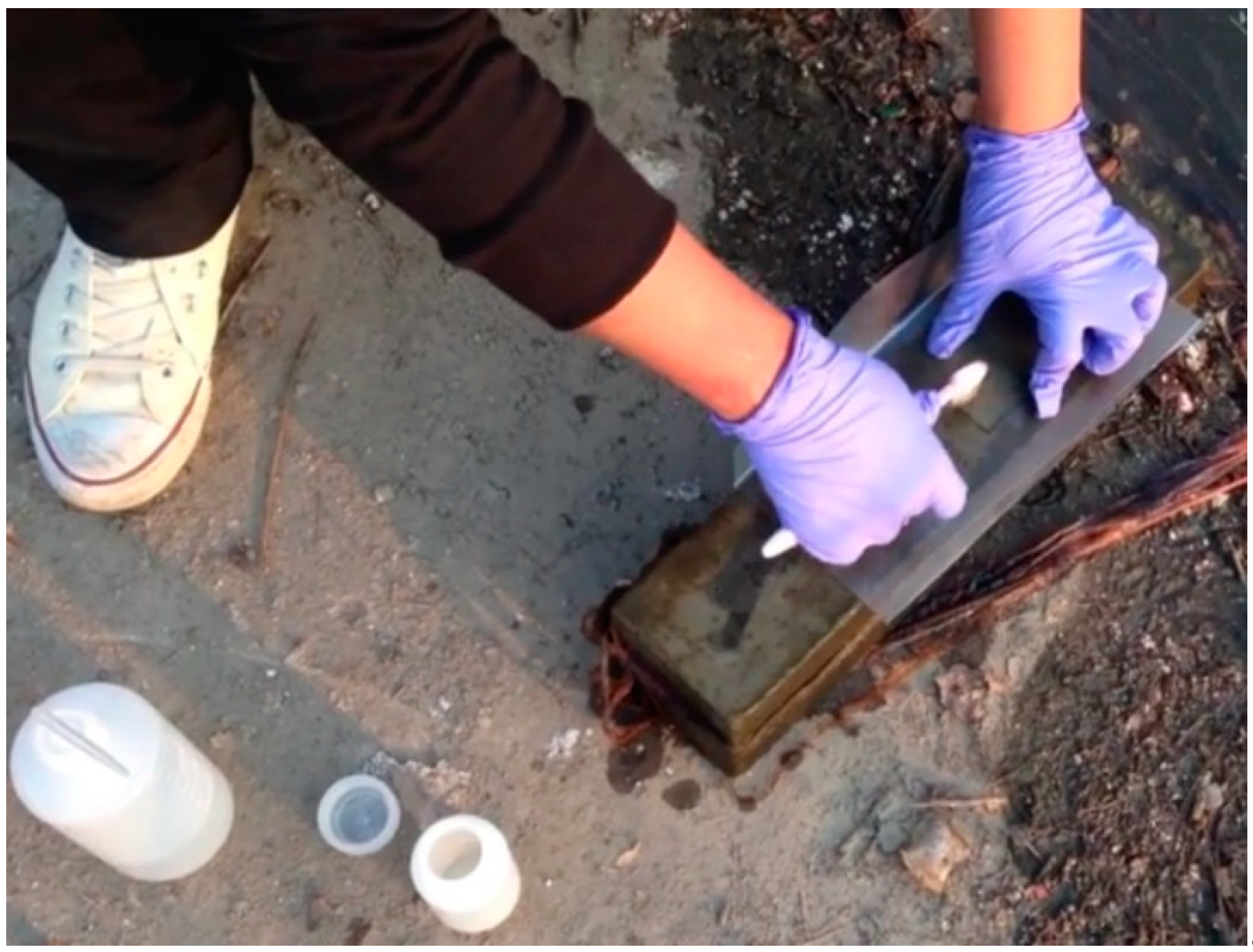

Figure 1. Removal of chlorophyll-a from the cement mortar specimen immersed in sea.
Figure 1. Removal of chlorophyll-a from the cement mortar specimen immersed in sea.
Sustainability 12 06346 g001
Sustainability 12 06346 g002 550

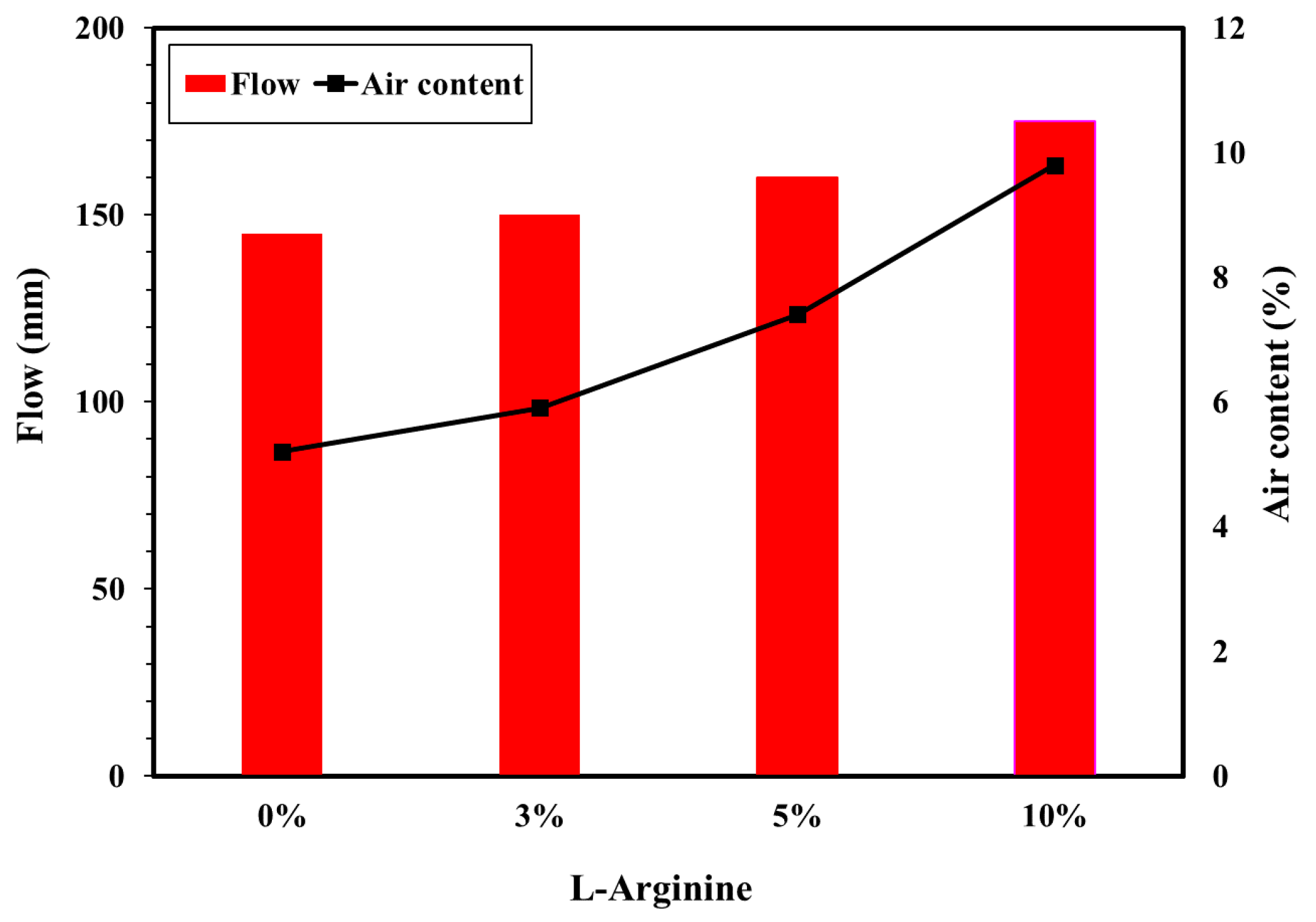

Figure 2. Flow and air content of cement mortar with different L-arginine replacement ratios.
Figure 2. Flow and air content of cement mortar with different L-arginine replacement ratios.
Sustainability 12 06346 g002
Sustainability 12 06346 g003 550

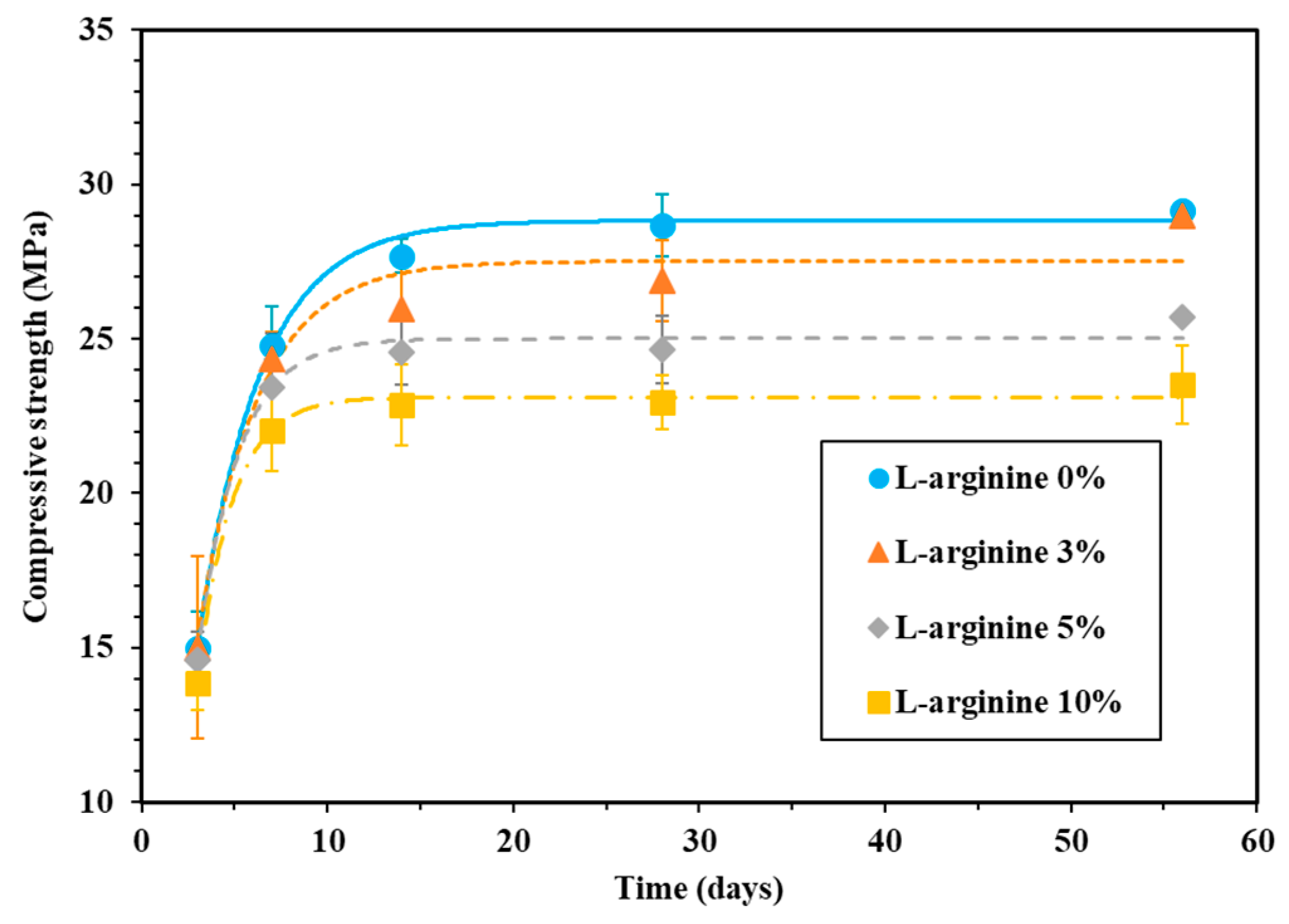

Figure 3. Compressive strength of mortar with L-arginine cured in tap water.
Figure 3. Compressive strength of mortar with L-arginine cured in tap water.
Sustainability 12 06346 g003
Sustainability 12 06346 g004 550

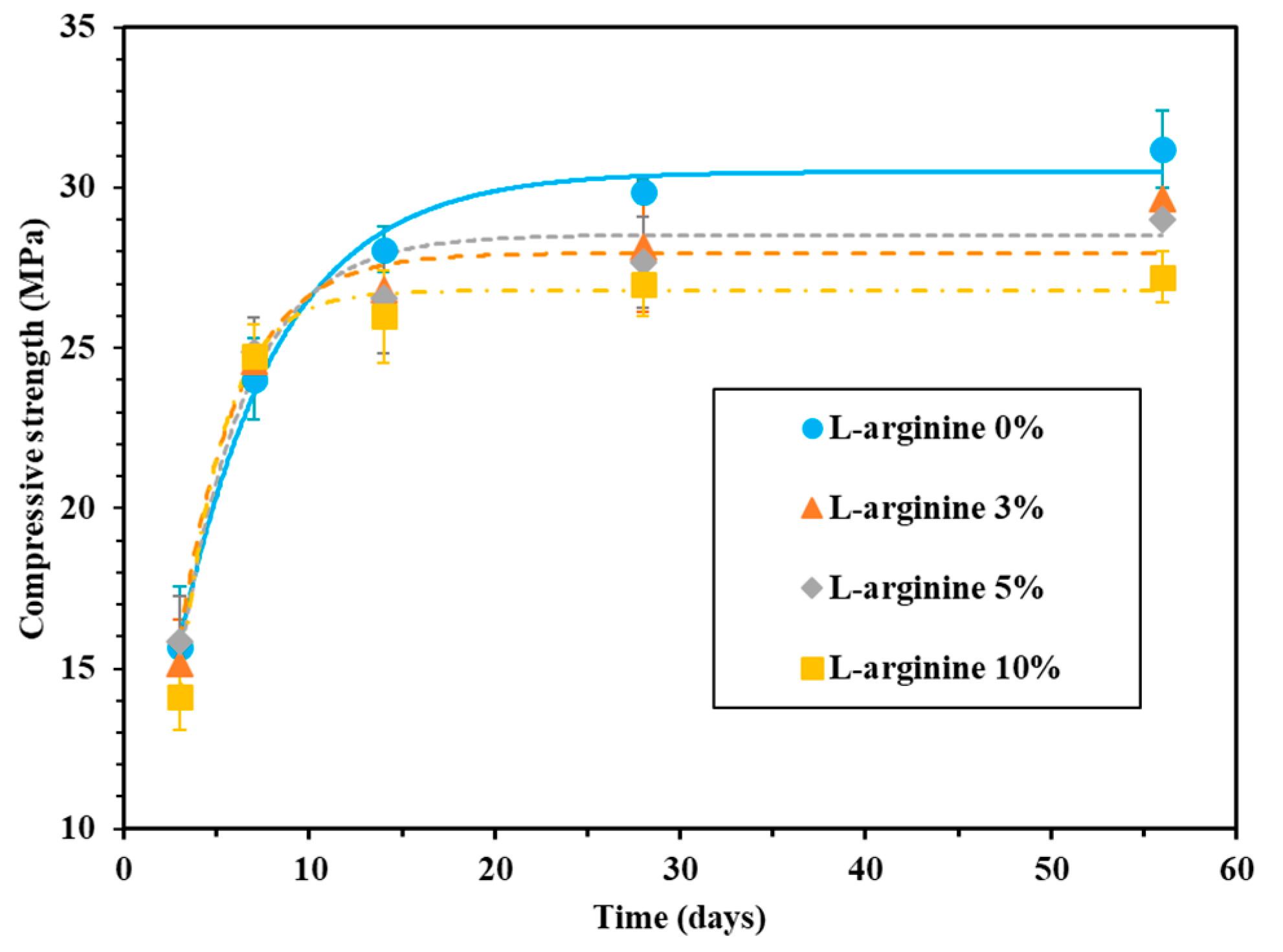

Figure 4. Compressive strength of mortar with L-arginine cured in seawater.
Figure 4. Compressive strength of mortar with L-arginine cured in seawater.
Sustainability 12 06346 g004
Sustainability 12 06346 g005 550

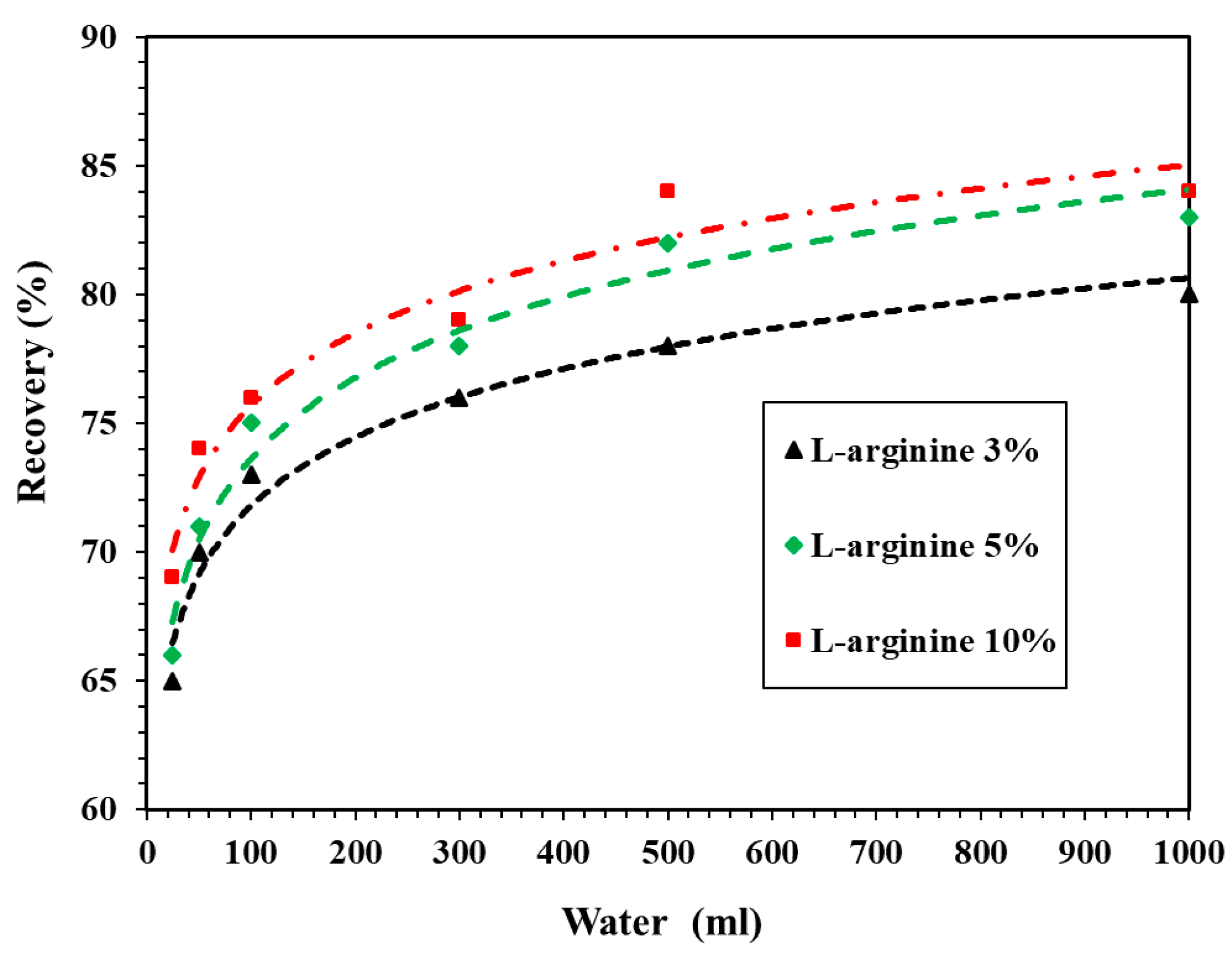

Figure 5. Recovery of L-arginine in distilled water.
Figure 5. Recovery of L-arginine in distilled water.
Sustainability 12 06346 g005
Sustainability 12 06346 g006 550

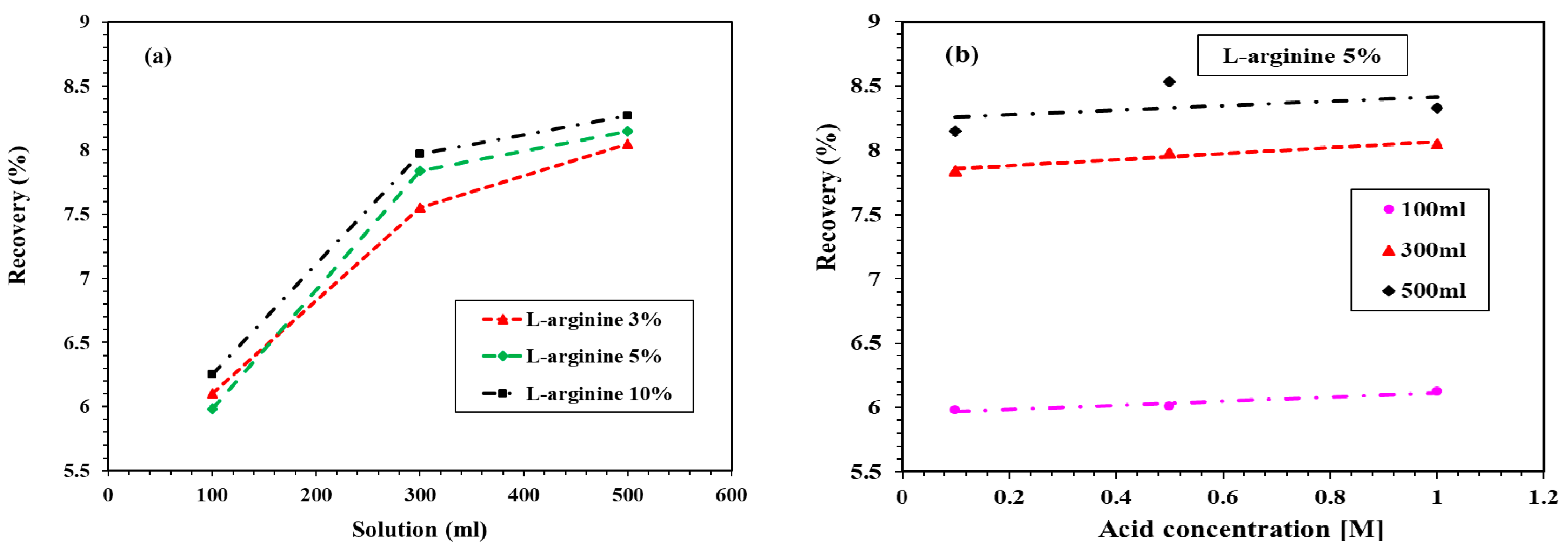

Figure 6. Recovery of L-arginine with (a) different amounts of L-arginine-containing cement mortar in 0.1 M HCl and (b) 5% L-arginine with concentration and volume of HCl from the residue.
Figure 6. Recovery of L-arginine with (a) different amounts of L-arginine-containing cement mortar in 0.1 M HCl and (b) 5% L-arginine with concentration and volume of HCl from the residue.
Sustainability 12 06346 g006
Sustainability 12 06346 g007 550

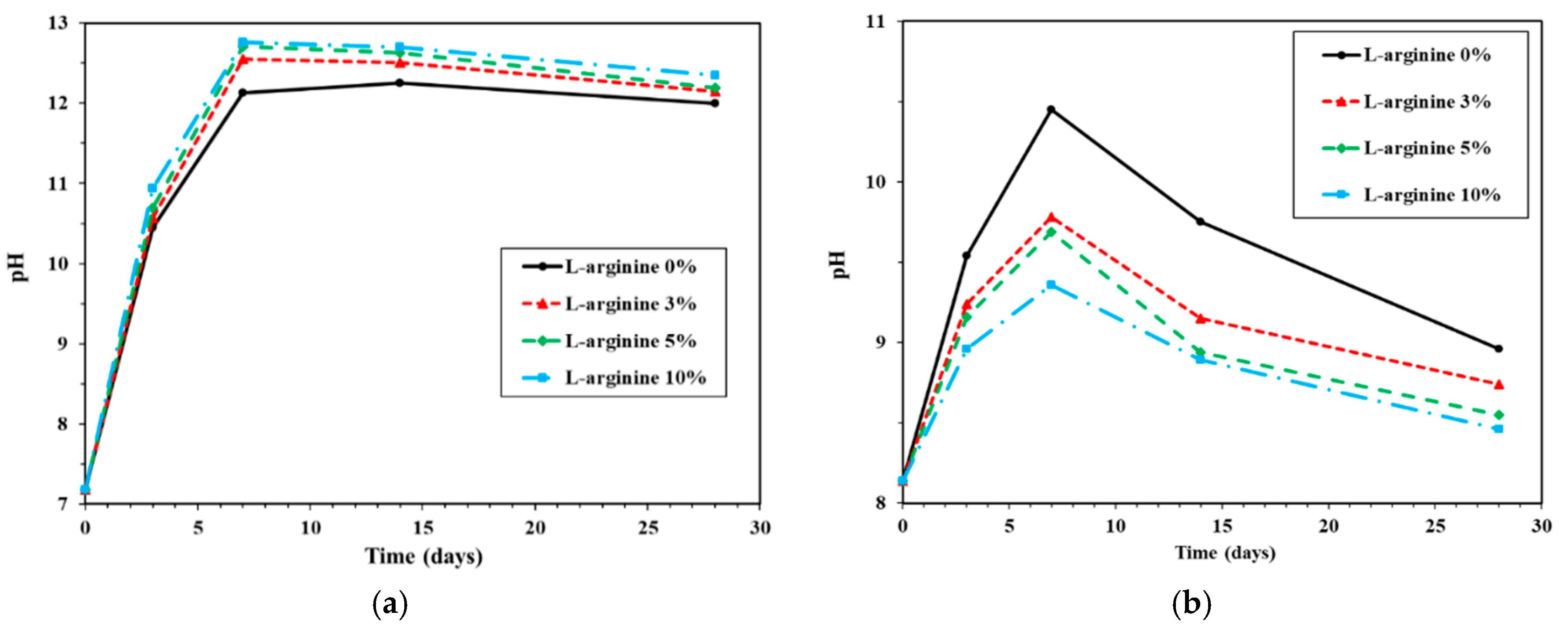

Figure 7. pH values of (a) distilled water and (b) seawater used to immerse test specimens.
Figure 7. pH values of (a) distilled water and (b) seawater used to immerse test specimens.
Sustainability 12 06346 g007
Sustainability 12 06346 g008a 550Sustainability 12 06346 g008b 550

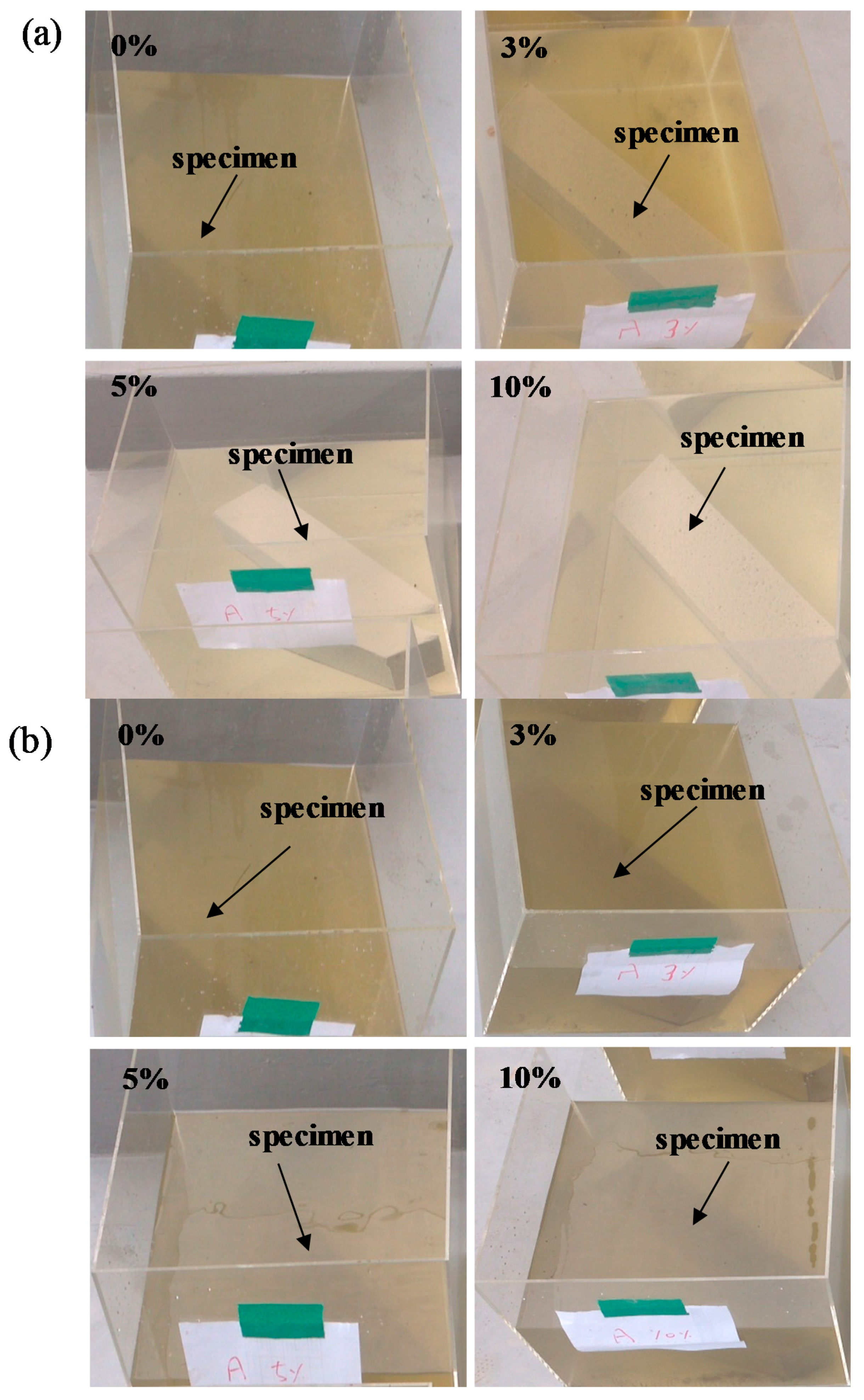

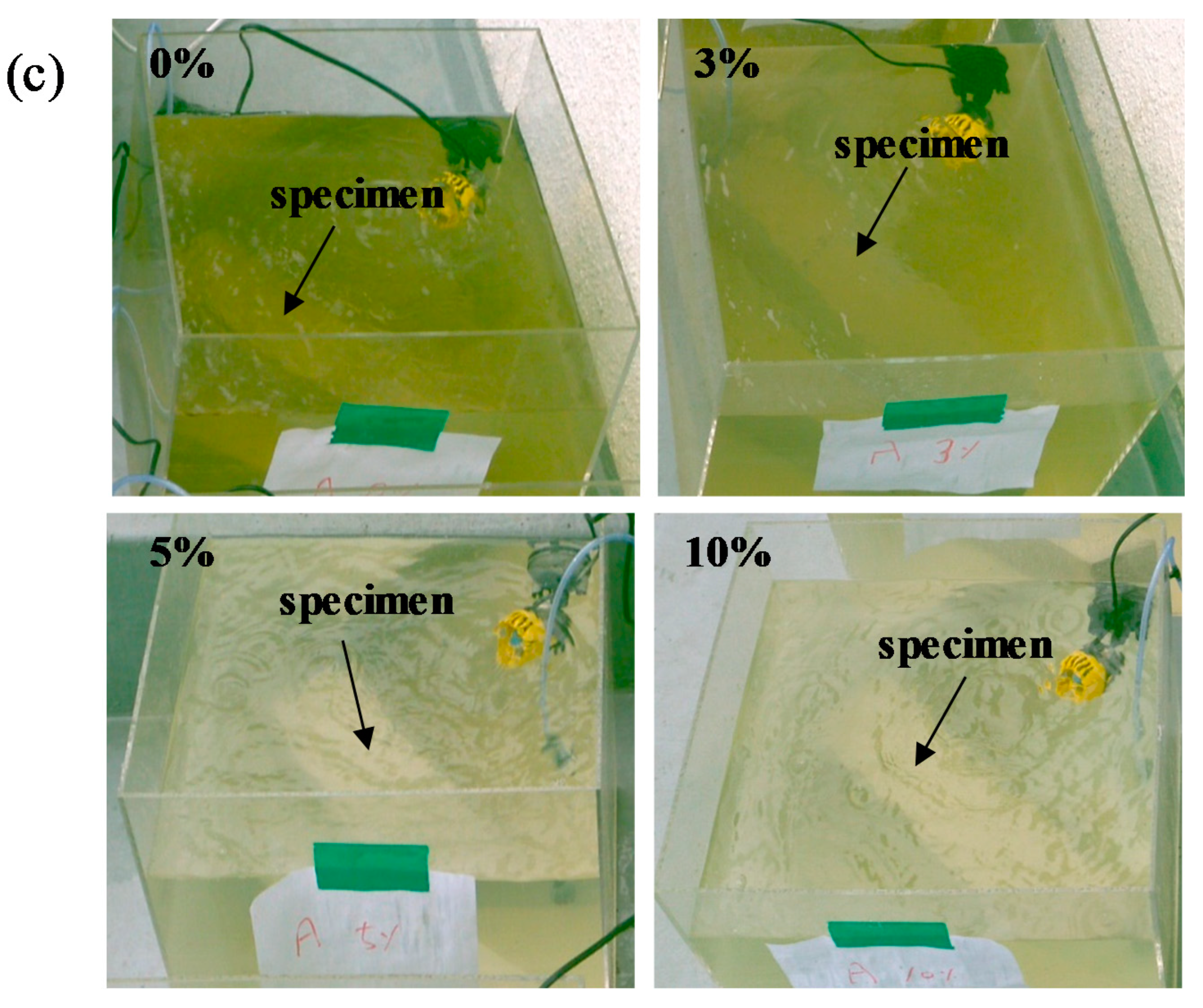

Figure 8. Change in color of 0%, 3%, 5%, and 10% L-arginine cement mortar immersed in sea water after (a) 3 days, (b) 7 days, and (c) 14 days.
Figure 8. Change in color of 0%, 3%, 5%, and 10% L-arginine cement mortar immersed in sea water after (a) 3 days, (b) 7 days, and (c) 14 days.
Sustainability 12 06346 g008aSustainability 12 06346 g008b
Sustainability 12 06346 g009 550
Figure 9. Total dissolved nitrogen of L-arginine cement mortar in distilled water according to immersion duration.
Figure 9. Total dissolved nitrogen of L-arginine cement mortar in distilled water according to immersion duration.
Sustainability 12 06346 g009
Sustainability 12 06346 g010 550

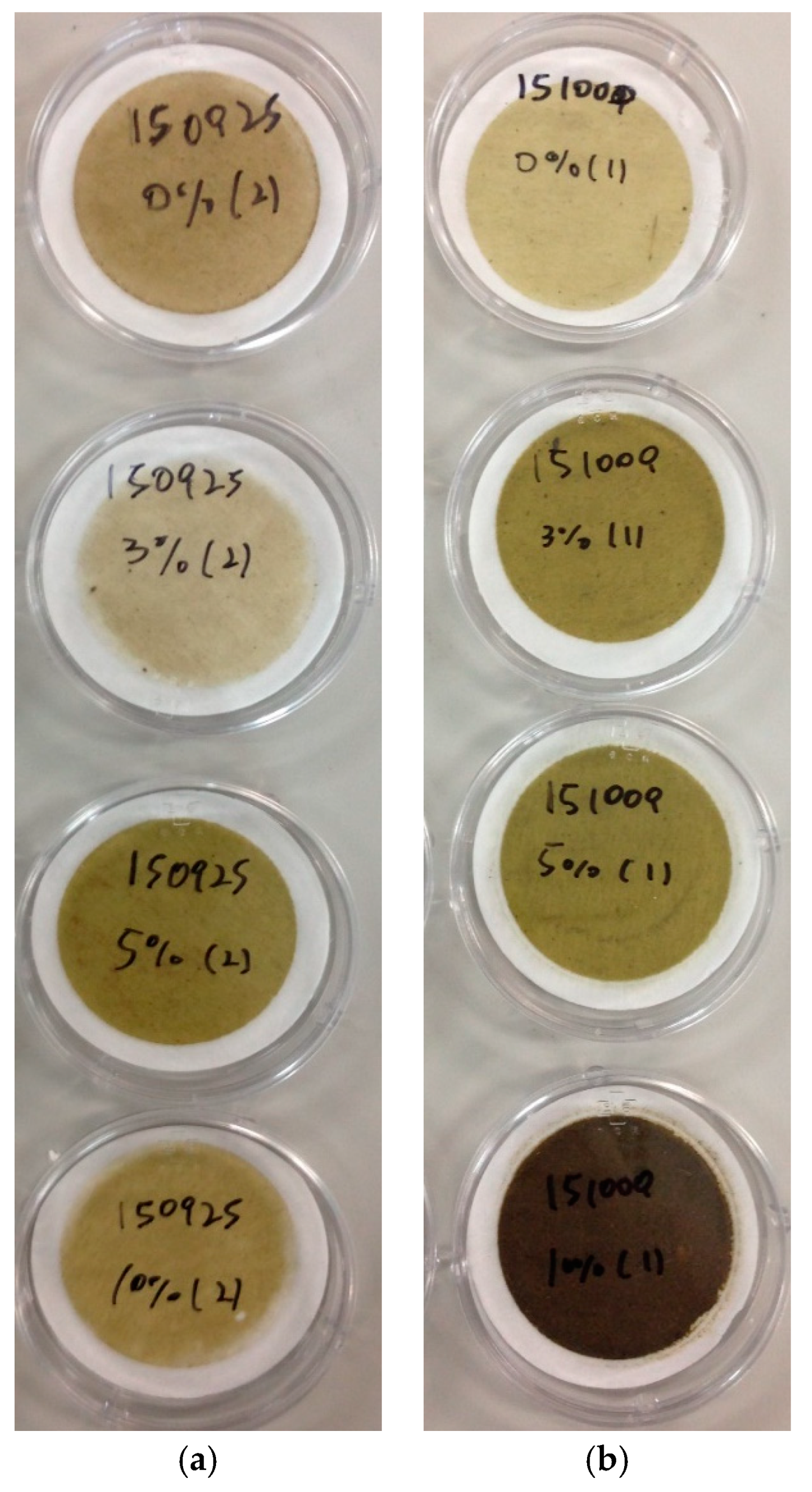

Figure 10. Digital image of removed chlorophyll-a (Chl-a) on filter paper from the surface of L-arginine cement mortar after (a) 7 days and (b) 28 days of immersion in a sea.
Figure 10. Digital image of removed chlorophyll-a (Chl-a) on filter paper from the surface of L-arginine cement mortar after (a) 7 days and (b) 28 days of immersion in a sea.
Sustainability 12 06346 g010
Sustainability 12 06346 g011 550

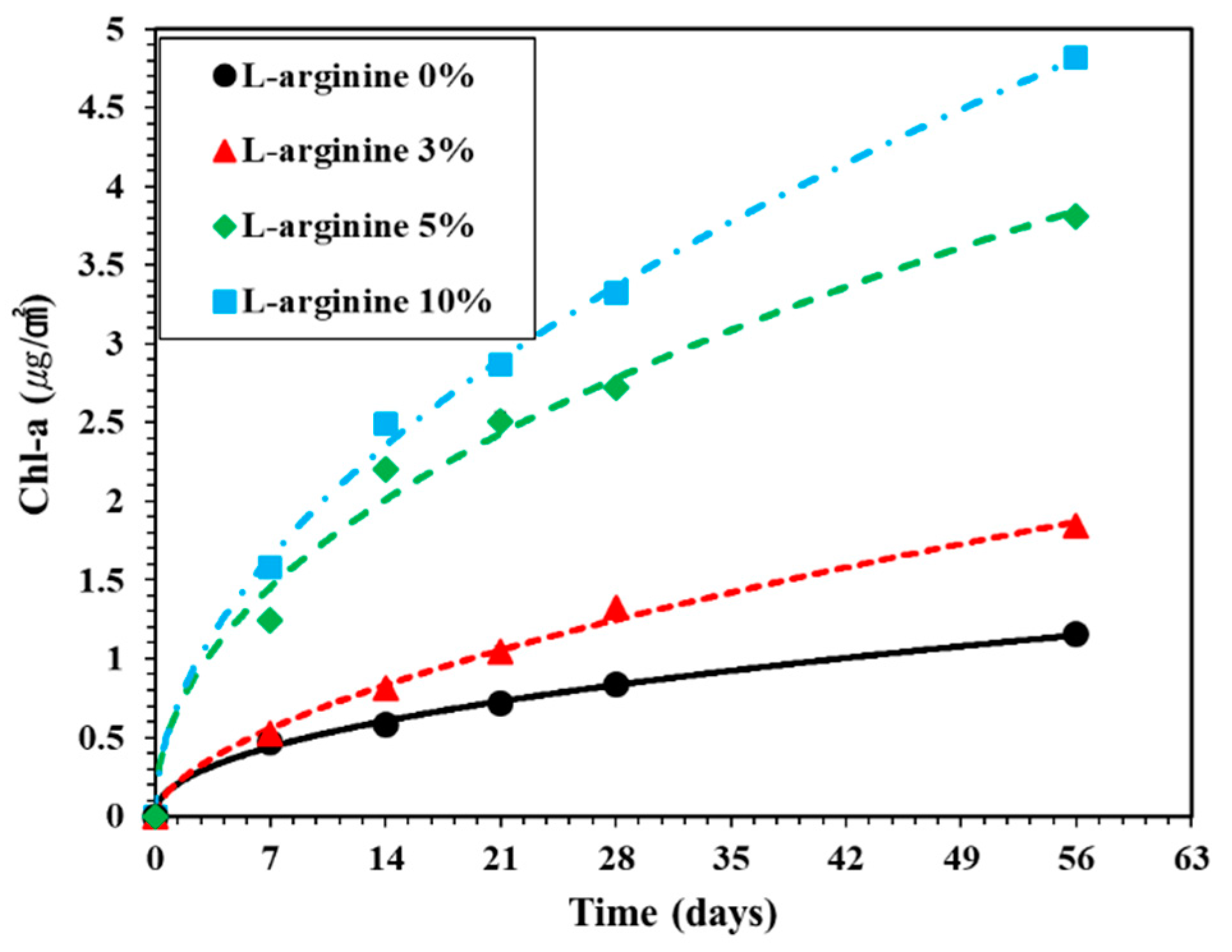

Figure 11. Surface chlorophyll-a content on the surface of L-arginine cement mortar according to exposure periods in the sea.
Figure 11. Surface chlorophyll-a content on the surface of L-arginine cement mortar according to exposure periods in the sea.
Sustainability 12 06346 g011
Sustainability 12 06346 g012 550

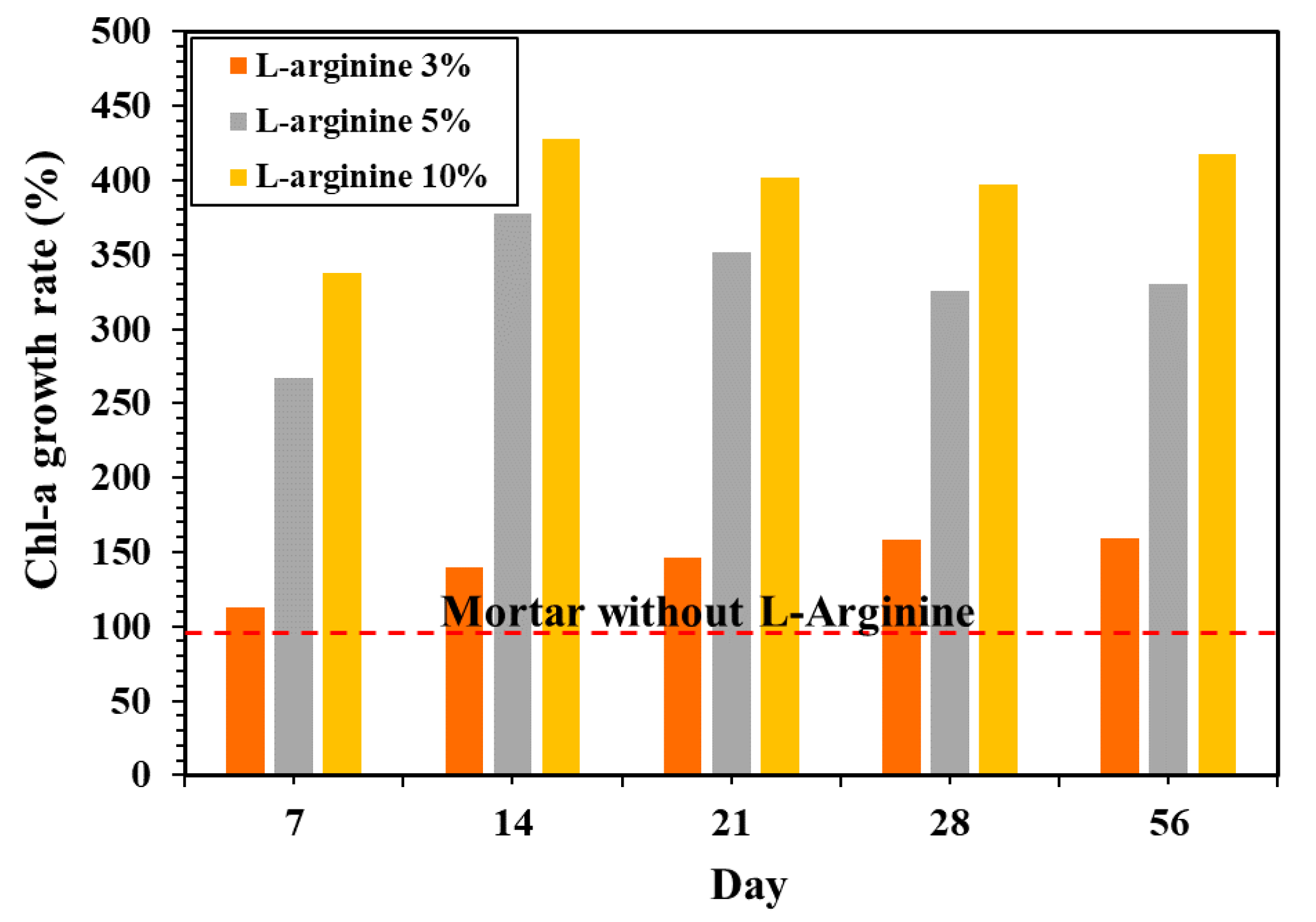

Figure 12. Chl-a growth rate on the surface of L-arginine cement mortar according to exposure periods in the sea.
Figure 12. Chl-a growth rate on the surface of L-arginine cement mortar according to exposure periods in the sea.
Sustainability 12 06346 g012
Table
Table 1. Properties of L-arginine.
Table 1. Properties of L-arginine.
DivisionProperties
FormulaC6H14N4O2
Molecular weight174.20 g/mol
pH12.0 at 25 °C
Melting point222 °C
Water solubility87.1 g/L at 20 °C - completely soluble
Table
Table 2. Chemical composition of cement.
Table 2. Chemical composition of cement.
Chemical CompositionCement (wt.%)
SiO223.20
Al2O35.03
Fe2O32.92
CaO62.40
MgO2.07
SO32.34
K2O0.59
Na2O0.26
Loss of ignition1.19
Table
Table 3. Mortal mixture proportions.
Table 3. Mortal mixture proportions.
W/BL-Arginine (%)Mix Composition (kg/m3)
WaterCementSandL-Arginine
0.5025551015300
3494.715.3
5484.525.5
1045951

Share and Cite

MDPI and ACS Style

Yang, H.-M.; Myung, N.V.; Lee, H.-S.; Singh, J.K. L-Arginine-Incorporated Cement Mortar as Sustainable Artificial Reefs. Sustainability 2020, 12, 6346. https://doi.org/10.3390/su12166346

AMA Style

Yang H-M, Myung NV, Lee H-S, Singh JK. L-Arginine-Incorporated Cement Mortar as Sustainable Artificial Reefs. Sustainability. 2020; 12(16):6346. https://doi.org/10.3390/su12166346

Chicago/Turabian Style

Yang, Hyun-Min, Nosang V. Myung, Han-Seung Lee, and Jitendra Kumar Singh. 2020. "L-Arginine-Incorporated Cement Mortar as Sustainable Artificial Reefs" Sustainability 12, no. 16: 6346. https://doi.org/10.3390/su12166346

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
