Spatio-Temporal Variations of CO₂ Emission from Energy Consumption in the Yangtze River Delta Region of China and Its Relationship with Nighttime Land Surface Temperature

Abstract

The rapid development of industrialization and urbanization has resulted in a large amount of carbon dioxide (CO₂) emissions, which are closely related to the long-term stability of urban surface temperature and the sustainable development of cities in the future. However, there is still a lack of research on the temporal and spatial changes of CO₂ emissions in long-term series and their relationship with land surface temperature. In this study, Defense Meteorological Satellite Program’s Operational Linescan System (DMSP/OLS) data, Suomi National Polar-orbiting Partnership (NPP) Visible Infrared Imaging Radiometer Suite (VIIRS) composite data, energy consumption statistics data and nighttime land surface temperature are selected to realize the spatial informatization of long-term series CO₂ emissions in the Yangtze River Delta region, which reveals the spatial and temporal dynamic characteristics of CO₂ emissions, spatial autocorrelation distribution patterns and their impacts on nighttime land surface temperature. According to the results, CO₂ emissions in the Yangtze River Delta region show an obvious upward trend from 2000 to 2017, with an average annual growth rate of 6.26%, but the growth rate is gradually slowing down. In terms of spatial distribution, the CO₂ emissions in that region have significant regional differences. Shanghai, Suzhou and their neighboring cities are the main distribution areas with high CO₂ emissions and obvious patch distribution patterns. From the perspective of spatial trend, the areas whose CO₂ emissions are of significant growth, relatively significant growth and extremely significant growth account for 8.78%, 4.84% and 0.58%, respectively, with a spatial pattern of increase in the east and no big change in the west. From the perspective of spatial autocorrelation, the global spatial autocorrelation index of CO₂ emissions in the Yangtze River Delta region in the past 18 years has been greater than 0.66 (p < 0.01), which displays significant positive spatial autocorrelation characteristics, and the spatial agglomeration degree of CO₂ emissions continues to increase from 2000 to 2010. From 2000 to 2017, the nighttime land surface temperature in that region showed a warming trend, and the areas where CO₂ emissions are positively correlated with nighttime land surface temperature account for 88.98%. The increased CO₂ emissions lead to, to a large extent, the rise of nighttime land surface temperature. The research results have important theoretical and practical significance for the Yangtze River Delta region to formulate a regional emission reduction strategy.

1. Introduction

As the largest developing country in the 21st century, China has experienced the progressive transformation from planned economy to market economy and achieved a surprising economic growth over the past 30 years [1]. Since the reform and opening-up in 1978, the gross domestic product has been increasing with an average speed of 9.8% per year and ranked the third of the world in 2009 [2]. Driven by the fast economic development and the increase of primary energy consumption, the emission increase of CO₂ in in eastern coastal areas has been accelerated significantly [3]. According to the statistics, the growth rate of CO₂ emission in China per year has reached 10% since 2000. The overall CO₂ emission in 2008 reached 8.325 billion tons for which China became the country with the largest emission in the world [4]. In one aspect, the huge emission of carbon and the higher acceleration impose a huge pressure on China for emission reduction [5]. A scientific and reasonable analysis on the variation of time and space for CO₂ emission has become the fundamental precondition for the strategy of emission reduction. On the other aspect, the continuous increase of CO₂ emission has generated a significant warming effect for the land surface temperature which not only impacts the residents’ health, production activities and atmospheric environment of cities, but also makes the soil infertile, impacts the water cycling system and even causes the irreversible destruction to the biological diversity [6,7]. The disclosure of the influence from CO₂ emission on land surface temperature has become one of the key challenges for sustainable development.

The nighttime light data are of long duration and wide coverage etc. which are ideal for the exploration of city information [8]. Many scholars have successfully applied the DMSP/OLS data into such fields as population estimation [9], urban boundary extraction [10], power consumption estimation [11] etc. Since human activities are the major source of CO₂ emission and DMSL/OLS data happens to effectively reflect the strength of human activities [12], many scholars at home and abroad have proved that the application of DMSP/OLS data into the estimation of CO₂ emission is feasible. For example, Wang et al. [13] applied spatiotemporal modeling based on DMSP/OLS data to evaluate the CO₂ emission on the municipal level in China from 1992 to 2013 and put forward a series of feasible policies for emission reduction. Shi et al. [14] compared and analyzed the temporal and spatial variation and contributory factors for CO₂ emissions on the provincial and municipal level from 1997 to 2012 based on DMSP/OLS data. Cheng et al. [15] studied the spatio-temporal dynamics of CO₂ strength in energy consumption on the provincial level from 1997 to 2010 and its dominant factors based on the method provided by the International Panel on Climate Change (IPCC). These research studies mainly discuss and explore CO₂ emission on the provincial or municipal level, most of which were conducted before 2013. With the launch of a new generation of NPP/VIIRS nighttime light data, the research on the spatio-temporal dynamics of serialized CO₂ emissions over a longer duration has become possible. Based on the DMSPOLS and NPP/VIIRS data, this research explores the spatio-temporal characteristics of serialized CO₂ emissions on the municipal level with a longer duration, in order to determine the objective of emission reduction for the local governments and provide scientific basis for the preparation of a regional strategy for emission reduction. Besides, the current research on the influence of CO₂ emissions on land surface temperature has always been an interesting topic. Research indicates that the concentration enrichment of CO₂ emission means more absorption of heat which causes the variation of land surface temperature [16]. For example, Vostok ice-core data suggest that the land surface temperature and CO₂ emissions have a close relationship in the past 160 thousand years [17]. Jones et al. [18] discovered that fossil fuel and bio-fuel black carbon has significantly contributed to the climate warming in the last 50 years of the 20th century through the inspection and analysis based on the observation data of global near-surface temperature in the last century. Through selecting the global time series data in 161 years and applying the linear method and non-linear method to inspect the casual relationship between CO₂ emissions and air temperature, Bai et al. [19] proved that CO₂ emissions are the contributor for the climate warming. Das et al.’s [20] research suggests that the fossil fuel consumption may cause the CO₂ level to rise to one and half times by the year 2020 in comparison to that of the 2008 level, thus causing an increase in the surface temperature by 0.0008 percent per annum. The above stated research studies have obtained comparatively ideal research achievements. However, the current research on the influence of CO₂ emissions on land surface temperature is still comparatively insufficient and does not consider that factors such as solar radiation difference in daylight and human activities will influence the result of the correlation analysis on CO₂ emissions and land surface temperature. Therefore, this research selects the nighttime land surface temperature as the data source since the data of nighttime land surface temperature have higher precision compared to the data of land surface temperature in daylight, and they are more typical.

The Yangtze River Delta is the region with the highest population density and level of urbanization in China [21]. This region’s rapid economic growth inevitably resulted in a high concentration of energy consumption, which greatly increased CO₂ emissions. To cope with the huge pressure of emission reduction and enhance the sustainable development of cities, the scientific and precise analysis on the temporal and spatial variation of CO₂ emissions in the Yangtze River Delta and its relationship with the nighttime land surface temperature may determine the objective of emission reduction for the local governments and provide the theoretical basis and data support for the improvement of the urban ecological environment. The present study combined Geographic Information System (GIS) technology and remotely sensed data to construct a carbon emissions simulation model for the Yangtze River Delta region. The model was based on the theory of sustainable urban development and on DMSP/OLS data, NPP/VIIRS data, statistics on energy consumption and some basic geographic information data. The temporal and spatial origin, and the distribution pattern of CO₂ emissions were determined using trend and spatial autocorrelation analyses. Pearson’s correlation coefficient was used to analyze the relationship between CO₂ emissions and night surface temperature.

2. Datasets

2.1. Study Area

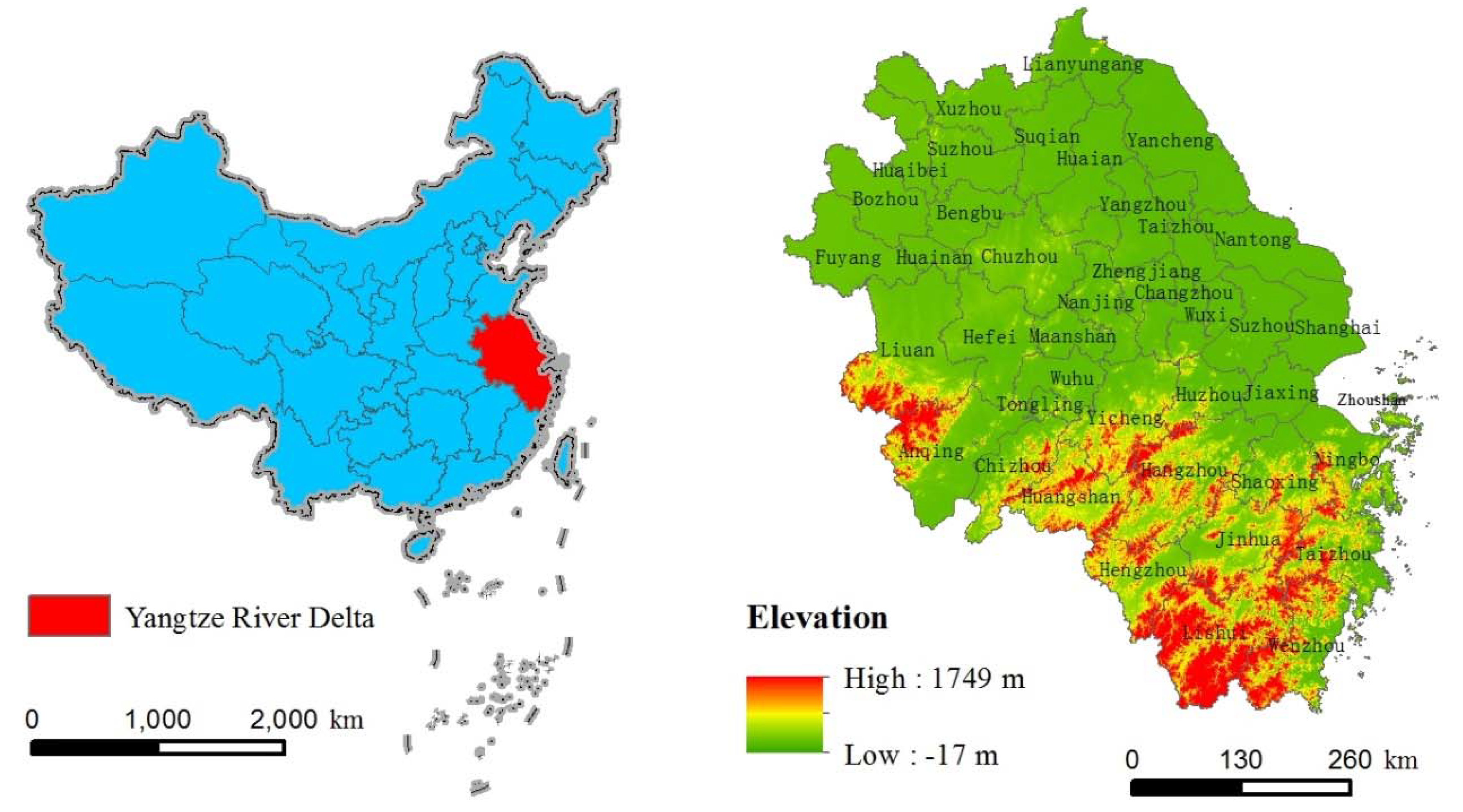

Located in the lower reaches of the Yangtze River, the Yangtze River Delta is one of the largest urban agglomerations in China and has also been the region with the fastest economic development since China’s reform and opening up [22]. The range which the study selects contains Shanghai, Zhejiang (Hangzhou, Ningbo, Wenzhou, Shaoxing, Huzhou, Jiaxing, Jinhua, Quzhou, Zhoushan, Taizhou, Lishui), Jiangsu (Nanjing, Wuxi, Xuzhou, Changzhou, Suzhou, Nantong, Lianyungang, Huai’an, Yancheng, Yangzhou, Zhenjiang, Taizhou, Suqian), Anhui (Hefei, Bengbu, Wuhu, Huainan) Ma’anshan City, Huaibei City, Tongling City, Anqing City, Huangshan City, Fuyang City, Suzhou City, Chuzhou City, Lu’an City, Xuancheng City, Chizhou City, Bozhou City), as shown in Figure 1. This area belongs to subtropical humid monsoon climate, with elevation below 1749 m, and most of the areas are plain, located at Shanghai, Jiangsu, Northern Anhui and Northern Zhejiang. The Yangtze River Delta, as an important intersection of the “Belt and Road” and the Yangtze River Economic Belt, is gradually developing into an influential world-class metropolis, and playing an important role in China’s social development [23].

2.2. Data Sources and Processing

Data sources include DMSP/OLS Data, NPP/VIIRS Data, energy consumption statistics, nighttime land surface temperature data and other relevant data.

DMSP/OLS nighttime light data. These data come from the stable noctilucent remote sensing image which is provided by National Oceanic and Atmospheric Administration (NOAA) and whose spatial resolution is 0.008333 degrees and whose range of digital number (DN) value is 0~63. The larger the DN value, the higher the light intensity. Three satellites, namely, F15 (2000–2007), F16 (2004–2009) and F18 (2010–2013), were used for data acquisition. Because the DMSP satellite is influenced by measurement error, attenuation of detection ability, atmosphere and so on, relative radiometric correction must be conducted when studying and using DMSP/OLS Data [24]. By referring to the correction of nighttime light data by Elvidge et al. [25] and Wu et al. [26], this study uses ArcGIS 10.2 as the data processing platform and conducts the following four steps to correct DMSP/OLS data: (a) create China regional nighttime light database (the spatial resolution of the data after resampling is 1 km × 1 km) through projection change, resampling, clipping and other processing; (b) to correct the DN value with multi-sensor data in the same year to form the unique nighttime light data each year; (c) to correct the continuity of time series to ensure the latter DN value of the annual pixel is greater than that of the previous year; and (d) create the nighttime light database of the Yangtze River Delta through the clipping of nighttime light data based on the administrative division map of the Yangtze River Delta.

NPP/VIIRS nighttime light data. The data are from the National Geophysical Data Center of the United States. The selected years are 2012–2017. The spatial resolution of the original data was 0.004167 degrees, and it was converted to 1 km × 1 km by resampling. Different from DMSP/OLS data, NPP /VIIRS data do not remove the influence of Aurora, firelight and other background noise [27,28]. These accidental factors will affect the accuracy of CO₂ Emission Simulation and must be removed. Considering that the NPP/VIIRS data are missing in some areas from May to July, and in order to make full use of the information of each image, the data from January to April and August to October each year are corrected, and then the annual NPP/VIIRS composite data are obtained according to the monthly NPP/VIIRS composite data [29]. Then, in order to overcome the influence of different satellite sensors, the “two-step” proposed by Zhao et al. [30] is used to correct the continuity of DMSP/OLS and NPP/VIIRS data. Finally, we get the nighttime light data of 2000–2017 time series, and Figure 2 shows the time change of total DN values of nighttime light data in the Yangtze River Delta from 2000 to 2017. In Figure 2, TDN represents the total DN value of nighttime light data in the entire Yangtze River Delta.

Statistical data of energy consumption in the Yangtze River Delta. The energy consumption data used to calculate CO₂ emissions are from the reference energy terminal consumption in the energy consumption balance table of Zhejiang, Anhui, Jiangsu and Shanghai in China Energy Statistical Yearbook. China Energy Statistical Yearbook is from China National Knowledge Infrastructure. Due to the lack of some energy consumption statistics from 2000 to 2002, the selected time range of energy statistics is 2003–2017.

Nighttime land surface temperature (NLST) data. From the data of MOD11A2 provided by National Aeronautics and Space Administration (NASA), the time resolution is 8 days and the spatial resolution is 1 km × 1 km. First, the Modis Reprojection Tool (MRT) software was used to project and format the MOD11A2 data [31]. The MRT software was provided by NASA. Second, to eliminate the influence of outliers, the maximum value composition (MVC) [32] was used to synthesize the 8-day data into annual data. Finally, the data were spliced and trimmed to obtain the annual nighttime land surface temperature data of the Yangtze River Delta urban agglomeration for 2000 to 2017.

Relevant auxiliary data. It mainly includes China’s national boundaries, provincial and municipal administrative divisions in the Yangtze River Delta, and the data is from the national geographic information resources directory service system.

3. Methods

3.1. Spatialization of CO₂ Emissions

(1) CO₂ emission calculation. According to the statistical data of energy consumption in the Yangtze River Delta region and the 2006 greenhouse gas emission inventory released by the Intergovernmental Panel on climate change of the United Nations, the CO₂ emission generated by energy consumption is calculated as follows:

$$SC{E}_{PRO}=\frac{44}{12}\times {\displaystyle \sum _{j=1}^{10}{K}_j{E}_j}$$

(1)

In this formula, $SC{E}_{PRO}$ represents the CO₂ emission of a province (city), the subscript j represents the energy type, $E_j$ represents the consumption of energy j (unit: 10,000 tons of standard coal), and $K_j$ represents the CO₂ emission coefficient of energy j (unit: 10,000 tons of carbon/10,000 tons of standard coal). See reference [5] for the CO₂ emission coefficient of each energy.

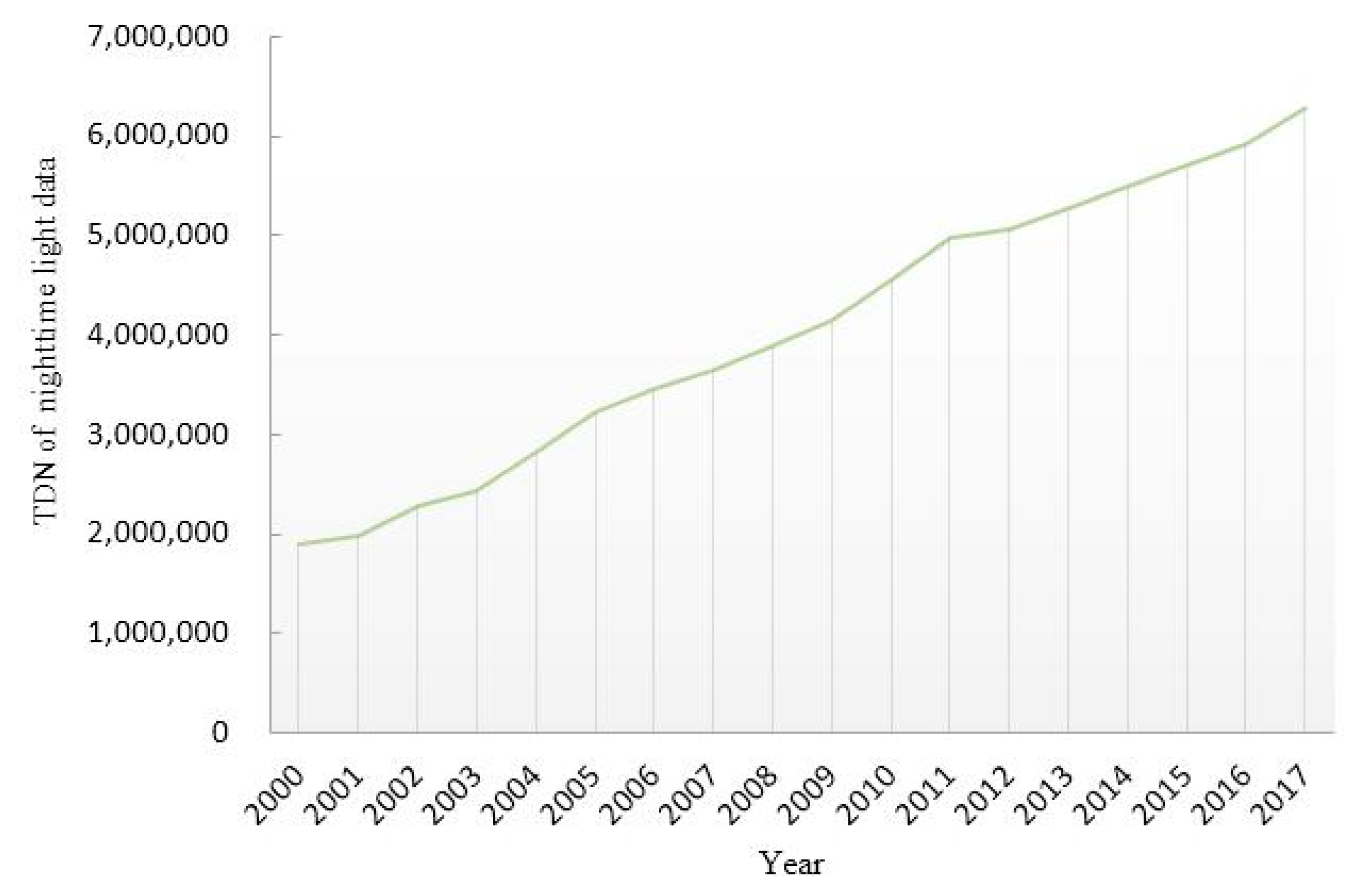

(2) The CO₂ emission simulation model was established. Based on lighting data and CO₂ emission data, Meng et al. [33] concluded that there is a linear correlation between carbon emissions and night lighting data. By analyzing the total amount of lighting and carbon emissions from energy consumption in the Henan Province of China, Gu et al [34] also concluded that there is a linear correlation between the two factors. Therefore, using the correlation between the total CO₂ emissions and the total DN value of nighttime light in each municipal administrative region in China, five commonly used correlation models (linear model, exponential model, logarithmic model, power function model, quadratic polynomial model) are selected to explore the correlation between CO₂ emissions and the total DN value of nighttime lighting. The results show that the fitting degrees of the linear model, exponential model, logarithmic model, power function model and quadratic polynomial model are 0.775, 0.794, 0.570, 0.615 and 0.778, respectively. Among them, the exponential model has the best fitting degree. However, further research shows that the average relative error of Shanghai from 2000 to 2017 is 23.90%, which is obviously underestimated, which may be due to the saturation of lighting. It is difficult to eliminate the problem completely in data correction, and there are still some errors in the city with high light intensity. In order to further improve the accuracy and reliability of CO₂ emission simulation value of each province (city), the relationship models between carbon emission and the DN value sum of Zhejiang, Jiangsu, Anhui and Shanghai are established, respectively. The results show that the fitting effect of the partition model is better than that of the overall model, which can make up for the underestimation of carbon emission in Shanghai. The R² of Zhejiang, Jiangsu, Anhui and Shanghai were 0.953, 0.988, 0.976 and 0.870, respectively, which passed the significance test of 0.01. At the same time, considering the accuracy of downscaling model inversion, a linear fitting model without intercept is adopted:

E_it = k_i × DN_it

(2)

In the formula, the independent variable DN_it represents the total DN value of nighttime lighting of i province (city) in t year, the dependent variable E_it represents the statistical value of CO₂ emission of i province (city) in t year, and k_i is the corresponding coefficient of i province (city) (

Table 1. Coefficient of linear model of CO₂ emission.

Province (City)	Zhejiang	Jiangsu	Anhui	Shanghai
Coefficient (k)	0.0189	0.0215	0.0162	0.0475
Coefficient of determination (R2)	0.9533	0.9878	0.9775	0.8704

).

3.2. Trend Analysis

Regression analysis can be used to calculate the temporal variation characteristics of a single pixel, and then reflect the spatial variation law of the whole region [34]. Based on the CO₂ emission data set from 2000 to 2017, the linear regression analysis of CO₂ emission was carried out with pixel as the basic unit. See reference [35] for the specific calculation formula.

In addition, in order to better reflect the spatial variation characteristics of CO₂ emissions in the Yangtze River Delta region, slope is divided into five grades by the standard deviation classification method: basically unchanged, weakly significant growth, significant growth, relatively significant growth and extremely significant growth.

3.3. Spatial Automocorrelation Analysis

Spatial autocorrelation is used to describe the potential interdependence and aggregation characteristics of variable attribute values in the same region. Spatial autocorrelation analysis includes global spatial autocorrelation and local spatial autocorrelation [36]. This paper selects the global Moran’s I index, which is widely used to reflect the concentration degree of CO₂ emissions in the Yangtze River Delta region. Local spatial autocorrelation is used to determine the specific location of spatial agglomeration [37,38].

4. Results

4.1. Accuracy Evaluation of Simulated CO₂ Emissions

In order to evaluate the accuracy and reliability of the simulated CO₂ emission value, this study adopted the following two methods for accuracy testing: one is to perform regression analysis on the statistical data and simulated data of CO₂ emissions and make a determination based on the correlation coefficient R² (Figure 3); the second is to calculate the relative error between the CO₂ emission statistics and simulation data in different regions in different years (

Table 2. Relative error between CO₂ emissions calculated from statistical data and CO₂ emissions simulated from nighttime light data (%).

Year	Zhejiang	Jiangsu	Anhui	Shanghai	Yangtze River Delta
2003	8.22	4.58	3.43	13.22	7.36
2004	6.47	7.75	10.91	5.18	7.58
2005	−0.12	5.95	10.03	−2.59	3.32
2006	−5.31	1.04	8.16	−5.57	−0.42
2007	−8.89	−4.75	3.79	−9.81	−4.92
2008	−7.78	−3.52	−0.74	−8.36	−5.10
2009	−5.78	−3.79	3.83	−8.81	−3.64
2010	−1.11	−3.31	−1.29	−10.99	−4.18
2011	−1.02	−3.86	0.32	−10.20	−3.69
2012	−1.25	−3.31	−5.20	−10.14	−4.98
2013	−0.65	−0.56	−4.51	−12.16	−4.47
2014	0.96	1.63	−2.52	−8.49	−2.11
2015	1.07	1.48	−2.40	−5.64	−1.37
2016	3.86	0.38	−1.10	−4.01	−0.22
2017	8.18	4.01	4.44	0.79	4.36

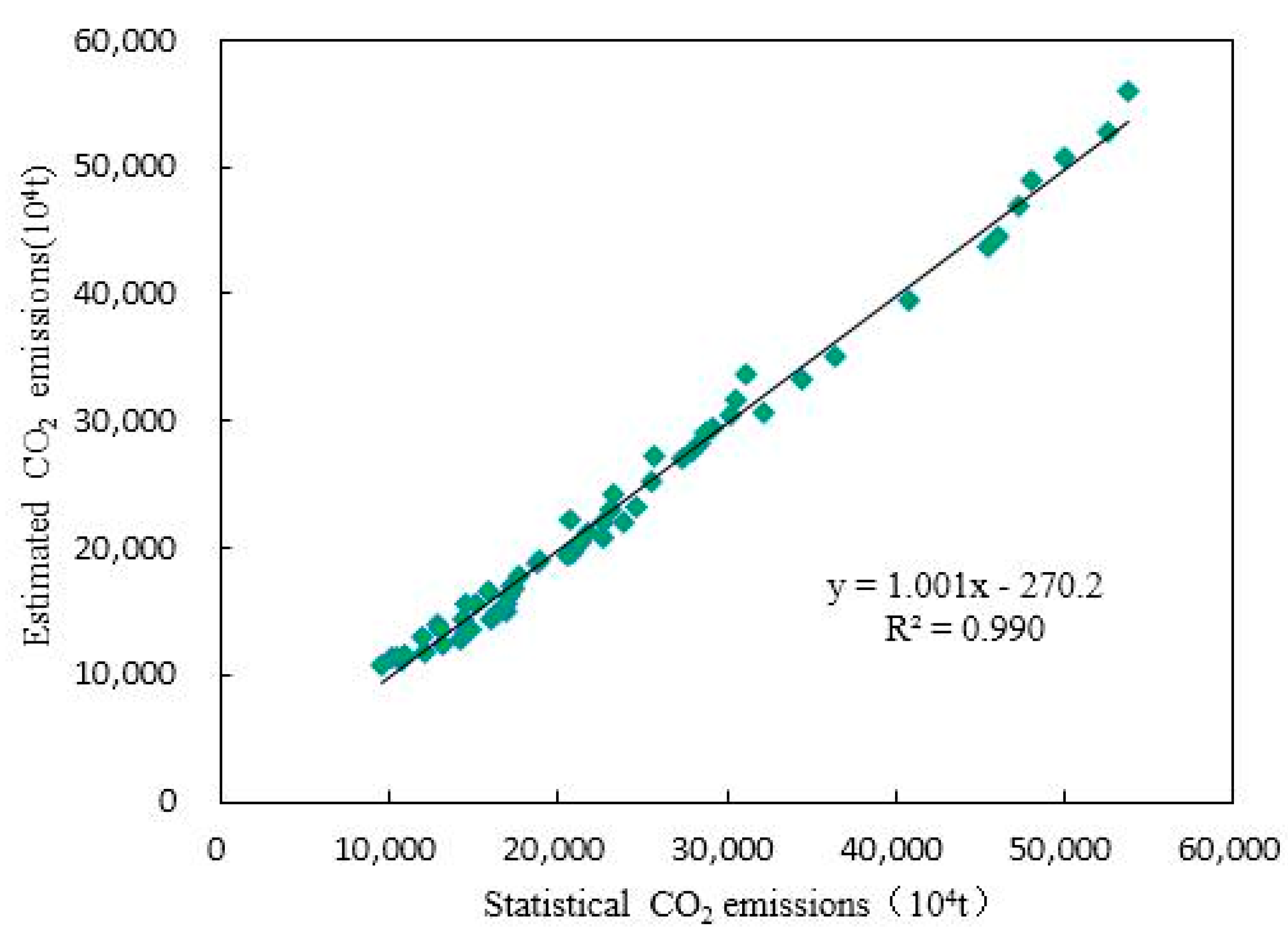

). It can be seen from Figure 3 that the CO₂ emission statistics data and the simulated data show an obvious linear correlation, and the correlation is high (R² = 0.990), which passed the significance test of 0.01. It can be seen from Table 2 that the relative errors between the statistical values and the simulated values of CO₂ emissions in the Yangtze River Delta from 2003 to 2017 are all within 10%. The annual average relative errors of Zhejiang, Jiangsu, Anhui and Shanghai are −0.21%, 0.25%, 1.81% and −5.17%. It can be seen that the accuracy of the CO₂ emission simulation based on nighttime light data is better, and this accuracy can meet the requirements of CO₂ emission change research.

4.2. Temporal Characteristics

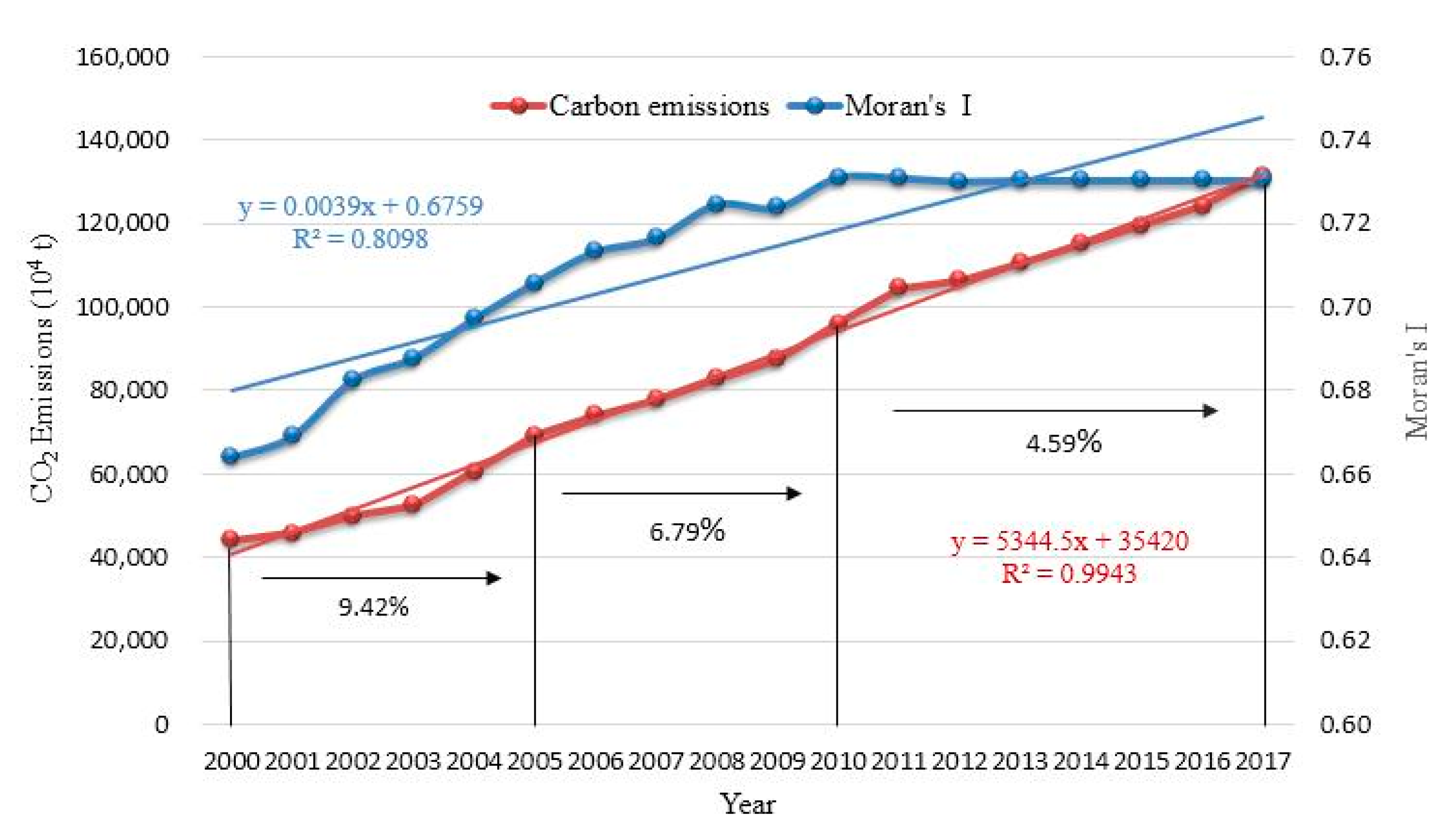

From 2000 to 2017, the Yangtze River Delta region’s CO₂ emissions experienced a significant increase (Figure 4), with an average annual growth rate of 6.26%. From 2000 to 2005, from 2005 to 2010 and from 2010 to 2017, the average annual growth rates of CO₂ emissions in the Yangtze River Delta were 9.42%, 6.79%, and 4.59%, indicating that the CO₂ emissions in the Yangtze River Delta are increasing, but the growing speed is gradually slowing down, which is mainly due to the impact of economic and social development goals and the continuous improvement of the energy consumption system. For example, during the “Eleventh Five-Year Plan” period, the Chinese government made optimizing the industrial structure and improving the efficiency of resource utilization its main goals for economic and social development. During the “Twelfth Five-Year Plan” period, the Chinese government set the goals of reducing energy consumption per unit of gross domestic product (GDP) by 16% and CO₂ emissions per unit of GDP by 17% [14]. The implementation of these policies has played a positive role in mitigating the growth of CO₂ emissions. From the perspective of the spatial agglomeration degree, the global Moran’s I in the Yangtze River Delta from 2000 to 2017 was between 0.663 and 0.731, both reaching a significant level of 0.01 (Figure 4). It shows that CO₂ emissions in the Yangtze River Delta are positively correlated with each other, and CO₂ emissions have significant spatial agglomeration characteristics. From 2000 to 2010, Moran’s I showed a clear upward trend, with a growth rate of 0.6%•a⁻¹, indicating that the spatial accumulation of CO₂ emissions continued to increase, the accumulation of CO₂ emissions increased, and the spatial heterogeneity among regions is weakened. From 2011 to 2017, the Moran’s I index of CO₂ emissions stabilized at 0.7301–0.7309, and the spatial distribution pattern of emissions in the Yangtze River Delta was basically unchanged. The main reason was that the CO₂ emissions in the Yangtze River Delta experienced an obvious upward process from 2000 to 2010, especially in Shanghai, Suzhou, Wuxi, Changzhou. The spatial distribution characteristics of CO₂ emissions tend to be from broken distribution to sheet distribution, and the connectivity between CO₂ emission patches tends to be saturated.

4.3. Spatial Distribution Characteristics

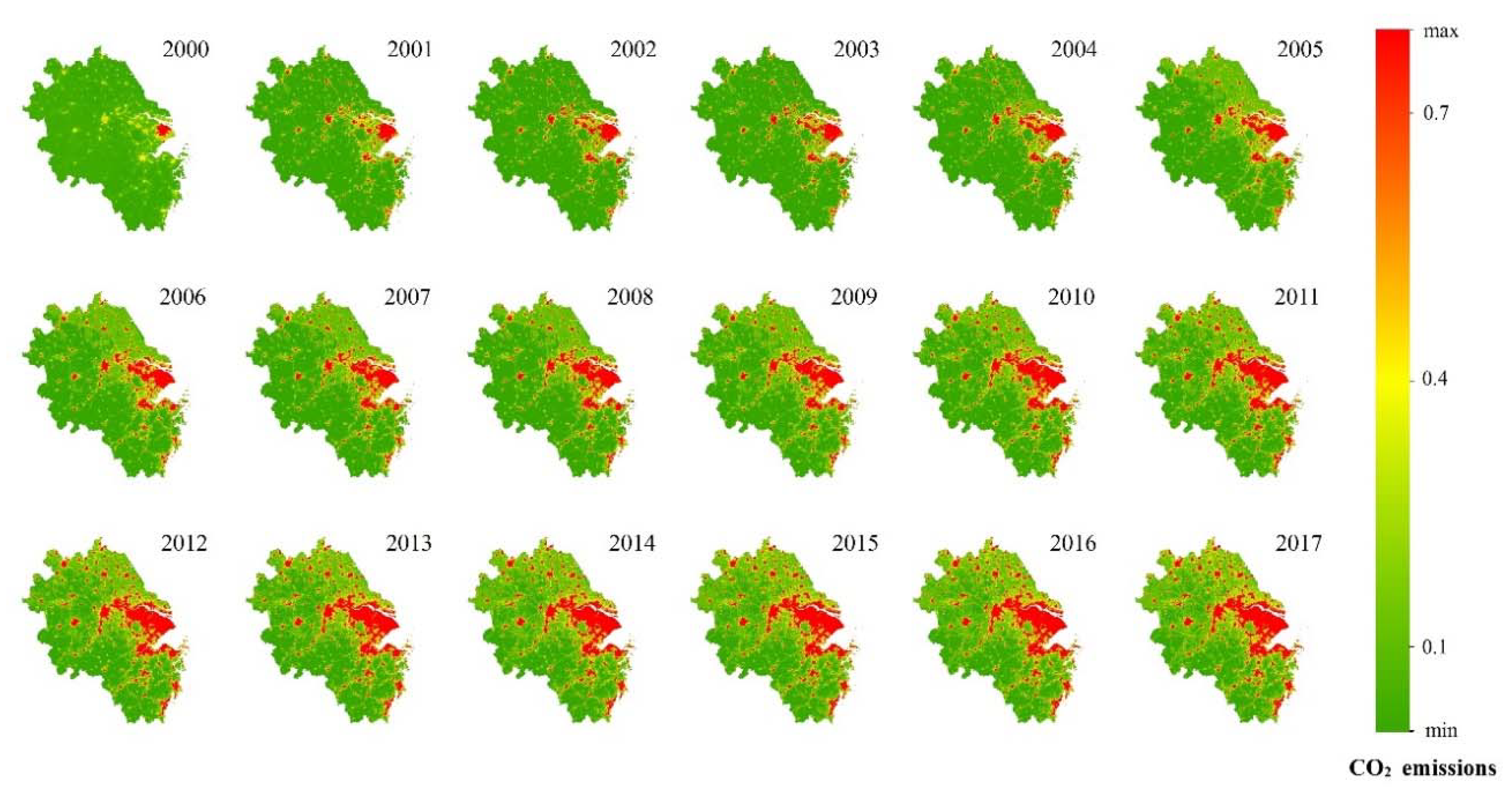

Based on the nighttime light data of DMSP/OLS and NPP/VIIRS, the spatial distribution of CO₂ emissions on the pixel scale in the Yangtze River Delta is simulated. Figure 5 shows the spatial distribution of CO₂ emissions in the Yangtze River Delta from 2000 to 2017, and it uses equal intervals to divide it into 8 levels, 0–0.1, 0.1–0.2, 0.2–0.3, 0.3–0.4, 0.4–0.5, 0.5–0.6, 0.6–0.7, 0.7–max (unit: 10⁴ t/km²). The area occupied by 0–0.1 dropped from 73.26% in 2000 to 23.94% in 2017, while the areas occupied by 0.1–0.2, 0.2–0.3, 0.3–0.4, 0.4–0.5, 0.5–0.6, 0.6–0.7, 0.7–max are on the rise. The proportion of area occupied by 0.7–max rose from 3.08% in 2000 to 15.48% in 2017. From the perspective of spatial distribution, there are obvious regional differences in CO₂ emissions in the Yangtze River Delta. Shanghai, Suzhou and its neighboring cities are the main distribution areas with high CO₂ emissions. They are distributed in obvious patches. These regions have a high level of urbanization development, highly dense population, and carried out a large number of economic activities. The low-value areas of CO₂ emissions are mainly distributed in Lishui and Quzhou of Zhejiang Province, and Lu’an, Anqing, Chizhou of Anhui Province. These cities have relatively low energy consumption and low CO₂ emissions.

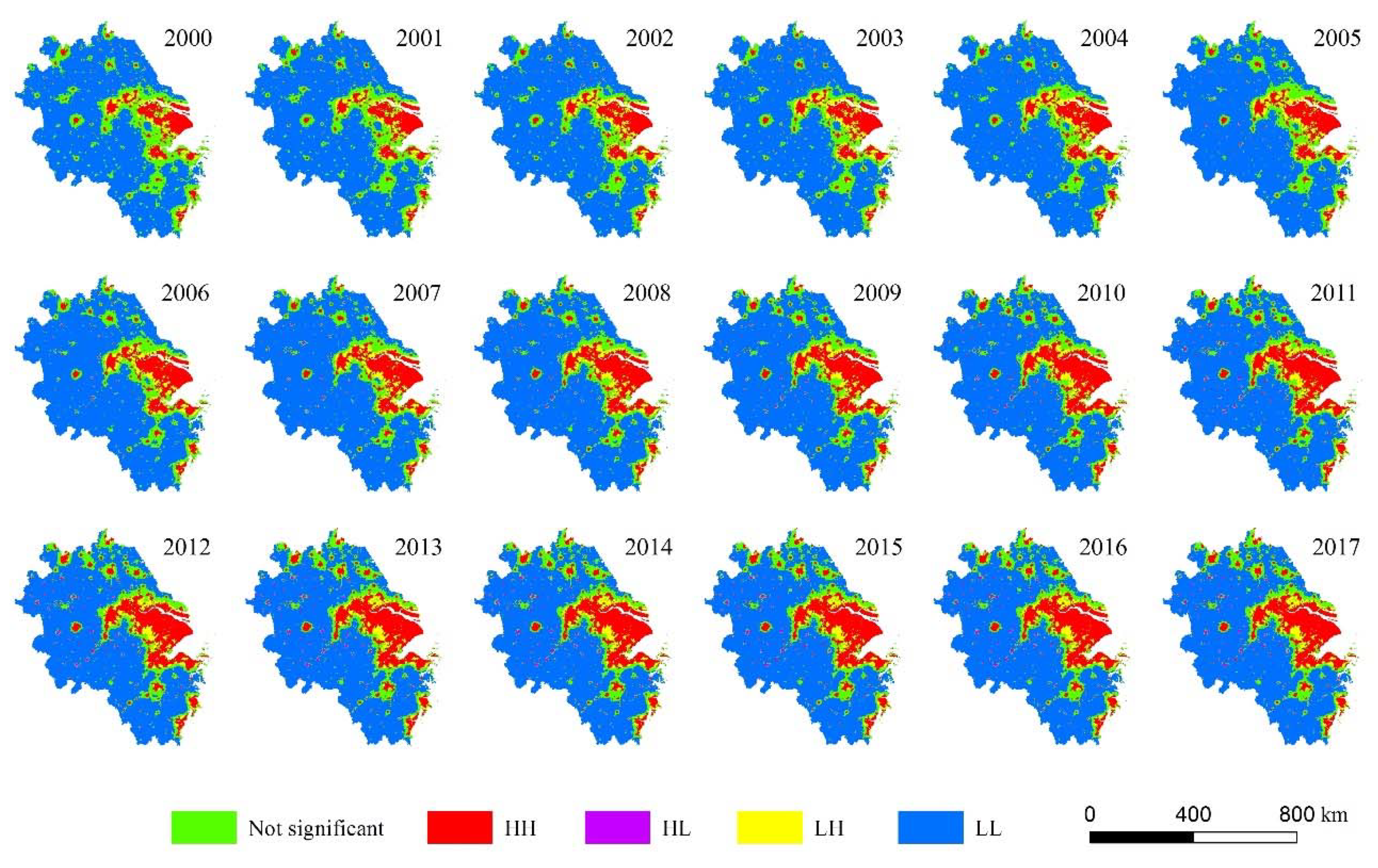

Figure 6 shows the spatial agglomeration of CO₂ emissions in the Yangtze River Delta from 2000 to 2017. The High-High (HH) aggregation zone indicates that the CO₂ emissions of a certain space unit and its surrounding space units are very high, and the Low-Low (LL) aggregation zone indicates that the CO₂ emissions of a space unit and its surrounding space units are very low. The High-Low (HL) aggregation zone indicates that the high value is surrounded by the low value, and the Low-High (LH) aggregation zone means that the low value is surrounded by the high value. It can be seen from Figure 6 that the spatial agglomeration characteristics of CO₂ emissions in different regions are significantly different. The HH aggregation zone is mainly distributed in Shanghai, southern Jiangsu and northern Zhejiang. The area occupied has increased from 26,949 km² in 2000 to 50,382 km² in 2017. The connectivity of these areas is significantly enhanced, and there is a certain link between the CO₂ emissions of these regions, and they affect each other. From 2000 to 2010, the degree of spatial agglomeration of CO₂ emissions changed significantly. The average annual growth rate of the area occupied by the HH aggregation zone was 5.46%. From 2011 to 2017, the HH aggregation zone showed a clear patchy distribution, and the degree of inter-annual spatial agglomeration was not changed obviously, the average annual growth rate of the occupied area is 0.97%. The HL aggregation zone and the LH aggregation zone occupy a small area and are mainly distributed in areas with large differences in CO₂ emissions. The HL aggregation zones are scattered, most of which are located in cities with relatively low economic development in Anhui and Zhejiang, while the LH aggregation zone is attached to the periphery of HH aggregation zone in a band, and its area proportion fluctuates from 2.45% to 3.27%. The LL aggregation zone occupies the largest area. The main distribution areas of the LL aggregation zone have basically remained unchanged in the past 18 years, mainly in Anhui Province and the western and southern parts of Zhejiang Province. These regions have relatively low CO₂ emissions and the mutual influences between regions are smaller [39,40].

4.4. Spatial Trend Characteristics

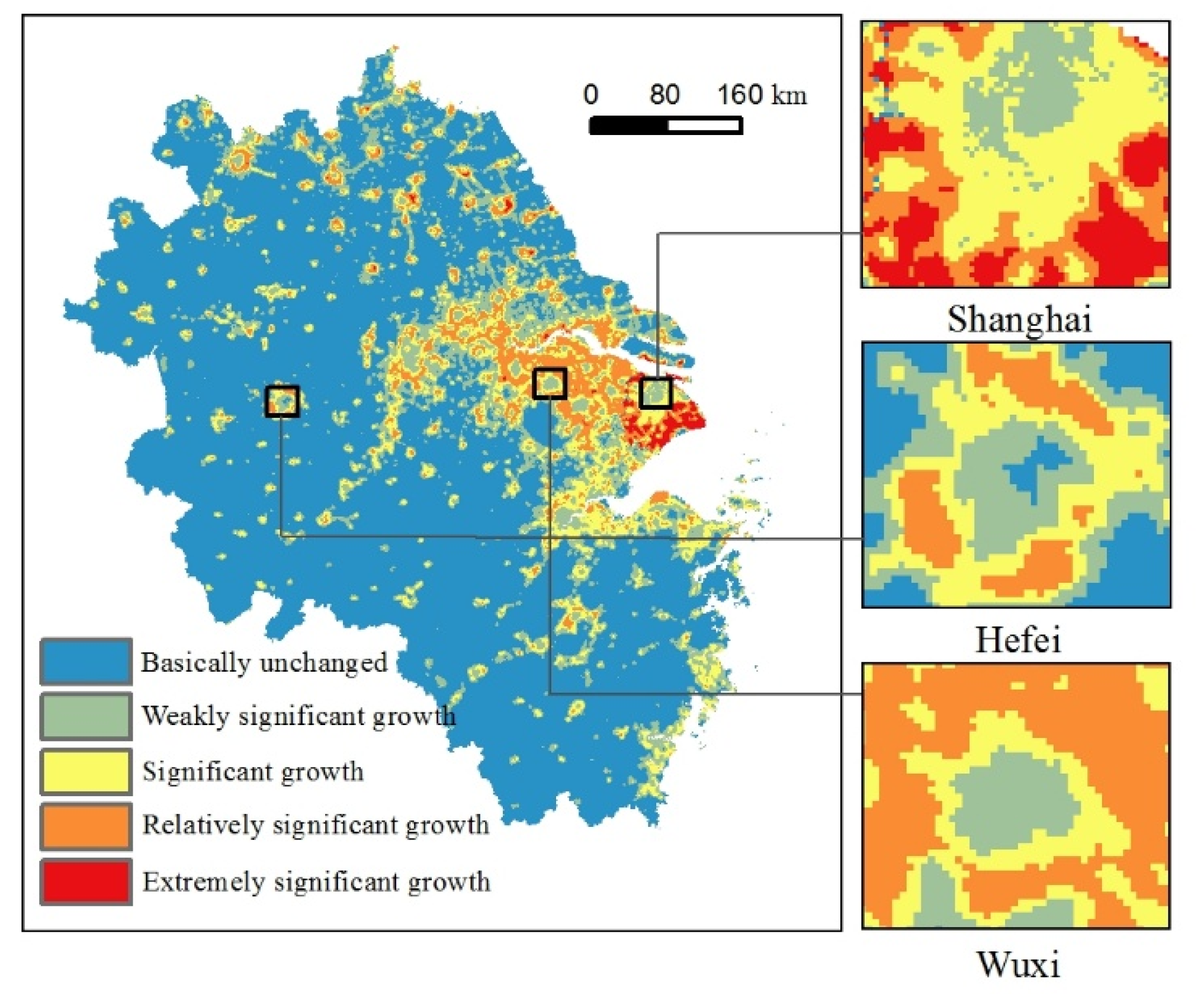

The spatial change trend of carbon emissions in the Yangtze River Delta region from 2000 to 2017 is studied based on the unary linear regression model (Figure 7). The research results show that (a) during 18 years from 2000 to 2017, the overall CO₂ emissions of that region showed an upward trend, and the basically unchanged area accounted for the largest proportion of area, accounting for 70.14% (

Table 3. Area and proportion of different growth types.

Change Types	Area (km2)	Area Ratio (%)	Cumulative Percentage (%)
Basically unchanged	240,519	70.14	70.14
weakly significant growth	53,700	15.66	85.80
Significant growth	30,108	8.78	94.58
Relatively significant growth	16,597	4.84	99.43
Extremely significant growth	1989	0.58	100

), and it is mainly distributed in Anhui Province and the western and southern regions of Zhejiang Province, and these regions have relatively low CO₂ emissions, and the inter-annual changes are not obvious. (b) The areas whose CO₂ emissions were of relatively significant growth accounted for 4.84%, which mainly include Shanghai, Suzhou, southern Nantong, northern Wuxi, northern Zhenjiang, southern Yangzhou and central Nanjing. The areas whose CO₂ emissions were of extremely significant growth accounted for the smallest part, namely, 0.58% or 1989km², which mainly include Shanghai. (c) The study found that in some large, medium and small urban centers (such as Shanghai, Hefei, Wuxi, etc.), the type of CO₂ emission growth is weak and significant. The possible reason is that the population density tends to be saturated in the urban center, which leads to the decrease of the CO₂ emission growth rate. The regions with significant growth, relatively significant growth and extremely significant growth are distributed in a circle. This is closely related to the spatial expansion of the city. With the continuous outward expansion of the city, the CO₂ emission in the peripheral area of the city center increases rapidly.

5. Relationship between CO₂ Emissions and Nighttime Land Surface Temperature

5.1. Comparative Analysis of Temporal and Spatial Changes

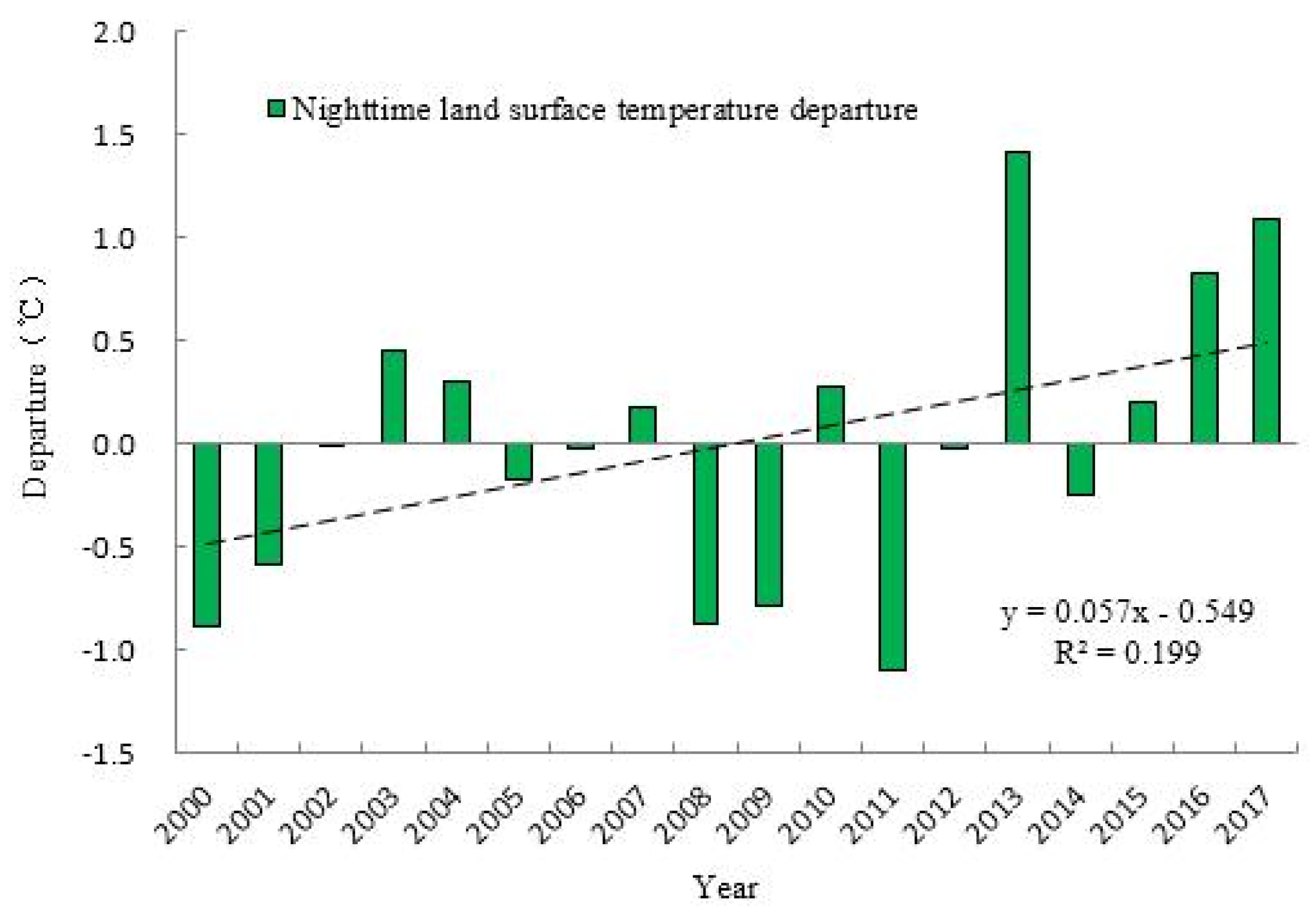

There is a statistic on the annual mean nighttime land surface temperature in 2000–2017 to make a figure of nighttime land surface temperature an anomaly in the Yangtze River Delta (Figure 8). The result shows that the nighttime land surface temperature increase is 0.57 °C/10a in the area, which is more than the rising rate of average surface temperature in China in the past 60 years (0.23 °C/10a) [40], so it means that the nighttime land surface temperature in Yangtze River Delta is warming. Compared with the emission change of CO₂, both of them are increasing; but they are different. The CO₂ emission is rising up with straight line while the nighttime land surface temperature is in upward trend of fluctuation. There is correlation analysis on the carbon emission and nighttime land surface temperature in Yangtze River Delta in 2000–2017, and the result shows that there is positive correlation between the two parties with the correlation coefficient of 0.413 and p value of 0.088.

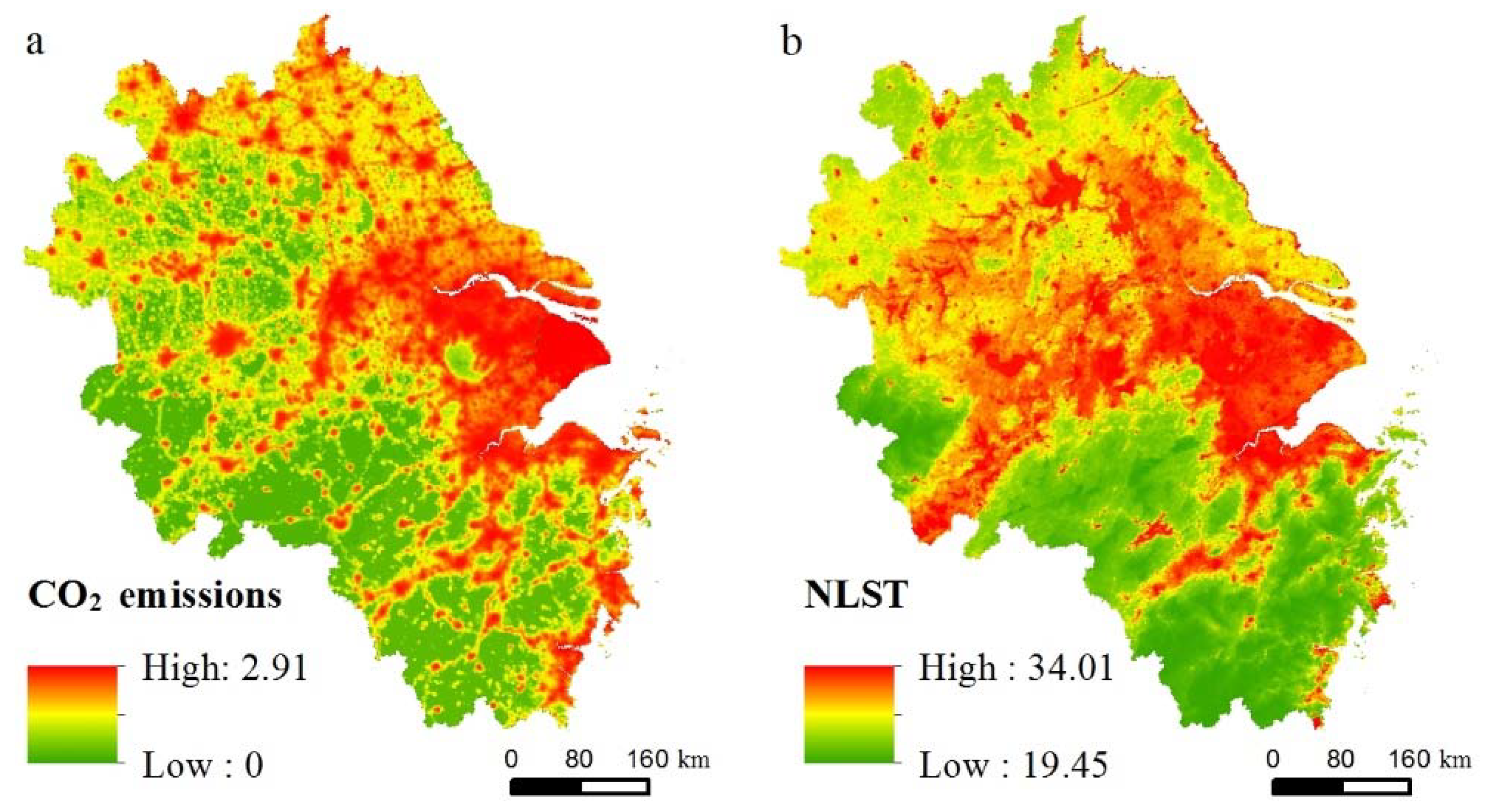

To compare and analyze the spatial distribution characteristics of CO₂ emissions and nighttime land surface temperature, the average value of the CO₂ emission and nighttime land surface temperature in 2000–2017 with a grid computing tool ArcGIS 10.2 is used (Figure 9). Through the comparison and analysis of the spatial distribution law of CO₂ emissions and nighttime land surface temperature, it could be seen that there is high consistency between CO₂ emissions and nighttime land surface temperature in the spatial distribution. Especially, Shanghai, Suzhou, Wuxi, Nanjing and Zhenjiang are the most significant since they are the main distribution area with high CO₂ emission, and are flaky in distribution. Accordingly, the nighttime land surface temperature is also in flaky distribution. In Fuyang, Bozhou, Huaibei, Suzhou of Anhui Province, the CO₂ emission is scattered, and the nighttime land surface temperature is also in the same feature. What is more, most of the areas with low values of CO₂ emission and nighttime land surface temperature are Chizhou, Xuancheng, Huangshan of Anhui Province and Lishui and Wenzhou of Zhejiang Province.

Figure 10a is divided into four grades (

Table 4. Different CO₂ Emission Grades and Their Correspondent Nighttime Land Surface Temperature in Yangtze River Delta.

CO2 Emission Grade	Area with Low Emission	Area with Medium Emission	Area with Higher Emission	Area with High Emission
Nighttime Land Surface Temperature (°C)	25.84	27.32	28.09	28.80
Area (km2)	71,909	218,367	26,267	26,370
Percentage (%)	20.97	63.68	7.66	7.69

) with standard deviation classification: area of low emission (0–0.05), area of medium emission (0.05–0.41), area of higher emission (0.41–0.77) and area of high emission (0.77–2.91). The area proportions are 20.97%, 63.68%, 7.66% and 7.69%, respectively. Here is the result of the study. The nighttime land surface temperature is the lowest, 25.84 °C, in the area with low CO₂ emission; the temperature soars to 27.32 °C with a year-on-year increase of 5.73% in the area with medium CO₂ emission; the temperature is 28.09 °C in the area with higher CO₂ emission, so there is a year-on-year increase of 8.71% compared with the area with low CO₂ emission. The temperature is 28.80 °C in the area with high CO₂ emission, so there is a year-on-year increase of 11.5% compared with the area with low CO₂ emission. It could be seen that the nighttime land surface temperature would rise up along with the increase of the CO₂ emission, so there is a certain correlation relationship between CO₂ emission and nighttime land surface temperature.

5.2. Scale Analysis within the Year

To show the correlation degree between CO₂ emission and nighttime land surface temperature based on the spatial distribution map of CO₂ emission and nighttime land surface temperature in 2000–2017, a grid is built with the data management tool of ArcGIS 10.2, statistics on total CO₂ emissions per grid (SCE) are made and the maximum (NLST_max), minimum (NLST_min) and average (NLST_mean) nighttime land surface temperature are acquired, and finally, the correlation coefficient of the CO₂ emission and the maximum, minimum and average of and the nighttime land surface temperature are calculated through Pearson correlation analysis method (

Table 5. Correlation coefficients of CO₂ emissions and the maximum, minimum and average nighttime land surface temperature.

Year	SCE and NLSTmax	SCE and NLSTmin	SCE and NLSTmean	Year	SCE and NLSTmax	SCE and NLSTmin	SCE and NLSTmean
2000	0.376 **	0.284 **	0.404 **	2009	0.085 *	0.244 **	0.282 **
2001	0.327 **	0.284 **	0.389 **	2010	0.275 **	0.312 **	0.410 **
2002	0.148 **	0.200 **	0.236 **	2011	0.438 **	0.416 **	0.526 **
2003	0.232 **	0.305 **	0.416 **	2012	0.266 **	0.266 **	0.334 **
2004	0.160 **	0.262 **	0.339 **	2013	0.387 **	0.431 **	0.574 **
2005	0.436 **	0.255 **	0.374 **	2014	0.362 **	0.277 **	0.395 **
2006	0.303 **	0.252 **	0.335 **	2015	0.444 **	0.506 **	0.590 **
2007	0.369 **	0.341 **	0.410 **	2016	0.268 **	0.337 **	0.394 **
2008	0.407 **	0.454 **	0.577 **	2017	0.372 **	0.407 **	0.480 **

Note: * means p < 0.05; ** means p < 0.01.

). The study result shows that there is a significant positive correlation relationship between the CO₂ emission and the maximum, minimum and average of and the nighttime land surface temperature, and all of them have passed the significance test of 0.05. However, the correlation degrees of CO₂ emission and nighttime land surface temperature in different years are various. In 2015, there is the most significant correlation between the CO₂ emission and the maximum, minimum and average of the nighttime land surface temperature with the correlation coefficients of 0.444, 0.506 and 0.590. In other years, the correlation in 2019 is lower and the correlation coefficients are 0.085, 0.244 and 0.282.

5.3. Interannual Scale Analysis

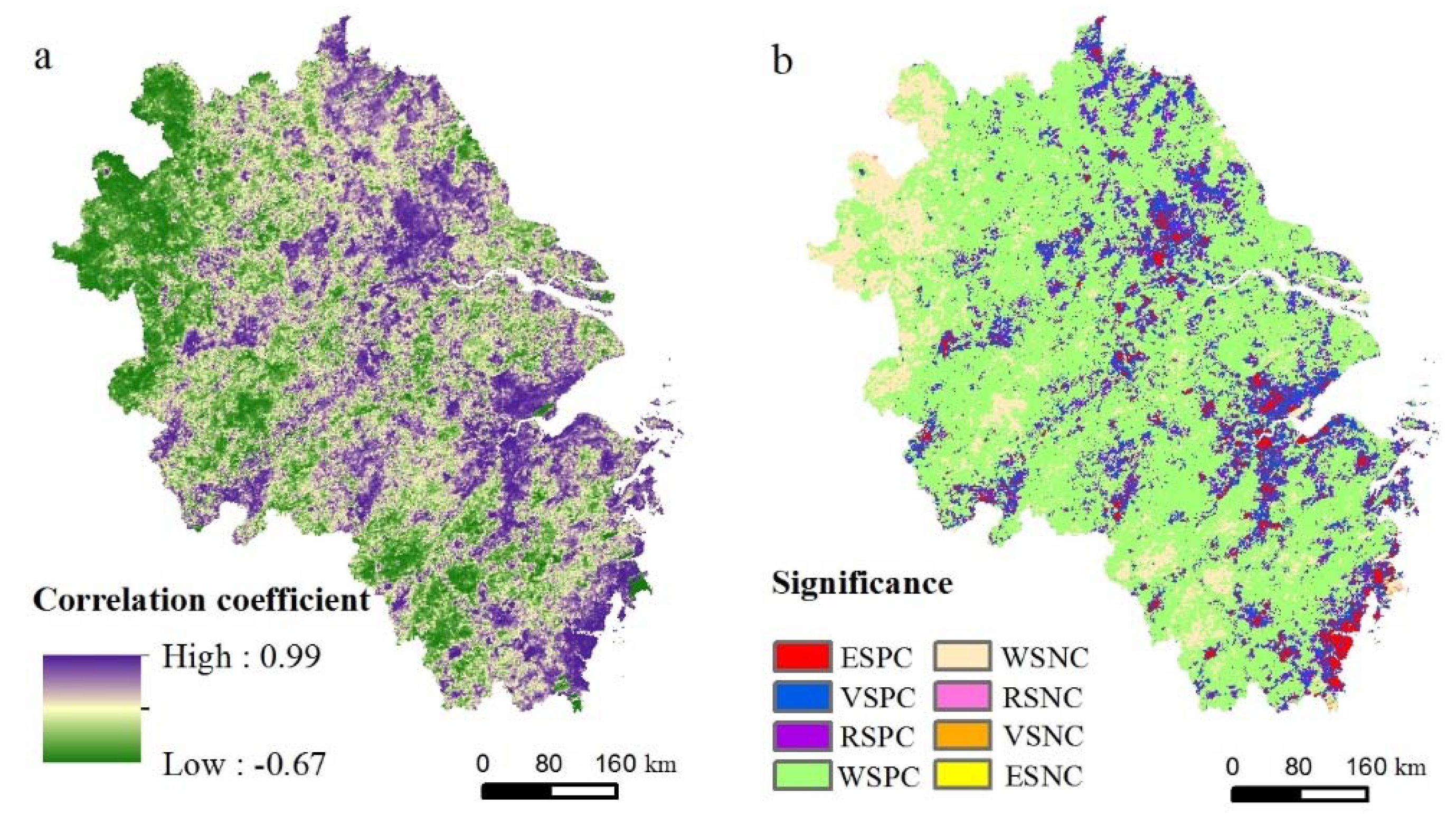

To disclose the correlation relationship between CO₂ emission and nighttime land surface temperature in a partial area, it is selected with the CO₂ emission and nighttime land surface temperature in 2000–2017 in the Yangtze River Delta as analysis indexes for the analysis on the correlation relationship (n = 18). Figure 10a is the spatial distribution of the correlation coefficient between CO₂ emission and nighttime land surface temperature at the pixel scale, and the correlation coefficient is between −0.67 and 0.99. There is a significance test for the coefficient and then it would be divided into an extremely significant positive correlation (coefficient ranging from 0.5897 to 0.9946, p < 0.01), very significant positive correlation (coefficient ranging from 0.4683 to 0.589, p < 0.05), relatively significant positive correlation (coefficient ranging from 0.4000 to 0.44683, p < 0.1), weak significant positive correlation (coefficient ranging from 0 to 0.40000, p > 0.1), weak significant negative correlation (coefficient ranging from −0.40000 to 0, p > 0.1), relatively significant negative correlation (coefficient ranging from −0.4683 to −0.4000, p < 0.1), very significant negative correlation (coefficient ranging from −0.5897 to −0.4683, p < 0.05) and extremely significant negative correlation (coefficient ranging from −0.6727 to −0.5897, p < 0.01). All of these are represented with ESPC, VSPC, RSPC, WSPC, WSNC, RSNC, VSNC and ESNC and shown in Figure 10b. The result shows that there is regional difference of CO₂ emission on nighttime land surface temperature. The correlation relationship between CO₂ emission and nighttime land surface temperature is mainly the positive one, and the area of positive correlation is 88.98%. The area of very significant positive correlation and extremely significant positive correlation is 42,030 km², accounting for 12.08%, and they are mainly in Northern Lianyungang, central Yangzhou, Western Jiaxing, Eastern Huzhou, eastern Hangzhou, northern Shaoxing, central Ningbo, Eastern Taizhou and Eastern Wenzhou. Meanwhile, there is less of an area of negative correlation and they are mainly in Northwest Anhui Province, Jinhua, Quzhou and Lishui in Zhejiang Province. The area of extremely significant negative correlation and the very significant negative correlation only takes up 0.02%. The increase in CO₂ emission should not be ignored as a factor in the increase in the nighttime land surface temperature in the Yangtze River Delta. However, CO₂ emissions are not the only factor responsible for this increase. There are complex factors affecting the temperature, including climate change, the distribution of the population and vegetation coverage which all have an impact. The present study only explored the relationship between CO₂ emission and nighttime land surface temperature (

Table 6. Correlation between CO₂ emissions and nighttime land surface temperature.

Correlation	p Value	Area (km2)	Percentage (%)	Cumulative Percentage (%)
ESPC	p < 0.01	11,248	3.28	3.28
VSPC	p < 0.05	30,176	8.80	12.08
RSPC	p < 0.10	31,034	9.05	21.13
WSPC	p > 0.10	232,693	67.85	88.98
WSNC	p > 0.10	37,542	10.95	99.93
RSNC	p < 0.10	137	0.04	99.97
VSNC	p < 0.05	69	0.02	99.99
ESNC	p < 0.01	14	0.00	100

). Consequently, a further study involving a comprehensive analysis of the impacts of all factors on the nighttime land surface temperature is required.

6. Conclusions

This paper calculates the CO₂ emissions in the Yangtze River Delta region based on energy consumption statistics, and then combines night lighting data to realize the spatial informatization of CO₂ emissions in a long time series, which can solve the defect of insufficient energy consumption statistics at the municipal level. In terms of data acquisition, energy consumption statistics come from the National Bureau of Statistics, DMSP/OLS data come from the National Oceanic and Atmospheric Administration of the United States, and NPP/VIIRS data come from the National Geophysical Data Center of the United States. All the above data can be obtained free of charge. In the aspect of data processing, the data processing is carried out according to the existing correction method of night light data, which is simple and feasible. In terms of CO₂ emission simulation, it is feasible to use the linear simulation model without intercept to retrieve the spatial information of CO₂ emissions in the Yangtze River Delta region in this study, and the simulation accuracy is relatively high (the relative error is within 10%), which is a reliable new type of CO₂ emission spatialization method. However, in the process of realizing the spatialization of CO₂ emissions in the Yangtze River Delta region, there are still some problems: the relative error of CO₂ emissions in Shanghai from 2005 to 2016 is negative, and CO₂ emissions are obviously underestimated, which is due to the difficulty of completely eliminating the saturation problem of DMSP/OLS data during correction. Secondly, in the process of processing NPP/VIIRS data, due to some missing data from May to July, annual NPP/VIIRS data can only be synthesized based on monthly NPP/VIIRS data from January to April and August to December. To sum up, although there is a certain deviation in the simulation results of CO₂ emissions, the simulation accuracy of CO₂ emissions in the Yangtze River Delta region from 2003 to 2017 is controlled within 10%, which can meet the requirements of CO₂ emission change research.

Under the background of rapid urbanization, CO₂ emissions in the Yangtze River Delta region showed an obvious upward trend from 2000 to 2017, but the growth rate of CO₂ emissions in the Yangtze River Delta region is gradually slowing down. In terms of spatial distribution, affected by the level of urbanization development, the CO₂ emissions in the Yangtze River Delta region are obviously different from those in the east and west. The high-value areas of CO₂ emissions are mainly distributed in the eastern coastal regions, with Shanghai being the most obvious. From the perspective of spatial agglomeration degree, CO₂ emissions in the Yangtze River Delta region showed significant positive spatial autocorrelation from 2000 to 2017, and the main distribution areas of HH and LL agglomeration areas of CO₂ emissions remained basically unchanged. The spatial distribution pattern of CO₂ emissions in the Yangtze River Delta region showed a certain path-dependent effect.

In the past 18 years, the nighttime land surface temperature in the Yangtze River Delta region has shown a warming trend, and the spatial distribution of nighttime land surface temperature and CO₂ emissions has a high consistency. There is a significant positive correlation between CO₂ emissions and the maximum, minimum and average nighttime land surface temperature in each year, reaching a significant level of 0.05. On the interannual scale, the correlation degree between CO₂ emissions and nighttime land surface temperature is different in different regions, but the relationship between CO₂ emissions and nighttime land surface temperature is mainly positive, with the area with positive correlation reaching more than 85%, so there is certain correlation relationship between CO₂ emissions and nighttime land surface temperature.
