Effects of SOP Lagoon Additive on Gaseous Emissions from Stored Liquid Dairy Manure

by
Carlyn B. Peterson
1,
Hamed M. El Mashad
2,3,
Yongjing Zhao
4,
Yuee Pan
1 and
Frank M. Mitloehner
1,*
1
Department of Animal Science, University of California, Davis, Davis, CA 95616-8521, USA
2
Department of Biological & Agricultural Engineering, University of California, Davis, Davis, CA 95616-8521, USA
3
Department of Agricultural Engineering, Mansoura University, El Mansoura 35516, Egypt
4
Air Quality Research Center, University of California, Davis, Davis, CA 95616-8521, USA
*
Author to whom correspondence should be addressed.
Sustainability 2020, 12(4), 1393; https://doi.org/10.3390/su12041393
Submission received: 10 January 2020 / Revised: 10 February 2020 / Accepted: 10 February 2020 / Published: 13 February 2020
(This article belongs to the Section Sustainable Agriculture)
Browse Figures
Versions Notes

Abstract

:
Animal manure is a source of greenhouse gas (GHG) emissions and other pollutants and nuisances such as ammonia and odors. There are several technologies to reduce emissions on animal farms including manure additives; however, few have been proven effective and easy to apply to dairy lagoon systems. The present research aimed at testing the ability of the commercial additive “SOP LAGOON” to reduce emissions of GHGs (i.e., carbon dioxide (CO2), methane (CH4) and nitrous oxide (N2O)), as well as ammonia (NH3) and odors from lagoon stored liquid manure. Emissions of GHGs, NH3 and odors were measured in the laboratory from barrels filled with 65 L of manure treated with SOP LAGOON or left untreated as a control. Manure was collected from a commercial dairy that is located in Solano County, California. Emissions of GHGs and NH3 were continuously measured for one week using flux chambers placed on top of the barrels and connected to a mobile air emissions laboratory. The effects of the untreated control, versus the two respective treatment additive doses of 30.8 and 61.6 g/m3 of manure were compared to each other. The low dose was selected based on the manufacturer recommendation and the high dose was selected by doubling the low dose. Results showed that SOP LAGOON applied at the high dose (61.6 g of SOP LAGOON per m3 of manure) versus the control greatly reduced (p < 0.05) emissions of CO2, CH4, N2O and NH3 by 14.7%, 22.7%, 45.4% and 45.9%, respectively. Furthermore, the high dose of SOP LAGOON treated samples versus the control samples showed less odor intensity (p < 0.05). There was no significant effect of the low dose of SOP LAGOON on the emissions of different gases. The HIGH dose of SOP LAGOON might decrease the number of methanogens and hydrolytic microorganisms and their excreted enzymes during manure storage. Further studies are needed to investigate the mechanism of emission reduction using SOP LAGOON.

1. Introduction

The international community has increased awareness of air pollutants and greenhouse gas (GHG) being emitted from agriculture, including animal husbandry. The three major anthropogenic greenhouse gases are carbon dioxide (CO2), methane (CH4) and nitrous oxide (N2O). The IPCC estimated that agriculture contributes about 24% of GHG emissions from anthropogenic sources globally in 2010 [1], and about 9% in the US [2]. While animal agriculture is largely omitted from CO2 inventories, the industry is a major source of CH4 and N2O that have global warming potentials 25 and 298 times greater than CO2, respectively [3], when calculated on a 100-year time span. More recently, the new Global Warming Potential (GWP*) was proposed, which recalculates the impact of methane taking into account the shorter lifespan of this gas in the atmosphere [4]. The proposed value for methane’s warming potential is 84 times that of CO2, implying that changes in these emissions have a greater impact on the climate than what was previously estimated. In addition to GHGs, the livestock sector is a major source of other air pollutants (e.g., NH3) that negatively affect air quality. Although ammonia is not a GHG, it is considered a secondary source of N2O due to its re-deposition on the land [5].
Air pollutants from animal farms are harmful in their original form and can be precursors in the formation of criteria pollutants. For instance, ammonia can cause eutrophication, acidification and disturbance of natural ecosystems after its deposition, and can also be a precursor of fine particulate matter, PM2.5 [6]. Wu et al. [7] highlighted the correlation between PM2.5 formation and the presence of ammonia (NH3) in the air, identifying the gas as having a crucial role in the nucleation of these particles. While GHGs are heat-trapping and more of a mid- to long-term challenge, air pollutants can create immediate health issues including respiratory issues such as asthma and pneumonia. The American Lung Association [8] indicated that 8 of the 11 cities with the highest year-round concentration of particulate matter, especially fine PM2.5, were located in California, largely due to the state’s transportation and agricultural sectors.
Approximately 10% of the global GHG emissions from agriculture are produced from livestock manure management, contributing an equal proportion to the US methane emission inventory [9]. In California, anaerobic lagoons are the most common strategy for manure management, and these lagoons are considered the largest source of CH4 emissions after enteric fermentation. They can also emit large quantities of N2O [9]. The California Air Resources Board (ARB) recently adopted the Short-Lived Climate Pollutant Strategy (SLCP) to reduce emissions of black carbon, CH4 and other SLCPs. The SLCP included a focus on emissions of CH4 from California dairies, particularly those contributed by waste management. Recent legislation (Senate Bill 1383) requires the implementation of the SLCP strategy by January 1, 2018. The strategy includes a 40% CH4 emission reduction from 2013 levels by 2030 [10].
Based on the estimation of the emissions from three dairies in Idaho, Leytem et al. concluded that changes in the manure handling system may be the best way of mitigating emissions [11]. Several technologies are being applied to reduce the emissions of different gases from animal manure, including but not limited to anaerobic digestion and other alternative technologies such as solid/liquid separation. Nevertheless, the effluents of anaerobic digestion and separated liquid manure may be sources of gas emissions if not well managed. Manure additives were proposed as practical and cost-effective methods for reducing the emissions of NH3 and GHG from dairy manure [12]. McCrory and Hobbs defined manure additives as substances that can be applied to reduce the emissions of gases and odors from livestock waste [13]. They categorized the additives used for the alleviation of NH3 emissions as bacterial–enzymatic bio-augmentations, plant extracts, oxidizing agents, disinfectants, masking agents and adsorbents.
Although there are publications on the application of additives mitigating either CH4 or NH3 emissions from swine manure [14,15], only a few publications exist on the application of additives to dairy manure. Holly and Larson studied the effects of two commercial additives (More than Manure (MTM) and Pro-Act Biotech (Pro-Act)) and biochar on dairy manure composition and the resulting GHG and NH3 emissions [16]. Neither MTM nor Pro-Act affected the solid content of manure slurry or NH3 emissions from manure storage for 28 days. However, MTM increased CO2 emissions. Biochar increased the total NH3 in the manure, but it did not reduce NH3 emissions. Additionally, biochar did not reduce the emissions of CO2, CH4 or N2O. After spraying 0.5% solutions of hydrogen peroxide and potassium permanganate on the surface of liquid dairy manure, Xue and Chen observed a reduction of superficial emissions of hydrogen sulfide (H2S) and NH3 [17]. After inducing strong acidification of manure with sulphuric acid, Petersen et al. observed a reduction of CH4 and NH3 emissions from cattle slurry [18]. Forms of gypsum as an additive to mitigate emissions from manure have also been tested in numerous studies [19,20,21,22]. The addition of gypsum has shown a reduction in NH3 emissions during the storage and composting phases of manure, but the results on GHG have not been as clear. Li et al., Yang et al. and Hao et al. found that the addition of gypsum increased N2O emissions, while Yang et al. also measured a decrease in CH4 emissions [20,21,23]. A recent study by Borgonovo et al. tested the gypsum-based commercial additive, “SOP LAGOON”, on fresh dairy manure and found the additive to be effective in reducing direct NH3 and GHG emissions [24]. With the use of a Life Cycle Analysis (LCA) they also found a positive mitigation to climate change and particulate matter formation. The objective of the present study was to investigate the effect of SOP Lagoon additive on the emissions of GHGs and criteria pollutants as well as odor intensity from liquid manure (aka lagoon water).

2. Materials and Methods

2.1. Experimental Design

A completely randomized design was used to determine the effects of the two concentrations of SOP on GHG emissions, NH3 emissions and odor intensity from lagoon water. The treatment included a control (CONT, no additive), a low dose (LOW; the addition of 2 g per barrel (30.8 g/m3 of manure) of SOP Lagoon, following the manufacturer’s instructions) and a high dose (HIGH; the addition of 4 g per barrel (61.6 g/m3 of manure) of SOP Lagoon) applied to the lagoon water. SOP Lagoon is a commercial additive that is manufactured by SOP Srl (SOP Srl, VA, Italy). SOP Lagoon consists of calcium sulfate dihydrate (agricultural gypsum), which is processed with the company’s proprietary technology. The product claim is to improve liquid manure management through inhibiting the production and release of GHGs (e.g., CH4 and N2O) and criteria pollutants (e.g., NH3) while also reducing the odor intensity from liquid manure.
The experimental unit was the barrel to which the individual treatment was applied. Two replicates of each treatment were conducted over a one-week period (round). The round was then duplicated for a total of four times per treatment (n = 4) over the total two-week study period. As Borgonovo et al. (2019) showed peak efficacy at day 4 and due to the stagnant setup of the system, a one-week period was chosen for each round to test the short term efficacy of the product on liquid manure with continuous measurements over the entire test period.

2.2. Manure Collection and Experimental Setup

Liquid manure (i.e., lagoon water) was collected twice to conduct the two rounds of emissions testing over two consecutive weeks, from a 900 head commercial dairy farm in Solano County, CA. Liquid manure from the commercial farm was sampled for wet chemical analysis by Cumberland Valley Analytical Services, Inc. (Waynesboro, PA). The manure contained 0.27% solids, 99.7% moisture, 0.006% total nitrogen and had a pH of 7.8. A trash pump was used for liquid manure collection for a total of 0.757 m3 (200 gallons) of liquid manure that was allocated into six 208 L (55 gallons) open top steel drums with lids (Uline, Pleasant Prairie, WI). The drums had a height of 0.88 m (34.5 in) and an inner diameter of 0.565 m (22.25 in). The liquid manure drums were then transported to the experiment location in a 22 m by 11 m covered enclosure building (CPE) at the Animal Science Department facilities at UC Davis. The CPE door was open during the experiment to allow for temperature and relative humidity in the CPE to more readily mirror external ambient conditions during the two experimental rounds (shown in Figure 1).
After arrival at the CPE, 65 L of the liquid dairy manure was pumped out of the transport drums and into each new sampling drum, so that the quality of the manure was as homogeneous as possible among the different barrels at the start of the test, allowing for a direct comparison of the treatments. The dairy lagoon water was weighed, using a calibrated scale with an accuracy of ±2%, into each of the six drums that were used for the storage of the liquid manure over the sample period (GFK 165a Floor Checkweighing Scales, Adam Equipment Inc, Oxford, CT, USA). The drums were then relocated to the testing area, each at a distance of 1.5 m from any neighboring sample drum to prevent carryover effects.
The respective specified amounts of the SOP Lagoon treatments were weighed using a calibrated Brecknell C3235 Checkweighing scale with an accuracy of ±2% (Avery Weigh-Tronix, LLC. Fairmont, MN, USA). Treatments were added to their specified drums and each of the sample drums was then mixed for 1 min (including CONT) to ensure homogenous samples. The drums were then covered with a plywood sheet with a 0.381 m (15”) diameter hole cut out of the middle and OdoFlux flux chambers (Odotech Inc. Montreal, Quebec, Canada), which were placed over the hole in the plywood to allow for air sample collection from each drum (Figure 2). The six flux chambers were made of acrylic resin and had a volume of 64.5 L, consisting of a cylindrical enclosure with a spherical top and a small hole to allow for the samples to remain at constant pressure. Real-time sampling of emission flux chambers began, and constant sampling occurred over the week testing period. The sampling protocol was then repeated for an additional round, for a total of 4 one-week replicates per treatment over the total two-week study period. It was assumed that the manure characteristics were the same over the short duration of the manure collection period therefore the number of replicates was four.

2.3. Air Sampling Using Emission Flux Chambers

The inside circumference of each flux chamber was lined with perforated Teflon tubing to allow continuous ambient airflow through the system at a rate of 8 L/min. The air flow was regulated by mass flow controllers connected to air pumps with fresh ambient air being pumped into the system from outside the sampling area (GAST, Model3HEB-69T-M345X, Benton Harbor, MI; see Figure 3). These mass flow controllers compensated for the temperature effects on air flow rate when calculating the emission rates. All other devices were operated in ambient temperature. An additional Teflon tube was attached to the top for sample extraction. The sampling tubes from the flux chambers were connected to a rotary valve. Air samples were fed into a manifold and then distributed for individual gas analysis. The flux chambers were sampled in sequence for 20 min each followed by a sampling of ambient air. The sampling cycle was repeated continuously. The concentration of different gases was measured using a continuous gas analyzer located in the mobile agricultural air quality laboratory.

2.4. Environmental Measures

Air samples were analyzed for carbon dioxide (CO2), methane (CH4), nitrous oxide (N2O) and ammonia (NH3). The GHGs (CO2, CH4, N2O) and ammonia (NH3) were measured using an INNOVA 1412 photo-acoustic multi-gas analyzer (LumaSense Technologies Inc., Ballerup, Denmark). The INNOVA 1412 analyzer had the following minimum detection limits: 1.5 ppm for CO2, 0.4 ppm for CH4, 0.03 ppm for N2O and 1.0 ppm for NH3. The maximum detection limit for the INNOVA is 106 ppm. To compensate for any possible water interference in the infrared region, water vapor was also measured by the INNOVA simultaneously with the other four gases. Prior to the experiments, the analyzer was factory calibrated and daily zero and span checks were performed.
All monitoring equipment was housed in a mobile agricultural air quality laboratory. In addition, the lab included a computer system to control sample timing and switching between flux chambers as well as acquiring emission data from the gas analyzer, standard gases and other associated equipment.
To assess odor intensity before and after the application of SOP Lagoon, an odor panel test was conducted. A Nasal Ranger®Field Olfactometer (St. Croix Sensory, Inc., Stillwater, MN, USA) was used by four trained panelists to assess odor intensity from the samples (Figure 3). The Nasal Ranger uses a “dilution to threshold” ratio by mixing odorous air with carbon filtered air at different dilutions to determine the dilution of odor that is not detectable by the panelist. The dilution to threshold ratio is a measurement of the dilution, using filtered odor-free air, needed for the odor from the air under the flux chamber to be perceived by 50% of the panel members [25]. Each odor panelist analyzed each sample four times to develop an average. The odor assessments were conducted on days 1, 3 and 7 of each week to determine odor intensity over the tests period.

2.5. Emission Calculation

The measured gas concentrations in the flux chambers over the 20-min period were truncated to remove the first 7 and last 2 min of each sample period to prevent any possible carry-over effects. The total flux of each gas (mg/h) was then calculated using the following equation:
Total   flux   mg hr = MIX   ×   FL   ×   60 M V ×   M W   ×   C o n v
where MIX is the net concentration that is equal to the gas concentration in the air being sampled minus the background concentration in the fresh inlet air in either ppm or ppb, FL is the ambient air flow rate at 8 L/min, 60 is the conversion from minute to hour, MW is the molecular weight of the gas in grams per mole, Conv is a conversion factor of 10−3 for the concentration in ppm and 10−6 for the concentration in ppb and MV is the volume of one molar gas at temperature 20 °C (24.04 L/mole).
The surface-emission rate (mg/h/m2) of the sample in each barrel was calculated using the following equation:
S u r f a c e   E m i s s i o n   R a t e =   T o t a l   F l u x S u r f a c e   A r e a
where the surface area is the cross-section area of the 208 L (55-gallons) steel drum barrel directly under the flux chambers, approximately 0.25 m². The emission rate per each cubic meter of manure was calculated based on the surface emission rate, the surface area of the barrel and the amount of manure in each barrel (65 L).
The average reduction in emissions (%) after applying the HIGH dose was calculated using the following equation:
A v e r a g e   r e d u c t i o n   i n   e m i s s i o n s =   T o t a l   e m i s s i o n s   f r o m   C O N T − T o t a l   e m i s s i o n s   f r o m   H I G H T o t a l   e m i s s i o n s   f r o m   C O N T × 100
where the total emissions from CONT and HIGH were calculated as the summation of the average daily emissions over the experimental time for both experimental rounds.

2.6. Odor Intensity Calculation

The data recorded by the odor assessors were used to calculate the geometric average dilution-to-threshold (ADT) as follows [26]:
A D T n = 10 log D T   n + log D T   n + 1 2
where n is the device setting number reported by an assessor for a reading, (D/T)n is the unit dilution to threshold and (D/T)n + 1 is the next higher unit dilution to threshold.

2.7. Statistical Analysis

The average daily emission rates from the different lagoon samples were compared to evaluate their respective impact. The data were analyzed using a three-way ANOVA to determine the effect of three factors (experimental rounds (two rounds), SOP treatments (HIGH, LOW and CONT) and treatment time (seven days)) and their interactions. Differences were declared significant at p ≤ 0.05 and showed a trend at 0.1 ≤ p < 0.05. All means are presented as least squares means (LSM) and were determined using the LSM package in R [27]. Pairwise comparisons of the treatments LSM were determined using the Tukey procedure. The CLD function in the multcompView package in R was used to visualize the pair comparison of the treatment groups [28].

3. Results and Discussion

3.1. Effect of SOP on GHG Emissions

The GHG emission rates over the experimental time are shown in Figure 4. Methane and carbon dioxide are products of the anaerobic degradation of the organic matter in manure. Carbon dioxide can also be produced via the aerobic microorganisms and the oxidation of CH4 when enough oxygen is present in the surface layers of the manure [29]. Nitrous oxide is produced through the nitrification and denitrification processes [30,31]. Sommer et al. mentioned that although methane is produced strictly under anaerobic conditions, oxygenation via nitrification of NH4+ to nitrate (NO3−) is necessary for N2O production [32].
Figure 4 shows CH4 and CO2 emission rates that were pronouncedly fluctuating along with ambient moisture; higher emission rates were measured during periods with higher moisture (i.e., during the night time). The fluctuation of the N2O emission rates was less pronounced than the other two gases in the first experimental round. The manure treated with SOP Lagoon versus CONT had lower emission rates of CH4, CO2 and N2O. Using the average CH4 emission rates from both experimental rounds, the maximum emission rates of 24.9, 33.6 and 33.0 mg/h/m2 were determined after 130, 154 and 130 h from the experiment start time for the HIGH, LOW and CONT, respectively. Similarly, maximum emission rates of CO2 of 0.96, 1.17 and 1.1 mg/h/m2, were determined after 37.3, 11.7 and 11.7 h from the experiment start time for the HIGH, LOW and CONT, respectively. Maximum emission rates of N2O of 0.30, 1.13 and 0.66 mg/h/m2 were determined after 165.7, 51.3 and 51.3 h from the experiment start time, respectively. The reason for the spike in N2O at around 220 h was unable to be assigned.
The average GHG emission rates for each day during the first and second experimental rounds are shown in Figure 5 and Figure 6. The average CH4 emission rates during the first experimental round increased with the increase of storage time across all treatments. During the second experimental round, the average emission rates of CH4 increased until the third day, then decreased for all groups, with a more pronounced decrease for HIGH. The increase of CH4 emissions with the increase in storage time is in accordance with the literature. Sommer et al. mentioned that the progressive dynamics of methane emissions may suggest microbial succession or the use of different pools of organic matter in the slurry [32]. The authors also indicated that fresh slurry had lower CH4 emissions at the early stages of manure storage (ca. 10 days) due to a microbial lag phase, unless the slurry was inoculated with fermented slurry. In the present experiments, the manure was collected from the lagoon which likely assured the presence of methanogens that needed a few days to be established. This is in contrast to what was reported by Borgonovo et al., who showed peak emissions at day 4 [24]. These observed differences between the experiments may be due to the substrate to which the treatment was applied. In the present study, liquid manure was used versus fresh slurry in the Borgonovo et al. study.
For each day in both experimental rounds, the HIGH dose achieved greater GHG emission reductions compared to LOW. Table 1 shows the statistical analysis results of the effects of SOP Lagoon treatment, storage time, experimental round and interaction of storage time and experimental round on gas emission rates of CH4. The emission rates of CH4 from the manure treated with the HIGH dosage were significantly different from that of the CONT and LOW. There were no significant differences in the emission rates of CH4 from the CONT versus LOW treatments.
The average emission rates of CO2 during the first experimental round for all the treatments increased until the fourth day, then slightly decreased for the HIGH and remained almost constant until the end of the storage time for the CONT and the LOW (Figure 5). In the second experimental round, the CO2 emissions decreased with the increase of storage time for all treatments (Figure 6). The statistical analysis showed significant effects (p < 0.05) of the SOP Lagoon treatment, storage time and the interaction of the storage time and the experimental round on the emissions of CO2. The emission rates of CO2 from the manure treated with HIGH were lower than those from CONT and LOW. The CO2 emissions between the CONT and LOW treatments were similar. The differences in the emission rates of CO2 between both experimental rounds might be attributed to the characteristics of the manure and the biochemical processes occurring during storage. Møller et al. mentioned that even after the establishment of methanogens, aerobic degradation may also still occur at the manure–air interface where oxygen can exchange with the manure [29].
The average emission rates of N2O during the first round of the experiments decreased after the first two days and remained relatively constant until the end of the storage time. During the second experimental round, the emission rates of N2O were relatively higher than those determined in the first experimental round. The statistical analysis showed significant effects (p < 0.05) of SOP Lagoon on the average emission rates as a function of storage time, experimental round and the interaction between the experimental round and time. The main effect of treatment alone was not significant but did show a trend for N2O emissions (p = 0.051).
Compared to the CONT, the HIGH treatment achieved average emission reductions of 22.7% and 14.7% for CH4 and CO2, respectively (p < 0.05). The HIGH vs CONT treatment also showed an emission reduction of 45.4% for N2O.

3.2. Effect of SOP on NH3 Emissions

The emission rates of ammonia over the storage time are shown in Figure 7. Similar to the GHG emissions, the ammonia emissions from all the treatments also had a diurnal pattern: higher emission rates were determined at higher ambient temperatures. During the measurement of ammonia emissions from dairy manure storage, Grant and Boehm found a rapid increase in the NH3 emission rates with an increase in ambient air temperature [33].
The daily average emission rates of NH3 over the storage time for both experimental rounds are shown in Figure 8. The average emission rates in the first experimental round increased during the first four days, then decreased. During the second experimental round, the emission rates of NH3 increased after the fourth day of storage. The maximum average emission rates of ammonia, over the two experimental rounds, were 16.0, 26.8 and 28.4 mg/h/m2, which were determined after 79.3, 149.3 and 74.7 h from the start of experiments for HIGH, LOW and CONT, respectively. Table 1 shows the results of the statistical analysis of the effect of SOP Lagoon treatment, storage time, experimental round and interaction of storage time and experimental round on the emission rates of NH3. The emission rates of NH3 from the manure treated with HIGH were lower (p < 0.05) than those of CONT and LOW. Emission rates of NH3 for LOW and CONT were similar. Compared with CONT, applying a HIGH dose of SOP Lagoon achieved a 45.9% reduction in ammonia emissions.

3.3. Effect of SOP on Odor

Odor intensity after the application of SOP Lagoon was quantified using the dilution to threshold (D/T) ratio used to describe how strong an odor is perceived by four blinded odor panelists, with higher numbers showing stronger odors. Figure 9 shows the average of all data collected from all four panelists during the two experimental rounds for each treatment on day 1, 3 and 7. Relatively lower values (p < 0.05) of the geometric mean of D/T were determined from the manure treated with HIGH versus CONT and LOW. The LOW treatment was shown to be significantly higher than the other two treatments (p < 0.05). Table 1 shows the effects of the SOP treatments, storage time, experimental rounds, the interaction of storage time and treatments and the interaction of storage time and experimental rounds on the geometric mean of D/T.

4. Discussion

The average emissions (per each m3) of different gases were calculated by averaging the emissions from both experimental rounds (Table 2). It was assumed that the characteristics of lagoon water did not change over the short duration of the trial. Although manure characteristics were not determined in these experiments, the data presented in Table 2 could be applied to determine the potential reduction of different gaseous emissions from a certain lagoon volume after applying the SOP additive. For example, applying the high dose of SOP for a lagoon with a volume of 34,069 m3 could reduce the emissions of CH4 and NH3 by approximately 86 and 160 kg per week. It should be mentioned that this lagoon volume was calculated to hold the flushed manure (0.378 m3/cow/day) for 90 days [34].
A variety of additives have been applied to reduce emissions from manure. Although the composition and mechanism of the emission reduction of several additives are known, information on many other commercial additives is not available because of confidentiality and limits in the marketing literature [13].
Calcium sulfate (gypsum) can be found abundantly in nature and has been used to improve soil properties. Flue gas desulfurization gypsum is a by-product of scrubbing sulfur from combustion gases at coal-fired power plants [35]. The application of flue gas desulfurization gypsum in agriculture has shown positive environmental impacts [35]. Different forms of gypsum have been tested for the mitigation of GHG and ammonia emissions from livestock effluents. The results have had varying results: while some studies reported a decrease in ammonia emissions after the addition of gypsum, not all have demonstrated the efficacy of gypsum in reducing the release of GHGs. Many of the results were obtained using a considerable amount of material (3% to 10% of manure wet weight) making the application not practical in real-world conditions. Borgonovo et al. first published results on this specific commercial additive (SOP LAGOON), made of gypsum processed with proprietary technology, and found that the addition of the products to fresh liquid manure has a reduction potential of 21.5% of CH4, 22.9% of CO2, 100% of N2O and 100% of NH3 emissions on day 4, even at very low dosages [24]. It should be mentioned that similar to other commercial additives, the exact manufacturing process of SOP Lagoon is unknown due to confidentiality [13]. This may limit the complete understanding of the mechanism of SOP Lagoon on emission reduction. The shorter duration of application is consistent with Borgonovo et al. but this time frame may be too short to fully understand the long term effects of emissions on a commercial dairy lagoon after application of SOP LAGOON [24].
The amount of product used, even at the HIGH dose, is not sufficient to justify a purely chemical reaction that would reduce the gaseous emissions, suggesting some other mechanisms of action. Other SOP products have been used by several researchers for other applications. SOP SQC 233, for example, was found to decrease the total amount of pathogens for a variety of pathogen types in cow bedding [36,37,38] and synthetic rubber mat covered pens [39] as well as a decrease in the somatic cell count (SCC) in milk, especially for primiparous cows [37,40,41,42]. Bronzo et al. and Lynn Sharkey et al. found that treating manure with SOP could decrease the pathogen load of manure [43,44]. These studies seem to indicate that the applied HIGH dose of SOP Lagoon might decrease the number of methanogens that produce methane during the storage of manure as well as hydrolytic microorganisms and their excreted enzymes that biodegrade organic nitrogen into ammonium. Further studies could investigate the mechanism of emission reduction using SOP Lagoon.
Future research is still needed to investigate the relationship between the microbial communities in the liquid manure and the emission reduction using SOP Lagoon. These studies could be extended to longer periods on a larger scale and include the addition of new effluent to be more representative of typical storage conditions. In addition, the mechanism of emission reduction could be investigated.

5. Conclusions

Applying SOP Lagoon to liquid manure at a dose of 61.6 g per m3 of manure significantly reduced emissions of carbon dioxide, methane, ammonia and nitrous oxide. The same dose of SOP also significantly reduced odor intensity. Future research is needed to investigate the mechanism of SOP for emission reduction and its relationship with the microbial communities in the liquid manure. More studies are needed to study long term effects of this additive, as well as the addition of effluent throughout the study, should be completed. Large scale application of this additive should also be studied to better understand the direct impacts on real-world dairy systems. In addition, the effects of this additive after land application of lagoon water has yet to be elucidated.

Author Contributions

Conceptualization, C.B.P. and F.M.M.; methodology, execution, data collection and curation, C.B.P., Y.Z. and Y.P.; data analysis, C.B.P. and H.M.E.M.; writing—original draft preparation, C.B.P. and H.E.M.; results, discussion and editing, C.B.P., H.M.E.M., Y.Z., Y.P. and F.M.M.; supervision and project administration, C.B.P., Y.Z. and F.M.M.; funding acquisition, F.M.M. All authors have read and approved the final manuscript.

Acknowledgments

This study was funded by SOP Srl (SOP Srl, VA, Italy). The authors want to thank Ed DePeters for his assistance with sample collections.

Conflicts of Interest

The sponsor played no role in the execution and interpretation of the data and preparation of the present manuscript. The authors declare no conflict of interest.

References

  1. IPCC. Climate Change 2014: Synthesis Report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC: Geneva, Switzerland, 2014; p. 151. [Google Scholar]
  2. U.S. EPA. Inventory of US Greenhouse Gas Emissions and Sinks: 1990–2017; U.S. EPA: Washington, DC, USA, 2019.
  3. Forster, P.; Ramaswamy, V.; Artaxo, P.; Berntsen, T.; Betts, R.; Fahey, D.W.; Haywood, J.; Lean, J.; Lowe, D.C.; Myhre, G. Changes in atmospheric constituents and in radiative forcing. In Climate Change 2007: The Physical Science Basis; Chapter 2; Intergovernmental Panel on Climate Change: Geneva, Switzerland, 2007. [Google Scholar]
  4. Allen, M.R.; Shine, K.P.; Fuglestvedt, J.S.; Millar, R.J.; Cain, M.; Frame, D.J.; Macey, A.H. A solution to the misrepresentations of CO2-equivalent emissions of short-lived climate pollutants under ambitious mitigation. Clim. Atmos. Sci. 2018, 1, 16. [Google Scholar] [CrossRef]
  5. IPCC. Emissions from livestock and manure management. In Guidelines for National Greenhouse Gas Inventories; Agriculture, Forestry and Other Land Use; Dong, H., Mangino, J., McAllister, T.A., Hatfield, J.L., Johnson, D.E., Lassey, K.R., Romanovskaya, A., Eds.; IPCC: Geneva, Switzerland, 2006; Volume 4. [Google Scholar]
  6. Phillips, V.; Scholtens, R.; Lee, D.; Garland, J.; Sneath, R. A review of methods for measuring emission rates of ammonia from livestock buildings and slurry or manure stores, part 1: Assessment of basic approaches. J. Eng. Res. 2000, 77, 355–364. [Google Scholar]
  7. Wu, Y.; Gu, B.; Erisman, J.W.; Reis, S.; Fang, Y.; Lu, X.; Zhang, X. PM2.5 pollution is substantially affected by ammonia emissions in China. Environ. Pollut. 2016, 218, 86–94. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. American Lung Association. State of the Air. 2018. Available online: https://www.lung.org/assets/documents/healthy-air/state-of-the-air/sota-2018-full.pdf (accessed on 27 June 2018).
  9. Owen, J.J.; Silver, W.L. Greenhouse gas emissions from dairy manure management: A review of field-based studies. Glob. Chang. Biol. 2015, 21, 550–565. [Google Scholar] [CrossRef] [Green Version]
  10. Short-lived climate pollutants: Methane emissions: Dairy and livestock: Organic waste: Landfills. In Statutes of 2016; Chapter 395; California State Legislature: Sacramento, CA, USA, 2016.
  11. Leytem, A.B.; Dungan, R.S.; Bjorneberg, D.L.; Koehn, A.C. Greenhouse gas and ammonia emissions from an open-freestall dairy in southern Idaho. J. Environ. Qual. 2013, 42, 10–20. [Google Scholar] [CrossRef] [Green Version]
  12. Wheeler, E.F.; Adviento-Borbe, M.A.A.; Brandt, R.C.; Topper, P.A.; Topper, D.A.; Elliott, H.A.; Graves, R.E.; Hristov, A.N.; Ishler, V.A.; Bruns, M.A.V. Manure amendments for mitigation of dairy ammonia and greenhouse gas emissions: Preliminary screening. Agric. Eng. Int. CIGR J. 2011, 13, 1–15. [Google Scholar]
  13. McCrory, D.; Hobbs, P. Additives to reduce ammonia and odor emissions from livestock wastes. J. Environ. Qual. 2001, 30, 345–355. [Google Scholar] [CrossRef] [Green Version]
  14. Martinez, J.; Guiziou, F.; Peu, P.; Gueutier, V. Influence of treatment techniques for pig slurry on methane emissions during subsequent storage. Biosyst. Eng. 2003, 85, 347–354. [Google Scholar] [CrossRef]
  15. Shah, S.B.; Kolar, P. Evaluation of additive for reducing gaseous emissions from swine waste. Agric. Eng. Int. CIGR J. 2012, 14, 10–20. [Google Scholar]
  16. Holly, M.A.; Larson, R.A. Effects of manure storage additives on manure composition and greenhouse gas and ammonia emissions. Trans. ASABE 2017, 60, 449–456. [Google Scholar]
  17. Xue, S.; Chen, S. Surface oxidation for reducing ammonia and hydrogen sulfide emissions from dairy manure storage. Trans. ASAE 1999, 42, 1404. [Google Scholar]
  18. Petersen, S.O.; Andersen, A.J.; Eriksen, J. Effects of cattle slurry acidification on ammonia and methane evolution during storage. J. Environ. Qual. 2012, 41, 88–94. [Google Scholar] [CrossRef] [PubMed]
  19. Febrisiantosa, A.; Ravindran, B.; Choi, H. The effect of co-additives (Biochar and FGD Gypsum) on ammonia volatilization during the composting of livestock waste. Sustainability 2018, 10, 795. [Google Scholar] [CrossRef] [Green Version]
  20. Li, Y.; Luo, W.; Li, G.; Wang, K.; Gong, X. Performance of phosphogypsum and calcium magnesium phosphate fertilizer for nitrogen conservation in pig manure composting. Bioresour. Technol. 2018, 250, 53–59. [Google Scholar] [CrossRef]
  21. Yang, F.; Li, G.; Shi, H.; Wang, Y. Effects of phosphogypsum and superphosphate on compost maturity and gaseous emissions during kitchen waste composting. Waste Manag. 2015, 36, 70–76. [Google Scholar] [CrossRef]
  22. Tubail, K.; Chen, L.; Michel, F.C., Jr.; Keener, H.M.; Rigot, J.F.; Klingman, M.; Kost, D.; Dick, W.A. Gypsum additions reduce ammonia nitrogen losses during composting of dairy manure and biosolids. Compost. Sci. Util. 2008, 16, 285–293. [Google Scholar] [CrossRef]
  23. Hao, X.; Larney, F.J.; Chang, C.; Travis, G.R.; Nichol, C.K.; Bremer, E. The effect of phosphogypsum on greenhouse gas emissions during cattle manure composting. J. Environ. Qual. 2005, 34, 774–781. [Google Scholar] [CrossRef]
  24. Borgonovo, F.; Conti, C.; Lovarelli, D.; Ferrante, V.; Guarino, M. Improving the sustainability of dairy slurry by a commercial additive treatment. Sustainability 2019, 11, 4998. [Google Scholar] [CrossRef] [Green Version]
  25. Casey, K.D.; Bicudo, J.R.; Schmidt, D.R.; Singh, A.; Gay, S.W.; Gates, R.S.; Jacobson, L.D.; Hoff, S.J. Air quality and emissions from livestock and poultry production/waste management systems. In Animal Agriculture and the Environment: National Center for Manure and Animal Waste Management White Papers; ASABE: St. Joseph, MI, USA, 2006; pp. 1–40. [Google Scholar]
  26. Sheffield, R.; Thompson, M.; Dye, B.; Parker, D. Evaluation of field-based odor assessment methods. Proc. Water Environ. Fed. 2004, 2004, 870–879. [Google Scholar] [CrossRef] [Green Version]
  27. Lenth, R.V. Least-squares means: The R package lsmeans. J. Stat. Softw. 2016, 69, 33. [Google Scholar] [CrossRef] [Green Version]
  28. Piepho, H.-P. An algorithm for a letter-based representation of all-pairwise comparisons. J. Comput. Graph. Stat. 2004, 13, 456–466. [Google Scholar] [CrossRef]
  29. Møller, H.B.; Sommer, S.G.; Ahring, B.K. Biological degradation and greenhouse gas emissions during pre-storage of liquid animal manure. J. Environ. Qual. 2004, 33, 27–36. [Google Scholar] [CrossRef]
  30. Maeda, K.; Toyoda, S.; Shimojima, R.; Osada, T.; Hanajima, D.; Morioka, R.; Yoshida, N. Source of nitrous oxide emissions during the cow manure composting process as revealed by isotopomer analysis of and amoA abundance in betaproteobacterial ammonia-oxidizing bacteria. Appl. Environ. Microbiol. 2010, 76, 1555–1562. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Bastami, M.S. Mitigating Greenhouse Gases Emission from Cattle Slurry: An Approach for Small-Medium Scale Farms; Prifysgol Bangor University: Wales, UK, 2016. [Google Scholar]
  32. Sommer, S.G.; Clough, T.J.; Chadwick, D.; Petersen, S.O. Greenhouse gas emissions from animal manures and technologies for their reduction. Anim. Manure Recycl. Treat. Manag. 2013, 177–194. [Google Scholar] [CrossRef] [Green Version]
  33. Grant, R.H.; Boehm, M.T. Manure ammonia and hydrogen sulfide emissions from a western dairy storage basin. J. Environ. Qual. 2015, 44, 127–136. [Google Scholar] [CrossRef]
  34. Watts, D.B.; Dick, W.A. Sustainable uses of FGD gypsum in agricultural systems: Introduction. J. Environ. Qual. 2014, 43, 246–252. [Google Scholar] [CrossRef] [Green Version]
  35. Chang, A.; Harter, T.; Letey, J.; Meyer, D.; Meyer, R.; Mathews, M.C.; Mitloehner, F.; Pettygrove, S.; Robinson, P.; Zhang, R. Managing Dairy Manure in the Central Valley of California; University of California: Oakland, CA, USA, 2005. [Google Scholar]
  36. Casagrande Proietti, P.; Franceschini, R.; Pennacchi, M.; Tacconi, G. Evaluation of the efficacy of a litter additive in the control of Staphylococcus spp. and coliform levels: Preliminary results of a field trial on organic chianina beef cattle. In Proceedings of the 4th World Italian Beef Cattle Congress, Gubbio, Italy, 29 April–1 May 2005. [Google Scholar]
  37. Tacconi, G.; Pennacchi, M.; Boni, P.; Covarelli, A.; Zanierato, A. Efficacy of a bio-hygienization additive on microbial control in dairy cow bedding. In Proceedings of the NMC 46th Annual Meeting, San Antonio, TX, USA, 21–24 January 2007. [Google Scholar]
  38. Zanierato, A.; Buzzini, P. Efficacy of a Bio-hygienization Additive in controlling the yeast-like microalga Prototheca zopfii. Cattle Sect. 2008, 4, 15. [Google Scholar]
  39. Favretti, M.; Moroni, P.; Bronzo, V.; Cavalli, S.; Zanierato, A. Monitoring of the efficacy of a bio-hygienization treatment on the reduction of the microbial load in cubicles with mats of an Italian dairy herd. In Proceedings of the NMC 49th Annual Meeting, Albuquerque, NM, USA, 1–7 May 2010. [Google Scholar]
  40. Zanierato, A.; Casalone, M.; Luparia, P.; Bronzo, V.; Moroni, P. Annual monitoring of the SCC on a commercial Italian farm treated with SOP C COW. In Proceedings of the NMC 50th Annual Meeting, Arlington, VA, USA, 23–26 January 2011. [Google Scholar]
  41. Luparia, P.; Poggianella, M.; Bronzo, V. Investigation on a bio-hygienizing additive for oral use in dairy cows: Effect on milk somatic cell count. In Proceedings of the Joint Annual Meeting, Phoenix, AZ, USA, 15–19 July 2012. [Google Scholar]
  42. Luparia, P.; Rota, N.; Poggianella, M.; Bronzo, V. Preliminary results of in-field monitoring of a feed additive for rumen functionality on 7 Italian commercial dairy farms. In Proceedings of the European Society of Veterinary and Comparative Nutrition (ESVCN) Congress, Touolouse, France, 17–19 September 2015. [Google Scholar]
  43. Bronzo, V.; Zanierato, A.; Varano, R.; Moroni, P. Monitoring of the efficacy of a bio-hygienization treatment on the reduction of the microbial load on cubicles in an Italian dairy herd. In Proceedings of the NMC 48th Annual Meeting, Charlotte, NC, USA, 25–28 January 2009. [Google Scholar]
  44. Sharkey, H.L.; Zanierato, A.; Luparia, P.; Poggianella, M.; Moroni, P.; Schukken, Y. SOP treatment of separate manure solids reduced Klebsiella bacteria counts. Cattle Sect. 2011, 136, 142. [Google Scholar]
Sustainability 12 01393 g001 550
Figure 1. Average temperature and relative humidity inside the covered enclosure building (CPE) during the two experimental rounds.
Figure 1. Average temperature and relative humidity inside the covered enclosure building (CPE) during the two experimental rounds.
Sustainability 12 01393 g001
Sustainability 12 01393 g002 550

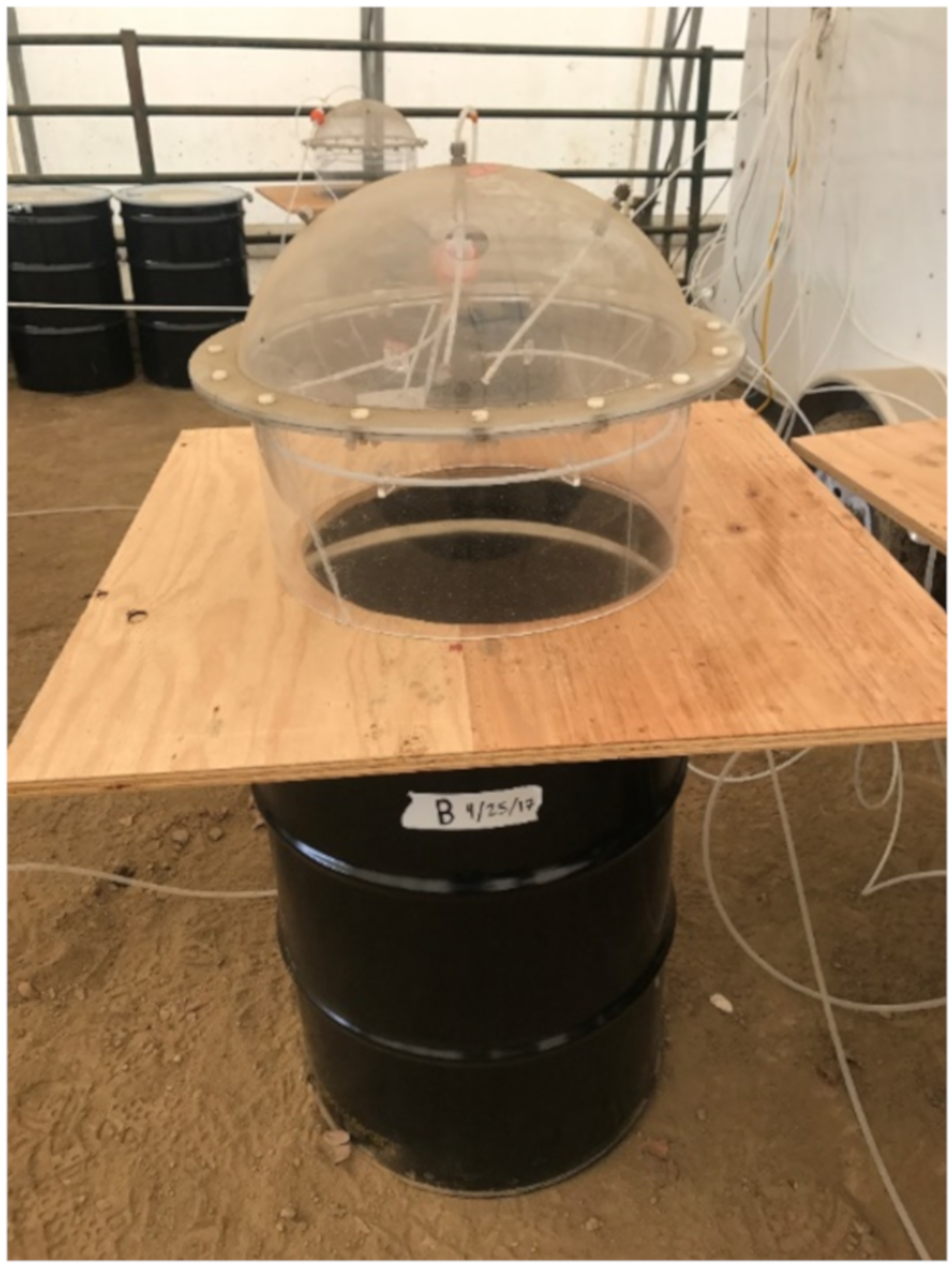

Figure 2. Emission flux chamber covering a 208 L (55 gallons) open-top steel drum containing liquid manure.
Figure 2. Emission flux chamber covering a 208 L (55 gallons) open-top steel drum containing liquid manure.
Sustainability 12 01393 g002
Sustainability 12 01393 g003 550

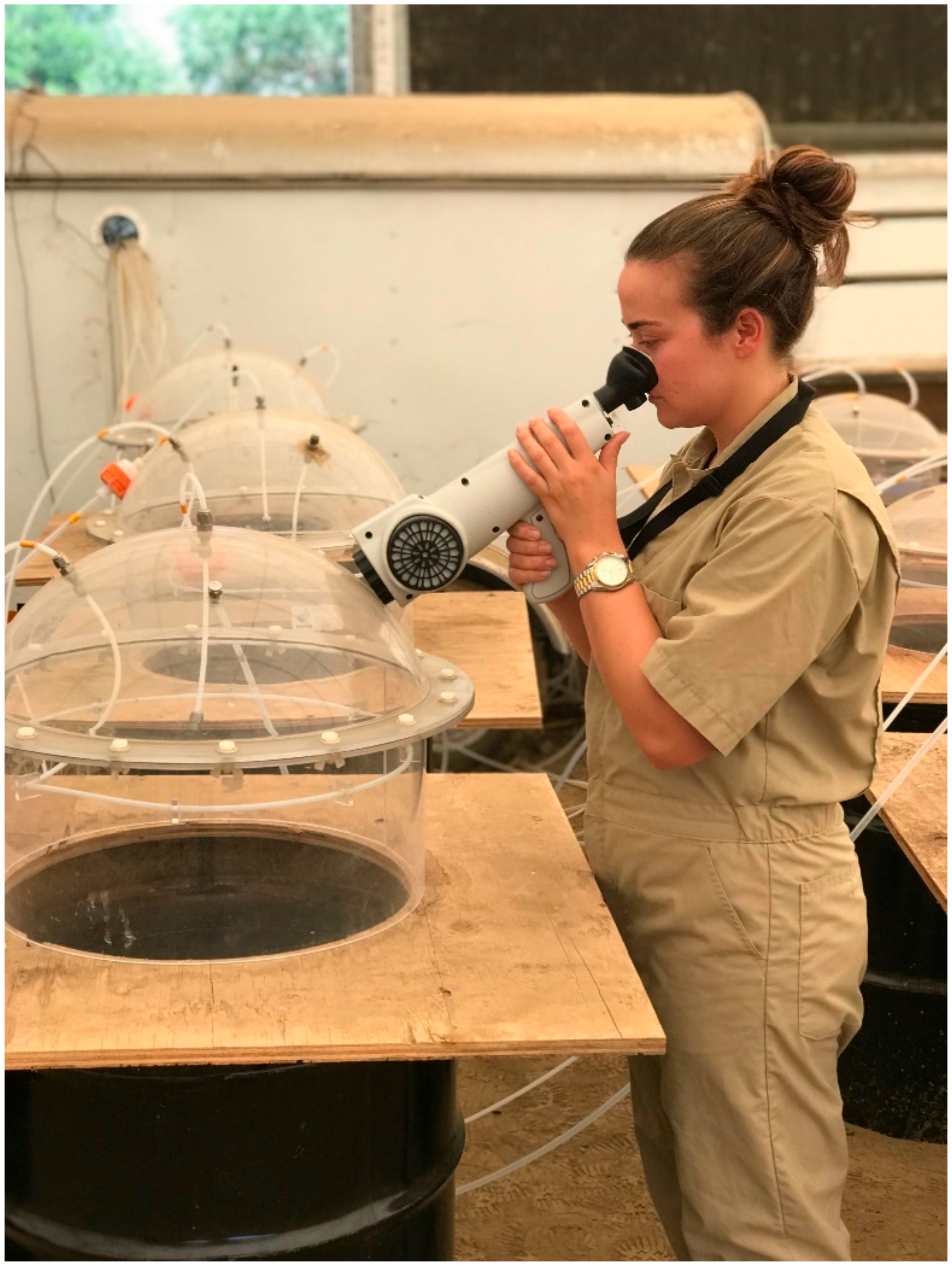

Figure 3. Measurement of odor intensity using the Nasal Ranger approach.
Figure 3. Measurement of odor intensity using the Nasal Ranger approach.
Sustainability 12 01393 g003
Sustainability 12 01393 g004a 550Sustainability 12 01393 g004b 550

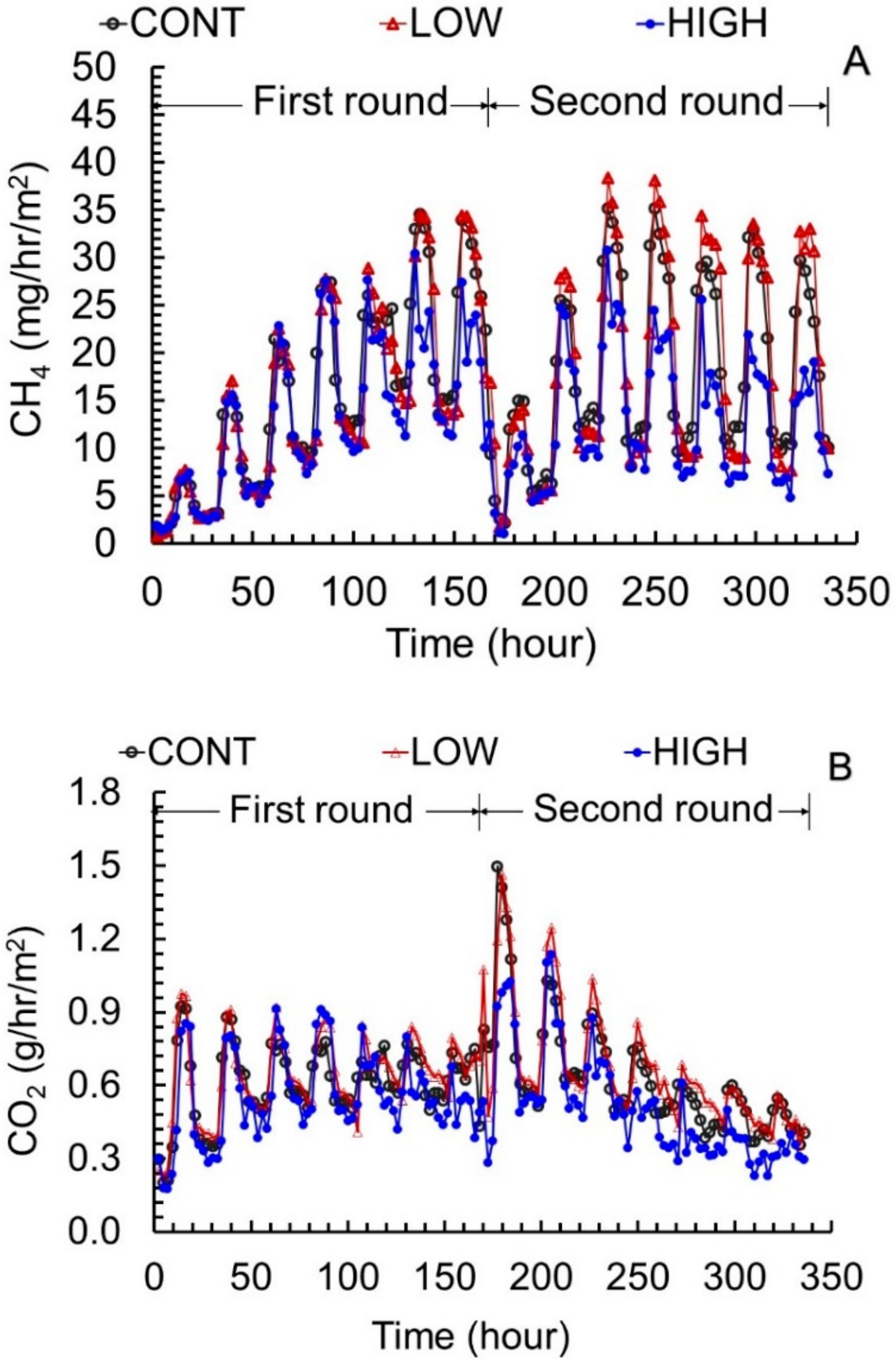

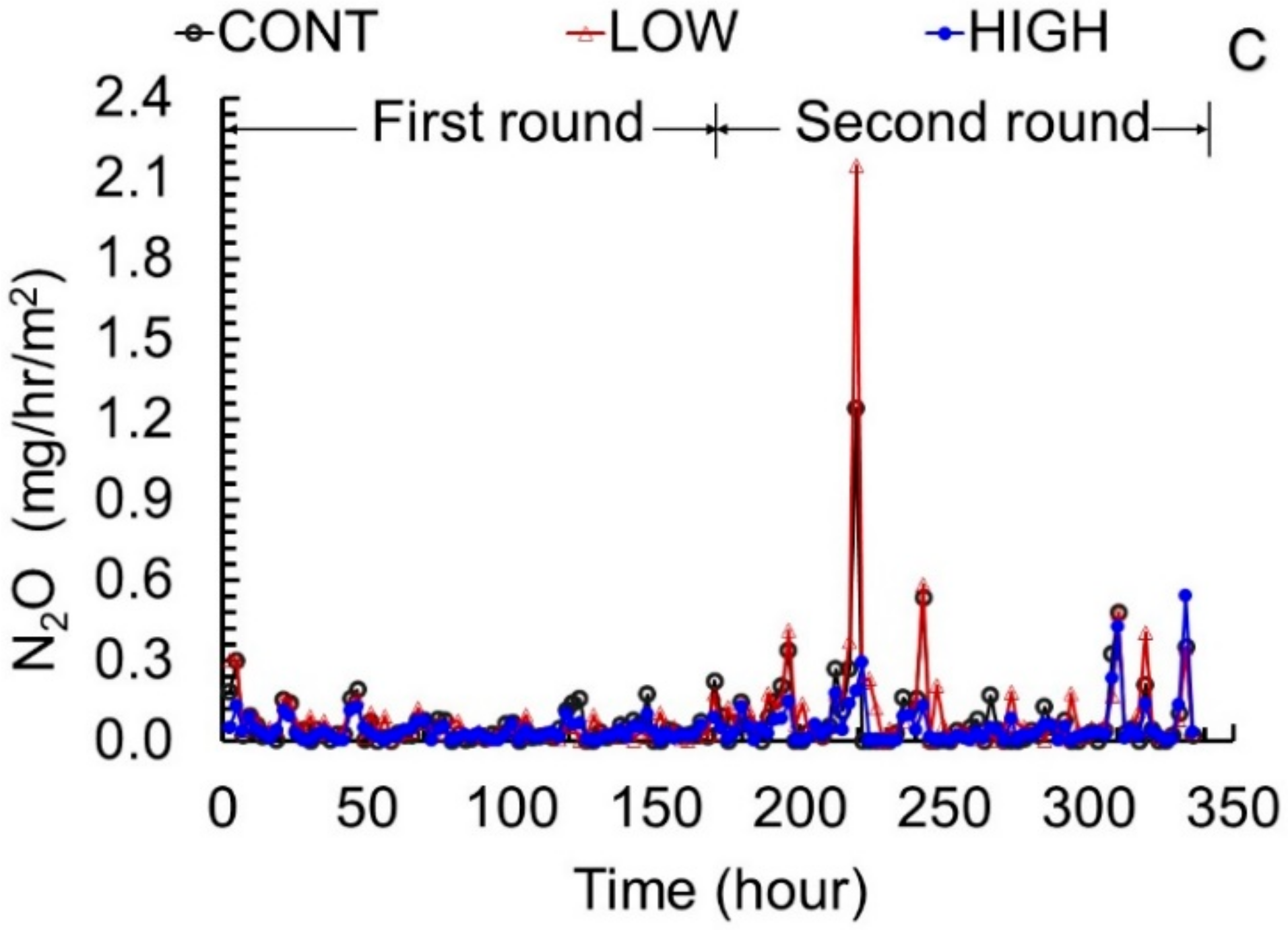

Figure 4. Continuous emission rates of greenhouse gas (GHG) over the experimental time: (A) methane, (B) carbon dioxide and (C) nitrous oxide.
Figure 4. Continuous emission rates of greenhouse gas (GHG) over the experimental time: (A) methane, (B) carbon dioxide and (C) nitrous oxide.
Sustainability 12 01393 g004aSustainability 12 01393 g004b
Sustainability 12 01393 g005a 550Sustainability 12 01393 g005b 550

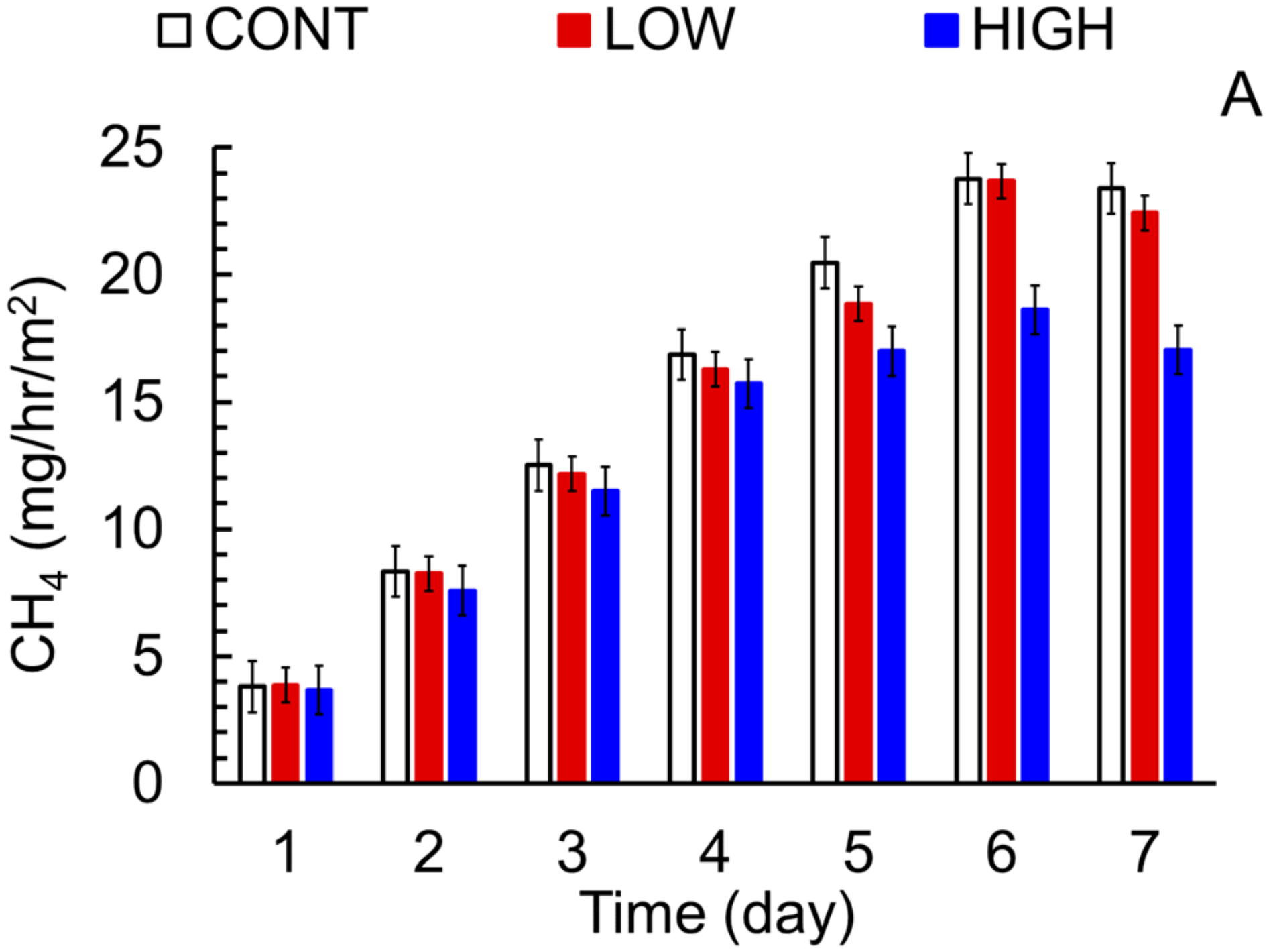

Figure 5. Average daily emission rates of GHG over the experimental time in the first round: (A) methane, (B) carbon dioxide and (C) nitrous oxide. Y error bars are standard errors.
Figure 5. Average daily emission rates of GHG over the experimental time in the first round: (A) methane, (B) carbon dioxide and (C) nitrous oxide. Y error bars are standard errors.
Sustainability 12 01393 g005aSustainability 12 01393 g005b
Sustainability 12 01393 g006a 550Sustainability 12 01393 g006b 550

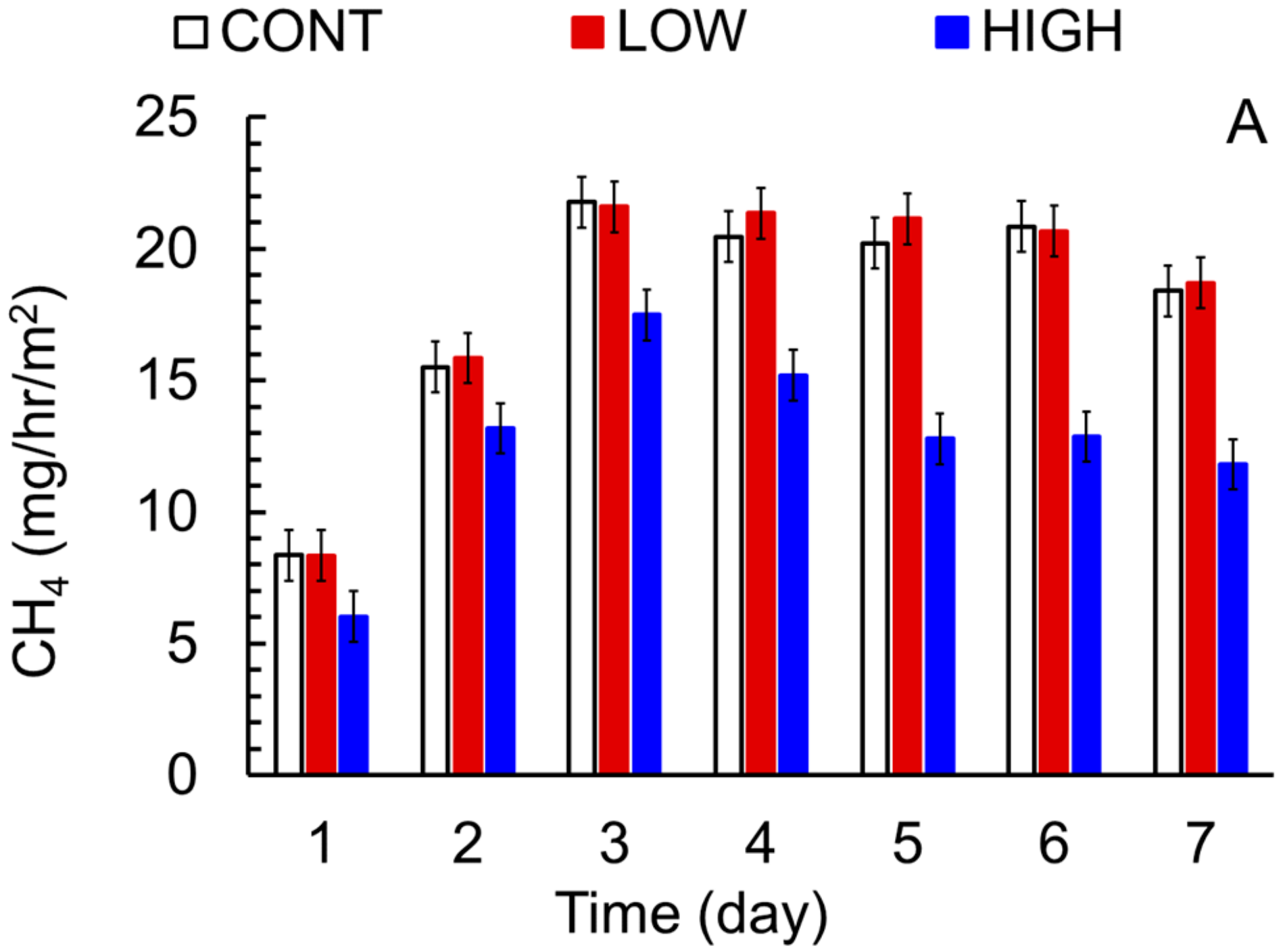

Figure 6. Average daily emission rates of GHG over the experimental time in the second round: (A) methane, (B) carbon dioxide and (C) nitrous oxide. Y error bars are standard errors.
Figure 6. Average daily emission rates of GHG over the experimental time in the second round: (A) methane, (B) carbon dioxide and (C) nitrous oxide. Y error bars are standard errors.
Sustainability 12 01393 g006aSustainability 12 01393 g006b
Sustainability 12 01393 g007 550

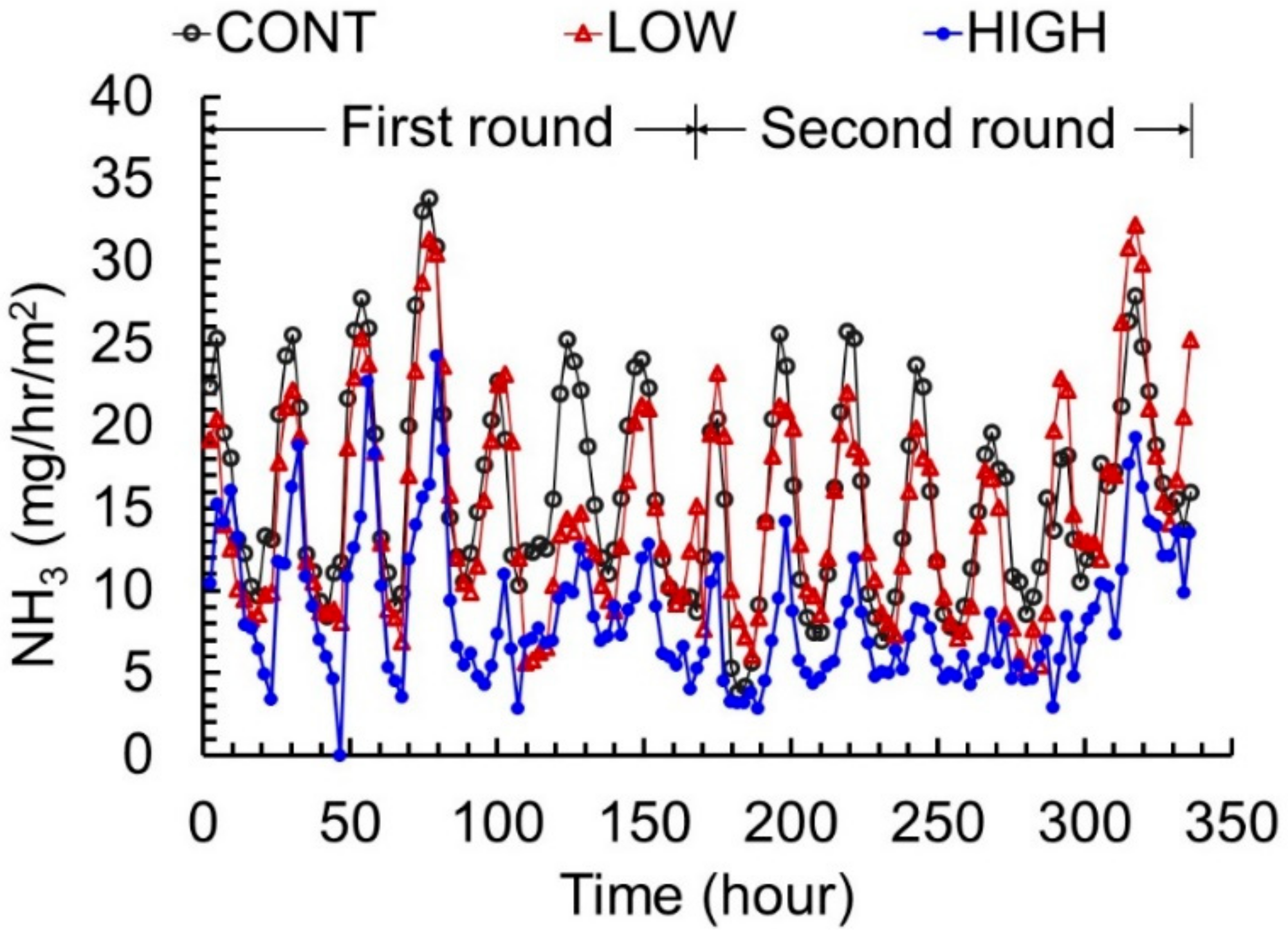

Figure 7. Continuous emission rates of ammonia over the experimental time.
Figure 7. Continuous emission rates of ammonia over the experimental time.
Sustainability 12 01393 g007
Sustainability 12 01393 g008 550
Figure 8. Average daily emission rates of ammonia over the experimental time: (A), first round; and (B), second round. Y error bars are standard errors.
Figure 8. Average daily emission rates of ammonia over the experimental time: (A), first round; and (B), second round. Y error bars are standard errors.
Sustainability 12 01393 g008
Sustainability 12 01393 g009 550
Figure 9. Average geometric mean of odor dilution to threshold (D/T) over the experimental time. Y error bars are standard errors. Different letters show significant differences at the 0.05 level.
Figure 9. Average geometric mean of odor dilution to threshold (D/T) over the experimental time. Y error bars are standard errors. Different letters show significant differences at the 0.05 level.
Sustainability 12 01393 g009
Table
Table 1. Least squares means (LSM) and mean standard errors (SEM) of the overall gaseous emissions for “SOP Lagoon” applied at LOW and HIGH rates vs the untreated CONT lagoon water across all four replicate weeks.
Table 1. Least squares means (LSM) and mean standard errors (SEM) of the overall gaseous emissions for “SOP Lagoon” applied at LOW and HIGH rates vs the untreated CONT lagoon water across all four replicate weeks.
TraitLSM of SOP Lagoon TreatmentsSEMp-Value
CONTLOWHIGHTreatments(Trt)DaysRoundsTrt × DaysTrt × RoundsDays × RoundsTrt × Days × Rounds
CH4 (mg/h/m2)16.76 a,*16.65 a12.89 b0.68<0.001<0.0010.0310.900.19<0.0011.00
CO2 (g/h/m2)0.62 a0.66 a0.53 b0.02<0.001<0.0010.8571.000.33<0.0011.00
N2O (mg/h/m2)0.11 a0.10 a0.06 a0.010.0510.006<0.0010.970.350.0020.92
NH3 (mg/h/m2)15.82 a14.61 a8.58 b0.55<0.0010.0030.0450.980.29<0.0010.96
Odor (D/T)53.17 a56.36 b48.51 c0.89<0.001<0.001<0.001<0.0010.10<0.0010.15
* Least-squares means with a different letter in each column are significantly different at the p = 0.05 level. a, b, c Means with different superscripts differ at p < 0.05.
Table
Table 2. Average emissions from untreated and treated lagoon water (mg/m3/h) *.
Table 2. Average emissions from untreated and treated lagoon water (mg/m3/h) *.
Emitted GasSOP Lagoon Treatments
CONTLOWHIGH
CH464.66 ± 10.7064.24 ± 8.5249.71 ± 10.05
CO22399.24 ± 381.452530.96 ± 222.552044.27 ± 288.90
N2O0.41 ± 0.230.37 ± 0.250.24 ± 0.09
NH361.01 ± 10.9356.36 ± 9.5633.08 ± 5.05
* The data is the average of the four replicates over the two experimental rounds.

Share and Cite

MDPI and ACS Style

Peterson, C.B.; El Mashad, H.M.; Zhao, Y.; Pan, Y.; Mitloehner, F.M. Effects of SOP Lagoon Additive on Gaseous Emissions from Stored Liquid Dairy Manure. Sustainability 2020, 12, 1393. https://doi.org/10.3390/su12041393

AMA Style

Peterson CB, El Mashad HM, Zhao Y, Pan Y, Mitloehner FM. Effects of SOP Lagoon Additive on Gaseous Emissions from Stored Liquid Dairy Manure. Sustainability. 2020; 12(4):1393. https://doi.org/10.3390/su12041393

Chicago/Turabian Style

Peterson, Carlyn B., Hamed M. El Mashad, Yongjing Zhao, Yuee Pan, and Frank M. Mitloehner. 2020. "Effects of SOP Lagoon Additive on Gaseous Emissions from Stored Liquid Dairy Manure" Sustainability 12, no. 4: 1393. https://doi.org/10.3390/su12041393

APA Style

Peterson, C. B., El Mashad, H. M., Zhao, Y., Pan, Y., & Mitloehner, F. M. (2020). Effects of SOP Lagoon Additive on Gaseous Emissions from Stored Liquid Dairy Manure. Sustainability, 12(4), 1393. https://doi.org/10.3390/su12041393

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
