Calculation of Residual Surface Subsidence Above Abandoned Longwall Coal Mining

Abstract

Exhausted or abandoned underground longwall mining may lead to long-term residual subsidence on surface land, which can cause some problems when the mined-out land is used for construction, land reclamation and ecological reconstruction. Thus, it is important to assess the stability and suitability of the land with a consideration of residual surface subsidence. Assuming a linear monotonic decrease in the annual residual surface subsidence, the limit of the sum of the annual residual subsidence factor, and continuity between surface subsidence in the last year of the weakening period and the residual surface subsidence in the first year, we establish a model to calculate the duration of residual subsidence and the annual residual surface subsidence factor caused by abandoned longwall coal mining. The duration of residual surface subsidence increases with the increase in mining thickness as well as the factor of extreme residual subsidence. The proposed method can quantitatively calculate the annual residual subsidence, the accumulative residual subsidence, and the potential future accumulative residual subsidence. This approach can be used to reasonably evaluate the stability and suitability of old mining subsidence areas and will be beneficial for the design of mining subsidence land reclamation and ecological reconstruction.

1. Introduction

During underground longwall mining, the equilibrium conditions in the overburden strata are disturbed. As the working face advances, the roof strata bend downward. Then, when the excavated area expands to a sufficient size, the roof strata will cave. As a result, the overlying strata continue to bend and break until the fallen rock fragments are sufficiently high to support the overhanging strata. At this time, the overhanging strata above the caved zone no longer cave but are replaced by fractured or bending and resting on the underlying strata. Strata bending and subsidence develop upward until they reach the surface and form a subsidence basin. The overburden strata and surface subsidence basin will then undergo a period of compaction before gradually becoming stable [1]. Subsidence development and subsidence velocity curves for a surface point are shown in Figure 1. The total duration of surface movement development can be divided into three periods. The initial period comprises surface subsidence of up to 10 mm, with a subsidence velocity of up to 50 mm/month or 1.7 mm/day. The second period is named the active period, characterized by surface subsidence velocities of greater than 50 mm/month or 1.7 mm/day. The third period is named the weakening period, typified by subsidence velocities of less than 50 mm/month or 1.7 mm/day. This period ends when less than 30 mm of accumulative surface subsidence occurs in 6 months, which indicates stabilized surface movement [2,3,4]. During the active movement period, the amount of subsidence accounts for more than 85% of the total subsidence. Thus, the surface movement from the initial period to the weakening period has received considerable attention around the world. Both final and progressive surface subsidence predictions have been conducted in order to prevent mining damage and to estimate the uncertainty and reliability of subsidence predictions [5,6,7,8,9,10]. However, field measurements in China showed that surface subsidence after the weakening period is not completely stable, but it grows slowly and gradually [11,12,13]. Radar-interferometry data analysis of the Houthalen coal mine in Belgium revealed that residual downward movement occurred for 7–12 years after its closure in 1992. The average observed residual subsidence rate was 5.5 mm/a and the maximum was 30 mm/a [14]. Therefore, the residual surface subsidence may decrease gradually and last for several years or even decades, despite a very small amount of residual surface subsidence, as shown in Figure 1.

In recent years, considerable attention has been devoted to the residual subsidence and influencing factors at abandoned coal mines [15]. Abandoned mine works are a potential cause of ground subsidence and hence are of major concern where development or re-development is to take place. In the United Kingdom, information necessary to locate potential hazards may be available but occurs in numerous scattered locations, and it may require considerable time to access the data [16]. The surface subsidence in an adjacent working coal face may be influenced by an abandoned goaf [17]. The room and pillar stability problems associated with a shallow, abandoned ironstone mine have been analyzed in detail using empirical approaches [18]. In order to monitor the residual subsidence, differential Interferometry SAR (DInSAR), Persistent Scatterer Interferometry (PSI) and the integration of DInSAR and SBAS Techniques were used to determine mining-related deformations; the root-mean-square error (RMSE) between the modeled and measured deformation by InSAR was found to be 11 and 13 mm for vertical and horizontal displacements, respectively [19,20,21]. Since ground subsidence around abandoned underground coal mines can cause much loss of life and property, GIS-based ground subsidence hazard mapping of abandoned coal mines has been researched. The frequency ratio model and sensitivity analysis were employed to determine the importance of extracted subsidence-related factors [22,23]. Tunneling and transport infrastructure in abandoned coal mine areas have also been studied by FLAC 3D numerical modelling in order to assess and reduce the geo-hazards [24,25]. Coal mining unfortunately tends to make a notable impact on the environment, the impacts varying in severity depending on whether the mine is working or abandoned, the mining methods used, and the geological conditions [26,27,28,29]. An interdisciplinary approach employing hydrology, geographic information systems, and a recreation visitation function model was used to estimate the costs of abandoned coal mine reclamation [30].

With continued urbanization, the need for the reclamation of mining subsidence areas is becoming increasingly urgent, especially in China. In many mining cities, such as Pingdingshan, Tangshan, Xuzhou, Yanzhou, Fuxin, Benxi, Fushun, Huainan, Zaozhuang, Pingxiang, Zibo, and Zhangjiakou, the reuse of mining subsidence land for construction has been widely carried out. In order to evaluate the stability and suitability of old mining subsidence areas, the factor of residual surface subsidence is a major parameter that must be considered. The factor value of the residual mining subsidence is selected empirically according to mining depth, properties of overburden strata, and the completion date of longwall mining, then the amount of residual surface subsidence is predicted based on the probabilistic integral method [31,32,33]. However, the accuracy of the resulting prediction is insufficient; it does not quantitatively determine the annual residual subsidence, the accumulative residual subsidence, or the potential future accumulative residual subsidence, nor does it objectively provide the duration of residual subsidence. Therefore, with the aim of providing an objective and quantitative prediction of residual surface subsidence, this study analyzes the factor of residual surface subsidence and subsidence duration for old longwall coal mining.

2. Method for Calculating the Residual Subsidence Factor and Duration

2.1. Factor of Extreme Residual Subsidence

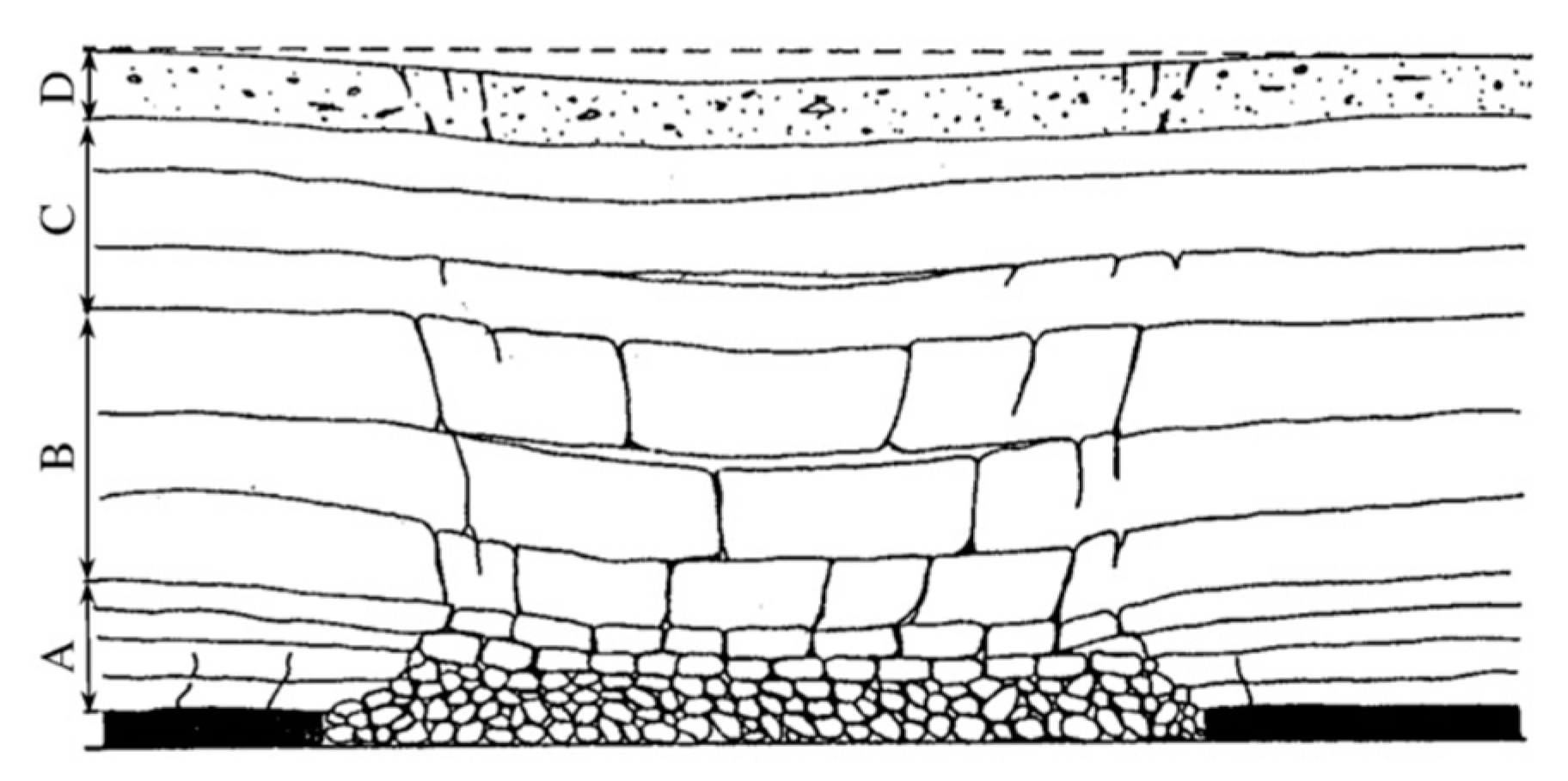

After sufficient extraction of a longwall panel section, the overburden strata display various degrees of movement. According to the movement characteristics, the fractured overburden strata can be divided into four zones, as illustrated in Figure 2 [1,34].

• Caved zone A: After coal extraction, the immediate roof strata caves irregularly and falls into the void. The strata in this zone behave not only with complete discontinuity, but also all stratified bedding is loosed. The caved zone is normally two to eight times larger than the mining height, depending on the properties of the immediate roof and overburden strata.
• Fractured zone B: Strata breakage and discontinuity present the basic characteristics in this zone area, while the rock retains stratified bedding. The strata breakage gradually reduces upwards, resulting in a decrease in fracture network development and, of course, the permeability in the strata. The combined height of the fractured zone with the caved zone is about 20 to 30 times the mining height in hard or strong rock; 12 to 15 times the mining height in medium hard rock; and nine to 11 times the mining height in soft or weak rock, respectively. That is to say, the height of the fractured zone in hard and strong strata is greater than that in soft and weak rock.
• Continuous bending or deformation zone C: The strata above the fractured zone deflect downward without apparent breaking. The strata continuity and their original stratified features remain. In some cases, impermeability is temporarily lost but resumed soon after. Some opening fissures may appear in the tension zone but, in general, the strata maintain continuity.
• Soil zone D: This is the surface layer, the depth of which depends on location. It consists of soil and weathered rocks. Depending on the physical properties of soils, cracks may open up when the face is nearby and close back when the face is far away. However, some cracks, especially those along the edges of the panel, may remain open after mining but the crack walls collapse easily to fill up the cracks.

Bulking is a volume increase phenomenon that occurs when intact rock is broken [35]. Caving of a mine roof may cease when the gap from the floor to the roof is filled with broken or loose material. The bulking factor of the broken material then determines the height of the caved zone. When this material is subjected to stress, two main parameters control its compaction process: the initial bulking factor and the strength of the rock fragments. The initial bulking factor is typically greater than one because the volume of broken roof rocks is larger than that of the original intact strata. It varies with the shape of the fragments, their size, and size distribution, as well as the configuration of the caved rock fragments. The in situ measurements indicate that the bulking factor decreases with increasing size, size range, and shape regularity of the fragments. The bulking factor of stronger and harder rocks is smaller because they result in larger fragments; conversely, weaker and softer rocks result in smaller fragments and consequently a larger bulking factor. The initial compaction of such bulked material is larger at the initial loading stage. It is impossible to compress the material back into its original intact volume; however, the compaction of such material to its original volume may be possible under infinite pressure [36]. Based on this assumption, the extreme residual surface subsidence factor $q_m$ can be expressed as

$$q_m=n\left(1-q\right)$$

(1)

where $q$ is the surface subsidence factor, which ranges from 0.65 to 0.90 in China; $n$ is the coefficient related to the compaction of caved or broken rock, $0<n\le 1$. If $n=1$, the material has been compressed back into its original intact volume. When there are no in situ observations for the coefficient related to the compaction of caved or broken rock, $n=0.5$ is selected for a middle way generally.

2.2. Determination of Annual Residual Surface Subsidence Factor

Compared with the development of normal surface subsidence, the residual subsidence is smaller, and its duration is longer. According to the law of residual surface subsidence, the annual residual surface subsidence decreases gradually with time in the duration, and the sum of the factor of annual residual surface subsidence must equal the factor of extreme residual surface subsidence. Assuming the duration of residual subsidence is $T_r$, the annual residual subsidence factor $q_A^t$ satisfies the following two conditions:

$${\displaystyle \sum }_{t=1}^{t=T_r}{q}_A^t=q_m$$

(2)

$$q_A^1>q_A^2>q_A^3>\dots >q_A^{T_r}$$

(3)

where $q_A^1$, $q_A^2$, $\dots$, $q_A^{T_r}$ are the factors of annual residual subsidence of the first year, second year, …, and $T_r$ year, respectively.

Since the annual residual surface subsidence factor is smaller and decreases gradually with time, a linear monotonic decrease in the residual subsidence factor is accepted. Thus, we have

$$q_A^1=q_m{T}_r/{{\displaystyle \sum }}_{t=1}^{t=T_r}t$$

$$q_A^2=q_m\left(T_r-1\right)/{{\displaystyle \sum }}_{t=1}^{t=T_r}t$$

(4)

$$\dots \dots \dots \dots \dots \dots \dots \dots \dots \dots .$$

$$q_c^{T_c}=q_m/{{\displaystyle \sum }}_{t=1}^{t=T_r}t$$

Then, the following normalized expression for the annual residual surface subsidence factor $q_A^t$ can be obtained from Expression (4).

$$q_A^t=q_m\frac{2\left(T_r-t+1\right)}{T_r\left(T_r+1\right)},t=1,2,3,\dots ,T_r$$

(5)

According to Expression (5), we can prove that the restrictive conditions of Expressions (2) and (3) are satisfied.

2.3. Duration of Residual Surface Subsidence

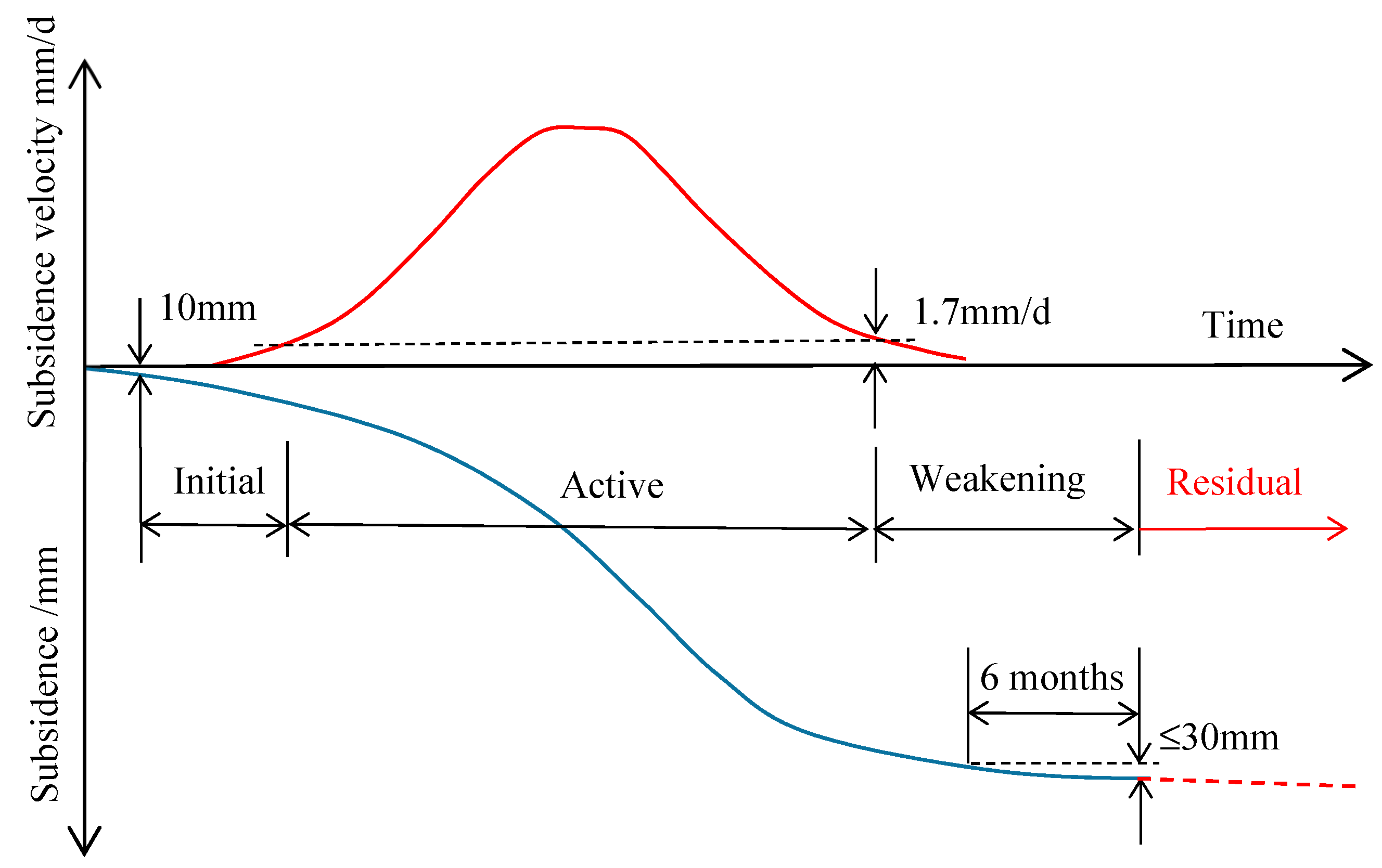

As shown in Figure 1, the requirement for the end of the weakening period is less than 30 mm of surface subsidence in 6 months. Subsequently, we can deduce that the amount of surface subsidence in the final year of the weakening period is greater than 60 mm. In order to maintain the continuity of surface subsidence, the residual subsidence in the first year must be smaller than that in the final year of the weakening period. Thus, we obtain

$$m{q}_A^1\cos \alpha =\frac{m{q}_{m}cos\alpha T_r}{{\sum }_{t=1}^{t=T_r}t}\le 60$$

(6)

where $m$ is the mining thickness (mm); $\alpha$ is the dip angle of the coal seam; and $T_r$ is the duration of residual surface subsidence (a). Expression (6) can also be rewritten as

$$T_r\ge \frac{m{q}_{m}cos\alpha }{30}-1$$

(7)

When the duration of residual surface subsidence $T_r$ is determined by Expression (7), the annual residual surface subsidence factor $q_A^t$ can be calculated easily by Expression (5). It must be noted that although the duration of $T_r$ calculated by Expression (7) may be a decimal, an integer of year is demanded. As shown in Expression (7), if the calculated duration of $T_r$ is 3.2a, it is 4a under the condition of large and equal in practice.

2.4. Discussion

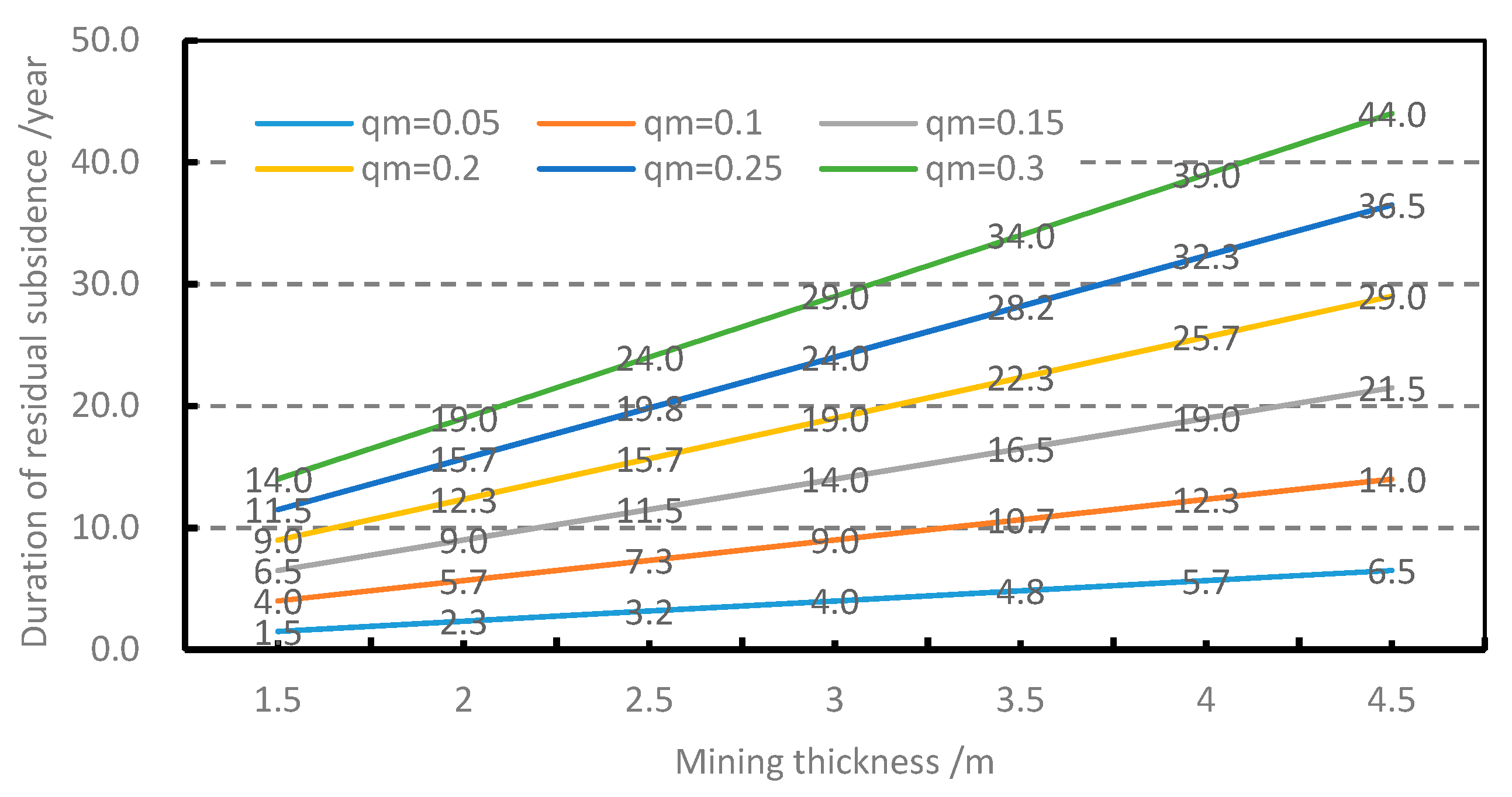

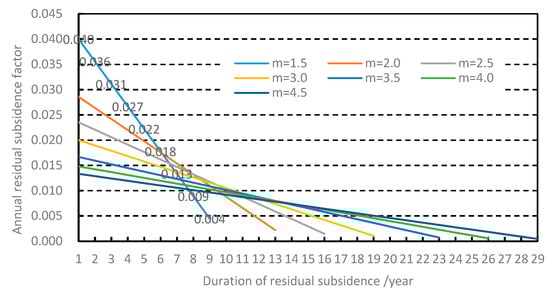

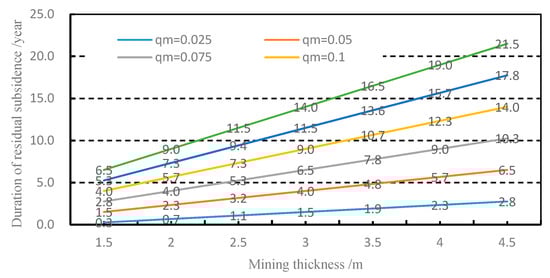

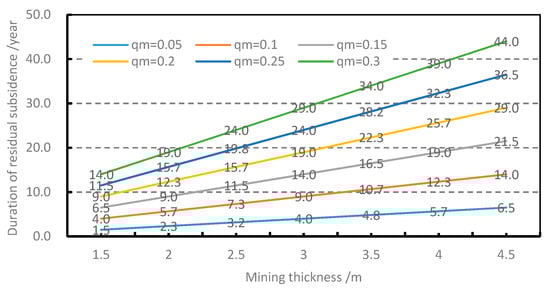

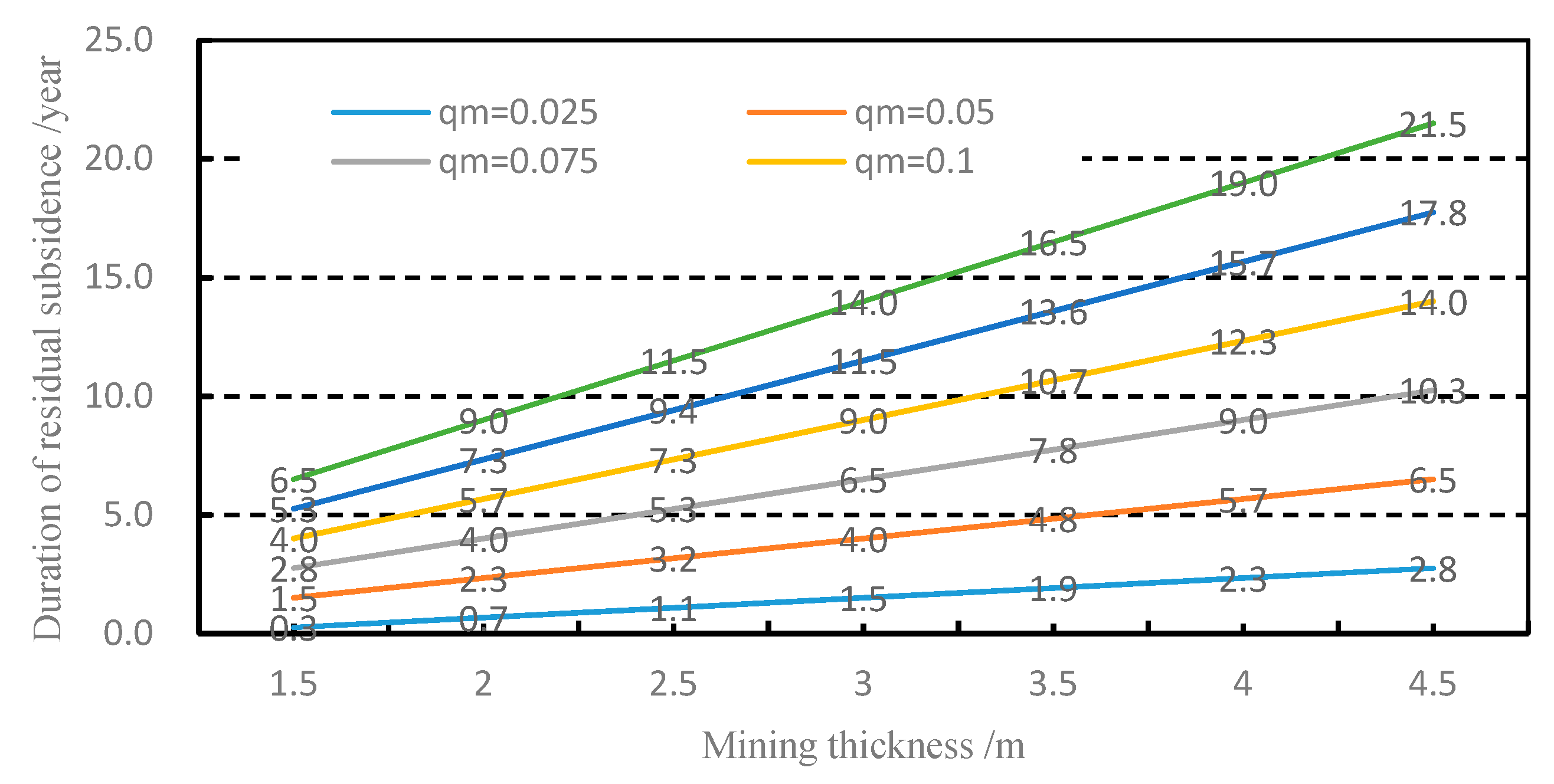

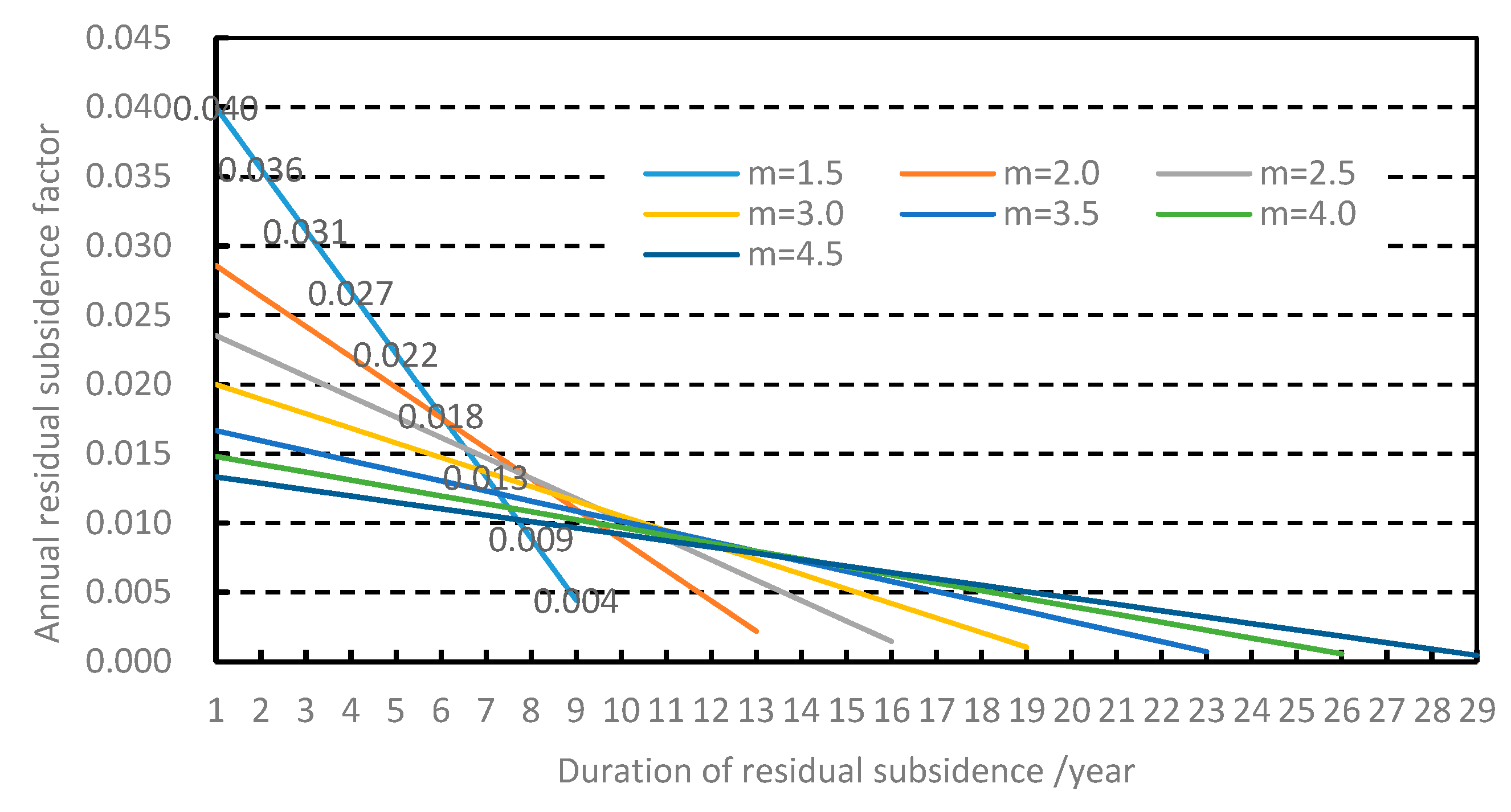

As shown in Expression (7), the duration of residual surface subsidence is predominantly related to the mining thickness and the factor of extreme residual subsidence. In order to qualitatively analyze the duration of residual subsidence, we select coal mining thicknesses of 1.5, 2, 2.5, 3, 3.5, 4, and 4.5 m, respectively, and surface subsidence factors of 0.7, 0.75, 0.8, 0.85, 0.9, and 0.95, respectively. The coefficient related to the compaction of caved or broken rock is 1 and the dip angle of the coal seam is 0°. The distribution of the residual subsidence duration is shown in Figure 3, indicating a linear increase in the duration with the increasing of mining thickness for the same factor of extreme residual subsidence. The duration also increases linearly with the increasing of the factor of extreme residual subsidence for the same mining thickness. With other conditions kept constant, and only the coefficient related to the compaction of caved or broken rock reduced to 0.5, the duration of residual subsidence decreases (Figure 4). Thus, the duration of residual surface subsidence can be quantitatively determined once the mining thickness and the factor of extreme residual subsidence are known for specific geo-mining conditions.

In order to calculate the factor of annual residual subsidence, the duration of residual surface subsidence is employed as a minimum integer that satisfies Expression (7). For the factor of an extreme residual surface subsidence, $q_m$, of 0.2, the distribution of the annual residual subsidence factor for different mining thickness is shown in Figure 5. The larger the mining thickness, the longer the duration of residual subsidence. The thinner the mining thickness, the larger the residual subsidence factor in the first year. For instance, the duration of residual subsidence for a mining thickness of 1.5 m is 9 a, and the annual residual subsidence factor is 0.04, 0.036, 0.031, 0.027, 0.022, 0.018, 0.013, 0.009, and 0.004 from the first year to the last year, respectively. The sum of the annual residual subsidence factor is 0.2, which equals $q_m$.

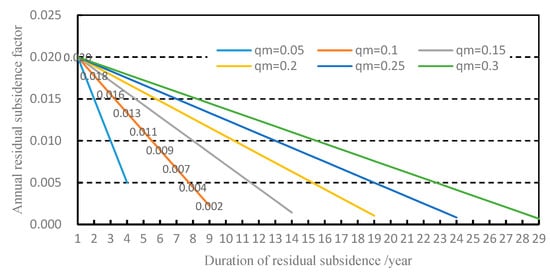

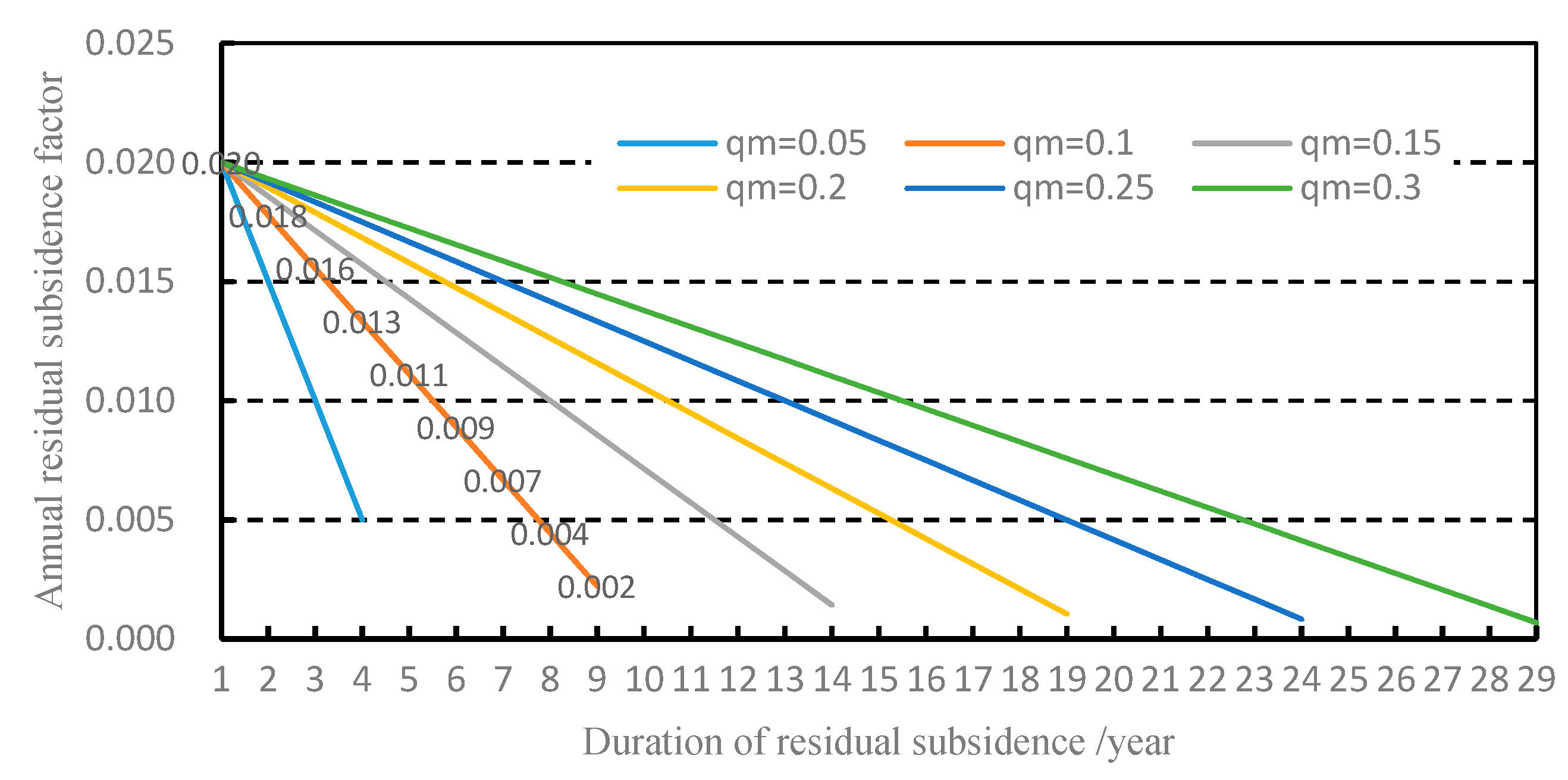

Figure 6 shows the factors of annual residual subsidence related to different $q_m$ values for a mining thickness of 3 m. The residual subsidence factors in the first year are all equal. The duration of residual subsidence is 9 a for $q_m$ = 0.1 and the annual residual subsidence factors are 0.02, 0.018, 0.016, 0.013, 0.011, 0.009, 0.007, 0.004, and 0.002 from the first year to the last year, respectively. The sum of the annual residual subsidence factor is 0.1, which also equals $q_m$. The above analysis demonstrates that the duration of residual subsidence and the factor of annual residual subsidence can be quantitatively determined when the mining thickness and the factor of extreme residual subsidence are known.

In 2014, an industry standard known as the subsidence prediction method for coal mining was proposed by the China Technical Identification Committee for Coal Mining Damage [37]. The formula to calculate the annual residual surface subsidence factor is given as

$$q_A^t=k\left(1-q\right)\left(1-e^{-\left(\frac{50-t}{50}\right)}\right)$$

(8)

where $k$ is a coefficient similar to $n$, $k=0.5-1.0$; $t$ is the time after mining completion (a). According to Expression (8), only at $t=50$ can the annual residual subsidence factor decrease to $q_A^{50}=0$. Thus, a duration of residual surface subsidence of 50a is always used, regardless of different geo-mining conditions. The accumulative annual residual subsidence factor calculated with Expression (8) can be up to $18.077k\left(1-q\right)$, which is far beyond the theoretical value of $k\left(1-q\right)$. Compared with the results of Expression (8), Expressions (5) and (7) established in this study are more reasonable and objective.

3. Simulation and Analysis

3.1. Colliery Simulation

The conditions of the colliery simulation are as follows: mining thickness, $m$, is 2 m, dip angle of the coal seam, $\mathsf{\alpha }$, is 0°, and the average mining depth, $H_0$, is 438 m with a medium hard overburden. The longwall coal mining was completed in 2010 and the mined-out panels have reached supercritical mining. The surface subsidence factor, $q=0.7$, is determined by processing the results of field measurements. According to a previous study, the duration of surface subsidence is determined by the regulations of coal mining under buildings, water bodies, railway and safety pillar design [38].

$$T=2.5H_0=1095 \mathrm{days}=3 \mathrm{a}.$$

(9)

Accordingly, surface movement will cease three years after mining completion and residual surface subsidence will begin in 2014. Based on the safety design, the limit value of the coefficient $n=1$ is selected and the extreme residual surface subsidence factor is given as $q_m=0.3$. Using Expression (7), the duration of residual surface subsidence is determined as $T_r=19 \mathrm{a}$. The calculated factors of annual residual surface subsidence vs. time is shown in

Table 1. Calculated factors of annual residual surface subsidence for the colliery simulation.

Year	Annual Residual Subsidence Factor	Annual Residual Subsidence/mm
2014	0.030	60
2015	0.028	58
2016	0.027	54
2017	0.025	50
2018	0.024	48
2019	0.022	44
2020	0.021	42
2021	0.019	38
2022	0.017	34
2023	0.016	32
2024	0.014	28
2025	0.013	26
2026	0.011	22
2027	0.009	18
2028	0.008	16
2029	0.006	12
2030	0.005	10
2031	0.003	6
2032	0.002	4
Σ	0.3	600

.

Because of supercritical mining, based on the prediction theory of the probabilistic integral method, the total residual subsidence is $m{q}_{m}cos\alpha =2000\times 0.3\times 1=600 \mathrm{mm}$, which equals the sum of the annual residual subsidence, as shown in Table 1. The factor of accumulative annual residual subsidence from 2014 to 2018 is 0.134, and the corresponding accumulative residual subsidence is 268 mm. The factor of accumulative annual residual subsidence from 2019 to 2032 reaches 0.166; thus, the potential residual subsidence in the future would be 332 mm, which accounts for 55.3% of the total residual surface subsidence. According to the prediction in Table 1, approximately 89% of the residual subsidence should have occurred by the end of 2026. Although there are no field measurement data of residual subsidence to allow a comparison with in situ results and an assessment of the prediction accuracy, we are able to quantitatively calculate the annual residual subsidence, accumulative residual subsidence, and potential future residual subsidence.

3.2. Field Study

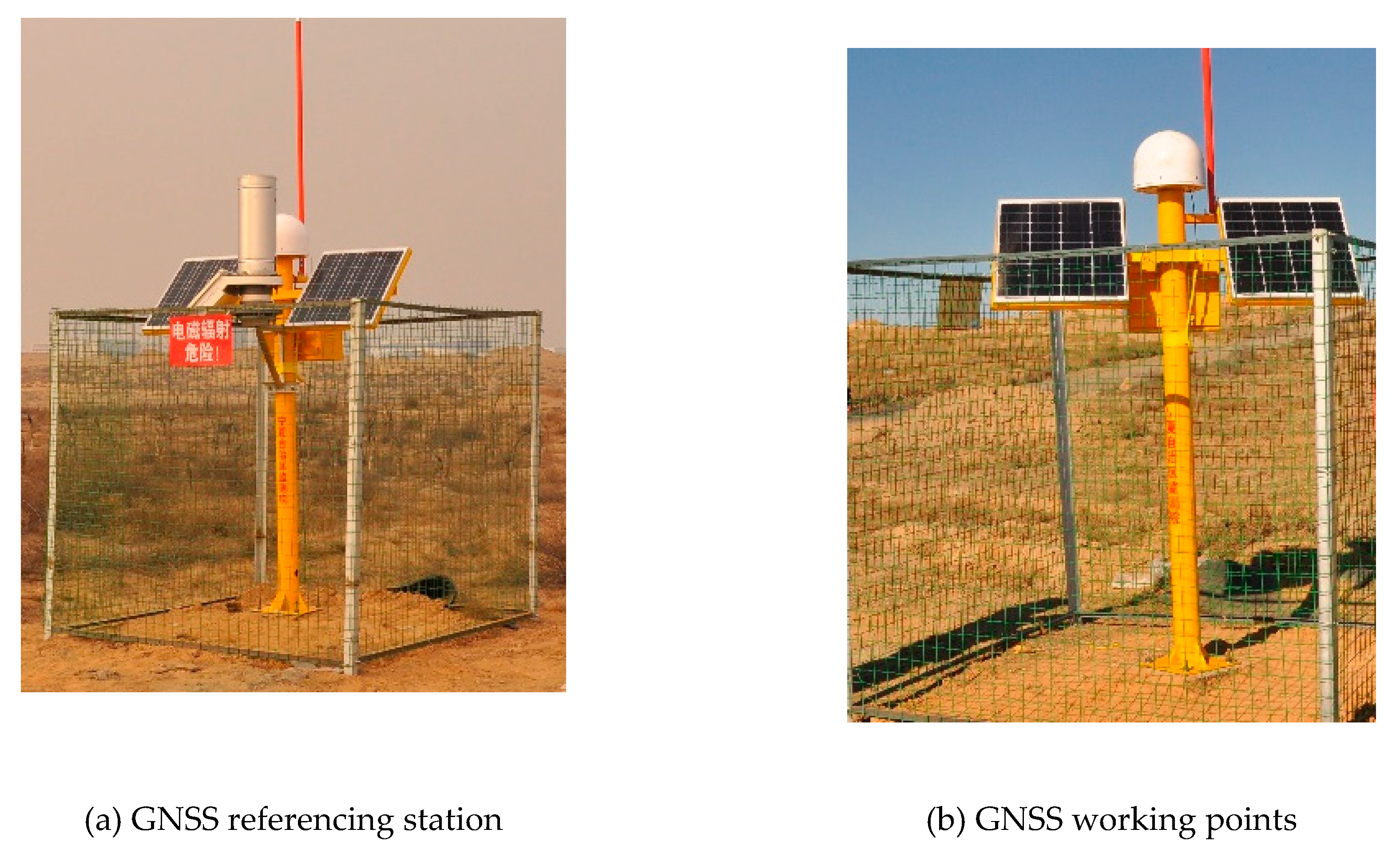

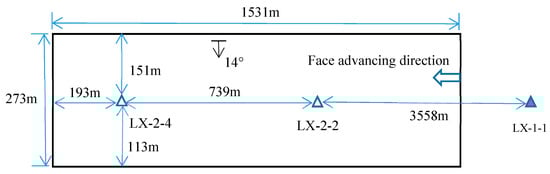

Lingxin colliery, located in Yinchuan of Ningxia Hui Autonomous Region, was merged in 2003 with the Ciyao No. 2 mine. From July 2014 to June 2015, the longwall face of 051603 was extracted with roof caving management. The altitudes of the surface and coal seam for 16# are 1310 m and 1148 m above Huanghai sea level, respectively. The average mining depth is 162 m, the thickness of the Quaternary strata is 10 m, and the roof strata rock is sandstone, which has a compressive strength of 17.38 MPa and a tensile strength of 1.70 MPa. Most of the surface is covered by sand with minimal vegetation. The mining thickness is 2.97 m, the dip angle of the coal seam is 14°, and the average mining rate of the longwall face is 1350 m/a. The strike and dip length of the working face are 1531 and 273 m, respectively. In January 2015, automatic observation stations using GNSS (Global Navigation Satellite System) with one referencing point and two working points were set up, as shown in Figure 7. LX-1-1 is the referencing point and located far from the mining influence of working face 051603. LX-2-2 and LX-2-4 are the working points. Figure 8 shows photographs of the referencing and working points of GNSS measurement stations.

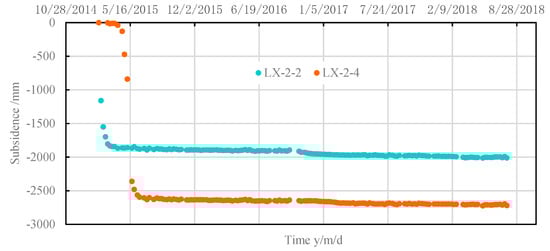

From February 2015 to July 2018, surface subsidence data with 154 epochs were obtained (Figure 9). As the established monuments lag the underground mining, the station at LX-2-2 had been impacted by mining at the 051603 working face; therefore, the monitored surface subsidence is a relative subsidence. However, the data from station LX 2-4, located far from the working face, give rise to absolute surface subsidence. In general, the linear decreasing laws of residual surface subsidence display a very similar pattern at both stations, as shown in Figure 9. As mentioned above, the mining depth is shallow, the overburden belongs to weak and soft rock, and surface subsidence is very intense. For station LX-2-4, the initial period is one month, the active period is approximately three months, the weakening period is six months, and the maximum subsidence velocity reaches 108 mm/day. The total duration of surface movement is ten months; i.e., less than a year. From 28 June 2015 to 28 December 2015, the accumulative subsidence is 29.1 mm and thus is less than 30 mm over the six-month period. Therefore, residual surface subsidence begins on 29 December 2015.

In the longwall mining panels that have reached critical mining compared to their mining depth, since the maximum surface subsidence is 2605 mm, the mining thickness is 2.97 m, and the dip angle is 14°, the subsidence factor of $q=0.904$ is determined. The coefficient related to compaction of caved or broken rock is selected as $n=0.5$ and an extreme residual subsidence factor of $q_m=0.048$ is obtained. According to Expression (7), the duration of residual subsidence is 3.6a. We substitute $T_r=4$a into Expression (5) and derive the factors of annual residual subsidence for the first year, second year, third year, and fourth year of 0.019, 0.014, 0.010, and 0.005, respectively. The corresponding residual subsidence values are 55, 40, 29, and 14 mm, respectively.

As shown in Figure 9, the observed residual subsidence is 24 mm in the first year (29 December 2015–29 December 2016), 37 mm in the second year (29 December 2016–29 December 2017), and 22 mm in the third year (29 December 2017–28 July 2018). The calculated residual subsidence results agree well with the observed data, although the calculated residual subsidence in the first year is slightly larger. Unfortunately, there are no monitored data from 29 July 2018 because the automatic GNSS monitoring stations were deactivated for unknown reasons.

4. Conclusions

Under the conditions of the linear monotonic decrease in annual residual surface subsidence and the limit of the sum of annual residual subsidence factors, a model was proposed to calculate the factor of annual residual surface subsidence due to abandoned longwall coal mining. Based on the continuity between surface subsidence in the last year of the weakening period and residual surface subsidence in the first year, we derived an expression to determine the duration of residual surface subsidence. Using the duration and annual residual subsidence factor, we successfully quantified the annual residual subsidence, the accumulative residual subsidence, and the potential future accumulative residual subsidence for given geo-mining conditions. Field measurements indicated a good agreement with the calculated residual subsidence results. This approach can be used to reasonably evaluate the stability and suitability of exhausted or abandoned mining subsidence areas. Therefore, it is highly beneficial for the design of mining subsidence land reclamation and ecological reconstruction.

As is known, the movement of rock strata and ground caused by longwall coal mining is a complicated spatial-temporal process. There are many factors controlling the evolution of movement of caved and fractured zones, such as mining height, mining and roof control methods, rock property and stratigraphic sequence, dip angle, mining sufficiency degree, time factor and so on. With other conditions kept constant, the only coal seam dip angle may result in the shape and height changes of the caved and fractured zone. That is to say that the residual surface subsidence caused by the compaction of the caved and fractured zone would change with the specific geo-mining conditions. The residual surface subsidence factor, expressed as a function of geometric parameters in this paper, is valid for a single longwall panel with sub-horizontal and critical or super-critical mining. The annual greatest damages in the inflection area can be calculated easily by the probabilistic integral method.

On the other hand, the chain pillar between the longwall panels would be designed in order to maintain safety and ventilation. Once the crushed pillars occur due to the actions of long-term load, weathering and water erosion in the underground conditions in the future, the maximum residual surface subsidence would appear in the surface above the crashed pillar. We cannot calculate the coupling residual surface subsidence of a crushed pillar and the compaction of the caved and fractured zone at present. Thus, further aspects now need to be investigated and remain to be solved in the future.
