The Effect of Returning Farmland to Grassland and Coniferous Forest on Watershed Runoff—A Case Study of the Naoli River Basin in Heilongjiang Province, China

Abstract

In the 1950s and 1970s, China implemented large-scale wasteland reclamation in the Sanjiang Plain in eastern Heilongjiang Province, which expanded the area of cultivated land. Cultivated areas alter the quantity of water resources, provide the ecological requirements of river basins, and promote the ecological health of land use. In this study, the grid-based Sacramento (GSAC) model was adopted to simulate various changes in arable land, grassland, cultivated land, and deciduous coniferous forest. Quantitative analysis of the influence of cultivated land change on runoff and under dry season flow was conducted. The results showed that the GSAC model attains a high certainty coefficient in the process of simulating the daily basin discharge and reproduces the daily basin discharge process well for many years. The annual runoff increased between 5.07 and 64.05% due to the return of farmland to grassland and coniferous forest. The return of farmland to grassland greatly impacted runoff. The slope of the grassland and coniferous forest converted from farmland was negatively correlated with the discharge in the basin outlet section. The lower the gradient threshold in the scenario of returning arable land to forest or grassland, the more arable land will be replaced by grassland or deciduous coniferous forest, which could result in more water production in the watershed. Among the different change scenarios, the average flow rate of cultivated land with a slope larger than 15° was the closest to the ecological water demand of the studied watershed. The land use mode of converting cultivated land with a slope larger than 15° into grassland is expected to promote the ecological health of the watershed.

1. Introduction

The study of land use/cover change (LUCC) is an important content in the field of earth surface science. Its impacts on the ecological environment mainly include climate [1,2,3], atmosphere [4], soil [5,6,7], hydrology [8,9,10,11], and biological [12,13] diversity. To better understand the effects of LUCC on the soil hydrological diversity at regional and global scales, research should focus on the assessment of the water cycle, ecological security patterns [10], relationship with ecological water requirements, and choices regarding land use in river basins. Therefore, in recent decades, research on the impact of LUCC on watershed-scale hydrology has become increasingly active.

The LUCC research methods of hydrological effects mainly include the test watershed method, characteristic variable time series method, and hydrological model method. However, due to the limitations of the first two methods [14,15], research on hydrological models, especially distributed hydrological models [16], has become important. In 1969, Freeze and Harlan [17] first proposed the concept of a distributed hydrological model. In 1970, Onstad and Jamieson [18] evaluated LUCC hydrological effects with hydrological models. Gary W and Coutu et al. [19] employed the soil and water assessment tool (SWAT) and the Spearman rank correlation coefficient method to analyze the relationship between runoff changes and LUCC in the Brandie Wanxi watershed. Song Xuan et al. [20] applied the soil conservation service (SCS) hydrological model to study the long-term influence of LUCC on runoff in Lushan County. Ghaffari et al. [21] adopted the SWAT to simulate land use change in the Zanjan-rood basin, Iran, and examined the impact of land use change on surface runoff. In 2012, Niu Zuirong et al. [22] simulated the Qingyuan River watershed with the classified hydrological model. They reported the influence of LUCC on the annual runoff of this watershed on the Loess Plateau. Shi Xiaoliang et al. [23] also used the SWAT to evaluate the hydrological effects of LUCC on the Luan River Basin. Traditional hydrological models only reflect the impact of LUCC on hydrology at specific spatial scales such as hydrological response units and subcatchments, but it is difficult to reflect the impact of LUCC on hydrology at fine scales such as grids.

The spatial density of the hydrological station network in China is fairly low, and the established single-station observation areas of precipitation, runoff and evaporation are 500, 3202, and 5800 km², respectively [24]. Heilongjiang, the northernmost and coldest province in China, exhibits a low spatial density of its hydrological station network, including single-station control areas of precipitation, runoff, and evaporation phenomena of 902, 4078, and 7166 km², respectively [25]. The type of precipitation in this area is rain, snow (from October to May) and/or a mixture of rain and snow. As a result, snow evaporation phenomena occur in this region, which inhibits the use of pan evaporation data collected during evaporation periods to estimate the potential evapotranspiration from all land cover types. The use of traditional hydrological models requiring high data integrity may not be applicable to watersheds with insufficient data (e.g., Heilongjiang Province, China).

In this paper, the land cover situation was studied in the watershed, policies and regulations on returning farmland to grassland or forest in China was obeyed, the topographic slope of the cultivated land was considered, and eight arable land variation scenarios were set, and the variation scenarios of “returning arable land to grass” and “returning arable land to forest” were set on a grid scale. A grid-based Sacramento (GSAC) model was used to simulate the hydrological effect of each grid and the daily discharge at the outlet of the watershed with different scenarios, and the simulated flow rate of the dry season was evaluated, to provide references for rational planning of land use, optimal allocation of water resources and assurance of ecological water demand in the alpine watershed in Heilongjiang Province.

2. Watershed Study Overview

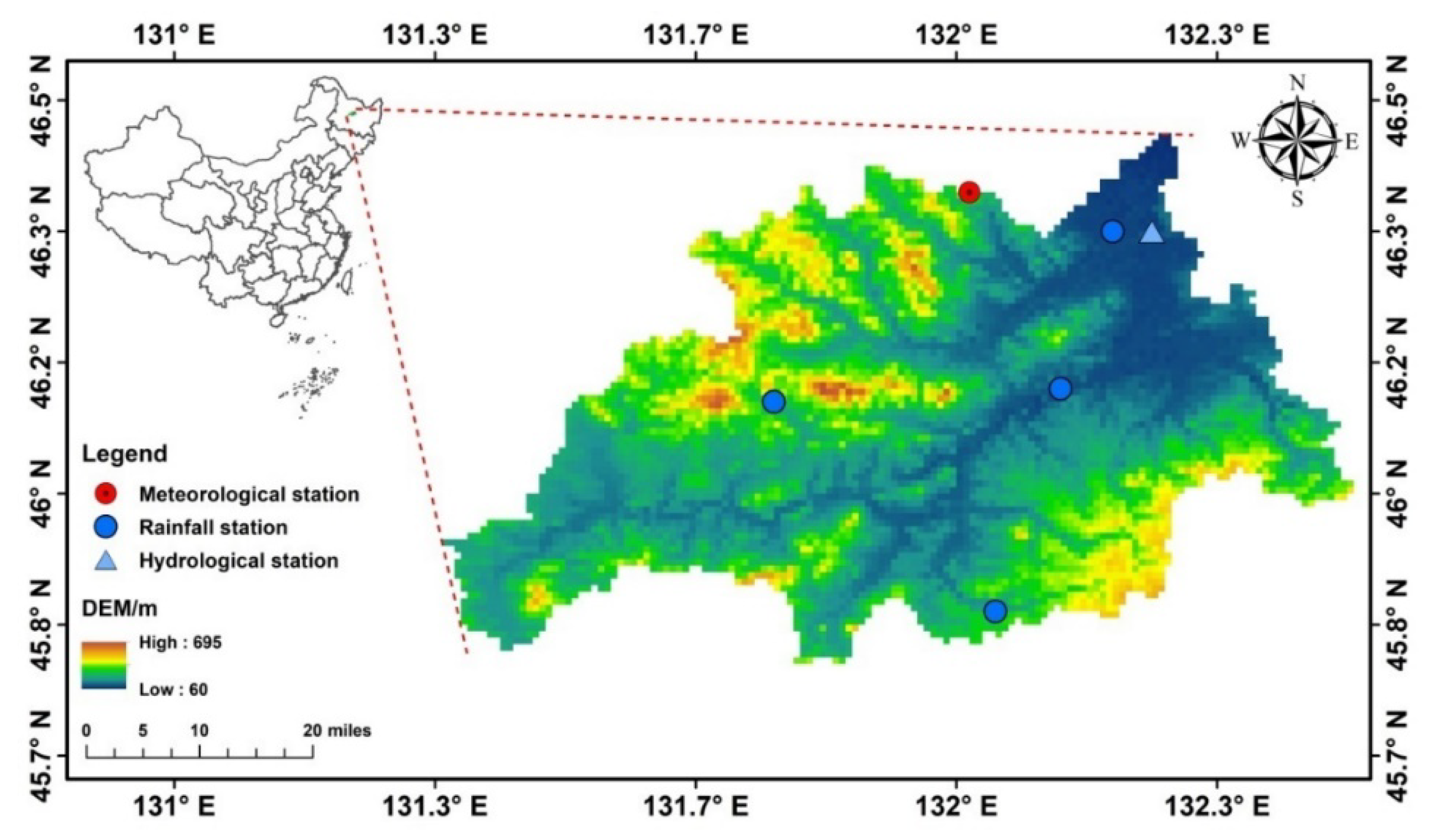

The Naoli River is a tributary on the left bank of the Wusuli River in northeastern Heilongjiang Province, as shown in Figure 1. The stratigraphy of the study area is in the Xingkai Lake-Burea mountain zone. The main minerals in the outcropping layer are biotite-hornblende-anorthose granulite, quartz schist and marble in the Dapandao Formation of the Proterozoic Xingdong Group [26]. There are mountains, hills and plains in the study area, and the terrain elevation decreases gradually from southwest to northeast. The cultivated soil types are black soil, meadow soil, and white clay soil. The thickness of the cultivated layer is over 25 cm, the soil organic matter content is over 3%, and the soil pH value is 6.3–7.0 [27].

In the 1950s and 1970s, China invested a large amount of manpower to carry out large-scale reclamation of wasteland in the Naoli River Basin, which led to a large expansion to the area of cultivated land. Although the expansion of arable land may promote the development of agriculture, it may also aggravate the risk of ecological degradation. Therefore, within a certain range of the topography and slope, the return of farmland to grassland and forestland has been determined by law in China. In October 1998, the Central Committee of the Communist Party of China and the State Council on Post-disaster Reconstruction, Rehabilitation of Rivers and Lakes, and Water Conservancy approved several options, such as mountain closure measures, prioritizing conversion of farmland into forestland during post-disaster reconstruction, deforestation prohibition, and forest closure promotion, and over cultivated land was gradually converted into forestland [28]. In December 2002, to standardize the policy of returning farmland to forestland and to improve the quality and progress of projects, the State Council promulgated certain regulations on the return of farmland to forestland and grassland, bringing them under legal management [29]. In August 2007, the State Council issued a notice to complete the policy of returning farmland to forestland followed by regulations to ensure the protection of the rights and interests of farmers. Furthermore, the State Council supported decisions to extend the farmland policy subsidy term, enhance the building of basic grain crop farmland, transform sloped lands into terraced fields, and strengthen the construction of rural energy [30].

The Baoqing watershed is located in the upper reaches of the Naoli River in the southeastern part of the water system and covers an area of 3689 km², which is the largest catchment area in the Naoli River system. The Baoqing Basin is categorized as having a humid to subhumid continental climate. Warm and rainy summers are typically followed by cold winters with a historical mean temperature and rainfall of 3.5 °C and 518 mm, respectively. The rainfall distribution pattern is uneven, and 72% of the precipitation occurs between June and September. The precipitation accounts for 44% of the annual rainfall in July and August. In this study, we focused on the catchment areas above the Baoqing station to investigate the effects of the return of farmland to forestland and grassland on the watershed runoff.

3. Data Sources and Research Methods

3.1. Data Sources

A digital elevation model (DEM) was derived from the National Oceanic and Atmospheric Administration (NOAA) Data Center [31], with a spatial resolution of 30 inches. The obtained 10-day (three records per month) spot vegetation normalized difference vegetation index (NDVI) dataset was provided by the National Cryosphere Desert Data Center (NCDC) [32], and the source for this dataset is the Flemish Institute for Technological Research, Belgium (VITO) [33], with a spatial resolution of approximately 30 inches. The land cover was represented according to the International Geosphere-Biosphere Programme (IGBP) [34], at a spatial resolution of 30 inches, and the extracted data revealed a total of eight IGBP-based study basin land cover types. The area proportion of the eight land cover types are listed in

Table 1. The area proportion of eight land cover types.

No.	Land Cover Types	Area Proportion of Each Land Cover Type/%
1	Deciduous coniferous forests	0.96
2	Deciduous broad-leaved forests	10.60
3	Mixed forests	45.75
4	Forests	0.05
5	Grasslands	5.55
6	Arable land	36.42
7	Urban and built-up areas and cultivated land	0.05
8	Natural vegetation mosaic areas	0.63

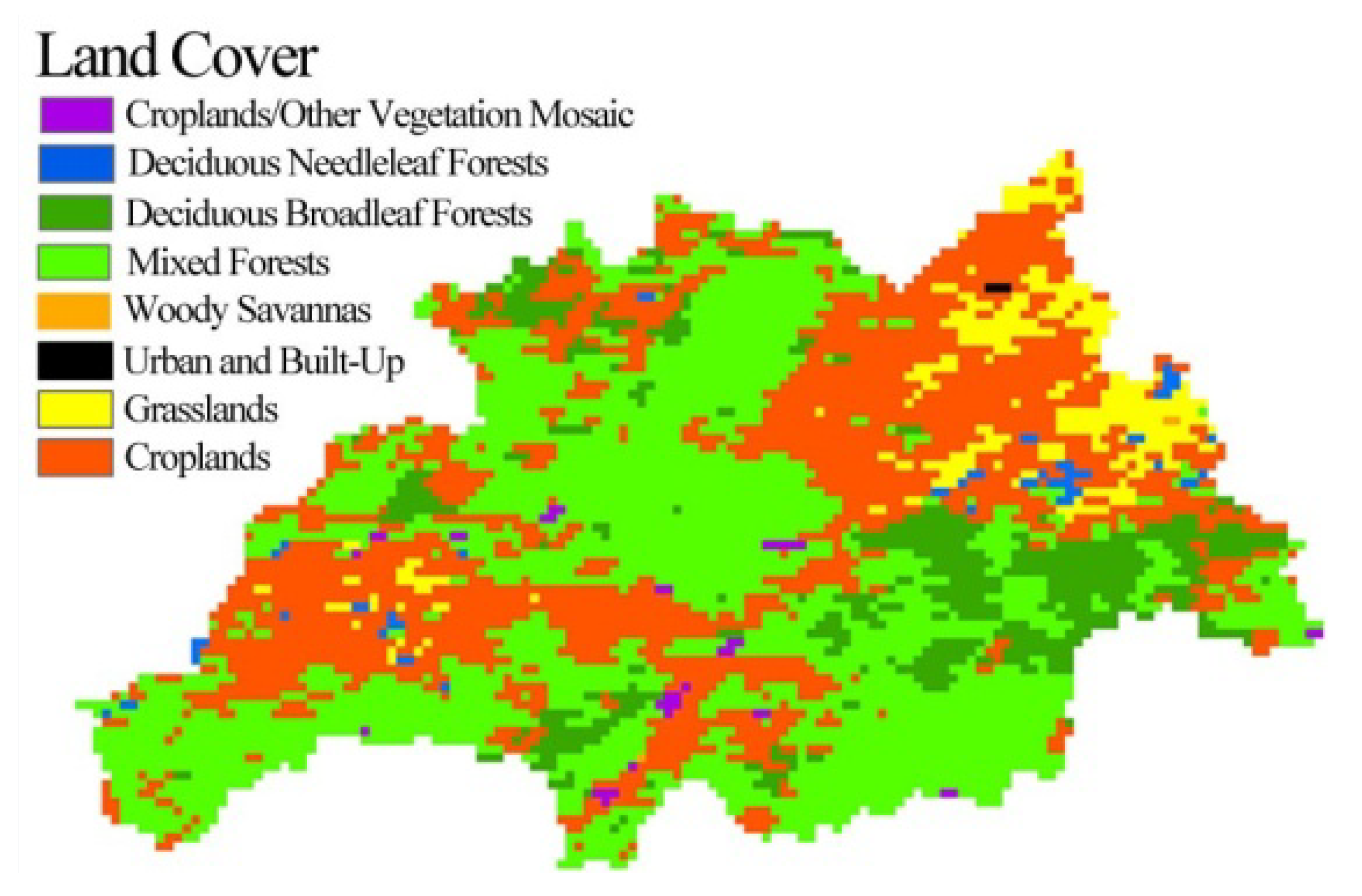

, and the IGBP land cover spatial distribution map of the study watershed is shown in Figure 2. The soil data were provided by the Harmonized World Soil Database (HWSD) [35]. Meteorological data were obtained from the Baoqing station, while runoff and precipitation data were retrieved from China’s Hydrological Yearbook, Heilongjiang River Basin Hydrological Data volume 1. There was a lack of measured flow data from early December to March and April due to the freezing and severing of rivers in winter. In this paper, any missing data were recorded as 0. According to the data collected at rain-measuring and flow stations, the continuity of these two kinds of data is poor and can only be synchronized with meteorological data from 1997 to 2001.

3.2. Model Method

3.2.1. Description of the Grid-Based Sacramento (GSAC) Model

The GSAC model was adopted for the calculation of runoff, infiltration and evapotranspiration. The GSAC model calculates the spatiotemporal distribution of hydrological variables within a basin at a defined grid resolution. The GSAC model simulates canopy interception, snowfall and snowmelt and simplifies the components of actual evapotranspiration (ET) and runoff. HWSD data can be used to determine most of the parameters, and the remaining parameters can be determined by the algorithm. In general, the GSAC model can be driven using only DEM, land cover, NDVI, precipitation, and meteorological data, and the model does not have high input data requirements and can be used for the simulation of hydrological processes in cold areas [23]. The GSAC model was employed to simulate the flow process at the outlet section of the basin under cultivated land change, coupled with the regional ecological water demand problem.

Table 2. GSAC model parameters.

No.	Parameter	Description
1	UZTWM	The upper layer tension water capacity, mm
2	UZFWM	The upper layer free water capacity, mm
3	UZK	Interflow depletion rate from the upper layer free water storage,
4	LZTWM	The lower layer tension water capacity, mm
5	PFREE	Percolation fraction that goes directly to the lower layer free water storage
6	LZFSM	The lower layer supplemental free water capacity, mm
7	LZFPM	The lower layer primary free water capacity, mm
8	LZSK	Depletion rate of the lower layer supplemental free water storage
9	LZPK	Depletion rate of the lower layer primary free water storage
10	REXP	Shape parameter of the percolation curve
11	ZPERC	Ratio of maximum and minimum percolation rates

lists the eleven parameters of the model.

3.2.2. Calibration of The GSAC Model Parameters

Free Search (FS) is a group-based optimization algorithm [36]. In this paper, the Nash–Sutcliffe model efficiency coefficient (NSEC) [37] was used as objective function for calibrating model parameters, with 0 ≤ NSEC ≤ 1 as the constraint condition, and FS was used to calibrate the parameters. Data from 1997 to 1999 were selected, and the parameters of the GSAC model were calibrated with the FS algorithm. Data from 2000 to 2001 were employed to validate the model simulations. The model was tested in regard to the suitability of the determined parameters (1997–2001) for the change in land cover conditions, minimum flow rate at the beginning of each year, and basin grid. The initial values of various variables such as the soil wilting point, water storage quantity, canopy interception volume, and two-layered free water storage were set to zero. The parameters of the GSAC model determined by the FS algorithm are listed in

Table 3. Parameter calibration results of the GSAC model.

Parameter	Unit	Description	Lower Limit	Upper Limit	Value
PZup	N/A	Zup adjustment coefficient	0	5	4.2923
PUZTWM	N/A	UZTWM adjustment coefficient	0.70	1.30	1.0331
PUZFWM	N/A	UZFWM adjustment coefficient	0.70	1.30	0.9847
PUZK	N/A	UZK adjustment coefficient	0.70	1.30	0.9180
PLZTWM	N/A	LZTWM adjustment coefficient	0.70	1.30	1.2536
PPFREE	N/A	PFREE adjustment coefficient	0.70	1.30	0.8117
PLZFSM	N/A	LZFSM adjustment coefficient	0.70	1.30	1.1171
PLZFPM	N/A	LZFPM adjustment coefficient	0.70	1.30	0.8092
PLZSK	N/A	LZSK adjustment coefficient	0.70	1.30	1.0234
PLZPK	N/A	LZPK adjustment coefficient	0.70	1.30	0.9808
PREXP	N/A	REXP adjustment coefficient	0.70	1.30	1.0821
PZPERC	N/A	ZPERC adjustment coefficient	0.70	1.30	1.0232
Tsr	°C	Air temperature threshold	−10	10	2.9942
Mf	mm °C−1 day−1	Degree-day factor	0	12	2.5245
CI	N/A	Interflow storage recession coefficient	0	1	0.8145
CB	N/A	Base flow storage recession coefficient	0	1	0.9457
K	N/A	Muskingum method storage coefficient	0	24	22.3690
x	N/A	Muskingum method weighting factor	0	0.5	0.0150

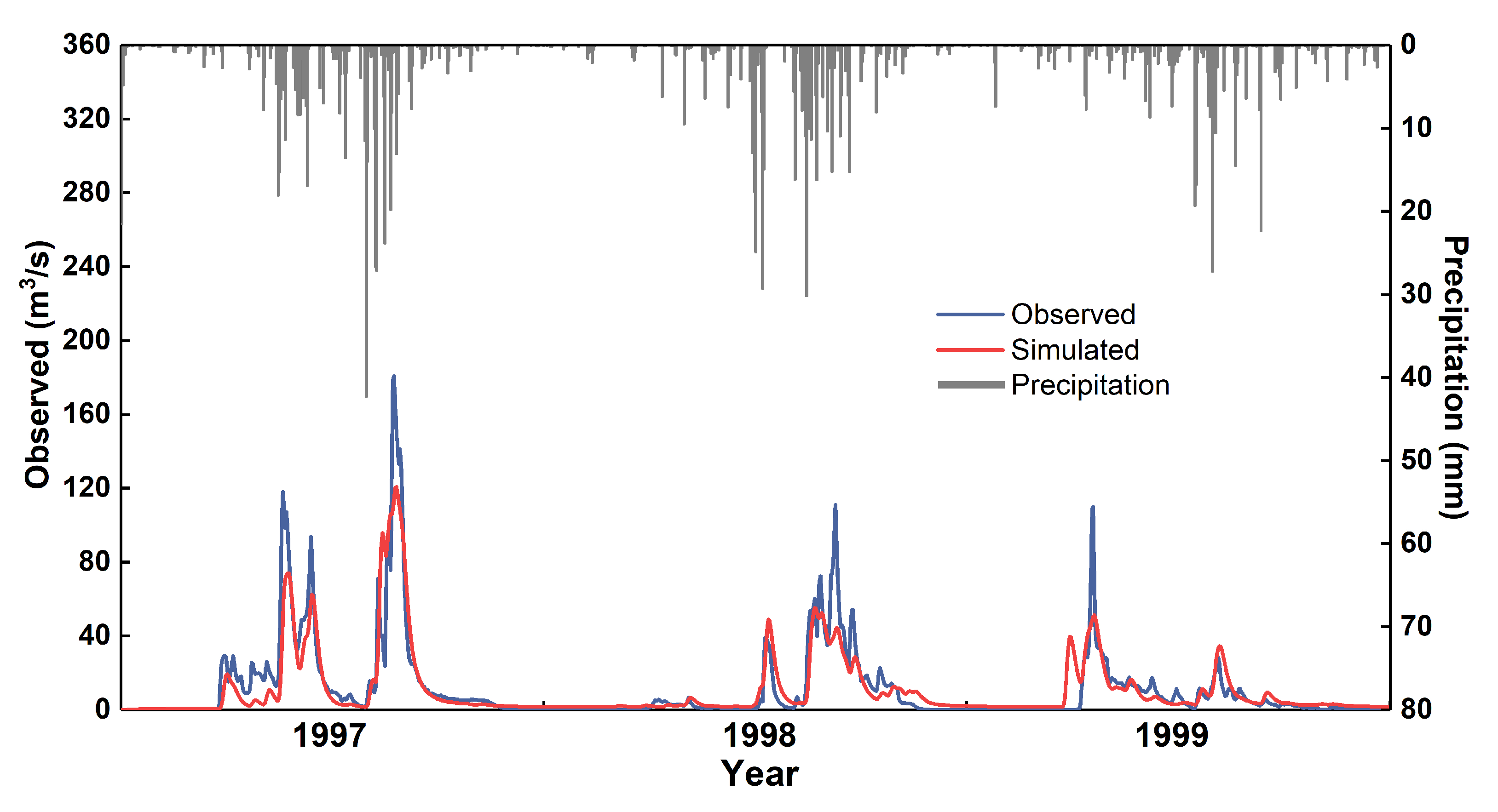

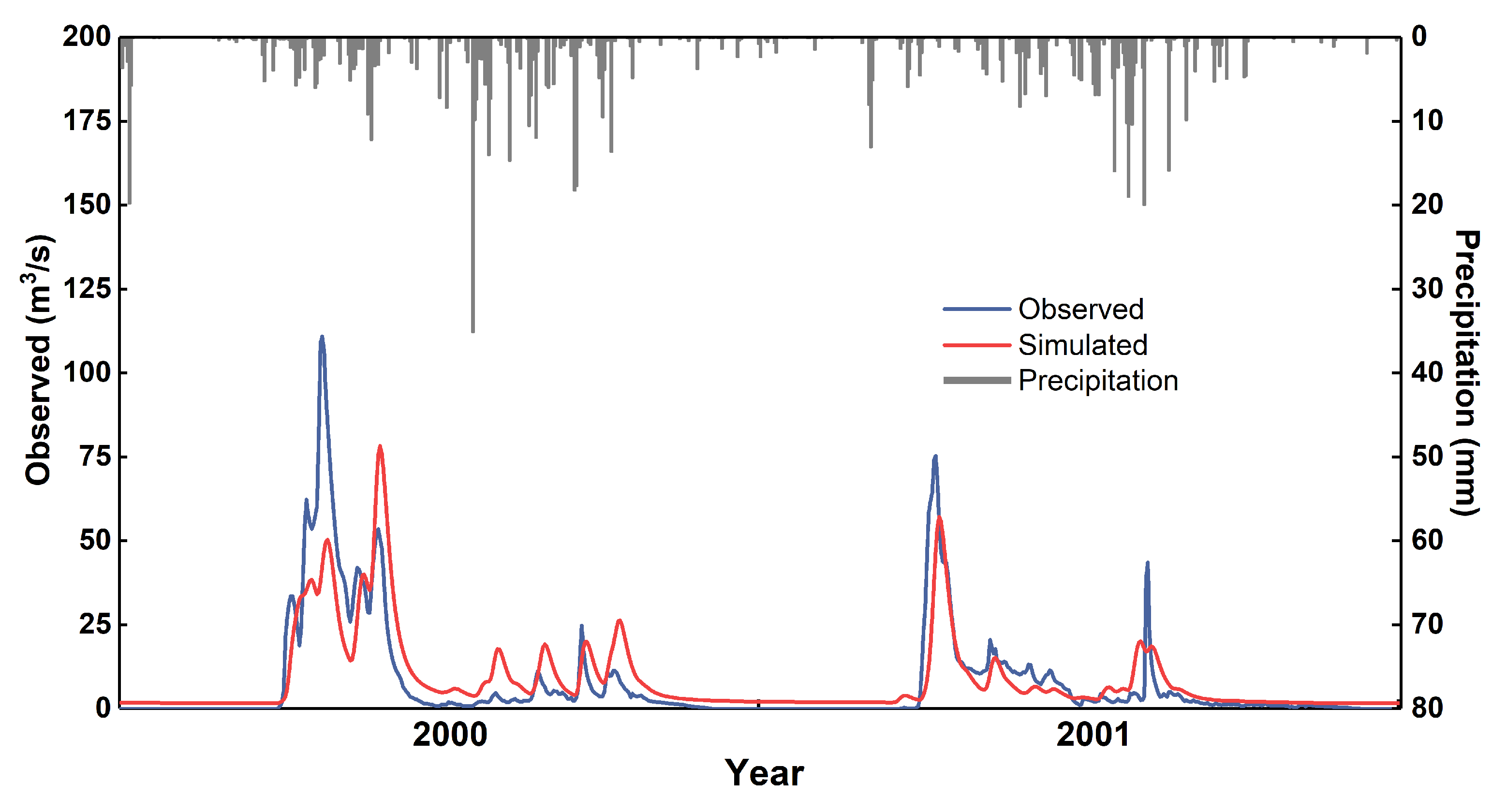

. According to the parameter calibration results, flow simulation results during the test and validation periods were obtained, as shown in Figure 3 and Figure 4, respectively.

$$NSEC=1-\frac{{\displaystyle \sum _{i=1}^n{(Q_{obs,i}-Q_{sim,i})}^2}}{{\displaystyle \sum _{i=1}^n{(Q_{obs,i}-{\overline{Q}}_{obs})}^2}}$$

(1)

where NSEC is the efficiency coefficient of the Nash–Sutcliffe model; Q_obs,i is the measured flow on day i, m³·s⁻¹; Q_sim,i is the simulated flow on day i, m³·s⁻¹; is the mean value of the measured flow series, m³·s⁻¹.

Figure 3 and Figure 4 show the simulated flow results, which are in good agreement with the flow observations. NSEC values of the test and validation periods were calculated, and the NSEC values of the test period from 1997 to 1999 were 0.8086, 0.7607, and 0.5564, and the NSEC values of the validation period from 2000 to 2001 were 0.6416 and 0.6826. According to the Standard of Hydrological Information and Forecasts issued by the Ministry of Water Resources of China, the simulation accuracy of the 1997 and 1998 models is class b and that of the other 3-year models is class c, which suitably reproduces the measured flow process in the section of the Baoqing station. Referring to the model parameterization results (Figure 3 and Figure 4), the GSAC model can be used to study the response of the outlet section discharge to the cultivated land change in the Baoqing watershed.

4. Runoff Simulation Analysis under Farmland Change

4.1. Scenario Setting of Farmland Change

Deciduous coniferous forests and grasslands occupy a small proportion of the area in the research basin. Therefore, when setting the scenarios of the return of farmland to forestland and grassland, only part of the cultivated land is considered to be converted into these two types of land cover. The slope range of the farmland returned to forestland in Heilongjiang Province is between 15° and 25°. For example, it has been stipulated in certain documents that the return of farmland to forestland in Heilongjiang Province mainly focuses on steeply sloping farmland with a slope larger than 25°, sloping farmland with serious soil erosion and an important ecological status, and farmland with severe desertification. The Hengshan District in Jixi City focuses on the conversion of farmland into forestland with wasteland prioritized and half of the mountainous area and steeply sloping farmland with a slope larger than 15°. Hulin city plans to return 1153 mu of sloping farmland with a slope above 15° to forestland during the 12th five-year plan period. Referring to the considered slope in these areas, this paper chooses cultivated land with a slope ranging from 15° to 25° as the research object of the land cover change simulations, and a total of eight land cover change scenarios (please refer to

Table 4. Eight land cover change scenarios.

Change	Description of Land Cover/Change Scenarios
Scenario 0	The actual land cover situation and its spatial distribution
Scenario 1	The cultivated land with a slope above 15° is returned to grassland
Scenario 2	The cultivated deciduous coniferous forest with a slope above 15°
Scenario 3	The cultivated land with a slope above 25° is returned to grassland
Scenario 4	The cultivated deciduous coniferous forest with a slope above 25°
Scenario 5	The cultivated land with a slope between 15° and 25° is returned to grassland, while cultivated land with a slope above 25° is returned to deciduous coniferous forest
Scenario 6	All the arable land is returned to grassland
Scenario 7	All the cultivated land is returned to coniferous forest

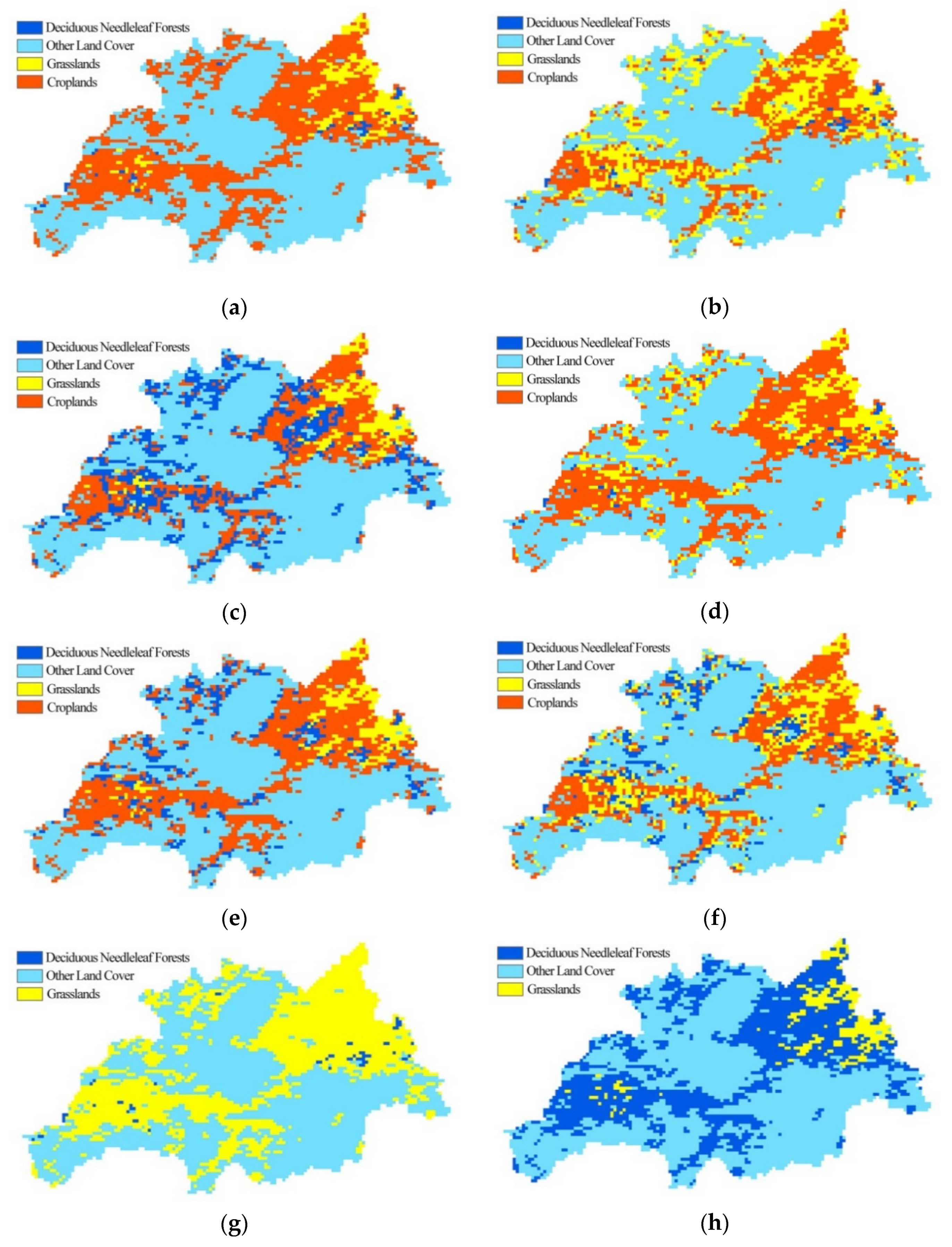

and Figure 5) are designed.

4.2. Runoff Simulations under the Various Land Use/Cover Change Scenarios

The GSAC model was applied to simulate the runoff in different years under the various scenarios, and the results are listed in

Table 5. Baoqing station flow simulation results under the different land cover change scenarios; unit: 10⁸ m³.

Change Scenarios	1997	1998	1999	2000	2001	Average
Scenario 0	4.792	2.897	2.521	3.581	1.822	3.123
Scenario 1	5.481	4.020	3.336	4.573	2.704	4.023
Scenario 2	5.091	3.443	2.831	3.945	2.219	3.506
Scenario 3	5.086	3.375	2.873	4.000	2.197	3.506
Scenario 4	4.916	3.123	2.651	3.728	1.987	3.281
Scenario 5	5.310	3.769	3.113	4.301	2.494	3.797
Scenario 6	6.267	5.391	4.295	5.837	3.825	5.123
Scenario 7	5.432	4.134	3.230	4.431	2.743	3.994

and shown in Figure 6.

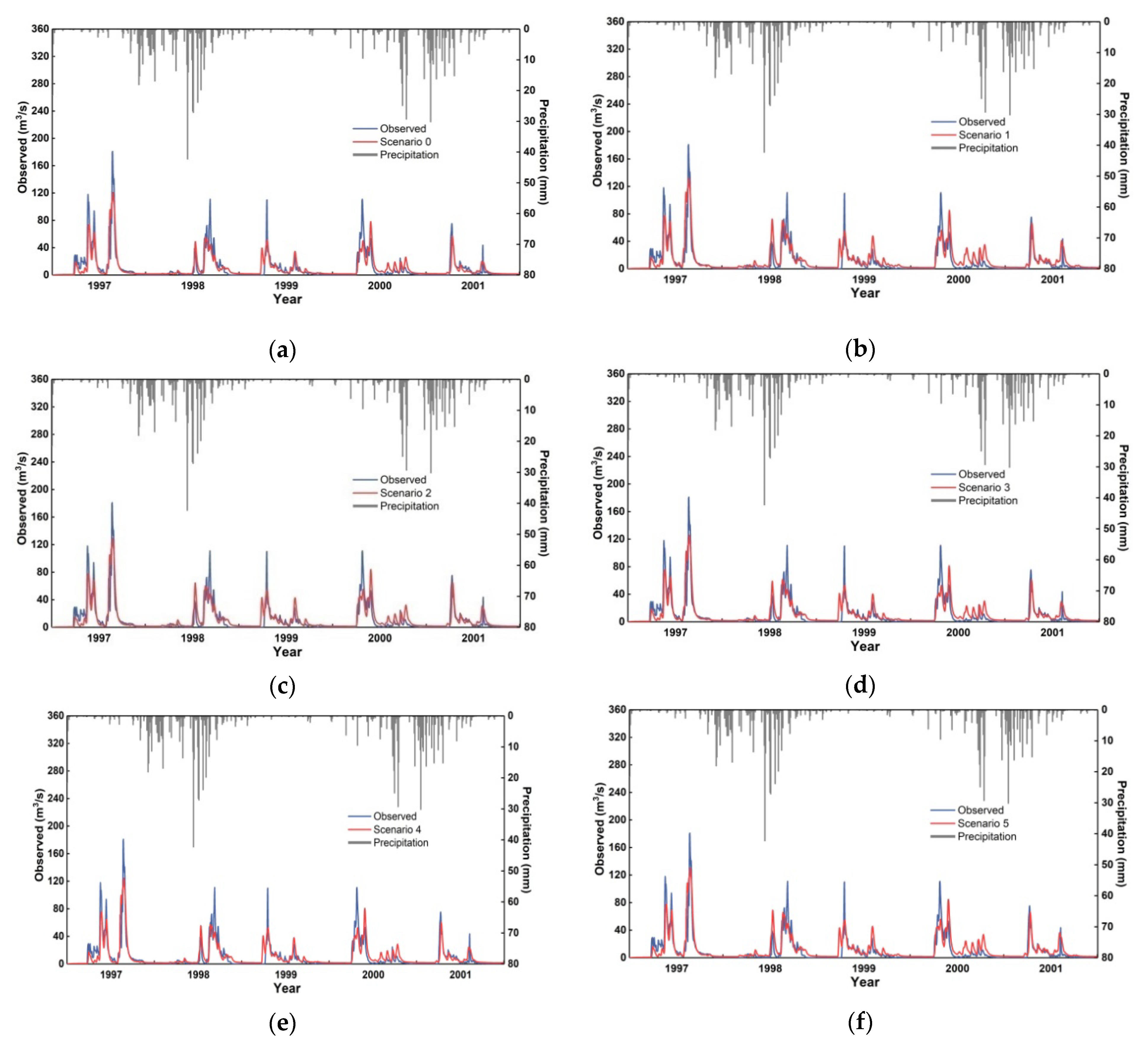

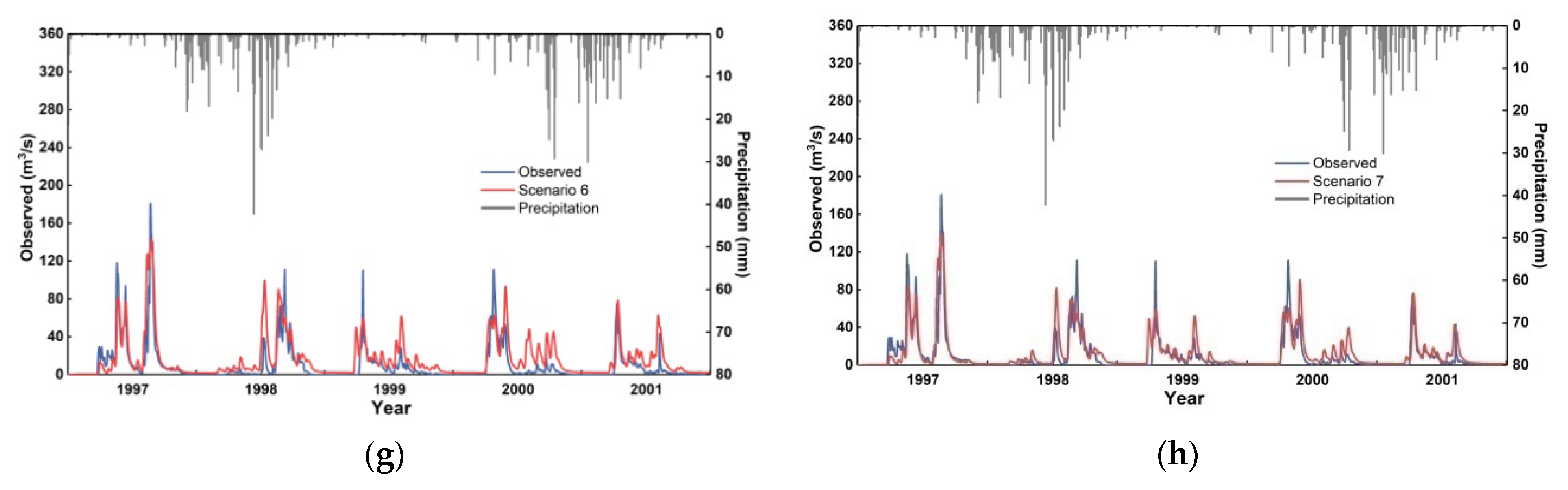

Figure 6 shows the different simulated daily flow dynamics (1997 to 2001) under the various cultivated land change scenarios. The annual runoff under various scenarios (Table 5) varies greatly. Compared with the control “scenario 0”, the annual runoff of scenarios 1–7 showed an increasing trend, within a range of 5.07–64.05%. Among them, the growth under scenario 6 involving the conversion of all arable land into grassland was the largest, followed by scenario 1 involving the return of arable land with a slope larger than 15° to grassland, and the smallest increase occurred under scenario 4 involving the return of cultivated land with a slope larger than 25° to deciduous coniferous forest.

Through the runoff simulations in the Baoqing River Basin, it is found that for the same area of farmland returned to grassland, the flow rate increase caused by the return of farmland to grassland is larger than that caused by the return of farmland to forestland. From the perspective of the watershed topography, the smaller the slope of the farmland returned to grassland or forestland is, the higher the flow rate in the outlet section of the watershed. This occurs because more cultivated land is replaced by grassland or deciduous coniferous forest when a small slope is chosen.

4.3. Land Use/Cover Mode Suitable for the Development of Watershed Water Resources

According to Section 4.2, scenario 6 demonstrates the greatest influence on runoff. However, it is unlikely that this river basin will become a major Chinese grain-producing area. Cultivated land is expected to remain the main land use/cover in this region, based on the real practice of societal production. Considering the actual human production and life needs, cultivated land, as a kind of basic production resource, should not be completely converted into other land cover types. Hence, scenario 6 in this article, under the given numerical simulation conditions, only has a certain reference function. Under the conditions of following the national policies and regulations on the return of farmland to forestland and grassland, scenario 1 represents a desirable land-use model promoting runoff increase in this river basin. When the other land use/cover patterns remain unchanged, reducing the cultivated land area and increasing the grassland area could not only facilitate the development of water resources in the watershed but could also play a corresponding role in improving the local ecological environment and facilitating the development of animal husbandry. The suitable land use/cover patterns for the development of water resources in the basin are summarized in

Table 6. Land cover types suitable for the development of water resources.

Land Cover Code	Name of the Land Cover	Proportion of the Basin Area/%
3	Deciduous needle leaf forests	0.96
4	Deciduous broad leaf forests	10.60
5	Mixed forests	45.75
8	Woody savannas	0.05
10	Grasslands	20.26
12	Croplands	21.70
13	Urban and built-up areas	0.05
14	Croplands/other areas with vegetation mosaic	0.63

.

4.4. Land Use/Cover Mode Applicable to the Ecological Water Demand

The ecological environmental water demand of the watershed needs to be determined, and the R2Cross method and Tennant method are usually used. While the R2Cross method [38] is based on the Manning equation, the Tennant method [39] takes the percentage of predetermined average annual discharge as the recommended river discharge, which is suitable for areas with a lack of ecological data [36]. Both calculations show that there is excellent condition for aquatic life growth when the flow reaches 30% of the average annual flow.

The discharge results during the dry season simulated with grid and the distributed hydrological model in cold regions under the different land cover change scenarios are summarized in

Table 7. Baoqing station flow under the different land cover change scene simulation scenarios; unit: m³/s.

Change Scenarios	Measured	Scenario 1	Scenario 2	Scenario 3	Scenario 4	Scenario 5	Scenario 6	Scenario 7
Average flow rate	0.62	0.81	0.69	0.72	0.68	0.77	0.96	0.73

. For convenience, the measured discharge during the dry season is included in the table.

Similar to the changes in the trend of the annual runoff, the flow under the various simulation scenarios is higher than the measured flow during the dry season, where the corresponding flows under both simulation scenarios 1 (returning farmland with a slope exceeding 15° to grassland) and 6 (converting farmland into grassland) exceed the ecological water demand estimated by the Tennant method (30%). Considering that scenario 6 only represents a simulation, it is difficult to realize in reality. Therefore, the land cover conditions represented by scenario 1 are more suitable for the ecological water demand development requirements of the Baoqing River Basin.

In summary, scenario 1 is not only in line with the development of water resources in this basin but also meets the ecological water demand of this basin. Therefore, scenario 1 is determined to be the appropriate land use/cover mode in this region.

5. Discussion

The influence of land use/cover on runoff in different regions showed different results. Li Jia et al. studied the impact of land use/land cover scenario changes on runoff in the source region of the Yangtze River [40], the result showed runoff decreased 16.7% under the situation of forest and grass land covering the whole area of the basin; runoff increased 16.1% when the forest and grass land area changed into sand land and bare land; runoff increased 28.4% when there were no forest and grass land; runoff increased 5.6% when forest and grass land grew perfectly. Increase of forestland and grassland made the runoff decrease and the increase of sand and bare land led to a rise of runoff.

Jia Jing and Shi Xiaoli took Qinhuangdao area as an example to discuss the impact of land use/cover change on regional runoff [41], and the results show that the rapid increase of cultivated land and the decrease of forest and bare land resulted in the increase of annual average runoff by 4.79%; the increase of forest land and the decrease of cultivated land and bare land resulted in a decrease of the average annual runoff by 3.32%; the urban construction land increased significantly, and the cultivated land and forest decreased, resulting in an average annual runoff increase of 2.62%. The increase of cultivated land and urban construction land can increase the runoff to different degrees, while the forest land can conserve water and reduce the runoff.

The study results of this paper show that the return of cultivated land to grassland on slopes steeper than 15° leads to an increase of the average annual runoff by 29%; the cultivated land being returned to deciduous coniferous forest on slopes steeper than 15° results in an increase of average runoff over the years by 12%; the cultivated land on slopes steeper than 25° being returned to grassland causes an increase in average runoff over the years by 12%; the cultivated land on slopes steeper than 25° being returned to deciduous coniferous forest results in an increase in average runoff over the years by 5%; the cultivated land on slopes between 15° and 25° being returned to grassland, and the cultivated land with on slopes over 25° being returned to deciduous coniferous forest both result in an increase of average runoff over the years by 22%; the cultivated land being completely changed into grassland results in an increase of average runoff over the years by 64%; the cultivated land being completely changed into coniferous forest causes an increase of average runoff over the years by 28%.

According to the simulation results, the increase of the area of farmland converted to forest and grassland in the study area leads to an increase of the average runoff over the years, which is contrary to the data in other study areas. The reason may be that the evapotranspiration of cultivated land in the study area is greater than that of grassland and woodland.

6. Conclusions

The parameters of the GSAC model are calibrated via the simulation of the flow process in the cold and important Baoqing River Basin. During the calibration period from 1997 to 1999, the NSEC values were 0.8086, 0.7607, and 0.5564, and during the validation period from 2000 to 2001, the NSEC values were 0.6416 and 0.6826. The simulation precision is high, and the daily flow process from 1997 to 2001 in the river basin is suitably reproduced. The GSAC model reveals a good applicability in this watershed.

The conversion of cultivated land into grassland could cause an increase in the annual runoff over the control situation. The increase ranges between 5.07 and 64.05%, and the flow rate under the scenario involving the conversion into grassland is high. The influence of grassland and forestland and the watershed outlet runoff distribution shows a negative correlation between the slope and discharge. The lower the gradient threshold of returning arable land to forest or grassland, the more arable land will be replaced by grassland or deciduous coniferous forest, resulting in more water production in the watershed.

There is a large difference in the average annual runoff among the various simulation scenarios. For the same area in the Baoqing River Basin, the conversion of farmland into grassland imposes a greater impact on the flow rate than does the conversion of farmland into forestland. A comparison of the scenarios indicates that the average annual runoff simulated under scenario 6 is the highest. Considering its practical significance, scenario 1 represents the appropriate land use mode to increase the runoff in the river basin under the conditions of following the national policies and regulations on the return of farmland to forestland and grassland. When the other land use/cover patterns remain unchanged, reducing the cultivated land area and increasing the grassland area are not only conducive to the development of water resources in the watershed but also play a corresponding role in improving the local ecological environment and facilitating the development of animal husbandry.

The GSAC hydrological model was applied to simulate the runoff under different LUCC scenarios, and the flow during the dry season at the Baoqing station was determined. The results show that the average annual discharge of the watershed after the conversion of cultivated land to grassland with slopes steeper than 15° could meet the ecological water demand of the region and the actual demand of cultivated land area for stable crop yield in the study area. This result has some guiding significance for the rational planning of land use pattern in the alpine watershed.
