Analyzing Barriers of Circular Food Supply Chains and Proposing Industry 4.0 Solutions

Abstract

The concept of the circular economy (CE) has gained importance worldwide recently since it offers a wider perspective in terms of promoting sustainable production and consumption with limited resources. However, few studies have investigated the barriers to CE in circular food supply chains. Accordingly, this paper presents a systematic literature review of 136 papers from 2010 to 2020 from WOS and Scopus databases regarding these barriers to understand CE implementation in food supply chains. The barriers are classified under seven categories: “cultural”, “business and business finance”, “regulatory and governmental”, “technological”, “managerial”, “supply-chain management”, “knowledge and skills”. The findings show the need to identify barriers preventing the transition to CE. The findings also indicate that these challenges to CE can be overcome through Industry 4.0, which includes a variety of technologies, such as the Internet of Things (IoT), cloud technologies, machine learning, and blockchain. Specifically, machine learning can offer support by making workflows more efficient through the forecasting and analytical capabilities of food supply chains. Blockchain and big data analytics can provide the necessary support to establish legal systems and improve environmental regulations since transparency is a crucial issue for taxation and incentives systems. Thus, CE can be promoted via adequate laws, policies, and innovative technologies.

1. Introduction

According to the UN’s Food and Agriculture Organization, one third of food produced is lost or wasted every year [1]. The report also notes differences between low- and medium-, and high-income countries in terms of the losses at various stages of supply chains. In low- and medium-income countries, food loss mostly occurs at the beginning of the production and supply chains whereas food in high-income countries is thrown away by retailers or consumers to become food waste at the consumption stage [1]. Additionally, the reasons for food losses and waste vary by countries’ income level. In low-income countries, the causes are mostly related to financial restrictions and lack of technical knowledge in harvesting techniques and infrastructure whereas in medium or high-income countries the causes are connected to consumer behaviors and lack of coordination among stakeholders in the food supply chain.

Overall, increasing food waste is becoming a global issue regarding food security, which requires simultaneous management of environmental, economic, and social impacts. In order to eliminate these impacts, it is crucial to create a more sustainable food supply chain. Therefore, the concept of the CE has recently emerged as a response to the current linearity of the food supply chain. It offers an alternative method to the unsustainable linear economic model, which is identified with the ‘take, make, and dispose’ trilogy [2]. Moreover, increasing urbanization poses new challenges globally. More than half of the world’s population already live in urban areas, and this proportion is anticipated to rise to 80% by 2050 [3]. Meanwhile, the tremendously increasing world population increases demand for resources in urban regions as well as causing environmental problems, socio-economic inequalities, and new energy needs [4].

As a sustainable economic method, CE reduces the extraction of raw materials and enables recirculation of resources, thereby creating advantageous environments for both societies and industries. [5]. Among the many aims of CE, the most important is keeping materials available to decrease waste and energy use instead of disposing of them [6]. However, implementing CE requires both radical alternative economic solutions and novel management of resources [7]. CE mainly aims to resolve problems of resource use, waste, and emissions throughout the supply chain. These goals can be achieved by offering products, components, and materials with the minimum possible waste or even zero waste [8,9,10].

The transition from a linear economy to CE has created many requirements, such as increasing product reliability and quality [11]. Due to increased forward and reverse activities in the supply chain, businesses also need to adapt themselves to manage these dynamic characteristics and deal with multiple stakeholders and unpredictable conditions. To achieve CE, it is necessary to deal with various obstacles, such as strict legal regulations, high technology investment, company corporate culture, and insufficient knowledge of CE. While moving towards CE, many business models require a fundamental change to find new sustainable solutions. Businesses must therefore understand and overcome the challenges and barriers of CE to ensure sustainable development.

Despite its importance, few studies have integrated CE philosophy into the food supply chain [12,13]. It is also necessary to analyze the challenges during the transition to CE. While some studies have investigated obstacles to CE implementations [14,15,16], few studies have considered how digital technologies can be used to tackle CE barriers. Therefore, it is important to fill this gap [17]. Accordingly, this paper systematically analyzes the barriers to implementing CE in the food supply chain. It is important to understand current challenges, as viewed by industry, academics, and policymakers, to encourage future research, support companies, and determine the necessary regulations to move towards CE. Then, the importance of digital technologies is presented in order to overcome CE barriers.

The main research objectives of this study are as follows:

-

To investigate the key barriers when implementing CE dimensions in the food supply chain;

-

To systematically categorize CE dimensions for the food supply chain to overcome challenges;

-

To analyze interaction effects between CE dimensions and food supply chain stages and between CE dimensions and sub-sectors of the food industry;

-

To determine the benefits of digital technologies to overcome CE challenges in the food supply chain.

This study contributes to the literature in three ways. First, it provides a systematic analysis of research into CE barriers in food supply chains from different perspectives, such as supply chain stages, geographical context, distribution of food subsector, methods used in publications, distribution of journals, number of publications over time, CE dimensions, focused area, and interaction effects. Second, this study investigates the main barriers to implementing CE in the food supply chain. Finally, the findings of this study can help overcome challenges in circular food supply chains and highlight the importance of digital technologies to overcome CE barriers in the food supply chain.

The remainder of the paper is organized as follows: Section 2 presents the systematic literature review methodology; Section 3 presents the results; Section 4 discusses implications and future insights; Section 5 offers the conclusions.

2. Design of Systematic Literature Review

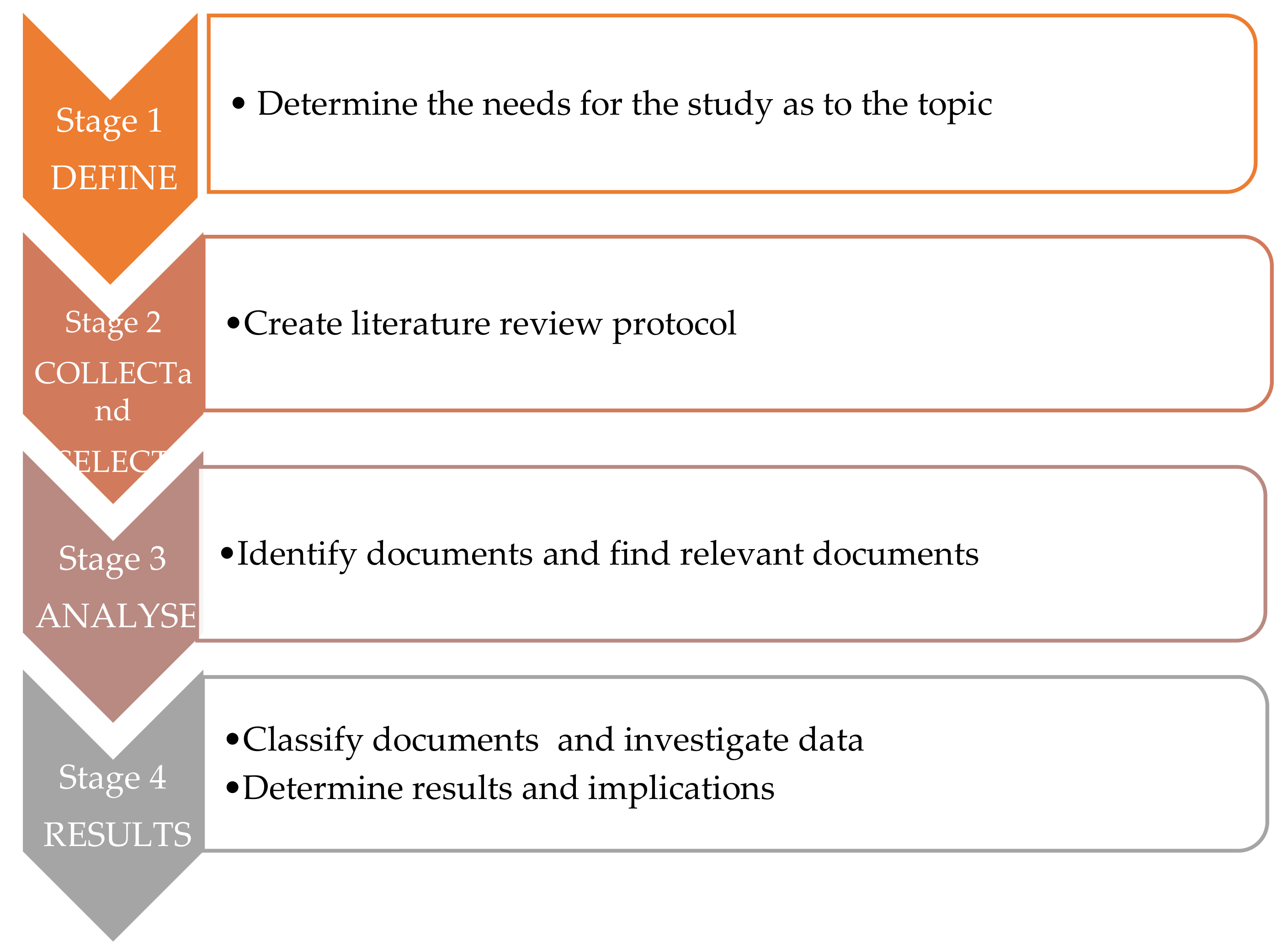

This paper focuses on barriers to implementing CE in the food supply chain. It uses content analysis to investigate main and subordinate CE barriers in food supply chains from different perspectives to identify relationships and interactions among CE dimensions, supply chain stages, and food industry sub-sectors. It is important to identify these barriers to prevent food waste and loss and to propose digital solutions to overcome them. Thus, this study adopted a systematic literature review, which enables an in-depth understanding of any field and can provide clear conclusions for researchers. A systematic literature review follows specific procedures that are reliable, repeatable, and valid across different conditions and periods. Such an analysis aims to identify objective features [18]. The study included multiple researchers to ensure greater validity, objectivity, and reliability of the results compared to the judgments of a single researcher [19]. Content analysis must also follow a clear and predefined process, as shown in Figure 1.

2.1. Selection Process

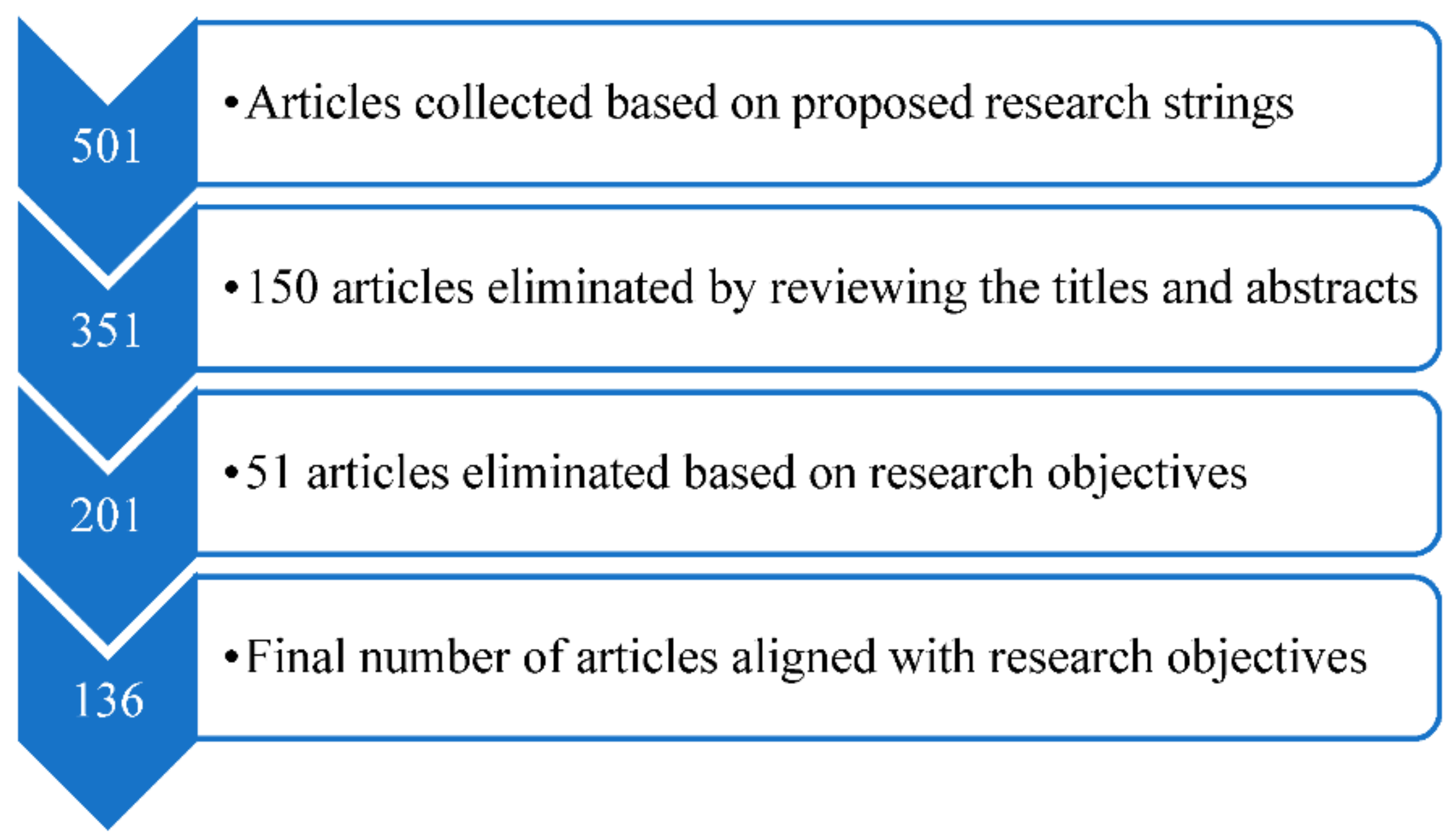

Based on specific research strings applied to WOS and Scopus databases, 501 articles were identified initially. During the selection process, attention was focused on recent publications that successfully passed the search process to meet the research objectives. For the elimination process, keyword searches were performed to determine whether the publications met the objectives. Search strings were defined according to topics related to the search process. This step eliminated 150 articles based on the title and abstract. The remaining 201 articles were then investigated in depth in terms of their research objectives. This yielded 136 articles aligned with the research objectives of this study. The process is summarized in Figure 2.

2.2. Search Criteria

The inclusion criteria for this study can be summarized as follows:

• Articles and conference papers, excluding books and research reports.
• Articles included in Scopus and WOS databases. Previous studies indicate that Scopus is a reputable and valuable bibliographic database for studies published after 1995. The overall coverage of the Scopus database is wider than in academic journals, and only a small percentage is not indexed in the relevant journals [5,8]. WOS and Scopus were used together to increase the reliability of the data in the present study [14].
• Articles matching the search string in

  Table 1. Search strings.

  Topics	Search String
  Barriers	“barriers of circular economy” OR “challenges of circular economy” OR “circular economy barriers” OR “circular economy challenges”
  	AND
  Food Supply Chain	“food supply chain”
  	AND
  Circular Economy	“closed-loop economy” OR “circularity” OR “application of circular economy” OR “implementation of circular economy”
  	AND
  9Rs	“reuse” OR “reduce” OR “recycle” OR “repair” OR “remanufacture” OR “repurpose” OR ‘recycle’ OR “recover” OR “rethink”.

  (searching in titles, abstracts, keywords).
• Articles written in English.
• Articles with open access option.
• Articles published between 2010 and 2020 to capture recent data.

The selection process is shown in Table 1.

3. Results

The results have two main focuses: CE barriers in the food supply chain; relationships between CE and digital technologies.

3.1. Analyses of CE Barriers in the Food Supply Chain

The analysis was based on the distribution of years, methodology used, keywords, focused areas, CE dimensions, stage of food supply chain, sub-sectors, adoption of CE dimensions, representation of continents and regions, interaction between methods and CE dimensions, and interaction between CE dimension and research focus considering barriers of CE dimension in the food supply chain.

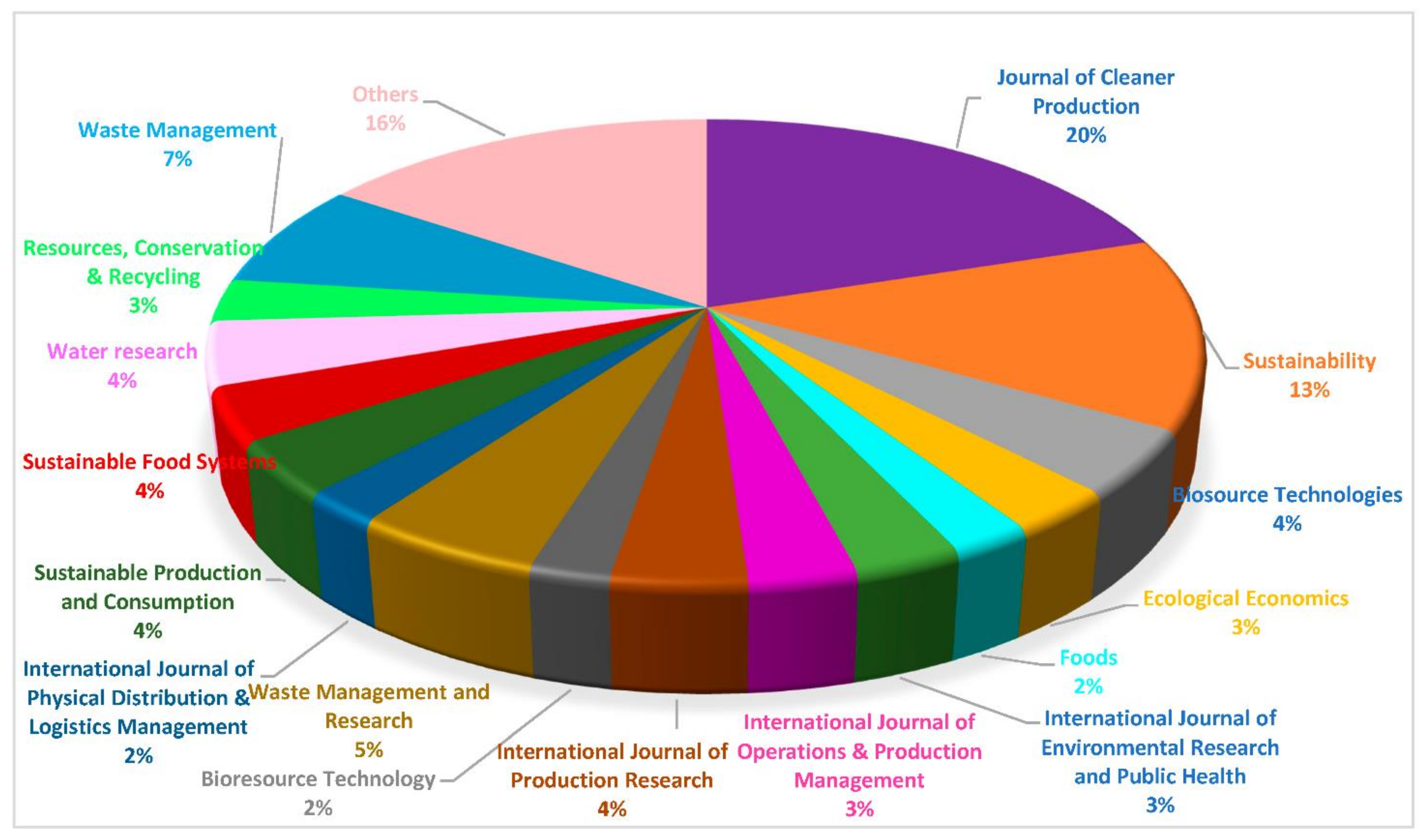

Regarding the distribution of journals (Figure 3), authors most commonly preferred the Journal of Cleaner Production (20%), which mainly focuses on cleaner production, sustainability, and environmental science issues. Other high-impact journals, such as Sustainability and Waste Management, also focus on topics related to CE and sustainability.

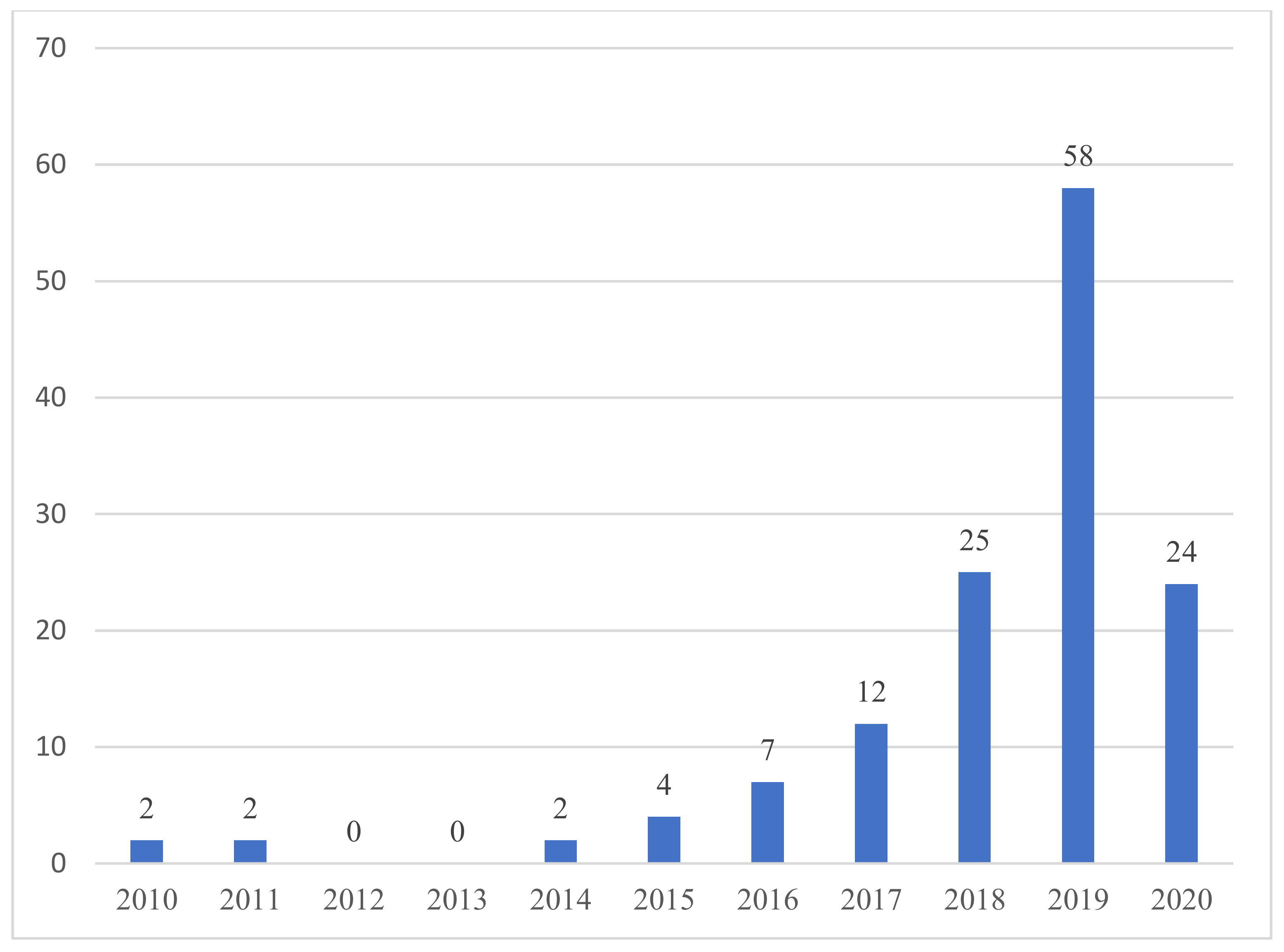

Regarding the distribution of articles over time (Figure 4), CE-related articles increased rapidly between 2016 and 2019. Thus, sustainability and CE in the food supply chain has undoubtedly become a prominent issue during the last 10 years and attracted the attention of researchers, especially regarding CE-related barriers and practices in food supply chains.

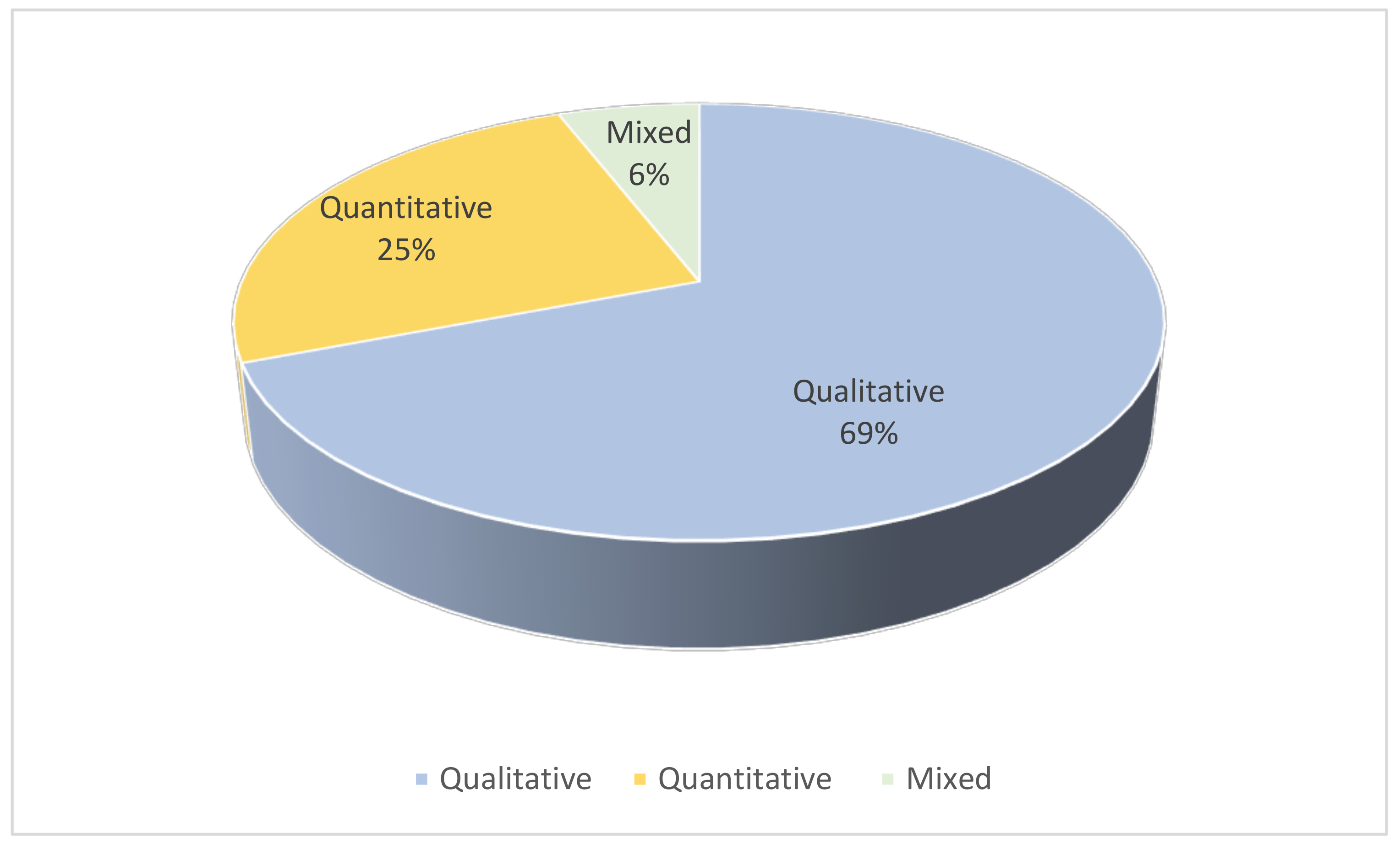

As Figure 5 shows, researchers generally preferred qualitative approaches. The three most commonly used qualitative methods were systematic literature review, case studies, and interviews.

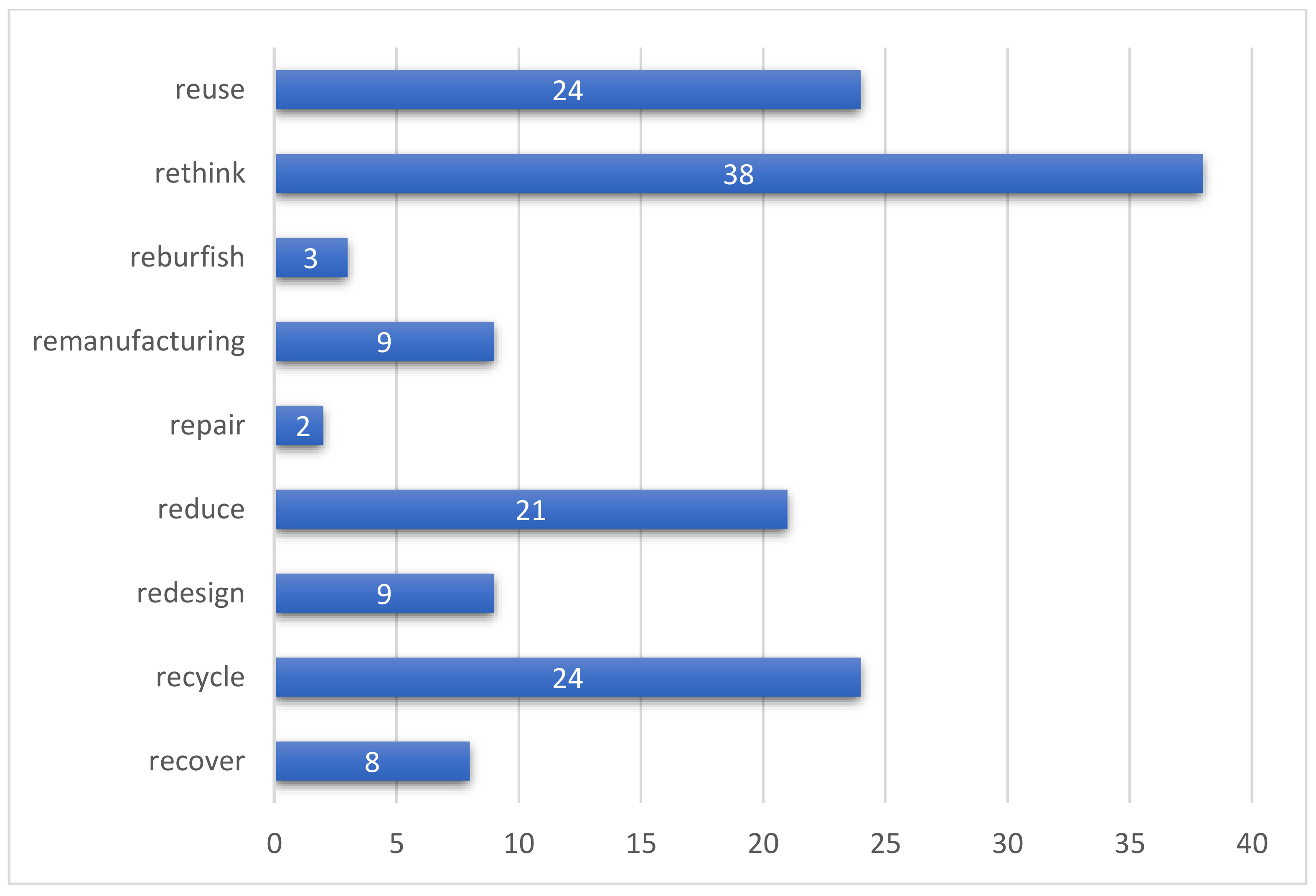

Figure 6 shows the distribution of studies according to their focus on specific CE dimensions based on the 9R framework. CE can be achieved by adapting 9R principles to the supply chain. The most frequently mentioned dimension was “rethinking”, which indicates that overcoming CE barriers requires rethinking at the design stage. The three most frequently mentioned CE dimensions were rethink (28%), recycle (17%), and reuse (16%) whereas the three least frequently mentioned were repair (1%), refurbish (2%), and recover (6%).

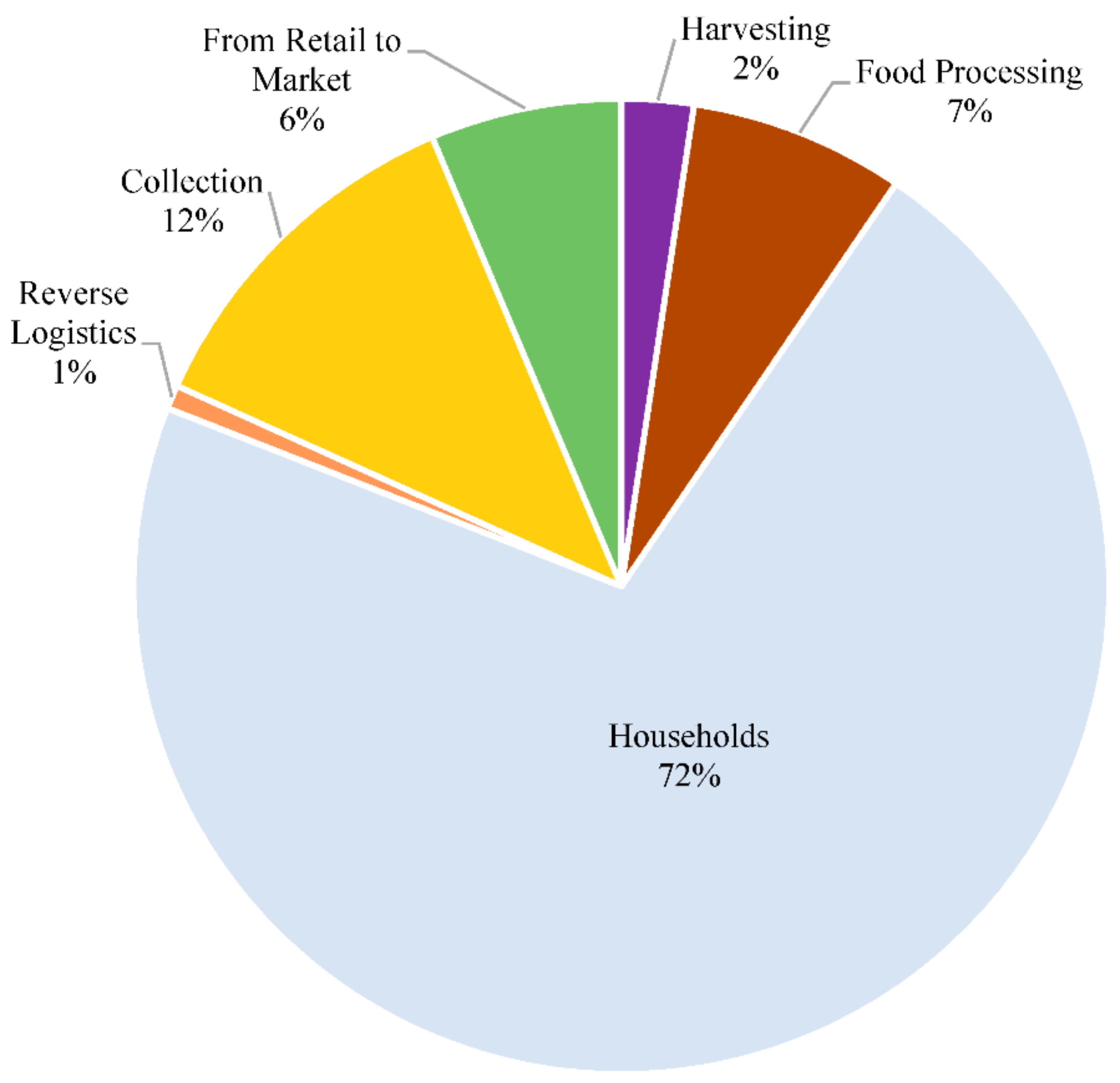

Regarding supply chain stages (Figure 7), most articles (90) focused on consumption, followed by collection (15) and food processing (9). It is worth noting that no articles about barriers to CE in food supply chains focused on ‘farm to factory’, ‘from production facility to retail’, and ‘packaging’. Similarly, ‘reverse logistics’, ‘retail to market’, ‘harvesting’, and ‘collection’ received minimal attention. This finding indicates that more research is needed into certain food chain stages to identify all the barriers to applying CE.

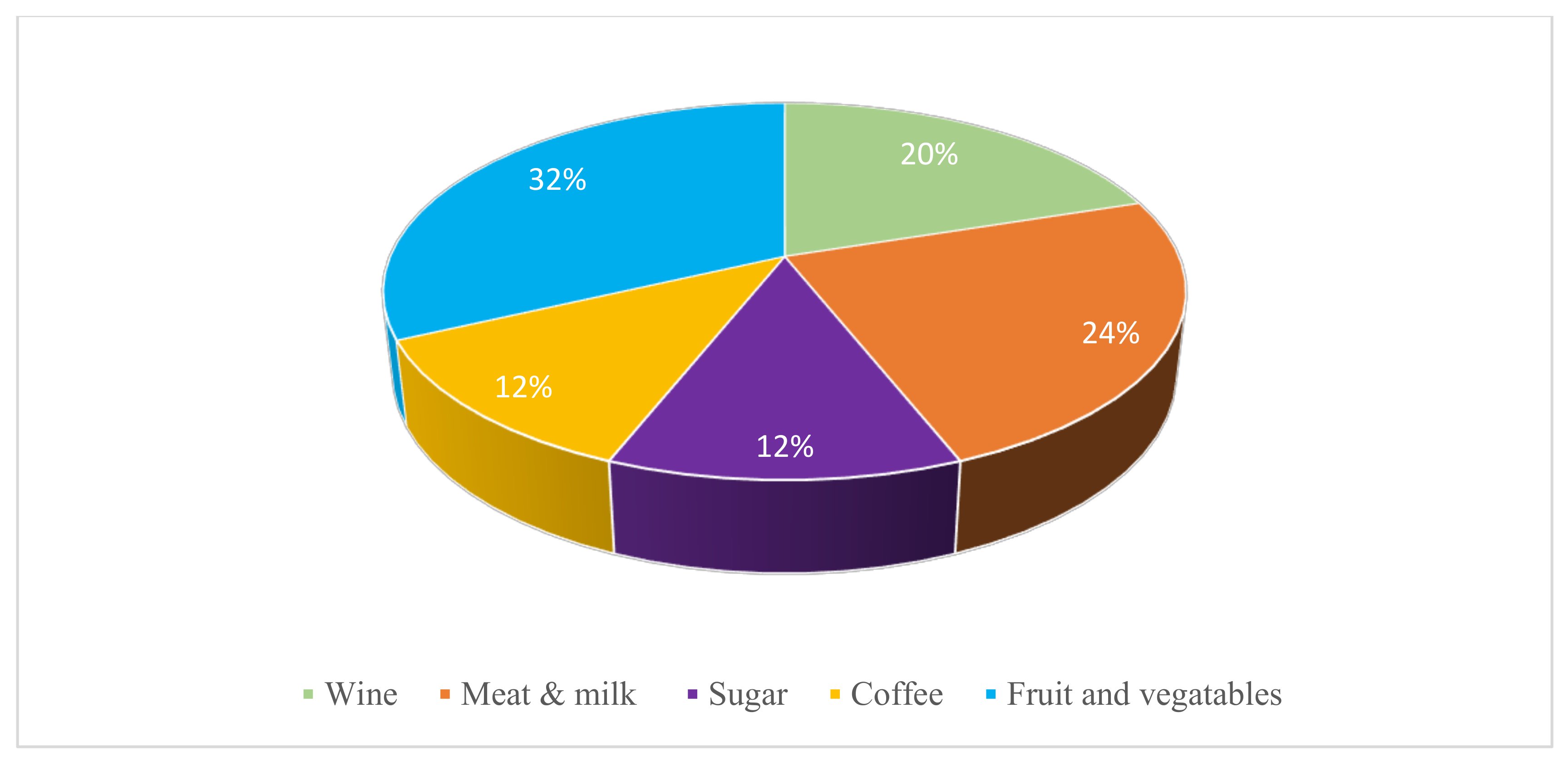

Figure 8 shows which food sub-sectors have adopted CE dimensions in their food chains. The top sub-sector was fruit and vegetables (32%), followed by milk and meat (24%), wine (20%), sugar (12%), and coffee (12%).

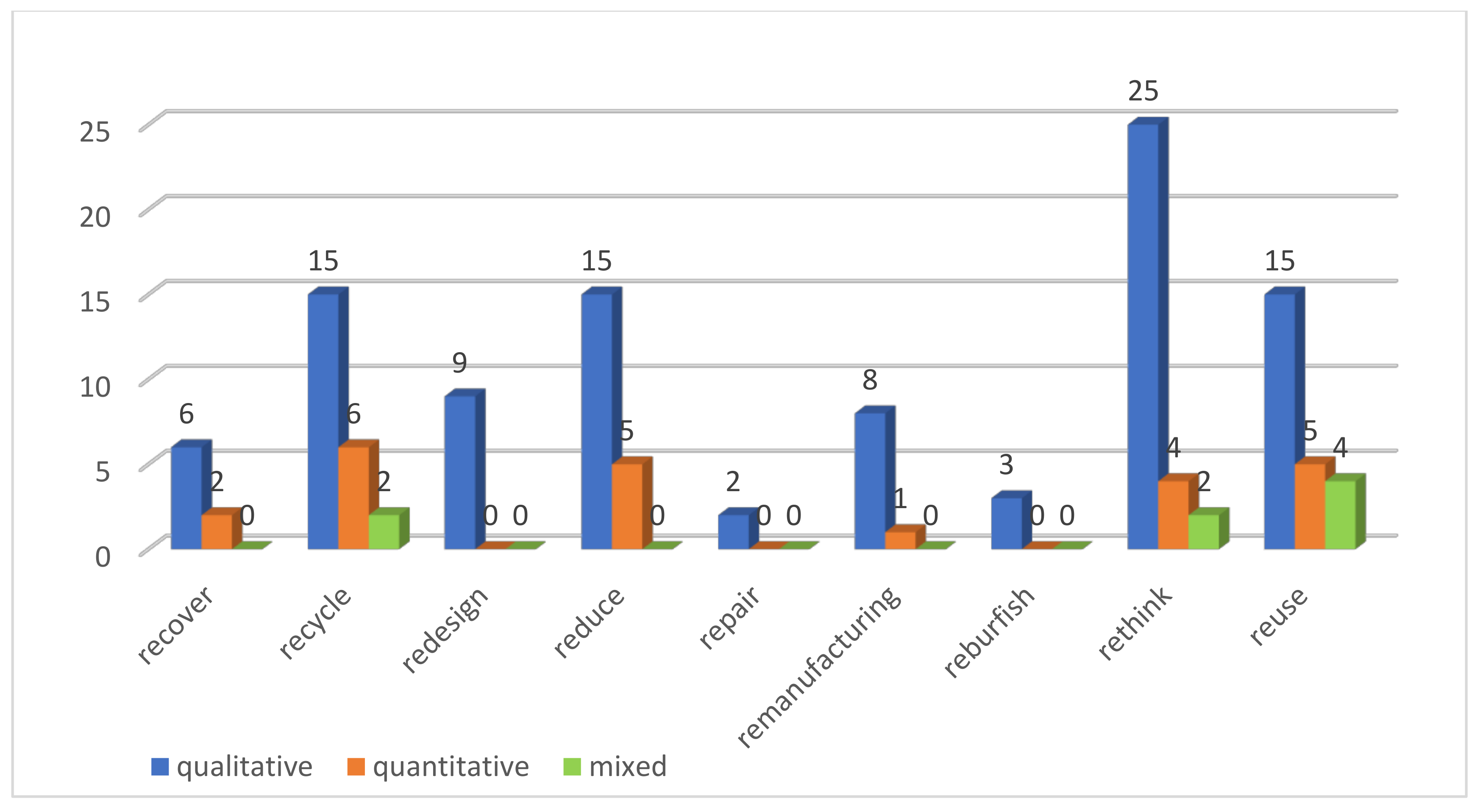

Figure 9 shows the methodology used for studies of specific CE dimensions. Confirming Figure 5, qualitative methodology is most frequently used across all CE dimensions. In contrast, quantitative studies are very limited in this field.

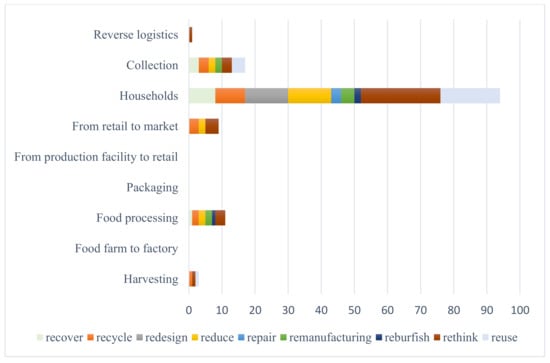

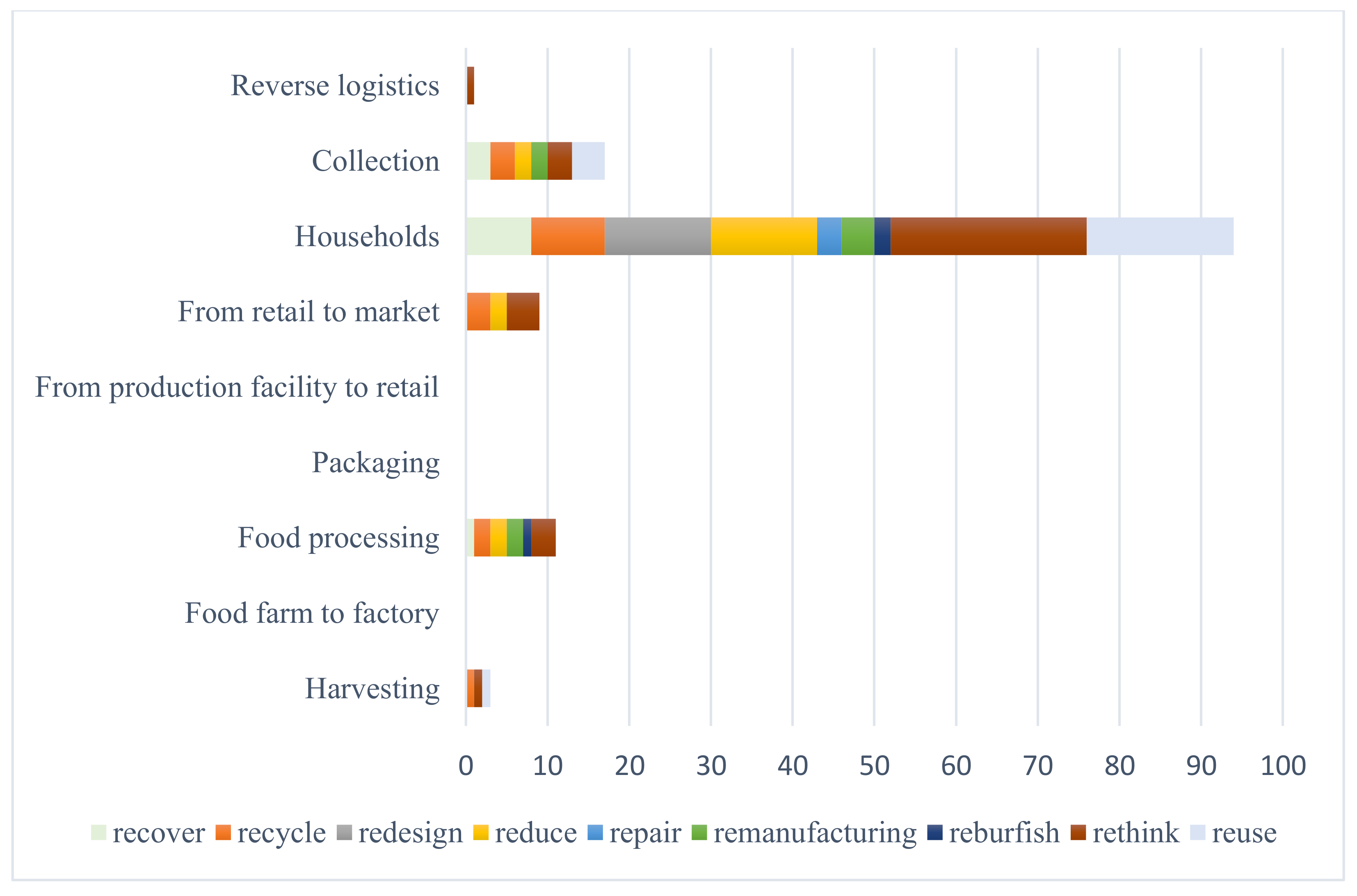

Figure 10 shows the relationship between the stage of the food chain that each article focused on and the CE dimension. The most commonly mentioned CE dimensions were rethink, reuse, and reduce. For household food waste and loss specifically, the findings indicate that all CE dimensions need to be considered and solutions developed in terms of all dimensions.

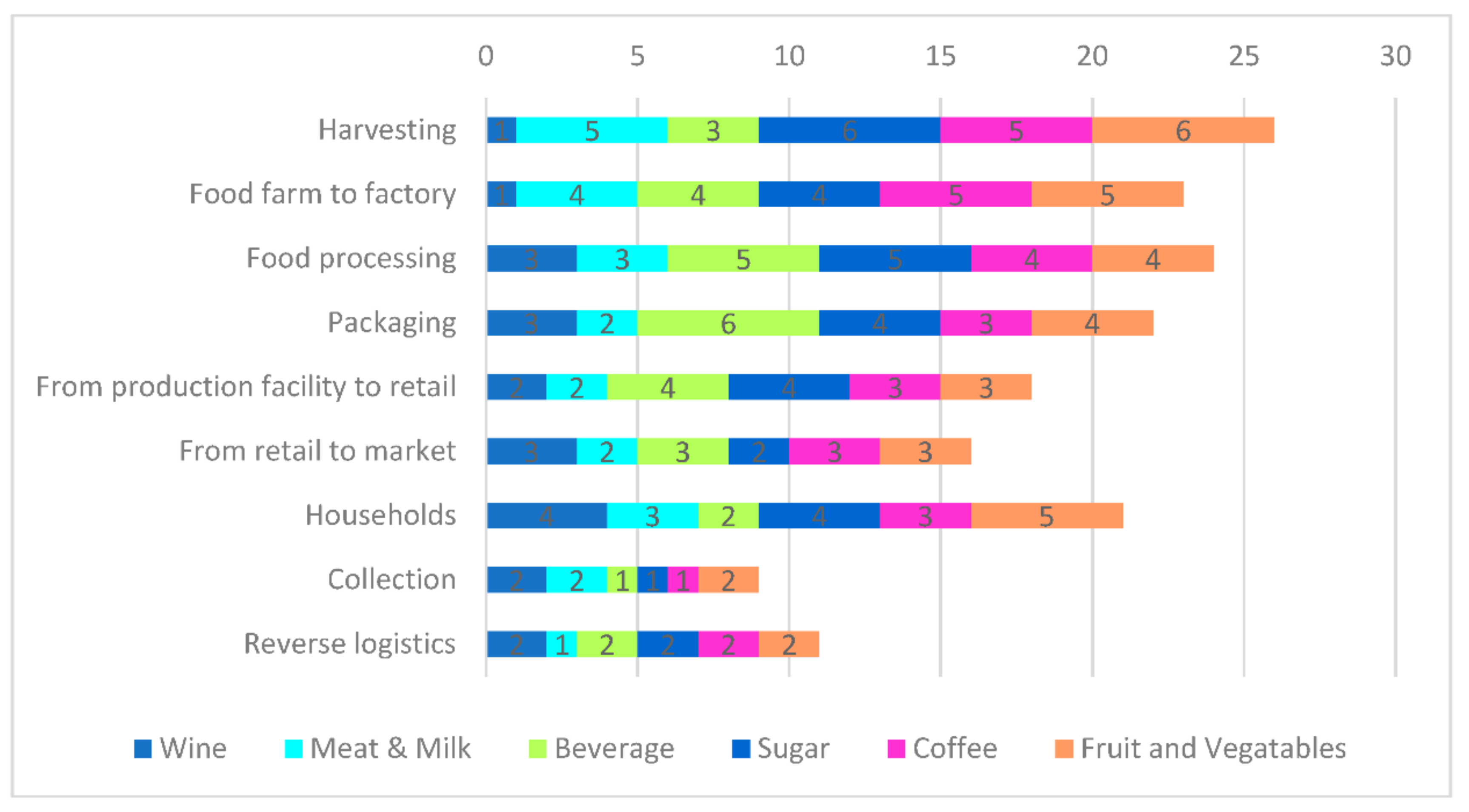

As Figure 11 shows, all food supply chain stages are critical for all of the different sub-sectors.

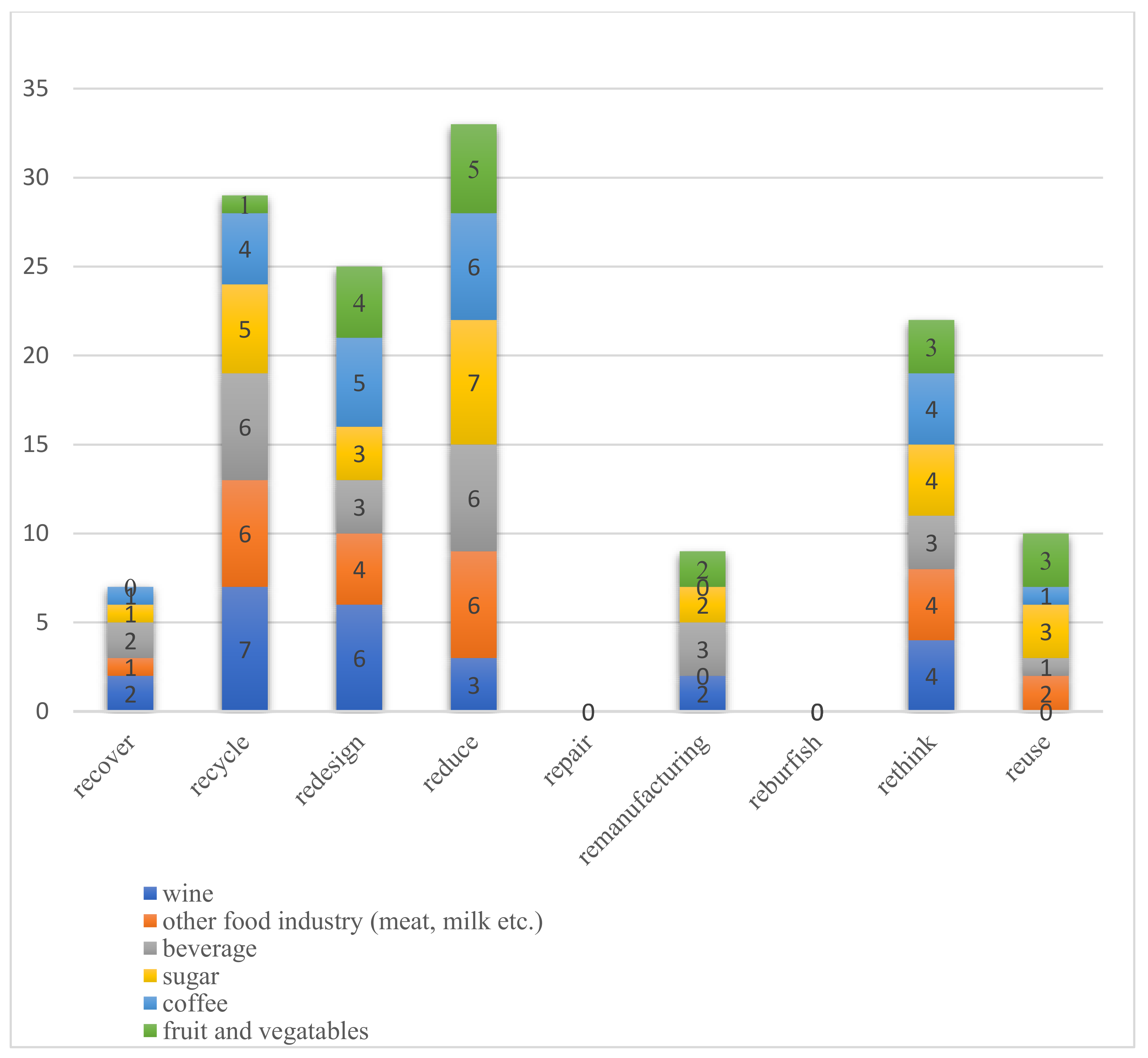

As shown in Figure 12, the selected articles focused most frequently on “recycle” and “reduce” for all sub-sectors. Apart from these CE dimensions, articles regarding the meat and milk sectors mainly focused on design stage dimensions of “redesign” and “rethink” to decrease food loss and waste. In contrast, no articles considered “repair” and “refurbishment”. This may because reducing and recycling processes are more appropriate for the sampled sub-sectors.

The findings so far show that researchers have discussed and categorized barriers to implementing CE bin food supply chains in various ways. Araujo Galvão [20] identified seven main barriers: technological, policy and regulatory, financial and economic, managerial, performance indicators, customers, and social. Govindan and Hasanagic [14] identified eight categories: governmental issues, economic issues, technology issues, knowledge issues, management issues, CE framework issues, cultural and social issues, and market issues. Kirchherr et al. [21] identified four categories: culture, regulatory, market, and technology. Ghadge et al. [22] first identified two barriers: internal and external. They then classified them into five different categories: market, regulation, suppliers, operation, and management. Van Keulen and Kirchherr [23] identified four main clusters of barriers in the coffee supply chain: values, technologies, business cases, and governmental policies.

Given this literature, the present study considered seven main barriers to CE, as shown in

Table 2. Potential barriers of CE in food supply chains.

Barriers	Sub-Barriers	Author(s)
Cultural	(B1) Lacking Consumer Awareness and Interest	[11,13,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52].
	(B2) Hesitant Company Culture	[13,29,30,31,32,53]
	(B3) Inadequate Knowledge About CE	[13,29,30,37,40,41,44,45,47,48,49,53,54,55,56,57,58,59,60,61,62]
	(B4) Currently Operating in a Linear System	[63,64]
Business and Business Finance	(B5) Weak Economic Incentives	[27,41,42,43,44,45,46,47,48,60,65,66]
	(B6) Major Investment Costs	[43,44,47,48,67,68]
	(B7) High Cost of Receiving Recycling Product	[30,31,41,45,47,48,66]
	(B8) Mismatch between Return and Profit
	(B9) Increased Research Cost	[40,43,47,48]
	(B10) Limited Business Model Applications	[68]
		[44,46]
Regulatory and Governmental	(B11) Lack of Conductive Legal Systems	[14,24,30,39,41,42,46,47,48,54]
	(B12) Policy Challenges	[11,13,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,52].
		[14,41,45,47,48]
	(B13) Taxation and Incentives	[25,27,36,61,69]
	(B14) Existing Loose Environmental Regulations
	(B15) Different Focuses between Central and Local Governments	[38,52,70]
	(B16) Lack of Proper Waste Infrastructure
	(B17) Lack of Standard System for CE performance	[38,42,56,58,59,71,72,73,74]
		[25,32,38,44,47,48,53,55,56,58,59,71,72,73,74,75,76,77]
Technological	(B18) Technical Limitations of Recycling	[13,30,31,41,44,46,47,48,54,61,65,67]
	(B19) Need for Data Integration	[26,78]
	(B20) Lack of Eco-efficiency of the Technological Processes	[16,41,47,48,54,79]
Managerial	(B21) Poor Leadership and Management	[11,12,25,28,31,32,34,42,44,47,48,80,81,82,83]
	(B22) Missing Information Exchange	[11,47,48]
	(B23) Lack of Collaboration	[12,15,24,34,41,44,45,47,61,76,77,78,80,83]
	(B24) Higher priority of other issues	[47,84]
	(B25) Ineffective labor	[18,68]
Supply Chain Management	(B26) Lack of Eco-Literacy Among Supply Chain Partners	[41,85,86]
	(B27) Need for a High-Level Supply Chain Integration	[11,12,25,28,32,34,35,41,44,47,48,52,71,76,77,81,82,84,85,87,88,89,90,91,92,93,94,95,96,97]
	(B28) Unavailable Effective Framework Adaptation
		[48,80,98]
Knowledge and Skills	(B29) Difficulty in Defining CE	[32,44,99,100]
	(B30) Difficulties in implementation of CE	[32,44,47,99,100,101,102,103]

: “cultural”, “business and business finance”, “regulatory and governmental”, “technological”, “managerial”, “supply-chain management”, “knowledge and skills”.

More specifically, “cultural barriers” include four different sub-barriers: lack of consumer awareness and interest, inadequate knowledge of CE, hesitant company culture, currently operating in a linear system. The transition to CE requires remarkable cultural changes in company structure. The main barriers to CE implementation are regulatory barriers, which include policy challenges and the lack of a standard system for CE performance and supply, and chain management barriers such as the need for high-level supply chain integration. Moreover, technological investment and development is a significant factor in the transition to CE. Another main barrier is inadequate knowledge and skills. It is therefore important for companies to improve awareness of CE and integrate CE into their supply chains. Supply chain management barriers include a lack of eco-literacy among supply chain partners, the need for a high-level supply chain integration, and ineffective framework adaptation. Business and business finance sub-barriers include weak economic incentives, major investment costs, the high cost of receiving recycling products, a mismatch between return and profit, increased research costs, and limited business model applications. Business and business finance, and managerial barriers are also related to the significant initial investment and widening multi-stakeholder structure in the supply chain during the transition to CE. Increasing complexity and information in the supply chain also create new sub-barriers, such as poor leadership and management, lack of information exchange, lack of collaboration, prioritization of other issues, and ineffective labor.

Although some companies find it easier to maintain traditional production and distribution methods, many other companies have begun the CE transition. While some large firms, as well as some start-ups, have begun using CE principles, it will take time to shift the entire corporate culture towards this. In contrast to traditional business models, circular business models require novel cooperation and collaboration methods along the supply chain. Companies should therefore invest and innovate using CE principles. In this regard, it is important to design longer-lived, waste-avoiding products so that it is easy to apply the 9Rs. Accordingly, technical barriers include the transition to CE, technical limitations of recycling, the need for data integration, and lack of eco-efficiency of technological processes.

Regarding regulatory and local government barriers, CE implementation requires understanding the various expectations of different actors and clear regulatory standards. Thus, barriers include lack of appropriate legal systems, policy challenges, taxation and incentives, loose environmental regulations, different focuses between central and local governments, lack of proper waste infrastructure, and lack of standard systems for CE performance. Some actors may oppose CE because they profit highly from the existing linear system. Thus, it is crucial to have a clear regulatory framework.

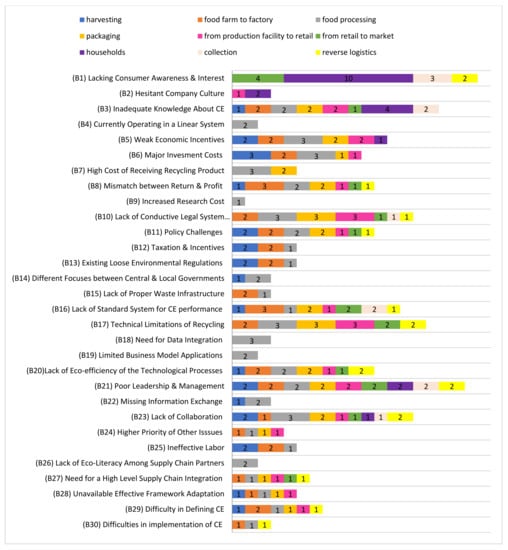

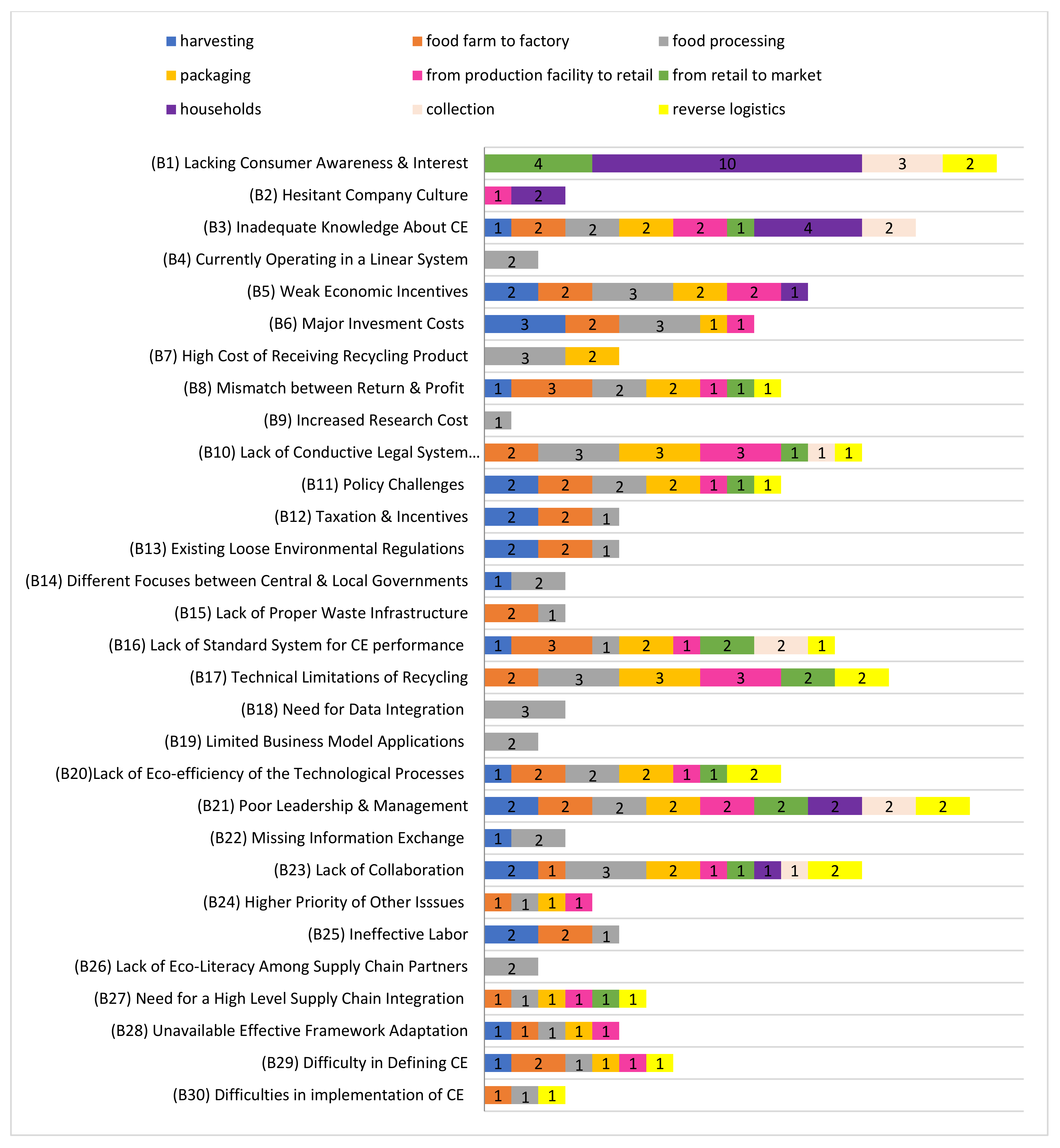

Figure 13 shows the interaction between the sub-barriers and the stages of the supply chain. Almost all the articles mentioned various sub-barriers for different stages of the food supply chain, particularly lack of consumer awareness and interest, policy challenges, inadequate knowledge about CE, weak economic incentives, lack of conducive legal systems, lack of standard CE performance systems, technical limitations for CE, and poor leadership and management.

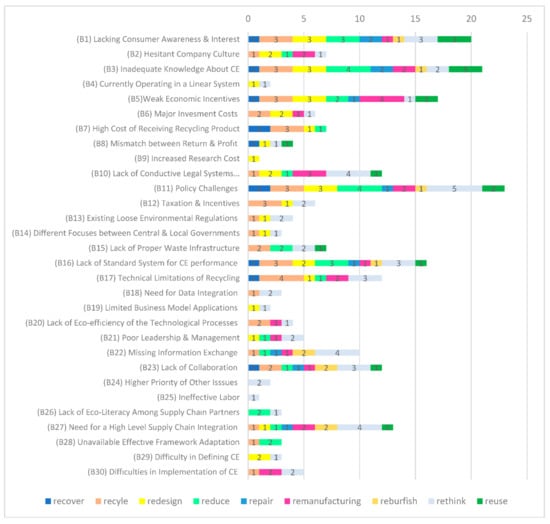

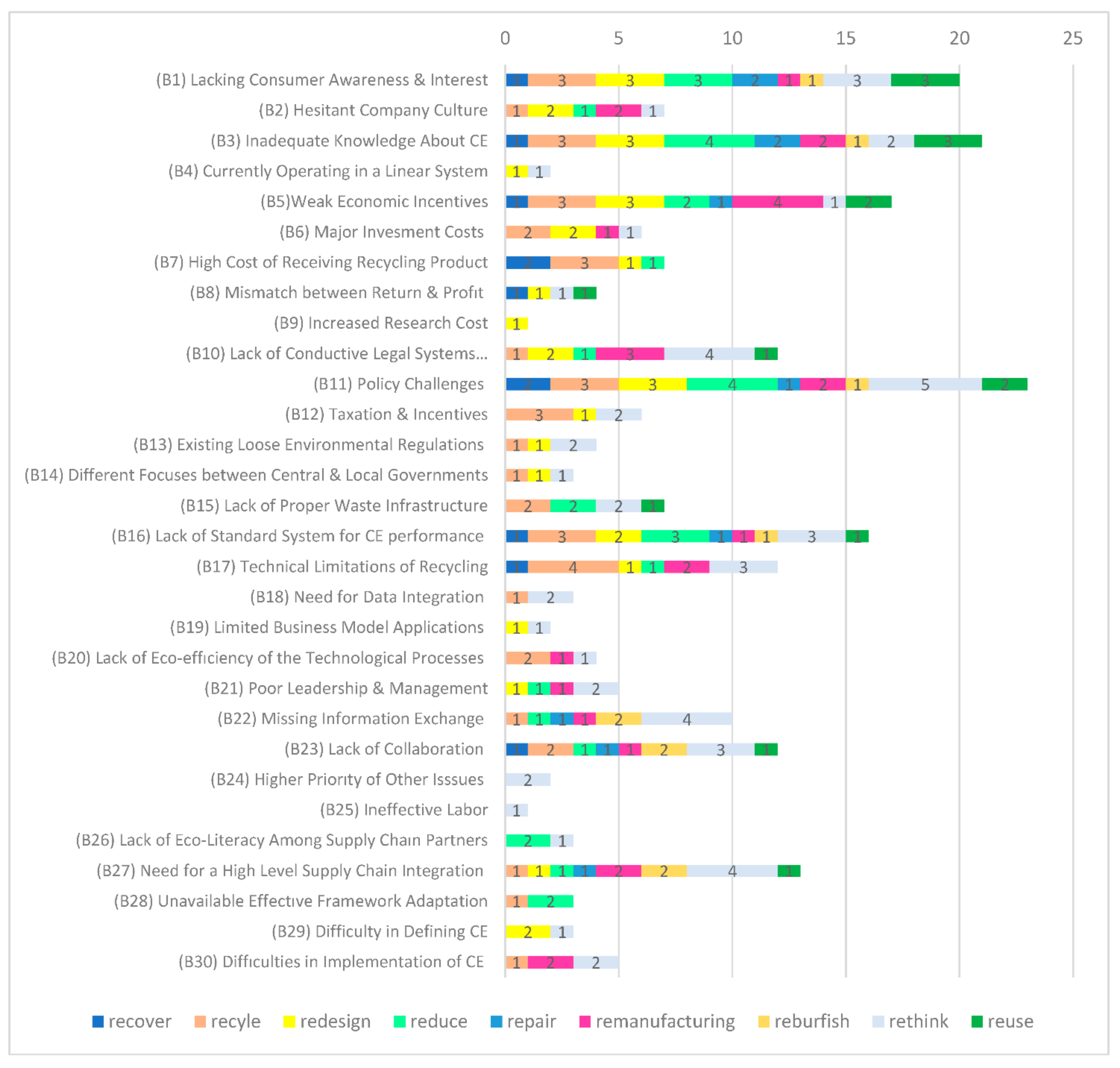

Figure 14 shows the interaction between sub-barriers and CE dimensions. Rethink and reduce were the most frequently mentioned in the articles CE dimensions for nearly all sub-barriers to implementing CE in the food supply chain, followed by use of recycling.

3.2. Relationships Between CE and Digital Technologies

Researchers have proposed various Industry 4.0 technologies to overcome the sub-barriers to CE in food supply chains. Digital technologies have various advantages. First, by obtaining real-time information, they can improve performance by ensuring efficient utilization of resources. Second, these technologies can improve the innovation abilities of businesses.

Table 3. Proposed digital technologies to deal with barriers related to CE dimensions.

CE DIMENSIONS	INDUSTRY 4.0 TECHNOLOGIES
Reuse	CPS, BDA, AI, 3DP, RFID, Barcodes, Nanotechnologies, Blockchain
Recycle	IoT, CPS, BDA, CC, AI,3DP, RFID, Barcodes, Blockchain
Reduce	IoT, 3DP
Remanufacturing	IoT, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics
Repair	IoT, CPS, BDA, 3DP
Recover	CC
Refurbish	CPS, AI
Repurpose	Machine Learning
Rethink	AGV, Machine Learning
Redesign	Iot, AGV, Machine Learning

lists various digital technologies for overcoming CE-related barriers. IoT and barcodes are used to monitor used product parts and materials, obtain all information about products, and reduce product design or quality issues [104]. In the food industry specifically, IoT can reduce food waste and loss through sensors that track conditions in the food supply chain, such as temperature and humidity. Recent studies show that IoT strategies can improve product design and implementation [105]. IoT can also be used to create business models, usage and post-usage improvements, data recording, monitoring of conditions, preventive maintenance, predictions for end-of-life usage, and making effective design decisions [17]. Real time data allow consumers to assess food quality more accurately and create a better health and safety environment since food products usually have short shelf lives. Increasing traceability saves energy in the food supply chain and creates circularity. Digital tools that provide traceability, such as RFID, BDA, and blockchains, can be used for the recovery processes, such as reusing, recycling, and remanufacturing [106]. If all stakeholders can share their data in the supply chain network, then food fraud can be reduced with blockchain technology.

One of the most important causes of food waste is supply-demand imbalance. CPS technology helps suppliers to determine optimum order size by gathering data from transactions and other sources in to accurately monitor in-process inventory [107]. 3DP technology enables the reuse of material for another 3DP process and strengthens the relationship between suppliers and customers [108]. 3DP is a flexible technology, which enables the production of both small batches and complex products at lower cost, fewer materials, and less waste [109]. 3DP technology provides design for circularity and environmentally friendly materials. It enables intelligent packaging for food products by analyzing and indicating the temperature of the product to decrease food waste and loss. Machine learning and AI can be used to overcome the CE barriers in the supply chain by optimizing processes and systems based on large amounts of data in order to repurpose, rethink, and redesign CE dimensions [16]. CC enables sharing of network resources and capabilities in certain supply chain stages, particularly design, manufacture, and assembly of products [110,111]. Robotics provides additional support by supporting processes that require quality production and precision in production. It can therefore be used for remanufacturing processes in the supply chain [112]. Businesses have already used robotics to increase food product consistency and production efficiency. Finally, nanotechnologies, AGV, and machine learning enable materials and components to be recycled in the last stage of product life and reused within the same production system or outside it [113].

Table 4. Proposed Industry 4.0 technologies to deal with sub-barriers for specific CE dimensions.

Main Barriers	Sub-Barriers	Author(s)	CE Dimensions	Industry 4.0 Technologies
Cultural	(B1) Lacking consumer awareness and interest	[114,116,119,122,132,136,138,139]	Reuse, Recycle, Reduce, Rethink, Remanufacturing, Redesign, Repair, Refurbish	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B2) Hesitant company culture	[121,130,132,134,138,140]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Refurbish	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, Nanotechnology
	(B3) Inadequate knowledge about CE	[118,127,132,138,141]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Refurbish, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B4) Currently operating in a linear system	[123,129,132,135,140]	Reuse, Reduce, Rethink	IoT, CPS, BDA, AI, 3DP, RFID, Barcodes, Blockchains, AGV, Machine learning, Nanotechnology
Business and Business Finance	(B5) Weak economic incentives	[121,128,132,136,138,139]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Refurbish, Rethink, Redesign	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B6) Major investment costs	[129,139]	Repurpose, Rethink	AGV, Machine Learning
	(B7) High cost of receiving recycling product	[128,140]	Rethink	AGV, Machine Learning
	(B8) Mismatch between return and profit	[128,129]	Rethink	AGV, Machine Learning
	(B9) Increased research cost	[128,141]	Repurpose, Rethink	AGV, Machine Learning
	(B10) Limited business model applications	[132,135,137,141]	Repair, Rethink	IoT, CPS, BDA, 3DP, AGV, Machine learning
Regulatory and Governmental	(B11) Lack of conductive legal systems	[108,117,120,128,130,132,138]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Refurbish, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B12) Policy challenges	[116,119,125,131,132,133,138]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Recover, Refurbish, Rethink, Redesign	IoT, CPS, BDA, AI, 3DP, CC, Blockchains, Robotics, AGV, Machine Learning
	(B13) Taxation and incentives	[115,116,127,128,129,132,136,138]	Reuse, Recycle, Reduce, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B14) Existing loose environmental regulations	[116,126,131,132,134,138,139]	Reuse, Recycle, Reduce, Recover, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B15) Different focuses between central and local governments	[116,124,129,132,135,138]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Rethink	IoT, CPS, BDA, CC, AI, 3DP, Robotics, Blockchains, AGV, Machine learning
	(B16) Lack of proper waste infrastructure	[116,129,137]	Rethink, Reduce	IoT, AGV, 3DP, Machine learning
	(B17) Lack of standard system for CE performance	[116,120,123,129,132,135,138]	Reuse, Recycle, Reduce, Remanufacturing, Recover, Refurbish, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
Technological	(B18) Technical limitations of recycling	[121,132,137,138,139]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Refurbish, Rethink, Redesign	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B19) Need for data integration	[132,133,134,141]	Reuse, Recycle, Reduce, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Blockchains, AGV, Machine learning, Nanotechnology
	(B20) Lack of eco-efficiency of the technological processes	[120,123,129,132,137,138]	Reuse, Recycle, Remanufacturing, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
Managerial	(B21) Poor leadership and management	[116,132,136,138,140]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Recover, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B22) Missing information exchange	[115,116,132,138,140]	Reuse, Recycle, Remanufacturing, Repair	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, Nanotechnology
	(B23) Lack of collaboration	[108,114,116,132,138]	Reuse, Recycle, Reduce, Rethink, Redesign	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Blockchains, AGV, Machine learning, Nanotechnology
	(B24) Higher priority of other issues	[128,129,141]	Rethink	AGV, Machine learning
	(B25) Ineffective labor	[131,132,139]	Repurpose, Rethink	AGV, Machine learning
Supply chain management	(B26) Lack of eco-literacy among supply-chain partners	[129,132,141]	Reuse, Recycle, Reduce, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Blockchains, AGV, Machine learning, Nanotechnology
	(B27) Need for a high-level supply chain integration	[114,132,135,138,141]	Reuse, Recycle, Reduce, Remanufacturing, Repair, Recover, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B28) Unavailable effective framework adaptation	[132,133,135,140]	Reuse, Recycle, Reduce, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Blockchains, AGV, Machine learning, Nanotechnology
Knowledge and Skills	(B29) Difficulty in defining CE	[132,138,140]	Reuse, Recycle, Reduce, Remanufacturing, Refurbish, Repurpose, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology
	(B30) Difficulties in implementation of CE	[123,132,134,136,138]	Reuse, Recycle, Reduce, Remanufacturing, Refurbish, Rethink	IoT, CPS, BDA, CC, AI, 3DP, RFID, Barcodes, Robotics, Blockchains, AGV, Machine learning, Nanotechnology

summarizes how Industry 4.0 technologies mentioned in the literature can deal with barriers related to specific CE dimensions. Digital technology tools are proposed for each sub-barrier within the dimensions listed in Table 3.

IoT, RFID, and Barcodes provide various advantages such as improved food supply chain transparency, improved inventory management by tracking the entire process, and enabling of real-time data for the food supply chains such as temperature and moisture [108,114,115]. By increasing transparency and collaborations in the food supply chain, IoT and RFID can be overcome regulatory and governmental barriers listed in Table 4. Besides, food supply chain transparency becomes a significant issue for the food supply chain because of the short shelf life since consumers want to know the process of products and choose a more environmentally friendly product [116,117,118]. Thus, IoT, RFID, and Barcodes are beneficial to deal with lacking consumer awareness and interest and inadequate knowledge about CE.

In addition, blockchain technology and CC enable the creation of a traceable and transparent food supply chain that increases trust between farmers, retailers, suppliers, and consumers, thus reducing food fraud [119,120,121]. Therefore, these technologies can overcome barriers related to regulatory and governmental issues. Blockchain technology can deal with the lack of collaboration and missing information exchange and weak economic incentives through increasing transparency [122,123,124]. Besides, an ascending collaboration between partners has led to increasing food supply chain practices, strategies, production processes [125,126,127].

Machine learning, AI, and CPS technology provide an increase in financial performances for each actor along the food supply chain [128] by enabling a higher degree of supply chain integration due to its multi-stakeholder structure and also contributing to the increase of environmental sustainability of the food supply chain [129,130]. Therefore, it is useful for dealing with financial challenges and ineffective labor in the transition to CE [131,132]. Moreover, big data are used to accurately forecast consumer demand and purchases by supporting increased coordination in the food supply chain in order to overcome data integration barriers in the food supply chain [133,134]. These technologies create new business models aimed at increasing the profitability of the company by reshaping its food supply chain operations. Thus, these technologies became a highly effective solution to dealing with the barriers faced by company cultures in transitioning to CE [135]. 3DP technology can reduce production costs by increasing production efficiency and by providing customized food product manufacturing [136]. 3DP technology enables the advantages of low cost and simple and rapid prototyping compared to traditional methods for the production of food materials. Thus, it is beneficial for dealing with the technical limitations of recycling and the lack of eco-efficiency of the technological processes [137].

AGV and Robotics help to achieve the goals of consumers and regulators to reduce food contamination and improve food safety [138]. These technologies enhance flexibility and can be used for multiple tasks in order to deal with the need for a high-level supply chain integration and difficulties in knowledge and skills.

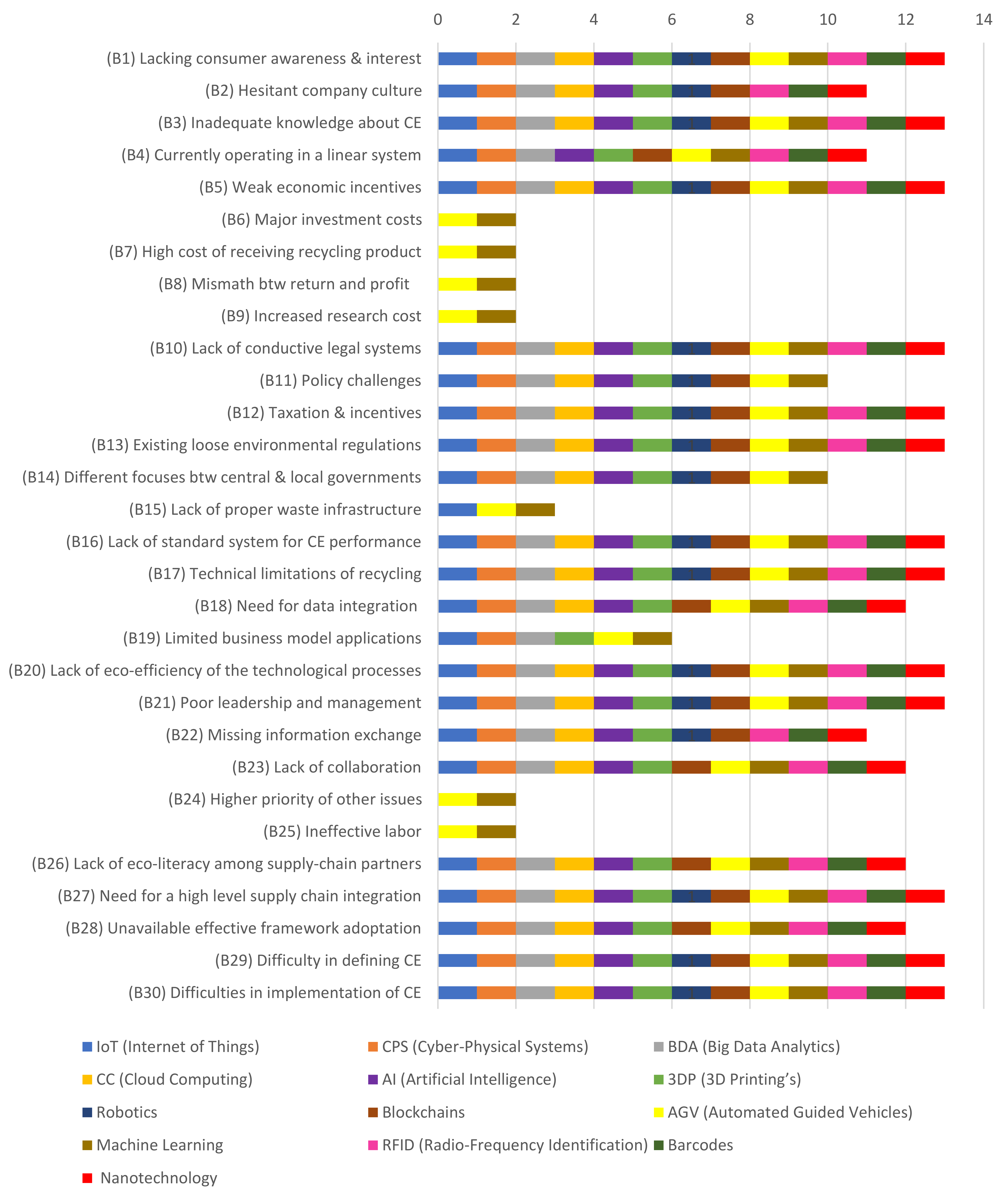

Figure 15 presents the suggested Industry 4.0 technologies for each CE sub-barrier in the food supply chain, shown in Table 3. The barriers can be overcome with proposed Industry 4.0 technologies to transition to CE within food supply chains.

4. Discussion

The main contribution of this study to the literature is primarily to investigate the main barriers to CE implementation in the food supply chain by providing a systematic analysis on CE barriers in food supply chains. Then, this study is to highlight the importance of digital technologies to overcome CE challenges in circular food supply chains.

This study firstly conducted a content analysis of research articles investigating barriers to implementing CE in food supply chains. Based on this literature, the analysis identified seven main categories: “cultural”, “business and business finance”, “regulatory and governmental”, “technological”, “managerial”, “supply-chain management”, and “knowledge and skills”. Many studies have identified technologies as main barriers [42,47,65,66] given that the transition to CE needs advanced technological infrastructure. As in the present study, Araujo Galvão [20], Govindan and Hasanagic [14], Kirchherr et al. [21], and Van Keulen and Kirchherr [23] have also addressed technology for barriers to transition to CE. Economic investment and financial support are also critical for developing technological infrastructure. Thus, financial and economic issues create barriers [14,20]. Similarly, the present study identified Business and Business Finance as a main barrier. Government support is also required to effectively manage CE dimensions. Government regulations, incentives, and environmental standards are important to deal with CE barriers [48,53,68]. Therefore, many studies have addressed regulatory issues as one of the main barriers [13,21,23]. While the lack of adequate criteria and standards is a regulatory barrier for CE, lack of consumer awareness and interest, and inadequate knowledge about CE create a cultural barrier.

CE requires that all levels of management adopt its principles and there is a clear management structure. Business managers need to support CE principles, so a lack of collaboration and missing information are main barriers. Thus, the managerial side has also been considered as a main barrier in the transition to CE [20]. Training is important to improve skills and knowledge in the supply chain and overcome difficulties in defining and implementing CE [20,66]. Because CE principles change the food supply chain, this creates issues in supply chain management regarding enhancing the network of activities, complexity, and increasing information [41,53,65]. Collaboration in the supply chain is necessary to deal with the lack of eco-literacy among supply chain partners along with a high degree of supply chain integration [54].

Moreover, the food supply chain requires a high level of supply chain integration among stakeholders. In the CE transition, coping with the growing number of suppliers, customers, and the emerging multi-stakeholder and complex nature of the food supply chain is only possible with effective digital technology tools [17]. To manage CE in the food supply chains, it is necessary to develop advanced forecasting techniques and establish systems that can cope with big data analytics [110]. In addition, the transition from the linear system to the circular system requires many legal and regulatory infrastructures. Circular design and innovations that promote sustainability and minimize waste play an important role in CE [104]. Digital technologies can provide real-time information to improve performance by ensuring efficient utilization of resources and can improve the innovation abilities of businesses for transition to CE [139]. Pagoropoulos et al. [16] has examined the role of digital technologies in adopting CE. The use of digital technologies in food supply chain management, advanced database management, and strengthened data sources, improving cooperation between stakeholders, and providing effective management of forward and reverse networks will both minimize waste and increase food safety in the food supply chain [106]. Kumar et al. [140] investigate Industry 4.0 and CE adoption barriers in the agriculture supply chain. This study aims to analyze relationship between the barriers and to prioritize them. Annosi et al. [141] have studied on how organizational and food supply chain processes are affected by the digitalization of the operations along the food supply chain. However, this study aims to reveal which Industry 4.0 tools such as big data, blockchains, and machine learning should be used to overcome specific CE barriers. Thus, this study proposes a variety of specific digital technologies to managers and decision makers in developing effective strategies for stakeholders in the food supply chain to overcome identified CE barriers.

The following section suggests various implications and future insights to overcome the barriers listed in Table 2 using digital technologies.

5. Implications and Future Insights

The analysis in this study has various implications for corporate culture, new process design, governmental regulations and social impact, circular design and innovations, managerial performance, and supply chain management.

Business success requires effective management of the corporate culture, including the organization’s goals, strategies, structures, and shareholders. Blockchain and machine learning can help in this. Blockchain provides transparency and security of data and promotes communication in the business world. It also prevents an unsustainable, hesitant company structure by transforming a linear system into a circular one [142,143]. Maintaining trust among stakeholders in the food supply chain and ensuring reliability throughout the entire supply chain could be provided through a mechanism to monitor every transaction for every actor in the chain without a central third-party agent. The trust problem that may occur in the food supply chain can be overcome by blockchain technology. This is a digital ledger that does not depend on central servers among stakeholders. Records stored on the blockchain chain are unchangeable and trackable by all actors with the distributed ledger. This makes food supply chain data available and traceable at every step [127]. Machine learning creates a new technological infrastructure to adapt the corporate culture and knowledge to a new behavioral approach needed to transition to CE.

Increasing complexity in processes and the presence of many stakeholders in the food supply chain require the development and design of new processes using Industry 4.0 tools. Machine learning and AGV technologies deal with the uncertainty inherent in anticipating the costs of circular processes. Machine learning can be used to deal with complex logistics scenarios by investigating event correlation patterns, rule mining, and learning anomalies in event traces [144]. Machine learning provides decisions within a closed-loop structure with an uncertain and complex nature and also where the number of decisions increases due to circular and reverse operations. Leveraging machine learning techniques can uncover potential systems that contain large volumes of data and help businesses use valuable information by interfacing with legacy models [144]. Therefore, machine learning fills the gap due to the lack of a linear model by improving the capabilities of existing business models during the transition to CE [145].

Machine learning is also an effective digital technology tool to deal with the increasing number of suppliers and customers due to the multi-stakeholder nature of the food supply chain through customer and supplier tracking and analysis [146]. It also minimizes inventory costs by accurate predictions. It reduces financing costs through financial risk analysis and ensures that investments are based on more accurate estimates. It can also improve the efficiency of workflows and processes. The use of AGVs allows operations to be conducted over the system, which eliminates the short walks between assembly cycles. With the help of computer monitors, AGVs provide part numbers and assembly sequence information for each part directly to the operators [147], which increases workforce productivity.

To achieve a sustainable food supply chain, the three dimensions of sustainability (environmental, social, and economic) need to be managed simultaneously. Therefore, governmental regulations and social impact are the other significant category to overcome the barriers presented in Table 2. The transition from a linear to a circular system requires appropriate legal and regulatory infrastructure. Blockchain and big data analytics provide the necessary support to establish an appropriate legal system and improve environmental regulations by distributing transparent and secure information through governmental bodies and businesses. Big data technologies and techniques can be used to extract valid, useful relationships, patterns, and information from confidential, large-scale, complex unknown data [148]. Machine learning enables a standard system to manage CE performance by utilizing forecasting and analytical capabilities. Blockchain-based data processing tools can provide the transparency that is a crucial issue for taxation and incentives systems.

Circular design and innovations that support sustainability and minimize waste across the three main sustainability dimensions play an important role in CE. These innovations and circular designs can be achieved by using digital technologies, such as 3DP, nanotechnologies, and blockchains. With smart and flexible technology like 3DP, products can be made in small batches at lower cost and less waste. Thus, 3DP can cope with a complex supply chain structure. 3DP reduces waste and energy loss by decreasing unnecessary complex operations and by designing products according to the customer’s requirements [108]. It thus accelerates research, development, and prototyping and decreases the technical limitations of recycling. Blockchains provide the required data integration for circular design and innovation by allowing transparent and secure information flows. Moreover, 3DP and nanotechnologies enable businesses to predict the environmental impact of circular design and processes in order to maximize the eco-efficiency of technological processes.

Managerial performance also has significant implications for overcoming CE barriers. Blockchain technology fulfills the demands of both government, businesses and consumers. Blockchain technologies can suggest innovative regulatory ideas to the government and overcome management flaws. Businesses can guarantee product quality and respond instantly to changing market demand. Blockchain technology has thus been instrumental in protecting the rights of consumers. Both the production system and consumers can obtain real-time information related to the entire process of products, which allows food supply chain operations to be conducted efficiently, transparently, and cost-effectively. For instance, big data and blockchain technologies enhance managerial functions, such as planning, organizing, staffing, directing, controlling, and decision-making. These technologies also extend the capabilities of management information systems to support information exchange and collaboration to enable a clear definition of CE dimensions. Hence, these technologies can overcome difficulties in implementing CE from managerial perspectives.

The use of digital technologies in food supply chain management ensures improved database planning and strengthened data sources, the development of cooperation, and the effective management of forward and reverse networks. Big data analytics prevents eco-literacy among supply-chain partners by estimating future parameters of ecological issues. The closed-loop food supply chain requires a high level of supply chain integration among stakeholders with the help of big data analytics at the macro level and robotics and barcodes at the operational level. Big data analytics and robotics contribute to the development of an effective framework and its adaptation by facilitating cyber-physical systems within the circular food supply chain.

6. Conclusions

In this study, we systematically reviewed research into CE barriers in food supply chains and proposed digital technologies to deal with them. The transition from a linear to a circular economy requires multi-perspective analyses. Thus, we first conducted a systematic literature review regarding CE barriers in food supply chains, based on 136 papers chosen with the criteria described in Section 3.1. We then identified main and sub-barriers that can hinder the implementation of CE in the food supply chain. The analysis offers several insights into CE barriers, especially for businesses environment. To overcome these specific barriers, we proposed various digital technologies based on the reviewed literature.

Seven main categories of barriers were identified:

• Cultural: a lack of consumer awareness and interest for cultural reasons;
• Business and business finance: insufficient access to investment and infrastructure for market design;
• Regulatory and governmental: weak regulations, policies, taxation, and incentives established by governments;
• Technological: technological limitations;
• Managerial: limited application of business models by management;
• Supply chain management: poor corporation between suppliers because of ineffective supply chain management;
• Knowledge and skills: difficulties when defining the boundaries of CE due to the lack of knowledge and skills.

The findings indicate that the greatest barriers to adopting CE concern governmental regulations and technology issues. Specifically, the government plays a crucial role in CE implementation. Governments should therefore be aware of environmental problems and prioritize CE. It is also crucial that governments develop incentive policies to promote CE in food supply chain. Besides, governments should also support innovation policies to provide circularity while government procurement standards should be consider recycled products [62].

Regarding technological barriers, the main problem is the lack of technological process in terms of eco-efficiency. Integration of technology and CE can overcome these barriers and improve competitiveness within an industrial context. Advanced digital technologies, i.e., Industry 4.0, can play a major role here.

Few studies have analyzed the relationship between Industry 4.0 and CE, although these have become increasingly important for policymakers, practitioners, and scholars in recent decades. These studies mainly aim to create an innovative framework by investigating the relationships between Industry 4.0 and CE. Industry 4.0 is an important enabler of CE since digitalization helps companies achieve circularity and improve performance. Especially, Industry 4.0 applications offer managerial functions, such as planning, organizing, directing, coordinating, and controlling, while decision-making processes can be carried out effectively using big data and blockchain technologies [149]. Another promising area to improve concerns the need for a high level of food supply chain integration among stakeholders. This can be achieved through big data analytics at the macro level and robotics and barcodes at the operational level. Big data analytics and robotics can contribute to the development and implementation of an effective framework by facilitating cyber-physical systems within the circular food supply chain.

While there are many technical and regulatory challenges in implementing CE, these obstacles can be eliminated through innovative implementation of Industry 4.0 tools in a more circular built environment. Future research may focus on further analyzing food supply chain processes to identify the enablers that can accelerate the transition to CE.

As a limitation of this study, the review includes open access articles and conference papers in English between 2010 and 2020. Thus, other languages and other types of papers were not included in this study; the relationships that it analyses are mainly a link of keywords, and the results are not empirical findings about the potential of these technologies in the food sector.
