Water Utilities Challenges: A Bibliometric Analysis

by
Andrés Ortega-Ballesteros
1,
Francisco Manzano-Agugliaro
2 and
Alberto-Jesus Perea-Moreno
1,*
1
Departamento de Física Aplicada, Radiología y Medicina Física, Universidad de Córdoba, Campus Universitario de Rabanales, 14071 Córdoba, Spain
2
Department of Engineering, CEIA3, University of Almeria, 04120 Almeria, Spain
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(14), 7726; https://doi.org/10.3390/su13147726
Submission received: 16 June 2021 / Revised: 2 July 2021 / Accepted: 9 July 2021 / Published: 10 July 2021
(This article belongs to the Special Issue The Impact of Climate Change on Urban Water Infrastructure)
Browse Figures
Versions Notes

Abstract

:
The water utilities are under big pressure to guarantee water access to their customers with the right level of service and quality due to challenges such as climate change, aging infrastructure, water scarcity, and growing populations, which put pressure on their operations. The scientific community has worked intensively over the last years to propose solutions and alternatives for the utilities to improve their operation and management in order to overcome these challenges. This paper aims to review scientific contributions to this field. The result shows increasing awareness from the scientific community in this topic which translates into a growing number of publications since the beginning of the current century. This paper analyzes the evolution of the publications, identifies the main countries and institutions working in this field and their scientific relationships over time. It also identifies the main keywords in the literature, which are grouped into three main topics: water quality, water management, and water optimization. The development of smart technologies is accelerating the scientific production towards the topic of water optimization, which is acquiring more importance over the last years. Future trends of research are related to identifying specific challenges per country and the specific solutions proposed by the scientific community to address them and its feasibility to be applied in other places.

1. Introduction

The United Nations (UN) 2030 Agenda for sustainable development declares equitable access to safe drinking water as one of its goals [1]. Access to drinking water in urban areas is provided by water utilities, responsible for safe and reliable water convenience from the different sources to their customers, the end-users [2]. These kinds of utilities, extended worldwide, have been operating for more than 100 years [3]. The achievement of the UN 2030 goal by the different countries through their water drinking network operators, usually operating in monopoly [4], face some common challenges all over the world. These main challenges identified in the literature are the growing and increasing population to deliver water with the right level of service and quality [5], water scarcity [6], climate change [7,8], and aging infrastructure [9].
Water demand is expected to increase significantly in the coming years as a result of the growth of the world population. This increase will potentially lead to a water scarcity situation [10]. The World population is increasing mainly in places where water is less abundant, such as Sub-Saharan Africa, the Middle East, and Central Asia [11,12]. By 2050 it is expected that more than half of the total world population will habitat in places that will experience water shortage at least once a year [13].
Climatic change is responsible for extreme weather events such as long drought periods [14], flood risks [15], and changes in rainfall patterns [16]. All these events put additional pressure on the operation of the water utilities [17]. In addition to that, the average temperature of the Earth is increasing year after year and could grow up to 2 C by 2021 [18]. Previous studies have already found a relationship between a temperature increase and an increase in water consumption [19,20]. Lastly, seasonal temperature changes between winter and summer periods, which are becoming wider with climate change, have been identified to have a negative impact on the infrastructure and are one of the causes for water mains failure [21,22].
Water distribution networks’ (WDN) aging infrastructure is another of the challenges the water operators have to deal with. Aging infrastructure is responsible for service disruption, potential entry doors for pollutants to the network, and revenue loss for the operator. There are many places and cities where water infrastructure was constructed a long time ago and is becoming old, deteriorated, and might not be able to meet future demand conditions. Some of the potable water transmission systems in Europe and the United States are more than 100 years old [23,24]. In North America, it is estimated that 28% of the mains are older than 50 years [25]. Traditionally, the age of pipes has been considered to be one of the major factors leading to a deterioration of WDN [26]. However, recent studies indicate that more parameters related to pipe attributes, location, and rehabilitation should also be considered when evaluating pipe conditions [9]. The last available edition of the American Water Works Association Water Industry report identifies renewal and replacement of aging infrastructure as the most pressing issue challenging American water utilities for the seventh consecutive year [27].
One of the main performance indicators used to evaluate WDN is non-revenue water (NWR), defined as the difference between the total amount of water entered into a system minus the revenue water or water billed to the users. NRW is the indicator recommended by the International Water Association [28] and their different components are widely studied and described in the literature [29]. In 2018, the total cost of NRW all over the world was quantified at USD 39 billion per year [30]. Water operators have traditionally fought against NRW using different techniques [31]. During the last years, smart solution and data analytics tools implemented within the water utilities have emerged as an efficient alternative to address and reduce NRW levels [32,33].
To the best of our knowledge, there are no previous bibliometric works in the literature related to the current challenges water utilities face to deliver potable water with the right level of service and quality, thus prompting the realization of this research. Previous related bibliometric analyses have been focused mainly on water footprint and water productivity [34,35] and work has only been found in relation to water utilities, which concentrates on the benchmarking, regulation, and level of service of the operators [36]. The situation is different for the wastewater industry, where more bibliometric analyses have been found on the Scopus database. These studies have been focused on wastewater management [37], wastewater treatment technologies [38,39], and industrial wastewater [40].
The aim of this document is to provide an overview and a detailed analysis of the evolution of global research and publications since the beginning of the current century over the challenges water utilities have to deal with to deliver potable water to the population they serve, and, at the same time, assuring environmental sustainability and long-term resources availability.

2. Materials and Methods

Bibliometrics is a part of scientometric which is extended to all scientific fields and applies statistical and mathematical methods to analyze scientific publications within specific field research [41].
The search engine used in this investigation was the Scopus database, considered as one of the main sources of peer-reviewed literature for bibliometric analysis [42], including a diversified wide of subjects.
The search was conducted using the fields TITLE, ABSTRACT, KEYWORDS to scientific publications related to the challenges water utilities are facing in their operation. The search was limited to the period from 2000 to 2020. All the output information was downloaded from the Scopus database and analyzed using Excel to determine publication trends, sources of information, institutions, countries, main keywords, and authors in this research field. Moreover, the information was also treated in the Vosviewer software, specially developed for these kinds of analysis [43], to locate clusters of countries, scientific committees, and keywords. Figure 1 shows the work methodology employed in this research. The search string introduced in the Scopus database is the following:
TITLE-ABS-KEY (“urban water” OR “water network” OR “water distribution network” OR “water pipeline” OR “water utility” OR “water transmission line”) AND (TITLE-ABS-KEY (“non-revenue water” OR “non revenue water” OR “water loss” OR “leakage reduction” OR “leakage detection” OR “NRW” OR “pressure management” OR “water saving” OR “apparent losses” OR “physical losses”) OR (“energy recovery” OR “energy consumption” OR “energy efficiency” OR “energy saving”) OR (“customer care” OR “customer service”) OR (“level of service”) OR (“drought” OR “water scarcity”) OR (“ageing workforce”) OR (“water quality”) OR (“ageing infrastructure” OR “asset management”) OR (“increasing demand”)).

3. Results and Discussion

The review consists of a bibliometric analysis of a sample of 9803 articles obtained from the Scopus database.

3.1. Number of Publications Per Year and Type

Since 2000, the number of papers has increased in an exponential way. The number of publications has grown year after year with some minor exceptions during 2001, 2006, and 2008. It is remarkable that 50% of the total number of publications in the last twenty years have been produced in the period between 2015 and 2020. This is in line with the results showed in the bibliometric analysis for wastewater management [38], where 40.59% of the total production shown by the Scopus database was concentrated in the period between 2012 and 2018.
The number of publications on this field of science per year is described in Figure 2.
Three different phases are identified in the graph. These phases have been selected according to two criteria: the percentual increment of scientific production compared to the previous year and the occurrence of the major events represented in the graph. During phase 1, from 2000 to 2008, the average production was 203 paper/year representing 18.7% of the total production in the period of study. In phase 2, from 2008 to 2013, the average number of publications per year was 537, contributing 37.7% of the total amount of publications. Eventually, during the last phase, from 2014 to 2020, the average was 853, 43.6%. Clearly shown is a growing tendency in each of the phases. The number of publications in 2021 is also expected to increase again. Despite not being included in this research, as of April 2021, there were already 421 publications on this science field on the Scopus database in 2021. If the same trend for the first four months of 2021 keeps till the end of the year, the total number of publications at the end of 2021 would be higher than the previous year, keeping with the same growing tendency described in the graph. The growing number of publications demonstrates increasing awareness in the scientific community towards the issues and challenges water utilities must deal with to provide potable water, which translates into a growing number of publications and scientific contributions.
One of the factors which could explain this increasing tendency over the last years is the exceptional drought events affecting largely populated areas that have occurred since the beginning of the century. Some of the biggest cities of the world have suffered long unprecedented drought and water shortage periods, which have had a huge impact not only on the water utilities operation and performance, but have also generated economic losses, disruption of social networks, and health damages [44]. In order of occurrence, the major droughts have been: Melbourne underwent a long millennium-heralded drought from 2001 to 2009 [45]; Barcelona suffered water scarcity from 2007 to 2008 when water had to be taken to the city from new distant water sources [46]; the California area experienced water scarcity from 2012 to 2016, being 2014 the most severe in the last 1200 years [47]; the Sao Paulo region had to apply water restrictions to near twenty million people between 2013 and 2015 [48]; Cape Town underwent a major drought from 2015 to 2018 [49] when the population started to talk about “Day Zero”, the day when the city would run out of water [50]. These are the largest droughts that occurred since the beginning of the century, but not the only ones. In total, 79 droughts in large cities have been identified in the first twenty years of the current century [51]. Two main conclusions are obtained from this graph; exceptional drought events are happening more frequently in the last years and scientific publications are increasing as these events happen.
The type of publications has also been analyzed. Figure 3 shows the percentage of documents according to the type of publication. Most of the publications are articles in scientific journals (64% of the total) and conference papers (27%). The rest of the types of publications, reviews, book chapters, and conference reviews represent a small percentage of the total. The contribution to the total amount of other types of publications, such as books, editorials, and letters is negligible.

3.2. Global Subject Category

The Scopus database shows a total of 28 subject areas for the publications on challenges associated with WDN. Figure 4 shows the subject category where documents have been published, according to the Scopus database, for the top ten subject areas. The main subjects in order of appearance are Environmental Science, Engineering, Social Sciences, Earth and Planetary Sciences, and Computer Sciences. The contribution for the rest of the subject areas is reduced.

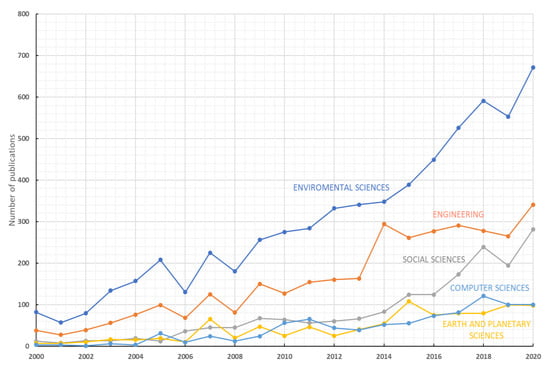

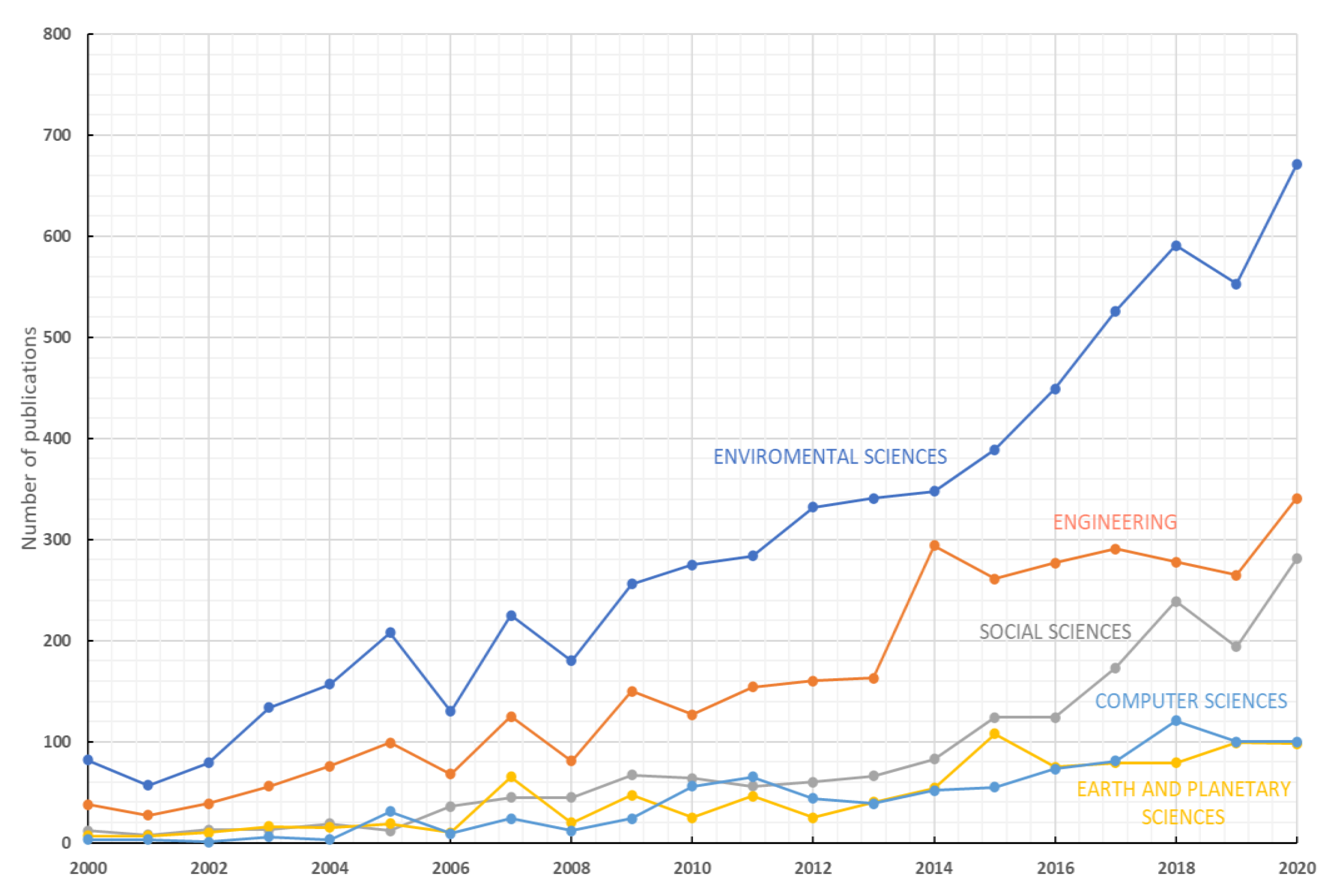

If the evolution trend for the top five scientific categories from 2000 to 2020 is analyzed, Figure 5 is obtained. These top five subject categories amount to 81% of the total number of publications. This figure shows that Environmental Sciences and Engineering have always been the two predominant subjects. The other three, Social Sciences, Earth and Planetary Sciences, and Computer Science rank in a similar position till 2015 when Social Sciences has clearly distanced itself from the other two. Since 2015, the Scopus database shows that publications have been more focused on the social component of the water utilities as a basic service provider and the sustainable management of the resource supplied to their customers.

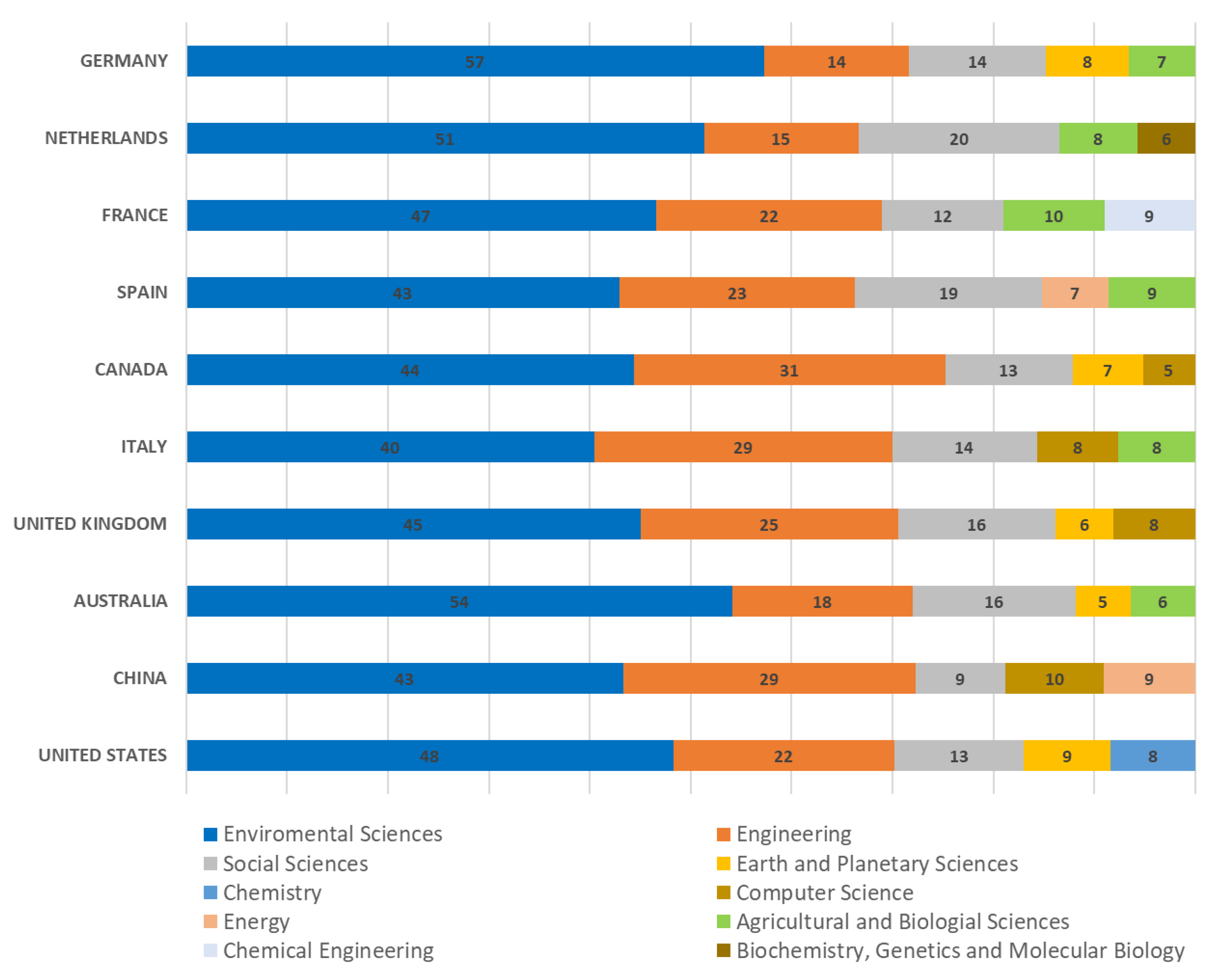

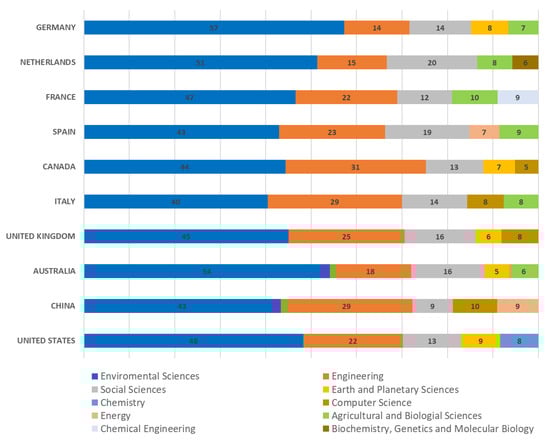

Figure 6 shows the five main subject areas the top ten producing countries are working on. The main subject for all countries is Environmental Sciences, which is between 40% (Italy) to 57% (Germany) of the total publications for all countries. The second subject is usually Engineering, except for Germany, where it is equal to Social Sciences, and the Netherlands, where Social Sciences is slightly ahead. It is remarkable that the subject area Chemistry appears only in the top producer, USA. If the articles published by the USA with the subject area Chemistry are analyzed, 69% of them are in the same publication, Journal of American Water Works Association, the rest being spread among different sources. The subject of Chemical Engineering only appears in France, with 54 publications, 64% of them being published by the Techniques Sciences Methodes journal.

3.3. Relevant Countries in Research in Water Utilities Challenges

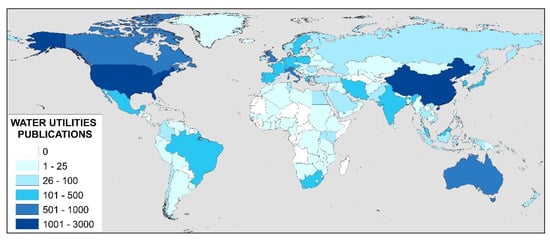

Figure 7 shows the most relevant countries in the research of water utility challenges. The most producing countries are located in North America (Canada, USA), Europe (United Kingdom, Spain Portugal, Germany, France, the Netherlands, Italy), Australia, and Asia (India, China). The evolution of publications for the top ten countries in this field is shown in Figure 8. These top ten countries amount for nearly 80% of the total of publications included in the scope of this research.
The United States has been the top country in the number of publications for the whole period of study. The second country was the United Kingdom until 2008 when it was surpassed by China. Since 2015, there has been a notorious increase in the number of publications from the United States and China, distancing them from the rest of the countries. The graph shows that in 2019 the number of publications decreased for almost all countries, except for the United States and China where the number kept growing.

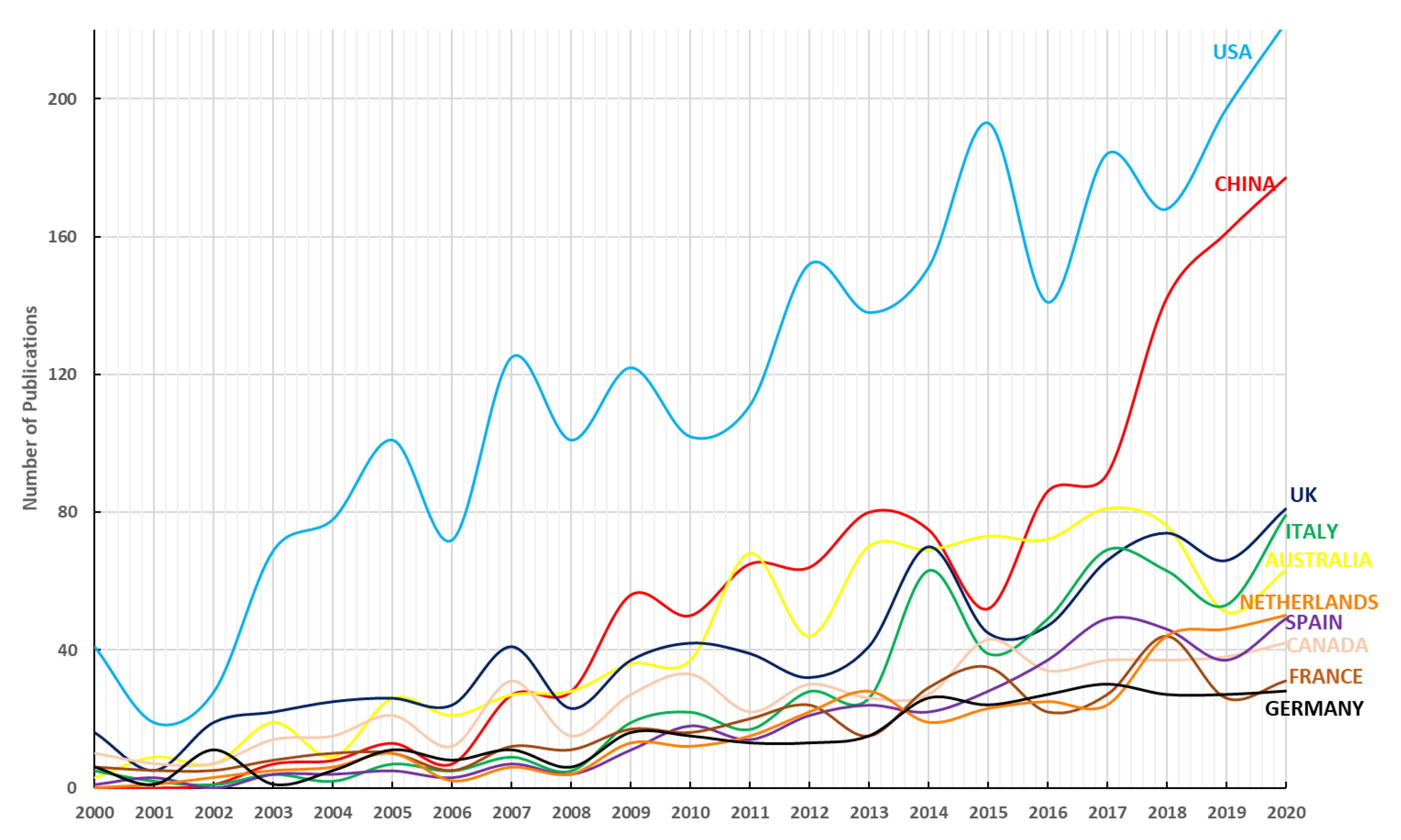

For analysis purposes, the main active countries in the number of publications have been divided into two different groups: European and non-European countries.
The non-European countries: United States, China, Canada, and Australia are vast countries included within the six largest land areas in the world. In total, they amount to 34% of the total world surface, being countries with large water infrastructure. China and the United States are the world leaders in scientific production, so it is not surprising to find them in the first two positions for challenges associated with WDN too.
Within Europe the number of publications has been related to two main indicators: the pipe length and the volume of drinking water supplied.
The top six European countries in the number of publications are included within the seven European countries with the largest length of drinking network. Only Poland, which is the fifth country in drink network length, has a limited contribution to this scientific community with regards to the subject of this research.
The volume of drinking water supplied has also been analyzed, evidencing a similar situation: the six European countries with more publications are included within the seven countries which deliver more water to the network. Poland appears again on the list, just before the Netherlands.
Table 1 shows the top ten countries in number of publications, pipe length, and the total amount of drinking water supplied. It clearly shows a connection between pipe length/total amount of water supplied and the number of publications. Pipe length and water supplied data have been collected from Europe’s water figure report [52] and the Global Water Market report [53].
Apart from the two indicators mentioned above, there are some other reasons which could explain why these countries are the top producers:
  • Canada: The development of the Canadian Water Sustainability Index in 2016 [54], CWSI, could be the trigger for the increase of publications from this country. The CWSI is used to assess various elements of water well-being in Canadian communities.
  • The United Kingdom is the European country with the largest contribution in this field of science. One of the reasons which could explain this is the presence of the regulator, Ofwat. The regulator aims to secure England and Wales privatized water utilities provide a good level of service to their customers and set ambitious targets the utilities must meet in their operation. The Ofwat is looking out continuously for water utility operation [55] and promotes long-term planning and ensures proper water resources management. Due to this, the UK water sector has made huge investments and investigations to optimize the performance and operation of their WDN. This fact is also highlighted by Huat Goh and Fong See in their benchmarking bibliometric analysis for water utilities where the UK resulted as being the most productive country due to the presence of Ofwat [37].
  • The contributions from Italy and Spain are ahead of Germany for this specific topic, despite Germany’s pipe length being larger. One reason to explain this is that potable water services in Spain and Italy usually operate in more challenging conditions than in Germany:
    ○
    Mediterranean countries suffer more drought periods, and the climatic change is making these events more frequent and longer in duration [56].
    ○
    Germany is performing better than Spain and Italy in terms of NRW: the level of NRW in Germany is around 9% [52], while Italy/Spain stands at 37%/23% [52,57].
    ○
    Water infrastructure in Spain and Italy is much older than in Germany, where huge investments were made after World War II to rehabilitate and renew the infrastructure [58].
The number of publications and the total amount of water supplied has also been related to the population of each country. In this case, we can see how the tendency for the amount of water supplied related to the population of each country is in line with the total amount of publications, with some minor alterations; for example, Italy and Spain are ahead of the UK. However, the situation is completely different if we compare the number of publications related to the population of each country. In this case, less populated countries, Australia, Netherlands, and Portugal are the largest contributors, and China, the most populated, would have the lowest contribution.

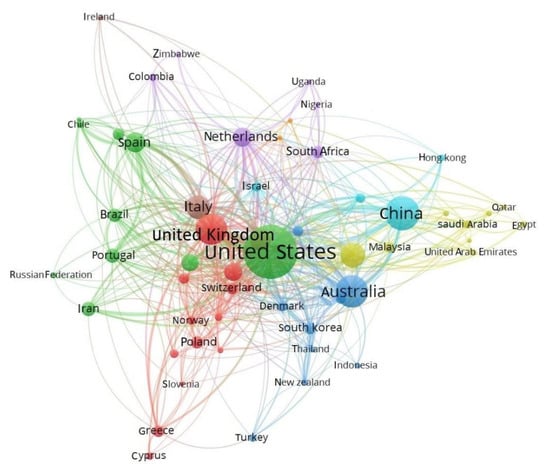

Networking investigation collaborations between the different countries are displayed in Figure 9. The number of publications is represented by the circle size and the color represents the cluster built up by countries working in the same group. The three main producers, the United States, China, and Australia are each leading a different cluster. Table 2 identifies the cluster and the main countries part of it.
The formation of the clusters seems to be determined by two main factors. The first factor is that nearby countries located in a specific geographical area tend to work together: for example, clusters 1, 3, and 6. These countries usually share some common challenges. The second factor is countries which despite being very far from the other, share some kind of bonds, such as language or culture. An example could be cluster 4, where South Africa and the Netherlands appear together, or cluster 5 which groups Muslim countries (Malaysia, Egypt, Saudi Arabia) working together with Canada.

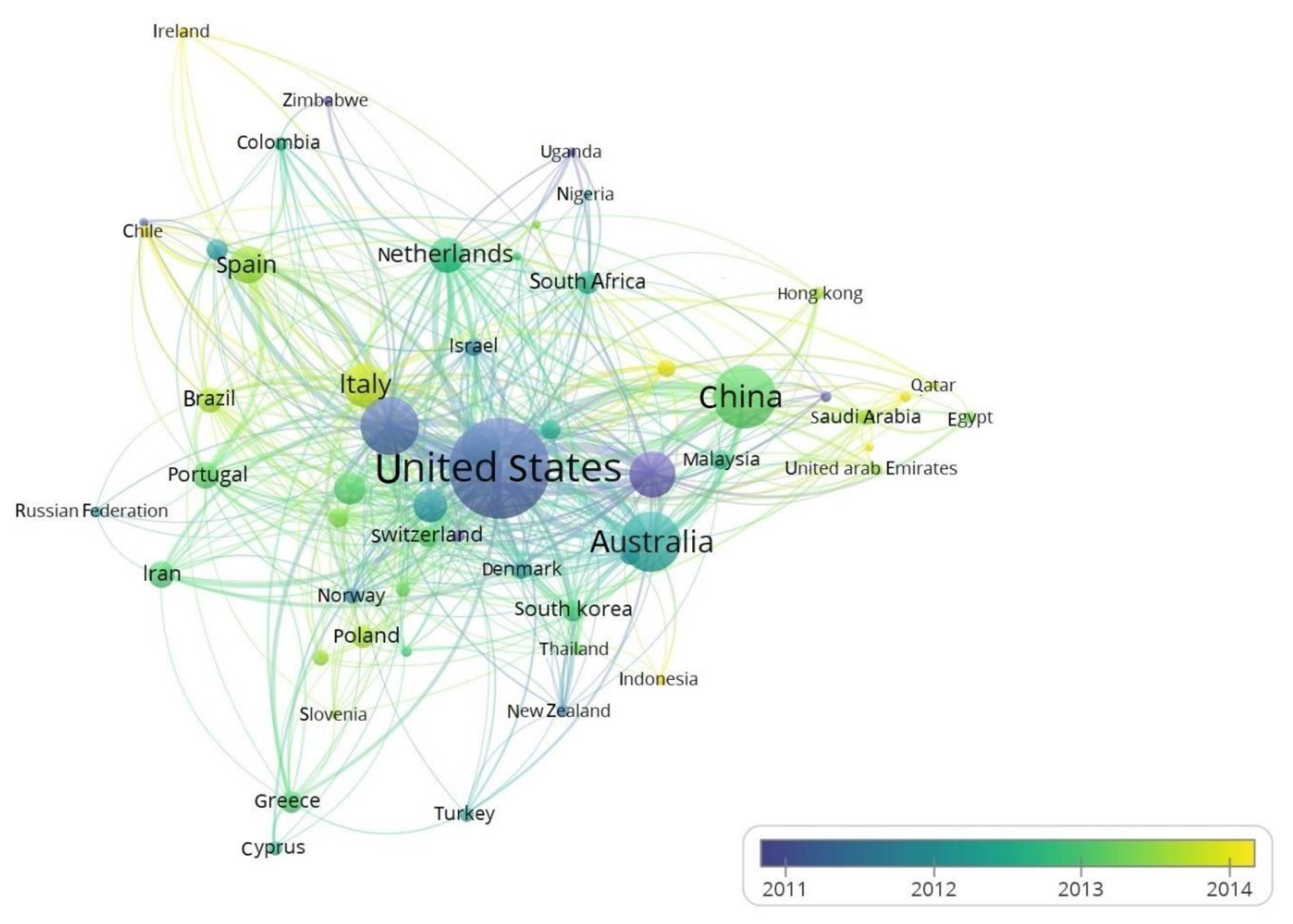

The evolution of the countries’ publishing clusters appears in Figure 10. The scale of the graph has been selected to show when new countries start to publish in this scientific field and make the graph relevant. Until 2010, the United States and Canada were the main countries that were already working on this subject. From 2011 onwards, the contribution from China, and the Netherlands became greater, followed by Spain and Italy.

3.4. Relevant Institutions

Apart from identifying the main countries working in this field, it is important to analyze the institutions indexed in Scopus working in this field. Table 3 shows the most relevant institutions in the number of publications from 2000 to 2020. The table also displays the total number of publications and the three main keywords for them. Keywords included in the search string such as “water distribution”, “water supply”, “water distribution network” were omitted to avoid result distortion.
The main institution is the University of Exeter which contributes 1.36% of the total publications studied. The second institution is the Chinese Academy of Sciences and the third one Delft University of Technology. While the United States is the country with the largest production, the first institution from this country is the Environmental Protection Agency, which ranks in position 5 of the total of publications bodies.

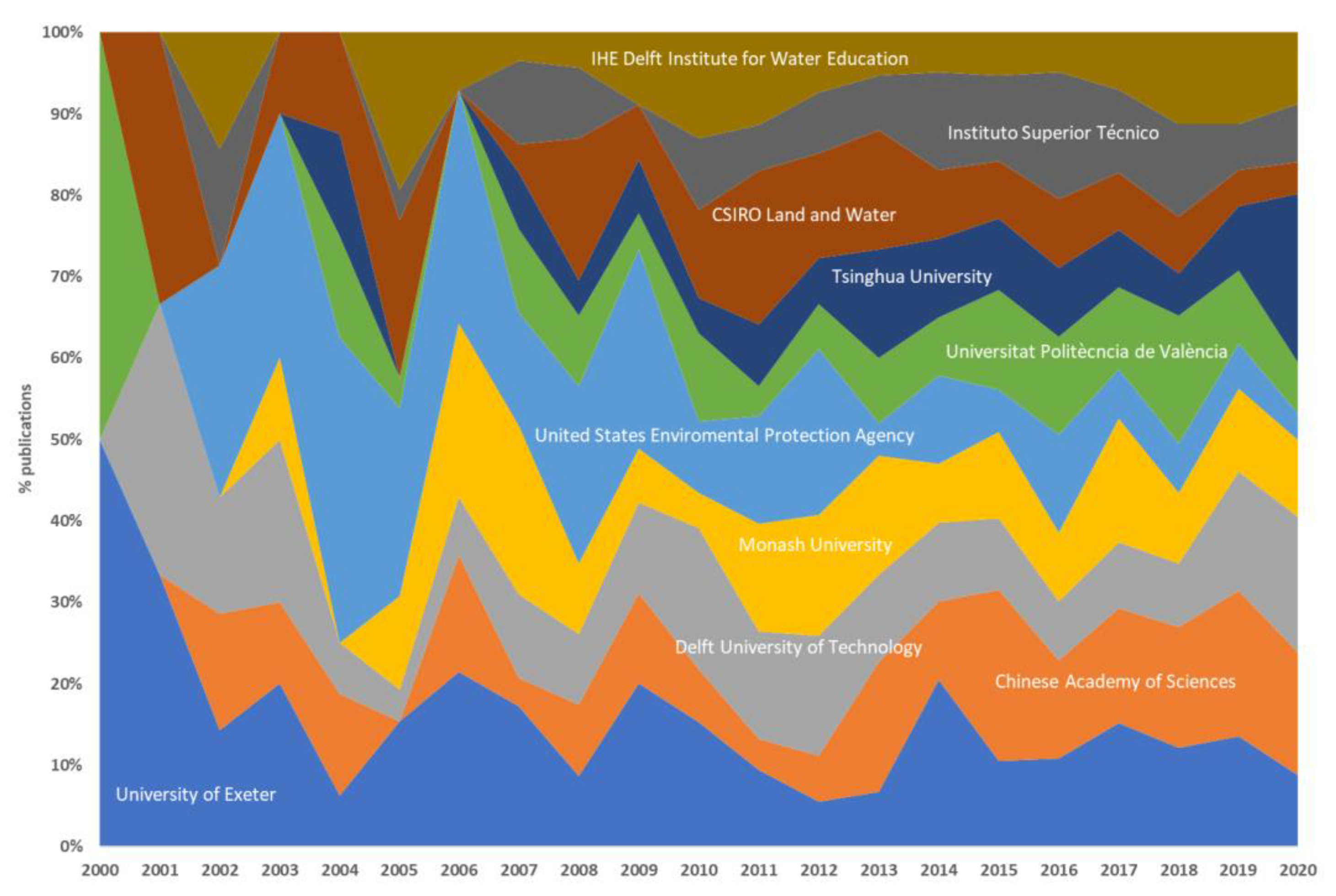

Below, Figure 11 shows the percentage of publications per year from 2000 to 2020 for the top ten institutions publishing in this science field. It is notorious to analyze how in 2020 only two institutions of the top ten had already started to work in this field. Progressively, more institutions have started to contribute with their investigations and for the last ten years, there is a common tendency for the sharing of publications among these top ten institutions.

3.5. Authors Cluster

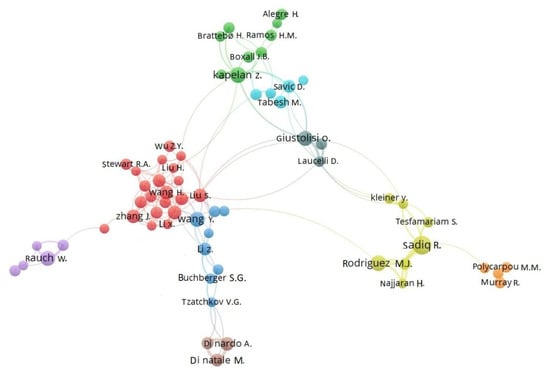

The author collaboration network with more than 15 documents is shown in Figure 12 and Table 4. There is a total of nine clusters. The most important is the red one which groups a total of 24 authors, mainly from China. The second-largest cluster is the green one with nine authors. For the two main clusters, all the authors have a similar contribution weight.

3.6. Keywords

The keywords of a publication allow for identifying the scope of the research. Thus, a basic aspect of bibliometrics is keywords study [59]. In order not to distort the results, keywords included in the search string were not included. Figure 13 provides an overview of the most used keywords, where the size is related to the frequency of occurrence.
The most used keywords are: water supply (4014 times) water management (2236 times), water distribution system (2175 times), potable water (1345 times), and urban area (1161 times).

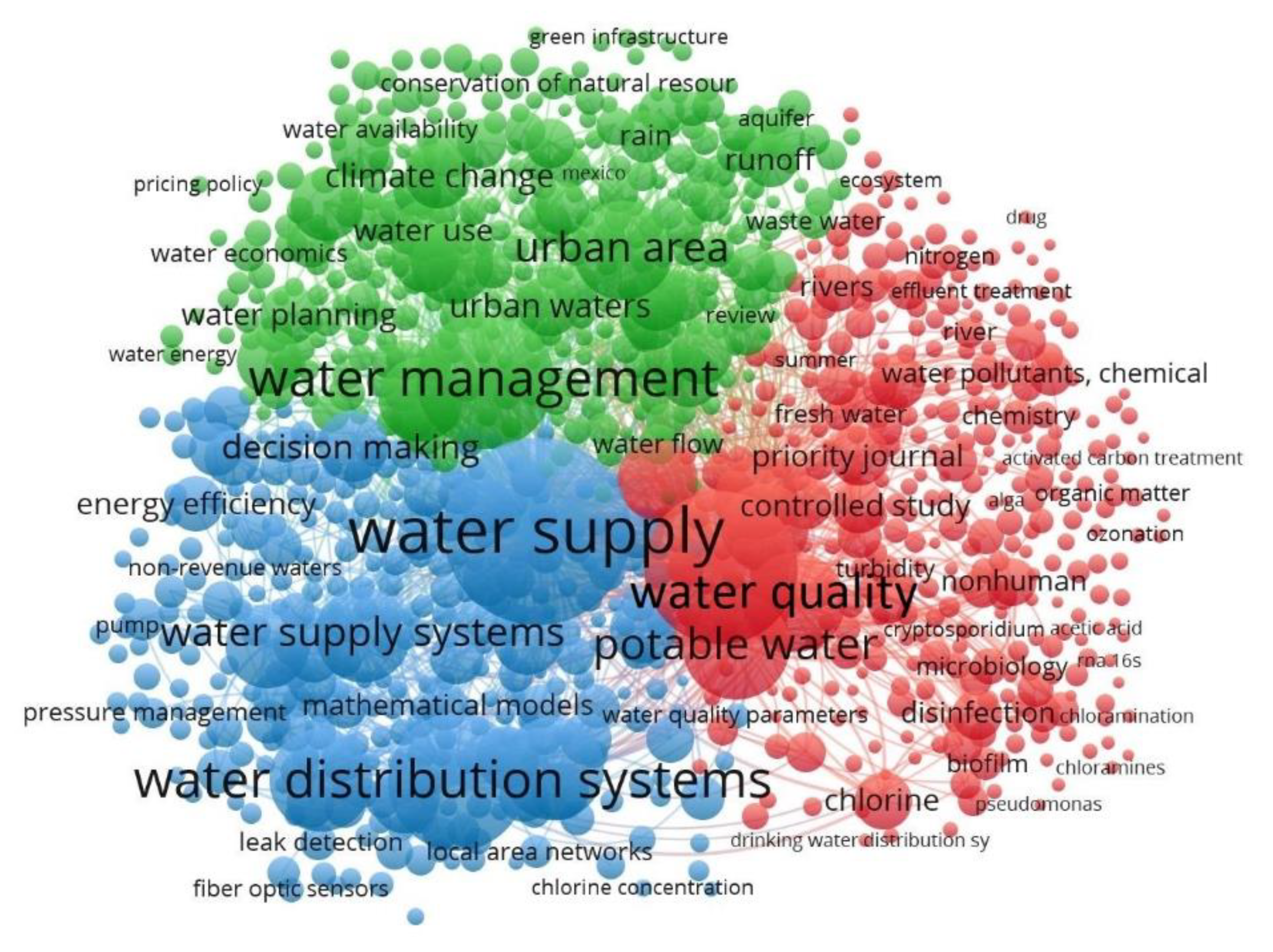

Finally, keywords cluster analysis permits the classification of the groups where research trends are grouped. Figure 14 shows the three clusters obtained and Table 5 summarizes them with the main keywords for each cluster. The main cluster, represented in red, deals with WDN quality. The second cluster, in green color, is focused on WDN management, and the last one, in blue, is centralized in the optimization of WDN.
The three most cited articles for each of the keyword clusters are displayed in Table 6. There is one publication that is common for all the three clusters, ranking in the third position in WDN quality and in first for WDN management and WDN optimization cluster. This publication discusses the benefits of using low-impact development practices to improve water quality. The other two publications for the WDN quality cluster are focused on the application of disinfection products during the potabilization of water and the formation of haloacetic acids and trihalomethanes under different chlorination conditions. For the WDN management cluster, the second-ranking article dates from 2001 and it is a review of different hydraulic models for the simulation of water quantity and quality of stormwater. The third publication is focused on innovative urban water management strategies to deal with the current challenges water utilities are facing. Finally, the second-ranked article for the WDN optimization cluster describes how an optimized genetic algorithm integrated into EPANET software can be used as an early warning detection system against terrorism hazards. The third publication in this cluster develops a simulation model that relates leakage and demand versus pressure in the water distribution network.

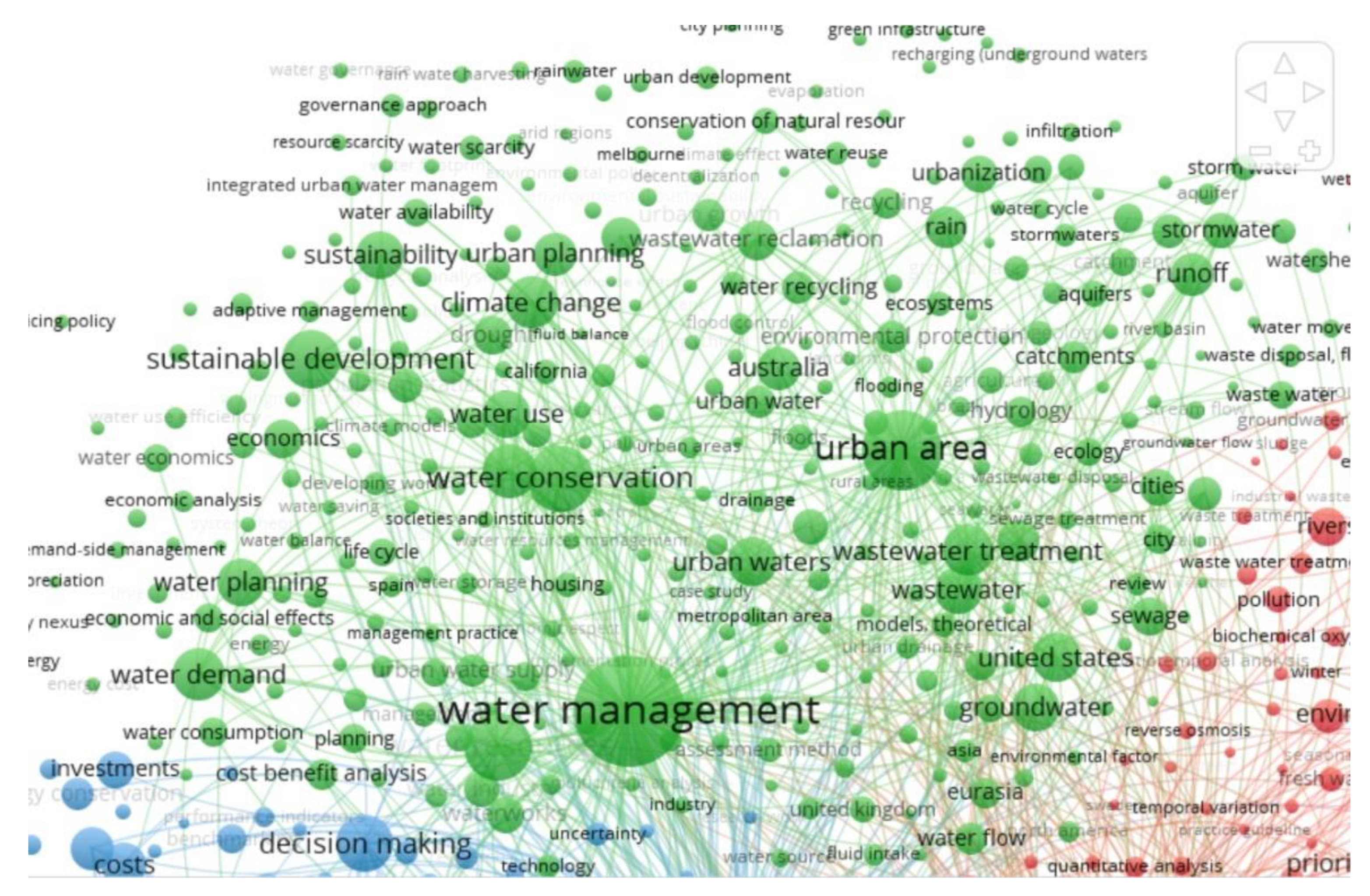

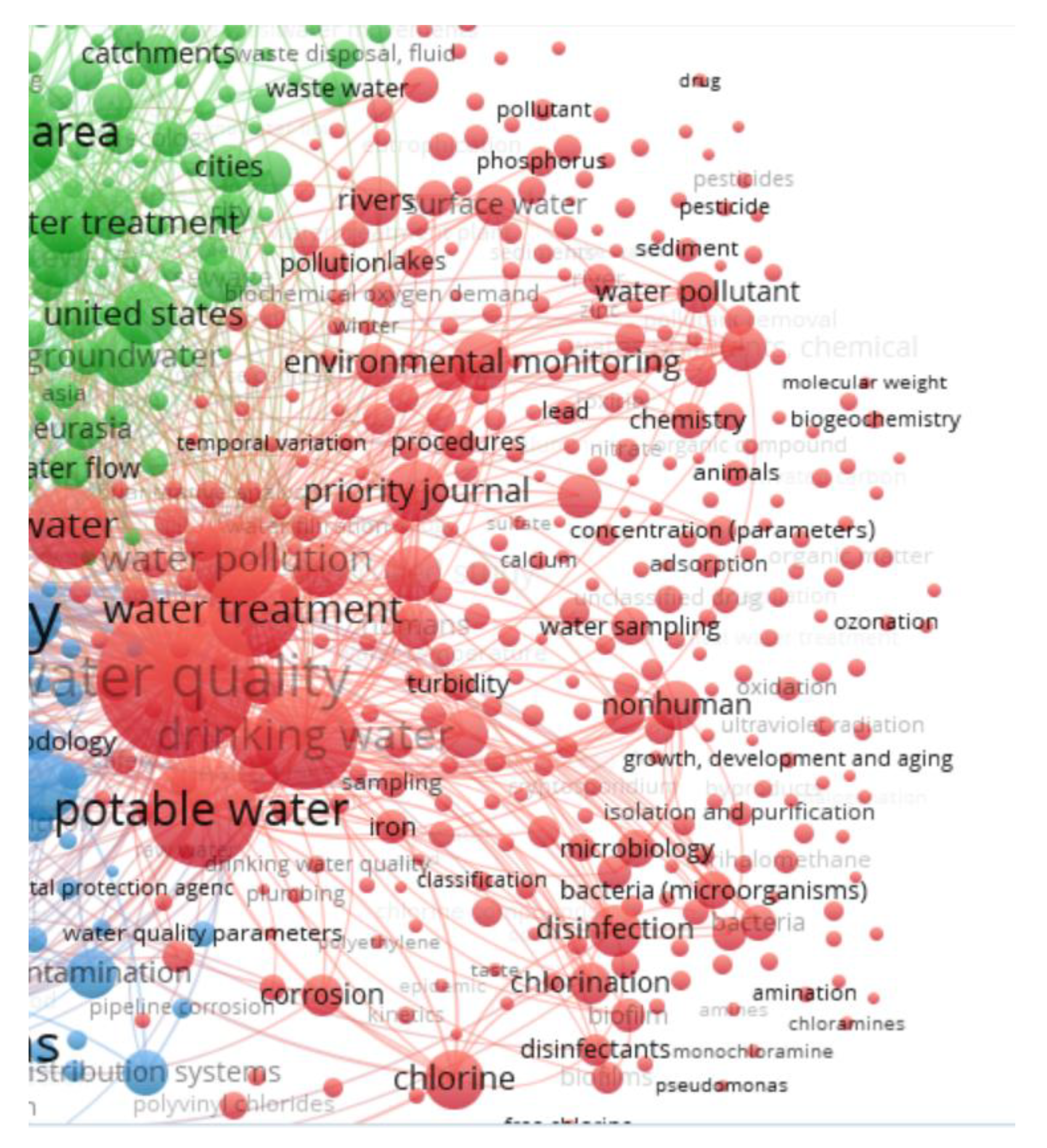

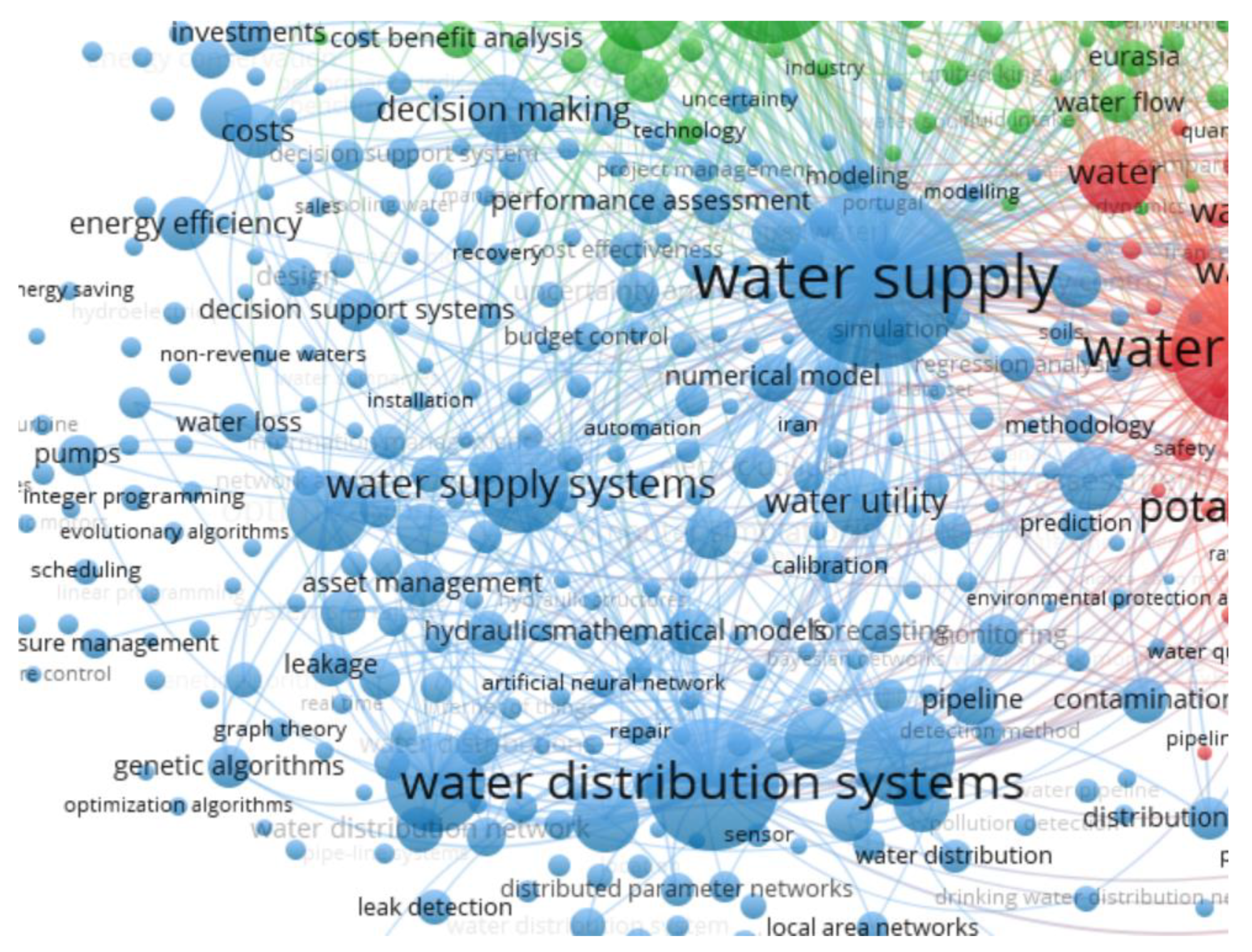

In order to better visualize the keywords for each of the clusters, a detailed figure for each of them is shown below (Figure 15, Figure 16 and Figure 17).

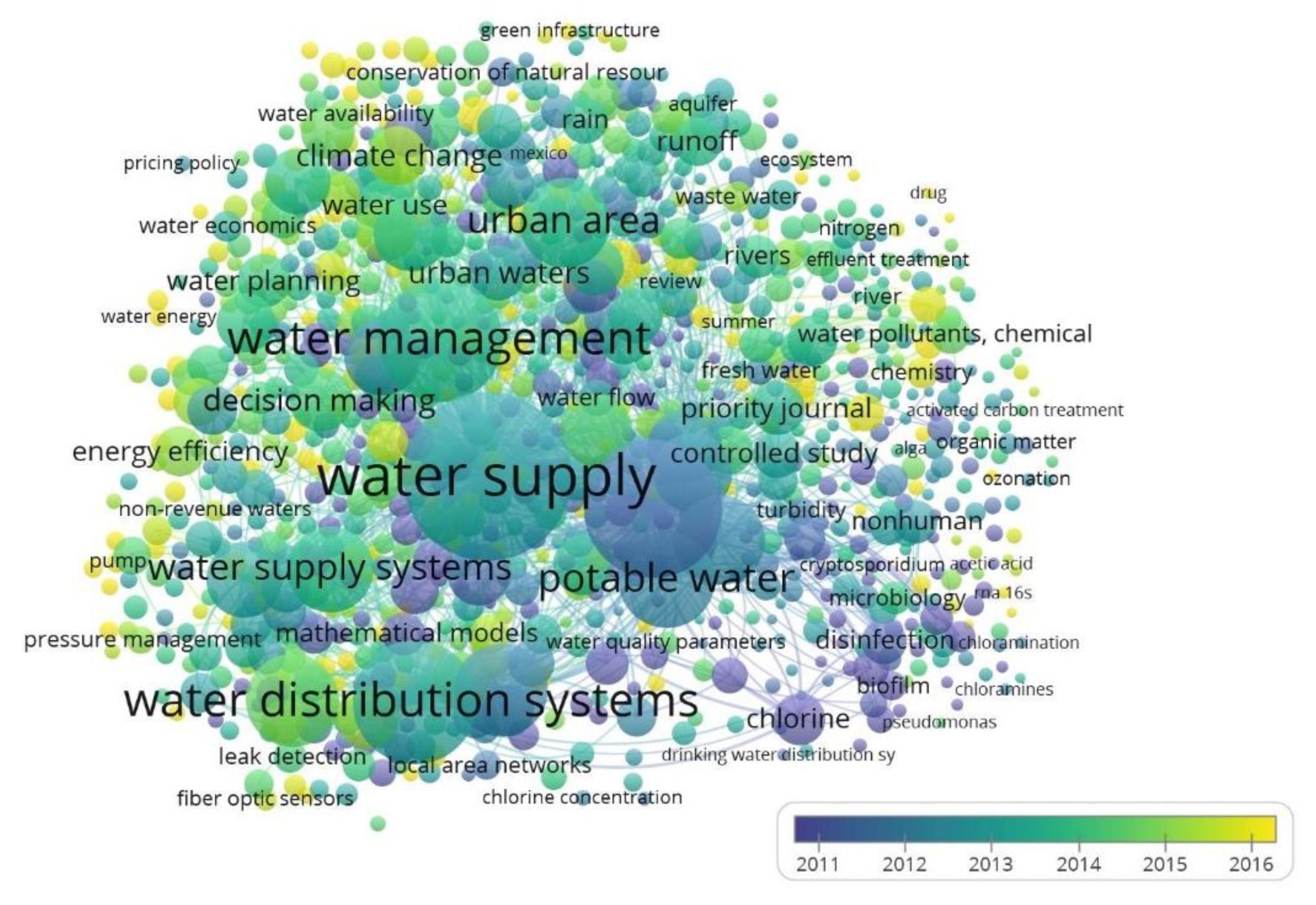

Lastly, Figure 18 displays the evolution for the keywords from 2011 to 2016. This graph shows that keywords for the WDN optimization cluster started to appear and be more cited as of 2011. Despite, the WDN optimization cluster is the smallest one, the keywords publication evolution reveals that it has won eight in the last years.

3.7. Future Research

It is suggested to focus future research efforts on identifying the main challenges each country is facing, how they impact the operation of the water utility, the work done by the operators to overcome it, and the results obtained. A benchmark result analysis of the measurements applied by different utilities facing common challenges would be desirable to understand potential benefits in other utilities.
As conditions and challenges are likely to vary even in the same country, it would be preferred to make this analysis per water utility. However, this would require very deep analysis and data and information might not be available for all locations.
A deeper analysis of the WDN optimization cluster would also help to understand why research is moving in that direction and which challenges new proposals and investigations by the scientific community are helping to solve.

4. Conclusions

The aim of this document is to present a review of worldwide research on the challenges water utilities are facing in order to deliver water to their customers in safe and reliable conditions. These challenges are common among utilities and their occurrence has intensified in recent years. A good example is the large drought events that occurred in some megacities. Due to the importance of this matter, the evolution of the number of publications in this scientific field has garnered the attention of the community, growing exponentially from 2000—with only 115 publications in the field—to 2020, where there are now 1018 papers on this topic. This growing production, especially from 2015 as half of the documents have been published since then, justifies the need for this bibliometric research.
The three main report-producing countries are the USA, China, and the UK, leading each of them to an investigation cluster. The three most producing institutions are the University of Exeter, the Chinese Academy of Sciences, and the Delft University of Technology. There is a connection between pipe length per country and the total amount of water supplied with the number of publications, as the countries with the largest pipe network and the highest amount of water delivered the ones with more publications. An exception would be Australia, which is position eight for pipe length and water supplied but in the third position for the number of publications. The long drought events suffered in Australia have boosted scientific production. Other factors, such as external regulators, local climate conditions, and network status also play an important role to define the countries with more contributions.
The research shows great collaboration between different countries identifying eight working clusters composed of two to four countries. New countries and institutions have started to incorporate to the research clusters mainly since 2010, as the subject is acquiring relevance and importance among the scientific community. The main subject categories under which the articles are published are Environmental Sciences, Engineering, and Social Sciences.
The keywords analysis reveals publications around three main topics: WDN quality, WDN management, and WDN optimization. The keywords evolution proves that the topic WDN optimization is acquiring more weight in the last years to the detriment of the other two. This responds to the need of addressing current challenges by using emerging technology to improve WDN performance. Over the last years, automation, data gathering and analysis, and machine learning tools, commonly known as smart water technologies, are widely employed in the industry to improve access and supply of drinking water with the right level of service.
Finally, the bibliometrics results highlight the interest in this subject and can open new doors for future publications in this research field. This research intends to be an introduction to this subject. It is suggested to focus future investigation lines on identifying which are the challenges each of the countries/investigation institutions are working on and the connection among them.

Author Contributions

Conceptualization, A.O.-B., F.M.-A. and A.-J.P.-M.; investigation, A.O.-B., F.M.-A. and A.-J.P.-M.; resources, A.O.-B., F.M.-A. and A.-J.P.-M.; writing—original draft preparation A.O.-B., F.M.-A. and A.-J.P.-M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations have been used in this document:
UNUnited Nations
WDNWater distribution network
NRWNon Revenue Water
CWSICanadian Water Sustainability Index

References

  1. UN. Transforming Our World: The 2030 Agenda for Sustainable Development. General Assembley 70 Session. 2015. Available online: https://www.un.org/en/development/desa/population/migration/generalassembly/docs/globalcompact/A_RES_70_1_E.pdf (accessed on 27 January 2021).
  2. Berg, C.V.; Danilenko, A. The international benchmarking network for water and sanitation utilities databook. In The IBNET Water Supply and Sanitation Performance Bluebook; World Bank: Washington, DC, USA, 2011. [Google Scholar]
  3. Sharma, A.; Burn, S.; Gardner, T.; Gregory, A. Role of decentralised systems in the transition of urban water systems. Water Supply 2010, 10, 577–583. [Google Scholar] [CrossRef]
  4. Marques, R.; Carvalho, P.; Pires, J.; Fontainhas, A. Willingness to pay for the water supply service in Cape Verde—How far can it go? Water Supply 2016, 16, 1721–1734. [Google Scholar] [CrossRef] [Green Version]
  5. Loubet, P.; Roux, P.; Loiseau, E.; Bellon-Maurel, V. Life cycle assessments of urban water systems: A comparative analysis of selected peer-reviewed literature. Water Res. 2014, 67, 187–202. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, H.; Asefa, T.; Bracciano, D.; Adams, A.; Wanakule, N. Proactive water shortage mitigation integrating system optimization and input uncertainty. J. Hydrol. 2019, 571, 711–722. [Google Scholar] [CrossRef]
  7. Flörke, M.; Schneider, C.; McDonald, R.I. Water competition between cities and agriculture driven by climate change and urban growth. Nat. Sustain. 2018, 1, 51–58. [Google Scholar] [CrossRef]
  8. Pingale, S.M.; Jat, M.K.; Khare, D. Integrated urban water management modelling under climate change scenarios. Resour. Conserv. Recycl. 2014, 83, 176–189. [Google Scholar] [CrossRef]
  9. Snidder, B.; McBean, E.A. Watermain breaks and data: The intricate relationship between data availability and accuracy of predictions. Urban Water J. 2020, 17, 163–176. [Google Scholar] [CrossRef]
  10. Pahl-Wostl, C.; Gupta, J.; Bhaduri, A. Water security: A popular but contested concept. In Handbook on Water Security; Edward Elgar Publishing: Cheltenham, UK, 2016; Chapter 1; pp. 1–16. [Google Scholar] [CrossRef]
  11. UNDESA. World Population Prospects: Key Findings and Advance Tables—The 2017 Revision. Working Paper No. ESA/P/WP/248; UNDESA, Population Division: New York, NY, USA, 2017. [Google Scholar]
  12. Oki, T.; Quiocho, R.E. Economically challenged and water scarce: Identification of global populations most vulnerable to water crises. Int. J. Water Resour. Dev. 2020, 36, 416–428. [Google Scholar] [CrossRef] [Green Version]
  13. World, T.U. Nature Based Solutions for Water. New York. 2018. Available online: www.unwater.org/publications/world-water-development-report-2018/ (accessed on 4 February 2021).
  14. Mukherjee, S.; Mishra, A.; Trenberth, K.E. Climate Change and Drought: A Perspective on Drought Indices. Curr. Clim. Chang. Rep. 2018, 4, 145–163. [Google Scholar] [CrossRef]
  15. Velasco, M.; Russo, B.; Monjo, R.; Paradinas, C.; Djordjević, S.; Evans, B.; Martínez-Gomariz, E.; Guerrero-Hidalga, M.; Cardoso, M.; Brito, R.; et al. Increased Urban Resilience to Climate Change—Key Outputs from the RESCCUE Project. Sustainability 2020, 12, 9881. [Google Scholar] [CrossRef]
  16. Meehl, G.; Stocker, T.; Collins, W. Global Climate Projections; Cambridge Univ Press: Cambridge, UK, 2007. [Google Scholar]
  17. Dilling, L.; Daly, M.E.; Kenney, D.A.; Klein, R.; Miller, K.; Ray, A.; Travis, W.; Wilhelmi, O. Drought in urban water systems: Learning lessons for climate adaptive capacity. Clim. Risk Manag. 2019, 23, 32–42. [Google Scholar] [CrossRef]
  18. Masson-Delmotte, V.; Zhai, P.; Pörtner, H.-O.; Roberts, D.; Skea, J.; Shukla, P.R.; Pirani, A.; Moufouma-Okia, W.; Péan, C.; Pidcock, R.; et al. IPCC, 2018: Summary for Policymakers. In Global Warming of 1.5 °C; An IPCC Special Report on the Impacts of Global Warming of 1.5 °C above Pre-Industrial Levels and Related Global Greenhouse Gas Emission Pathways, in the Context of Strengthening the Global. Available online: https://www.ipcc.ch/site/assets/uploads/sites/2/2019/05/SR15_Chapter1_Low_Res.pdf (accessed on 8 February 2021).
  19. Toth, E.; Bragalli, C.; Neri, M. Assessing the significance of tourism and climate on residential water demand: Panel-data analysis and non-linear modelling of monthly water consumptions. Environ. Model. Softw. 2018, 103, 52–61. [Google Scholar] [CrossRef]
  20. Manouseli, D.; Kayaga, S.M.; Kalawsky, R. Evaluating the Effectiveness of Residential Water Efficiency Initiatives in England: Influencing Factors and Policy Implications. Water Resour. Manag. 2019, 33, 2219–2238. [Google Scholar] [CrossRef] [Green Version]
  21. Rajani, B.; Kleiner, Y.; Sink, J.-E. Exploration of the relationship between water main breaks and temperature covariates. Urban Water J. 2012, 9, 67–84. [Google Scholar] [CrossRef]
  22. Almheiri, Z.; Meguid, M.; Zayed, T. An Approach to Predict the Failure of Water Mains Under Climatic Variations. Int. J. Geosynth. Ground Eng. 2020, 6, 1–16. [Google Scholar] [CrossRef]
  23. Institution of Civil Engineers. The State of the Nation: Water 2012. AMIA Annual Symposium Proceedings/AMIA Symposium; AMIA Symposium: Rockville, MD, USA, 2012. [Google Scholar]
  24. Environmental Protection Agency. Addressing the Challenge through Science and Innovation; Environmental Protection Agency: Washington, DC, USA, 2011. Available online: http://nepis.epa.gov/Adobe/PDF/P100EQ6Q.pdf (accessed on 8 February 2021).
  25. Folkman, S. Water Main Break Rates in the USA and Canada: A Comprehensive Study; Mechanical and Aerospace Engineering Faculty Publications: Logan, UT, USA, 2018. [Google Scholar]
  26. Li, Z.; Zhang, B.; Wang, Y.; Chen, F.; Taib, R.; Whiffin, V.; Wang, Y. Water pipe condition assessment: A hierarchical beta process approach for sparse incident data. Mach. Learn. 2013, 95, 11–26. [Google Scholar] [CrossRef]
  27. AWWA. State of the Water Industry Report. American Waterworks Association. Available online: https://www.awwa.org/Portals/0/AWWA/ETS/Resources/2019_STATE%20OF%20THE%20WATER%20INDUSTRY_post.pdf (accessed on 14 March 2021).
  28. Lambert, A.; Hirner, W. Losses from Water Supply Systems: Standard. IWA (International Water Association). Available online: https://waterfund.go.ke/watersource/Downloads/001.%20Losses%20from%20water%20supply%20systems.pdf (accessed on 14 March 2021).
  29. Lambert, A. Assessing Non-Revenue Water and its Components: A Practical Approach. Water21. Available online: http://www.pacificwater.org/_resources/article/files/IWA%20Standard%20Water%20Balance_Water%20Loss%20Task%20Force%20Article%202.pdf (accessed on 16 March 2021).
  30. Liemberger, R. Quantifying the Global Non-Revenue Water Problem. Water Science & Technology Water Supply. 2018. Available online: https://iwaponline.com/ws/article/19/3/831/41417/Quantifying-the-global-non-revenue-water-problem (accessed on 16 March 2021).
  31. Thornton, J.; Sturm, R.; Kunkel, G. Water Loss Control, 2nd ed.; The McGraw-Hill Companies, Inc.: New York, NY, USA, 2008. [Google Scholar]
  32. Cassidy, J.; Barbosa, B.; Damião, M.; Ramalho, P.; Ganhão, A.; Santos, A.; Feliciano, J. Taking water efficiency to the next level: Digital tools to reduce non-revenue water. J. Hydroinformatics 2021, 23, 453–465. [Google Scholar] [CrossRef]
  33. Heimann, A. The Future of Hydraulic Control in Water Systems; Water Loss 2018; The International Water Association Publishing: Cape Town, South Africa, 2018. [Google Scholar]
  34. Adetoro, A.A.; Ngidi, M.; Nyam, Y.S.; Orimoloye, I.R. Temporal evaluation of global trends in water footprint, water sustainability and water productivity research. Sci. Afr. 2021, 12, e00732. [Google Scholar] [CrossRef]
  35. Zhang, Y.; Huang, K.; Yu, Y.; Yang, B. Mapping of water footprint research: A bibliometric analysis during 2006–2015. J. Clean. Prod. 2017, 149, 70–79. [Google Scholar] [CrossRef]
  36. Goh, K.H.; See, K.F. Twenty years of water utility benchmarking: A bibliometric analysis of emerging interest in water research and collaboration. J. Clean Prod. 2021, 284, 124711. [Google Scholar] [CrossRef]
  37. Durán-Sánchez, A.; Álvarez-García, J.; González-Vázquez, E.; Río-Rama, M.D.L.C.D.D. Wastewater Management: Bibliometric Analysis of Scientific Literature. Water 2020, 12, 2963. [Google Scholar] [CrossRef]
  38. Patyal, V.; Jaspal, D.; Khare, K. Wastewater Treatment Technologies: A Bibliometric Analysis. Sci. Technol. Libr. 2020, 39, 383–394. [Google Scholar] [CrossRef]
  39. Zhao, L.; Dai, T.; Qiao, Z.; Sun, P.; Hao, J.; Yang, Y. Application of artificial intelligence to wastewater treatment: A bibliometric analysis and systematic review of technology, economy, management, and wastewater reuse. Process Saf. Environ. Prot. 2020, 133, 169–182. [Google Scholar] [CrossRef]
  40. Zheng, T.; Wang, J.; Wang, Q.; Nie, C.; Smale, N.; Shi, Z.; Wang, X. A bibliometric analysis of industrial wastewater research: Current trends and future prospects. Science 2015, 105, 863–882. [Google Scholar] [CrossRef]
  41. De la Cruz-Lovera, C.; Perea-Moreno, A.-J.; De la Cruz-Fernández, J.-L.; Alvarez-Bermejo, J.A.; Manzano-Agugliaro, F. Worldwide Research on Energy Efficiency and Sustainability in Public Buildings. Sustainability 2017, 9, 1294. [Google Scholar] [CrossRef] [Green Version]
  42. Mongeon, P.; Paul-Hus, A. The journal coverage of Web of Science and Scopus: A comparative analysis. Scientometrics 2016, 106, 213–228. [Google Scholar] [CrossRef]
  43. van Eck, N.J.; Waltman, L. Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics 2010, 84, 523–538. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Mishra, A.K.; Singh, V.P. A review of drought concepts. J. Hydrol. 2010, 391, 202–216. [Google Scholar] [CrossRef]
  45. Van Dijk, A.I.J.M.; Beck, H.E.; Crosbie, R.; De Jeu, R.A.M.; Liu, Y.Y.; Podger, G.M.; Timbal, B.; Viney, N. The Millennium Drought in southeast Australia (2001–2009): Natural and human causes and implications for water resources, ecosystems, economy, and society. Water Resour. Res. 2013, 49, 1040–1057. [Google Scholar] [CrossRef]
  46. March, H.; Domènech, L.; Saurí, D. Water conservation campaigns and citizen perceptions: The drought of 2007–2008 in the Metropolitan Area of Barcelona. Nat. Hazards 2012, 65, 1951–1966. [Google Scholar] [CrossRef]
  47. Griffin, D.; Anchukaitis, K.J. How unusual is the 2012–2014 California drought? Geophys. Res. Lett. 2014, 41, 9017–9023. [Google Scholar] [CrossRef] [Green Version]
  48. Torres, P.H.C.; Côrtes, P.L.; Jacobi, P.R. Governing complexity and environmental justice: Lessons from the water crisis in Metropolitan São Paulo (2013–2015). Desenvolv. Meio Ambient. 2020, 53, 61–77. [Google Scholar] [CrossRef]
  49. Visser, W.P. A perfect storm: The ramifications of Cape Town’s drought crisis. J. Transdiscipl. Res. South. Afr. 2018, 14, 1–10. [Google Scholar] [CrossRef]
  50. Brühl, J.; Visser, M. The Cape Town drought: A study of the combined effectiveness of measures implemented to prevent “Day Zero”. Water Resour. Econ. 2021, 34, 100177. [Google Scholar] [CrossRef]
  51. Zhang, X.; Chen, N.; Sheng, H.; Ip, C.; Yang, L.; Chen, Y.; Sang, Z.; Tadesse, T.; Lim, T.P.Y.; Rajabifard, A.; et al. Urban drought challenge to 2030 sustainable development goals. Sci. Total. Environ. 2019, 693, 133536. [Google Scholar] [CrossRef] [PubMed]
  52. Europe’s Water in Fugures. An Overwiew of the European Drinking Water and Waste Water Sector. Edition 2017. Available online: https://www.eureau.org/resources/publications/1460-eureau-data-report-2017-1/file (accessed on 10 April 2021).
  53. Market, G.W. Global Water Market 2017: Meeting the World’s Water and Wastewater Needs Until 2020; Global Water Intelligence: Oxford, UK, 2017; Volume 18. [Google Scholar]
  54. Morin, A. The Canadian Water Sustainability Index (CWSI) Case Study Report. Aboriginal Policy Research Consortium International (APRCi). 215. 2006. Available online: https://ir.lib.uwo.ca/aprci/215 (accessed on 15 May 2021).
  55. Cabrera, E.; Cabrera, E. La Regulación de los Servicios Urbaos de Agua; Editorial Universitat Politècnica de València: Valencia, Spain, 2016; pp. 77–79. [Google Scholar]
  56. Hervás-Gámez, C.; Delgado-Ramos, F. Drought Management Planning Policy: From Europe to Spain. Sustainability 2019, 11, 1862. [Google Scholar] [CrossRef] [Green Version]
  57. XVI Estudio Nacional de Suministro de Agua Potable y Saneamiento en España 2020. AEAS-AGA, 2020. Available online: https://www.aeas.es/component/users/?view=login&Itemid=101 (accessed on 20 May 2021).
  58. Liemberger, R. The New German Water Loss Regulations in Context with Other International Applications of the IWA Water Balance and Real Loss Performance Indicators; Liemberger & Partners GmbH: Klagenfurt am Wörthersee, Austria, 2003. [Google Scholar]
  59. Choi, J.; Yi, S.; Lee, K.C. Analysis of keyword networks in MIS research and implications for predicting knowledge evolution. Inf. Manag. 2011, 48, 371–381. [Google Scholar] [CrossRef]
Sustainability 13 07726 g001 550

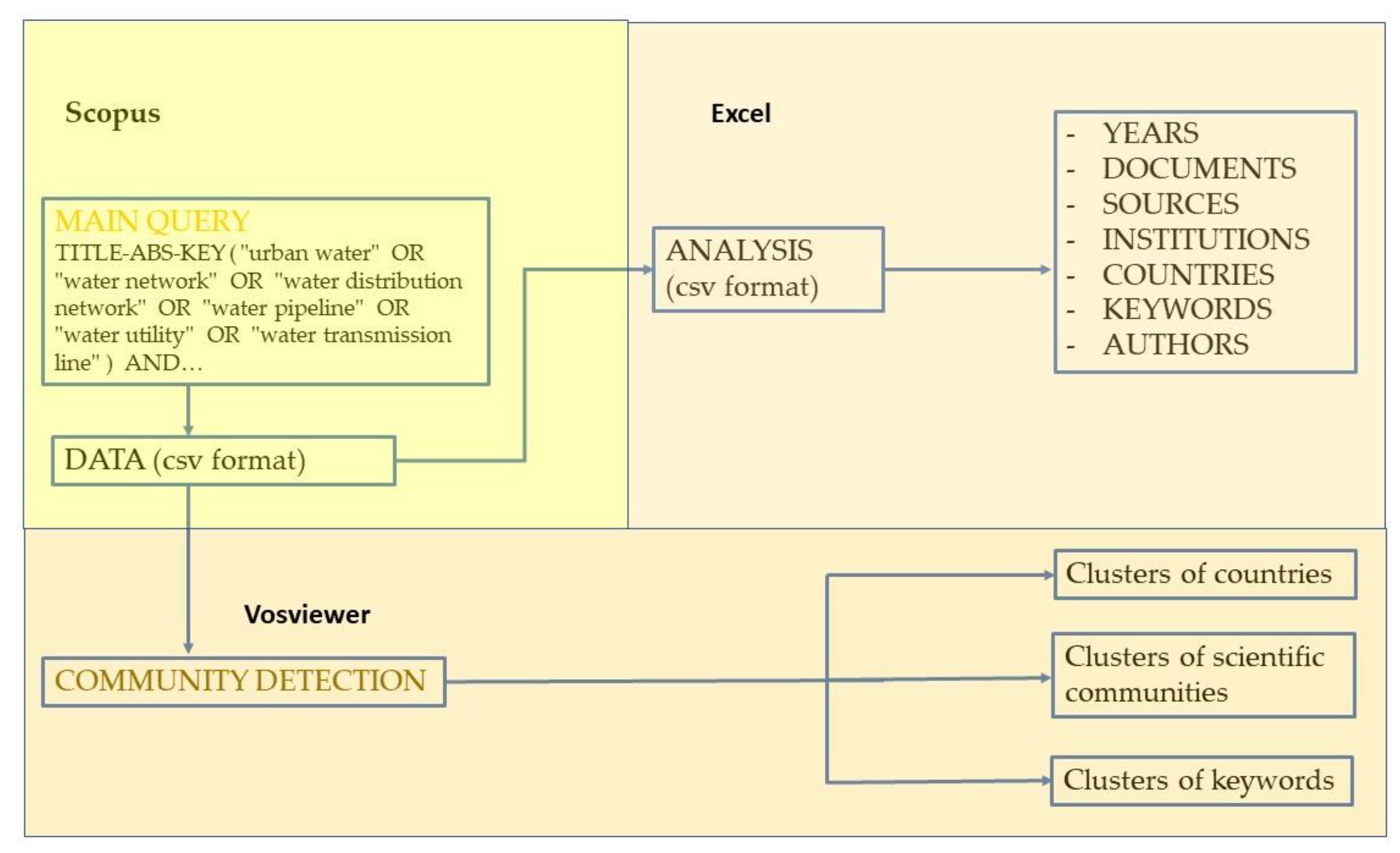

Figure 1. Methodology of work.
Figure 1. Methodology of work.
Sustainability 13 07726 g001
Sustainability 13 07726 g002 550

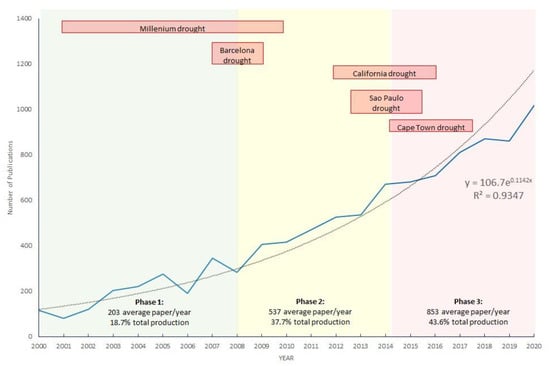

Figure 2. Yearly number of articles on water utilities challenges from 2000 to 2020.
Figure 2. Yearly number of articles on water utilities challenges from 2000 to 2020.
Sustainability 13 07726 g002
Sustainability 13 07726 g003 550

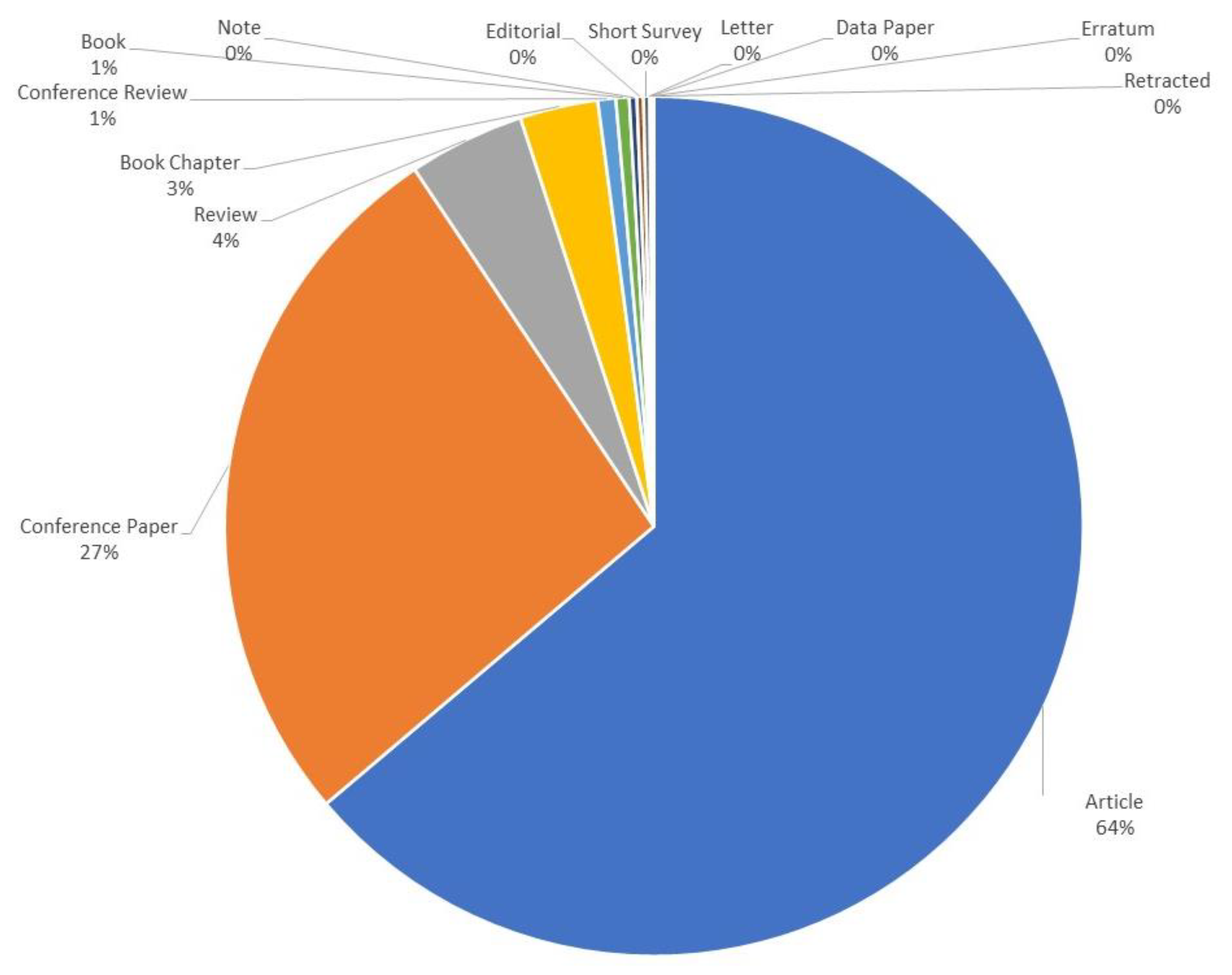

Figure 3. Publications type between 2000 and 2020 for challenges related to potable WDN.
Figure 3. Publications type between 2000 and 2020 for challenges related to potable WDN.
Sustainability 13 07726 g003
Sustainability 13 07726 g004 550

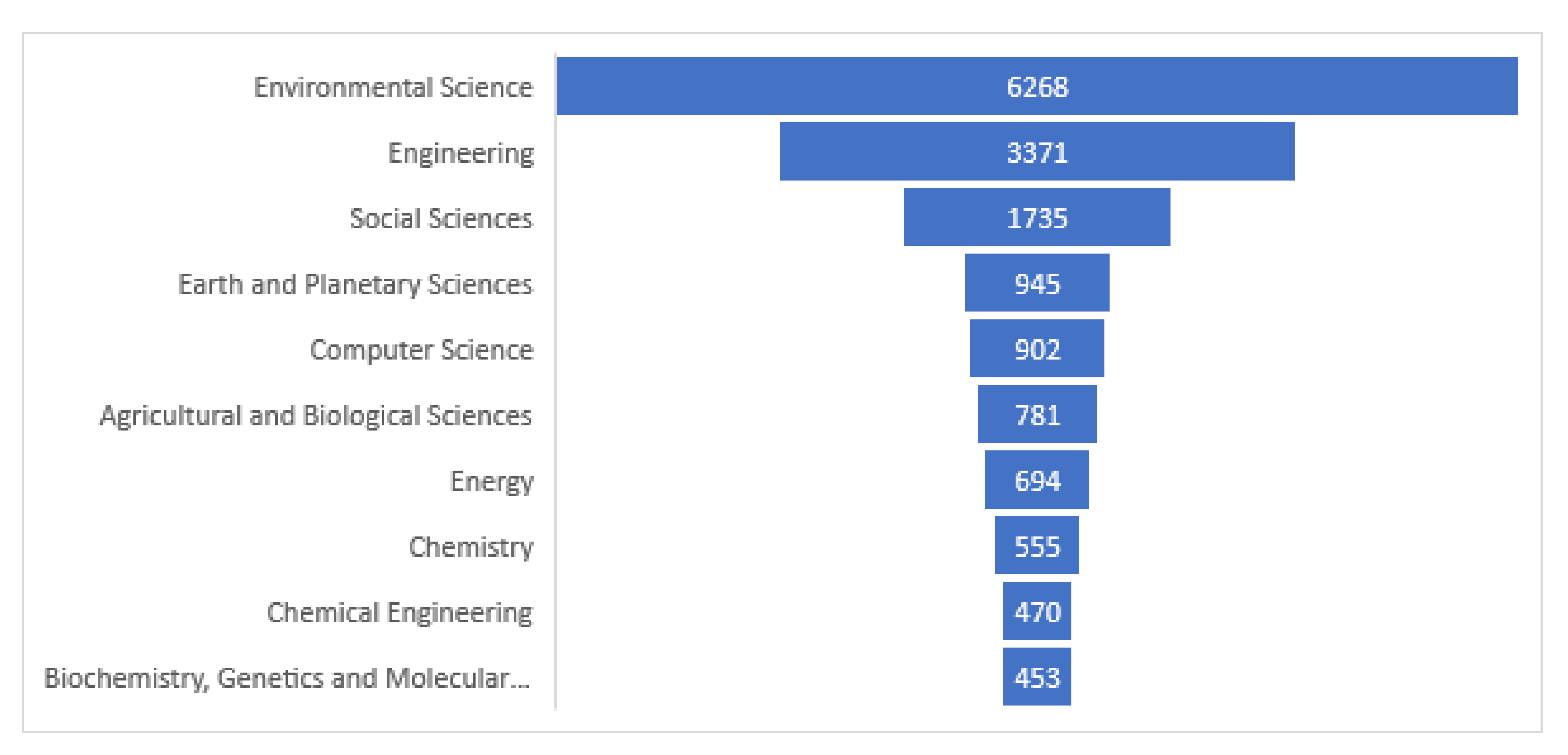

Figure 4. Water utilities challenges publications by scientific categories indexed in Scopus.
Figure 4. Water utilities challenges publications by scientific categories indexed in Scopus.
Sustainability 13 07726 g004
Sustainability 13 07726 g005 550
Figure 5. Scientific categories’ evolution over time.
Figure 5. Scientific categories’ evolution over time.
Sustainability 13 07726 g005
Sustainability 13 07726 g006 550
Figure 6. Subject area distribution per country.
Figure 6. Subject area distribution per country.
Sustainability 13 07726 g006
Sustainability 13 07726 g007 550
Figure 7. Number of documents by country.
Figure 7. Number of documents by country.
Sustainability 13 07726 g007
Sustainability 13 07726 g008 550
Figure 8. Evolution of publications for the top ten countries in this field.
Figure 8. Evolution of publications for the top ten countries in this field.
Sustainability 13 07726 g008
Sustainability 13 07726 g009 550
Figure 9. Research relations between countries.
Figure 9. Research relations between countries.
Sustainability 13 07726 g009
Sustainability 13 07726 g010 550
Figure 10. Evolution of countries’ network collaboration.
Figure 10. Evolution of countries’ network collaboration.
Sustainability 13 07726 g010
Sustainability 13 07726 g011 550
Figure 11. Evolution of the top 10 institutions with more publications.
Figure 11. Evolution of the top 10 institutions with more publications.
Sustainability 13 07726 g011
Sustainability 13 07726 g012 550
Figure 12. Author collaboration network.
Figure 12. Author collaboration network.
Sustainability 13 07726 g012
Sustainability 13 07726 g013 550
Figure 13. Cloudword of keywords in water utility challenges.
Figure 13. Cloudword of keywords in water utility challenges.
Sustainability 13 07726 g013
Sustainability 13 07726 g014 550
Figure 14. Cloudword of keywords in water utility challenges.
Figure 14. Cloudword of keywords in water utility challenges.
Sustainability 13 07726 g014
Sustainability 13 07726 g015 550
Figure 15. Cluster WDN quality.
Figure 15. Cluster WDN quality.
Sustainability 13 07726 g015
Sustainability 13 07726 g016 550
Figure 16. Cluster WDN management.
Figure 16. Cluster WDN management.
Sustainability 13 07726 g016
Sustainability 13 07726 g017 550
Figure 17. Cluster WDN optimization.
Figure 17. Cluster WDN optimization.
Sustainability 13 07726 g017
Sustainability 13 07726 g018 550
Figure 18. Keywords evolution.
Figure 18. Keywords evolution.
Sustainability 13 07726 g018
Table
Table 1. Relationship between the number of publications per country and pipe length/water supplied.
Table 1. Relationship between the number of publications per country and pipe length/water supplied.
CountryPopulation (×106)PublicationsPublications/
Million Habitants		Pipe Length (×103 km)Water Supplied (Million m3/Year)Water Supplied
(Million m3/Year/
Million Habitants)
USA32825157.671388490,8301496.43
China139811900.851429609,488435.97
Australia2588935.561743738149.52
UK6684112.74382598590.68
Italy605689.474738350139.17
Spain473878.23270440093.62
France673785.64920582086.87
Netherlands1735821.06118112666.24
Germany833213.87530500060.24
Portugal1020020.0010478178.10
Table
Table 2. Countries collaboration in the period 2000–2020.
Table 2. Countries collaboration in the period 2000–2020.
ClusterColorMain CountriesNumber of CountriesLeader
1RedUnited Kingdom, France, Germany, Poland14United Kingdom
2GreenUnited States, Spain, India, Iran10United States
3BlueAustralia, South Korea, Sweden, Japan9Australia
4YellowCanada, Malaysia, Saudi Arabia, Egypt9Canada
5PurpleNetherlands, South Africa, Colombia, Uganda6Netherlands
6CianChina, Singapore, Israel, Hong Kong4China
7OrangeKenya, Ghana5Kenya
8BrownItaly, Ireland5Italy
Table
Table 3. Top 10 affiliations main keywords.
Table 3. Top 10 affiliations main keywords.
InstitutionCountryNKeyword
123
University of ExeterUnited Kingdom133OptimizationWater ManagementSystem Analysis
Chinese Academy of SciencesChina129Water qualityWater ManagementWater Pollution
Delft University of TechnologyNetherlands118Water ManagementWater TreatmentDecision Making
Monash UniversityAustralia111Water ManagementUrban AreaWater Quality
United States Environmental
Protection Agency		United States110Water QualityContaminationWater Management
Universitat Politècnica de ValènciaSpain94Water ManagementWater QualityOptimization
Tsinghua UniversityChina93Water QualityWater ManagementUrban Area
CSIRO Land and WaterAustralia92Water ManagementUrban AreaWater Quality
Instituto Superior TécnicoPortugal89Water ManagementEnergy EfficiencyOptimization
IHE Delft Institute for Water EducationNetherlands85Water ManagementWater QualityUrban Area
Table
Table 4. Water utility challenges: Research clusters.
Table 4. Water utility challenges: Research clusters.
ClusterColorAuthorsMain Topics
1redChen, J.; Kodikara, J.; Li, X.; Li, Y.; Liu, H.; Liu, J.; Liu, S.; Liu, Y.; Stewart, R.A.; Wang, H.; Wang, J.; Wang, S.; Wang, X.; Wu, W.; Wu, Z.Y.; Zhang, H.; Zhang, J.; Zhang, Q.; Zhang, X.; Zhang, Y.; Zhao, M.Asset Management Water Quality, Demand Management
2greenAlegre, H.; Boxall, J.B.; Brattebo, H.; Covas, D.; Kapelan, Z.; Makropoulos, C.; Ramos, H.M.; Savic’, D.; Venkatesh, G.Demand Management, Leak Localization, Hydraulic models
3blueBuchberger, S.G.; Clark, R.M.; Feng, X.; Foo, D.C.Y.; Li, Z.; Tzatchkov, V.G.; Wang, Y.; Zhao, X.Demand Management, Water Quality
4yellowHoorfar, M.; Kleiner, Y.; Najjaran, H.; Rajani, B.; Rodriguez, M.J.; Sadiq, R.; Tesfamariam, S.Leak Localization, Water Quality
5purpleBrown, R.R.; Deletic, A.; Kleidorfer, M.; Rauch, W.; Sitzenfrei, R.Urban Water Management
6cyanButler, D.; Giugni, M.; Savic, D. Tabesh, M.Hydroinformatics
7orangeMurray, R.; Piller, O.; Polycarpou, M.M., Uber, J.G.Water Quality
8brownDi Nardo, A.; Di Natale, M.; SantonastaWater Quality
9greyBerardi, I.; Giustolisi, O.; Laucelli, D.Asset Management, Leakage Management
Table
Table 5. Main keywords used by the communities detected in the topic in the period 2000–2020.
Table 5. Main keywords used by the communities detected in the topic in the period 2000–2020.
ClusterWeight (%)ColorMain Keywords
WDN quality34.9redWater quality, potable water, drinking water, water treatment, water pollution, water
WDN management34.1greenWater management, urban area, water conservation, water demand, sustainable development, water planning
WDN optimization31.0blueWater supply, water distribution systems, water distribution networks, optimization algorithms, energy efficiency, pipelines
Table
Table 6. Most cited articles per keyword cluster between 2000 and 2020.
Table 6. Most cited articles per keyword cluster between 2000 and 2020.
ClusterTitleAuthorsYearSourceCited by
WDN qualityDisinfection by-products and other emerging contaminants in drinking waterRichardson S.D2003Trends in Analytical Chemistry522
Factors influencing the formation and relative distribution of haloacetic acids and trihalomethanes in drinking waterLiang, L., Singer, P.C.2003Environmental Science and Technology458
Effectiveness of low impact development practices: Literature review and suggestions for future researchAhiablame, L.M., Engel, B.A., Chaubey, I.2012Water, Air, and Soil Pollution402
WDN
management		Effectiveness of low impact development practices: Literature review and suggestions for future researchAhiablame, L.M., Engel, B.A., Chaubey, I.2012Water, Air, and Soil Pollution402
Review of urban stormwater modelsZoppou, C.2001Environmental Modelling and Software283
Emerging solutions to the water challenges of an urbanizing worldLarsen, T.A., Hoffmann, S., Lüthi, C., Truffer, B., Maurer, M.2016Science246
WDN
optimization		Effectiveness of low impact development practices: Literature review and suggestions for future researchAhiablame, L.M., Engel, B.A., Chaubey, I.2012Water, Air, and Soil Pollution402
Optimal layout of early warning detection stations for water distribution systems securityOstfeld, A., Salomons, E.2004Journal of Water Resources Planning and Management267
Pressure-driven demand and leakage simulation for water distribution networksGiustolisi, O., Savic, D., Kapelan, Z.2008Journal of Hydraulic Engineering266
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ortega-Ballesteros, A.; Manzano-Agugliaro, F.; Perea-Moreno, A.-J. Water Utilities Challenges: A Bibliometric Analysis. Sustainability 2021, 13, 7726. https://doi.org/10.3390/su13147726

AMA Style

Ortega-Ballesteros A, Manzano-Agugliaro F, Perea-Moreno A-J. Water Utilities Challenges: A Bibliometric Analysis. Sustainability. 2021; 13(14):7726. https://doi.org/10.3390/su13147726

Chicago/Turabian Style

Ortega-Ballesteros, Andrés, Francisco Manzano-Agugliaro, and Alberto-Jesus Perea-Moreno. 2021. "Water Utilities Challenges: A Bibliometric Analysis" Sustainability 13, no. 14: 7726. https://doi.org/10.3390/su13147726

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
