Sustainable and Stable Clay Sand Liners over Time

by
Ahmed M. Al-Mahbashi
*,
Muawia Dafalla
,
Abdullah Shaker
and
Mosleh A. Al-Shamrani
Bugshan Research Chair in Expansive Soils, Deparment of Civil Engineering, College of Engineering, King Saud University, Riyadh 11421, Saudi Arabia
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(14), 7840; https://doi.org/10.3390/su13147840
Submission received: 24 May 2021 / Revised: 7 July 2021 / Accepted: 9 July 2021 / Published: 13 July 2021
Browse Figures
Versions Notes

Abstract

:
The washout of fine materials from liners consisting of clay–sand mixtures is expected to influence the hydraulic conductivity. Clay sand liners must be assessed for efficiency when initially subjected to flood or standing water as the wetting under a hydraulic gradient can cause fine material to move and migrate away from the mixture. During wetting and drying complex expansion and shrinkage, changes take place. These changes affect the hydraulic conductivity and are likely to go out of the design range set out for the facility. The research covers the behavior of two clay sand liners tested over an extended time. The hydraulic conductivity measured under a specific hydraulic gradient was measured continuously following the establishment of the test set-up. Self-recording sensors were used to measure the temperature during the tests. The results indicated that the hydraulic conductivity reduces after an initial period of increase and fluctuation caused by the loss of mass because of fine material migration and swelling initiated due to the high content of smectite minerals. The testing and monitoring continued for more than 400 days. The permanent reduction in the hydraulic conductivity occurs after the initial period of repeated rise and fall. The extent of the initial period for the two tested mixtures is subject to the fine content mass and the clay mineralogy. The continuous reduction in the hydraulic conductivity after the initial period is due to the rearrangement of particles and compression in the sand–clay mixture.

1. Introduction

Sand–clay and sand–bentonite mixtures have been widely studied in the literature as they are linked to the waste control barriers and liner systems used in various industries [1,2,3,4,5,6,7]. During the lifetime of liner layers, the efficiency of these layers should satisfy the design criteria of the hydraulic conductivity, and most of these layers are assumed to be designed for a considered period of years. Field evaluations of the changes in hydraulic conductivity are difficult and time-consuming and cannot be generalized for mixtures subjected to different exposure conditions. The time required to run a hydraulic conductivity test for clay materials is long and depends on the state of compaction and clay mineralogy. Sand–clay mixtures are more porous and can achieve a steady flow in a shorter time. The performance evaluation of sand–clay liners after construction is not common in practice and very few published articles are available in the literature. The studies of Abdolahzadeh et al. [8] confirmed that for a cover seepage-control layer, the flow rate decreases with time. They assumed that the settlement in the layer influenced the saturated permeability from the four years of observation data used.
The works of Chapuis [2,9] called for using empirical formulae to predict the hydraulic conductivity based on clay content, porosity, and the degree of saturation. The stability of fines within the mixtures and time-dependent changes are important factors that were ignored in most hydraulic conductivity studies. Belkhatir et al. [10] indicated that fines percent or mass of fines has a key role in the hydraulic conductivity of sand mixtures and can reduce its value by four times. Most of the studies conducted did not check the stability of these fines during long-term measurements.
A network of large pores can be formed when the clay is subjected to frequent wetting and drying. Wang et al. [11] stated that the soil hydraulic conductivity changes are related to the large-pore quantity formation during the hydration process.
For this reason, we decided to run trials in the laboratory to enhance a prediction system based on the hydraulic conductivity changes when specific parameters are altered. The main concept of this study is to introduce a new approach for the assessment of serviceability and lifetime of sand–clay liners. This assessment is based on subjecting a sand–clay liner to a hydraulic gradient for an extended period. In reality, the hydraulic gradient imposed due to floods or standing water lasts for a short period of time, normally a few hours or few days. The overall cumulative exposure time in which a sand–clay liner is subjected to water flow can be computed based on the exposure time for each season. The degradation of the sand–clay mixture and loss of fines can reduce the hydraulic conductivity to values under the specified level. Works of Al-Mahbashi and Dafalla [12] addressed the mass loss occurring when a sand–clay mixture is subjected to a hydraulic gradient over an extended period.

2. Materials and Methods

2.1. General

The clay sand liner considered in this study consists of a local highly plastic clay added to a poorly graded fine to medium sand. The coefficient of concavity for sand is 0.945 and the uniformity coefficient is 1.713. This is leading to a poorly graded classification following ASTM D2487 [13]. The local clay was obtained from the eastern province of Saudi Arabia, specifically, from Al-Qatif city. The montmorillonite content for this clay is in the range of 3% to 23% and the palygorskite is in the range of 5% to 33% [14]. This clay is classified as CH with moderate to high expansion potential [15,16,17,18]. Table 1 presents the geotechnical characterization of Al-Qatif clay. The chemical composition of Al-Qatif clay is presented in Table 2. The pH and cation exchange capacity parameters of this expansive clay are estimated to be about 7.6 and 55.80 (meq/100 gm) [16,19]. For comparison purposes, a 15% bentonite sand mixture is to be subjected to tests similar to the local clay. The basic properties of used bentonite have been presented in Table 3.

2.2. Grain Size Analysis

The clay obtained from Al-Qatif is rich in fines (material passing sieve no. 200) and measured as 76%, as indicated in Figure 1. Figure 1 presents the hydrometer analysis as part of gradation analysis conducted following ASTM D7928 [20]. The fine material in the sand–clay mixtures measured before conducting the hydraulic conductivity test was 11% and 15% for mixtures with 15% and 20% clay content. The values reported here represent the weight of fine material after wet sieving through sieve no. 200 and then oven drying.

2.3. Density of Samples

The samples prepared for the hydraulic conductivity tests were statically compacted to achieve the maximum dry density (MDD) and optimum water content (OWC) values as shown in the compaction test conducted following ASTM D698 [21]. The maximum dry density (MDD) and the optimum water content (OWC) values for 15% and 20% clay content mixtures were 17.76 and 18.30 kN/m3 for the maximum dry density; 14% and 15.5% for the optimum moisture content, respectively.

2.4. Hydraulic Conductivity from Falling Head

A hydraulic conductivity cell 80 mm in diameter and 30 mm in thickness was used to perform the falling head hydraulic conductivity tests. The sand–clay mixtures were statically compacted to the maximum dry density and optimum moisture content inside the hydraulic conductivity cell. Wire mesh and porous stones were placed on the top and bottom of the soil specimen. To include the effect of primary expansion, all specimens were inundated under a slight surcharge load (7 to 30 kPa) for 5 to 7 days. Distilled water was used in the inundation. LCD transducer connected to a data logger was used to record vertical displacement. When the vertical displacement transducer shows no change over 24 h the sample is considered ready for the test. The falling head hydraulic conductivity test method was performed following ASTM D5856 [22] standard. When 4 successive measurements of the flow are within a small difference then the flow is considered steady. When the steady flow was established and the hydraulic conductivity was attained, a continuous flow was then allowed on the soil specimen through an elevated tank at a surcharge of pressure 7 kPa. The time and the amount of outflow water were recorded and the rate of outflow was calculated. The hydraulic conductivity measurements were conducted 1–3 times per day during the discharge or flow by closing the flow valve and using a graduated burette connected at the same outflow level of the tank. The records of outflow rate and hydraulic conductivity were performed continuously for an extended period. The test duration was considered for an initial period of 60 to 100 days in the first stage and then a longer stage continued up to 400 days. Figure 2 presents the setup of the hydraulic conductivity testing unit used.

2.5. Mass of Fines within the Mixtures

To investigate the mass stability and degradation due to loss of fines during extended hydraulic conductivity tests, the percent of fines (material finer than 75 μm) in each sample was determined before and after the test. For this purpose, two identical specimens were prepared for each mixture, the fine percent for the first specimen was determined before starting the long-run hydraulic conductivity test. The second one used in the long-run hydraulic conductivity testing was checked for fines content by the end of the test. The test was conducted in the laboratory by soaking the specimen in a distilled water and then mixed thoroughly. Then sieved through the no. 200 sieve by washing as described in ASTM D1140 [23]. The dry weight of the fine material was determined after oven drying and expressed as fine percentage by dry weight.

3. Results

This study covered the use of clay content of 15% and 20% clay content. The choice of these two concentrations is based on the work of Dafalla [7] in which he stated that 15% clay content is sufficient to achieve a hydraulic conductivity of (10−7 cm/s) which is normally recommended for the sand–clay liners. The 15% commercial bentonite was also tested for comparison purposes.
The hydraulic conductivity of the mixtures was tested in the first stage, for a period continued to 100 days. This stage covered three types of mixtures: 15% Al-Qatif clay, 20% Al-Qatif clay, and 15% Bentonite clay. Observations of the changes during the first stage are presented by Al-Mahbashi and Dafalla [12]. These observations indicated cycles of rising and falling for all mixtures for the first 100 days. The work presented here covers a further period extending to 400 days and is referred to as stage 2. Not all mixtures were subjected to second-stage testing. Only the 20% Al-Qatif clay mixture and the 15% bentonite clay were included in stage 2. The main parameters examined are the hydraulic conductivity, the fines content, the ambient temperature, and the vertical applied stress.

3.1. Hydraulic Conductivity

The hydraulic conductivity beyond 100 days indicated a continuous drop for the 15% and 20% clay content regardless of the applied vertical stress. This drop is attributed to the skeleton collapse and change of the fabric structure following the loss of fine clay particles with the continuous flow; many researchers linked the formation damage to the fines migration [24,25,26].
Marot et al. [27] also reported reduction of hydraulic conductivity due to erosion of fines and redeposion of sand particles. When the clay paste within the voids swell, cotton-like soft material is formed. This material is very easy to wash out along with the flowing water. As the penetration of moisture into the clay paste takes some time, further swelling will be initiated by inner particles from the clay core. This can explain the frequent occurrence of increases and decrease in the hydraulic conductivity values. The fluctuation of these values takes place within short intervals of time. The overall trend remains as a continuous drop in the hydraulic conductivity.
The drop of the hydraulic conductivity value (k) from 5.8 × 10−8 to 2.0 × 10−8 is observed over the period from 100 to 450 days for the mixture with 15% bentonite clay (Figure 3). The drop of the hydraulic conductivity value (k) from 7.5 × 10−7 to 2.8 × 10−7 is observed over the period from 100 days to 450 days for the mixture with 20% Al-Qatif clay under a surcharge of 30 kPa (Figure 4). For a surcharge of 7 kPa, the hydraulic conductivity value (k) remained within a small range of 2.5 × 10−6 to 1.5 × 10−6 in a period of 50 to 150 days for the mixtures with 20% and 15% clay respectively as shown in Figure 5 and Figure 6.
It can be shown that an overall reduction in the hydraulic conductivity will occur at a later stage after an initial period of increase and decrease in the hydraulic conductivity. The reduction is due to settlement and compression in the sand–clay mixture.

3.2. The Fines Content

Figure 7 shows the fine percent before and after extended time hydraulic conductivity tests for four specimens; three mixtures under surcharge stress of 7 kPa and one mixture under the stress of 30 kPa. The results indicate a notable reduction in fine percent at the end of the test. The mixture of 15% Al-Qatif clay showed the highest reduction in fines percent while the mixtures of 15% bentonite showed the smallest reduction. It can be stated that the loss of fines will be lower for clays of higher plasticity. The application of vertical stress of 30 kPa was found to help stability and control the loss of fines.

3.3. The Ambient Temperature

An unusual trend occurred during two periods due to temperature changes, the hydraulic conductivity replotted in line with the associated temperature in Figure 8a,b for 15% bentonite and 20% clay, respectively. The first period is from 130 days to 200 days and the second period is from 250 days to 270 days. These two periods feautured an increase in hydraulic conductivity. The reason for that is the change in the ambient temperature during these periods. At 130 days, the temperature started to increase from 25 degrees to 27 degrees and then dropped to 20 degrees at about 200 days.
The influence of temperature for the 20% Al-Qatif clay mixture under the surcharge of 30 kPa did show a very minor change during the same two periods noted for the 15% bentonite clay (130 to 200 days) and (250 to 270 days). The expansion coefficients of clays with different mineralogy and different state of stress are expected to be of different magnitude. It is not clear which parameter is having more influence on the hydraulic conductivity changes (Figure 5 and Figure 6).

3.4. The Applied Stress

The effect of the applied stress is very clear on the hydraulic conductivity of sand–clay mixtures. The more stresses applied the fewer voids within the mixture. The passways for the flow become smaller in size and the hydraulic conductivity reduction is understood. The collapse of the clay fabric and the consolidation of the mixture are direct results of higher stresses. Comparing Figure 4 and Figure 6 for the 150-day measurements, the hydraulic conductivity is reduced by more than two orders of magnitude (5 × 10−7 to 0.2 × 10−5 cm/s).

4. Discussion

The assessment of a liner performance based on the fines content or fines migration can be of good potential to monitor liners over an extended lifetime. The application of continuous flow-through sand–clay mixtures enabled the recognition of phases and patterns of hydraulic conductivity. The influence of the ambient temperature, applied pressure, and the state of flow determine the increase and decrease of the hydraulic conductivity and whether the liner will remain functional as per the proposed design. Investigations of field hydraulic conductivity are often conducted to confirm that the clay sand liner satisfies the required specifications. Daniel [28] discussed the field hydraulic conductivity for a site in Texas using large-scale tests on test pads. It was shown that the hydraulic conductivity decreases with the increase of the liner thickness level of compaction. These tests are usually carried out one time and not at different occasions to see the changes over time. Studies using numerical flow analysis assume conservation of mass and fabric and use the governing equation of one-dimensional unsaturated flow to compute the hydraulic conductivity (U.S. Environmental Protection Agency [29]). These mathematical studies in most cases do not consider the mass changes, erosion, and changes that take place due to temperature, pressure and environmental changes. The theoretical study’s limitation makes the current research of interest and significance.
The results obtained in this study confirmed the reduction in the hydraulic conductivity values but after a period of an increase. The period of increase is related the time needed for the inundation of the clay. It can be seen for the natural clay, the increase is very significant and may exceed the design limits. The drop in the hydraulic conductivity over extended periods is found more for the commercial bentonite compared to the natural clay used.
The wash-out of fines was found more significant in the natural clay and this may be attributed to lower bonds between clay particles and adhesive forces holding the particles together.
The outcome of this study with regard to temperature changes is not different from what is reported in the literature. Cho et al. [30] stated that the hydraulic conductivities of bentonites at the temperature of 80 °C increase up to about 3 times as high as those at 20 °C. The magnitude of changes varies following the placement conditions, state of stress, and the mineralogy of the clay. Applied stresses do have a clear influence on hydraulic conductivity. The collapse of the clay fabric and the consolidation of the mixtures are the direct results of higher stresses. This leads to a decrease in hydraulic conductivity. Higher stresses used in this research resulted in lower hydraulic conductivity.
Other influence on the liners includes chemical interaction. Several studies have confirmed that the hydraulic conductivity and the stability of sand–bentonite mixture degraded with time when permeated with chemical instead of distilled water [31,32,33].
Future works can address a procedure to predict the time required for the hydraulic conductivity to get stabilized and start dropping. The test results presented in this research covered commercial bentonite and natural highly plastic clay. These results and trends can be compared or used for the prediction of similar materials only.

5. Conclusions

This study shows that an overall reduction in the hydraulic conductivity of clay–sand mixtures will occur at a later stage after an initial period of increase and decrease in hydraulic conductivity. The reduction is due to settlement and compression in the sand–clay mixture. The main parameters found to influence the hydraulic conductivity are the loss of fines, the ambient temperature, and the vertical stresses applied. The loss of fines is found lower for clays with higher plasticity. The expansion coefficients of clays with different mineralogy and different state of stress are different and this is reflected in the hydraulic conductivity when the temperature is increased or decreased. The hydraulic conductivity can be reduced by more than two orders of magnitude (5 × 10−7 to 0.2 × 10−5) when the applied stresses on Al-Qatif clay–sand mixture are increased from 7 kPA to 30 kPa. The works presented in this study highlighted the rise and fall phenomenon of the hydraulic conductivity before a continuous drop is established.

Author Contributions

Conceptualization, A.M.A.-M. and M.D.; methodolgy, A.M.A.-M.; formal analysis, A.M.A.-M., M.D. and M.A.A.-S.; investigation, A.M.A.-M. and A.S.; resources; M.A.A.-S.; writing—original draft, M.D., A.M.A.-M.; writing—review and editing M.A.A.-S.; supervision, A.M.A.-M. and M.D.; funding acquisition, M.A.A.-S. All authors have read and agreed to the published version of the manuscript.

Funding

Deanship of Scientific Research at King Saud University. Grant reference: Vice Deanship of Scientific Research Chairs, BRCES.

Data Availability Statement

The data used to support the findings of this study are included in the introduced figures.

Acknowledgments

The authors are grateful to the Deanship of Scientific Research, King Saud University, for funding through Vice Deanship of Scientific Research Chairs.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Daniel, D.E. Predicting hydraulic conductivity of clay liners. J. Geotech. Eng. Div. ASCE 1984, 110, 285–300. [Google Scholar] [CrossRef]
  2. Chapuis, R.P. Sand–bentonite liners: Predicting permeability from laboratory tests. Can. Geotech. J. 1990, 27, 47–57. [Google Scholar] [CrossRef]
  3. Kenney, T.C.; van Veen, W.A.; Swallow, M.A.; Sungaila, M.A. Hydraulic conductivity of compacted bentonite-sand mixture. Can. Geotech. J. 1992, 29, 364–374. [Google Scholar] [CrossRef]
  4. Sällfors, G.; Öberg-Högsta, A.L. Determination of hydraulic conductivity of sand-bentonite mixtures for engineering purposes. Geotech. Geol. Eng. 2002, 20, 65–80. [Google Scholar] [CrossRef]
  5. Cui, Y.J.; Tang, A.M.; Loiseau, C.; Delage, P. Determining the unsaturated hydraulic conductivity of a compacted sand-bentonite mixture under constant-volume and free-swell conditions. Phys. Chem. Earth A/B/C 2008, 33 (Suppl. 1), 462–471. [Google Scholar] [CrossRef] [Green Version]
  6. Obrike, E.; Osadebe, C.C.; Omoniyi, S.S. Geotechnical analysis of two Nigerian soils for use as clay liners. Bull. Eng. Geol. Environ. 2009, 68, 417–419. [Google Scholar] [CrossRef]
  7. Dafalla, M.A. Efficiency of Sand Clay Liners in Controlling Subsurface Water Flow. In Engineering Geology for Society and Territory-Volume 3: River Basins, Reservoir Sedimentation and Water Resources; Springer: Cham, Switzerland, 2014; pp. 497–499. [Google Scholar]
  8. Abdolahzadeh, A.M.; Lacroix Vachon, B.; Cabral, A.R. Evaluation of the effectiveness of a cover with capillary barrier effect to control percolation into a waste disposal facility. Can. Geotech. J. 2011, 48, 996–1009. [Google Scholar] [CrossRef]
  9. Chapuis, R. Sand–bentonite liners: Field control methods. Can. Geotech. J. 2011, 27, 216–223. [Google Scholar] [CrossRef]
  10. Belkhatir, M.; Schanz, T.; Arab, A. Effect of fines content and void ratio on the saturated hydraulic conductivity and undrained shear strength of sand–silt mixtures. Environ. Earth Sci. 2013, 70, 2469–2479. [Google Scholar] [CrossRef]
  11. Wang, Q.; Cui, Y.; Tang, A.M.; Barnichon, J.; Saba, S.; Ye, W. Hydraulic conductivity and microstructure changes of compacted bentonite/sand mixture during hydration. Eng. Geol. 2013, 164, 67–76. [Google Scholar] [CrossRef]
  12. Al-Mahbashi, A.M.; Dafalla, M. Impact of placement and field conditions on hydraulic conductivity and lifetime of liners. J. Saud Univ. Sci. 2021, 33, 101410, ISSN 1018-3647. [Google Scholar] [CrossRef]
  13. ASTM D2487-17, Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System); ASTM International: West Conshohocken, PA, USA, 2017; Available online: www.astm.org (accessed on 13 July 2021). [CrossRef]
  14. Rafi, A. Engineering Properties and Mineralogical Composition of Expansive Clays in Al-Qatif Area. Doctoral Dissertation, KFUPM, Dhahran, Saudi Arabia, 1988. [Google Scholar] [CrossRef]
  15. Abduljauwad, S.N.; Al-Sulaimani, G.J. Determination Of Swell Potential Of Al-qatif Clay. Geotech. Test. J. Astm 1993, 16, 469–484. [Google Scholar] [CrossRef]
  16. Al-Mahbashi, A.M. Soil Water Characteristic Curves of Treated and Untreated Highly Expansive Soil Subjected to Different Stresses. Master’s Thesis, Dept. of Civil Engineering, King Saud Univ, Riyadh, Saudi Arabia, 2014. [Google Scholar]
  17. Al-Mahbashi, A.M.; Elkady, T.Y.; Alrefeai, T.O. Soil Water Characteristic Curve and Improvement in Lime Treated Expansive Soil. Geomech. Eng. 2015, 8, 687–706. [Google Scholar] [CrossRef]
  18. Elkady, T.Y.; Al-Mahbasi, A.; Dafalla, M.; Al-Shamrani, M. Effect of compaction state on the soil water characteristic curves of sand-natural expansive clay mixtures. Eur. J. Environ. Civ. Eng. 2017, 21, 289–302. [Google Scholar] [CrossRef]
  19. Elkady, T.Y.; Al-Mahbashi, A.M. Effect of solute concentration on the volume change and shear strength of compacted natural expansive clay. Environ. Earth Sci. 2017, 76, 483. [Google Scholar] [CrossRef]
  20. ASTM D7928. Standard Test Method for Particle-Size Distribution (Gradation) of Fine-Grained Soils Using the Sedimentation (Hydrometer) Analysis: ASTM International: West Conshohocken, PA, USA, 2017. Available online: www.astm.org (accessed on 13 July 2021).
  21. ASTM D698. Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort (12 400 ft-lbf/ft3 (600 kNm/ m3)); ASTM International: West Conshohocken, PA, USA, 2000; Volume 4.08.
  22. ASTM D5856. Standard Test Method for Measurement of Hydraulic Conductivity of Porous Material Using a Rigid-Wall, Compaction-Mold Permeameter; ASTM International: West Conshohocken, PA, USA, 1995; Available online: www.astm.org (accessed on 13 July 2021).
  23. ASTM D1140. Standard Test Methods for Determining the Amount of Material Finer than 75-μm (No. 200) Sieve in Soils by Washing; ASTM International: West Conshohocken, PA, USA, 2017; Available online: www.astm.org (accessed on 13 July 2021).
  24. Gray, D.H.; Rex, R.W. Formation Damage in Sandstones Caused by Clay Dispersion and Migration. Clays Clay Miner. 1996, 14, 355. [Google Scholar] [CrossRef]
  25. Sharma, M.M.; Yortsos, Y.C. Fines Migration in Porous Media. AIChE J. 1987, 33, 1654. [Google Scholar] [CrossRef]
  26. Marot, D.; Bendahmane, F.; Rosquoët, F.; Alexis, A. Internal flow effects on isotropic confined sand-clay mixtures. Soil Sediment Contam. 2009, 18, 294–306. [Google Scholar] [CrossRef] [Green Version]
  27. Marot, D.; Le, V.D.; Garnier, J.; Thorel, L.; Audrain, P. Study of scale effect in an internal erosion mechanism: Centrifuge model and energy analysis. Eur. J.Environ.Civ. Eng. 2012, 16, 1–19. [Google Scholar] [CrossRef]
  28. Daniel, D.E. Case Histories of Compacted Clay Liners and Covers for Waste Disposal Facilities. International Conference on Case Histories in Geotechnical Engineering. 2. 1993. Available online: https://scholarsmine.mst.edu/icchge/3icchge/3icchge-session15/2 (accessed on 13 July 2021).
  29. U.S. Environmental Protection Agency. Procedures for Modeling Flow through Clay Liners to Determine Required Liner Thickness; Technical Resource Document for Public Comment; BiblioGov publisher: Washington, DC, USA, 2013; ISBN 13:978-1289177799. [Google Scholar]
  30. Cho, W.J.; Lee, J.O.; Chun, K.S. Influence of temperature on hydraulic conductivity in compacted bentonite. MRS Online Proc. Libr. (OPL) 1997, 506. [Google Scholar] [CrossRef]
  31. Gipson, A.H. Hydraulic Barriers in Soil and Rock; ASTM International: West Conshohocken, PA, USA, 1985. [Google Scholar] [CrossRef]
  32. Shackelford, C.D. Waste-soil interactions that alter hydraulic conductivity. In Hydraulic Conductivity and Waste Contaminant Transport in Soil, ASTM STP 1142; Ddaniel, E., Trautwein, S.J., Eds.; ASTM: West Conshohoken, PA, USA, 1994; pp. 111–168. [Google Scholar]
  33. Gleason, M.H.; Daniel, D.E.; Eykholt, G.R. Calcuim and sodium bentonite for hydraulic containment applications. J. Geotech. Geoenviron. Eng. ASCE 1997, 123, 438–445. [Google Scholar] [CrossRef]
Sustainability 13 07840 g001 550

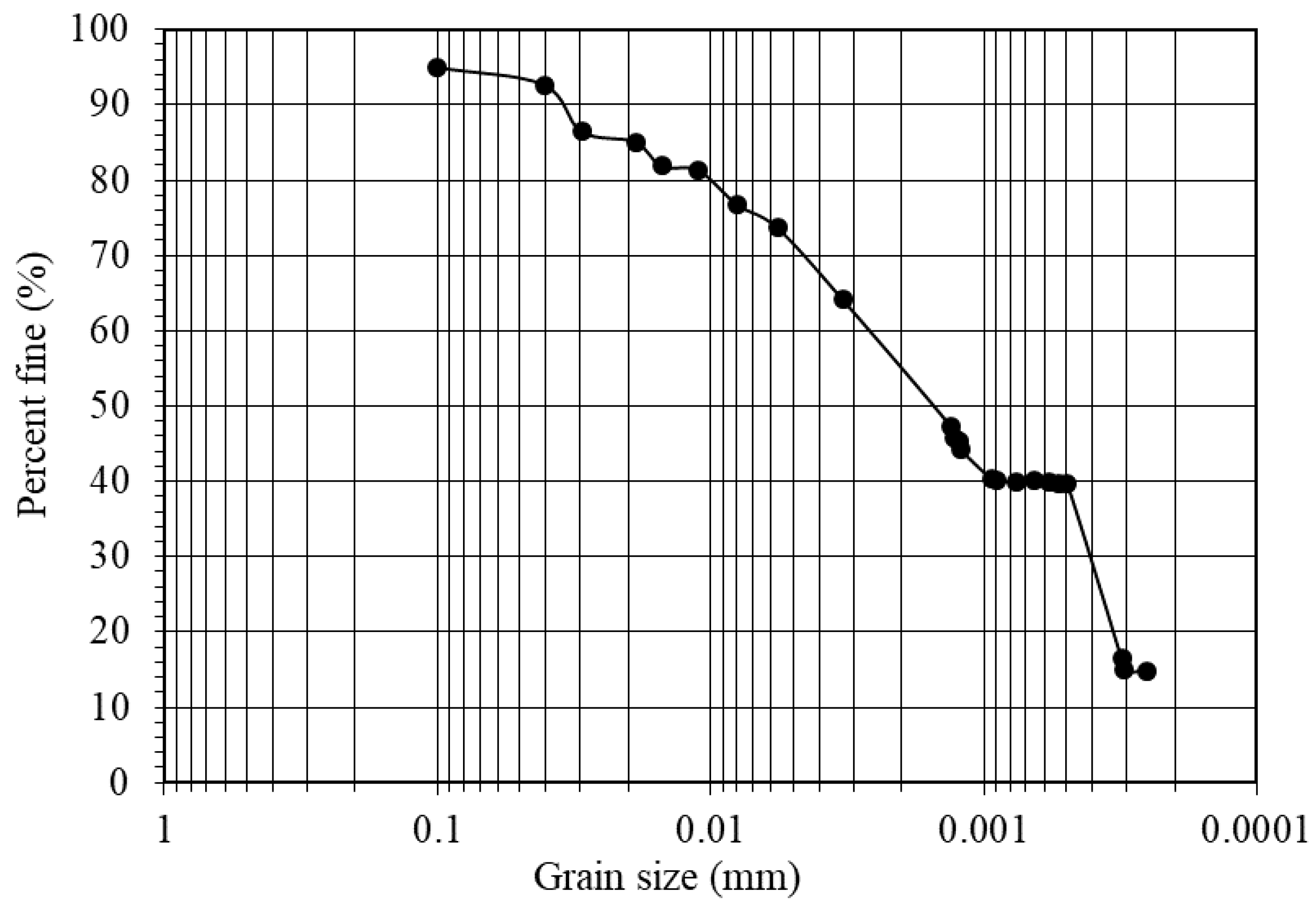

Figure 1. Hydrometer analysis of Al-Qatif clay.
Figure 1. Hydrometer analysis of Al-Qatif clay.
Sustainability 13 07840 g001
Sustainability 13 07840 g002 550

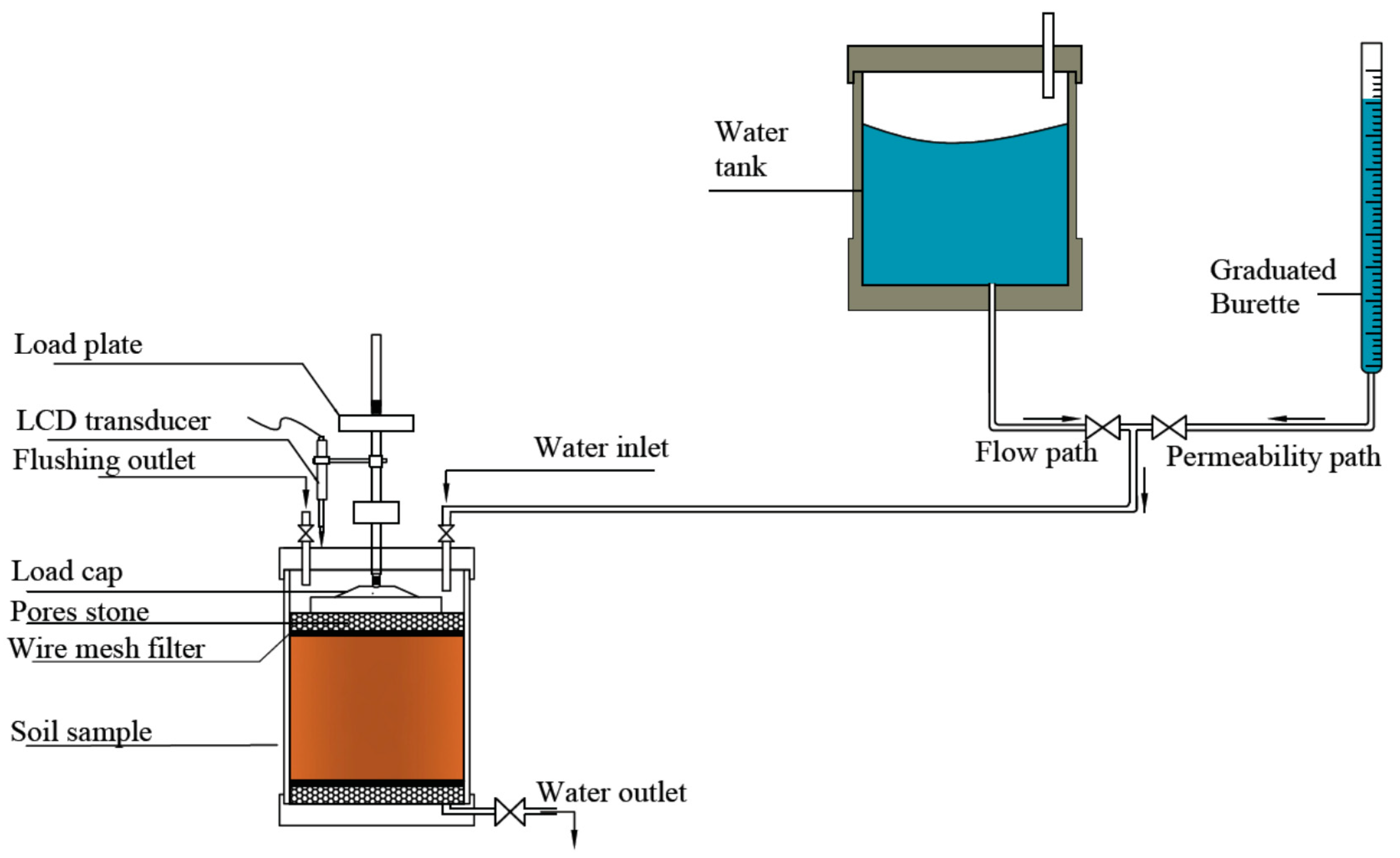

Figure 2. Schematic diagram of the testing setup.
Figure 2. Schematic diagram of the testing setup.
Sustainability 13 07840 g002
Sustainability 13 07840 g003 550

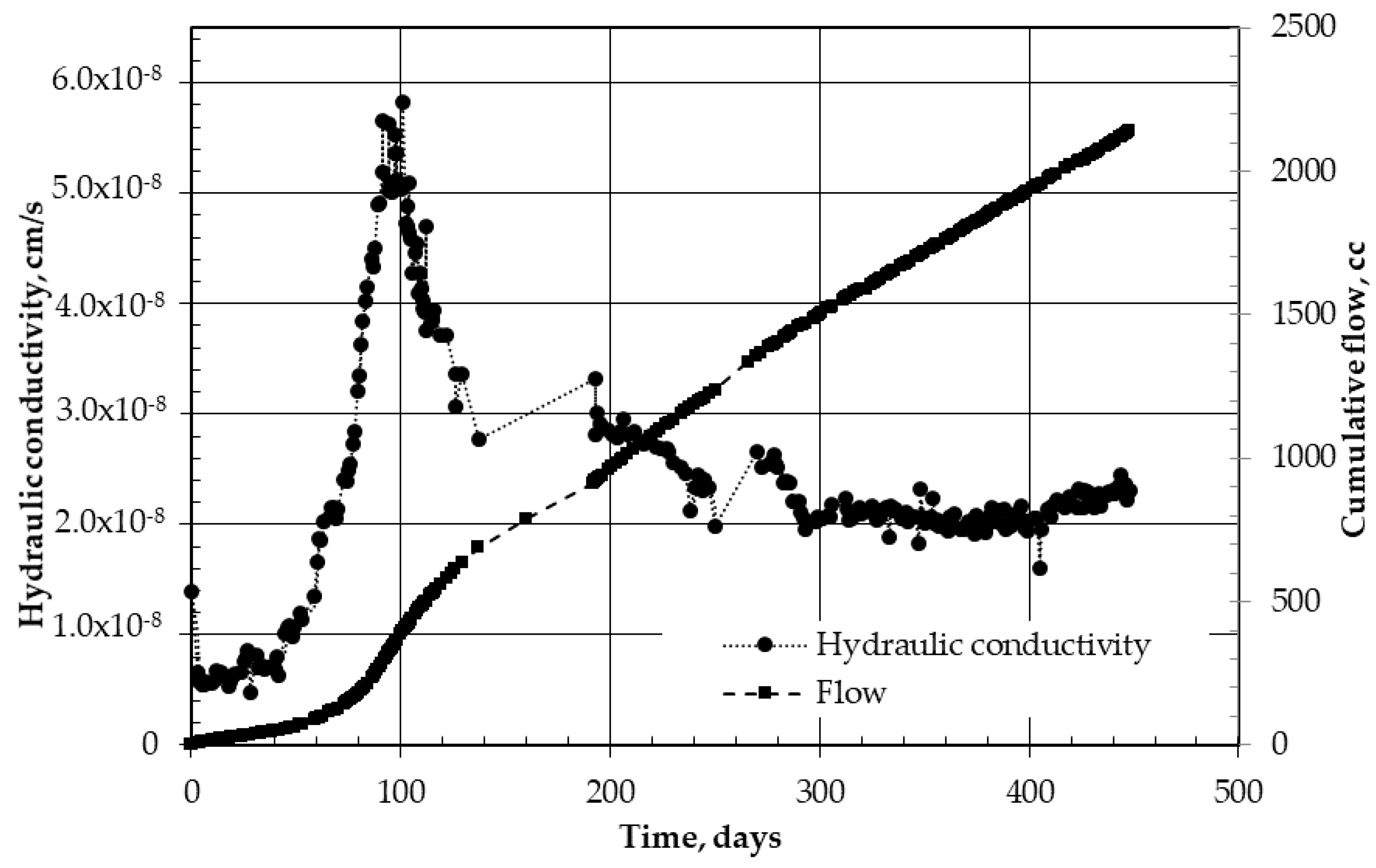

Figure 3. The hydraulic conductivity and cumulative flow versus time in days for 15% bentonite mixture under 7 kPa stress.
Figure 3. The hydraulic conductivity and cumulative flow versus time in days for 15% bentonite mixture under 7 kPa stress.
Sustainability 13 07840 g003
Sustainability 13 07840 g004 550

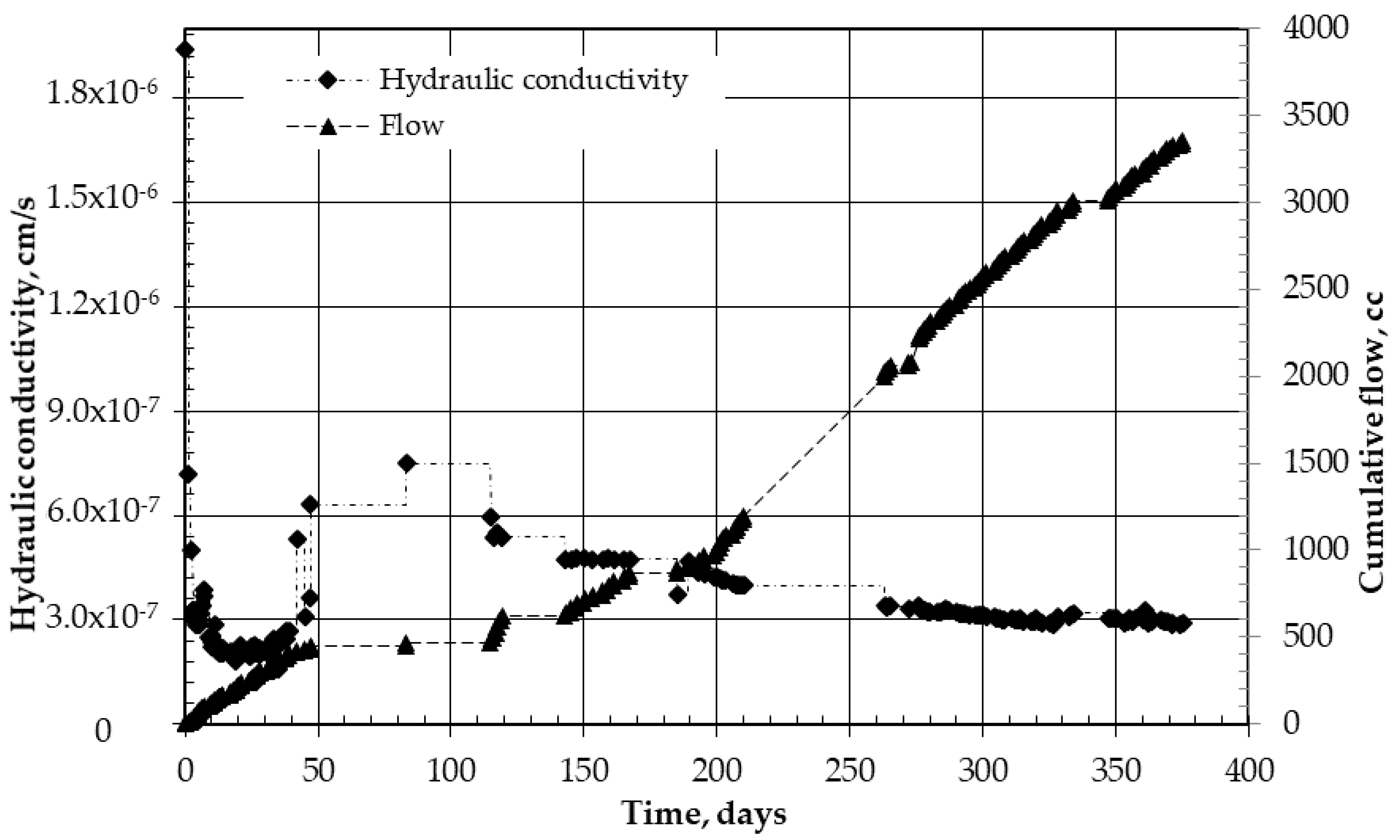

Figure 4. The hydraulic conductivity and cumulatice flow versus time in days for 20% Al-Qatif clay mixture under 30 kPa stress.
Figure 4. The hydraulic conductivity and cumulatice flow versus time in days for 20% Al-Qatif clay mixture under 30 kPa stress.
Sustainability 13 07840 g004
Sustainability 13 07840 g005 550

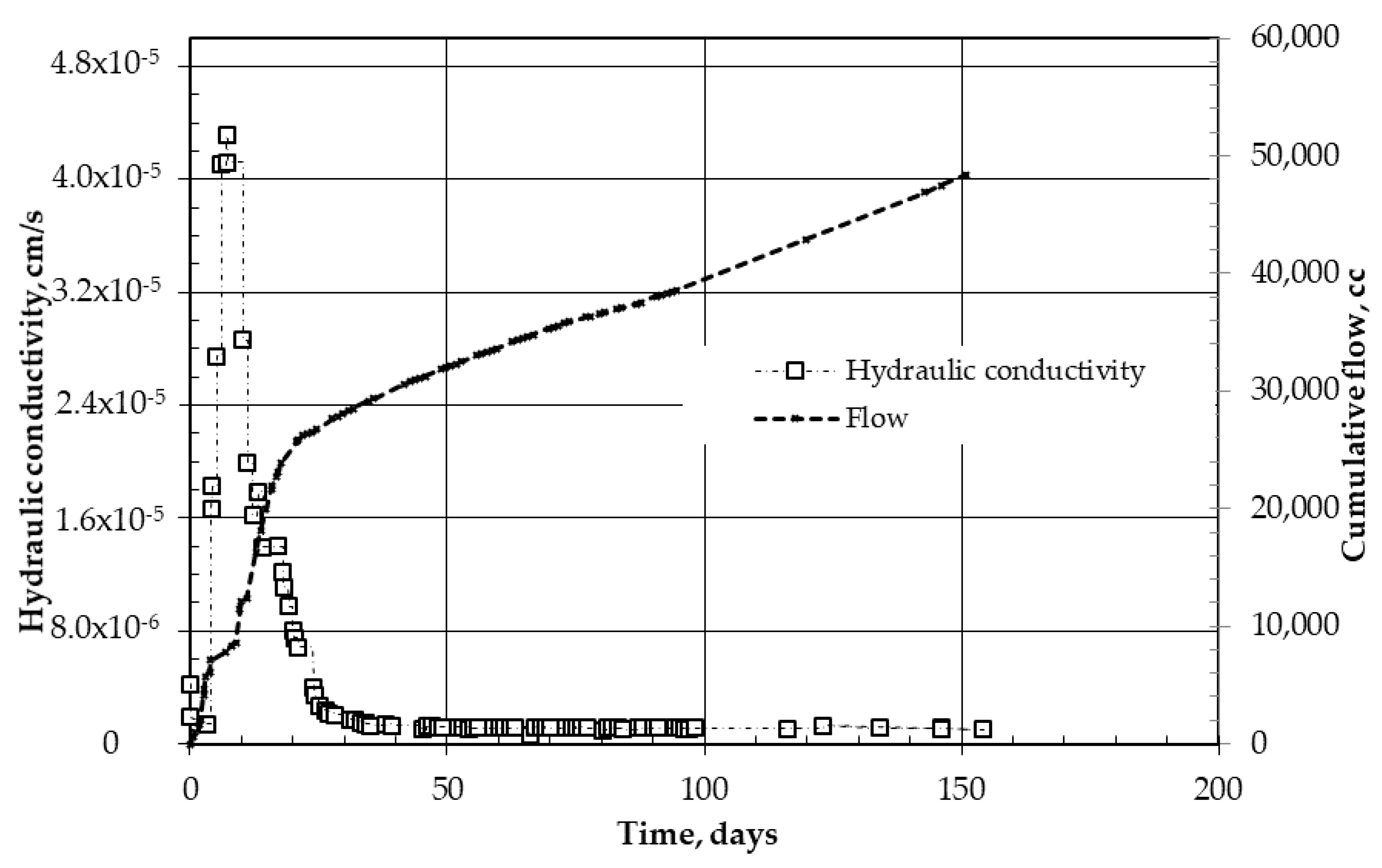

Figure 5. The hydraulic conductivity and cumulative flow versus time in days for 20% Al-Qatif clay mixture under 7 kPa stress.
Figure 5. The hydraulic conductivity and cumulative flow versus time in days for 20% Al-Qatif clay mixture under 7 kPa stress.
Sustainability 13 07840 g005
Sustainability 13 07840 g006 550

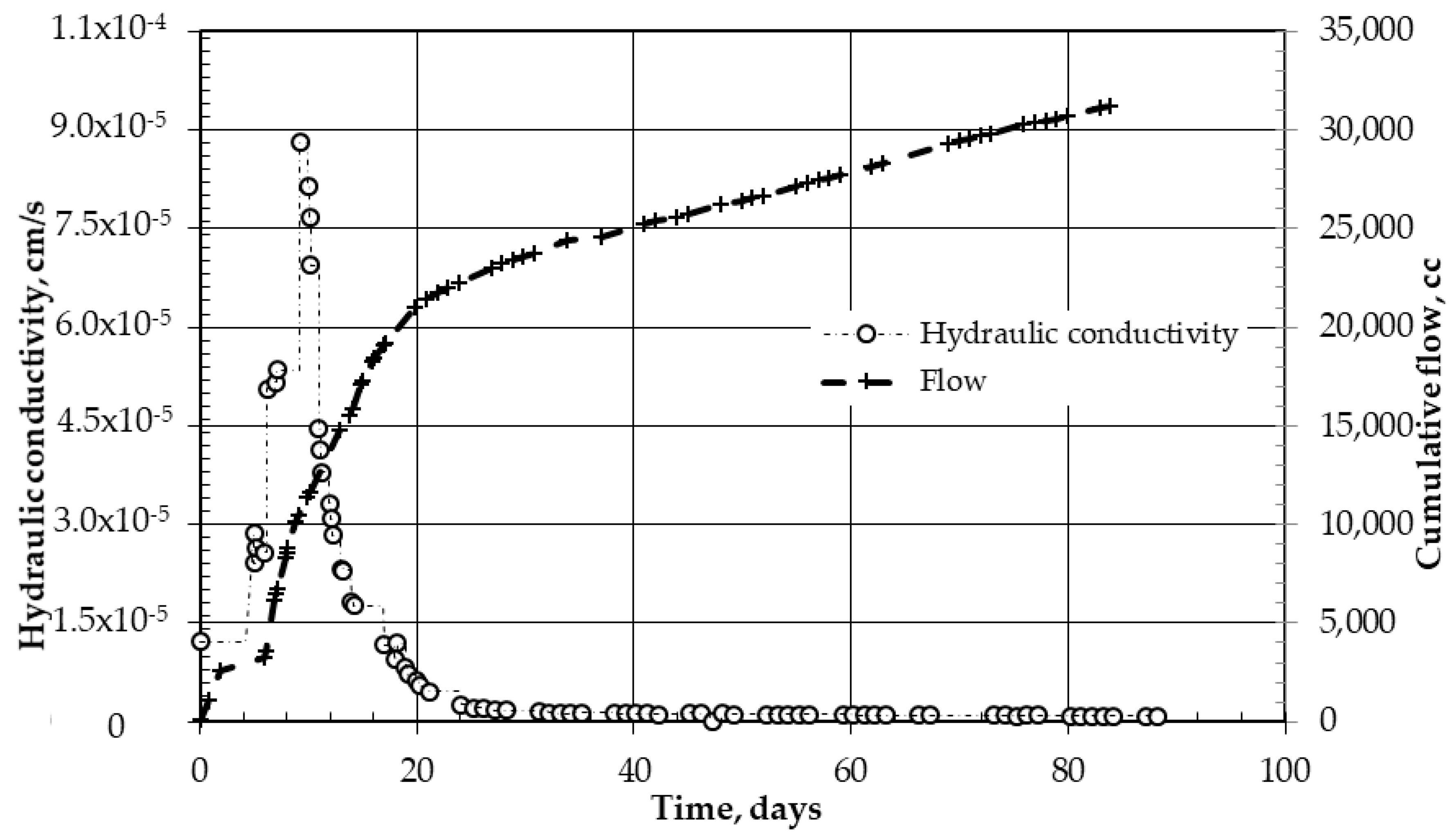

Figure 6. The hydraulic conductivity and cumulative flow versus time in days for 15% Al-Qatif mixture under 7 kPa mixture.
Figure 6. The hydraulic conductivity and cumulative flow versus time in days for 15% Al-Qatif mixture under 7 kPa mixture.
Sustainability 13 07840 g006
Sustainability 13 07840 g007 550

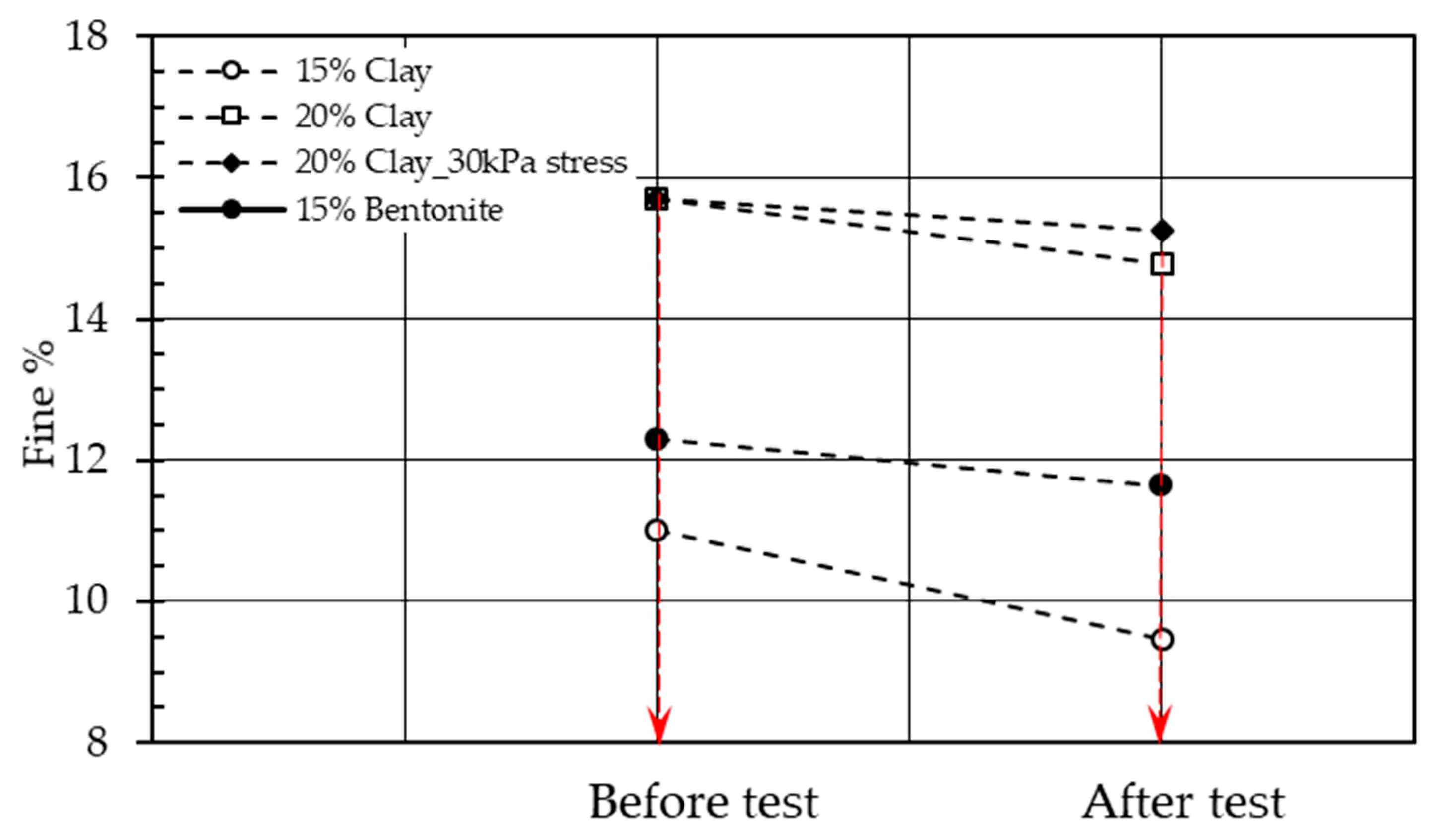

Figure 7. Fine percent before and after extended time hydraulic conductivity tests for different mixtures.
Figure 7. Fine percent before and after extended time hydraulic conductivity tests for different mixtures.
Sustainability 13 07840 g007
Sustainability 13 07840 g008 550

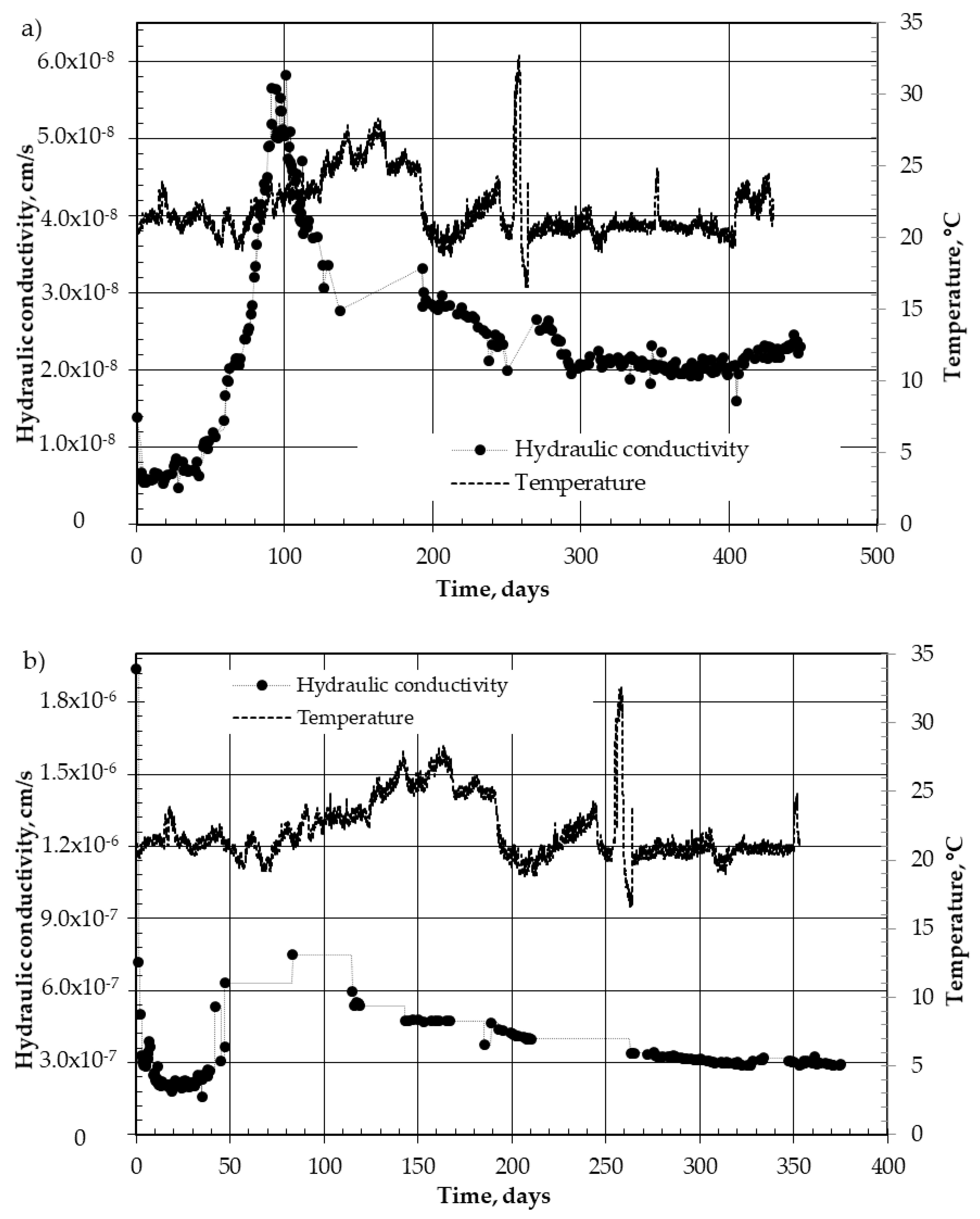

Figure 8. Hydraulic conductivity with associated temperature versus time in days for (a) 15% bentonite and (b) 20% clay mixtures.
