Remote Sensing for Short-Term Economic Forecasts

Abstract

Economic forecasts are an important instrument to judge the nation-wide economic situation. Such forecasts are mainly based on data from statistical offices. However, there is a time lag between the end of the reporting period and the release of the statistical data that arises for instance from the time needed to collect and process the data. To improve the forecasts by reducing the delay, it is of interest to find alternative data sources that provide information on economic activity without significant delays. Among others, satellite images are thought to assist here. This paper addresses the potential of earth observation imagery for short-term economic forecasts. The study is focused on the estimation of investments in the construction sector based on high resolution (HR) (10–20 m) and very high resolution (VHR) (0.3–0.5 m) images as well as on the estimation of investments in agricultural machinery based on orthophotos (0.1 m) simulating VHR satellite imagery. By applying machine learning it is possible to extract the objects of interest to a certain extent. For the detection of construction areas, VHR satellite images are much better suited than HR satellite images. VHR satellite images with a ground resolution of 30–50 cm are able to identify agricultural machinery. These results are promising and provide new and unconventional input for economic forecasting models.

1. Introduction

Economic investment is a key factor for a country’s economic development both in the long-term and in the short-term. In many cases, an appropriate development of public infrastructure is an important prerequisite for private investments and thus sustainable economic growth. In this context, Alaloul et al. (2021) [1] highlight the importance of a country’s construction sector for the development because it is closely intertwined with other sectors of the economy. However, private investment is highly volatile in the short term. Housing investments in particular exhibit pronounced boom bust cycles (Agnello and Schuknecht 2011) [2]. The financial crisis of the years 2008 and 2009 is an example that these housing cycles might have strong effects on the financial sector and are therefore a threat to financial sector stability (Lee et al., 2021) [3]. On the other hand, due to several macroprudential policy tools related to the housing market it has the capacity to stabilize the financial sector and promote sustainability of the economic development (Carrasco-Gallego 2021) [4].

For this reason, the macroeconomic analyses and forecasts of governments at the federal and the state level, central banks, and international organizations like the European Commission also include, among other things, analysis and forecast of investment and, in particular, construction investment. Therefore, forecasts are built bottom up starting with the most important components of gross domestic product (GDP), like consumption, investment in equipment and construction, as well as external trade. This allows in depth analysis of the different economic activities within the economy. For this reason, the most important source for these forecasts is the system of national accounts. In Germany, detailed quarterly data for the whole country from the system of national accounts is published six weeks after the end of the quarter. At the state level, GDP data are available at an annual frequency and published three months after the end of the year. Since the actual needs for this data require quicker forecasting reports, forecasters are looking for unconventional data sources that are available independently from those official statistics and which are able to support quicker but reliable forecasts (e.g., Donaldson and Storeygard 2016 [5], Ademmer et al., 2021 [6], Blagov et al., 2021 [7]).

In particular, investments in construction and in machinery play an important role in the forecasting process as these variables indicate short-run changes in economic activity quite early. The financial crisis of the years 2008 and 2009 is popular evidence that the housing sector often drives the business cycle. From this perspective, it is very interesting that buildings could be identified in satellite images from space. This opens up the possibility that earth observation satellite images could provide information that is able to improve economic forecasts (Blagov et al., 2021 [7]).

Early studies with macro-economic focus used night light image data to estimate the state of economic development (e.g., Henderson et al., 2012 [8]). Usually, GDP per capita is used as a measure for this purpose but, in developing and emerging countries, reliable data are not always available to calculate GDP per capita. According to Small et al. (2011) [9], DMSP (Defense Meteorological Satellite Program) data can be used globally to analyze long-run economic development. The advantage of such data is the global availability in identical quality and the long time series of data over more than 20 years. For macro-economic analysis in well-developed countries, their benefit is discussed controversially. Nordhaus and Chen (2015) [10], Addison and Stewart (2015) [11], and Leßmann et al. (2015) [12] are rather pessimistic on the use of DMSP data for income forecasts. Another example is Faisal and Shaker 2014 [13], who successfully examine the relationship between built-up areas derived from remote sensing and socio-economic parameters such as GDP in selected Canadian cities. However, this study uses Landsat satellite images with a relatively coarse resolution and utilizes a rather simple classification approach based on two indices.

In addition, other studies were looking for further applications of remote sensing image data for economic analysis like investments in other goods. Very high resolution (VHR) images seem to allow the identification of cars on parking lots (e.g., Spaceknow [14], Schartner 2018 [15]). This information could be used as an indicator of the volume of sales in the neighboring shops and therefore could improve short-term forecasts of private consumption. However, the application of earth observation data for the analysis of short-term economic activity is in an early stage of its development. Feasibility studies like the “smart business cycle statistics” project from EUROSTAT propose positive evaluations but still there is a need for specific case studies to judge the effects of integrating information from earth observation satellites into economic models. Mostly related to our study are empirical analyses of land use change by using remote sensing data. Riao et al. (2020) [16] and Wang et al. (2020) [17] analyzed the urbanization process in different regions in China. The studies prove the extensive conversion of arable land into building land.

Various earth observation systems have already been available for decades and offer satellite images with different spatial and temporal resolutions. However, comprehensive free data in a high resolution (HR) of up to 10 m have only been available since the launch of modern non-commercial sensors such as the European Space Agency’s Sentinel satellites of the Copernicus program in 2014. Images with very high resolutions (VHR) are acquired from commercial satellites such as WorldView (0.3–0.5 m).

Corresponding to the variety of different earth observation satellites with their specific characteristics, research studies developed many different strategies to extract information from the imagery. Early methods were based on pixel-based classification strategies that later were complemented by object-based classification approaches (e.g., Myint et al., 2011 [18], Blaschke et al., 2008 [19]). These were then complemented by a huge variety of machine learning approaches to use other image features during the classification stage (e.g., Mao et al., 2020 [20]).

Since satellite images can be acquired with high temporal frequency, they seem to be well suited to support a modified reporting strategy by identifying new construction sites and new buildings and therefore construction investments by comparison with earlier situations. Xi et al. (2019) [21] as well as Pesaresi et al. (2016) [22] investigate the use of optical Sentinel-2 data for built-up area detection. Once buildings are detected, it is necessary to evaluate which buildings are new compared to an earlier point in time. Here, specific change detection approaches are necessary (e.g., Radke et al., 2005 [23], Olteanu-Raimond et al., 2020 [24], Henits et al., 2016 [25]). Juergens and Meyer-Heß (2021) [26] worked with finer spatial resolution and reported on their findings related to construction areas based on mono-temporal VHR satellite images and combined change detection analysis.

Similar to that is the identification of new agricultural machinery on outdoor parking lots, where those goods are waiting to be delivered to the customer. A probable solution could be the detection of the machinery’s pattern within an image using Template Matching as described by (Jasvilis et al., 2016 [27]) for other complex structures such as oil palms or pavement markings. By assessing the outdoor ”storage“ this way using VHR satellite images in certain intervals, the estimation of the full number of produced land machines seems feasible. For instance, Rosenski and Schartner (2018) [28] report on such possible applications of VHR satellite images for economic statistics. Further related to this work is research by Zambanini et al., 2020 [29], who use VHR stereo satellite imagery for the development of parking space availability models, as well as Tang et al., 2017 [30], who optimize Faster R-CNN for general methodological purposes. However, this study aims at national forecasts. Thus, the short-term detection of construction sites and vehicles with as inexpensive data as possible is too focused and does not allow the use of stereo imagery or LiDAR-derived 3D-models as well as extensive training of machine learning approaches.

Since there is a need and great potential in the HR and VHR image domain for economic applications, this study concentrates on the estimation of investments in the construction sector based on HR and VHR images and on the estimation of investments in agricultural machinery based on orthophotos simulating VHR satellite imagery. Overall, this paper investigates the potential of earth observation imagery for short-term economic forecasting.

2. Materials and Methods

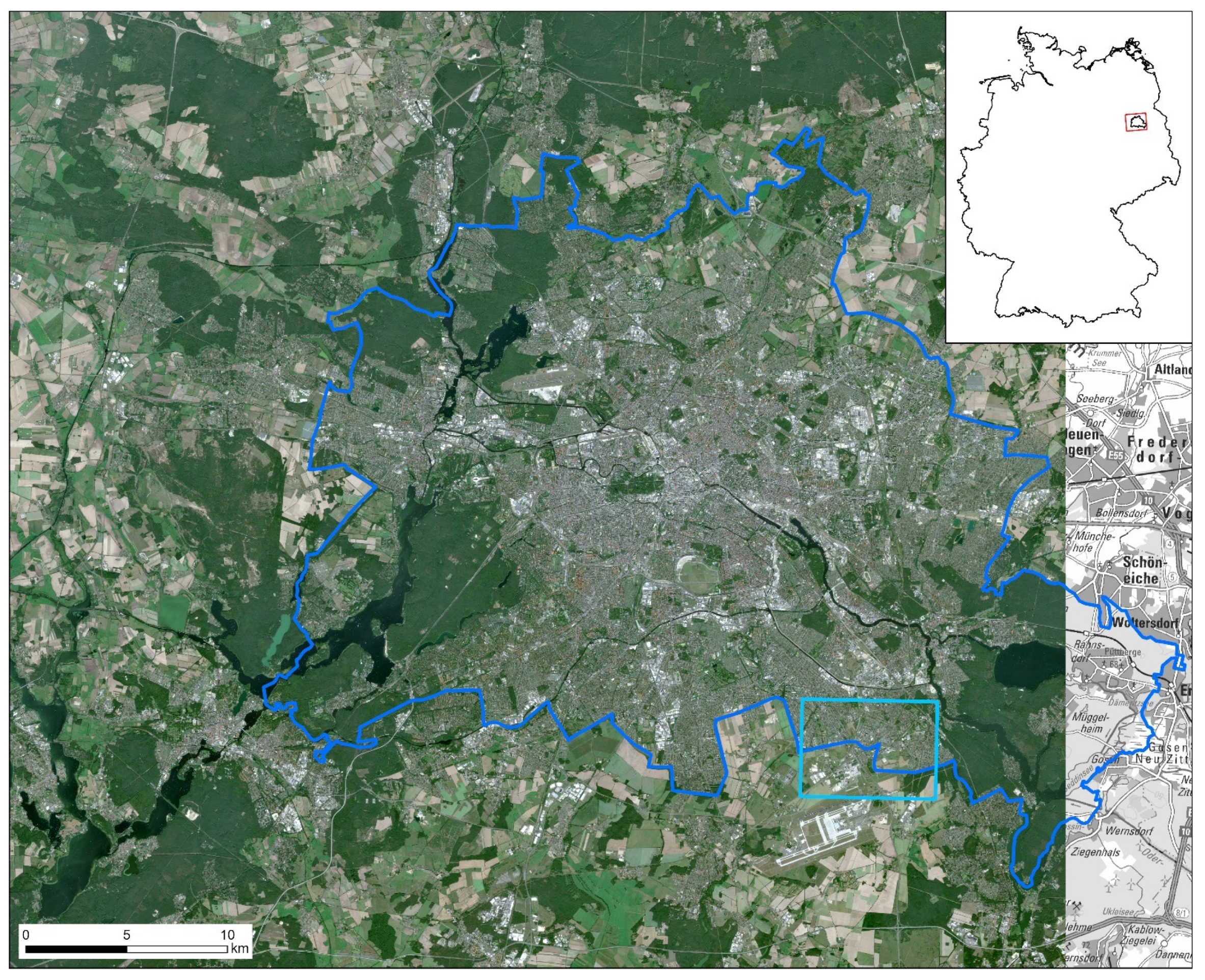

The basic objective is to find out if optical remote sensing data are able to improve short-term economic forecasts. These forecasts are typically produced by using time series models based on economic data. One target variable is construction investments, which are published quarterly. In Germany, data for construction investments are published by the Federal Statistical Office six weeks after the end of the quarter of interest. Another target variable is the investment in machinery.

Variables that are commonly used for forecasting construction investments are either general measures of economic activity like GDP, the unemployment rate (Alaloul et al., 2021 [1]; Ng et al., 2011 [31]), or variables that are related to the demand or supply side of the housing market (Demers 2005 [32]; Lunsford 2015 [33]). Demers (2005) [32] uses the price of housing accommodation, the share of the 25- to 44-year-old population, wealth of households, and the interest rate as explanatory variables in the forecast equation. However, some of these variables are published with a lag and, even more importantly, none of these variables is directly related to construction investments. To reduce this problem, an alternative approach includes leading indicators in the forecasting equation that are directly related to the construction sector. Lunsford (2015) [33] uses building permits and housing starts that are published monthly. In Germany, only building permits are available on a monthly basis at the federal level. Unfortunately, they are published with a delay of six weeks. At the state level, building permits are published quarterly with a delay of six weeks. Another important variable is the number of workers in the construction sector. Forecast evaluation studies (e.g., Aye et al., 2016 [34]) find that specific housing market variables are able to improve the forecasting performance. From this perspective, the advantages of satellite image data are that it measures construction activity directly and the data provide information on the regional distribution of construction activity. This information must be converted into quantitative time series data, preferably with a monthly or quarterly frequency.

To analyze the general information content of satellite image data, open satellite image data of the Sentinel-2 satellites are investigated first. The aim is to construct a quantitative measure for construction activities in a specific area. A possible measure is the number of construction sites or the size of the areas of these construction sites. In case these data from the satellite images is too coarse, one could add commercial VHR data instead, to reach higher accuracies.

For the methodological approaches one followed three ideas:

• Exploit freely available HR Sentinel-2 data to detect construction areas and new buildings by using the spectral bands with 10 m and 20 m geometric resolution (Section 2.1.1). Based on the twin constellation of Sentinel-2A and Sentinel-2B it is possible to get their imagery every five days.
• Extract construction areas with high precision from commercial VHR images of the WorldView satellite family with 0.3 m–0.5 m and find out which benefits could result from using the higher geometric resolution (Section 2.1.2). Based on the orbital characteristics and the pointing capabilities of the WorldView satellites, it is possible to get their imagery every 1–5 days.
• Perform a feasibility study on the possible extraction of agricultural machinery in different image resolutions. Due to availability and practical reasons, the use of VHR satellite images will be simulated with orthophotos. The original resolution of 0.1 m will be reduced to 0.3 m, 0.5 m, and 1 m to find the minimal resolution that is needed for successful detections of agricultural machinery. This could then ease the choice of suitable satellite imagery to perform the same task on larger scales (Section 2.2).

2.1. Detection of Construction Sites

To evaluate the usability of HR and VHR earth observation data to identify and quantify construction activities, the German capital Berlin is selected as it must publish national accounts data including construction investments as a federal state. This investigation is based on freely available HR Sentinel-2 images and on commercial VHR images from the family of WorldView (WV) satellites.

Each scene is classified using object-based image analysis (OBIA) and a kNN (k-nearest neighbors) machine learning classifier as this approach visually worked best among the other machine learning techniques such as Support Vector Machine or Random Forest with the given data. The algorithm utilizes previously learned properties such as spectral signatures for different land cover classes and assigns unknown image objects accordingly. To train the classifier, samples are collected for each scene individually to gather representative surface information for each land cover category. Basically, the mono-temporal classification results for all individual scenes are then used to refine the result with GIS-based analysis.

Two reference datasets are consulted for evaluation of built-up structures: The first one is the Imperviousness Classified Change (IMCC) 2015–2018 dataset, that contains changes of sealed surfaces from 2015 to 2018 with a resolution of 20 m. It was produced as part of the Copernicus program and is a continuation of a time series going back to 2006, which is derived from HR satellite data (including Sentinel-2) and other data sources (Copernicus [35]).

The second dataset, Land Cover DE of the German Aerospace Center (DLR), is based on Sentinel-2 scenes from June 2015 to April 2017 and includes a multi-temporal land cover classification with a geometric resolution of 10 m. It covers the whole of Germany and is subdivided into artificial surfaces (built-up areas), bare soil, water, and vegetation. The latter also includes a temporal component and is further subdivided into high/low and seasonal/permanent vegetation. In addition to the satellite spectral channels, a number of indices are used: Normalized Difference Vegetation Index (NDVI), Normalized Difference Water Index (NDWI), and Normalized Difference Built-Up Index (NDBI). Classification is performed using a Random Forest machine learning approach, taking additional information on sealing into account (DLR 2020 [36], Weigand et al., 2020 [37]).

2.1.1. Sentinel-2 HR Image Analysis for the Detection of Construction Areas and New Buildings

For the time period 2015–2020, available cloud-free Sentinel-2 scenes for the city of Berlin are downloaded. Altogether, the 20 scenes listed in

Table 1. Acquisition dates of cloud-free Sentinel-2 scenes for Berlin (2015–2020).

	Jan	Feb	Mar	Apr	May	Jun	Jul	Aug	Sep	Oct	Nov	Dec
2015							4					24
2016				2				27
2017		13			27					16
2018		8			7			7			28
2019		16		19		13		25				10
2020		8		6		2		16

have good quality. It becomes clear that cloud-free images are less frequent in the second half of the year because the weather conditions in Germany’s climate region do not allow more cloud-free image acquisition days in the respective seasons. This makes it more difficult to create a reliable indicator on a quarterly basis since the number of images differ between quarters, however statistical forecasts are traditionally based on observations at regular intervals. The Sentinel-2 images cover the area shown in Figure 1. Only the far eastern part is not covered, but the forest dominated area is of low interest for the detection of new buildings and construction areas. Therefore, this small missing area is neglected.

In this study, images of the past (2015–2020) are used to find an extraction methodology for new buildings and construction areas. Since some of the new objects (e.g., construction areas) can only be identified (to be buildings) after completion, one is dependent on images showing the final stage of a construction process. A simple indicator for construction activity within a region would be the number of construction completions between two observations. Even better would be an indicator based on information about the build-up areas. To comprise these future stages of development, one needs historical images for verification. Once the methodology works properly, it is believed that it can be applied on images without knowing the final stage beforehand.

All 20 scenes are classified according to the land cover nomenclature listed in

Table 2. Classification nomenclature for Sentinel-2 land cover classifications.

Color	Class Name
	Bare Soil
	Vegetation
	Sealed surface
	Water

. The nomenclature assumes that these classes are relevant and that construction activities could be characterized by bare soil without vegetation (e.g., construction sites) or by sealed surfaces consisting of artificial materials (e.g., concrete, roof tiles, etc.).

The idea behind the classification strategy is that each scene is classified independently, so that changes will turnout in the following image(s). Afterwards, a change detection approach based upon a post-classification comparison was performed.

For the classification approach, between 600 and 900 representative samples per scene for all different land cover types to cover all their different spectral appearances are defined manually. Different object features (spectral values, indices, and color space transformation) are used to feed the classifier (

Table 3. Object features used for the Sentinel-2 land cover classifications.

Feature Group	Band/Attribute	Based on …
Spectral	B02 (blue, 10 m)	means, standard deviations, maximum differences
	B03 (green, 10 m)
	B04 (red, 10 m)
	B08 (near infrared, 10 m)
	B8A (red edge, 20 m)
	B11 (shortwave infrared, 20 m)
	B12 (shortwave infrared, 20 m)
Indices	NDVI	(B08 − B04)/(B08 + B04)
	NDVIre	(B8A − B04)/(B8A + B04)
	NDBI	(B11 − B08)/(B11 + B08)
IHS-Transformation	Intensity, Hue, Saturation	B02, B03, B04

).

The high number and spectral resolution of the spectral bands of Sentinel-2 allows one to calculate a number of different indices (e.g., Normalized Difference Vegetation Index (NDVI), NDVIre (NDVI Red Edge), Normalized Difference Built-Up Index (NDBI), Built Up Index (BU), Urban Index (UI), etc.) and color transformations like Intensity-Hue-Saturation transformation (IHS-transformation), and also offers a good chance for simple spectral based classification. According to Jungnickl and Bill (2017) [40] as well as Ettehadi Osgouei et al. (2019) [41], one has to be careful with those “building indices“ regarding seasonality effects. Here, the criteria to be used for the classifier as mentioned above are determined as explorative.

2.1.2. WorldView VHR Image Analysis for the Detection of Construction Areas and New Buildings

To investigate the benefits of higher spatial resolution, six commercial cloud-free pan-sharpened WorldView satellite images were ordered. Depending on the satellite, the spatial resolution is between 30 cm and 50 cm (

Table 4. Acquisition dates of cloud-free WorldView scenes.

	2015-04-25	2016-11-20	2017-05-29	2018-04-29	2019-10-30	2020-08-08
Satellite	WV-3	WV-3	WV-4	WV-3	WV-2	WV-2
Resolution	0.3 m	0.3 m	0.3 m	0.3 m	0.5 m	0.4 m

). Due to this very high spatial resolution, the extraction of construction areas is especially in the focus here. To judge the suitability, one selected a test area (ca. 30 km²) at the southern edge of Berlin.

Again, for the VHR images, this study uses images of the past (2015–2020) to find an extraction methodology for construction areas. The number of construction sites or the sum of the built-up area are simple indicators for construction activity within a given time-period. The logic is the same as with the Sentinel-2 images. Once the developed methodology works, it can be applied on further images without knowing the final stage beforehand. To get reliable information about construction activity within this area it would be ideal to get images at a quarterly frequency. Due to the climatic conditions in central Europe, clouds often obscure the satellite images. This causes an uneven distribution of cloud-free images, time-wise.

As construction areas are spectrally different from other land cover types, a land cover classification could be an efficient way to identify construction activities as well as new buildings. Prepared by an image segmentation, a K-nearest neighbor classification is applied, based on approximately 38,000 samples per image collected on a 4 m grid beforehand. Those samples are representative for each land cover class (

Table 5. Classification nomenclature for WorldView land cover classifications.

Color	Class	Group
	Bare soil	unsealed
	Vegetation
	Construction
	Industry	sealed
	Residential
	Other Artificial
	Water

). The object features listed in

Table 6. Object features used for the WorldView land cover classifications.

Feature Group	Band/Attribute	Based on …
Spectral	Blue	Means, standard deviations, maximum differences
	Green
	Red
	Infrared
Indices	NDVI
IHS-Transformation	Saturation, intensity	Red, green, blue

are used to train the classifier.

Per satellite scene, a mono-temporal classification is performed and the result is then used to refine it with GIS-based analysis.

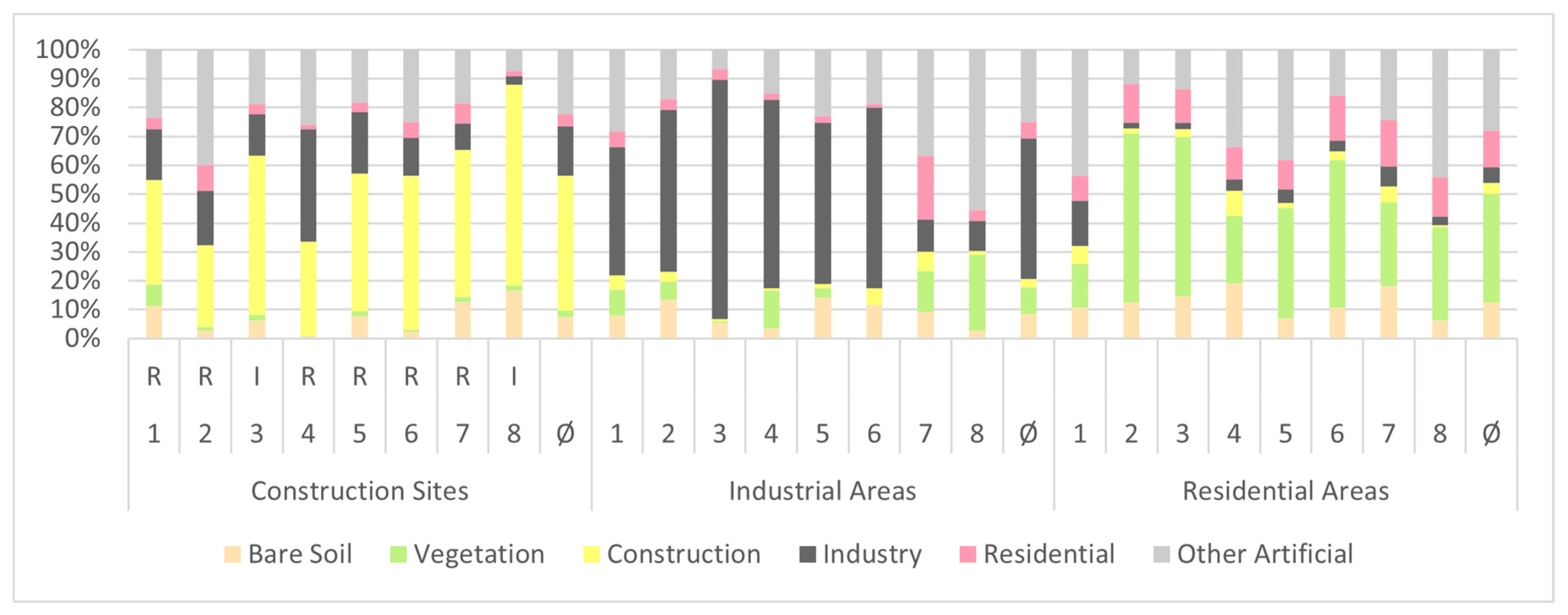

The first attempt is to analyze the “classification pattern”. It is based on the observation that construction areas are composed of many small objects of different materials. This could lead to neighboring areas classified to different land cover classes. To identify the class composition pattern, eight test sites are used, each for known residential, industrial, and construction areas. Inside each area, the class compositions and their frequency are analyzed. It is hoped that characteristic patterns for those three land cover types could be identified.

Since for each of the six image acquisition dates one classification result will be available, it is possible to consider a post-classification comparison based on more than one classification result. This time series constellation is an option to retrace the construction activities. The retrospective tracking of land cover changes can then help to understand the construction activity and use observed multi-temporal results for forecasting.

Table 7. Multi-temporal post-classification approaches for construction area identification.

	New permanent sealing without visible construction sites
A	2015	2016		2017		2018		2019		2020
	unsealed	sealed
		unsealed		sealed
				unsealed		sealed
						unsealed		sealed
								unsealed		sealed
B	Construction area on previously unsealed surfaces with subsequent sealing
	2015	2016		2017		2018		2019		2020
	unsealed	construction		sealed
		unsealed		construction		sealed
				unsealed		construction		sealed
						unsealed		construction		sealed
C	Biennial construction areas with subsequent sealing
	2015	2016		2017		2018		2019		2020
	construction		sealed
			construction		sealed
					construction		sealed
							construction		sealed

Unsealed corresponds to the classes Bare Soil and Vegetation (Table 5); sealed corresponds to the classes Industry, Residential, and Other artificial (Table 5).

lists three possible approaches to identify new buildings and construction areas.

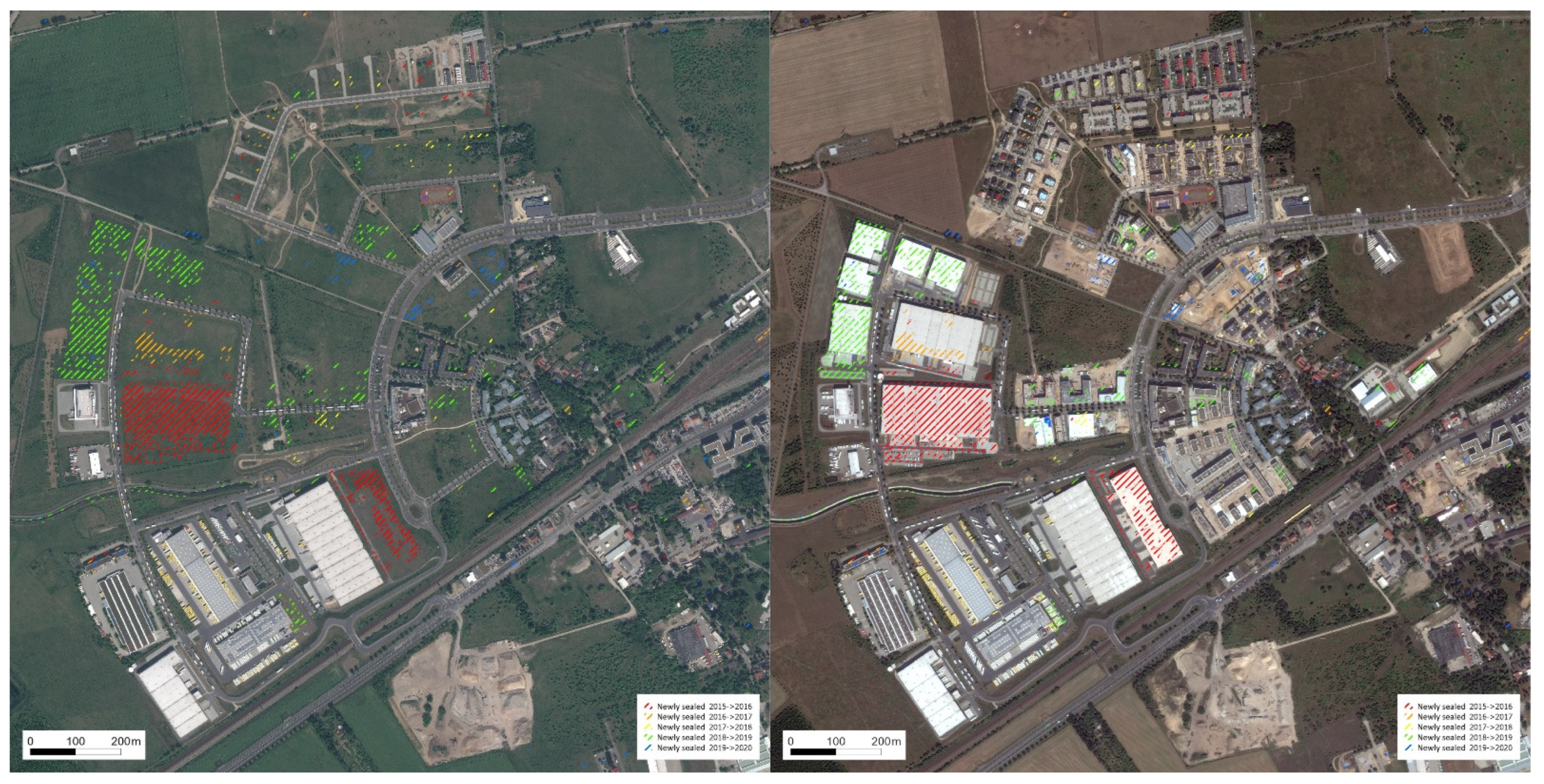

The first approach (A) does not identify a construction area between two image acquisitions, since in the first image there is no construction visible, but only the “normal” land cover. In the second image, the construction activity is already completed and new buildings can be observed. This could happen, if the time interval between the two cloud-free images is too large to identify construction activities in-between.

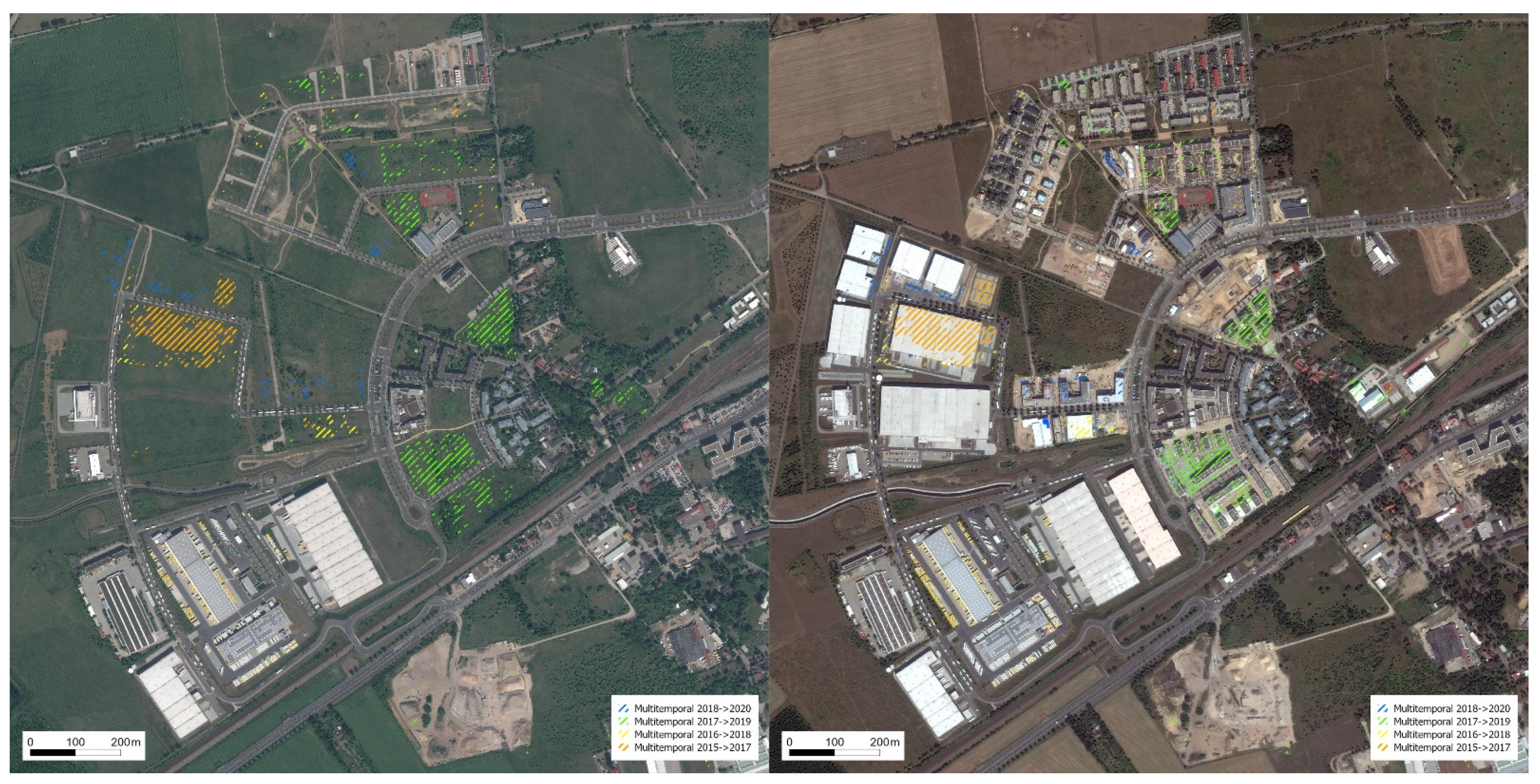

Approach B is applicable when three stages can be identified. Beginning with no construction activity (“unsealed normal land cover”), followed by, secondly, a construction activity, and in the third image the stage of completed buildings.

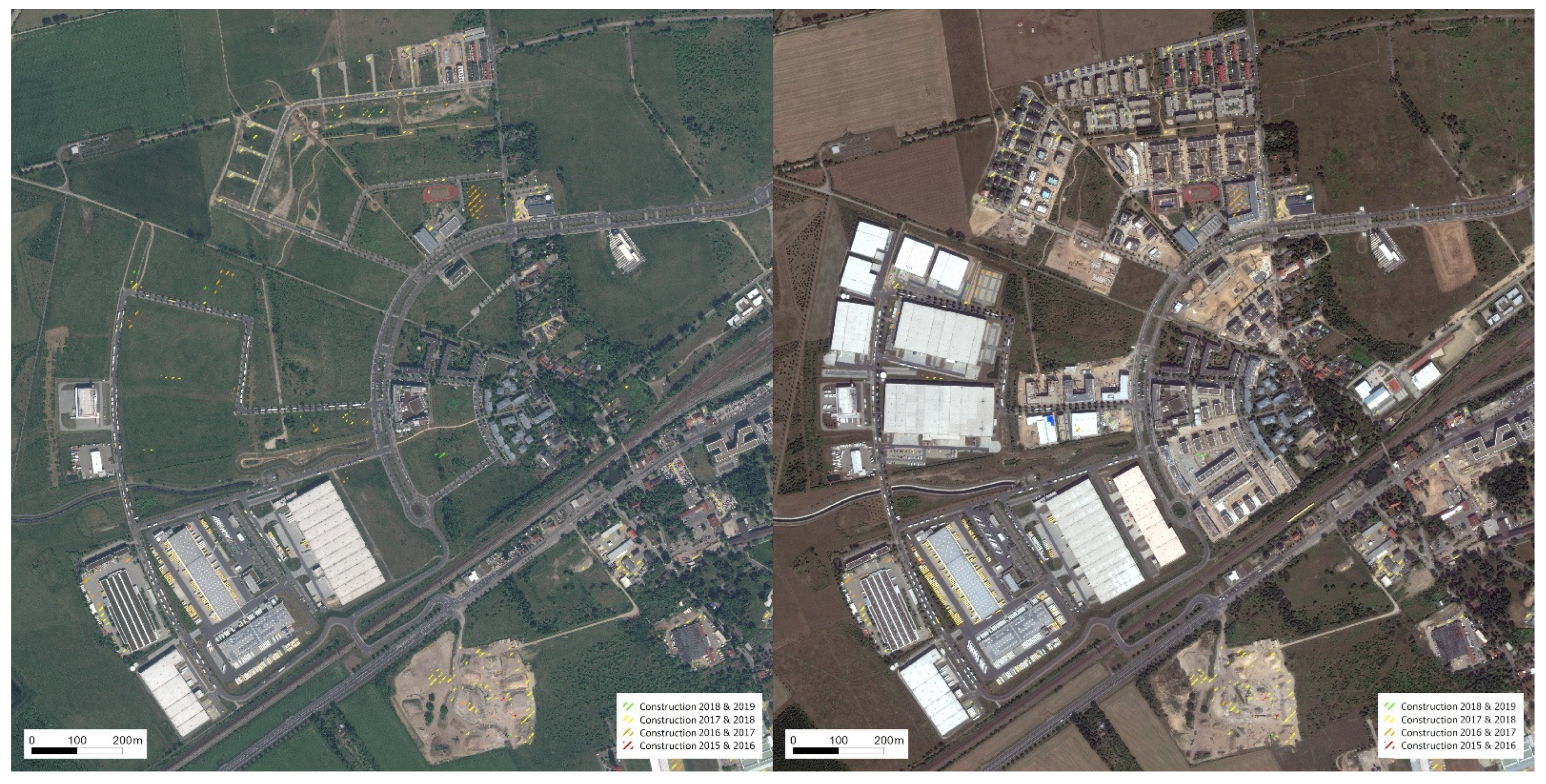

The third approach (C) is useful for construction areas that exist in two temporally adjacent images. In the third image the construction is completed.

2.2. Detection of Machinery

Besides investments in buildings, one is interested in investments in machinery. One significant type that can be observed from space is agricultural machinery which is typically parked on outdoor parking lots after completion. Since it is unclear if identification and counting of agricultural machinery is possible with VHR satellite images, an experiment with degraded aerial RGBI-ortho-images was designed. The ortho-images themselves are not available world-wide and have an uncertain temporal resolution, thus it is not considered for routine economic forecasts.

For the detection of vehicles or agricultural machinery, a parking lot of an important manufacturer in Harsewinkel, Germany, was chosen. For this area, a digital orthophoto with a spatial resolution of 10 cm was acquired. To use such images to judge the usability of agricultural machinery in VHR satellite images, the spatial resolution was degraded to 30 cm, 50 cm, and 1 m, which corresponds to most VHR satellites.

The detection of agricultural machinery or vehicles cannot be performed solely upon local spectral image properties to be reliable. Much more promising is the analysis of spatial patterns in an image’s grey value matrix. This can be performed by identifying objects via template matching. The principle is based on the comparison between a given sample or template of the desired object and the image content. A template is moved across the image to identify fitting objects within the image. The fit is calculated by a correlation coefficient and the result is stored in a separate image. Locations with correlation values above a given threshold are assumed to be successful matches of the sought object (Figure 2).

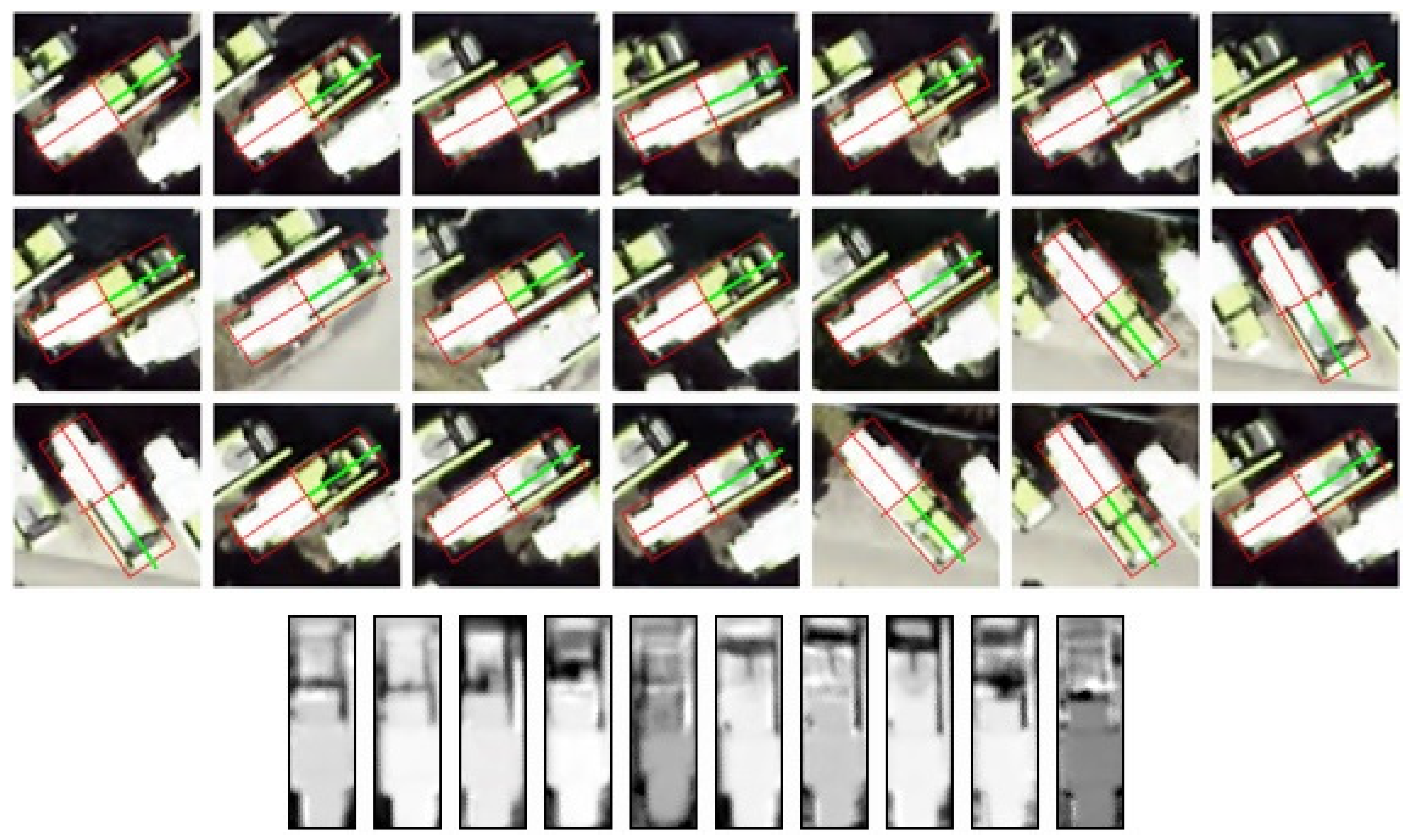

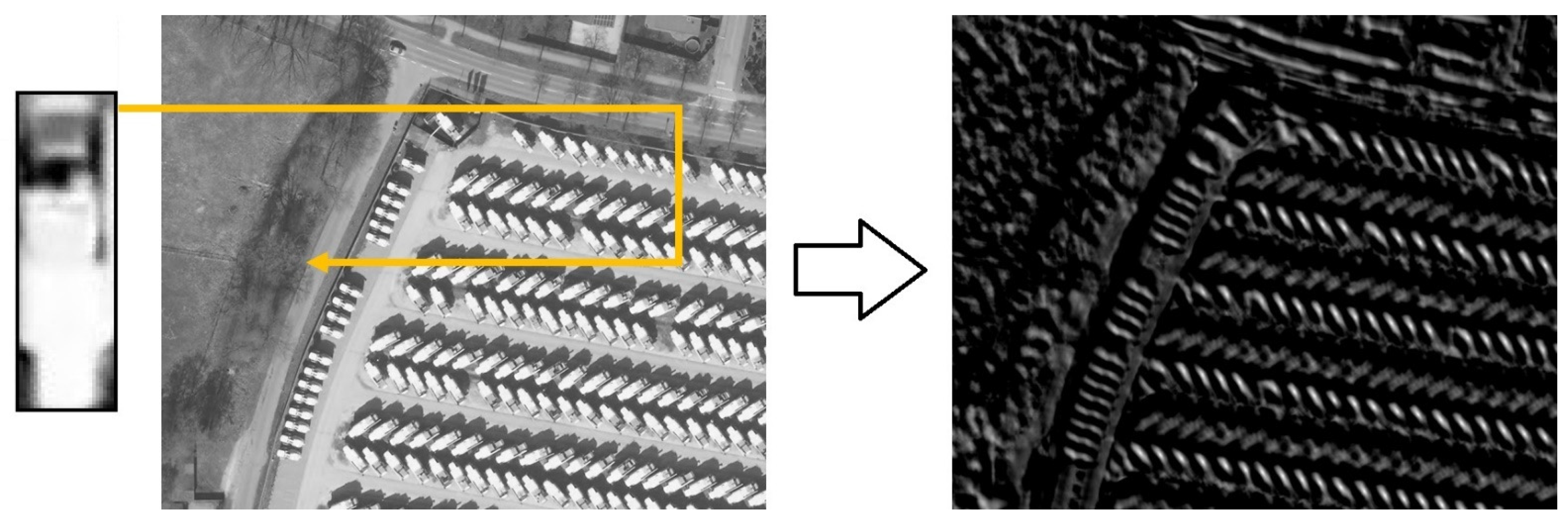

Template Matching is performed using eCognition. Templates are generated by measuring and fusing multiple example objects (Figure 3) to take different lighting conditions and vehicle configurations into account. These are then scaled and rotated during execution to detect vehicles in different orientations and sizes.

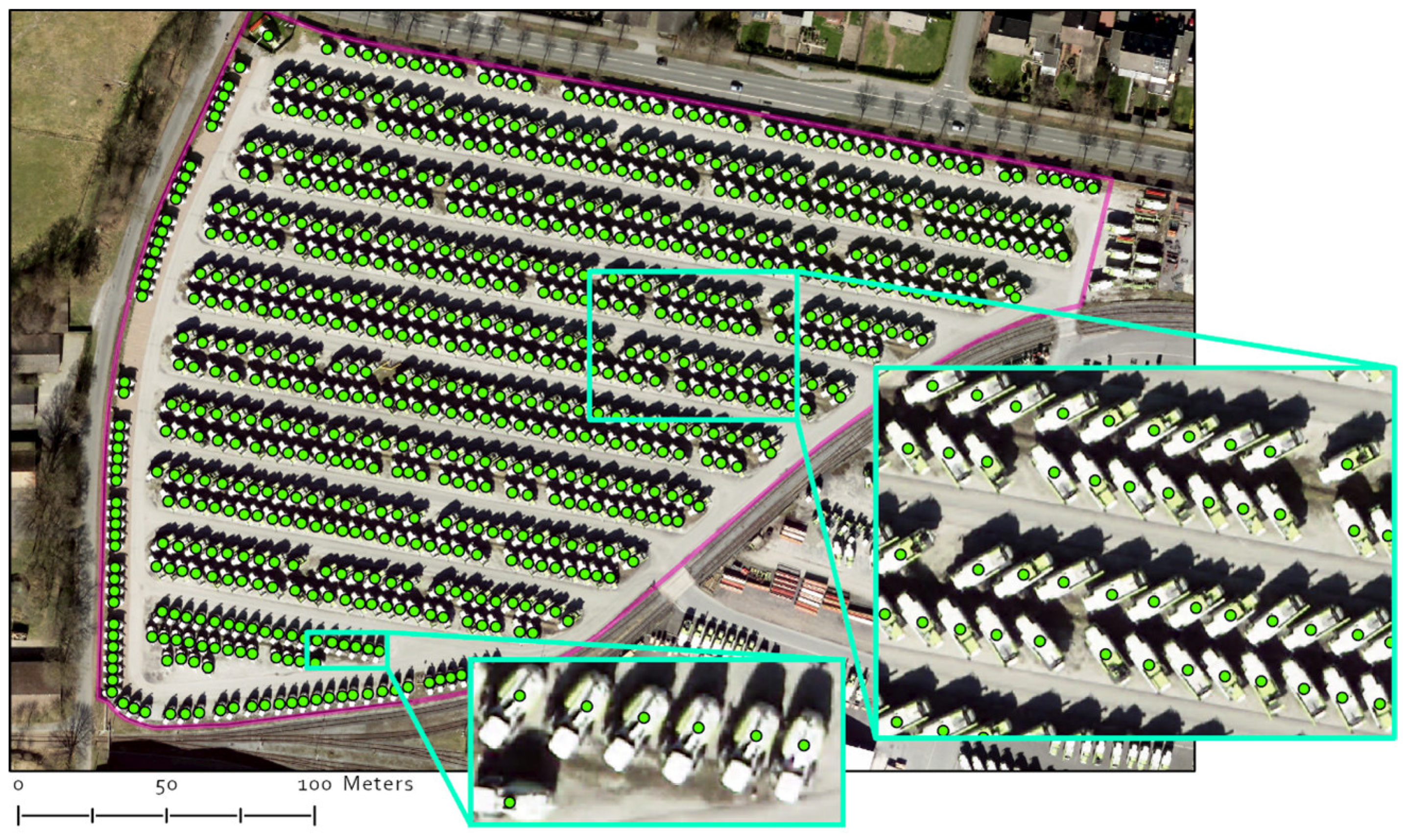

To be able to judge the result, a reference data set is prepared manually. In the original ortho-image (27 March 2017) of the factory in Harsewinkel, all land machines are counted and transformed into a reference data set with 744 vehicles (Figure 4). This is later used to evaluate the results of the template matching based on different spatial resolutions. The template matching is applied to identify field choppers and combine harvesters with slightly varying configurations.

3. Results

3.1. Results of the Sentinel-2 Classification

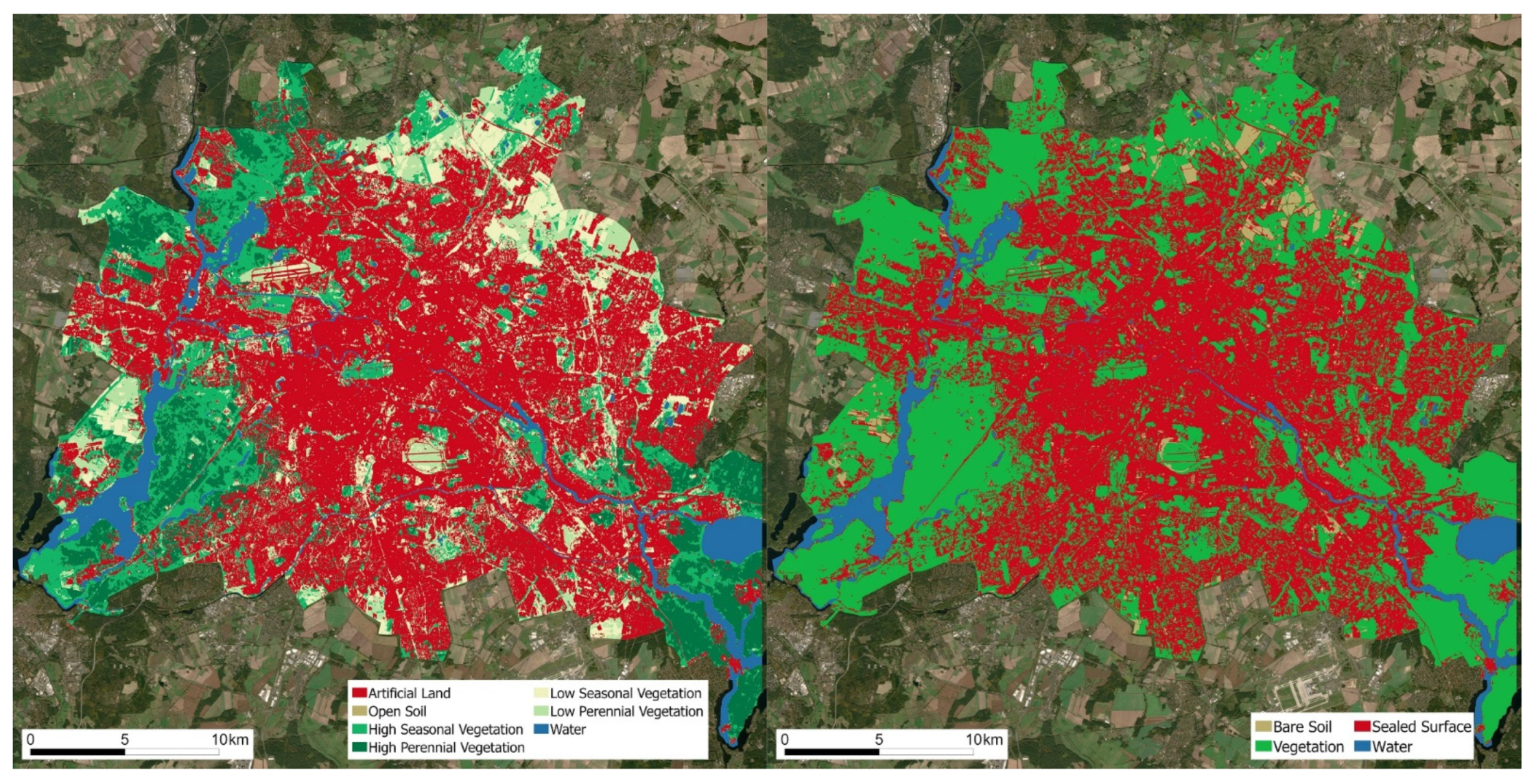

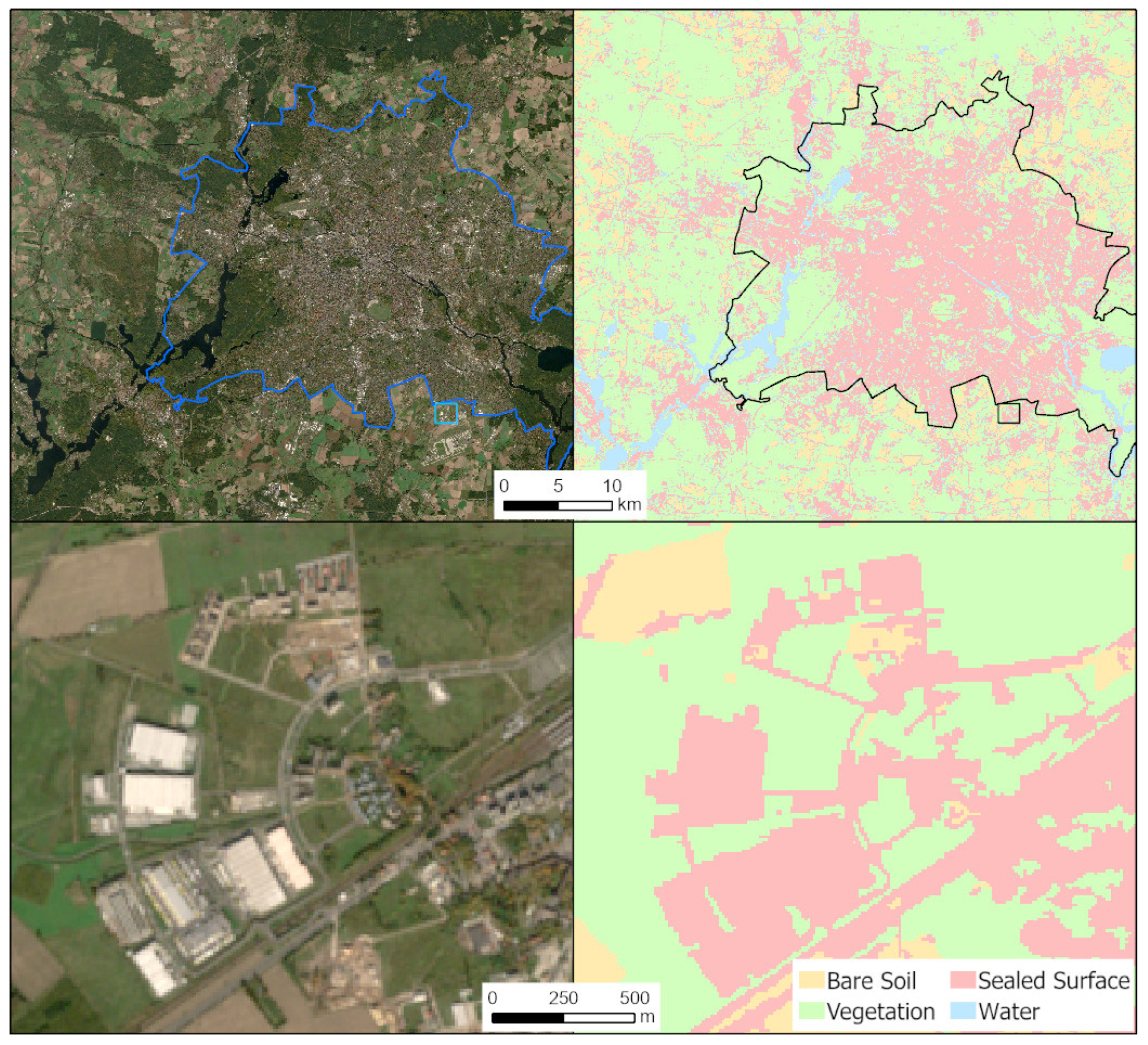

Figure 5 exemplarily shows the classification result of the Sentinel-2 scene of 16 October 2017. The different natural land cover classes and newly sealed areas can be clearly identified in the complete scene as well as in the enlarged area.

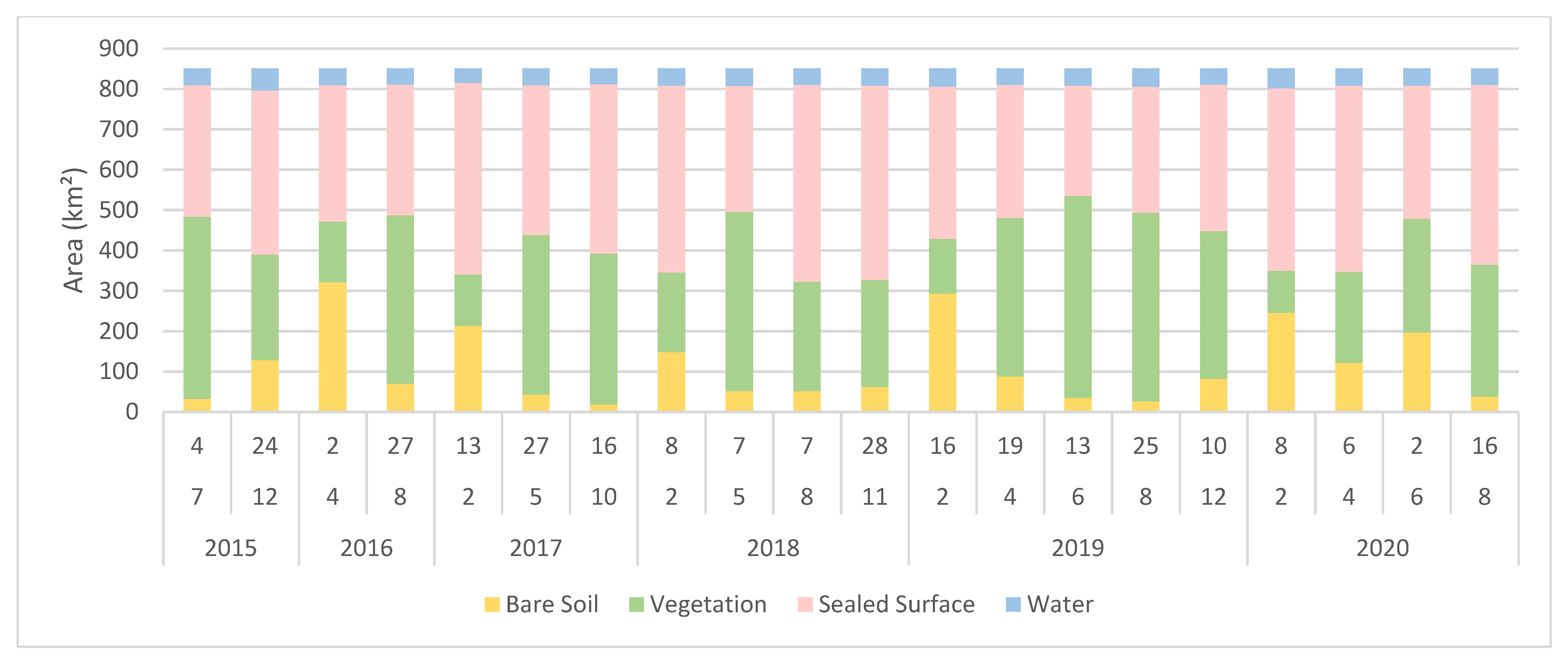

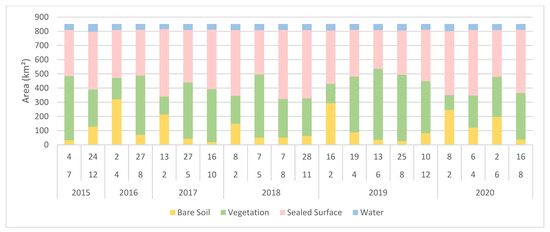

From the classification results of all used scenes, area statistics are calculated and converted to diagrams (Figure 6). The differences of each land cover class over time can be seen for Berlin. The differences mainly relate to seasonal effects of green vegetation. It is challenging to identify increasing sealed surfaces directly from the areal statistics, as vegetation crown cover shields underlying sealed surfaces during certain time periods.

Table 8. Land cover statistics (left and center) of the classifications in comparison to the Land Cover DE reference data set (DLR 2015–2017, right) [36].

	Sentinel-2 2015–2020 (Avg)		Sentinel-2 2017-10-16		DLR 2015–2017
	km²	%	km²	%	km²	%
Bare Soil	113	13	19	2	2	0
Vegetation	308	36	374	44	372	44
Sealed Surface	387	45	419	49	429	50
Water	43	5	39	5	47	6
Sum	851	100	851	100	851	100
values are rounded

compares the classification results to reference data. The average land cover statistics of the classification performed here (Sentinel-2 2015–2020 avg) differ significantly from the reference classification (DLR 2015–2017), especially in the case of Bare Soil. Bare Soil in the classification performed here appears mainly as low seasonal vegetation in the multi-temporally classified reference data set. This is because the reference was created with a different intention, which is reflected in the class descriptions. The multi-temporal classification allows one to integrate further knowledge of a second image that could possibly identify vegetation for one point in time. Then, this results in a type of seasonal vegetation. In the mono-temporal classification performed here this additional knowledge does not exist; the classifier can only rely on the reflected energy at one acquisition date.

In contrast to the averaged results of 2015–2020, a comparison of the classification result of 16 October 2017 with the reference data set reveals good fit (Figure 7). At this date the specified classes are classified mainly correctly. This proves that the classification approach itself is reliant, but a comparison with the reference could be misleading due to its multi-temporal character.

In addition to that, the identification of sealed surfaces is limited due to the size of the construction areas and the spatial resolution of the image data. This leads to the result that in many cases individual Sentinel-2 images are not suited to reliably identify construction activities in a city like Berlin.

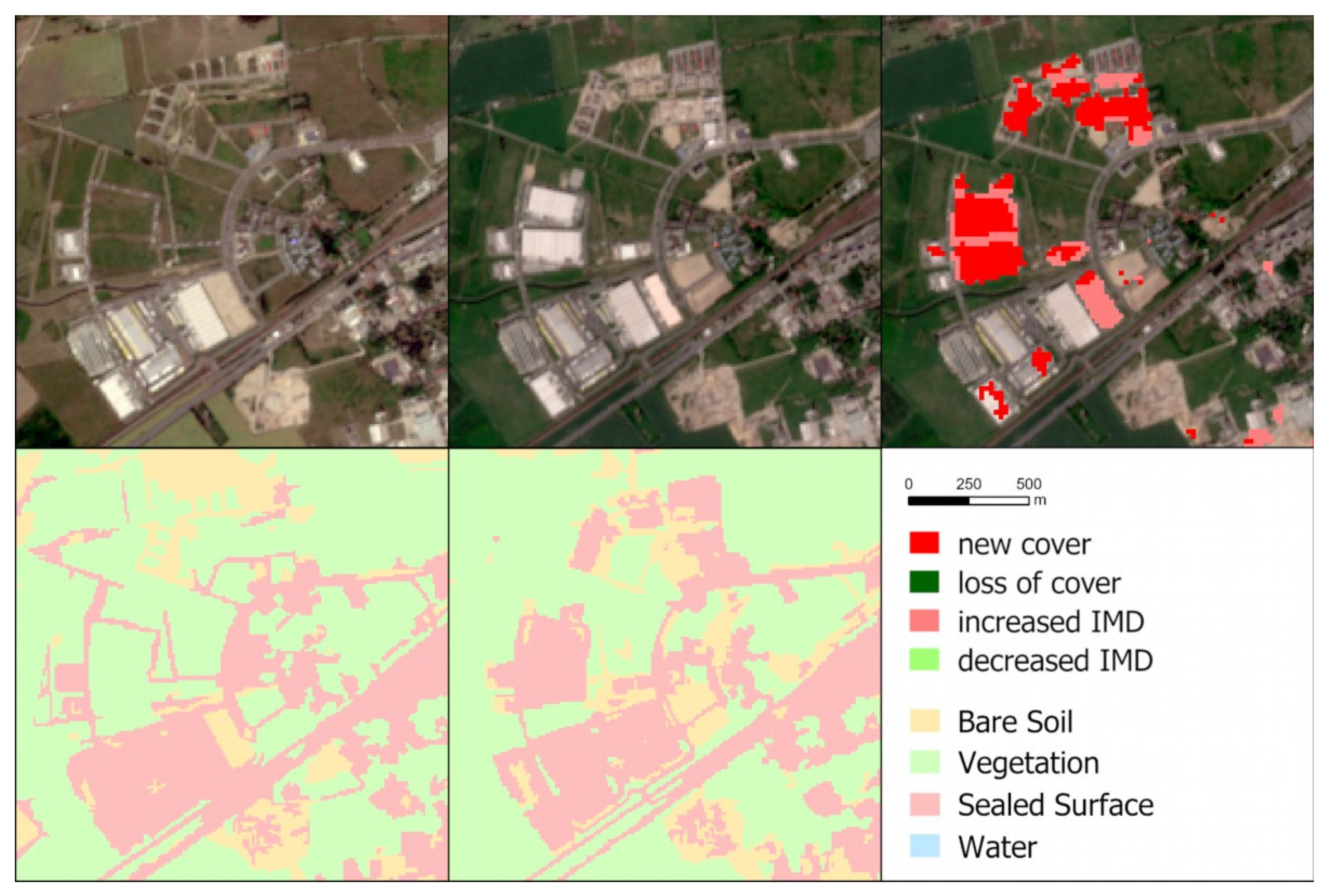

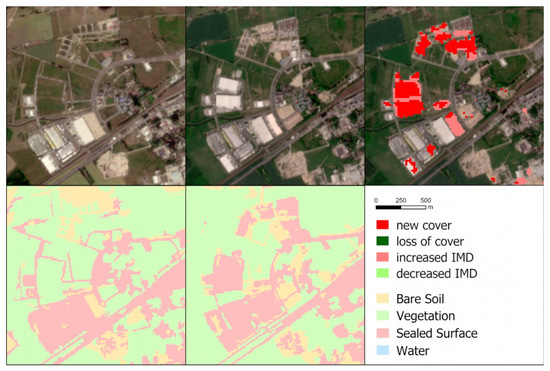

However, multi-temporal comparisons of subsequent image classification results indicate reasonable findings (Figure 8). The images clearly show the growing amount of sealed surface in the parcels that are already visible in the first image from 2015, up to a point where they are completely sealed in 2018. In addition, some of the construction sites stand out as bare soil and turn into sealing later. This could be verified with the Imperviousness Classified Change 2015–2018 reference data set, which is based on the same methodology (Copernicus) [35].

3.2. Results of the WorldView Classification

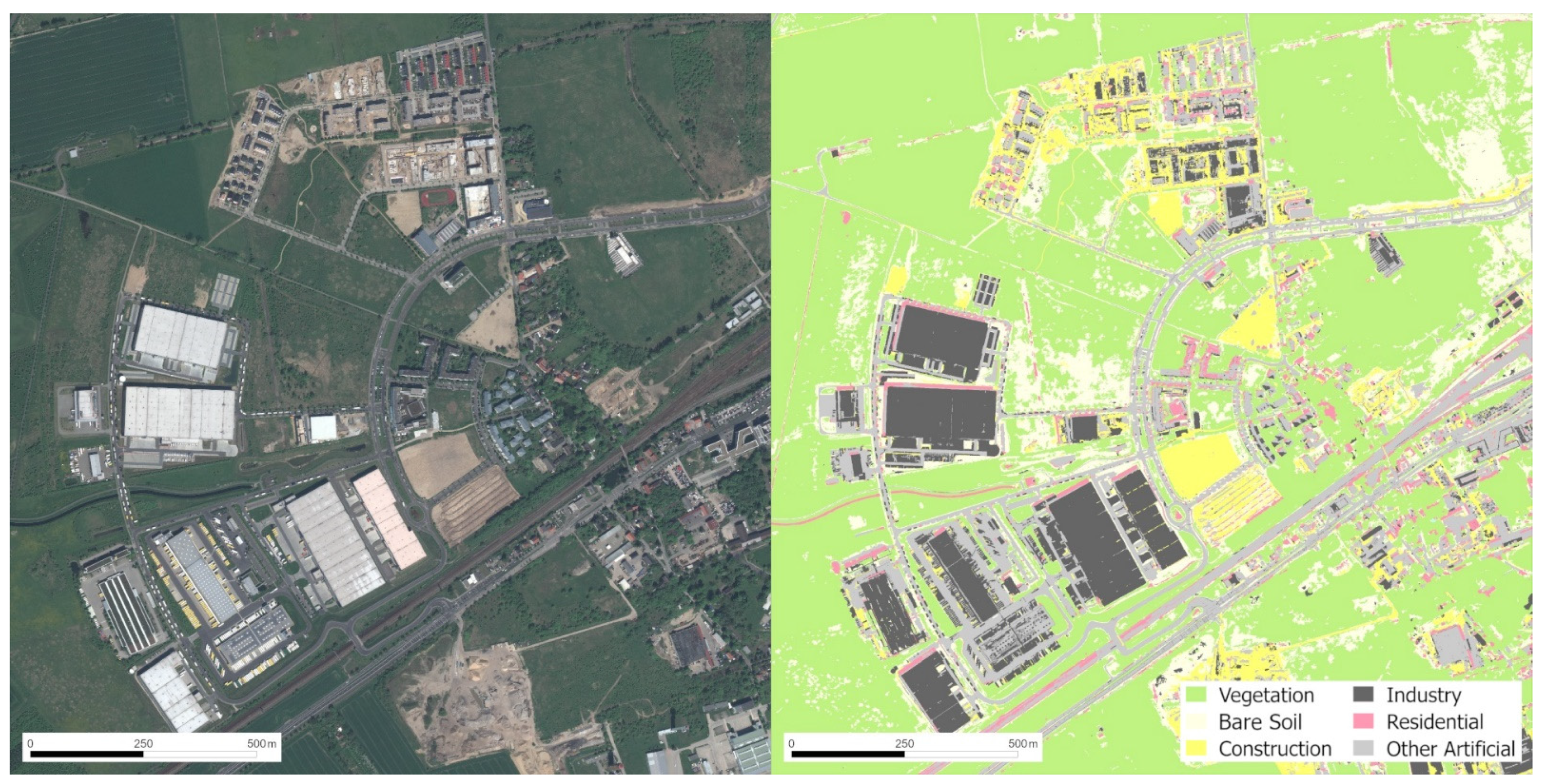

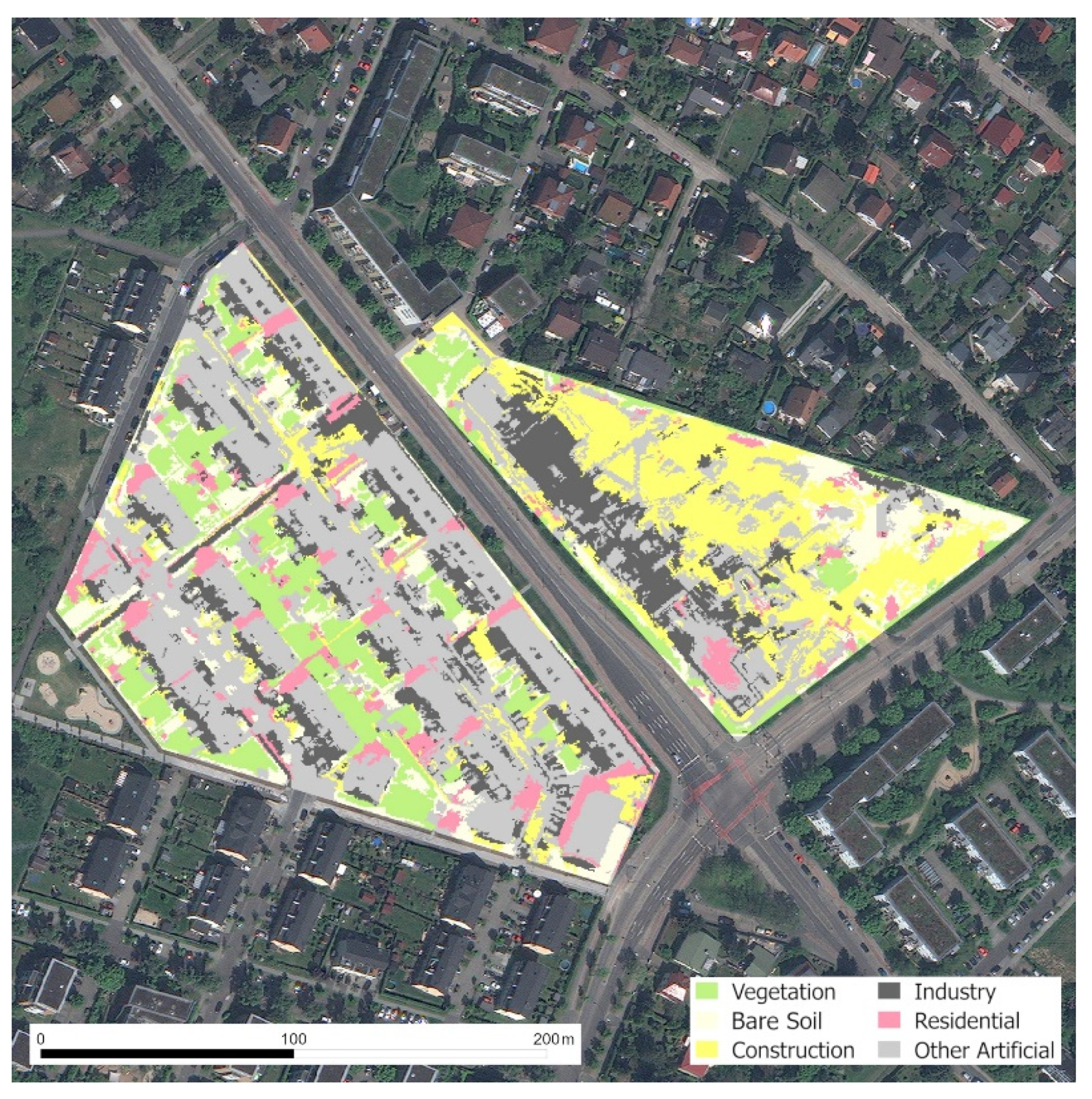

Compared with the Sentinel-2 results, the classification of the VHR WorldView scenes reveals much more differentiated results. Figure 9 exemplifies a classification result for the image of 29 April 2018 with many active construction areas.

These construction areas are clearly visible and can be discriminated from natural bare soils. However, spectral differences are dependent on other factors like the seasonal differences (e.g., sun angle, active/inactive construction sites) and varying degrees of soil moisture. Quantitative classification results for all VHR scenes are given for every class in Figure 10 and

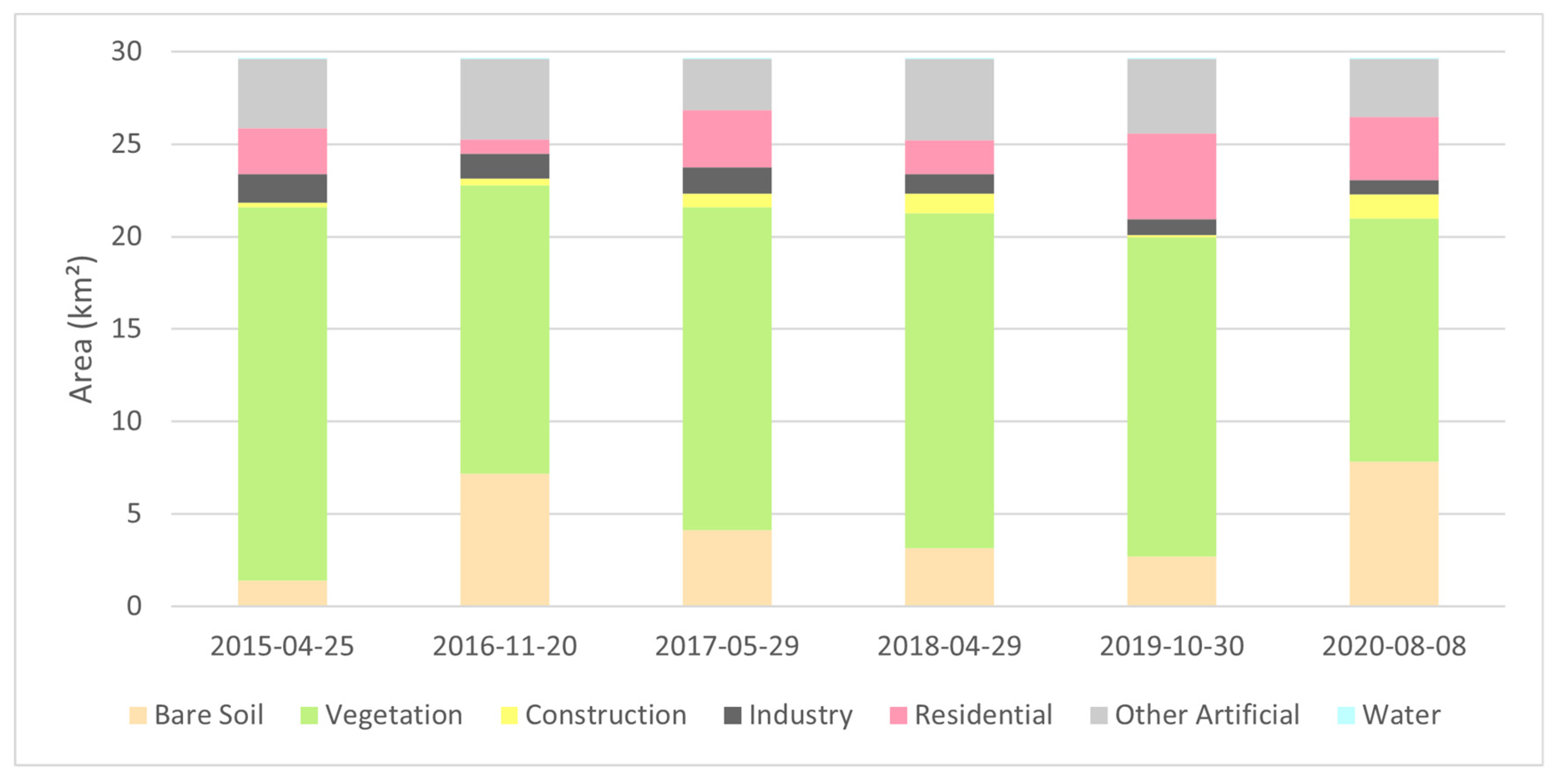

Table 9. Land cover statistics of the WorldView classifications.

km²	2015-04-25	2016-11-20	2017-05-29	2018-04-29	2019-10-30	2020-08-08
Bare Soil	1.40	7.19	4.14	3.16	2.68	7.82
Vegetation	20.18	15.57	17.44	18.12	17.28	13.17
Construction	0.27	0.39	0.76	1.06	0.14	1.29
Industry	1.54	1.33	1.40	1.03	0.86	0.77
Residential	2.50	0.78	3.11	1.85	4.61	3.43
Other Artificial	3.74	4.37	2.78	4.38	4.06	3.14
Water	0.02	0.02	0.02	0.04	0.02	0.02
Sum	29.64	29.64	29.64	29.64	29.64	29.64

.

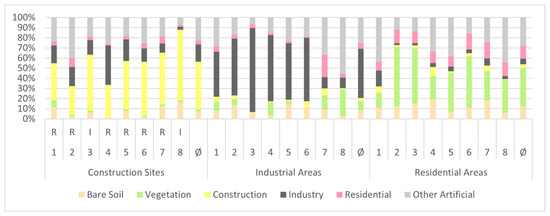

Large commercial buildings as well as residential buildings can be reliably identified in all available VHR-scenes. However, some problems exist to separate residential buildings from other sealed surfaces. Misclassifications probably occur because of great spectral similarity of the materials.

The tree canopy cover effect occurs also in the VHR images during summer months and hides buildings underneath. This effect affects the land cover statistics during leave-on periods, compared to leave-off periods.

The mono-temporal classification results are then refined by GIS analysis techniques. One refinement approach is to search for characteristic classification patterns in known environments. For residential and industrial areas as well as construction areas, one analyzed eight cases each regarding their class composition. It is obvious that residential or industrial areas differ from construction areas (see Figure 11). A further discrimination between construction sites for residential or industrial buildings is not possible during the period of construction. In Figure 12 one can see the result for 29 April 2018.

The multi-temporal approaches detect different stages of construction or even new houses directly. The results are slightly dependent on the season. It is easy to detect construction sites in vital vegetation conditions of spring and early summer. In contrast to that, winter scenes or dry-season scenes cause more misclassifications, possibly because bare soil and construction sites become spectrally more congruent. For this reason, different multi-temporal approaches are tested, as given in Table 7. For all three post-classification comparison approaches, individual thresholds (minimum size) are defined to accept the detected change to be significant. Approach A identifies basically new buildings and sealed surfaces of at least 50 m² size without identifying a construction area (Figure 13). In Figure 14, areas larger than 20 m² are shown that are (according to approach B) unsealed in the first year, classified as construction sites in the second year, and sealed in the third year. In addition to that, Figure 15 represents approach C with areas larger than 20 m² that are under construction in two consecutive images.

The detected changes are then compared with the areal extent of new buildings and surrounding sealed areas. This reference is created very restrictively in the sense that only confident buildings and their sealed surrounding are considered for the comparison with the post-classification results. This is the basis to judge the accuracy of the determined construction area. Those that turned into buildings over a longer period of time are not considered until full completion. This means that only the smallest possible area is considered reliable and timely in the verification process. There is no other reference data set for construction areas available. This is due to the specific and ephemeral nature of construction areas. The verification results are listed in

Table 10. Post-classification verification results.

	Approach	Total	True Positive
	Mono-temporal Pattern 2015	266,821 m²	33,641 m²	12.6%
	Mono-temporal Pattern 2016	389,695 m²	55,351 m²	14.2%
	Mono-temporal Pattern 2017	757,578 m²	144,010 m²	19.0%
	Mono-temporal Pattern 2018	1,061,411 m²	406,272 m²	38.2%
	Mono-temporal Pattern 2019	141,134 m²	71,006 m²	50.3%
A	Newly sealed 2015–2016	57,566 m²	46,614 m²	80.9%
	Newly sealed 2016–2017	98,167 m²	20,150 m²	20.5%
	Newly sealed 2017–2018	30,230 m²	13,477 m²	44.5%
	Newly sealed 2018–2019	84,150 m²	44,962 m²	53.4%
	Newly sealed 2019–2020	105,099 m²	51,645 m²	49.1%
B	Multi-temporal 2015–2017	27,528 m²	26,821 m²	97.4%
	Multi-temporal 2016–2018	49,107 m²	44,583 m²	90.7%
	Multi-temporal 2017–2019	118,761 m²	112,293 m²	94.5%
	Multi-temporal 2018–2020	11,994 m²	10,670 m²	88.9%
C	Biennial 2015 & 2016	458 m²	77 m²	16.8%
	Biennial 2016 & 2017	10,083 m²	1,364 m²	13.5%
	Biennial 2017 & 2018	68,469 m²	28,340 m²	41.3%
	Biennial 2018 & 2019	791 m²	620 m²	78.3%

.

3.3. Results of the Machinery Detection

After the template matching is performed, the result for the different spatial resolutions with indicators called ‘precision’ and ‘recall’ can be evaluated. Precision is the relation of correctly identified vehicles (true positives) from all hits (correct and false ones) of the matching procedure.

$$precision=\frac{true positives}{true positives+false positives}$$

Recall or ‘hit rate’ is the relation of correctly identified vehicles (true positives) compared with the total number of all vehicles (correct and missed ones).

$$recall=\frac{true positives}{true positives+false negatives}$$

Generally, higher values are better results. The values for recall and precision should always be used together for a complete evaluation. This is due to the fact that a precision of 90% means that 9 out of 10 vehicles really exist. This indicator does not inform one about missed vehicles. In addition to that, a recall value of 100% simply expresses that all available vehicles were identified. It does not inform one about vehicles that were counted but are not existent.

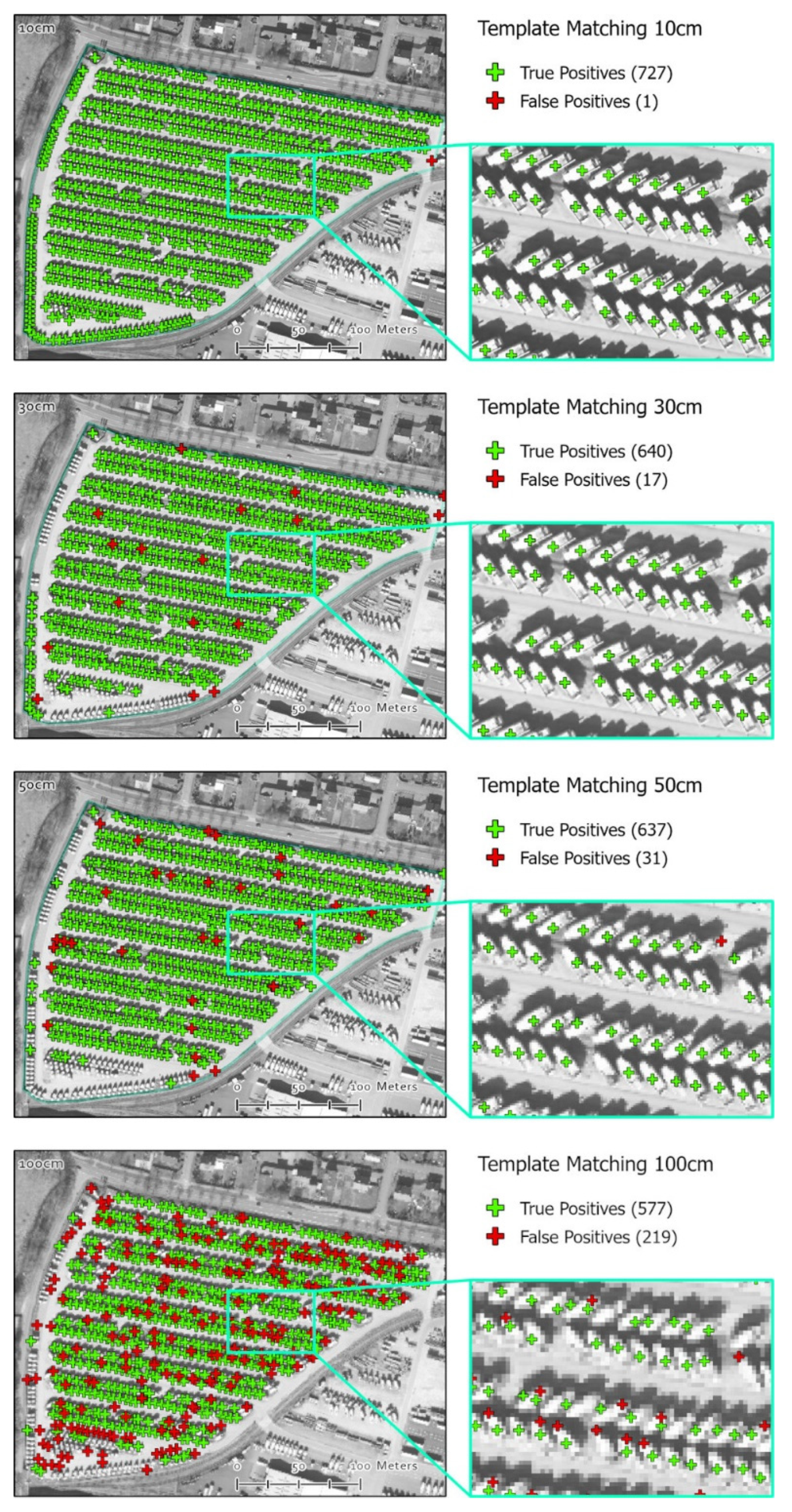

Figure 16 shows the results for the template matching for the different spatial resolutions with multiple templates and 80% correlation.

Table 11. Results of the template matching for different resolutions.

Resolution	Precision	Recall
10 cm	99.9%	97.7%
30 cm	97.4%	86.0%
50 cm	95.4%	85.6%
100 cm	71.3%	75.3%

additionally summarizes the results and confirms that both 30 cm and 50 cm spatial resolution provide reliable results. However, with coarser resolution the results slightly decline. In particular, small objects are characterized by less reliable results meaning higher amount of less true positives. The image with 100 cm spatial resolution reveals weaker results, which is due to the more difficult cognition of the vehicles’ shape.

This feasibility study underlines that VHR satellite images like from the WorldView satellite family could be well suited for detection and identification of agricultural machinery in the examined size class. This could be used for future economic forecasts of this investment parameter.

4. Discussion

This study attempts to measure two economic variables directly by using satellite images: new buildings or construction areas and agricultural machinery. It is one of the few studies trying to use HR and VHR satellite data for an application in short-term economic forecasting. One advantage of satellite images is that it is possible to measure construction activities directly by identifying affected areas or objects. In contrast, current forecasting models use more indirect indicators such as building permits or the number of workers in the construction sector. A second advantage is that using satellite data allows the provision of regionally strongly differentiated information about construction activities.

Regarding the detection of construction activities, one can assume that Sentinel-2 images can be used to detect new buildings. However, the results were dependent on season. Confusion with bare soil as well as vegetation cover could influence the distinct detection. Regardless of the high temporal frequency, the spectral ambiguity of some land covers in mono-temporal classification cannot be overcome due to seasonal effects. Application of multi-temporal classification approaches could help to overcome this and lead to much more reliable results. However, for this specific application, multi-temporal classification is not effective, due to the fact that quick changes are to be mapped. The multi-temporal approach could cause delays as it would need at least one second cloud-free image with the respective later acquisition date.

VHR satellite images benefit from the very high spatial resolution and can be used to detect construction sites as well as new buildings. Post-classification change detection approaches support the identification and help to categorize these objects. However, even these images suffer from seasonal fluctuations and ambiguity of other land cover categories. Another drawback is the costs associated with commercial satellite images. In conjunction with the small area captured per image this could hinder a broad application, e.g., nationwide. Here, a strategy concentrating on a number of well selected proxy locations could help to overcome this bottleneck.

The initial mono-temporal classifications of both Sentinel-2 and WorldView scenes are intentionally kept simple to better reveal the influence of the geometric resolution. However, in particular the classification of VHR-data could benefit from additional features such as shape, size, or texture.

Concerning the detection of agricultural machinery, it could be demonstrated that VHR satellites like WorldView with a spatial resolution of 30 to 50 cm are well suited for an object extraction approach via template matching. For this economic indicator nationwide imagery is not needed, and instead one could concentrate on the known locations of the manufacturers.

This study concentrates on the feasibility and on the development of practical and quick approaches. In a next step, the usability as well as the reliability in economic models must be evaluated. It is therefore necessary to create a time series with an annual or preferably quarterly (or even monthly) frequency. In order to evaluate its information content for forecasting activity in the construction sector and selected industries, a period of several years is required.

One should also do research on the robustness of the economic models against shortcomings of the image analysis results such as missing observations caused by clouds.

The increasing availability of new earth observation satellites with higher spatial resolution and higher temporal revisit rates will most likely be beneficial in supporting the data needs for quick and reliable forecasts.

Further research could also investigate weather independent RADAR images based on synthetic aperture Radar (SAR) to overcome the cloud cover problem of optical satellites.

5. Conclusions

The results of this study show that VHR satellite images are a new and unconventional source of information to be added to short-term economic forecasts. The information gained by machine learning techniques is up-to-date and cannot be delivered by other sources. The detection of construction areas from VHR satellite images is much more reliable than from HR satellite images. VHR satellite images with a ground resolution of 30–50 cm are able to identify agricultural machinery with high precision.

In its present stage the results are based on optical satellite images, which might suffer from cloud coverage that obscures the view of the Earth’s surface and its objects, like buildings or agricultural machinery. Further research will have to overcome these limitations by integrating additional image sources. In addition to that, a higher degree of automation in image object identification could be beneficial for a routine application.
