Machine Learning-Based Classification and Regression Approach for Sustainable Disaster Management: The Case Study of APR1400 in Korea

Abstract

During nuclear accidents, decision-makers need to handle considerable data to take appropriate protective actions to protect people and the environment from radioactive material release. In such scenarios, machine learning can be an essential tool in facilitating the protection action decisions that will be made by decision-makers. By feeding machines software with big data to analyze and identify nuclear accident behavior, types, and the concentrations of released radioactive materials can be predicted, thus helping in early warning and protecting people and the environment. In this study, based on the ground deposition concentration of radioactive materials at different distances offsite in an emergency planning zone (EPZ), we proposed classification and regression models for three severe accidents. The objective of the classification model is to recognize the transient situation type for taking appropriate actions, while the objective of the regression model is to estimate the concentrations of the released radioactive materials. We used the Personal Computer Transient Analyser (PCTRAN) Advanced Power Reactor (APR) 1400 to simulate three severe accident scenarios and to generate a source term released to the environment. Additionally, the Radiological Consequence Analysis Program (RCAP) was used to assess the off-site consequences of nuclear power plant accidents and to estimate the ground deposition concentrations of radionuclides. Moreover, ground deposition concentrations at different distances were used as input data for the classification and regression tree (CART) models to obtain an accident pattern and to establish a prediction model. Results showed that the ground deposition concentration at a near distance from a nuclear power plant is a more informative parameter in predicting the concentration of radioactive material release, while the ground deposition concentration at a far distance is a very informative parameter in identifying accident types. In the regression model, the R-square of the training and test data was 0.995 and 0.994, respectively, showing a mean strong linear relationship between the predicted and actual concentration of radioactive material release. The mean absolute percentage error was found to be 26.9% and 28.1% for the training and test data, respectively. In the classification model, the model predicted a scenario (1) of 99.8% and 98.9%, scenario (2) of 98.4% and 91.6%, and scenario (3) of 98.6% and 94.7% for the training and test data, respectively.

1. Introduction

Nuclear energy is considered to be one of the cleanest energy sources due to its low emission of greenhouse gases. In addition, it is a baseload power with a steady and huge output unlike other renewable energies, such as solar and wind energies [1]. Throughout the history of nuclear energy, there have been three notorious nuclear accidents: Chernobyl, Three Mile Island (TMI), and Fukushima. Hence, the potential hazards associated with nuclear power plants have been a major concern among people due to the huge amounts of released radioactive materials during nuclear disasters, which significantly affect humans and the environment [2,3,4]. The identification of nuclear accidents and estimating the concentration of radioactive materials released are among the critical issues in nuclear power plant safety [5]. Each type of accident has a unique pattern similar to a human finger print that can help identify it, as each accident has specific symptoms consisting of a set of plant variables [6]. The use of decision support systems (DSSs) is key for supporting the safety and security aspects during nuclear emergency operations. They help the decision maker to recognize accident patterns and to take adequate protection action. DSSs are not only necessary to guarantee the correct choices for safety precautions but also to improve the prevention phase, which is essential in emergency planning systems [7,8]. Artificial intelligence (AI)-based DSSs were developed to reduce human errors in nuclear reactors during abnormal situations. Operator decisions in the control room using DSS to identify the abnormal operating procedure were compared to the original method that operators use in case of abnormal events, which is based on the Abnormal Operating Procedure, and the results revealed that using DSS reduced decision-making time by 25% and enhanced decision accuracy by 18%. The DSS aided in reducing the quantity of information that operators must consider, thereby increasing the accuracy and speed in the decision-making process [9]. A new machine learning method based on the nearest neighbor theory was applied to classify three types of design-based accidents: a loss of coolant accident (LOCA), a steam generator tube rupture (SGTR), and a main feed water break (MFWBR) in addition to normal operation. Primary water flow rate, steam generator pressure, flow in the rupture, and sub-cooling margin were used as defining plant variables for simulation. The results showed that the ability of a system to identify the accidents [10]. Another study used neural networks to predict the behaviors of a multi-application small light water reactor (MASLWR), where data focusing on the primary system of the reactor and its pressure vessel (onsite data) were collected from 58 different sensors, for example, core heat temperature, coil steam generator temperature, core pressure, and main feedwater flow rate. The neural network was trained by onsite complex data, and the prediction of the MASLWR behaviors demonstrated high accuracy. The predicted data could help decision-makers take prompts and accurate actions during transient situations [11]. Additionally, the deep modifier neural network was used to determine the transient mode in a nuclear reactor over a short period of time. This experiment was validated using 16 physical variables for 13 operational scenarios; 12 postulated accidents and normal operation were simulated for the Angra-2 PWR-type NPP in Brazil. In previous studies, input data were physical variables that existed in the containment of the reactor’s onsite parameters, such as the core flow rate, steam generator level, pressurizer pressure, and nuclear power, etc. [6], but these onsite parameters are not always readily available. During the Fukushima accident in 2011, the System for Prediction of Environmental Emergency Dose Information (SPEEDI) failed to assist operators in making sound decisions, and changes in the radionuclide emission intensity with time could not be obtained. The power supply of the onsite instrumentation that provides the release rate to SPEEDI was broken because of the earthquake and tsunami [12]. Therefore, it is challenging to acquire onsite parameters during nuclear emergencies. One of the reasons that led to the increase in the consequences of the Chernobyl accident was that the accident was not initially recognized even though there were indisputable indications [13]. Another reason that gives this study importance is lack of transparency in the information exchange during a nuclear emergency. Most European countries were affected by the Chernobyl disaster, and necessary protective measures were delayed due to an inability to quickly recognize the situation on the ground as well as insufficient information and a lack of transparency [14,15]. Based on ground deposition concentration, which is an offsite parameter, in this study, a machine learning model was proposed to identify the nuclear accident type using the classification and regression tree (CART) model and to estimate the amount of radioactive materials emitted to the environment. In previous literature studies, the accident type classification was mainly based on the internal physical variables of the reactors, such as reactor pressure, mean core temperature, etc. However, this study utilized the ground depositions of radionuclides at different distances outside of reactors.

2. Materials and Methods

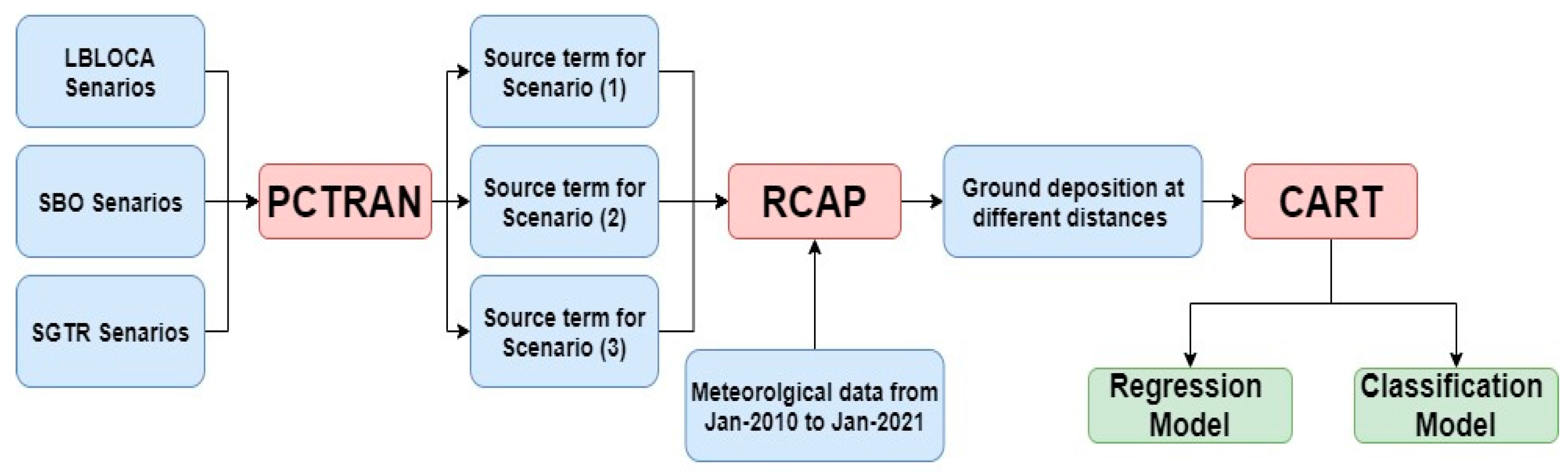

The method used in this study is divided into three steps. The first step is to simulate severe accident scenarios using a PCTRAN for an advanced power reactor (PCTRAN-APR1400) to generate the source term for each accident. The second step is to use the Radiological Consequence Analysis Program (RCAP) to estimate the consequences of each accident, where the meteorological data and source term are input files for the RCAP software. The third step is to build the CART model using Minitab software. Figure 1 shows a schematic diagram of the methodology used in this study.

2.1. Accident Scenarios

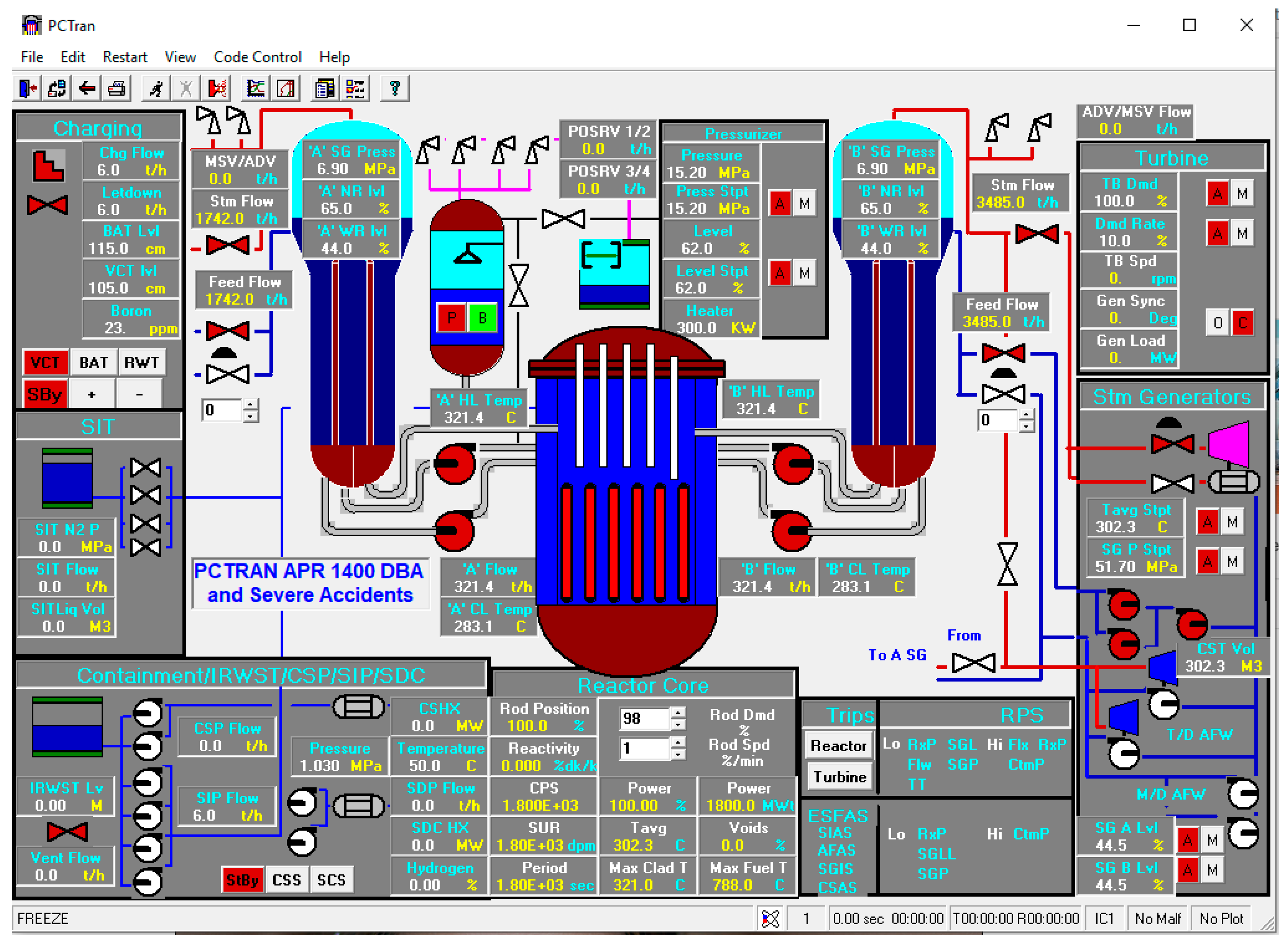

PCTRAN is a simulation tool authorized by the International Atomic Energy Agency (IAEA). It can be used to simulate normal and transient operations, such as design basis accidents and severe accidents, for different types of reactors. In addition, PCTRAN can be used in the emergency response of nuclear power plants. Once an accident is initiated, the in-charge personnel can use the same initial conditions and can simulate the accident on PCTRAN to evaluate its consequences [16]. PCTRAN has been applied by many researchers to conduct various accident analyses, and PCTRAN-BWR models have been used to simulate the scenario of the Fukushima accident based on the IAEA transcript. These models could realistically display the plant behavior and radiological consequences [17]. Positive reactivity added to the core and the change in the thermal-hydraulic parameters during the incautious control element withdrawal from the core were studied by the PCTRAN-VVER-1200 model [18]. After the Fukushima accident, the United States started to implement diverse and flexible strategies (FLEX) to prevent and mitigate any possible severe accidents in its reactors. Thus, PCTRAN can be used to assess the effectiveness of FLEX strategies in different reactors and different types of accidents [19]. APR1400 is a pressurized water reactor (PWR) with two coolant loops, and it generates 3983 MW thermal power. Figure 2 shows the main console of PCTRAN-APR1400 and the main components inside the containment, which comprises two vertical steam generators, four reactor coolant pumps, a pressurizer, main and auxiliary feedwater systems, and engineering safety systems. APR1400 was designed and built to withstand design basis accidents (DBAs) using engineering safety features (ESFs) [20]. Generally, such ESFs can mitigate the consequences of design basis accidents by maintaining long-term core cooling as well as the integrity of the containment buildings and by limiting the offsite release of radioactive materials [21]. In this study, we used PCTRAN-APR1400 to calculate the source term for three initial events that contribute greatly to core damage frequency and cause severe accidents: loss of coolant accident (LOCA), station blackout (SBO), and steam generator tube rupture (SGTR) [22]. In all of the accident simulations, the target reached core meltdown, where the engineering safety systems fail to mitigate the consequences of the DBAs.

2.1.1. Scenario (1)

Scenario (1) is a cold leg loss of coolant accident (LOCA) without an Emergency Core Cooling System (ECCS). In APR1400, in the case of LOCA accidents, the safety injection system (SIS) is automatically actuated to keep the reactor core submerged and cooled. In this study, a LOCA in a cold leg was simulated with disabled SIS. While the reactor coolant was discharged through a break, there was no cooling water injection. Following the initiation of the LOCA accident, the reactor instantaneously tripped, and the core was uncovered within a few seconds due to very rapid depressurization. Since no SIS was available in this scenario, the fuel temperature continuously increased. With the increase in the cladding temperature, the interaction between the cladding and steam was accelerated. Shortly after the core was uncovered, the reactor core started to melt [23].

Table 1. Cold leg LOCA without the ECCS scenario.

Time (S)	Sequences
0.0–10.0	Run the simulator in steady-state (normal operation)
10.5	All values of safety injection tank (SIT) and SIS pumps are disabled. Initiate a cold leg LOCA by selecting Malfunction # 2 to simulate a 2800 cm2 break [23].
12.0	Reactor Scram due to containment pressure, Turbine trip
15.5	Spray system on
17.5	The main steam safety valve (MSSV) fluctuate to adjust the SG pressure
2758.5	Core Collapsed
3370.0	Vessel failed

explains the summary of the timeline of the cold leg LOCA accident scenario.

2.1.2. Scenario (2)

Scenario (2) is a station blackout (SBO) without auxiliary feed-water systems (AFWs). SBO entails the complete loss of alternating current (AC) electrical power to a nuclear power plant, where both the offsite AC and onsite emergency system powers are lost. Due to the decay heat after the shutdown, long-term SBO might eventually lead to severe accidents in nuclear reactors. In the simulation, after the initiation of SBO, the reactor’s trip signal was generated due to the low coolant flow rate. The reactor pressure increased since the reactor coolant pump stopped and caused an increase in the reactor coolant temperature. On the secondary side of the reactor’s steam generators, since the main feedwater pumps stopped and there was no steam flow, the pressure increased and was slowly discharged through the MSSVs. Despite the reactor being shut down and the chain reaction being stopped by the insertion of the control elements, the decay heat increased the reactor’s coolant temperature, and the reactor pressure increased until the pilot-operated safety relief valve (POSRV) opened to release the excess pressure. Even after the opening of the POSRV, the reactor’s coolant was continuously heated up, and heat was transferred to the steam generator, as the main feedwater system was stopped due to the SBO and unfunctional AFW. The reactor pressure was maintained high enough to keep the relief valve open. As a result, the reactor’s coolant liquid volume decreased, and the reactor core was uncovered [24].

Table 2. Station blackout without auxiliary feed-water systems (AFWs) scenario.

Time (S)	Sequences
0.0–10.0	Run the simulator in steady-state (normal operation)
10.5	Manually disable the turbine-driven auxiliary feed-water pump. Malfunction # 13 Fraction = 00.0%
11.5	Reactor Scram, Turbine trip
15.5	MSSV fluctuate to adjust the SG pressure
6067.0	POSRV fluctuate to adjust the PV pressure
6849.5	MSIV and FWIV are closed
13,051.0	Core Collapsed
13,860.0	Vessel failed

shows the summary of the timeline of the station blackout scenario.

2.1.3. Scenario (3)

Scenario (3) is a steam generator tube rupture (SGTR) concurrent with SBO. SGTR is a postulated accident. It is one of the DBAs that the APR1400 reactor can withstand. In this scenario, SGTR occurred at the same time as SBO. The double-ended rupture of the steam generator’s U-tube led to reactor tripping, and a concurrent turbine trip immediately occurred on a high level of the steam generator. No time delay between the turbine trip and SBO was assumed in the analysis [20].

Table 3. SGTR Concurrent with the SBO scenario.

Time (S)	Sequences
0.0–10.0	Run the simulator in steady-state (normal operation)
11.0	Malfunction # 11 Fraction SGTR Malfunction # 13 Fraction SBO
12.5	Reactor Scram, Turbine trip
16.5	POSRV fluctuate to adjust the PV pressure
52.0	All MFW Pumps trip
2223.5	MSSV fluctuate to adjust the SG pressure
15,914.5	Core Collapsed
16,745.0	Vessel failed

shows the summary of the timeline of the SGTR concurrent with the SBO scenario.

2.2. Atmospheric Dispersion Model

RCAP is new software developed by the Korea Atomic Energy Research Institute (KAERI) to perform Level 3 probabilistic safety assessments (PSAs), which estimate the off-site consequences of nuclear power plant accidents. RCAP assesses the impacts of the release of radioactive materials to the environment. The basic physical model of RCAP for evaluating the diffusion and transport of radioactive materials in the atmosphere and their deposition on surfaces is the Gaussian plume segment model. Equation (1) is used in RCAP to calculate the plume centerline air concentration, and the ground level concentration from the time plume segment is released until the vertical distribution segment becomes uniform with inversion layer (mixing height).

$$\begin{array}{ll}C\left(x,y,z\right)& =\frac{Q}{2\pi {\sigma }_y\left(x\right){\sigma }_{z}u}\times \left(\mathit{exp}\left\{-\frac{1}{2}{\left[\frac{z-H}{{\sigma }_z}\right]}^2\right\}+\mathit{exp}\left\{-\frac{1}{2}{\left[\frac{z+H}{{\sigma }_z}\right]}^2\right\}\right)\\ & +{\displaystyle {\displaystyle \sum }_{n=1}^n}(\mathit{exp}\left\{-\frac{1}{2}{\left[\frac{z-H-2nl}{{\sigma }_z}\right]}^2\right\}+\mathit{exp}\left\{-\frac{1}{2}{\left[\frac{z+H-2nl}{{\sigma }_z}\right]}^2\right\}+\mathit{exp}\left\{-\frac{1}{2}{\left[\frac{z+H+2nl}{{\sigma }_z}\right]}^2\right\}\\ & +\mathit{exp}\left\{-\frac{1}{2}{\left[\frac{z-H+2nl}{{\sigma }_z}\right]}^2\right\})\end{array}$$

(1)

where C is time-integrated atmospheric concentration (Ci-s)/(m³). Q is the source term (Ci). H is the effective release height (m). x is the downwind distance (m), y is the crosswind distance (m), z is the vertical axis distance (m). σ_y is the standard deviation of the integrated concentration distribution in the crosswind direction (m), σ_z is the standard deviation of the integrated concentration distribution in the vertical direction (m), u is the average wind speed at the effective release height, and $l$ is the height of the inversion layer (m). The values depend on the downwind distance, x.

2.2.1. Source Term

Source term is an input file to the RCAP code. In this study, the source term was calculated by PCTRAN APR1400 for each scenario. The number of radionuclides generated by PCTRAN was 52 radioisotopes for each scenario. The radionuclides with half-lives less than 1 day were ignored because of their low contributions to ground deposition due to their fast decay. However, some radionuclides with halflives less than 1 day were considered in the calculation because their daughters had high halflives.

Table 4. Output source term calculated by PCTRAN for each accident scenario.

No	Radionuclide Name	Half-Life (Days)			Activity (Bq)
		T1/2 (1)	Daughter	T1/2 (2)	Scenario (1)	Scenario (2)	Scenario (3)
1	85Kr	3912.80			1.05 × 1011	2.00 × 1012	1.21 × 1012
2	85mKr	0.19	85Kr	3912.80	9.23 × 1011	2.10 × 1013	1.08 × 1013
3	87Kr	0.05	87Rb	1.79 × 1013	1.39 × 1011	8.14 × 1011	3.22 × 1011
4	133Xe	5.25			7.53 × 1012	2.65 × 1014	1.48 × 1014
5	135Xe	0.38	135Cs	8.40 × 108	1.30 × 1012	3.91 × 1013	2.05 × 1013
6	135mXe	0.01	135Cs	8.40 × 108	6.71 × 1011	1.00 × 1011	5.60 × 1010
			135Xe	0.37875
7	134Cs	752.63			3.08 × 1011	1.24 × 1013	6.91 × 1012
8	136Cs	13.10			7.99 × 1009	3.20 × 1011	1.77 × 1011
9	137Cs	10,950.0			7.88 × 1011	3.18 × 1013	1.77 × 1013
10	86Rb	18.66			3.94 × 1008	1.58 × 1010	8.76 × 1009
11	140Ba	12.74			2.02 × 1011	8.09 × 1012	4.49 × 1012
12	89Sr	50.50			3.27 × 1011	1.32 × 1013	7.31 × 1012
13	90Sr	10,628.8			5.54 × 1011	2.24 × 1013	1.24 × 1013
14	131I	8.04			2.01 × 1011	1.17 × 1013	7.22 × 1012
15	133I	0.87	133mXe	2.19	4.23 × 1011	2.23 × 1013	1.35 × 1013
			133Xe	5.2475
16	127mTe	109.00			8.51 × 109	3.43 × 1011	1.90 × 1011
17	129Te	0.05	129I	5.73 × 109	1.07 × 1010	4.30 × 1011	2.39 × 1011
18	129mTe	33.60			1.64 × 1010	6.61 × 1011	3.67 × 1011
19	131mTe	1.25	131I	8.04	2.54 × 1010	9.24 × 1011	5.16 × 1011
			131Te
20	132Te	3.26			1.46 × 1009	5.67 × 1010	3.13 × 1010
21	103Ru	39.28			5.97 × 1011	2.40 × 1013	1.33 × 1013
22	106Ru	368.20			6.71 × 1011	2.71 × 1013	1.50 × 1013
23	95Nb	35.15			9.91 × 1011	3.99 × 1013	2.22 × 1013
24	58Co	70.80			8.93 × 108	3.60 × 1010	2.00 × 1010
25	60Co	1923.92			1.45 × 1010	5.86 × 1011	3.25 × 1011
26	99Mo	2.75			5.79 × 108	2.24 × 1010	1.24 × 1010
27	99mTc	0.25	99Tc	7.71 × 107	5.56 × 108	2.15 × 1010	1.19 × 1010
28	141Ce	32.50			5.15 × 1011	2.07 × 1013	1.15 × 1013
29	144Ce	284.30			1.03 × 1012	4.15 × 1013	2.31 × 1013
30	239Np	2.36			2.17 × 109	8.37 × 1010	4.61 × 1010
31	238Pu	32,025.1			1.76 × 1010	7.10 × 1011	3.94 × 1011
32	239Pu	8,783,725.0			1.76 × 1010	7.10 × 1011	3.94 × 1011
33	240Pu	2,386,005.0			5.07 × 109	2.05 × 1011	1.14 × 1011
34	241Pu	5256.00			8.94 × 1011	3.61 × 1013	2.00 × 1013
35	95Zr	63.98			7.57 × 1011	3.05 × 1013	1.69 × 1013
36	241Am	157,753.00			1.12 × 1010	4.53 × 1011	2.52 × 1011
37	242Cm	162.80			5.66 × 1010	2.28 × 1012	1.27 × 1012
38	244Cm	6610.15			8.86 × 109	3.57 × 1011	1.98 × 1011
39	140La	1.68			2.33 × 1011	9.31 × 1012	5.16 × 1012
40	147Nd	10.98			6.00 × 1010	2.40 × 1012	1.33 × 1012
41	143Pr	13.56			2.12 × 1011	8.49 × 1012	4.71 × 1012
42	90Y	2.67			5.58 × 1011	2.25 × 1013	1.25 × 1013
43	91Y	58.51			4.60 × 1011	1.85 × 1013	1.03 × 1013

shows the radionuclides and their daughters, which were produced by decay, and their activity in Bq for each scenario.

2.2.2. Meteorological Data

The consequences of the emitted radioactive materials were evaluated based on atmospheric meteorological data. The Gaussian plume segment model typically reads data from a file containing 1 year’s worth of observed hourly meteorological data (8760 observations). These data include wind direction, wind speed (m/s), stability class (A~G), precipitation (mm/h), and mixing height (m). The meteorological data were obtained from the Korean Meteorological Agency (KMA), and it was for Ulsan city from 1 January 2010 to 1 January 2021 (11 years). For each year, the RCAP code was run for the three accident scenarios.

2.3. Classification and Regression Tree (CART) Model

The RCAP results, which will be presented in the results section, were used as input data for the CART model. The RCAP output was the ground deposition concentration (Bq/m²) per radionuclide in the source term, including the daughters coming from the decay. The ground deposition was calculated from the center of the emission of the radionuclides to the end of the emergency planning zone (EPZ), which was extended to 30 km around the accident site. We divided the EPZ area into 30 different rings, and increased each ring’s radius by 1 km. The ground deposition-1 represents the average value of radionuclide concentration from 0 km to 1 km. A total of 34 parameters were used in the CART model for classification and regression as follows:

• Accident type;
• Radionuclide nam;e
• Activity of source term (Bq);
• Year of the meteorological data used in the simulation;
• Ground deposition data from the center of the emission of the radionuclides to the emergency planning zone that represent 30 parameters.

2.3.1. CART Classification

The Minitab software performs classifications using a decision tree model to create a tree for binomial or multinomial categorical responses with many categorical or continuous predictors. The proposed model in this study is considered multinomial because we simulated three accidents. The number of predictors used was 34.

Table 5. Summary of the data used in the classification model.

Method
Prior probabilities	Same for all classes
Model validation	70/30% training/test sets
Rows used	1815
No. predicators	34
Multinomial Response Information
Accident type	No. training data	Percentage of training data	No. test data	Percentage of test data
Scenario (1)	415	32.7	190	34.9
Scenario (2)	438	34.5	167	30.7
Scenario (3)	418	32.9	187	34.4
ALL	1271	100.0	544	100.0

shows the method and model summary of the data used.

2.3.2. CART Regression

Regression in the Minitab software was performed using a decision tree model to create a tree for a continuous response with many categorical or continuous predictors. In general, CART regression illustrates important patterns and relationships between continuous responses and important predictors within highly complicated data without using parametric methods.

Table 6. Summary of the data used in the regression model.

Method
Node splitting	Least squared error
Model validation	70/30% training/test sets
Rows used	1815
No. predicators	34
Statistical Response Information
	Training data	Test data
Number of data	1271 (70%)	544 (30%)
Mean	8.54968 × 1012	6.94748 × 1012
Median	3.94000 × 1011	4.23000 × 1011
Standard deviation	2.76247 × 1013	1.89444 × 1013
Maximum	2.65000 × 1014	2.65000 × 1014

shows a summary of the used method and the data in the regression model.

3. Results and Discussion

3.1. RCAP Results

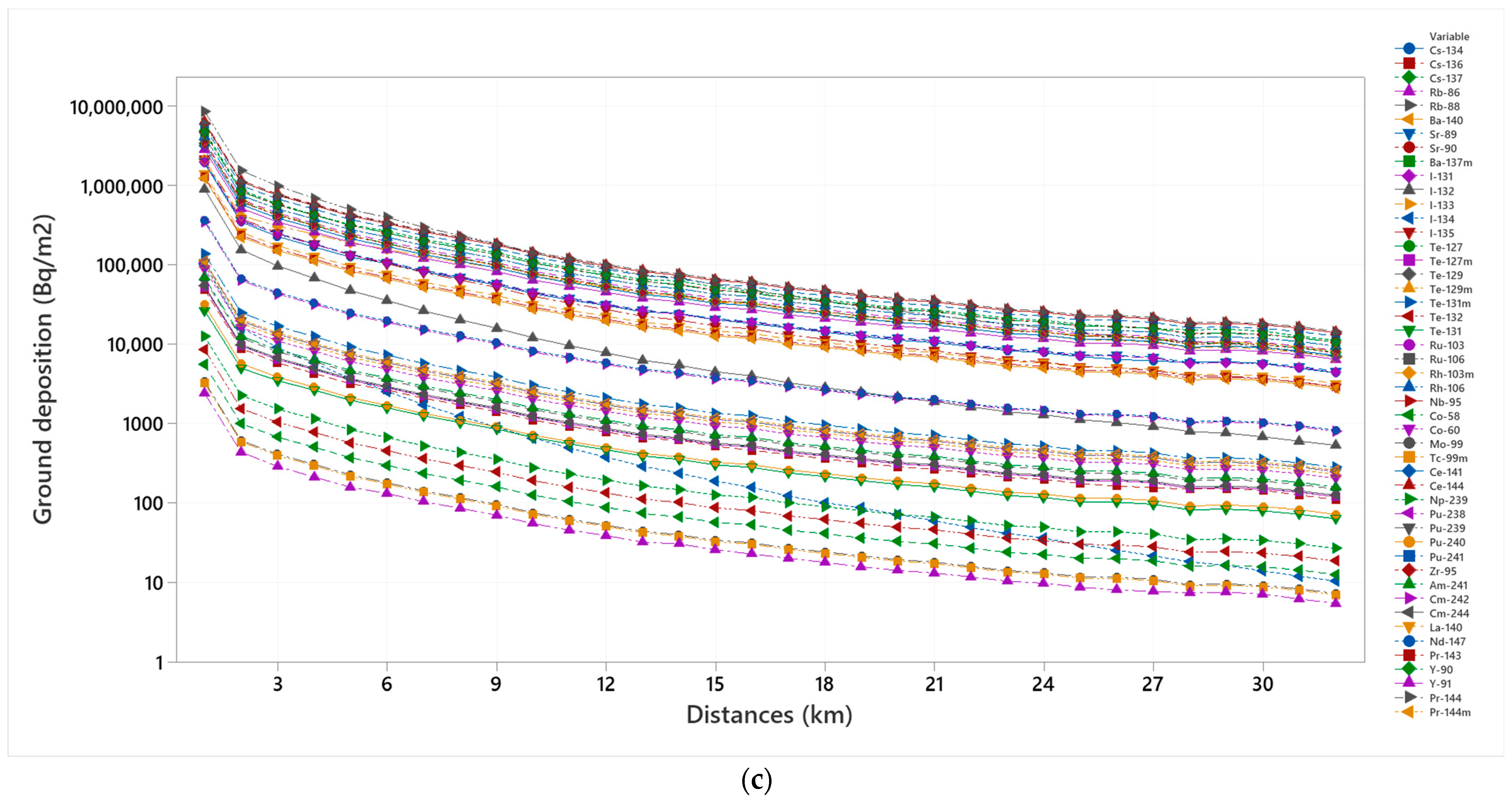

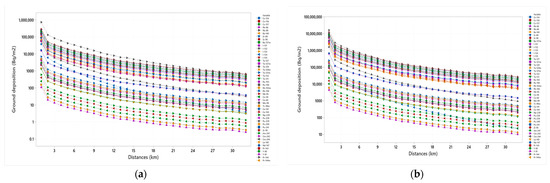

The ground deposition concentration was calculated for the three accidents scenarios at different distances and with 11 years of meteorological data. The total number of runs was 33, and total 1815 pieces of data were generated. We will present the results of one year, 2020, to explain the ground deposition behavior. Figure 3 explains the deposition of the radionuclides that were released from the three accidents scenarios at different distances. The radionuclide concentration has a gradient scale. We can see three groups of concentration. The high ground deposition concentration cluster started with ⁸⁸Rb and ended at ¹⁴³Pr. The inter-medium ground deposition concentration group started at ¹³²I and ended at ²⁴⁰Pu. The low ground deposition group concentration started at ²³⁹Nb and ended at ⁸⁶Rb. The behaviors of radioactive materials are the same in the three accidents. The concentration decreased with increasing distance. However, the concentration of the radionuclides is different from accident to another. The three accident sites have three clusters, but the start values and end values for each group are different from one accident to another. From this point of view, each accident has a unique symptom. The accident identification could be completed using these symptoms. These data have been fed to the CART model to predict the amount of radioactive material release to classify the accident type.

3.2. Classification

Table 7. Confusion matrix of the classification model for the training and test data.

Actual Class	Predicted Class (Training Data)
	Count	Scenario (1)	Scenario (2)	Scenario (3)	Precision (%)
Scenario (1)	415	414	1	0	99.8
Scenario (2)	438	0	431	7	98.4
Scenario (3)	418	6	4	408	97.6
All	1271	420	436	415	98.6
Actual Class	Predicted Class (Test Data)
	Count	Scenario (1)	Scenario (2)	Scenario (3)	Precision (%)
Scenario (1)	190	188	0	2	98.9
Scenario (2)	167	3	153	11	91.6
Scenario (3)	187	3	10	174	93.0
All	544	194	163	187	94.7

shows a confusion matrix for the training and test data. It summarizes the performance of the classification model and gives a better idea of the right classification model and the number of misclassifications made by it.

The confusion matrix shows that the classification model predicted 414/415 of Scenario (1) in the training data and misclassified 1. For the test data, the model predicted 188/190 of Scenario (1) and misclassified 2 cases. For Scenario (2), the model predicted 431/438 cases and misclassified 7 cases in the training data. For the Scenario (2) test data, the model predicted 153/167 and misclassified 14 cases. For Scenario (3), the model predicted 408/418 and misclassified 10 cases for the training data. For the Scenario (3) test data, the model predicted 174/187 and misclassified 13 cases. The average precision of the correct values in the training data was 98.6%, while that of the correct values in the test data was 94.7%. Figure 4 shows a representative graph of the receiver operating characteristic curves (ROC) with the area under the curve (AUC). These curves explain the relation between the true positive rate (sensitivity) and false positive rate (1-specificity). AUC is the probability that the classification model ranks a random positive. It provides a total performance measure across all of the possible classification thresholds. In accident scenario (1), the AUC is 0.99 for the training data and 0.98 for the test data. In accident scenario (2), the AUC is 0.99 for the training data and 0.95 for the test data. In accident scenario (3), the AUC is 0.99 for the training data and 0.95 for the test data.

3.3. Regression

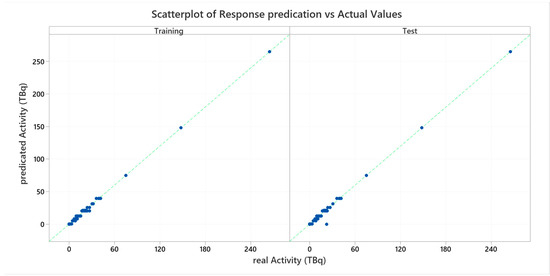

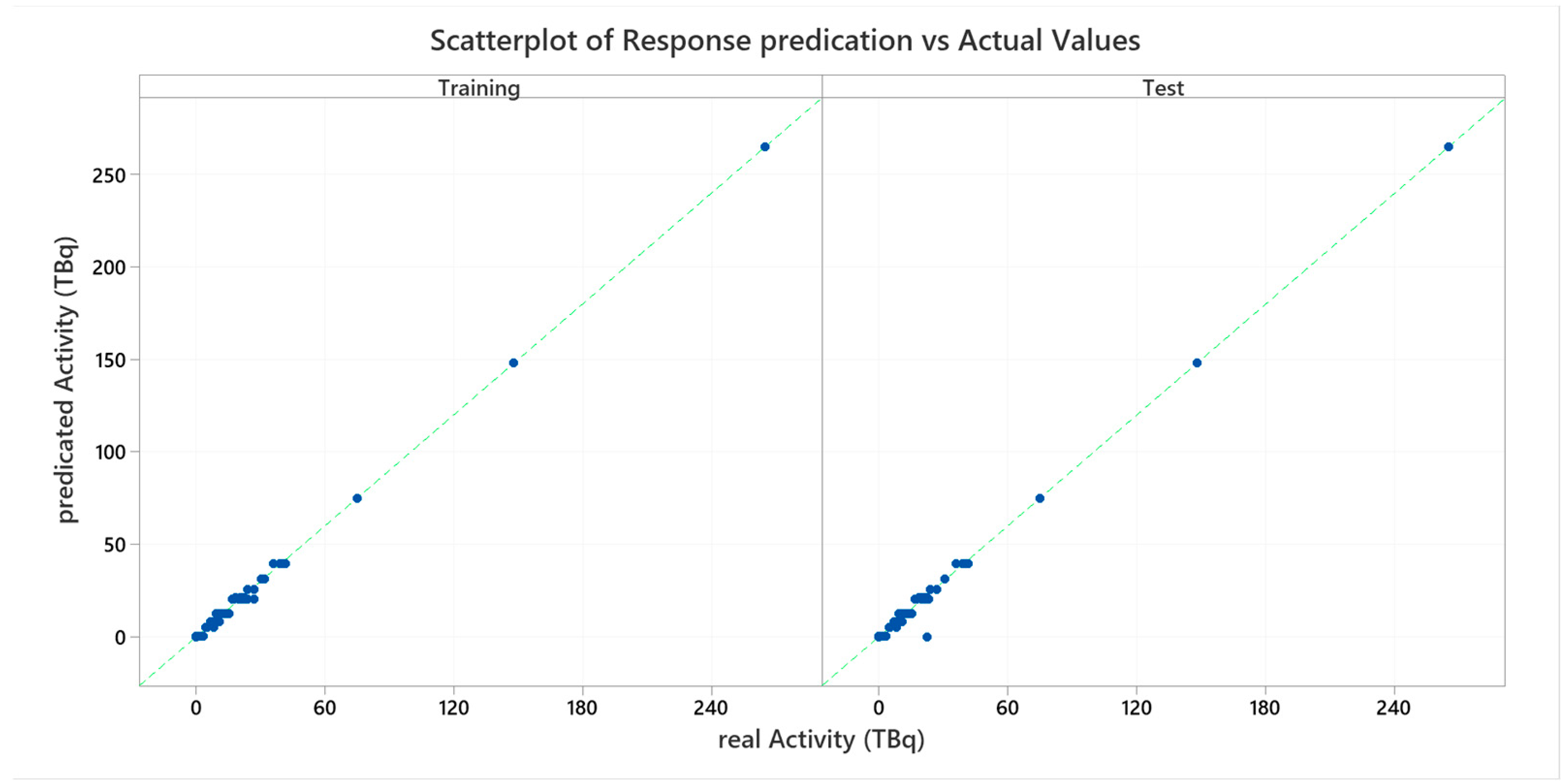

Figure 5 is a scatterplot that shows the actual response values on the x-axis and the predicted response values on the y-axis. The green line represents the equality of the actual values and the predicted values. When the actual values and the predicted values are equal, the prediction accuracy is very high. In this scatterplot, the points for the training and test data sets show similar patterns. This similarity suggests that the performance of the tree on the new data is close to the performance of the tree on the training data. The R-square is 0.998 and 0.994 for the training data and test data, respectively. This signifies a strong positive linear relationship between the predicted data and the real data. The mean absolute percentage error is 26.9% for the training data and 28.1% for the test data.

3.4. Importance of Variables

Table 8. Relative variable importance of classification and regression models.

Classification Model		Regression Model
Variables	Relative Importance (%)	Variables	Relative Importance (%)
Ground deposition at 19 km	100	Ground deposition at 2 km	100
Ground deposition at 20 km	99.5	Ground deposition at 1 km	100
Ground deposition at 21 km	96	Ground deposition at 3 km	100
Ground deposition at 22 km	93.9	Ground deposition at 4 km	99.5
Ground deposition at 23 km	91.4	Ground deposition at 5 km	99
Ground deposition at 18 km	72.8	Ground deposition at 6 km	98
Ground deposition at 17 km	65.2	Ground deposition at 7 km	97.7
Ground deposition at 24 km	64.6	Ground deposition at 8 km	97.6
Radionuclide type	62.7	Ground deposition at 10 km	95.3

illustrates the relative importance of the top variables to determine which predictors are the most important variables for both models. In the classification model, ground deposition at long distances is more informative than ground deposition at short distances in accident classification. This is because the concentration of radioactive materials is high at short distances, making the accident pattern unclear, whereas at great distances, the concentration is low, and the accident pattern is evident. In the regression model, however, ground deposition at short distances is more relevant than ground deposition at long distances in estimating radionuclide concentration. This is due to the fact that the concentration of radioactive elements is high at close distances and decreases with distance, as seen in Figure 3. As a result, for predicting the activity of radioactive material discharged, near distances are more informative in the regression model.

Moreover, the importance of ground deposition at 2 km is equal to that at 1 km. However, the ground deposition rank at 2 km is higher than that at 1 km. The reason is the elevated emission of the radioactive materials. The reactor building height was considered to be 50 m, and the season mixing height was considered in the meteorological file.

4. Conclusions

Off-site parameters can be the eye through which decision-makers can recognize what happens during a nuclear emergency when onsite parameters are not available. Machine learning is an effective approach in nuclear emergency management. It can help decision-makers take suitable protection actions and early decisions to protect people and the environment from the emissions of radioactive materials in the case of nuclear emergencies. In this study, we used the ground deposition of radioactive material in an EPZ to classify three types of severe accidents: LOCA without ECCS, SBO without AFWS, and SGTR concurrent with SBO, and predicted the concentration of radioactive materials released. The three scenarios can be classified at level 7 of the International Nuclear and Radiological Event Scale (INES), where significant radioactive materials are released into the environment along with their subsequent health and environmental impacts that require the initiation of public protective actions at an earlier stage in the event of nuclear emergency. These accidents were simulated by PCTRAN-APR1400 to estimate the amount of radioactive materials that would be released in each accident. The output of PCTRAN-APR1400 was the source term that was used as input for the RCAP for it to calculate the offsite consequences of the three accidents. The ground depositions were the offsite parameters, and they were calculated using the RCAP software. The results of the RCAP indicated that each accident has a unique symptom that distinguishes it from the others. Based on that, machine learning models were created using the Minitab software based on the ground depositions at different distances. The average precision of the classification model was 98.6% for the training data and 94.7% for the test data. The obtained high precision value means that the classification model could distinguish between these three accidents using the ground deposition values. The R-square in the regression model was 0.995 for the training data and 0.994 for the test data. The high R-square value provided an indication of the strong linear relationship between the predicted radioactive material release and the real radioactive material release. From the relative variable importance in Table 8, we could conclude that the ground deposition at short distances is more informative than that at long distances in the prediction of the concentration of radioactive materials. However, in the relative variable importance graph for accident classification, the ground deposition at farther distances is more informative than that at shorter distances.
