Aging Characteristics of Asphalt Binder under Strong Ultraviolet Irradiation in Northwest China
Abstract
:1. Introduction
2. Materials and Methods
2.1. Raw Materials
2.1.1. Base Asphalt
2.1.2. SBS Modified Asphalt
2.2. Indoor Accelerated UV Aging Test System

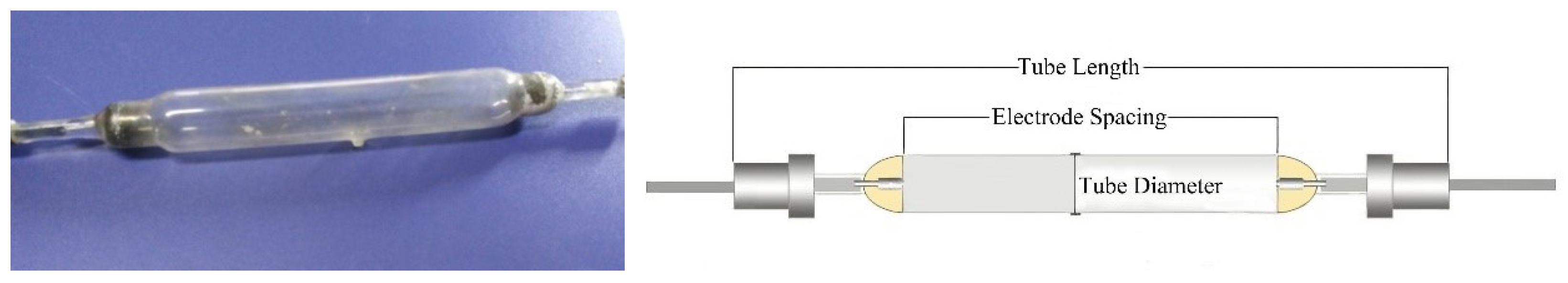

2.2.1. Light Source

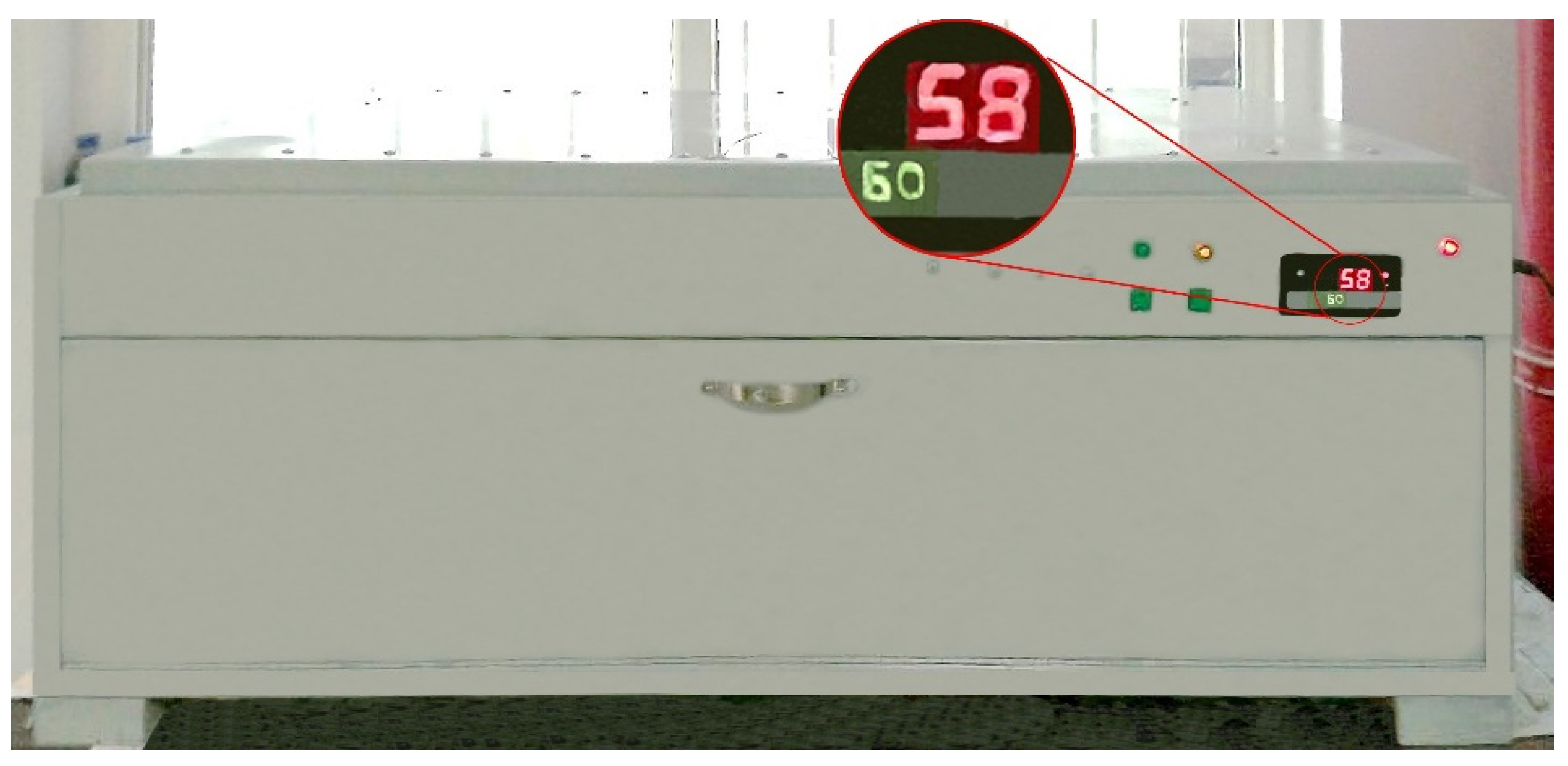

2.2.2. Test Temperature
2.2.3. UV Irradiance
2.2.4. Test Time

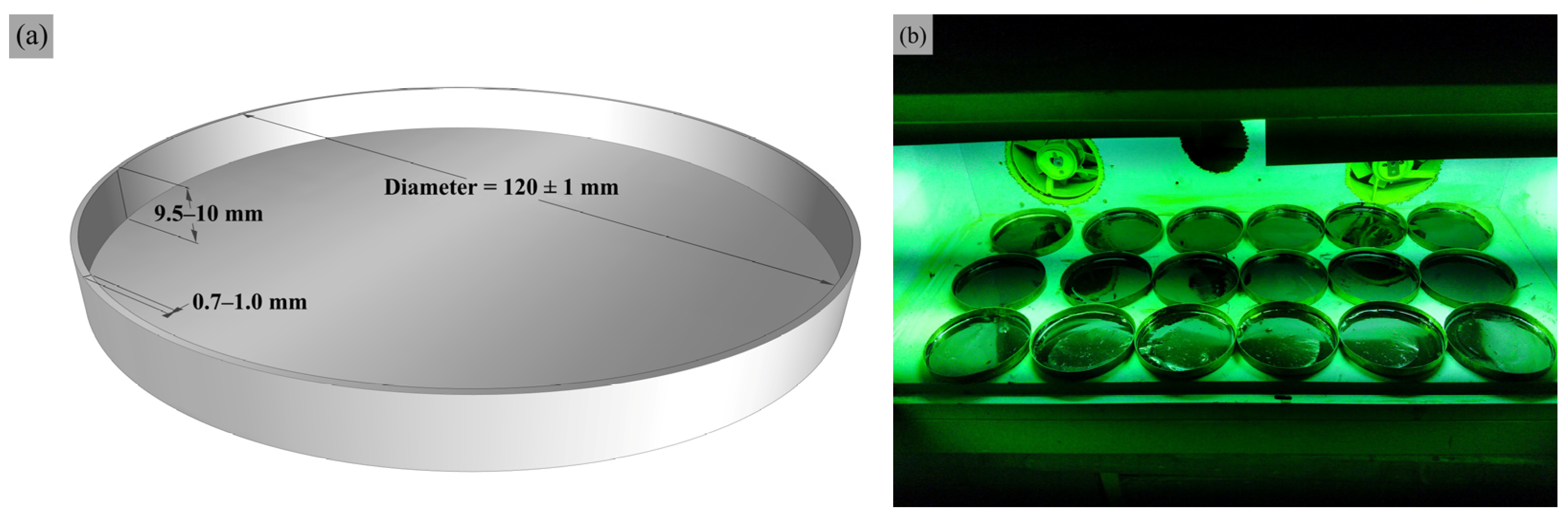

2.2.5. Sample Preparation
2.3. Experimental Methods
3. Results and Discussion
3.1. Physical Properties

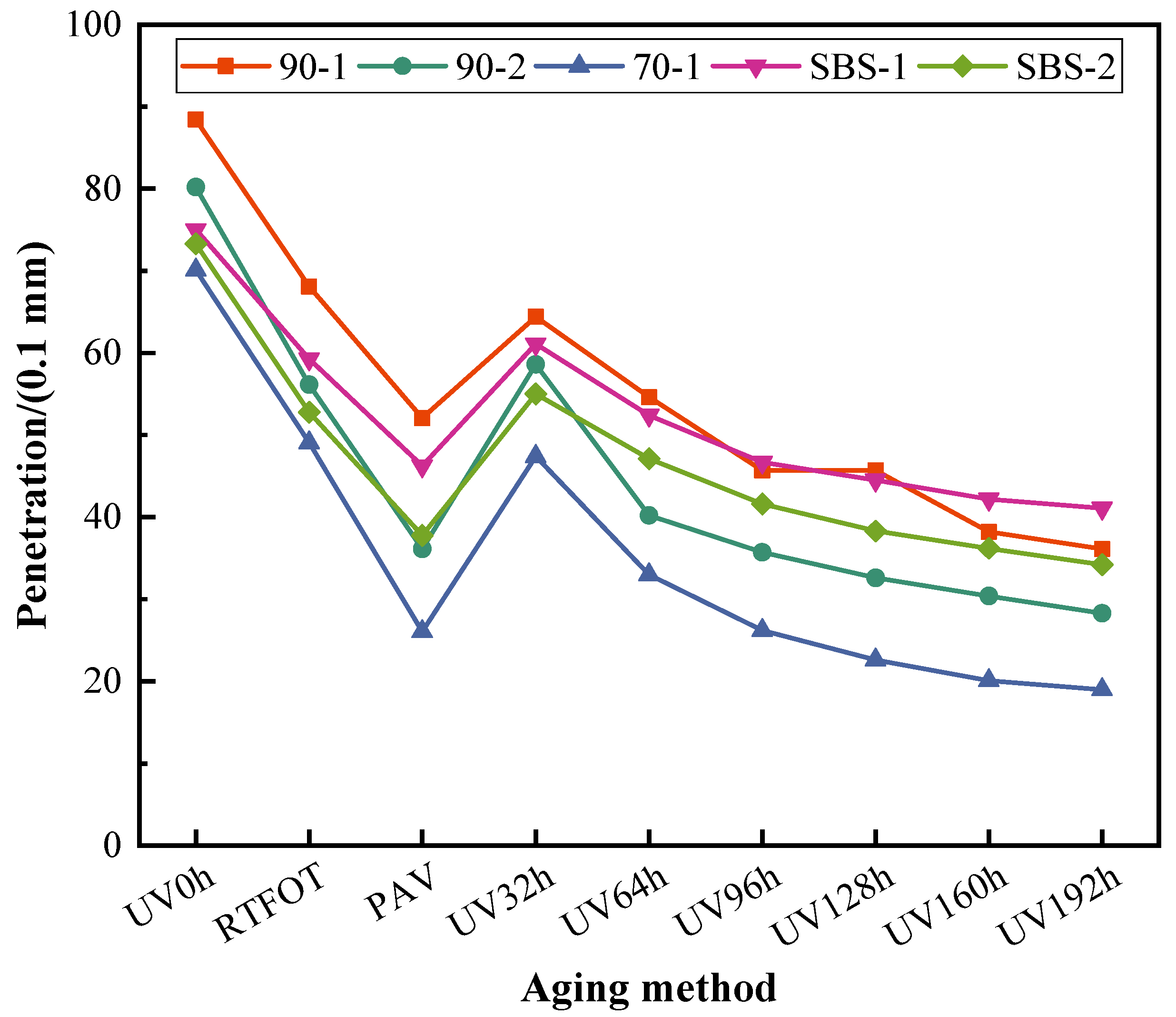

3.1.1. Penetration

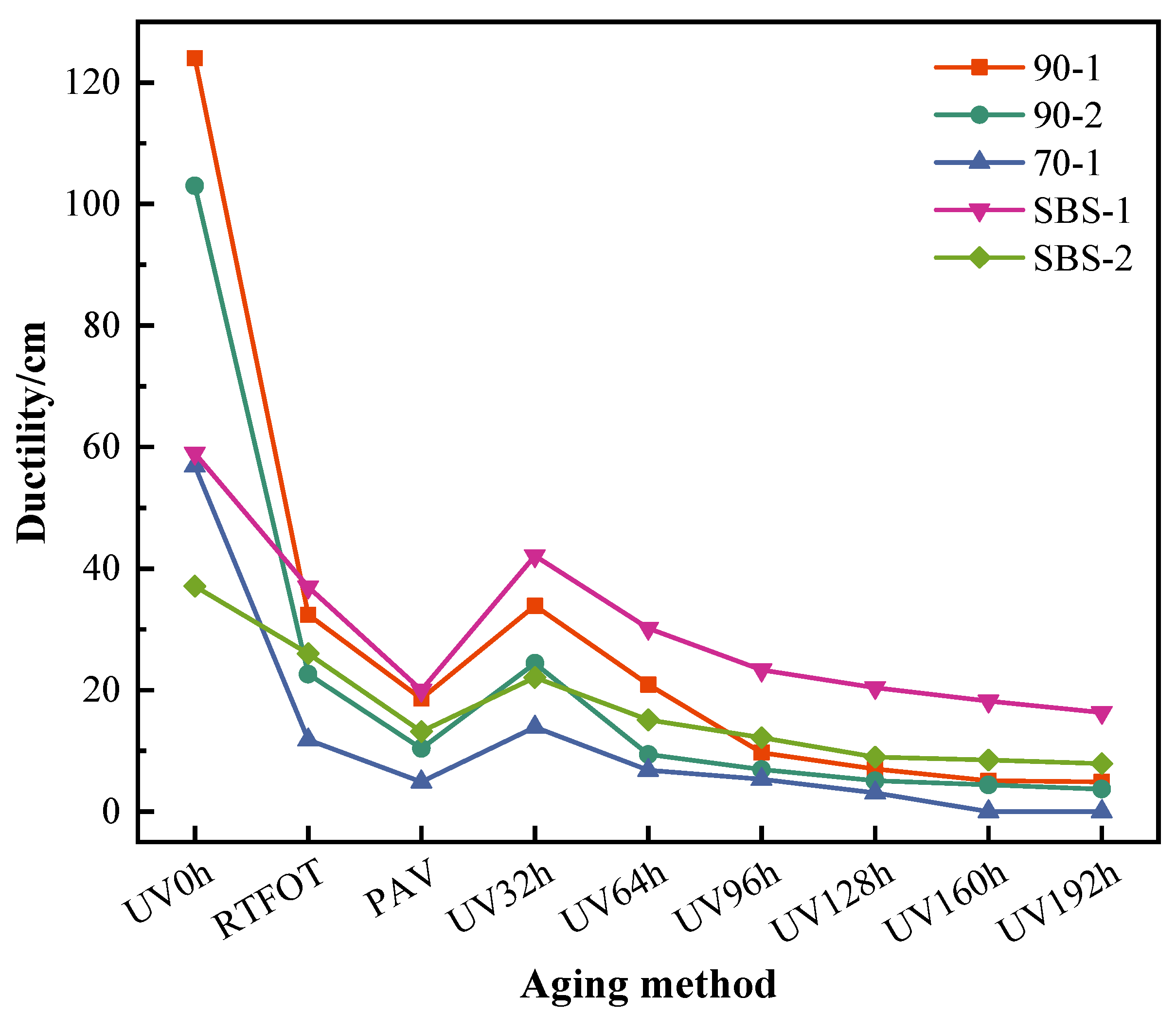

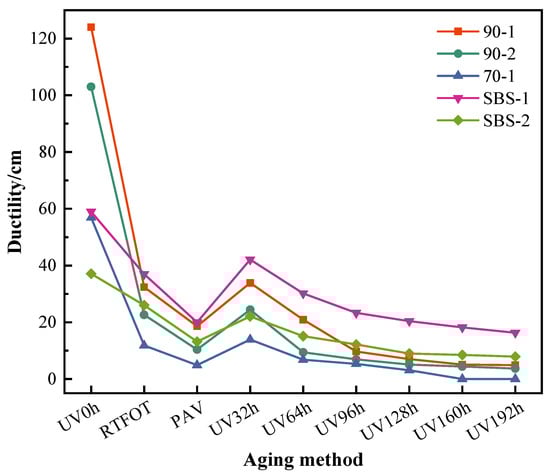

3.1.2. Ductility

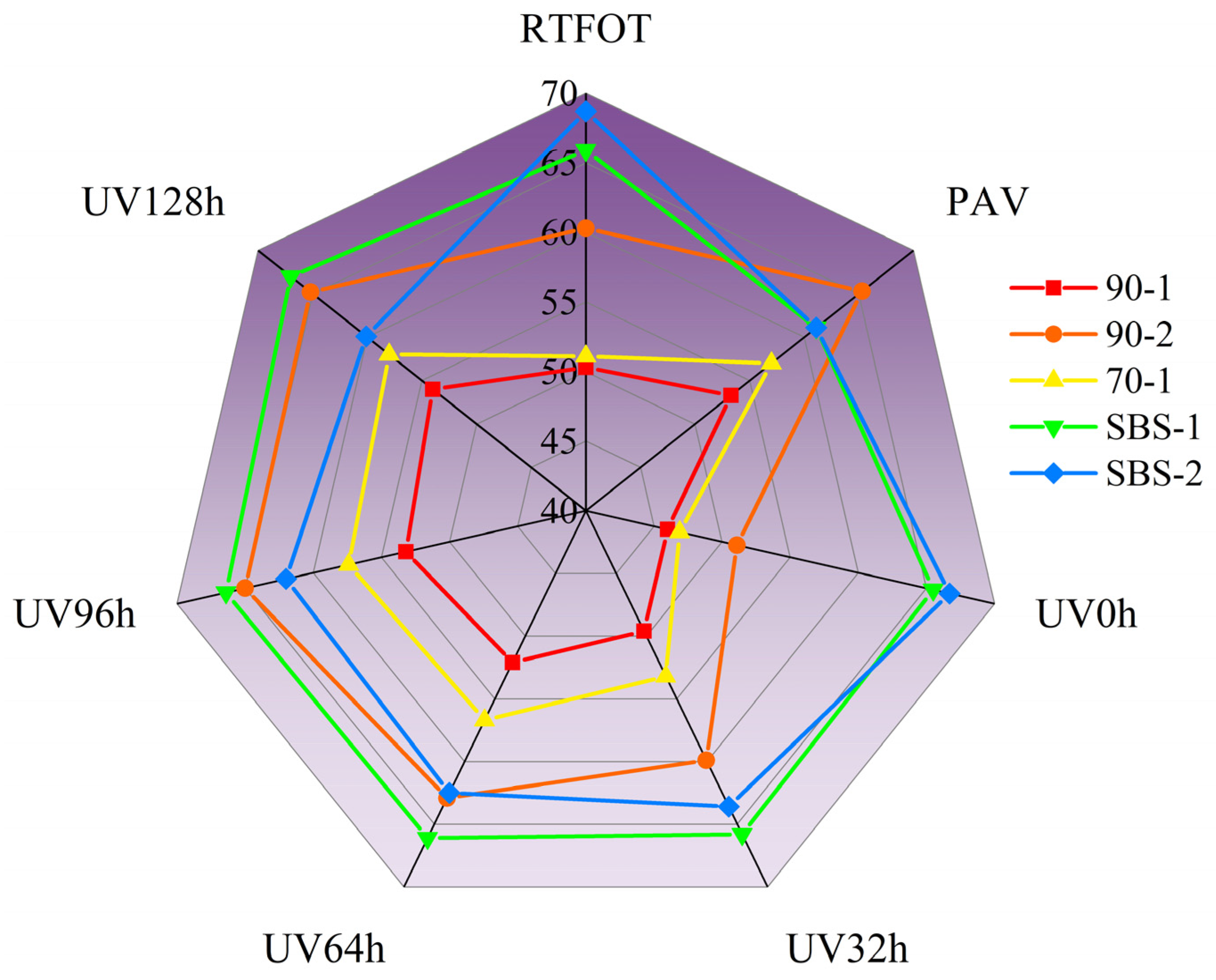

3.1.3. Softening Point
3.2. Rheological Properties

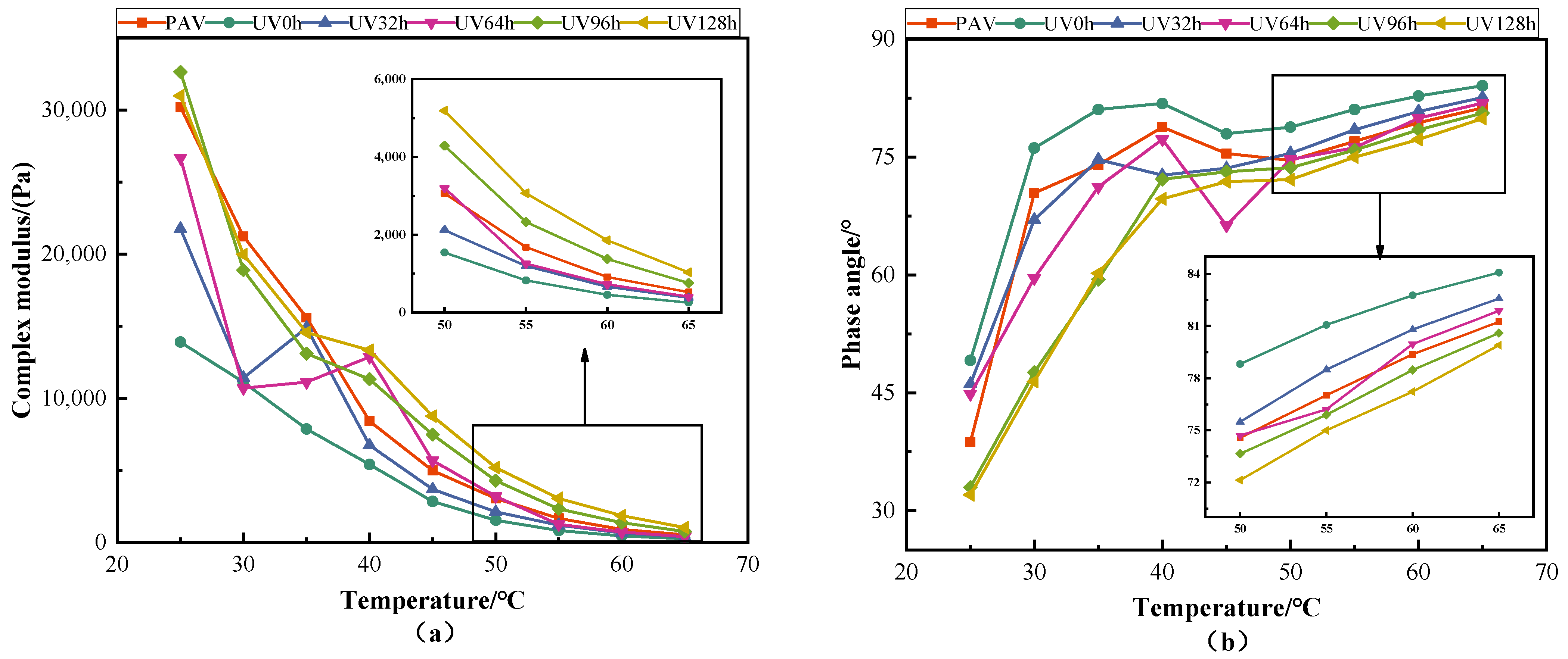

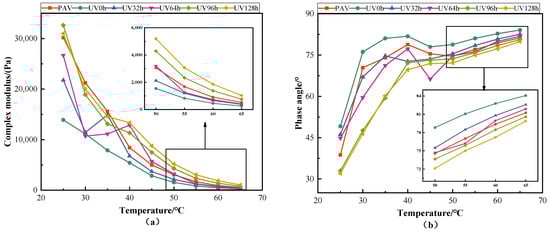

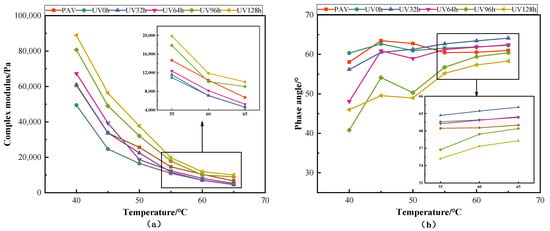

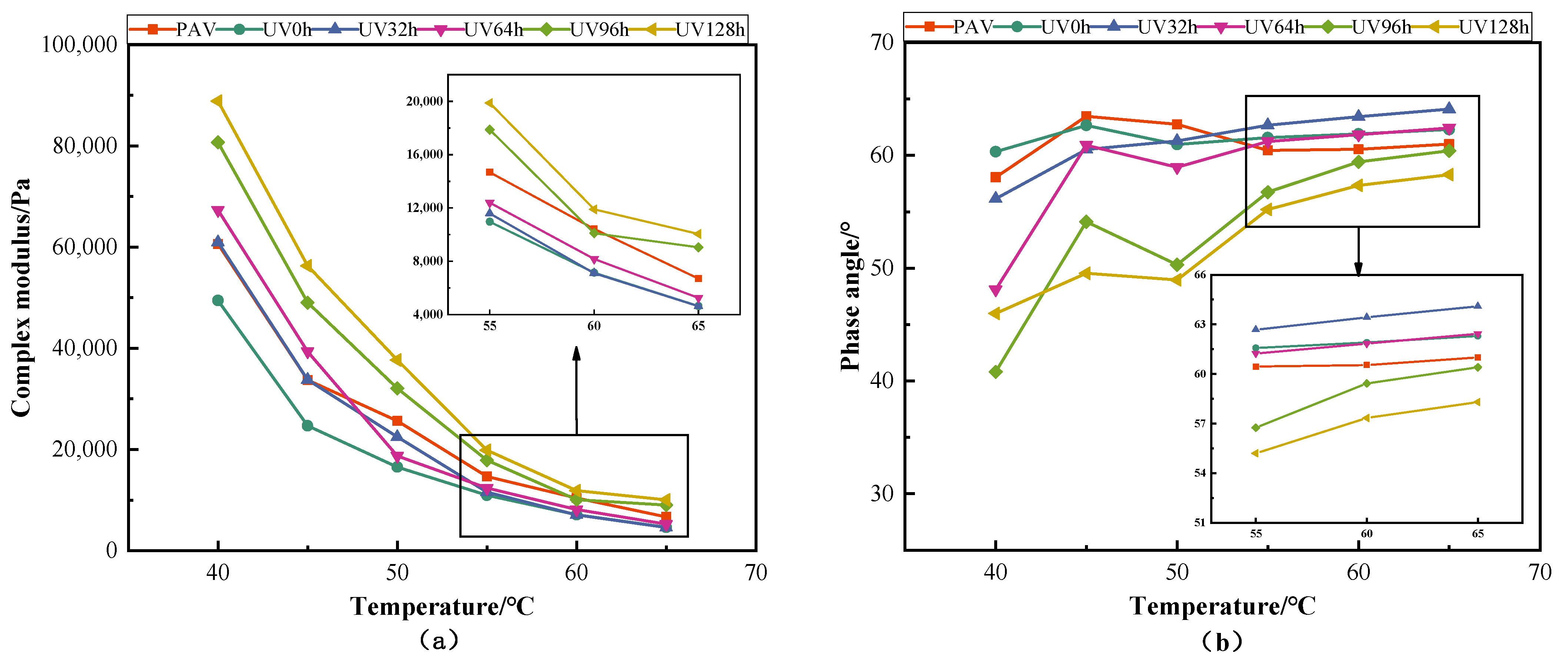

3.2.1. Dynamic Shear Rheological Test

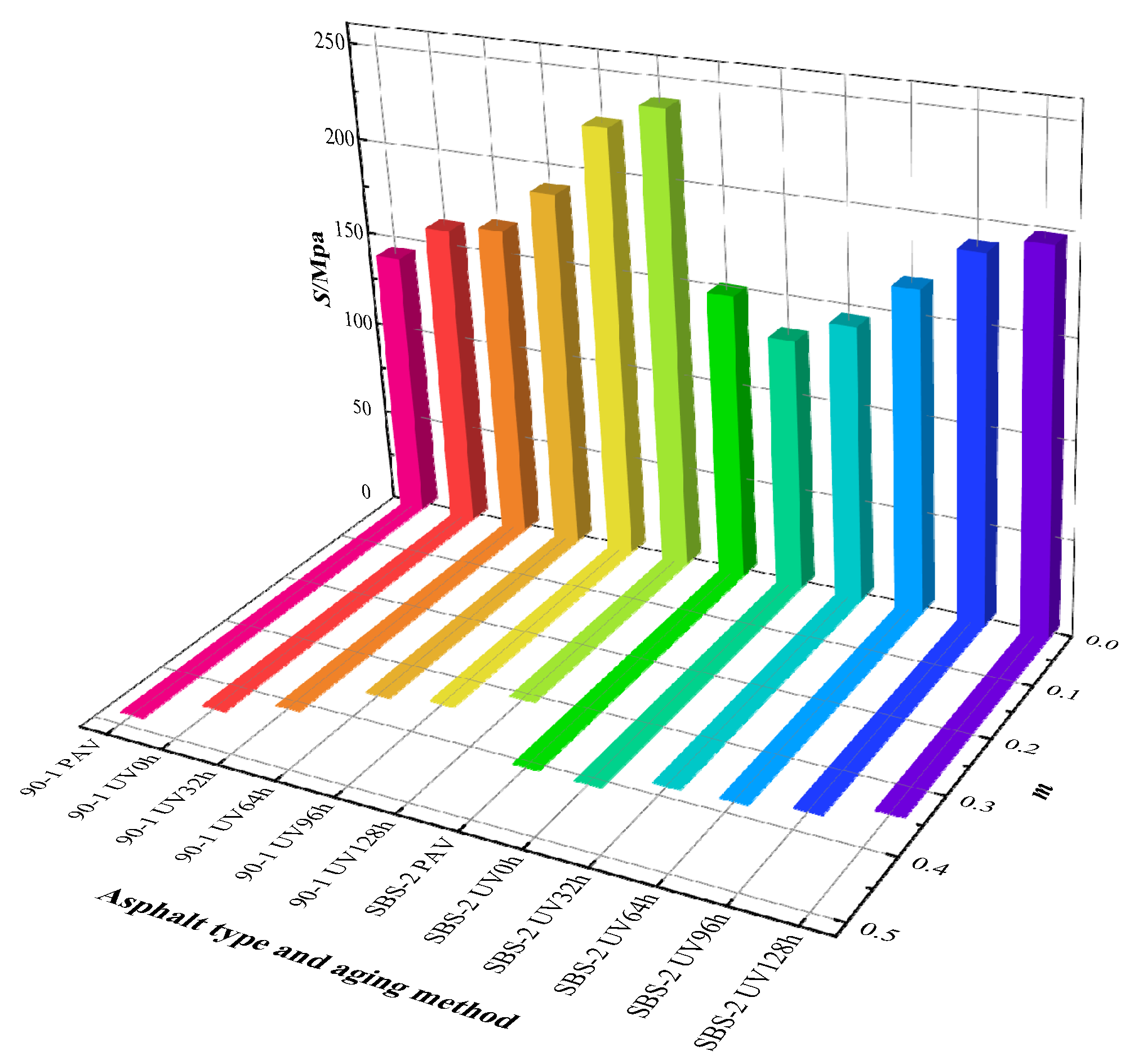

3.2.2. Bending Beam Rheological Test

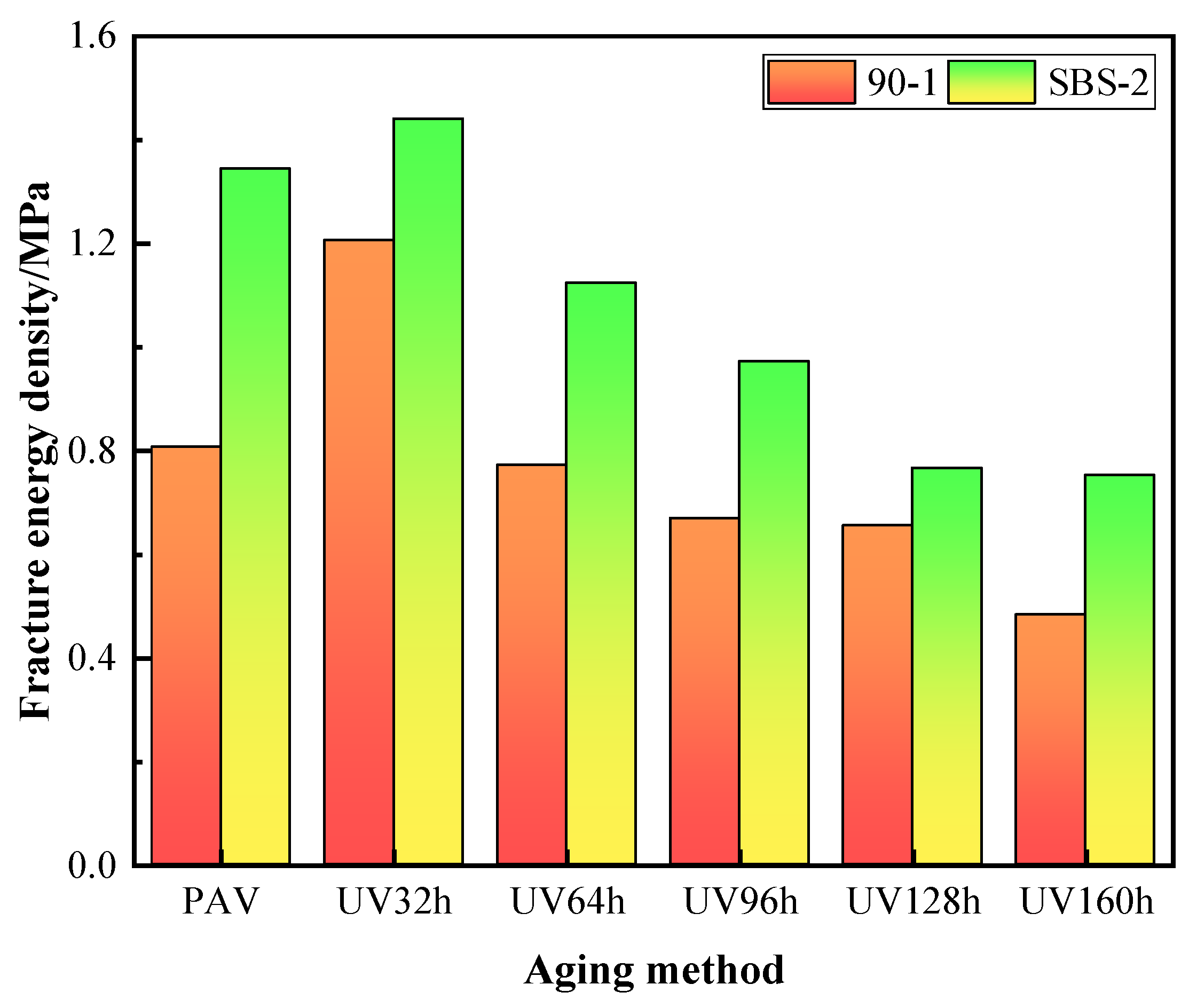

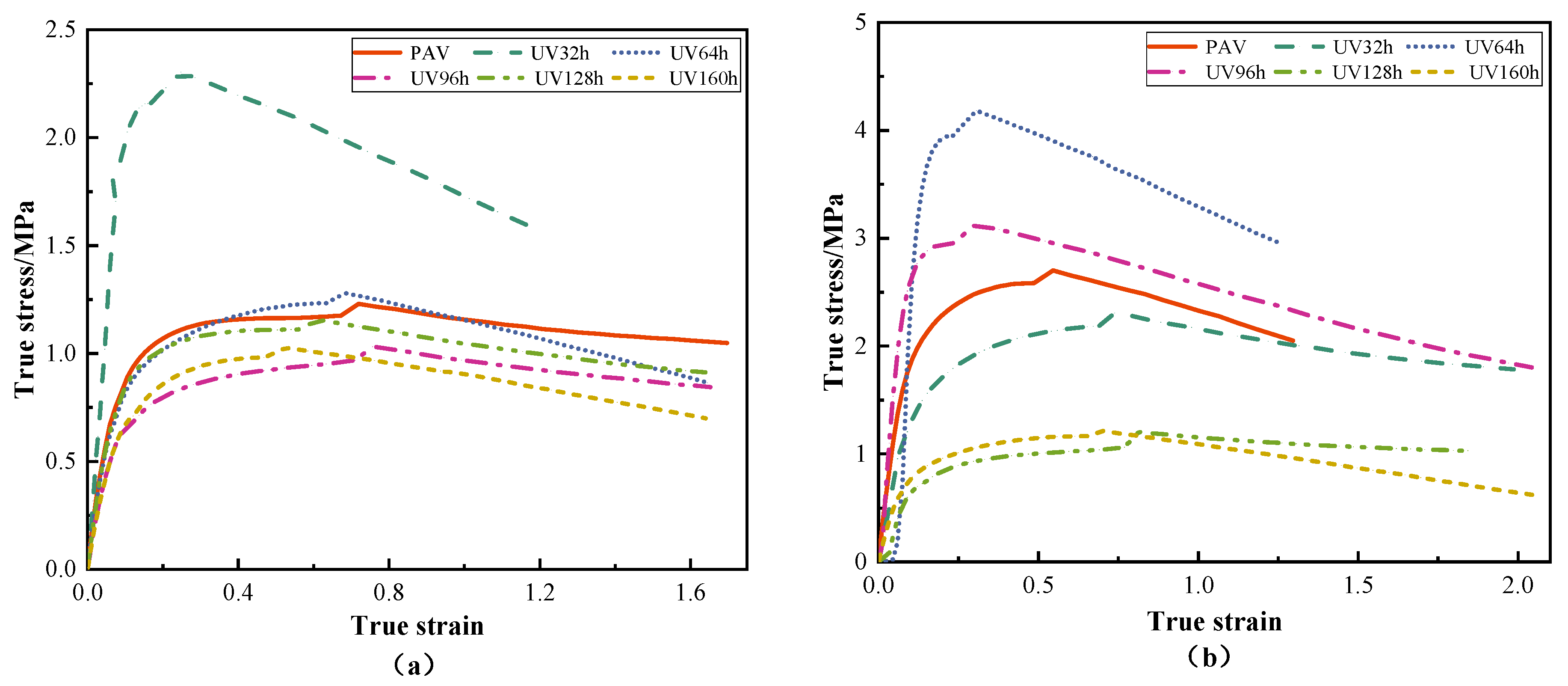

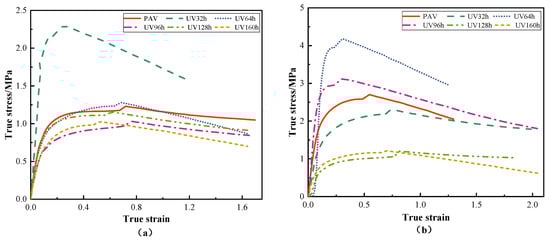

3.3. Full-Section Fracture Energy Test
3.4. Establishment of Asphalt UV Aging Evaluation System in Strong Radiation Area
3.4.1. Formulation of the Test Method
3.4.2. Determination of Technical Indicators and Technical Requirements

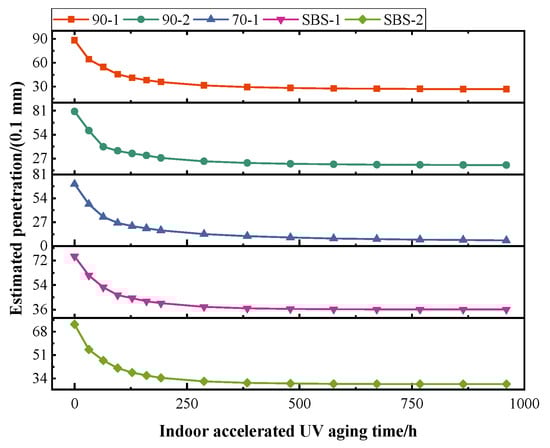

Establishment of the Dynamic Equation of Asphalt UV Aging

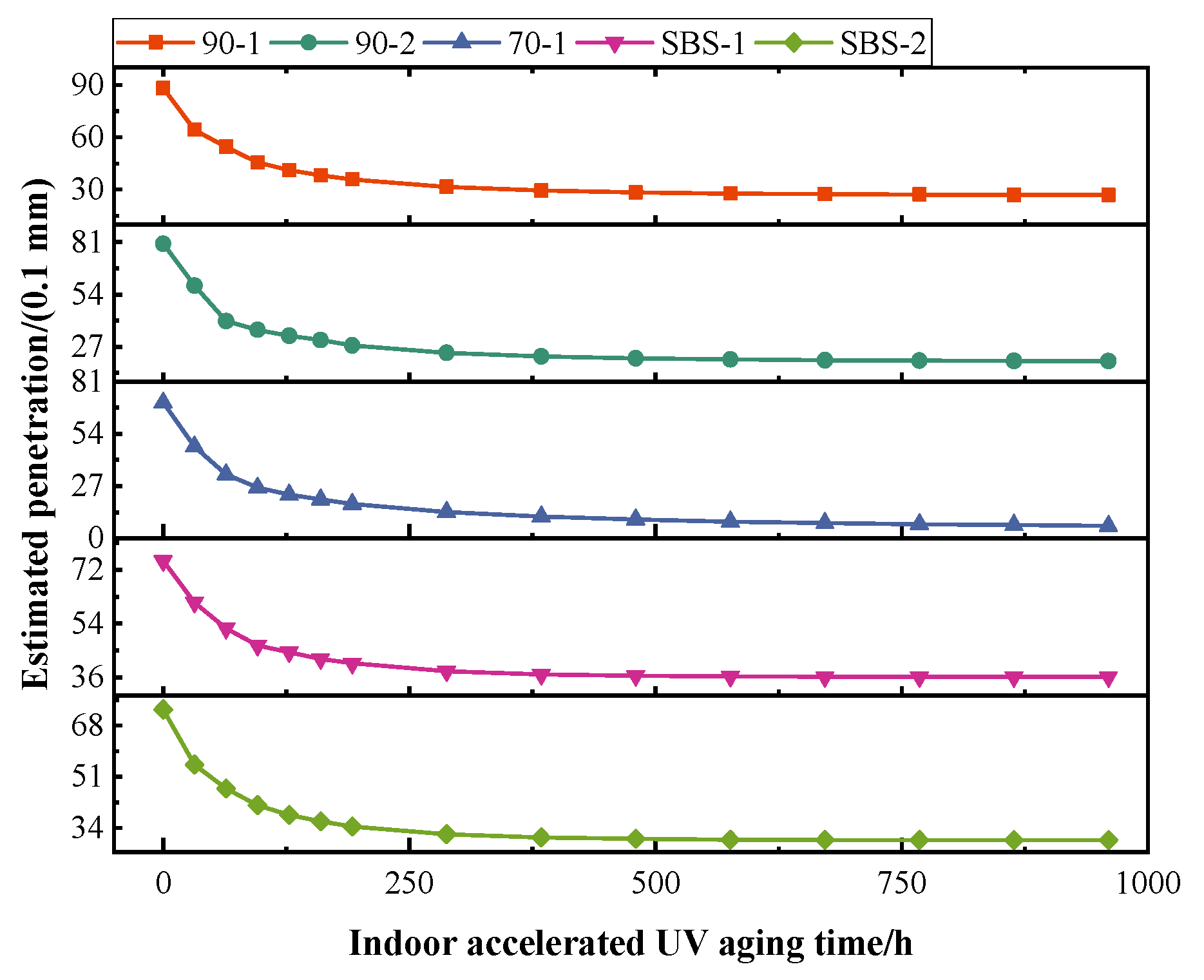

Proposal of Penetration

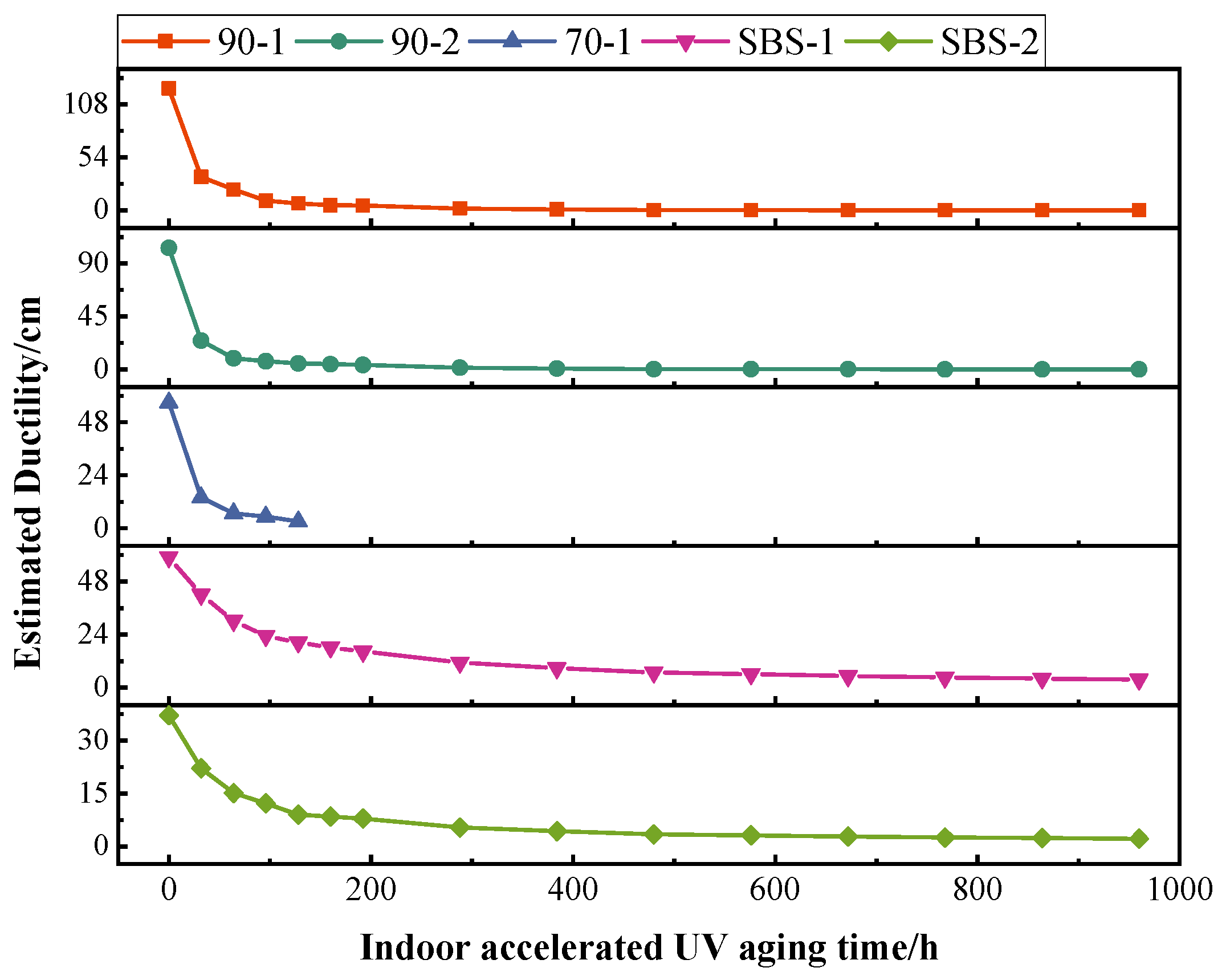

Proposal of Ductility
Full-Section Fracture Energy
Determination of Technical Indicators and Required Values
4. Conclusions
- (1)
- The indoor accelerated UV aging test applied in this study was shown to be able to accurately simulate the aging evolution process of asphalt under UV light irradiation.
- (2)
- Long-term UV aging has more adverse effects on asphalt physical properties, rheological properties, and crack resistance than RTFOT and PAV aging, having the most significant impact on the low-temperature crack resistance of asphalt.
- (3)
- The 60/80 pen grade base asphalt was found to be unsuitable for asphalt pavement construction in northwest China. When the cumulative received UV radiation of the asphalt was 52,773 KJ/m2, the residual penetration, penetration attenuation rate at 25 °C, and the residual ductility of 80/100 pen grade base asphalt and SBS I-C modified asphalt were used as technical indicators.
- (4)
- The full-section fracture energy method was used as a supplementary evaluation method. When the conventional indicators meet the standard and the difference is small, an asphalt material with a large fracture energy density is preferred.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Wang, F.S.; Zhang, L.; Zhang, X.S.; Li, H.C.; Wu, S.P. Aging Mechanism and Rejuvenating Possibility of SBS Copolymers in Asphalt Binders. Polymers 2020, 12, 92. [Google Scholar] [CrossRef] [Green Version]
- Wang, G.R.; Rao, D.M.; Li, K.T.; Lin, Y.J. UV Blocking by Mg-Zn-Al Layered Double Hydroxides for the Protection of Asphalt Road Surfaces. Ind. Eng. Chem. Res. 2014, 53, 4165–4172. [Google Scholar] [CrossRef]
- Xiang, L.; Tu, J.; Cheng, J.; Que, G.H. Outdoor aging of road asphalt and SBS modified asphalt. Front. Chem. Sci. Eng. 2011, 5, 35–42. [Google Scholar] [CrossRef]
- Chen, Z.H.; Zhang, H.L.; Duan, H.H. Investigation of ultraviolet radiation aging gradient in asphalt binder. Constr. Build. Mater. 2020, 246, 118501. [Google Scholar] [CrossRef]
- Yu, H.N.; Bai, X.P.; Qian, G.P.; Wei, H.; Gong, X.B.; Jin, J.; Li, Z.J. Impact of Ultraviolet Radiation on the Aging Properties of SBS-Modified Asphalt Binders. Polymers 2019, 11, 1111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zaumanis, M.; Mallick, R.B.; Frank, R. Evaluation of different recycling agents for restoring aged asphalt binder and performance of 100% recycled asphalt. Mater. Struct. 2015, 48, 2475–2488. [Google Scholar] [CrossRef]
- Durrieu, F.; Farcas, F.; Mouillet, V. The influence of UV aging of a Styrene/Butadiene/Styrene modified bitumen: Comparison between laboratory and on-site aging. Fuel 2007, 86, 1446–1451. [Google Scholar] [CrossRef]
- Li, Y.; Wu, S.; Liu, Q.; Dai, Y.; Li, C.; Li, H.; Nie, S.; Song, W. Aging degradation of asphalt binder by narrow-band UV radiations with a range of dominant wavelengths. Constr. Build. Mater. 2019, 220, 637–650. [Google Scholar] [CrossRef]
- Zeng, W.; Wu, S.; Pang, L.; Chen, H.; Hu, J.; Sun, Y.; Chen, Z. Research on Ultra Violet (UV) aging depth of asphalts. Constr. Build. Mater. 2018, 160, 620–627. [Google Scholar] [CrossRef]
- Li, Y.; Feng, J.; Yang, F.; Wu, S.; Liu, Q.; Bai, T.; Liu, Z.; Li, C.; Gu, D.; Chen, A.; et al. Gradient aging behaviors of asphalt aged by ultraviolet lights with various intensities. Constr. Build. Mater. 2021, 295, 123618. [Google Scholar] [CrossRef]
- Ye, F.; Huang, P. Establishment of Asphalt Ultraviolet Aging Simulation System. J. Build. Mater. 2005, 8, 567–571. [Google Scholar]
- Yu, H.N.; Shen, S.H.; Qian, G.P.; Gong, X.B. Packing Theory and Volumetrics-Based Aggregate Gradation Design Method. J. Mater. Civ. Eng. 2020, 32, 04020110. [Google Scholar] [CrossRef]
- Zadshir, M.; Ploger, D.; Yu, X.K.; Sangiorgi, C.; Yin, H.M. Chemical, thermophysical, rheological, and microscopic characterisation of rubber modified asphalt binder exposed to UV radiation. Road Mater. Pavement Des. 2020, 21, S123–S139. [Google Scholar] [CrossRef]
- Zhang, Y.H.; Wei, H.; Dai, Y.H. Influence of Different Aging Environments on Rheological Behavior and Structural Properties of Rubber Asphalt. Materials 2020, 13, 3376. [Google Scholar] [CrossRef] [PubMed]
- Wu, S.P.; Pang, L.; Mo, L. UV and Thermal Aging of Pure Bitumen-comparison Between Laboratory Simulation and Natural Exposure Aging. Road Mater. Pavement Des. 2008, 9, 103–113. [Google Scholar] [CrossRef]
- Fang, J.M.; Tu, J.S. Effect of ultraviolet (UV) aging on rheology properties and microstructure of polyurethane (PU) modified asphalt. Mater. Res. Express 2019, 6, 125318. [Google Scholar] [CrossRef]
- Li, H.L.; Tong, P.P.; Zhang, X.J.; Lin, X.X.; Li, B. Influence of Ultraviolet and Oxygen Coupling Aging on Rheological Properties and Functional Group Index of Warm Mix Asphalt Binder. Materials 2020, 13, 4216. [Google Scholar] [CrossRef] [PubMed]
- Xie, X.; Li, H.; Duan, J.; Li, G.; Tong, S. Influence of the Mineral Powder Content on the Asphalt Aging Resistance in High-Altitude Areas Based on Indoor Ul-traviolet Light Tests. Materials 2020, 13, 754. [Google Scholar] [CrossRef] [Green Version]
- Tia, M.; Ruth, B.; Charal, C. Investigation of Original and In-Service Asphalt Properties for the Development of Improved Specifications-Final Phase of Testing and Analysis; University of Florida: Gainesville, FL, USA, 1988. [Google Scholar]
- Ma, L. Research on Water Stability of Ultraviolet Aging Asphalt Mixture. Highw. Eng. 2014, 39, 160–169. [Google Scholar]
- Tong, S.; Li, H.; Wang, C. Research on Asphalt Mixture Ultraviolet Light Aging Evaluation Index. J. Highw. Transp. Sci. Technol. 2014, 31, 16–20. [Google Scholar]
- Liu, H.; Hu, B.; Zhang, L.; Zhao, X.J.; Shang, K.Z.; Wang, Y.S.; Wang, J. Ultraviolet radiation over China: Spatial distribution and trends. Renew. Sust. Energ Rev. 2017, 76, 1371–1383. [Google Scholar] [CrossRef]
- Kang, H.; Tan, X.; Ji, X. Aging Equation of SBS Modified Asphalt and Its Application. J. Wuhan Univ. Technol. 2019, 33, 95–99. [Google Scholar]
- Zhang, H.; Chen, Z.; Xu, G.; Shi, C. Physical, rheological and chemical characterization of aging behaviors of thermochromic asphalt binder. Fuel 2018, 211, 850–858. [Google Scholar] [CrossRef]
- Fernandez-Gomez, W.D.; Quintana, H.A.R.; Daza, C.E.; Lizcano, F.A.R. The effects of environmental aging on Colombian asphalts. Fuel 2014, 115, 321–328. [Google Scholar] [CrossRef]
- Rubber, Vulcanized-Test Method of Resistance to Artificial Weathering (Fluorescent UV Lamp); GB/T 16585-1996. 1996. Available online: http://openstd.samr.gov.cn/bzgk/gb/newGbInfo?hcno=7BB9019E278E8BE83DCBE13AB5ACE733 (accessed on 28 October 1996).
- Ultraviolet High-Pressure Mercury Lamp; QB/T 2988-2008. 2008. Available online: http://hbba.sacinfo.org.cn/stdDetail/dbfcf781846cb11378d2d9af27948ec1 (accessed on 16 June 2008).
- Method of Measurement of Ultraviolet Irradiance and Electrical Characteristic of Tubular Ultraviolet High-Pressure Mercu-Ry Lamp; QB/T 2989-2008. 2008. Available online: http://hbba.sacinfo.org.cn/stdDetail/79a4abb75df8e90f38c6d46421aa63cd (accessed on 16 June 2008).
- Test Method for in Accelerated Weathering Building Materials; GB/T 16259-2008. 2008. Available online: http://openstd.samr.gov.cn/bzgk/gb/newGbInfo?hcno=6E8A308D0F3CA656FDBBF901B4FA3AB3 (accessed on 4 May 2008).
- Plastics-Methods of Exposure to Laboratory Light Sources. Part 2: Xenon-Arc Sources; GB/T 16422.2-2014. 2014. Available online: http://openstd.samr.gov.cn/bzgk/gb/newGbInfo?hcno=42D41178025F1102F2E398C3C1B86403 (accessed on 8 July 2014).
- Rubber, Vulcanized-Test Method for Artificial Weathering (Carbon-Arc Lamp); GB/T 15255-2015. 2015. Available online: http://openstd.samr.gov.cn/bzgk/gb/newGbInfo?hcno=3FA043B124DF92DCF130412E38A3D554 (accessed on 15 May 2015).
- Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering; JTG E20-2011. 2011. Available online: http://std.samr.gov.cn/hb/search/stdHBDetailed?id=8B1827F23F43BB19E05397BE0A0AB44A (accessed on 4 July 2017).
- International, A. Standard Test Method for Determining the Rheological Properties of Asphalt Binder Using a Dynamic Shear Rheometer; ASTM D7175. 2015. Available online: https://www.astm.org/Standards/D7175.htm (accessed on 31 December 2015).
- International, A. Standard Test Method for Determining the Flexural Creep Stiffness of Asphalt Binder Using the Bending Beam Rheome-Ter (BBR); ASTM D6648. 2008. Available online: https://www.astm.org/search/fullsite-search.html?query=ASTM%20D6648& (accessed on 31 December 2016).
- Niu, T.Y.; Roque, R.; Lopp, G.A. Development of a binder fracture test to determine fracture energy properties. Road Mater. Pavement Des. 2014, 15, 219–238. [Google Scholar] [CrossRef]
- Zhang, Z.; Sun, J.; Huang, Z.; Wang, F.; Jia, M.; Lv, W.; Ye, J. A laboratory study of epoxy/polyurethane modified asphalt binders and mixtures suitable for flexible bridge deck pavement. Constr. Build. Mater. 2021, 274, 122084. [Google Scholar] [CrossRef]
- Technical Specification for Construction of Highway Asphalt Pavements; JTG F40-2004. 2004. Available online: https://www.jygglj.com/upload/2016/08/26/2016-08-26-18-10-42-1357388530.pdf (accessed on 4 September 2004).
- Jamieson, I.L.; Moulthrop, J.S.; Jones, D. SHRP results on binder-aggregate adhesion and resistance to stripping. In The Asphalt Yearbook; Institute of Asphalt Technology: Bathgate, UK, 1995. [Google Scholar]
- Chari, C.T.; Ruth, B.E.; Tia, M. Evaluation of age hardening on asphalts and mixtures. J. Assoc. Asph. Paving Technol. 1990, 59, 176–239. [Google Scholar]
- Liao, G.; Huang, X. Anti-ultraviolet aging tests of asphalts adapting to environment in Tibetan Plateau of China. J. Southeast Univ. (Engl. Ed.) 2008, 24, 503–507. [Google Scholar]
- Wang, J.; Tan, Y.; Xue, Z. Analysis on property changes of neat and modified asphalt under ultraviolet aging. In Proceedings of the 18th ASCE Engineering Mechanics Division Conference, Blacksburg, VA, USA, 3–6 June 2007; pp. 127–135. [Google Scholar]
- Wu, S.P.; Pang, L.; Liu, G.; Zhu, J.Q. Laboratory Study on Ultraviolet Radiation Aging of Bitumen. J. Mater. Civ. Eng. 2010, 22, 767–772. [Google Scholar] [CrossRef]
- Tian, Y.; Li, H.; Sun, L.; Zhang, H.; Harvey, J.; Yang, J.; Yang, B.; Zuo, X. Laboratory investigation on rheological, chemical and morphological evolution of high content polymer modified bitumen under long-term thermal oxidative aging. Constr. Build. Mater. 2021, 303, 124565. [Google Scholar] [CrossRef]
- Chen, H.; Zhou, Y.; Wang, B. Dynamic mechanical properties of SBS modified asphalt after aging. J. Chang. Univ. (Nat. Sci. Ed.) 2009, 29, 1–5. [Google Scholar]
- Jadidi, K.; Khalili, M.; Karakouzian, M. Feasibility of Using Non-Destructive Ultrasound Measurement Technique to Evaluate Binder Content of Asphalt Mixtures. CivilEng 2021, 2, 396–405. [Google Scholar] [CrossRef]
- Cong, P.L.; Wang, J.; Li, K.; Chen, S.F. Physical and rheological properties of asphalt binders containing various antiaging agents. Fuel 2012, 97, 678–684. [Google Scholar] [CrossRef]
- Tabatabaee, H.A.; Velasquez, R.; Bahia, H.U. Predicting low temperature physical hardening in asphalt binders. Constr. Build. Mater. 2012, 34, 162–169. [Google Scholar] [CrossRef]
- Zhang, Z.; Sun, J.; Jia, M.; Ban, X.; Wang, L.; Chen, L.; Huang, T.; Liu, H. Effects of Polyurethane Thermoplastic Elastomer on Properties of Asphalt Binder and Asphalt Mixture. J. Mater. Civ. Eng. 2021, 33, 04020477. [Google Scholar] [CrossRef]
- Zhang, Z.; Sun, J.; Jia, M.; Qi, B.; Zhang, H.; Lv, W.; Mao, Z.; Chang, P.; Peng, J.; Liu, Y. Study on a thermosetting polyurethane modified asphalt suitable for bridge deck pavements: Formula and properties. Constr. Build. Mater. 2020, 241, 118122. [Google Scholar] [CrossRef]
- Al-Qadi, I.L.; Sheh-Hsein, Y.; Dessouky, S. Development of crack sealant bending beam rheometer (CSBBR) testing to characterize hot-poured bituminous crack sealants at low temperatures. J. Assoc. Asph. Paving Technol. 2007, 76, 85–121. [Google Scholar]
- Yang, K.; He, Z.; Li, D.; Xu, H.; Kong, L. Experimental Study on Basalt Fiber Crack Resistance of Asphalt Concrete Based on Acoustic Emission. Materials 2021, 14, 4096. [Google Scholar] [CrossRef] [PubMed]
- Specifications for Asphalt Pavement Design of Civil Airport; MH/T 5010-2017. 2017. Available online: https://max.book118.com/html/2018/1104/8061064121001131.shtm (accessed on 28 November 2017).
Technical Indicators | 90-1 | 90-2 | Requirements | 70-1 | Requirements | |
---|---|---|---|---|---|---|
Penetration (25 °C, 100 g, 5 s)/ (0.1 mm) | 88.4 | 80.2 | 80–100 | 70.1 | 60–80 | |
Ductility (5 cm/min, 10 °C)/cm | >100 | >100 | ≥30 | 56.9 | ≥25 | |
Softening point/°C | 46 | 51.1 | ≥44 | 46.9 | ≥45 | |
Density (25 °C)/(g/cm3) | 0.998 | 1.006 | — | 1.018 | — | |
Rotating film oven test (163 °C, 85 min) | Mass loss/% | −0.23 | 0.31 | ±0.8 | 0.26 | ±0.8 |
Residual penetration ratio/% | 77 | 70 | ≥57 | 70 | ≥61 | |
Residual ductility (10 °C)/cm | 32 | 22 | ≥8 | 11.8 | ≥6 |
Technical Indicators | SBS-1 | SBS-2 | Requirements | |
---|---|---|---|---|
Penetration (25 °C, 100 g, 5 s)/(0.1 mm) | 75 | 73.3 | 60–80 | |
Ductility (5 cm/min,10 °C)/cm | 65.5 | 66.7 | 55 | |
Softening point/°C | 59 | 37.1 | ≥30 | |
Density (25 °C)/(g/cm3) | 1.018 | 1.101 | — | |
Rotating film oven test (163 °C, 85 min) | Mass loss/% | −0.14 | 0.06 | ≤1 |
Residual penetration ratio/% | 79 | 72 | ≥60 | |
Residual ductility (10 °C)/cm | 37 | 26 | ≥20 |
Power/KW | Tube Length/mm | Electrode Spacing/mm | Tube Diameter/mm | Voltage/V |
---|---|---|---|---|
1 | 300 | 200 | 28 | 220 |
Outdoor Time/Month | Outdoor UV Irradiation Time/h | Indoor UV Irradiation Time/h |
---|---|---|
2 | 480 | 32 |
4 | 960 | 64 |
6 | 1440 | 96 |
8 | 1920 | 128 |
10 | 2400 | 160 |
12 | 2880 | 192 |
Asphalt Type | UV96h Penetration Attenuation Rate/% | Penetration/(0.1 mm) | |
---|---|---|---|
UV96h | UV192h | ||
90-1 | 48.3 | 45.7 | 36.1 |
90-2 | 55.5 | 35.7 | 28.3 |
70-1 | 62.6 | 26.2 | 19 |
SBS-1 | 37.7 | 46.7 | 41.1 |
SBS-2 | 43.2 | 41.6 | 34.2 |
Asphalt Type | Evaluation Index | m | n | Dynamic Aging Equation | R2 |
---|---|---|---|---|---|
90-1 | Penetration (25 °C, 0.1 mm) | 0.3038 | 0.0052 | Y(t) = 26.9/(1 − 0.6962 × 10−0.0053t) | 0.9987 |
Ductility (10 °C, cm) | −0.1135 | −0.0072 | Y(t) = −5.0/(1 − 1.1135 × 100.00727t) | 0.9989 | |
90-2 | Penetration (25 °C, 0.1 mm) | 0.2432 | 0.0049 | Y(t) = 19.5/(1 − 0.97568 × 10−0.004951t) | 0.9883 |
Ductility (10 °C, cm) | −0.0779 | −0.0069 | Y(t) = −8.0/(1 − 1.07794 × 101.07794t) | 0.9988 | |
70-1 | Penetration (25 °C, 0.1 mm) | 0.0663 | 0.0012 | Y(t) = 4.7/(1 − 0.9987 × 10−0.00122t) | 0.9963 |
Ductility (10 °C, cm) | — | — | — | — | |
SBS-1 | Penetration (25 °C, 0.1 mm) | 0.4821 | 0.0079 | Y(t) = 36.2/(1 − 0.992 × 10−0.00799t) | 0.9983 |
Ductility (5 °C, cm) | −0.0170 | −0.0002 | Y(t) = −1.0/(1 − 100.00024t) | 0.9959 | |
SBS-2 | Penetration (25 °C, 0.1 mm) | 0.4086 | 0.0078 | Y(t) = 30.0/(1 − 0.992 × 10−0.00783t) | 0.9997 |
Ductility (5 °C, cm) | 0.0277 | 0.0006 | Y(t) = 1.0/(1 − 0.9994 × 10−0.00064t) | 0.9959 |
Asphalt Type | Penetration Attenuation Rate/% | |||
---|---|---|---|---|
UV32h | UV64h | UV96h | UV192h | |
90-1 | 27.15 | 38.24 | 48.30 | 56.79 |
90-2 | 26.93 | 49.88 | 55.49 | 62.09 |
70-1 | 32.38 | 52.92 | 62.62 | 71.33 |
SBS-1 | 18.53 | 30.13 | 37.73 | 43.73 |
SBS-2 | 24.97 | 35.74 | 43.25 | 50.61 |
Technical Indicators | Requirements | Test Method |
---|---|---|
After RTFOT test | T0610 | |
Mass loss/% | ≤±0.8 | |
Residual penetration (25 °C)/(0.1 mm) | ≥57 | T0604 |
Residual ductility (10 °C)/cm | ≥8 | T0605 |
After accelerated indoor UV aging test | Section 2.2 | |
Mass loss/% | ≤±0.8 | |
Penetration attenuation index (25 °C)/% | ≥50 | T0604 |
Residual penetration (25 °C)/(0.1 mm) | ≥45 | |
Residual ductility (10 °C)/cm | ≥8 | T0605 |
Technical Indicators | Requirements | Test Method |
---|---|---|
After RTFOT test | T0610 | |
Mass loss/% | ≤±1 | |
Residual penetration (25 °C)/(0.1 mm) | ≥60 | T0604 |
Residual ductility (5 °C)/cm | ≥20 | T0605 |
After accelerated indoor UV aging test | Section 2.2 | |
Mass loss/% | ≤±1 | |
Penetration attenuation index (25 °C)/% | ≥50 | T0604 |
Residual penetration (25 °C)/(0.1 mm) | ≥40 | |
Residual ductility (5 °C)/cm | ≥20 | T0605 |
