1. Introduction
Owing to the escalating awareness of resource depletion, climate change, and overwhelmed population, firms in the agriculture domain need to redesign their current supply chain models to be sustainable by taking economic and environmental impacts into account. Drastic evolution has been observed in the agriculture supply chain during the last four decades [
1]. Production technology and marketing has played a vital role in the upgradation agriculture supply chain and has been a limelight for governments and agri-business sectors. Further, the development in information, its transmission, and transportation mediums have evolved. Currently, they are encapsulated with vigorous internet usage through various platforms worldwide [
2]. Agri business, specifically attached with modern digitized technologies such as blockchain have revolutionized the medium of business conducted with customers world-wide, by providing social connections that vitally help in searching, targeting, communicating, and serving buyers [
3]. Firms may observe tremendous benefit by enhancing investments in technology, such as higher efficiency and lower costs, and high service level [
4]. Moreover, the boom in technology has strengthened the online shopping sector. According to a report published by the National Bureau of Statistics (2016), the gross online merchandise volume of China amounted to 4.8 trillion Yuan, increasing by 64.5 percent in just a year span. This growth was recorded to be four times more rapid than cumulative retail sales of goods [
5].
Digitization and online marketing are strongly corelated with blockchain technology. Blockchain technology emanated by the development of digital currency—Bitcoin that appeared initially in the form of Bitcoin white paper [
6]. The benefits of blockchain have encouraged the business communities and industries to adopt it, which is reflected from a survey that exhibits 77% respondents (proficient in blockchain) from a set of 600 executives acknowledged their firm’s involvement in the blockchain projects [
7]. Blockchain technology permits the construction of an encrypted and secured set of records between parties digitally connected in a supply chain [
8]. Blockchain consist of transactions or blocks of information stored in archives available on a mutual platform to the supplier and vendors. These data blocks require nodes which are services connected through the internet and websites.
Furthermore, investment in the right direction for technologies is very critical. For this, Busca and Bertrandias [
9] developed a framework for digital marketing (DM) and investigated its four cultural eras, and compared with the effect of blockchain. They devised different plans for the potential evolution of DM and in view of these plans, website or application design is a significant element to attract the customers and prosper e-business. Blockchain integrated with efficiently designed website increases probabilities of two major factors; firstly, gaining attraction of the customers and secondly traceability of the products from initiation to the terminal points. A website can transmit intrinsic product features like a written context of the product, images, and virtual experiences as well as extrinsic product features such as brand and price [
10]. From a customer point of view, the element of a website has transformed into a pivot point that assesses the objectives of the system, service, and information [
11]. On the contrary, from a product or service providers’ point of view, the elements of a website transformed should be a communal distribution medium to generate profit. Empirical studies on websites linking to the digital marketing supply chain (DM-SC) is rare. Owing to the rapid expansion in e-commerce around the globe, the e-store environment has fascinated maximum attraction from business during the past 12 years [
12].
To narrow down our research stream, the grooming technology via e-marketing depends on the integration of blockchain in SC, developing website esthetics and the contents significantly. Interestingly, a report was published in a UK-based study, analyzing the inspiration element of trust among customers and retailers on websites, specifically over the impact of web content in comparison to web design. It was staggering to conclude that 94% of customers mistrusted a website directly due to design elements and 6% showed mistrust based on the actual content of the website [
13]. Hence, the quality of a website is essential during the current digitized global era. As there was no study found on the integration of website esthetics including the effect of blockchain with DM-SC, the current research targets the need to fill this gap.
The article is structured by introducing the web designing of agri-product and digital marketing encapsulated with blockchain, to provide a platform for a sustainable and robust e-agriculture supply chain management (SCM) in this section. The related research works and reviews are represented in
Section 2. The research methodology and framework including analytically hierarchical process (AHP), Pareto analysis, and fuzzy inference system (FIS) are discussed in detail in
Section 3. The mathematical model of proposed cooperative e-agriculture SCM is formulated and modeled in
Section 4.
Section 5 represents numerical experimentation in which the data of supplier, agri-processing firm, and multi-retailer in SCM are incorporated. In addition, solution methodology and results findings by considering five cases of SCM are well summarized in
Section 6. The sensitivity analysis in
Section 7 is performed to check the effect of the web design index on total profit of the SCM. Lastly,
Section 8 concludes the research study on the basis of finding results.
2. Literature Review
In order to fulfil the requirements of the future generations, agri-product supply chains should lay emphasis on digitized marketing through an effective e-advertisement channel. These resources acquire usage of architectural website designs that attract the customers and smooth the flow of information by using blockchain. Furthermore, a digitized sustainable agri-product supply chain needs more than only an economic validation objective (profit), it should also be keen to handle trust of the linked parties. Agriculture trends should shift towards the adoption of DM as it is less costly and risky in operations, even boundary-less, which allows the firm to deal more proficiently in complex, diverse, and distant markets, while at the same time dependence on domestic infrastructural system is reduced [
14]. Firms tend to apply digital technologies currently; tools and devices to circumvent barriers such as pertaining to location and foreign market analysis, communication with foreign customers, and overseas opportunities identification, which were viewed as potential hindering subjects in the engagement, operation, and expansion of a company in international markets [
15].
In the recent decade, blockchain technology has been on the rise, gaining success and proving its functionality in various organizations. It aims to harness its limpidity and transparency in order to provide solution to existing problems, where many untrusted actors are indulged in the resource distribution [
16]. Agriculture supply chain is highly relevant to the resource distribution since the items of agriculture are predominantly used as an input in several multi-actor supply chains, where consumer is generally the end client. Further, in SCM, the annual growth of blockchain is anticipated with a rate of 87%, an increase from
$45 million (2018) to
$3314.6 million (2023) [
17].
As an effective example, AgriDigital company in December 2016, implemented a pioneer settlement of the sale with 23.46 tons of grain via blockchain. After that, over 1300 different users with supplementary 1.6 million tons of grain got transacted through a cloud system, including a figure of
$360 million in the growers’ payment. This success provided an inspiration for a potential and substantial usage of this technology in an agri-supply chain. This realm of digitization created enormous room for an e-market platform, which is essential to grab in a competitive environment. E-marketing is an emerging concept that depicts the process of buying and selling or exchanging either/both products or services through the internet [
18]. According to Krishnamurthy and Singh [
19], the services of e-marketing include a number of customer-support-activities; including e-tailing (direct-selling), SCM, and CRM. E-market services are interactive, dynamic, and internet-based that are sandwiched with customer care applications [
20,
21]. Websites and social application platforms act as a liaison and an interactive interface between various levels of the supply chain.
Several studies like Cannon and Perreault Jr [
22], Albrecht et al. [
23], Kalvenes and Basu [
24] have endorsed that business-to-business electronic market place has developed to be an ideal podium for both buyers and sellers. E-marketing has a significant contribution to firms’ development. Researchers have identified that managing better electronic customer relationship [
25], providing effective operative services [
26], being adaptive to external knowledge, up to the mark utilization of e-marketing tools [
27], and exploration of state-of-the-art information about available e-market [
28] leads to effective firm performance. A multi-objective optimization model based on IoT and block chain in e-market was studied by [
29] while data preserving in smart agriculture for an e-market was carried out by [
30]. The sustainability perceptions of manufacturing stakeholders and agriculture irrigation resources were discussed by [
31,
32] respectively. The detailed contribution of the researchers is given in
Table 1, where a research gap has been filled through proposed research work. Dadzie et al. [
33] applied data reliability tests on the web design elements and determined the most effective ones for a business perspective. Likewise, Harrison and Waite [
34] also established effective web design elements by applying multivariate analysis of variance (MANOVA) in their parametric study. Afterwards, Hu and Chen [
35,
36] conducted similar study by applying analysis of variances (ANOVA) and analytical approach respectively to prove significant web design elements. As decision makers are always interested in defining beneficial economic policies, that is where analytical approaches and mathematical models of strategic interaction amid balanced decision-makers come into play, such as, game theory, Nash equilibrium, and cooperative game theory. Established works with these theories and strategies based on a three-echelon cooperative supply chain can be found in the work of [
35,
37,
38,
39,
40,
41,
42,
43]. However, only the study of Cai et al. [
41] is based on game theory for the web design elements and its framework does not cover three-echelon SCM. The proposed work matches with Sarkar et al. [
44] for the SCM environment and application of fuzzy inference system (FIS), which is used to imply fuzzification procedure to the uncertain factors in the model. However, this work asserts multiple addition with the involvement of addition in the environment by coupling blockchain effect and web design elements. Further, the approach in the current study is also the combination of sequential quadratic programming (SQP), analytical hierarchy process (AHP), and FIS in order to tackle all the uncertain variables with tangible and intangible effects.
Studies have been carried out related to supply chain decision in e-markets by employing game theory [
47], and Stackelberg–Nash equilibrium [
48] in a vendor managed inventory including multi-retailers and using retailers’ information respectively. The decision model developed by Esmaeili et al. [
49] provided factors of pricing and cooperation among sellers and buyers through competitive advertisement. Despite advertisements, a pricing strategy for any product in a sustainable supply chain is vital. Cai et al. [
50] worked on pricing policies with price discount transactions in a dual-channel supply chain. Keeping the pricing policy intact, ordering policy is as important for not losing customers. Cai et al. [
51] studied pricing along ordering policies in a supply chain model of the Business-to-Business (B2B) market. Further, there are many discount and pricing model studies i.e., Banerjee [
52], Dada and Srikanth [
53] and Pal et al. [
54], where order quantities, price break, lot sizing, and discount quantities are the decision variables. Other than these factors, supplier selection is also important for a sustainable SCM and similar studies are carried out by [
55,
56,
57].
Despite the fact of digitization and e-market success, advertisement is a significant element to exercise in a meaningful proportion and medium. In the recent decade, several researchers dealt with cooperative advertising in the manufacturer–retailer channel. This collaboration can also be termed as a financial contract, in which a manufacturer offers to accept either a certain portion or the complete advertising expenditure of a retailer/vendor [
58]. In that way, increment in the advertising of a retailer is injected by the manufacturer to stimulate an immediate demand in the chain. However, being a potential part of several manufacturers’ advertisement budgets (e.g., sum of
$15 billion was financed to similar programs in the USA, 2000), a number of forms appear to settle the contribution rate by the rule of thumb or best guess approach, deprived of detailed analysis on proportions of 50% or 100% [
59].
The strategies to build up in the SC model comprise of multiple scenarios and attributes (mostly uncertain), thus, for this purpose, their ranking is vital with multi-criteria decision-based systems and fuzzy approaches. Recently, Bhosale and Kant [
60] worked on an integrated fuzzy interference system (FIS) and fuzzy Delphi to rank the solutions and overcome the SC barriers. In another study by Amindoust and Saghafinia [
61], evaluation of supplier selections in a textile industry was carried out by FIS and suppliers were ranked in order to effectively meet the objectives of selection. Paul et al. [
62] applied FIS to predict the variations in demand based on the given forecast. They revised their supply chain plan in advance to develop a mitigated plan. Another study based on ranking of qualitative assessments in a green SC was carried out by [
63] with the help of FIS. To sum up, FIS is an important tool for ranking of attributes linked with an uncertain environment. This study is pioneer in the shape of FIS application for ranking website design elements that are linked by an uncertain demand environment in a SC.
In today’s world, the agri-product promotion is effectively going on through digital marketing by enhancing web design to attract the customers. The objective is to provide a platform in the form of technology development policy among agricultural businesses for food security and reliability. Researchers are working on the enhancement of the product web design; however, web design is still not digitally connected with the customers through blockchain technology for the successful implementation of global agri-SCM. This study aims to target the e-market (online), which exclusively affects the firms’ performance. The significant web design elements are incorporated in cooperative three-echelon SCM under uncertain conditions. The research is specifically devising an attractive digital marketing policy through effective website design attributes, and linking these attributes with customer demand and advertisement cost to boost the total profit of the SCM partners.
4. E-Agricultural Supply Chain Management
This section considers problem definition, e-advertisement, variable demand, fuzzy costs, notation, assumptions, and model formulation of the proposed co-op e-agricultural SCM model.
4.1. Problem Definition

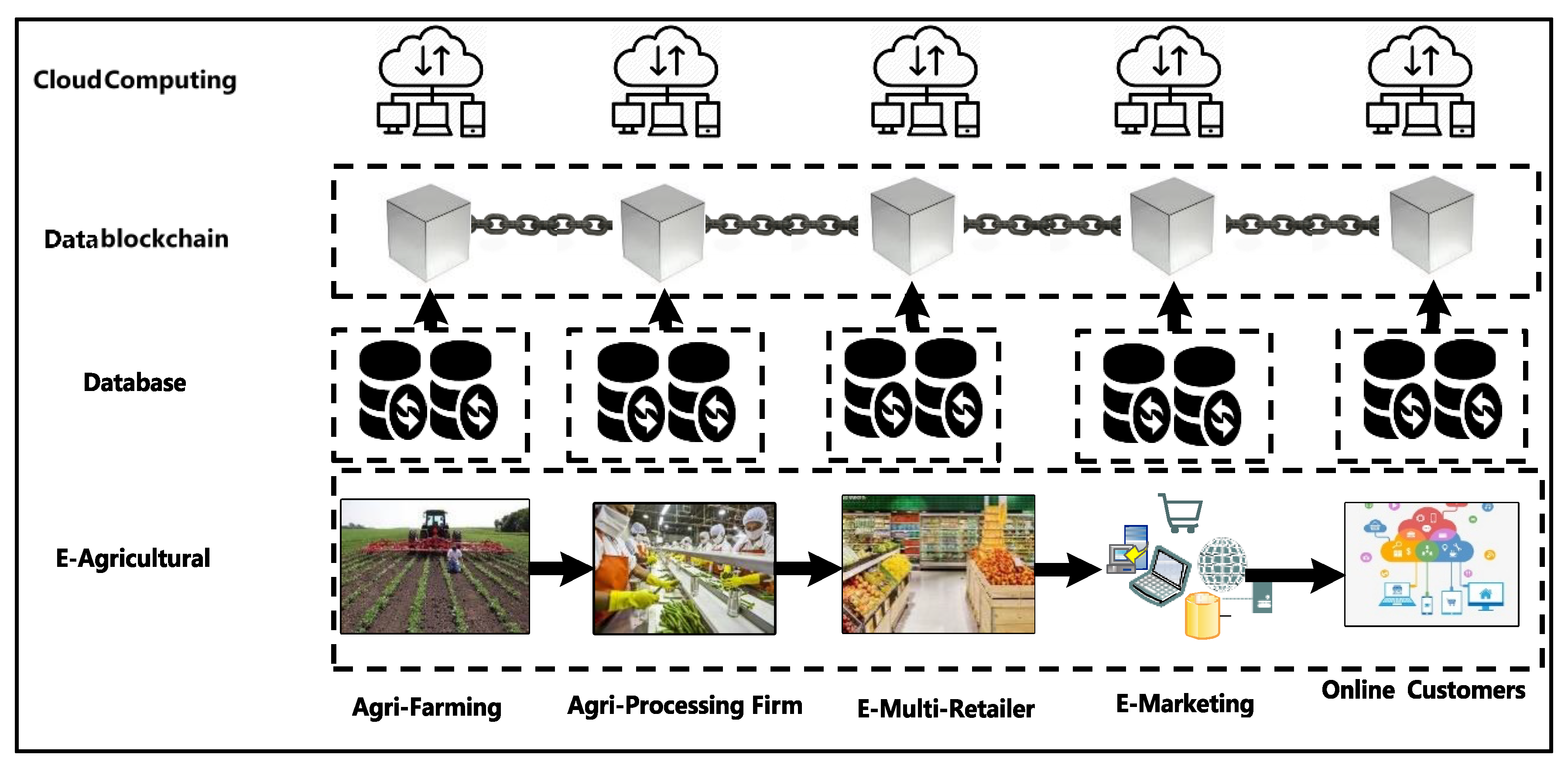

The conventional agricultural supply chain management is extremely underdeveloped with respect to technology and innovation. Agri-firms are facing issues in communication for sharing information and products among SCM partners and are at a huge distance from the customers due to lack of technology. The agricultural product supply chain management (agri-SCM) requires an extensive development in communications and marketing strategy, which is possible by the addition of advanced technologies i.e., blockchain and e-agriculture (digitization). The research is based on digital marketing policy by enhancing web design elements for the promotion of the agri-product and influencing customers online to increase e-market demand in e-agri-SCM. A three-echelon supply chain model considering single supplier, single agri-processing firm, and multiple retailers are cooperating on the basis of e-advertising cost by various share agreements for maximum profit as shown in
Figure 5. The uncertainties in the model were recovered by the fuzzing of all basic costs involved in calculating total profit of SCM.
The blockchain technology is well processed through the e-agri-SCM, where the sharing of information, goods, and payments are made digitally using blockchain technology. The aim was to provide a developed e-agri-SCM by traceability, security, and communication system. All the data are stored in the database, integrated among SC players using blockchain, and then shared permanently by a cloud computing management system. The research provides a platform to the customers (web design) to provide basic design tools and blockchain tools for the security and traceability. The web design index was obtained from the significant WDEs incorporated in the product web design for the promotion and demand. The WDI was further linked with the variable demand of the agri-SCM to find the impact of the advancement on overall profit.
4.2. Online Advertisement Cost
A supply chain (SC) consisting single supplier, processing firm, and a multi-retailer was selected to analyze the e-advertisement co-op policy in agri-SCM. The proposed model turned out to be more realistic when we considered the cost of advertisement dependent on demand. Investment for the advertisement of products in the digital-market is backed by SC partners to enhance the average product sales for increasing demand from digital market as a result of increasing the e-advertisements efforts and vice versa. The demand in online marketing requires enhancing web design elements based on blockchain for the promotion of the product and it influences the customers for the increasing product demand. The blockchain tools can be incorporated in the product web design to ensure security and traceability among SC players and customers. The e- advertisement covers the investments to enhance the significant design elements on the product promotion web.
The online advertisement cost includes the expenses involved in designing the elements of the product’s website. It is obvious that the advertisement cost depends on the website design index (WDI), i.e., Ω value starting from one to five. The expression shows a direct linear and exponential relationship between the advertisement cost and the website design elements as given in Equations (1) and (2), respectively. If the product web design is good for e-advertisement then it will have a WDI value almost 5 and there are maximum chances that more customers will be attracted towards the product. On the other hand, the bad or worst web design will compel the customers to review it as bad, which will ultimately affect the customer demand negatively in e-advertising strategy. The advertisement cost (AC) of the supply chain management is the sum of initial advertisement (a) cost and variable cost for online advertisement to enhance the website design for the attraction of the customers. i.e.,
where a is the initial advertisement cost of the supply chain, Ω is the website design index, λa is the scaling factor of the linear curve, and λ
2 is the shape parameter in case of exponential variable advertisement cost. The above expressions are illustrated as in
Figure 6.
4.3. Model Notation
Notations used in the mathematical model of e-agri-SCM are as follows.
Indices
- j
index to represent number of retailers in SCM, j = 1, 2,…n
Decision Variables
- T
cycle time for retailers (year)
- y1
raw material taken by agri-farming, i.e., supplier (integer)
- y2
lots received by agri-processing firm (integer)
- arj
share of e-advertisement cost by jth retailer invested in digital marketing ($/year)
- amj
agri-processing firm’s investment share for e-advertising the product ($/year)
- asj
supplier’s investment in e-advertising agri-product for collaboration ($/year)
- z1
multiple units for the agri-firm’s cycle time (integer)
- z2
retailer’s cycle time multiple unit (integer)
- pj
price of agri-product kept by the jth retailer in the market ($/unit)
Agri-farming/supplier’s parameters
- Cs
processing cost of the semifinished agri-product ($/unit)
- Ps
processing rate of the semifinished agri-product (unit/year)
- Cfcs
cost of fixed carbon emission of the agri-farming/supplier ($/shipment/year)
- Cvcs
agri-farming/supplier’s cost of variable carbon emission ($/unit/year)
- hs’
raw material holding cost ($/unit/year)
- hs
agri-product holding cost of the supplier as a finishing product ($/unit/year)
- As
setup cost of the agri-farming/supplier ($/setup)
- Os
cost of the agri-farming/supplier for ordering ($/order)
- TCs
total cost of the agri-farming/supplier ($/year)
Agri-processing Parameters
- Pm
processing rate of semifinished products (unit/year)
- hm
finished agri-product holding cost ($/unit/year)
- Cfcm
fixed cost as a tax of carbon emission by agri-processing firm ($/shipment/year)
- Cvcm
cost of variable carbon emission by agri-processing firm ($/unit/year)
- Am
setup cost ($/setup)
- Om
ordering cost ($/order)
- F
fixed/constant cost of transportation ($/shipment)
- V
agri-processing firm’s varying transportation cost ($/shipment)
- TCm
total cost of agri-processing firm ($/year)
Retailer’s Parameters
- hr
retailers holding cost per agri-product per cycle ($/unit/year)
- Ar
retailers ordering cost ($/order)
- TCr
retailers’ total business cost ($/year)
- D(p, a)
variable demand rate as a function of advertisement cost and selling price (units/year)
Other Parameters
- ∆2
upper limit of the fuzzy parameters (parameter units)
- ∆1
the lower limit of the membership function of the fuzzy number (parameter units)
- dj
starting/initial demand of the jth retailer (units/year)
- M
total advertisement budget incorporated for the whole supply chain ($/year)
- TC
total cost of the e-agri-SCM ($/year)
- TP
the total profit achieved by the e-agri-SCM ($/year)
4.4. Demand Depending Selling Price and Advertising Cost
Demand is correlated with the selling price of the product and its advertisement cost. Indicating demand in terms of selling price and advertising cost as a decision variable was studied in the work of [
74]. In the current case, previous function was altered to portray variability in demand owing to e-advertisement in digital-markets. The initial retail price and demand for the jth retailer were denoted as
dj and
pj, respectively. Both the demands, linear and exponential, were generated for the entire supply-chain once advertising cost investment in the digital-market was carried out, as depicted in Equations (3) and (4), respectively.
where
α,
β, and
ν are non-negative constants. The values of
v (i.e.,
ν < 1,
ν = 1 or
ν > 1) is subject to the price demand dependency, which may follow a linear, concave, or convex curve separately. In this work, to exploit the supply chain profit, value of the ν was considered
ν > 1. Further, values of
k1,
k2, and
k3 are non-negative constants, which depicts the efficacy of local advertisement on behalf of the supplier, agri-processing firm, and vendors, separately in generating the demand from market. The overall demand of SC is produced from the local market from every single vendor/retailer, which is given in the following equation.

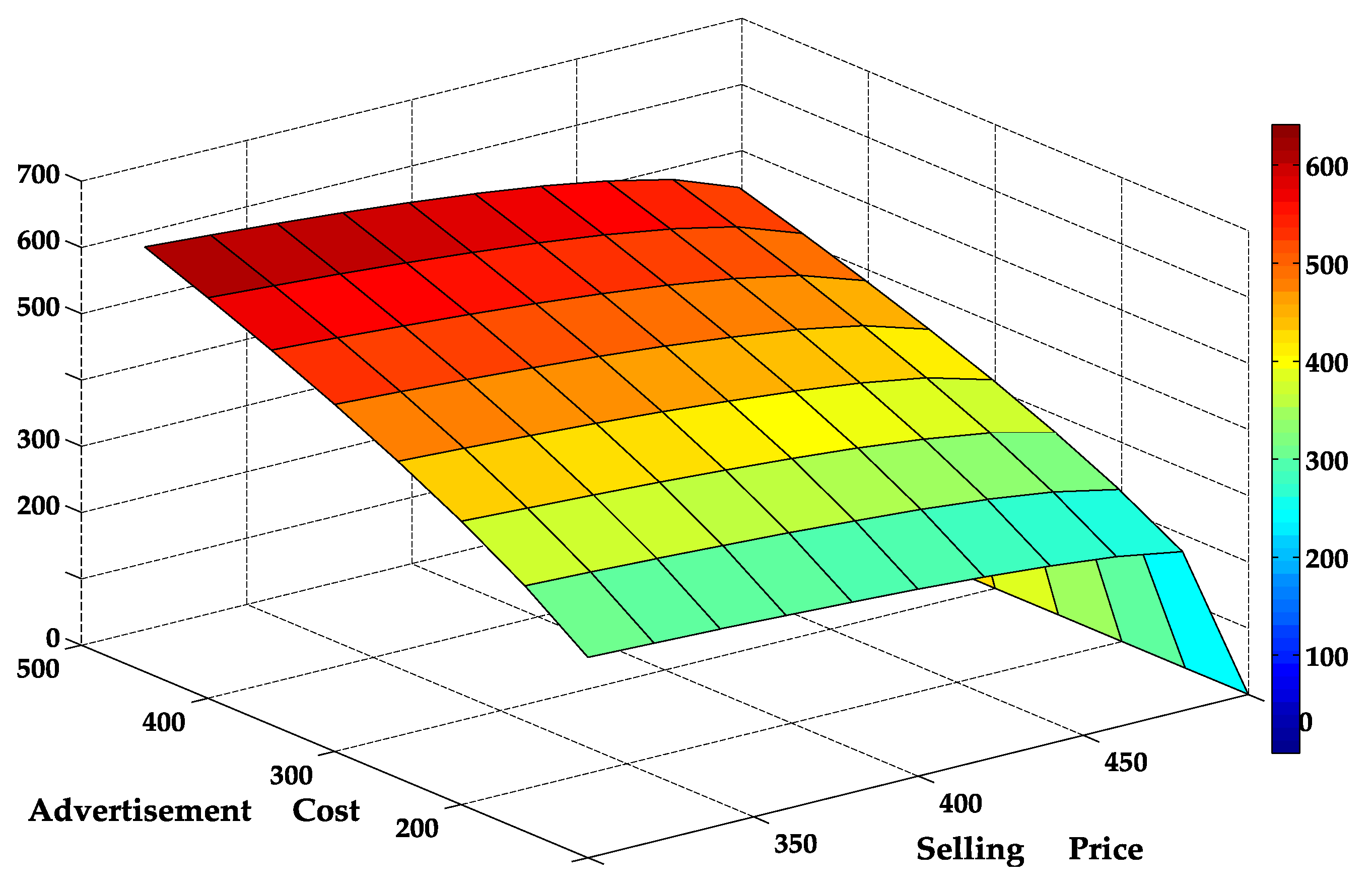

Likewise, the function shows the relationship amid demand, the advertising cost, and selling price as depicted in
Figure 6. The portrayed surface shows the maximum bound of selling price, where the demand shrinks to zero, but does not illustrate the bound with aspect of advertisement cost, in other words, the demand enhances with the increase in advertisement cost without any limit/bound. Such behavior of limitation is regulated by a constraint studied in the proposed SC model.
4.5. Model Fuzzification for Uncertain Environment
Numerous uncertainty types exist in real life supply chain management problems. They are typically modeled via techniques from the probability theory. Nevertheless, some uncertainties persist that cannot be handled properly through conventional probabilistic models. Usually, the issue amounts to modeling SCM problems and finding their solutions under uncertain environment [
75]. Hence, the way out is to treat such problems by fuzzy set theory instead of probability theory [
76]. Centroid of fuzzy total cost was taken as the estimate for fuzzy total cost, but studies show that, in spite of centroid method, the signed distance method is better for defuzzification [
77]. Let
x be a fuzzy number with triangular membership function,
= (
x − ∆1;
x;
x + ∆2), where 0 < ∆
1 <
x and 0 < ∆
2 ≤ 1 −
x. Further, ∆
1 and ∆
2 are determined by the decision makers. The
x is given as in below Equation (6) from the study of [
74].
4.6. Model Assumptions
The e-agri-SCM model was developed based on the following assumptions.
4.7. SCM Model Formulation
Supply chain partners work together to enhance any product’s demand. The agri-SCM model was formulated in such a way that identifies the overall basic along with miscellaneous costs that are associated to the supplier, agri-processor, and vendor/ retailer. The fundamental costs contained production cost, holding cost, setup cost, transportation cost, ordering costs, etc. With the advances in cleaner production for a sustainable environment and market growth, both the carbon emission cost and advertising cost were also integrated to construct the proposed SCM model to be further reliable and eco-efficient. Moreover, basic costs related to production and inventory are uncertain owing to various factors such as the world energy crisis, inflation, and oil prices. Due to this, all the fundamental costs linked with the supplier, agri-processing firm, and vendors/ retailers in the current proposed model were taken as fuzzy costs. The signed-distance formula was used to resolve the fuzzy-sets of parameters.
4.7.1. Supplier costs
The costs of supplier are as following.
Production Cost
A cost that is variable and depends on the production quantity for certain demand.
Setup Cost
It involves the costs of initialization of an order from supplier perspective which is dependent on the cycle time and limitations set by the manufacturer or retailer.
Ordering cost
It includes costs incurred to order a batch or purchase of externally made products that is dependent on the quantity limits set by the manufacturer or retailer.
Holding cost of raw material
This is the cost that is incurred while holding inventory or stocking in a storage or warehouse that is dependent upon parameters like cycle time, variable demand, and production of the products.
Holding cost of finished products
The cost of the holding was taken from the work of Sarkar et al. [
81].
E-advertisement cost
The supplier is sharing an advertisement cost for the enhancement of web design by incorporating blockchain and basic elements to influence customers towards agri-products based on co-op e-advertising collaboration policy.
Carbon emissions cost
The aim of the incorporating carbon cost was to provide the necessity of present and future generations for the sustainable and cleaner supply chain management.
The total cost of the supplier (farming industry) in agri-SCM can be expressed mathematically as
4.7.2. Agri-Processing Cost
The agri-processing firm processes the finished product of the supplier (farming industry) to produce the agri-product. The basic costs associated with the agri-processing firm are considered to be fuzzy due to uncertain conditions, i.e., processing, setup, ordering, and holding costs. Other specific costs are also incurred by the firm in the form of transportation and carbon emission costs.
Processing cost
This is a cost that is variable and depends on the agri-processing cost of the products and their quantity for certain demand.
Setup cost
It involves costs of agri-processing setup in terms of material and labor required to make the machine ready for new production lot.
Ordering cost
It includes costs incurred to order an agri-based batch or purchase of externally made agri-products that is dependent on the quantity limits set by the manufacturer or retailer.
Holding cost of raw material
Cost dealing with holding of agri-environment based materials.
Holding cost of finished product
The fuzzy holding cost can be expressed as (previously referred Sarkar et al. [
77])
E-advertisement cost
Similarly, agri-processing firms also invest a share based on the e-advertisement collaboration policy for the increasing demand in e-marking using digital marketing by incorporating web design elements. The agri-processing firm’s share can be expressed mathematically as
The total cost of the agri-processing firm under uncertain conditions is given as
4.7.3. Retailers’ Costs
The retailers in digital businesses are mainly concerned with the warehousing and they are keeping the agri-product of the SCM. The agri-products are deteriorated items, which are also placed on the website with basic and blockchain features. There are multiple e-retailers connected to the agri-processing firm. The agri-processing firm ships the required agri-products to the retailers and big food malls based on the customers’ demand online and offline. The retailers’ costs can be divided into the following sub costs.
Holding cost of raw material
The holding cost of all
jth retailers in the agri-SCM is expressed as
Advertisement cost
Retailers also share their role in the collaboration policy by investing in e-advertisement through digital marketing. Their integrated sum can be expressed as
Hence, the total cost of the retailers in Agri-SCM business is given as
4.7.4. Total Cost of the Supply Chain
After formulating the cost of supplier (farming), cost of agri-processing firm, and cost of retailers in dealing agri-product, the total cost of the e-agri-SCM can be expressed mathematically as
By substituting
,
Cm, and
Cr the total fuzzy cost of the supply chain is given as in Equation (30).
The firms’ revenue formula can be written as.
and the profit formula is
Now, the objective of the proposed model is to maximize the total profit of e-agri-SCM, which is given as
The constraints/limitations of the proposed SCM model are given below.
Advertisement costs constraints 5. Numerical Experiment
The intended agricultural supply chain management needs to be validated pragmatically by numerical analysis of a real-life example. A fundamental three-echelon SCM having a single supplier and agri-processing firm each and three-retailers, i.e., (j = 3), was considered. All the partners collaborated through a co-op e-advertisement to invest in enhancing a website for agri-product marketing. The numerical experiment of the research study was based on agri-SCM considering a sugar processing firm, its suppliers, and retailers. The data utilized to perform the experiment were taken from the local industry of sugar processing SCM. The suppliers/agri-farming data are given in
Table 4 consisting of production, holding, transportation, carbon emission, and production rate. The capacity of the sugar processing firm, inventory space, and budget data were also taken from the selection industry to deal with the constraints of the proposed model. The data were reliable and provided a pragmatic application of the proposed e-agri-SCM mathematical model with blockchain technology to attract customers. Principally, the three-echelon agri-SCM starts with the farming industry (supplier). The data for processing cost, setup cost, holding cost, transportation cost, and carbon emission are given in
Table 4. The web design index (WDI) was taken as Ω = 3 for both numerical experiments and sensitivity analysis.
The agri-processing firm data are also crucial for the analysis of the proposed model due to the important stake in the chain. Further, the agri-processing firm is also an imperative supply chain partner in co-op advertisement collaboration. The cost data associated with the agri-processing firm’s (sugar processing firm) production, inventory, carbon emission costs, and transportation are presented in
Table 5. All these costs are uncertain and therefore reflected with fuzzy parameters.
The role of retailers in e-agri-SCM for sugar production is very influential to deal with the customers. The data for retailers are given in
Table 6.
Further, inventory capacities of the sugar-processing firm, supplier, and each retailer were subject to constraints. Similarly, a limitation cap was also set on the sharing of advertisement cost among the SCM partners spending the complete advertisement budget. The data relevant to the constraints of the proposed model are shown in
Table 7.
Next, the data were analyzed by application of non-linear optimization approach. Both the selling price of the product and the advertisement costs among supply chain partners were optimized under a co-op advertising collaboration policy.
6. Solution Methodology and Result Findings
The role of e-advertising and digital marketing is essential to achieve competitive advantage among production firms and is more highlighted in processing agricultural products. The suggested SCM model is based on a non-linear maximization problem alongside multiple variables and constraints. Previously, the constrained problem was resolved and analyzed by converting it into an unconstrained problem, exploring and exploiting for the global optimal solution. However, these approaches have now been discovered to be comparatively ineffective and have been substituted by approaches based on the equations of Karush–Kuhn–Tucker (KKT).
KKT equations possess the required conditions for optimizing a constrained problem. Such equations also deliver a solution to several nonlinear problems by means of computing Lagrange multipliers directly. Further, these approaches are termed as sequential quadratic programming (SQP) methods [
82,
83].
The set of equations created from the proposed model consist of non-linear equations sufficiently complex to solve by any analytical technique. Nevertheless, these analytical techniques are also ineffective and time-consuming and have been substituted by the techniques constructed on quadratic programming. The SQP is an effective and efficient decision-making tool and validated the best for solving nonlinear constraint and unconstraint equations, big-data research, and multi-decision problems according to Schittkowski [
84], Mostafa and Khajavi [
85], and Theodorakatos et al. [
86]. The method is already utilized by various research studies [
87,
88,
89,
90] in production and supply chain management models.
There are five different cases considered from the real-life studies for the application of the proposed SCM by incorporating co-op advertising policy and web design index for increasing demand and influencing customers towards product. These cases are explained in detail in the following. The decision variables in terms of cycle time, shipments, selling prices, and corresponding advertisement costs for the agri-processing firm, supplier and retailers are given in
Table 8.
6.1. Case 01

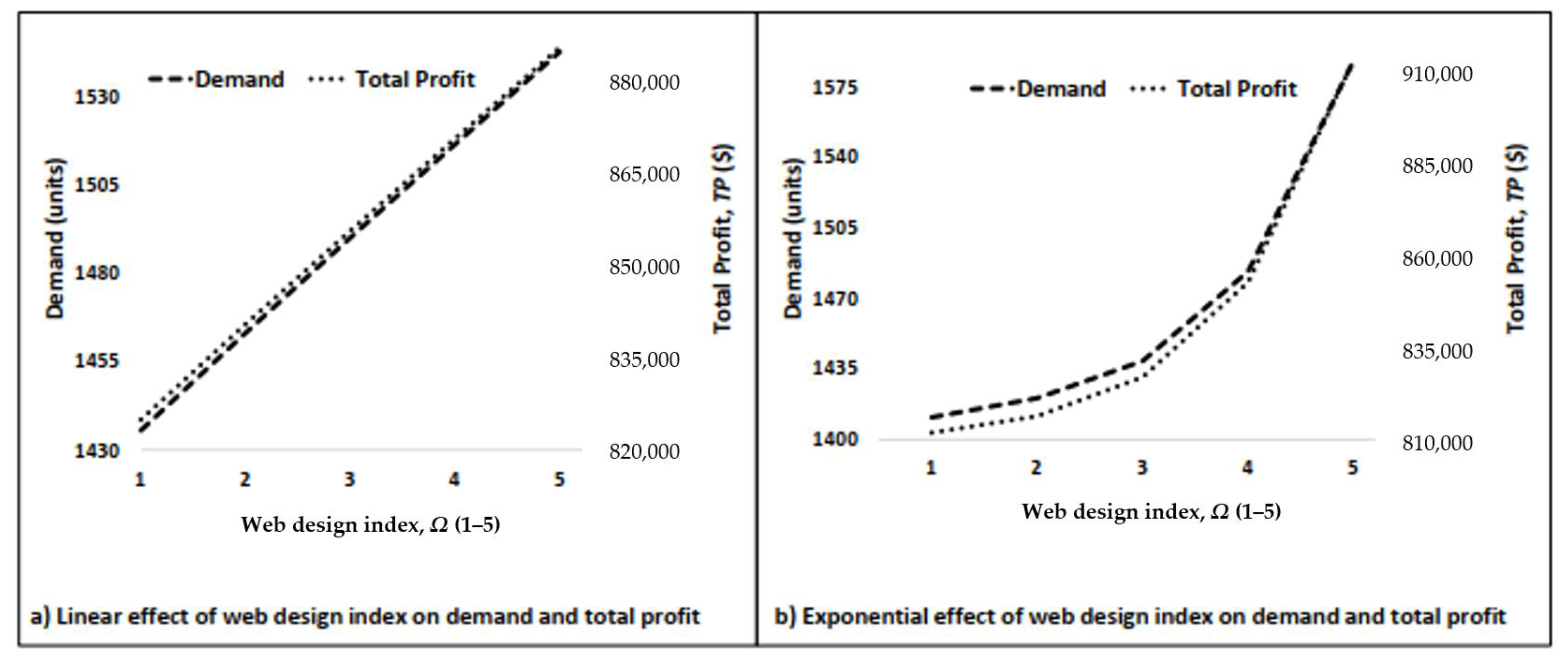

This scenario reflects the proposed cooperative SCM by considering variable advertisement cost as a function of the web design index (WDI), which is well illustrated in
Figure 6, since total advertisement cost is the sum of initial cost (traditional) and variable cost depending on the WDI. The latter is different at different locations (e.g., developing and developed countries, urban and rural, cities and villages, etc.) This is the only case which considers the advertisement cost as an exponential variant of the WDI. This case has no restriction over e-advertisement cooperation share among SC partners. The analysis of the sequential quadratic programming (SQP) showed total profit of SCM as
$827,049.16, with the optimal cycle time, shipments, selling prices, and advertisement shares by the SCM participants. It was observed that selling prices (
$454.8) and shipment sizes (y1 = 1 and y2 = 2) were the same in all cases. The advertisement costs shared by the SCM participants varied depending on the agreement, leader-follower game theory, and advertisement budget constraint.
6.2. Case 02
This case is applicable when the advertisement cost is a linear function of the WDI to attract customers. There is no restriction of the e-advertisement budget by the supply chain participants. In addition, the scenario does not reflect superior or leader/follower SCM. It was observed that the total profit of the SCM obtained as highest among all cases as $856,239.9, where the cycle time was almost 0.227 years and the advertisement costs showed the global optimal values for supplier, agri-processing firm, and multi-retailers in SCM without restriction.
6.3. Case 03
This case reflects the scenario where there is a limitation of the total e-advertisement budget as given in Equation (33) provided by the unequal share of the supplier, agri-processing firm, and retailer. The SCM participants will invest in total e-advertisement within the total limit of the budget for increasing demand. Here again the advertisement cost is taken as the linear function of WDI. Here, the total profit obtained as $832,242.86 was slightly more than Case 1 but comparatively much lower than Case 2.
6.4. Case 04
This case represents the real-life scenario where there is a limitation on the budget of each players of the SCM. Irrespective of Case 03, in this case each participant is restricted to share under the limited budget as expressed by the Equations (34) and (35). This co-op e-advertising policy is undertaken by the optimal equal share of the participants for the promotion of product in various e-markets. The results showed a slight decrease in total profit, i.e., $832,195.13, as compared to the Case 03.
6.5. Case 05
The final case shows the policy of superior supply chain management, where the agri-processing firm is plays the role of a leader in the SCM whereas the supplier and multi-retailer are the followers. In three-echelon supply chain management, the processing is probably on a leading side as compared to supplier and retailers to handle all the main activities of the product life cycle. That is the reason a high profit is expected by the agri-processing firm in supply chain management in case of superior co-op advertisement policy. Agri-processing shares 50%, while the remainder is equally divided by the supplier and multi-retailer for the maximization of the total profit. This case showed the total profit of the three echelon as the lowest among all cases i.e., $82,0931.7.
The optimal solutions from the proposed five scenarios are valuable to the decision-makers for prediction and understanding of the uncertain/variable demand produced by e-marketing via web design index. Furthermore, these results deliver the optimal mode of distributing advertisement expenses among the supply chain partners through a policy of co-op e-advertising collaboration. This policy relies on a common mode of e-marketing, where each supply-chain partner presents the cost on enhancing the web design to advertise agri-products and surge the demand of each vendor/retailer by feedback from the consumers. Consequently, the demand from each vendor/retailer puts pressure on the agri-processing firm as well, thus the supplier is pushed to increase the production, and eventually a high profit is expected. The proposed model is nonlinear in nature and generic to help the decision makers in calculating multi-dimensional variables, i.e., shipment size, cycle time, advertisement share, and selling price of product. The model can be applied to firms and SCM, where the point of interest is to get maximum profit by the collaboration of supplier, manufacturer, and multi-retailer. The proposed model deals with the design of the product website by incorporating advanced elements (WDEs), which are commonly available on various products’ website and justified. The research study shows a practical implication of the proposed model in the agricultural SCM to manage the supply chain network. The numerical experiments are based on the data collected from the agricultural processing firm and its supply chain partners for the pragmatic application of the research. The agricultural firms can take advantages of the digital marketing and blockchain to enhance the agri-product sale and to attain maximum profit. One feature of the proposed model is to provide room for a collaborative policy implementation among the supply chain partners to agree on the exact amount of advertising investment required to enhance profit for the whole supply-chain.
8. Conclusions
The development in e-businesses over the past decades has significantly strengthened the supply chain management (SCM) and given firms a competitive marketing opportunity. Agri-firms are searching for smart technologies to sell their product and to convince their customers with DM-SCM. Digitization considering blockchain effect is essential for the development of a sustainable agri-SCM due to the ease in product traceability, security, ease in transactions, etc. This paper presented a successful co-op e-advertisement collaboration policy among the supplier, agri-processing firm, and retailers in sustainable agricultural product supply chain management (SCM) by enhancing product web design incorporating the blockchain effect to attract customers. Product demand was considered as a variable depending on selling price and advertising cost. Web design elements were filtered to significant ones and later on used to estimate web design index (WDI), which was incorporated in the model against uncertain demand. Further, advertising cost was also considered as a function of the WDI, which was obtained by processing significant web design elements (WDEs) by the combination of the factors of the blockchain and basic design. Analytically hierarchical process (AHP), Pareto analysis, and fuzzy inference system (FIS) were used to identify and select the significant WDIs. The WDI was further incorporated into the mathematical model of the supply chain management (SCM) and calculated a positive effect of enhancing web design elements on the total profit. The results were outstanding in the form of optimal selling prices, shipments, cycle time, and optimal advertisement costs.
The model provides supports the decision-makers for keeping the best-selling prices and optimal e- advertisement share supported by supply chain participants to maximize the total profit of the Agri-SCM. Five different cases were taken based on the e-advertisement budget, partner’s share, and demand curve for the application of the proposed model in real-life industrial problems. It was found that Case 02 shows a maximum profit, where the partners are required to share an optimal e-advertisement cost for digital marketing. The equal share cooperation policy based on advertisement cost exhibited by the participants was reflected in Case 04 for the digital marketing of the product. The results of superior SCM (given in Case 05), where the agri-processing firm is the leader and other participants are the followers showed the lowest profit of SCM. In addition, the research model is also beneficial to the customers by providing an interface of advance digital marketing strategy coupled with blockchain effect for traceability, security, and on time agri-product delivery. The selling prices was also less as compared to the traditional marketing agri-products due to fewer transportation costs and third-party logistics costs. These outstanding results and optimal solutions are very important for the industrial managers and decision-makers to successfully attain global supply chain management through proposed cooperative e-advertising policy.

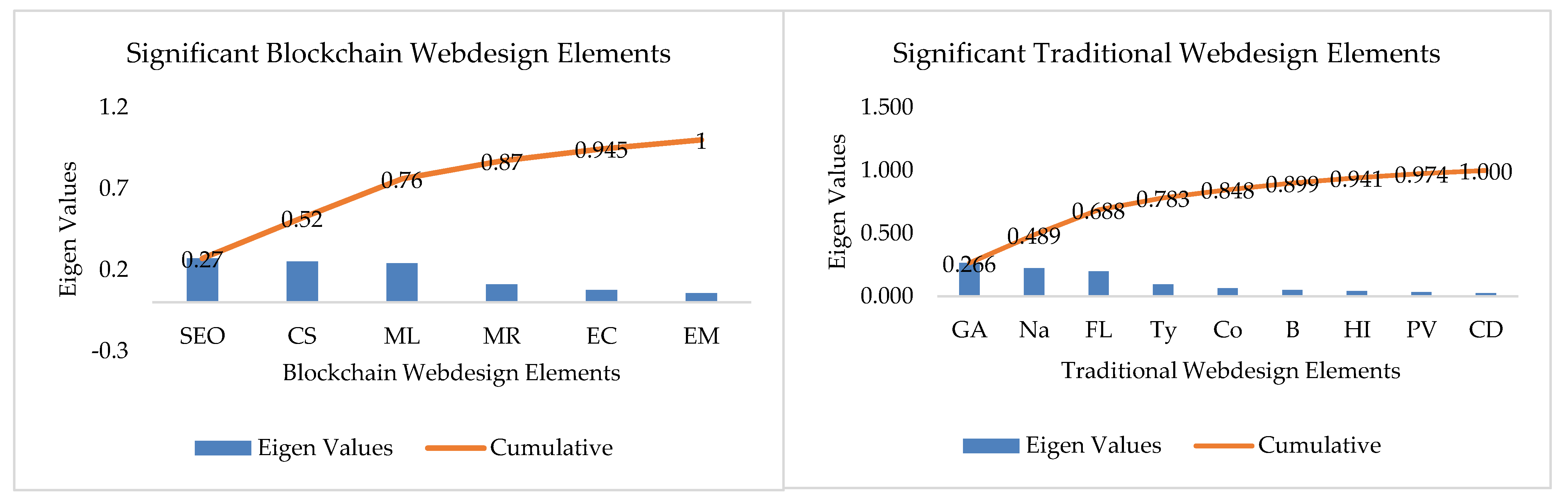

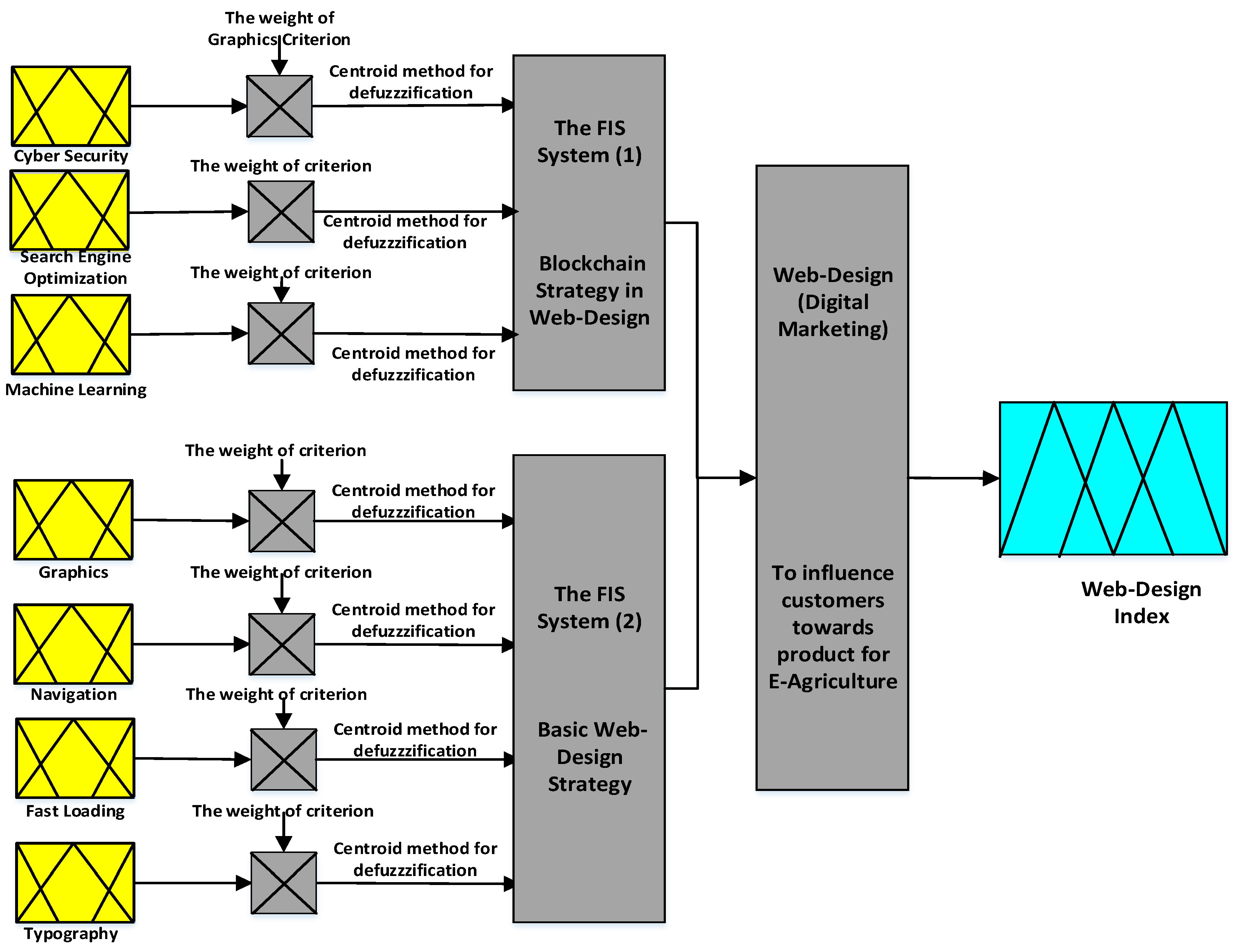

The uncertainties in the proposed model were justified using fuzzy systems. The basic costs of the SCM mathematical model were considered as triangular fuzzy and formulated by using a signed distance method. Similarly, the identification of significant WDEs, i.e., web graphics, search engine optimization, cyber-security, fast loading, and navigation, is essential for digital marketing to convince customers towards the product in global SCM. These WDEs were found to be intangible and have been processed through the centroid method of FIS. These identified significant WDEs can be utilized for the future research and extended research of digital marketing. Moreover, the model incorporated carbon emission cost for providing cleaner environment and eco-effective production at supply chain level. The proposed mathematical model can be extended towards stochastic by considering expected demand and other important parameters of the SCM. The cooperation can be based on the whole sale price or selling price of the product. Overall, the research is a significant contribution by specifically targeting web design in the field of digital marketing for global SCM.
