Evaluation of Greenhouse Gas Emissions from Reservoirs: A Review

Abstract

In order to evaluate the greenhouse gas (GHG) emissions from a reservoir or from several reservoirs in a country or a climatic zone, simpler or more complex models based on measurements and analyses of emissions presented in the literature were developed, which take into account one or more reservoir-specific parameters. The application of the models in the assessment of GHG emissions from a multipurpose reservoir gave values that are more or less close to the average values reported in the literature for the temperate zone reservoirs. This is explained by the fact that some models only consider emissions caused by impoundment and not degassing, spillway emissions, and downstream emissions, or those that use different calculation periods. The only model that calculates GHG emissions over the life cycle that occur pre-impoundment, post-impoundment, from unrelated anthropogenic sources and due to the reservoir construction is the model used by the G-res tool. In addition, this tool is best suited for multipurpose reservoirs because it allocates GHG emissions for each use, thus facilitating the correct reporting of emissions. The G-res tool used to calculate GHG emissions from the Stânca-Costești Multipurpose Reservoir shows that this is a sink of GHG with a net emission of −5 g CO_2eq/m²/yr (without taking into account the emissions due to dam construction).

1. Introduction

Reservoirs are manmade lakes created by building dams on rivers for various purposes: flood control, electricity generation, irrigation, water supply, aquaculture, environmental services, recreational activities, navigation etc.

In freshwater ecosystems, several mechanisms are involved in the natural carbon cycle. They receive carbon from terrestrial ecosystems through drainage, capture the carbon through primary production, bury the carbon in sediments, emit GHG through biomass degradation and respiration, and transport the carbon downstream to the seas or oceans. GHG emissions can be increased by human activities around the ecosystem through sewage and agricultural pollution. Dams affect the natural carbon cycle in freshwater ecosystems through floods of terrestrial vegetation and soils. The flooded organic matter decomposes causing additional GHG emissions, especially in the first years after the reservoir creation. Flooding can also increase sedimentation and decomposition in the reservoir, due to longer water residence times, which can lead to higher GHG emissions [1]. In addition, reservoirs can have large fluctuations in the water level, especially hydroelectric reservoirs that store large volumes of water to be used during drought. It can, therefore, be said that artificial reservoirs differ from natural lakes by riverine nutrient inputs, the flooding of terrestrial organic carbon, and water-level fluctuations; they also may have different GHG emissions. Reservoirs present, from a social, economic and environmental point of view, not only advantages, but also disadvantages.

Reservoir use can serve single or multiple purposes. According to the International Commission on Large Dams (ICOLD), 70% of large reservoirs are designed for single-purpose usage. Around 11% of large reservoirs have been built only for hydropower generation and 14% for hydropower generation plus other uses. These high figures show why GHG emissions from reservoirs should be accounted for. In addition, the study of these emissions indicates ways to reduce them.

The main greenhouse gases emitted by a reservoir are CO₂, CH₄ and N₂O. They have a different global warming potential (GWP). For the time period of 100 years, GWP for CO₂ is 1; for CH₄, it is 34 times higher than that of CO₂, and for N₂O, it is 298 times that of CO₂ [2].

The CO₂ is generated by the decomposition of organic material and nutrients transported in the reservoir by affluent or by rainfall and overland flow, by the decomposition of dead organic matter stored in the soil of the reservoir, by the respiration of vegetation present in the reservoir, from CO₂ dissolved in water and from the oxidation of CH₄. The sediments in drawdown areas are also a source of CO₂ emission, due to their exposure to air during water level fluctuations.

The emission of CH₄ comes from the decomposition of organic matter and vegetation under anaerobic conditions in the soil or sediment layer of the reservoir.

Nitrous oxide (N₂O) arises as a by-product of the aerobic nitrification reaction or of the anaerobic denitrification that occurs in lake riparian areas. The few measurements of N₂O emission from reservoirs showed a variation similar to that of CH₄ in terms of generation. The contribution of N₂O to the total GHG emission expressed as an CO₂ equivalent is low, compared to CH₄ și CO₂ (N₂O—17 mg CO_2eq/m²/d; CH₄—275 mg CO_2eq/m²/d and CO₂—1585 mg CO₂/m²/d) [3].

GHG (CO₂ and CH₄) reaches the atmosphere through the following channels: diffusive flow from the reservoir surface, through degassing when passing through the hydraulic turbine and spillway (due to pressure drop), through diffusive flow at the downstream river surface. Methane can also reach the surface of the reservoir through bubbling in shallow areas of reservoir.

The main factors influencing GHG emissions are the carbon stock in soil and flooded biomass or that transported by the upstream rivers in reservoirs; the concentration of dissolved oxygen in the reservoir; water quality and nutrient content; the inflow and shape of the reservoir; the water depth and extension of the littoral zone; the wind speed at the reservoir surface; and the water temperature and configuration of dam intake and outlets [3]. These factors influence the biochemical processes of organic matter formation, respiration, methanogenesis, CH₄ oxidation, gas exchange between the reservoir and the atmosphere. The GHG measurements showed a variation in time and space within a reservoir and also a seasonal variation and a decrease in general with the age of the reservoir.

There are many studies on the evaluation of GHG emissions from reservoirs, which differ by the methodologies used, the lifespan considered, and the size and type of reservoir [1,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39].

Most studies have analyzed GHG emissions from hydropower reservoirs. The few studies performed on natural lakes have shown that there are no significant differences between reservoir surface emissions from hydropower reservoirs, compared to non-hydropower reservoirs [10]. At hydropower reservoirs, there are also degassing emissions, downstream emissions and emissions from drawdown zones.

From the analysis of GHG emissions from 85 different hydroelectric reservoirs with a global distribution, it was observed that all the reservoirs are sources of CH₄ to the atmosphere, the majority (88%) are also a source of CO₂ (only 12% of reservoirs are net sinks of CO₂) and that there is a large variation in emissions [5].

Knowing the GHG emissions generated by reservoirs is an important factor in making decisions to finance future projects and discerning how environmentally friendly they are.

The purpose of this study is to review the main methodologies for assessing GHG emissions from a reservoir, find the most appropriate model to estimate GHG emissions from a multipurpose reservoir, and present the complete environmental performance of a reservoir placed in the temperate zone of Eastern Romania, a country for which data are limited. On the Romanian territory, there are about 400 large reservoirs totaling 6300 million m³. The chosen Stânca-Costești reservoir is one of the representative reservoirs, being the second largest in the country.

The models used both for reservoirs for any purposes other than power generation and for hydropower reservoirs are presented. The results obtained are presented comparatively to help stakeholders in identifying and choosing the calculation method.

2. Assessment of GHG Emissions from the Reservoirs

Because measuring GHG emissions from reservoirs is not an easy task due to the large variation in time and space, especially of CH₄ emissions, several methodologies for their evaluation were developed. All methodologies are based on measurements of emissions from reservoirs located in different climatic zones. The different emission values reported in the literature show the influence of specific reservoir factors, such as type, climate zone, age and depth of the reservoir, neighboring land cover types, land uses before flooding and others.

Table 1. GHG emissions from reservoirs and freshwater ecosystems [10].

System Type	GHG Areal Rate, (mg/m2/d)		CO2 Equivalent Emissions, CO2eq, (g/m2/yr)
	CH4	CO2
All reservoirs	160.8	1207.8	2436.38
	110–128	1822.68	2695.66–2253.76
Hydroelectric reservoirs	32.16–150	1412–2415	914.49–2742.98
Lakes	53.6	790.56	953.73
Ponds	36.18	1544.52	1012.74
Rivers	8–131	29,111.64	10,725.03–12,251.46
Wetlands	20–84	-	248.20–1042.44

shows the estimated GHG emissions from different types of reservoirs and freshwater ecosystems [10].

In paper [16], an average global GHG emission is reported (reservoir surface plus drawdown area emissions and reservoir downstream emissions) from the hydropower reservoirs of 92 g CO₂/kWh and 5.7 g CH₄/kWh.

As stated in [32], the lifecycle GHG emissions from hydropower plants range from 1 g CO_2eq/kWh to 2200 g CO_2eq/kWh with an average value of 24 g CO_2eq/kWh.

A distribution by the source of GHG emission from hydropower reservoirs from different climatic zones is presented in

Table 2. GHG emissions from hydroelectric reservoirs [16,28].

Climate Zone	Carbon Emission, (mg/m2/d)
	CO2	CH4
Reservoir surface
Boreal	753	9.1
Temperate	1500 [16]	20 [16]
	386 [28]	2.8 [28]
Tropical	3097	91.3
Drawdown area
Temperate	2110	110
Tropical	3500 [16]	300 [16]
	13,000 [28]	235 [28]

[16,28]. The large variation from one climate zone to another can be seen as well as the higher contribution of emissions from drawdown areas and the contribution of CO₂ emissions to the total emissions.

The contribution to GHG emissions related to reservoir construction, meaning those from the activities related to dam construction (raw material extraction, equipment manufacturing, transportation, and building process of dam), is estimated to be (2.3–37.9) gCO_2eq/kWh [27].

In paper [26], an average global emission of 173 kg CO₂/MWh and 2.95 kg CH₄/MWh was estimated after the emissions from over 1400 hydroelectric power plants were analyzed. The study emphasizes the importance of analyzing each hydropower plant and the need for standardized measurement procedures, taking into consideration carbon burial, drawdown areas and methane bubbles. Additionally, in this paper [26], the following models were developed using generalized linear models:

• CO₂ emission expressed in kg CO₂/MWh as a function of the area-to-electricity ratio (ATER, km²/GWh) and reservoir area (S, km²):

  $${\mathrm{CO}}_2=-169.73+241.86\times \mathrm{ATER}+120.34\times \ln \left(\mathrm{S}\right),\mathrm{kg}{\mathrm{CO}}_2/\mathrm{MWh}$$

  (1)
• CH₄ emission expressed in kg CH₄/MWh as a function of the reservoir age (A, years), area-to-electricity ratio (ATER, km²/GWh) and maximum temperature (T_max, °C):

  $$\ln \left({\mathrm{CH}}_4\right)=-9.81-0.75\times \ln \left(\mathrm{A}\right)+1.18\times \ln \left(\mathrm{ATER}\right)+4.5\times \ln \left({\mathrm{T}}_{\max }\right),\mathrm{kg}{\mathrm{CH}}_4/\mathrm{MWh}$$

  (2)

GHG emission expressed in mg C/m²/d, which can also be used in the case of reservoirs with a use other than energy production, depending on the reservoir age (A, years), erosion rate (Er, t/ha/yr), reservoir area (S, km²) and maximum temperature (T_max, °C):

$${\mathrm{CO}}_2=494.46-4.07\times A+8.09\times \mathrm{Er},\mathrm{mg}{\mathrm{CO}}_2/{\mathrm{m}}^2/\mathrm{d}$$

(3)

$$\ln \left({\mathrm{CH}}_4\right)=-12.84-0.03\times A+0.21\times \ln \left(\mathrm{S}\right)-0.01\times \mathrm{Er}+4.88\times \ln \left({\mathrm{T}}_{\max }\right),\mathrm{mg}{\mathrm{CH}}_4/{\mathrm{m}}^2/\mathrm{d}$$

(4)

In [5], CO₂ and CH₄ emissions from 85 reservoirs between 68° N and 25° S were analyzed. The reservoir surface emissions were estimated, correlated to reservoir age (A, years) and latitude (L, °), dissolved organic carbon (DOC, mg/L) and mean reservoir depth (h, m). Based on the measured data, the CO₂ and CH₄ emissions were predicted, using the following multiple-regression equations:

$$\log \left({\mathrm{CO}}_2+400\right)=3.06-0.16\times \log \left(\mathrm{A}\right)-0.01\times \mathrm{L}+0.41\times \log \left(\mathrm{DOC}\right),\mathrm{mg}{\mathrm{CO}}_2/{\mathrm{m}}^2/\mathrm{d}$$

(5)

$$\log \left({\mathrm{CH}}_4\right)=1.33-0.36\times \log \left(\mathrm{A}\right)-0.32\times \log \left(\mathrm{h}\right)+0.39\times \log \left(\mathrm{DOC}\right)-0.01\mathrm{L},\mathrm{mg}{\mathrm{CH}}_4/{\mathrm{m}}^2/\mathrm{d}$$

(6)

Ref. [38] presented a calculation tool called HydroCalculator, which, in addition to calculating financial indicators, also calculates greenhouse gas emissions. The biome carbon loss (BCL) model based on the initial carbon stock is used to calculate GHG emissions:

$${\mathrm{C}}_{\mathrm{t}}={\mathrm{C}}_0\left(\frac{{\mathrm{e}}^{-0.3\mathrm{t}}}{5}+\frac{{\mathrm{e}}^{-0.03\mathrm{t}}}{3}+\frac{1}{2}\right),\mathrm{tonne}\mathrm{C}/\mathrm{yr}$$

(7)

where C_t is the amount of carbon (CO₂ and CH₄) in tonnes in the year t, C₀ is the initial amount of organic carbon in soil and vegetation in tonnes, and t is the time in years.

This model calculates only GHG emissions from the decomposition of organic matter, not GHG emissions from turbines and spillway.

Paper [38] calculated the proportion of carbon emitted as CO₂ and CH₄, observing that CO₂ emissions are 73% of carbon emissions and CH₄ emissions are 27%. Carbon emissions can be converted to CO₂ and CH₄ by multiplying the values by 44/12 and 16/12, respectively. CH₄ emissions are converted to CO₂ equivalents by multiplying the global warming potential of CH₄ specified in IPCC’s Fifth Assessment Report [33].

Ref. [39] presented, in addition to Equation (7), two other calculation equations of CH₄ emissions, from the organic matter cycle (OMC model) (Equation (8)) and downstream emissions (from turbines and spillways) (downstream emission model) (Equation (9)):

$${\mathrm{E}}_{\mathrm{OMCM}}=10\left(15.5{\mathrm{S}}^{0.841}+1.73{\mathrm{S}}^{0.927}+35.2A^{0.649}\right),\mathrm{g}{\mathrm{CH}}_4/\mathrm{yr}$$

(8)

$${\mathrm{E}}_{\mathrm{DEM}}=\mathrm{Q}\times \mathrm{d}\times \mathrm{c}\times \mathrm{t},\mathrm{g}{\mathrm{CH}}_4/\mathrm{yr}$$

(9)

where S is the reservoir surface area (m²); Q is the waterflow (m³/d); d is the effective emission assumed to be 50% to 80%; c is the CH₄ concentration in turbine/spillway water intakes (g/m³); and t is the annual operation of spillways (1/4 year) and turbines (3/4 year) (days).

In paper [6], their own measurements of methane emissions from reservoirs were analyzed together with the emissions from 49 other reservoirs from temperate and boreal zones in order to find the best mathematical relations for estimating emissions according to the characteristics of the reservoirs. The following regression equations for bubbling, diffusive and storage emissions were proposed:

• CH₄ bubbling emission:

  $${\left({\mathrm{CH}}_4\right)}_{\mathrm{bub}}={10}^{0.838+0.934\times \log \left(\mathrm{S}\right)+0.881\times \log \left(\mathrm{TP}\right)},\mathrm{g}{\mathrm{CH}}_4/\mathrm{yr})$$

  (10)
• CH₄ diffusive emission:

  $${\left({\mathrm{CH}}_4\right)}_{\mathrm{diff}}={10}^{0.234+0.927\times \log \left(\mathrm{S}\right)},\mathrm{g}{\mathrm{CH}}_4/\mathrm{yr}$$

  (11)
• CH₄ storage emission:

  $${\left({\mathrm{CH}}_4\right)}_{\mathrm{stor}}={10}^{7.068+3.304\times \log \left(\mathrm{TP}\right)-1.904\times \log \left(\mathrm{DOC}\right)},\mathrm{g}{\mathrm{CH}}_4/\mathrm{yr}$$

  (12)

  where S is the reservoir area (m²), TP is the concentration of total phosphorous (μmol/L), and DOC is the concentration of dissolved organic carbon (mg C/L).

The International Energy Agency Hydropower Implementing Agreement on Hydropower Technologies and Programs (IEA Hydro) developed a framework, which describes the steps for data collection and analysis and the modeling tools to estimate the GHG emissions from a reservoir on the principles of net emissions defined by the IPCC. The estimation of GHG emissions from reservoirs is based on the analysis of the collected data and four elements of the new reservoir projects (flooded area, reservoir, upstream catchment area, reservoir outflow facilities, downstream river) [35].

The International Government Panel on Climate Change guidelines [2] recommend estimating the diffusion emission of CO₂ from reservoirs by using the following equation:

$${\left({\mathrm{CO}}_2\right)}_{\mathrm{diff}}=\mathrm{P}\times \mathrm{E}{({\mathrm{CO}}_2)}_{\mathrm{diff}}\times \mathrm{S}\times {10}^{-3},\mathrm{tonne}{\mathrm{CO}}_2/\mathrm{yr}$$

(13)

where (CO₂)_diff is the total CO₂ emission from the reservoir, tonne CO₂/yr; P is the number of days without ice cover during a year, days/yr; and E(CO2)diff is the average daily diffusive emissions, kg CO2/ha/d (

Table 3. CO₂ measured emissions for flooded land [2].

Climate	Diffusive Emission (Ice-Free Period) E(CO2)diff (kg CO2/ha/d) Range and Median Values
Boreal wet	(0.8–34.5) 11.8
Cold temperate, moist	(4.5–86.3) 15.2
Warm temperate, moist	(−10.3–57.5) 8.1
Warm temperate, dry	(−12.0–31.0) 5.2
Tropical, wet	(11.5–90.9) 44.9
Tropical, dry	(11.7–58.7) 39.1

).

To these emissions must be added the degassing emissions, which represent up to 30% of the total CO₂ emissions from reservoirs in a temperate moist region and less than 5% in cold temperate regions.

For a preliminary estimate of the total annual CH₄ emissions (reservoir surface emissions plus emissions originating from reservoir but emitted downstream of dam) from reservoirs older than 20 years, the 2019 Refinement to the 2006 IPCC Guidelines for National Greenhouse Gas Inventories, Volume 4: Agriculture, Forestry and Other Land Use (Chapter 7: Wetlands) [36] recommend the following equation with the emission factors derived from the G-Res model given in Table 2:

$${\left({\mathrm{CH}}_4\right)}_{\mathrm{tot}}={\left({\mathrm{CH}}_4\right)}_{\mathrm{res}}+{\left({\mathrm{CH}}_4\right)}_{\mathrm{downstream}}=\mathsf{\alpha }\times {\mathrm{EF}}_{{\mathrm{CH}}_4}\times \mathrm{S}+\mathsf{\alpha }\times {\mathrm{EF}}_{{\mathrm{CH}}_4}\times \mathrm{S}\times {\mathrm{R}}_{\mathrm{d}},\mathrm{kg}{\mathrm{CH}}_4/\mathrm{yr}$$

(14)

where (CH₄)_res is the annual reservoir surface emissions of CH₄ from reservoirs > 20 years old, kg CH₄/yr; (CH₄)_downstream is the annual emissions of CH₄ emitted downstream of dam, kg CH₄/yr; EF_CH4 is the emission factor for CH₄ emitted from the reservoir surface, kg CH₄/ha/yr (

Table 4. CH₄ Emission factors EF_CH4 age > 20 [36].

Climate Zone	Average Values (kg CH4/ha/yr)
Cool temperate	54.00
Warm temperate/dry	150.90
Warm temperate/moist	80.30

); R_d is a constant equal to the ratio of total downstream emission of CH₄ to the total flux of CH₄ from the reservoir surface, (median value of R_d is 0.09); α is the emission factor adjustment for the trophic state in the reservoir (it can be estimated from the trophic index (TI), total phosphorus (TP), total nitrogen (TN) and Secchi depth (SD), and mean annual chlorophyll-a concentration in the reservoir (Chl-a)) (

Table 5. Relationship between TI, Chl-a, TP, TN, SD, trophic class and trophic state adjustment factor [36].

TI	Chl-a (μg/L)	TP (μg/L)	TN (μg/L)	SD (m)	Trophic Class	Trophic State Adjustment Factor, α Range and Recommended Values
<30–40	0–2.6	0–12	-<350	>4	Oligotrophic	0.7 (0.7)
40–50	2.6–20	12–24	−350–650	2–4	Mesotrophic	0.7–5.3 (3)
50–70	20–56	24–96	650–1200	0.5–2	Eutrophic	5.3–14.5 (10)
70–100+	56->155	96->384	>1200	<0.5	Hypereutrophic	14.5–39.4 (25)

).

Paper [36] also recommends the use of the greenhouse gas reservoir (G-res) model as “currently the only easily and widely applicable model” that uses empirical relationships between environmental drivers and emissions to estimate reservoir GHG fluxes. The International Hydropower Association (IHA) in cooperation with the UNESCO Chair in Global Environmental Change has developed a detailed measurement guide for net GHG assessment [37] and the powerful and user-friendly G-res tool to assess GHG emissions [21]. Scientists from the University of Quebec at Montreal (UQAM), the Norwegian Foundation for Scientific and Industrial Research (SINTEF) and the Natural Resources Institute of Finland (LUKE) have also contributed to the development of the G-res tool [22]. The free online G-res tool (https://g-res.hydropower.org/ accessed on 5 May 2021) estimates the GHG emissions resulting from the impoundment of an existing or planned reservoir and emissions related to human activities and infrastructure. The modeling of GHG emissions (diffusive CO₂ flux, diffusive CH₄ flux, bubbling of CH₄ and CH₄ degassing) is based on the statistical analysis of gross emissions from 223 reservoirs in all climatic zones considering the following key governing variables: temperature, reservoir age, littoral area, solar radiance, phosphorous concentration in the reservoirs, soil carbon content, operating regime of reservoir, climate zone, land cover, reservoir area and soil type. The user of the G-res tool should prepare the input data before accessing the tool. The estimated net annual GHG emissions from a hydropower reservoir result from subtracting the pre-impoundment emissions and emissions from the reservoir due to unrelated anthropogenic sources (activities within the catchment as sources of nutrients and carbon flowing into the reservoir) from the post-impoundment emissions. The total annual GHG emissions are calculated by adding to the net annual emissions the emissions related to reservoir construction.

3. Case Study: The Stânca-Costești Multipurpose Reservoir

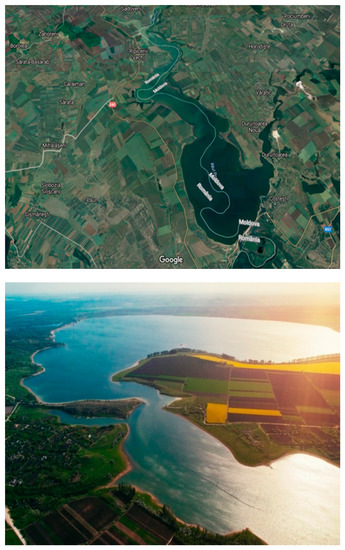

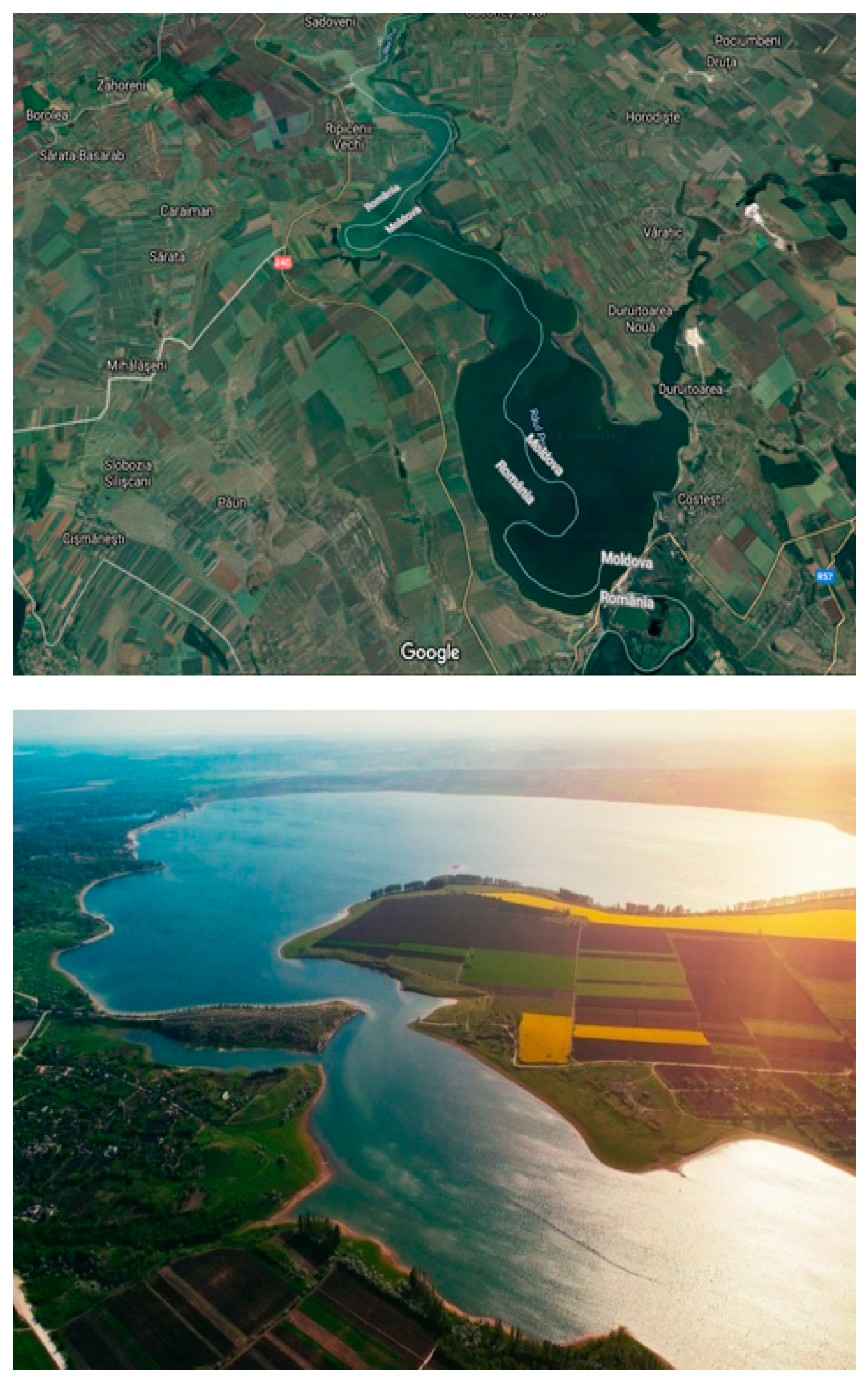

The Stânca-Costeşti (Figure 1) multipurpose reservoir is located on the middle course of the Prut River, on the border between Romania and the Republic of Moldova. It was built between 1973 and 1978. It has an area of 6000 ha at normal retention level (NRL) and a maximum volume of 1400 million m³. In the Romanian Register of Large Dams, the Stânca-Costeşti reservoir appears on the 49th place in order of height and on the second place, according to the useful volume of the reservoir (1290 million m³, after the Iron Gates I with 2100 million m³). The length of the reservoir, at normal retention level (NRL 90.80 m), is 70 km, and the length at maximum level (Nmax 99.50 m) is 90 km. The surface of the reservoir at normal retention level (NRL), is of 6000 ha and at maximum level (Nmax) is of 9200 ha. The reservoir has a reserve provided for flood control of 550 million cubic meters, which ensures the removal from flood risk of 100,000 ha of agricultural land, irrigation of 140,000 ha (70,000 on each shore), ensuring the necessary flows for water supply downstream (10–16 m³/s) and energy production with the help of two power plants with a hydro unit of 15 MW, at a flow rate of 2 × 65 m³/s with an average annual energy supply of 2 × 65 GWh [40,41].

To build the reservoir, eight villages were relocated on both banks of the Prut River. The surface of the river basin of the Prut River in the Stânca-Costesti section is about 12,000 km², and the average multiannual flow is 81 m³/s.

The dam, made of concrete and local materials, uses the favorable morphological situation due to the presence of calcareous reefs, which reduce the average width of the major riverbed from 3–4 km to 400 m.

The GHG emission from the multipurpose reservoir Stânca –Costești is estimated by using the above mentioned modeling methodologies and the powerful web-based tool G-res. The input data required by the G-res tool are given in

Table 6. Data on the multipurpose reservoir Stânca-Costești [45].

Catchment Information	Value
Catchment area	12,000 km2
Population in the catchment	150,000
Precipitation	380 mm/yr
Catchment annual runoff	10 m3/s [46]
Community wastewater treatment	None
Industrial wastewater treatment	None
Land cover in the catchment area	Post-impoundment	Pre-impoundment
Croplands	64%	64%
Grassland	18%	19%
Forest	16%	16%
Water bodies	2%	1%
Reservoir Information
Country	Romania
Longitude of dam	27°14′00″ E
Latitude of dam	47°51′30″ N
Climate zone	Temperate
Water uses	flood control, water supply (10 m3/s), irrigation (0.8 km3/yr), hydroenergy, aquaculture (2.9 m3/s)
Impoundment year	1978
Power generation	30 MW
Power connection	110 V
Yearly electricity generation	130 GWh
Reservoir area	59 km2
Reservoir volume (multiannual average)	1.4 km3
Water Level (m above sea level)	126 m
Maximum depth	32 m
Mean depth	23.33 m (Calculated by the G-res Tool)
Littoral area	3.59% (Calculated by the G-res Tool)
Water intake depth	28 m
Soil carbon content under impounded area	0.8 kg C/m2
Annual wind speed at 10 m	6.6 m/s
Water residence time	11.68 yr (Calculated by the G-res Tool)
Annual discharge from the reservoir	3.8 m3/s (Calculated by the G-res Tool)
River Length before Impoundment (m)	70,000 m
Reservoir mean global horizontal radiance	3.24 kWh/m2/d
Mean annual air temperature	13.3 °C
Construction information
Material excavated and/or used for construction	500,000 m3
All concrete brought to site for the dam, tunnels, foundations	4,000,000 m3
All steel brought to site for reinforcement, pipelines, mechanical and electrical equipment	5000 tonne

, and the input data for the other models are the following: dissolved organic carbon concentration in reservoir water (DOC = 6.5 mg/L), maximum temperature (T_max = 30 °C); ice-free period (IFP = 319 days/yr); mean annual chlorophyll-a concentration in reservoir (Chl-a = 10 mg/L) [41] organic carbon in soil and vegetation (C₀ = 50 tonne C/ha) [42]; erosion rate (Er = 0.5 t/ha/yr) [43]; and concentration of total phosphorous in reservoir water(TP = 0.97 μmol/L).

To determine the average water volume of the Stânca-Costeşti reservoir, the daily records made by the “Romanian Waters” National Administration (“Prut-Bârlad” Water Basin Administration) in the period 2002–2018 were used.

4. Results and Discussions

Using the models presented above and the G-res tool to evaluate the GHG emissions from the Stânca-Costești multipurpose reservoir, we obtained the results given in

Table 7. Comparison of different approaches to estimate reservoir emissions.

Model		Emissions
		CO2			CH4			CO2eq (GWP100 for CH4 = 34)
		mg/m2/d	kg/MWh	tonne/yr	mg/m2/d	kg/MWh	tonne/yr	mg/m2/d	kg/MWh	tonne/yr
Scherer 2016 [26]		327.56	155.88	-	28.57	5.93	-	1298.94	210.72	27,972.67
Barros 2011 [5]		414.35	-	-	1.15	-	-	453.65	73.59	9769.44
IPCC 2006 [2]		520	-	10,124.4	-	-	-	520	77.88	10,124.4
IPCC 2019 [36]		-	-	-	13.11	-	287.10	445.73	72.31	9761.40
Total		520	-	10,124.4	13.11	-	287.10	965.73	150.19	19,885.80
Bastviken 2004 [6]	Bubbling	-	-	-	2.46	-	53.88	83.65	13.57	1831.91
	Diffusion	-	-	-	1.27	-	27.82	43.19	7.01	945.86
	Storage	-	-	-	0.18	-	3.93	6.10	0.99	133.51
	Total	-	-	-	3.91	-	85.63	132.93	21.56	2911.27
Vilela 2017 [38]		-	-	1141.04	19.27	-	422.03	3497.3	567.34	15,490.06
Bergier 2007 [39]	OMCM	-	-	-	39.24	-	859.321	1334.11	216.42	29,216.91
	DEM	-	-	-	18.25	-	399.72	620.57	100.67	13,590.48
G-res tool [22]	Post-impoundment	205.48	-	4425.00	2.98	-	64.21	306.85	50.83	6608.00
	Pre-impoundment	216.44	-	4661.00	3.06	-	65.94	320.55	53.10	6903.00
	Unrelated Anthropogenic Source (UAS)	0.00	-	0.00	2.98	-	64.21	101.37	16.79	2183.00
	Net reservoir emission	−10.96	0.00	−236.00	−3.06	0.00	−65.94	−115.07	−19.06	−2478.00

.

There are only three models (Scherer; Barros, Villela) and the G-res tool that calculates both CO₂ and CH₄ emissions. The only model that calculates the net GHG emission (post-impoundment emission minus pre-impoundment emission minus emissions from unrelated anthropogenic sources) is the G-res tool. It is also the only model that allows estimating GHG emissions related to reservoir construction, and which calculates the emissions related to each use of the reservoir (in the case of multipurpose reservoirs).

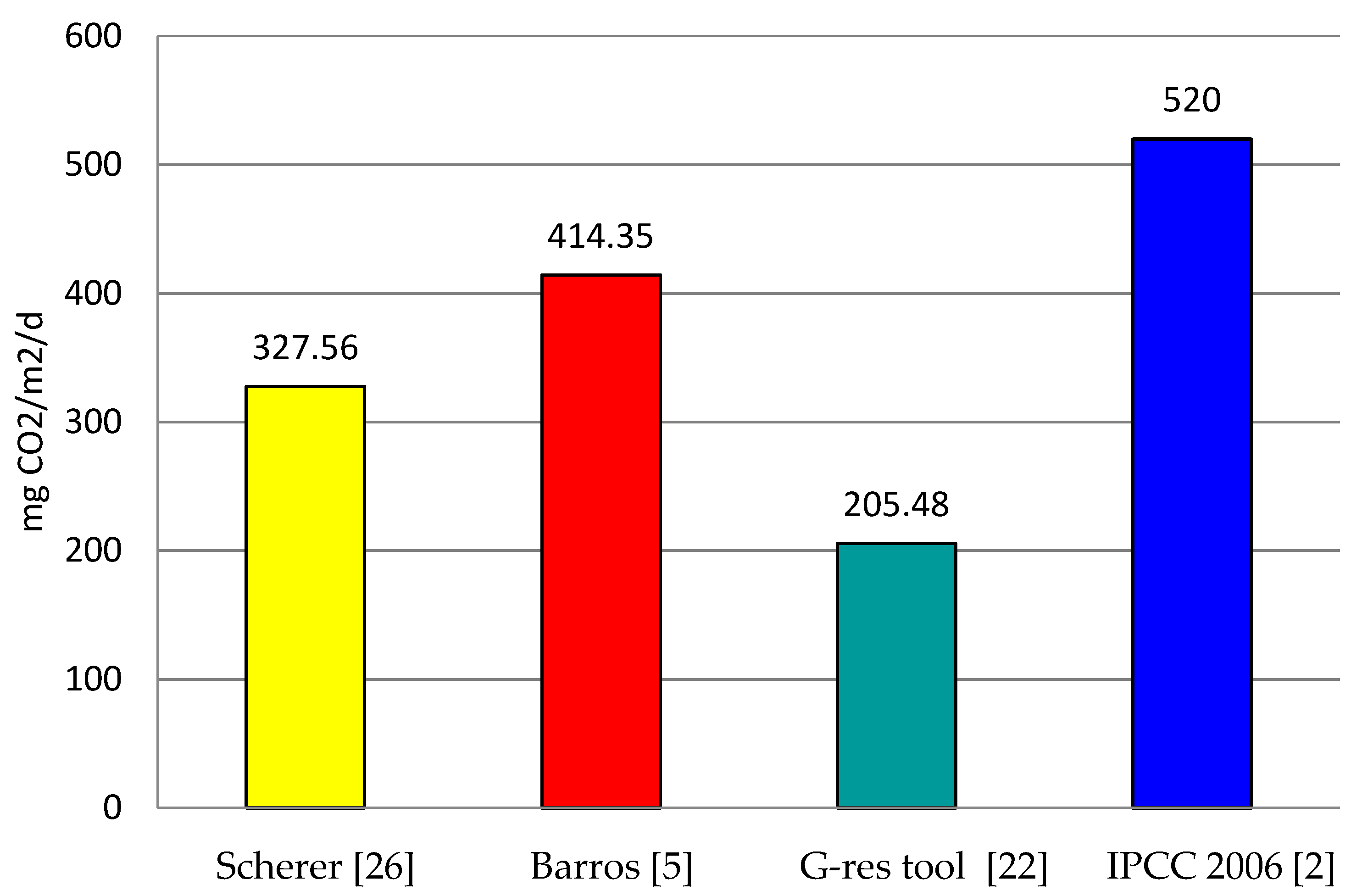

Regarding the CO₂ emission, the IPCC 2006 model (based on measured emissions) gave the largest emission (520 mg CO₂/m²/d), followed by the Barros model (which takes into account the reservoir age and dissolved organic carbon (414.35 mg CO₂/m²/d)), the Scherer model (which takes into account the reservoir age and erosion rate (327.56 mg CO₂/m²/d)), and the G-res tool (which gave the lowest emission (205.48 mg CO₂//m²/d)) (post-impoundment) (Figure 2).

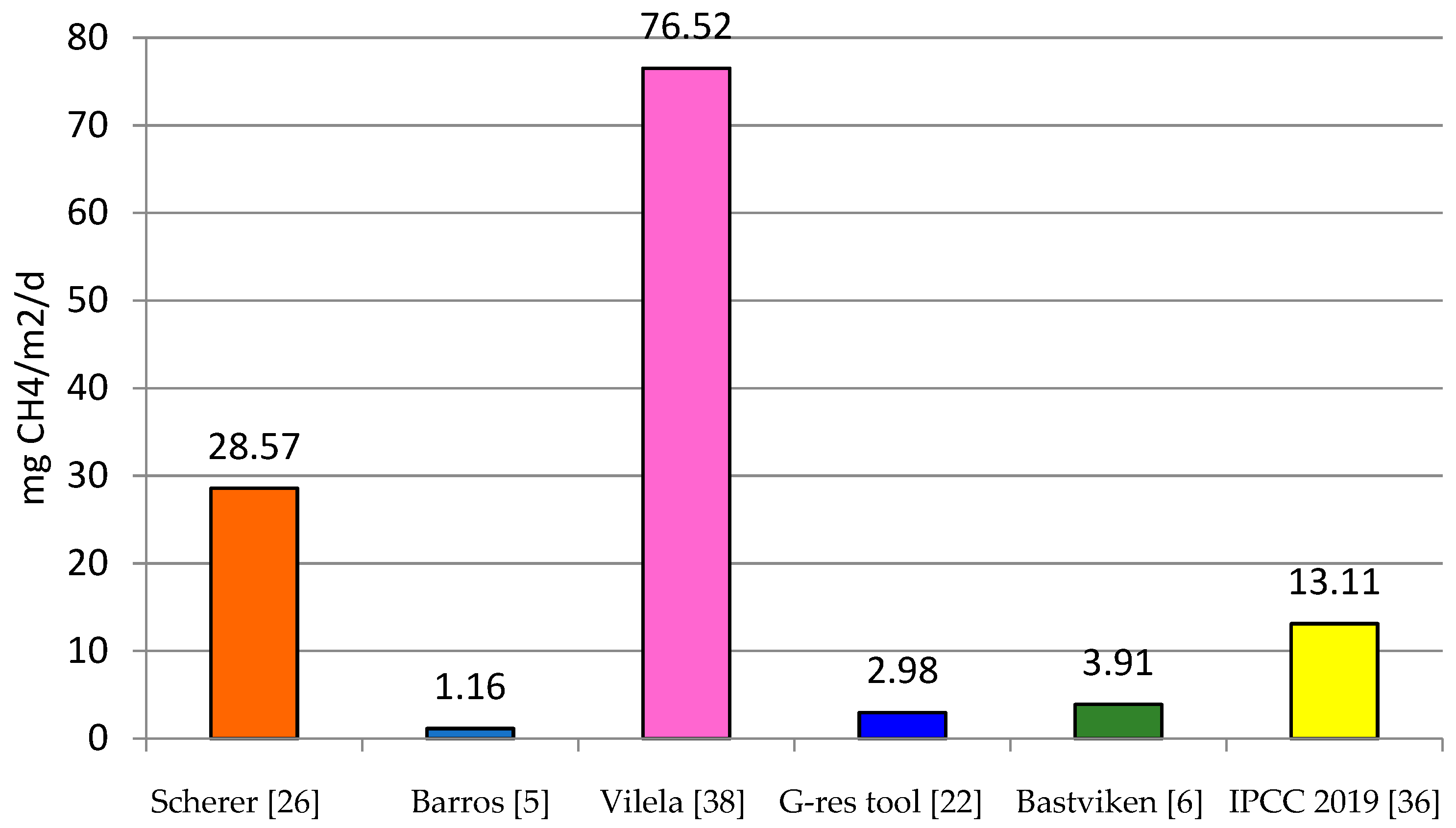

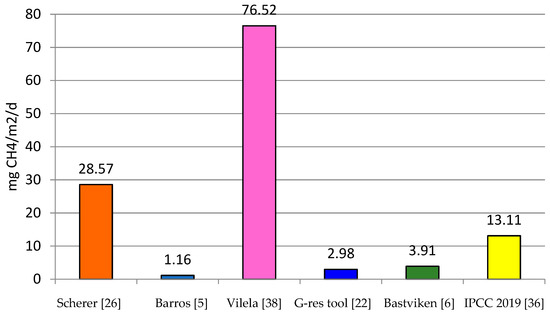

The values obtained for methane emission can be divided into two groups: a group of high values and a group of low values. The first group includes the Vilela plus Bergier model with 76.52 mg CH₄/m²/d, the Scherer model with 28.57 mg CH₄/m²/d and the IPCC 2019 model with 13.11 mg CH₄/m²/d. The second group includes the Bastviken model with 3.91 mg CH₄/m²/d, the G-res tool with 2.42 mg CH₄/m²/d (post-impoundment) and the Barros model with 1.16 mg CH₄/m²/d (Figure 3).

The G-res tool indicates that the reservoir has a negative net GHG emission of −819 mg CO_2eq/m²/d, which means that the reservoir is a carbon sink, with a lower emission after impoundment (403 mg CO_2eq/m²/d) than before impoundment (1222 mg CO_2eq/m²/d).

Among the models that calculate the annual global GHG emission, the G-res tool gave the lowest emission (6608 tonne CO_2eq/yr) (post-impoundment), followed by the Barros model with 9769.44 tonne CO_2eq/yr and the Scherer model with the highest emission of 27,972.67 tonne CO_2eq/yr, more than four times higher than the lowest emission.

The calculation of GHG emission from a multipurpose reservoir as function of energy produced (expressed in kg CO_2eq/MWh) is not conclusive, as energy generation is one of multiple uses. For the studied multipurpose reservoir, given the reduced installed capacity of only 30 MW (and therefore the reduced amount of energy produced, 130 GWh/yr) the calculated amount of GHG emitted per unit of energy produced resulted in being two times higher than the IHA estimated emission of hydropower [47] (50.83 kg CO_2eq/MWh versus of 23 kg CO_2eq/MWh).

The G-res tool solves this shortcoming because it compares the GHG emissions obtained by using it with the emissions of reservoirs of the same type from the same climate zone.

The net reservoir footprint of −9 g CO_2eq/m²/yr is placed at the base of the Gaussian distribution, which ranges from −90 to +1960 g CO_2eq/m²/yr and has a peak near +210 g CO_2eq/m²/yr. CH₄ diffusive emissions of +43 g CO_2eq/m²/yr is very close to the value that gives the peak of the Gaussian distribution (+40 g CO_2eq/m²/yr). CH₄ bubbling emissions of +3 g CO_2eq/m²/yr is very close to the value that gives the peak of the Gaussian distribution (0 g CO_2eq/m²/yr). CO₂ diffusive emissions of +75 g CO_2eq/m²/yr are very close to the value that gives the peak of the Gaussian distribution (+90 g CO_2eq/m²/yr). CH₄ degassing emissions could not be calculated because the reservoir has a deep water intake. However, its contribution to the overall GHG footprint is relatively small (mean: 14%, median: 4%) [23]. The allocated GHG emissions intensity of 4.1 g CO_2eq/kWh is very close to the value that gives the peak of the Gaussian distribution (0 g CO_2eq/kWh). The CH₄ post-impoundment emissions have the following distribution: 93% CH₄ diffusive emissions and 7% CH₄ bubbling emissions. The contribution of each use of the reservoir is as follows: 26.7% flood control; 5% fisheries; 15% irrigation; 26.7% water supply; and 26.7% hydroelectricity.

Of course, for a preliminary and rapid estimate of GHG emissions from a reservoir, simple models can be used that require only a few reservoir-specific factors. For a more accurate assessment, it is necessary to use a more complex and complete model, such as the G-res tool. The G-res tool offers the possibility to find out the potential impact that the creation of a reservoir can have and also to find out if measures are needed to reduce GHG emissions from a certain reservoir (regardless of the reservoir purpose), or to find out that the emissions of a reservoir may be the result of human activity that is not related to the reservoir creation. When the necessary time and tools are available, it is most desirable to perform long-term measurements to report the actual values of emissions from all sources related to reservoirs (drawdown area, reservoir surface, turbines, spillway and downstream river).

Taking into account the lifecycle GHG emission intensity from

Table 8. Lifecycle GHG emissions for different electricity generation technologies [47].

Technology	Lifecycle GHG Emission Intensity kg CO2eq/MWh
Thermal–coal	820
Thermal–natural gas	490
Biomass	230
Solar–PV	48
Hydropower	23
Nuclear	12
Wind	12

, if the energy produced by the Stânca-Costesti reservoir is produced by a coal-fired power plant, additional GHG emissions of 103,610 tonnes CO_2eq/yr would be generated, and if it was produced by a natural gas-fired power plant, additional GHG emissions of 60,710 tonnes CO_2eq/yr would be generated.

5. Conclusions

Built to meet human needs, multipurpose reservoirs increase human well-being, but they cause changes in the water quality, ecosystem and flow regime of river networks. They are considered neutral in terms of GHG emissions, but they may become considerable sources of GHG depending, especially, on the climatic zone in which they are located and their uses. The creation of a water reservoir on a river leads to the generation of GHG, due to biogeochemical processes in the reservoir. The calculation of GHG emissions of the studied reservoir, which is placed in a temperate zone and has multiple uses of water, shows that they are lower than those of a lake (306.85 g CO_2eq/m²/yr versus 953.73 g CO_2eq/m²/yr).

Knowing the GHG emissions from the reservoir is useful to accurately report the greenhouse gas (GHG) emissions. To calculate the CO₂ emission, four models were used; to calculate the CH₄ emission, six models were used. If the difference between the highest (520 mg CO₂/m²/d) and the lowest CO₂ emission value (205.48 mg CO₂/m²/d) is more than two-fold, the difference between the highest CH₄ emission (76.52 mg CH₄/m²/d) and the lowest emission value (1.16 CH₄ mg CH₄/m²/d) is much larger, by about 65 times.

Because not all the methodologies reviewed make an overall assessment of GHG emissions and because some are used only for hydropower reservoirs—except the G-res tool, which estimates the GHG emissions from the reservoir surface, drawdown, turbines and spillway—it is difficult to compare the results obtained by applying the methodologies to the multipurpose reservoir, Stânca-Costești.

In the absence of a standardized methodology for calculating GHG emissions from the reservoirs, the reviewed models can be used in correlation with the available data on reservoirs.
