Contribution of Electrolysis within an Integrated System for a Poultry Slaughterhouse Wastewater Treatment

Abstract

Treatment of poultry slaughterhouse wastewater before disposal or reuse is an essential part of human health and environmental protection in general. This study aimed to investigate the influence of the pre-treatment system based on electrolysis technology within an integrated lab-scale treatment plant in the removal of contaminants from poultry slaughterhouse wastewater. Several treatment units (averaging tank, feather catcher, fat catcher, and coarse mechanical filter) were connected in series before the electrolysis chamber. While in general, the entire integrated system also included some other units such as ultra-filtration, reverse osmosis, and the ultraviolet lamp connected in series. From the analysis results, it was observed that the pre-treatment phase with electrolysis had a significant influence on the general performance of the treatment plant. The pre-treatment contributed to about 33.5% to 100% in the general contaminants’ removal efficiency. The highest contribution was observed from the total chlorine (100%), nitrate (98.2%), as well as BOD (95.3%). The lowest contribution was observed from the nitrite removal, with 33.5%. This study revealed further that the integration of electrolysis technology in a wastewater treatment system has a significant potential for developing an effective wastewater treatment plant.

1. Introduction

The increase in population has also been increasing the demand for industrial products including poultry products. When water is subjected to a production line, there is a high possibility of collecting several pollutants with making it unsuitable for direct use for portable needs. Generally, wastewater from a poultry slaughterhouse is mainly a mixture of the processing water from both the slaughtering line and the cleaning of the poultry products. The wastewater generated from the poultry slaughterhouse contains a large variation in the concentration of organic matter such as proteins, carbohydrates, fats and oils, and trace amounts [1].

In this matter, discharging untreated poultry slaughterhouse wastewater into a municipal or any other sewage system before purification may create severe problems [2,3]. Therefore, the treatment of slaughterhouse wastewater is of high importance to prevent the high organic loading to municipal wastewater treatment plants. Nowadays, there are many technologies used for the treatment of slaughterhouse wastewaters including fine screening to remove large and small particles [4], settling of particles through the so-called sedimentation, the combination of coagulation and flocculation, and other biological treatment systems such as trickling filters and activated sludge [5]. Apart from the environment in general, untreated slaughterhouse wastewater discharged into water bodies may also have diverse effects on the receiving water body, endangering the aquatic life, and facilitating eutrophication as a few examples [6].

The poultry slaughterhouse wastewater can be purified using physical, chemical, and biological treatment approaches. But each treatment approach is characterized by strengths and weaknesses. Starting with the physical treatment systems such as membrane filtration [7]; these systems are characterized by high efficiency in terms of pollutant removal, but they are energy-intensive as they demand high pressure to operate [8], fouling issues [9] as well as generating huge volumes of sludge that has to be separately handled. In that matter, the processes are relatively expensive, accompanied by feasibility issues for large-scale operations. The biological technologies are well known in terms of adaptability to changing wastewater compositions [10]. However, being slow processes, requiring large physical areas, and generating large amounts of sludge are among the challenges associated with these systems. Therefore, chemical treatment technologies such as electrochemical (EC) processes have emerged as alternative treatment systems, offering a number of advantages such as robustness, small space requirements, relatively easy operation, as well as being flexible when subjected to fluctuating wastewater composition [11]. Something very important to be noted here is that different electrode materials may, however, perform differently in wastewater treatment even for wastewater with similar characteristics, which makes it challenging to predict the behavior of electrochemical systems [12,13].

Electrolysis is an electrochemical wastewater treatment technology that is currently experiencing both increased popularity and significant technical improvement [14]. It is a complex process involving many chemical and physical phenomena that use consumable electrodes to supply ions into the wastewater.

In general, a reactor of an electrochemical treatment plant consists of an electrolytic cell with an anode on one side and a cathode on the other side [15]. When the system is connected to a power source, the oxidation process occurs in the anode making it electrochemically corroded, while passivation occurs in the cathode. The main processes in the electrochemical system can be represented using chemical equations [16] (Equations (1) and (2)).

At electrode surfaces

Anode: M → M³⁺_(aq) + 3e⁻

(1)

$$\mathrm{Cathode}: 3{\mathrm{H}}_2\mathrm{O}+3{\mathrm{e}}^{-} \to \frac{3}{2}{\mathrm{H}}_2+3{\mathrm{OH}}^{-}$$

(2)

where:

M is an electrode such as graphite (Gr), iron (Fe), or aluminium (Al)

Coagulation in the aqueous phase.

M³⁺_(aq) and OH⁻ ions from Equations (1) and (2) above react to form hydroxo monomeric and polymeric species, which will then change to M(OH)3 according to pH range [17].

After forming the amorphous M(OH)3 also known as sweep flocs, can be useful for the removal of colloidal particles through rapid adsorption of soluble organic compounds. While through polymerization, the formed flocs can be removed by sedimentation and floatation [18].

However, depending on the operating scale, to achieve a high-quality effluent based on electrochemical methods alone can be a challenge. Therefore, integrating the electrochemical methods with other treatment units such as membrane filtration and ultraviolet disinfection is always preferable [19]. However, the information on how an electrochemical method can contribute to the general performance of an integrated wastewater treatment system is still scarce.

In this study, the potential influence of electrolysis in the performance of an integrated or combined lab-scale wastewater treatment system was investigated. The samples collected from the Izhevsk Production Cooperative (PC) poultry were treated using the lab-scale treatment plant. The main parameters investigated in this study were pH, turbidity, color, total suspended solids (TSS), free chlorine, total chlorine, nitrite, nitrogen, nitrate, nitrogen, phosphates, ammonium, iron total, aluminium, COD as well as BOD.

2. Materials and Methods

2.1. Case Study Description

The wastewater samples used in this study were collected from the Izhevsk PC poultry slaughterhouse located in Izhevsk village, Arshalinsky district, in Akmola region of the Republic of Kazakhstan, approximately 70 km distance from the capital city Nur-Sultan (51°10′ North latitude and 71°26′ East longitude). The current production capacity of the Izevski poultry farm is 280 million eggs per year. The poultry farm has also imported new cages with a capacity of accommodating 1 million laying hens. The meat production capacity of the poultry farm is 3000 tons per year. The poultry products are daily delivered to the capital city, Nur-Sultan, as well as other cities of Kazakhstan and Russia.

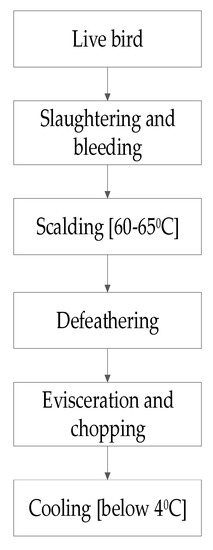

The production processes of the slaughterhouse generate wastewater from the live bird processing to the cooling section; with defeathering, evisceration, and cooling processes being the main sources of wastewater generation in the slaughterhouse (Figure 1). The slaughterhouse processes of the poultry farm generate approximately 2.2 m³ of wastewater per hour. The case study was selected because is one of the largest poultry farms in Central Asia. Currently, the wastewater generated at the poultry farm is mainly discharged to the biological treatment system of the Izevski village.

The climatic condition around the case study is characterized by an extreme continental climate, with long cold winters and some hot summers. In some years, winter temperatures reach −52 °C. In summer, an average temperature of up to 30 °C can be observed. Generally, precipitation around the case study amounts to 320 mm per year, with a relative minimum in winter, and a relative maximum during the summer.

2.2. General Wastewater Treatment Setup (in Laboratory)

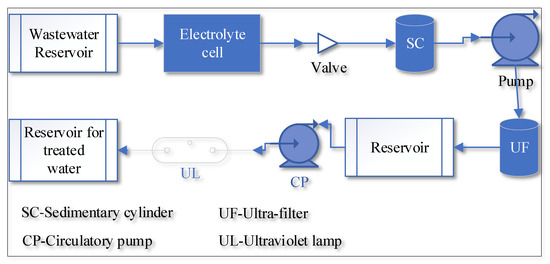

The treatment plant is composed of a mini reservoir with a macro-filter installed to separate feathers and organic components from the wastewater. The electrochemical process takes place within a reactor connected in series to the min reservoir. The effluent purified by the EC unit was subjected to a sedimentary cylinder where the particles in suspension settle down and come to rest against the barrier. A pump (pressure capacity of 5.5 bar) was then utilized to transfer water from the sedimentary cylinder to the ultra-filter with a pore size of 0.02 µm, enough to trap sediments not smaller than its pore size, including most bacteria and viruses.

Moreover, the ultra-filtered water was subjected to another small reservoir where a small pump conveys the water to a UV sterilizer to kill any remaining microorganism. The water circulates in the UV sterilizer for about 10 min before the experiment is concluded. After the treatment process, the cleaning of the reservoirs and electrolyte cells was done manually by rinsing with water and disinfectants. The whole treatment process from electrolysis to UV sterilization is summarized in Figure 2.

2.3. Electrolysis Setup

The electrolysis unit is considered to be the main unit within the pre-treatment system. The principle of operation of the electrolysis is based on the fact that coagulation occurs for suspended finely dispersed particles in the installation, due to the electrochemical dissolution of aluminium anodes and the subsequent flotation of suspended particles, with their removal from the total volume of the drain through the outlet pipe of the electrolysis chamber.

Approximately 1.7 L of wastewater was used in each session of the experiments. In general, the setup of the electrolysis unit included; a reactor or chamber of 15 cm length × 13 cm width × 11 cm height, made of polypropylene material with electrodes installed in it. Morever, direct current was supplied to both electrodes, which included a power supply (Xinhua Electrical Weld Company, Loudi, China) of 0 to 50 V for voltage and 0 to 10A for current density. The materials used for the electrodes were aluminum 10.8 cm × 11.8 cm × 0.2 cm, as well as graphite and titanium with 10.8 cm × 11.8 cm × 0.7 cm dimensions. A distance of 2 cm between electrodes was kept constant in all the study sessions and were placed parallel to the reactor. Moreover, the current density varied with the electrode material and wastewater characteristics.

Table 1. General technical specifications of the electrolysis unit.

Parameter	Value	Unit
Initial water temperature	+5–+10	°C
Potential (voltage)	24	V
Average current density	5.5	A
Average power	132	W
Hydraulic retention time	20	min

provides a summary of other specifications in the electrolysis unit.

2.4. Analysis of the Samples

The wastewater samples collected from the Izhevsk PC poultry farm were grouped into two main groups; the samples collected after the electrolysis stage and the samples collected after the complete system. To preserve and maintain the status of the samples, they were stored at 4 °C before the analysis. Several parameters were tested in the laboratory to characterize the wastewater before and after treatment. The analyses of the samples were accomplished following the recommendations in the APHA, Standard Methods for the Examination of Water and Wastewater (APHA, 2005).

Raw wastewater samples from the Izhevsk PC poultry farm were collected as grab samples using 5 L plastic bottles, which were thoroughly rinsed with deionized water before use. All samples were preserved at 4 °C before transporting them to the lab for treatment and analysis. A total of fourteen (14) water quality parameters were investigated in this study, namely; pH, turbidity, color, TSS, free chlorine, total chlorine, nitrite, nitrate, phosphates, ammonium, COD, BOD, aluminium, and total iron.

Moreover, different scientific procedures, kits, and reagents were used to assess the parameters of interest in the water samples. The combination of Spectrophotometer (Hach DR3900, HACH/LANGE, Berlin, Germany), Colorimeter (Hach DR900, Berlin, Germany), with standard reagents as well as the test kits were used to determine the concentrations of COD, free chlorine, total chlorine, nitrites, nitrates, total phosphorous, and ammonium in the water samples. While the U.S. Environmental Protection Agency Great Lakes National Program Office (GLNPO, Washington, DC, USA), Standard Operating Procedure for Turbidity was used for the measurements of turbidity [20]. Moreover, the American Public Health Association (APHA) 4500-Nor was used to determine the concentrations of phosphates [21], while the lab pH-meter Frederick, MD, US was used for pH measurements. The color was determined using the UV-V Spectrophotometer (PE-5400UV) pr-in ECOCHEMICAL, St. Petersburg, Russia [22]. Concentration levels of TSS were determined using the Hach TSS portable hand-held turbidity meter (HACH/LANGE, Berlin, Germany). Generally, analyses of all the studied samples were accomplished following the recommendations in the APHA Standard Methods for the Examination of Water and Wastewater [23]. The general characteristics of the PSWW are presented in Table 1, in terms of minimum concentration values (Min), maximum values (Max), arithmetic mean (AM) as well as standard deviation (SD). From

Table 2. General characteristics of raw wastewater (number of samples = 12).

Parameter	Min	Max	Median	AM	SD	Literature (Min–Max) [24]	Unit
pH	7.2	7.4	7.4	7.3	0.094	7.3 ± 0.42–8.6 ± 0.42
Turbidity	68.7	215	86	123.2	65.272	237–997	FAU
Color	552	3490	2224	2089	1203.245	NR	degree
TSS	116	569	224	303	193.189	313–8200	mg/L
Free chlorine	0.04	0.09	0.08	0.07	0.022	NR	mg/L
Total chlorine	0.05	0.12	0.07	0.08	0.029	NR	mg/L
Nitrite	0.046	0.086	0.064	0.065	0.016	NR	mg/L
Nitrate	18.3	30.3	22	23.5	5.018	162.6–563.8	mg/L
Phosphates	5.16	6.02	5.79	5.66	0.364	8–27	mg/L
Ammonium	1.12	1.73	1.22	1.36	0.267	NR	mg/L
Iron total	1.22	1.44	1.33	1.33	0.090	NR	mg/L
Aluminum	0.11	0.89	0.64	0.55	0.325	NR	mg/L
COD	356	1409	1224	996	459.040	2133–12,490	mg/L
BOD	77	570	464	370	211.884	925–5000	mg/L

FAU = Formazin Attenuation Units, NR = not reported.

, it can be observed that the poultry slaughterhouse production processes generate relatively high polluted wastewater.

2.5. Statistical Analysis

The treatment efficiencies of the two main systems investigated in this study were calculated in terms of percentage based on the influent and effluent concentrations of the parameters of interest. Specifically, the computations of the treatment efficiencies was achieved by subtracting the concentration of the tested parameter after treatment from the one before treatment divided by the concentration before treatment then multiplied by 100 to convert the result into percentage as summarized in Equation (3).

$$T_e(\%)=\left(\frac{C_b-C_a}{C_b}\right)\times 100$$

(3)

where T_e is treatment efficiency, C_b concentration of a tested parameter before treatment, and C_a is a concentration of a parameter after treatment.

Moreover, the influence of the electrolysis phase on the general efficiency of the treatment was calculated by the use of the cross-multiplication approach. Where final efficiency from the entire system is proportional to 100% while that of electrolysis is proportional to unknown. From the mathematical derivations, the contribution of the electrolysis phase on the general treatment efficiency for each parameter can be computed from Equation (4).

$$C_{ele}(\%)=\frac{T_{ele}\times 100}{T_{ef}}$$

(4)

where $C_{ele}$ is the percentage contribution of the electrolysis phase, $T_{ele}$ is treatment efficiency from the electrolysis outlet and $T_{ef}$ treatment efficiency for the entire system.

Box and whisker plots were also used analyze data distribution among the selected parameters. The plots display the distribution of numerical data and skewness through data quartiles (percentiles) and averages.

3. Results and Discussion

The analysis of the water samples was successfully executed. In the raw wastewater samples, the average COD concentration was 996 mg/L, while that of BOD was 370 mg/L. The COD concentration in the raw wastewater is greater than 150 mg/L as recommended by the Jordanian standards for discharge to streams, wadis, and water storage areas. The BOD concentration is greater than 60 mg/L as also recommended by the Jordanian standards for discharge to streams, wadis, and water storage areas [25]. In the literature, average BOD concentrations of 875 mg/L and COD of 1301 mg/L from poultry slaughterhouse wastewater were recorded in conducted by Aziz, et al. [26]. The general phenomenon indicates that the poultry slaughterhouse wastewater is highly polluted requiring treatment prior to either discharge or any sort of reuse.

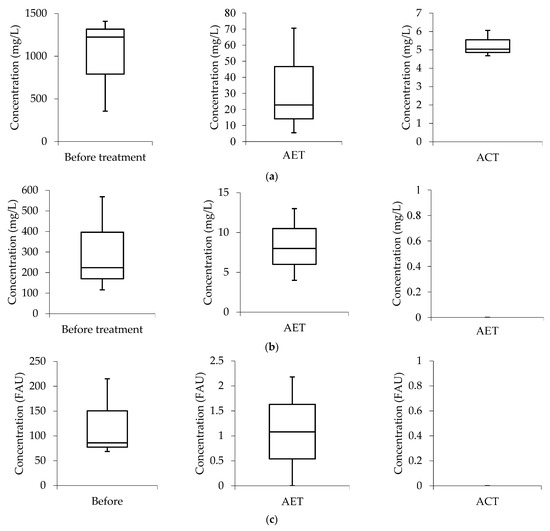

From Figure 3, it can be observed that the median line closer to the upper quartile with an indication that the distribution of COD data before treatment is considered to be “negatively skewed”. This means the data constitute a higher frequency of more low concentration values than the high concentration values, the COD data distribution contained more values from 800 mg/L to approximately 1400 mg/L. The median line from the COD values after the electrolysis treatment (AET) is observed to be closer to the lower quartile meaning that the water quality data constitute a higher frequency of more high concentration values than the low concentration values (“positively skewed”). The data distribution contained more data from above 10 mg/L to slightly above 20 mg/L. Similarly, the median line from the COD values after the combined treatment (ACT) can be seen to be closer to the lower quartile meaning that the water quality data constitute a higher frequency of more high concentration values than the low concentration values (“positively skewed”). The data distribution contained more data from above 5 mg/L to slightly above 5 mg/L.

From Figure 3, the median is observed to be closer to the lower quartile meaning that the TSS data before treatment constituted a higher frequency of more high concentration values than the low concentration values (“positively skewed”). The TSS data distribution contained more values from slightly above 200 mg/L to approximately 400 mg/L. While, the median line from the TSS values after the electrolysis treatment (AET) is observed to be closer to the middle, indicating that the water quality data distribution is symmetric or normal. With the fact that an average concertation of 0 mg/L was achieved in the final effluent, the TSS boxplot becomes empty.

From Figure 3, the median is observed to be closer to the lower quartile meaning that the turbidity data before treatment constitute a higher frequency of more high concentration values than the low concentration values (“positively skewed”). The turbidity data distribution contained more values from slightly below 100 FAU to approximately 150 FAU. While, the median line from the turbidity values after the electrolysis treatment (AET) is observed to be closer to the middle, indicating that the water quality data distribution is symmetric or normal. A, with the fact that an average concertation of 0 FAU was achieved in the final effluent, the turbidity boxplot becomes empty.

Water samples were collected after the electrolysis phase to investigate the performance of the pre-treatment system at the scale before subjecting the wastewater to the membrane filtration and UV unit. The lab-scale electrolysis phase was able to significantly reduce pollution levels in the wastewater as observed in

Table 3. Analysis results for the studied physicochemical parameters.

Parameter	Min	Max	Median	AM	SD
pH	7.2	7.7	7.3	7.4	0.216
Turbidity	0	2.18	1.08	1.09	0.890
Color	33	90	49	57	24.005
TSS	4	13	8	8.33	3.682
Free chlorine	0.01	0.06	0.03	0.033	0.021
Total chlorine	0.02	0.04	0.03	0.03	0.008
Nitrite	0.04	0.08	0.06	0.06	0.016
Nitrate	0.8	5.6	1.1	2.5	2.195
Phosphates	0.02	1.08	0.06	0.39	0.491
Ammonium	0.12	1.59	1.03	0.91	0.606
Total iron	0.22	0.34	0.31	0.29	0.051
Aluminum	0.26	1.6	0.65	0.84	0.563
COD	5.5	70.6	22.8	33.0	27.532
BOD	3.96	72	4.68	26.88	31.906

. For instance, the average turbidity in the raw wastewater was 123.2 mg/L, while from the electrolysis effluent the turbidity concentration was 1.09 mg/L. Color reduced from 2089 degrees to 57 degrees. TSS from 303 mg/L to 8.33 mg/L, COD from 996 mg/L to 33.0 mg/L and BOD from 370 mg/L to 26.88 mg/L. Phosphates from 5.66 mg/L to 0.39 mg/L, total iron from 1.33 mg/L to 0.29 mg/L. However, the electrolysis phase was not that much effective for some parameters such as nitrite and ammonium. Interestingly, the average concentration of aluminium was a little higher than that of the raw wastewater, which can be linked to the dissolution issues of the electrode and the operating scale of the system.

From

Table 4. The removal efficiencies for chemical contaminants.

Parameter	AET (%)	ACT (%)	Contribution of Electrolysis, Cele(%)
TSS	88.8	100	88.8
Free chlorine	25	50	50.0
Total chlorine	57	57	100.0
Nitrite	30	89.5	33.5
Nitrate	93.9	95.6	98.2
Phosphates	79	99.6	79.3
Ammonium	70.7	76.4	92.5
COD	87.6	99.2	88.3
BOD	94.9	99.6	95.3

, it can be observed that 88.8% removal efficiency was achieved from TSS after the electrolysis phase, which is also equivalent to 88.8% contribution in the final effluent. From free and total chlorine, the removal efficiency of 25 and 57%, respectively was achieved. Which is equivalent to 50% removal contribution by the pre-treatment units for free chlorine and 100% for total chlorine. Moreover, removal efficiency of 30% was achieved from nitrites after the electrolysis phase which is also equivalent to a 33.5% contribution within the entire treatment process. From nitrates, 93.9% removal efficiency was achieved from electrolysis effluent, equivalent to 98.2% removal contribution.

Moreover, the pre-treatment units were able to remove 79% and 70.7% of phosphates and ammonia, respectively from the wastewater. The removal efficiencies are equivalent to 79.3% and 92.5% removal contribution in the final effluent.

In general, the BOD, COD, nitrate, and TSS decreased significantly after the electrolysis phase. This is an indication that the pre-treatment units were capable of removing the majority of the pollutants in the wastewater. The combination of units to the electrolysis process had a 100% contribution on the removal efficiency of the total chlorine in which other units such as ultra-cleaning, reverse osmosis, and the ultraviolet lamp had 0% removal influence on the total chlorine. A 30% nitrite removal efficiency was achieved by the electrolysis unit which is equivalent to 33.5% removal contribution within the entire treatment plant, marking the lowest removal contribution. However, the general removal efficiency of the entire system for the nitrite showed some impressive results with a removal efficiency of 89.5%. This means from 30% of the electrolysis phase, the remaining 59.5%, equivalent to 66.5% removal contribution was accomplished by the other treatment units after the electrolysis.

From Table 4, it can be observed that the treatment efficiency of the integrated wastewater treatment system generally reached a removal efficiency of 100% for some parameters such as TSS. More than 80% removal efficiency was also achieved for most of the samples including nitrite nitrogen (89.5%), nitrate-nitrogen with (95.6%), ammonium (99.2%) as well as BOD5 (99.6%). Some of the challenge can be observed from the free chlorine and total chlorine with 50% and 57 % removal efficiency respectively.

The combination of electrolysis and ultrafiltration provides a high and constant removal efficiency of TSS in the integrated treatment system due to their compatibility. While the electrolysis process works on removing the TSS from the wastewater, the ultrafiltration removes low solids slurry resulting from the electrolysis. Therefore, with their combination, the efficiency of the treatment system improves significantly.

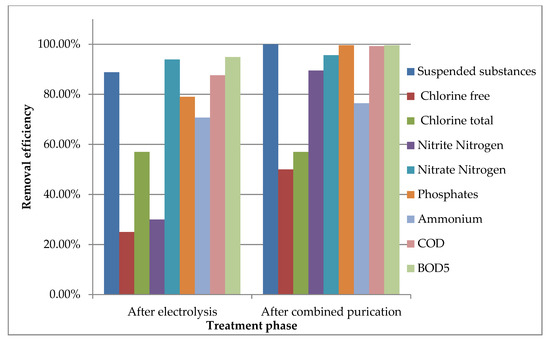

Figure 4 shows removal efficiencies above 80% for some parameters from the electrolysis phase effluent and more parameters after the complete treatment system. The total chlorine concentration of 0.07 mL/dm³ before purification was reduced to 0.03 mL/dm³ after the electrolysis stage and then remained the same after the complete combined system. From Figure 5, it can also be observed that after the electrolysis phase the other treatment units did not influence the removal of the total chlorine as the removal efficiency remained the same. However, the complex relationship between the total and free chlorine may have influenced the phenomenon as total chlorine is defined as a sum of free and combined chlorine. In general, Figure 5 shows a high influence of the electrolysis phase on the purification ability of the integrated treatment system.

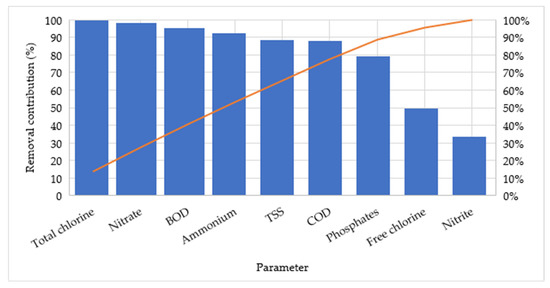

Figure 5 shows the ranking in terms of the percent contribution of the electrolysis unit on the removal of the studied parameters in the within the integrated treatment system. It can be observed that the electrolysis unit had a removal influence of more than 50% for most of the studied physicochemical parameters. The highest removal contribution was observed for total chlorine while having a low influence on the removal of the nitrite.

This study reveals that the combination of an averaging tank, feather catcher, fat catcher, coarse mechanical filter, and electrolysis treatment units can be useful enough for poultry wastewater purification before discharge or recycled for non-portable uses. The combination also shows a promising potential towards improving the quality of the final effluent under the addition of other treatment units such as ultra-filtration, reverse osmosis, and an ultraviolet lamp. The key focus of any wastewater purification process is to remove different forms of pollutants such as solids, organic carbon, nutrients, inorganic salts, and metals as well pathogens leading to the deterioration of the water quality [27]. Moreover, effective wastewater collection and treatment plays a great role in protecting both the environment and public health [28], especially for a chlorine-free treatment system as numerous inorganic and organic micropollutants can undergo reactions with chlorine [29].

4. Conclusions

The performance influence of the electrolysis unit in a lab-scale integrated wastewater treatment plant connected in series with other treatment units such as ultra-cleaning, reverse osmosis, and the ultraviolet lamp has been investigated. From the results, it was observed that the pre-treatment phase with electrolysis had a removal contribution ranging from 33.5% to 100%. The highest removal contribution was observed from total chlorine (100%), nitrate (98.2%), as well as BOD (95.3%). While the lowest contribution was observed from the nitrite removal, with 33.5%. In general, the electrolysis process allowed the wastewater purification process to be accomplished electrochemically through oxidizing or reducing organic contaminants converting them into non-hazardous inorganic materials or substances. This study revealed further that the integration of electrolysis technology in a wastewater treatment system has a significant potential towards developing an effective wastewater treatment plant.
