Geochemical Behavior of Different Chemical Elements during Weathering of the Basalts in Changbai Mountain, Northeast China

by
Tian Lan
1,
Libo Hao
1,
Jilong Lu
1,*,
Yechang Yin
2,
Xiaoqing Chen
3,
Yuchao Fan
1,
Wei Zhao
1 and
Yaru Hou
1
1
College of Geo-Exploration Science and Technology, Jilin University, Changchun 130026, China
2
Institute of Mining Technology, Liaoning Technical University, Fuxin 123000, China
3
College of Earth Science, Jilin University, Changchun 130016, China
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(22), 12796; https://doi.org/10.3390/su132212796
Submission received: 13 October 2021 / Revised: 15 November 2021 / Accepted: 17 November 2021 / Published: 19 November 2021
Browse Figures
Versions Notes

Abstract

:
Rock weathering is the main source of element geochemical cycle, which has a very important impact on the environment. Three well-developed basalt weathering profiles in Changbai Mountain area are selected in this study, and the samples of parent rock, parent material layer, sedimentary layer, and leaching layer are systematically collected. The systematic study showed that the basalt in the study area experienced moderate chemical weathering under warm and humid climate conditions, with leaching of some major elements such as silicon and aluminum. The distribution of the rare earth elements (REE) in the weathering products recalls that of an alkali-basalt, with an evident fractionation between light- and heavy-REE. Such a feature is therefore referable to the parent volcanic rock, although with some degree of leaching.

1. Introduction

The geochemical behavior of elements during rock weathering has a great impact on the chemical composition, formation, and evolution of soil and sediments. It has become an important link connecting land and ocean, rivers and lakes, and paleoclimate and paleoenvironment. Weathering may be regarded as the premise and foundation of soil occurrence, and soil formation may be regarded as the continuation and deepening of weathering. In the process of weathering and soil formation, the factors affecting the distribution characteristics of soil elements mainly include parent rock and parent material, climatic conditions, hydrochemical properties, and redox conditions [1]. As known, basalt has a higher weathering rate than many other volcanic rocks. At present, basalt weathering research mainly focuses on mineralization, behavior of major and trace elements, and isotopic behavior caused by weathering in tropical climate (Hainan Island) and subtropical climate (Emeishan basalt) [2,3,4,5]. After desilication and aluminum weathering, basalt forms aluminum weathering crust, and gradually develops into iron-rich soil and iron aluminum soil. However, the subsequent enrichment of transition metal elements (such as Cr, Ni, V, Co, Mn, and Zn) may lead to significant environmental risks [6,7,8,9]. Alkali metals and alkaline earth metals with active chemical properties such as Na, Ca, and Mg are easy to lose during rock weathering. However, elements with stable chemical properties such as Th, U, Zr, Nb, Y, and rare earth elements are not easy to migrate [10,11,12,13,14,15,16,17,18,19]. In addition, relative behaviors of immobile elements during weathering are usually stable from rock to its weathered products. The stability of these relative behaviors is similar to the genetic inheritance in biology [20].
The research of Changbai Mountain basalt mainly focuses on the genesis [21], rock geochemistry, age [22,23], and evolution process of basalt [24]. At present, Changbai Mountain has become one of the important natural resource reserves in China. This study comprehensively analyzes a variety of weathering indexes with the help of geochemical methods and systematically discusses the weathering process of basalt in Changbai Mountain area. This study addresses the behavior of elements in the chemical weathering process of basalt in the study area, hence, revealing the impact of traces element enrichment and leaching on the surface soil.

2. Study Samples and Methods

2.1. Geological Setting and Location of Samples

Changbai Mountain is located in the east of the Central Asian orogenic belt. The region experienced the evolution of Paleo Asian Ocean tectonic system in Paleozoic, resulting in the final closure of microlandmass (including Erguna block, Xing’an block, Songnen zhangguangcailing block, Jiamusi block, and Xingkai block) and Paleozoic-early Mesozoic Paleoasian Ocean [25,26] (Figure 1). Cenozoic is the main active period of basalt magma. Since Cenozoic, a large number of basaltic volcanic rocks (trachyte basalt, trachyte basaltic andesite, tholeiite, and basaltic andesite) have been exposed in eastern China [27,28].
The study area is located in the east of Jilin Province, covering Baishan and Yanbian (Figure 1). The ground is high in the southeast and low in the northwest, with an obvious erosion and cutting effect. The study area has a mid-temperate, continental, humid monsoon climate, with an annual average temperature of 3–5 °C, an average temperature of −18 °C in January, and an average temperature of 23 °C in July. The annual precipitation is mainly concentrated from June to August (about 1100 mm), accounting for about 60% of the total annual precipitation. The soil types in the study area mainly include brown coniferous forest soil, dark brown soil, and albic soil. In the vertical zone of Changbai Mountain, the soil of brown coniferous forest is scattered under the coniferous forest with an altitude of 1100–1800 m. Dark brown soil is mainly distributed in the East and southeast of Jilin Province, with an altitude of 500–1200 m. In addition, albic soil is widely distributed in mountainous, semimountainous, and valley terraces in the east and southeast of Jilin Province.
The study samples were taken from three well-developed basalt weathering profiles in the upper reaches of the Songhua River. The location of the soil profile is shown in Table 1. After discarding the humus layer, the weathering profile is divided into four layers from top to bottom, with an average depth of 1.5 m. The different horizons in Figure 2 are called horizons A, B, C, and R. Layer A is the leaching layer: sampling depth is about 5~30 cm; soil in this layer is dark and rich in organic matters. Layer B is the sedimentary layer: sampling depth is about 30~70 cm; soil in this layer is brown and rich in organic matters and microconglomerate. Layer C is the parent material layer: sampling depth is about 70~120 cm; soil in this layer is light brown, containing massive weathering rocks and residual debris. Layer R is parent rock: grey vesiculate basalt of this layer was collected from depths of 120~150 cm.

2.2. Materials and Methods

As a first step, soil samples were placed in a glass tray after removing foreign matters such as branches, rods, and leaves, and fully mixed. The sample was crushed to less than 200 mesh by the crusher and sieved. The sieved sample was put into the dryer for cooling. The loss on ignition was determined by the mass loss after calcination at 1000 °C in muffle furnace. According to HJ780-2015 standard, the contents of SiO2, Al2O3, MgO, Fe2O3, CaO, Na2O, K2O, P2O5, TiO2, and MnO were determined by powder compression X-ray fluorescence spectrometry (EDX6000b). According to GB/T 14506-2010, the contents of La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, and Lu were determined by ICP-MS (NEXION350d, PerkinElmer) and sodium peroxide molten samples. In addition, lead, rubidium, strontium, barium, zirconium, niobium, thorium, yttrium, and uranium were determined by closed acid digestion ICP-MS. According to HJ680-2013 standard, arsenic and mercury were determined by potassium borohydride reduction atomic fluorescence spectrometry in aqua regia solution.
Aforementioned analytical methods fulfil the requirements of the Chinese geological and mineral standard DZ/T0011-2015.

3. Results

The mass fraction and composition of main elements are the most commonly used indicators in the study of weathering. The order of average concentration of the soil profile samples is SiO2 > Al2O3 > Fe2O3 > K2O > Na2O > MgO > TiO2 > CaO > P2O5 > MnO (Table 2). The SiO2, Al2O3, and Fe2O3 are the three elements with the highest content in all samples (the sum exceeds 80%).
The total content of rare earth elements (REE) in the samples in the study area is relatively high (Table 3 and Table 4). However, Yb and Lu are lower than the background value, the content of rare earth elements in other samples is 1–2.5 times higher than the background value; further, except Ho, Er, Tm, Yb, and Lu, rare earth elements in other samples are lost layer-by-layer from parent rock to leaching layer during weathering, and the loss order is LREE > HREE.
The average value of Sr, Ba, and Nb in the parent rock is higher than that of the setting, and the content of other value is lower than that of the setting (Table 5). The average value of Ba, Nb, and Y in the parent material layer is higher than that of the setting, and the value of other elements are lower than that of the setting. The average value of Rb, Ba, and Y in the sedimentary layer is higher than that of the setting, and the value of other elements are lower than that of the setting. The average value of Pb and Ba in the leaching layer is higher than that of the setting, and the value of other elements are lower than that of the setting.

4. Discussion

4.1. Behavior of the Major Elements

With the formation of new mineral assemblage after rock fracture, the main elements of basalt in the study area experienced the process of desalting basement-enrichment of SiO2 and Al2O3 from parent rock to parent material layer in the early stage of weathering (except silicon and aluminum, other main elements were leached in varying degrees; Table 2; Figure 3). In the profiles JLP2, the concentrations of SiO2 and Al2O3 in parent rocks are 51.77% and 19.20%, while they are 56.12% and 21.24% in the parent material layer. In the profiles JLP3, the concentrations of SiO2 and Al2O3 in parent rocks are 53.23% and 15.96%, while they are 63.07% and 17.74% in parent material layer. From the parent material layer to the sedimentary layer, weathering experienced silicon enrichment and dealumination (except silicon, other main elements were leached, in which aluminum leaching was strong). In the highest stage of weathering, except manganese, the behavior of other elements from sedimentary layer to leaching layer tends to be stable. Due to acid leaching, Mn is relatively enriched in the leaching layer. Among the three groups of basalt weathering profiles, the change trend of main elements in JLP3 profile is slower than that in the other two groups, suggesting that higher altitude will lead to weaker weathering degree.
Chemical weathering index is usually used to describe the behavior of elements during weathering. Existing studies have shown that there are more than 30 different chemical weathering indexes, including those for the study of rocks and their weathering products [32,33,34,35]. Generally, chemical weathering index can be divided into two categories: normalized index and non-normalized index. Due to the lack of chemical analyses on bedrock, in the study case, the application of normalization indexes is not possible. The widely used nonstandardized indexes include Parker weathering index (WIP) [36], chemical alteration index (CIA) [37], chemical weathering index (CIW) [38], Coleman weathering index (WIC) [39], and plagioclase alteration index (PIA) [40]. Due to the lack of CO2 content data in this study, Cao* (CaO in silicate) is calculated in the absence of CO2 content according to the correction method of McLennan [41]. Parker and CIA in the non-normalized index are used to characterize the element behavior during the weathering of Changbai Mountain basalt.
From the results of major element analysis (Table 1), it can be seen that SiO2 is enriched in the weathering process, while K2O, Na2O, and CaO are obviously leached, which is consistent with the characteristics that SiO2 tends to be active in the rock weathering process. Its total leaching rate is usually very small, and alkali metals and alkaline earth metals will be significantly lost. Therefore, the study area is more in line with the application conditions of Parker index.
This is example 1 of an equation:
Parker index = (2Na2O/0.35 + MgO/0.9 + 2K2O/0.25 + CaO/0.7) × 100.
Generally, the Parker index reflects the weathering degree, and the corresponding is inversely correlated with the weathering degree. The index of parent material layer is 33.33–44.77, with an average of 40.12; the sedimentary layer is 40.08–41.07, with an average of 40.72; the leaching layer is 42.48–43.05, with an average of 42.07 (Table 2).
Nesbitt and Young proposed the chemical alteration index (CIA) for the first time. According to the early Proterozoic sediments of Huron supergroup in the north of Huron, they reconstructed the paleoclimate [37], which has been widely used at present. According to Nesbitt theory, when the CIA index is between 50–65, it means cold and dry climate conditions, and the weathering in the source area belongs to low chemical weathering degree; when the CIA index is between 65 and 85, the provenance area is in warm and humid climate, and the weathering is of medium chemical weathering degree; when the CIA index is between 85 and 100, the weathering in the provenance area belongs to tropical or subtropical humid and hot climate conditions, and the weathering belongs to strong chemical weathering. The calculation method is as follows:
CIA = [Al2O3/(Al2O3 + CaO* + K2O + Na2O)] × 100
The oxide content is determined by mole fraction. Cao* refers to Cao in silicate—that is, the mole fraction of Cao removed from rock by chemical deposition. The calculation method is as follows:
CaO* = CaO − (10/3 × P2O5)
The CIA index of parent material layer ranged from 71.49 to 81.48, with an average of 77.29; the CIA index of sedimentary layer ranged from 70.23 to 72.23, with an average of 71.54; the CIA index of the leaching layer ranged from 66.42 to 67.90, with an average of 67.15 (Table 2). Most of the three sections have the characteristics of increasing CIA index from leaching layer to parent material layer. According to the above classification, the CIA index of the parent material layer, sedimentary layer, and leaching layer ranges from 65 to 85, indicating that the climatic conditions in the area are warm and humid, belonging to moderate chemical weathering.
Compared with Changbai Mountain basalt profile, the CIA index of soil samples in Hainan basalt weathering profile is 93.98–97.78, indicating that Hainan basalt is strongly chemically weathered with the enrichment of desilication, aluminum, and iron. Under extreme environmental conditions, the influence of parent rock on the development strength of weathered crust is weakened, and even covered by climatic conditions, resulting in the formation of weathered crust in the stage of medium lateritic or even strong lateritic [2,42].
According to the above weathering index calculation, the parent rock weathering degree of the three sections is low. Therefore, the element mobility M = 100 can be determined × (The enrichment or leaching rates of elements in different profiles are calculated by RI-RP/RP) formula. In the same section, RI represents the X element content in weathered samples, and RP represents the X element content of parent rock samples. In the parent material layer, sedimentary layer, and leaching layer of the three sections, the cumulative mobility of SiO2 is the highest (Figure 4), indicating its enrichment characteristics in the weathering process, while other elements are leached in the weathering process. The average values of Cao element mobility in layers A, B, and C are −0.79, −0.83, and −0.74, respectively, indicating that Cao is most seriously lost during weathering (Table 6; Figure 3). K2O mobility fluctuates the least, and the average value of the three profiles is 0, indicating that its mobility is the smallest and most stable in the weathering process, and the stability of Al2O3 and TiO2 is second only to K2O.
As the weathering resistance of minerals is opposite to the Bowen reaction order, the higher the crystallization temperature of minerals, the lower the stability of minerals. Nepheline and zeolite are sometimes formed in the matrix together with alkali feldspar and/or potassium feldspar. Potassium in basalt is mainly enriched in medium feldspar, potassium feldspar, or biotite. Due to its strong stability, K element fluctuations are relatively low and stable in the weathering process.
Through the calculation of main element mobility, it can be found that K2O is the most stable in the study area. Therefore, mass balance calculation can be used in this study.
τi,j = (Cj,w/Cj,p)/(Ci,w/Ci,p) − 1
Formula (4) is widely used to evaluate the migration and redistribution of elements during the formation of chemical weathering profiles [43,44,45]. The element gain and loss in the profile can be described by the change of the ratio of elements to inactive elements relative to the ratio in the parent rock. Cj,w and Cj,p are the concentrations of a certain element J in soil and fresh parent rock, respectively. Ci,w and Ci,p are the most stable concentrations of element I in soil and fresh parent rock (K2O is selected as element I in this study). If τi,j < 0, it reflects the migration or net loss of elements in the profile relative to the parent rock; if τi,j > 0, the elements are relatively enriched or net obtained in the profile; if τi,j = 0, the behavior of elements in the profile is relatively stable.
The enriched elements (average enrichment rate) in the parent material layer of the three sections are SiO2 > Al2O3 > Fe2O3, while the lost elements (average loss rate) are Cao > Na2O > MgO > MnO > P2O5 > TiO2 (Table 6). The enriched sedimentary layer is SiO2, and the lost elements are Cao > P2O5 > MgO = Na2O > TiO2 > Fe2O3 > MnO > Al2O3. In the leaching layer, SiO2 is enriched, and the lost elements are Cao > P2O5 > MgO > Na2O > Fe2O3 > TiO2 > MnO > Al2O3.

4.2. Behavior of the Trace Elements

Rare earth elements (REE) have special geochemical properties and are generally considered inactive in supergene geological processes. The information of source rocks carried by REE will not be lost, so it is widely used in sediment source tracking. Nevertheless, we believe that rare earth elements are active in the process of chemical weathering and they may be enriched, migrated, and differentiated in the weathering profile. The basic rocks contain a large amount of feldspar and pyroxene, LREE tends to be enriched in feldspar and biotite, while HREE tends to be enriched in amphibole, pyroxene, and garnet.
The content of rare earth elements in basalt weathering products in the study area has obvious inheritance with the parent rock, but the total amount of rare earth elements in weathering products has leaching tendency. The REE pattern of the samples normalized to chondrite values displays a downslope trend (the differentiation of light and heavy REE is obvious; Figure 5), similar to the characteristics of ocean island basalt (OIB). The content of rare earth elements in parent rock samples is (241~271) × 10−6, with an average of 257 × 10−6; ΣLREE is (223~248) × 10−6, average 237 × 10−6; ΣHREE is (17.6~22.5) × 10−6, with an average of 20.5 × 10−6. The content of rare earth elements in weathering products (parent material layer, sedimentary layer and leaching layer) is (169~303) × 10−6, with an average of 230 × 10−6; ΣLREE is (153~280) × 10−6, with an average of 211 × 10−6; ΣHREE value is (15.89~23.4) × 10−6, with an average of 19.4 × 10−6 (Table 3 and Table 4). The REE characteristics of weathering products are compared with those of parent rocks, suggesting that they have inheritance properties. LREE/HREE of parent rock is between 11.0 and 12.7, with an average of 11.6; the range of (La/Sm) N is between 3.27 and 4.65, and the range of (La/Yb) N is between 15.2 and 26.6. LREE/HREE of weathering products is between 8.43 and 14.3, with an average value of 10.9; the range of (La/Sm) N is between 8.30 and 17.5. The fractionation of LREE and HREE in the parent rock is obvious, but the (La/Yb) N gradually decreases with the strengthening of weathering, and the fractionation degree of LREE and HREE decreases. The δEu of the parent rock is between 0.93 and 1.05, with an average value of 1.0. There is no Eu anomaly, indicating that plagioclase did not undergo obvious fractional crystallization during magmatic evolution. The δEu of Weathering products is between 0.56 and 0.93, with an average value of 0.80. There is an obvious negative anomaly in Eu. Under reduction conditions, Eu mainly exists in the form of Eu2+, which leads to Eu showing different geochemical behavior from other trivalent rare earth elements. In the geological and geochemical process, uranium is separated from other rare earth elements to form positive or negative uranium anomalies. The formation of partially reduced acidic environment at the redox interface after basalt weathering may be the main cause of Eu negative anomaly [46].
Large ion lithophile elements (LILE, Ba, Sr, Rb, K) can form independent minerals and are soluble in water. Their chemical properties are active and easy to move after weathering. At the initial stage of weathering, Ba and Sr in the study area are largely lost from the parent rock to the parent metal layer. With the deepening of weathering, their contents are gradually stable. The content of Ba in the parent rock is 2.44 times the background value; the content of leaching layer is 1.52 times of the background value; and Rb is enriched with weathering (Figure 6). K is most stable during weathering (Figure 3).
High field strength elements (HFSE, Zr, Nb, Th, Y, U) generally have stable chemical properties, high electricity price, ion field strength, and small radius and are generally immobile during geological processes such as metamorphism and different types of alteration, including weathering. Therefore, they are usually used to restore the original properties of rocks after later changes. During weathering, five high field strength elements in the study area show different behaviors. Zr and Nb are leached; the average movement of Zr is the smallest; all tested high field strength elements are relatively stable, while Th, Y, and U are slightly enriched, among which the average movements of Th and U are the largest and most unstable among all tested high field strength elements (Figure 7).
In this study, there are differences in the concentrations of SiO2 between the parent rocks of these three profiles and basalt. However, the characteristics of trace elements of parent rocks from these profiles and different generations of basalts from the Changbai mountain area are comparable on the spider map (Figure 8). In terms of LILE, both of them are enriched in Ba and Sr, but depleted in Rb and K. With regard to HFSE, they are enriched in Nb, while depleted in U and Y. The characteristics of trace elements support that the parent rocks belong to basalt.

5. Conclusions

The weathering of basalt in Changbai Mountain belongs to moderate weathering under warm and humid climate and forming silica rich soil in the leaching layer. In the weathering process, the enrichment rate of SiO2 is the highest, the leaching loss of CaO is the most serious, and K2O is the most stable.
The distribution of the rare earth elements (REE) in the weathering products, normalized to chondrite values, closely recalls that of an OIB-type basalt, with an evident fractionation of LREE with respect to HREE. Such a feature is therefore referable to the fresh parent volcanic rock, which is thought to be an alkaline basalt. Nevertheless, some degree of leaching has occurred during weathering processes in the order of LREE > HREE. Therefore, LREE and HREE fractionation decreased with the increase in weathering degree.
Large ion lithophile elements (LILE), such as Ba, Sr, and Rb, are very mobile in the weathering process, having been either enriched or leached with respect to the original volcanic rock distribution.
High field strength elements (HFSE), such as Zr, Nb, Th, Y, and U, although much less mobile than LILE, display a different mobility degree during the weathering processes, with Zr and Nb being generally more stable than Th and U.

Author Contributions

Conceptualization, Y.H. and L.H.; software, W.Z.; validation, X.C., Y.Y. and Y.F.; writing—original draft preparation, T.L.; writing—review and editing, J.L. and T.L.; funding acquisition, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Deep-penetrating Geochemistry Project funded by the State Key Research and Development Program (2016YFC0600606) and Agricultural Geology Projects of China Geological Survey (12120105111208).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors want to express gratitude to the China Geological Survey.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Babechuk, M.G.; Widdowson, M.; Kamber, B.S. Quantifying chemical weathering intensity and trace element release from two contrasting basalt profiles, Deccan Traps, India. Chem. Geol. 2014, 363, 56–75. [Google Scholar] [CrossRef]
  2. Jianwu, L.I.; Zhang, G.; Gong, Z. Mobilization and redistribution of elements in soils developed from extreme weathering basalt on Hainan Island. Chin. J. Geochem. 2014, 33, 262–271. [Google Scholar]
  3. Cheng, G.; Liu, Y.; Long, H.; Tao, C.; Ning, Y. A preliminary study on ore-forming environments of Xianglushan-type iron deposit and the weathering mineralization of emeishan basalt in Guizhou Province, China. Acta Geochim. 2017, 36, 556–565. [Google Scholar] [CrossRef]
  4. Ma, J.L.; Wei, G.J.; Xu, Y.G.; Long, W.G. Behavior of major and trace elements in an extreme weathering profile on basalt in Hainan Island, South China. Geochim. Cosmochim. Acta 2006, 70, A379. [Google Scholar] [CrossRef]
  5. Liu, J.H.; Zhou, L.; Algeo, T.J.; Wang, X.; Chen, M.L. Molybdenum isotopic behavior during intense weathering of basalt on Hainan Island, South China. Geochim. Cosmochim. Acta 2020, 287, 180–204. [Google Scholar] [CrossRef]
  6. Mendoza-Grimón, V.; Hernández-Moreno, J.; Martín, J.; Fernández-Vera, J.; Palacios-Díaz, M. Trace and major element associations in basaltic ash soils of El Hierro Island. J. Geochem. Explor. 2014, 147, 277–282. [Google Scholar] [CrossRef]
  7. Kabatapendias, A. Trace Elements in Soils and Plants, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2000; Volume 42, p. 297. [Google Scholar]
  8. Mikkonen, H.G.; Robert, V.D.G.; Clarke, B.O.; Dasika, R.; Wallis, C.J.; Reichman, S.M. Geochemical indices and regression tree models for estimation of ambient background concentrations of copper, chromium, nickel and zinc in soil. Chemosphere 2018, 210, 193–203. [Google Scholar] [CrossRef]
  9. Bradl, H.B. Chapter 1 Sources and origins of heavy metals. In Heavy Metals in the Environment: Origin, Interaction and Remediation, 1st ed.; Bradl, H.B., Ed.; Elsevier: Amsterdam, The Netherlands, 2005; Volume 6, pp. 1–27. [Google Scholar]
  10. Braun, J.J.; Descloitres, M.; Riotte, J.; Fleury, S.; Barbiéro, L.; Boeglin, J.L.; Violette, A.; Lacarce, E.; Ruiz, L.; Sekhar, M. Regolith mass balance inferred from combined mineralogical, geochemical and geophysical studies: Mule Hole gneissic watershed, South India. Geochim. Cosmochim. Acta 2009, 73, 935–961. [Google Scholar] [CrossRef]
  11. Das, A.; Krishnaswami, S. Elemental geochemistry of river sediments from the Deccan Traps, India: Implications to sources of elements and their mobility during basalt–water interaction. Chem. Geol. 2007, 242, 232–254. [Google Scholar] [CrossRef]
  12. Duzgorenaydin, N.; Aydin, A.; Malpas, J. Re-assessment of chemical weathering indices: Case study on pyroclastic rocks of Hong Kong. Eng. Geol. 2002, 63, 99–119. [Google Scholar] [CrossRef]
  13. Gong, Q.; Deng, J.; Wang, C.; Wang, Z.; Zhou, L. Element behaviors due to rock weathering and its implication to geochemical anomaly recognition: A case study on Linglong biotite granite in Jiaodong peninsula, China. J. Geochem. Explor. 2013, 128, 14–24. [Google Scholar] [CrossRef]
  14. Gong, Q.; Deng, J.; Yang, L.; Zhang, J.; Wang, Q.; Zhang, G. Behavior of major and trace elements during weathering of sericite–quartz schist. J. Asian Earth Sci. 2011, 42, 1–13. [Google Scholar] [CrossRef]
  15. Gu, J.; Huang, Z.L.; Jin, Z.G.; Xiang, X.L. Immobile elements geochemistry and mass balance calculate of bauxite in Wuchuan—Zheng’an—Daozhen Area, Northern Guizhou Province, China. Acta Mineral. Sin. 2011, 31, 94–102. [Google Scholar]
  16. Markovics, H.W.N. Weathering of granodioritic crust, long-term storage of elements in weathering profiles, and petrogenesis of siliciclastic sediments. Geochim. Cosmochim. Acta 1997, 61, 1653–1670. [Google Scholar]
  17. Panahi, A.; Young, G.M.; Rainbird, R.H. Behavior of major and trace elements (including REE) during Paleoproterozoic pedogenesis and diagenetic alteration of an Archean granite near Ville Marie, Québec, Canada. Geochim. Cosmochim. Acta 2000, 64, 2199–2220. [Google Scholar] [CrossRef]
  18. Pedersen, F.; Bjørnestad, E.; Andersen, H.V.; Kjølholt, J.; Poll, C. Characterization of sediments from Copenhagen Harbour by use of biotests. Water Sci. Technol. 1998, 37, 233–240. [Google Scholar] [CrossRef]
  19. Sayit, K. Immobile trace element systematics of oceanic island basalts: The role of oceanic lithosphere in creating the geochemical diversity. Ofioliti 2013, 38, 101–120. [Google Scholar]
  20. Yan, T.; Wu, X.; Quan, Y.; Gong, Q.; Li, X.; Wang, P.; Li, R. Heredity, inheritance and similarity of element behaviors among parent rocks and their weathered products: A geochemical lithogene. Geoence 2018, 32, 453–467. [Google Scholar]
  21. Qian, C.; Cui, T.R.; Tang, Z.; Jinag, B.; Zhang, C.; Lu, L.; Hui, J.; Wang, Y. Characteristic and genesis discussion of Bi-model volcanic activity during Manjiang Stage, Tianchi Volcano. Geol. Rev. 2017, 63, 287–288. [Google Scholar]
  22. Fan, Q.C.; Sui, J.L.; Wang, T.H.; Li, N.; Sun, Q. Eruption history and magma evolution of the trachybasalt in the Tianchivolcano, Changbaishan. Acta Petrol. Sin. 2006, 6, 3–11. [Google Scholar]
  23. Fan, Q.C.; Sui, J.L.; Wang, T.H.; Li, N.; Sun, Q. History of volcanic activity, magma evolution and eruptive mechanisms of the changbai volcanic province. Geol. J. China Univ. 2007, 13, 175–190. [Google Scholar]
  24. Liu, J.Q.; Chen, S.S.; Guo, W.F.; Sun, C.Q.; Zhang, M.L.; Guo, Z.F. Research advances in the Mt. Changbai Volcano. Bull. Mineral. Petrol. Geochem. 2016, 34, 710–723. [Google Scholar]
  25. Li, J.Y. Permian geodynamic setting of Northeast China and adjacent regions: Closure of the Paleo-Asian Ocean and subduction of the Paleo-Pacific Plate. J. Asian Earth Sci. 2006, 26, 207–224. [Google Scholar] [CrossRef]
  26. Tang, J.; Xu, W.-L.; Wang, F.; Wang, W.; Xu, M.-J.; Zhang, Y.-H. Geochronology and geochemistry of neoproterozoic magmatism in the Erguna Massif, NE China: Petrogenesis and implications for the breakup of the rodinia supercontinent. Precambrian Res. 2013, 224, 597–611. [Google Scholar] [CrossRef]
  27. Feng, T.; Tang, D. Petrogenesis of the cenozoic volcanic rocks in the changbaishan region. Acta Petrol. Sin. 1989, 2, 156–186. [Google Scholar]
  28. Cui, Z.; Liu, J.Q. The historical records about the extensive eruptions of the Tianchi Volcano in Changbai Mountains during AD 1014–1019. Geol. Rev. 2006, 5, 624–627. [Google Scholar]
  29. Wu, F.Y.; Sun, D.Y.; Ge, W.C.; Zhang, Y.B.; Grant, M.L.; Wilde, S.A.; Jahn, B.M. Geochronology of the phanerozoic granitoids in northeastern China. J. Asian Earth Sci. 2011, 41, 1–30. [Google Scholar] [CrossRef] [Green Version]
  30. Chen, J.; Wei, F.; Zheng, C.; Wu, Y.; Adriano, D.C. Background concentrations of elements in soils of China. Water Air Soil Pollut. 1991, 57–58, 699. [Google Scholar] [CrossRef]
  31. Teng, Y.; Jin, W.; Lu, S.; Wang, Y.; Jiao, X.; Song, L. Soil and soil environmental quality monitoring in China: A review. Environ. Int. 2014, 69, 177–199. [Google Scholar] [CrossRef] [PubMed]
  32. Aristizábal, E.; Roser, B.; Yokota, S. Tropical chemical weathering of hillslope deposits and bedrock source in the Aburrá Valley, northern Colombian Andes. Eng. Geol. 2005, 81, 389–406. [Google Scholar] [CrossRef]
  33. Borges, J.; Huh, Y. Petrography and chemistry of the bed sediments of the Red River in China and Vietnam: Provenance and chemical weathering. Sediment. Geol. 2007, 194, 155–168. [Google Scholar] [CrossRef]
  34. Ohta, T.; Arai, H. Statistical empirical index of chemical weathering in igneous rocks: A new tool for evaluating the degree of weathering. Chem. Geol. 2007, 240, 280–297. [Google Scholar] [CrossRef]
  35. Riebe, C.S.; Kirchner, J.W.; Finkel, R.C. Long-term rates of chemical weathering and physical erosion from cosmogenic nuclides and geochemical mass balance. Geochim. Cosmochim. Acta 2003, 67, 4411–4427. [Google Scholar] [CrossRef]
  36. Parker, A. An index of weathering for silicate rocks. Geol. Mag. 1970, 107, 501–504. [Google Scholar] [CrossRef]
  37. Nesbitt, H.W.; Young, G.M. Early proterozoic climates and plate motions inferred from major element chemistry of lutites. Nature 1982, 299, 715–717. [Google Scholar] [CrossRef]
  38. Harnois, L. The CIW index: A new chemical index of weathering. Sediment. Geol. 1988, 55, 319–322. [Google Scholar] [CrossRef]
  39. Colman, S.M. Chemical Weathering of Basalts and Andesites: Evidence from Weathering Rinds; U.S. G.P.O.: Washington, DC, USA, 1982.
  40. Fedo, C.M.; Wayne Nesbitt, H.; Young, G.M. Unraveling the effects of potassium metasomatism in sedimentary rocks and paleosols, with implications for paleoweathering conditions and provenance. Geology 1995, 23, 921–924. [Google Scholar] [CrossRef]
  41. Mclennan, S.M. 100th anniversary symposium: Evolution of the Earth’s surface weathering and global denudation. J. Geol. 1993, 101, 295–303. [Google Scholar] [CrossRef]
  42. Feng, Z.; Wang, S.; Liu, X.; Luo, W. Impact of acid-insoluble residua of carbonate rocks on developing intensities of their weathering crusts. Acta Geol. Sin. 2009, 83, 885–893. [Google Scholar]
  43. Babechuk, M.G.; Widdowson, M.; Murphy, M.; Kamber, B.S. A combined Y/Ho, high field strength element (HFSE) and Nd isotope perspective on basalt weathering, Deccan Traps, India. Chem. Geol. 2015, 396, 25–41. [Google Scholar] [CrossRef]
  44. Kurtz, A.; Derry, L.A.; Chadwick, O.A.; Alfano, M.J. Refractory element mobility in volcanic soils. Geology 2000, 28, 279–282. [Google Scholar] [CrossRef] [Green Version]
  45. Nesbitt, H.W.; Markovics, G.; Price, R.C. Chemical processes affecting alkalis and alkaline earths during continental weathering. Geochim. Cosmochim. Acta 1980, 44, 1659–1666. [Google Scholar] [CrossRef]
  46. Zhao, P.; Li, A.M.; Li, S.T.; Yang, C.F.; Zhao, F.Y.; Yan, C.J.; Wang, Z.P.; Chen, J.; Yang, G. The REE geochemical characteristics of the basalt weathering crust in the northwestern Guizhou. Acta Mineral. Sin. 2019, 39, 122–131. [Google Scholar]
  47. Sun, S.S.; Mcdonough, W.F. Chemical and isotopic systematics of ocean basalts: Implications for mantle composition and processes. In Magmatism in the Ocean Basins; Geological Society London Special Publications: London, UK, 1989; Volume 423, pp. 13–345. [Google Scholar]
  48. Guo, W.; Liu, J.; Guo, Z. Temporal variations and petrogenetic implications in Changbai basaltic rocks since the Pliocene. Acta Petrol. Sin. 2014, 30, 3595–3611. [Google Scholar]
Sustainability 13 12796 g001 550

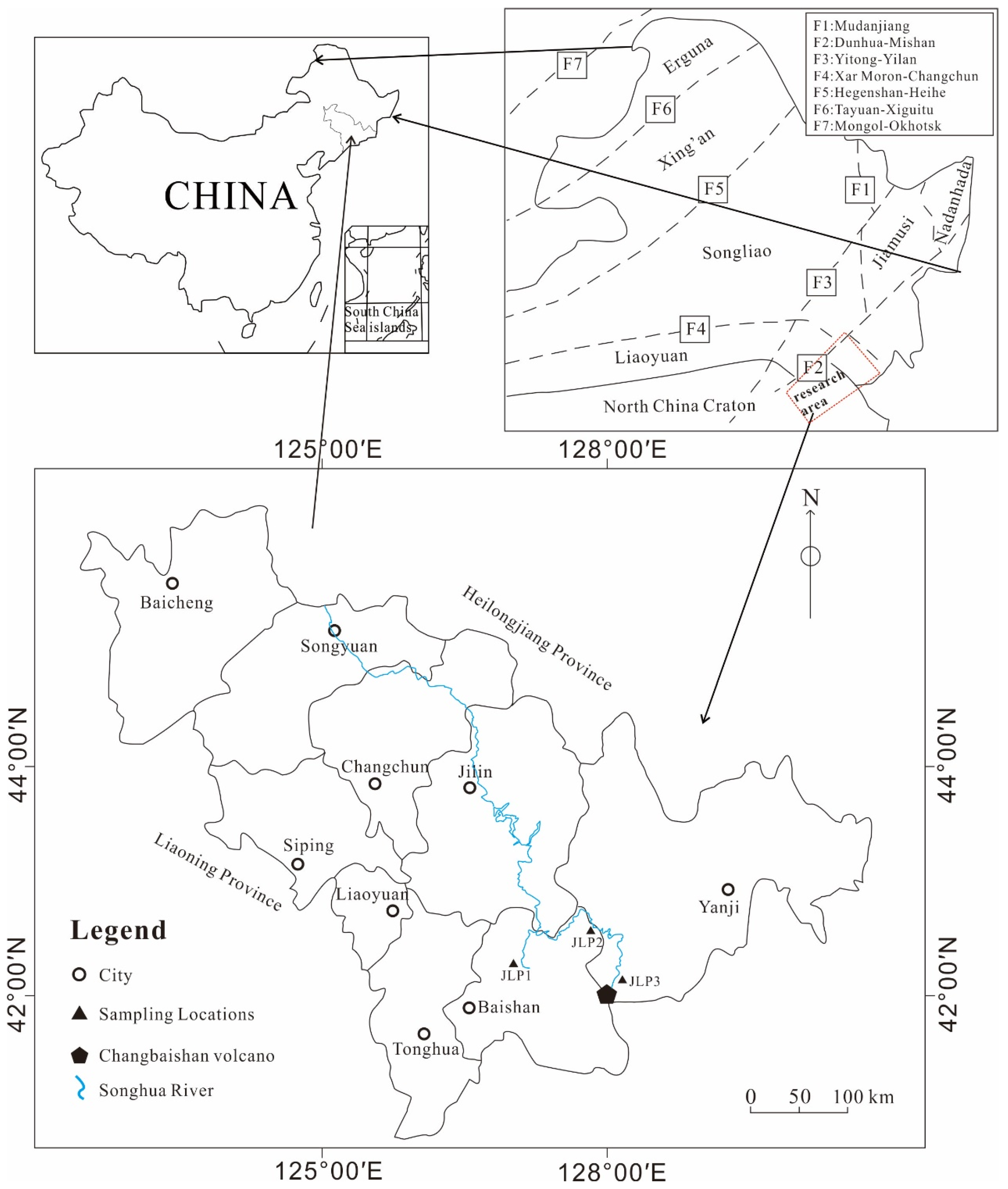

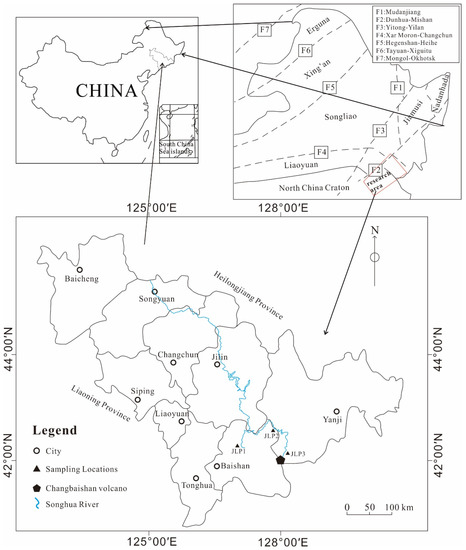

Figure 1. Geographic and geotectonic setting of the study area and location of the soil profiles [29].
Figure 1. Geographic and geotectonic setting of the study area and location of the soil profiles [29].
Sustainability 13 12796 g001
Sustainability 13 12796 g002 550

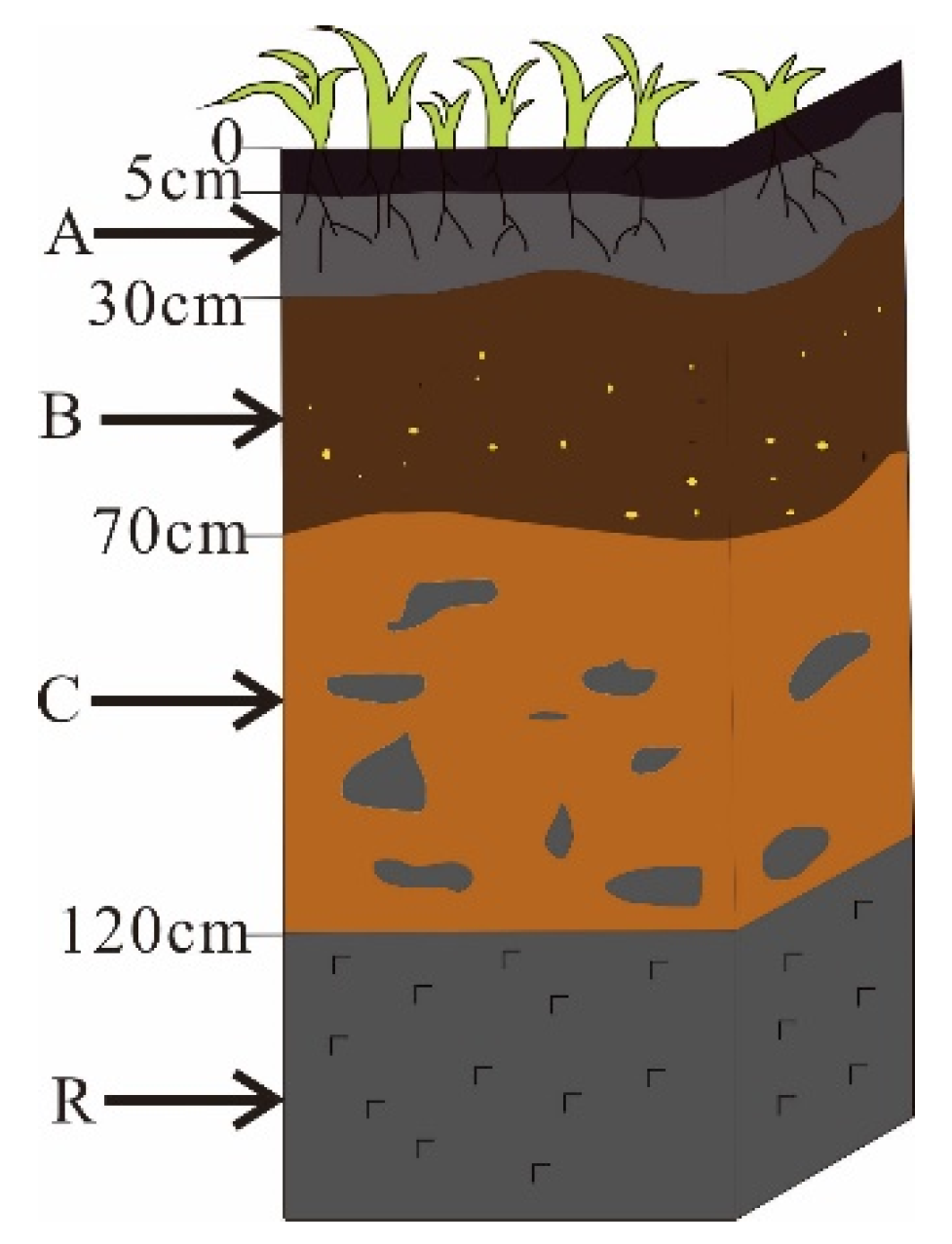

Figure 2. Weathering profile sketch.
Figure 2. Weathering profile sketch.
Sustainability 13 12796 g002
Sustainability 13 12796 g003 550

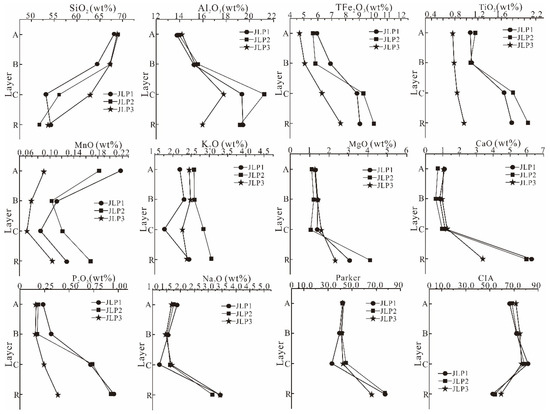

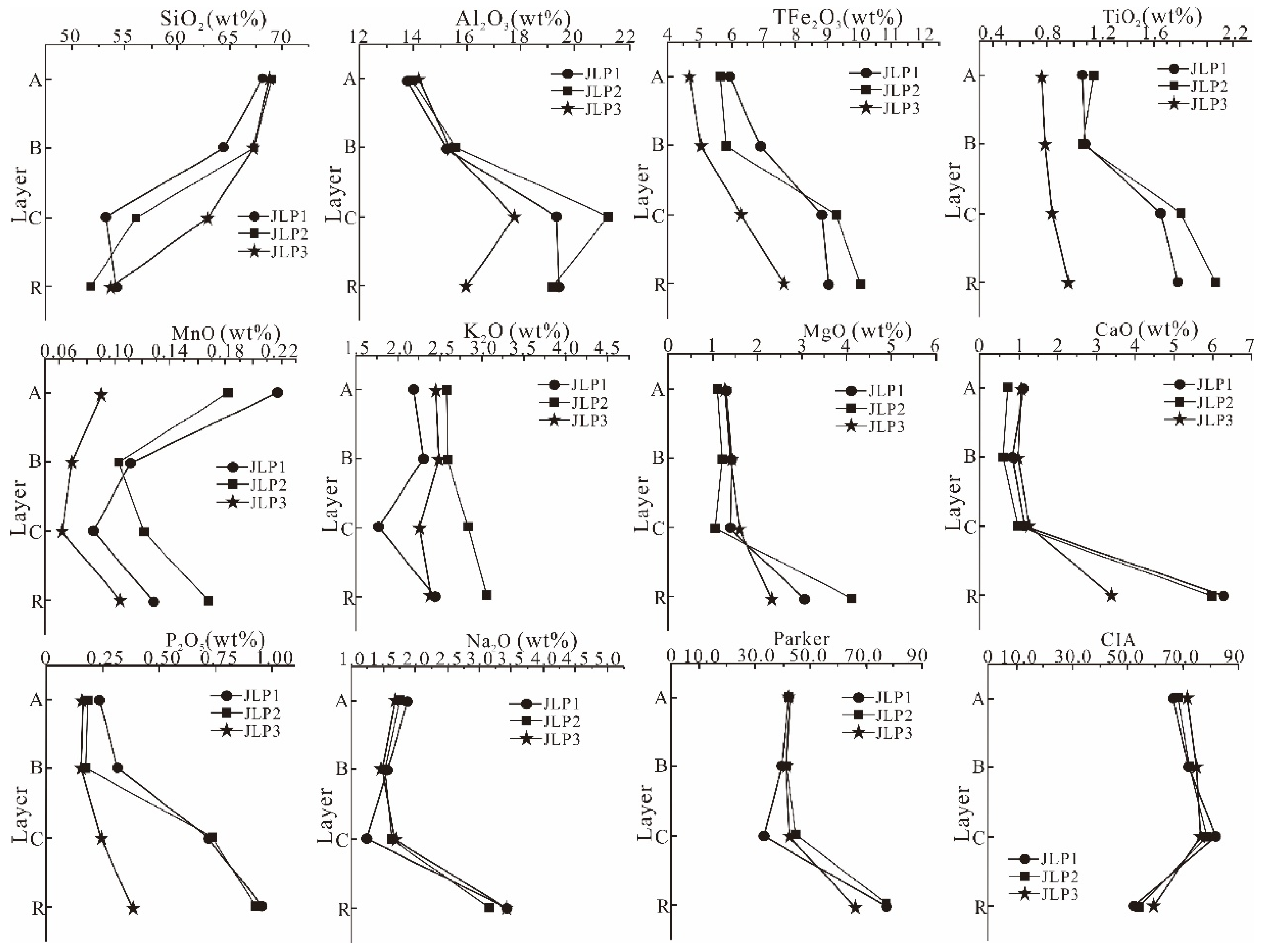

Figure 3. Content changes of the major elements in the soil profiles.
Figure 3. Content changes of the major elements in the soil profiles.
Sustainability 13 12796 g003
Sustainability 13 12796 g004 550

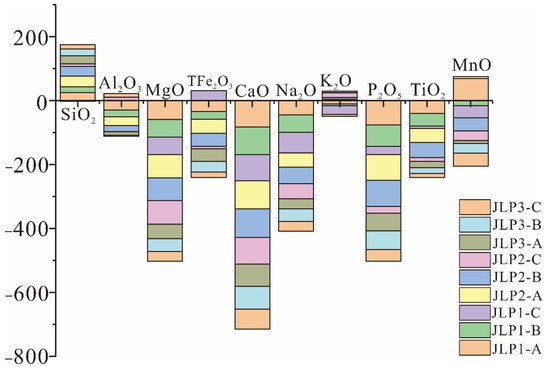

Figure 4. Stacking diagram of mobility of the major elements.
Figure 4. Stacking diagram of mobility of the major elements.
Sustainability 13 12796 g004
Sustainability 13 12796 g005 550

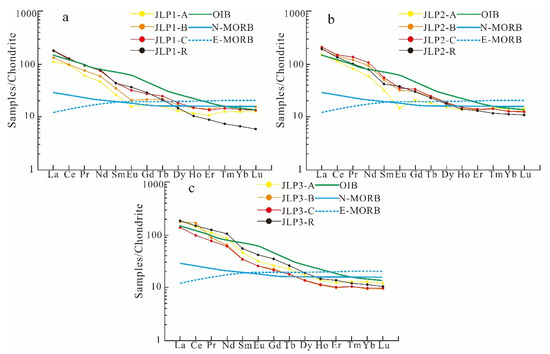

Figure 5. Chondrite normalized distribution model of the REE in the soil profile. Chondrite, OIB, E-MORB, and N-MORB reference values after [47]. Panel (a) is the chondrite normalized distribution model of the REE in soil profile 1. Panel (b) is the chondrite normalized distribution model of the REE in soil profile 2. Panel (c) is the chondrite normalized distribution model of the REE in soil profile 3.
Figure 5. Chondrite normalized distribution model of the REE in the soil profile. Chondrite, OIB, E-MORB, and N-MORB reference values after [47]. Panel (a) is the chondrite normalized distribution model of the REE in soil profile 1. Panel (b) is the chondrite normalized distribution model of the REE in soil profile 2. Panel (c) is the chondrite normalized distribution model of the REE in soil profile 3.
Sustainability 13 12796 g005
Sustainability 13 12796 g006 550

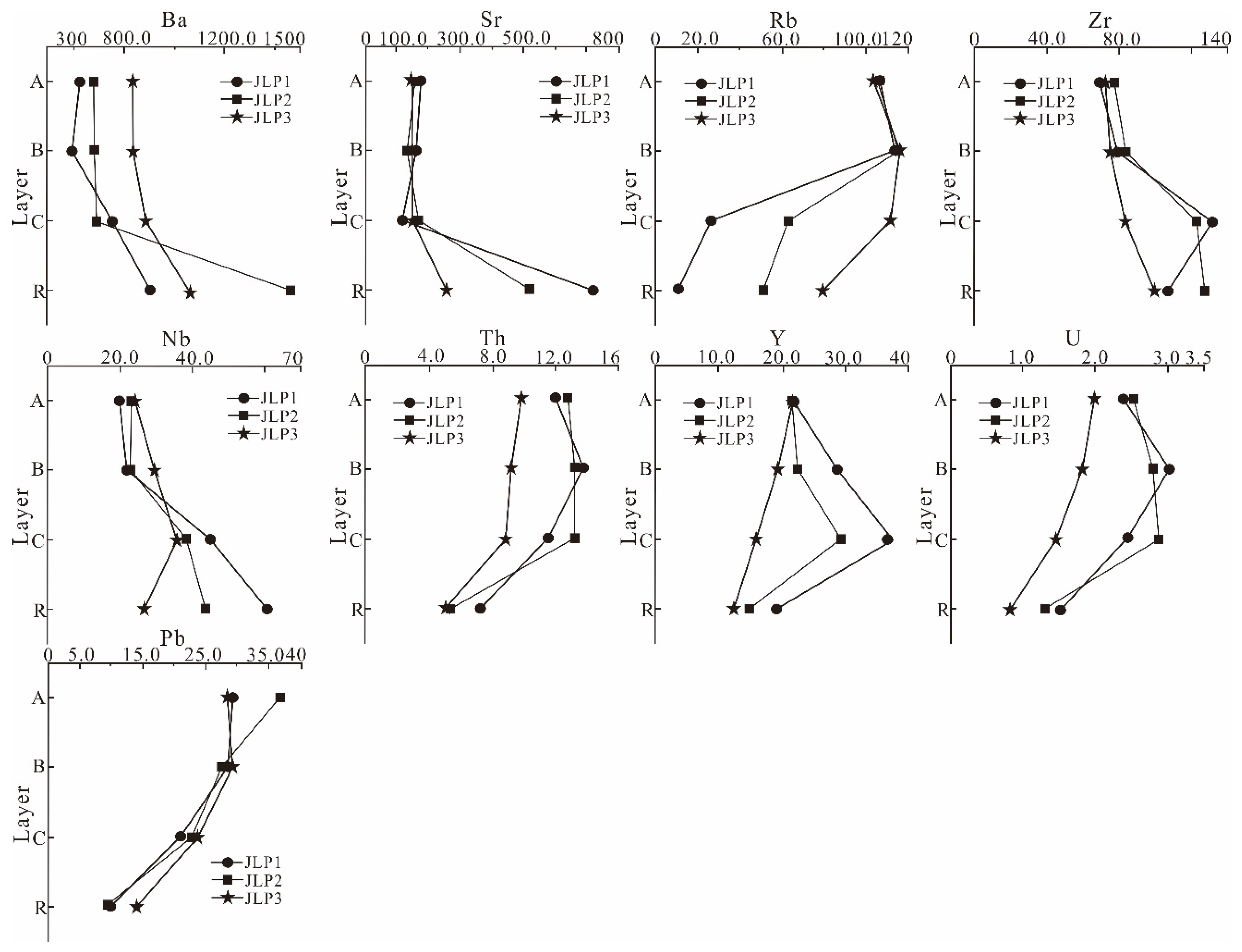

Figure 6. Changes of the trace elements in the soil profile.
Figure 6. Changes of the trace elements in the soil profile.
Sustainability 13 12796 g006
Sustainability 13 12796 g007 550

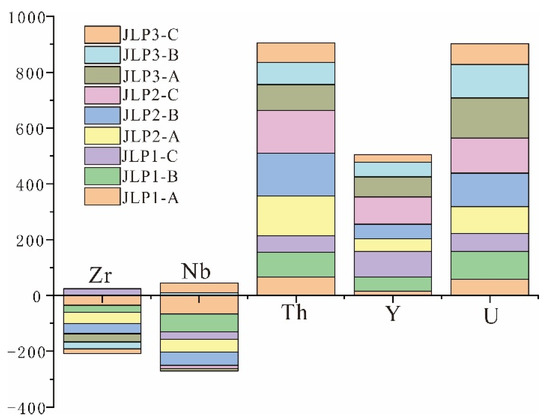

Figure 7. The HFSE stacking diagram.
Figure 7. The HFSE stacking diagram.
Sustainability 13 12796 g007
Sustainability 13 12796 g008 550

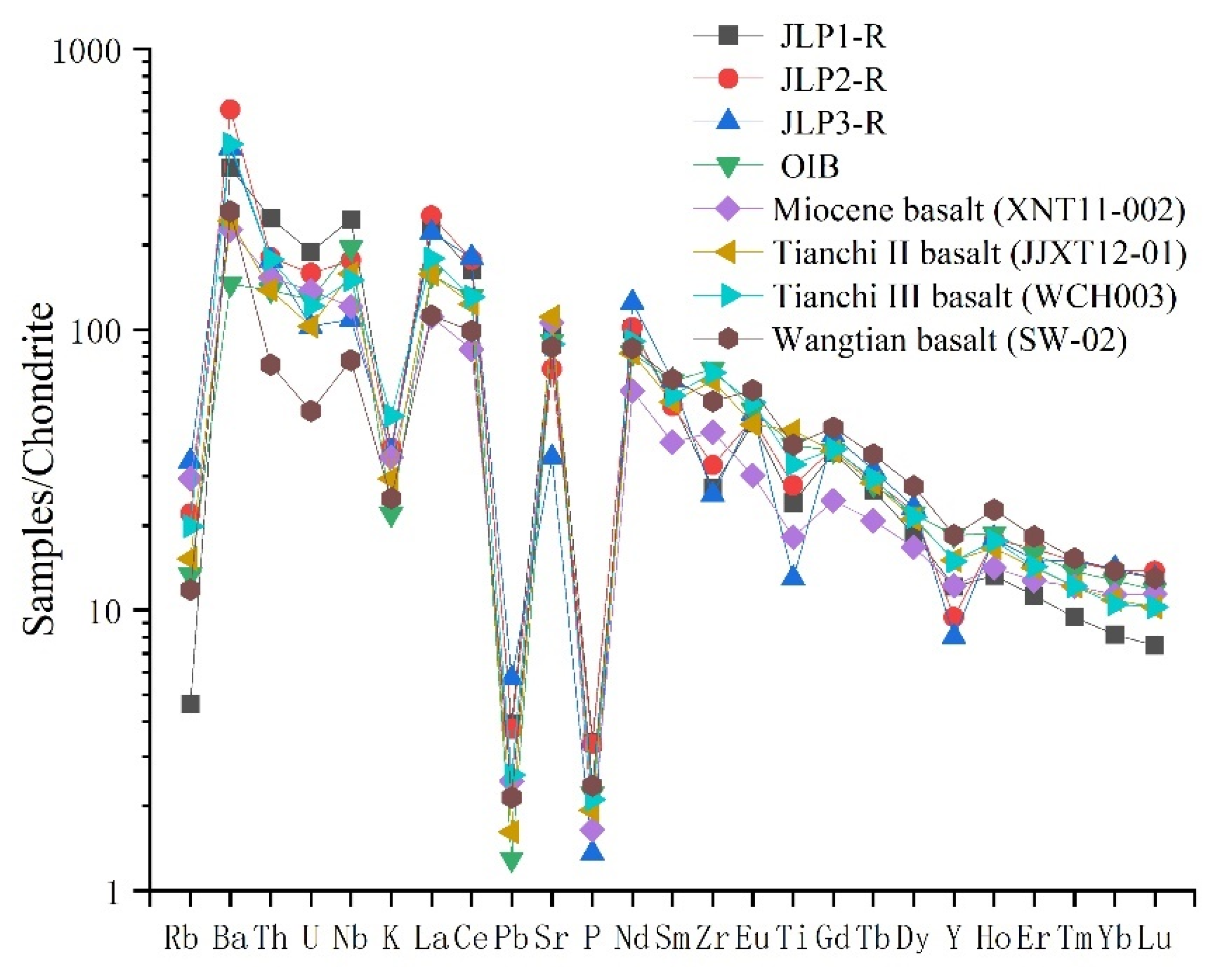

Figure 8. Trace element spider diagram. Chondrite and OIB reference values after [48]. XNT11-002, JJXT12-01, WCH003, and SW-02 reference values after [48].
Figure 8. Trace element spider diagram. Chondrite and OIB reference values after [48]. XNT11-002, JJXT12-01, WCH003, and SW-02 reference values after [48].
Sustainability 13 12796 g008
Table
Table 1. Sampling locations of the studied soil profiles.
Table 1. Sampling locations of the studied soil profiles.
Soil ProfileParent Rocks LithologiesLocationsElevations (m above Sea Level)
LatitudeLongitude
JLP1vesiculate basalt42°24′07″126°47′03″547
JLP2vesiculate basalt42°30′35″127°49′23″733
JLP3vesiculate basalt 42°11′44″128°10′32″1107
Table
Table 2. Content of major elements (wt%) of the soil profile samples. L.O.I = loss of ignition; CIA index = (Al2O3/(Al2O3 + CaO* + K2O + Na2O)) × 100; Parker index = (2Na2O/0.35 + MgO/0.9 + 2K2O/0.25 + CaO/0.7) × 100.
Table 2. Content of major elements (wt%) of the soil profile samples. L.O.I = loss of ignition; CIA index = (Al2O3/(Al2O3 + CaO* + K2O + Na2O)) × 100; Parker index = (2Na2O/0.35 + MgO/0.9 + 2K2O/0.25 + CaO/0.7) × 100.
SampleSiO2Al2O3MgOTFe2O3CaONa2OK2OP2O5TiO2MnOL.O.I.CIAParker
JLP1-A68.1013.761.265.941.101.902.200.231.070.221.1466.4242.48
JLP1-B64.4615.301.396.900.851.562.320.311.090.110.3772.2340.08
JLP1-C53.1919.331.3811.841.171.241.780.711.650.080.2681.4733.33
JLP1-R54.5019.423.079.046.293.442.450.951.790.131.9052.6277.02
JLP2-A69.1313.921.115.660.731.752.590.181.160.180.6267.9043.05
JLP2-B67.3915.601.225.840.611.522.600.171.080.100.4072.1641.01
JLP2-C56.1221.241.069.300.991.642.850.731.810.120.3578.4444.77
JLP2-R51.7719.204.1210.055.983.152.480.932.060.170.8853.7476.71
JLP3-A68.8314.201.274.691.061.692.450.170.770.091.5867.1342.59
JLP3-B67.1415.321.395.060.961.482.490.160.790.070.5970.2341.07
JLP3-C63.0717.741.596.281.251.682.260.240.840.060.3071.9742.25
JLP3-R53.2315.962.317.623.383.442.410.380.960.102.0454.1667.16
Average
(A–C)		64.16 16.27 1.30 6.83 0.97 1.61 2.39 0.32 1.14 0.11 0.62
Table
Table 3. Content (ppm) and characteristic parameters of rare earth elements in the profile samples. Background values of soil elements in China [30,31].
Table 3. Content (ppm) and characteristic parameters of rare earth elements in the profile samples. Background values of soil elements in China [30,31].
SampleLaCePrNdSmEuGdTbDyHoErTmYbLu
JLP1-A33.8877.767.3427.955.131.154.400.754.190.842.260.412.620.41
JLP1-B40.7478.329.1335.186.791.525.521.025.461.062.980.513.310.50
JLP1-C55.79102.6111.4944.688.562.347.101.175.941.082.830.472.880.43
JLP1-R54.8999.0911.5946.88.442.687.471.004.730.751.860.241.390.19
JLP2-A46.35 90.87 9.94 35.24 6.22 1.08 5.35 0.86 4.94 0.98 2.84 0.48 2.96 0.46
JLP2-B58.82 113.98 14.57 56.05 9.89 2.34 7.82 1.15 5.84 1.08 2.86 0.46 2.68 0.41
JLP2-C65.11 120.39 16.59 64.09 10.79 2.58 8.64 1.17 6.02 1.09 2.94 0.46 2.65 0.40
JLP2-R60.32 108.43 12.27 47.48 8.16 2.78 7.74 1.08 5.70 1.01 2.74 0.38 2.35 0.35
JLP3-A52.84 105.47 12.33 48.10 8.48 2.23 6.49 1.03 5.24 0.97 2.51 0.41 2.60 0.38
JLP3-B50.08 124.32 9.99 36.15 6.42 1.80 5.62 0.81 4.22 0.77 2.03 0.33 1.93 0.30
JLP3-C39.37 73.12 8.73 34.17 6.34 1.81 5.30 0.82 4.28 0.80 2.09 0.33 1.99 0.31
JLP3-R52.38 110.44 13.95 58.40 10.09 2.90 8.61 1.18 5.90 1.02 2.80 0.38 2.32 0.33
Background40.0068.007.2026.005.201.004.600.634.100.872.500.372.400.36
Table
Table 4. Content (ppm) and characteristic parameters of rare earth elements in the profile samples. Background values of soil elements in China [30,31].
Table 4. Content (ppm) and characteristic parameters of rare earth elements in the profile samples. Background values of soil elements in China [30,31].
SampleΣREEΣLREEΣHREELREE/HREEδEuδCe(La/Sm)N(La/Yb)N
JLP1-A169.09153.2115.889.650.721.144.158.72
JLP1-B192.04171.6820.368.430.740.943.778.30
JLP1-C247.37225.4721.9010.300.890.934.1013.06
JLP1-R241.12223.4917.6312.681.010.904.0926.62
JLP2-A208.62 189.75 18.87 10.060.56 0.97 4.69 10.57
JLP2-B277.93 255.63 22.30 11.460.79 0.91 3.74 14.79
JLP2-C302.91 279.54 23.37 11.960.79 0.86 3.80 16.56
JLP2-R260.79 239.44 21.35 11.211.05 0.91 4.65 17.31
JLP3-A249.08 229.45 19.63 11.690.89 0.96 3.92 13.70
JLP3-B244.77 228.76 16.01 14.290.90 1.26 4.91 17.49
JLP3-C179.46 163.54 15.92 10.270.93 0.91 3.91 13.34
JLP3-R270.70 248.16 22.54 11.010.93 0.96 3.2715.22
Background163.23147.4015.839.31
Table
Table 5. Content of trace elements (ppm) in the profile samples. Background values of soil elements in China [30,31].
Table 5. Content of trace elements (ppm) in the profile samples. Background values of soil elements in China [30,31].
SamplePbRbSrBaZrNbThYU
JLP1-A29.30106.00 172.00 625.00 69.20 20.10 12.00 22.00 2.38
JLP1-B28.60114.00 157.00 597.00 79.00 22.00 13.70 28.60 3.03
JLP1-C21.0026.30 117.00 759.00 132.00 44.90 11.50 36.50 2.46
JLP1-R9.7010.70 720.00 907.00 106.00 60.80 7.24 19.00 1.51
JLP2-A36.80104.00 156.00 680.00 76.40 23.60 12.70 21.40 2.51
JLP2-B27.80115.00 134.00 680.00 83.00 22.80 13.30 22.60 2.80
JLP2-C22.9063.00 164.00 694.00 123.00 38.40 13.30 29.20 2.88
JLP2-R9.3051.20 525.00 1465.00 127.00 43.40 5.24 14.80 1.27
JLP3-A28.50104.00 155.00 838.00 71.50 24.20 9.85 21.70 2.00
JLP3-B29.20115.00 153.00 837.00 75.20 29.40 9.11 19.30 1.82
JLP3-C23.80112.00 150.00 890.00 82.90 35.90 8.73 16.00 1.43
JLP3-R14.1078.70 254.00 1066.00 99.80 26.70 5.12 12.60 0.82
Background26.00111.00 166.00 469.00 258.00 34.00 14.00 23.00 3.00
Table
Table 6. Mobility of the major elements.
Table 6. Mobility of the major elements.
SampleSiO2Al2O3MgOTFe2O3CaONa2OK2OP2O5TiO2MnO
JLP1-A0.39 −0.21 −0.54 −0.27 −0.81 −0.38 0.00 −0.73 −0.33 0.88
JLP1-B0.25 −0.17 −0.52 −0.19 −0.86 −0.52 0.00 −0.66 −0.36 −0.11
JLP1-C0.34 0.37 −0.38 0.80 −0.74 −0.50 0.00 0.03 0.27 −0.15
JLP2-A0.28 −0.31 −0.74 −0.46 −0.88 −0.47 0.00 −0.81 −0.46 0.01
JLP2-B0.24 −0.23 −0.72 −0.45 −0.90 −0.54 0.00 −0.83 −0.50 −0.44
JLP2-C−0.06 −0.04 −0.78 −0.19 −0.86 −0.55 0.00 −0.32 −0.24 −0.39
JLP3-A0.27 −0.12 −0.46 −0.39 −0.69 −0.52 0.00 −0.56 −0.21 −0.11
JLP2-B0.22 −0.07 −0.42 −0.36 −0.73 −0.58 0.00 −0.59 −0.20 −0.32
JLP3-C0.26 0.19 −0.27 −0.12 −0.61 −0.48 0.00 −0.33 −0.07 −0.36
Average-A0.31 −0.21 −0.58 −0.37 −0.79 −0.46 0.00 −0.70 −0.34 0.26
Average-B0.24 −0.15 −0.55 −0.33 −0.83 −0.55 0.00 −0.69 −0.35 −0.29
Average-C0.18 0.17 −0.47 0.16 −0.74 −0.51 0.00 −0.20 −0.01 −0.30
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lan, T.; Hao, L.; Lu, J.; Yin, Y.; Chen, X.; Fan, Y.; Zhao, W.; Hou, Y. Geochemical Behavior of Different Chemical Elements during Weathering of the Basalts in Changbai Mountain, Northeast China. Sustainability 2021, 13, 12796. https://doi.org/10.3390/su132212796

AMA Style

Lan T, Hao L, Lu J, Yin Y, Chen X, Fan Y, Zhao W, Hou Y. Geochemical Behavior of Different Chemical Elements during Weathering of the Basalts in Changbai Mountain, Northeast China. Sustainability. 2021; 13(22):12796. https://doi.org/10.3390/su132212796

Chicago/Turabian Style

Lan, Tian, Libo Hao, Jilong Lu, Yechang Yin, Xiaoqing Chen, Yuchao Fan, Wei Zhao, and Yaru Hou. 2021. "Geochemical Behavior of Different Chemical Elements during Weathering of the Basalts in Changbai Mountain, Northeast China" Sustainability 13, no. 22: 12796. https://doi.org/10.3390/su132212796

APA Style

Lan, T., Hao, L., Lu, J., Yin, Y., Chen, X., Fan, Y., Zhao, W., & Hou, Y. (2021). Geochemical Behavior of Different Chemical Elements during Weathering of the Basalts in Changbai Mountain, Northeast China. Sustainability, 13(22), 12796. https://doi.org/10.3390/su132212796

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
