A Modified Triple-Diode Model Parameters Identification for Perovskite Solar Cells via Nature-Inspired Search Optimization Algorithms

Abstract

Recently, perovskite solar cells (PSCs) have been widely investigated as an efficient alternative for silicon solar cells. In this work, a proposed modified triple-diode model (MTDM) for PSCs modeling and simulation was used. The Bald Eagle Search (BES) algorithm, which is a novel nature-inspired search optimizer, was suggested for solving the model and estimating the PSCs device parameters because of the complex nature of determining the model parameters. Two PSC architectures, namely control and modified devices, were experimentally fabricated, characterized and tested in the lab. The I–V datasets of the fabricated devices were recorded at standard conditions. The decision variables in the proposed optimization process are the nine and ten unknown parameters of triple-diode model (TDM) and MTDM, respectively. The direct comparison with a number of modern optimization techniques including grey wolf (GWO), particle swarm (PSO) and moth flame (MFO) optimizers, as well as sine cosine (SCA) and slap swarm (SSA) algorithms, confirmed the superiority of the proposed BES approach, where the Root Mean Square Error (RMSE) objective function between the experimental data and estimated characteristics achieves the least value.

1. Introduction

Perovskite absorbers have been widely used in solar cells due to their suitable optoelectronic properties [1], such as high carrier mobility [2], tunable bandgap and long carrier lifetime [3]. Perovskite solar cells (PSCs) have demonstrated great power conversion efficiency (PCE) improvement in a very fast pace [4,5], which nowadays exceeds 25%, overcoming other third-generation technologies [6]. The planar structure is characterized by ease and low-cost fabrication and consists of a compact electron transport layer (ETL), the absorber, a hole transport layer (HTL) and the metal contacts. Hysteresis phenomenon and stability issues are the most important drawbacks of planar PSCs. The functionality of the ETL, as well as its interface with the perovskite, are crucial for the overall PSCs performance and stability [7,8]. Several interface engineering approaches [9,10,11,12] have been implemented to confront the abovementioned issues. Recently, manganese-based porphyrin was incorporated in planar PSCs [13] as an electron transport mediator which facilitated the electron transfer, favored the growth of more homogenous perovskite films with larger and better crystallized grains and, thus, resulted in enhanced PCE and improved stability.

There are three common models that have been developed to describe the solar cell: single-diode, double-diode, and triple-diode models. Such models depend on the diodes as their main components, along with some resistors to characterize the properties of the PV solar cell. However, the main issue that needs to be faced is finding the optimal values for individual parameters, such as impedance, diode ideal factors, and saturation currents, in order to obtain successful modeling. The single-diode model is considered the basic one and has a single diode. The development of a more detailed model would be more appropriate to represent a wide range of PV systems considering different conditions [14]. To increase the accuracy of conventional model, some modified models are developed. Dalia et al. [14] suggested an improved double-diode model. They added an extra resistor in series with the second diode to consider the influence of grain boundary regions. An improved triple-diode model was therein suggested and compared with the improved double-diode model. The results proved that the accuracy of an improved triple-diode model is better than an improved double-diode model [15].

In this paper, the modified TDM is examined to model the perovskite solar cells using the bald eagle search (BES) algorithm. Two perovskite-based devices, namely, control and modified, were experimentally fabricated, characterized and tested in the lab. Characteristic I–V parameters of the fabricated devices were recorded at standard condition. A comparison study is presented with other optimization algorithms of grey wolf optimizer (GWO), particle swarm optimizer (PSO), moth flame optimizer (MFO), (SCA) and (SSA), where the superiority of the proposed BES algorithm is proved.

The main contributions of this paper are summarized as follows:

• a new application of the bald eagle search algorithm to identify the parameters of the modified TDM for perovskite solar cells;
• the obtained results by the bald eagle search algorithm are compared with other methods;
• the accuracy and superiority of the bald eagle search algorithm in determining parameters of the modified TDM for perovskite solar cells are proved.

The rest of the paper is arranged as follows: Section 2 presents the details of the experimental work. The mathematical representation of the modified TDM and problem formulation is presented in Section 3. A brief overview of the bald eagle search algorithm is explained in Section 4. The obtained results are presented and discussed in Section 5. Finally, Section 6 outlines the main findings of the current research work.

2. Experimental

2.1. Device Fabrication

Fluorine-doped tin oxide (FTO) conductive substrates were cleaned thoroughly by sequential 15 min ultra-sonication baths with Hellmanex, 2-propanol, and acetone. Before the ETL’s deposition, the FTOs underwent UV ozone treatment for 15 min. For the compact layer, a solution of titanium (IV) isopropoxide in ethanol was spin-coated at 2000 rpm for 60 s and the resulted TiO₂ films were annealed at 500 °C for 45 min with a temperature ramp rate of 5 °C min⁻¹. For the modified films, manganese porphyrin was diluted in methanol, resulting in a solution of 0.5 mg mL⁻¹, and was spin-coated at 2000 rpm for 40 s on top of the TiO₂ films. The perovskite solution and the HTM solution were prepared and deposited into an argon-filled glovebox. For the perovskite solution, 40 wt % of methylammonium iodide and lead acetate trihydrate were diluted in anhydrous DMF in a 3:1 molar ratio and a small amount of hypophosphorous acid (50% w/w, aqueous solution) was added at the end. The perovskite solution was spin-coated on the ETLs at 2000 rpm for 45 s. The obtained films were left to dry at room temperature for 10 min and afterward annealed at 100 °C for 5 min. After cooling down, a 70 mM Spiro-MeOTAD solution in chlorobenzene, containing additives of lithium bis-(trifluoromethanesulfonyl) imide lithium salt in acetonitrile, 4-tert-butylpyridine and FK209 Co(III) TFSI salt in acetonitrile, was spin-coated at 4000 rpm for 10 s. Finally, 100 nm of patterned silver electrodes were thermally evaporated under a 10⁻⁶ Torr vacuum at a ∼1 Å s−1 rate. Figure 1 Cross-section SEM image (Reprinted with permission from [13]. Copyright 2020 American Chemical Society) shows the schematic illustration, an optical image and a cross-section SEM image of the obtained devices.

2.2. Characterization Methods

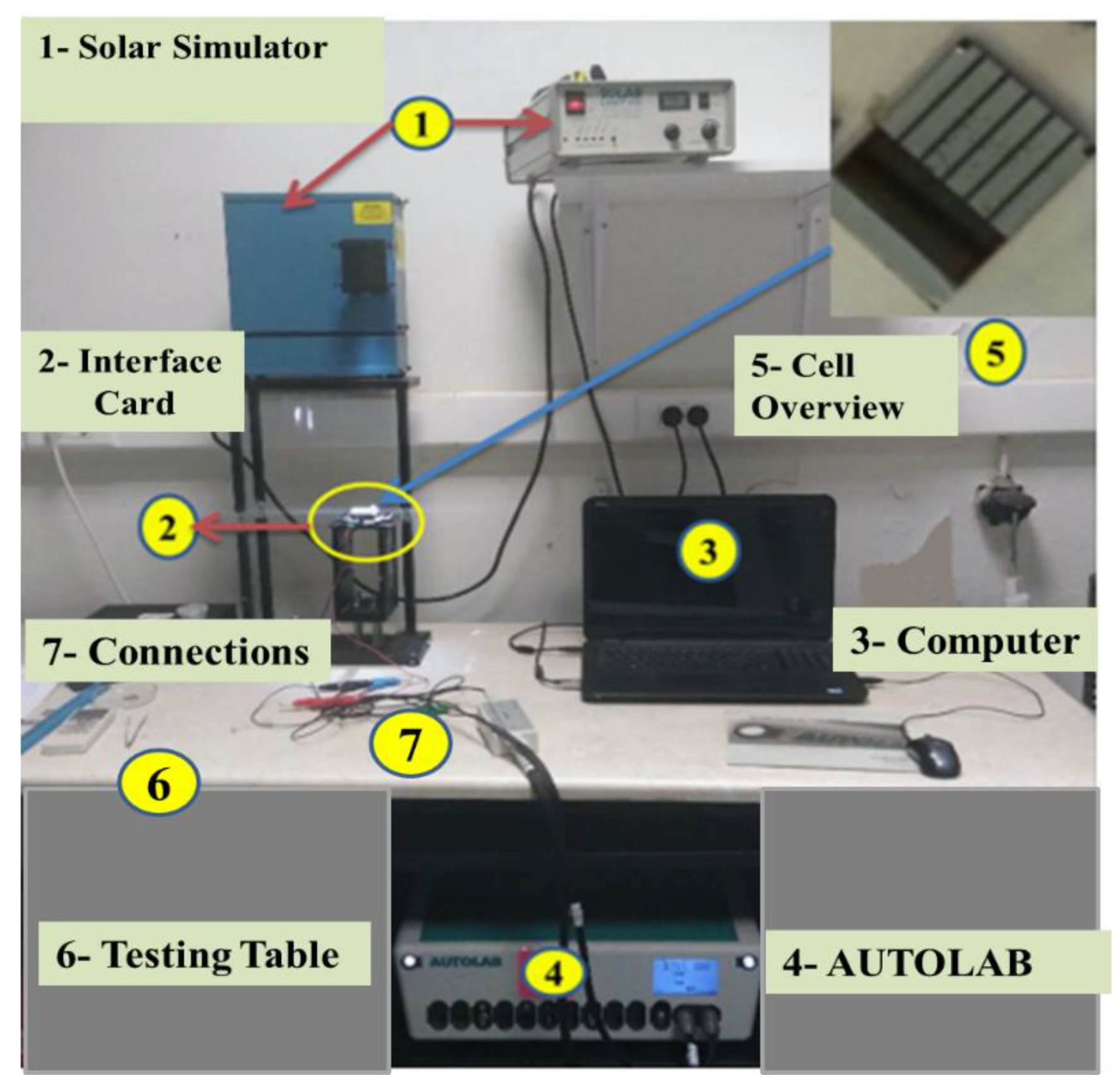

The devices were characterized electrochemically using a solar simulator (Solar Light Company, Inc. (Glenside, PA, USA) 300 W model 16 S-300/1 sun, AM 1.5 D, 1000 W m⁻²) as the illumination source and an Autolab PG-STAT-30 potentiostat to obtain the current−voltage (J−V) curves with a scan rate of 50 mV s⁻¹. In addition, electrochemical impedance spectroscopy (EIS) measurements were carried out under dark and 1 sun illumination conditions using the PG-STAT-30 potentiostat and its built-in frequency response analyzer (Figure 2). The UV−vis absorption spectra were recorded with a PerkinElmer LAMBDA 40 UV−vis spectrometer. In [13], all the details about the fabricated devices performance are discussed.

3. Triple-Diode Model and Problem Formulation

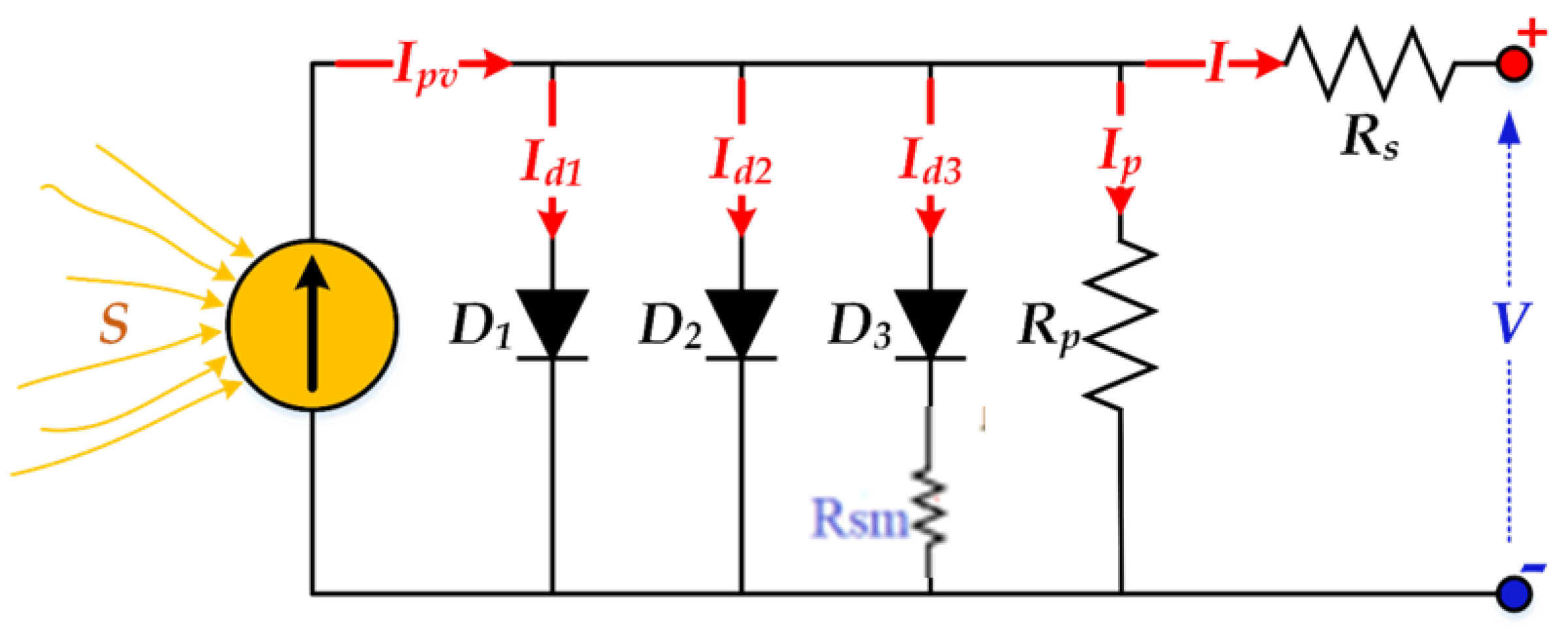

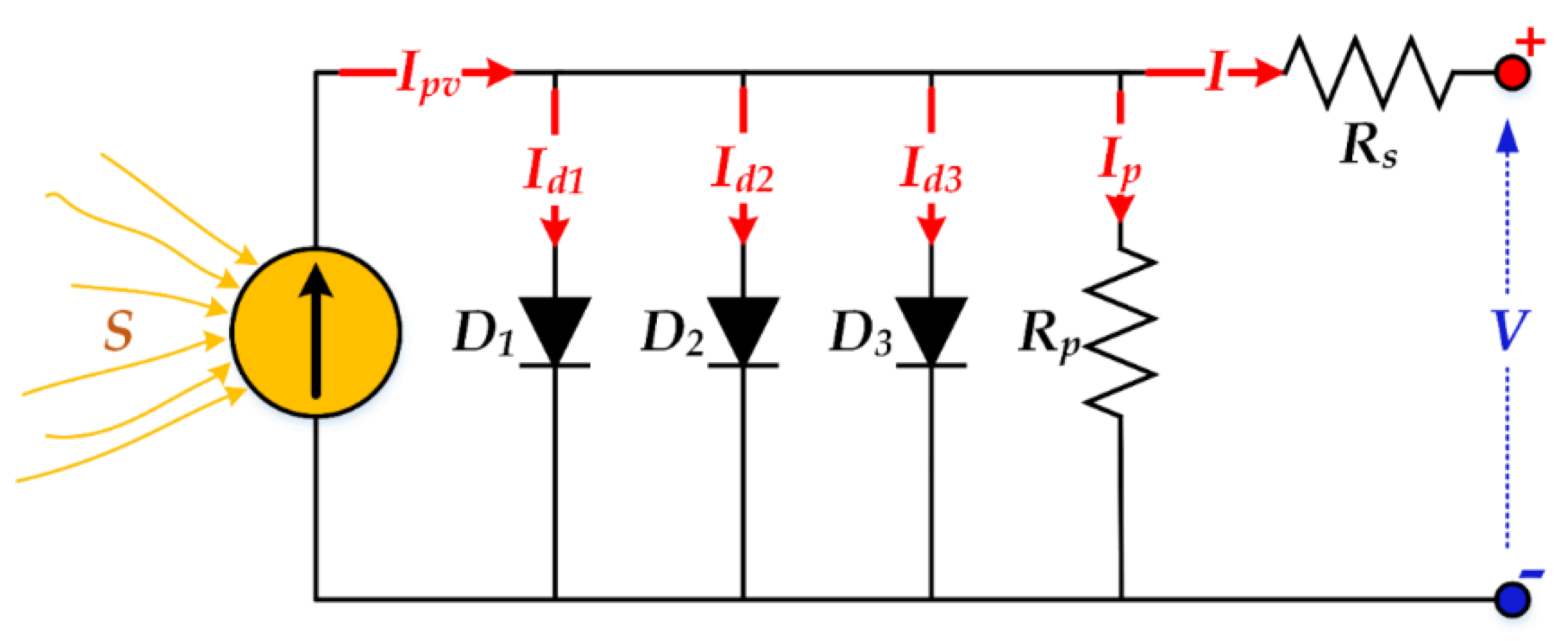

Figure 3 shows the TDM equivalent circuit, while Figure 4 shows the modified TDM equivalent circuit of PV. The mathematical model of both TDM and modified TDM are presented in this section.

From the equivalent circuit shown in Figure 3, the solar cell output current is represented by the following equation [14].

$$I=I_{\mathit{pv}}-I_{D1}-I_{D2}-I_{D3}-(\frac{V+I.R_s}{R_{\mathrm{p}}})$$

(1)

where I_pv denotes the photo-generated current. I_D1, I_D2, I_D3 denote the current in the first, second and third diodes, respectively. R_s is the series resistance. R_p denotes the shunt resistance.

The diodes currents can be estimated as shown in Equation (2), based on the Shockley formula as follows:

$$\begin{array}{c}{I}_{D1}=I_{01}(e^{(\frac{V+I.R_s}{n_1.V_t})}-1)\\ I_{D2}=I_{02}(e^{(\frac{V+I.R_s}{n_2.V_t})}-1)\\ I_{D3}=I_{03}(e^{(\frac{V+I.R_s}{n_3.V_t})}-1)\end{array}$$

(2)

where n₁, n₂, and n₃ denote the ideality factor of D₁, D₂, and D₃, respectively; $I_{01 },I_{02 }$ and $I_{03 }$ are the saturation currents of diodes D₁, D₂, and D₃, respectively. V_t denotes the thermal voltage. It can be calculated using the following relation.

$$V_t=\frac{kT{N}_s}{q}$$

(3)

where k denotes the Boltzmann constant, T denotes the temperature of the PV panel, N_s is the number of series solar cells, and q denotes the electron charge.

Based on equivalent circuit shown in Figure 3, the solar cell output current using the TDM can be obtained from the following relation [14].

$$I=I_{pv}-I_{01}(e^{(\frac{V+I.R_s}{n_1.V_t})}-1)-I_{02}(e^{(\frac{V+I.R_s}{n_2.V_t})}-1)-I_{03}(e^{(\frac{V+I.R_s}{n_3.V_t})}-1)-\frac{V+I.R_s}{R_p}$$

(4)

To increase the accuracy of the equivalent model, the modified TDM is proposed, where the losses in the defect region are included in the model and expressed via adding the modified series resistance; R_sm in the third diode branch as shown in Figure 4, and Equation (4) updated to be as shown in Equation (5):

$$I=I_{pv}-I_{01}(e^{(\frac{V+I.R_s}{n_1.V_t})}-1)-I_{02}(e^{(\frac{V+I.R_s}{n_2.V_t})}-1)-I_{03}(e^{(\frac{V+I.R_s-R_{\mathit{sm}}{I}_{d3}}{n_3.V_t})}-1)-\frac{V+I.R_s}{R_p}$$

(5)

Coidering Equation (5), the modified TDM model contains ten unknown parameters (I_pv, $I_{01 },I_{02 },I_{03 }$, $n_1,n_2, n_3$, R_s, R_p, R_sm).

The ten unknown parameters of the modified TDM should be estimated accurately. An optimization process is used for obtaining the module parameters, where the root mean square error (RMSE) between the estimated and experimental data is used as an objective function. The RMSE is estimated using the following relation and should be minimum.

$$RMSE=\sqrt{\frac{1}{N}{{\displaystyle {\sum }_{i=1}^N(I_m-I_e)}}^2}$$

(6)

where N denotes the number of datasets, I_m denotes the measured current, and I_e denotes the estimated current.

4. Bald Eagle Search Optimization Algorithm

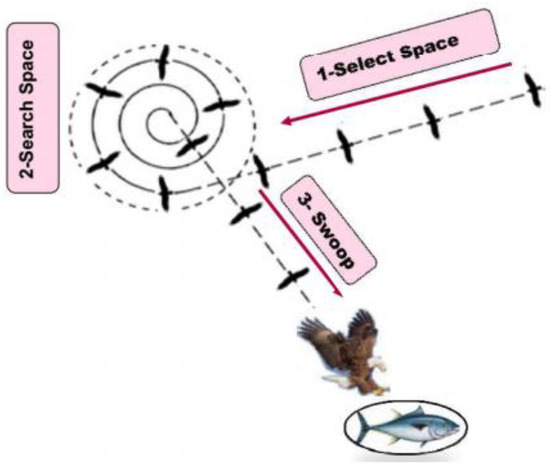

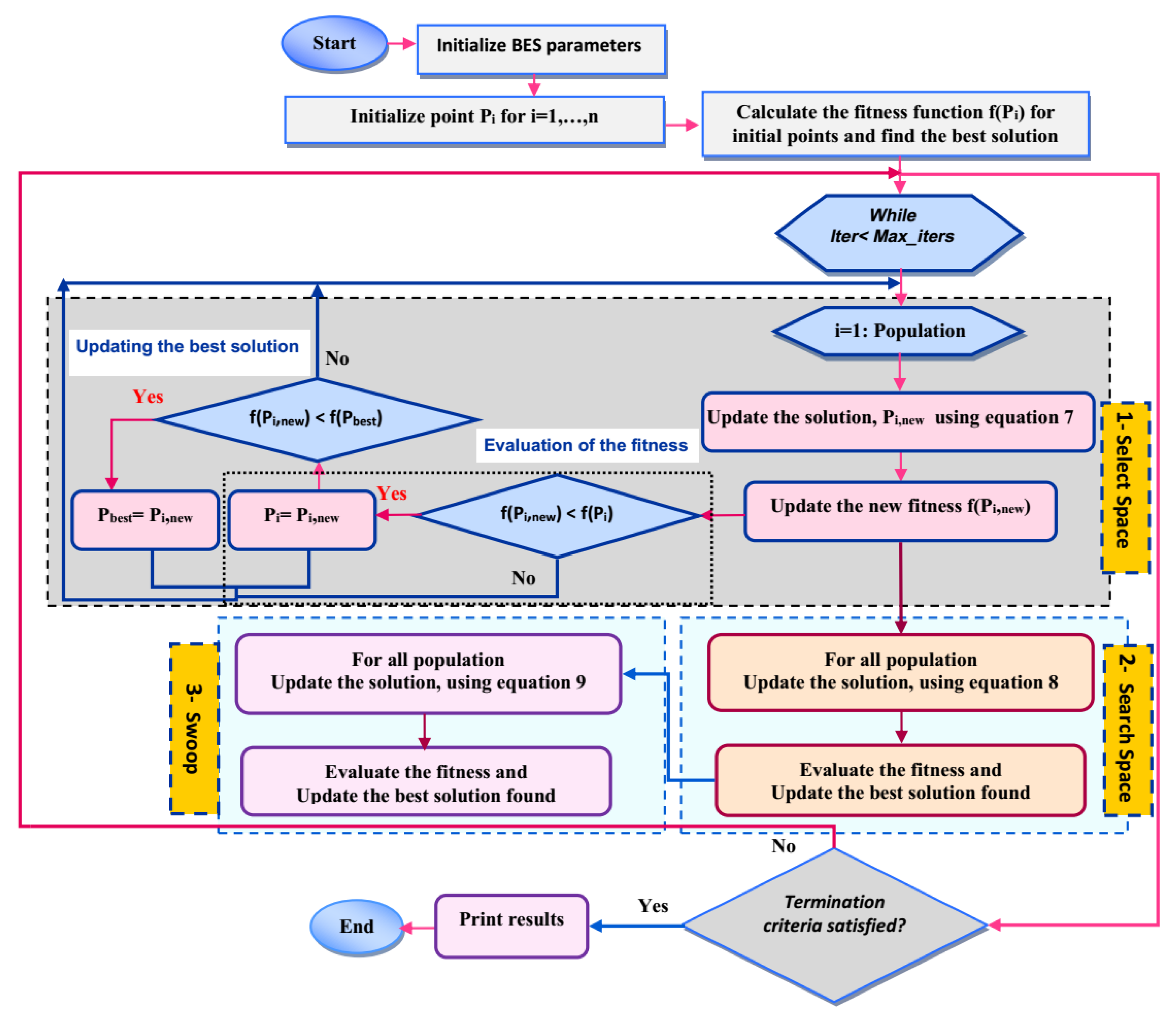

Bald Eagle Search (BES) is a novel nature-inspired search optimizer. It is a meta-heuristic algorithm based on applying intelligent strategies to hunt the fish. The bald eagle depends on intelligent social behavior to reach the best goal based on three stages. The first stage is the selection of the hunting area which contains the greatest number of fish. Searching in the hunting area is the second stage. In this stage, the eagle moves inside the space to search for fish by identifying the best position to hunt the prey. In the third stage, the eagle uses the position selected from the second stage and determines the best point to hunt. This stage is known as swooping. Swooping begins from the best point to hunt and all other movements are directed to this point. Figure 5 describes the three stages of BES [16].

The considered hunting stages are formulated as follows:

4.1. 1st Stage: Select Stage

In the select stage, eagles select the best hunting area depending on the amount of food there. Eagles use their previous search information about the hunting areas. The selecting behavior can be formulated as:

$$P_{i,new}=P_{best}+\alpha \times r\left(P_{mean}-P_i\right)$$

(7)

where $P_{best}$ represents the best hunting position determined from previous searches, where $\alpha$ is a controlling parameter for different best positions and it takes a value between 1.5 and 2. The random number, r, lies between 0 and 1. $P_{mean}$ refers to using all information from the previous search points. It is clear from Equation (7) that eagles randomly search for a new best space in all points near the previous selected search areas. The current movement from the previous best point changes randomly by multiplying the difference of search and mean points by the controlling parameter, $\alpha$.

4.2. 2nd Stage: Search Stage

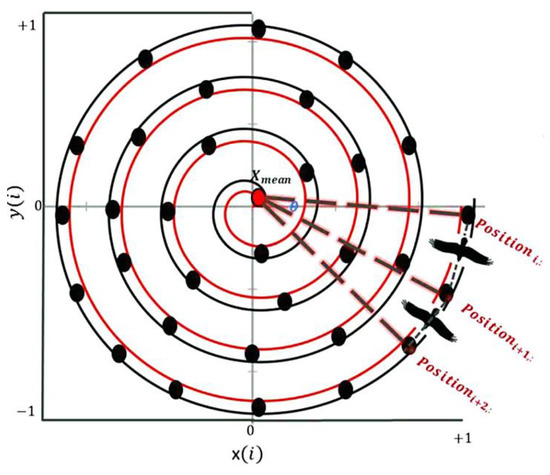

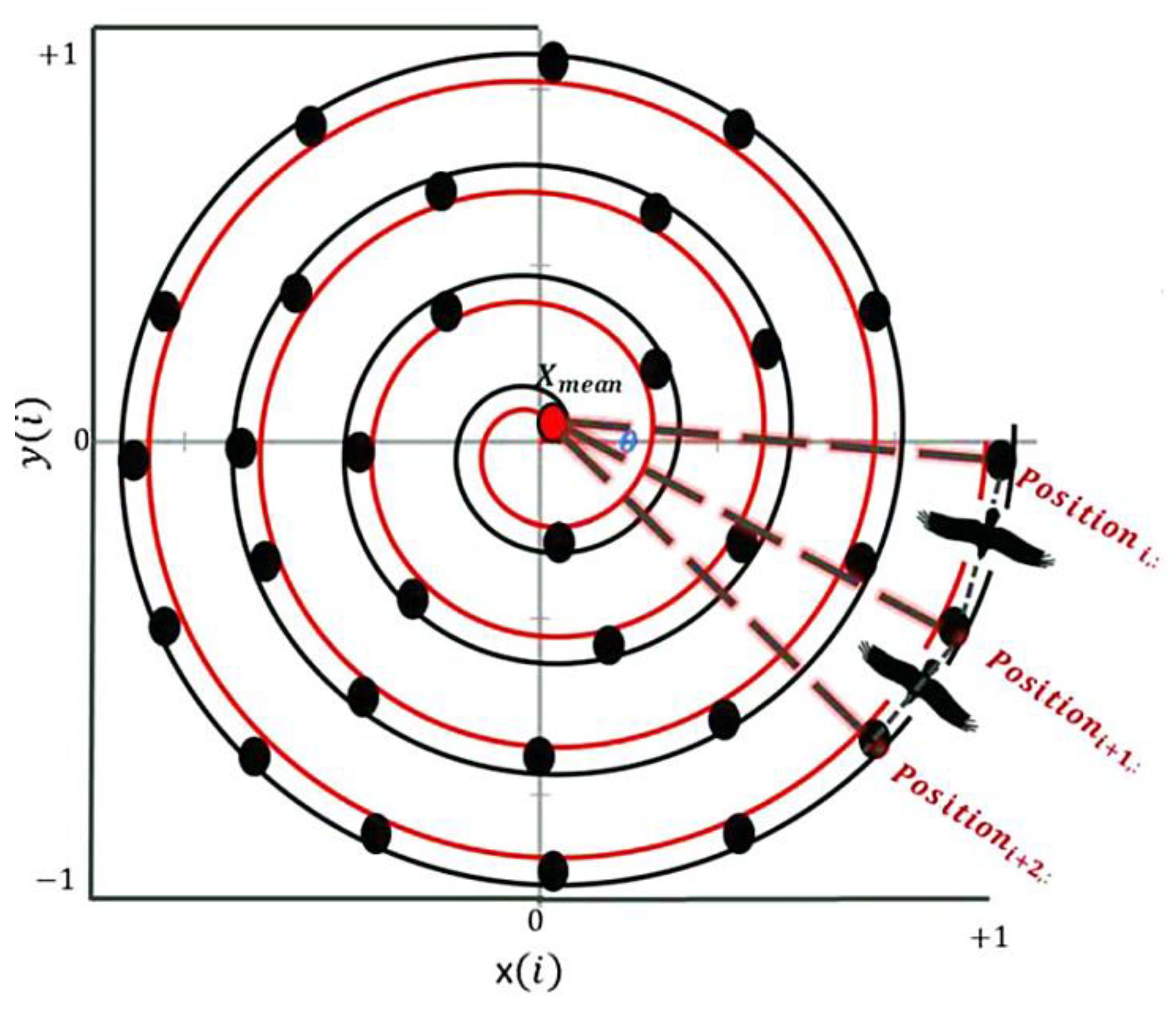

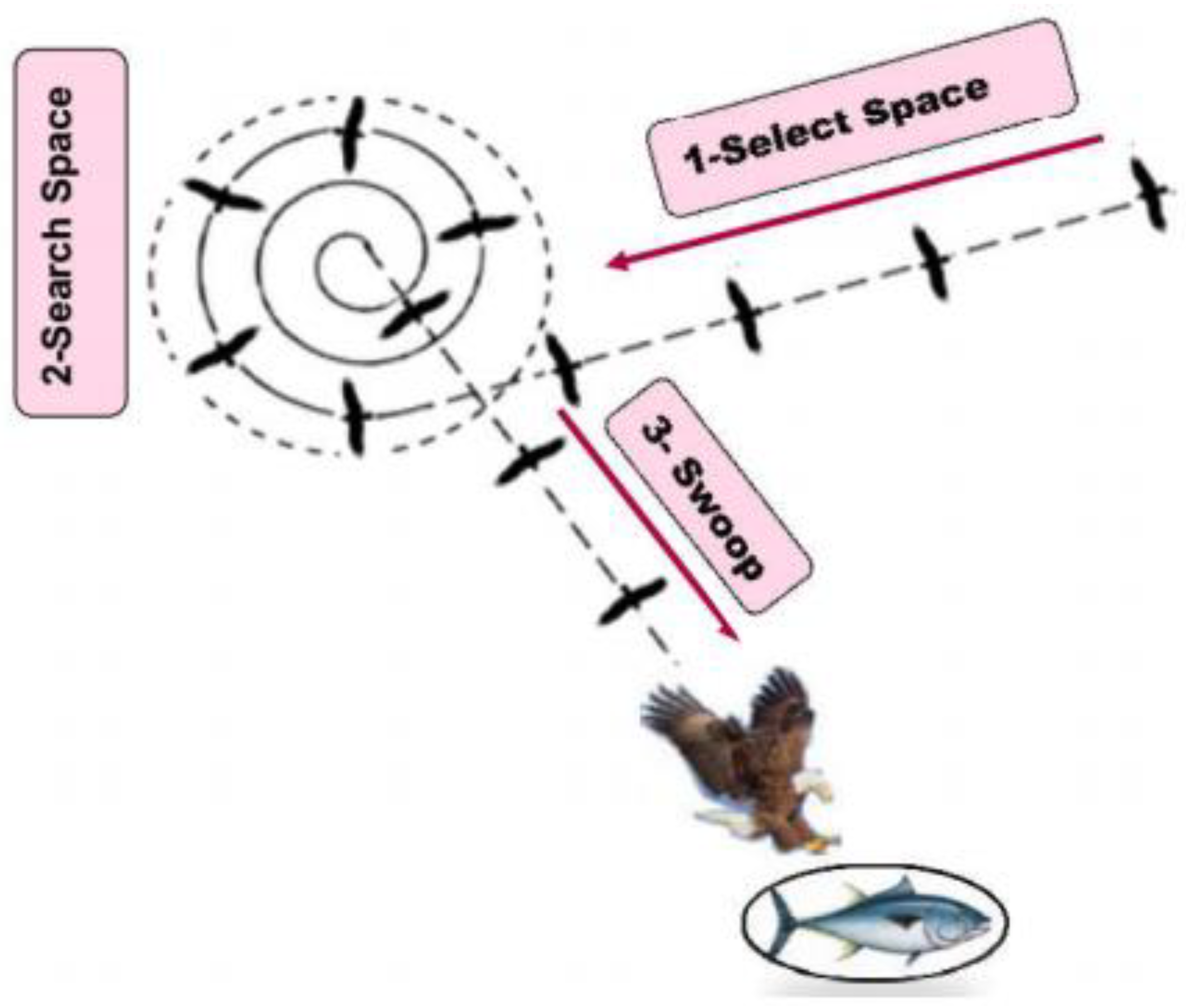

After selecting the search area, eagles move spirally in different directions within the selected search space, as shown in Figure 6. The best position of an eagle for the swoop is represented mathematically as:

$$P_{i,\mathit{new}}=P_i+y\left(i\right)\times \left(P_i-P_{i+1}\right)+x\left(i\right)\times \left(P_{\mathit{mean}}-P_i\right)$$

(8)

where,

$$x\left(i\right)=\frac{xr\left(i\right)}{\max \left(\left|xr\right|\right)}, y\left(i\right)=\frac{yr\left(i\right)}{\max \left(\left|yr\right|\right)}$$

(9a)

$$xr\left(i\right)=r\left(i\right)\times \sin \left(\mathsf{\theta }\left(i\right)\right), yr\left(i\right)=r\left(i\right)\times \cos \left(\mathsf{\theta }\left(i\right)\right)$$

(9b)

$$\mathsf{\theta }\left(i\right)=a\times \mathsf{\pi }\times \mathit{rand} \dots \dots$$

(9c)

$$r\left(i\right)=\mathsf{\theta }\left(i\right)+R\times \mathit{rand}$$

(9d)

Equation (8) is explained using a set of equations, (9a) to (9d), and using the shape of spiral movement. The parameters $\mathrm{a}$ and $R$ determine the number of cycles and the shape of the movement. The value of $\mathrm{a}$ varies from 5 to 10, while $R$ takes values in between 0.5 and 2. The movement of the eagle towards the center point is represented in polar axes. The updating of current position is considered by adding two parts in the y-axis and the x- axis. The first adding part is the multiplying of the point position of the polar in the y-axis e by the difference between the current and next point. The second part adding to the current point is the point position of the polar in the x-axis multiplying by the difference between the current point and the mean point. The spiral movement of eagles from one point to another represents the search space and all points move towards the center point. All position of points in the polar plots lies between 1 and −1. The best point to swoop is determined compared to the center point.

4.3. 3rd Stage: Swooping Stage

Once the eagles determine the best point to swoop in the search space, they move in high speed towards their focused prey. The eagles move from the center point of search space towards the prey. The updating of the position of all points depends on the best location and the mean point, as follows:

$$\begin{array}{c}{P}_{i,\mathit{new}}=\mathit{rand}\times P_{\mathit{best}}+x1\left(i\right)\times \left(P_i-c1\times P_{\mathit{mean}}\right)+y1\left(i\right)\times \left(P_i-c2\times P_{\mathit{best}}\right)\\ x1\left(i\right)=\frac{xr\left(i\right)}{\max \left(\left|xr\right|\right)}, y1\left(i\right)=\frac{yr\left(i\right)}{\max \left(\left|yr\right|\right)}\\ xr\left(i\right)=r\left(i\right)\times \sin \mathrm{h}\left(\mathsf{\theta }\left(i\right)\right), yr\left(i\right)=r\left(i\right)\times \cos \mathrm{h}\left(\mathsf{\theta }\left(i\right)\right)\\ \mathsf{\theta }\left(i\right)=a\times \mathsf{\pi }\times \mathit{rand}\dots \dots \mathrm{and} r\left(i\right)=\mathsf{\theta }\left(i\right)\end{array}$$

(10)

where c1 and c2 ∈ [1, 2]. These parameters result in increasing the movement intensity towards the prey. The whole optimization process steps are shown in Figure 7.

5. Results and Discussion

The absorption spectra (not shown) of the perovskite deposited on pristine and modified TiO2 confirmed that the ETL modification did not significantly affect the optical properties of the perovskite absorber [13].

The photovoltaic parameters of the PSCs including the short circuit current density (Jsc), the open circuit voltage (Voc), the fill factor (FF) and the power conversion efficiency (PCE) were determined for both control and modified devices under 1 sun illumination conditions [13]. The modified PSCs demonstrated significantly higher photovoltaic performance reaching power conversion efficiency (PCE) of 18.7%, clearly outperforming that of the control device (16.9%). This was attributed to better crystalized and more homogenous perovskite films [17,18], associated with a smoother and more functional ETL/absorber interface [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34]. The PCE enhancement for the modified devices was associated with the increase of J_sc and FF parameters, while the V_oc value was almost the same (~1.04 V). Specifically, the best-performing modified PSC provided a short circuit current density of 23.52 mA cm⁻², which was 4% larger than that of the reference one. The observed increase was assigned to the presence of the porphyrin’s negative dipole moment at the interface, which facilitated the electrons transfer to the photoanode. An additional improvement was registered in the case of fill factor, where the modified device presented a higher FF value (0.75) compared to the reference one (0.71).

A techno-economic study for the third-generation PSCs in real water pumping system application for irrigation purpose was carried out in [34], proving the superiority of the PSCs in comparison with the silicon-based technology solar cells where, for the same application, for the PSCsbased case there is a cost-saving and it needs only 3.42 m², as the installation area, which is very small in comparison with the corresponding area of conventional silicon-based solar cells that exceeds 36 m².

In the current study, the PSCs’ parameters estimation based on TDM and MTDM was made via BES algorithm to prove the enhanced efficiency and precision of the proposed algorithm.

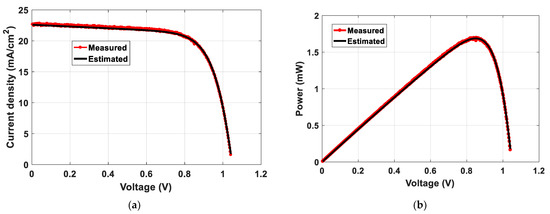

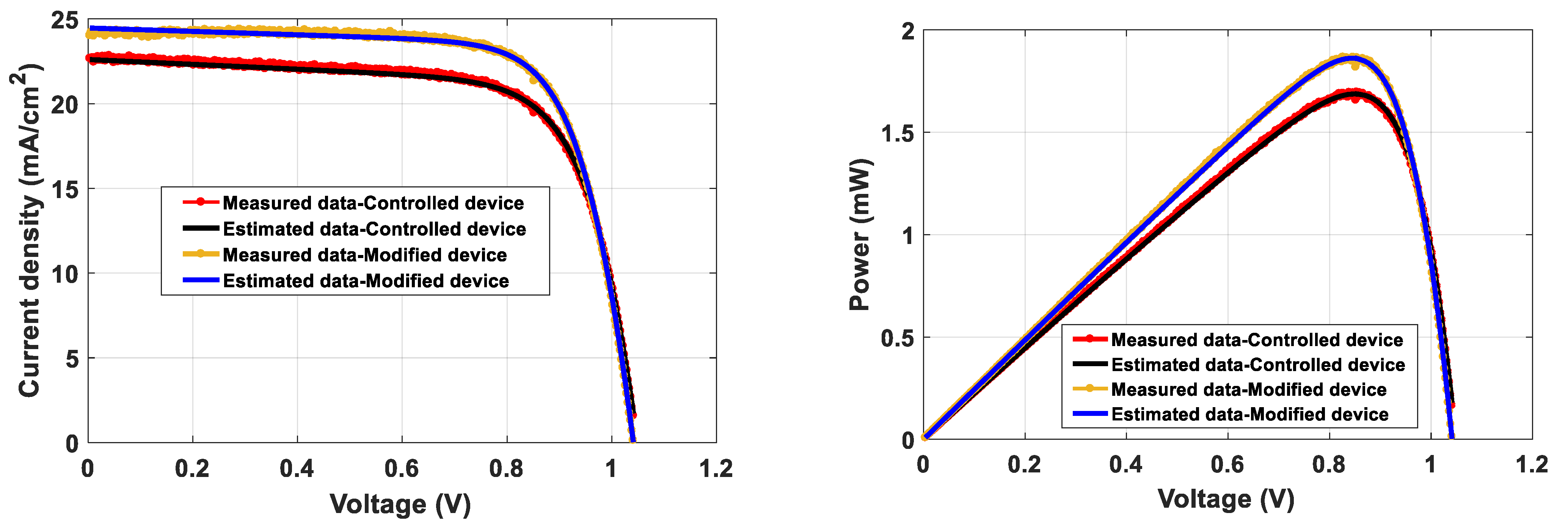

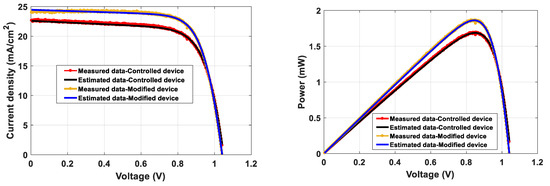

Two PSC devices, namely, control and modified devices experimental data, have been used in this work. The devices were fabricated as explained in the experimental section, while the photovoltaic performance was tested at standard condition (25 °C, 1000 W/m²).

The population size and number of iterations are the same for all optimization algorithms used in this study for a fair comparison. The least RMSE between the experimental data and the estimated current density of PSCs is the main purpose of the optimization procedure in this study. The parameters of both TDM and MTDM are the decision variables in the used optimization procedure.

Table 1. Optimal parameters of PSCs applying different optimizers using TDM.

Parameter	Boundary		Optimal Parameters
	Lower	Upper	BES	GWO	PSO	MFO	SCA	SSA
Control Device
Isc (A)	1.0 × 10−3	5.0 × 10−3	2.2660 × 10−3	2.2660 × 10−3	2.2660 × 10−3	2.2660 × 10−3	2.2660 × 10−3	2.2604 × 10−3
Io1 (A)	1.0 × 10−20	5.0 × 10−5	2.20 × 10−20	1.09 × 10−20	1.00 × 10−20	1.00 × 10−20	7.49 × 10−20	1.20 × 10−9
Io2 (A)	1.0 × 10−20	5.0 × 10−5	1.00 × 10−20	1.24 × 10−20	1.00 × 10−20	3.07 × 10−10	7.40 × 10−20	1.00 × 10−20
Io3 (A)	1.0 × 10−20	5.0 × 10−5	3.04 × 10−10	2.63 × 10−10	7.17 × 10−11	1.00 × 10−20	1.47 × 10−9	2.65 × 10−9
n1	1.0	3.0	2.986	2.217	3.000	1.067	1.358	2.932
n2	1.0	5.0	1.067	1.075	5.000	2.625	1.374	1.044
n3	1.0	5.0	2.623	2.596	2.376	5.000	2.904	4.894
RP	1000	7000	7000.00	6990.46	6997.79	7000.00	7000.00	6926.41
Rs	5.00	19.00	18.00	18.07	18.00	18.00	18.00	18.89
RMSE			1.379 × 10−5	1.397 × 10−5	1.564 × 10−5	1.379 × 10−5	3.926 × 10−5	2.243 × 10−5
Modified Device
Isc (A)	1.0 × 10−3	5.0 × 10−3	2.455 × 10−3	2.459 × 10−3	2.464 × 10−3	2.458 × 10−3	2.554 × 10−3	2.496 × 10−3
Io1 (A)	1.0 × 10−20	5.0 × 10−5	4.519 × 10−11	3.800 × 10−10	1.000 × 10−20	1.000 × 10−20	1.303 × 10−20	1.000 × 10−20
Io2 (A)	1.0 × 10−20	5.0 × 10−5	2.094 × 10−20	4.595 × 10−10	4.064 × 10−9	1.987 × 10−10	3.547 × 10−20	7.653 × 10−9
Io3 (A)	1.0 × 10−20	5.0 × 10−5	6.332 × 10−20	8.189 × 10−10	1.000 × 10−20	1.000 × 10−20	4.103 × 10−7	9.819 × 10−14
n1	1.0	3.0	2.280	2.592	3.000	3.000	1.468	1.035
n2	1.0	5.0	4.982	3.994	3.056	2.509	1.055	3.336
n3	1.0	5.0	4.967	4.352	5.000	1.065	5.000	2.112
RP	1000	9000	9000.000	8976.499	9000.000	9000.000	5083.609	5194.242
Rs	5.000	17.50	17.000	11.941	5.000	17.000	5.153	14.262
RMSE			1.632 × 10−5	2.033 × 10−5	3.006 × 10−5	1.857 × 10−5	1.013 × 10−4	5.039 × 10−5

and

Table 2. Optimal parameters of PSCs applying different optimizers using MTDM.

Parameter	Boundary		Optimal Parameters
	Lower	Upper	BES	GWO	POS	MFO	SCA	SSA
Control Device
Isc (A)	1.0 × 10−3	3.0 × 10−3	2.266 × 10−3	2.266 × 10−3	2.266 × 10−3	2.266 × 10−3	2.266 × 10−3	2.264 × 10−3
Io1 (A)	1.0 × 10−20	5.0 × 10−5	3.037 × 10−10	2.447 × 10−20	1.000 × 10−20	3.242 × 10−10	1.000 × 10−20	2.452 × 10−10
Io2 (A)	1.0 × 10−20	5.0 × 10−5	1.000 × 10−20	2.150 × 10−10	1.000 × 10−20	1.000E × 10−20	2.296 × 10−7	1.000 × 10−20
Io3 (A)	1.0 × 10−20	5.0 × 10−5	1.001 × 10−20	1.325 × 10−9	2.202 × 10−7	1.000 × 10−20	3.270 × 10−20	8.948 × 10−9
n1	1.0	3.0	2.623	1.096	3.000	2.635	1.029	2.997
n2	1.0	5.0	1.067	2.564	1.029	1.066	5.000	1.037
n3	1.0	5.0	4.740	4.557	5.000	5.000	1.872	3.541
RP	1000	7000	7000.000	7000.000	7000.000	7000.000	7000.000	6947.666
Rs	8.000	19.00	18.000	18.173	19.000	18.000	19.000	18.842
Rsm	0.001	0.30	0.191	0.203	0.300	0.296	0.142	0.103
RMSE			1.379 × 10−5	1.398 × 10−5	4.63 × 10−5	1.38 × 10−5	4.78 × 10−5	2.72 × 10−5
Modified Device
Isc (A)	1.0 × 10−3	5.0 × 10−3	2.450 × 10−3	2.465 × 10−3	2.461 × 10−3	2.452 × 10−3	2.381 × 10−3	2.404 × 10−3
Io1 (A)	1.0 × 10−20	5.0 × 10−5	1.011 × 10−20	8.699 × 10−11	1.000 × 10−20	1.000 × 10−20	1.000 × 10−20	1.000 × 10−20
Io2 (A)	1.0 × 10−20	5.0 × 10−5	1.206 × 10−20	2.696 × 10−10	1.998 × 10−9	3.170 × 10−10	1.112 × 10−16	1.150 × 10−8
Io3 (A)	1.0 × 10−20	5.0 × 10−5	4.874 × 10−11	1.735 × 10−20	1.000 × 10−20	4.838 × 10−13	1.000 × 10−20	1.000 × 10−20
n1	1.0	3.0	2.9991	2.4717	3.0000	2.0895	1.4302	1.8028
n2	1.0	5.0	4.9989	2.6409	2.8916	2.6619	1.3153	3.4279
n3	1.0	5.0	2.2890	2.0320	5.0000	1.8821	3.8176	1.0406
RP	1000	10,000	10,000.00	7602.58	10,000.00	10,000.00	10,000.00	9514.81
Rs	5.00	17.5	17.00	10.05	5.00	17.00	17.00	11.95
Rsm	0.001	0.30	0.2000	0.1876	0.2000	0.1000	0.1571	0.1751
RMSE			1.499 × 10−5	2.269 × 10−5	2.252 × 10−5	1.556 × 10−5	1.188 × 10−4	6.881 × 10−5

summarize the best parameters of the PSC devices based on TDM and MTDM, estimated by different optimization algorithms besides the lower and upper limits of the PSC device parameters. For better evaluation of the proposed BES algorithm performance, the studied optimizers are implemented 30 times. Statistical analysis for the optimization algorithms used in this study is shown in

Table 3. Statistical performance assessment of considered optimizers using TDM (30 times).

Metric	BES	GWO	POS	MFO	SCA	SSA
Control Device
Best	1.379 × 10−5	1.397 × 10-−5	1.564 × 10−5	1.379 × 10−5	3.926 × 10−5	2.243 × 10−5
Worst	2.019 × 10−5	1.139 × 10−4	3.661 × 10−4	1.134 × 10−4	1.174 × 10−4	2.173 × 10−4
Average	1.660 × 10−5	3.403 × 10−5	2.039 × 10−4	3.176 × 10−5	1.037 × 10−4	9.393 × 10−5
Variance	1.132 × 10−12	3.418 × 10−10	1.173 × 10−8	6.101 × 10−10	2.476 × 10−10	1.713 × 10−9
Median	1.637 × 10−5	3.236 × 10−5	1.433 × 10−4	2.451 × 10−5	1.083 × 10−4	8.950 × 10−5
STD	1.064 × 10−6	1.849 × 10−5	1.083 × 10−4	2.470 × 10−5	1.574 × 10−4	4.139 × 10−5
Modified Device
Best	1.632 × 10−5	2.033 × 10−5	3.006 × 10−5	1.857 × 10−5	1.013 × 10−4	5.039 × 10−5
Worst	2.343 × 10−5	1.527 × 10−4	1.348 × 10−3	8.240 × 10−5	1.902 × 10−4	1.810 × 10−5
Average	1.689 × 10−5	5.487 × 10−5	2.438 × 10−4	4.117 × 10−5	1.519 × 10−4	9.722 × 10−5
Variance	2.622 × 10−12	8.773 × 10−10	9.612 × 10−8	2.817 × 10−10	3.820 × 10−10	6.473 × 10−5
Median	1.634 × 10−5	4.971 × 10−5	1.591 × 10−4	3.847 × 10−5	1.515 × 10−4	9.330 × 10−5
STD	1.619 × 10−6	2.962 × 10−5	3.100 × 10−4	1.678 × 10−5	1.954 × 10−5	2.544 × 10−5

and

Table 4. Statistical performance assessment of considered optimizers using MTDM (30 times).

Metric	BES	GWO	POS	MFO	SCA	SSA
Control Device
Best	1.379 × 10−5	1.398 × 10−5	4.629 × 10−5	1.380 × 10−5	4.780 × 10−5	2.716 × 10−5
Worst	2.613 × 10−5	1.113 × 10−4	1.182 × 10−3	4.424 × 10−5	1.180 × 10−4	2.095 × 10−4
Average	1.570 × 10−5	3.154 × 10−5	2.557 × 10−4	2.470 × 10−5	1.021 × 10−4	8.783 × 10−5
Variance	7.547 × 10−12	5.790 × 10−10	7.615 × 10−8	9.603 × 10−11	2.517 × 10−10	1.814 × 10−9
Median	1.514 × 10−5	2.652 × 10−5	1.307 × 10−4	2.237 × 10−5	1.048 × 10−4	8.894 × 10−5
STD	2.747 × 10−6	2.406 × 10−5	2.760 × 10−4	9.799 × 10−6	1.586 × 10−5	4.259 × 10−5
Modified Device
Best	1.499 × 10−5	2.269 × 10−5	2.252 × 10−5	1.556 × 10−5	1.188 × 10−4	6.881 × 10−5
Worst	2.252 × 10−5	1.465 × 10−4	3.650 × 10−4	1.363 × 10−4	1.815 × 10−4	1.856 × 10−4
Average	1.536 × 10−5	7.983 × 10−5	2.048 × 10−4	6.024 × 10−5	1.539 × 10−4	1.157 × 10−4
Variance	1.983 × 10−12	2.060 × 10−9	9.373 × 10−9	1.942 × 10−9	2.251 × 10−10	1.215 × 10−9
Median	1.501 × 10−5	6.754 × 10−5	1.943 × 10−4	4.588 × 10−5	1.551 × 10−4	1.096 × 10−4
STD	1.408 × 10−6	4.539 × 10−5	9.681 × 10−5	4.407 × 10−5	1.500 × 10−5	3.485 × 10−5

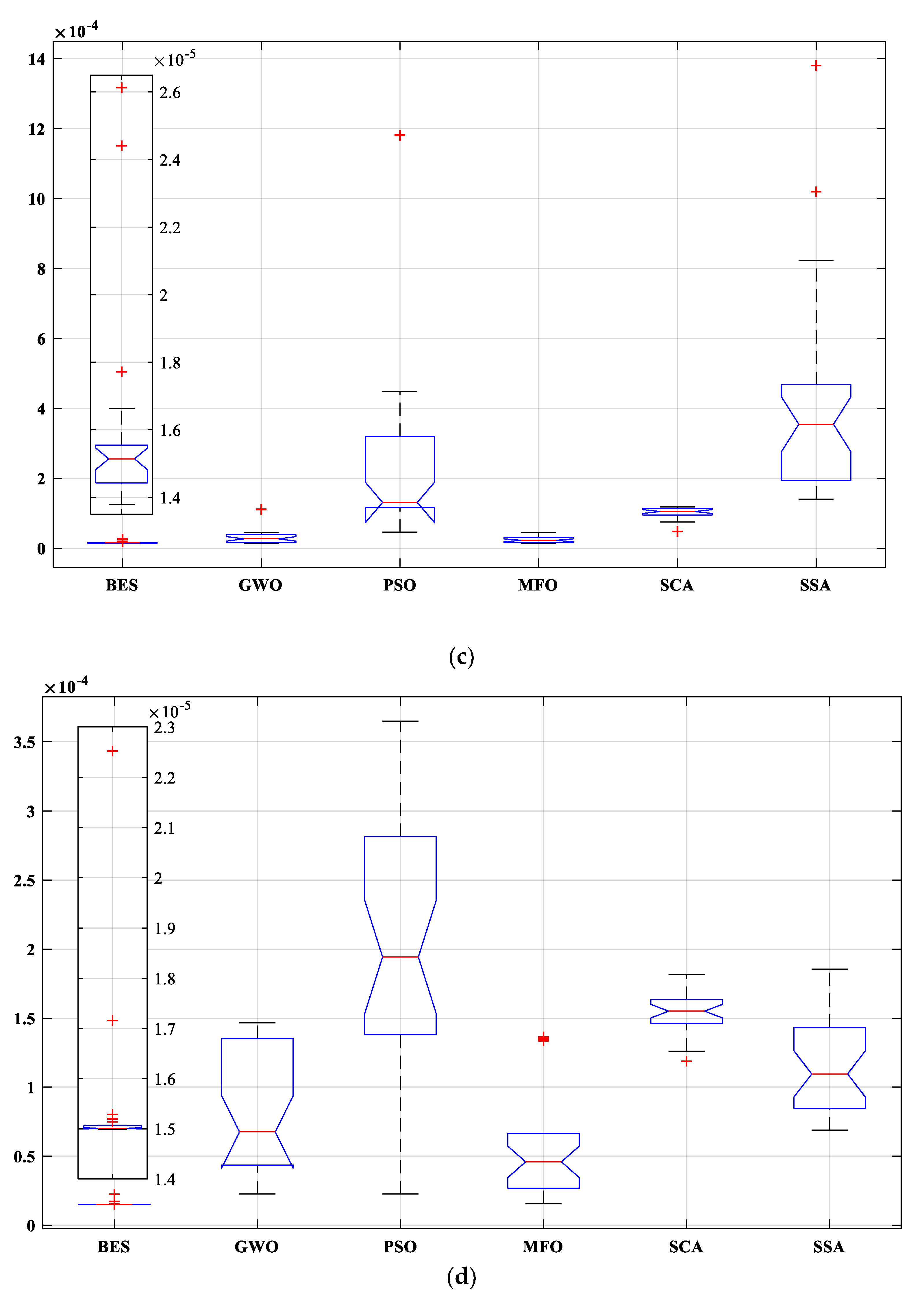

. The details of 30 Runs for the control and modified PSCs recorded with TDM and MTDM are presented in

Table 5. Details of 30 TDM Runs for Control Device for each applied optimizer.

	BES	GWO	PSO	MFO	SCA	SSA
1	1.632 × 10−5	4.029 × 10−5	1.169 × 10−4	1.536 × 10−5	1.116 × 10−4	2.173 × 10−4
2	1.656 × 10−5	2.137 × 10−5	1.167 × 10−4	1.562 × 10−5	9.026 × 10−5	1.154 × 10−4
3	1.632 × 10−5	4.325 × 10−5	1.306 × 10−4	1.564 × 10−5	1.140 × 10−4	1.304 × 10−4
4	1.633 × 10−5	1.916 × 10−5	1.451 × 10−4	1.731 × 10−5	1.099 × 10−4	1.185 × 10−4
5	1.948 × 10−5	4.359 × 10−5	3.661 × 10−4	3.661 × 10−5	1.055 × 10−4	1.028 × 10−4
6	1.655 × 10−5	3.141 × 10−5	3.196 × 10−4	3.027 × 10−5	1.174 × 10−4	2.638 × 10−5
7	2.019 × 10−5	2.622 × 10−5	1.169 × 10−4	2.266 × 10−5	8.740 × 10−5	8.144 × 10−5
8	1.632 × 10−5	1.397 × 10−5	3.199 × 10−4	1.548 × 10−5	1.160 × 10−4	1.209 × 10−4
9	1.632 × 10−5	3.913 × 10−5	3.196 × 10−4	5.485 × 10−5	1.110 × 10−4	2.243 × 10−5
10	1.632 × 10−5	3.331 × 10−5	1.564 × 10−5	3.041 × 10−5	1.045 × 10−4	9.011 × 10−4
11	1.653 × 10−5	2.579 × 10−5	1.169 × 10−4	3.259 × 10−5	1.123 × 10−4	6.787 × 10−4
12	1.639 × 10−5	3.566 × 10−5	3.199 × 10−4	1.134 × 10−4	1.074 × 10−4	1.217 × 10−4
13	1.632 × 10−5	4.502 × 10−5	1.169 × 10−4	3.021 × 10−5	1.124 × 10−4	1.134 × 10−4
14	1.638 × 10−5	4.032 × 10−5	3.199 × 10−4	2.841 × 10−5	7.686 × 10−5	1.392 × 10−4
15	1.379 × 10−5	2.157 × 10−5	1.451 × 10−4	4.141 × 10−5	3.926 × 10−5	4.130 × 10−5
16	1.650 × 10−5	2.163 × 10−5	1.323 × 10−4	2.098 × 10−5	1.027 × 10−4	8.517 × 10−5
17	1.637 × 10−5	4.492 × 10−5	3.196 × 10−4	1.690 × 10−5	1.166 × 10−4	1.098 × 10−4
18	1.639 × 10−5	2.398 × 10−5	3.199 × 10−4	1.432 × 10−5	1.092 × 10−4	1.244 × 10−4
19	1.632 × 10−5	4.417 × 10−5	3.199 × 10−4	4.632 × 10−5	8.308 × 10−5	1.490 × 10−4
20	1.641 × 10−5	1.640 × 10−5	1.195 × 10−4	1.134 × 10−4	1.051 × 10−4	4.998 × 10−5
21	1.672 × 10−5	1.922 × 10−5	1.195 × 10−4	1.379 × 10−5	1.133 × 10−4	4.712 × 10−5
22	1.632 × 10−5	1.762 × 10−5	3.196 × 10−4	1.887 × 10−5	1.111 × 10−4	7.103 × 10−5
23	1.645 × 10−5	2.464 × 10−5	1.822 × 10−5	4.452 × 10−5	1.020 × 10−4	8.050 × 10−5
24	1.637 × 10−5	4.481 × 10−5	1.306 × 10−4	2.886 × 10−5	1.063 × 10−4	4.989 × 10−5
25	1.636 × 10−5	3.511 × 10−5	1.323 × 10−4	2.636 × 10−5	9.886 × 10−5	8.166 × 10−5
26	1.632 × 10−5	2.663 × 10−5	3.196 × 10−4	3.610 × 10−5	1.037 × 10−4	8.889 × 10−5
27	1.817 × 10−5	4.520 × 10−5	2.886 × 10−4	1.957 × 10−5	1.039 × 10−4	1.091 × 10−4
28	1.642 × 10−5	4.501 × 10−5	3.196 × 10−4	1.611 × 10−5	1.094 × 10−4	4.720 × 10−5
29	1.632 × 10−5	1.764 × 10−5	1.416 × 10−4	1.424 × 10−5	1.160 × 10−4	1.270 × 10−4
30	1.632 × 10−5	1.139 × 10−4	1.323 × 10−4	2.231 × 10−5	1.140 × 10−4	8.815 × 10−5

,

Table 6. Details of 30 TDM Runs for Modified Device for each applied optimizer.

	BES	GWO	PSO	MFO	SCA	SSA
1	1.64 × 10−5	6.28 × 10−5	0.0001257	2.49 × 10−5	0.0001779	9.18 × 10−5
2	1.63 × 10−5	6.33 × 10−5	6.19 × 10−5	7.29 × 10−5	0.000134006	0.000118083
3	1.65 × 10−5	3.14 × 10−5	0.000163679	8.24 × 10−5	0.000142692	0.000108355
4	1.63 × 10−5	2.39 × 10−5	3.01 × 10−5	1.86 × 10−5	0.000151738	0.000102329
5	1.63 × 10−5	1.36 × 10−5	0.000281539	6.12 × 10−5	0.000158538	7.87 × 10−5
6	1.63 × 10−5	7.03 × 10−5	0.000295073	3.85 × 10−5	0.000173369	8.26 × 10−5
7	1.68 × 10−5	6.08 × 10−5	0.0001257	2.25 × 10−5	0.000165133	8.32 × 10−5
8	1.64 × 10−5	2.95 × 10−5	0.0001257	5.35 × 10−5	0.000151567	7.99 × 10−5
9	1.63 × 10−5	4.75 × 10−5	0.001348167	3.07 × 10−5	0.000148697	9.28 × 10−5
10	1.64 × 10−5	8.32 × 10−5	0.000205182	6.06 × 10−5	0.000175416	0.000121079
11	1.63 × 10−5	3.20 × 10−5	0.000211831	5.26 × 10−5	0.00013459	5.07 × 10−5
12	1.63 × 10−5	4.23 × 10−5	0.000154443	1.90 × 10−5	0.000172478	9.90 × 10−5
13	1.64 × 10−5	6.47 × 10−5	0.000205182	3.98 × 10−5	0.00014998	9.92 × 10−5
14	1.65 × 10−5	3.46 × 10−5	6.19 × 10−5	4.43 × 10−5	0.000147608	0.000133438
15	1.63 × 10−5	2.11 × 10−5	0.000154443	5.34 × 10−5	0.000146388	9.21 × 10−5
16	1.68 × 10−5	3.59 × 10−5	0.000163679	6.02 × 10−5	0.000101269	0.000180993
17	1.63 × 10−5	7.17 × 10−5	0.0001257	4.26 × 10−5	0.000161644	8.93 × 10−5
18	1.63 × 10−5	4.81 × 10−5	0.000163679	3.10 × 10−5	0.000151409	5.04 × 10−5
19	2.15 × 10−5	5.53 × 10−5	0.0001257	5.46 × 10−5	0.000153947	0.00010374
20	1.63 × 10−5	5.32 × 10−5	0.000360627	2.09 × 10−5	0.000148987	8.89 × 10−5
21	1.64 × 10−5	4.75 × 10−5	0.0001257	3.44 × 10−5	0.000137175	9.38 × 10−5
22	1.63 × 10−5	4.02 × 10−5	6.19 × 10−5	2.22 × 10−5	0.000153647	0.000136316
23	1.63 × 10−5	0.000152694	0.000211831	3.70 × 10−5	0.000141687	9.91 × 10−5
24	1.63 × 10−5	6.38 × 10−5	0.0001257	3.25 × 10−5	0.0001776	6.85 × 10−5
25	1.65 × 10−5	2.03 × 10−5	0.000281539	2.65 × 10−5	0.000190216	8.30 × 10−5
26	1.92 × 10−5	5.14 × 10−5	6.19 × 10−5	3.85 × 10−5	0.000155325	0.00010078
27	1.63 × 10−5	6.19 × 10−5	0.0001257	2.60 × 10−5	0.0001694	9.03 × 10−5
28	1.63 × 10−5	2.59 × 10−5	0.000203116	3.02 × 10−5	0.000132844	7.40 × 10−5
29	2.34 × 10−5	6.97 × 10−5	0.000281539	6.05 × 10−5	0.000146441	0.000111004
30	1.65 × 10−5	4.48 × 10−5	0.001346458	4.31 × 10−5	0.000105617	0.000113337

,

Table 7. Details of 30 MTDM Runs for Control Device for each applied optimizer.

	BES	GWO	PSO	MFO	SCA	SSA
1	1.438 × 10−5	1.586 × 10−5	3.196 × 10−4	3.582 × 10−5	1.023 × 10−4	3.227 × 10−4
2	1.380 × 10−5	3.096 × 10−5	4.486 × 10−4	2.938 × 10−5	1.005 × 10−4	3.681 × 10−4
3	1.525 × 10−5	1.570 × 10−5	3.196 × 10−4	1.787 × 10−5	1.147 × 10−4	3.347 × 10−4
4	1.525 × 10−5	1.486 × 10−5	1.140 × 10−4	1.405 × 10−5	9.289 × 10−5	4.556 × 10−4
5	1.560 × 10−5	2.476 × 10−5	3.661 × 10−4	3.484 × 10−5	1.041 × 10−4	3.114 × 10—04
6	1.564 × 10−5	1.459 × 10−5	1.182 × 10—03	4.424 × 10−5	7.503 × 10−5	1.533 × 10−4
7	1.379 × 10−5	1.563 × 10−5	1.169 × 10−4	1.458 × 10−5	1.161 × 10−4	4.864 × 10−4
8	2.441 × 10−5	4.392 × 10−5	1.306 × 10−4	3.978 × 10−5	1.054 × 10−4	5.956 × 10−4
9	1.380 × 10−5	3.551 × 10−5	1.183 × 10−4	2.737 × 10−5	1.142 × 10−4	1.534 × 10−4
10	1.496 × 10−5	3.336 × 10−5	1.181 × 10−3	4.289 × 10−5	8.310 × 10−5	1.020 × 10−3
11	1.460 × 10−5	3.079 × 10−5	1.306 × 10−4	1.380 × 10−5	1.180 × 10−4	1.636 × 10−4
12	2.613 × 10−5	4.400 × 10−5	1.183 × 10−4	2.321 × 10−5	1.009 × 10−4	3.891 × 10−4
13	1.552 × 10−5	1.098 × 10−4	3.196 × 10−4	1.540 × 10−5	1.104 × 10−4	1.403 × 10−4
14	1.535 × 10−5	2.828 × 10−5	3.196 × 10−4	1.527 × 10−5	9.489 × 10−5	2.843 × 10−4
15	1.468 × 10−5	1.821 × 10−5	1.156 × 10−4	1.877 × 10−5	1.024 × 10−4	8.228 × 10−4
16	1.443 × 10−5	4.393 × 10−5	3.661 × 10−4	2.153 × 10−5	1.141 × 10−4	2.957 × 10−4
17	1.498 × 10−5	1.765 × 10−5	1.306 × 10−4	2.031 × 10−5	1.028 × 10−4	1.676 × 10−4
18	1.772 × 10−5	2.890 × 10−5	1.308 × 10−4	2.650 × 10−5	1.157 × 10−4	6.229 × 10−4
19	1.522 × 10−5	2.211 × 10−5	1.380 × 10−4	2.657 × 10−5	4.780 × 10−5	1.941 × 10−4
20	1.497 × 10−5	1.562 × 10−5	4.629 × 10−5	4.122 × 10−5	1.098 × 10−4	4.673 × 10−4
21	1.522 × 10−5	1.398 × 10−5	1.169 × 10−4	1.658 × 10−5	1.171 × 10−4	4.503 × 10−4
22	1.583 × 10−5	1.113 × 10−4	3.196 × 10−4	2.497 × 10−5	1.020 × 10−4	2.981 × 10−4
23	1.380 × 10−5	3.813 × 10−5	1.416 × 10−4	1.916 × 10−5	1.115 × 10−4	3.998 × 10−4
24	1.506 × 10−5	1.596 × 10−5	4.629 × 10−5	3.023 × 10−5	8.138 × 10−5	1.381 × 10−3
25	1.432 × 10−5	4.303 × 10−5	1.306 × 10−4	1.427 × 10−5	9.467 × 10−5	1.613 × 10−4
26	1.509 × 10−5	1.481 × 10−5	1.145 × 10−4	1.555 × 10−5	7.807 × 10−5	3.663 × 10−4
27	1.663 × 10−5	1.533 × 10−5	3.661 × 10−4	2.766 × 10−5	1.107 × 10−4	3.586 × 10−4
28	1.379 × 10−5	4.520 × 10−5	1.306 × 10−4	1.524 × 10−5	1.175 × 10−4	7.003 × 10−4
29	1.555 × 10−5	2.832 × 10−5	4.716 × 10−5	1.566 × 10—05	1.115 × 10−4	3.501 × 10−4
30	1.519 × 10−5	1.560 × 10−5	1.451 × 10−4	3.837 × 10−5	1.129 × 10−4	1.604 × 10−4

and

Table 8. Details of 30 MTDM Runs for Modified Device for each applied optimizer.

	BES	GWO	PSO	MFO	SCA	SSA
1	1.503 × 10−5	2.782 × 10—05	3.607 × 10−5	2.655 × 10−5	1.551 × 10−4	1.410 × 10−4
2	1.501 × 10−5	5.764 × 10—05	2.277 × 10−5	2.898 × 10−5	1.296 × 10−4	7.170 × 10−5
3	1.501 × 10−5	7.363 × 10—05	7.121 × 10−5	2.601 × 10−5	1.590 × 10−4	1.293 × 10−4
4	1.501 × 10−5	1.352 × 10—04	1.772 × 10−4	5.617 × 10−5	1.701 × 10−4	8.463 × 10−5
5	1.501 × 10−5	6.892 × 10−5	2.031 × 10−4	5.766 × 10−5	1.589 × 10−4	1.238 × 10−4
6	1.503 × 10−5	2.276 × 10−5	1.532 × 10−4	1.336 × 10−4	1.603 × 10−4	1.401 × 10−4
7	1.507 × 10−5	1.350 × 10−4	3.650 × 10−4	6.008 × 10−5	1.687 × 10−4	1.546 × 10−4
8	2.252 × 10−5	6.277 × 10−5	7.142 × 10−5	3.435 × 10−5	1.633 × 10−4	9.096 × 10—05
9	1.501 × 10−5	6.969 × 10−5	1.382 × 10−4	1.363 × 10−4	1.462 × 10−4	7.845 × 10−5
10	1.501 × 10−5	1.344 × 10−4	2.031 × 10−4	5.617 × 10−5	1.389 × 10−4	8.412 × 10−5
11	1.529 × 10−5	7.032 × 10−5	3.607 × 10−4	1.786 × 10−5	1.725 × 10−4	1.623 × 10−4
12	1.501 × 10−5	4.648 × 10−5	1.943 × 10−4	4.600 × 10−5	1.588 × 10−4	1.551 × 10−4
13	1.501 × 10−5	6.711 × 10−5	1.784 × 10−4	1.346 × 10−4	1.544 × 10−4	1.056 × 10−4
14	1.503 × 10−5	1.465 × 10−4	1.653 × 10−4	3.032 × 10−5	1.734 × 10−4	7.163 × 10−5
15	1.501 × 10−5	1.410 × 10−4	1.241 × 10−4	1.339 × 10−4	1.293 × 10−4	1.499 × 10−4
16	1.514 × 10−5	4.345 × 10−5	1.242 × 10−4	4.442 × 10−5	1.188 × 10−4	1.856 × 10−4
17	1.500 × 10−5	4.363 × 10−5	3.607 × 10−4	1.556 × 10−5	1.471 × 10−4	1.323 × 10−4
18	1.501 × 10−5	5.769 × 10−5	2.814 × 10−4	3.100 × 10−5	1.481 × 10−4	9.320 × 10−5
19	1.520 × 10−5	1.360 × 10−4	1.241 × 10−4	6.666 × 10−5	1.544 × 10−4	1.256 × 10−4
20	1.499 × 10−5	6.797 × 10−5	2.179 × 10−4	1.562 × 10−5	1.260 × 10−4	7.930 × 10−5
21	1.501 × 10−5	2.969 × 10−5	1.943 × 10−4	1.355 × 10−4	1.815 × 10−4	1.458 × 10−4
22	1.499 × 10−5	1.369 × 10−4	2.043 × 10−4	2.467 × 10−5	1.411 × 10−4	1.117 × 10−4
23	1.501 × 10−5	1.454 × 10−4	2.043 × 10−4	4.577 × 10−5	1.683 × 10−4	1.074 × 10−4
24	1.506 × 10−5	4.847 × 10−5	1.369 × 10−4	2.964 × 10−5	1.617 × 10−4	6.881 × 10−5
25	1.501 × 10−5	3.715 × 10−5	3.606 × 10−4	5.041 × 10−5	1.441 × 10−4	1.846 × 10−4
26	1.716 × 10−5	5.522 × 10−5	2.814 × 10−4	2.684 × 10−5	1.512 × 10−4	9.823 × 10−5
27	1.501 × 10−5	1.455 × 10−4	3.607 × 10−4	1.348 × 10−4	1.539 × 10−4	8.604 × 10−5
28	1.507 × 10−5	2.549 × 10−5	1.382 × 10−4	1.360 × 10−4	1.580 × 10−4	7.030 × 10−5
29	1.501 × 10−5	1.405 × 10−4	2.252 × 10−5	2.129 × 10−5	1.689 × 10−4	9.680 × 10−5
30	1.499 × 10−5	2.269 × 10−5	1.382 × 10−4	5.066 × 10−5	1.550 × 10−4	1.432 × 10−4

. From Table 1 and Table 2, the estimated parameters agree with experimental ones with minor error values, while the best results are obtained by using both the proposed MTDM and the BES algorithm. For PSCs performance better understanding, parameters like diode ideality factors and diodes saturation currents values are very important but difficult to be determined experimentally. An important advantage of the simulation models (TDM, MTDM) is the ability to easily determine these parameters. Thus, the analysis and performance evaluation of the PSCs is further supported.

From both Table 3 and Table 4, the superiority of the proposed BES algorithm is evident for all studied cases. It is clear that the proposed BES algorithm has the best performance compared with other optimizers used in this work. From Table 3, for the control device under the case of TDM, the mean RMSE values have fluctuated between 1.660 × 10⁻⁵ and 2.039 × 10⁻⁴. The minimum mean RMSE of 1.660 × 10⁻⁵ is accomplished by the BES algorithm flowed by 3.176 × 10⁻⁵ applying the MFO algorithm. The minimum cost function of 1.379 × 10⁻⁵ is obtained by the BES algorithm followed by MFO and GWO algorithms, respectively. On the other hand, the mean RMSE values for the modified device have fluctuated between 1.689 × 10⁻⁵ and 2.438 × 10⁻⁴. The minimum mean RMSE of 1.689 × 10⁻⁵ is accomplished by the BES algorithm flowed by 4.117 × 10⁻⁵ applying the MFO algorithm. The minimum cost function of 1.632 × 10⁻⁵ was obtained by the BES algorithm followed by the MFO algorithm. From Table 4, for the control device under the case of MTDM, the mean RMSE values have fluctuated between 1.570 × 10⁻⁵ and 2.557 × 10⁻⁴. The minimum mean RMSE of 1.570 × 10⁻⁵ is accomplished by the BES algorithm flowed by 2.470 × 10⁻⁵ applying the MFO algorithm. The minimum cost function of 1.379 × 10⁻⁵ is obtained by the BES algorithm followed by MFO and GWO algorithms, respectively. In the other side, for the modified device, the mean RMSE values have fluctuated between 1.536 × 10⁻⁵ and 2.048 × 10⁻⁴. The minimum mean RMSE of 1.536 × 10⁻⁵ is accomplished by the BES algorithm flowed by 6.024 × 10⁻⁵ applying the MFO algorithm. The minimum cost function of 1.499 × 10⁻⁵ is obtained by the BES algorithm followed by the MFO algorithm.

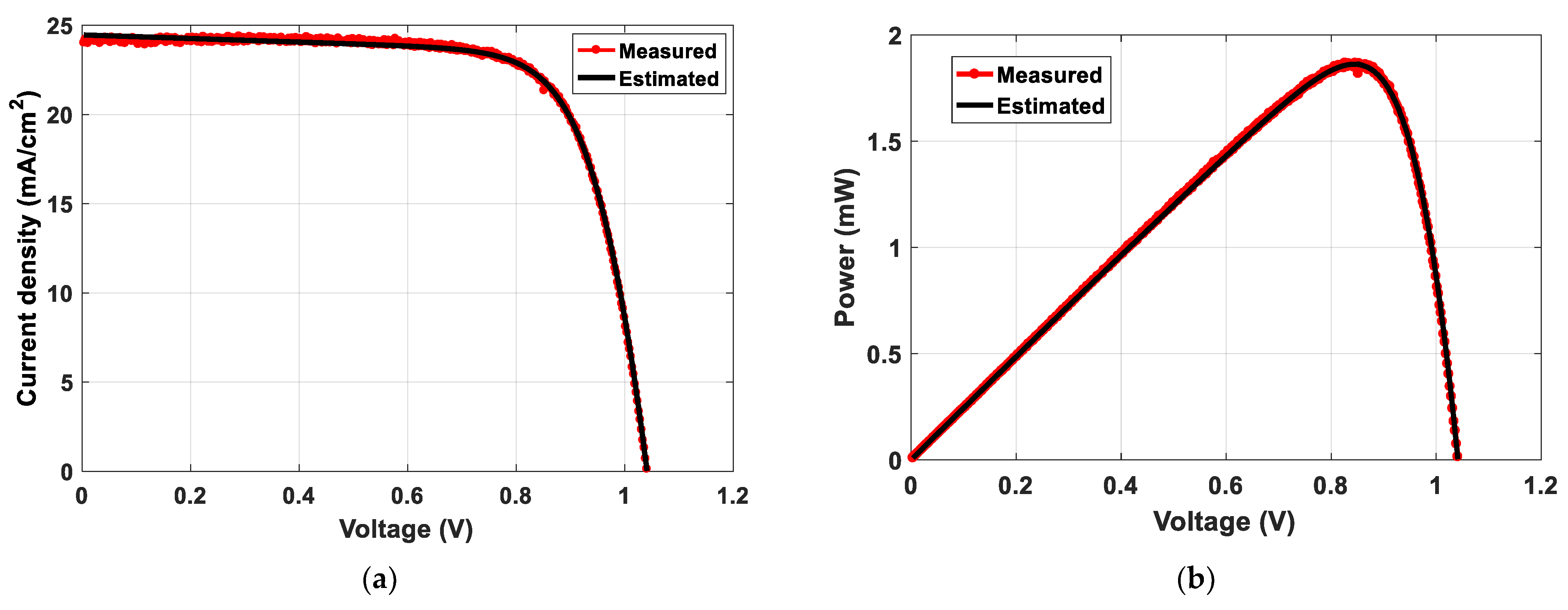

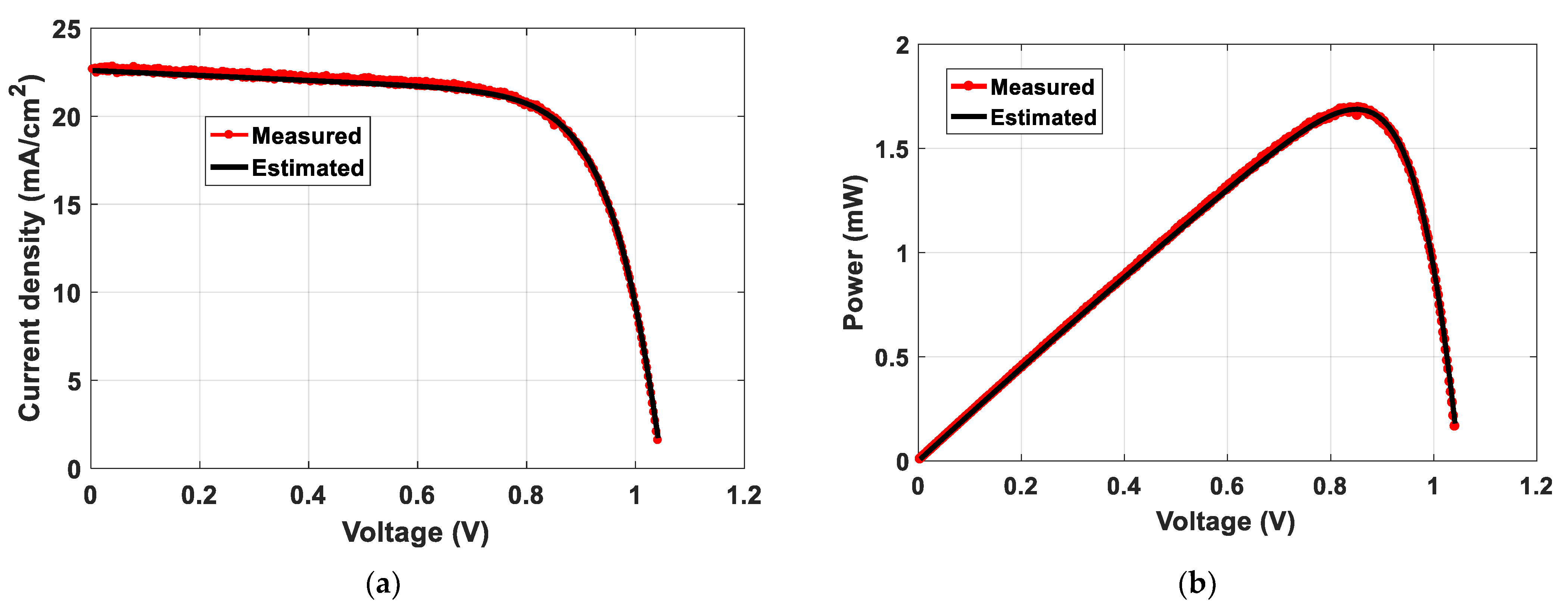

The comparison between experimentally obtained and estimated I–V and P–V curves for both control and modified devices used in this study are shown in Figure 8, Figure 9 and Figure 10. The comparison revealed that the experimental obtained and estimated I–V and P–V curves are almost identical, which is an indication of the efficiency of both the suggested model and the optimization algorithm in simulating the performance of the PSCs. The estimated parameters of the PSCs are matched very well with the experimental ones. From previous discussion for Table 1, Table 2, Table 3 and Table 4, applying BES algorithm in this study for PSCs parameters estimation via both TDM and MTDM provides the best performance results at minimum errors.

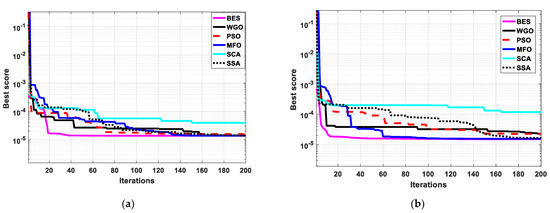

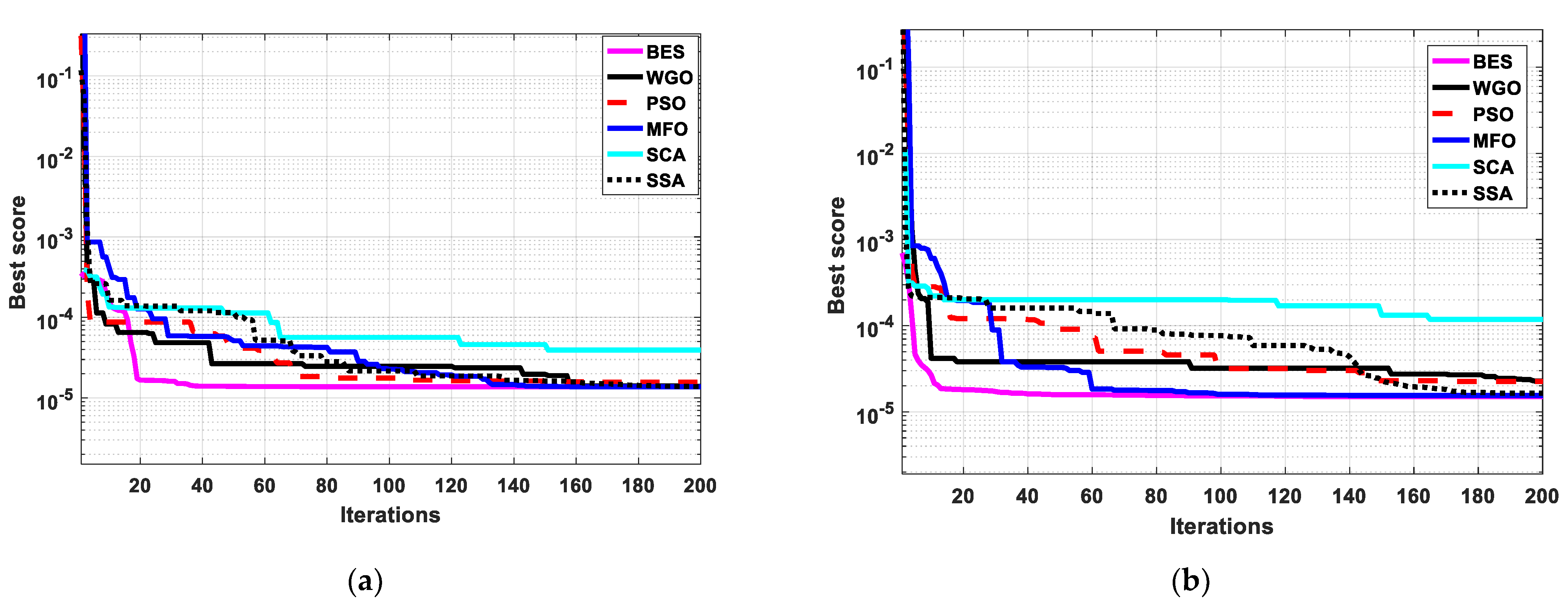

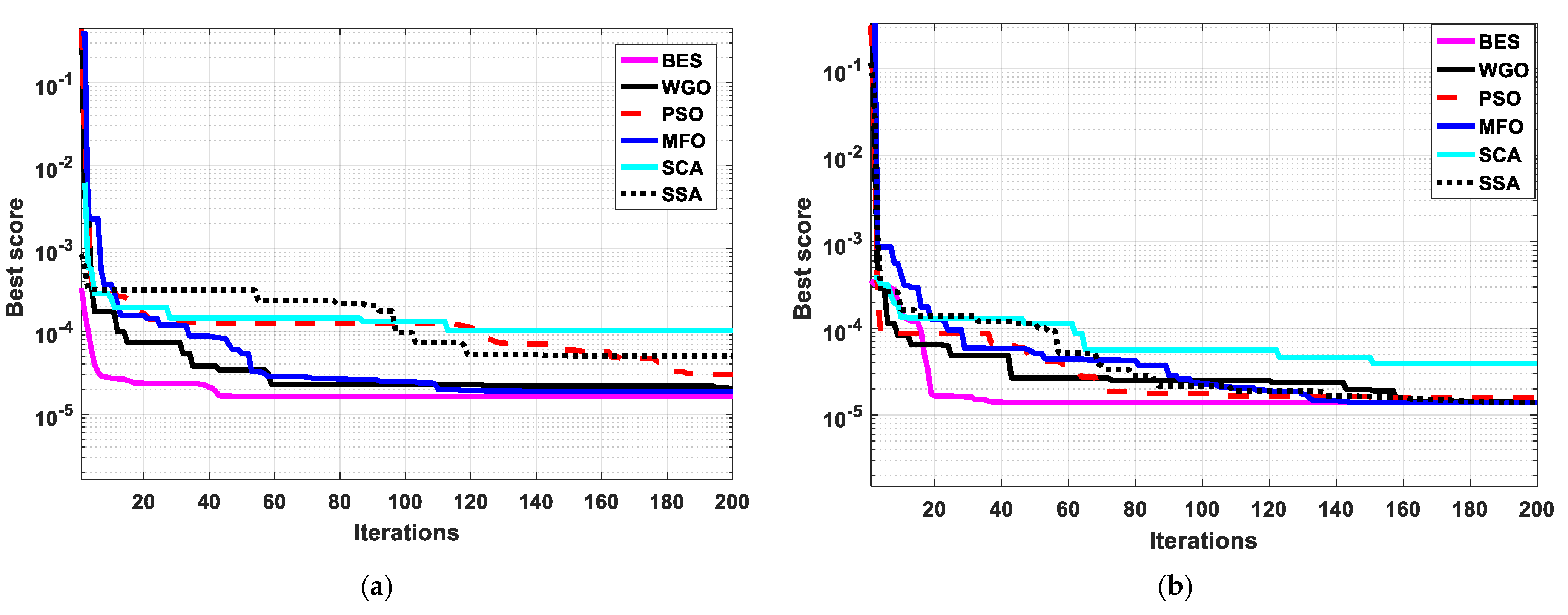

The convergence curves through the parameter identification process of both control and modified devices based on both TDM and MTDM per applying different optimizers are summarized, respectively, in Figure 11 and Figure 12. From these figures, it is obvious that the proposed BES algorithm performance is the best among the other used algorithms. The fast convergence and the lowest cost function resulted from the BES algorithm in all studied cases, which is proof also of the superiority of the BES in comparison with the other optimizers used in this study.

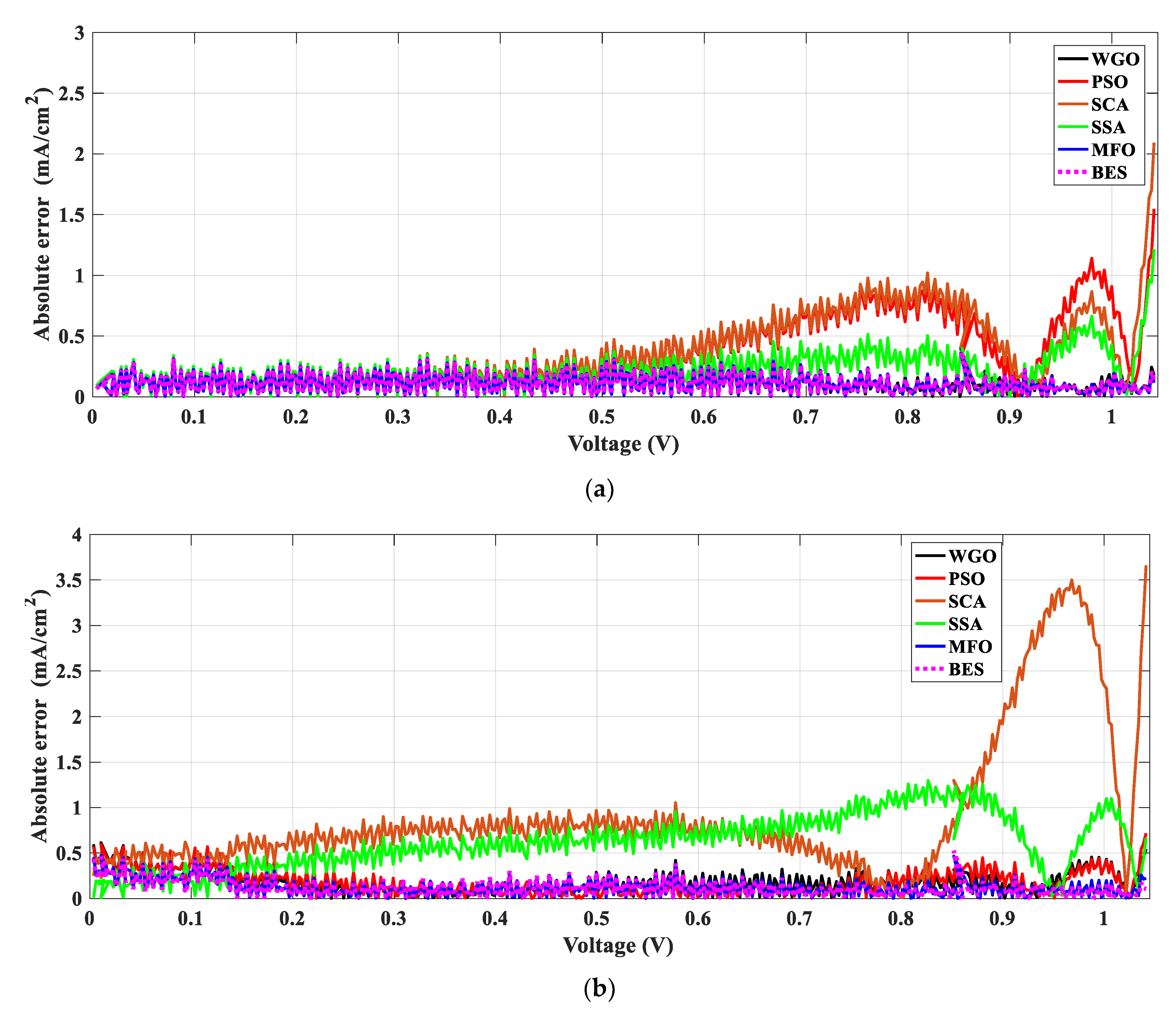

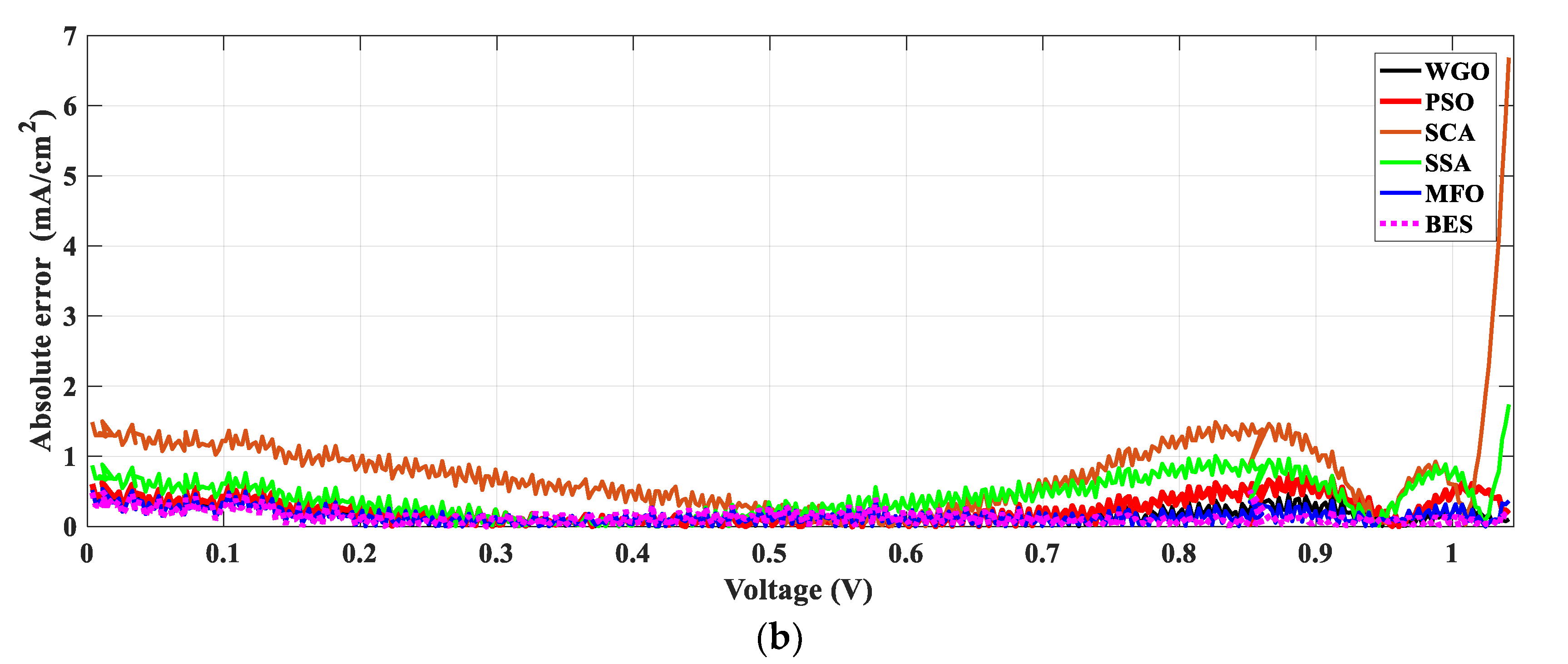

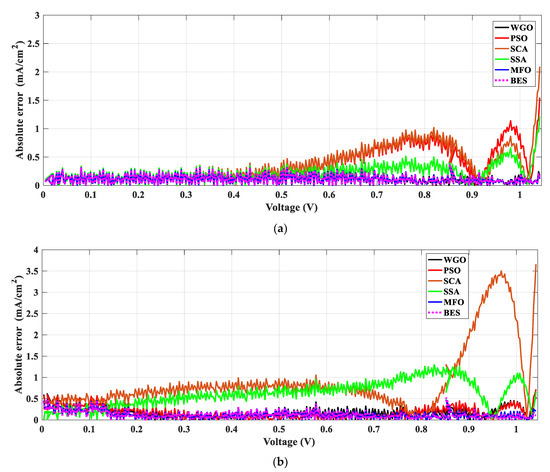

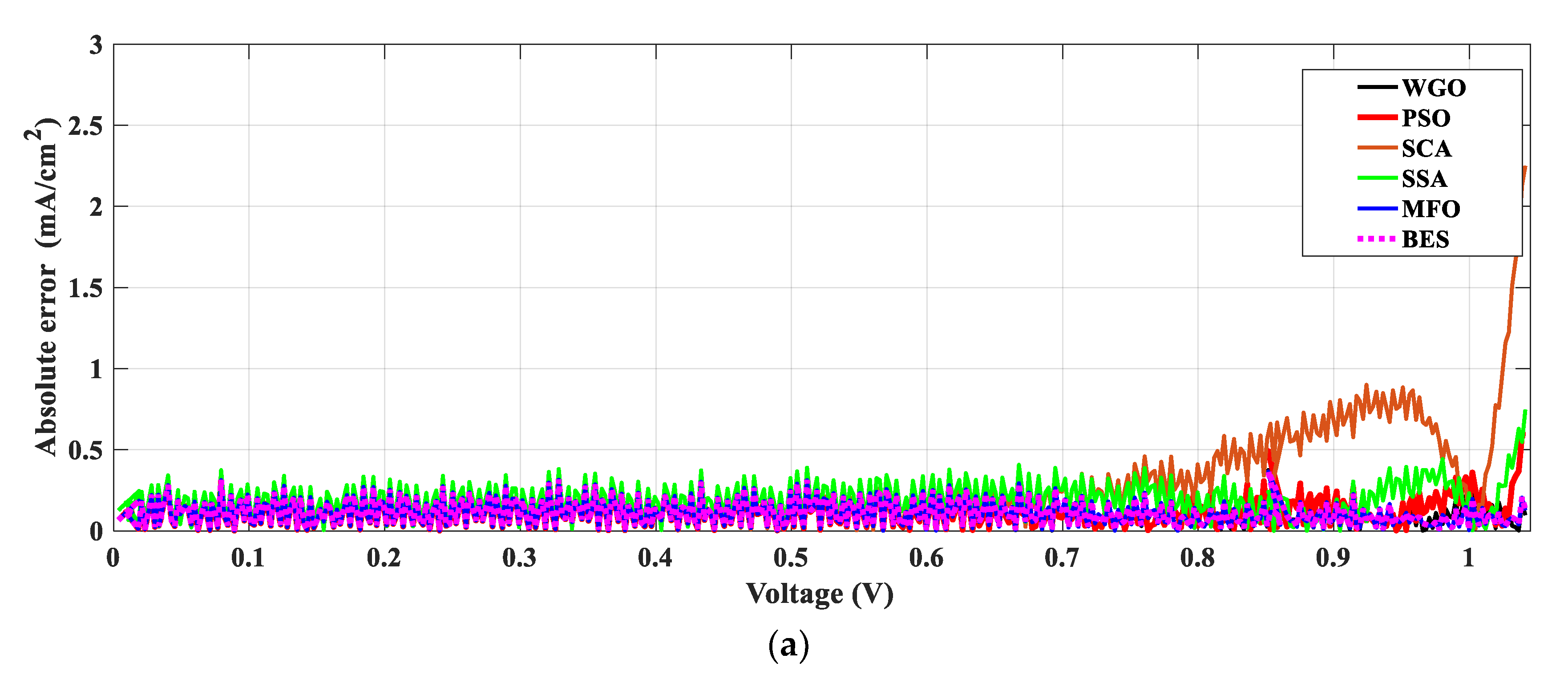

Further investigation of absolute current density error for both control and modified PSCs devices via using different optimization algorithms applying both TDM and MTDM, as explained in Figure 13 and Figure 14, respectively. It is very easy and clear to notice that the proposed BES in both devices, and under both TDM and MTDM, has the highest coefficient of determination and the lowest mean absolute error values. This also proves the accuracy, superiority, and efficiency of the suggested BES algorithm in estimating the best parameters of both control and modified PSCs devices in both TDM and MTDM.

To prove the consistency of the proposed strategy, ANOVA test has been performed. ANOVA test results are provided in

Table 9. Summary of ANOVA test.

Source	SS	Df	MS	F	p-Value > F
Controlled device TDM
Columns	7.3739 × 10−7	5	1.47749 × 10−7	60.44	2.89696 × 10−36
Error	4.2455 × 10−7	174	2.43998 × 10−7
Total	1.1619 × 10−7	179
Modified device TDM
Columns	1.0737 × 10−6	5	2.14785 × 10−7	13.11	7.81786 × 10−11
Error	2.85107 × 10−6	174	1.63855 × 10−5
Total	3.92486 × 10−6	179
Controlled device MTDM
Columns	3.88762 × 10−6	5	7.77524 × 10−7	30.29	4.4604 × 10−22
Error	4.46715 × 10−6	174	2.56733 × 10−5
Total	8.35477 × 10−6	179
Modified device MTDM
Columns	6.93988 × 10−7	5	1.38798 × 10−7	56.2	1.46076 × 10−34
Error	4.2969 × 10−7	174	2.46952 × 10−5
Total	1.1236 × 10−6	179

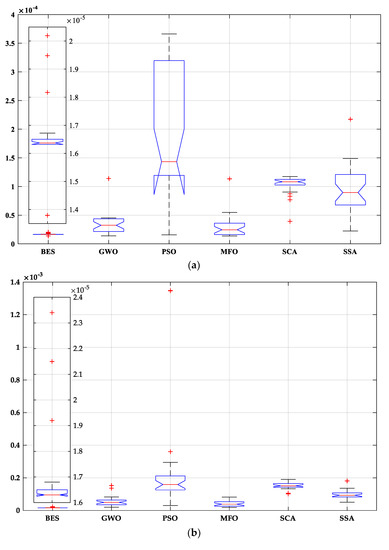

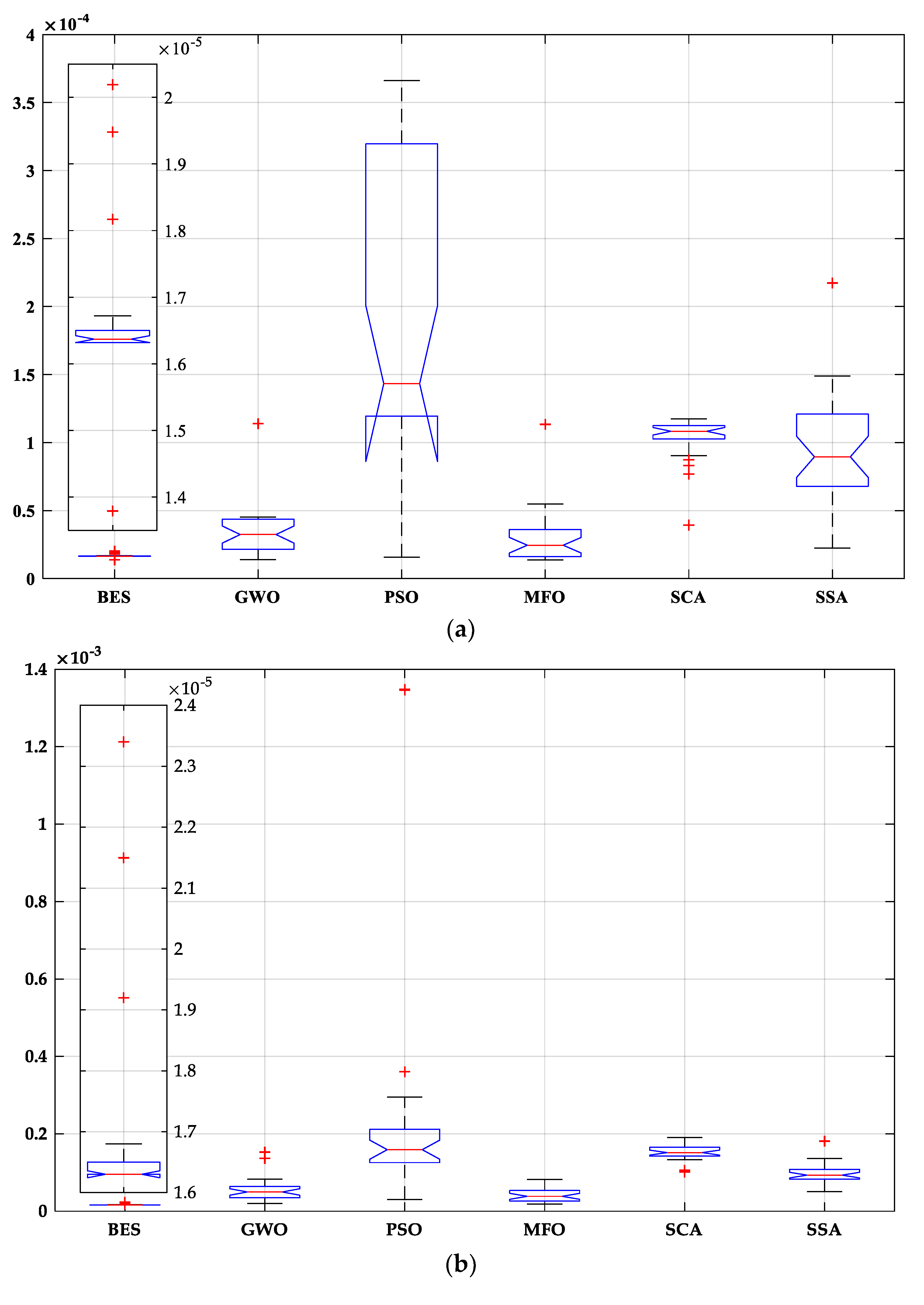

, and its related graphical ranking is illustrated in Figure 15. According to these results, the p-value is much lower than the F value that confirms the difference between the provided performances. From Figure 15, the BES can provide the optimal performance in terms of mean fitness. Moreover, its variations range is the lowest comparing with the other algorithms, which demonstrates its robustness.

6. Conclusions and Future Work

In this work, the performance enhancement of PSCs via interface engineering approach based on porphyrin insertion over the electron transporting layer is discussed. The modified devices outperform the control ones in both power conversion and stability. Electrical modeling was employed for elucidating the observed behavior. In this context, the BES algorithm was adopted for solving both TDM and MTDM electrical models and the corresponding parameters were successfully assessed. The accuracy of the BES algorithm has been authenticated using the I–V and P–V curves of the fabricated PSC devices and it has been confirmed that the main PSC parameters determined by combining the proposed simulation and the modified three-diode model efficiently fit in with the experimental characteristics at least deviation. Moreover, the proposed model permits the determination of the diode ideality factor representing the structural defects resulting from the fabrication process, which cannot be obtained experimentally. The performed analysis gives lower diode ideality factor values for the porphyrin-modified PSCs, in comparison with those of the non-modified ones. This confirms the enhanced quality of the corresponding devices, prepared following the interface engineering approach, which leads to perovskite absorbers with a low number of grain boundaries. The performed modeling revealed that the proposed MTDM operates better than TDM in representing the PSCs behavior. In addition, the BES algorithm achieves the least RMSE values in comparison with concurrent optimization approaches, as the corresponding simulation is the most efficient method for extracting the MTDM parameters. Therefore, interface engineering approaches combined with advanced modeling based on modern and efficient optimization algorithms is recommended for photovoltaic parameters estimation and device optimization in order to develop highly performing and robust PSCs.
