Pollination Methods and Integrated Fertilizer Influenced the Pollination Rate, Fruit Development, and Quality of Cucumis melo L. under Greenhouse Conditions

Abstract

This study was conducted to determine the effect of pollination methods (PMs) and integrated fertilizer (IF) application on the pollination rate, yield, and fruit quality of rockmelon (Cucumis melo L. var. Reticulatus cv. Glamour). This factorial experiment was arranged in a split plot design with four replications. Two rates of IF between chemical (CF) and organic (OF) fertilizer were investigated, namely, T1 (100% CF), which served as a control, and T2 (75% CF + 25% OF). The three PMs used in this study were natural (NP), bee (BP), and human (HP) pollination. Data collection included the pollination rate, yield, postharvest quality (soluble solids content, color, firmness, sugar, and organic acid), and macronutrient content in leaf tissue. The results of this study showed that there was an interaction of the pollination rate between PM and IF; however, the number of bees that survived decreased over time. The yield quality showed an interaction between PM and IF for both the fruit diameter and weight, while no interaction between PM and IF for the organic acid and sugar contents was observed. In conclusion, T2 application combined with BP reduced CF utilization, which benefits the development of a sustainable rockmelon production system.

1. Introduction

Trigona thoracica (Hymenopetra: Apidae; Meliponini), known as the stingless bee, is a small insect categorized into the honey bee group. It is also called lebah kelulut and is the most popularly used for honey production in Malaysia due to its higher nutrient level compared to other honey bees [1]. Moreover, giant honey bees (Apis Dorsata) have also been reported as being an important pollinating agent of different fruit and flower species, as well as other plants in forests [2].

Pollination can naturally occur in the presence of insects in an open planting system [3]. However, human assistance is needed if grown under a closed fertigation system [4]. From a botanical perspective, rockmelon (Cucumis melo L.), belonging to the Cucurbitaceae family, is monoecious and has imperfect flowers, which means that its pollination occurs only when pollen is transferred from male flowers to female ones [5,6]. Generally, the production of rockmelon is labor-intensive when it comes to assisting pollination, especially in a closed or greenhouse system. However, Jacobson reported that using bees to pollinate monoecious plants is a labor- and time-saving alternative for fruit quality improvement [7]. In a previous work, the blueberry (Vaccinium corymbosum) was pollinated by stingless bees (Melipona mallifera L.) and produced significantly heavier as well as a greater number of fruit than self-pollinated blueberry plants [8].

Usually, honey bees (Apis mellifera) are easily found in natural environments such as forests, which have clean and fresh air. Apis cerena (Korea’s native bee) is more suited to being kept deep in mountains, abundant in natural and fresh environments [8]. Bees are also very sensitive to any pesticide used during agriculture production [9], as shown by a reduction in bee colonies when testing pesticide pollution using bees as bioindicators [10].

Rockmelon is in high demand and is very costly to produce, especially when using chemical fertilizers (CFs), which are not environmentally friendly. Another problem is that more workers are needed to pollinate rockmelon flowers. To find a solution to combat the unfriendly usage of CFs and the heavily laborious pollination process, our research hypothesis is that the integration of CFs and organic fertilizers (OFs) will provide a conducive environment for bees to help the pollination process, which will increase the pollination rate, yield, and quality of rockmelon. Therefore, the objective of this study was to observe the effect of the pollination methods (PMs) and integrated fertilizer (IF) on the pollination rate, fruit development, yield, and quality of rockmelon (Cucumis melo L. var. Reticulatus cv. Glamour) under greenhouse conditions.

2. Materials and Methods

2.1. Study Site

This study was conducted in Field 2, Faculty of Agriculture, Universiti Putra Malaysia (UPM), Serdang, Selangor, Malaysia. This greenhouse was located at 3°0′28.9041″ N and 101°42′13.1789″ E. Malaysia is a tropical country with a high rainfall rate, namely, 295.0 mm rainfall from the middle of September to the end of November 2018. The greenhouse was built using a UV plastic film for the roof and 50 mesh white netting to protect the plants from pests, as well as to create a suitable environment in order to control the bees’ survival to pollinate rockmelon flowers. The average temperature and relative humidity inside the greenhouse in the morning was 37 ± 2.67 °C and 52 ± 1.74% and at night was 26 ± 2.12 °C and 67 ± 2.53%, respectively, recorded using a tiny tag TM320 data logger (Dickson Data Loggers, Dickson, Ltd., Addison, IL, USA).

2.2. Plant Materials and Treatment

The rockmelon seeds (Cucumis melo L. var. reticulatus cv. Glamour) were obtained from Nine Top Trading Co (M) Sdn. Bhd. located in Rawang, Selangor, Malaysia, and produced by Sakata Seed Corporation, Yokohama, Kanagawa, Japan. The seeds were soaked in water overnight before being placed into the germination tray containing peat moss. After two weeks of germination, or when the seedlings had at least produced three leaves, the rockmelon seedlings were transferred into a 41 × 41 cm polybag containing coconut coir dust (CCD) as the growing media. The experiment was arranged in a split plot design and consisted of two factors (integrated fertilizer (IF) and pollination methods (PMs)). The three PMs used as a main plot were arranged in a block under three different greenhouses. Meanwhile, two IFs with four replications (five plants per replication) were arranged randomly in each greenhouse. These two IFs were CFs and OFs; Treatment 1 (T1) (100% CF, served as control) and Treatment 2 (T2) (75% CF + 25% OF) as the best integrated fertilizers were obtained from a previous study (unpublished data). The three PMs used in this study were natural pollination (NP), pollination by bees (BP), and human pollination (HP) (Figure 1). The stingless bees (T. thoracica), or lebah kelulut, used in this study were purchased from commercial beekeepers (Figure 2).

2.3. Watering Method

Fermentation juice, as an OF resource, and a copper formulation, as the CF, were prepared as described in Supplementary Materials Sections S1 and S2. The fertilizer was applied to the plants using a drip fertigation system according to the treatment (T1 and T2). The fertilizers were prepared and stored separately for the OF and CF solutions. The fertilizers were supplied based on the volume needed by the plant, and the EC rate was controlled following the growth stage of the plants (

Table 1. Different volume of integrated fertilizer applied based on the growth stage of rockmelon.

WAP *		1–2	3–4	5	6	7–8	9–10	11
EC Rate		0.5	1.0–2.0	2.0–2.5	2.5	2.5	2.5	3.0
		Volume of fertilizer (mL)
T1	100% CF	200	400	600	800	1000	1000	800
	-	-	-	-	-	-	-	-
T2	75% CF	150	300	450	600	750	750	600
	25% OF **	50	100	150	200	250	250	200

Note: * The application of fertilizer was applied following the week after planting (WAP) and the growth stage of the plant is defined as transplanting (1–2 WAP), vegetative growth (3–4 WAP), flowering (5–6 WAP), pollination (7 WAP), fruiting (9 WAP), and harvesting (11–12 WAP). ** Stock solution was prepared by dissolving 5 L of pure OF in 100 L of water.

).

2.4. Pollination Rate

The pollination rate is defined as the percentage of success of the fruit set that develop into fruit. Three methods of pollination (PM)—HP, BP, and NP—were carried out under each greenhouse conditions. The PM was carried out when both male and female rockmelon flowers (Figure 1) were ready for the pollination process at the full bloom stage. Only one successful flower turns into fruit from the base, so 10 leaves (flower position between the leaf petioles) were retained for them to grow until the harvesting stage.

For the HP, the male flower was carefully removed from the plants. After this, the petals were stripped away to reveal the stamen, which was carefully inserted into an open female flower and gently tapped on the stigma (the sticky knob) (Figure 1). For the BP, two blocks of stingless bees’ nest (1000 bees for each block) were placed inside the greenhouse for a week during the flower bloom stage. For the NP, the plants were left without any pollination agent under greenhouse conditions.

The success of pollination was determined manually when the flower turned into fruit, which was later expressed as the percentage of successful pollination (fruit set) after the flower had bloomed. Each plant was determined by one flower for fruit to be produced.

The pollination rate for each PM (HP, BP, and NP) was calculated as follows:

$$\frac{\mathrm{The} \mathrm{number} \mathrm{of} \mathrm{fruit} \mathrm{sets} \mathrm{in} \left(\mathrm{HP}+\mathrm{T}1\right)+\left(\mathrm{HP}+\mathrm{T}2\right)}{\mathrm{Total} \mathrm{Plant}}\times 100\%$$

The mean for three pollination rates was calculated as (HP + BP + NP)/3.

The number of dead bees was calculated manually every day when they were found dead on the ground under the greenhouse. The data for dead bees were recorded for seven days after the bees were placed inside the greenhouse.

2.5. Determination of Yield

The diameter of rockmelon fruit was measured at one-week intervals from when the flower had bloomed until harvesting. Three selected fruits were randomly marked for each replication and measured using a measuring tape by placing it horizontally around the middle of the fruit. The data were measured continuously using the same fruit until the harvesting stage. The weight of rockmelon fruit was determined during harvesting by using a digital balance scale.

2.6. Determination of Post-Harvest Quality

2.6.1. Firmness and Soluble Solids Concentration

The firmness of rockmelon fruit was measured using an Instron Universal Testing Machine (Instron Corp., Minneapolis, MN, USA) fitted with a 6 mm diameter cylindrical probe and a 5 kg load cell. The Instron probe was inserted into each rockmelon part to a 3 mm depth at a crosshead speed of 20 mm min⁻¹. Each part was inserted three times at equidistance and the data from an instronuniversal testing machine were recorded.

The soluble solids concentration (SSC) of rockmelon juice was determined using a digital refractometer (ATAGO RX-5000, ATAGO CO., LTD, Minato-ku, Tokyo, Japan). Two drops of rockmelon juice were dropped onto the glass prism of the refractometer using a pipet and the reading was recorded. The SSC reading is expressed in percentage (%) of Brix. The mean of fruit firmness was calculated following the explanation mentioned in Section 2.4.

2.6.2. Determination of Sugar and Organic Acid Using HPLC

The internal standard for sugar and organic acid, such as sucrose, D-(+)-glucose, D-(−)-fructose, citric acid, DL-malic acid, and succinic acid, was purchased from Sigma Chemical Corporation (Sigma-Aldrich Chemie GmbH, Steinheim, Germany). Oxalic acid was obtained from Fisher Chemical (Fisher Scientific UK, Loughborough, Leicestershire, UK). While sulfuric acid was obtained from Classic Chemical (Classic Chemicals Sdn. Bhd., Shah Alam, Selangor). All of the chemical standards were of high-performance liquid (HPLC) grade.

The preparation of a standard solution for sugar was obtained by dissolving 0.01 g of sucrose and fructose in 2 mL of distilled water, while glucose was prepared by dissolving 0.01 g in 20 mL of distilled water. The organic acid was prepared by dissolving 0.1 g of citric acid, DL-malic acid, oxalic acid, succinic acid, and fumaric acid in 100 mL of distilled water. Aliquots of standard solutions (5, 10, 15, 20, and 25 µL) were injected into the HPLC system and readings were obtained prior to the development of the regression line.

A total amount of 100 g of rockmelon fruit was weighed and ground using a multipurpose blender (Panasonic, Panasonic Corporation, Osaka, Japan) for 2 min to obtain fleshy juice of the rockmelon. This fleshy juice was centrifuged for 45 min at 10,000 rpm and subsequently filtered using filter paper to obtain pure juice [11].

Organic acid and single sugar were determined using the HPLC method [11]. One milliliter of rockmelon juice from each treatment was filtered through 0.22 µm PTFE syringe filters (Fisher Scientific UK, Loughborough, Leicestershire, UK) before the samples went through HPLC (Agilent 1200 Series, Agilent Technologies Deutschland GmbH, Waldbronn, Germany) coupled to a photodiode array detector (PDA). The analysis was performed using a Shimadzu 20A series HPLC (Shimadzu Corporation, Kyoto, Japan). The HPLC was equipped with an autosampler, column, mobile phase, oven, UV detector, and refractive index (RI) detector. The separation was achieved on a LiChrospher^® 100 NH₂ (5 µm) using a carbohydrate column (250 × 4 mm; EMD Serono Inc., Merck KGaA, Darmstadt, Germany) for sugar analysis and a C18 column for organic column (250 × 4.60 mm; Phenomenex, Torrence, CA, USA). For organic acid analysis, isocratic elution was carried out with sulfuric acid (0.05 m; Solvent A) and deionized water (Solvent B) at a ratio of 1:1 and a flow rate of 0.8 mL min⁻¹. The detection of organic acid was carried out via photo PDA, using 215 nm as the preferred wavelength. Sugar analysis involved elution under isocratic conditions with 80% acetonitrile and 20% deionized water at a flow rate of 1 mL min⁻¹, detected with an RI detector. The results of the organic acid and single sugar were quantified at the peak of the wavelength recorded. The mean of the sugar and organic acid contents was calculated following the explanation mentioned in Section 2.4. The sugar and organic acid content are expressed in milligrams per gram of fresh weight (mg g⁻¹ FW).

2.7. Determination of the Nutrient Content

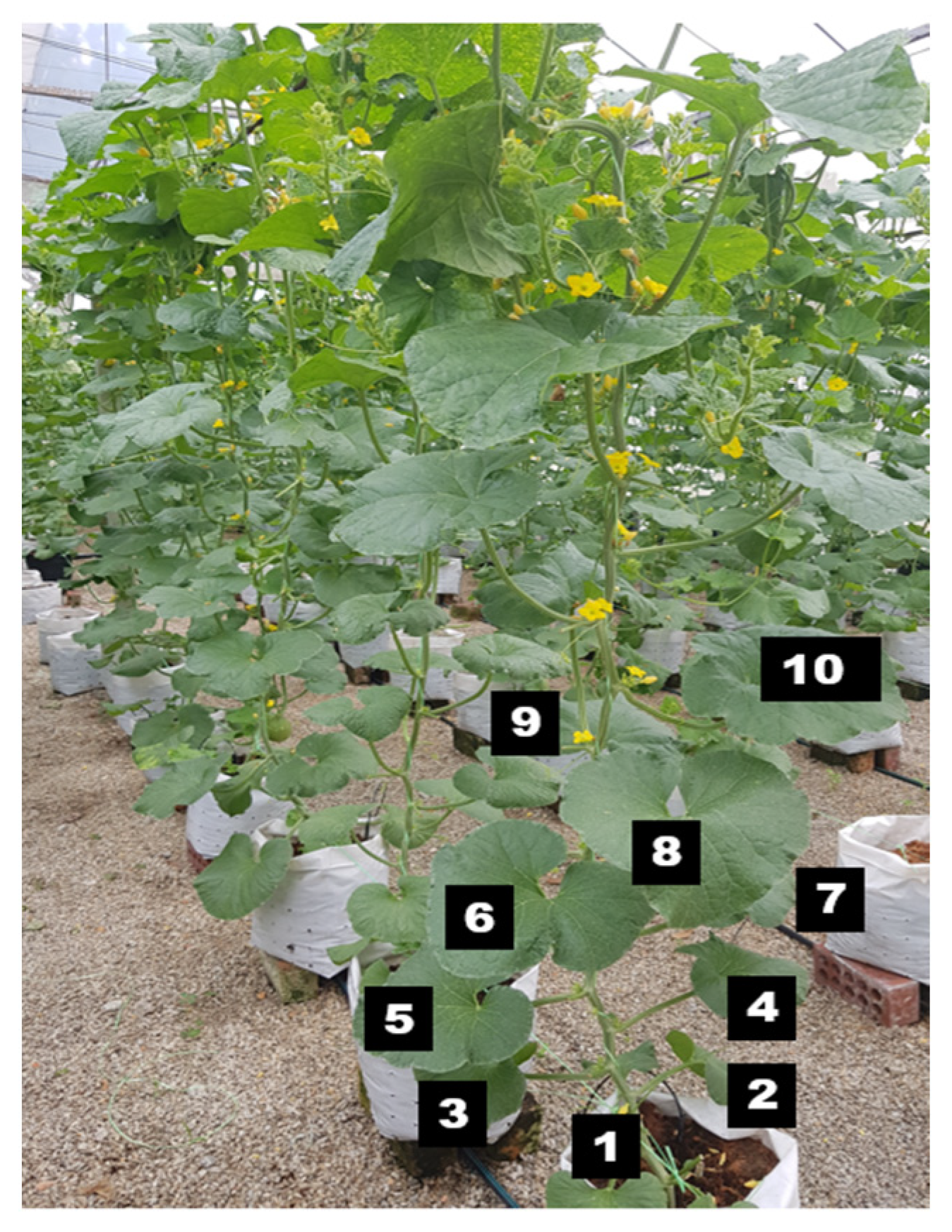

Five pieces of fully expanded leaves (numbers 5–10) from the medium surface of the polybag (Figure 3) were sampled during harvesting and dried in an oven at 70 °C within three to four days. The dried leaves were ground using grinder machines (FFC23, Baker, ESM Machinery (KL) Sdn. Bhd., Balakong, Seri Kembangan, Selangor, Malaysia). The leaf tissue was kept in a dry place at room temperature (24 °C). A total of 0.25 g of leaf tissue was placed in a digestion flask with 5.0 mL of 0.05 m sulfuric acid (H₂SO₄) and left for 2 h. Then, a total of 2 mL of 50% hydrogen peroxide (H₂O₂) was added to the tube while rotating it. After this, the tube was left in the digestion block for 45 min for the heating process. Another 2 mL of 50% H₂O₂ was added again to the tube and left for 45 min, and digestion was allowed until colorless or clear samples were produced, after which the solution was made up to 100 mL with distilled water. The nutrient content of N and P was determined using an auto analyzer (Lachat Instruments, Quick Chem^® FIA+ 8000 Series, Milwaukee, WI, USA), while the K, Mg, and Ca levels were determined using an atomic absorption spectrophotometer (Perkin Elmer Model 310). The mean of the nutrient content was calculated following the explanation mentioned in Section 2.4. The nutrient content is expressed in percentage (%).

2.8. Statistical Analysis

All data were analyzed by analysis of variance (ANOVA) using SAS software (SAS, release 9.3, SAS Institute Inc., Cary, NC, USA). The difference between treatments was compared using Fisher’s least significant differences (LSD) test at p ≤ 0.05. A post-hoc test was carried out to uncover specific differences when an analysis of variance (ANOVA) F-test was significant.

3. Results and Discussions

3.1. Pollination Rate

Table 2. The main effect on pollination methods (PMs) and integrated fertilizer (IF) on the fertilization rate (%) of rockmelon.

Factor	Pollination Rate (%)
Pollination method (PM)
HP	100.00 a
BP	85.00 a
NP	2.50 b
Mean	62.5
Integrated fertilizer (IF)
T1	61.67 a
T2	68.33 b
Mean	65.0
LSD of means at p ≤ 0.05 and levels of significance for a two-factor ANOVA
PM	0.12 ***
IF	0.23 ***
PM × IF	***

^a and ^b, means with the same letter within a column and factor are not significantly different at p ≤ 0.05 using LSD. *** Significant at the 0.001 probability level. n = 24. Note: HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

indicates that the HP and BP were not significantly different from one another, with a 100% rate of successful pollination; however, both of these pollination methods were significantly different to NP (0–5%), which achieved a 95–100% differentiation of the pollination rate (p ≤ 0.05). The pollination rate of NP was found to be the lowest because of the absence of a pollination agent inside the greenhouse system. Additionally, inside the closed greenhouse system, the lack of wind also contributed to the lowest pollination rate among the others (data not recorded). Meanwhile,

Table 3. The interaction effect of integrated fertilizers and pollination methods on the pollination rate of rockmelon.

Pollination Method	Integrated Fertilizer	Pollination Rate (%)
HP	T1	100 ± 0.00 a
	T2	100 ± 0.00 a
BP	T1	85± 0 a
	T2	100 ± 0 a
NP	T1	0 ± 0 b
	T2	5 ± 0.28 b

^a and ^b, means with the same letter within a column and factor are not significantly different at p ≤ 0.05 using LSD. n = 24. Note: HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

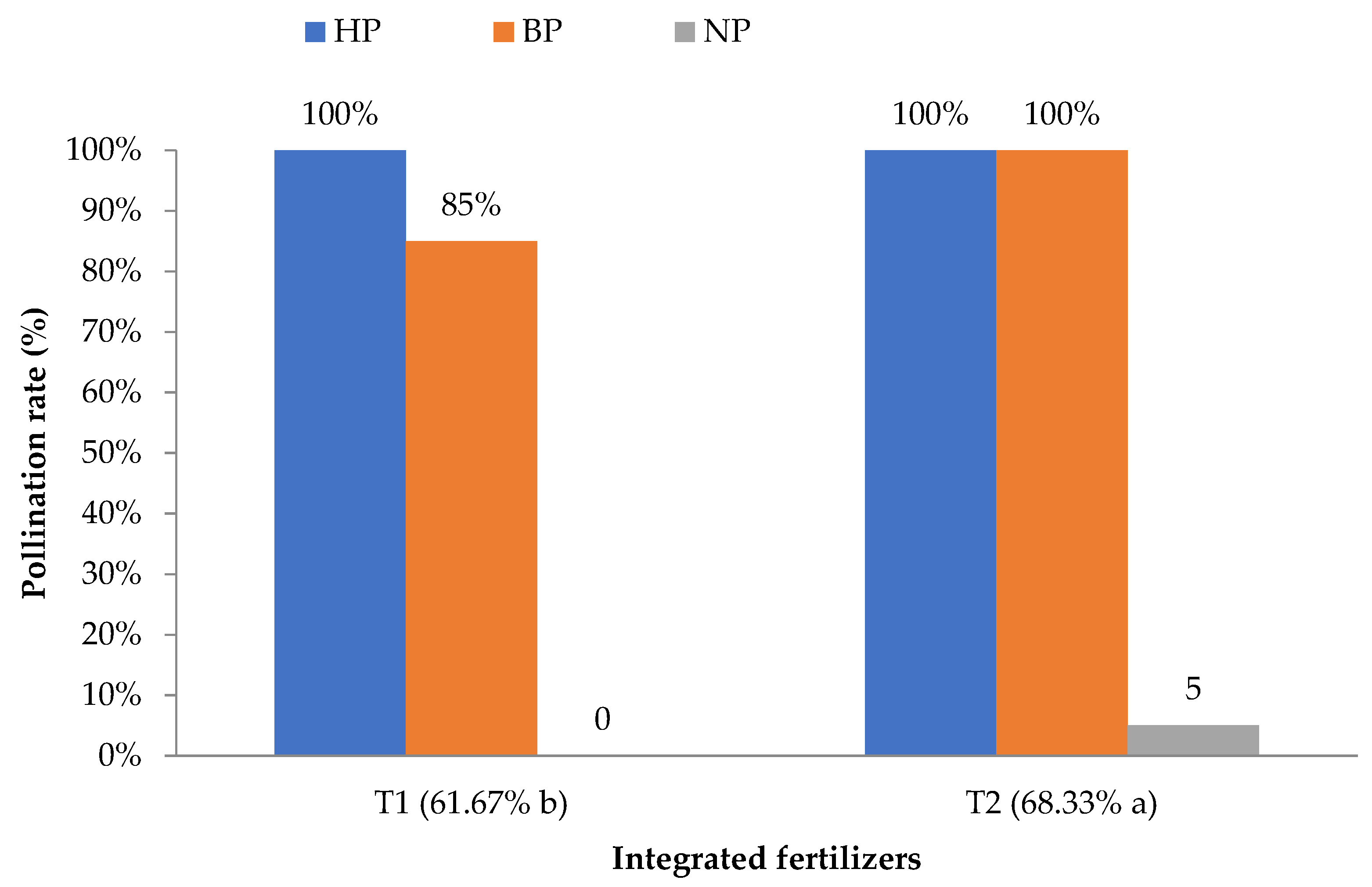

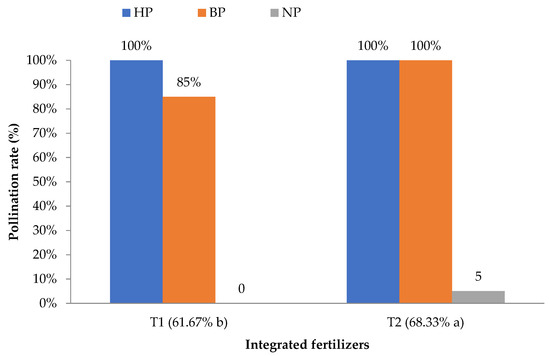

and Figure 1 show the highly significant (p ≤ 0.001) interaction values between the PMs (HP, BP, and NP) and IFs (T1 and T2) with HP + T1, HP + T2, and BP + T2 achieving a 100% pollination success rate.

There were significant (p ≤ 0.001) interaction effects between the PMs and IFs. The HP and BP showed a higher rate, followed by NP. HP and BP provided the highest results due to precise pollination work carried out by a human to ensure successful pollination, or because the bees naturally pollinated rockmelon under greenhouse conditions. The HP and BP showed the same success rate of pollination, so the use of bees in pollinating rockmelon flowers will reduce the need for intensive labor and promote integrated farming at the same time. Another study reported that the fertilization rate is more successfully increased by BP than by HP [3].

Figure 4 shows the interaction effect of IF and PM on the fertilization rate. There was a significant effect (p ≤ 0.05) of IF on the rate of fertilization by bees. The application of the T2 fertilizer resulted in a higher rate of fertilization by BP than T1. BP introduced for both IFs showed successful pollination, with T2 being significantly higher than T1 with 6.6% differentiation. As reported by Power and Stout [12], organic-based products can attract insects to pollinate flowers. This statement was also supported by Banaszak-Cibicka et al. [13], which was that a lower number of bumblebees appeared around field bean plots treated with NPK (inorganic fertilizer) than organic field bean plots. This shows that bees prefer an organic environment over an inorganic one [14]. However, the results of the study show that a mixture of 75% CF and 25% OF (T2) achieved the best result in terms of plant growth (unpublished data). Moreover, Uzman et al. [15] stated that the number of bee species is decreasing due to the abundance of land disturbances as a result of agricultural activities. Additionally, the presence of bees in agricultural activities is affected by the excessive use of CF on commercial farms.

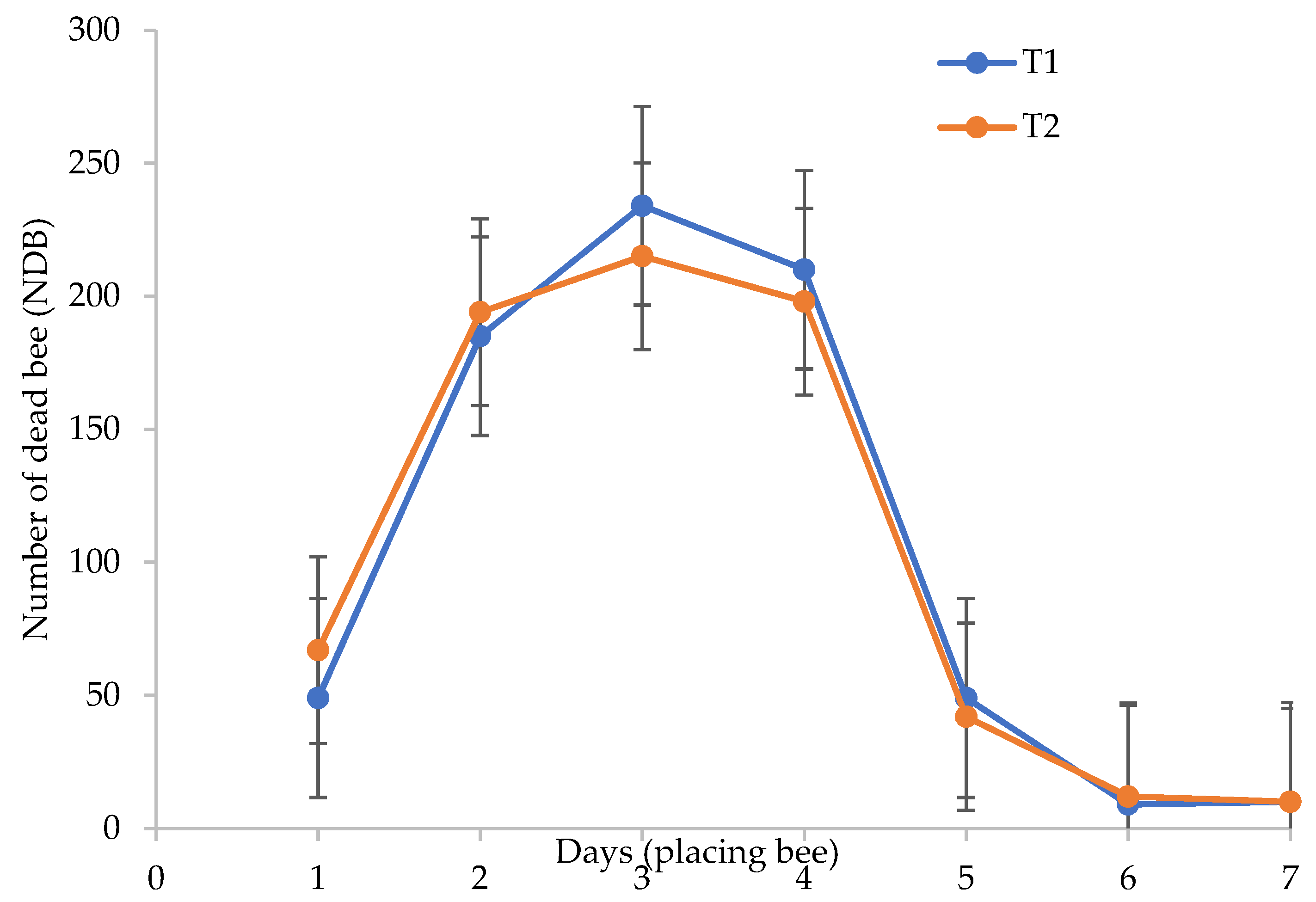

Even though BP helped to increase the pollination rate, we faced challenges in terms of the number of dead bees increasing over time from the moment they were placed inside the greenhouse. Our assumption is well proved in Figure 5: the results showed that the number of dead bees increased more when T2 was placed under greenhouse conditions, especially during the hot season from September to November before the rainy season began. The number of dead bees also increased with days after inoculation in the greenhouse conditions (Figure 5). Both of the treatments showed a highly increased number of dead bees until day 3, thereby decreasing after day 4. The survival of bees under T1 was found to decrease, and this was not just because of CF usage, but also due to the temperature and relative humidity under greenhouse conditions (Figures S1–S6). The highest rate of dead bees at the beginning of placement was because they were unable to adapt to the new environment and the high temperature inside the greenhouse. Li et al. [16] reported that honey bees (Apis cerena and Apis mellifera) can survive up to a temperature of 35 °C, but in our study, the temperature in the greenhouse was higher than that (37 °C and above) (refer to Figures S1, S3 and S5). Thus, this was determined as a major reason of the death of the bees. Besides this, there was no clear difference between either of the treatments (T1 and T2); the results of the study show that bees placed under greenhouse conditions with the application of CFs encourages a higher number of bee deaths than when the plants are treated with OFs. Therefore, our study indicates that less chemical input in the agriculture sector will protect the environment and produce natural pollinator agents for a sustainable system.

3.2. Yield

In this study, the effect of IF and PMs on the diameter of rockmelon fruit during the fruit development stage until harvest was examined. The results showed that the fruit diameter was slightly affected in weeks 1, 3, 4, and 6; however, there were no differences in weeks 2 and 5.

Table 4. The effect of integrated fertilizer and pollination methods on the diameter of rockmelon fruit at every week of fruit development.

Treatments		Number of Weeks after Flower Bloom (Week)
		1	2	3	4	5	6
HP	T1	10.43 ± 0.36 b	25.38 ± 0.28 a	39.18 ± 0.09 b	44.88 ± 0.31 a	46.53 ± 0.21 a	48.13 ± 0.12 b
	T2	12.50 ± 0.06 a	25.83 ± 0.09 a	40.10 ± 0.17 a	44.95 ± 0.15 a	47.10 ± 0.31 a	49.25 ± 0.22 a
BP	T1	12.58 ± 0.01 a	25.78 ± 0.11 a	40.50 ± 0.22 a	44.70 ± 0.27 a	46.83 ± 0.26 a	51.00 ± 0.34 a
	T2	12.65 ± 0.03 a	25.00 ± 0.21 a	40.48 ± 0.04 a	44.85 ± 0.21 a	47.03 ± 0.29 a	48.63 ± 0.12 b
NP	T1	0.00 c	0.00 c	0.00 c	0.00 c	0.00 c	0.00 c
	T2	12.60 ± 0.25 a	25.50 ± 0.18 a	39.50 ± 0.27 b	43.90 ± 0.15 b	46.40 ± 0.20 a	48.50 ± 0.23 b

Values are mean value ± standard deviation. ^a, ^b and ^c, means with the same letter within a column and factor indicate no significant difference at p ≤ 0.05 using LSD. n = 24. Note: HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

shows that in week 6, the fruit diameter was more dominant for BP + T1 (approximately 51 cm) and HP + T2 (approximately 49.25 cm). Meanwhile, no significant results were found for HP + T1, with BP + T2 and NP + T2; however, NP + T1 achieved no results at all due to unsuccessful pollination.

There was a significant (p ≤ 0.001) interaction between PMs and IF on the diameter and fresh weight of rockmelon fruit (

Table 5. The main and interaction effects of pollination methods (PM) and integrated fertilizer (IF) on the diameter and fresh weight of rockmelon fruit.

Factors	Fruit Diameter (cm)	Fruit Weight (kg)
Pollination method (PM)
HP	36.18 a	1.84 a
BP	37.42 a	2.07 a
NP	18.20 b	0.95 b
Mean	30.6	1.62
Integrated fertilizer (IF)
T1	24.27 b	1.36 b
T2	36.93 a	1.88 a
Mean	30.6	1.62
LSD of means at p ≤ 0.05 and levels of significance for a two-factor ANOVA
PM	11.23 **	0.22 **
IF	9.17 ***	0.17 ***
PM × IF	***	***

^a and ^b, means with the same letter within a column and factor are not significantly different at p ≤ 0.05 using LSD. ** Significant at the 0.01 probability level. *** Significant at the 0.001 probability level. n = 24. Note: HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

). BP and HP showed higher fruit weight compared to NP. Azmi et al. [17] reported that the rockmelon yield when treated with BP had larger and heavier fruit compared to HP. This result was also supported by Klatt et al. [18], who showed that the yield of strawberries increased and the fruit was much bigger than for NP. Meanwhile, for IF, the application of T2 resulted in a higher fruit diameter than T1. A similar finding was reported by Marzouk and Kaseem [19], in which the fruit weight and diameter increased by the application of NPK integrated with an organic source of fertilizer. In addition, Malik et al. [20] reported a bigger fruit diameter (5.16 and 8.09 cm) of the Capsicum hybrid SH-SP-5 treated with NPK + 20 tan ha⁻¹ farmyard manure and NPK + 40 tan ha⁻¹ farmyard manure, respectively, compared to the control (4.60 cm). This result was also supported by Lal and Kanaujia [21]: the fruit diameter of acid lime (Citrus aurantifolia) increased compared to the single mineral fertilizer. This study shows that the interaction between IF and PMs had a significant effect on the fruit diameter and weight. Chen et al. [22] reported that OFs enhanced the rate of insect pollinators and the application of fertilizers greatly contributed to a higher number and weight of the berries. Meanwhile, Catarino et al. [23] evidently proved that insect pollinators were outperformed and reduced on land with the excessive use of CF; the yield of oilseed rape also decreased due to the decrease in the number of insect pollinators. Overall, we found that both PM and IF are important for increasing the yield of plants.

3.3. Post-Harvest Quality

3.3.1. Firmness and Soluble Solids Concentration

Table 6. The main and interaction effects of pollination methods (PM) and integrated fertilizer (IF) on the firmness and soluble solids content of rockmelon.

Factors	Fruit Firmness (N)	SSC (Brix)
Pollination method (PM)
HP	9.13 b	13.96 b
BP	10.31 a	15.39 a
NP	9.04 b	14.09 ab
Mean	9.83	14.48
Integrated fertilizer (IF)
T1	7.77 b	14.63 a
T2	11.22 a	14.33 a
Mean	9.83	14.48
LSD of means at p ≤ 0.05 and levels of significance for a two-factor ANOVA
PM	0.96 **	0.81 **
IF	0.79 ***	0.67 ns
PM × IF	**	ns

^a and ^b, means with the same letter within a column and factor are not significantly different at p ≤ 0.05 using LSD. ** Significant at the 0.01 probability level. *** Significant at the 0.001 probability level. ns, no significant. n = 24. HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

shows the effect of the interaction between PM and IF on the firmness and SSC of rockmelon fruit. There was a significant interaction (p ≤ 0.01) between PM and IF on fruit firmness. However, the interaction between both of them did not significantly differ for the SSC of rockmelon fruit. The fruit firmness treated with BP exhibited the highest firmness compared to the other treatments, with no difference between HP and NP. Similar to fruit firmness, the SSC of the BP-treated plants obtained the highest SSC, but with no significant difference compared to NP and HP. Meanwhile, the IF treatment showed significantly higher firmness compared to CF, but there was no difference in the SSC between IF and CF. The mean PM was 9.83, the same as the mean using IF.

Flowers pollinated by BP and fertilized using T2 exhibited the highest (12.43 N) fruit firmness compared to the other treatments, while the interaction between BP + T1 was 34.18% lower than the BP + T2 treatment. Klatt et al. [18] claimed that the fruit firmness can be increased by BP. However, the fruit firmness was observed to quickly decrease when treated with CF due to the fruit achieving the fastest maturity. Fruit that ripens earlier has a lower firmness but a higher SSC and water content [24]. As reported by Partap [25], BP did not only increase the fruit set, but also increased the fruit juices and sugar content in the fruits. A similar finding was found by Abrol et al. [26], who reported that open-pollinated plots (pollination by insects) produce higher-quality compared to the control pollination. The high quality of fruit is not only about size, but also about texture and sweetness [25]. In addition, Garratt et al. [27] reported that Gala apples pollinated by bees have higher firmness (11.4 N) and sweetness (11.7%) than when pollinated by humans. Moreover, all of the results show the bees preferred IF to CF. The rockmelon treated with IF (T2) with BP had higher firmness and sweetness compared to T1 with the presence of bees as a pollinator. As reported by Pohorecka [28], bees are abundantly found in chemical-free environments compared to agricultural land were CF, herbicides, or pesticides are mainly used. Similarly, Krupke et al. [29] claimed that honey bees living nearest to agricultural fields migrate to new clean environments when chemicals are used excessively in these agricultural fields. Bees are one of the many insects that are naturally beneficial pollinators and contribute more to the success of pollination and enhancing the yield production in agriculture [30].

3.3.2. Sugar and Organic Acid

Table 7. The main and interaction effects of pollination methods (PMs) and integrated fertilizer (IF) on the sugar content of rockmelon.

Factor	Fructose	Glucose	Sucrose
	mg g−1 FW
Pollination method (PM)
HP	221.33 a	255.80 a	508.60 b
BP	226.58 a	268.81 a	597.10 a
NP	220.26 a	258.75 a	495.10 c
Mean	222.72	261.12	533.60
Integrated fertilizer (IF)
T1	272.95 a	305.74 a	588.70 a
T2	172.96 b	216.51 b	478.50 b
Mean	222.96	261.13	533.60
LSD of means at p ≤ 0.05 and levels of significance for a two-factor ANOVA
PM	14.53 ns	15.00 ns	9.86 ***
IF	11.86 ***	12.14 ***	11.78 ***
PM × IF	ns	ns	***

^a, ^b and ^c, means with the same letter within a column and factor are not significantly different at p ≤ 0.05 using LSD. *** Significant at the 0.001 probability level. ns, not significant. n = 24. Note: HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

shows the effect of the interaction between PM and IF on the sugar content of rockmelon. There was no significant interaction between PM and IF in terms of the fructose and glucose content of rockmelon fruit. However, a significant difference in IF was found in all sugar contents of the rockmelon fruit. Moreover, there was a significant interaction (p ≤ 0.001) between PM and IF in the sucrose content of rockmelon fruit. Table 7 shows that the BP treatment had the highest sucrose content compared to HP and NP. This is because bees are more attracted to plants fertilized with a combination of CF and OF. In addition, the digestive system of honey bees is perfectly adapted to transform sucrose into fructose and glucose. Evidently, honey bees collect nectar from plants with a high sucrose content than sugar to be transformed into fructose and glucose. A similar result was found in this study, in which rockmelon treated with BP had a higher sucrose content than with the other pollination treatments. Additionally, some other reports have indicated that fruit pollinated with honey bees normally has higher fructose and glucose contents than sucrose content [25,31,32]. Fructose and glucose are monosaccharide sugars transformed from sucrose (disaccharide). Plants with a higher sucrose content resulted in a higher sucrose content in rockmelon fruit, making them more attractive for bees to pollinate the flowers. Moreover, honey bees with a higher sucrose than fructose or glucose content have been declared as a plasticity honey bee type [33].

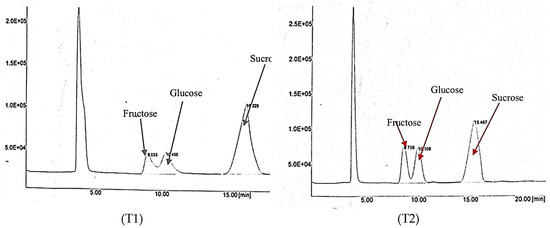

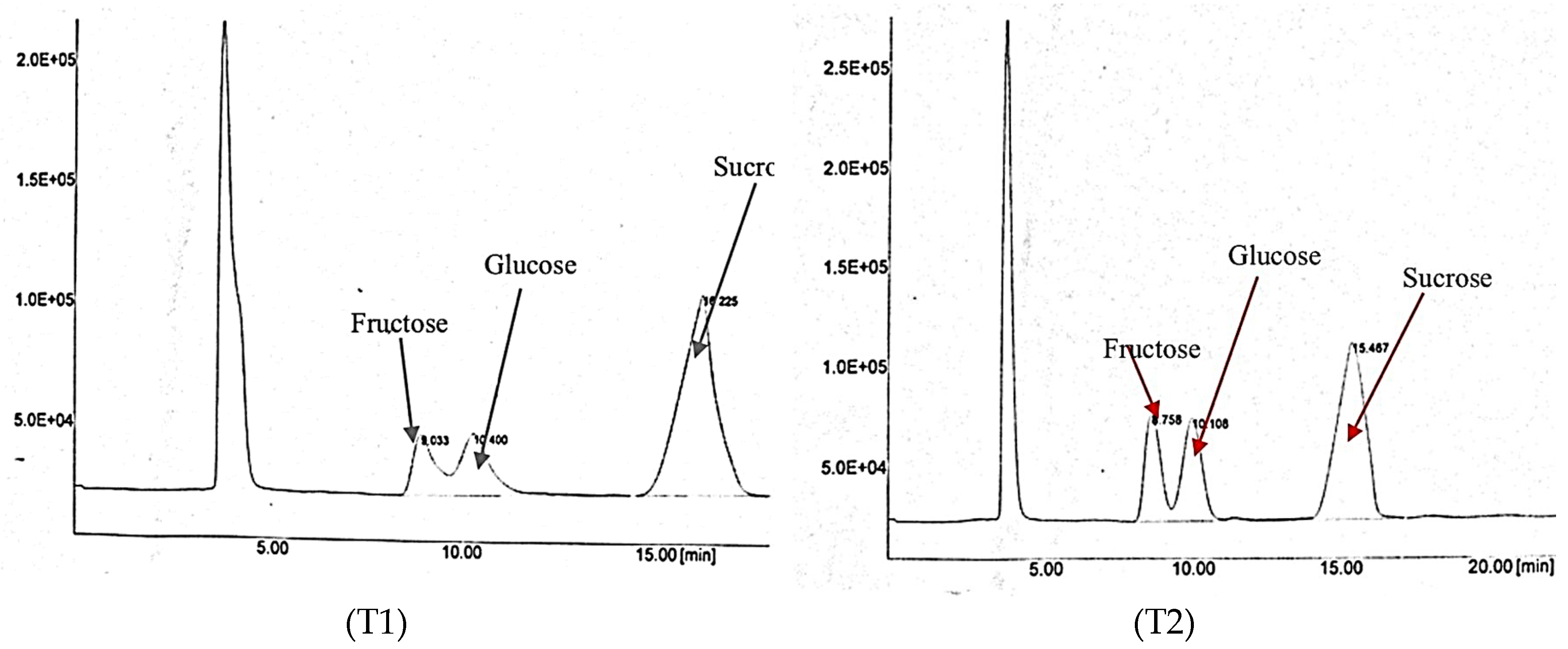

Figure 6 shows the results of the sugar content for both of IF treatments obtained via HPLC. The results show that sucrose dominated both T1 and T2 compared to fructose and glucose. The sucrose peak was the highest, representing the high sucrose content. Table 7 shows the interaction effect of PM and IF on the sucrose content in rockmelon fruit. Based on the results, plants fertilized with T1 and BP resulted in a significantly higher (15.26%) sucrose content than T2 and the other integration treatments. As discussed earlier, this is due to the application of CF (T1), which resulted in fast maturity and fruit ripening compared to the T2 treatment. Similarly, in our previous study, we showed that T1 resulted in a higher sucrose content than T2-treated plants due to the sufficient nutrient supply to the plants, resulting in a higher sugar content in over-ripened fruit than in moderately ripened fruit. However, for market purposes, most fruit suppliers’ middlemen and consumers prefer moderately ripened rather than over-ripened fruit because they have a short shelf life compared to mature fruit.

There was no significant interaction effect between PM and IF in terms of the organic acid contents (oxalic, malic, citric, and succinic) in rockmelon pulp (

Table 8. The main and interaction effects of pollination methods and integrated fertilizer on the organic acid content of rockmelon.

Factor	Oxalic	Malic	Citric	Succinic
	mg g−1 FW
Pollination method (PM)
HP	0.99 a	0.61 a	0.60 a	11.57 a
BP	1.03 a	0.59 a	0.61 a	11.42 a
NP	1.04 a	0.60 a	0.60 a	11.61 a
Mean	1.02	0.60	0.60	11.53
Integrated fertilizer (IF)
T1	0.87 b	0.43 b	0.36 b	8.32 b
T2	1.17 a	0.78 a	0.85 a	14.74 a
Mean	1.02	0.60	0.60	11.53
LSD of means at p ≤ 0.05 and levels of significance for a two-factor ANOVA
PM	0.08 ns	0.03 ns	0.04 ns	0.82 ns
IF	0.06 ***	0.02 ***	0.03 ***	0.67 ***
PM × IF	ns	ns	ns	ns

^a and ^b means with the same letter within a column and factor are not significantly different at p ≤ 0.05 using LSD. *** Significant at the 0.001 probability level. ns, not significant. n = 24. Note: HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

). However, the application of IF resulted in a significant difference for all organic acid contents in rockmelon. All of the organic acid contents were higher for T2- than T1-treated plants. Earlier, Kilic at el. [34] reported that the organic acid content is higher in organic compared to inorganic fertilizer treatments. In addition, the T1 treatment resulted in faster fruit ripening than the T2 treatment, thus resulting in a significantly higher organic acid content in the fruit pulp. As reported by Perkins et al. [35], organic acid decreased during ripening.

3.4. Nutrient Content

Table 9. The main and interaction effects of pollination methods (PM) and integrated fertilizer (IF) on the leaf tissue macronutrient content of rockmelon.

Factor	N	P	K	Ca	Mg
	%
Pollination method (PM)
HP	32.79 a	11.83 a	23.35 a	25.54 a	4.39 a
BP	32.56 a	11.51 a	23.50 a	25.34 a	4.38 a
NP	33.05 a	11.38 a	23.38 a	25.33 a	4.13 a
Mean	32.80	11.57	23.41	25.40	4.30
Integrated fertilizer (IF)
T1	36.99 a	11.48 a	22.30 b	24.01 b	4.94 a
T2	28.61 b	11.66 a	24.52 a	26.79 a	3.66 b
Mean	32.80	11.57	23.41	25.40	4.30
LSD of means at p ≤ 0.05 and levels of significance for a two-factor ANOVA
PM	1.39 ns	0.86 ns	0.49 ns	1.07 ns	0.41 ns
IF	1.14 ***	0.70 ns	0.40 ***	0.87 ***	0.33 ***
PM × IF	ns	ns	ns	ns	ns

^a and ^b means with the same letter within a column and factor are not significantly different at p ≤ 0.05 using LSD. *** Significant at the 0.001 probability level. ns, not significant. n = 24. Note: HP = human pollination; BP = bee pollination; NP = natural pollination; T1 = 100% CF; T2 = 75% CF + 25% OF.

shows that there was no significant interaction between PM and IF in terms of the leaf tissue macronutrient content (N, P, K, Ca, and Mg) of rockmelon. However, the application of IF had a significant effect on the N, K, Ca, and Mg contents of the leaf tissue. No significant difference was found in the content of P in the leaf tissue. The application of T1 resulted in significantly higher N and Mg contents in the leaf tissue, while the application of T2 exhibited significantly higher K and Ca contents in the leaf tissue. These results are similar to those achieved in our previous study (unpublished data), in which the application of T1 resulted in higher N and Mg contents compared to the use of other IFs, while the application of T2 caused higher K and Ca contents in the leaf tissue than the other treatments. A similar finding was reported by Ghosh et al. [36], who stated that the application of complete NPK fertilizer and 5 tons ha⁻¹ of cow dung resulted in the highest K uptake (114.26 kg ha⁻¹) in paddy plants, while single CF application achieved an uptake of only 108.66 kg ha⁻¹. However, no significant effect of PM was found on the macronutrient content in the leaf tissue.

4. Conclusions

Pollination by bees (BP) or insects is common for open planting, especially in fields. In a closed planting system, humans act as pollution agents in order to increase the successful rate of fertilization. Introducing bees under greenhouse conditions resulted in a successful fertilization rate, and the bees were always ready to pollinate whenever the flowers started to “bloom”. It is recommended that growers use bees as pollination agents, which can also help farmers to reduce the cost and time of labor, besides introducing integrated farming between plants and insects (bee). This study proved that introducing BP inside greenhouses can increase the fertilization rate in comparison to HP. Additionally, the fruit quality was also found to have improved following BP compared to HP and NP. However, the death rate of bees increased over time after placing the bees in the greenhouse due to the hot temperature under tropical climate conditions. Therefore, further study is needed to determine the most suitable environmental conditions in the greenhouse to suit the natural requirements of bees, such as controlling the temperature and relative humidity. By providing a suitable environment for bees, we hope that the survival rate of bees as pollinator agents will increase and boost the production of rockmelon in a greenhouse system.

The integrated fertilizer T2 (75% CF + 25% OF) resulted in the highest yield and post-harvest quality. The outcome of this study provides a positive view of the potentially integrated fertilizer that combines OF and CF. Through this method, the OF consumption can be increased, and at the same time, the environment can be protected and the production costs can be reduced. Our study proved that the nutrient availability in CF was quickly and readily taken up by the plant, where, at the end of the planting period, it contributed to a higher yield. However, single OF can cause an imbalance in growth and a low yield due to deficiency of the nutrient, resulting in the greatest loss for farmers. In conclusion, the integrated fertilizer T2 was determined to be able to increase the yield and quality of rockmelon (var. Glamour) and reduce the amount of CF by adding OF, thus creating a sustainable food production system.
