Environmental and Economic Optimization of a Conventional Concrete Building Foundation: Selecting the Best of 28 Alternatives by Applying the Pareto Front
Abstract
:1. Introduction
1.1. Background
1.2. Deep Foundations

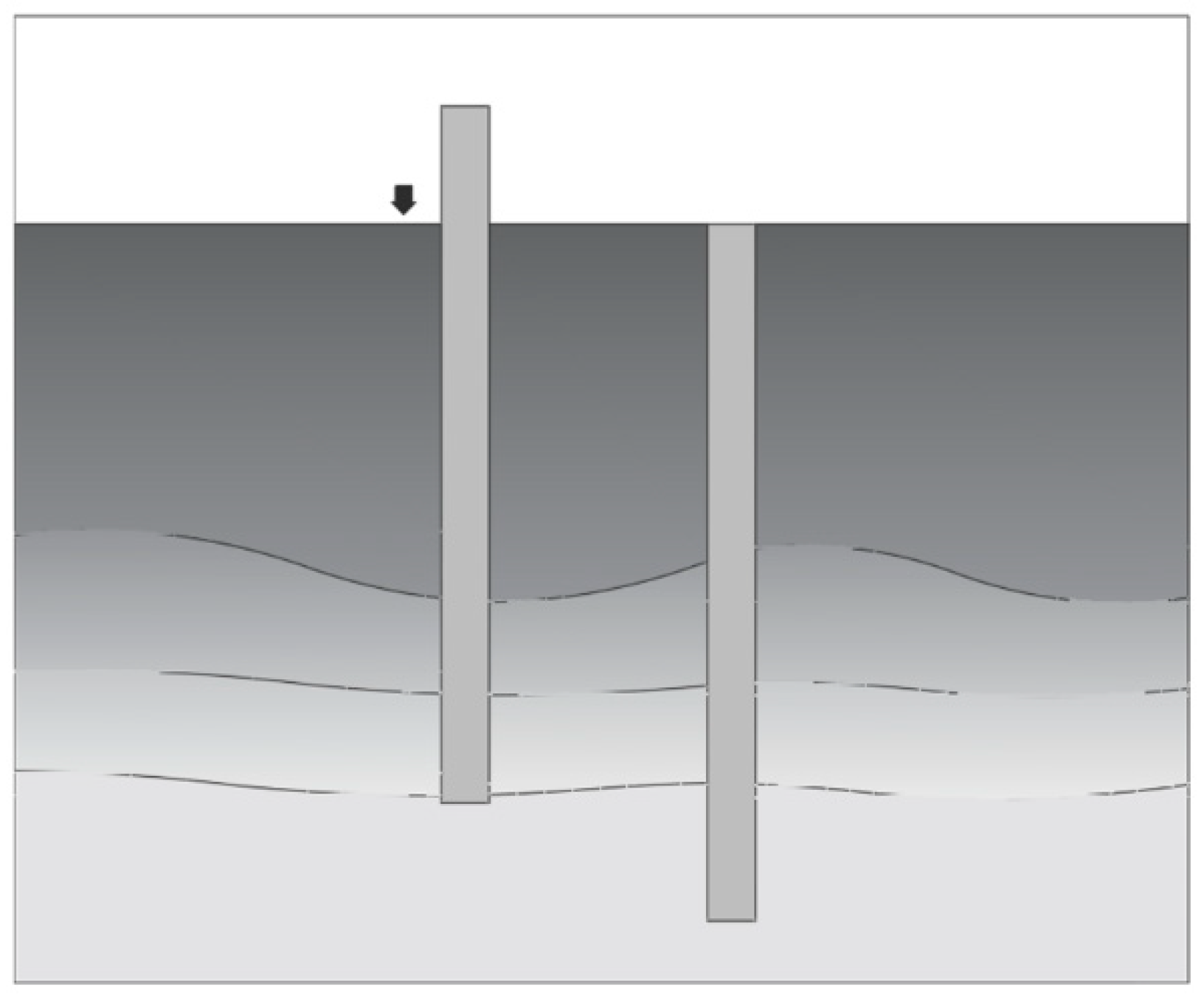

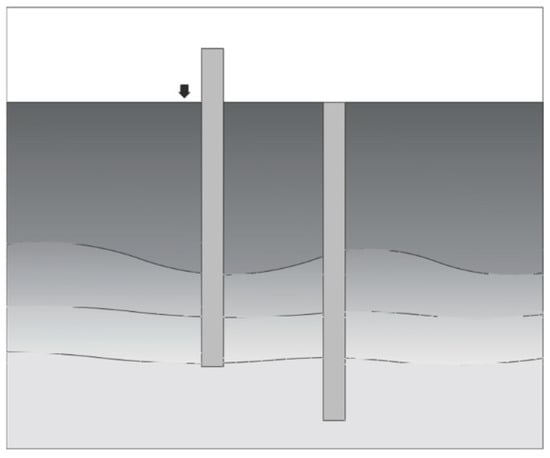

- Precast prestressed concrete (PPC) piles are prefabricated piles that are prestressed and driven in the ground using a diesel or hydraulic hammer (Figure 1). The main advantage of PPC piles over conventional precast piles is that they are more resistant given the same pile cross-section. Therefore, PPC piles are slender and lighter, making them easier to lift and drive. Additionally, the effect of prestressing closes the cracks of concrete caused during handling and driving, which combined with high-quality concrete, extends the durability of the prestressed pile.

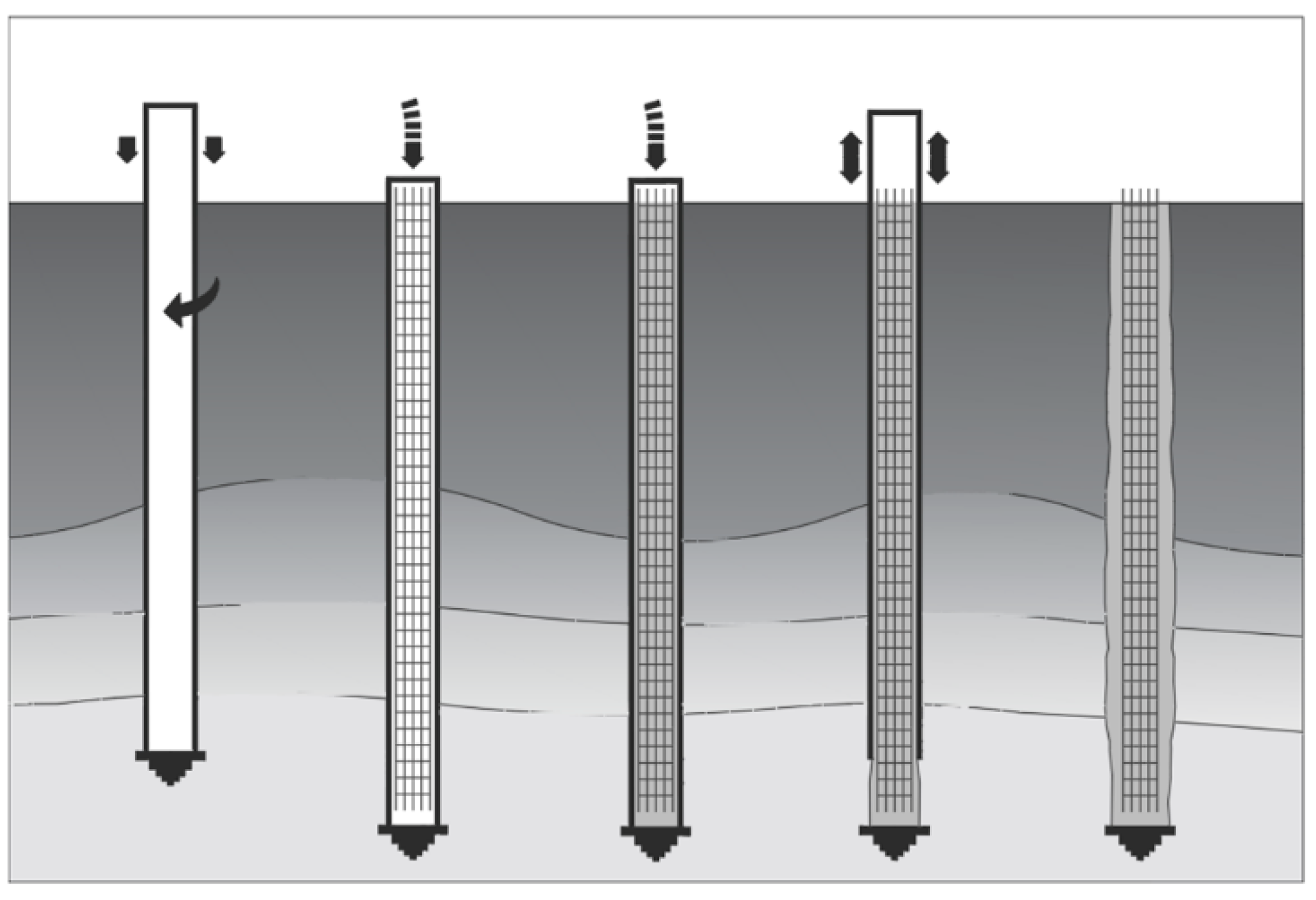

- Fundex piles are built by drilling a metallic tube with a tip on the ground (Figure 2). Then, the reinforcement cage is installed and concrete is poured inside the tube. Finally, the metal tube is removed, leaving the sacrificial drill point in the soil, and the pile head is cut to ensure a good connection with the upper structure.

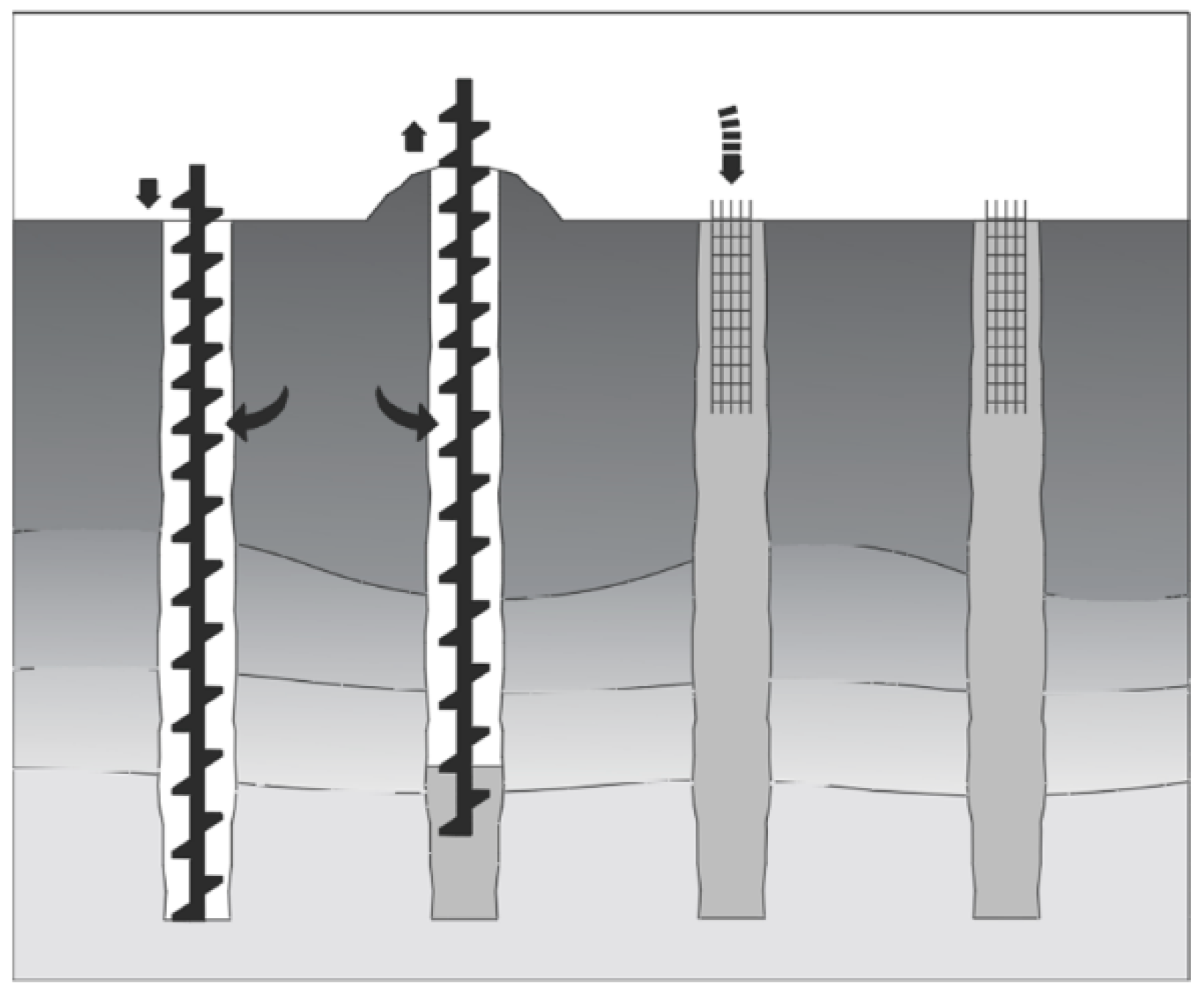

- Continuous flight auger (CFA) piles are drilled and concreted in one continuous operation, reducing installation time compared to bored piles (Figure 3). The reinforcement cage is then placed in the upper meters of the pile when concrete is still wet.

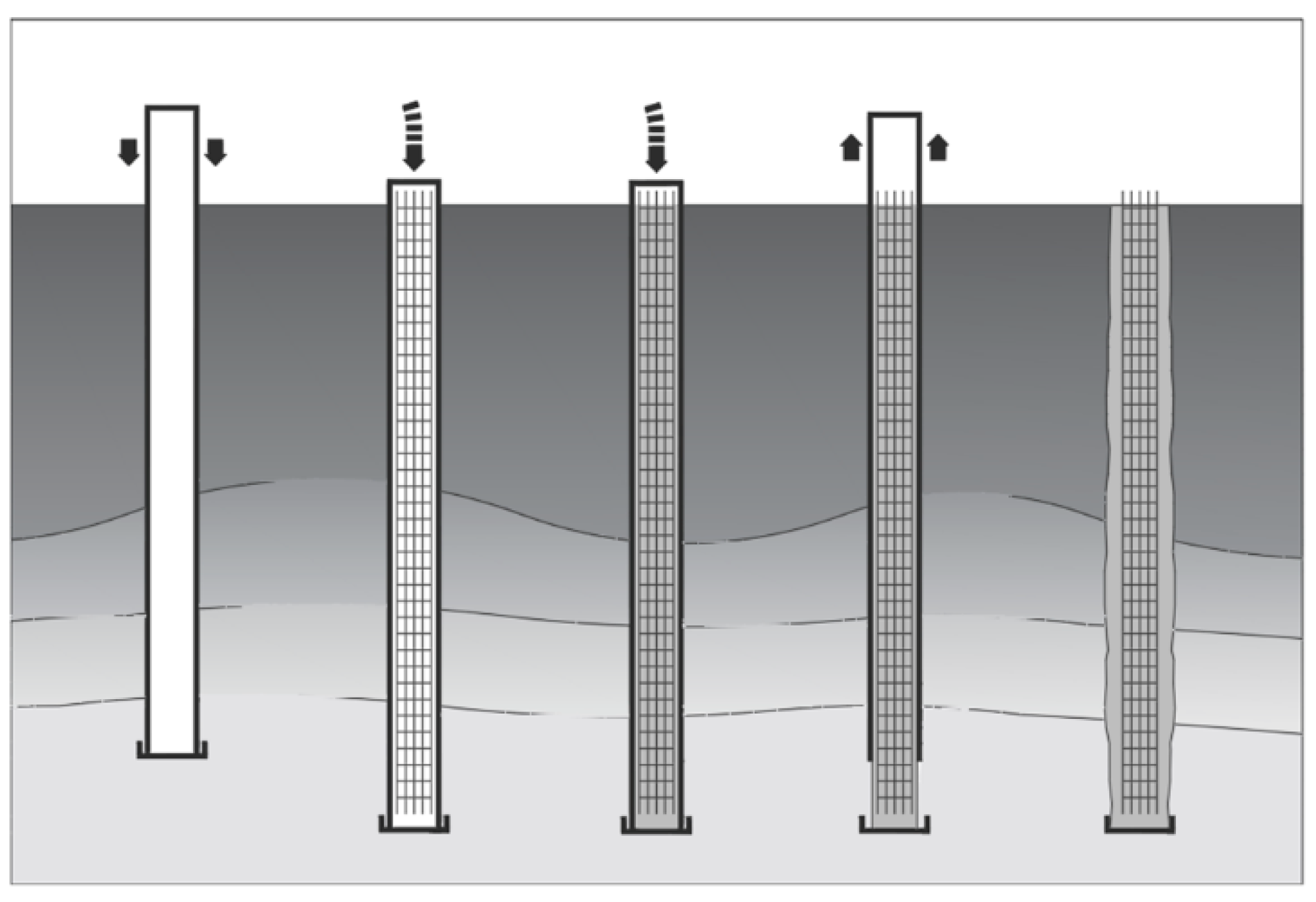

- Vibro-piles are built by driving a metal tube closed at the end by a sacrificial plate (Figure 4). Then, the reinforcement cage is installed, and concrete is poured inside the tube. Finally, an outer ring vibrator is used to extract the tube from the soil, leaving the sacrificial plate in the soil.
1.3. Previous Literature
1.4. Objectives
2. Materials and Methods
2.1. Selection of Equivalent Alternatives
2.2. Case Study
2.3. Functional Unit

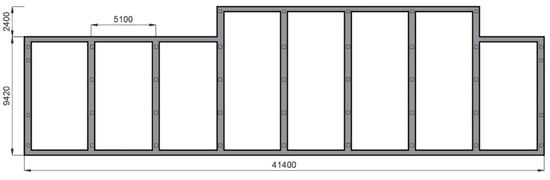

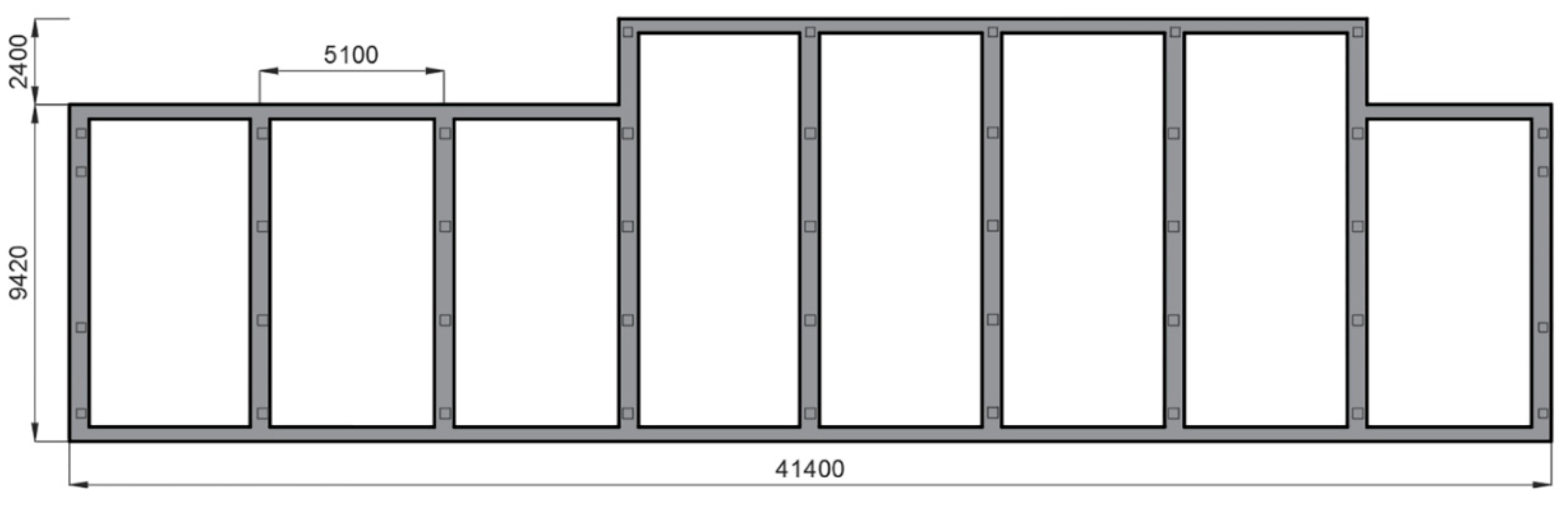

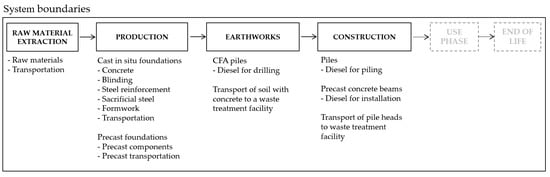

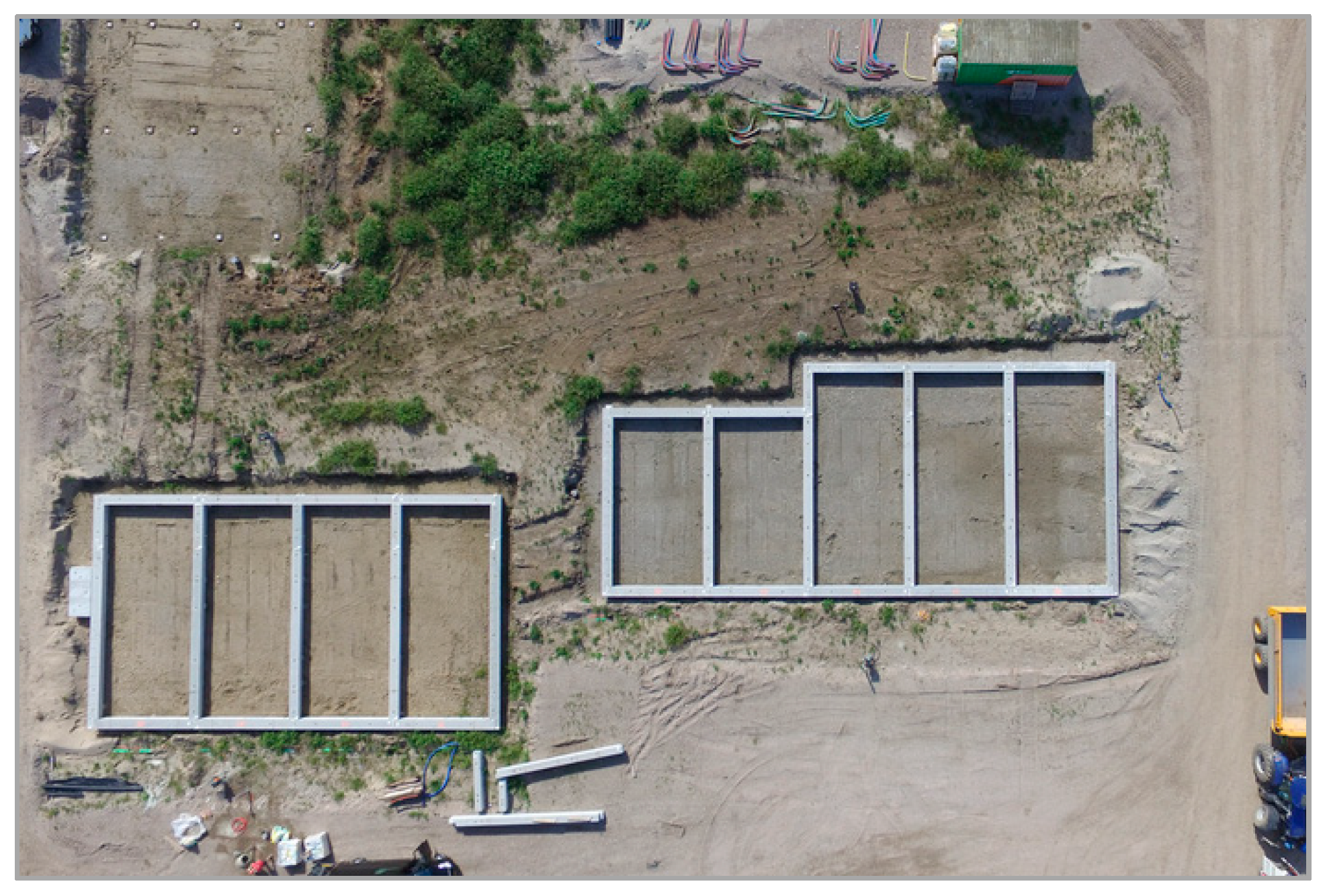

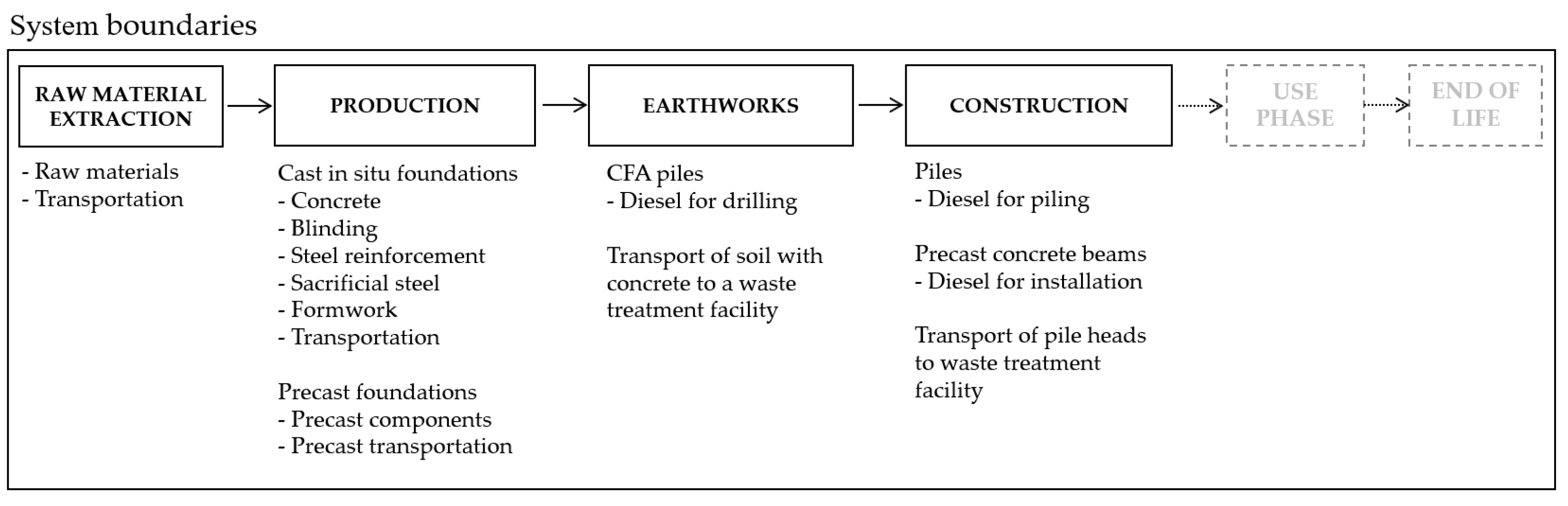

2.4. System Boundaries
2.5. Quantitative Model for Environmental Impact Category Calculation
2.6. Structural Design of Ground Beams
2.7. Geotechnical and Structural Design of Piles
2.8. Life Cycle Assessment
2.9. Data Sources
3. Results and Discussion
3.1. Structural Results

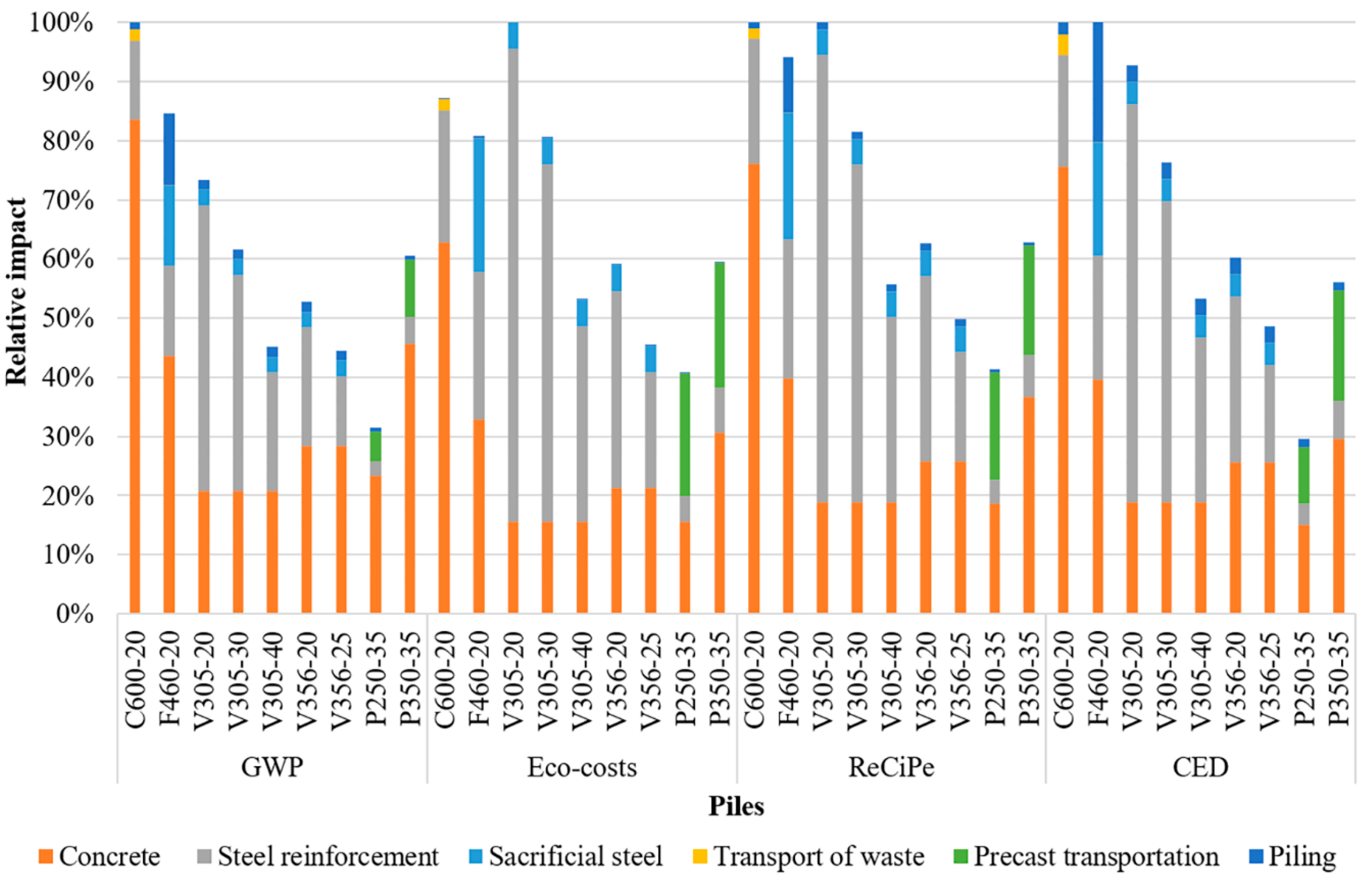

3.2. Environmental Results

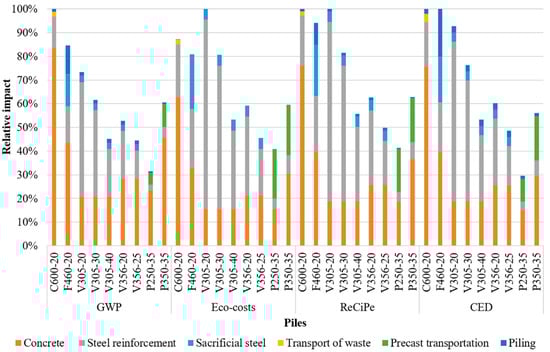

3.2.1. Piles

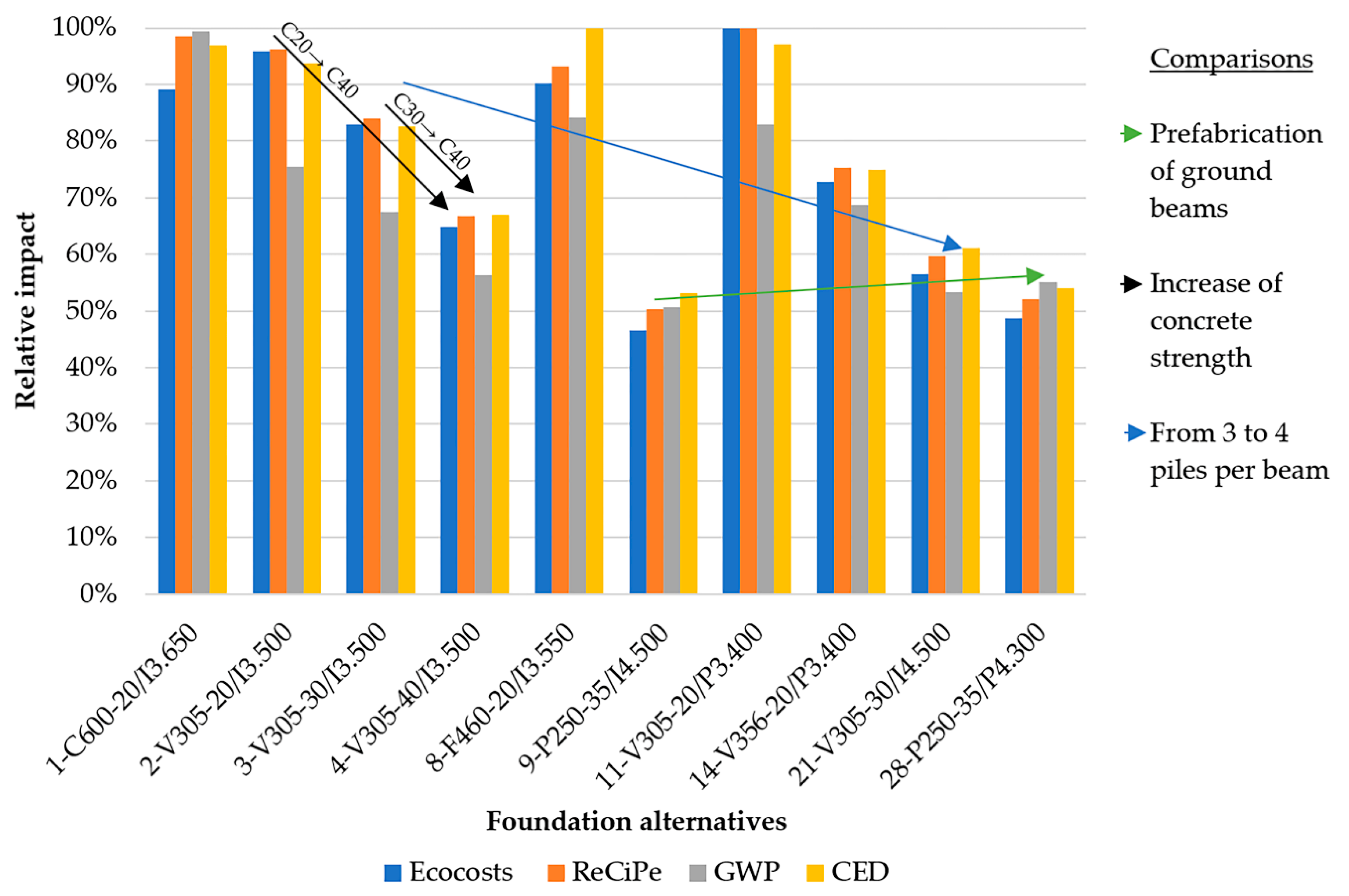

3.2.2. Foundation Alternatives (Piles and Beams)

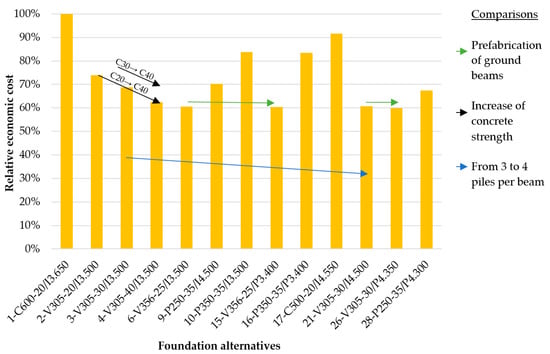

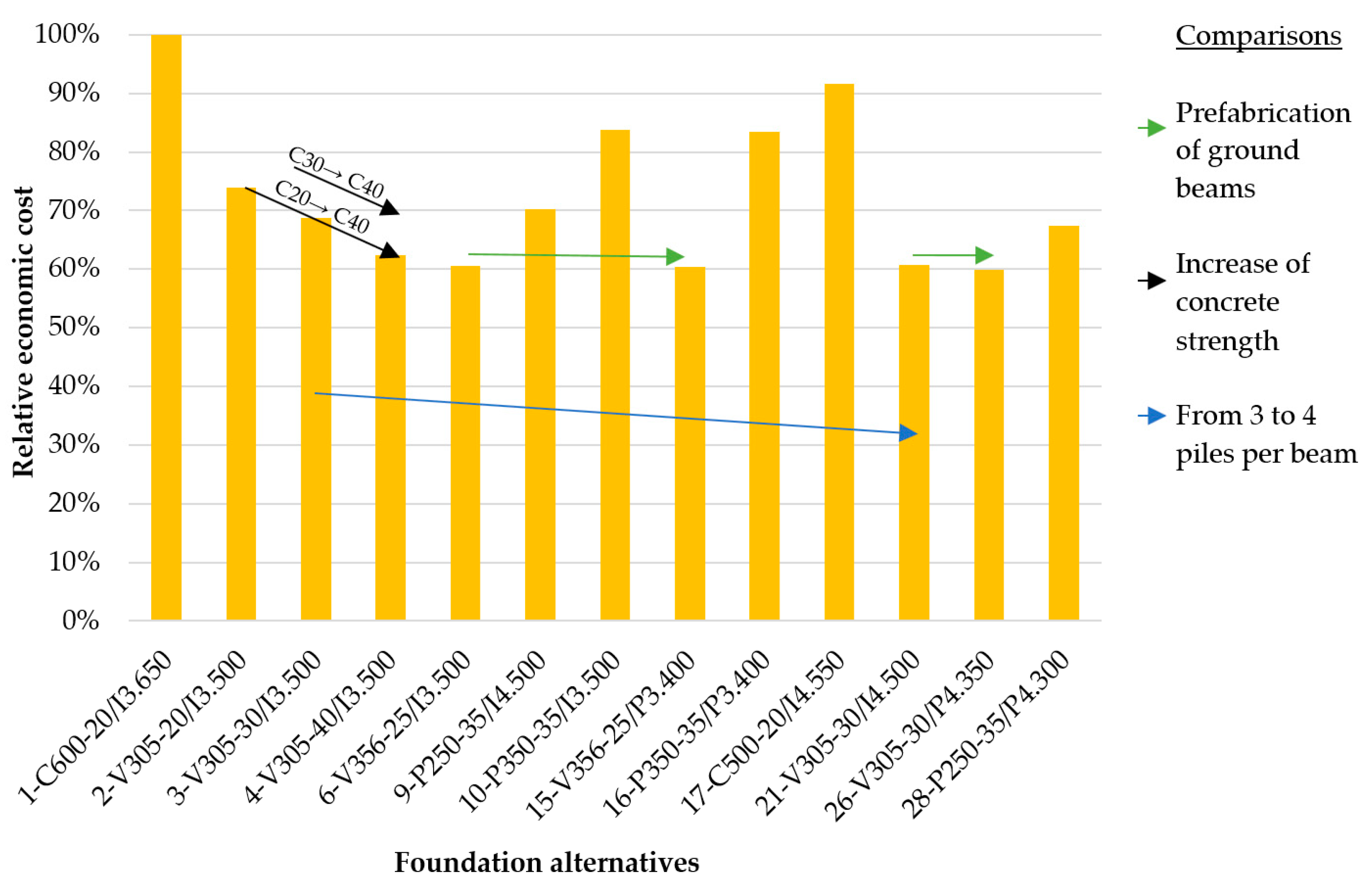

3.3. Economic Results of Foundation Alternatives

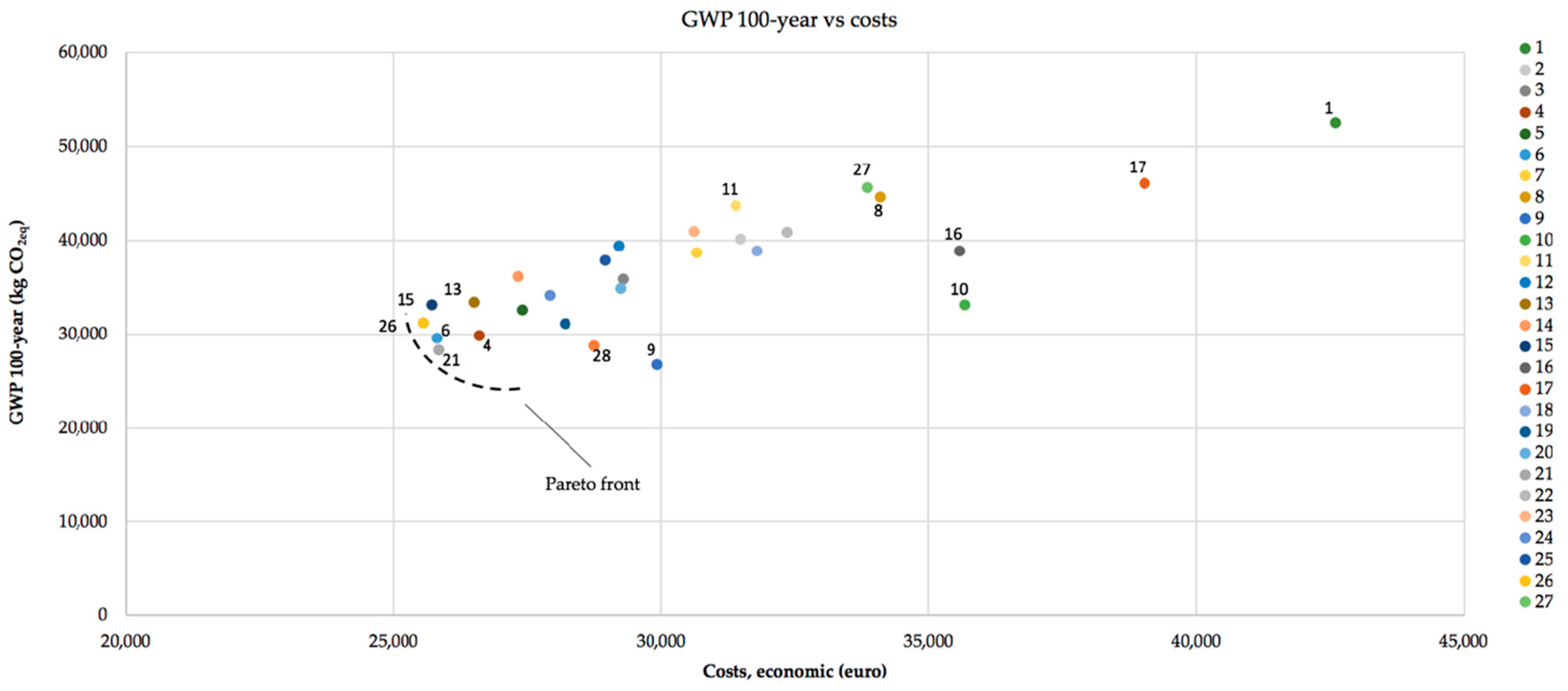

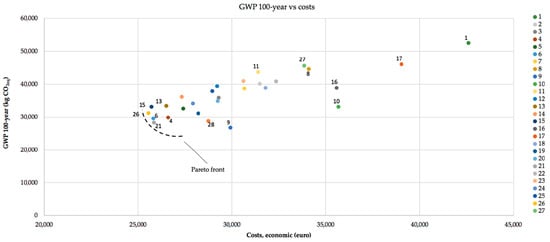

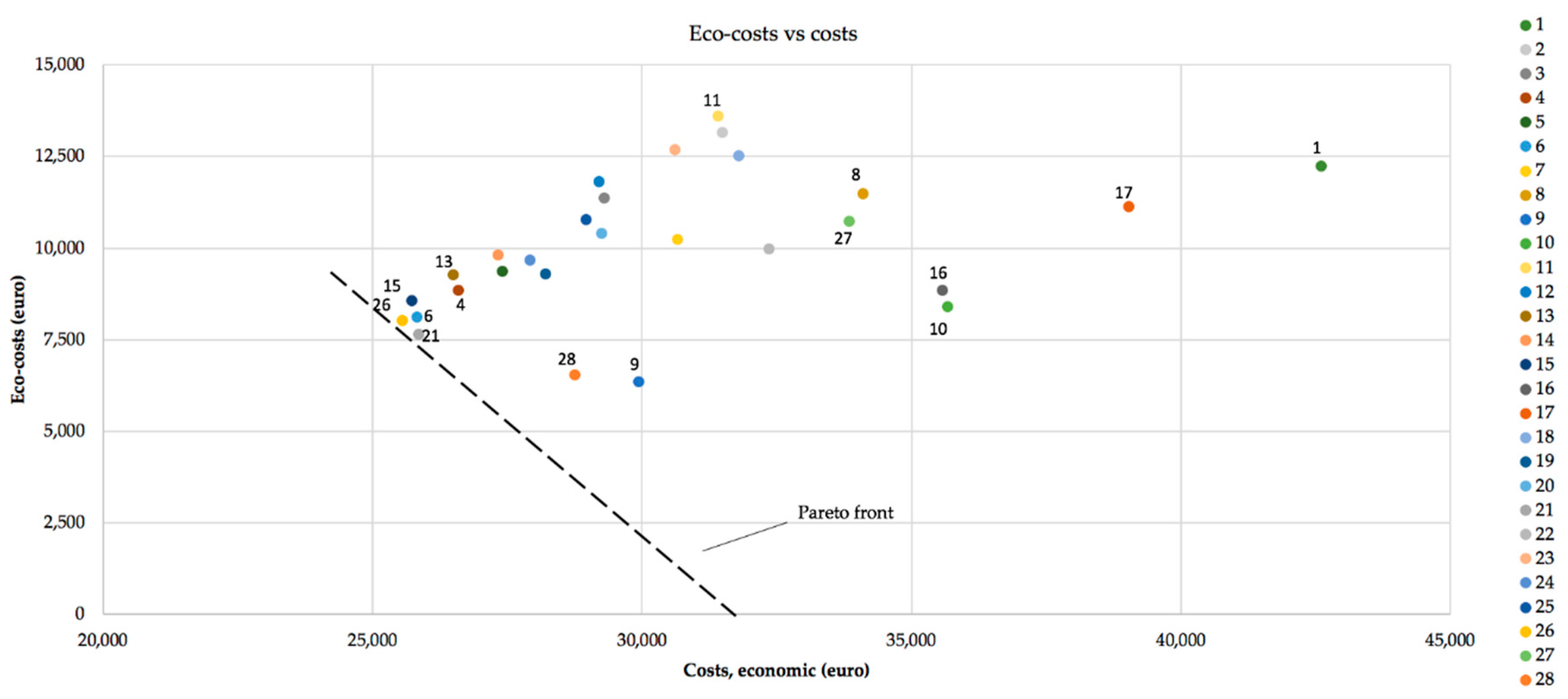

3.4. Environmental-Economic Results of Foundation Alternatives (Pareto Front)
4. Conclusions
- None of the study variables guarantees that a foundation is sustainable. However, a combination of selected variables can reduce the environmental impact by up to 55% and the economic costs by up to 40% compared to the worst study alternatives. Materials accounted for 85–95% of the impact of the foundation; therefore, the combination of variables must guarantee a reduction in the impact of materials, particularly of steel on piles.
- From an environmental perspective, it is recommended to use PPC piles with small cross-sections because the environmental impact of the foundation is significantly reduced by up to 45–55% in all environmental indicators. It is also recommended to use vibro-piles with low amounts of reinforcement because the environmental impact can be reduced by up to 40–45%. In contrast, it is not recommended to use CFA piles or highly reinforced vibro-piles in this type of foundation. In addition, the use of prefabricated beams instead of cast in situ beams increases the environmental impact of the foundation by up to 5% in terms of eco-costs, ReCiPe, and CED and up to 10% in GWP over 100 years. Moreover, increasing the compressive strength of concrete in vibro-piles is highly recommended because it reduces the environmental impact of the foundation. For instance, the increase in concrete strength from C20/25 to C40/50 reduces the eco-costs, ReCiPe, and CED by up to 30% and the GWP over 100 years by up to 25%. Finally, the design of four piles per beam instead of three piles per beam can reduce the eco-costs and ReCiPe impact by 20–30%, GWP over 100 years by 15–20%, and CED by 15–25% due to the reduction in steel reinforcing amounts.
- From an economic perspective, it is preferable to select foundations with vibro-piles with high concrete strengths and with four-pile beams either cast in situ or prefabricated. Conversely, it is not recommended to select CPI piles or precast piles with large cross-sections. Additionally, increasing the strength of concrete from C20 to C30 and from C30 to C40 can reduce the cost of the foundation between 7% and 12% and from C20 to C40 by up to 15%. Moreover, designing four piles instead of three can reduce the economic cost of the foundation by up to 12%.
- From an environmental and economic perspective (Pareto front), foundations should have low amounts of concrete and especially steel in the piles. Thus, it is recommended to use piles with reduced cross-sections, as their width also conditions the amount of materials in beams. However, reducing the pile cross-section may increase the amount of steel reinforcement in piles, and then the use of a higher concrete strength can moderate steel amounts. Vibro-piles with higher concrete strengths with cast in situ or prefabricated beams and four piles per beam are the most recommended alternatives from this perspective. Alternatives with CFA piles, Fundex piles, and PPC piles with large cross-sections and three piles per beam are the least recommended.
