Occurrence and Contamination of Rare Earth Elements in Urban Mangroves of Shenzhen, South China

Abstract

Mangroves acted as sinks of terrestrial pollutants, but the occurrence and contamination of rare earth elements (REEs) in urban mangroves lacked systematic evaluation. In rapidly developing Shenzhen, China, four typical urban mangroves were selected to determine the REEs in urban mangroves, including Baguang mangrove (BGM) and Futian mangrove (FTM) featured with ecological preserve and central business district, respectively; Xixiang mangrove (XXM) and Shajing mangrove (SJM) both featured with industry district. The mean concentrations of total REEs (TREEs) in sediment (0–25 cm depth, μg g⁻¹) were SJM (465.28) > FTM (411.25) > XXM (342.76) > BGM (118.63), with Ce to be the dominant REEs element. The depositions of REEs in urban mangroves were significantly affected by sediment sulfur accumulation and fine sediment, including silt and clay fractions. The main fractionation pattern of REEs in urban mangroves was the enrichment of light REEs (LREEs) and loss of heavy REEs (HREEs). Geo−accumulation index, modified degree of contamination, pollution load index, and potential ecological risk index showed the moderately contaminated level of REEs in FTM, followed by SJM, and XXM, with uncontaminated level in BGM. This study provided important information on REEs in urban mangroves for pollution prevention and remediation in the future.

1. Introduction

Rare earth elements (REEs), an element group including the lanthanide element series and yttrium, have similar physic-chemical properties and similar environmental behaviors, being extensively applied in electronic technology, medicines, agriculture, and industry around the world [1,2]. In REE resource-rich China, various kinds of products related to REEs have been produced for decades in multiple fields, including industry, agriculture, forestry, and animal husbandry [3,4]. Over the past few decades, REEs have got into the soil, water, and air with increasing exploitation and utilization of REEs-related products [5,6]. The environmental behaviors of REEs have attracted conspicuous attention, especially their geochemistry and ecotoxicity [7,8]. Once REEs enter the environment, they could be enriched in biota and damage human health through the food chain, resulting in various environmental and health issues [4,9].

Mangrove is an important intertidal coastal system, providing a myriad of ecological services and receives lots of terrestrial pollutants [10,11]. In mangrove sediments, REEs are relatively new pollutants, and provide insight into the elemental cycling in the coastal wetlands and the abundance of REEs in the source areas [12,13]. Wang et al. (2017) reported that the total concentrations of rare earth elements (TREEs) ranged from 141.28 to 269.20 mg kg⁻¹ in mangroves in Dongzhai Harbor, Hainan Island, China [14]. Mandal et al. (2019) found that REE was an effective biological proxy to determine the degree of bioaccumulation in the mangrove of Indian Sundarban [15]. Furthermore, the ecological risk caused by REEs in the environment is increasingly receiving attention [16]. Although great efforts have been made to explore the distribution and geochemical characteristics of REEs in pristine mangrove sediment, the knowledge on the sedimentary records of REEs affected by anthropogenic activities and the related ecological risks is still limited, especially for urban mangroves [13,14,15,17,18].

In Shenzhen, one of the most urbanized cities in China, the urban mangroves can be divided into three types with different urban functions, such as Xixiang and Shajing mangroves featured with industry district; Baguang and Futian mangroves were featured with ecological preserve and central business district, respectively [19,20]. The background information about the REEs distribution in offshore sediments of Shenzhen was only affected by natural hydrological conditions, such as river input and ocean dilution [21]. With increasing economic development and urban construction, the urban mangroves of Shenzhen have received various pollutants (including heavy metals, POPs, and microplastics) from surrounding anthropogenic activities, without systematic report on REEs [22,23,24,25]. The objectives of this study were to: (1) quantify the deposition of REEs in sediments of urban mangroves with different urban functions in Shenzhen, China; (2) identify REE anomalies, fractionation ratios, and impacting parameters; (3) evaluate the ecological risks of REEs.

2. Materials and Methods

2.1. Study Site and Sample Collection

Shenzhen, a rapidly developing city with a dense population in southern China, is a demonstration pilot zone for socialism with Chinese characteristics. This region has a subtropical monsoonal climate, with an average annual temperature of 22 °C and rainfall of 1935.8 mm. The average tidal range of semi-diurnal tides is 1.9 m [26]. In this study, four types of urban mangroves were selected as follows (Figure 1): Xixiang mangrove (XXM) and Shajing mangrove (SJM) featured with industry districts, Baguang mangrove (BGM) and Futian mangrove (FTM) featured with ecological preserve and central business district (CBD), respectively. XXM and SJM were both located on the west coast of Shenzhen, and were significantly affected by input from Pearl River, with SJM to be also located in the estuarine of Maozhouhe river in Shenzhen, China. FTM, located in the Futian district of Shenzhen (northeast of Shenzhen Bay), has been well protected. As a pristine mangrove forest, FTM serves as a good indicator of surrounding anthropogenic activities, with Shenzhenhe river flowing into Shenzhen Bay. BGM, located on eastern shelf of the Dapeng district in Shenzhen, and has been protected well without significant anthropogenic activities in surrounding areas.

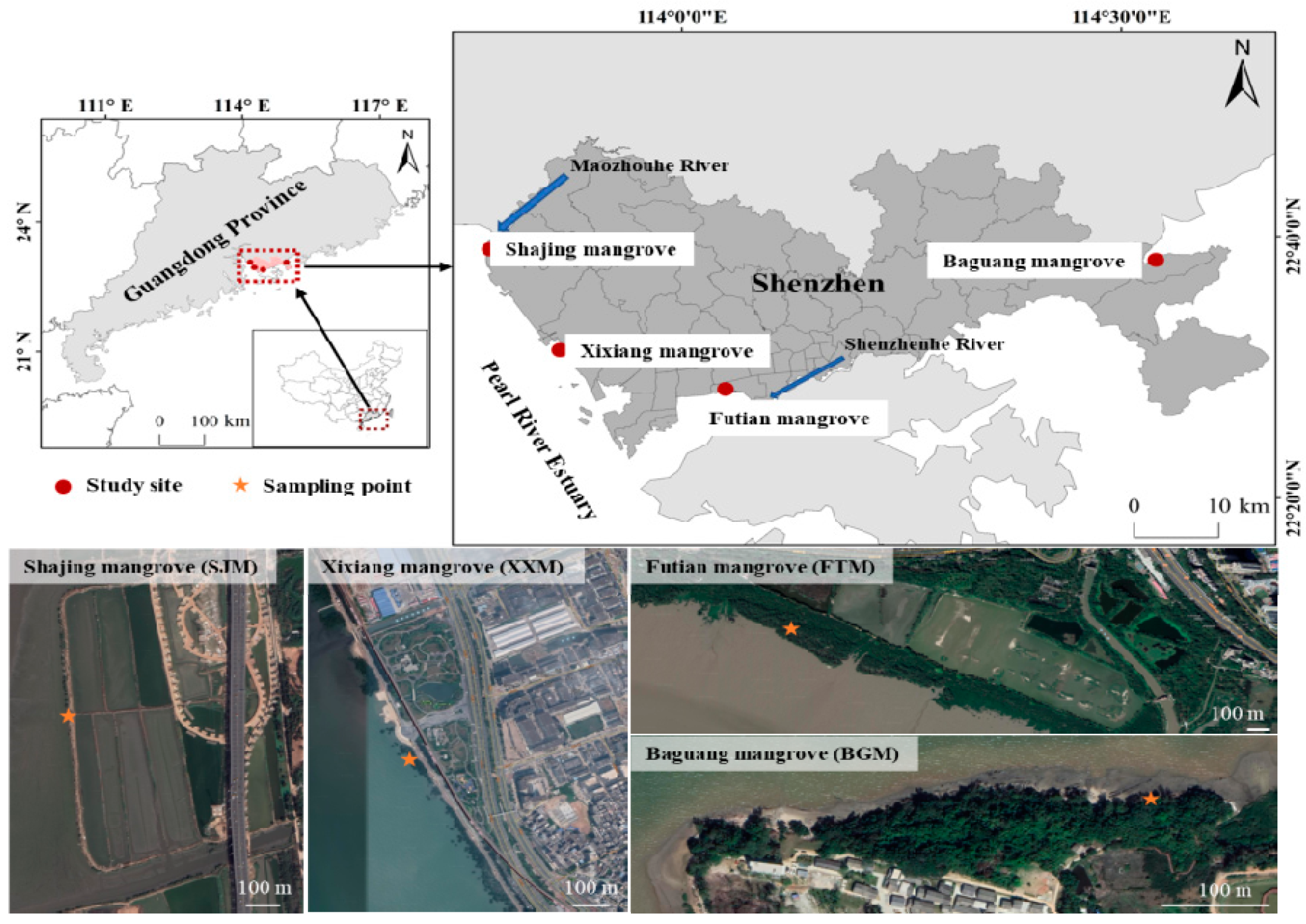

From May 2016 to August 2017, in each urban mangrove, three sampling plots with 5 m × 5 m were randomly designed with 100 m distance between two consecutive sampling plots. In each sampling plot, four sediments were randomly sampled at low tide. Shallow sediments (0–25 cm depth) were collected with acid-washed PVC pipes (inner diameter 7.5 cm) in SJM, XXM, and BGM, with deep sediments (0–88 cm depth) to be sampled in FTM. The shallow sediment collected in SJM, XXM, and BGM was related to plant roots and hard sediment or rocks. After removing the litter and some other debris, sediments in SJM, XXM, and BGM were separated at 5 cm intervals, with sediment in FTM to be separated at 8 cm intervals. Four sectioned subsamples at the same depth were in situ homogenized to obtain one composite sample and transferred into sample bags. Then, the sediment samples were stored in iceboxes and transported to the laboratory within the same day. Each sediment sample was divided into two parts: One was air-dried, ground, and then passed through a 60-mesh sieve (diameter 0.25 mm). The other was firstly freeze-dried to a constant weight (7 days); then, pretreatments of grind, homogenization, and sifting were conducted for determination of REEs.

2.2. Sediment Sample Analysis

In this study, sediment pH and salinity were measured by pH meter (Sartorius PB-10, Germany) and conductivity meter (Laboratory Benchtop Meters, China), with the sediment: water ratio to be 1:5 (w/v). Total organic carbon was determined by TOC analyzer (multi N/C 3100 HT 1300, Analytik Jena, Germany). For particle size analysis, a laser particle size analyzer was used (Master 2000, Malvern Co., USA), with the classification of particle sizes to be clay (0–4 µm), silt (4–25 µm), and sand (25–2000 µm). The analysis of REEs was referred to the analysis method of Chinese National Standard GB/T14506.30-2020 (GB/T 14506.30-2010). The air-dried samples were powdered and digested in a microwave furnace using an HF+HNO₃ mixture in Teflon vessels at 185 °C for 24 h, and then determined by high resolution inductively coupled plasma mass spectrometer (ELEMENT XR, USA). In this study, all reagents used were guaranteed reagents or better, and the analytical error of REE determination was controlled within 5%.

Generally speaking, REEs can be divided into light REE (LREE: La, Ce, Pr, and Nd), middle REE (MREE: Sm, Eu, Gd, Tb, Dy, and Ho), and heavy REE (HREE: Er, Tm, Yb, and Lu) based on atomic and radius [27]. In this study, Post-Archean Australian Shale (PAAS) standard was used to normalize REE concentration [28]. The ratio of LREE to HREE is calculated as HREE/LREE = [Average HREE_PAAS (Er, Tm, Yb, and Lu)]/[Average LREE_PAAS (La, Ce, Pr, and Nd)]. The degree of MREE enrichment is quantified as MREE enrichment = Average MREE_PAAS/Average (HREE_PAAS and LREE_PAAS). The anomalies in REE pattern are calculated by the ratio of the normalized concentration to the geogenic background concentration. In this study, the anomalies of Ce, Eu, and Gd are obtained as follows [29]:

Ce_anomaly = Ce_PAAS / Ce_PAAS*, Ce_PAAS* = (La_PAAS + Pr_PAAS)/2
Eu_anomaly = Eu_PAAS / Eu_PAAS*, Eu_PAAS* = (Sm_PAAS + Tb_PAAS)/2
Gd_anomaly = Gd_PAAS / Gd_PAAS*, Gd_PAAS* = (Nd_PAAS + Dy_PAAS)/2

where Ce_PAAS is the measured Ce concentrations normalized to PAAS [28]; the geogenic background Ce_PAAS* concentration is interpolated from La and Pr; the geogenic background Eu_PAAS* concentration is interpolated from Sm and Tb; Nd and Dy is used to interpolate Gd_PAAS*. Positive anomalies are defined as calculated values that are >1, with negative anomalies to be <1.

The measured concentration of Gd is composed of natural Gd and anthropogenic Gd, and the anthropogenic Gd can be calculated as follows [30]:

Gd_{anthropogenic} = Gd_measured − Gd_natural, Gd_natural = Gd_PAAS* × Gd(PAAS)

where Gd_PAAS* is geogenic Gd concentration interpolated between Nd and Dy. Gd(PAAS) is Gd concentration in the PAAS (4.7 mg⁻¹ kg), which is commonly used for normalization [28].

2.3. Pollution and Ecological Risk of REEs in Sediments

In this study, four evaluation methods including geo−accumulation index (I_geo), modified degree of contamination (mC_d), pollution load index (PLI), and potential ecological risk index (PERI) were selected in evaluating pollution of REEs in mangrove sediments [31,32,33,34]. The background concentrations of REEs in soils of China were used for calculating I_geo, mC_d, and PLI [35]. The formulae of these indices were as follows:

$${\mathrm{I}}_{geo}={\log }_2\frac{C_m^i}{C_b^i}$$

(1)

$$m{C}_d=\frac{{\displaystyle {\sum }_{i=1}^n\frac{C_m^i}{C_b^i}}}{n}$$

(2)

$$PLI={(\frac{C_m^1}{C_b^1}\times \frac{C_m^2}{C_b^2}\times \dots \times \frac{C_m^n}{C_b^n})}^{\frac{1}{n}}$$

(3)

$$PERI={\displaystyle \sum {}_{i=1}^n{T}_m^i\times \frac{C_m^i}{C_b^i}}$$

(4)

where $C_m^i$ and $C_b^i$ are the measured content and background level of the REEs in sediments, respectively; n is the number of the studied REEs elements. $T_m^i$ is the toxic factor of studied REEs. The toxic factors for REEs referred to Wang et al. (2020), with $T_m^i$ values of La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu, and Y to be 1, 1, 5, 2, 5, 10, 5, 10, 5, 10, 5, 10, 5, 20, and 2, respectively [36]. The classifications of four pollution indices were shown in Table S1 [32,37,38,39].

3. Results and Discussion

3.1. Physicochemical Properties of Sediment in Urban Mangroves

The geochemical parameters (pH, salinity, TOC, Total S, and grain size characteristics) in sediments (0–25 cm depth) from different urban mangroves were summarized in

Table 1. Physicochemical properties of sediment (0–25 cm depth) in urban mangroves of Shenzhen, China.

Sites	Mean ± S.D. (Min–Max)
	pH	Salinity (‰)	TOC (%)	Total S (%)	Clay (%)	Silt (%)	Sand (%)
BGM	6.42 ± 0.26 (6.15–6.78)	3.62 ± 1.13 (2.23–4.90)	2.30 ± 1.14 (0.88–3.53)	0.71 ± 0.16 (0.47–0.87)	4.26 ± 1.37 (2.62–5.89)	39.22 ± 8.66 (31.53–50.61)	56.52 ± 9.87 (43.50–65.84)
FTM	6.71 ± 0.10 (6.56–6.82)	2.07 ± 0.32 (1.67–2.49)	3.53 ± 0.40 (3.15–3.94)	1.63 ± 0.23 (1.43–1.88)	9.70 ± 2.48 (6.03–12.25)	43.89 ± 5.68 (35.36–50.32)	46.41 ± 7.94 (37.43–58.61)
XXM	6.87 ± 0.35 (6.48–7.39)	2.67 ± 0.94 (1.20–4.70)	2.13 ± 0.79 (1.29–3.58)	0.88 ± 0.34 (0.45–1.46)	16.62 ± 5.42 (10.44–30.22)	45.01 ± 9.82 (28.73–58.02)	22.71 ± 4.53 (12.98–28.36)
SJM	5.76 ± 0.08 (5.69–5.89)	2.53 ± 0.52 (2.02–3.09)	2.43 ± 0.23 (2.07–2.63)	0.89 ± 0.15 (0.73–1.05)	13.37 ± 3.65 (8.40–17.81)	63.38 ± 8.45 (51.10–71.56)	23.24 ± 12.06 (10.63–40.49)

Note: The depth of 0–24 cm in FTM was used in this table. BGM, Baguang mangrove; FTM, Futian mangrove; XXM, Xixiang mangrove; SJM, Shajing mangrove.

. Briefly, the sediment was acidic, with mean values of pH in urban mangroves to be SJM (5.76) < BGM (6.42) < FTM (6.71) < XXM (6.87). Generally speaking, the lower pH values in mangrove sediments were mainly because of mangrove litter deposition and tannin hydrolysis. Furthermore, the lowest pH in SJM (5.76) may be attributed to its adjacent to the estuary of Maozhou river, which directly accepts the industrial and domestic sewage from nearby regions and is seriously polluted [40]. The salinity ranged from 2.07 ‰ to 3.62‰ in urban mangrove sediments, with the highest salinity in BGM (3.62‰), which may be due to no dilution from rivers in BGM, being different from that of the other urban mangroves, such as Shenzhenhe river and Maozhouhe river in Shenzhen, as well as Pearl River in South China. The higher levels of TOC (3.53%) and Total S (1.63%) detected in FTM may be caused by the autochthonous deposition (including accumulation of mangrove litter) and allochthonous detrital matter supplied by terrigenous discharge, especially from Shenzhenhe River [41,42]. In terms of the grain size distribution, sediments in XXM and SJM were mainly composed of fine fractions (clay+silt) (77.29% and 76.76%), followed by FTM (53.59%) and BGM (43.48%). In addition, the mean level of total S in FTM was 1.63%, being higher than that of BGM (0.71%), XXM (0.88%), and SJM (0.89%).

3.2. Distributions of REEs in Urban Mangrove Sediments

In

Table 2. The concentrations of rare earth elements in urban mangrove sediments (0–25 cm depth, μg g⁻¹) of Shenzhen, China.

Sites		La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	Y	TREEs
BGM	Mean	22.12	49.16	4.74	17.48	3.25	0.51	2.61	0.44	2.40	0.43	1.27	0.23	1.39	0.20	12.40	118.63
	Min	14.60	34.80	3.14	11.30	2.12	0.38	1.74	0.30	1.63	0.29	0.90	0.16	0.99	0.14	7.89	80.38
	Median	23.10	50.10	4.80	18.70	3.41	0.52	2.72	0.45	2.49	0.46	1.30	0.24	1.42	0.20	12.70	124.77
	Max	24.60	55.30	5.33	19.30	3.56	0.56	2.86	0.49	2.54	0.47	1.37	0.24	1.53	0.22	12.70	130.87
	CV (%)	22.44	18.65	21.92	22.14	21.54	17.09	21.89	19.47	19.26	19.30	17.96	17.22	17.36	17.81	21.89	20.07
FTM	Mean	80.93	144.33	18.07	64.87	12.57	1.80	10.40	1.81	9.98	1.78	5.01	0.85	5.00	0.70	53.17	411.25
	Min	78.60	141.00	17.40	63.90	12.30	1.77	10.30	1.79	9.65	1.75	4.88	0.83	4.84	0.68	52.00	401.80
	Median	81.60	143.00	17.80	64.50	12.50	1.78	10.40	1.81	9.98	1.78	4.97	0.85	5.01	0.69	53.70	410.27
	Max	82.60	149.00	19.00	66.20	12.90	1.86	10.50	1.83	10.30	1.81	5.17	0.86	5.14	0.71	53.80	421.69
	CV (%)	2.57	2.88	4.61	1.84	2.43	2.74	0.96	1.10	3.26	1.69	2.96	2.19	3.01	2.55	1.90	2.43
XXM	Mean	67.81	140.60	14.14	48.13	9.16	1.49	7.81	1.33	7.18	1.29	3.60	0.62	3.64	0.52	35.45	342.76
	Min	55.40	119.00	11.90	36.90	6.81	1.08	5.85	1.00	5.09	0.91	2.55	0.46	2.74	0.38	24.80	282.86
	Median	63.50	127.00	14.30	49.55	9.31	1.52	8.37	1.37	7.33	1.30	3.63	0.63	3.62	0.52	36.40	340.01
	Max	104.00	228.00	17.10	54.90	10.60	1.78	8.83	1.60	8.67	1.57	4.41	0.78	4.49	0.63	43.70	469.15
	CV (%)	21.78	24.36	11.66	14.02	15.04	16.38	13.80	16.55	17.48	19.00	18.70	18.92	18.20	18.22	19.18	16.53
SJM	Mean	102.20	212.00	16.42	54.90	10.25	1.76	9.52	1.46	7.91	1.38	3.90	0.66	3.96	0.56	38.40	465.28
	Min	87.30	177.00	15.80	53.00	9.96	1.69	9.07	1.42	7.66	1.33	3.77	0.63	3.81	0.55	36.50	417.64
	Median	102.00	216.00	16.40	54.70	10.20	1.76	9.60	1.43	7.94	1.39	3.80	0.67	3.97	0.56	38.90	464.96
	Max	114.00	233.00	17.10	57.10	10.70	1.82	10.10	1.53	8.29	1.44	4.18	0.69	4.08	0.57	39.60	499.15
	CV (%)	10.02	10.37	2.84	2.98	2.98	2.81	4.38	3.54	3.25	3.49	4.48	2.92	2.96	1.70	3.43	7.06

Note: TREEs, the total concentrations of rare earth elements. The depth of 0–24 cm in FTM was used in this table. CV, coefficient of variation. BGM, Baguang mangrove; FTM, Futian mangrove; XXM, Xixiang mangrove; SJM, Shajing mangrove.

, the mean concentrations of TREEs in sediments (0–25 cm depth) of urban mangroves were SJM (465.28 μg g⁻¹) > FTM (411.25 μg g⁻¹) > XXM (342.76 μg g⁻¹) > BGM (118.63 μg g⁻¹), with the trend to be similar to some other pollutants reported in the same urban mangroves, such as heavy metals and polybrominated diphenyl ethers [23,24,43]. Furthermore, RREs were mainly composed of Ce, La, Nd, and Y, with Ce to be the most abundant REEs in all urban mangroves. In view of the similar compositions of REEs reported in mangrove sediments, the concentrations of TREEs in FTM, XXM, and SJM were higher than that in some other places, such as mangroves (189.26 μg g⁻¹) in Pichavaram [44], mangroves (140–159 μg g⁻¹) in Indian Sundarban [15], and mangroves (202–220 μg g⁻¹) in Jaguaripe estuary [13]. Furthermore, the concentrations of TREEs in FTM, XXM, and SJM were higher than the Earth’s crust (153.80 μg g⁻¹) [45] and plant food in China (0.5–2 μg g⁻¹)(GB13107-91). Generally speaking, REEs are important accompanying elements in phosphate fertilizers, with fertilizer spill would contribute to the REEs deposition in mangroves [46]. Furthermore, in this study, different depositions of REEs in sediments of urban mangroves were expected to be related to their specific hydrographic features [23,24]. For example, XXM and SJM are located on the west coast of Shenzhen (east coast of the Pearl River estuary), and directly obtain the input from the upstream of Pearl River, with SJM being also affected by pollution from Maozhouhe river from Shenzhen; FTM is located in semi-closed Shenzhen Bay with low water exchange capacity, and received matter deposition from Shenzhenhe river, which would improve the deposition of REE in sediment; BGM is located on the east coast of Shenzhen without significant anthropogenic activities, and is only affected by dilution of ocean tides.

Generally speaking, the distribution of REEs in sediment cores records the historical changes of REE deposition [13,47]. As for deposition of individual REEs in urban mangrove sediments (Table S2), the main composition of REEs (including Ce, La, Nd, and Y) demonstrated reducing trends with increasing depth, except for Y in XXM, and Nd and Y in SJM. Similarly, the reducing trends of heavy metals [23,24,43] and microplastics [25] were also reported in urban mangroves in Shenzhen, China, indicating their similar geochemical properties or pollution sources.

Sediment texture is important in affecting the deposition of REEs in sediment, and the total concentrations of REEs are positively correlated with the percentage of fine particles, that is, a higher fine-grain percentage coexists with higher REEs accumulations [13,15]. In this study, the sediments in FTM, XXM, and SJM were mainly composed of fine particles (including clay and silt), with percentages ranging from 53.59% to 77.29% (Table 1). In all urban mangroves, clay percentages were positively correlated with all REE elements, while silt percentages were positively correlated with four REEs (La, Ce, Pr, and Eu), and no positive correlations were detected among sand and REEs (

Table 3. Correlations between sediment physicochemical properties and rare earth elements in urban mangroves (0–25 cm depth) of Shenzhen, China.

	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	Y
pH	−0.25	−0.25	−0.05	−0.09	−0.07	−0.17	−0.13	−0.06	−0.06	−0.05	−0.06	−0.05	−0.06	−0.06	−0.02
Salinity	−0.52 *	−0.47 *	−0.53 *	−0.54 *	−0.56 *	−0.56 *	−0.55 *	−0.55 *	−0.57 *	−0.57 *	−0.57 *	−0.56 *	−0.56 *	−0.56 *	−0.55 *
TOC%	0.28	0.19	0.39	0.43	0.45	0.36	0.40	0.43	0.44	0.45	0.45	0.44	0.44	0.43	0.49 *
TS %	0.36	0.25	0.61 **	0.66 **	0.69 **	0.58 *	0.60 **	0.68 **	0.70 **	0.71 ***	0.70 **	0.70 **	0.70 **	0.69 **	0.73 ***
Clay	0.65 **	0.67 **	0.67 **	0.60 **	0.59 *	0.67 **	0.64 **	0.60 **	0.59 *	0.58 *	0.57 *	0.58 *	0.57 *	0.58 *	0.51 *
Silt	0.55 *	0.63 **	0.50 *	0.39	0.37	0.47 *	0.44	0.38	0.36	0.35	0.34	0.36	0.34	0.36	0.28
Sand	−0.58 *	−0.65 **	−0.55 *	−0.45	−0.42	−0.53 *	−0.49 *	−0.44	−0.42	−0.41	−0.40	−0.42	−0.40	−0.42	−0.34

Note: *, ** and ** indicate correlation is significant at 0.05, 0.01, and 0.001 levels (2-tailed), respectively. n = 18.

). In particular, BGM was far away from the anthropogenic sources of contaminants and the sediments were relatively coarser with a high percentage of sand fraction, which reduced REE deposition.

Generally speaking, REEs are correlated with organic matter in wetland soil solution or shallow groundwater, and different kinds of groups in organic matter have different function sites to combine with REEs [48]. In mangrove sediments, the organic matter (OM) acts as an important binding phase in adsorbing and depositing REEs [49]. However, in all urban mangroves, no positive correlations were detected for TOC and all REEs (Table 3). Thus, the role of OM in the deposition of REEs in urban mangrove sediment was limited. On the other hand, the total S was positively correlated with most REEs in urban mangrove sediment, except for La, Ce, and Lu (Table 3). Previous studies have found that sulfide had the potential to carry REEs in natural systems [50,51]. Thus, sulfide was expected to play an important role in REEs mobility in urban mangrove sediments with reducing and anaerobic sedimentary environments.

3.3. Characteristic Parameter of REEs

After standardizing the mass fraction of REEs based on the Post-Archean Australian Shale (PAAS), the standardized distribution patterns of REEs in urban mangrove sediments of Shenzhen, China were shown in Figure 2. The distribution curves of REEs in XXM and SJM were all around or greater than 1, with 0–48 cm depth sediment in FTM being greater than 1; while that of BGM is less than 1. Generally speaking, REEs would release and leach under anaerobic conditions [52]. Without exogenous input, the abundance of REE in mangrove sediment was relatively low under periodic tide flooding [14,17]. In this study, the amount of REEs in BGM featured with ecological preserve demonstrated loss of REE, while FTM, XXM, and SJM were significantly affected by input from anthropogenic activities, with REEs to be enriched. Furthermore, compared with BGM and FTM, the distribution curves of REEs in XXM and SJM demonstrated significant negative slope mode inclining gently to the right (Figure 2), demonstrating LREE enrichment and HREE loss.

In this study, the REEs fractionation patterns were explored in sediments of urban mangroves (

Table 4. HREE/LREE, MREE enrichment, Ce anomaly, Eu anomaly, Gd anomaly, Gd_{anthropogenic}, and Y/Ho in urban mangrove sediments (0–25 cm depth) of Shenzhen, China.

	(HREE/LREE)PAAS	ΣMREEPAAS Enrichment	CePAAS Anomaly	EuPAAS Anomaly	GdPAAS Anomaly	Gdanthropogenic	Y/Howeight
BGM	0.88 ± 0.08	1.00 ± 0.01	1.12 ± 0.05	0.83 ± 0.5	1.09 ± 0.04	0.21 ± 0.11	28.66 ± 3.44
FTM	0.92 ± 0.00	1.10 ± 0.01	0.87 ± 0.01	0.73 ± 0.01	1.10 ± 0.02	0.97 ± 0.20	29.87 ± 0.26
XXM	0.81 ± 0.14	1.04 ± 0.08	1.04 ± 0.10	0.82 ± 0.02	1.14 ± 0.05	0.93 ± 0.34	27.53 ± 0.55
SJM	0.65 ± 0.06	0.97 ± 0.04	1.17 ± 0.06	0.87 ± 0.02	1.23 ± 0.04	1.81 ± 0.30	27.76 ± 0.87

HREE, heavy REE; MREE, middle REE; LREE, light REE. Values below 1 suggest LREE enrichment over HREE, MREE depletion over HREE and LREE, negative Ce anomaly, negative Eu anomaly, and negative Gd anomaly, respectively. The values above 1 suggest the opposite result to values below 1. The Y/Ho ratio of PAAS data (the Post-Archean Australian shale) was 27. BGM, Baguang mangrove; FTM, Futian mangrove; XXM, Xixiang mangrove; SJM, Shajing mangrove.

). The HREE/LREE ratios in all urban mangroves were lower than 1 (ranging from 0.65 in SJM to 0.92 in FTM), which demonstrated enrichment of LREE in urban mangrove sediments. While the MREE enrichment values slightly fluctuated across 1 (ranging from 0.97 in SJM to 1.10 in FTM), which indicated no significant enrichment or loss of MREE fraction.

Generally speaking, anomalies of Ce and Eu reflect the characteristics of the depositional environment. The redox-sensitive Ce and Eu could indicate the changes of redox conditions in sediments [53]. In the reduced sediment of Zhangjiang estuary, Ce demonstrated little variation from 0.98 to 1.03 [54]. In this study, Ce_PAAS anomalies have significant negative relationships with TOC and TS (Table S3, P < 0.05). The negative Ce_PAAS anomaly in FTM (0.87) indicated significant scavenging of Ce and dissolution of insoluble Ce (IV) to soluble Ce (III) due to the reducing environment, which would cause the depletion of Ce in FTM. However, the positive Ce_PAAS anomalies in XXM, SJM and BGM, indicated the limited scavenging function of organic matter [55], due to their lower TOC and Total S levels compared to FTM (Table 1). The higher TOC and Total S contents in the sediment would further aggravate the reducing conditions. Furthermore, the positive Ce anomalies in reducing sediments may be related to newly precipitated Mn and Fe oxides/hydroxides which would preferentially incorporated Ce compared to the other REEs [29]. In this study, the negative Eu_PAAS anomalies in urban mangroves may also be related to the deficit of Eu in the source of sediment, with anomalies of Eu in sediments of Shenzhen Bay and Dapeng Bay of China to be 0.46 and 0.86 [21]. Furthermore, in the granites from South Chinese deposits, REE minerals also show negative Eu anomaly [56]. The higher Gd_PAAS anomaly of 1.23 in SJM also showed a contribution of Gd from non-geogenic, likely anthropogenic sources (higher Gd_{anthropogenic} of 1.18 in SJM). This result was consistent with Xu et al. (2018) reported the anthropogenic source (with positive Gd anomalies) in estuarine sediments in South Yunderup, Australia [29]. Generally speaking, yttrium (Y) and holmium (Ho) have identical valences and similar ionic radius, with Y/Ho ratio to be used for indicating terrestrial contribution [29,57]. In this study, the Y/Ho ratios in urban mangroves (ranging from 27.53 in XXM to 29.87 in FTM) were generally in agreement with previous terrestrial Y/Ho values (27.0–32.9) [58], demonstrating the significant contribution of terrestrial detritus.

3.4. Pollution and Ecological Risk of REEs

REEs could enter in soil and water and bioaccumulate through the food chain, having similar characteristics with heavy metal pollutants, including persistence, bioaccumulation, and chronic toxicity [59,60]. In this study, four evaluation methods including I_geo, mC_d, PLI, and PERI were used to explore the pollution and ecological risk of REEs (Figure 3). I_geo is mainly used to assess the pollution intensity of individual REE elements. In view of the evaluation criterion of I_geo (Table S1), the risk caused by REEs mainly belonged to uncontaminated/uncontaminated to moderately contaminated level, except for the moderately contaminated level of Ce in SJM (Figure 3A). Furthermore, I_geo values of REEs in urban mangroves featured with different urban functions showed remarkable site-specific features, with the values of I_geo of REEs to be FTM, SJM > XXM > BGM. The values of mC_d, PLI, and PERI of REEs in BGM were all lower than that of FTM, SJM, and XXM (Figure 3 B, C, D). In addition, the distribution of mC_d values of REEs in urban mangroves was different from that of PLI and PERI, which may be related to the different calculation and pollution evaluation criteria [37,39]. mC_d is a comprehensive index in evaluating soil pollution degree. In the light of mC_d criterion (Table S1), REEs in BGM was uncontaminated to a very low contaminated level, with SJM to be low contaminated, and FTM and XXM to be moderately contaminated. PLI mainly showed comparative information in assessing the pollution of REEs [33]. Based on the criterion of PLI (Table S1), REEs in BGM were uncontaminated, with XXM and SJM to be slightly contaminated, and FTM to be moderately contaminated. Similarly, according to the criterion of PERI (Table S1), a low risk of REEs was detected in BGM, with moderate risks in FTM, XXM, and SJM. In particular, the main contributors to ecological risks of REEs were not obvious, being similar to that of I_geo evaluation. Although pollution posed by individual REEs seemed not serious, the TREEs would still incur non-negligible pollution and ecological risks during long time exposure due to their non-biodegradability and bioaccumulation. In the future, more research work should be systematically conducted on the health risk evaluation of REEs deposited in urban mangroves, especially for susceptible groups in coastal regions, including infants, pregnant women, and the elderly. As for the remediation of REEs in urban mangroves in Shenzhen, systematic work should be conducted, such as restoration of mining areas in upstream of Pearl River in South China, reduction of the discharge and enhanced recycle use of REEs-related electronic product in Shenzhen. Furthermore, long-term monitoring and protection of urban mangroves are necessary for remediation of REEs pollution in urban mangroves of Shenzhen, China.

4. Conclusions

In rapidly developing Shenzhen, China, four typical urban mangroves were selected to explore the contamination caused by REEs, including BGM featured with the ecological preserve, FTM featured with CBD, and SJM and XXM featured with industry district. The concentrations of TREEs in urban mangrove sediments ranged as SJM > FTM > XXM > BGM, with the dominant compositions of REEs to be Ce. In urban mangrove sediments, fine sediment and sulfur deposition play important roles in the deposition of REEs. Furthermore, REEs demonstrated significant LREE enrichment and HREE loss. Although the ecological risks of REEs in urban mangroves were not higher than moderately contaminated level, research work on pollution prevention and remediation should be performed due to their non-biodegradability, persistence, and bioaccumulation in the environment.
