Nexus between Nitrous Oxide Emissions and Agricultural Land Use in Agrarian Economy: An ARDL Bounds Testing Approach

Abstract

This paper analyses the relationship between Nitrous Oxide emissions, agricultural land use, and economic growth in Pakistan. Agriculture largely contributes to Nitrous Oxide emissions. Hence, models of agriculture induced Nitrous Oxide emissions are estimated in addition to models of total Nitrous Oxide emissions. Estimated models accommodate more flexible forms of relationship between economic growth and emissions than those of the widely adopted models in testing the Environmental Kuznets Curve. The Auto-Regressive Distributed Lag (ARDL) bounds testing approach to co-integration and the vector error correction model approach is applied to test the Environmental Kuznets’s Curve hypothesis for Pakistan and to detect the directions of causality among variables using the time series data for the period 1971 to 2012. Results indicate that an N-shaped rather than an inverted U-shaped relationship exists in the case of Pakistan. The tipping values for total Nitrous Oxide emissions and agriculturally induced Nitrous Oxide emissions indicate that Pakistan passes through a phase of increasing environmental degradation. Increases in agricultural land use and per capita energy use will increase the level of Nitrous Oxide emissions. However, controlling Nitrous Oxide emissions from agricultural land use and per capita, energy use without adversely affecting economic development will be a serious policy challenge for Pakistan.

1. Introduction

The emissions of Greenhouse Gases (GHG) such as Carbon Dioxide (CO₂), Sulphur Dioxide (SO₂), and Nitrous Oxide (N₂O) have increased significantly in agrarian economies through the extensive adoption of highly intensive production systems in livestock and crop farming [1]. Among these gasses, the N₂O is currently the leading ozone-depleting element as chlorofluorocarbon (CFC) emissions have been virtually eliminated [2]. According to a recent report (see

Table 1. Global Warming Potentials of Green House Gases Compared to CO₂.

Greenhouse Gas	Global Warming Potential Compared to CO2	Estimated Atmospheric Life in Years
Carbon Dioxide (CO2)	1	30–95
Methane (CH4)	25 times	12
Nitrous oxide (N2O)	310 times	114
Sulphur hexafluoride (SF6)	22,800 times	3200
Hydrofluorocarbons (HFCs), 13 species	92 to 14,800 times	12
Perfluorocarbons (PFCs), 7 species	7390 to 12,200 times	-

Source: The United States Environmental Protection Agency, 2016, Intergovernmental Panel on Climate Change (IPCC) Report.

) by the United States Environmental Protection Agency (US-EPA), N₂O has more than 300 times stronger warming effect than that of CO₂ [3]. Agriculture is the major source of N₂O emissions and anthropogenic sources account for about 70% of agriculturally induced N₂O [4]. About 63% of agriculturally induced N₂O emissions come from the direct use of soils according to Tian et al. [5]. Compared to CO₂ emissions, the gasses such as N₂O less likely to spread beyond the borders and have serious long-term consequences on human health and welfare [6]. By 2100, the total N₂O emissions from the production of chemical fertilisers are estimated to be four times the present levels of emissions [7,8]. Therefore, agricultural economies like Pakistan should be more concerned about N₂O emissions especially during the phases of rapid economic expansion. The relationship between N₂O emissions and economic growth needs to be investigated to help design agricultural policies that strike a sustainable balance between economic growth and the environment [9,10]. However, the link between N₂O emissions and economic growth remains a considerably less researched subject, in particular, in the context of developing countries.

The economic development of Pakistan depends heavily on agriculture which accounts for 19.5% of gross domestic product (GDP), and employs 42.3% of the labour force. The industrial sector, fast-growing value-added industries in particular, depends heavily on agriculture for raw material and critical inputs [11,12]. It also plays a central role in export earnings, food security, and poverty reduction.

The main objective of this study is to examine the relationship between N₂O emissions and economic growth and determine whether the relationship follows an Environmental Kuznets Curve (EKC) in Pakistan. This is achieved by estimating models of total and agriculturally induced N₂O emissions which are derived from the basic model of EKC. The estimated models relate total and agriculturally induced N₂O emissions to economic growth (GDP), agricultural land used (ALU), energy used (ENU), and exports (EXP). The ARDL bounds testing approach which is preferable for short samples is employed to capture the short-run and long-run dynamics of the models [13]. The outcomes of the study are expected to help formulate environmentally friendly policies for sustainable economic development [14,15,16]. The rationale for this study rests on at least two important facts. First, the number of studies on the nexus between N₂O emissions and economic growth is significantly less compared to the studies on CO₂ and economic growth. In particular, there is a dearth of country-specific studies on the subject. The fact that the N₂O emissions are relatively more concentrated and less likely to cross borders, highlights the importance of country-specific studies for effective policymaking in different countries [17,18,19]. The recent study by Duodu [20] confirms that N₂O emissions are a local pollutant that is mostly produced from agricultural activities; fertiliser use, and agricultural soils. The reason is that N₂O emissions are not majorly by-products of industrial activities. “It also stems from the use of fertilisers and general agricultural activities. Since developing countries are more agrarian and their economic activities may lead to an increase in N₂O emissions” (p. 32). This study also highlights that the N₂O emissions have been neglected in previous studies and policy debate and confirmed that there is no evidence for the Pollution Haven Hypothesis (PHH) for N₂O emissions in the case of Sub-Saharan African (SSA) countries which are mostly the developing countries while PHH is confirmed for the CO₂ emissions which indicates that comparing the results for Organisation for Economic Co-operation and Development (OECD) and SSA countries, the results also show that trade makes SSA countries relatively dirtier because of the global externality of CO₂ emissions. Similarly, US-EPA [3] shows concern over the devastating effect of N₂O emissions on the environment which is more damaging to the ozone layer which also highlights the importance to study the N₂O emissions.

Second, Pakistan is fast approaching a state where environmental degradation will be a serious policy challenge mainly for reasons such as the dominance of the agricultural sector and the development of energy projects currently underway. In Pakistan, the agricultural sector is expected to remain a major leading sector of economic growth with a potential for substantial increases in N₂O emissions in the future while the energy projects being established under the China Pakistan economic corridor (CPEC) are coal run and bound to contribute to the rising levels of GHG emissions. The government has expressed a strong commitment to combat climate change and meet GHG reduction targets which can only be realised through a comprehensive understanding of the factors responsible for GHG emissions in the country. Nonetheless, to the best of the authors’ knowledge, there has been no previous study that examined the link between N₂O emissions, agricultural land used, and economic growth in Pakistan.

The rest of the paper is organised as follows. Section 2 presents an analysis of observed trends in the total and agriculturally induced N₂O emissions and their determinants. Section 3 presents a brief literature review of previous studies on EKC. A description of the model, data, and methodology is presented in Section 4. Section 5 presents an analysis of the estimated results. Conclusions and policy implications are provided in the last section.

2. N₂O Emissions in Pakistan

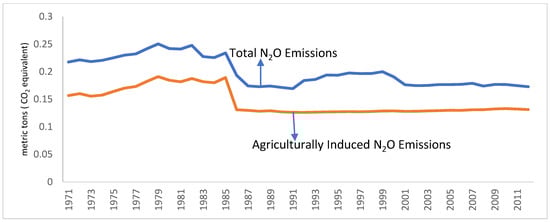

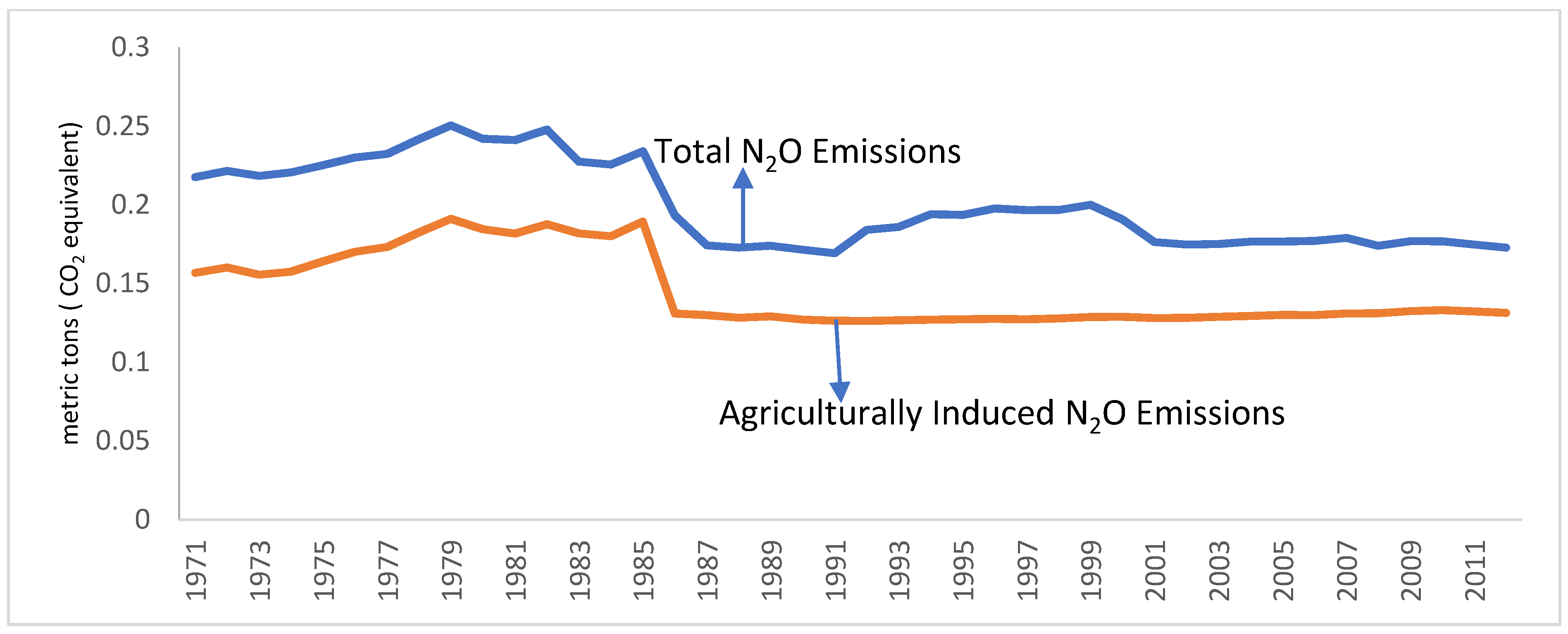

Pakistan is primarily an agrarian economy that has experienced a noticeable increase in the level of N₂O emissions over time. Figure 1 shows that, in per capita terms, the total and agriculturally induced N₂O emissions have followed similar trends in Pakistan. Both variables show rising trends between 1971 and 1985, and a decline in 1986 caused by an increase in the cost of production due to an increase in fertiliser prices which is the main cause of a decrease in the N₂O emissions. After the fifth five-year plan (1978–1983), the government of Pakistan reduced the subsidy for fertiliser and the share of fertiliser in the overall agriculture GDP declined from 5.7 to 3.6% in the sixth five-year plan (1983–1988) which is caused by a sharp decline in the public sector investment in the agriculture sector which leads to a decline in overall agriculture activity, which further affects the agriculture share in development outlay which substantially decline from 20 (1978–1983) to 16% (1983–1988) [21]. On the other hand, data shows a significant increase in population growth in the same period [22]. This is also another reason for a decline in the N₂O emissions in this period as we take the data in per capita N₂O emissions. However, after which the agriculturally induced N₂O emissions per capita remain relatively unchanged. The increased modernisation in the agricultural sector by new technologies and the growth of the shares of industry and services sectors in GDP may have been mainly responsible for these trends.

However, the levels of N₂O emissions in Pakistan are relatively higher than international standards. The data for the year 2012 shows that Pakistan per capita N₂O emissions is 0.27 thousand metric tons (CO₂ equivalent) which is much higher than the neighbouring counties like India have a per capita N₂O emissions is 0.19 thousand metric tons (CO₂ equivalent) in the same year while Bangladesh is 0.18, Afghanistan is 0.23, Maldives is 0.08, and Sri Lanka is 0.14 thousand metric tons (CO₂ equivalent) per capita [23].

The high level of N₂O emissions has several consequences. It creates smog that paralyzes routine life in Pakistan during the winter season by reducing visibility to a few meters and costs significantly to the economy. Further, it can cause serious damages to the ambient atmosphere by creating various nitrate compounds [24]. Many thermal power plants in Pakistan add to the level of N₂O, as these are run by coal. Industrial furnaces produce a temperature higher than 1700 °C, due to which the nitrogen (N₂) and oxygen (O₂) react with each other and form N₂O [25]. Combustion of oil mainly visible in vehicular transportation is the second-largest producer of N₂O emissions. Apart from industrial sources, residential areas also contribute to the rise in N₂O emissions through the level of humidity, improper usage of burners, and heights of buildings. Vehicular congestion, a result of the ever-growing population in Pakistan, generates traffic fumes and causes N₂O emissions in residential areas [26]. According to Relwani et al. [27] and Himmel and DeWerth [28], the high tipping yellow flame produced by cooking also contributes to N₂O emissions in residential areas. The tall buildings do not directly add to the level of N₂O emissions, yet they resist ventilation and sunlight in the neighbourhood that increases the usage of air-conditioning systems [29].

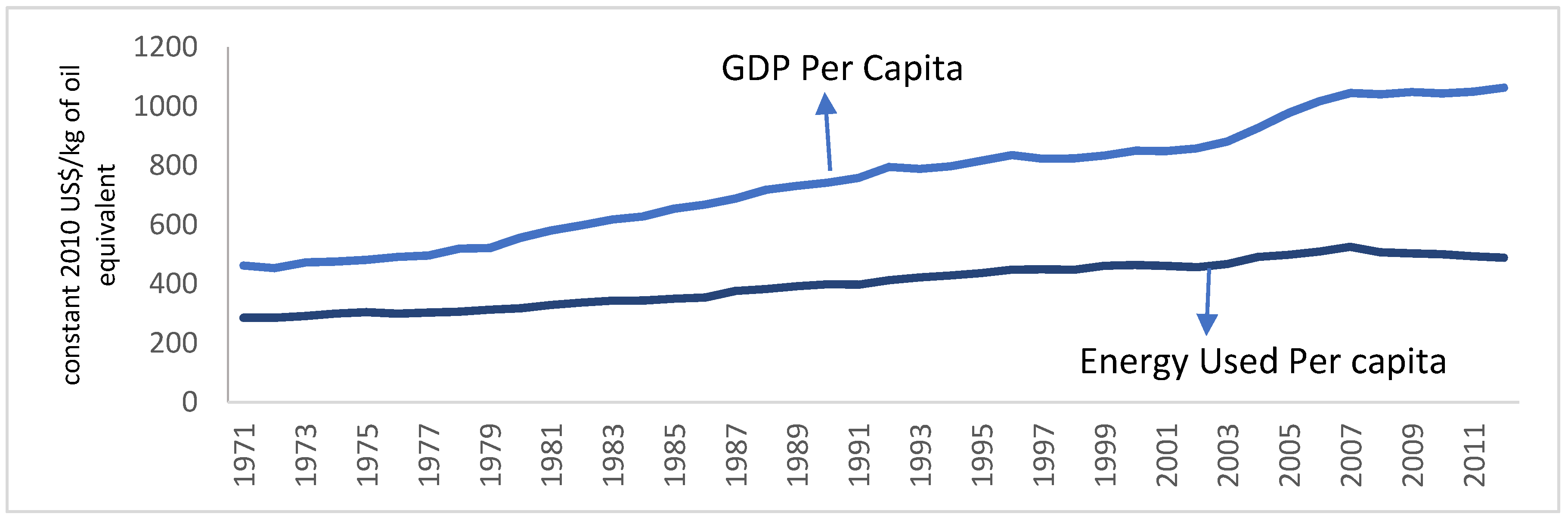

Figure 2 shows the linear and positive relationship between per capita income and per capita energy used in Pakistan in general over the years. Since 2007 this trend has slightly changed, and per capita energy use shows a decline while per capita income continues to grow. Figure 3 shows an upward trend in exports of Pakistan while agricultural land used shows a consistent decline which implies that exports do not depend significantly on agricultural land use. The increasing share of industrial and services sectors in Pakistan’s economy can help understand this trend.

3. Literature Review

The Environmental Kuznets Curve (EKC), since its’ introduction by Grossman and Kruger [30], provided a framework in which the link between environmental degradation and economic growth can be explored. Environmental pollution has become a central area of research in the face of rapid economic growth and an increase in the emission of GHG globally during the last few decades. As a consequence, the EKC concept has become a discrete research subject and stimulated a large number of empirical and theoretical literature [19,31,32]. The EKC gained popularity among academia, researchers, and policymakers due to its important implications for economic development, particularly for developing countries. It has also influenced the policies and priorities of the International Monetary Fund (IMF) and World Bank which is evident from their prescriptions for pro-growth policies [33]. Nevertheless, the EKC has been under criticism for incompleteness in the context of sustainable development [34,35,36]. The validity of EKC has been tested for several countries and regions using different methods of estimation and various variables for environmental degradation [17,19,37,38]. These studies can be divided into three groups according to the environmental degradation indicators used. The first group uses the level of carbon dioxide (CO₂) emissions [39,40,41,42]. These studies usually focus on developed countries or where growth has been significant. The second group relates to Sulphur dioxide (SO₂) to income per capita [43,44]. The third group verifies EKC through nitrous oxide (N₂O) [13,17,45]. However, only a small number of studies focused on N₂O emissions. In this study, we focus on the N₂O emissions, and a brief account of studies that use N₂O emissions or the total GHG emissions as a dependent variable is given in

Table 2. Previous Empirical Studies on EKC using N₂O and total Greenhouse Gases.

Study	Data, Countries	Estimator(s)	Dependent Variables	Independent Variables	EKC Evidence
Zambrono-Monserrate and Fernandez [13]	1970–2012, Germany	ARDL	N2O emissions	Economic growth, Agriculture land used, exports	Yes
Och [46]	1987–2011, Mongolia	Cointegration, Granger causality	NOx	Income, Exports, Urbanisation	NO
Wang et al. [47]	1960–2010, USA	Cointegration, Correlation	N2O, CO2, CH4	GDP	No, except for CH4
Nassiani et al. [48]	1990–2015, BRIC	Fixed effect	GHG, N2O	Energy, GDP, financial development, Transportation, renewable energy consumption, trade	Yes
Sinha and Bhattacharya [24]	2001–2013, 139 Indian cities	FEM and REM	NO2 emissions	Population, Electricity consumption	Mix
Fuji and Managi [49]	1995–2009, 39 countries of the world	Regression analysis	GHG emissions	GDP	No
Cho et al. [45]	1971–2000, 22 OECD countries	OLS, FMOLS, Cointegration	GHG emissions	GDP, Energy use	Mix
Luo et al. [50]	2003–2012, 31 China cities	Linear, Quadratic Regression	PM10, SO2, NO2	Gross regional product	Yes
Kubicová [51]	1993–2011, Slovakia Republic	Granger Causality	GHG emissions	FDI inflows	No, except for CH4
Tamang [52]	1990–2009, 11 high income and 8 low-income countries	ADF unit root, Error correction model (ECM)	CH4, CO2, and N2O	GDP per capita, Population density, the share of industry	No
Mazzanti et al. [53]	1990–2001, Italy	Cointegration, Granger causality	GHG emissions	GDP, Energy use, production activities	Yes
Roca et al. [54]	1973–1976, Spain	Cointegration, Granger causality	GHG emissions	GDP	No, except for SO2

.

As the information in Table 2 shows, only a very small number of studies have focussed on N₂O emissions. Most of them employed the linear or quadratic specifications of the equation representing the basic EKC model. Overall, these studies produced mixed results that highlight the importance of conducting case-specific studies using more flexible forms of the relationship between N₂O emissions and economic growth.

4. Model Specification, Data, and Methodology

The models estimated in this study are derived from the following simple model of EKC:

$$\ln N_2{O}_t={\alpha }_0+{\alpha }_1\ln {\mathit{GDP}}_t+{\alpha }_2{[\ln {\mathit{GDP}}_t]}^2+{\epsilon }_t$$

(1)

where N₂O is the total nitrous oxide emissions (metric tons of CO₂ equivalent) per capita, GDP is gross domestic product per capita, α₀ is the constant term, α₁ and α₂ are the slope coefficients, and t indicates the period in years, while ε_t is a white-noise error term. All the model variables are expressed in natural logarithmic form. The total N₂O per capita accounts for the emissions from livestock management, industrial activities, and agricultural biomass burning. While agricultural N₂O accounts for the emissions produce from “fertiliser use (synthetic and animal manure), animal waste management, agricultural waste burning (nonenergy, on-site), and savannah burning” according to the World Development Indicators WDI (2019). The signs of the estimated coefficients are expected to be positive for α₁ and negative for α₂ if the EKC relationship holds. Earlier studies have used various functional forms in estimating the relationship between economic growth and environmental degradation [55,56,57]. The most commonly used functional forms are linear, quadratic, and cubic. As described by Perman and Stern [58], various shapes and forms of EKC could be observed, depending on the measure of environmental degradation. Van Alistine and Neumayer [59] estimated a cubic function on the basis that a second turning point may be observed. Yang et al. [56] and Zhang [60] estimated both quadratic and cubic specifications, obtaining results of robust support for both specifications. This study examines the plausibility of linear, quadratic, and cubic specifications without suggesting a priori specification, however, it relies on both quadratic and cubic specifications for obtaining robust results following Yang et al. [56]. The cubic form of the Equation (1) can be written as follows:

$$\ln N_2{O}_t={\beta }_0+{\beta }_1\ln {\mathit{GDP}}_t+{\beta }_2{[\ln {\mathit{GDP}}_t]}^2+{\beta }_3{[\ln {\mathit{GDP}}_t]}^3+{\epsilon }_t$$

(2)

With the inclusion of three additional explanatory variables, namely agricultural land used (ALU), exports (Exp), and energy use (ENU) the augmented specifications of Equations (1) and (2) can be obtained. These are giving by Equations (3) and (4) below.

$$\ln N_2{O}_t={\alpha }_0+{\alpha }_1\ln {\mathit{GDP}}_t+{\alpha }_2{[\ln {\mathit{GDP}}_t]}^2+{\alpha }_3\ln {\mathit{ALU}}_t+{\alpha }_4\ln {\mathit{Exp}}_t+{\alpha }_5\ln {\mathit{ENU}}_t+{\epsilon }_t$$

(3)

$$\begin{gathered} \ln N_2{O}_t={\beta }_0+{\beta }_1\ln {\mathit{GDP}}_t+{\beta }_2{[\ln {\mathit{GDP}}_t]}^2+{\beta }_3{[\ln {\mathit{GDP}}_t]}^3+{\beta }_4\ln {\mathit{ALU}}_t \\ +{\beta }_5\ln {\mathit{Exp}}_t+{\beta }_6\ln {\mathit{ENU}}_t+{\epsilon }_t \end{gathered}$$

(4)

The agricultural land used affects the N₂O emissions positively especially in developing countries where farmers use large amounts of fertilisers in the crops production processes which represent a significant source of N₂O emissions. Exports may not affect N₂O emissions (Kearsley and Riddel, [61]), but can be related to EKC according to the (PHH) [62]. The PHH asserts that developed countries have stricter environmental regulations and adopt clean technologies, whereas the more pollutant production processes take place in developing countries where the transfer of pollution occurs, instead of mitigation, across regions [17]. Energy consumption leads to environmental degradation as it is positively linked with greenhouse gas emissions [63,64,65]. This may be true in the case of Pakistan, where the contribution of non-renewable energy sources to total energy is more than 90 percent.

In estimating the models, the inverted U-shaped EKC can be obtained by imposing the coefficient restrictions that α₁ > 0 and α₂ < 0 on Equation (3). An N-shaped curve can be obtained by imposing coefficient restrictions that β₁ > 0, β₂ < 0 and β₃ > 0 on Equation (4). All possible shapes of the relationship between N₂O and GDP which depend upon the signs of the estimated coefficients of the linear, quadratic, and cubic models are stated in

Table 3. Possible Shapes of the Relationship between N₂O and GDP.

Model	Value of βi	Shape of the Curve
Model 1	β1 = β2 = β3 = 0	no
Model 2 (linear)	β1 > 0, β2 = β3 = 0	Linear monotonically increasing
Model 3 (linear)	β1 < 0, β2 = β3 = 0	Linear monotonically decreasing
Model 4 (quadratic)	β1 < 0, β2 > 0, β3 = 0	U-shaped
Model 5 (quadratic)	β1 > 0, β2 < 0, β3 = 0	Inverted U-shaped
Model 6 (cubic)	β1 > 0, β2 < 0, β3 > 0	N-shaped
Model 7 (cubic)	β1 < 0, β2 > 0, β3 < 0	Inverted N-shaped

Source: Dinda [66].

.

To detect the shape of the relationship in Pakistan, each of the quadratic and cubic models (Equations (3) and (4)), is estimated separately for total and agriculturally induced N₂O emissions. The annual time series data over the period from 1971 to 2012 on GDP per capita (constant 2010 US dollars), total N₂O emissions per capita, agriculturally induced N₂O emissions per capita, agricultural land used per capita, energy use (kg of oil equivalent) per capita, and exports of goods and services as percent of GDP are used. The source of the data is WDI-2019 [22]. This is the latest data (1971–2012) available in the WDI for N₂O emissions for Pakistan which is a data constraint in this study and can be extended when the new data are available.

Following Pesaran et al. [67], this study applies the ARDL bounds testing approach to cointegration. This approach has two advantages over other traditional techniques such as Engle and Granger [68]; Johansen and Juselius [69] and Phillips and Hansen [70]. First, it is equally applicable when every variable is not integrated of order one. Second, when applied to small samples it remains more efficient [13]. However, it crashes if the variables are I(2) processes [71]. The structural break unit root tests developed by Zivot and Andrews [72] are applied to test the stationarity properties of the variables. These tests, which can identify an unknown structural breakpoint in the time series, are relatively more reliable than Augmented Dicky Fuller (ADF) and Philips Perron (PP) tests in the presence of structural breaks [73].

The bounds test, an F-test, is applied on the Equations (3) and (4) to test the co-integration under the null hypotheses given below,

Equation (3): H₀: α₁ = α₂ = α₃ = α₄ = α₅ = 0

Equation (4): H₀: β₁ = β₂ = β₃ = β₄ = β₅ = β₆ = 0

The alternative hypothesis is that at least one of the α_i ≠ 0 or β_i ≠ 0. Given the small sample of the study, this paper uses the critical bounds developed by Narayan [74] as the critical values generated by Pesaran et al. [67] are biased downward. Once a cointegration relationship is established, Equations (3) and (4) are estimated to capture the long-run dynamics [75]. After obtaining the long-run estimates, the turning point(s) can be determined by equating the first derivative of Equations (3) and (4) with respect to GDP to 0, such as, for Equation (3),

$$\frac{\partial \ln N_2{O}_t}{\partial \ln {\mathit{GDP}}_t}={\alpha }_1\left(\frac{1}{{\mathit{GDP}}_t}\right)+2{\alpha }_2[\ln {\mathit{GDP}}_t]\left(\frac{1}{{\mathit{GDP}}_t}\right)=0$$

$$[\ln {\mathit{GDP}}_t]=\frac{-{\alpha }_1}{2{\alpha }_2} \mathrm{and} {\mathit{GDP}}_t=\exp \left(\frac{-{\alpha }_1}{2{\alpha }_2}\right)$$

Similarly, we can find two turning points for the cubic model. The Error Correction Term (ECT) shows the speed of adjustment which indicates how quickly the variables converge to the long-run equilibrium following a one-time shock in the model. So, the condition for the convergence is that the coefficient of ECT should be negative and statistically significant with a magnitude that is less than or equal to one. To capture the short-run dynamics, following the error correction model is estimated for Equation (3).

$$\begin{array}{cc}\hfill ∆\ln N_2{O}_t={\gamma }_0& +{\displaystyle \sum _{i=1}^p}{\gamma }_{1i}∆\ln N_2{O}_{t-i}+{\displaystyle \sum _{j=0}^q}{\gamma }_{2j}∆\ln {\mathit{GDP}}_{t-1}\hfill \\ & +{\displaystyle \sum _{k=0}^m}{\gamma }_{3k}∆\ln {\mathit{GDP}}_{t-k}^2\hfill \\ & +{\displaystyle \sum _{l=0}^n}{\gamma }_{4l}∆\ln {\mathit{ALU}}_{t-l}\hfill \\ & +{\displaystyle \sum _{w=0}^s}{\gamma }_{5w}∆\ln {\mathit{Exp}}_{t-w}\hfill \\ & +{\displaystyle \sum _{x=0}^y}{\gamma }_{6x}∆\ln {\mathit{ENU}}_{t-x}+\theta {\mathit{ECT}}_{t-1}+{\epsilon }_t\hfill \end{array}$$

Similarly, for Equation (4),

$$\begin{array}{cc}\hfill ∆\ln N_2{O}_t={\gamma }_0& +{\displaystyle \sum _{i=1}^p}{\gamma }_{1i}∆\ln N_2{O}_{t-i}+{\displaystyle \sum _{j=0}^q}{\gamma }_{2j}∆\ln {\mathit{GDP}}_{t-1}\hfill \\ & +{\displaystyle \sum _{k=0}^m}{\gamma }_{3k}∆\ln {\mathit{GDP}}_{t-k}^2\hfill \\ & +{\displaystyle \sum _{l=0}^n}{\gamma }_{4l}∆\ln {\mathit{GDP}}_{t-l}^3\hfill \\ & +{\displaystyle \sum _{r=0}^z}{\gamma }_{5r}∆\ln {\mathit{ALU}}_{t-r}\hfill \\ & +{\displaystyle \sum _{w=0}^s}{\gamma }_{6w}∆\ln {\mathit{Exp}}_{t-w}\hfill \\ & +{\displaystyle \sum _{x=0}^y}{\gamma }_{7x}∆\ln {\mathit{ENU}}_{t-x}+\theta {\mathit{ECT}}_{t-1}+{\epsilon }_t\hfill \end{array}$$

The diagnostic tests developed by Brown et al. [76] are applied to verify the stability of the estimated model parameters. The causality tests based on the Vector Error Correction Model (VECM) as suggested by Granger [77] are used to investigate the causal relationships. The VECM model is as follows:

$$\left[\begin{array}{c}∆\ln N_2{O}_t\\ ∆\ln {\mathit{GDP}}_t\\ ∆\ln {\mathit{GDP}}_t^2\\ ∆\ln {\mathit{ALU}}_t\\ ∆\ln {\mathit{Exp}}_t\\ ∆\ln {\mathit{ENU}}_t\end{array}\right]=\left[\begin{array}{c}{\mu }_1\\ {\mu }_2\\ {\mu }_3\\ {\mu }_4\\ {\mu }_5\\ {\mu }_6\end{array}\right]+\left[\begin{array}{c}{\gamma }_{11} {\gamma }_{12} {\gamma }_{13} {\gamma }_{14} {\gamma }_{15} {\gamma }_{16}\\ {\gamma }_{21} {\gamma }_{22} {\gamma }_{23} {\gamma }_{24} {\gamma }_{25} {\gamma }_{26}\\ {\gamma }_{31} {\gamma }_{32} {\gamma }_{33} {\gamma }_{34} {\gamma }_{35} {\gamma }_{36}\\ {\gamma }_{41} {\gamma }_{42} {\gamma }_{43} {\gamma }_{44} {\gamma }_{45} {\gamma }_{46}\\ {\gamma }_{51} {\gamma }_{52} {\gamma }_{53} {\gamma }_{54} {\gamma }_{55} {\gamma }_{56}\\ {\gamma }_{61} {\gamma }_{62} {\gamma }_{63} {\gamma }_{64} {\gamma }_{65} {\gamma }_{66}\end{array}\right]\times \left[\begin{array}{c}∆\ln N_2{O}_{t-1}\\ ∆\ln {\mathit{GDP}}_{t-1}\\ ∆\ln {\mathit{GDP}}_{t-1}^2\\ ∆\ln {\mathit{ALU}}_{t-1}\\ ∆\ln {\mathit{Exp}}_{t-1}\\ ∆\ln {\mathit{ENU}}_{t-1}\end{array}\right]+\left[\begin{array}{c}{\pi }_1\\ {\pi }_2\\ {\pi }_3\\ {\pi }_4\\ {\pi }_5\\ {\pi }_6\end{array}\right]{\mathit{ECT}}_{t-1}+\left[\begin{array}{c}{e}_{1t}\\ e_{2t}\\ e_{3t}\\ e_{4t}\\ e_{5t}\\ e_{6t}\end{array}\right]$$

where the speed of adjustment toward equilibrium is measured by the vector π which represents the mean-reversion mechanism of the VECM. Under the VECM two types of Granger causality relationships exist as suggested by Granger [77]. The long-run causality can be determined by the statistical significance of ECT_t−1 using a t-test and the short-run causality can be tested by the statistical significance of ECT_t−1 using the Wald-test [64]. It is worth noting here that the parametric methodology used in the paper at hand has few limitations as Parametric models may lead to model misspecification [78] and are applicable when the relationship between regressor and regressand is known [79]. Parametric approaches are unable to estimate the relationship between the variables especially in the context of climate change literature [80]. Furthermore, like many empirical studies on ecology, this research may face the problem of multicollinearity i.e., correlation of independent variables with each other. This research is further confined due to the use of ARDL is currently the most advanced nonlinear autoregressive distributed lag (NARDL) is more common in literature as they can capture the short-run and long-run non-linearities and asymmetries by introducing positive and negative partial sum decompositions of the independent variables [81].

5. Empirical Results and Discussion

Descriptive statistics for the variables are presented in

Table 4. Descriptive Statistics.

Des. Stat	N2O	N2OA *	GDP	ALU	EXP	ENU
Mean	0.20	0.15	749.60	3.67	13.45	401.88
Maximum	0.25	0.19	1063.61	6.14	17.36	525.62
Minimum	0.17	0.13	453.77	2.10	7.14	285.16
Std. Deviation	0.03	0.02	194.36	1.25	2.49	77.21

* N₂OA means N₂O from agricultural emissions.

. In terms of the standard deviation, GDP is relatively more volatile than N₂O emissions, and the N₂O emissions, both total and agriculturally induced, have the smallest volatility of all the variables.

Results of the Zivot Andrew Structural Break unit root tests are reported in

Table 5. Zivot Andrew Structural Break Unit Root Test.

Variables	At Level		At 1st Difference
	T-Stat	Time Break	T-Stat	Time Break
lnN2Ot	−3.81503	1989	−5.35288 *	1987
lnN2OAt	−2.63613	1993	−7.39466 *	1987
lnGDPt	−3.88115	1989	−5.79343 *	2005
lnGDPt2	−3.81307	1989	−5.57738 *	2005
lnALUt	−3.20001	1992	−5.14786 *	1987
lnExportst	−4.1436 ***	1997	−5.81912 *	1991
lnENUt	−2.69712	2006	−6.25324 *	2005

Note: *, *** indicate significance at 1% and 10% level of significance, respectively. Critical values at 1%, 5%, and 10% are −4.8, −4.42, and −4.11, respectively.

. The computed test statistics (T-stat) for the first differences of all the variables indicate that all the model variables are integrated of order one, i.e., I(1), at a 1% level of significance as required by the ARDL bounds approach [82].

Following Lütkepohl [83], Akaike information criterion (AIC) is used to select an optimal lag length for the ARDL bounds test of co-integration, the results of which are reported in

Table 6. Bounds Testing to Cointegration—ARDL.

Statistics	Total N2O Emissions		Agricultural Induced N2O Emissions
	Quadratic Model	Cubic Model	Quadratic Model	Cubic Model
Optimal Lag	(2,2,2,2,3,0)	(2,1,1,1,2,1,2)	(1,2,2,2,0,1)	(1,1,1,1,2,0,2)
F-Statistics	4.4324 *	4.1489 *	4.5425 *	4.1541 *
Lower bounds a	2.39	2.27	2.39	2.27
Upper bounds a	3.38	3.28	3.38	3.28
AIC	−4.0981	−4.1457	−3.2689	−3.5565
Log Likelihood	90.9128	92.9150	73.3776	79.1292

Note: * significant at a 5% level. Based on the Akaike information criterion. ^a Critical value bounds are from Narayan (2005) at a 5% level of significance. Case II-restricted intercept and no trend.

. The computed F-statistics reported for each model surpass the corresponding lower and upper critical bounds, rejecting the null hypothesis of no cointegration at the 5% level of significance.

The long-run results for the models of total and agriculturally induced N₂O emissions are reported in

Table 7. Long-run Results.

	Dependent Variable
Variables	Total N2O Emissions		Agriculturally Induced N2O Emissions
	Quadratic Model Equation (3)	Cubic Model Equation (4)	Quadratic Model Equation (3)	Cubic Model Equation (4)
lnGDPt	−3.146	974.726 **	−0.486	1293.688 *
lnGDPt2	0.295	−148.892 **	0.05	−197.762 *
lnGDPt3	…	7.562 **	…	10.051 *
lnALUt	1.370 *	0.702 ***	1.191	0.594 ***
lnExportst	−0.074	−0.164	−0.568 *	−0.106
lnENUt	0.981 ***	2.499 *	1.49	3.069 **
Constant	−1.330	−2138.355 **	−12.282	−2834.436 *
R2	0.966	0.966	0.935	0.952
Adjusted R2	0.942	0.942	0.903	0.924
F-Stat	39.546 [0.000]	40.301 [0.000]	28.982 [0.000]	35.094 [0.000]
Jarque-Bera Normality Test	1.121 [0.571]	2.051 [0.359]	42.860 [0.000]	4.124 [0.127]
Heteroskedasticity Test: BPG	2.675 [0.017]	1.694 [0.121]	4.307 [0.001]	3.558 [0.188]
B.G. Serial Correlation LM Test	2.864 [0.081]	2.488 [0.117]	0.269 [0.766]	0.991 [0.3887]
Ramsey RESET test	0.188 [0.853]	0.874 [0.391]	2.134 [0.043]	0.7180 [0.46]
CUSUM	Stable	Stable	Stable	Stable
CUSUMSQ	Not Stable	Stable	Not Stable	Stable

Note: *, **, *** significant at 1%, 5%, and 10% level of significance.

, along with the results of a selection of diagnostic tests that are performed for detecting serial correlation, autoregressive conditional heteroscedasticity, normality, and specification bias. The diagnostic test results reveal that all the long-run models are correctly specified except the quadratic specification for agriculturally induced N₂O emissions. They also reveal that errors are normally distributed, and no heteroscedasticity or autocorrelation is found in the cubic specifications.

All the estimated coefficients of GDP variables are significant in the cubic specification and insignificant in the quadratic specification at the 5% level of significance. These results stand in favour of an N-shaped relationship in which N₂O emissions initially follow a traditional EKC up to a certain level of GDP per capita beyond which N₂O emissions once again increase with economic growth. Similar findings are reported by Allard et al. [84] for lower middle income and high-income countries, and Paudel et al. [85] for Latin American countries, on the nexus between CO₂ emissions and economic growth.

The coefficient of the agricultural land used is positive and significant in all specifications except the quadratic model of the agriculturally induced N₂O emissions. This result is consistent with the findings of Boluk and Mert [86] and Zambrano-Monserrate et al. [87,88,89]. This finding implies that the reduction in N₂O emissions in Pakistan requires careful management of the extent, as well as the methods and processes of agricultural land use. The per capita energy use is positively related to N₂O emissions in all the specifications. This result is consistent with the finding of Tiwari et al. [65] and Shahbaz et al. [63] which explored the link between energy consumption and CO₂ emissions. For Pakistan, where non-renewable energy sources account for 90 percent of total energy, the policy implication from this result is that directing more resources to renewable energy projects is necessary to protect the environment. Such as Pakistan is a petroleum-producing country and this could be one of the drivers of the GHGs emissions which provides a common ground for the assessment of the factors influencing environmental pollution [90].

The coefficient of exports remains negative in all the specifications but significant only in the quadratic specification of the agriculturally induced N₂O emissions. Overall, this result reveals that the PHH does not hold in the case of Pakistan. This may also indicate that the resources and processes in export production, in general, are non-polluting in terms of N₂O emissions. This finding is consistent with the study of Duodu [20] which also confirmed that for N₂O emissions, PHH does not hold for the Sub-Saharan African countries, it also confirms by the view of OECD [91] which states that stringent environmental laws have no detrimental impact on exports.

Based on the estimated results, this study finds that the relationship between GDP per capita and N₂O emissions in Pakistan follows an N-type curve rather than an inverted U-shaped curve as depicted in Figure 4 and Figure 5. Similar relationships have been found by Zhang [60], Binder and Neumayer [92], Canas, et al. [93], and De Bruyn and Opschoor [94] between GDP per capita and other indicators of GHG emissions.

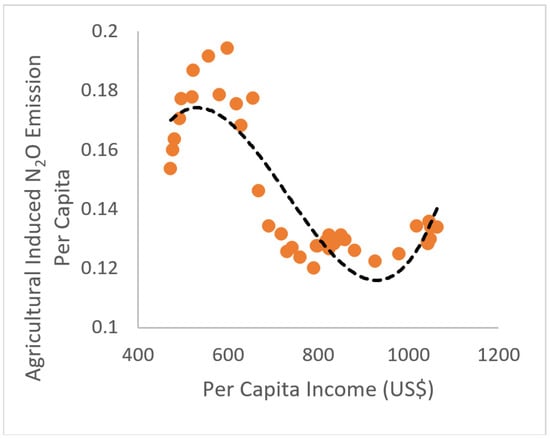

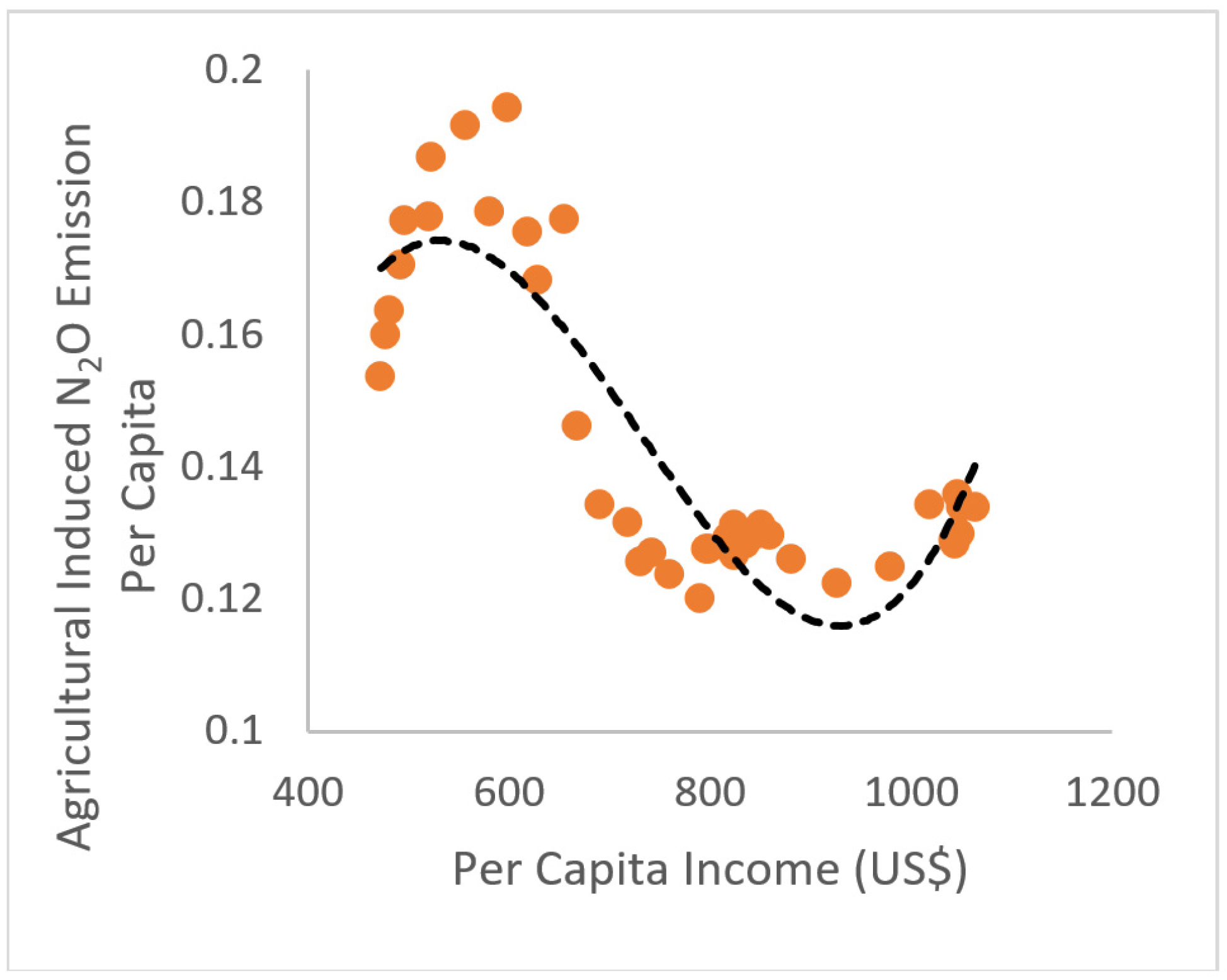

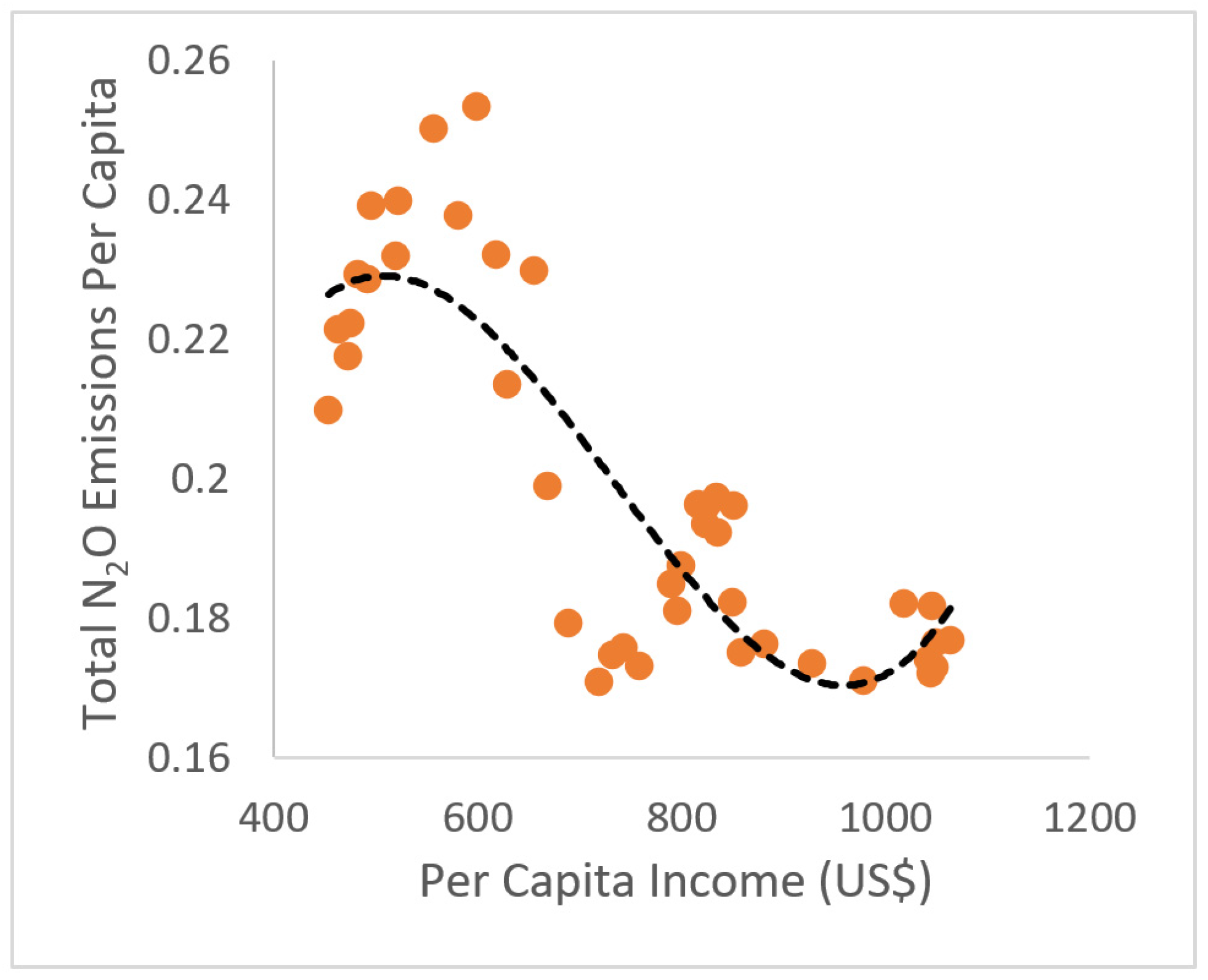

The tipping points estimated from the cubic model are $502 and $1002 for total N₂O emissions, and $511 and $1007 for the agriculturally induced N₂O emissions. The tipping points of $1002 and $1007 are the threshold levels of GDP per capita beyond which increases in GDP per capita lead to increases in N₂O emissions. The two threshold levels are not much different showing a similar pattern of relationships between N₂O emissions and GDP per capita.

The estimated short-run results are reported in

Table 8. Short-run Results.

	Dependent Variable (∆Ln(N2Ot)
Variables	Total N2O Emissions		Agriculturally Induced N2O Emissions
	Quadratic Model Equation (3)	Cubic Model Equation (4)	Quadratic Model Equation (3)	Cubic Model Equation (4)
∆lnN2Ot−1	0.401695 *	0.368585 *	-	-
∆lnGDPt	−0.419324	−173.6831	−8.2885	−161.1227
∆lnGDPt−1	34.08896 *	-	26.1439 *	-
∆lnGDPt2	0.122596	25.77894	0.71188	22.8825
∆lnGDPt−12	−2.617424 *	-	−1.9781 *	-
∆lnGDPt3	-	−1.271023	-	−1.0745
∆lnALUt	1.866513 *	1.66101 *	2.3987 *	2.4872 *
∆lnALUt−1	1.218313 *	1.23799	1.63333 *	1.8825 *
∆lnEXPt	−0.176945 *	−0.08994 ***	-	-
∆lnEXPt−1	−0.018706	-	-	-
∆lnEXPt−2	−0.131985 **	-	-	-
∆lnENUt	-	0.28003	−0.17932	0.18992
∆lnENUt−1	-	−0.93157 *		−0.6460 ***
Constant	−0.651883	−946.3299 **	−5.2592	−1468.311 **
ECTt−1	−0.490278 *	−0.44255 *	−0.42819 *	−0.51804 *
R2	0.733	0.722	0.606	0.705
Adjusted R2	0.638	0.639	0.52	0.64

Note: *, **, *** significant at 1%, 5%, and 10% level of significance.

. The estimated coefficients for the changes in GDP and the squared GDP have the expected signs in all the specifications. The estimated coefficients of the error correction term (ECT_t−1) is negative and significant at a 1% level in all the specifications. The coefficient shows the speed of adjustment to reinstate the equilibrium in the dynamic model, that is, the effect of a shock will be corrected by ranging from 42.8 to 51.8% within a year in all specifications. Nevertheless, the short run and the long run results are similar in that there is no evidence for an inverted U-shaped EKC.

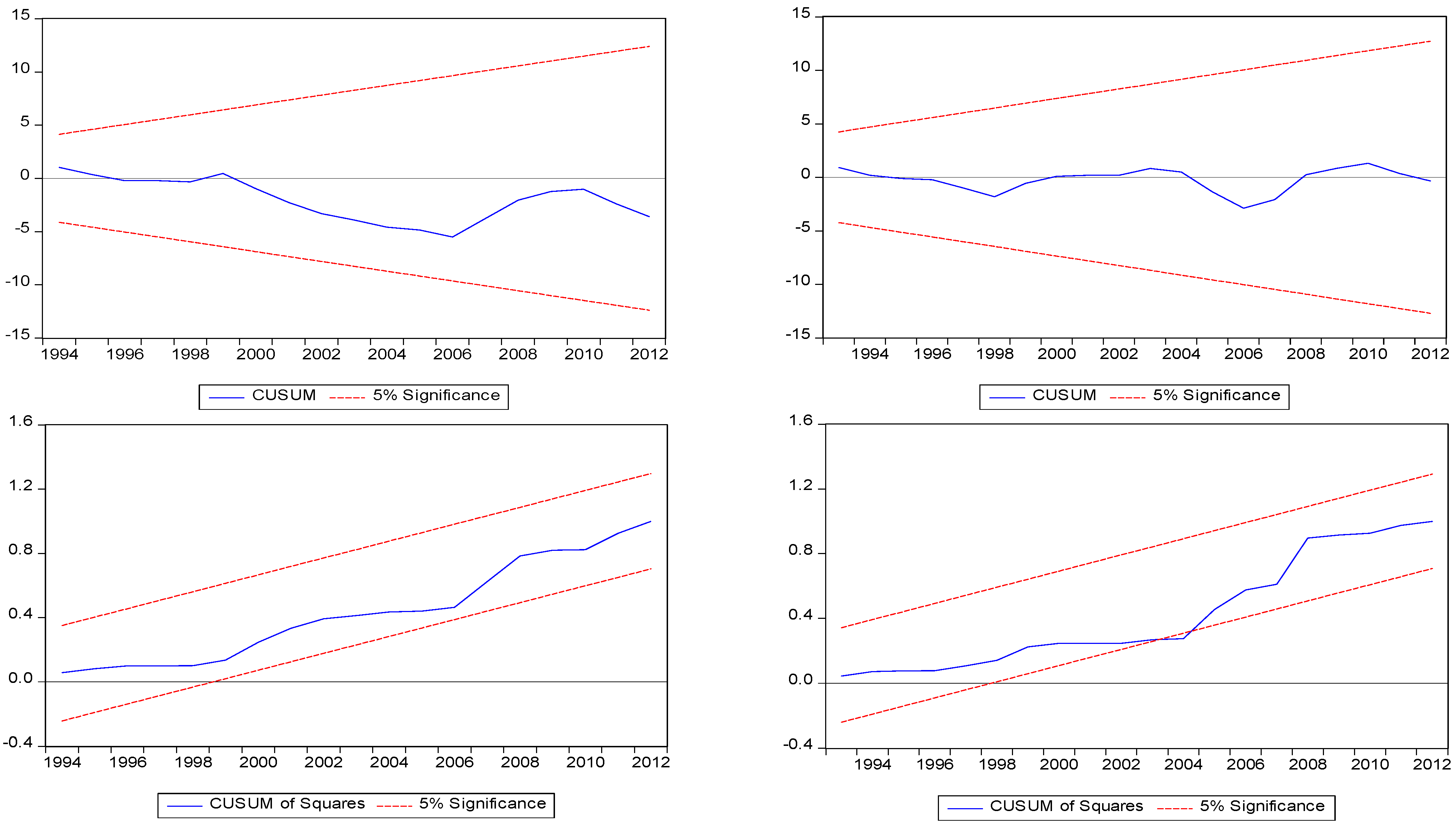

For effective forecasting and policymaking, the stability of the parameters is important. As suggested by Pesaran et al. [67], the stability of the estimated parameters of ECM is tested using the Cumulative Sum (CUSUM) and Cumulative Sum of Squares (CUSUMSQ) of recursive residuals developed by Brown et al. [76]. The CUSUM test is based on the recursive residuals. According to the CUSUM test, if we detect any systematic subsequent movements in the values of the estimated intercept coefficients signalling a possible structural instability in the parameters. The estimated results by the CUSUM test confirmed that the intercept term is stable over time for both models which confirms that there is no breakpoint in the data, and we cannot reject the chosen specification throughout the sample period. While the CUSUMSQ test shows the instability in the variance of the regression error and based on the sum of squared recursive residuals that means if we want to detect random movements that do not necessarily come from a structural change in coefficients is stable over time. The estimated results show that there is no random movement in the estimated coefficients and all the model coefficients are stable over time. The plots of these tests are depicted in Figure 6, which confirms the stability of coefficients as the test statistics lie within the critical bounds of 5%.

The results of the long run and short-run Granger causality tests are reported in

Table 9. Granger Causality test for Total N₂O Emissions.

Dependent Variable	Short Run Causality F-Statistics (p-Value)							Long-Run Causality [t-Statistics]
	∆lnN2Ot	∆lnGDPt	∆lnGDPt2	∆lnGDPt3	∆lnALUt	∆lnEXPt	∆lnENUt	ECTt−1
∆lnN2Ot		2.4746	2.4780	2.4794	0.0134	0.8182	0.0077	−0.331060 *
		(0.1157)	(0.1154)	(0.1153)	(0.9080)	(0.3657)	(0.9302)	[−2.77179]
∆lnGDPt	3.3905 ***		4.6165 **	4.4608 **	2.9971 ***	0.3897	0.0018	−0.092326 **
	(0.0656)		(0.0317)	(0.0347)	(0.0834)	(0.5325)	(0.9660)	[−2.04135]
∆lnGDPt2	3.3119 ***	4.1282 **		3.8424 **	2.7857 ***	0.3551	0.0007	−1.252190 **
	(0.0688)	(0.0422)		(0.0500)	(0.0951)	(0.5512)	(0.9786)	[−2.09775]
∆lnGDPt3	3.2231 ***	3.5409 ***	3.4104 ***		2.5841 ***	0.3252	0.0001	−12.72294 **
	(0.0726)	(0.0599)	(0.0648)		(0.0979)	(0.5685)	(0.9926)	[−2.14684]
∆lnALUt	1.3603	2.9287 ***	2.9766 ***	3.0137 ***		2.5587	0.1579	0.023318
	(0.2435)	(0.0870)	(0.0845)	(0.0826)		(0.1097)	(0.6921)	[0.51682]
∆lnEXPt	0.0995	1.9180	1.9619	2.0077	2.2066		0.2477	0.570900 **
	(0.75250	(0.1661)	(0.1613)	(0.1565)	(0.1374)		(0.6187)	[2.14589]
∆lnENUt	0.5964	0.7738	0.7948	0.8091	0.4411	3.0690 ***		0.070133
	(0.4400)	(0.3791)	(0.3726)	(0.3684)	(0.5066)	(0.0798)		[1.41249]

Note: *, **, *** significant at 1%, 5% and 10% level of significance.

and

Table 10. Granger Causality Test for Agricultural Induced N₂O Emissions.

Dependent Variable	Short Run Causality							Long-Run Causality
	∆lnN2OAt	∆lnGDPt	∆lnGDP2t	∆lnGDP3t	∆lnALUt	∆lnEXPt	∆lnENUt	ECTt−1
∆lnN2OAt		1.2504	1.2750	1.3018	4.0150 ***	2.2376	2.4986	−0.60354 **
		(0.5351)	(0.5286)	(0.5216)	(0.0908)	(0.3257)	(0.2867)	[−2.17694]
∆lnGDPt	0.5365		0.9526	0.8861	4.4221 ***	5.2710 ***	0.6426	−0.06428
	(0.7647)		(0.6211)	(0.6421)	(0.0996)	(0.0717)	(0.7252)	[−0.76320]
∆lnGDPt2	0.4123	0.8210		0.6986	4.9684 ***	4.9896 ***	0.6653	−0.79809
	(0.8137)	(0.6633)		(0.7052)	(0.0905)	(0.0855)	(0.7170)	[−0.660940]
∆lnGDPt3	0.3082	0.6475	0.5916		4.5501 ***	4.7160 ***	0.6858	−6.78956
	(0.8572)	(0.7234)	(0.7439)		(0.0981)	(0.0946)	0.7097	[−0.56284]
∆lnALUt	2.6558	3.9539	4.0725	4.1816		5.8105 ***	6.9096 **	−0.205654 *
	(0.2650)	(0.1385)	(0.1305)	(0.1236)		(0.0547)	(0.0316)	[−3.09332]
∆lnEXPt	1.4643	0.0119	0.0140	0.0174	2.6731		0.8843	0.393727
	(0.4809)	(0.9941)	(0.9930)	(0.9914)	(0.2627)		(0.6426)	[0.76207]
∆lnENUt	2.0535	6.1227 **	6.0598 **	6.0042 **	4.5581 ***	0.2042		0.228610 *
	(0.3582)	(0.0468)	(0.0483)	(0.0497)	(0.0995)	(0.9030)		[3.00900]

Note: *, **, *** significant at 1%, 5%, and 10% level of significance.

for the cubic specifications of the models for total and agriculturally induced N₂O emissions.

In the case of total N₂O emissions, the results provide strong evidence for a long-run bidirectional causality for the three variables: N₂O emissions, real GDP per capita, and exports. The bidirectional causality between N₂O emissions and economic growth assert that on the one hand economic growth pattern in Pakistan may lead to a change in the pattern of the N₂O emissions, while on the other hand, N₂O emissions impact the economic growth which leads to a favourable way for the sustainable development in Pakistan. However, Pakistan has not yet reached a state of sustainable development and at present passes through the increasing phase of environmental degradation. However, formulating policies to reduce N₂O emissions without seriously affecting economic growth would be a daunting task given the strong positive relationship between N₂O emissions and economic growth at present. It is more likely a chance that in developing countries like Pakistan, the government has been less concerned to reduce its volume to boost the economic growth in the country and the N₂O emissions are off the table in the policy agenda.

In the short run, a unidirectional causality running from N₂O emissions to economic growth is evident. For the other variables, the empirical results show evidence for a bidirectional causality between agricultural land used and economic growth while exports and energy used to have no evidence of causality either way to economic growth. Evidence for unidirectional causality is also found from exports to the energy used.

In the case of agriculturally induced N₂O emissions, the evidence supports a bidirectional causality for the three variables: N₂O emissions, agricultural land use, and energy use per capita in the long run. In the short term, the results show no evidence for causality running from N₂O emissions to economic growth. For the other variables, the empirical results show evidence for a unidirectional causality from agricultural land used and exports to economic growth while the energy used has a unidirectional causality from economic growth to energy used. Evidence of bidirectional causality is found for agricultural land used and the energy used. The causality relation detected based on these results are summarised in

Table 11. The direction of the Granger Causality Test for both Specifications.

Total N2O Emissions		Agricultural Induced N2O Emissions
Short-Run	Long-Run	Short-Run	Long-Run
ALU ↔ GDP, GDP2, GDP3 N2O → GDP, GDP2, GDP3 Exports → ENU	GDP ↔ N2O GDP2 ↔ N2O GDP3 ↔ N2O Exports ↔ N2O ALU → N2O ENU → N2O	ALU ↔ ENU ALU → N2O, GDP, GDP2, GDP3 Exports → GDP, GDP2, GDP3, ALU GDP → ENU GDP2 → ENU GDP2 → ENU	ALU ↔ N2O ENU ↔ N2O GDP → N2O GDP2 → N2O GDP3 → N2O Exports → N2O

Note: → (Unidirectional causality) and ↔ (Bidirectional causality).

above.

6. Conclusions and Policy Implications

In this study, the link between N₂O emissions and economic growth in Pakistan is investigated using models of total and agriculturally induced N₂O emissions. The empirical models of N₂O emissions are derived from the basic model of EKC by incorporating agricultural land used, exports, and energy used as explanatory variables, in addition to GDP. The models are estimated using the ARDL bounds tests approach of co-integration and the data for the period 1971 to 2012. The estimated results from quadratic and cubic specifications are analysed to determine if the link between N₂O emissions and economic growth conforms to the inverted U-shape of EKC or an N-shaped relationship.

The study finds that the N₂O emissions and economic growth in Pakistan follow an N-shaped relationship rather than an inverted U-shaped relationship. This is true for both the total and agriculturally induced N₂O emissions. The tipping values of GDP per capita are $502 and $1002 for total N₂O emissions and $511 and $1007 for agriculturally induced N₂O emissions. These tipping values lie within the sample which implies that Pakistan has not yet reached a state of sustainable development and at present passes through the increasing phase of environmental degradation. The results further imply that the government environmental protection policies adopted according to the Kyoto Protocol have not effectively reduced N₂O emissions in Pakistan. Therefore, a binding agreement of all levels of government is of paramount importance for effective control of N₂O emissions in Pakistan. However, formulating policies to reduce N₂O emissions without seriously affecting economic growth would be a daunting task given the strong positive relationship between N₂O emissions and economic growth at present.

Apart from economic growth the increases in the agricultural land used and energy use have been responsible for rising levels of N₂O emissions in Pakistan. To control N₂O emissions, the agriculture sector needs to focus on more environmentally friendly methods and practices such as encouraging organic farming than the traditional ways of farming that extensively use organic and inorganic fertilisers as suggested by Husnain et al. [95]. The result that the increased energy use leads to environmental degradation at present highlights the importance of redirecting resources towards renewable energy projects for environmental protection in the future. The results show no strong relationship between exports and N₂O emissions which implies that exports may not be seriously threatened by government actions to drastically reduce N₂O emissions.
