Innovative Techniques for Landscape Recovery after Clay Mining under Mediterranean Conditions

by
Diana Turrión
1,†,
Luna Morcillo
1,†,
José Antonio Alloza
1 and
Alberto Vilagrosa
1,2,*
1
Mediterranean Center for Environmental Studies (CEAM Foundation), Joint Research Unit University of Alicante-CEAM, University of Alicante, 03690 Alicante, Spain
2
Department of Ecology, University of Alicante, 03690 Alicante, Spain
*
Author to whom correspondence should be addressed.
†
Both authors contributed equally to this study.
Sustainability 2021, 13(6), 3439; https://doi.org/10.3390/su13063439
Submission received: 29 January 2021 / Revised: 11 March 2021 / Accepted: 17 March 2021 / Published: 19 March 2021
(This article belongs to the Special Issue Sustainable Environmental Reclamation: Landscape Planning and Design)
Browse Figures
Versions Notes

Abstract

:
Open-pit mining results in profound modifications at different environmental scales that may persist for very long time periods, or even indefinitely. Considerable research efforts in mine reclamation strategies have been made, although reclamation failures are still common. In dry climates, such as in the Mediterranean Basin, successful actions may depend on features related to proper species selection and restoration techniques, which may substantially contribute to provide substrate stability and facilitate the regeneration of the main ecological processes. In this context, we developed the TECMINE case-study aimed to evaluate the feasibility and suitability of innovative restoration practices applied to clay-mine reclamation under Mediterranean conditions. The restoration strategy was designed at the landscape level with two main approaches: the recovery of natural geomorphology shapes and ecological restoration, including vegetation recovery and soil quality, based on proper reference ecosystems. After the geomorphological land remodeling, a combination of several innovative restoration techniques was implemented to reclaim plant communities and ecosystem functioning. These techniques involved: (i) accurate species selection according to microhabitat characteristics; (ii) high-quality plant production; (iii) surface remodeling to improve substrate stabilization; and (iv) implementing rainfall collection to enhance resources availability, soil fertility improvement and the amelioration of abiotic conditions for seedlings. Finally, we developed a monitoring program to assess the success of the implemented restoration techniques over time. The application of these innovative techniques has reported interesting results and represents a step forward in the improvement of mine restoration under Mediterranean climate.

1. Introduction

1.1. Open-Pit Mining Landscape’s Impacts and Traditional Reclamation Approaches in Limiting Environments

Industrial-scale mineral extraction entails one of the most dramatic and durable landscape transformations [1]. The direct impacts of open-pit mining methods are usually complete topsoil removal and altered geomorphological landscapes, which often leave hostile environments to be recolonized by vegetation or animals, and directly affect biodiversity and carbon sequestration [2,3].
Similarly, the disposal of non-profitable material extraction on the surface leaves long-lasting evidence for environmental transformations from mining. These modifications to surface and subsurface environments may persist for very long time periods, or even indefinitely, when mining activity ends.
In recent decades, increasing interest has been shown in not only restoring or mitigating mine impacts given the influence of growing environmental concern, but in also adopting more sustainable mining practices [4,5]. At the same time, many government regulations and laws have begun to develop mine closure guidelines [6,7].
Technical mine reclamation strategies (i.e., the combined process by which adverse environmental effects of surface mining are minimized and mined landscapes are returned to a beneficial end use) have been the focus of substantial research efforts and frequent expert meetings [8,9,10] among others. However, reclamation failures are common, frequently related to faults in reclamation execution, inadequate species selection, poor seedling quality, unsuitable restoration techniques, changes in legislation, post-mining land uses, and the impact of local disturbances not considered in reclamation management [11,12,13].
In reclaimed areas under dry climates, as in the Mediterranean Basin, successful actions may specifically depend on features related to water shortage and soil erosion that determine vegetation dynamics [14,15,16], which is considered a key factor that contributes to provide substrate stability and to facilitate the regeneration of fundamental ecological processes [17,18]. The increasingly extensive drought periods and the torrential patterns of rainfall events that occur in these ecosystems will, therefore, determine vegetation performance and erosion processes. Overland flow can be a triggering force in these cases as it redistributes soil particles (erosion and sedimentation) and water (runoff and soil moisture) on the slope scale [19,20], whose negative impacts may vary according to vegetation cover and plant spatial patterns [21]. As part of conventional reclaiming actions, such as the construction of artificial slopes, the incipient development of soil devoid of vegetation and structure favors overland flow run-off and limits rainfall infiltration [22,23]. In some cases, extra overland flows run into reclaimed slopes from the top, which can promote soil erosion and directly affect plant dynamics and reclaiming success [24].
In mine reclamation terms, it is important to distinguish between practices for recovering vegetation and slope stabilization, and practices for restoring ecosystem functioning on different scales. Traditionally, efforts have been made in the first group by testing which species are feasible by considering critical conditions (i.e., lack of soil, scarce precipitation, high runoff, etc.), which may provide more functions besides soil stabilization and plant cover. For instance, in most Mediterranean reclamation projects, fast-growing herbaceous species have been predominantly preferred over shrubs in order to quickly cover soil and reduce the erosion risk. However, these actions have involved sacrificing colonization by other native species due to fierce competition for certain resources like water and soil [25]. Another usual practice in Mediterranean mining restoration is to supply high irrigation rates after planting to ensure plant survival [13]. Nevertheless, irrigation implies infrastructures, as well as high maintenance costs and water use, at sites where it is scarce, and the short duration of the effect may not compensate such investment [26]. Predominantly in berms and platforms designs, plantation has been usually restricted to a limited variety of tree and shrub species with high tolerance to critical conditions (i.e., species like Aleppo pine, Rosemary or Thyme). Once again, the lack of suitable soil and water availability limit the potential of mine sites to enhance biodiversity and other ecosystems services, as several reports warn [27,28].

1.2. An Ecological Restoration Approach for Mining Reclamation: Objectives and Guidelines

According to the Society for Ecological Restoration, ecological restoration is the process of assisting the recovery of an ecosystem that has been degraded, damaged or destroyed [29]. The ecological restoration of degraded lands that involves introducing or naturally colonizing native species should implement field techniques to maximize water availability and nutrients to ensure seedling establishment, survival and growth [30]. In mitigation terms, restoration contributes to increase both capacity carbon fixation and carbon stock by introducing seedlings and providing suitable conditions for the natural colonization of native species [31]. Especially in mining reclamation where disturbance on pre-existing soil and vegetation is often extreme, reclamation is an implemented measure to compensate CO2 emissions from industrial activities [32].
Therefore, the main objectives of the ecological restoration of vegetation applied to mining reclamation should be: (i) slope stabilization by minimizing runoff and degradation processes in incipient substrates; (ii) increasing the water-holding capacity of soil and soil fertility; (iii) enhancing the establishment and growth of new introduced seedlings; (iv) ameliorating conditions for germination and the establishment of new native colonizing species to accelerate ecological succession processes.
Following the most innovative guidelines in ecological restoration [33,34], we suggest drawing up a list of consecutive steps to achieve the pursued objectives:
  • Analyzing the demand for natural capital and ecosystem services.
  • Identifying appropriate native reference ecosystems to optimize the potential for local species and communities to recover through well-targeted restoration actions, and to continue to reassemble and evolve in the face of change.
  • Address within-site heterogeneity by identifying landscape functional units and designing specific actions for each unit.
  • Introducing vegetation according to heterogeneity and natural spatial patterns.
  • Choose a large set of species to match the potential diversity of habitats, ecological conditions and management objectives. According to the potential vegetation in the area, introducing trees and shrubs with high potential cover and good capacity to develop a dense canopy and to accumulate litter, and for fast recovery from disturbances to confer the whole ecosystem good resilience.
  • Foster spontaneous plant growth by applying organic amendments.
  • Improve plantation success by using recent research results and applying innovative techniques to specifically reduce abiotic stress (hole plantation, water harvesting treatments, tree-shelters, mulch, organic amendments). Regarding climate adaptation, when designing species selection and site preparation techniques, current and future climate conditions that increase the ecosystem’s resistance to new changes must be considered. The main objective of all these techniques is to support plant establishment during early post-planting stages.
  • Prevent damage due to overland flow by creating soil-retaining vegetation barriers.
  • Set up an effective monitoring system that allows the status and trends of selected indicators to be measured and helps to identify the necessary corrective actions and modifications.

1.3. Limiting Factors to Reclaim Open-Pit Clay Mines in the Mediterranean

For any mine exploitation type, several limitations come into play that may condition the success of ecological restoration under Mediterranean conditions [35]. On the local scale, substrate instability deriving from the erosive effect of runoff will condition abrupt shifts in vegetation dynamics [36]. Hydrological modifications imply alterations to water availability for plants [37]. Nutrient loss occurs through runoff, erosion, leaching and plant cover removal [38], and directly impacts soil fertility [39]. All these limitations specifically affect restoration actions applied to open-pit clay mines. Disposal on the surface of non-profitable clay material devoid of other textures and soil structure creates an impermeable layer that makes water percolation to deeper layers difficult and promotes overland flow [40]. These factors alter the slope relief, which determines substrate stability and the amount of infiltrated water due to efficient runoff water evacuation [41], which condition edaphic humidity distribution. It is a well-known fact that soil’s capacity to hold water largely depends on soil texture. Although clay can hold the most water of all soil textures, very fine micropores retain water so tightly that plants find it very difficult to extract all of it. Therefore, most plants are unable to extract water beyond the wilting point (i.e., where water is held microscopically with too much energy for a plant to extract), as determined by fine textures [42]. This limitation directly affects the establishment of plant communities in both the initial restoration phase of and its evolution toward more complex ecosystems.

2. The Case Study: The TECMINE Project from the Ecological Restoration Approach

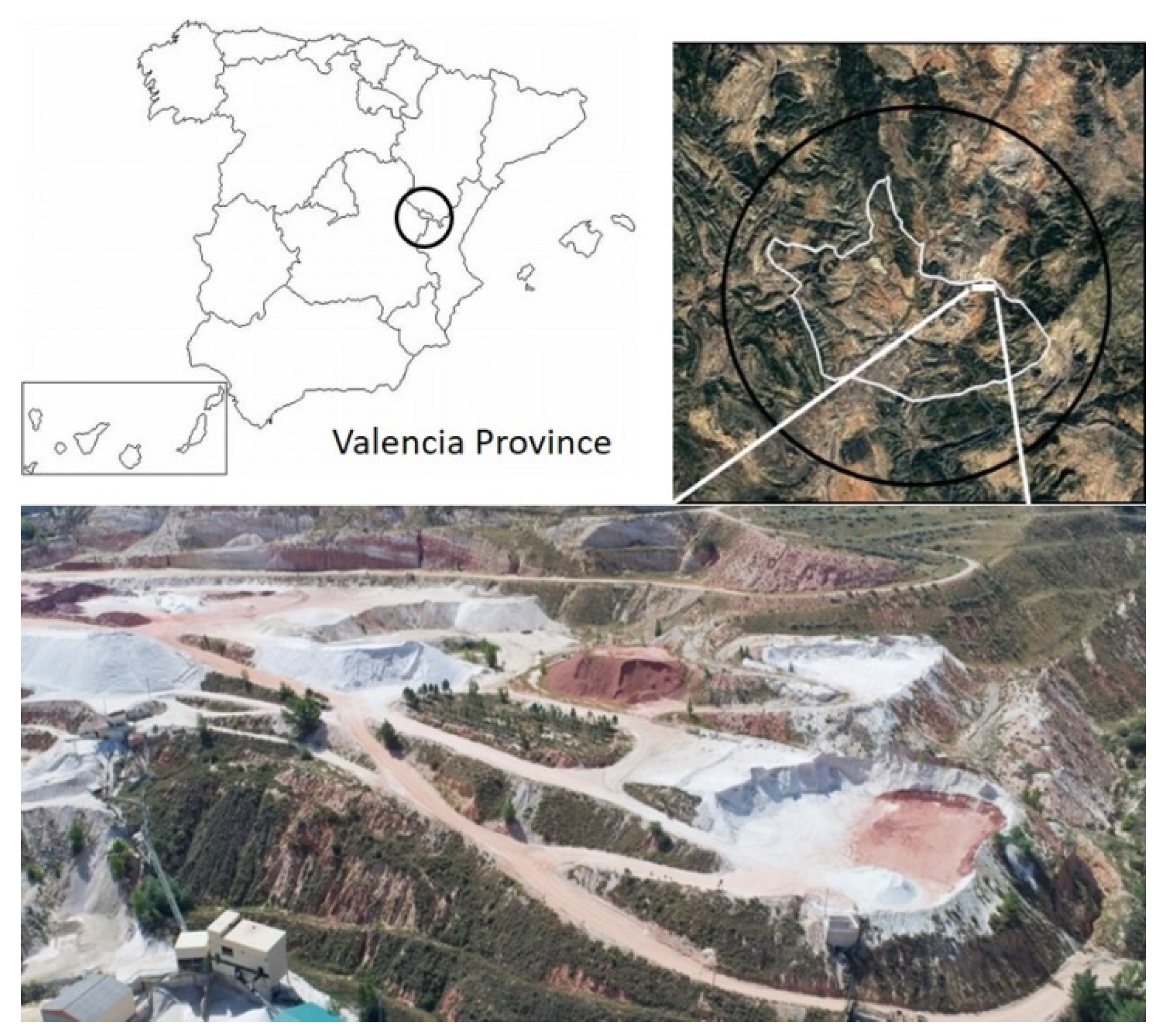

The TECMINE Project was implemented at the Fortuna mine located in Ademuz (Valencia Province, Spain) (40°06′50.38″ N, 1°09′32.21″ W) (Figure 1). The area surrounding the mine shows two differentiated domains as part of the Mediterranean climate: subhumid located over 1100 masl and dry-subhumid around 950 masl reflecting a gradient under climate conditions. The mean annual temperatures range from 9.5 to 15.1 °C, and the mean annual precipitation values are between 443 and 627 mm. The prevailing lithology comes from the Cretaceous period, mostly from the Albian age (facies Utrillas and Weald). The most representative soil around the project area corresponds to Regosols eutrics. According to the bioclimatic classification, the vegetation in the area corresponds to: (i) the Supramediterranean (above 1000 masl), dominated by Juniperus thurifera and Quercus rotundifolia, and hemicryptophytic pastures where Juniperus sabina is present; (ii) the Mesomediterranean (900–1500 masl), dominated by a community with Quercus coccifera, Ulex parviflorus and Cistus albidus species that alternate with agricultural fields and reforestations areas with pines.
The geological profile in the TECMINE Project was specifically characterized by the intercalation of successive layers of Kaolinite–feldspathic white sand separated by red clay levels. The thickness of this profile exceeded 100 m, and contained seven available sand layers whose thicknesses ranged from 4 to 15 m. Over these layers of industrial interest lay several well-organized strata ranging from calcarenitic sandstone to calcareous lithology. To fill the mining hole after exploitation in TECMINE, several clay and sand layers were placed by following the design of land shapes that derived from the Geofluv™ method using the Natural Regrade software [43,44].

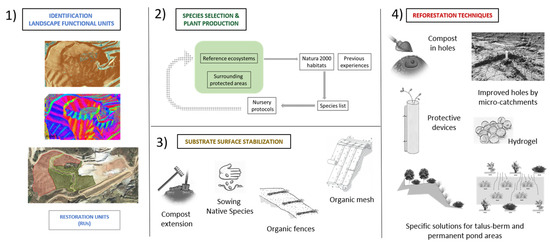

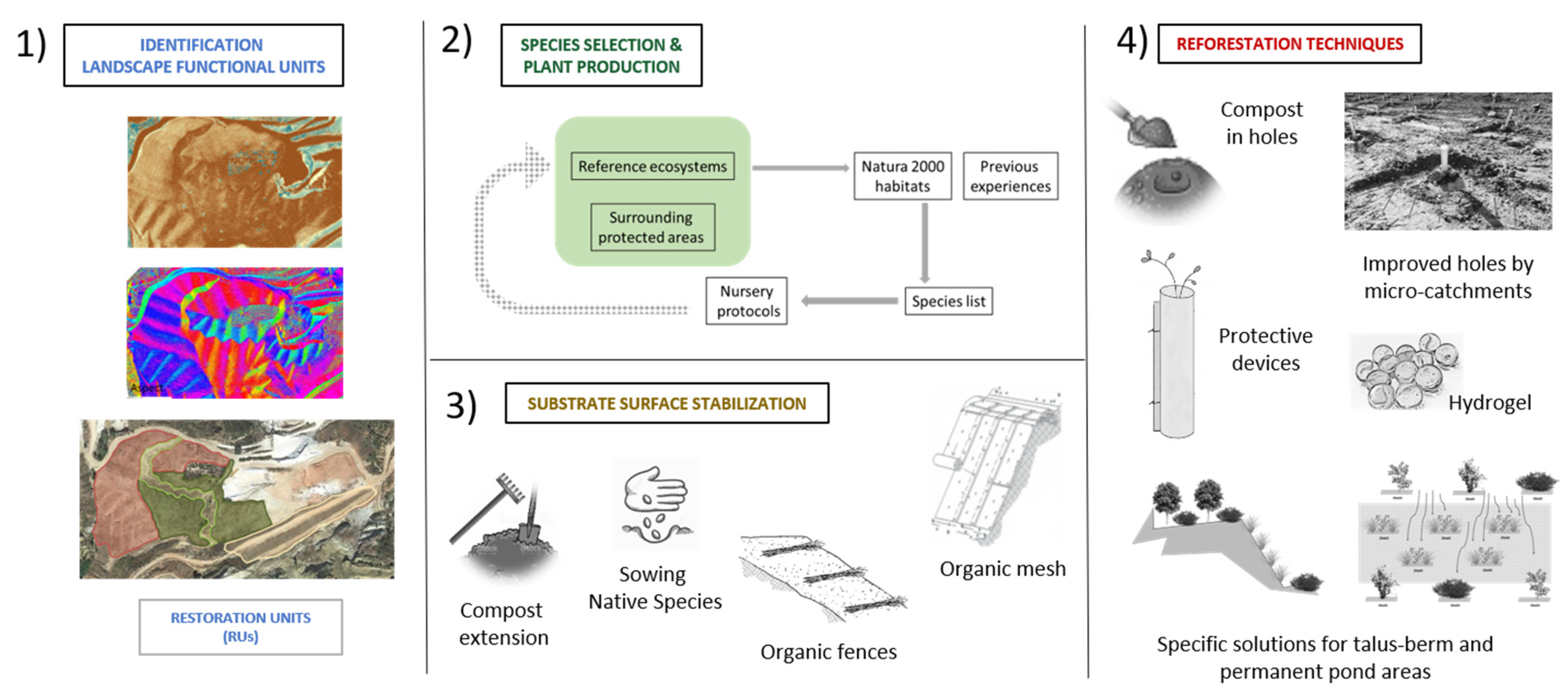

We used the following approach to carry out the ecological restoration of the area:

2.1. Identifying Landscape Functional units According to the Different Physiographic Conditions

We identified three main areas according to the landscape characteristics and restoration objectives: (1) platform mine area; (2) talus-berm area on very steep surfaces; (3) permanent pond area (Figure 2). The platform mine area was the most extensive restoring area (ca. 5 ha) with a main central drainage channel. After applying the Geofluv™ method, the restoring area resulted in smoothed land-shapes, mainly dominated by slopes lower than 15%, a smaller proportion of the surface with slopes between 15% and 30%, and some localized areas with slopes exceeding 30% (Figure 3; Step 1).

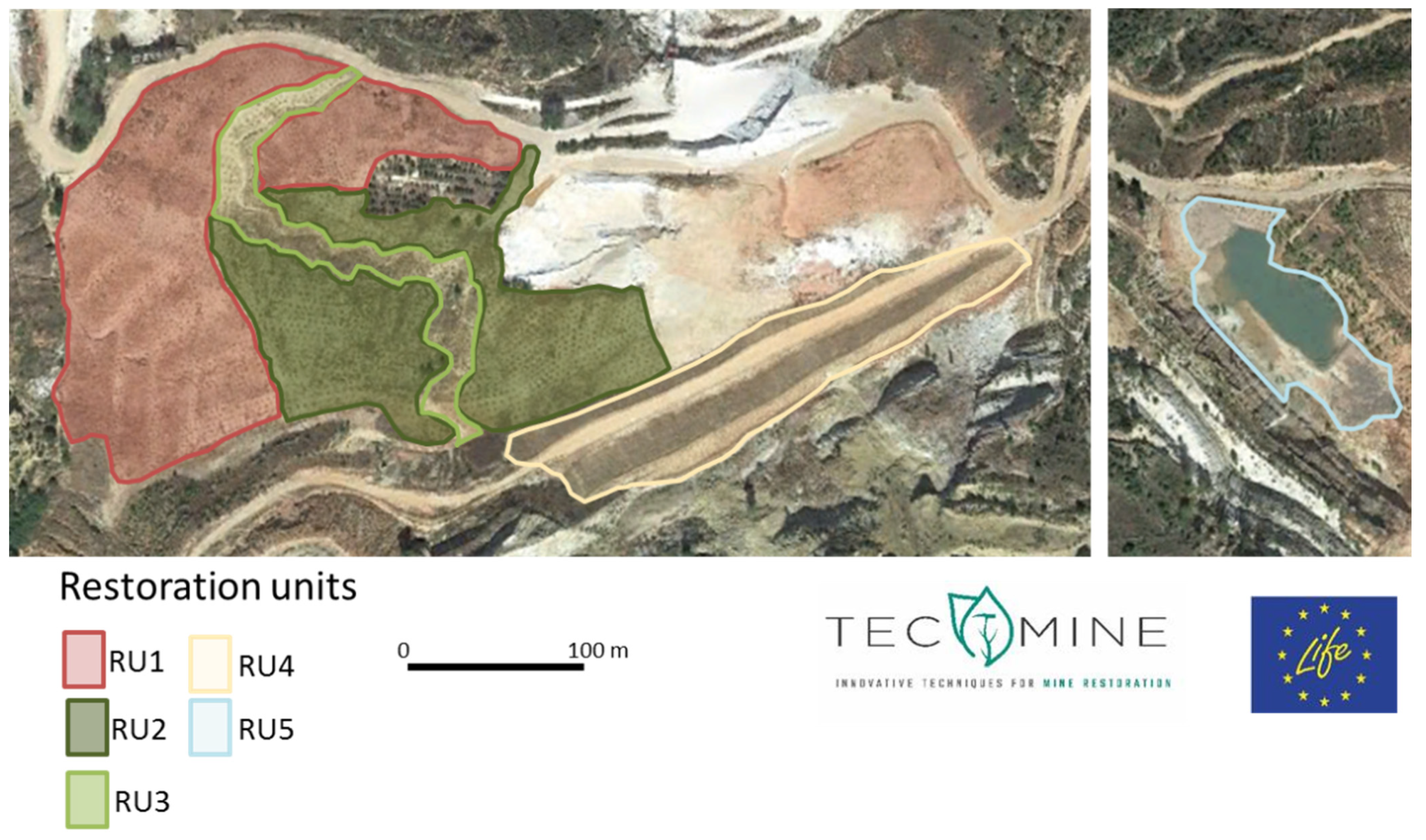

According to these characteristics, three restoration units (RUs) were identified in the platform mine area: RU1, the steepest area with slopes ranging from 15% to 30% whose aspect went from northwest to north; RU2, the flattest area with slopes ranging from 0% to 15%, dominated by north-facing slopes; RU3, mainly in the bottom part, which constituted the drainage channel. The constituted talus-berm area (RU4), which covered approximately 0.1 ha and was located on very steep adjacent surfaces next to the platform mine area (Figure 4; left). In this unit, geomorphological remodeling consisted of systems with flat “berm” areas and steep slopes above 30%. Finally, the permanent pond area (RU5), covering ca. 0.4 ha, resulted in a seminatural wetland area (Figure 4; right) to which no geomorphological restoration was applied.

2.2. Species Selection and Plant Production

Species selection and its composition were based on: (1) the heterogeneity and spatial patterns present in the reference ecosystems; (2) previous reforestation experiences under Mediterranean conditions; (3) the species present in surrounding protected areas, such as The Puebla de San Miguel Natural Park with a long list of well conserved ecosystems for supplying seeds for nursery cultivation purposes; (4) the list of Natura 2000 habitat types in this area after the Interpretation Manual of European Union Habitats—EUR28. Moreover, species selection had to meet the following requirements: (i) evergreen trees and shrubs with high potential ground cover; (ii) good capacity to develop a dense canopy and to accumulate litter; (iii) fast recovery capacity after disturbances to confer the whole ecosystem resilience.
During the TECMINE Project, we selected a large set of species choices to match the potential diversity of habitats, ecological conditions and management objectives. For this purpose, we set out to restore eight different habitat types by reintroducing 31 species (Table S1). Prior to reforestation procedures and techniques, we followed specific plant production and nursery culture guidelines. We first collected the seeds from local populations. We then started plant production and pre-treatments to break the dormancy of some species, such as Juniperus sp. Once germinated, we carried out the nursery culture during one vegetative period (i.e., 1 year) for most species, and two vegetative periods for slow-growing species. Seedlings grew on standard growing substrate, a mixture of peat and coconut fibers, in 300 cm3 forest trays (18 cm deep). The herbaceous species for the permanent pond were cultivated in 500 cm3 forest trays. Seedlings were moderately irrigated. At the end of the nursery period, they were drought-preconditioned to improve the responses to water stress in the field after planting. Seedling acclimation to freezing temperatures was achieved by moving them to the nursery closest to the TECMINE area in the last month of culture period.

2.3. Substrate Stabilization Techniques

After mining activities, the substrate surface where restoration was implemented offered poor stability and could be affected by erosive processes that would compromise its permanence. Actions aimed to reduce soil surface exposure to erosive agents, such as raindrops sealing soil surface or runoff processes, were required. Thus, increasing soil roughness by soil amendments, such as the seeding of herbaceous species or installing organic fences by breaking surface water flows, can help to stabilize the soil surface and allow vegetation establishment and development. In TECMINE, the following techniques were applied for this purpose (Figure 3; Step 3):
The application of organic amendments on the soil surface: fertility has been identified as a main limiting factor for mining restoration due to the lack of storage of a topsoil layer with a sufficient nutrient content to sustain plant growth. Organic amendments or refuses (i.e., biosolids) may compensate these physico-chemical drawbacks by improving vegetation development [45,46] and stimulating microbial activity [47,48]. However, this effect was not permanent and could disappear after a few years [26]. In TECMINE, composted sewage sludge mixed with pruning refuse (10%) was spread in the substrate surface at a rate of 20 tons/ha (Table 1).
Sowing native herbaceous species: introducing herbaceous species is one of the most useful techniques for conferring soil protection [49]. This treatment promotes quick plant cover that increases surface roughness and results in improved soil physical properties, such as infiltration, water retention capacity or structural stability to prevent the loss of resources against runoff. It also creates microsites to establish native colonizing vegetation. We sowed a seed blend consisting of 50% Dactylis glomerata and 50% Lotus corniculatus throughout the restoration area. Doses and species mixture were in accordance with previous experiences [50,51,52].
Organic fences to promote slope roughness: there are several purposes for arranging banded forest refuses as kindling wood or chopped forestry refuses along slopes to: (i) attenuate runoff and erosion processes; (ii) create micro-environments like fertility islands; (iii) promote refuges for small fauna. This treatment consists of strips arranged in parallel to contour lines along slopes. Spatial distribution followed an interspersed design to promote water flow disruption and to favor its role as traps for sediments, seeds, etc. This treatment was implemented in RU1 (Figure S1), where long steep slopes are present. Organic fences were 3–5 m long, 50 cm wide and 20 cm thick.
Organic mesh to control erosion runoff: this widespread technique offers the possibility of protecting unstable steep slopes and restoring vegetation. We installed rolls of organic mesh composed of natural fibers on the steep slopes in the talus-berm area (RU4) by fixing them to the ground surface. At the same time, we also sowed herbaceous species to allow substrate surface stabilization, while vegetation grew along these surfaces.

2.4. Reforestation Strategy and Techniques

Different techniques were implemented according to the specific characteristics in each unit (Figure 3; Step 4) as follows:

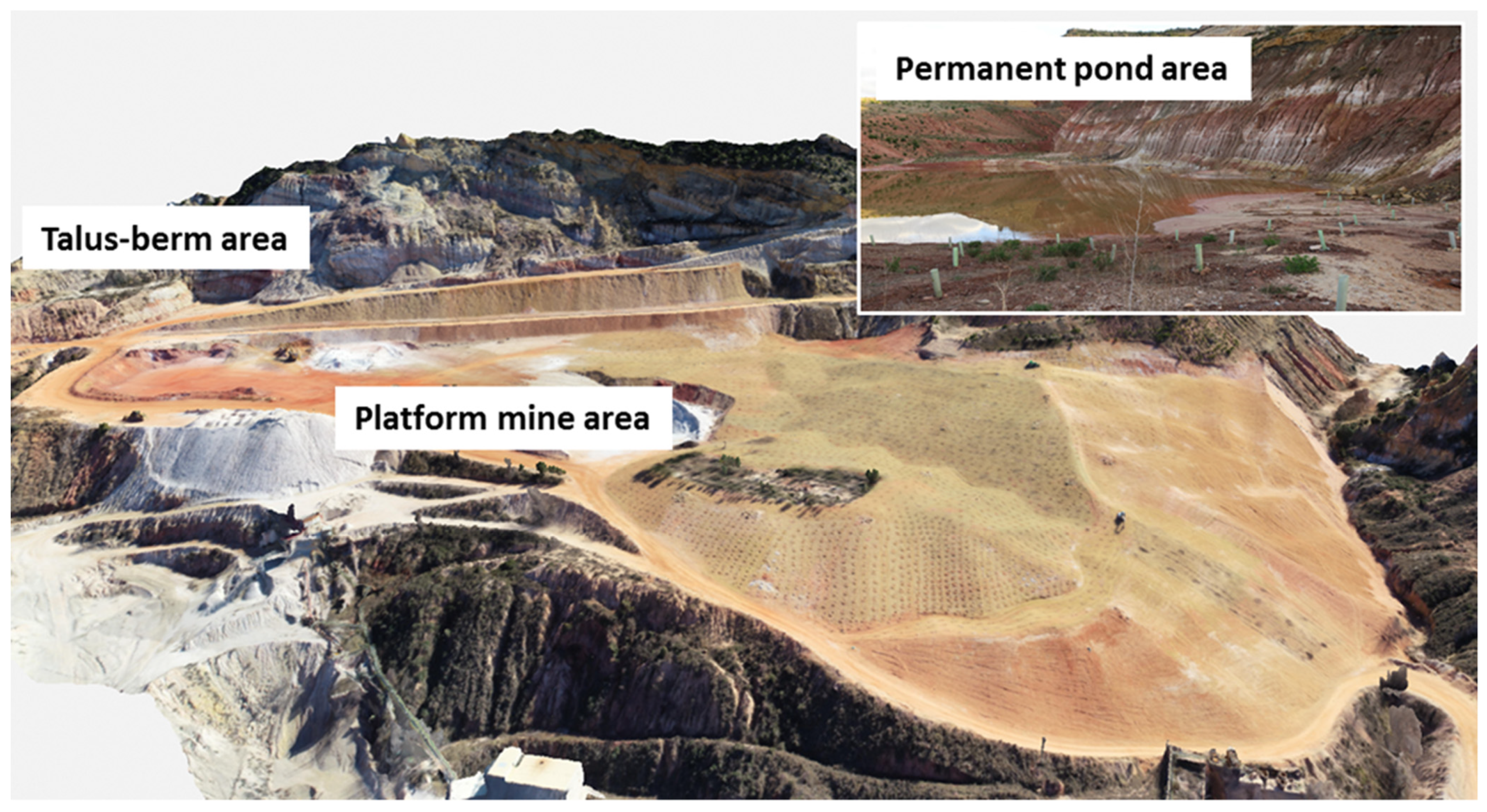

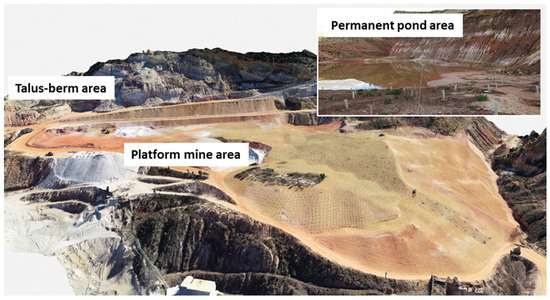

(a)
Platform mine area: combined techniques were applied as a result of its extension and its contrasted physiographic characteristics.
Standard holes improved by microcatchments: an adequate planting hole size is a determinant to favor root expansion during the first periods after planting, specifically during ecological restoration under Mediterranean climate conditions. The main microcatchment technique goals are to capture runoff water (runoff harvesting) and promote infiltration to seedlings’ root zones. Microcatchments consisted of two small channels (1–1.5 m long) on both sides of the planting hole that conduct runoff to seedlings (Figure S2). Microcatchments were constructed over smoothed slope areas, such as RU2 and RU3, and were not set on steep slopes due to possible uncontrolled runoff by water accumulation in upper locations, i.e., RU 1 (Table 1).
Fertilization with composted organic waste: planting holes may benefit from the application of biosolids that act as a slow-release fertilizer. Biosolids also promote microbial activity and increase water-holding capacity. These amendments have been frequently used as supplementary treatments to accelerate the recovery of mining areas [53,54,55]. During our project, the composted sewage sludge was poured into each planting hole before seedling plantation and was well mixed with the substrate until complete substrate homogenization. According to previous experiments [56], the applied dose was 2 kg of compost per hole (0.4 × 0.4 × 0.4 m) (Table 1).
Treeshelters and protective mesh: these protective devices keep plants from hard abiotic and biotic conditions that can be harmful for inserted seedlings, such as high temperature and radiation during summer periods or herbivory. Most tested species have exhibited a positive response to treeshelters, including some grown in degraded soils under Mediterranean conditions [13,57,58]. The commonest treeshelters consist of plastic tubes (60 cm long, about 15 cm in diameter) provided by holes to ensure air circulation. This type of treeshelters was installed on the tree and shrub species in RU1, RU2 and RU3 (Table 1). Protective mesh was also installed over dwarf shrubs species in RU1 to protect seedlings against herbivory, which was the case of Brachypodium sp., Lavandula latifolia, Rosmarinus officinalis and Psoralea bituminosa.
Hydrogels: these compounds are artificial hydro-absorbent polymers designed to increase the water-holding capacity of soil and substrates. Enhancing water availability can be relevant in early post-planting stages as it provides seedlings with an extra water supply during initial root development [59]. However, it is important to consider soil properties before its use because one of the main constraints of hydrogels is that water-holding capacity may be limited by competition if clay contents in soil are high. During the TECMINE Project, hydrogels were applied after the soil textures analysis at a rate of 5 g dry weight/hole at the base of the planting holes in RU1, which was dominated by high fine and coarse sand contents (Table 1).
(b)
Talus-Berm area:
Geomorphological restoration may be constrained in some areas with very steep slopes. One possible solution is to create areas known as talus-berm systems, characterized by flat areas alternating with areas of slopes exceeding 30%. In the steep talus, the main technique was to assemble organic mesh and sow herbaceous species. Then, we dug small furrows (ca. 1 m long × 0.2 m wide) to establish three standard seedlings (Figure 3; Step 4). For each furrow, we planted three individuals of two species: two Brachypodium retusum and one Dorycnium pentaphyllum (Table S1). This selection falls in line with the species’ morpho-functional characteristics, of quick radical and aerial growth, which favors the retention of water and sediments, and minimizes degradation processes. Furrows were interspaced and distributed to favor the distribution of infiltration and runoff through vegetation. We recommend planting shrub and tree species in berm and plain areas because they receive a large amount of resources during the rainy season, which allows these species to survive and develop.
(c)
Permanent pond area:
This area is characterized by a seminatural pond where water availability is not limited. The restoration strategy involved arranging standard plantations in bands surrounding the pond. Species selection depended on the distance to water and flooding oscillation. Consequently, for permanently flooded areas, we used wetland grasslands like Juncus sp., Scirpus holoschoenus, Phragmites sp. or Typha sp. in small plantation holes (ca. 0.2 × 0.2 × 0.2 m). In a second line outside the temporally flooded area, we planted riparian forest tree galleries, such as Populus sp. or Tamarix sp., among other species (Table S1). Finally, the areas farthest away from water were planted with a combination of selected Mediterranean species as in RU3. No composted sewage sludge was applied to prevent the water eutrophication deleterious effect.

2.5. Monitoring Program

Setting up a monitoring program is essential for evaluating the success of restoration actions [60,61]. Monitoring allows to: (i) evaluate the effectiveness of implemented techniques; (ii) in terms of an adaptive management approach, detect critical stages which may compromise a lack of success in the restoration, and establish corrective measures if required; (iii) by means of indicators, objectively assess whether ecosystem services return to the restored area.
By considering the main ecosystem services during monitoring assessments, such as biodiversity, the hydrological cycle, desertification or carbon sequestration may be useful for quantifying the degree of success. To establish a baseline to which to compare, the same indicators must be measured in both well-preserved reference ecosystems and the restoring area.

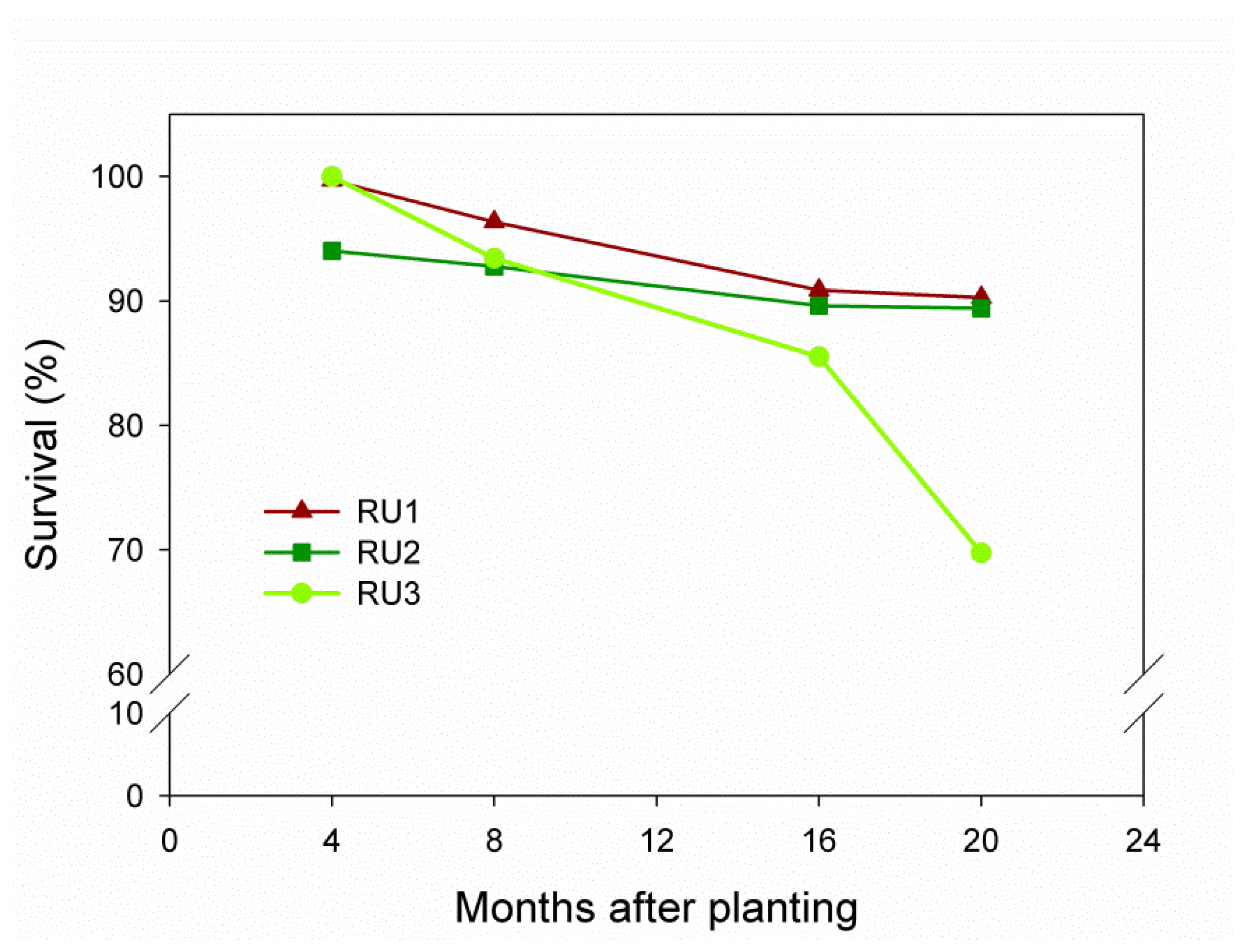

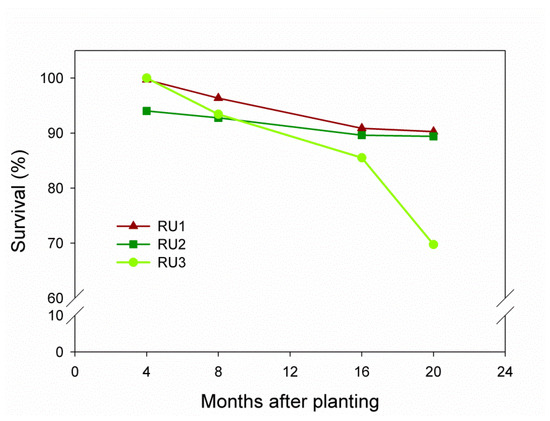

During the TECMINE Project, the monitoring program pursued several purposes. In order to assess the success of the implemented species and reforestation techniques, we periodically evaluated the plant survival and growth (i.e., height and basal diameter) of the introduced plants. According to abundance, the suitable representation of the introduced species was randomly selected and labeled for monitoring purposes for the next few years. These indicators allow the detection of possible shortcomings or limitations, such as poor seedling shock quality [62,63], exposure to harsh environmental conditions [64] or predation [65]. Analyzing soil water availability for the first years after planting may prevent seedling mortality or physiological damage (i.e., xylem cavitation or photochemical damages) due to out-of-season drought or long summer periods. In fact, the continuous soil water content measures registered during TECMINE warned us about very low water content values because of a dry period occurring immediately after planting, which implied the need for a punctual irrigation treatment in the first spring.

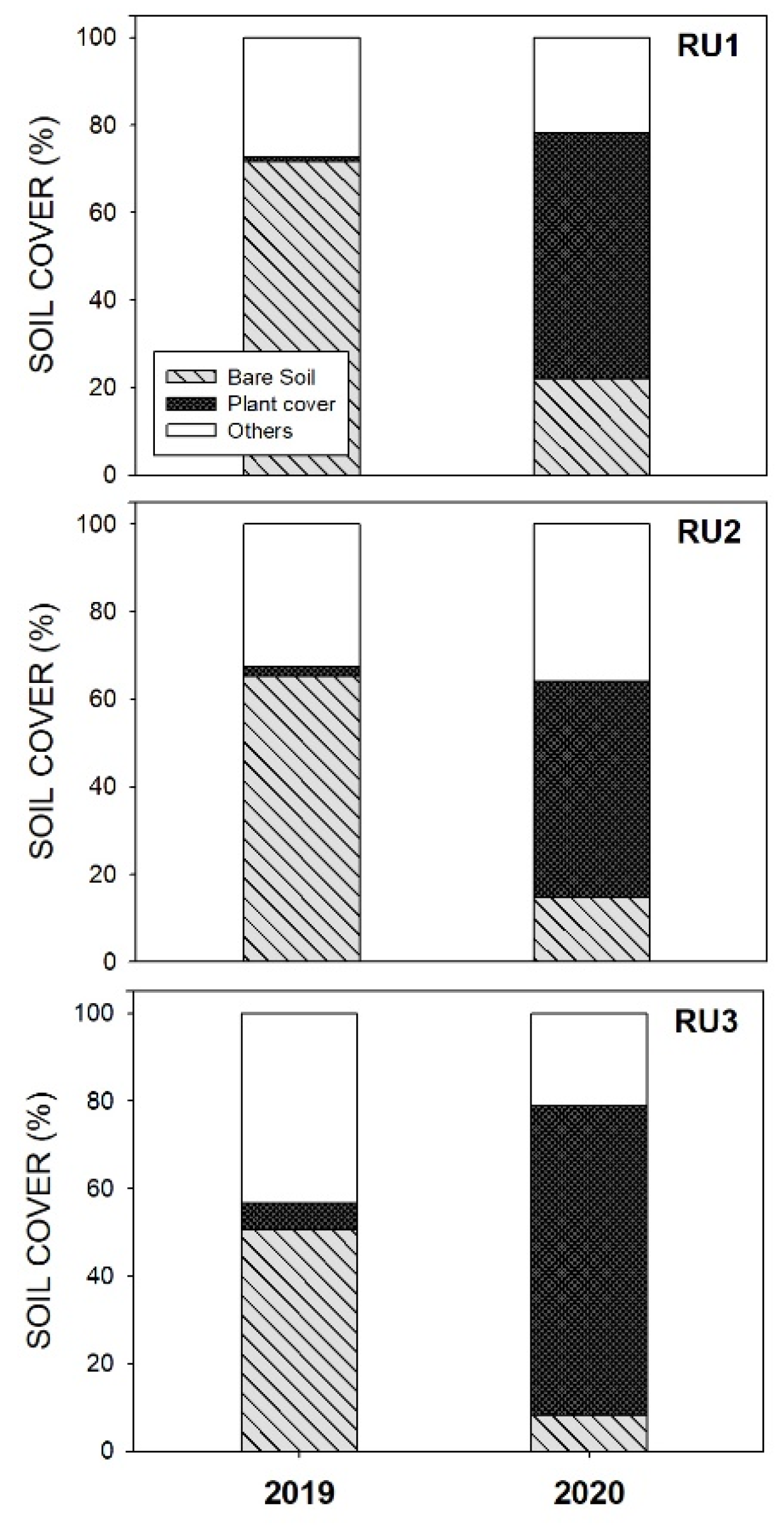

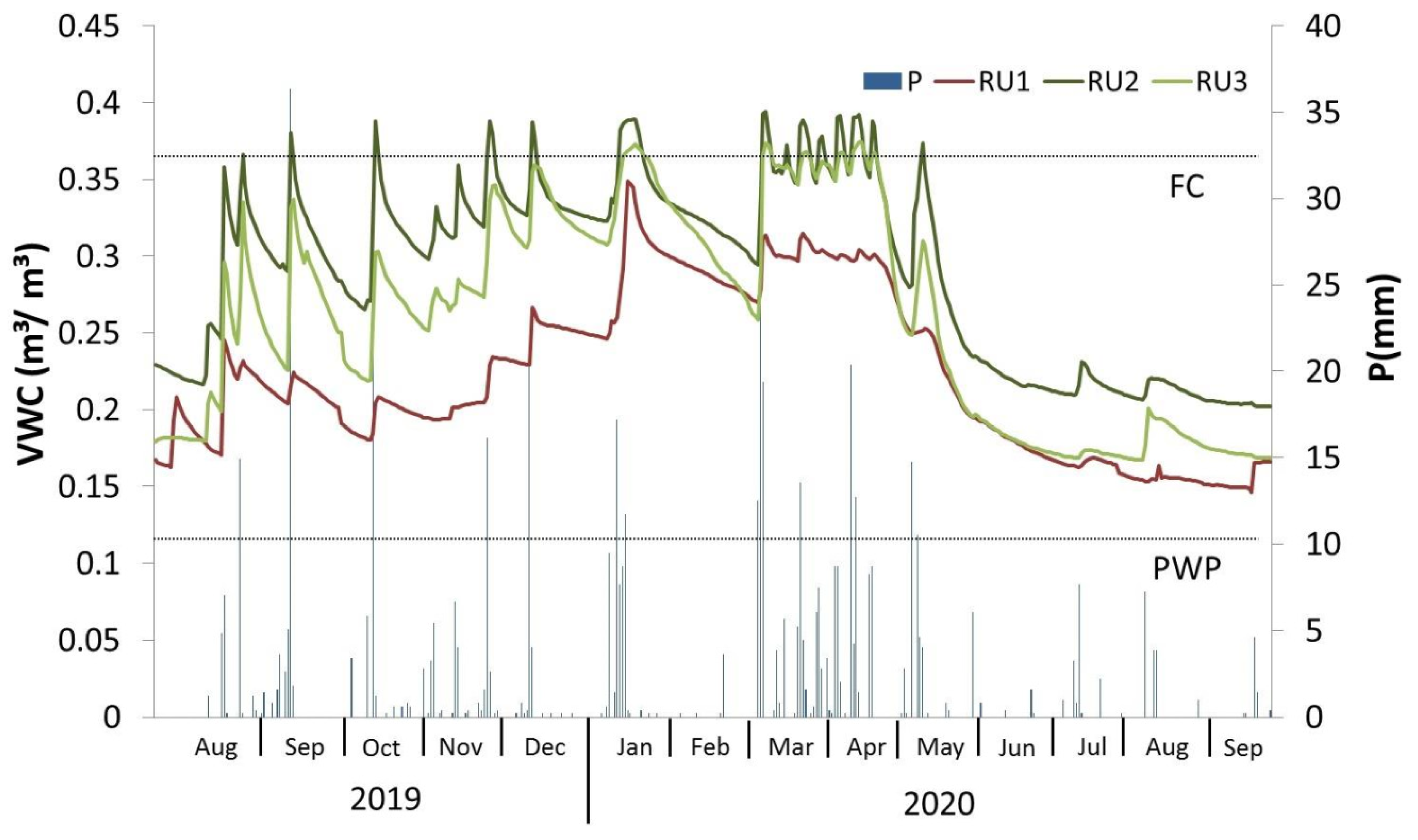

In relation to soil stabilization, plant cover dynamics are a proper indicator of effective cover in soil protection terms against erosive processes [66]. During TECMINE, seasonal inventories are programmed to acquire information about the presence, cover, growth and phenological status of both introduced and colonizer species, which have been tested as good indicators to establish the effect of sowing and plant native colonization [67]. Average height and species dominance allow plant community performance to be determined in the restored area. With all the measured variables, it is possible to obtain proxy indicators of plant biodiversity, such as specific richness, biodiversity indices or relative species abundance. The use of drones provided by visible and red and NDVI sensors, and later image analyses, were also included in the TECMINE monitoring program to identify changes in plant cover according to different abiotic conditions (soils, treatments, slope aspects) on a large scale, and to make comparisons to similar adjacent areas with native vegetation.
The ultimate purpose of mine restoration projects is to recover ecosystem functioning and vegetation dynamics. With this scope, during the TECMINE Project we planned to analyze plant biomass evolution, soil fertility, C sequestration and other parameters related to the hydrological cycle. These parameters are related to primary production, climate regulation, carbon storage and water provision [68]. To estimate the C fixation capacity of both soil and plants after restoration, we stablished soil analytical assessments over time, as well as above- and below-ground biomass determinations, in the main representative species. In order to establish water dynamics on the plant community scale, which provided information about the use of water from rainfall in the restored area, we planned to apply computer hydrological models, such as the HYDROBAL model [69], at the end of the project. This model estimates the main hydrological parameters (i.e., evapotranspiration, infiltration, soil water reserve, deep percolation, etc.) according to the vegetation structure, soil characteristics, soil water dynamics and climate conditions in the area.

3. Results Analysis and Lessons Learned

(1) Starting from a good base: after land remodeling, procuring suitable substrate is a crucial step to achieve successful ecological restoration [70]. If a topsoil stockpile is not stored for its later redistribution, then preparing a well-balanced mixture of the non-profitable materials available at the mine will confer proper texture, porosity and stoniness to enhance water-holding capacity, soil protection and plant root development. Sandy loam and sandy clay loam textures in mine soils are generally considered favorable for tree growth [71]. During TECMINE, a layer of colluvium from surface edaphic layers was spread over a large area of the restored surface. This layer guaranteed a balanced proportion of sand, silt and clay compared to the clay and sand layers that result from exploitation refuse (Table 2). In addition, the colluvium placed over the restored area substantially increased stoniness, which can contribute to prevent soil compaction problems [72]. In specific areas where the colluvium layer was not thick enough, and when combined with slopes above 30%, erosive processes took place with the consequent appearance of rills and gullies (Figure S3), which highlights the importance of substrate properties.
(2) Soil nutrient availability requirements: organic amendments, if conveniently applied to sterile substrates, have positive effects on soil fertility and vegetation development. The soil analysis performed after applying compost during TECMINE showed a significant increase in all the nutritional parameters (Table 3). Addition of compost in planting holes also gave positive responses for the introduced seedlings in all the restoration units. Survival rate values ranged from 70% to 90% (Figure 5) at 20 months after planting. Growth rates (Figure 6) resulted in RGR values above 1, which means a 3-fold increase in size in relation to the planting date. The initial size of some species like Psoralea bituminosa, Rhamnus alaternus, Rhamnus lycioides, Colutea arborescens and Pistacia terebinthus increased even more than 7-fold. According to the literature, this positive response to nutrient addition is especially expected during seedling establishment in optimal conditions, when plants are in an exponential growth phase that results in increased production and improved plant performance [73,74]. In TECMINE, these positive effects of organic amendments on vegetation may be compromised if some aspects like dose, quality and application type are not conveniently considered [46,52].
(3) Promoting effective soil cover: herbaceous species play a key role in soil stabilization in early stages after land remodeling [75]. Sowing native species in proper doses is crucial in preventing a very fierce competitive effect with both introduced seedlings and colonizing vegetation [52]. After one year of restoration during TECMINE, most of the initial bare soil was covered by herbaceous species (Figure S4). The herbaceous cover exceeded 40% throughout RU (Figure 7), which may suffice to effectively control erosive processes [76].

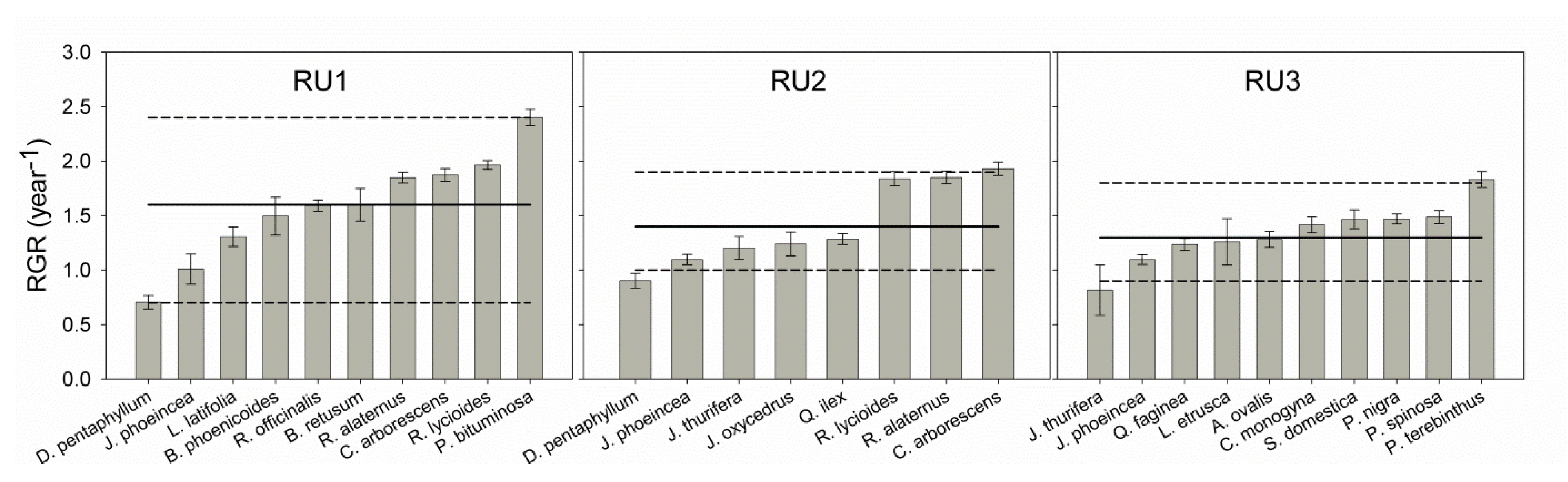

(4) Accurate species selection, seed provenance and suitable plant nursery techniques: determining proper ecosystem references allows detailed species selection to be carried that suits the specific physiographic characteristics of the restoring area. Moreover, if this selection is conducted on a microhabitat scale, it will entail high plant diversity levels that guarantee the good adaptation of the plants introduced into the new restored environment and in turn, local seed provenance ensures good adaptation to local conditions. We also recommend carrying out the nursery period in an infrastructure near the restoration area to guarantee good seedling acclimatization to the abiotic conditions of the area where they are introduced. This statement in our project certainly involved successful survival and growth rates to date, independently of each restoration unit characteristics and limitations (Figure 5 and Figure 6).
(5) Low-cost actions with many associated benefits: it has been widely reported that resources management may improve ecosystem functioning and the provision of services, while minimizing costs [30,77]. The use of innovative low-cost techniques appears to be a good option to optimize resource availability rather than other more expensive options like irrigation systems [78]. Microcatchments have been previously tested with positive results in improving in surface water use efficiency by incrementing water soil storage in planting holes [79]. Our preliminary results in soil moisture dynamics on the planting hole scale showed that microcatchments had a positive effect with increased soil moisture around 7% in RU2 and RU3 in relation to the standard holes of RU1 where no microcatchments were constructed (Figure 8).
(6) Sustainability and circular economy claims: TECMINE aims to contribute to sustainability from the integration of society, the environment and local economy. It is necessary to look for more sustainable production systems to reduce employed resources and waste. During the TECMINE Project, we applied these statements by promoting local employment and taking waste materials from close areas, such as chopped wood from silvicultural pruning in close forests or organic composted amendments from a close sewage sludge plant. The new restored space can contribute to the area’s socio-economic development by welcoming new uses, such as ecotourism or recreational activities, which have an impact on the local population’s income.

4. Conclusions and Recommendations

The quality of the topsoil selected for reclaiming the area is essential. A proper texture together with a well-balanced stoniness proportion will enable a good development of the vegetation, avoiding negative effects such as surface crusting, high runoff, and soil losses during rainfalls. The fertilization of this topsoil with low-cost composted refuses such as sewage sludge will provide an adequate nutrient content for the vegetation development. Moreover, these recycling residues practices promote sustainability and a circular economy.
Regarding vegetation establishment, it is important to promote the rapid colonization by sowing herbaceous species that cover and efficiently protect the soil. Additionally, the plantation of native trees and shrub species will accelerate the recovery of the natural vegetation in the restored area. A careful species selection will facilitate high survival and growth rates independently of the biotic conditions, even in the most unfavorable sites. The introduction of non-native species should be avoided due to the risk of introducing invasive species.
The application of low-cost restoration field techniques such as micro-catchments instead of more expensive irrigation systems will produce a positive effect on seedling establishment and growth, reducing the costs and the waste of water in climates with important water limitations as occurs in drylands.

Supplementary Materials

The following are available online at https://www.mdpi.com/2071-1050/13/6/3439/s1, Table S1: Habitat and species selection according to Natura 2000. Figure S1: General view of the organic fences distribution; Figure S2: Microcatchment technique; Figure S3: Comparison between substrates; Figure S4: Plant cover dynamics.

Author Contributions

Conceptualization, D.T., L.M., J.A.A. and A.V.; methodology, D.T., L.M., J.A.A. and A.V.; investigation, D.T., L.M. and A.V.; data curation, D.T.; writing—original draft preparation, D.T. and L.M.; writing—review and editing, D.T., L.M., J.A.A. and A.V. All authors have read and agreed to the published version of the manuscript.

Funding

The study was funded by the LIFE TECMINE Project (LIFE16 ENV/ES/000159) from the European Programme for the Environment and Climate Action (2014–2020)*. L.M. was supported by the Spanish MICINN (PTA2019-018094). The CEAM foundation is funded by the Generalitat Valenciana. *NB: This publication reflects solely the opinions of the authors, and the TECMINE Commission is not responsible for any use that may be made of the information herein contained.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the LIFE EU program which is an important funding instrument for the environment and climate action (ec.europa.eu/easme/en/life (accessed on 1 March 2021)). We thank the TECMINE partnership consortium: GVA and Vaersa (coordination and management tasks), CIEF (plant production), UCM and UNIZAR (geomorphological design and soil-water dynamics monitoring) and SIBELCO (mining company, remodeling and field works). We also thank D. Fuentes from Ecodrone Works for the image analysis support.

Conflicts of Interest

The authors declare no conflict of interest.
