Glass Crystalline Materials as Advanced Nuclear Wasteforms

by
Michael I. Ojovan
*,
Vladislav A. Petrov
and
Sergey V. Yudintsev
Institute of Geology of Ore Deposits, Petrography, Mineralogy and Geochemistry of Russian Academy of Sciences (IGEM RAS), 119017 Moscow, Russia
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(8), 4117; https://doi.org/10.3390/su13084117
Submission received: 1 March 2021 / Revised: 1 April 2021 / Accepted: 6 April 2021 / Published: 7 April 2021
(This article belongs to the Special Issue Nuclear Waste Management and Sustainability)
Browse Figure
Versions Notes

Abstract

:
Glass crystalline materials (GCM) are of increasing interest as advanced nuclear wasteforms combining the advantages of vitreous and crystalline matrices. The GCM are versatile wasteforms envisaged for a wider use to immobilise various types of both radioactive and chemically hazardous wastes. They can be produced either via low temperature sintering using precursors composed of glass frit, oxides, and crystalline phases or through conventional melting aiming to produce first a parent glass, which is then crystallised by a controlled thermal schedule to obtain target crystalline phases within the GCM. Utilization of GCM is highlighted as a perspective wasteform for immobilization of partitioned radionuclide streams.

1. Introduction

The spent nuclear fuel (SNF) reprocessing generates radioactive wastes, including high level radioactive waste (HLW), which is industrially immobilised in the Na-Al-P glass in Russia and A-B-Si glass elsewhere, where A stands for alkaline elements. By 2013, there were about 30,000 accumulated tonnes of vitrified HLW overall in the world [1,2]. Considering the processing rates of vitrification facilities [2,3,4,5,6], the current mass of vitrified HLW can be estimated at about 35,000–36,000 tonnes, of which almost 80% are A-B-Si, and the rest are Na-Al-P glasses. Vitrification of HLW is, however, not the optimal method of immobilisation due to the relative low radionuclide loading of glasses and their susceptibility to crystallisation, which can begin immediately after the melt pouring into canisters due to the residual heat of the melt [6,7]. Partitioning of HLW radionuclides onto groups can provide a better solution for their immobilisation by incorporation within crystalline lattice of silicates, titanates, zirconates, and phosphates. Their natural analogues are minerals zircon, britholite, pyrochlore, zirconolite, murataite, perovskite, monazite, and garnet [8,9,10,11,12,13,14,15,16]. Fission products (Cs, Sr) can be isolated in both crystalline phases such as hollandite, pollucite, perovskite, langbeinite, and glasses. Glass crystalline materials (GCM) with the same mineral-like phases are optimal for wastes of complex composition. The major component of GCM may be either the crystalline phases with the glass acting as a binding agent or alternatively the vitreous phase may be the major component, with crystalline particles dispersed in the glass matrix [17,18,19,20,21].
The aim of this paper is to highlight the effectiveness of GCM as a universal nuclear wasteform which overcomes limitations of classical vitrification processes related to the low solubility in glasses of some nuclear waste components such as minor actinides (MA) and enhances the waste loading while improving the durability and long-term stability of the wasteform. The review focuses on universality of GCM wasteforms for immobilisation of HLW radionuclides utilizing the fractionation (partitioning) approach when the most dangerous components are immobilized in most durable and most stable crystals whereas the vitreous phase accommodates less dangerous, shorter-lived radionuclides. The vitrification technology currently accepted as baseline for HLW immobilization can be accordingly modified to produce GCM wasteforms.

2. HLW from SNF Reprocessing

The composition of SNF depends on the type of reactor, initial fuel used, the depth of its burnup, and storage time after discharge from reactor [22,23]. HLW radionuclides are fission products, actinides, and activated elements of fuel assemblies. The main fission products are rare earth elements (REE), Zr, Mo, Tc, Ru, Pd, Cs, Sr, Rh, Te, Xe, Kr, and I, with REE accounting for up to 25 wt.%, platinoids—16%, Zr—15%, Mo—12%, Cs—6% [24]. After three years of storage of SNF with a burnup of 33 GW·day (enrichment of 3.5% 235U) it contains in kg/tonne of SNF [19]: Alkalis (Cs, Rb)—3, alkaline earths (Sr, Ba)—2.4, rare earths (mainly light of Ce group)—10.2, transition 4d metals (Mo, Zr, Tc)—7.7, platinoids (Ru, Rh, Pd)—3.9, 0.5 kg Se and Te, 0.2 kg I and Br, 0.1 kg Ag, Cd, Sn, and Sb. These quantities of fission products are determined by their bimodal distribution (yield) which depends on the atomic mass, where the maxima are located in the ranges of 85–105 (Rb, Sr, Zr, Mo, Tc, platinoids, Ag) and 130–150 (Te, I, Xe, Cs, Ba, REE). With the burnup increase the content of fission products in SNF and thus in HLW increases too. Over time, the heat release of SNF decreases and within a few hundred years the main role in heat generation transfers from the short-lived fission products to long-lived actinides.
The SNF reprocessing generates from 1 to 13 m3 of liquid HLW per 1 tonne of SNF [23], although after evaporation its volume is reduced to 250 L [24]. Specific features of the SNF composition are inherited by the HLW; in addition, it contains technological impurities [21,23,24]. In the dry residue of HLW there are [19,25]: 19% of transition metals (Mo, Zr, Tc), 18% of rare earths (La, Ce, Pr, Nd, Sm), 10% alkaline (Gs, Rb) and alkaline earth (Sr, Ba) elements, 7% of platinoids (Ru, Rh, Pd), 2% of minor actinides (Np, Am, Cm), up to 1% Se and Te, and another 43 wt.% belong for Fe, Ni, Cr, Na, P, and less significant elements. Calcined HLW contains (mol.%) [26,27]: Fission products—26.4 REE, 13.2 Zr, 12.2 Mo, 7.6 Ru, 7.0 Cs, 4.1 Pd, 3.5 Sr, 3.5 Ba, 1.3 Rb; 9% of other fission and corrosion products, mainly Tc, Rh, Te, I, Ni, and Cr; actinides: 1.4 (U + Th) and 0.2 (Am + Cm + Pu + Np), impurities—6.4 Fe, 3.2 P, 1.0 Na. According to [28], the HLW calcine after 10 years of storage consists of, wt.%: 6 Cs2O, 6 TcO2, 3 SrO, and 6 minor actinides (MA): Np, Am, and Cm, 4 BaO, 10 RuO2, 15 REE2O3, 6 PdO, 15 ZrO2, 2 Rh2O3, 15 MoO3.

3. HLW Vitrification

Industrial vitrification of liquid HLW from SNF reprocessing is done for more than 50 years. It started in France in 1968–1973 [29] with 12 tonnes of radioactive glass produced by vitrifying 25 m3 of waste. Large-scale vitrification of HLW is done in France since 1978 using A-B-Si glass whereas Russia uses Na-Al-P glass composition since 1987 [2,4,19,21,30,31,32,33,34]. A drawback of glasses is the limited content of nuclear waste which is typically from 3 to 5 wt.% for Na-Al-P glasses and from 5 to 20 wt.% for A-B-Si glasses. This results in a relatively large volume of vitreous product to be disposed of which entails high costs for the construction of underground disposal facilities. Therefore, approximately 1.5–1.8 tonnes of Na-Al-P glass is produced at immobilization of HLW derived at reprocessing of 1 tonne of SNF, while for A-B-Si glasses this value is significantly lower (about 0.4 tonnes only). Low content of radionuclides in the Na-Al-P glass is caused by its lower heat resistance [35]. The temperature of the vitrified waste block is requested to be at least 100 °C lower than the glass transition temperature (Tg) of glass to avoid crystallisation effects [19]. The temperature of the glass block depends on the intensity of radiogenic heat generation. The maximum design HLW radioactivity for Na-Al-P glass is 2500 Ci/L, with practical values being from 60 to 600 Ci/L [24,35]. The intensity of heat generation of vitrified HLW decreases with time from 18 kW/m3 after 5 years to 6 kW/m3 after 25 years, and to 1 kW/m3 after 100 years of storage. Within the first 150 years, the main heat source of HLW is due to the decay of fission products with a dominance of 137Cs and 90Sr, and then due to the MA decay [22,36]. Regulatorily, the heat emission of vitrified HLW in the interim storage should not exceed 5 kW/m3 [24] and 2 kW/m3 on disposal [37]. The last document establishes the requirement for the temperatures up to 450 °C. Glasses are fundamentally metastable and depending on temperature can crystallize over time at elevated temperatures. Cooling of the glass melt on its draining into the canisters should be fast enough to form a uniform glass. This is achieved by quenching the melt at high cooling rates about 500 °C/h, whereas at cooling rates of 50 °C/h or less, crystalline phases appear [38]. Crystallisation of glass can occur after the melt is drained into canisters due to residual heat [6,7]. Often Tg is taken as the temperature at which the melt viscosity is 1012 Pa·s (1013 Poise) [39] although the glass transition is a quasi-equilibrium second order phase transformation, and the glassy state of matter differs topologically from that of molten state [40]. The Kauzmann empirical rule Tg = (2/3)·Tm (Tg,m values are given in the Kelvin’s scale) implies that the Tg increases with the increase of melting temperature (Tm). Heating of glass above Tg accelerates devitrification due to the decrease in glass viscosity and the increase of diffusion rate of elements in it. Na-Al-P glasses have Tg about 400 °C and the crystallization rate maximum is at ~500 °C, whereas A-B-Si glasses with Tg about 550 °C exhibit maximum crystallisation rates at about 650 °C [38,39]. Partial glass devitrification occurred when cooling rates about 30–50 °C/h close to that of HLW vitrification facilities were used [6]. On melt pouring from the EP-500 Joule-heated ceramic melter, the temperature of the container with vitrified HLW decreases within 17 h from 700 to 500 °C [7], that is, the cooling rate was just about 10–15 °C/h. The question therefore remains open about the state of vitrified HLW stored at “Mayak” PA since 1987 as it can be a relative homogeneous glass, although glass with crystalline phases or even a fully crystallized material are also possible variants. A partially crystallized glass in containers with HLW seems more likely and such wasteform is prone to an accelerated corrosion in the presence of water vapours [41,42].

4. GCM with Mineral-Like Phases

4.1. Importance of Novel Matrices

Much attention is paid to the modernization of existing glass matrices, as well as the search for new types of wasteforms, for example, for HLW radionuclide fractions. Partitioning of HLW and incorporation of the most dangerous long-lived actinides and fission products in a compact and capacious matrix will improve the use of underground repository space. This will reduce the need for the construction of new storage facilities and lead to savings in finances and time for their search and construction. Potential novel matrices for HLW immobilisation are crystalline and GCM which have been studied since the 1970s, almost simultaneously with research of glasses [32,34,43,44].

4.2. Crystaline Matrices

The best known crystalline wasteforms are the Synroc polyphase ceramic and the monophase NZP matrix. In the first, artificial phases of minerals with the structure of perovskite, zirconolite, pyrochlore, and hollandite serve as carriers of radionuclides and the HLW elements are distributed between them in accordance with the radius and charge of cations. The structure of the NZP matrix of the composition NaZr2(PO4)3 as a natural analogue of the mineral kosnarite is formed by a three-dimensional network of PO43- octahedra connected by vertices to ZrO6 octahedra, and large Na+ cations occupy voids. The HLW components can enter three positions of the structure: Alkalis, alkaline earths instead of sodium; REE and actinides are in the Zr position, hexavalent Mo replaces phosphorus, etc. Usually, there is an additional phase—REE phosphate with a monazite structure. Kosnarite, KZr2(PO4)3 is a natural analogue of the NZP matrix, although unlike other phases (pyrochlore, zirconolite, brannerite, monazite, etc.), it does not contain radioactive elements such as U and Th [32]. The waste loading of Synroc and NZP ceramics is about 20 wt.%. Crystalline phases for immobilization of waste have been overviewed in many publications such as [15,16,32,45].

4.3. GCM as an Universal Nuclear Wasteform

GCM are thermodynamically more stable materials compared with homogeneous glasses. Indeed, the free Gibbs energy GGCM of a GCM containing the volume fraction φ of crystalline phase will be:
GGCM = φGC + (1 − φ)GG,
where the free Gibbs energy of crystalline phase GC is lower than the free Gibbs energy of glass GG. Thus, the driving force of crystallization of GCM toward a most stable fully crystalline material (for which φ = 1) will be smaller.
GCM containing both crystalline and glassy phases are optimal for radioactive waste of complex composition [8,17,19,21,32,38,46,47,48,49,50,51,52]. Compared to homogeneous glassy materials, GCMs can incorporate larger amounts of waste elements and they can be produced using lower processing temperatures than those of conventional melting. Indeed, hazardous and nuclear waste constituents can be immobilised both by direct chemical incorporation into the glass structure in a classical vitrification approach and by the physical encapsulation of the waste in a glass matrix, forming a GCM consisting of both vitreous and crystalline phases (Figure 1).

4.4. Examples of GCM Nuclear Wasteforms

GCM include: Glass-ceramics where a glassy wasteform is crystallised using a separate heat treatment schedule, materials in which a refractory crystalline phase is encapsulated in glass, such as hot pressed lead silicate or sodium borosilicate glass matrix encapsulating up to 30 vol.% of La2Zr2O7 or Ga2Zr2O7 pyrochlore-structure crystals to immobilize actinides [53,54,55,56,57], borosilicate glasses for encapsulation of TRISO-UO2 particles from pebble bed modular reactor [58], materials in which spent clinoptilolite from aqueous waste reprocessing is immobilised by pressureless sintering [59]; U/Mo-containing materials immobilized in a GCM termed U-Mo, glass formed by cold crucible melting (which partially crystallise on cooling) [60]; yellow phase containing up to 15 vol.% of sulphates, chlorides, and molybdates [61]; and materials to immobilise ashes from incineration of solid radioactive wastes [62]. An example of a recently developed GCM system obtained via sintering is the GCM designed for spent clinoptilolite waste arising from low-level aqueous waste treatment facilities [52,62] where a 2 h pressureless sintering at 750 °C was used. Waste loading ranging from 1:1 up to 1:10 of glass to clinoptilolite volume ratios corresponding to 37–88 mass% were analysed. Water durability of the GCMs assessed by 7 day leaching tests in deionised water at 40 °C based on ASTM C1220-98 standard remained below 6.35 × 10−6 g/(cm2 day) in a GCM with 73 mass% waste loading. The sintering process typically takes place at lower temperatures compared to the classical melting route and is of great interest for the immobilization of highly volatile radionuclides such as 134,135,137Cs. Crystalline phases within a glassy matrix of GCM can be zirconolite, pyrochlore, brannerite, britholite within a matrix made of a A-B-Si glass, or monazite, or NZP in a Na-Al-P glass. In silicate glass ceramics, radionuclides are incorporated both in the phases of silicates (britholite), titanates, and zirconates (pyrochlore, zirconolite), and molybdates (powellite), and in phosphate glass ceramics—into phosphates with the structure of monazite, kosnarite, or langbeinite [63,64,65,66,67,68,69,70,71]. Table 1 outlines various waste types that have been immobilised into GCM both at laboratory and pilot-scale facilities [72,73].

4.5. GCM Phase Assemblage

Generally, host glasses used to develop GCM should have the ability to incorporate various waste constituents, be processed at relatively low processing temperatures, as well as be chemically durable and radiation resistant. High silica-content glasses including borosilicates, alumina silicates, alumina borosilicates, soda-lime silicates, lead silicates, lead borosilicates, phosphates, copper phosphates, silver phosphates, lead-iron phosphates, and soda alumina-phosphate glasses have been examined as host matrices for GCM production [17,18,72,73]. Several processing routes have been examined to produce GCM including controlled crystallisation of a glass, powder methods and sintering, petrurgical method, and sol-gel precursor glass, which give flexibility in the choice of the optimal immobilisation technology for the target waste as outlined in Table 2.
GCM can be used to immobilise long-lived radionuclides such as MA by incorporating them into the durable crystalline phases, whereas the short-lived radionuclides can readily be accommodated in the less durable glass. Acceptable durability will result if species of concern are locked into the crystal phases that are encapsulated in a durable glass matrix. The processing, compositions, phase assemblages, and microstructures of GCM can be tailored to achieve the necessary properties for improved performance of the wasteform.

4.6. Technology Readiness Level for Industrial-Scale Advanced Wasteforms Fabrication

When choosing a matrix, its hydraulic stability, its capacity for radionuclides, the ability to include other elements of waste, and the availability of industrial production technology play a key role. GCM samples were already obtained in laboratory conditions by viscous- and solid-phase sintering at normal and high pressure; high-speed electro-pulse sintering (SPS); microwave heating or SHS (self-propagating high-temperature synthesis); melting in a resistance furnace or in a “cold” induction heating crucible (CCIM). On an industrial scale, inductance melting in a “hot” or “cold” crucible is already used for the manufacture of A-B-Si glasses to immobilise HLW and intermediate level radioactive waste (ILW) in France and in Russia. The production of highly radioactive wasteforms weighing 10–100 kg corresponds to the value of technology readiness level (TRL) equal to 7, and in the case of their production in an amount of more than 1 tonne—as 8 and 9 [74]. The readiness of the manufacture of radioactive wasteforms via melting or sintering is estimated at TRL values from 7 to 9. These methods are already used in real production, or at semi-industrial and pilot plants. The capabilities of CCIM have been demonstrated in laboratory conditions to obtain blocks of crystalline matrices to 18 kg at TRL 6 [75,76]. The current state of the separation of HLW and methods for obtaining wasteforms with fractionated waste (radionuclide partitioning) envisages a relatively quick transition to the TRL equal to 9, which corresponds to the industrial implementation of this approach to handling HLW and acceptable financial costs [8]. Another way is to separate radionuclides for transmutation although this technique is still at an early stage of development with TRL about 3 to 4. A combined approach uses both options: The utilization of cubic ZrO2 solid solution with fluorite-type structure, Zr-pyrochlore, or Y-Al garnet as a fuel for actinides (Np, Am) with an inert (composed of non-fertile elements) matrix for a single combustion in a reactor and disposal without reprocessing. The wasteforms to be used for the immobilisation of HLW resulting from SNF reprocessing including the fuel are summarized in Table 3 following the reference [8].
Although the review did not discuss the economics of immobilisation technologies used, one can note that the SNF reprocessing with fractionation of HLW (radionuclide partitioning) is more expensive than the standard PUREX technology. However, the GCM immobilization option will be cheaper and safer due to the reduced need for expensive deep geological disposal facilities [77,78] and because the dangerous long-lived isotopes are incorporated into the most durable host phases for industrial applying.

5. Conclusions

HLW derived in the close nuclear fuel cycle is currently immobilised into Na-Al-P and A-B-Si glasses using vitrification technology. Waste immobilisation in GCMs has emerged as a versatile technology enabling reliable immobilisation of complex and varying composition waste streams, including both radioactive and hazardous residues, which are otherwise difficult to immobilise using the traditional vitrification technology. The optimisation of the GCM phase assemblages as a function of waste stream composition is important for achieving simultaneously high nuclear waste loadings and corrosion resistance. Future research may focus on practical aspects of GCM utilisation through one or another technological process using either controlled devitrification of synthesized parent glasses or sintering routes using crystalline and vitreous precursors.

Author Contributions

Conceptualization, S.V.Y. and M.I.O.; methodology, S.V.Y.; investigation, S.V.Y. and M.I.O.; resources, V.A.P.; data curation, S.V.Y. and M.I.O.; writing—original draft preparation, M.I.O.; writing—review and editing, S.V.Y.; supervision, V.A.P.; project administration, V.A.P.; funding acquisition, V.A.P. All authors have read and agreed to the published version of the manuscript.

Funding

The research was carried out within the framework of the state assignment of IGEM RAS, the topic of research work: “Geoecological problems of nuclear power”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data used to support findings of this study can be made available from the corresponding author upon request.

Acknowledgments

Authors acknowledge critical comments by anonymous reviewers which helped to improve the review.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gin, S.; Abdelouas, A.; Criscenti, L.J.; Ebert, W.L.; Ferrand, K.; Geisler, T.; Harrison, M.T.; Inagaki, Y.; Mitsui, S.; Mueller, K.T.; et al. An international initiative on long-term behavior of high-level nuclear waste glass. Mater. Today 2013, 16, 243–248. [Google Scholar] [CrossRef]
  2. Ojovan, M.I. On Alteration Rate Renewal Stage of Nuclear Waste Glass Corrosion. MRS Adv. 2020, 5, 111–120. [Google Scholar] [CrossRef]
  3. Luzhetsky, A.V.; Petrov, V.A.; Yudintsev, S.V.; Malkovsky, V.I.; Ojovan, M.I.; Nickolsky, M.S.; Shiryaev, A.A.; Danilov, S.S.; Ostashkina, E.E. Effect of gamma irradiation on structural features and dissolution of nuclear waste Na–Al–P glasses in water. Sustainability 2020, 12, 4137. [Google Scholar] [CrossRef]
  4. Gin, S.; Jollivet, P.; Tribet, M.; Peuget, S.; Schuller, S. Radionuclides containment in nuclear glasses: An overview. Radiochim. Acta 2017, 105, 927–959. [Google Scholar]
  5. Jantzen, C.M.; Ojovan, M.I. On selection of matrix (wasteform) material for higher activity nuclear waste immobilisation (Review). Russ. J. Inorg. Chem. 2019, 64, 1611–1624. [Google Scholar] [CrossRef]
  6. Kozlov, P.V.; Remizov, M.B.; Belanova, E.A.; Vlasova, N.V.; Orlova, V.A.; Martynov, K.V. Modification of the composition of aluminophosphate glasses with HLW simulators to increase their stability. 1. The effect of modifiers on the viscosity and crystallization ability of melts. Rad. Saf. Issues 2019, 1, 3–15. [Google Scholar]
  7. Stefanovsky, S.V.; Stefanovsky, O.I.; Remizov, M.B.; Kozlov, P.V.; Belanova, E.A.; Makarovsky, R.A.; Myasoedov, B.F. Sodium–aluminum–iron phosphate glasses as legacy high-level waste forms. Prog. Nucl. Energy 2017, 94, 229–234. [Google Scholar] [CrossRef]
  8. Yudintsev, S.V. Isolation of fractionated waste of nuclear industry. Radiochemistry 2021, in press. [Google Scholar]
  9. Ewing, R.C. The Design and Evaluation of Nuclear-Waste Forms: Clues from Mineralogy. Canad. Miner. 2001, 39, 697–715. [Google Scholar] [CrossRef] [Green Version]
  10. Omel’yanenko, B.I.; Livshits, T.S.; Yudintsev, S.V.; Nikonov, B.S. Natural and artificial minerals as matrices for immobilization of actinides. Geol. Ore Depos. 2007, 49, 173–193. [Google Scholar] [CrossRef]
  11. Vance, E.R. Ceramic Waste Forms. In Comprehensive Nuclear Materials; Konings, R., Allen, T., Stoller, R., Yamanaka, S., Eds.; Elsevier: Amsterdam, The Netherlands, 2012; Volume 5, Chapter 5.19; pp. 485–503. [Google Scholar]
  12. Stefanovsky, S.V.; Yudintsev, S.V. Titanates, zirconates, aluminates and ferrites as waste forms for actinide immobilization. Russ. Chem. Rev. 2016, 85, 962–994. [Google Scholar] [CrossRef]
  13. Orlova, A.I.; Koryttseva, A.K.; Loginova, E.E. A family of phosphates of langbeinite structure. Crystal-chemical aspect of radioactive waste immobilization. Radiochemistry 2011, 53, 51–62. [Google Scholar] [CrossRef]
  14. Orlova, A.I.; Lizin, A.A.; Tomilin, S.V.; Lukinykh, A.N. On the possibility of realization of monazite and langbeinite structural types in complex americium and plutonium phosphates. Synthesis and X-ray diffraction studies. Radiochemistry 2011, 53, 63–68. [Google Scholar] [CrossRef]
  15. Orlova, A.I.; Ojovan, M.I. Ceramic Mineral Waste-Forms for Nuclear Waste Immobilization. Materials 2019, 12, 2638. [Google Scholar] [CrossRef] [Green Version]
  16. Burakov, B.E.; Ojovan, M.I.; Lee, W.E. Crystalline Materials for Actinide Immobilization; Imperial College Press: London, UK, 2011; 197p. [Google Scholar]
  17. Ojovan, M.I.; Lee, W.E.; Kalmykov, S.N. An Introduction to Nuclear Waste Immobilisation, 3rd ed.; Elsevier: Amsterdam, The Netherlands, 2019; 497p. [Google Scholar]
  18. Ojovan, M.I.; Juoi, J.M.; Boccaccini, A.R.; Lee, W.E. Glass Composite Materials for Nuclear and Hazardous Waste Immobilisation. Mater. Res. Soc. Symp. Proc. 2008, 1107, 245–252. [Google Scholar] [CrossRef]
  19. Caurant, D.; Loiseau, P.; Majérus, O.; Aubin-Cheval-Donnet, V.; Bardez, I.; Quintas, A. Glasses, Glass-Ceramics and Ceramics for Immobilization of Highly Radioactive Nuclear Wastes; Nova Science Publishers: New York, NY, USA, 2009; 445p. [Google Scholar]
  20. Ojovan, M.I.; Lee, W.E. New Developments in Glassy Nuclear Wasteforms; Nova Science Publishers: New York, NY, USA, 2007; 131p. [Google Scholar]
  21. Donald, I.W. Waste Immobilization in Glass and Ceramic-Based Hosts; Wiley: Chichester, UK, 2010; 507p. [Google Scholar]
  22. Fedorov, Y.S.; Zil’berman, B.Y.; Aloi, A.S.; Puzikov, E.A.; Shadrin, A.Y.; Alyapyshev, M.Y. Problems of modernization of spent nuclear fuel extraction processing. Russ. J. Gen. Chem. 2011, 81, 1932–1948. [Google Scholar] [CrossRef]
  23. Kopyrin, A.A.; Karelin, A.I.; Karelin, V.A. Technology of Production and Radiochemical Processing of Nuclear Fuel; Atomizdat Publishing House CJSC: Moscow, Russia, 2006; 576p. [Google Scholar]
  24. Batorshin GSh Kirillov, S.N.; Smirnov, I.V.; Sarychev, G.A.; Tananaev, I.G.; Fedorova, O.V.; Myasoedov, B.F. Integrated separation of valuable components from technogenic radioactive waste as an option to create cost-eective nuclear fuel cycle. Radiat. Saf. Issues 2015, 3, 30–36. [Google Scholar]
  25. Caurant, D. Spectroscopic investigations on glasses, glass-ceramics and ceramics developed for nuclear waste immobilization. Opt. Spectrosc. 2014, 116, 667–676. [Google Scholar] [CrossRef]
  26. McCarthy, G.J. High Level Waste Ceramics: Materials Considerations, Process Simulation, and Product Characterization. Nucl. Technol. 1977, 32, 92–105. [Google Scholar] [CrossRef]
  27. Ringwood, A.E.; Kesson, S.E.; Ware, N.G.; Hibberson, W.; Major, A. Immobilisation of high-level nuclear reactor wastes in SYNROC. Nature 1979, 278, 219–223. [Google Scholar] [CrossRef]
  28. Stewart, M.W.A.; Vance, E.R.; Moricca, S.A.; Brew, D.R.; Cheung, C.; Eddowes, T.; Bermudez, W. Immobilisation of Higher Activity Wastes from Nuclear Reactor Production of 99Mo. Sci. Technol. Nucl. Install. 2013, 2013, 926026. [Google Scholar] [CrossRef] [Green Version]
  29. Vernaz, É.; Bruezière, J. History of Nuclear Waste Glass in France. Proc. Mater. Sci. 2014, 7, 3–9. [Google Scholar] [CrossRef] [Green Version]
  30. Laverov, N.P.; Velichkin, V.I.; Omelyanenko, B.I.; Yudintsev, S.V.; Petrov, V.A.; Bychkov, A.V. Isolation of Spent Nuclear Materials: Geological and Geochemical Foundations; IPZ RAS: Moscow, Russia, 2008; 280p. [Google Scholar]
  31. Remizov, M.B.; Kozlov, P.V.; Logunov, M.V.; Koltyshev, V.K.; Korchenkin, K.K. Conceptual and technical solutions on construction at PA “Mayak” plants for vitrification of current and stored liquid HLW. Radiat. Saf. Issues 2014, 3, 17–25. [Google Scholar]
  32. Lutze, W.; Ewing, R.C. Radioactive Waste Forms for the Future; Elsevier: New York, NY, USA, 1988; 778p. [Google Scholar]
  33. Poluektov, P.P.; Sukhanov, L.P.; Matyunin, Y.I. Scientific approaches and technical solutions in the field of liquid high-level waste management. Russ. Chem. J. 2005, XLIX, 29–41. [Google Scholar]
  34. Ojovan, M.I. Handbook of Advanced Radioactive Waste Conditioning Technologies; Woodhead: Cambridge, UK, 2011; 512p. [Google Scholar]
  35. Vlasova, N.V.; Remizov, M.B.; Kozlov, P.V.; Belanova, E.A. Investigation of Chemical Stability ofAluminum-Phosphate Glasses Simulating Solidified HLW to be Returned to Foreign Contractors. Radiat. Saf. Issues 2017, 3, 32–37. [Google Scholar]
  36. Carter, J.T.; Luptak, A.J.; Gastelum, J.; Stockman, S.; Miller, A. Fuel Cycle Potential Waste Inventory for Disposition. Prepared for U.S. Department of Energy; SRNL, INL, PNNL, SNL: Washington, DC, USA, 2012; 328p.
  37. Acceptance criteria for radioactive waste for disposal (NP-093-14). Nucl. Rad. Saf. 2015, 3, 59–82.
  38. Vashman, A.A.; Demin, A.V.; Krylova, N.V.; Kushnikov, V.V.; Matyunin, Y.I.; Poluektov, P.P.; Polyakov, A.S.; Teterin, E.G. Phosphate Glasses with Radioactive Waste; CNIIatominform: Moscow, Russia, 1997; p. 172. [Google Scholar]
  39. Remizov, M.B.; Kozlov, P.V.; Borisenko, V.P.; Dementeva, I.I.; Blokhin, P.A.; Samoylov, A.A. Development of an Algorithm for Estimating the Radionuclide Composition of Vitrified HLW of FSUE “PA “Mayak” for the Purpose of Their Safe Disposal. Radioact. Waste 2018, 3, 87–94. [Google Scholar]
  40. Ojovan, M.I. Glass formation. In Encyclopedia of Glass Science, Technology, History, and Culture; Richet, P., Conradt, R., Takada, A., Dyon, J., Eds.; Wiley: Hoboken, NJ, USA, 2021; pp. 249–259. [Google Scholar] [CrossRef]
  41. Yudintsev, S.V.; Pervukhina, A.M.; Mokhov, A.V.; Malkovsky, V.I.; Stefanovsky, S.V. Influence of phosphate glass recrystallization on the stability of a waste matrix to leaching. Dokl. Earth Sci. 2017, 473 Pt 2, 427–432. [Google Scholar] [CrossRef]
  42. Malkovsky, V.I.; Yudintsev, S.V.; Aleksandrova, E.V. Influence of Na-Al-Fe-P glass alteration in hot non-saturated vapor on leaching of vitrified radioactive wastes in water. J. Nucl. Mater. 2018, 508, 212–218. [Google Scholar] [CrossRef]
  43. Hayward, P.J. Glass-ceramics. In Radioactive Waste Forms for the Future; Lutze, W., Ewing, R.C., Eds.; Elsevier: New York, NY, USA, 1988; pp. 427–494. [Google Scholar]
  44. National Research Council. Waste Forms Technology and Performance: Final Report; National Academies Press: Washington, DC, USA, 2011; 308p. [Google Scholar]
  45. Weber, W.J.; Ewing, R.C.; Catlow, C.R.A.; Diaz de la Rubia, T.; Hobbs, L.W.; Kinoshita, C.; Matzke Hj Motta, A.T.; Nastasi, M.; Salje, E.K.H.; Vance, E.R.; et al. Radiation effects in crystalline ceramics for the immobilization of high-level nuclear waste and plutonium. J. Mater. Res. 1998, 13, 1434–1484. [Google Scholar] [CrossRef] [Green Version]
  46. McCloy, J.S.; Goel, A. Glass-ceramics for nuclear-waste immobilization. Mater. Res. Soc. Bull. 2017, 42, 233–238. [Google Scholar] [CrossRef]
  47. Donald, I.W. Immobilisation of radioactive and non-radioactive wastes in glass-based systems: An overview. Glass Technol. 2007, 48, 155–163. [Google Scholar]
  48. Rawling, R.D.; Wu, J.P.; Boccaccini, A.R. Glass-ceramics: Their production from wastes—A Review. J. Mater. Sci. 2006, 41, 733–761. [Google Scholar] [CrossRef] [Green Version]
  49. Colombo, P.; Brusatin, G.; Bernardo, E.; Scarinci, G. Inertization and reuse of waste materials by vitrification and fabrication of glass-based products. Curr. Opin. Solid State Mater. Sci. 2003, 7, 225–239. [Google Scholar] [CrossRef]
  50. Lee, W.E.; Ojovan, M.I.; Stennett, M.C.; Hyatt, N.C. Immobilisation of radioactive waste in glasses, glass composite materials and ceramics. Adv. Appl. Ceram. 2006, 105, 3–12. [Google Scholar] [CrossRef]
  51. Lewis, M.A.; Fischer, D.F. Properties of glass-bonded zeolite monoliths. Ceram. Trans. 1994, 45, 277–286. [Google Scholar]
  52. Juoi, J.M.; Ojovan, M.I.; Lee, W.E. Microstructure and leaching durability of glass composite wasteforms for spent clinoptilolite immobilisation. J. Nucl. Mater. 2008, 372, 358–366. [Google Scholar] [CrossRef]
  53. Loiseau, P.; Caurant, D.; Majerus, O.; Baffier, N.; Fillet, C. Crystallization study of (TiO2, ZrO2)-rich SiO2-Al2O3-CaO glasses Part I Preparation and characterization of zirconolite-based glass-ceramics. J. Mater. Sci. 2003, 38, 843–864. [Google Scholar] [CrossRef]
  54. Boccaccini, A.R.; Bernardo, E.; Blain, L.; Boccaccini, D.N. Borosilicate and lead silicate glass matrix composites containing pyrochlore phases for nuclear waste encapsulation. J. Nucl. Mater. 2004, 327, 148–158. [Google Scholar] [CrossRef]
  55. Digeos, A.A.; Valdez, J.A.; Sikafus, K.E.; Atiq, S.; Grimes, R.W.; Boccaccini, A.R. Glass matrix/pyrochlore phase composites for nuclear wastes encapsulation. J. Mater. Sci. 2003, 38, 1597–1604. [Google Scholar] [CrossRef]
  56. Boccaccini, A.R.; Berthier, T.; Seglem, S. Encapsulated gadolinium zirconate pyrochlore particles in soda borosilicate glass as novel radioactive waste form. Ceram. Int. 2007, 33, 1231–1235. [Google Scholar] [CrossRef]
  57. Pace, S.; Cannillo, V.; Wu, J.; Boccaccini, D.N.; Seglem, S.; Boccaccini, A.R. Processing glass-pyrochlore composites for nuclear waste encapsulation. J. Nucl. Mater. 2005, 341, 12–18. [Google Scholar] [CrossRef]
  58. Abdelouas, A.; Noirault, S.; Grambow, B. Immobilization of inert TRISO-coated fuel in glass for geological disposal. J. Nucl. Mater. 2006, 358, 1–9. [Google Scholar] [CrossRef]
  59. Henry, N.; Deniard, P.; Jobic, S.; Brec, R.; Fillet, C.; Bart, F.; Grandjean, A.; Pinet, O. Heat treatments versus microstructure in a molybdenum-rich borosilicate. J. Non Cryst. Solids 2004, 333, 199–205. [Google Scholar] [CrossRef]
  60. Sobolev, I.A.; Ojovan, M.I.; Scherbatova, T.D.; Batyukhnova, O.G. Glasses for Radioactive Waste; Energoatomizdat: Moscow, Russia, 1999. [Google Scholar]
  61. Sobolev, I.A.; Dmitriev, S.A.; Lifanov, F.A.; Kobelev, A.P.; Stefanovsky, S.V.; Ojovan, M.I. Vitrification processes for low, intermediate radioactive and mixed wastes. Glass Technol. 2005, 46, 28–35. [Google Scholar]
  62. Juoi, J.M.; Ojovan, M.I. The effect of waste loading on the microstructure of glass composite waste form immobilising spent clinoptilolite. Glass Technol. 2007, 48, 124–129. [Google Scholar]
  63. Maddrell, E.; Thornber, S.; Hyatt, N.C. The influence of glass composition on crystalline phase stability in glass-ceramic wasteforms. J. Nucl. Mater. 2015, 456, 461–466. [Google Scholar] [CrossRef] [Green Version]
  64. Nicoleau, E.; Angeli, F.; Schuller, S.; Charpentier, T.; Jollivet, P.; Moskura, M. Rare-earth silicate crystallization in borosilicate glasses: Effect on structural and chemical durability properties. J. Non Cryst. Solids 2016, 438, 37–48. [Google Scholar] [CrossRef]
  65. Zhang, Y.; Kong, L.; Karatchevtseva, I.; Aughterson, R.D.; Gregg, D.J.; Triani, G. Development of brannerite glass-ceramics for the immobilization of actinide-rich radioactive wastes. J. Am. Ceram. Soc. 2017, 100, 4341–4351. [Google Scholar] [CrossRef]
  66. McCloy, J.S.; Marcial, J.; Patil, D.; Saleh, M.; Ahmadzadeh, M.; Chen, H.; Crum, J.V.; Riley, B.J.; Kamat, H.; Bréhault, A.; et al. Glass structure and crystallization in boro-aluminosilicate glasses containing rare earth and transition metal cations: A US-UK collaborative program. MRS Adv. 2019. [Google Scholar] [CrossRef]
  67. Kong, L.; Karatchevtseva, I.; Zhang, Y.; Wei, T. The incorporation of Nd or Ce in CaZrTi2O7 zirconolite: Ceramic versus glass-ceramic. J. Nucl. Mater. 2021, 543, 152583. [Google Scholar] [CrossRef]
  68. Stefanovsky, S.V.; Stefanovsky, O.I.; Danilov, S.S.; Kadyko, M.I. Phosphate-based glasses and glass ceramics for immobilization of lanthanides and actinides. Ceram. Int. 2019, 45, 9331–9338. [Google Scholar] [CrossRef]
  69. He, Y.; Lu, Y.; Zhang, Q. Characterization of monazite glass–ceramics as wasteform for simulated α-HLLW. J. Nucl. Mater. 2008, 376, 201–206. [Google Scholar] [CrossRef]
  70. Asuvathraman, R.; Kitheri, J.; Madhavan, R.R.; Sudha, R.; Prabhu, K.R.; Govindan Kutty, K.V. A versatile monazite—IPG glass–ceramic waste form with simulated HLW: Synthesis and characterization. J. Eur. Ceram. Soc. 2015, 35, 4233–4239. [Google Scholar] [CrossRef]
  71. Liu, J.; Wang, F.; Liao, Q.; Zhu, H.; Liu, D.; Zhu, Y. Synthesis and characterization of phosphate-based glass-ceramics for nuclear waste immobilization: Structure, thermal behavior, and chemical stability. J. Nucl. Mater. 2019, 513, 251–259. [Google Scholar] [CrossRef]
  72. Juoi, J.M.; Ojovan, M.I.; Lee, W.E. Development of glass-composite materials for radioactive waste immobilization. In Proceedings of the Proc. ICEM’05, ICEM-1069, Glasgow, UK, 28–30 October 2005; ASME: Glasgow, UK, 2005. [Google Scholar]
  73. Ojovan, M.I.; Juoi, J.M.; Lee, W.E. Glass Composite Materials for Nuclear Waste Immobilisation. In Proceedings of the Extended Abstracts ICG 2007 Proc. XXIst International Congress on Glass, Strasbourg, France, 2–6 July 2007. U37, 5p. [Google Scholar]
  74. State-of-the-Art Report on Light Water Reactor Accident-Tolerant Fuels; NEA: Paris, France, 2018; 367p.
  75. Yudintsev, S.V.; Stefanovsky, S.V.; Kalenova, M.Y.; Nikonov, B.S.; Nikol’skii, M.S.; Koshcheev, A.M.; Shchepin, A.S. Matrices for immobilization of the rare earth–actinide waste fraction, synthesized by cold crucible induction melting. Radiochemistry 2015, 57, 321–333. [Google Scholar] [CrossRef]
  76. Amoroso, J.W.; Marra, J.; Dandeneau, C.S. Cold crucible induction melter test for crystalline ceramic waste form fabrication: A feasibility assessment. J. Nucl. Mater. 2017, 486, 283–297. [Google Scholar] [CrossRef] [Green Version]
  77. Advanced Fuel Cycle Cost Basis. Prepared for U.S. Department of Energy Fuel Cycle Options Campaign; NTRD-FCO-2017-000265; INL: Idaho Falls, ID, USA, 2017.
  78. Sorokin, V.T.; Pavlov, D.I. The cost of radwaste disposal: Foreign assessments. Radioact. Waste 2019, 1, 39–46. [Google Scholar]
Sustainability 13 04117 g001 550

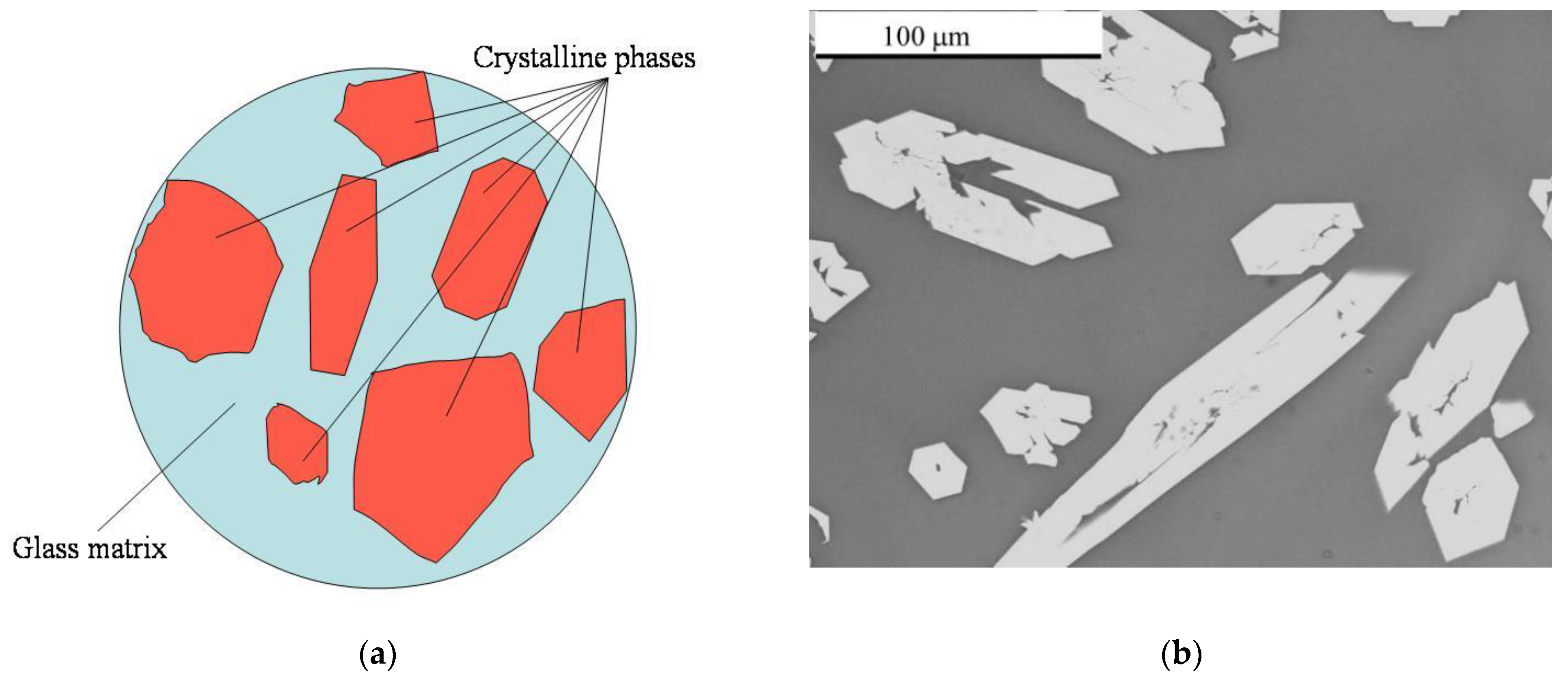

Figure 1. Schematic of a Glass crystalline material (GCM) nuclear wasteform (a) and SEM/BSE image (b) of a real specimen loaded with rare earth elements (REE)-imitator of actinides. Dark areas are composed of glass and light grains are crystals of britholite.
Figure 1. Schematic of a Glass crystalline material (GCM) nuclear wasteform (a) and SEM/BSE image (b) of a real specimen loaded with rare earth elements (REE)-imitator of actinides. Dark areas are composed of glass and light grains are crystals of britholite.
Sustainability 13 04117 g001
Table
Table 1. Waste streams immobilised into GCM wasteforms.
Table 1. Waste streams immobilised into GCM wasteforms.
Waste TypeWaste DescriptionWaste Loading
LILWHigh sulphate, molybdate/noble metal content waste. High concentration of Cl.30 wt%
Intermediate level radioactive waste (ILW)High content of Mo, PbO, MnO, and simulated zircaloy chips.20 wt%
High level radioactive waste (HLW)Liquid waste arising from reprocessing of natural uranium (UO2). 10 wt%
The sameCalcine containing transuranics, fission products, and transition elements.60–80 wt%
Acidic HLW with Al, Zr, Na, nitrate, and fluoride ions.75 wt%
From reprocessing light water reactor and fast breeder fuel.5–35 wt%
Zeolite occluded salt waste (transuranics, fission products, and halides). 75 wt%
Fission product and transuranic actinides containing salt immobilized in glass bonded sodalite.75wt%
Zeolite occluded with molten LiCl-KCl-NaCl and ~6wt% of fission product chlorides. 50–67 wt%
Simulated waste with spinel forming components. 45 wt%
Simulated HLW consisting ≤ 35wt% ZrO2. 30–50 wt%
Plutonium bearing nuclear legacy waste in pyrochlore phases. 30 vol.%
Containing both actinides and chlorides.11 wt%
Simulated HLW waste chemically immobilized in a mixture of chlorapatite, Ca(PO4)Cl and spodiosite, Ca2(PO4)Cl mineral phase.65–90 wt%
Long-lived nuclear simulated waste (actinides).20 wt%
Ag129I
TRISO-UO2 particles.16 vol.%
Actinides surrogate (Ce2O3,Nd2O3, Eu2O3,Gd2O3,Yb2O3,ThO2 in highly durable zirconolite (CaZrTi2O7).4–6wt.%
Waste fission product and actinides in titanite, CaTiSiO5.
Waste ions distributed in sphene, CaTiSiO5 phase and glass phase.5 wt%
Estimated simulation of HLW from reprocessing of nuclear fuels in Japan Atomic Institute.25 wt%
Simulated 90Sr HLW partitioned from of high level liquid waste in China immobilized in apatite glass-ceramic.35 wt%
Ashes From incineration of plutonium bearing organics. 50 wt%
From incineration of solid radioactive waste.15–40 wt%
Table
Table 2. Processing routes of GCM wasteforms.
Table 2. Processing routes of GCM wasteforms.
RouteDescriptionProcess Parameters
Pressureless sinteringPowder mixing, cold pressing. Relatively low temperature (≤1100 K).Particle size, compacting pressure, temperature and duration of sintering, heating and cooling rate.
Hot Pressing Pressure and temperature applied during Hot Uniaxial Press (HUP), Hot Isostatic Press (HIP) or Hydrothermal hot-pressing (HHP). Glass composition, particle size, maximum temperature, pressure, soaking time, heating and cooling rate.
Reaction SinteringSintering under isostatic pressure by adding amorphous silica. Chemical reaction between waste components and surrounding glass.Particle size, HIP temperature, pressure and duration of sintering.
Sintering with aerogelsPorous network of silica is soaked in a solution containing the actinide, then dried and fully sintered.Mechanical properties, capillary forces, permeability of aerogel, sintering temperature.
Cold crucible melting Electric currents generated inside waste contained in water-cooled crucible, surrounded by an induction coil. Operating frequency, input vibrating power, operating temperature, melting duration.
Self-sustaining vitrificationUtilises the energy released during exorthermic chemical reactions. Composition of initial waste and Powder Metal Fuel.
In situ sintering Utilises ambient pressure of a disposal environment, its radiation shielding and extended time of storage.Disposal environment, ambient pressure and temperature.
Controlled crystallization Additional heat-treatment on to vitrified glass forming glass-ceramic.Temperature, duration, heating and cooling rate.
Petrurgic methodCrystals nucleate and grow directly upon cooling glass from the melting temperature.Cooling rate from melt temperature.
Sol-gel followed by sinteringAllows the formation of a very reactive powder in which components are mixed on a molecular scale.Calcine temperature, milling media, drying temperature, sintering temperature.
Table
Table 3. Possible wasteforms for HLW fractions. GCM—glass crystalline material, is shown in bold italics.
Table 3. Possible wasteforms for HLW fractions. GCM—glass crystalline material, is shown in bold italics.
HLW FractionU + PuNpAmCmREECs-SrFP 2–UR 3
Methods for managing waste fractions or separate radionuclidesNew (fresh) nuclear fuelCeramicsGlass, Ceramics or GCMAlloy
FuelCeramicsAlloy
FuelCeramicsAlloy
FuelCeramicsAlloy
FuelGCM (An/Ln/TM 1) Alloy (UR)
FuelCeramicsGCM
FuelGCM
1 TM—4d transition metals (2 FP—fission products: Mo, Zr, Ru, Rh, Pd; corrosion elements—Zr, Fe, Cr, Ni, etc). 3 UR—undissolved SNF residues, composed of Mo-Tc-Ru-Rh-Pd alloy (ε-phase).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ojovan, M.I.; Petrov, V.A.; Yudintsev, S.V. Glass Crystalline Materials as Advanced Nuclear Wasteforms. Sustainability 2021, 13, 4117. https://doi.org/10.3390/su13084117

AMA Style

Ojovan MI, Petrov VA, Yudintsev SV. Glass Crystalline Materials as Advanced Nuclear Wasteforms. Sustainability. 2021; 13(8):4117. https://doi.org/10.3390/su13084117

Chicago/Turabian Style

Ojovan, Michael I., Vladislav A. Petrov, and Sergey V. Yudintsev. 2021. "Glass Crystalline Materials as Advanced Nuclear Wasteforms" Sustainability 13, no. 8: 4117. https://doi.org/10.3390/su13084117

APA Style

Ojovan, M. I., Petrov, V. A., & Yudintsev, S. V. (2021). Glass Crystalline Materials as Advanced Nuclear Wasteforms. Sustainability, 13(8), 4117. https://doi.org/10.3390/su13084117

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
