Article

Input–Output Analysis of China’s CO2 Emissions in 2017 Based on Data of 149 Sectors

1
School of Economics and Management, Harbin Institute of Technology, Shenzhen, Shenzhen 518055, China
2
Shenzhen Engineering Laboratory of Big Data for Low-Carbon Cities, Harbin Institute of Technology, Shenzhen, Shenzhen 518055, China
3
School of Environment and Energy, Peking University Shenzhen Graduate School, Shenzhen 518055, China
4
College of Tourism and Service Management, Nankai University, Tianjin 300350, China
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(8), 4172; https://doi.org/10.3390/su13084172
Submission received: 26 February 2021 / Revised: 6 April 2021 / Accepted: 6 April 2021 / Published: 8 April 2021
(This article belongs to the Section Air, Climate Change and Sustainability)

Abstract

:
High-precision CO2 emission data by sector are of great significance for formulating CO2 emission reduction plans. This study decomposes low-precision energy consumption data from China into 149 sectors according to the high-precision input–output (I–O) table for 2017. An economic I–O life cycle assessment model, incorporating sensitivity analysis, is constructed to analyze the distribution characteristics of CO2 emissions among sectors. Considering production, the electricity/heat production and supply sector contributed the most (51.20%) to the total direct CO2 emissions. The top 10 sectors with the highest direct CO2 emissions accounted for >80% of the total CO2 emissions. From a demand-based perspective, the top 13 sectors with the highest CO2 emissions emitted 5171.14 Mt CO2 (59.78% of the total), primarily as indirect emissions; in particular, the housing construction sector contributed 23.97% of the total. Based on these results, promoting decarbonization of the power industry and improving energy and raw material utilization efficiencies of other production sectors are the primary emission reduction measures. Compared with low-precision models, our model can improve the precision and accuracy of analysis results and more effectively guide the formulation of emission reduction policies.

1. Introduction

With increasing global climate change, the reduction of carbon emissions whose major source is energy combustion [1] has become the focus of all countries. In 2019, China had the highest carbon emissions accounting for approximately 27.9% of global carbon emissions [2]. Therefore, it is important to reduce the country’s emissions in order to contribute to global climate change mitigation. At the 75th United Nations General Assembly in September 2020, China proposed to achieve peak CO2 emissions by 2030 and carbon neutrality by 2060. To facilitate formulation of emission reduction plans, it is necessary to study China’s carbon emissions from energy combustion based on a higher sector resolution.
The aggregation and decomposition of emission sectors are important aspects of research on CO2 emissions mitigation. The classification of sectors in the China Energy Statistical Yearbook (e.g., [3]) varies from that used in the input–output (I–O) table (e.g., [4]). The former lists approximately 40 categories, while in the latter, there are >100 sectors. To maintain consistency between the two with energy consumption data, most studies aggregate the I–O tables into approximately 40 sectors. However, this may cause inaccurate estimations and distortion of carbon emissions at the sectoral level [5,6,7,8]. Lenzen [9] proved that, in case information required for sectoral decomposition is lacking, the results of sectoral decomposition based on a small amount of actual data are better than the results of sectoral aggregation. Lindner et al. [10] demonstrated that when the power sector was disaggregated, an increased amount of information led to an increased accuracy in the carbon emission intensity of each sector obtained through sectoral decomposition. Therefore, it is necessary to further split the sectors and use higher sector resolution data to investigate carbon emissions and, thus, improve the reliability and accuracy of the analysis results.
There are two methods for sectoral disaggregation. The first method involves decomposition of the I–O table and most studies using this method usually only focus on a few typical sectors [8,11,12,13,14,15,16], such as the construction and power sectors. Meng et al. [11] divided the construction sector into 12 subsectors based on the sectoral intermediate purchases and investment data and obtained the extended I–O table of 53 sectors of Beijing city. Linder et al. [12] used regional information and cost data for operation and maintenance of power plants to split the electricity sector into transmission, distribution and eight other subsectors representing different types of technology in power plants. Moreover, some studies have used other methods to obtain power subsectors [13,15]. However, the decomposition method cannot be effectively applied to the complete I–O table. It cannot satisfy the requirement of decomposing the energy consumption table; hence, we do not employ this method in our study.
The second method is to decompose energy consumption data or carbon emission data. Few studies apply this method, as it has higher requirements for sectoral data. Insufficient sectoral data may introduce biases in this allocation method [17]. In general, energy consumption data are allocated based on the sectoral intermediate purchases or demands and carbon emissions data are allocated based on the sectoral carbon emission intensity. Minx et al. [18] and Zhang et al. [17] decomposed the carbon emission and energy consumption data, respectively, of multiple sectors to correspond to sectors in the I–O table. The allocation coefficients obtained by Minx et al. were based on the carbon emission intensity of 95 sectors derived by normalization and that of the latter, was based on sectoral direct inputs. Douglas and Nishioka [19] allocated carbon emission data based on the sectoral intermediate demands. However, these studies have their own limitations. The sector resolution of Douglas and Nishioka [18] was too low and only included 41 sectors, even after decomposition. After using the allocation method, the number of sectors in Zhang et al. [17] and Minx et al. [18] were 95 and 135, respectively. However, the latter lacks more accurate allocation coefficients than the former, because it assumed that all I–O sectors that map to the one energy sector have the same emission intensity (the number of carbon emission intensity data before normalization were only 44). Although Zhang et al. [17] is the most accurate of the three; they did not deduct the non-energy use of fuels when calculating the total carbon emissions. Moreover, the allocation method of their study also needs to be improved.
To solve the above shortcomings, the present study uses the 2017 I–O table of 149 sectors in China and decomposed energy consumption data to construct an economic I–O life cycle assessment (LCA) carbon emission analysis model [20]. The model incorporates production- and demand-based perspectives to analyze the distribution of carbon emissions from energy combustion among sectors. Most of the current studies employ structural decomposition analysis (SDA) to analyze carbon emissions [18,21,22,23]. However, the core objective of this study is to analyze the sectoral distribution characteristics of high-precision carbon emission data of China. Therefore, we utilize the economic I–O LCA (EIO–LCA) [20], even though it appears relatively simple, to analyze carbon emissions. Furthermore, as uncertainty management is indispensable to any model development and evaluation [24], we incorporated sensitivity analysis of changing number of sectors in our model to improve the reliability of our results.
There exist a few studies that apply uncertainty or sensitivity analysis in the I–O model of environmental extension [25]. However, the incorporation of sensitivity analysis into the framework of this study makes our approach a novel one. Our study improves on the allocation method used in Zhang et al. [17] by extending the number of sectors from 45 to 149. Specifically, when the distribution coefficient is 0, we modified the coefficient to make our allocation reasonable. Compared with other similar work [17,18], our results are more accurate. We achieved this accuracy by adopting more precise allocation coefficients. Additionally, we address the limitation that Zhang et al. [17] failed to deduct the non-energy use of fuels.
The rest of this paper is structured as follows: Section 2 details the methods and data sources used in this study, focusing on the method of energy consumption data allocation. Section 3 analyzes and discusses the results. Finally, Section 4 summarizes the conclusions, highlights the limitations and puts forward the main policy suggestions.

2. Method and Data

2.1. Method

2.1.1. EIO–LCA Model

This study used the EIO–LCA model [20] to analyze China’s carbon emissions. The model is expressed by Equation (1):
B = R I A 1 y ^ ,
where B represents the sectoral carbon emission matrix; I A 1 is the Leontief inverse matrix, where I is an identity matrix and A = a 11 a 1 n a n 1 a nn , which is a direct consumption coefficients matrix of the I–O table; y ^ is diagonal matrix of the final demand column in I–O table; and R = diag r 11 , r 22 , r nn , which is the amount of CO2 directly emitted by a sector per unit of monetary output, where r ii = c i x i , c i represents sectoral carbon emissions, x i represents the total sectoral output.

2.1.2. Energy Consumption Data Allocation Method

Few studies completely divide the energy consumption sector according to the sector classification of the I–O table. We primarily referred to Zhang et al. [17] and Minx et al. [18] as they are more representative. The former represents the allocation of energy consumption data based on direct inputs and the latter represents the allocation of carbon emissions data based on carbon emission intensity. Minx et al. [18] obtained the carbon emission intensity of 95 sectors (the number of sectors of I–O table) in three steps. First, the output was aggregated into the sector classification used in the energy and emissions data; second, the emission intensity of 44 sectors (the number of sectors of energy consumption table) was obtained; finally, all I–O sectors that map to the one energy sector were assumed to have the identical emission intensity which was normalized to obtain the emission intensity of 95 sectors. To obtain the carbon emission inventory of 135 sectors, Zhang et al. [17] first calculated the energy consumption data allocation coefficients according the direct inputs of the fuel production sectors; then, these coefficients were multiplied with the corresponding energy consumption data to derive the energy consumption table of 135 sectors; the process can be formulated as Equation (2):
e k , ja = e k , j × z p , ja z p , ja + + z p , jk , ( 2     k   <   135 )
where e k , ja and e k , j represent the consumption of fuel type (k) corresponding to sectors ja and j , respectively; z p , ja and z p , jk represent the intermediate inputs of sector p to sectors ja and jk . Sectors ja   jk are all subsectors of sector j .
Thus, we split some sectors of the energy consumption table according to the “Industrial classification for national economic activities” (GB/T 4754-2017) [17,26]. There were 149 sectors after decomposition (Table A1) and for ease of presentation, the sectors in the figures are represented by their corresponding numbers. Briefly, different types of energy were correlated with 149 sectors that produce the corresponding type of energy. Then, the allocation coefficients of energy consumption data were linked to the proportion of the sectoral intermediate inputs in the I–O table. Finally, this ratio was multiplied by the energy consumption of the corresponding sector in the energy consumption table of 45 sectors to derive an energy consumption table of 149 sectors. A schematic of this method is shown in Figure 1.
Before allocating the energy consumption data, the energy consumption data allocation coefficient of each sector was calculated using Equations (3) and (4):
d p , ji = z p , ji z p , j
z p , j 1 + z p , j 2 + + z p , jn = z p , j ,   ( 2     n   <   149 )
where p indicates the sector producing this type of fuel (energy) in the I–O table of 149 sectors (Table 1); d p , ji indicates the allocation coefficient of energy production sector p corresponding to sector ji ; z p , ji and z p , j represent the intermediate inputs of sector p to sector ji and j , respectively; sectors j 1 ,   j 2   jn are all subsectors of sector j and 2 ≤ n < 149. The corresponding relationship is shown in Table A1. Figure 2 shows the schematic diagram that explains the attainment of allocation coefficients of energy consumption data. We considered raw coal consumed by farming (sector 01) as an example. Its allocation coefficient is equal to the intermediate input of mining and washing of coal (sector 06) to farming (sector 01), divided by the intermediate input of sector 06 to the primary industry (sectors 01–05). The parameters are appropriately represented in Figure 2. The production sector of raw coal corresponds to the mining and washing of coal (sector 06) in the I–O table, coke corresponds to the processing of coal (sector 42), natural gas corresponds to the extraction of petroleum and natural gas (sector 07) and gasoline corresponds to the processing of refined petroleum and nuclear fuel (sector 41). Finally, the energy allocation coefficients corresponding to the four fuel production sectors (sectors 06, 07, 41 and 42) can be calculated according to corresponding sectors.
Then, using the allocation coefficients obtained above, the energy consumption of different energy types in the 149 sectors can be calculated by Equations (5) and (6):
e k , ji D = e k , j A × d p , ji ,
e k , j 1 D + e k , j 2 D + + e k , jn D = e k , j A ,   (   2     n   <   149 )
where D and A represent the disaggregated and aggregated matrices, respectively; they correspond to a 149 × 149 and 45 × 45 matrix; k represents different types of energy; e k , ji D indicates the consumption of k corresponding to the sector ji in the energy consumption table of 149 sectors; and e k , j A indicates the consumption of k corresponding to the sector j . As an example of the application of this equation: the consumption of raw coal by farming (sector 01) in the energy consumption table of 149 sectors should be equal to the consumption of raw coal by agriculture, forestry, animal husbandry and fishery (sector 01 in the 45-sector classification) multiplied by the allocation coefficient of raw coal corresponding to the farming (sector 01).
However, according to the above calculation process, there are still some energy consumption data that cannot be fully allocated. Specifically, the intermediate input of a certain energy production sector to other sectors (corresponding to one or more sectors in the I–O table of 149 sectors) may be 0. For example, in Table 1, the intermediate input of processing of coal (sector 42) to the primary industry (sectors 01–05) is 0, but agriculture, forestry, animal husbandry and fishery (sector 01 in the 45-sector classification) consume coke and other coking products. Similarly, the intermediate input of the extraction of petroleum and natural gas (sector 07) to wholesale/retail trade and catering (sectors 117–120) is also 0; however, wholesale/retail trade and catering (sector 44 in the 45-sector classification) consume natural gas.
Zhang et al. [17] did not consider the above problems. However, we provide specific solutions. In case, the intermediate input is 0 when the energy consumption data are allocated, then the allocation coefficient corresponding to processing of coal (sector 42) is updated to the allocation coefficient corresponding to the mining and washing of coal (sector 06); similarly, the allocation coefficient corresponding to the extraction of petroleum and natural gas (sector 07) is updated to the allocation coefficient corresponding to the processing of refined petroleum and nuclear fuel (sector 41). In this manner, we can use the adjusted allocation coefficients to calculate the energy consumption of 149 sectors.
After obtaining the preliminary energy consumption table of the 149 sectors according to the above-mentioned allocating method, the amount of energy loss was allocated to each sector based on the proportion of energy consumption of various sectors. Next, the energy consumption for raw materials was obtained according to the proportion of energy consumption in sectors 41–60 (except for sector 50, which does not use energy for raw material); this value was then subtracted from the total energy consumption to obtain the energy consumption for combustion. The energy consumption for power generation and heating were allocated to the production and supply of electric/heat power (sector 98) and the net international marine fuel consumption was allocated to sectors 105–116 according to the proportion of energy consumed in the sector.

2.1.3. Sectoral CO2 Emission Calculation Method

In this study, the sectoral approach was used to calculate CO2 emissions from energy combustion in order to improve the accuracy of the sub-sectoral CO2 emission data to the maximum extent. According to the energy consumption table of the 149 sectors obtained by the above method, the CO2 emissions of these sectors can be calculated by Equation (7):
c k , j = e k , j D × lvh k × CF k , j ,
where c k , j represents the CO2 emissions produced by sector j consuming fuel k ; e k , j D represents the consumption of fuel k by sector j ; lvh k represents the average low calorific value of fuel k ; and CF k , j represents the carbon emission factor of fuel k consumed by sector j , which can be written as Equation (8):
CF k , j = C k , j × O k , j × 44 / 12 ,
where C k , j represents the carbon content of fuel k consumed by sector j and   O k , j represents the carbon oxidation rate of fuel k consumed by sector j .

2.2. Data

2.2.1. Non-Competitive I–O Table

This study only analyzes the impact of China’s domestic economic activities on sectoral carbon emissions. However, the 2017 I–O table of 149 sectors issued by the National Bureau of Statistics of China [4] is a competitive I–O table, which integrates domestic products and services with imported products and services in intermediate inputs. This approach may overestimate the impact of the final demands on sectoral carbon emissions [27,28]. To solve this problem, the methods of Chen et al. [29] and Tian et al. [30] were used for reference to construct the 2017 non-competitive I–O table by dividing the intermediate inputs and final demands into domestic and import parts. We assumed that the import rates of a sector’s intermediate and final demands (excluding exports) were identical and equal to the sector’s average import rate. Then, the demand for imported products were subtracted from the sector’s intermediate and final demand according to this ratio to obtain the intermediate and final demands of domestic products, as expressed by Equations (9) and (10):
z ij = z ij O × 1 a i M
f i = f i O × 1 a i M
where z ij and f i represent the intermediate and final demands in the non-competitive I–O table, respectively; z ij O and f i O represent the intermediate and final demands in the original competitive I–O table, respectively; a i M = m i g i represents the average import rate of sector i ; m i represents the imports of sector i ; and g i represents the sum of the total intermediate demand and the total final demand excluding exports of sector i .

2.2.2. Energy Consumption Data and Carbon Emission Factors

The energy consumption data used in this study were obtained from the energy balance sheet and final physical energy consumption table by industry in the 2018 China Energy Statistical Yearbook [3]. The I–O data were obtained from the non-competitive I–O table of 149 sectors after processing (as in Section 2.2.1). The carbon emission factor data were from the “Provincial Greenhouse Gas Inventory Compilation Guide (Trial)” [31] and “2005 People’s Republic of China National Greenhouse Gas Inventory” [32].

3. Results and Discussion

3.1. Sectoral CO2 Emissions Based on the Production Perspective

Figure 3 shows the direct CO2 emissions of various sectors in China. The production and supply of electric/heat power (sector 98) was the sector with the highest direct CO2 emissions (4429.59 Mt), accounting for 51.20% of the total CO2 emissions from all sectors. Each of the top 10 sectors emitted >100 Mt of CO2 (Table 2), leading to a collective direct CO2 emission of 7061.11 Mt, which accounted for 81.62% of the total CO2 emissions from all sectors. As most of the CO2 emissions were generated from these 10 sectors, from a production-based perspective, emission reduction policies should focus on the production practices of them to control the corresponding direct CO2 emissions.
Figure 4 presents the relationship between the direct CO2 emissions of sector 98 (production and supply of electric/heat power) and the final demands of other sectors. This shows that 91.10% of CO2 emissions from sector 98 were generated by providing electricity and heat to other sectors (not including sector 98 itself). The top seven sectors (sectors 101, 98, 102, 77, 103, 141 and 149) that consumed the most electricity and heat induced 2184.19 Mt of CO2 emissions from sector 98, which is nearly half of the total direct emissions from this sector (Table 3). The highest contribution was from housing construction (sector 101), which accounted for 19.98% of the total direct emissions from the supply of electric and heat power (Table 3). Therefore, emission reduction in sector 98 could commence considering the following two aspects. First, improvement of the power generation efficiency of electric/heat power and controlling carbon emissions in the power generation process. Second, improvement of the power efficiency of other sectors, especially the six sectors listed in Table 3, to control power consumption in production activities.

3.2. Sectoral CO2 Emissions Based on the Demand Perspective

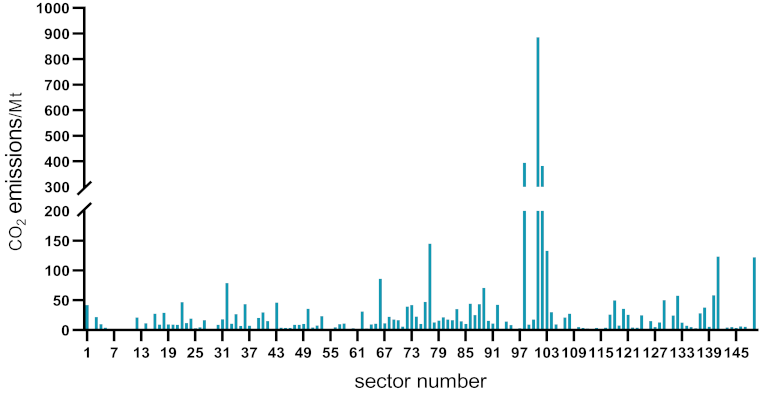

In some cases, the production activities of upstream and downstream sectors influence the CO2 emissions of other sectors. The embodied CO2 emissions caused by the final demands of various sectors in China are displayed in Figure 5. The highest embodied emissions were caused by the final demand of housing construction (sector 101), which contributed 2073.73 Mt of CO2 (23.97% of the total emissions; Table 4), most of which was emitted by other sectors along the supply chain. The top 13 sectors with the highest embodied emissions contributed 5171.14 Mt of CO2, accounting for 59.78% of the total emissions from all sectors. The embodied CO2 emissions of most sectors were mainly indirect emissions. Therefore, from a demand-based perspective, the focus should be on formulating emission reduction policies for the final demands of these 13 sectors to control corresponding CO2 emissions.
Because the embodied CO2 emissions of housing construction (sector 101) accounted for the largest proportion of the total emissions, we decomposed the CO2 emissions caused by the final demand of sector 101 to observe the contributions of various sectors to it (Figure 6). Table 5 shows that the highest contribution was from sector 98 (production and supply of electric/heat power; 884.89 Mt CO2), accounting for 42.67% of the total emissions of sector 101. The next highest contribution was from the rolling of steel subsector (sector 62; 24.91%); however, the sector itself (sector 101) accounted for only 1.88% (Table 5). Therefore, the following two key points based on the final demand of the housing construction sector for controlling the CO2 emissions caused must be considered. First, improvement of the efficiency of the use of raw materials for housing construction and reduction of the use of main raw materials while maintaining the final demand remains. Second, implementation of technological upgrades in the six sectors specified in Table 5 to control the amount of direct CO2 emissions during their production stages.

3.3. Comparisons with Similar Studies

Chang et al. [14] and Zhang et al. [17] both used disaggregated I–O model to analyze issues in the field of energy or environment. Chang et al. [14] developed an I–O LCA model that disaggregated the construction sector of I–O tables into 14 subsectors, including 13 building types and civil engineering projects, to calculate the product chain energy of different building types in China. Their results indicated that aggregation in the construction sector led to a 15–225% overestimation of the product chain energy of buildings; the difference in material consumption of different building types cannot be sufficiently reflected in the aggregated I–O model, consequently affecting the accuracy of the calculation of the building embodied energy. This is similar to our results, which suggests that the disaggregated model has a higher-precision sectoral level and thus, can more precisely reflect the link of carbon emissions between sectors and improve the accuracy of our analysis. Zhang et al. [17] also obtained similar results, indicating that the use of aggregated models will distort the allocation of embodied carbon emissions in sectors with large carbon emissions.
However, the total carbon emissions calculated by Zhang et al. [17] were inaccurate. First, the non-energy use of fuels was incorrectly included for combustion, leading to overestimation of the total carbon emissions by double counting the carbon emissions of this part. Second, their conclusions stated that the total carbon emissions of the 135-sector classification were different from those of the 42-sector classification, which does not agree with the results of our study. According to the energy consumption data allocation method used in Zhang et al. [17], when the original energy consumption table of the 42 sectors is split into the energy consumption table of the 135 sectors, the total calculated carbon emissions in these two cases should be equal because the total energy consumption is constant. In Section 3.4, we compare China’s 2017 carbon emission inventory of 149 sectors with that of 45 sectors, whereby the total CO2 emissions in both cases were the same, but the distribution of CO2 emissions between sectors differed.

3.4. Comparison of CO2 Emission Inventories: 149 Sectors and 45 Sectors

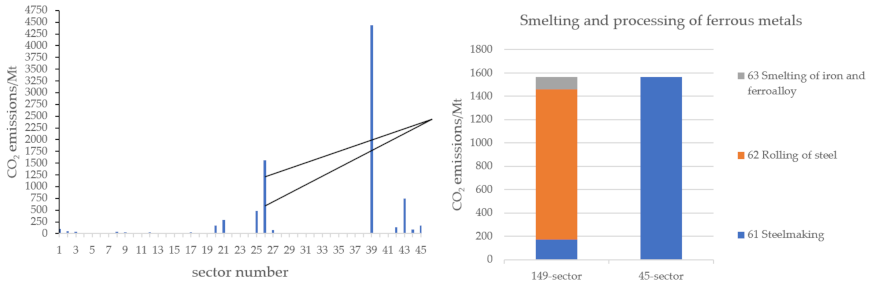

To obtain the CO2 emission inventory of 45 sectors, we aggregated the sectors in the 2017 I–O table according to the “Industrial classification for national economic activities” (GB/T 4754-2017) [26] to make them consistent with the sectors in the energy consumption table. After processing the I–O table of 149 sectors into 45 sectors, the EIO–LCA model was used to analyze the CO2 emissions of these 45 sectors.
The results demonstrated that the sum of the direct CO2 emissions of groups of subsectors in the carbon emission matrix of the 149 sectors was the same as that of the larger sectors of the 45 sectors. For example, the sum of the direct CO2 emissions of sector 61–63 in the 149 sectors was equal to the CO2 emissions of sector 26 in the 45 sectors (Figure 7). However, the embodied CO2 emissions were inconsistent. Considering the construction industry as an example, the embodied CO2 emissions of this sector in the 45-sector classification were 3238.72 Mt, while the sum of embodied CO2 emissions of sectors 101–104 of the 149-sector classification was 3314.52 Mt (2.34% more than the former). This is because direct sectoral CO2 emissions data were used for the analysis in the EIO–LCA model. However, such differences were not distinct and had a negligible impact on the subsequent analysis; therefore, Figure 8 shows the relationship between the embodied CO2 emissions of the construction sector in the 45-sector classification and the corresponding sectors in the 149-sector classification from a demand-based perspective.
Table 6 compares the details of the two classifications of the CO2 emission inventory. In the 45-sector classification, the ratio of direct CO2 emissions from the top 5 to the total CO2 emissions is 86.88% and the ratio of embodied CO2 emissions is 63.40%. Similarly, in the 149-sector classification, the ratios are 74.03% and 45.59%, respectively. This indicates that the sector concentration of the 45-sector CO2 emission inventory is higher. Moreover, the sectors with large CO2 emissions in the 149-sector inventory are all subsectors of the sectors in the 45-sector inventory (e.g., sectors 61 and 62 are subsectors of sector 26; sectors 101, 102 and 103 are subsectors of sector 42) suggesting that the 149-sector CO2 emission inventory is more precise and accurate. For example, the 45-sector CO2 emission inventory reveals that sector 42 contributes the most embodied CO2 emissions; however, sector 101 is the largest emitter of CO2 emissions in the 149-sector CO2 emission inventory. In contrast, other subsectors of the construction sector (e.g., sector 104, building decoration and other building services) contributed marginally (Figure 4); however, in the CO2 emission inventory of 45 sectors, it was only possible to determine that the construction sector led to the highest emissions, while it was not possible to distinguish the contributions of this sector’s subsectors.
Therefore, when decomposing embodied CO2 emissions by the final demand of a certain sector, the analyses based on the CO2 emission matrix of 149 sectors are more specific and targeted. Accordingly, this approach can also help us to analyze the distribution characteristics of sectoral CO2 emissions in detail. On the contrary, the analyses of the CO2 emission matrix of 45 sectors can only provide general conclusions, which may lead to imprecise and inaccurate emission reduction policies.

3.5. Sensitivity Analysis

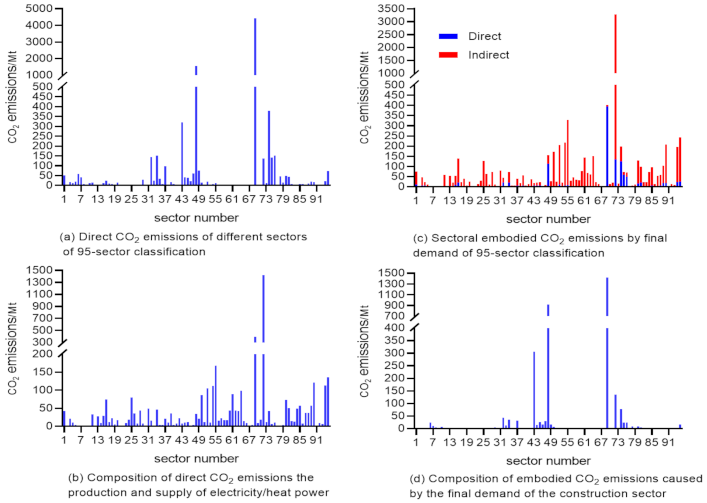

The number of sectors in the I–O tables published by the National Bureau of Statistics vary for different years; this may lead to unreliable results from carbon emission analyses when using the I–O model based on the classification of I–O tables. To enhance the reliability of sectoral analysis results, we performed sensitivity analysis by altering the number of sectors in the experiment and analyzing the results. We consequently obtained the 95 sector (shown in Table A2) carbon emission inventory and the 135 sector (shown in Table A3) carbon emission inventory according to the energy consumption data allocation method. The analysis results of the sectoral distribution characteristics of these two carbon emission inventories are detailed below.
In the carbon emission inventory of 95 sectors, the production and supply of electricity and heat power remains the largest contributor of direct carbon emissions, with smelting and processing of ferrous metals occupying the second place. These two sectors account for approximately 70% of the total emissions from all sectors. On decomposing carbon emissions from the production and supply of electricity and heat power, we discovered that the construction sector contributes the most to CO2 emitted by the production and supply of electricity and heat power, followed by the sector itself. Moreover, the construction sector is the largest contributor of embodied carbon emissions with production and supply of electricity and heat power sector occupying the second place. Further analysis revealed that the construction sector’s carbon emissions can be primarily attributed to the production and supply of electricity and heat power and smelting and processing of ferrous metals; the former provides electricity to the construction sector and the latter provides the main raw materials. Together, these two sectors contribute to > 70% of the total emissions from the construction sector (Figure 9). In the inventory of 135 sectors, the top two sectors with the largest direct carbon emissions are the production and supply of electricity and heat power (4429.59 Mt CO2) and rolling of steel (1283.75 Mt CO2). The rolling of steel subsector contributes to > 80% of the carbon emissions from the smelting and processing of ferrous metals sector. By analyzing the sectoral distribution characteristics, we found that the direct CO2 emissions from the production and supply of electric/heat power caused by the electric/heat demand of the construction sector is the largest, followed by the sector itself. This observation is the same for the inventory of 95 sectors. Moreover, the two sectors with the largest embodied carbon emissions are also the same as those for inventory of 95 sectors. Additionally, decomposing the embodied carbon emissions from the construction sector revealed that the supply of electricity and steel are the two major contributors, which correspond to the production and supply of electricity/heat power and the rolling of steel sector, respectively (Figure 10).
On reducing the number of sectors to 95 and 135, we discovered that the sectoral distribution characteristics of carbon emissions vary with the number of sectors: the coarser the sector classification, the higher the sector concentration of carbon emissions. However, the classification level of sector does not affect the carbon emissions of those sectors that have not been split. These results are general and give strong support to the reliability of our analysis.

4. Conclusions and Suggestions

4.1. Conclusions

The number of sectors in the I–O table is usually more than that in the energy consumption table. Hence, most studies elect to aggregate the sectors of the I–O table to ensure that the sector classification of the energy consumption table is consistent with that of the I–O table; however, this can introduce inaccuracies to the results. In this study, we decomposed some sectors of the energy consumption table to make both tables consistent; then, we used the EIO–LCA model to analyze the decomposed energy consumption table. The following conclusions can be drawn.
The production and supply of electric/heat power (sector 98) contributed the most direct CO2 emissions, accounting for 51.20% of the total CO2 emissions from all sectors. In addition, the sectors with the 10 highest direct CO2 emissions accounted for >80% of the total CO2 emissions, indicating a high sector concentration of direct CO2 emissions, which should be the focus of emission reduction policies.
Considering the demand-based perspective, 5171.14 Mt of CO2 was emitted by the top 13 sectors with the highest embodied CO2 emissions, which accounted for 59.78% of the total CO2 emissions from all sectors. Among these 13 sectors, the highest embodied CO2 emissions corresponded to housing construction (sector 101), which accounted for 23.97% of the total CO2 emissions. Moreover, the embodied CO2 emissions of most sectors were mainly indirect emissions.
We compared the CO2 emission matrices of 45 sectors and 149 sectors; however, the results based on the 45-sector inventory were not sufficiently accurate. In contrast, the CO2 emission matrix of 149 sectors provided a more detailed perspective for the analysis of the relationship between the CO2 emissions of different sectors, which can be used for effective development of guidelines and formulation of emission reduction policies.
On performing a sensitivity analysis, we found that the results of this study are general, that is, the higher the sector resolution, the lower the sector concentration of carbon emissions. Moreover, the sector classification level does not affect the carbon emissions of those sectors that have not been split. In future studies, SDA analysis can be employed to investigate China’s high-precision carbon emission data.
It should be noted that this study had some limitations. When processing the competitive I–O table into a non-competitive I–O table, we assumed that the import rate within a sector was the same and equal to the ratio of imports/total output. This assumption may lead to two types of errors. First, the carbon intensity of imported products may be different from the carbon intensity of domestic products in China. If products are imported from developed countries, the value may be lower than that of China. Second, it is inaccurate to use only one import rate value for a certain sector. However, because we did not have adequate details on China’s import structure and import intensity by sector, we only focused on the sectoral distribution characteristics of CO2 emissions from domestic production and not those from imports. Therefore, the assumption of competitive imports was still adopted. Third, the energy consumption data allocation method based on the non-competitive I–O table of 149 sectors (Section 2.2.1) may have made the allocation coefficients of different types of energy the same, which is not the case. For example, the consumption of all petroleum products, such as gasoline and diesel, is distributed according to the allocation coefficients corresponding to the processing of refined petroleum and nuclear fuel (sector 41). The allocation method assumes that the ratio of petroleum products consumed by all sectors is constant. However, road freight transportation services may consume relatively more gasoline, while machinery supporting agricultural services may consume relatively more diesel. To solve this problem, more detailed sectoral energy consumption data from the National Bureau of Statistics of China are needed for future studies.

4.2. Policy Suggestions

From a production-based perspective, the formulation of emission reduction policies should focus on the 10 sectors with the highest CO2 emissions (Table 2). Emission reduction measures could commence by incorporating the following aspects: first, development of low-carbon energy and promotion of decarbonization of the power industry; second, improvement of energy efficiency in other sectors in order to control energy-related carbon emissions of production activities, especially in the seven sectors listed in Table 3.
From a demand-based perspective, the formulation of emission reduction policies should focus on the 13 sectors with the highest CO2 emissions (Table 4). Taking housing construction (sector 101)—with the largest embodied CO2 emissions—as an example, the CO2 emissions caused by final demand could be controlled based on the following aspects: first, improvement in raw material utilization efficiency in the housing construction sector and to reduction in the use of raw materials while maintaining the final demand; second, upgradation of technology in the six sectors (Table 5) that contribute significantly to embodied CO2 emissions to control direct emissions during the production stage of these sectors.

Author Contributions

Conceptualization, J.J.; data curation, F.H. and Y.Y.; formal analysis, F.H. and Y.Y.; funding acquisition, J.J., D.W. and Z.Y.; investigation, F.H. and X.L.; methodology, F.H. and J.J.; project administration, F.H. and Y.Y.; resources, J.J.; software, F.H. and X.L.; supervision, J.J.; validation, F.H., Y.Y. and X.L.; visualization, F.H.; writing—original draft, F.H.; writing—review & editing, Y.Y., X.L., D.W., J.J., Z.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Starting Research Fund from Harbin Institute of Technology, Shenzhen (No. GD45001017), the Low-carbon Economics Development Program of Harbin Institute of Technology, Shenzhen (SZDRC [2018] No. 725) and the National Key Research and Development Program of China (No. 2019YFC0507505).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Sector correspondence between input–output table and energy consumption table.
Table A1. Sector correspondence between input–output table and energy consumption table.
Consumption of Energy by SectorInput–Output Table by Sector
SectorSector
01Agriculture, forestry, animal
husbandry and fishery
01Farming
02Forestry
03Animal husbandry
04Fishery
05Service in support agriculture, forestry, animal husbandry and fishery
02Mining and washing of coal06Mining and washing of coal
03Extraction of petroleum and natural gas07Extraction of petroleum and natural gas
04Mining and processing of ferrous metal ores08Mining and processing of ferrous metal ores
05Mining and processing of non-ferrous metal ores09Mining and processing of non-ferrous metal ores
06Mining and processing of nonmetal ores10Mining and processing of nonmetal ores
07Support activities for mining and
mining of other ores
11Support activities for mining and
mining of other ores
08Processing of food from agricultural products12Grinding of grains
13Processing of forage
14Refining of vegetable oil
15Manufacture of sugar
16Slaughtering and processing of meat
17Processing of aquatic products
18Processing of vegetables, fruits, nuts, and other foods
09Manufacture of foods19Manufacture of instant foods
20Manufacture of dairy products
21Manufacture of condiments and
fermented products
22Manufacture of other foods
10Manufacture of liquor, beverages, and refined tea23Manufacture of alcohol and liquor
24Manufacture of beverages
25Manufacture of refined tea
11Manufacture of tobacco26Manufacture of tobacco
12Manufacture of textile27Manufacture of cotton, chemical fiber textile, and dyeing finishing products
28Manufacture of wool spinning and dyeing finishing products
29Manufacture of hemp, silk spun
textiles, and processed products
30Manufacture of knitting or crocheting and related products
31Manufacture of textile products
13Manufacture of textile, clothing
apparel, and accessories
32Manufacture of textile, clothing
apparel, and accessories
14Manufacture of leather, fur, feather, footwear, and related products33Manufacture of leather, fur, feathers, and related products
34Manufacture of footwear
15Processing of timber, manufacture of wood, bamboo, rattan, palm, and straw products35Processing of timber, wood, bamboo, rattan, palm, and straw products
16Manufacture of furniture36Manufacture of furniture
17Manufacture of paper and paper
products
37Manufacture of paper and paper
products
18Printing and reproduction of recording media38Printing and reproduction of recording media
19Manufacture of articles for culture, education, arts and crafts, sports and entertainment activities39Manufacture of Arts and crafts
40Manufacture of articles for culture,
education, sports and entertainment activities
20Processing of petroleum, coking and processing of nuclear fuel41Processing of refined petroleum and nuclear fuel
42Processing of coal
21Manufacture of raw chemical materials and chemical products43Manufacture of basic raw chemical
materials
44Manufacture of fertilizers
45Manufacture of pesticides
46Manufacture of paints, printing inks,
pigments, and similar products
47Manufacture of synthetic materials
48Manufacture of special chemical
products and explosives, pyrotechnics, fireworks products
49Manufacture of chemical products for daily use
22Manufacture of medicines50Manufacture of medicines
23Manufacture of chemical fibers51Manufacture of chemical fiber
24Manufacture of rubber and plastic products52Manufacture of rubber
53Manufacture of plastic
25Manufacture of non-metallic mineral products54Manufacture of cement, lime, and
gypsum
55Manufacture of gypsum, cement
products, and similar products
56Manufacture of brick, stone, and other building materials
57Manufacture of glass and glass
products
58Manufacture of ceramic products
59Manufacture of refractory products
60Manufacture of graphite and other non-metallic mineral products
26Smelting and processing of ferrous metals61Steelmaking
62Rolling of steel
63Smelting of iron and ferroalloy
27Smelting and processing of
non-ferrous metals
64Smelting of non-ferrous metals and manufacture of alloys
65Rolling of non-ferrous metals
28Manufacture of metal products66Manufacture of metal products
29Manufacture of general purpose
machinery
67Manufacture of boiler and prime mover
68Processing of metal machinery
69Manufacture of material handling equipment
70Manufacture of pump, valve, compressor, and similar machinery
71Manufacture of machinery for culture activity and office work
72Manufacture of other general purpose equipment
30Manufacture of special purpose
machinery
73Manufacture of special purpose machinery for mining, metallurgy and construction
74Manufacture of special purpose machinery for chemical industry, processing of timber and nonmetals
75Manufacture of special purpose machinery for agriculture, forestry,
animal husbandry and fishery
76Manufacture of other special purpose machinery
31Manufacture of automobiles77Manufacture of cars
78Manufacture of auto parts and accessories
32Manufacture of railway, ship,
aerospace, and other transport
equipment
79Manufacture of railroad transport and urban rail transit equipment
80Manufacture of ships and related equipment
81Manufacture of other transport
equipment
33Manufacture of electrical machinery and apparatus82Manufacture of generators
83Manufacture of equipment for power transmission and distribution
and control
84Manufacture of wire,
cable, optical cable, and electrical appliance
85Manufacture of batteries
86Manufacture of household appliances
87Manufacture of other electrical
machinery and equipment
34Manufacture of computers,
communication and other electronic equipment
88Manufacture of computer
89Manufacture of communication
equipment
90Manufacture of radar, broadcasting and television equipment and its
supporting equipment
91Manufacture of audiovisual apparatus
92Manufacture of electronic component
93Manufacture of other electronic
equipment
35Manufacture of measuring
instruments machinery
94Manufacture of measuring instruments machinery
36other manufacture95Manufacture of other products
37Utilization of waste resources96Recycling and processing of waste
resources and material products
38Repair service of metal products,
machinery and equipment
97Repair service of metal products,
machinery and equipment
39Production and supply of electric and heat power98Production and supply of electric and heat power
40Production and supply of gas99Production and supply of gas
41Production and supply of water100Production and supply of water
42Construction101Housing construction
102Civil engineering construction
103Construction and installation
104Building decoration, decoration and other construction services
43Transport, storage and post105Passenger transport via railway
106Cargo transport via railway and support activities
107Urban public traffic and highway
passenger transport
108Cargo transport via road and support activities
109Water passenger transport
110Water cargo transport and support
activities
111Air passenger transport
112Air cargo transport and support
activities
113Transport via pipeline
114Multimodal transport and shipping agent
115Handling and storage
116Post
44Wholesale and retail trade
and catering
117Wholesale
118Retail
119Hotels
120Catering services
45Others121Telecommunications
122Broadcast television and satellite
transmission services
123Internet and related services
124Software service
125Information Technology service
126Monetary finance and other financial Services
127Capital market services
128Insurance
129Real estate
130Leasing
131Business services
132Research and experimental
development
133Professional technical service
134Technology promotion and application services
135Management of water conservancy
136Ecological protection and environment management
137Management of public facilities and land
138Residential services
139Other services
140Education
141Health
142Social work
143Journalism and publishing activities
144Broadcasting, movies, televisions and audiovisual activities
145Cultural and art activities
146Sports activities
147Entertainment
148Social security
149Public management and social
organization
Table A2. The 95-sector classification for I–O table.
Table A2. The 95-sector classification for I–O table.
SectorSector
01Farming49Smelting and processing of non-ferrous metals
02Forestry50Metal products
03Animal husbandry51Boiler and prime mover
04Fishery52Metalworking machinery
and other general machinery
05Service in support agriculture, forestry, animal husbandry and fishery53Cultivation, forestry, animal husbandry
and fishery machinery
06Mining and washing of coal54Other special equipment
07Extraction of petroleum and natural gas55Manufacture of automobiles
08Mining and processing of ferrous metal ores56Manufacture of railroad transport and urban rail transit equipment
09Mining and processing of non-ferrous metal ores57Manufacture of ships and related equipment
10Mining and processing of non-metallic minerals and other mining58Manufacture of other transport equipment
11Grain mill products, feeding stuff production and vegetable oil59Generators
12Sugar refining60Household appliances
13Slaughtering and meat processing61Other electric machinery and equipment
14Prepared fish and seafood62Electronic computer
15Other food processing and production63Electronic appliances and elements
16Manufacture of foods64Other electronic and communication equipment
17Wines, spirits and liquors65Measuring instruments machinery
18Non-alcoholic beverage and refined tea66Other manufacturing products
19Tobacco products67Utilization of waste resources
20Cotton textiles68Repair service of metal products, machinery and equipment
21Woolen textiles69Production and supply of electric and heat power
22Hemp textiles70Production and supply of gas
23Knitted mills71Production and supply of water
24Manufacture of textile products72Construction
25Manufacture of textile, clothing apparel,
and accessories
73Railway transport
26Manufacture of leather, fur, feather, footwear, and related products74Highway transport
27Processing of timber, manufacture of wood,
bamboo, rattan, palm, and straw products
75Water transport
28Manufacture of furniture76Air transport and other transport
29Manufacture of paper and paper products77Pipeline transport
30Printing and reproduction of recording media78Warehousing
31Manufacture of articles for culture, education, arts and crafts, sports and entertainment activities79Post
32Processing of refined petroleum and nuclear fuel80Wholesale and retail trade
33Processing of coal81Catering
34Basic raw chemical materials82Finance
35Fertilizers83Insurance
36Pesticides84Real estate
37Manufacture of other chemical products85Scientific research and experiment
38Manufacture of chemical products for daily use86Technology promotion and application services
39Medical and pharmaceutical products87Water conservancy , environmental management and public infrastructure management
40Chemical fibers88Residential services
41Rubber products89Education
42Plastic products90Health
43Cement, lime, plaster and other building materials91Social work
44Glass and glass products92Culture, arts, radio, television, film
and audio-video
45Ceramic products93Sports activities
46Fireproof products94Public administration and social organization
47Graphite and other non-metallic mineral products95Other services
48Smelting and processing of ferrous metals
Table A3. The 135-sector classification for I–O table.
Table A3. The 135-sector classification for I–O table.
SectorSector
01Farming69Manufacture of other general purpose equipment
02Forestry70Manufacture of special purpose machinery for mining, metallurgy and construction
03Animal husbandry71Manufacture of special purpose machinery for
chemical industry, processing of timber and nonmetals
04Fishery72Manufacture of special purpose machinery for agriculture, forestry, animal husbandry and fishery
05Service in support agriculture, forestry, animal husbandry and fishery73Manufacture of other special purpose machinery
06Mining and washing of coal74Manufacture of automobiles
07Extraction of petroleum and natural gas75Manufacture of railroad transport and urban rail transit equipment
08Mining and processing of ferrous metal ores76Manufacture of ships and related equipment
09Mining and processing of non-ferrous metal ores77Manufacture of other transport equipment
10Mining and processing of non-metallic minerals and other mining78Manufacture of generators
11Grinding of grains79Manufacture of equipment for power transmission and distribution and control
12Processing of forage80Manufacture of wire, cable, optical cable, and electrical appliance
13Refining of vegetable oil81Manufacture of batteries and household appliances
14Manufacture of sugar82Manufacture of other electrical machinery and equipment
15Slaughtering and processing of meat83Manufacture of computer
16Processing of aquatic products84Manufacture of communication equipment
17Processing of vegetables, fruits, nuts, and other foods85Manufacture of radar, broadcasting and television equipment and its supporting equipment
18Manufacture of instant foods86Manufacture of audiovisual apparatus
19Manufacture of dairy products87Manufacture of electronic component
20Manufacture of condiments and fermented
products
88Manufacture of other electronic equipment
21Manufacture of other foods89Manufacture of measuring instruments machinery
22Manufacture of alcohol and liquor90Manufacture of other products
23Non-alcoholic beverage and refined tea91Recycling and processing of waste resources and material products
24Manufacture of tobacco92Repair service of metal products, machinery and equipment
25Manufacture of cotton, chemical fiber textile,
and dyeing finishing products
93Production and supply of electric and heat power
26Manufacture of wool spinning
and dyeing finishing products
94Production and supply of gas
27Manufacture of hemp, silk spun textiles,
and processed products
95Production and supply of water
28Manufacture of knitting or crocheting and related products96Construction
29Manufacture of textile products97Railway transport
30Manufacture of textile, clothing apparel,
and accessories
98Highway transport
31Manufacture of leather, fur, feather, footwear, and related products99Water transport
32Processing of timber, manufacture of wood,
bamboo, rattan, palm, and straw products
100Air transport
33Manufacture of furniture101Pipeline transport
34Manufacture of paper and paper products102Multimodal transport and shipping agent
35Printing and reproduction of recording media103Handling and storage
36Manufacture of Arts and crafts104Post
37Manufacture of articles for culture, education, sports and entertainment activities105Wholesale and retail trade
38Processing of refined petroleum and nuclear fuel106Hotels
39Processing of coal107Catering services
40Manufacture of basic raw chemical materials108Telecommunications and other information
transmission services
41Manufacture of fertilizers109Internet and related services
42Manufacture of pesticides110Software service
43Manufacture of paints, printing inks, pigments, and similar products111Information Technology service
44Manufacture of synthetic materials112Monetary finance and other financial Services
45Manufacture of special chemical products and explosives, pyrotechnics, fireworks products113Capital market services
46Manufacture of chemical products for daily use114Insurance
47Manufacture of medicines115Real estate
48Manufacture of chemical fiber116Leasing
49Manufacture of rubber117Business services
50Manufacture of plastic118Research and experimental development
51Manufacture of cement, lime, and gypsum119Professional technical service
52Manufacture of gypsum, cement products, and similar products120Technology promotion and application services
53Manufacture of brick, stone, and other building materials121Management of water conservancy
54Manufacture of glass and glass products122Ecological protection and environment management
55Manufacture of ceramic products123Management of public facilities and land
56Manufacture of refractory products124Residential services
57Manufacture of graphite and other non-metallic mineral products125Other services
58Steelmaking126Education
59Rolling of steel127Health
60Smelting of iron and ferroalloy128Social work
61Smelting of non-ferrous metals and manufacture of alloys129Journalism and publishing activities
62Rolling of non-ferrous metals130Broadcasting, movies, televisions and audiovisual activities
63Manufacture of metal products131Cultural and art activities
64Manufacture of boiler and prime mover132Sports activities
65Processing of metal machinery133Entertainment
66Manufacture of material handling equipment134Social security
67Manufacture of pump, valve, compressor, and similar machinery135Public management and social organization
68Manufacture of machinery for culture activity and office work

References

  1. Ardakani, M.K.; Seyedaliakbar, S.M. Impact of energy consumption and economic growth on CO2 emission using multivariate regression. Energy Strateg. Rev. 2019, 26, 100428. [Google Scholar] [CrossRef]
  2. Friedlingstein, P.; O’Sullivan, M.; Jones, M.W.; Andrew, R.M.; Hauck, J.; Olsen, A.; Peters, G.P.; Peters, W.; Pongratz, J.; Sitch, S.; et al. The Global Carbon Budget 2020. Earth Syst. Sci. Data 2020, 12, 3269–3340. [Google Scholar] [CrossRef]
  3. NBSC. China Energy Statistical Yearbook 2018; China Statistics Press: Beijing, China, 2019. (In Chinese) [Google Scholar]
  4. NBSC. Input-Output Tables of China 2017; China Statistics Press: Beijing, China, 2019. (In Chinese) [Google Scholar]
  5. Steen-Olsen, K.; Owen, A.; Hertwich, E.G.; Lenzen, M. Effects of Sector Aggregation on CO2 Multipliers in Multiregional Input–Output Analyses. Econ. Syst. Res. 2014, 26, 284–302. [Google Scholar] [CrossRef]
  6. De Koning, A.; Bruckner, M.; Lutter, S.; Wood, R.; Stadler, K.; Tukker, A. Effect of aggregation and disaggregation on embodied material use of products in input–output analysis. Ecol. Econ. 2015, 116, 289–299. [Google Scholar] [CrossRef]
  7. Su, B.; Huang, H.C.; Ang, B.W.; Zhou, P. Input–output analysis of CO2 emissions embodied in trade: The effects of sector aggregation. Energy Econ. 2010, 32, 166–175. [Google Scholar] [CrossRef]
  8. Li, J.; Wei, W.; Zhen, W.; Guo, Y.; Chen, B. How Green Transition of Energy System Impacts China’s Mercury Emissions. Earth’s Future 2019, 7, 1407–1416. [Google Scholar] [CrossRef] [Green Version]
  9. Lenzen, M. Aggregation versus Disaggregation in Input–Output Analysis of the Environment. Econ. Syst. Res. 2011, 23, 73–89. [Google Scholar] [CrossRef]
  10. Lindner, S.; Legault, J.; Guan, D. Disaggregating Input–Output Models with Incomplete Information. Econ. Syst. Res. 2012, 24, 329–347. [Google Scholar] [CrossRef]
  11. Meng, F.; Liu, G.; Chang, Y.; Su, M.; Hu, Y.; Yang, Z. Quantification of urban water-carbon nexus using disaggregated input-output model: A case study in Beijing (China). Energy 2019, 171, 403–418. [Google Scholar] [CrossRef]
  12. Lindner, S.; Legault, J.; Guan, D. Disaggregate the electricity sector of China’s input-output table for improved environmental life-cycle assessment. Econ. Syst. Res. 2013, 25, 300–320. [Google Scholar] [CrossRef]
  13. Luo, F.; Guo, Y.; Yao, M.; Cai, W.; Wang, M.; Wei, W. Carbon emissions and driving forces of China’s power sector: Input-output model based on the disaggregated power sector. J. Clean. Prod. 2020, 268, 121925. [Google Scholar] [CrossRef]
  14. Chang, Y.; Ries, R.J.; Man, Q.; Wang, Y. Disaggregated I-O LCA model for building product chain energy quantification: A case from China. Energ. Buildings 2014, 72, 212–221. [Google Scholar] [CrossRef]
  15. Langarita, R.; Duarte, R.; Hewings, G.; Sánchez-Chóliz, J. Testing European goals for the Spanish electricity system using a disaggregated CGE model. Energy 2019, 179, 1288–1301. [Google Scholar] [CrossRef]
  16. Liu, L.; Huang, G.; Baetz, B.; Cheng, G.; Pittendrigh, S.M.; Pan, S. Input-output modeling analysis with a detailed disaggregation of energy sectors for climate change policy-making: A case study of Saskatchewan, Canada. Renew. Energ. 2020, 151, 1307–1317. [Google Scholar] [CrossRef]
  17. Zhang, Q.; Nakatani, J.; Moriguchi, Y. Compilation of an Embodied CO2 Emission Inventory for China Using 135-Sector Input-Output Tables. Sustainability 2015, 7, 8223–8239. [Google Scholar] [CrossRef] [Green Version]
  18. Minx, J.C.; Baiocchi, G.; Peters, G.P.; Weber, C.L.; Guan, D.; Hubacek, K. A “Carbonizing Dragon”: China’s Fast Growing CO2 Emissions Revisited. Environ. Sci. Technol. 2011, 45, 9144–9153. [Google Scholar] [CrossRef]
  19. Douglas, S.; Nishioka, S. International differences in emissions intensity and emissions content of global trade. J. Dev. Econ. 2012, 99, 415–427. [Google Scholar] [CrossRef]
  20. Hendrickson, C.; Horvath, A.; Joshi, S.; Lave, L.B. Economic Input–Output Models for Environmental Life-Cycle Assessment. Environ. Sci. Technol. 1998, 32, 184A–191A. [Google Scholar] [CrossRef]
  21. Wu, S.; Li, S.; Lei, Y.; Li, L. Temporal changes in China’s production and consumption-based CO2 emissions and the factors contributing to changes. Energy Econ. 2020, 89, 104770. [Google Scholar] [CrossRef]
  22. Li, Q.; Wu, S.; Lei, Y.; Li, S. Dynamic features and driving forces of indirect CO2 emissions from Chinese household: A comparative and mitigation strategies analysis. Sci. Total Environ. 2020, 704, 135367. [Google Scholar] [CrossRef]
  23. Wang, Z.; Su, B.; Xie, R.; Long, H. China’s aggregate embodied CO2 emission intensity from 2007 to 2012: A multi-region multiplicative structural decomposition analysis. Energy Econ. 2020, 85, 104568. [Google Scholar] [CrossRef]
  24. Eker, S.; Rovenskaya, E.; Obersteiner, M.; Langan, S. Practice and perspectives in the validation of resource management models. Nat. Commun. 2018, 9, 5359. [Google Scholar] [CrossRef] [PubMed]
  25. Sajid, M.J.; Qiao, W.; Cao, Q.; Kang, W. Prospects of industrial consumption embedded final emissions: A revision on Chinese household embodied industrial emissions. Sci. Rep. 2020, 10, 1–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. NBSC. 2017 Industrial Classification for National Economic Activities (GB/T 4754—2017). Available online: http://www.stats.gov.cn/tjsj/tjbz/hyflbz/201710/t20171012_1541679.html (accessed on 29 September 2017).
  27. Liu, Y.; Chen, S.; Chen, B.; Yang, W. Analysis of CO2 emissions embodied in China’s bilateral trade: A non-competitive import input–output approach. J. Clean. Prod. 2017, 163, S410–S419. [Google Scholar] [CrossRef]
  28. Su, B.; Ang, B.W. Input–output analysis of CO2 emissions embodied in trade: Competitive versus non-competitive imports. Energy Policy 2013, 56, 83–87. [Google Scholar] [CrossRef]
  29. Chen, B.; Li, J.S.; Chen, G.Q.; Wei, W.D.; Yang, Q.; Yao, M.T.; Shao, J.A.; Zhou, M.; Xia, X.H.; Dong, K.Q.; et al. China’s energy-related mercury emissions: Characteristics, impact of trade and mitigation policies. J. Clean. Prod. 2017, 141, 1259–1266. [Google Scholar] [CrossRef]
  30. Tian, Y.; Xiong, S.; Ma, X.; Ji, J. Structural path decomposition of carbon emission: A study of China’s manufacturing industry. J. Clean. Prod. 2018, 193, 563–574. [Google Scholar] [CrossRef]
  31. Chinese Development and Reform Commission. Provincial Greenhouse Gas Inventory Compilation Guide (Trial). Available online: http://www.cbcsd.org.cn/sjk/nengyuan/standard/home/20140113/download/shengjiwenshiqiti.pdf (accessed on 1 December 2020).
  32. Sector of Climate Change, National Development and Reform Commission. 2005 People’s Republic of China National Greenhouse Gas Inventory; China Environmental Science Press: Beijing, China, 2014. (In Chinese) [Google Scholar]
Figure 1. Schematic of energy consumption data allocation method (I–O: input–output).
Figure 1. Schematic of energy consumption data allocation method (I–O: input–output).
Sustainability 13 04172 g001
Figure 2. Schematic diagram for deriving the energy consumption data allocation coefficients.
Figure 2. Schematic diagram for deriving the energy consumption data allocation coefficients.
Sustainability 13 04172 g002
Figure 3. Direct CO2 emissions of different sectors.
Figure 3. Direct CO2 emissions of different sectors.
Sustainability 13 04172 g003
Figure 4. Composition of direct CO2 emissions from the production and supply of electric/heat power (sector 98).
Figure 4. Composition of direct CO2 emissions from the production and supply of electric/heat power (sector 98).
Sustainability 13 04172 g004
Figure 5. Sectoral embodied CO2 emissions by final demand.
Figure 5. Sectoral embodied CO2 emissions by final demand.
Sustainability 13 04172 g005

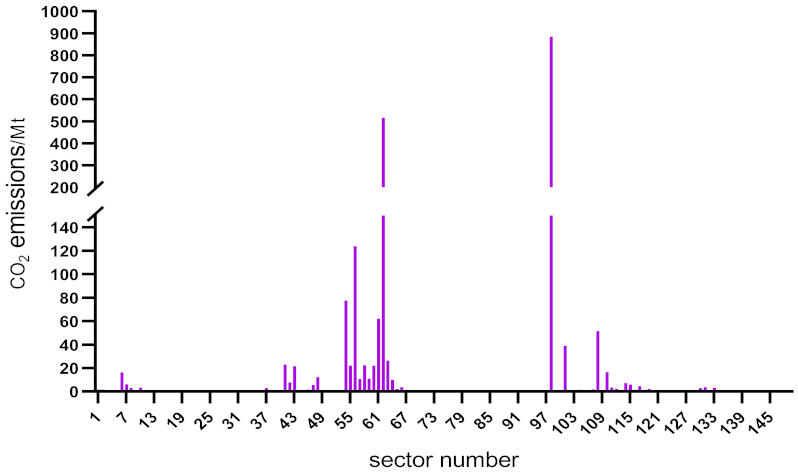

Figure 6. Composition of embodied CO2 emissions caused by the final demand of the housing construction sector.
Figure 6. Composition of embodied CO2 emissions caused by the final demand of the housing construction sector.
Sustainability 13 04172 g006
Figure 7. CO2 emission decomposition of the smelting and processing of ferrous metals sector from the production-based perspective.
Figure 7. CO2 emission decomposition of the smelting and processing of ferrous metals sector from the production-based perspective.
Sustainability 13 04172 g007
Figure 8. Decomposition of the embodied CO2 emissions of the construction sector from the demand-based perspective.
Figure 8. Decomposition of the embodied CO2 emissions of the construction sector from the demand-based perspective.
Sustainability 13 04172 g008
Figure 9. CO2 emissions of 95 sectors based on the perspectives of production and demand.
Figure 9. CO2 emissions of 95 sectors based on the perspectives of production and demand.
Sustainability 13 04172 g009
Figure 10. CO2 emissions of 135 sectors based on production and demand perspectives.
Figure 10. CO2 emissions of 135 sectors based on production and demand perspectives.
Sustainability 13 04172 g010
Table 1. Energy consumption data allocation (I–O: input–output).
Table 1. Energy consumption data allocation (I–O: input–output).
I–O Table NumberFuel (Energy) Production Sector (p) In The I–O TableCorresponding Fuel Type (k) In The Energy Consumption Table
06Mining and washing of coalAll coal products
07Extraction of petroleum and natural gasCrude oil, liquefied natural gas and natural gas
41Processing of refined petroleum and nuclear fuelAll petroleum products
42Processing of coalCoke, coal gas and other coking products
Table 2. Sectors with the 10 highest direct CO2 emissions.
Table 2. Sectors with the 10 highest direct CO2 emissions.
SectorDirect CO2 Emissions (Mt)Proportion of Total CO2 Emissions from All Sectors
98Production and supply of electric and heat power4429.5951.20%
62Rolling of steel1283.7514.84%
108Cargo transport via road and support activities344.273.98%
61Steelmaking174.812.02%
56Manufacturing of brick, stone and other building materials171.601.98%
43Manufacturing of basic raw chemical materials152.621.76%
41Processing of refined petroleum and nuclear fuel143.361.66%
110Water cargo transport and support activities136.061.57%
54Manufacturing of cement, lime and gypsum117.241.36%
63Smelting of iron and ferroalloy107.821.25%
Total7061.1181.62%
Table 3. Direct CO2 emissions from the production and supply of electric/heat power (sector 98) caused by the electric/heat demand of the top seven sectors.
Table 3. Direct CO2 emissions from the production and supply of electric/heat power (sector 98) caused by the electric/heat demand of the top seven sectors.
SectorDirect CO2 Emissions from Sector 98 (Mt)Proportion of Total CO2 Emissions from Sector 98
101Housing construction884.8919.98%
98Production and supply of electric and heat power394.408.90%
102Civil engineering construction381.678.62%
77Manufacture of cars144.783.27%
103Construction and installation132.893.00%
141Health123.412.79%
149Public management and social organization122.152.76%
Total2184.1949.31%
Table 4. Embodied CO2 emissions of major sectors.
Table 4. Embodied CO2 emissions of major sectors.
SectorEmbodied CO2 Emissions (Mt)Proportion of Total CO2 Emissions
101Housing construction2073.7323.97%
102Civil engineering construction960.1711.10%
98Production and supply of electric and heat power402.134.65%
77Manufacture of cars287.783.33%
103Construction and installation220.072.54%
141Health209.062.42%
149Public management and social organization205.112.37%
66Manufacture of metal products173.002.00%
108Cargo transport via road and support activities154.351.78%
62Rolling of steel145.271.68%
32Manufacture of textile, clothing apparel and accessories127.671.48%
89Manufacture of communication equipment107.381.24%
140Education105.401.22%
Total5171.1459.78%
Table 5. Embodied CO2 emissions of major sectors caused by the final demand of the housing construction sector.
Table 5. Embodied CO2 emissions of major sectors caused by the final demand of the housing construction sector.
SectorEmbodied CO2 Emissions (Mt)Proportion of Total CO2 Emissions Caused by Sector 101
98Production and supply of
electric and heat power
884.8942.67%
62Rolling of steel516.4824.91%
56Manufacture of brick, stone and other building materials123.835.97%
54Manufacture of cement, lime and gypsum77.623.74%
61Steelmaking62.072.99%
108Cargo transport via road and support activities51.622.49%
Total1716.5182.77%
Table 6. Comparison of the CO2 emission inventories of the 45-sector and 149-sector classifications.
Table 6. Comparison of the CO2 emission inventories of the 45-sector and 149-sector classifications.
Category of InventoryTotal CO2 EmissionsTop 5 Sectors with the Largest Direct CO2 EmissionsProportion of CO2 Emissions from the Top 5 to the TotalTop 5 Sectors with the Largest Embodied CO2 EmissionsProportion of CO2 Emissions from the Top 5 to the Total
CO2 emission inventory of 45 sectors8650.76 Mtsector 39 (4429.59 Mt)86.88%sector 42 (3238.72 Mt)63.40%
sector 26 (1566.37 Mt)sector 45 (1139.31 Mt)
sector 43 (743.18 Mt)sector 39 (402.53 Mt)
sector 25 (484.26 Mt)sector 43 (365.77 Mt)
sector 21 (292.34 Mt)sector 31 (337.74 Mt)
CO2 emission inventory of 149 sectors8650.76 Mtsector 98 (4429.59 Mt)74.03%sector 101 (2073.73 Mt)45.59%
sector 62 (1283.75 Mt)sector 102 (960.17 Mt)
sector 108 (344.27 Mt)sector 98 (402.13 Mt)
sector 61 (174.81 Mt)sector 77 (287.78 Mt)
sector 56 (171.60 Mt)sector 103 (220.07 Mt)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

He, F.; Yang, Y.; Liu, X.; Wang, D.; Ji, J.; Yi, Z. Input–Output Analysis of China’s CO2 Emissions in 2017 Based on Data of 149 Sectors. Sustainability 2021, 13, 4172. https://doi.org/10.3390/su13084172

AMA Style

He F, Yang Y, Liu X, Wang D, Ji J, Yi Z. Input–Output Analysis of China’s CO2 Emissions in 2017 Based on Data of 149 Sectors. Sustainability. 2021; 13(8):4172. https://doi.org/10.3390/su13084172

Chicago/Turabian Style

He, Fan, Yang Yang, Xin Liu, Dong Wang, Junping Ji, and Zhibin Yi. 2021. "Input–Output Analysis of China’s CO2 Emissions in 2017 Based on Data of 149 Sectors" Sustainability 13, no. 8: 4172. https://doi.org/10.3390/su13084172

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
