A Novel Index (RI) to Evaluate the Relative Stability of Soils Using Ultrasonic Agitation
Abstract
:1. Introduction
2. Material and Methods
2.1. Soil Sampling
2.2. Soil Basic Physical and Chemical Properties
2.3. Aggregate Stability by Wet Sieving
2.4. Relative Stability Index by Ultrasonic Agitation
2.5. Statistical Analysis
3. Result
3.1. Soil Basic Physical and Chemical Properties

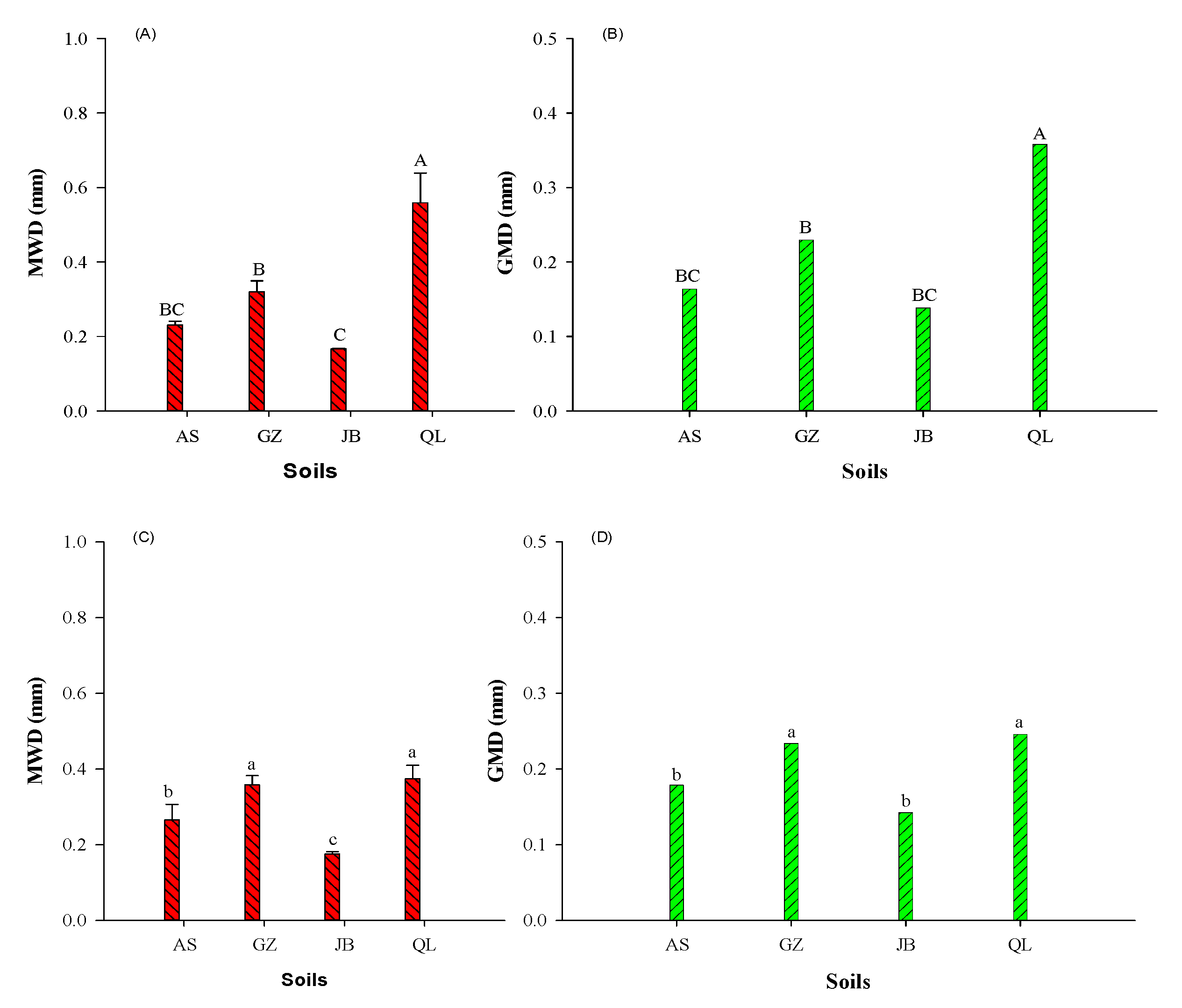

3.2. Aggregate Stability Assessment by Wet Sieving

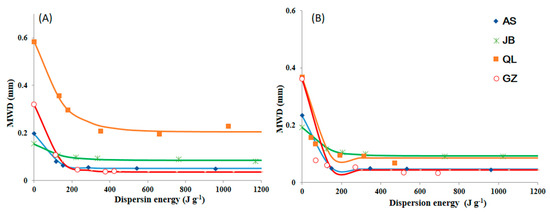

3.3. Soil Overall Disruption Curve (SODC)
3.4. Relative Stability Index (RI)
3.5. Correlation Analysis
4. Discussion
4.1. Relationship between Stability Indexes and Basic Soil Parameters
4.2. Comparative Approach of RI with Other Stability Indexes
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Díaz-Zorita, M.; Perfect, E.; Grove, J.H. Disruptive methods for assessing soil structure. Soil Tillage Res. 2002, 64, 3–22. [Google Scholar] [CrossRef]
- Mayer, H.; Mentler, A.; Papakyriacou, M.; Rampazzo, N.; Marxer, Y.; Blum, W.E.H. Influence of vibration amplitude on the ultrasonic dispersion of soils. Int. Agrophysics 2001, 16, 53–60. [Google Scholar]
- Schomakers, J.; Mentler, A.; Steurer, T.; Klik, A.; Mayer, H. Characterization of soil aggregate stability using low intensity ultrasonic vibrations. Int. Agrophysics 2011, 25, 165–172. [Google Scholar]
- Mentler, A.; Schomakers, J.; Mayer, H. Low intensity ultrasonic vibration amplitude as a tool for characterisation water stable soil aggregates. In Proceedings of the EGU General Assembly, Vienna, Austria, 7–12 April 2013. [Google Scholar]
- Schomakers, J.; Mentler, A.; Degischer, N.; Blum, W.E.H.; Mayer, H. Measurement of soil aggregate stability using low intensity ultrasonic vibration. Span. J. Soil Sci. 2011, 1, 8–19. [Google Scholar] [CrossRef]
- Schomakers, J.; Zehetner, F.; Mentler, A.; Ottner, F.; Mayer, H. Study of soil aggregate breakdown dynamics under low dispersive ultrasonic energies with sedimentation and X-ray attenuation. Int. Agrophysics 2015, 29, 501–508. [Google Scholar] [CrossRef] [Green Version]
- Raine, S.R.; So, H.B. An energy based parameter for the assessment of aggregate bond energy. J. Soil Sci. 1993, 44, 249–259. [Google Scholar] [CrossRef]
- Mentler, A.; Mayer, H.; Strauß, P.; Blum, W.E.H. Characterisation of soil aggregate stability by ultrasonic dispersion. Int. Agrophysics 2004, 18, 39–45. [Google Scholar]
- North, P.F. Towards an Absolute Measurement of Soil Structural Stability Using Ultrasound. Eur. J. Soil Sci. 1976, 27, 451–459. [Google Scholar] [CrossRef]
- Lin, S.; Zhang, F. Measurement of ultrasonic power and electro-acoustic efficiency of high power transducers. Ultrasonics 2000. [Google Scholar] [CrossRef]
- Zhu, Z.L.; Minasny, B.; Field, D.J. Adapting technology for measuring soil aggregate dispersive energy using ultrasonic dispersion. Biosyst. Eng. 2009, 104, 258–265. [Google Scholar] [CrossRef]
- Tippkotter, R. The effect of ultrasound on the stability of mesoaggregates (60–2000 μm). Zeitschrift für Pflanzenernährung und Bodenkunde 1994. [Google Scholar] [CrossRef]
- Field, D.J.; Minasny, B. A description of aggregate liberation and dispersion in A horizons of Australian Vertisols by ultrasonic agitation. Geoderma 1999, 91, 11–26. [Google Scholar] [CrossRef]
- Ribeiro, B.T.; de Lima, J.M.; Curi, N.; de Oliveira, G.C. Aggregate breakdown and dispersion of soil samples amended with sugarcane vinasse. Sci. Agric. 2013, 70, 435–441. [Google Scholar] [CrossRef] [Green Version]
- Schomakers, J.; Mayer, H.; Lee, J.Y.; Lee, T.Y.; Jien, S.H.; Mentler, A.; Hein, T.; Huang, J.C.; Hseu, Z.Y.; Cheng, L.W.; et al. Soil aggregate breakdown and carbon release along a chronosequence of recovering landslide scars in a subtropical watershed. Catena 2018, 165, 530–536. [Google Scholar] [CrossRef]
- da Silva, É.A.; Reinert, D.J.; Reichert, J.M.; Mallmann, M.S.; Pereira, M.A.; Pons, S.S.; Foggiato, W.S. Soil conservation management with cover crops: Effects on critical energy levels, release and dispersion of aggregates. Bragantia 2019, 78, 444–453. [Google Scholar] [CrossRef] [Green Version]
- Fuller, L.G.; Goh, T.B. Stability-energy relationships and their application to aggregation studies. Can. J. Soil Sci. 1992, 72, 453–466. [Google Scholar] [CrossRef]
- Carolino de Sá, M.A.; Lima, J.M.; Silva, M.L.N.; Junior, D. Índice de desagregação do solo baseado em energia ultra-sônica. Rev. Bras. Ciência Solo 1999, 23, 525–531. [Google Scholar] [CrossRef]
- da Érika, A.S.; de Geraldo, C.O.; Carla, E.C.; de José, M.L.; de Laura, B.B.M.; Pedro, A.N.B. Stability of soil aggregates in Latosols and Cambisols via standard method and sonification. Afr. J. Agric. Res. 2016, 11, 3894–3903. [Google Scholar] [CrossRef] [Green Version]
- Nelson, D.W.; Sommers, L.E. A Rapid and Accurate Procedure for Estimation of Organic Carbon in Soils. Proc. Indiana Acad. Sci. 1974, 84, 456–462. [Google Scholar]
- Six, J.; Callewaert, P.; Lenders, S.; De Gryze, S.; Morris, S.J.; Gregorich, E.G.; Paul, E.A.; Paustian, K. Measuring and Understanding Carbon Storage in Afforested Soils by Physical Fractionation. Soil Sci. Soc. Am. J. 2002, 66, 1981–1987. [Google Scholar] [CrossRef] [Green Version]
- Kemper, W.D.; Rosenau, R.C. Aggregate Stability and Size Distribution. Methods Soil Anal. Part 1 Phys. Mineral. Methods 1986, 5, 425–442. [Google Scholar]
- Field, D.J.; Minasny, B.; Gaggin, M. Modelling aggregate liberation and dispersion of three soil types exposed to ultrasonic agitation. Aust. J. Soil Res. 2006, 44, 497–502. [Google Scholar] [CrossRef]
- Vrdoljak, G.; Sposito, G. Soil aggregate hierarchy in a Brazilian oxisol. Dev. Soil Sci. 2002, 28, 197–217. [Google Scholar] [CrossRef]
- Schmidt, M.W.I.; Rumpel, C.; Kögel-Knabner, I. Evaluation of an ultrasonic dispersion procedure to isolate primary organomineral complexes from soils. Eur. J. Soil Sci. 1999, 50, 87–94. [Google Scholar] [CrossRef]
- Denef, K.; Six, J.; Merckx, R.; Paustian, K. Short-term effects of biological and physical forces on aggregate formation in soils with different clay mineralogy. Plant. Soil 2002, 246, 185–200. [Google Scholar] [CrossRef]
- Oades, J.M. The role of biology in the formation, stabilization and degradation of soil structure. Geoderma 1993, 56, 377–400. [Google Scholar] [CrossRef]
- Attou, F.; Bruand, A.; Le Bissonnais, Y. Effect of clay content and silt-clay fabric on stability of artificial aggregates. Eur. J. Soil Sci. 1998, 49, 569–577. [Google Scholar] [CrossRef]
- Ćirić, V.; Manojlović, M.; Nešić, L.; Belić, M. Soil dry aggregate size distribution: Effects of soil type and land use. J. Soil Sci. Plant. Nutr. 2012, 12, 689–703. [Google Scholar] [CrossRef] [Green Version]
- Shahabinejad, N.; Mahmoodabadi, M.; Jalalian, A.; Chavoshi, E. The fractionation of soil aggregates associated with primary particles influencing wind erosion rates in arid to semiarid environments. Geoderma 2019, 356, 113936. [Google Scholar] [CrossRef]
- Chaney, K.; Swift, R.S. The influence of organic matter on aggregate stability in some British soils. Eur. J. Soil Sci. 1984, 35, 223–230. [Google Scholar] [CrossRef]
- Amezketa, E.; Aragües, R.; Carranza, R.; Urgel, B. Macro- and micro-aggregate stability of soils determined by a combination of wet-sieving and laser-ray diffraction. Span. J. Agric. Res. 2003, 4, 83–94. [Google Scholar] [CrossRef] [Green Version]
- Rajeev, P.; Sumanasekera, P.R.; Sivakugan, N. Lateral variation of the vertical stress in underground mine stopes filled with granular backfills. Geotech. Geol. Eng. 2016, 34, 481–492. [Google Scholar] [CrossRef]
- Aksakal, E.L.; Angin, I.; Sari, S. A new approach for calculating aggregate stability: Mean weight aggregate stability (MWAS). Catena 2020, 194, 104708. [Google Scholar] [CrossRef]
- Le Bissonnais, Y. Aggregate stability and assessment of soil crustability and erodibility: I. Theory and methodology. Eur. J. Soil Sci. 1996, 47, 425–437. [Google Scholar] [CrossRef]
- Zhu, Z.L.; Minasny, B.B.; Field, D.J. Measurement of aggregate bond energy using ultrasonic dispersion. Eur. J. Soil Sci. 2009, 60, 695–705. [Google Scholar] [CrossRef]
Soil Sample | Altitude (m) | Longitude (E)/Latitude (N) | Slope (°) | Main Vegetation | Soil Type | Sampling Site |
---|---|---|---|---|---|---|
QL | 754 | 107°39′2.15″/ 34°10′52.14″ | 42 | Oak | loamy soil | Qinling Mountains |
GZ | 549 | 108°0′41.66″/ 34°20′28.46″ | 4 | Zea mays | loamy soil | Guanzhong Plain |
AS | 1091 | 109°15′1.66″/ 36°44′24.54″ | 2 | Sophora davidii, Artemisia gmelinii, Artemisia scoparia | sandy soil | Ansai |
JB | 162 | 108°52′56.50″/ 37°30′12.00″ | 2 | Salix, wheatgrass, Lespedeza, Oxytropis, Cleistogenes | sandy soil | Jingbian |
Soil Sample | Depth (cm) | pH | SOM (%) | Exchangeable Cations (g/Kg) | Clay (%) | Silt (%) | Sand (%) | ||
---|---|---|---|---|---|---|---|---|---|
Mn | Mg | Fe | |||||||
QL | 0–20 | 7.12 ± 0.46 B | 1.86 ± 0.26 A | 0.62 ± 0.04 A | 11.43 ± 5.61 A | 19.26 ± 3.2 A | 24.37 ± 3.0 A | 33.95 ± 1.66 A | 41.68 ± 4.64 C |
20–40 | 6.34 ± 0.29 c | 1.59 ± 0.58 a | 0.46 ± 0.03 a | 9.78 ± 1.42 a | 19.48 ± 3.9 a | 23.75 ± 0.33 a | 33.98 ± 1.71 a | 42.26 ± 1.50 c | |
GZ | 0–20 | 8.51 ± 0.06 A | 1.26 ± 0.50 B | 0.35 ± 0.17 B | 6.87 ± 4.61 C | 9.81 ± 2.4 BC | 24.69 ± 2.35 A | 32.68 ± 0.74 A | 42.62 ± 3.08 C |
20–40 | 8.56 ± 0.11 a | 1.45 ± 0.31 b | 0.46 ± 0.00 a | 7.82 ± 3.83 c | 14.38 ± 9.4 b | 25.39 ± 1.13 a | 33.58 ± 0.72 a | 41.02 ± 1.81 c | |
AS | 20–40 | 8.93 ± 0.03 A | 0.89 ± 0.43 C | 0.33 ± 0.04 B | 9.21 ± 2.33 B | 14.44 ± 1.9 B | 7.64 ± 0.77 C | 18.27 ± 0.94 B | 69.72 ± 1.64 B |
20–40 | 8.89 ± 0.10 a | 0.54 ± 0.13 c | 0.33 ± 0.04 b | 9.56 ± 1.41 a | 12.55 ± 3.9 c | 11.97 ± 0.33 b | 18.57 ± 1.17 b | 69.44 ± 1.50 b | |
JB | 0–20 | 8.98 ± 0.07 A | 1.60 ± 0.18 AB | 0.21 ± 0.08 C | 6.56 ± 2.87 C | 9.75 ± 3.6 BC | 12.01 ± 1.21 B | 8.80 ± 1.47 C | 83.55 ± 2.50 A |
20–20 | 8.93 ± 0.46 a | 0.53 ± 0.19 c | 0.23 ± 0.02 c | 8.2 ± 1.12 bc | 8.64 ± 2.6 d | 6.48 ± 1.31 c | 8.08 ± 2.36 c | 85.43 ± 3.66 a |
0–20 cm | 20–40 cm | ||||||
---|---|---|---|---|---|---|---|
Soil Sample | MC (mm) | D (mm) | Ki (g J−1) | Soil Sample | MC (mm) | D (mm) | Ki (g J−1) |
AS | 0.050 | 0.147 | 0.020 | AS | 0.048 | 0.187 | 0.094 |
JB | 0.085 | 0.069 | 0.010 | JB | 0.094 | 0.098 | 0.015 |
QL | 0.202 | 0.382 | 0.008 | QL | 0.089 | 0.494 | 0.018 |
GZ | 0.038 | 0.282 | 0.015 | GZ | 0.041 | 0.457 | 0.021 |
0–20 cm | 20–40 cm | ||
---|---|---|---|
Soils | RI (J g−1 mm−1) | Soils | RI (J g−1 mm−1) |
AS | 411.61 ± 14.03 B | AS | 162.72 ± 26.06 b |
JB | 1612.95 ± 86.35 A | JB | 736.32 ± 38.57 a |
QL | 328.48 ± 10.90 BC | QL | 126.71 ± 3.94 bc |
GZ | 245.75 ± 21.898 C | GZ | 103.70 ± 3.48 c |
Clay | Silt | Sand | SOM | pH | Mn | Mg | Fe | RI | |
---|---|---|---|---|---|---|---|---|---|
RI | −0.68 | −0.74 * | 0.72 * | −0.43 | 0.41 | −0.64 | −0.51 | −0.51 | 1 |
MWD | 0.83 * | 0.85 ** | −0.84 ** | 0.94 ** | −0.74 * | 0.97 ** | 0.67 | 0.84 ** | −0.57 |
GMD | 0.82 * | 0.83 * | −0.83 * | 0.97 ** | −0.74 * | 0.95 ** | 0.63 | 0.80 * | −0.52 |
