Article

Identification and Classification of the Dissolved Substances from Sludge Biochar and Their Effects on the Activity of Acid Phosphomonoesterase

1
Yunnan Key Laboratory of Soil Carbon Sequestration and Pollution Control, Faculty of Environmental Science and Engineering, Kunming University of Science and Technology, Kunming 650500, China
2
Institute of Environmental Sciences (CML), Leiden University, 2300 RA Leiden, The Netherlands
3
National Institute of Public Health and the Environment (RIVM), Center for Safety of Substances and Products, 3720 BA Bilthoven, The Netherlands
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(15), 9749; https://doi.org/10.3390/su14159749
Submission received: 25 June 2022 / Revised: 3 August 2022 / Accepted: 4 August 2022 / Published: 8 August 2022

Abstract

:
Soil extra-cellular enzymes are the main driving force for microbial and biochemical processes, which makes them sensitive indicators for soil health and quality. Returning large amounts of sludge or its biochar to farmland may introduce exogenous substances into soil and have a significant impact on soil enzymatic activity. This study aimed to evaluate the effects of substances dissolved from sludge biomass and its biochar added at different amounts and produced at various temperatures (200 °C, 300 °C, and 450 °C) on the activity of acid phosphomonoesterase. Results showed that the activity of acid phosphomonoesterase was significantly inhibited by these dissolved substances from biochar pyrolyzed at different temperatures, especially at high concentrations of 50 mgC L−1 and upon the exposure to DBC200. The conformation of acid phosphomonoesterase became loose and flexible after exposure to dissolved organic matter (DOM) extracted from biochar in terms of reduced α-Helix contents and increased β-Turn contents as deduced from circular dichroism spectra. According to the results of multiple linear regression, it can be concluded that the increased contents of arsenic as well as protein-like components within dissolved substances may be responsible for the inhibited enzymatic activities and the altered enzymatic conformation. Our findings provide evidence that the pyrolysis of sludge at a higher temperature would be helpful to reduce its negative impacts on the soil ecosystem.

1. Introduction

Sludge is an inevitable major byproduct of sewage treatment that is difficult to manage because it contains a lot of organic debris, bacteria, inorganic particles, and colloids [1]. With the accelerating process of human urbanization, the output of sludge is also increasing rapidly, the recycling of which creates a lot of problems. According to statistics, the annual output of sludge in the 35 major European countries was about 2,841,735 tons in 2018 [2]. If not properly disposed, such considerable amounts of waste will further threaten the environment and even human health. Pyrolysis has attracted more and more attention in recent years as an efficient waste treatment method. This is because pyrolysis can not only eliminate pathogens in sludge [3], reduce the production of dioxin [4], and fix most heavy metals in solid residues to inhibit the formation of secondary pollution [5], but also enables to produce bio-oil, non-condensable gas, and biochar with high utilization value [6]. This provides a new and effective way for sludge reduction which is harmless and allows for efficient resource utilization. Khadem et al. [7] found that soil biochar applications can greatly reduce the use of chemical fertilizers and promote the development of the sustainable agriculture owing to the stimulation on microbial activity, enzyme production, and activity. Some studies reported that sludge biochar can increase crop yields and reduce diseases and insect pests when applied for the purpose of soil improvement [1]. Other scientists showed more concerns regarding the risks associated with the application of sludge biochar [8]. Because limited studies with even contradictory results have been reported, and the biological effects of sludge biochar in these studies have been linked with its properties [9]. To properly process and manage sludge biochar, it is thus very necessary to assess its potential effects on soil properties before use in massive quantities.
Soil extra-cellular enzymes such as hydrolase hold a potential as sensitive indicators of soil health and quality owing to their direct or indirect participation in the material cycle and the functioning of soil ecosystems [10]. Among the soil extra-cellular enzymes, phosphomonoesterases have been studied most and their enzymatic reaction has been shown to proceed through hydrolysing monoester bonds mononucleotides and sugar phosphates to produce available phosphorus nutrients for plant utilization. Similar to most hydrolases, the activities of phosphomonoesterases depend on several factors such as soil properties, interactions with soil organisms, plant cover, leachate inputs, and the presence of inhibitors and activators [11]. The dissolved substances of sludge biochar such as (heavy) metals, polycyclic aromatic hydrocarbons (PAHs), phenols, and dissolved organic matter (DOM), which have a better mobility and a greater chance of contact with soil free hydrolases, can be a source of inhibitors for phosphomonoesterases that are readily dissolved in soil pore water as well. For instance, arsenic (As) may bind to cysteines in proteins and change the conformation and functions of those proteins [12], while purified Aldrich humic acid can bind with the protein lysozyme or even form encapsulated proteins and modify the protein structure [13]. Moreover, the pyrolysis temperature can strongly affect the composition and concentration of dissolved components of biochar. Normally, the total or available contents of N, P, and K are elevated as the pyrolysis temperature increases, while the amounts of DTPA-extractable Cu, Pb, Zn, Cd, and Cr are reduced due to the increased pH value or enhanced adsorption capacity of biochar [1,5]. Various components in biomass such as hemicellulose, cellulose, and lignin would decompose and produce different products over different temperature ranges [14]. It thus seems necessary to further understand how the dissolved substances released from sludge biochar produced at different temperatures interfere with the biological activity of phosphomonoesterases.
The present study therefore aims at investigating the biochar produced from sewage sludge, characterizing the dissolved substances (i.e., DOM, (heavy) metals) as a function of the pyrolysis temperature, and elucidating the mechanisms by which these dissolved substances affect the activity of purple acid phosphomonoesterase that was mostly secreted from bacteria and fungi [15,16] and generally prevails in acidic soil [17]. The first hypothesis of this study was that the activity of acid phosphomonoesterase would be inhibited by the dissolved substances released from sludge biomass or its biochar. In addition, He et al. [18] have reported that the DOM content released from dewatered sludge biochar decreased with increasing pyrolysis temperatures (200–600 °C). Due to the decreased contents of dissolved substances from sludge biochar, the degree of inhibition on the activity of acid phosphomonoesterase was thus hypothesized to decrease with the increase of pyrolysis temperature for sludge biomass and its biochar. This formed the second hypothesis of the present study.

2. Materials and Methods

2.1. Preparation and Characterization of Sludge Biomass and Biochar

The biochar used in the present study was produced from sewage sludge, which was obtained from a pharmaceutical company in Yunnan, China. It was previously dried at 50 °C after removing the large residues, ground in a laboratory mill, sieved to <0.150 mm particle size, and mixed evenly. The prepared sludge biomass (SB) was then pyrolyzed in a muffle furnace (Beijing Ever Bright Medical Treatment Instrument Company, Beijing, China) with N2. As reported by some researchers, sewage sludge biochar produced at 450 °C should be more suitable for soil improvement since it was less toxic to the growth of plants owing to the lower level of heavy metals, and the relatively moderate pH or ash levels within biochar [19,20]. Coupled with the consideration of reducing economic investment in recycling sludge, the pyrolysis temperatures for biochar production in the present study were therefore set at 200 °C, 300 °C, and 450 °C for 2 h. After cooling to room temperature, all biochar (BC200, BC300, BC450) was removed, ground, sieved to <0.074 mm, and stored in brown glass bottles at 4 °C for further use.
The pH values of SB, BC200, BC300, and BC450 were determined in deionized water at the ratio of 1:5 wt/v by a PXSJ-216F pH meter (Leici Instruments, Shanghai, China). The total mass percentages of C, H, O, N, and S were measured by a Vario MICRO cube elemental analyzer (Elementar, Hanau, Germany). The Brunauer–Emmett–Teller surface area was measured via the N2 adsorption multilayer theory using an ASAP2020M surface area analyzer (Micromerities, Norcross, GA, USA). The surface morphology was observed by a Quanta 200F scanning electron microscopy (FEI NanoPorts, Portland, OR, USA). All samples (50 mg) were digested by a mixture of HNO3 (3 mL), HF (1 mL), and H2O2 (1 mL) in a sealed Teflon vessel. The concentrations of Mn, Cr, Fe, Cu, Zn, Ni, As, and Cd in all samples (i.e., SB, BC200, BC300, and BC450) were determined using a NexION 350x inductively coupled plasma mass spectroscopy (ICP-MS, Perkin Elmer, Waltham, MA, USA). The yield was determined by the ratio of the remaining mass of the sample after pyrolysis to the original mass of biomass. Each sample was analyzed in duplicate.

2.2. Extraction and Characterization of Dissolved Substances

To extract dissolved substances from biochar, 2.5 g of each biochar (i.e., SB, BC200, BC300, and BC450) was mixed with 50 mL of deionized water and then placed in a thermostatic oscillator (25 °C, 200 r·m−1) for 24 h. After that, the samples were taken out and centrifuged at 1007× g for 30 min. Biochar particles were then removed by a 0.45 μm membrane filter (ANPEL Laboratory Technologies, Shanghai, China). The chemicals present in the supernatant were regarded as the dissolved substances (i.e., DSB, DBC200, DBC300, and DBC450) that were released from SB, BC200, BC300, and BC450. The supernatant was stored at 4 °C for further use. To determine the subsequent exposure concentration ranges, the total dissolved organic carbon (DOC) content of each sample was measured using the Vario MICRO cube elemental analyzer, and the samples were used to prepare different concentrations of DSB, DBC200, DBC300, and DBC450. The metal concentrations of Mn, Cr, Fe, Cu, Zn, Ni, As, and Cd in each sample of dissolved substances were determined by ICP-MS (Perkin Elmer, Waltham, MA, USA). The concentrations of PAHs and phenolic compounds were determined by Yunnan Province Geology and Mineral Environmental Monitoring Center, China. Sixteen PAHs [21] were analyzed using a LC 2030 high performance liquid chromatography (SHIMADZU, Beijing, China), and thirteen phenolic compounds [22] were analyzed using 8890 gas chromatography-mass spectrometry (Agilent, Palo Alto, CA, USA).
Fluorescence excitation-emission matrix (EEM) spectroscopy coupled with parallel factor analysis (PARAFAC) was used to better understand the compositional features of DSB, DBC200, DBC300, and DBC450 including the dominant fluorescent components based on their excitation and emission (Ex/Em) maxima. The EEM of each sample with DSB, DBC200, DBC300, and DBC 450 was generated from 250 nm to 600 nm at 1 nm intervals, with 5 nm increments of the excitation wavelength from 220 nm to 400 nm using a F-7000 fluorescence spectrophotometer (HITACHI, Tokyo, Japan). For the EEM analysis, the concentration of C in each sample was diluted to 1 mgC L−1 to eliminate the inner-filter effect of fluorescence. The detailed method of using PARAFAC (EFC v1.2, He wei, Beijing, China) to model the dataset of fluorescent EEMs was described in the studies of Rajapaksha et al. [23] and Li et al. [24].

2.3. Exposure Testing Design

Because the hydrolysis of p-nitrophenyl phosphate (pNPP) is much more rapid and accurate than that of natural substrates such as nucleic acids [11]. The pNPP assay was selected to show the activity of purple acid phosphomonoesterases with or without the dissolved substances released from biochar. The purple acid phosphomonoesterase (from potato) was used in this study as its molecular structure has been well investigated [25]. Both purple acid phosphomonoesterase at a nominal concentration of ≥0.5 unit/mg solid and pNPP (10 mM) were purchased from the Sigma-Aldrich Company, St. Louis, MO, USA. The optimum pH value for acid phosphomonoesterase activity was determined using the dynamic light scattering method by a Zeta PALS instrument (Brook Haven, Attleboro, MA, USA) when the surface charges of the acid phosphomonoesterase and pNPP were opposite. This is because the combination of substrate and enzyme by electrostatic attraction is the primary condition for enzymatic reactions [26]. Upon the pre-experiment basis, the solution pH value was thus kept around 3 to avoid the influence of pH alterations and to ensure the combination of substrate (i.e., pNPP) and enzyme (i.e., acid phosphomonoesterases). The pNPP is hydrolysed to p-nitrophenol (pNP), the content of which can be determined spectrophotometrically at 405 nm of a LD-SY96S automatic microplate spectrophotometer (Laiende, Kunshan, China). The pNP standard solution purchased from the Sigma-Aldrich Company was used to establish the standard curve, i.e., the linear correlation between the pNP concentration and the absorbance, so as to facilitate the later confirmation of the product concentration.
Acid phosphomonoesterase was dissolved in ultra pure water to prepare a stock solution of 0.05 unit mL−1. The original solutions of DSB, DBC200, DBC300, and DBC450 were diluted several times using ultra pure water, 4 mL of which were added into a 10 mL brown vial and then mixed with 4 mL acid phosphomonoesterase to obtain the dissolved substances concentrations of 0, 5, 12.5, 25, and 50 mgC L−1. The pH value of the spiked samples was adjusted to around 3 using either 0.1 M HCl or NaOH. Samples were then sealed and placed on a shaker at 80 rpm and 25 °C for 2 h. The activity of acid phosphomonoesterase was then detected using Acid Phosphatase Assay Kits (Beyotime bio-technology company, Shanghai, China) according to the protocol of the manufacturer. All treatments were repeated three times. The Chirascan V100 circular dichroism (Applied Photophysics Limited, Surrey, UK) and the Beta Structure Selection method (BeStSel) were used to explain the conformation changes [27] of acid phosphomonoesterase before and after its exposure to DSB, DBC200, DBC300, and DBC450.

2.4. Statistical Analysis

The activity of acid phosphomonoesterase was determined by the generated pNP content which was derived from the standard curve (see Figure S2) and was expressed as nmol of pNP generated per minute. The degree of inhibition of the enzymatic reaction was calculated by means of Equation (1):
Inhibition   rate = ( 1 generated   pNP   of   treatment   groups generated   pNP   of   control   groups ) × 100 %
The normal distribution of data was verified by the Kolmogorov–Smirnov (K-S) test. One-way analysis of variance (ANOVA) was carried out to detect the significant level of differences between percentages of C1, C2, and C3 within DSB and those percentages within DBC200, DBC300, or DBC400 treatments using the Least Significant Difference method (LSD). The significant level of differences in inhibition rates of phosphatase activity was also analyzed using the one-way ANOVA method. The multiple linear regression method was used to determine the main contributing factors towards the inhibition on enzyme activity. The characterization data of dissolved substances were all fitted to the multiple linear regression model, and then the parameters with significant correlations (p < 0.05) were left in the final formula. The data included the measured metal concentrations of Mn, Cr, Fe, Cu, Zn, Ni, As, and Cd; the maximum fluorescence intensities (Fmax) of the three main components, namely C1, C2, and C3; the concentrations of 16 PAHs or ΣPAH; the concentrations of 13 phenolic compounds; and the DOC concentrations. The statistical analysis was conducted using the software package SPSS 21 (IBM Corporation, Amonk, NY, USA) and the plotting was conducted using the OriginPro 8 software (Origin Lab, Northampton, NY, USA).

3. Results and Discussion

3.1. Biochar Yield and Characterization for Particles and Dissolved Substances

As summarized in Table 1, the pH values of SB, BC200, BC300, and BC450 were all in the alkaline range. As the pyrolysis temperature increased, the total concentrations of Mn, Cr, Fe, Cu, Zn, Ni, As, and Cd continually increased (Table 1), whereas the dissolved fractions of those metals decreased (Table S2). This result was consistent with the previous studies by Bai et al. [28] and Li et al. [29], indicating a further decrease in bioavailability, leachability, or environmental risks of metals in biochar. Due to the removal of volatile materials [23] as well as the appearance of loose structure and fine pores (see Figure 1), the specific surface area of biochars was increased by increasing pyrolysis temperatures. A lower molar ratio of H/C at relatively higher temperatures (i.e., 300 °C and 450 °C) indicated a more carbonized biochar as compared with the biochar produced at 200 °C, while the similar O/C ratios indicated that the hydrophilicity of biochar changed insignificantly in the present range of pyrolysis. In addition, the amount of DOC produced by SB and BC at similar mass contents increased first with increasing temperatures, and then decreased sharply by more than 50% at 450 °C (see Table S2). This may be because the decomposition temperature varied for different organic matters in sludge biomass. For example, hemicellulose began to decompose at the range of 220–315 °C, cellulose began to decompose from 300 to 400 °C, and lignin can decompose from 150 to 900 °C [14]. In addition, some volatiles in the biochar may be secondary cracked and escaped when the temperature was raised [23,30], leading to the reduced amount of DOC at a higher pyrolysis temperature.
Using the EEM-PARAFAC method (see Figure 2 and Figure S1), three similar fluorescent components including two humic-like substances (C1 and C2) and one protein-like substance (C3) were identified from the dissolved substances of sludge biomass and its biochar (see Table 2). Kothawala et al. reported that C1 was described as a high molecular weight aromatic and C2 was described as a low molecular weight substance [31]. As shown in Figure 3, more than 50% of the dissolved substances of the sludge biomass and its biochar were dominated by humic-like substances (i.e., C1 and C2). With the increase of pyrolysis temperature, the relative abundance of C1 and C2 increased significantly, while the relative abundance of C3 decreased significantly. This was deduced through comparison between the sum of C1 with C2 of DSB (63%) and the values of DBC200 (79%), DBC300 (87%) or DBC450 (90%) using the one-way ANOVA analysis. This demonstrated an essential role of pyrolysis temperature in affecting the properties of dissolved substances from sludge biomass and its biochar. The increased pyrolysis temperature may promote the decomposition of (poly)phenolics and other aromatic structures in biochar, leading to the increased relative abundances of C1 and C2. This was consistent with the results found by Rajapaksha et al. [23] and Lin et al. [32]. In contrast, the reduced relative abundance of C3 may indicate a poor heating stability of protein-like substances (e.g., amino acids and peptides [33]) in the dissolved substances of sludge biomass and its biochar.

3.2. Activity of Acid Phosphomonoesterase as Affected by Dissolved Substances

As shown in Figure 4, the presence of dissolved substances from sludge biomass and its biochar did inhibit the activity of acid phosphomonoesterase, i.e., the calculated inhibition rates ranged from 11.9% to 91.5%. This finding confirmed our first hypothesis. At higher concentrations of DOC (i.e., 25 and 50 mgC L−1), the highest inhibition rate on activity of acid phosphomonoesterase was observed in DBC200 which was significantly higher than the inhibition rate in DSB. The lowest inhibition rate was detected in either DBC300 or DBC450 (see Figure 4B). At lower concentrations of DOC (i.e., 5 and 12.5 mgC L−1), the maximum inhibition rate occurred in DSB and DBC200. This rate was significantly higher than in the treatments of DBC300 and DBC450. This finding partially allowed us to accept our second hypothesis of the degree of inhibition of dissolved substances from sludge biomass and its biochar on the activity of acid phosphomonoesterase decreasing with increasing pyrolysis temperature. In addition, a dose-dependent trend was observed for DBC200 inhibition on the activity of acid phosphomonoesterase (see Figure 4A), while application of BC300 at a dose of more than 25 mgC L−1 significantly increased the inhibition on the activity of acid phosphomonoesterase as compared with the treatments at a dose of 5 mgC L−1. This showed that the contents of inhibitors for enzyme activity were enhanced with the increasing concentrations of dissolved substances from sludge biomass or its biochar.
Data shown in Table 1 and Table S1 were all fitted to the multiple linear model (see Section 2.4). Factors left in Equation 2 indicated a statistically significant contribution in influencing the inhibition rate on the activity of acid phosphomonoesterase. According to previously reported studies, pH, (heavy) metals, DOM, phenolic compounds, and PAHs can alter the enzyme activities in the presence of biochar [9,40]. However, in the present study, the pH value of the system was fixed around 3 during the enzyme activity testing. The shift of pH values induced by the addition of dissolved substances from biomass or biochar can be excluded as a reason for the alterations in acid phosphomonoesterase activities.
Inhibition   rate = 15.331 × C As + 0.034 × F maxC3 0.003 × F maxC1 5.581 R 2   =   0.95 ,   p   <   0.05
where C indicates the concentrations of metals in the dissolved substances of sludge biomass or its biochar, μg L−1; Fmax indicates the measured peak value of the corresponding component in the dissolved substances of sludge biomass or its biochar using the EEM spectroscopy, a.u.
The above results of multiple linear regression (R2 = 0.95, p < 0.05) showed that there were statistically significant positive relationships between inhibition rates of enzymatic activity and the concentration of As or the measured peak value of C3 within the dissolved substances of sludge biomass and its biochar. This indicated that only soluble As and protein-like components within the dissolved substances were contributing drivers for the reduced enzyme activities in the present study. The significantly negative relationship that occurred between the inhibition rate and the measured peak value of C1 indicated that the humic-like component had a protective effect on acid phosphomonoesterase. From this aspect, the second hypothesis can be only partially accepted because the induced negative effects on enzyme activity were dependent on the component types within the dissolved substances from biomass and biochar. The previous study reported that HAsO42− may compete with PO43− for binding at the active sites of acid phosphomonoesterase and thus inhibit the activity of potato acid phosphatase [41,42]. The protective effects of humic-like substances (C1) within the dissolved substances of sludge biomass and its biochar were postulated to originate from their strong complexation with metal ions [43] or oxidizing As (III) to As (V) to reduce its negative effects [42]. As depicted in Figure 3, although C1 accounted for 49% of the PARAFAC components in DBC200 which was similar to the C1 contents in either DBC300 or DBC450, the inhibition rate was still significantly higher than the rate observed for DBC300 and DBC450. This indicated a weak contribution to inhibition rate from C1. As a comparison, DBC300 and DBC450 with much lower C3 proportions did produce a much lower degree of inhibition rate of acid phosphomonoesterase. This may be attributed to conjugate interactions between biomolecules such as tyrosine or tryptophan [44,45] in solution, leading to structural abnormalities in the enzyme, as further discussed in Section 3.3.

3.3. Conformation of Acid Phosphomonoesterase as Affected by Dissolved Substances

According to BeStSel, the circular dichroism spectra showed a significant decrease of the α-Helix structures accompanied by a significant increase of β-Turn structures in acid phosphomonoesterase exposed to DSB, DBC200, DBC300, and DBC450 (see Table 3). A pyrolysis temperature-dependent trend was unfortunately not observed in the conformation changes of acid phosphomonoesterase. As shown in Table 3, the missing α-Helix contents indicated that the acid phosphomonoesterase became loose or even unfolded after the exposure to DSB, DBC200, DBC300, and DBC450. This was likely caused by the dissociation of α-Helix hydrogen bonds other than complexation between As (III) and sulfhydryls [12] because there were no cysteine residues, acetylcysteine residues, or homocysteine residues which may consist of sulfhydryls in the α-Helix structure of acid phosphomonoesterase [25]. The increased β-Turn contents revealed an extremely flexible structure of acid phosphomonoesterase after exposure, which makes the enzyme molecule move freely and allows it to cover its active sites for substrate binding [46]. Due to the complexity of DSB, DBC200, DBC300, and DBC450, it was still difficult to accurately quantify the contributions of As, C1, or C3 on enzymatic inhibition or conformation change in the present study. Our findings did indicate that the secondary structures of acid phosphomonoesterase was very sensitive to dissolved substances of sludge biomass and its biochar.

4. Conclusions

In summary, our findings provided evidence that the dissolved substances released from sludge biomass and its biochar significantly reduced the activities of acid phosphomonoesterase, while the inhibition degree declined with increasing pyrolysis temperatures. The reduced enzyme activities were accompanied by structural changes in the α-Helix and β-Turn contents of acid phosphomonoesterase and were likely explained by the increased contents of arsenic as well as the protein-like components within the dissolved substances from the sludge biomass and its biochar. The present study reflected an in-depth analysis in the soil enzymatic burden of dissolved substances from sludge biomass and its biochar, also suggesting that increasing pyrolysis temperature was very critical for obtaining a sludge biochar with less impact on soil functions. Therefore, we suggest using the sludge biochar produced at a higher temperature (>450 °C) and focusing on getting a clearer map of sludge biochar–enzyme interactions across different scenarios in future investigations.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/su14159749/s1. Table S1. Properties of dissolved substances (DSB, DBC200, DBC300, DBC450) released from sewage sludge biomass (SB) and from the biochars pyrolyzed at 200 °C (BC 200), 300 °C (BC 300), and 450 °C (BC 450); Table S2. The concentrations of 16 polycyclic aromatic hydrocarbons (PAHs) detected in dissolved substances (DSB, DBC200, DBC300, DBC450) released from sewage sludge biomass (SB) and from the biochars pyrolyzed at 200 °C (BC 200), 300 °C (BC 300), and 450 °C (BC 450); Table S3. The concentrations of 13 phenolic compounds detected in dissolved substances (DSB, DBC200, DBC300, DBC450) released from sewage sludge biomass (SB) and from the biochars pyrolyzed at 200 °C (BC 200), 300 °C (BC 300), and 450 °C (BC 450); Figure S1. The maximum excitation/emission wavelength distribution of the three fluorescence components (C1, C2, and C3) derived from the dissolved substances (DSB, DBC200, DBC300, and DBC450) of biochar; Figure S2. The linear correlation between the concentration of pNP and the absorbance.

Author Contributions

J.Z.: writing—review and editing, validation, formal analysis; Y.L.: writing—original draft, conceptualization, methodology; B.L.: investigation, methodology; C.T.: writing—review and editing; D.Z.: writing—review and editing; M.G.V.: writing—review and editing; W.J.G.M.P.: writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (41967039); the Yunnan Provincial Ten Thousand Plan (YNWR-QNBJ-2019-065); the Yunnan Basic Research Plan (202001AT070042); and the Innovation and Entrepreneurship Training Program of Kunming University of Science and Technology (202010674057).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, T.; Liu, B.; Zhang, W. Nutrients and heavy metals in biochar produced by sewage sludge pyrolysis: Its application in soil amendment. Pol. J. Environ. Stud. 2014, 23, 271–275. [Google Scholar] [CrossRef]
  2. Eurostat. Sewage Sludge Production and Disposal. Available online: http://epp.eurostat.ec.europa.eu (accessed on 28 May 2021).
  3. Mierzwa-Hersztek, M.; Gondek, K.; Baran, A. Effect of poultry litter biochar on soil enzymatic activity, ecotoxicity and plant growth. Appl. Soil Ecol. 2016, 105, 144–150. [Google Scholar] [CrossRef]
  4. Hale, S.E.; Lehmann, J.; Rutherford, D.; Zimmerman, A.R.; Bachmann, R.T.; Shitumbanuma, V.; O’Toole, A.; Sundqvist, K.L.; Arp, H.P.H.; Cornelissen, G. Quantifying the total and bioavailable polycyclic aromatic hydrocarbons and dioxins in biochars. Environ. Sci. Technol. 2012, 46, 2830–2838. [Google Scholar] [CrossRef] [PubMed]
  5. He, Y.; Zhai, Y.; Li, C.; Yang, F.; Chen, L.; Fan, X.; Peng, W.; Fu, Z. The fate of Cu, Zn, Pb and Cd during the pyrolysis of sewage sludge at different temperatures. Environ. Technol. 2010, 31, 567–574. [Google Scholar] [CrossRef]
  6. Lai, F.; Chang, Y.; Huang, H.; Wu, G.; Xiong, J.; Pan, Z.; Zhou, C. Liquefaction of sewage sludge in ethanol-water mixed solvents for bio-oil and biochar products. Energy 2018, 148, 629–641. [Google Scholar] [CrossRef]
  7. Khadem, A.; Raiesi, F. Influence of biochar on potential enzyme activities in two calcareous soils of contrasting texture. Geoderma 2012, 308, 149–158. [Google Scholar] [CrossRef]
  8. Gondek, K.; Mierzwa-Hersztek, M.; Baran, A.; Szostek, M.; Pieniążek, R.; Pieniążek, M.; Stanek-Tarkowska, J.; Noga, T. The Effect of low-temperature conversion of plant materials on the chemical composition and ecotoxicity of biochars. Waste Biomass Valorization 2017, 8, 599–609. [Google Scholar] [CrossRef] [Green Version]
  9. Luo, L.; Gu, J. Alteration of extracellular enzyme activity and microbial abundance by biochar addition: Implication for carbon sequestration in subtropical mangrove sediment. J. Environ. Manag. 2016, 182, 29–36. [Google Scholar] [CrossRef]
  10. Mierzwa-Hersztek, M.; Gondek, K.; Klimkowicz-Pawlas, A.; Chmiel, M.J.; Dziedzic, K.; Taras, H. Assessment of soil quality after biochar application based on enzymatic activity and microbial composition. Int. Agrophys. 2019, 33, 331–336. [Google Scholar] [CrossRef]
  11. Nannipieri, P.; Giagnoni, L.; Landi, L.; Renella, G. Role of Phosphatase Enzymes in Soil; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar] [CrossRef]
  12. Yan, H.; Wang, N.; Weinfeld, M.; Cullen, W.R.; Le, X.C. Identification of arsenic-binding proteins in human cells by affinity chromatography and mass spectrometry. Anal. Chem. 2009, 81, 4144–4152. [Google Scholar] [CrossRef]
  13. Tan, W.F.; Koopal, L.K.; Norde, W. Interaction between humic acid and lysozyme, studied by dynamic light scattering and isothermal titration calorimetry. Environ. Sci. Technol. 2009, 43, 591. [Google Scholar] [CrossRef]
  14. Waters, C.L.; Janupala, R.R.; Mallinson, R.G.; Lobban, L.L. Staged thermal fractionation for segregation of lignin and cellulose pyrolysis products: An experimental study of residence time and temperature effects. J. Anal. Appl. Pyrolysis 2017, 126, 380–389. [Google Scholar] [CrossRef]
  15. Kusudo, T.; Sakaki, T.; Inouye, K. Purification and characterization of purple acid phosphatase pap1 from dry powder of sweet potato. Biosci. Biotechnol. Biochem. 2003, 67, 1609–1611. [Google Scholar] [CrossRef]
  16. Bhadouria, J.; Singh, A.P.; Mehra, P.; Verma, L.; Srivastawa, R.; Parida, S.K.; Giri, J. Identification of Purple Acid Phosphatases in Chickpea and Potential Roles of CaPAP7 in Seed Phytate Accumulation. Sci. Rep. 2017, 7, 11012. [Google Scholar] [CrossRef] [Green Version]
  17. Liu, Y.; Dai, Q.; Jin, X.; Dong, X.; Peng, J.; Wu, M.; Liang, N.; Pan, B.; Xing, B. Negative Impacts of Biochars on Urease Activity: High pH, Heavy Metals, Polycyclic Aromatic Hydrocarbons, or Free Radicals? Environ. Sci. Technol. 2018, 52, 12740–12747. [Google Scholar] [CrossRef]
  18. He, C.; He, X.; Li, J.; Luo, Y.; Li, J.; Pei, Y.; Jiang, J. The spectral characteristics of biochar-derived dissolved organic matter at different pyrolysis temperatures. J. Environ. Chem. Eng. 2021, 9, 106075. [Google Scholar] [CrossRef]
  19. Beneireh, N.M.; Boakye, P.; Oduro-Kwarteng, S.; Sokama-Neuyam, Y.A. Valorization of faecal and sewage sludge via pyrolysis for application as crop organic fertilizer. J. Anal. Appl. Pyrolysis 2020, 151, 104903. [Google Scholar] [CrossRef]
  20. Song, X.D.; Xue, X.Y.; Chen, D.Z.; He, P.J.; Dai, X.H. Application of biochar from sewage sludge to plant cultivation: Influence of pyrolysis temperature and biochar-to-soil ratio on yield and heavy metal accumulation. Chemosphere 2014, 109, 213–220. [Google Scholar] [CrossRef]
  21. Campisano, R.; Hall, K.; Griggs, J.; Willison, S.; Reimer, S.; Mash, H.; Magnuson, M.; Boczek, L.; Rhodes, E. Selected Analytical Methods for Environmental Remediation and Recovery (SAM); Environmental Protection Agency: Washington, DC, USA, 2017. [Google Scholar]
  22. Environmental Protection Agency. Method 8310: Polynuclear Aromatic Hydrocarbons; Office of Solid Waste and Emergency Response: Washington, DC, USA, 1986. [Google Scholar]
  23. Rajapaksha, A.U.; Ok, Y.S.; El-Naggar, A.; Kim, H.; Song, F.H.; Kang, S.; Tsang, Y.F. Dissolved organic matter characterization of biochars produced from different feedstock materials. J. Environ. Manag. 2019, 233, 393–399. [Google Scholar] [CrossRef]
  24. Li, M.; Zhang, A.; Wu, H.; Liu, H.; Lv, J. Predicting potential release of dissolved organic matter from biochars derived from agricultural residues using fluorescence and ultraviolet absorbance. J. Hazard. Mater. 2017, 334, 86–92. [Google Scholar] [CrossRef] [Green Version]
  25. Schenk, G.; Carrington, L.E.; Gahan, L.R.; Hamilton, S.E.; de Jersey, J.; Guddat, L.W. Sweet Potato Purple Acid Phosphatase/Phosphate Complex. Worldwide Protein Data Bank 2020. Available online: https://www.uniprot.org/uniprot/Q9SE00 (accessed on 19 August 2021).
  26. Sander, M.; Tomaszewski, J.E.; Madliger, M.; Schwarzenbach, R.P. Adsorption of Insecticidal Cry1Ab Protein to Humic Substances. 1. Experimental Approach and Mechanistic Aspects. Environ. Sci. Technol. 2012, 46, 9923–9931. [Google Scholar] [CrossRef] [PubMed]
  27. Micsonai, A.; Wien, F.; Bulyáki, É.; Kun, J.; Moussong, É.; Lee, Y.; Goto, Y.; Réfrégiers, M.; Kardos, J. BeStSel: A web server for accurate protein secondary structure prediction and fold recognition from the circular dichroism spectra. Nucleic Acids Res. 2018, 46, 315–322. [Google Scholar] [CrossRef] [PubMed]
  28. Bai, T.; Qu, W.; Yan, Y.; Ma, K. Influence of pyrolysis temperature on the properties and environmental safety of heavy metals in chicken manure-derived biochars. J. Environ. Sci. Health Part B 2020, 55, 941–950. [Google Scholar] [CrossRef]
  29. Li, B.; Ding, S.; Fan, H.; Ren, Y. Experimental investigation into the effect of pyrolysis on chemical forms of heavy metals in sewage sludge biochar (ssb), with brief ecological risk assessment. Materials 2021, 14, 447. [Google Scholar] [CrossRef] [PubMed]
  30. Hu, Z.; Wang, X.; Adeosun, A.; Ruan, R.; Tan, H. Aggravated fine particulate matter emissions from heating-upgraded biomass and biochar combustion: The effect of pretreatment temperature. Fuel Process. Technol. 2018, 171, 1–9. [Google Scholar] [CrossRef]
  31. Kothawala, D.N.; Wachenfeldt, E.V.; Koehler, B.; Tranvik, L.J. Selective loss and preservation of lake water dissolved organic matter fluorescence during long-term dark incubations. Sci. Total Environ. 2012, 433, 238–246. [Google Scholar] [CrossRef]
  32. Lin, H.; Guo, L. Variations in colloidal DOM composition with molecular weight within individual water samples as characterized by flow field-flow fractionation and EEM-PARAFAC analysis. Environ. Sci. Technol. 2020, 54, 1657–1667. [Google Scholar] [CrossRef]
  33. Perminova, I.V.; Frimmel, F.H.; Kudryavtsev, A.V.; Kulikova, N.A.; Abbt-Braun, G.; Hesse, S.; Petrosyan, V.S. Molecular weight characteristics of humic substances from different environments as determined by Size Exclusion chromatography and their statistical evaluation. Environ. Sci. Technol. 2003, 37, 2477–2485. [Google Scholar] [CrossRef]
  34. Lapierre, J.F.; Frenette, J.J. Effects of macrophytes and terrestrial inputs on fluorescent dissolved organic matter in a large river system. Aquat. Sci. 2009, 71, 15–24. [Google Scholar] [CrossRef]
  35. Cory, R.M.; Mcknight, D.M. Fluorescence spectroscopy reveals ubiquitous presence of oxidized and reduced quinones in DOM. Environ. Sci. Technol. 2005, 39, 8142–8149. [Google Scholar] [CrossRef]
  36. Stedmon, C.A.; Markager, S.; Bro, R. Tracing dissolved organic matter in aquatic environments using a new approach to fluorescence spectroscopy. Mar. Chem. 2003, 82, 239–254. [Google Scholar] [CrossRef]
  37. Stedmon, C.A.; Markager, S. Resolving the variability in dissolved organic matter fluorescence in a temperate estuary and its catchment using PARAFAC analysis. Limnol. Oceanogr. 2005, 50, 686–697. [Google Scholar] [CrossRef]
  38. Chen, M.; Price, R.M.; Yamashita, Y.; Jaffé, R. Comparative study of dissolved organic matter from groundwater and surface water in the Florida coastal Everglades using multi-dimensional spectrofluorometry combined with multivariate statistics. Appl. Geochem. 2010, 25, 872–880. [Google Scholar] [CrossRef]
  39. Yamashita, Y.; Maie, N.; Briceno, H.; Jaffe, R. Optical characterization of dissolved organic matter in tropical rivers of the Guayana Shield, Venezuela. J. Geophys. Res. 2010, 115, G00F10. [Google Scholar] [CrossRef] [Green Version]
  40. Liu, P.; Cai, Z.; Chen, Z.; Mo, X.; Tian, J. A root-associated purple acid phosphatase, sgpap23, mediates extracellular phytate-p utilization in stylosanthes guianensis. Plant Cell Environ. 2018, 41, 2821–2834. [Google Scholar] [CrossRef]
  41. Juma, N.G.; Tabatabai, M.A. Effects of trace elements on phosphatase activity in soils. Soil Sci. Soc. Am. J. 1977, 41, 343–346. [Google Scholar] [CrossRef]
  42. Speir, T.W.; Kettles, H.A.; Parshotam, A.; Searle, P.L.; Vlaar, L.N.C. Simple kinetic approach to determine the toxicity of As[V] to soil biological properties. Soil Biol. Biochem. 1999, 31, 705–713. [Google Scholar] [CrossRef]
  43. Liu, S.; Liu, Y.; Pan, B.; He, Y.; Li, B.; Zhou, D.; Xiao, Y.; Qiu, H.; Vijver, M.G.; Peijnenburg, W.J.G.M. The promoted dissolution of copper oxide nanoparticles by dissolved humic acid: Copper complexation over particle dispersion. Chemosphere 2020, 245, 125612. [Google Scholar] [CrossRef]
  44. Gagner, J.E.; Lopez, M.D.; Dordick, J.S.; Siegel, R.W. Effect of gold nanoparticle morphology on adsorbed protein structure and function. Biomaterials 2011, 32, 7241–7252. [Google Scholar] [CrossRef]
  45. Liu, Y.; Pan, B.; Li, H.; Lang, D.; Zhao, Q.; Zhang, D.; Wu, M.; Steinberg, C.E.W.; Xing, B. Can the properties of engineered nanoparticles be indicative of their functions and effects in plants? Ecotoxicol. Environ. Saf. 2020, 205, 111128. [Google Scholar] [CrossRef]
  46. Jayaraman, S.; Gantz, D.L.; Haupt, C.; Gursky, O. Serum amyloid A forms stable oligomers that disrupt vesicles at lysosomal pH and contribute to the pathogenesis of reactive amyloidosis. Proc. Natl. Acad. Sci. USA 2017, 114, E6507–E6515. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Scanning electron microscope (SEM) pictures of sewage sludge biomass (a) and biochars pyrolyzed at 200 °C (b), 300 °C (c), and 450 °C (d). The red arrow represents the appearance of loose structure and fine pores on the particle surface.
Figure 1. Scanning electron microscope (SEM) pictures of sewage sludge biomass (a) and biochars pyrolyzed at 200 °C (b), 300 °C (c), and 450 °C (d). The red arrow represents the appearance of loose structure and fine pores on the particle surface.
Sustainability 14 09749 g001

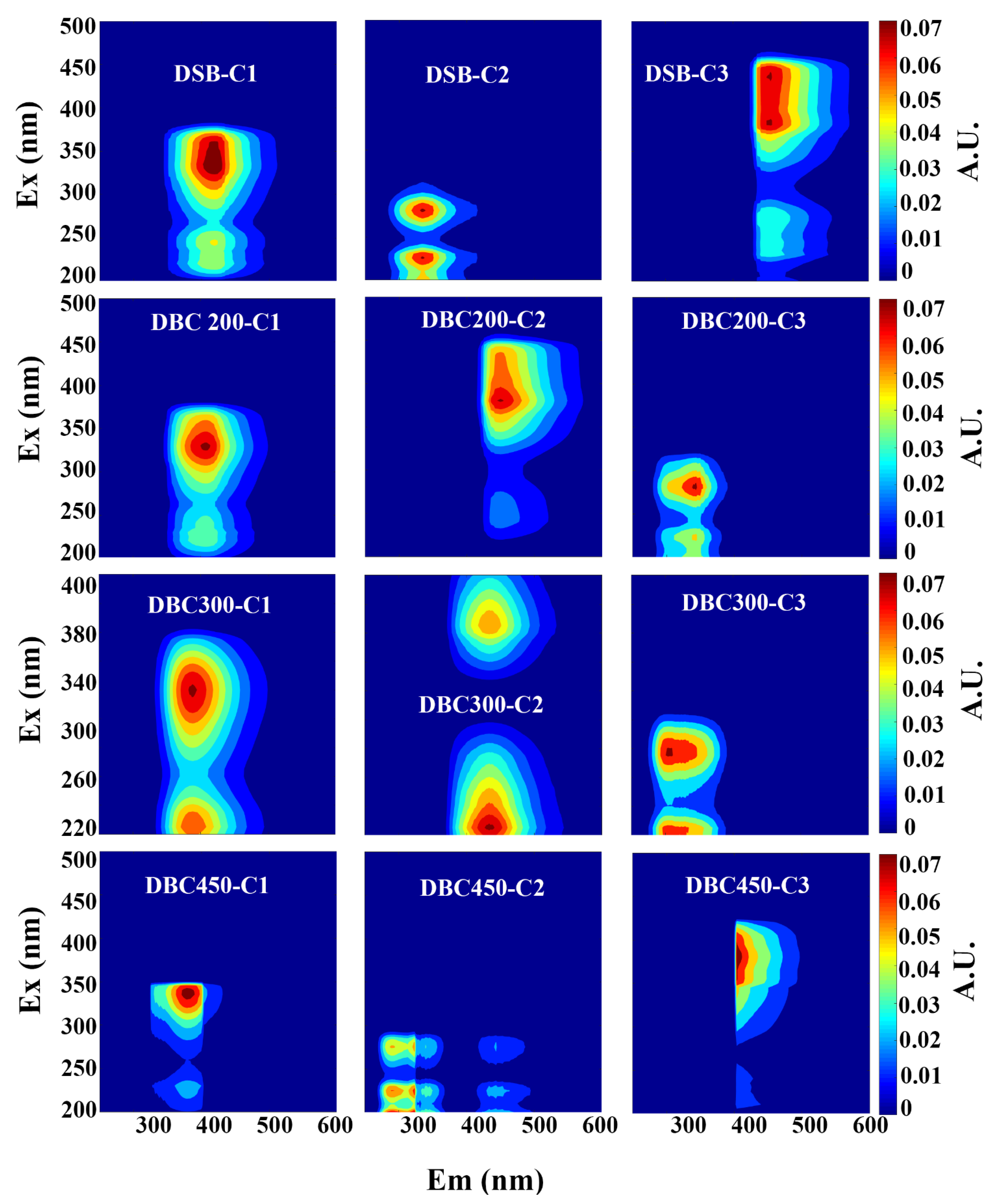

Figure 2. The three fluorescence components (C1, C2, and C3) derived from dissolved substances (DSB, DBC200, DBC300, and DBC450) of biochar identified using the EEM-PARAFAC method.
Figure 2. The three fluorescence components (C1, C2, and C3) derived from dissolved substances (DSB, DBC200, DBC300, and DBC450) of biochar identified using the EEM-PARAFAC method.
Sustainability 14 09749 g002

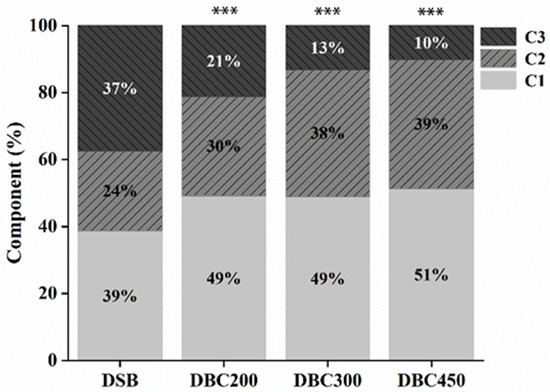

Figure 3. Distribution of PARAFAC components (C1: humic-like component, C2: humic-like component, C3: protein-like component) of dissolved substances released from sludge biomass (DSB) and its biochar (DBC200, DBC300, and DBC450). *** indicates the statistically significant differences between the percentages of C1, C2, and C3 of DSB and the values of DBC200, DBC300, or DBC400 using the one-way ANOVA test, p < 0.001.
Figure 3. Distribution of PARAFAC components (C1: humic-like component, C2: humic-like component, C3: protein-like component) of dissolved substances released from sludge biomass (DSB) and its biochar (DBC200, DBC300, and DBC450). *** indicates the statistically significant differences between the percentages of C1, C2, and C3 of DSB and the values of DBC200, DBC300, or DBC400 using the one-way ANOVA test, p < 0.001.
Sustainability 14 09749 g003

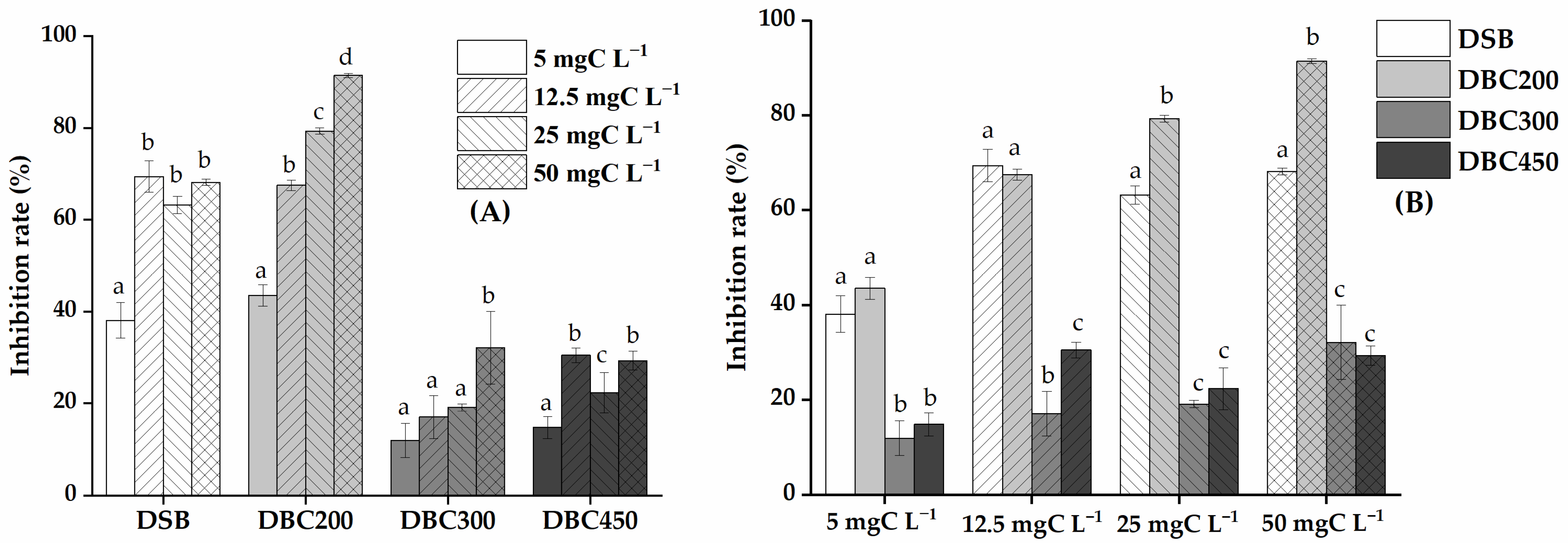

Figure 4. Effects of dissolved substances (DSB, DBC200, DBC300, and DBC450) released from biochar on the activity of acid phosphomonoesterase. Different concentrations under the same dissolved substance (A), and different dissolved substances under the same concentration (B). The statistical differences among various treatments were evaluated by the one-way ANOVA test and expressed as marked letters at p < 0.05.
Figure 4. Effects of dissolved substances (DSB, DBC200, DBC300, and DBC450) released from biochar on the activity of acid phosphomonoesterase. Different concentrations under the same dissolved substance (A), and different dissolved substances under the same concentration (B). The statistical differences among various treatments were evaluated by the one-way ANOVA test and expressed as marked letters at p < 0.05.
Sustainability 14 09749 g004
Table 1. Properties of sewage sludge biomass (SB) and biochars pyrolyzed at 200 °C (BC 200), 300 °C (BC 300), and 450 °C (BC 450).
Table 1. Properties of sewage sludge biomass (SB) and biochars pyrolyzed at 200 °C (BC 200), 300 °C (BC 300), and 450 °C (BC 450).
PropertiesSBBC 200BC 300BC 450
Biochar yield (%)-88.7 ± 3.878.9 ± 2.170.5 ± 2.4
pH8.5 ± 0.48.0 ± 0.38.3 ± 0.29.2 ± 0.3
Specific surface area (m2 g−1)8.76.015.635.0
C (%)-26.423.122.0
H (%)-3.42.71.7
O (%)-26.024.423.2
N (%)-2.01.81.2
S (%)-0.470.510.62
H/C-1.61.40.8
O/C-0.800.790.80
(O+N)/C-0.870.860.85
Mn (mg kg−1)-697.4 ± 32.8752.1 ± 36.6925.7 ± 44.2
Cr (mg kg−1)-341.3 ± 16.1391.0 ± 18.3416.7 ± 20.1
Fe (mg kg−1)-6515.3 ± 225.716,241.4 ± 349.323,123.1 ± 756.1
Cu (mg kg−1)-269.4 ± 12.4206.8 ± 9.34295.5 ± 12.7
Zn (mg kg−1)-6402.9 ± 220.115,884.5 ± 594.213,267.0 ± 463.3
Ni (mg kg−1)-21.9 ± 0.989.9 ± 3.4936.6 ± 1.2
As (mg kg−1)-11.5 ± 0.325.3 ± 0.841.4 ± 1.3
Cd (mg kg−1)-2.0 ± 0.13.7 ± 0.14.2 ± 0.1
- denotes not determined.
Table 2. Characteristics and sources of the major components of dissolved substances (DSB, DBC200, DBC300, and DBC450) identified by the EEM-PARAFAC analysis.
Table 2. Characteristics and sources of the major components of dissolved substances (DSB, DBC200, DBC300, and DBC450) identified by the EEM-PARAFAC analysis.
ComponentEx (nm)Em (nm)Fluorescent CompoundReferences
DSB
C1250/335410Humic-like[34]
C2240/405470Humic-like[31]
C3225/280336Protein-like
(tyrosine)
[35]
DBC200
C1220/335410Humic-like[36]
C2250/370460Humic-like[34]
C3225/285350Protein-like (tryptophan)[37]
DBC300
C1225/320390Humic-like
(aliphatic carbon)
[36]
C2225/365438Humic-like
(fulvic acid)
[38]
C3225/280304Protein-like
(tyrosine)
[23]
DBC450
C1225/320390Humic-like[36]
C2220/365402Humic-like
(fulvic acid)
[38]
C3225/280310Protein-like (tryptophan)[39]
Table 3. The influence of dissolved substances (DSB, DBC200, DBC300, and DBC450, 12.5 mgC L−1) released from sludge biomass and its biochar on the secondary structure of acid phosphomonoesterase.
Table 3. The influence of dissolved substances (DSB, DBC200, DBC300, and DBC450, 12.5 mgC L−1) released from sludge biomass and its biochar on the secondary structure of acid phosphomonoesterase.
Estimated Secondary Structure Content (%)EnzymeDSBDBC200DBC300DBC450
α -Helix13.90.00.00.00.6
β -Sheet28.130.931.732.133.0
β -Turn5.213.113.713.811.6
α   +   β 52.856.054.554.154.8
