Stormwater Utility Fee Estimation Method for Individual Land Use Areas

Abstract

In South Korea, a reasonable rate system that can be domestically applied to calculate sewage and stormwater separately from the domestic sewage fee system is needed. This study proposed a phased pricing scenario to separate sewage and stormwater in Bupyeong-gu, Incheon, and the rate changes were compared based on a simulated calculation of the stormwater utility fee. In this investigation, stormwater runoff cases from other countries and the current domestic system were analyzed. A stormwater utility fee introduction scenario was presented that considers the impervious surface area. Water and sewage usage statistics and hydrant spatial data were collected from the Incheon Metropolitan City Waterworks Authority, and the total amount of water and sewage fees from the land use area were calculated. The stormwater utility fee was calculated, and the rates of each step were compared. The total sewage fee of Bupyeong-gu during 2014 was KRW 21,685,446,578, and the phased stormwater utility fee was calculated, assuming that 40% represents the stormwater cost. The sewage fee for the residential area in phase 3 decreased by 0.77% compared to phase 1. For the commercial areas, the sewage fee decreased by 36.87%. Because the impervious surface ratio was high, the overall area contributing to the impervious surface area was small. In the industrial area, the sewage fee increased by 8.35%. In the green area, the sewage fee increased by 37.46%. The sewage fee for the apartment complexes decreased by 10.6%. Finally, the possibility of estimating the actual stormwater utility fee was confirmed.

1. Introduction

Rapid urbanization is presently causing a variety of environmental problems in South Korea. In particular, an increase in impervious surfaces has resulted in increasing nonpoint pollutants, and the river environment is becoming polluted. This is because the impervious surfaces can increase the stormwater runoff, thereby carrying a variety of pollutants on the surface into the rivers or lakes [1,2].

Consequently, the development of low impact development (LID) and green stormwater infrastructure (GSI) technologies and the installation of the related facilities are increasing worldwide to reduce non-point pollutants and to control impervious surfaces [3,4]. Developed countries such as the US and Germany are enforcing the stormwater utility fee to raise funds for technology development and other related projects. The stormwater utility fee charges a fee to individual parcel owners by estimating the stormwater runoff in proportion to the impervious surface area of each parcel that is based on the “polluters pay principle,” which is an environmental policy principle in most countries [5,6,7,8,9,10]. In South Korea, studies on stormwater runoff management and fundraising have been conducted, such as “A Study on Introduction of Stormwater Pollution Rate System for Nonpoint Source Management” [11] and “The Improvement Plans for Levying the Sewerage Fee Considering Land Cover and Stormwater Runoff” [12]. However, South Korea still has many obstacles in terms of introducing and implementing stormwater utility fees, and many technical and legal problems must be resolved. The stormwater utility fee is calculated based on the impervious surface area that is used to cover the cost by collecting more charges as the number of nonpoint source emissions increases, which takes into account the land cover condition. Hence, it is essential to secure spatial data with the statistics of the impervious surface area, which constitute a scientific basis. Furthermore, the impervious surface ratio, which represents the area ratio of impervious surfaces, is also used as an evaluation index of water cycle soundness, and it is difficult to accurately diagnose and evaluate it because there are no accurate statistics.

Recently, the Ministry of Environment has suggested methods that use land cover maps, digital topographic maps, and aerial orthophotographs to create an impervious surface map to support the stormwater utility fee system [11]. Lee [13] and Lee et al. [14] examined the methods of producing an impervious surface map as suggested by the MOE and verified the advantages and disadvantages of each method through a pilot production. As a result, a map production method that reclassifies the land cover map properties had the highest accuracy. Due to the production cycle of the land cover map, it is impossible to accurately and precisely classify the impervious surfaces that only use single space data. Thus, to improve the spatial resolution and accuracy, Lee [13] and Lee et al. [14] suggested optimal methods to produce large-scale impervious surface maps by using aerial photographs, digital topographic maps, and road views on Internet portal sites. Then, a geographic information system (GIS)-based impervious surface ratio estimation method that uses a large-scale impervious surface map was defined, and the impervious surface ratio statistics were calculated for the land use and parcel units.

The impervious surface area is a measure that can indirectly represent the stormwater runoff amount and nonpoint pollutant generation, and it is a rational criterion for the stormwater utility fee. For this reason, most developed countries use impervious surface areas as a criterion in order to charge a fee. The type of sewage pipes in Korea occupies most of the combined sewage pipes, reaching 85%. The cost for the combined sewage pipes is classified as the wastewater treatment cost, even though the wastewater and stormwater flow together, and they are not classified by the appropriate ratio of the wastewater and stormwater. The current domestic sewage fee system is unreasonable because the water users must pay the cost of treating the stormwater runoff. To solve this problem, a reasonable sewage fee system is required in South Korea that can calculate the stormwater treatment cost separately from the sewage fee.

Therefore, this study calculated the stormwater utility fee by simulating a GIS-based large-scale impervious surface map that was produced from a previous study. In addition, it was applied as a pilot to the land use areas on a large scale and to apartment complexes on a small scale. First, stormwater utility fee systems from the US and Germany were analyzed, the implications were derived, and the current domestic system was examined. The fee estimation scenario was established in three phases to separately calculate the sewage fee and stormwater runoff processing fee. Then, the monthly water and sewage usage in the study area and the hydrant spatial data in Shapefile format were collected. The properties of the water and sewage usage and the rates were input into the hydrant data, which overlapped with the serial cadastral map. The sewage fee was separately calculated from the water and sewage usage by using Microsoft Excel in accordance with the rate table, and it was used as a basis for the stormwater utility fee estimation scenario. Finally, the changes in the stormwater utility fee were checked by applying it to each land use area and apartment complex while considering the number of households and the unit area size, and the results were discussed.

2. Materials and Methods

2.1. Study Site

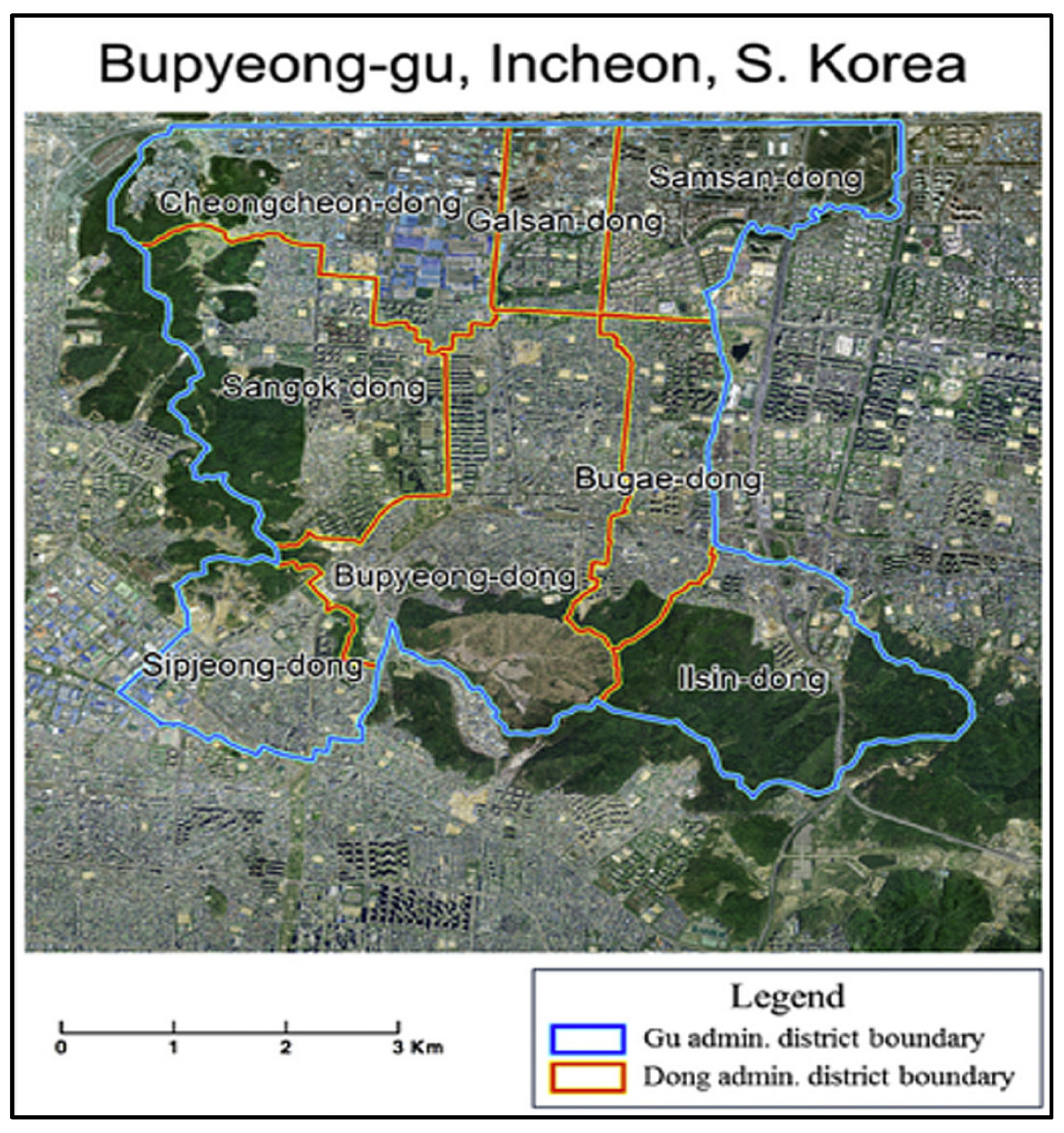

Bupyeong-gu, Incheon, South Korea, which has an area of 31.98 km², was selected as the target area for this study (Figure 1). Bupyeong-gu is a typical downtown area, which includes a variety of sectors such as residential areas, commercial areas, and industrial areas. Since 2009, impervious surfaces have increased in this area, along with the continuous promotion of several projects that include improving residential and urban environments [15]. Furthermore, river flooding due to localized heavy rains has caused the pollutants of urban sewage to flow into the Gulpo stream in Bupyeong-gu, which can lead to serious problems in terms of the generation and outflow of non-point pollutants. Thus, impervious surface and non-point pollution management are urgently needed in this area [16].

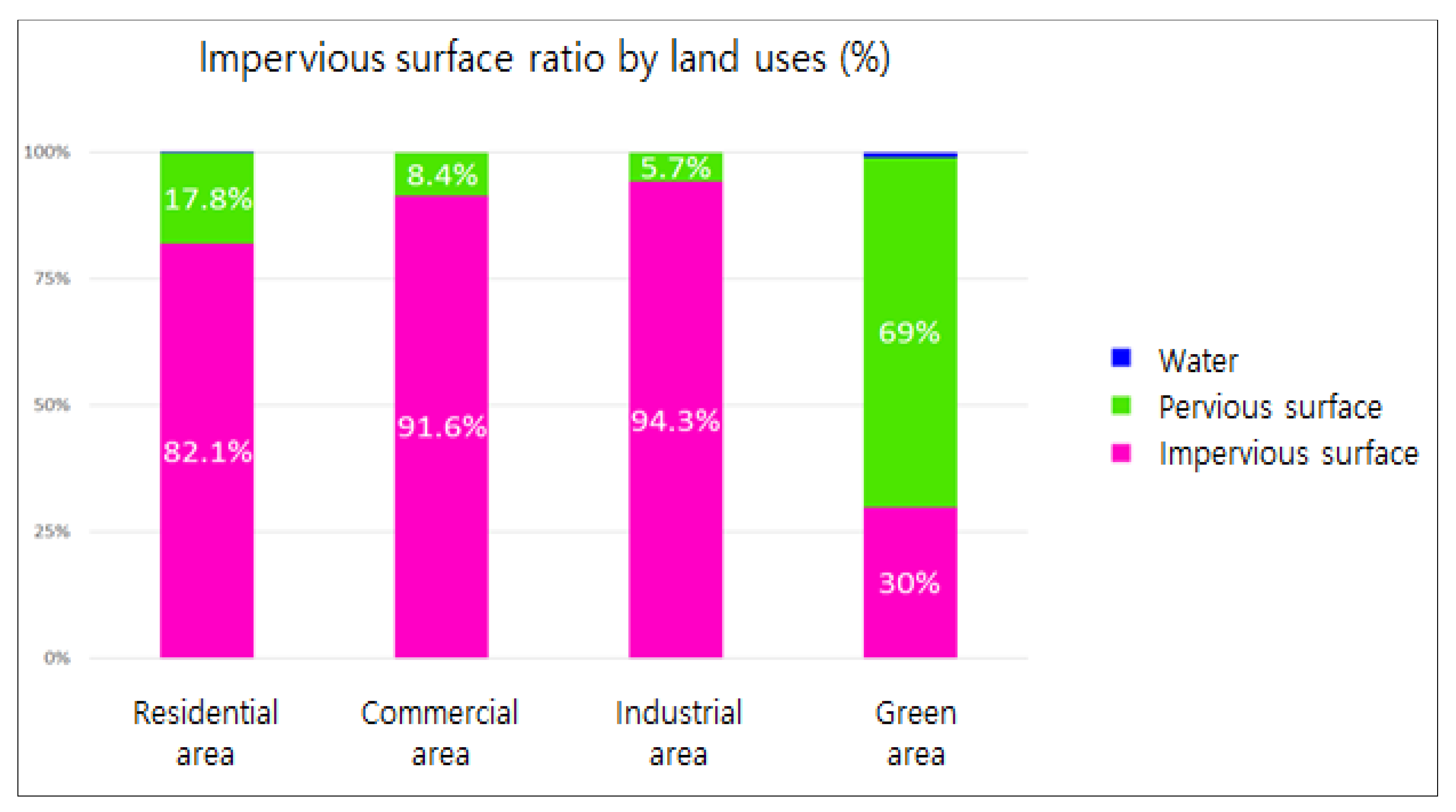

Lee [13] created an optimal large-scale impervious surface map of Bupyeong-gu, Incheon, and determined that the area consisted of a pervious surface area of 11.43 km², an impervious surface area of 20.5 km², and a water drainage system of 0.15 km². An impervious surface map of the land use area was drawn by overlapping the impervious surface map with the land use area map. The study area corresponds to an “urban area” in the classification of the properties of the land use area map. As shown in Figure 2, the impervious surface ratio was 82.1% in the residential area, 91.7% in the commercial area, 94.1% in the industrial area, and 30% in the green area. In particular, the impervious surface ratios of the residential, commercial, and industrial areas were higher than 80%. This indicates that there is an urgent need to manage and improve the impervious surfaces.

2.2. Analysis of the Domestic and Overseas Application Cases of the Stormwater Utility Fee

2.2.1. Application Case of the Stormwater Utility Fee in the US

In the US, the federal government assigned the responsibility of managing the stormwater runoff that contains pollutants and sediments to regional governments. As a result, this increased the stormwater runoff management cost of regional governments, and they needed to establish a financing plan. The stormwater utility fee system was introduced in the 1960s, and, in the beginning, rates were charged based on the water usage. In the 1990s, the Water Environment Federation issued the “User-Fee Funded Stormwater Utilities.” As the emergence of GIS technology enabled the detailed measurement and management of the impervious surfaces, many municipalities changed the rating system to charge based on the impervious surface area. The collected fees are being used by the municipalities for the sewage pipe management cost, as well as the facility investment, controlling the stormwater runoff and treatment.

The city of Charlotte, which is an urban area, has a two-level rating system. Charlotte charges USD 5.18 per month if the impervious surface area is 2000 ft² or less, if it is a single-family residence, and USD 6.72 per month if it is larger than 2000 ft². Montgomery County’s charging system has seven levels depending on the impervious surface area, and it is based on the equivalent residence unit (ERU). According to the Department of Environmental Protection (DEP) Montgomery County, for apartment houses and nonresidential buildings, they charge USD 88.40 per year per 1 ERU (2406 ft²) for the actual calculated impervious surface area (

Table 1. Montgomery County’s water quality protection fee charging system (Department of Environmental Protection Montgomery county).

Type	Division	Water Quality Protection Fee (USD)
Independent detached house, connected detached house, and agricultural facilities	Level 1 (1000 ft2 or less)	29.17
	Level 2 (1000–1410 ft2)	44.20
	Level 3 (1410–3412 ft2)	88.40
	Level 4 (3412–3810 ft2)	132.60
	Level 5 (3810–5815 ft2)	172.80
	Level 6 (5815–6215 ft2)	221.00
	Level 7 (larger than 6215 ft2)	265.20
Apartment houses and nonresidential buildings	(Total impervious surface area/ERU) × USD 88.40

). According to the Portland Environmental Service, developed charges are based on the average impervious surface area of 2400 ft² for single- and two-family houses and an average impervious surface area of 1000 ft² for three- and four-family houses. For multi-family houses, commercial areas, and industrial areas that exceed them, the rates are charged based on the impervious surface area (

Table 2. Portland’s stormwater runoff fee (Portland Environmental Service).

Area	Division		Stormwater Runoff Rate (USD)	Monthly Average Fee (USD)
Residential area	Single family and two-family houses	Off-site	USD 15.54 per month per family	USD 23.90
		On-site	USD 8.36 per month per family
	Three- and four-family houses	Off-site	USD 6.47 per month per family	USD 9.96
		On-site	USD 3.49 per month per family
	Five or more family houses	Off-site	USD 6.47 per month per 1000 ft2 for the impervious surface area	USD 9.96/1000 ft2
		On-site	USD 3.49 per month per 1000 ft2 for the impervious surface area
Non residential area *	Off-site		USD 6.86 per month per 1000 ft2 for the impervious surface area	USD 10.55/1000 ft2
	On-site		USD 3.69 per month per 1000 ft2 for the impervious surface area

* The stormwater runoff fee is separately charged for on-site (private property) and off-site (right to use public facility).

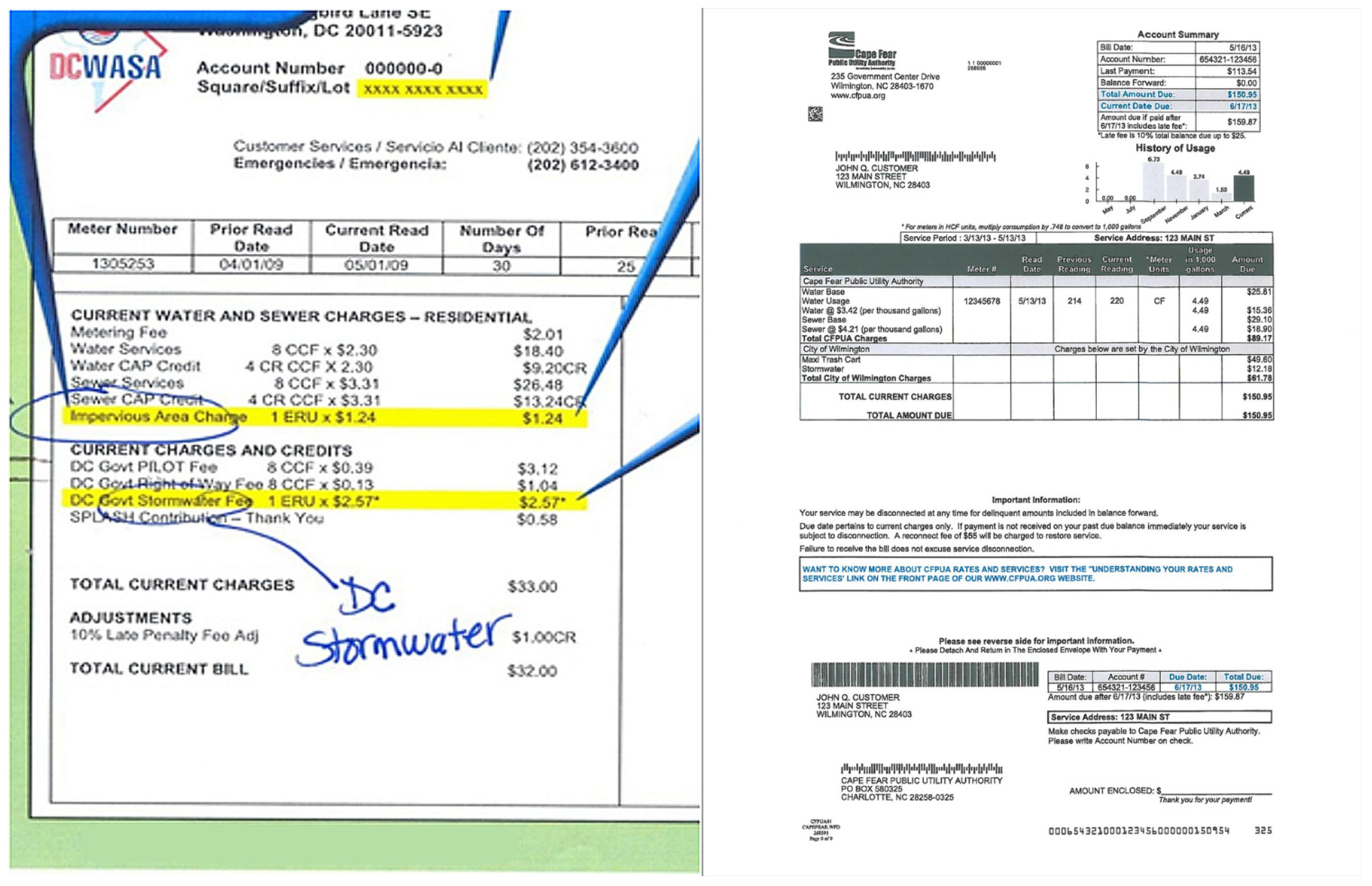

). The District of Columbia Water and Sewer Authority (DCWASA) in Washington D.C. uses a progressive rating system with six levels of impervious surface areas. The charging criterion for the residential area is USD 2.57 per month per 1 ERU, and, for nonresidential areas, rates are charged in proportion to the actual impervious surface area (Figure 3).

As a result, most municipalities charge a stormwater utility fee based on the impervious surface area of each parcel, and the imposition criterion was changed from the parcel area or the water usage to the impervious surface.

When comparing the impervious surface area, the representative value (e.g., ERU) of the impervious surface area was set for each municipality, and the fees were calculated accordingly. For the residential areas, some municipalities applied the same rate of 1 ERU to every parcel while considering the size and management cost of the city. Meanwhile, other municipalities applied different rates by setting different levels of the impervious surface area.

2.2.2. Application Case of the Stormwater Utility Fee in Germany

In 1985, the Federal Administrative Court and Local High Courts of Germany declared that charging sewage fees based on the water usage was problematic in terms of fairness [17]. The Federal Administrative Court of Germany ruled that, in order to improve the legal fairness of the fees that are based on the polluters pay principle, the sewage fees must be collected separately for the stormwater runoff processing fees and general sewage fees. Consequently, the municipalities changed their fee collection system and established a legal basis for urging the utilization and infiltration of stormwater. In addition, they reflected the specific matters for the application of the separate calculation method for the sewage ordinance, in accordance with the circumstances of the city.

In the case of Berlin, the water bill is divided into a basic fee and usage-based fee, and the sewage fee is divided into wastewater, stormwater, manure, and manure sludge fees. The wastewater fee is charged in proportion to the water discharge (water usage) in addition to the basic fee, whereas the stormwater fee is charged based on the impervious surface area (

Table 3. Berlin’s water and sewage fee structure (Berlin, Germany) (Kwon and Hur, 2010) [17].

Division			Note
Water fee	Usage-based fee		Charged according to the actual water usage
	Basic fee		Charged according to the caliber of the water meter
Sewage fee	Waste water fee	Discharge-based fee	Charged according to the actual water usage
		Basic fee	Charged according to the caliber of the water meter
	Stormwater fee		Charged in proportion to the area of the impervious surface in which the stormwater flows into public sewage facilities (EUR 1.897/m2)
	Manure fee		-
	Manure sludge fee		-

). Berlin changed to a sewage separate fee system in 2000, and they charged EUR 1.897 per 1 m² for the impervious surface in addition to the sewage fee.

2.2.3. Analysis of the Overseas Stormwater Utility Fees and Implications

In general, the stormwater utility fee is charged based on the flat rate, impervious surface area, development density, and the generation of stormwater runoff. The flat rate charges the same fee for every household; however, it is difficult to apply the same rate to areas that have different discharge amounts. The stormwater runoff generation creates high administrative costs for the monitoring and measurements. The development density method charges the fee according to the ratio of the impervious surface area for the total land. However, it is difficult to implement this in comparison to the ERU method because the pervious and impervious surfaces must be considered. In contrast, the method of charging the fee that is based on the impervious surface area of each parcel is mainly used in developed countries because it is an indirect indicator of the stormwater runoff and generation of non-point pollutants. Furthermore, the specific implementation methods of the system, such as the charging and collecting methods, did not differ significantly between the two countries (

Table 4. Comparison of the funding characteristics for the stormwater utility fee between the US and Germany.

Division	US (Stormwater Utility Fee)	Germany (Regenwassergebühr)
Background	- Deterioration of the water quality by the stormwater runoff. - Reinforced stormwater runoff regulation of the environmental protection agency (EPA) and stable stormwater management funding.	- The rate system was reformed according to the ruling of the Federal Administrative Court that the existing stormwater and wastewater combined rate system is not fair.
Charging criteria	- Stormwater fee is charged based on the polluters pay principle. - Charged in proportion to the past water usage. - Charged in proportion to the impervious surface area of each parcel. - Municipalities use different methods for the fee calculation.
Charging method	- Charged together with the water bill.
Charging effect based on the impervious surface	- Fees decreased for small, detached houses and apartment houses. - Fees increased for large commercial buildings.

). Therefore, the optimal large-scale impervious surface map by Lee et al. [14] can be used as the basic data for calculating the stormwater utility fee. If the impervious surface area is applied based on the stormwater utility fee, the fee decreases slightly for users with a small impervious surface area such as detached houses; however, it increases significantly for users that have a large impervious surface area, such as commercial buildings, which is fair. The stormwater utility fee system is advantageous in terms of being able to cover the impervious surface management cost of private properties that can cause stormwater runoff that flows into public sewage treatment facilities. Similar to the US and Germany, which have similar problems, South Korea should also prepare related management funds by charging fees that are based on the impervious surface of each parcel.

2.2.4. Related System in South Korea

In South Korea, sewage fees are specified by the ordinances of the local governments in accordance with Article 61 (e.g., Charge on Burden-Causing Entities) and Article 65 (Use Fees, etc.) of the Sewerage Act, and the local government’s sewage fees are different. The fee calculation is specified according to the rules of the Ministry of the Interior and Safety, and it is collected based on the rate table. The targets of the fee are classified into household, public bathhouses, operations, and businesses, and different rates for the monthly usage are applied to them [18]. In South Korea, the operation costs of the sewage treatment plants and wastewater pump stations are classified as wastewater treatment costs. Meanwhile, the operation costs for stormwater pipes and stormwater pump stations of the separate sewage pipes are classified as stormwater treatment costs. However, the cost for the combined sewage pipes is classified as the wastewater treatment cost, even though the wastewater and stormwater flow together and they are not classified by the appropriate ratio of the wastewater and stormwater. Thus, it appears on the surface that the domestic sewage fee system does not include stormwater; however, it can be internally interpreted that it includes stormwater. It has an unreasonable structure in which the water applications (including groundwater) generally pay for the stormwater treatment costs. To improve this unreasonable structure, a reasonable sewage fee system that separates wastewater and stormwater fees and replaces the stormwater fee with a stormwater utility fee is required.

In the “2050 Sewerage Vision Public Hearing” that was held in 2012, a “stormwater utility fee” design method for stormwater management funding was presented. The targets of the stormwater utility fee were land owners that have their land hydraulically connected to public stormwater (wastewater) pipes. It was suggested that the standard cost covers the cost that is required for stormwater management, such as conduit and stormwater treatment, and the method of imposition is different according to the land cover, which is a factor that influences the stormwater discharge. To introduce the stormwater utility fee, a method of amending the current law should be considered because enacting a new law can result in large resistance. In addition, the stormwater utility fee should be applied in a phased manner, and it must be preceded by the people’s empathy and understanding. In 2012, at the “policy discussion meeting for introducing a rainwater tax in Seoul,” there was a case of serious opposition, such as a resistance to tax increases and transferring the responsibility to create an impervious surface to the citizens. To enhance the people’s acceptance of the stormwater utility fee system, phased applications that are based on South Korea’s current rate system must be considered. The separate calculation and settlement of the stormwater utility fee must be implemented step by step. This can be achieved by separating the sewage fee into wastewater and stormwater in the beginning and later switching to the fee calculation, while considering the impervious surface area of each parcel.

When the fee is linked with the stormwater management, the fee must be calculated while considering the impervious surface area that is based on the current land cover information. Therefore, a concrete scenario is required that consists of the following three phases. In phase 1, the current sewage fee is simply separated into wastewater and stormwater. In phase 2, the impervious surface ratio based on the land use area is applied. In phase 3, the fee is specifically calculated for the individual parcels.

2.3. Simulated Calculation of the Stormwater Utility Fee for the Study Area

According to Lee (2018b), the total area of all the apartment complexes in Bupyeong-gu was approximately 3.65 km², and the total impervious surface ratio was 75.8%. When considering the 189 complexes, 43 had no previous surface with a 100% impervious surface ratio. Although some complexes have flower gardens, they were classified as impervious surfaces if they did not play the role of a pervious surface. When considering the apartment complexes in Bupyeong-gu, the lowest impervious surface ratio was 57.1%, and the highest impervious surface ratio was 92.9%, which excludes 43 complexes with a 100% impervious surface ratio. According to the building ordinance of Incheon, parcels with an area of 2000 m² or larger must include a 15% landscape area; however, some apartment complexes do not comply with this rule. Therefore, impervious surfaces need to be actively managed in apartment complexes with an impervious surface ratio that is 85% or higher.

Consequently, for the simulated calculation of the stormwater utility fee in the study area (Bupyeong-gu, Incheon), the sewage fee was separated into wastewater and stormwater fees, and the fee calculation that considered the impervious surface area was presented in phases. These calculated phased fees were applied to a large apartment complex while considering the number of households and the unit area type in order to check the changes in the stormwater utility fee. Bupyeong-gu, Incheon, is currently charging wastewater and stormwater management costs together as a certain ratio of the water fee in proportion to the water usage. Therefore, the monthly water usage statistics of Bupyeong-gu, Incheon, were collected, and the fees were determined by calculating the actual sewage fee.

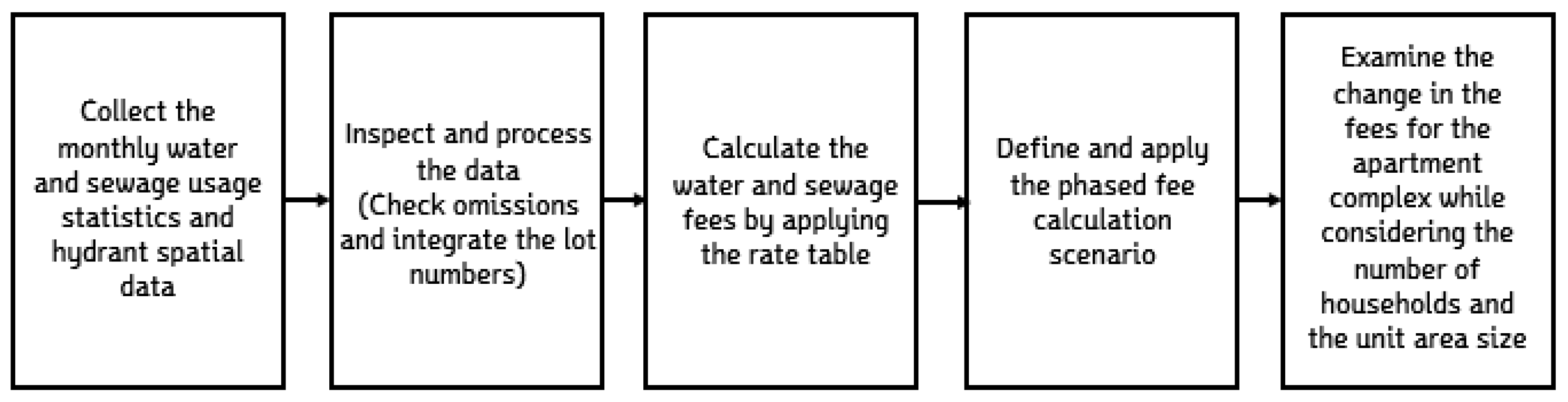

To change the fee system to a fee linked with stormwater management, the fee must be calculated while considering the impervious surface area that is based on the land cover status. Hence, a scenario is required that consists of the following three phases. In phase 1, the current sewage fee is simply separated into wastewater and stormwater. In phase 2, the impervious surface ratio that is based on the land use area is applied. In phase 3, the fee is specifically calculated for the individual parcels. The phased hypothetical scenario was established, and the fees were calculated by performing a simulation to check the change in the stormwater utility fee based on land use area (Figure 4).

2.3.1. Collecting Water Usage Statistics and Data Processing

When considering the data to calculate the stormwater utility fee, the statistics for the monthly water and sewage usage and the fees in 2014, along with the hydrant spatial data for the Shapefile format, were gathered from the Incheon Metropolitan City Waterworks Authority. The water and sewage fees were calculated by converting the water and sewage rate table into a function using Microsoft Excel. These were used as the basis of the stormwater utility fee estimation scenario. It was determined that there were missing data for the monthly water and sewage usage, along with the fees due to the closure and movement of the hydrants. In this case, the business category was estimated and the aperture size was calculated in reverse based on the fee, and the related information was added. The improvement results were converted to space data by combining them with the hydrant spatial data. In addition, the properties of the water and sewage usage and fees were inputted into the serial cadastral map, which overlapped with the hydrant spatial data. In some cases, one hydrant was used by multiple parcels, in which the aerial orthophotograph and digital topographic map were checked. They were joined and converted to a single parcel on the serial cadastral map by using the “merge” function of ArcGIS 10.2. The impervious surface ratio of the joined parcels was calculated again, and the water and sewage usages and fees were input into the properties of the serial cadastral map. Finally, the water and sewage fees resulted in a calculation of 68,457 results in Bupyeong-gu.

2.3.2. Simulated Calculation Scenario for the Stormwater Utility Fee

In the phase 1 scenario, when considering the people’s acceptance, the current sewage fee was divided into the wastewater and stormwater fees by using a simple ratio. When the sewage fee is collected, the stormwater cost is charged as a stormwater utility fee. In this study, a general distribution ratio of 6:4 was applied.

Table 5. Differences in the charging method between the current sewage fee and the fee of the phase 1 scenario.

Division	Current	Phase 1 Scenario
Payment notification method	- Sewage fee - (e.g., sewage fee of KRW 8000)	- The existing total amount is separated as the sewage fee and stormwater utility fee. - (e.g., sewage (wastewater) fee of KRW 4800 (60%), stormwater utility fee of KRW 3200 (40%))

shows the differences in the charging method between the current sewage fee and the phase 1 scenario. Meanwhile, in the phase 1 scenario, the fee is calculated irrespective of the impervious surface ratio for each land use area and parcel. However, the total amount of the stormwater utility fee in phase 1 was used as the reference amount for the fee distribution in phases 2 and 3.

As for phase 2, Lee (2018b) reported that South Korean cities have a high impervious surface ratio for each land use area, and there is no significant difference between the parcels in the land use area. Furthermore, unlike other countries, South Korea has many apartment complexes, and most of the detached house districts have a high impervious surface ratio. When considering these facts, the fee by the land use area was applied in phase 2 while considering the administrative convenience. The stormwater utility fee in the total sewage fee is calculated by distributing the fee in consideration of the average impervious surface ratio for each land use area. The concrete fee calculation method is presented as follows.

$$\begin{gathered} \mathrm{Stormwater} \mathrm{utility} \mathrm{fee} \mathrm{per} \mathrm{unit} \mathrm{area} \\ = \frac{\mathrm{Total} \mathrm{stormwater} \mathrm{utility} \mathrm{fee}}{\mathrm{Total} \mathrm{impervious} \mathrm{surface} \mathrm{area}} \times \mathrm{Impervious} \mathrm{surface} \mathrm{area} \mathrm{by} \mathrm{land} \mathrm{use} \mathrm{area} \end{gathered}$$

(1)

For the “total stormwater utility fee” in Equation (1), the total stormwater utility fee that is calculated in the phase 1 scenario (corresponding to 40% of the total sewage fee) s used. The “impervious surface area by land use area” in Equation (1) calculates the impervious surface area that is based on the land use area, and the calculation result from the impervious surface map was produced from a previous study (Lee 2018a).

The phase 3 scenario is similar in comparison to the developed countries, and it can be implemented after the fee for the stormwater runoff management is stabilized. The impervious surface ratio is calculated for the individual parcels, and the fee is determined in proportion to the calculated impervious surface ratio. For the total sewage fee, the stormwater utility fee is distributed and the contribution rate of each parcel is considered. The concrete fee calculation method is expressed as follows.

$$\begin{gathered} \mathrm{Unit} \mathrm{fee} = \mathrm{Total} \mathrm{stormwater} \mathrm{runoff} \mathrm{fee}/\mathrm{Total} \mathrm{impervious} \mathrm{surface} \mathrm{area} \\ \mathrm{Fee} \mathrm{by} \mathrm{parcel} = \mathrm{Impervious} \mathrm{surface} \mathrm{area} \mathrm{for} \mathrm{an} \mathrm{individual} \mathrm{parcel} \times \mathrm{Unit} \mathrm{fee} \end{gathered}$$

(2)

The phase 3 scenario can be used to calculate the impervious surface ratio of the individual parcels irrespective of the land use area. It is fair and reasonable because the contribution to the stormwater runoff management can be applied quantitatively.

3. Results and Discussion

3.1. Water and Sewage Usage and the Fee Calculation Based on the Land Use Area

The water and sewage usage and the fees by the land use area were calculated based on the serial cadastral map. The total water usage, total sewage usage, and total water and sewage fees for Bupyeong-gu from January to December 2014 were 56,493,980 m³, 55,882,048 m³, and KRW 75,790,569,320, respectively. The water and sewage usage and fees were the highest in the residential areas and the lowest in the green areas (

Table 6. Monthly water and sewage usages and fees based on the land use area in Bupyeong-gu in 2014. (Unit: 1000 m³/million KRW(KRW 1100 = USD 1)).

Division	Land Use Area		Total	Jan	Feb	Mar	Apr	May	Jun	Jul	Aug	Sep	Oct	Nov	Dec
Water Usage	Total		56,494	4607	4729	4481	4303	4610	4610	4921	4899	5098	4925	4636	4675
	Residential	Sum	36,673	2960	3014	2888	2774	3001	3001	3206	3229	3337	3219	3023	3022
	Commercial	Sum	6937	552	586	559	519	558	558	599	596	629	616	575	591
	Industrial	Sum	7325	633	660	599	577	590	590	623	598	649	615	592	600
	Green	Sum	5558	462	469	436	434	461	461	493	476	483	476	445	462
Sewage Usage	Total		55,882	4559	4646	4409	4262	4532	4582	4883	4859	5041	4880	4595	4635
	Residential	Sum	39,748	3238	3255	3122	3030	3215	3271	3490	3490	3594	3471	3275	3296
	Commercial	Sum	8120	649	681	641	609	651	659	704	697	736	722	677	692
	Industrial	Sum	6265	529	556	506	486	518	503	535	525	557	536	507	509
	Green	Sum	1749	143	154	141	136	148	148	155	147	153	152	136	138
Water and Sewage Fees	Total		75,791	6297	6464	6059	5728	5979	6169	6616	6565	6861	6603	6189	6261
	Residential	Sum	45,021	3682	3740	3549	3373	3547	3686	3961	3983	4125	3963	3703	3709
	Commercial	Sum	12,193	982	1041	974	914	947	986	1056	1052	1113	1081	1012	1035
	Industrial	Sum	10,950	981	1030	929	849	861	867	920	881	963	911	873	885
	Green	Sum	7626	651	653	607	591	624	630	679	649	661	649	602	631

).

When considering the total water and sewage fees, the sewage fee was calculated as KRW 21,685,446,578, and it was used as the reference amount for the stormwater utility fee scenario.

3.2. The Fee Application Result Based on the Land Use Area Scenario

The calculation results for the sewage fee and stormwater utility fee based on the land use area for phases 1 to 3 are summarized in

Table 7. Calculation result of the sewage and stormwater fees according to the scenarios for phases 1 to 3. (Unit: million KRW).

Phase	By Land Use Area		Monthly Fees
			Total	Jan	Feb	Mar	Apr	May	Jun	Jul	Aug	Sep	Oct	Nov	Dec
Phase 1	Total	Total	21,685	1820	1876	1770	1675	1854	1752	1818	1873	1846	1853	1760	1791
		Wastewater	13,013	1092	1126	1062	1005	1112	1051	1091	1124	1108	1112	1056	1075
		Stormwater	8675	728	750	708	670	742	701	727	749	738	741	704	716
	Residential area	Total	11,280	938	950	921	876	1000	914	947	963	961	959	921	930
		Wastewater	6768	563	570	553	526	600	548	568	578	577	575	553	558
		Stormwater	4512	375	380	368	350	400	366	379	385	384	384	368	372
	Commercial area	Total	5191	420	445	410	394	407	421	447	471	448	456	432	440
		Wastewater	3115	252	267	246	236	244	253	268	283	269	274	259	264
		Stormwater	2076	168	178	164	158	163	168	179	188	179	182	173	176
	Industrial area	Total	3221	285	305	272	250	259	253	262	280	268	273	255	259
		Wastewater	1933	171	183	163	150	155	152	157	168	161	164	153	155
		Stormwater	1288	114	122	109	100	104	101	105	112	107	109	102	104
	Green area	Total	1996	177	176	167	155	188	164	162	159	169	165	152	162
		Wastewater	1198	106	106	100	93	113	98	97	95	101	99	91	97
		Stormwater	798	71	70	67	62	75	66	65	64	68	66	61	65
Phase 2	Total	Total	21,685	1820	1876	1770	1675	1854	1752	1818	1873	1846	1853	1760	1791
		Wastewater	13,013	1092	1126	1062	1005	1112	1051	1091	1124	1108	1112	1056	1075
		Stormwater	8675	728	750	708	670	742	701	727	749	738	741	704	716
	Residential area	Total	11,607	968	988	949	900	1013	939	973	996	990	988	946	958
		Wastewater	6768	563	570	553	526	600	548	568	578	577	575	553	558
		Stormwater	4839	405	418	396	374	413	391	405	418	413	413	393	400
	Commercial area	Total	3902	318	335	310	297	311	317	334	351	336	341	323	329
		Wastewater	3115	252	267	246	236	244	253	268	283	269	274	259	264
		Stormwater	787	66	68	64	61	67	64	66	68	67	67	64	65
	Industrial area	Total	3409	295	311	284	264	281	271	281	295	287	290	272	277
		Wastewater	1933	171	183	163	150	155	152	157	168	161	164	153	155
		Stormwater	1476	124	128	121	114	126	119	124	127	126	126	119	122
	Green area	Total	2771	238	242	228	214	248	225	229	231	235	234	218	227
		Wastewater	1198	106	106	100	93	113	98	97	95	101	99	91	97
		Stormwater	1573	132	136	128	121	135	127	132	136	134	135	127	130
Phase 3	Total	Total	21,685	1820	1876	1770	1675	1854	1752	1818	1873	1846	1853	1760	1791
		Wastewater	13,013	1092	1126	1062	1005	1112	1051	1091	1124	1108	1112	1056	1075
		Stormwater	8675	728	750	708	670	742	701	727	749	738	741	704	716
	Residential area	Total	11,194	934	953	914	867	978	906	939	960	954	953	913	924
		Wastewater	6768	563	570	553	526	600	548	568	578	577	575	553	558
		Stormwater	4426	371	383	361	341	378	358	371	382	377	378	360	366
	Commercial area	Total	3793	309	326	301	288	302	308	325	341	327	332	314	320
		Wastewater	3115	252	267	246	236	244	253	268	283	269	274	259	264
		Stormwater	678	57	59	55	52	58	55	57	58	58	58	55	56
	Industrial area	Total	3515	304	320	292	272	290	279	289	305	296	299	282	286
		Wastewater	1933	171	183	163	150	155	152	157	168	161	164	153	155
		Stormwater	1582	133	137	129	122	135	127	132	137	135	135	129	131
	Green area	Total	3192	273	278	263	247	284	259	264	267	270	270	253	262
		Wastewater	1198	106	106	100	93	113	98	97	95	101	99	91	97
		Stormwater	1994	167	172	163	154	171	161	167	172	169	171	162	165

. In this table, the “total” means the total sewage fee, which includes the wastewater and stormwater fees, “wastewater” represents the wastewater treatment fee, and “stormwater” denotes the stormwater utility fee. The annual total sewage fee remained the same at KRW 21,685,446,578 (USD 19.7 million) in every scenario, and the sewage fee was determined by changing the ratio of the stormwater utility fee in each scenario. The results were then compared (

Table 8. Comparison of the change in the sewage fee according to the phase. (Unit: million KRW).

By Land Use Area	Number of Lots to Be Charged *	Area to Be Charged (km2) **		Annual Average Fee			Change by Phase
		Impervious	Total	Phase 1	Phase 2	Phase 3	Phase 2-Phase 1		Phase 3-Phase 2		Phase 3-Phase 1
							Amt	Ratio	Amt	Ratio	Amt	Ratio
Total	25,154	15.53	21.34	21,685	21,685	21,685	-	-	-	-	-	-
Residential area	19,043	7.92	9.91	11,280	11,607	11,194	327	2.82	−413	−3.69	−86	−0.77
Commercial area	4312	1.21	1.31	5191	3902	3793	−1289	−33.05	−109	−2.87	−1398	−36.87
Industrial area	1268	2.83	3.02	3221	3409	3515	188	5.5	106	3.02	294	8.35
Green area	531	3.57	7.11	1996	2771	3192	775	27.96	421	13.19	1196	37.46

* Number of lots to be charged: When a building covers multiple lots, they are combined into one lot number by editing the serial cadastral map. ** Area to be charged = Total area of Bupyeong-gu − Area occupied by the municipality and central government (e.g., road, mountain, river).

). As it moved from phase 1 to phase 2, the stormwater utility fee of Bupyeong-gu, Incheon decreased in the commercial area; however, it increased in the residential, industrial, and green areas. Then, as it moved from phase 2 to phase 3, the stormwater utility fee of Bupyeong-gu, Incheon, decreased in the residential and commercial areas, but it increased in other areas.

The sewage fee of the residential area decreased by 0.77% in phase 3 in comparison to phase 1. Since there are many apartment complexes in South Korea, the fee is expected to decrease when considering the number of households and the unit area type. When considering commercial areas, the impervious surface ratio is high, but, as a whole, the area contributing to the impervious surface is small. Thus, the stormwater runoff fee decreased by 36.87%. Since the occupied impervious surface area is not large in comparison to the water usage, the stormwater fee decreased when it was proportional to the impervious surface area. In the industrial area, the water usage was similar to that of the commercial area; however, the total impervious surface area was 1.9 times larger than that of the commercial area. As a result, the sewage fee increased by 8.35%. In the green area, the water usage was small, but the total impervious surface area was large; thus, the sewage fee increased by 37.46%. Moreover, there are many public facilities in addition to military facilities in the green area in Bupyeong-gu; hence, the stormwater runoff management burden increased.

3.3. Results When Applying the Fee Estimation Scenario for an Apartment Complex While Considering the Number of Households and the Unit Area Type

The sewage fee charged to the “Bugae P” apartment complex (1102 households in total), the largest among the apartment complexes in Bupyeong-gu, was calculated for each phase. This apartment complex belongs to the type two general residential area when considering the land use areas. The total area was 56,823.8 m², the impervious surface area was 35,079.9 m², and the impervious surface ratio was approximately 61.7%. The monthly average sewage fees that were charged to the total apartment complex were KRW 8,741,013 in phase 1, KRW 7,926,900 in phase 2, and KRW 7,814,013 in phase 3. As a result, the fee decreased by 10.6%. The monthly average stormwater utility fee was KRW 3,496,405 in phase 1, KRW 2,682,292 in phase 2, and KRW 2,569,405 in phase 3. As it went from phase 1 to phase 3, it decreased by approximately 26.51% (

Table 9. Calculation result of a large-scale apartment complex for the sewage fee according to the phase. (Unit: 1000 KRW).

Phase		Total Sewage Fee for an Apartment Complex
		Total	Jan	Feb	Mar	Apr	May	Jun	Jul	Aug	Sep	Oct	Nov	Dec	Avg
Phase 1	Total	104,892	7552	8084	7940	7092	8469	9016	9463	9679	10,484	9165	9049	8899	8741
	Wastewater	62,935	4531	4850	4764	4255	5081	5409	5678	5808	6291	5499	5429	5339	5245
	Stormwater	41,957	3021	3234	3176	2837	3388	3606	3785	3872	4194	3666	3620	3559	3496
Phase 2	Total	95,123	7233	7633	7391	6739	7832	8011	8377	8587	9031	8249	8041	7999	7927
	Wastewater	62,935	4531	4850	4764	4255	5081	5409	5678	5808	6291	5499	5429	5339	5245
	Stormwater	32,188	2701	2783	2627	2484	2751	2601	2699	2780	2741	2750	2612	2659	2682
Phase 3	Total	93,768	7119	7516	7280	6635	7716	7901	8263	8470	8916	8134	7931	7887	7814
	Wastewater	62,935	4531	4850	4764	4255	5081	5409	5678	5808	6291	5499	5429	5339	5245
	Stormwater	30,833	2588	2666	2517	2379	2635	2492	2586	2663	2625	2634	2502	2547	2569

).

In addition, phased fees were applied and compared while considering the unit area type of the households in the apartment complex. A higher fee was applied to the households with a larger unit area, even in the same apartment complex. The fees were distributed while considering the number of households in each unit area type. The total impervious surface area of the apartment complex was divided by the total number of unit areas (1 pyeong ≈ 3.3058 m²) to calculate the impervious surface area per pyeong.

$$\begin{gathered} \mathrm{Responsible} \mathrm{impervious} \mathrm{surface} \mathrm{area} \mathrm{per} \mathrm{pyeong}= 0.856 {\mathrm{m}}^2/\mathrm{pyeong} \\ = \mathrm{35,079.9} {\mathrm{m}}^2/\mathrm{40,965} \mathrm{pyeong} \end{gathered}$$

The responsible impervious surface area per pyeong was determined to be 0.856 m². When this value is multiplied by the number of pyeong in each household, the stormwater utility fee that is proportional to the impervious surface area for each household can be determined.

The sewage fees of the individual households by the unit area type were calculated while considering the impervious surface area per pyeong. In phase 1, the monthly average sewage fee was calculated as KRW 7324 (KRW 87,891/year) for 26 pyeong, KRW 7494 (KRW 89,931/year) for 35 pyeong, KRW 8110 (KRW 97,327/year) for 40 pyeong, and KRW 10,140 (KRW 121,686/year) for 60 pyeong. In phase 2, the monthly average sewage fee was calculated as KRW 6727 (KRW 80,724/year) for 26 pyeong, KRW 6857 (KRW 82,289/year) for 35 pyeong, KRW 7330 (KRW 87,963/year) for 40 pyeong, and KRW 8887 (KRW 106,650/year) for 60 pyeong. Finally, in phase 3, the monthly average sewage fee was calculated as KRW 6644 (KRW 79,730/year) for 26 pyeong, KRW 6769 (KRW 81,229/year) for 35 pyeong, KRW 7222 (KRW 86,229/year) for 40 pyeong, and KRW 8714 (KRW 104,565/year) for 60 pyeong. The sewage fee increased with the number of pyeong in each household, and it decreased as the phase progressed. These fee calculations are possible because there are accurate statistics for the impervious surface areas. As the results show, the fees can be charged according to the contribution to the impervious surface; thus, they greatly contribute to a fair sewage fee system (

Table 10. Monthly sewage fee while considering the unit area type for a large apartment complex. (Unit: KRW).

Phase		Unit Area	Monthly Sewage Fee by Household
			Monthly Avg	Jan	Feb	Mar	Apr	May	Jun	Jul	Aug	Sep	Oct	Nov	Dec
Phase 1	Total	26	7324	6328	6773	6653	5942	7096	7555	7929	8110	8785	7680	7582	7456
		35	7494	6475	6930	6807	6080	7261	7730	8113	8299	8989	7858	7758	7629
		40	8110	7008	7500	7367	6580	7858	8366	8780	8981	9728	8504	8396	8257
		60	10,140	8761	9378	9211	8227	9825	10,459	10,978	11,229	12,163	10,633	10,498	10,323
	Wastewater	-	4759	4112	4401	4323	3861	4611	4909	5152	5270	5708	4990	4927	4845
	Stormwater	26	2565	2216	2372	2330	2081	2485	2646	2777	2840	3077	2690	2655	2611
		35	2735	2363	2529	2484	2219	2650	2821	2961	3029	3281	2868	2831	2784
		40	3351	2896	3099	3044	2719	3247	3457	3628	3711	4020	3514	3469	3412
		60	5381	4649	4977	4888	4366	5214	5550	5826	5959	6455	5643	5571	5478
Phase 2	Total	26	6727	6094	6442	6250	5683	6629	6817	7132	7309	7719	7008	6843	6796
		35	6857	6225	6578	6378	5804	6763	6944	7263	7444	7852	7141	6970	6925
		40	7330	6701	7068	6841	6242	7247	7402	7739	7934	8335	7626	7431	7394
		60	8887	8270	8684	8366	7684	8844	8912	9306	9548	9926	9223	8947	8938
	Wastewater	-	4759	4112	4401	4323	3861	4611	4909	5152	5270	5708	4990	4927	4845
	Stormwater	26	1968	1982	2041	1927	1822	2018	1908	1980	2039	2011	2018	1916	1951
		35	2098	2113	2177	2055	1943	2152	2035	2111	2174	2144	2151	2043	2080
		40	2571	2589	2667	2518	2381	2636	2493	2587	2664	2627	2636	2504	2549
		60	4128	4158	4283	4043	3823	4233	4003	4154	4278	4218	4233	4020	4093
Phase 3	Total	26	6644	16,663	17,455	17,002	15,480	17,398	18,208	19,169	19,437	20,784	18,723	18,295	18,136
		35	6769	16,939	17,738	17,268	15,731	17,660	18,479	19,459	19,725	21,085	19,013	18,566	18,411
		40	7222	17,939	18,765	18,231	16,642	18,610	19,459	20,510	20,768	22,175	20,062	19,549	19,406
		60	8714	21,235	22,149	21,402	19,640	21,739	22,688	23,973	24,204	25,766	23,518	22,789	22,683
	Wastewater	-	4759	12,498	13,179	12,995	11,692	13,443	14,128	14,793	15,095	16,246	14,356	14,201	13,995
	Stormwater	26	1885	1898	1956	1846	1746	1933	1828	1897	1953	1926	1933	1836	1869
		35	2010	2024	2085	1969	1861	2061	1949	2023	2083	2054	2061	1957	1993
		40	2463	2480	2555	2412	2281	2525	2388	2478	2552	2516	2525	2398	2442
		60	3955	3983	4103	3873	3662	4055	3835	3979	4098	4041	4055	3851	3921

and

Table 11. Phased sewage fee while considering the unit area type for a large apartment complex. (Unit: KRW).

Unit Area Type	Number of Buildings	Total Number of Households	Share * (%)	Responsible Impervious Area by Unit Area Type (m2) **	Annual Total Sewage Fee by Household
					Phase 1			Phase 2			Phase 3
					Total	Wastewater	Storm water	Total	Wastewater	Storm water	Total	Wastewater	Storm water
26	3	240	15.23	22.26	87,891	57,110	30,781	80,724	57,110	23,614	79,730	57,110	22,620
35	3	303	25.89	29.97	89,931	57,110	32,821	82,289	57,110	25,179	81,229	57,110	24,119
40	5	471	45.99	34.25	97,327	57,110	40,217	87,963	57,110	30,853	86,664	57,110	29,554
60	1	88	12.89	51.38	121,686	57,110	64,576	106,650	57,110	49,540	104,565	57,110	47,455

* Share: The ratio of the responsible area for all households for each unit area type with an impervious surface area that is charged. ** Responsible impervious surface area by the unit area type = (Total impervious surface area in the apartment complex/Σ(Unit area type × Number of households)) × Unit area type.

).

4. Conclusions

This study proposed a phased separate estimation scenario for wastewater and stormwater fees in order to create a stormwater utility fee system that is suitable for South Korea. This was achieved while considering the impervious surface area and the changes in the fees, which were compared by applying this scenario. To that end, a variety of overseas cases and domestic current systems were analyzed and discussed. In addition, the statistics for the impervious surface area of the optimal large-scale impervious surface map that was produced in a previous study were used. The impervious surface area based on the land use area and parcel was calculated with an overlap of the serial cadastral map, and the fees were calculated based on the water and sewage usage between January to December 2014 in Bupyeong-gu, Incheon. Finally, they were applied as a pilot to each land use area and an apartment complex, and the changes in the fees in each phase were compared.

The total sewage fee between January to December 2014 in Bupyeong-gu was determined to be KRW 21,685,446,578 (USD 19.7 million). Under the assumption that the share of the stormwater utility fee was 40% of the total sewage fee and the total fee does not change, the stormwater utility fees in each phase were calculated. When the stormwater utility fees for each land use area were calculated, the fees of the residential area and commercial area decreased as the phase progressed, whereas the fees for the industrial area and green area increased. In particular, the stormwater utility fee for the residential area decreased by 1.9% in comparison to the existing fee. Since South Korea has many apartment complexes, the fees are expected to decrease even further when the number of households and the area unit type of the apartment complexes are considered. To verify these assumptions, a large-scale apartment complex was randomly selected and the total sewage fee charged to the apartment complex was calculated. Then, the fees were calculated based on the impervious surface area in the parcel while considering the number of households and the unit area type. It was determined that, for a large-scale apartment complex with a large pervious landscape area and a large number of households, the stormwater utility fee decreased by approximately 26.5% in comparison to the existing fee. This study verified the possibility of estimating the stormwater utility fee by using an impervious surface map that was produced in a previous study and the impervious surface ratio calculation method.

In the future, for the proper management of non-point sources and stormwater runoffs, a stormwater utility fee system that considers the impervious surface area and is appropriate for South Korea needs to be introduced and operated. However, in order to apply the stormwater utility fee, thorough preparations are required, such as discussing financing and the responsibilities of the public and private sectors for stormwater management. The reason for this is that when a stormwater utility fee is collected without the citizens’ understanding, the citizens may provide resistance. As a result, it is necessary to improve the water environment by using the necessary financial resources and actively investing in water environment management, as well as the implementation of a stormwater utility fee system. Furthermore, this system should be promoted based on the basic fee estimation method after the cost is allocated and calculated according to reasonable standards and grounds for each municipality. In addition, it needs to take into account the future impervious surface area management cost, the capacity to bear the cost, and the property value.
