How Non-Governmental-Organization-Built Small-Scale Irrigation Systems Are a Failure in Africa
Abstract
:1. Introduction
2. Materials and Methods
2.1. Climate Change and Its Impact

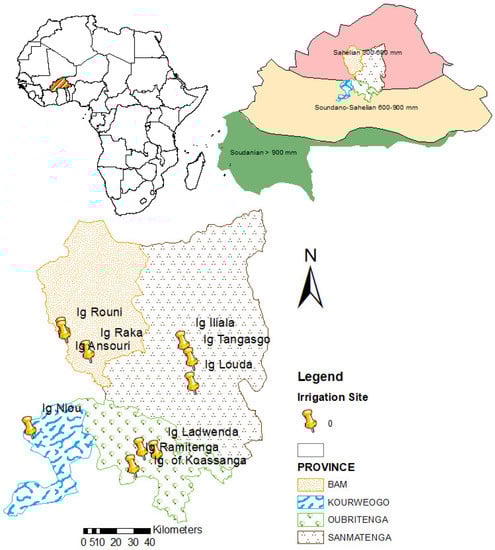

2.2. Site Location and Climate
2.3. The Soils
2.4. The Population and Livelihood
2.5. Irrigation System Model
2.6. Equipment Inventory and Survey

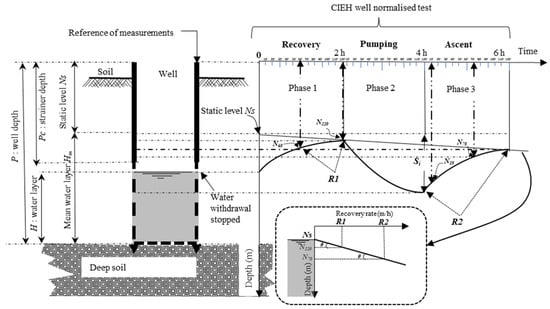

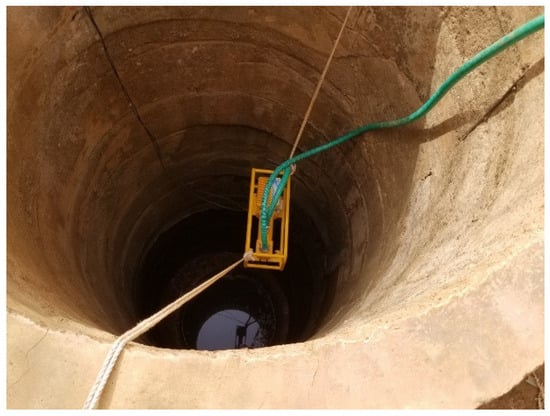

2.7. Pumping Test on Wells
- Phase 1: Recovery. In this phase, it is necessary to stop the drawdown by users if it is in progress. Then, the ascent is followed with the help of a probe for at least 2 h. If the value of the ascent after 1 h is less than 1 cm, it is valid to simply select the static level (NS) for the value of the water level below the mark. Otherwise, it is necessary to continue the operation until 2 h have passed.
- Phase 2: Pumping. One should follow the descent of the water table during pumping using the probe at precise timesteps (every 10 min). The maximum pumping time is 3 h, and the well must be emptied until only a 1 m water layer remains. For the current study, solar pumps with an average flow rate of 2.44 m3/h were used. Because these pumps need sunshine, the recovery began at 9 a.m. to carry out the pumping between 11 a.m. and 2 p.m. This guaranteed a regularity of flow during pumping.
- Phase 3: Ascent. After the pumping is stopped, it is necessary to carefully measure the ascent for 2 h at given timesteps (every 10 min). Afterward, normal operation of the well can resume.
2.7.1. Determination of Mean Static Level Ns before the Pumping Test
2.7.2. The Piezometric Level Fluctuation Rate Coefficient, L (m/m), during the Complete Dry Season
2.7.3. Determination of the Specific Flow Rate Ce (m3/h/m)

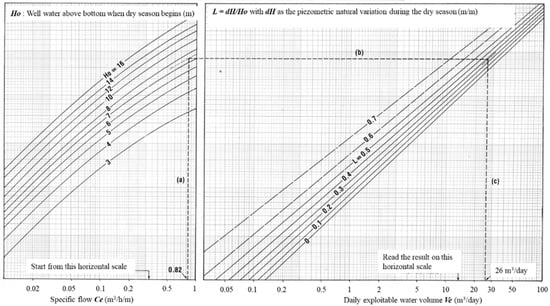

2.7.4. The Well’s Daily Exploitable Volume of Water, Ve
Crop Yield Assessment
3. Results
3.1. Water Availability: Reality or Illusion?
3.2. The Adverse Impact of Climate and Clay
3.3. Surface Pumps Are Inappropriate for Extracting Water from Wells
3.4. Water Distribution: Reliable or Disillusion?
3.4.1. Inequity and Smallness of Plot Sizes
3.4.2. Difficulty of Water Extraction
3.4.3. Burdensome and Inefficient Water Distribution
3.4.4. A Poor Irrigation Service Leading to Low Production
3.4.5. Need for Reliable Water Resources
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Fielke, S.; Taylor, B.M.; Coggan, A.; Jakku, E.; Davis, A.M.; Thorburn, P.J.; Webster, A.J.; Smart, J.C.R. Understanding Power, Social Capital and Trust alongside near Real-Time Water Quality Monitoring and Technological Development Collaboration. J. Rural Stud. 2022, 92, 120–131. [Google Scholar] [CrossRef]
- da Silva Cavalcante, D.F.; da Silva Medina, G.; Cruz, J.E. Getting It Right in Rural Development Initiatives: The Importance of Livelihood Assets in Commercializing Family Farm Production in Brazil. Hum. Ecol. 2022, 50, 49–59. [Google Scholar] [CrossRef]
- Lim, H.B.; Kim, C. The Failure of a Rural Development Project: South Korean Official Development Assistance in the Democratic Republic of the Congo. Asian J. Agric. Rural Dev. 2020, 10, 259–269. [Google Scholar] [CrossRef]
- Bekker, M.C.; Mashaba, J.T. A Critical Review of Agricultural Related Construction Project Failures at the Department of Agricultural, Rural Development and Environmental Affairs (DARDLEA): Mpumalanga. S. Afr. J. Agric. Ext. 2018, 46, 83–91. [Google Scholar] [CrossRef]
- Damoah, I.S.; Kumi, D.K. Causes of Government Construction Projects Failure in an Emerging Economy: Evidence from Ghana. Int. J. Manag. Proj. Bus. 2018, 11, 558–582. [Google Scholar] [CrossRef]
- Shava, E. Financial Sustainability of NGOs in Rural Development Programmes. Dev. Pract. 2021, 31, 393–403. [Google Scholar] [CrossRef]
- Balint, P.J. Bringing Solar Home Systems to Rural El Salvador: Lessons for Small NGOs. Energy Policy 2006, 34, 721–729. [Google Scholar] [CrossRef]
- Liu, Q.; Wang, R.Y.; Dang, H. The Hidden Gaps in Rural Development: Examining Peasant–NGO Relations through a Post-Earthquake Recovery Project in Sichuan, China. China Q. 2018, 233, 43–63. [Google Scholar] [CrossRef]
- Kamwamba-Mtethiwa, J.; Weatherhead, K.; Knox, J. Assessing Performance of Small-Scale Pumped Irrigation Systems in Sub-Saharan Africa: Evidence from a Systematic Review. Irrig. Drain. 2016, 65, 308–318. [Google Scholar] [CrossRef]
- Burney, J.A.; Naylor, R.L. Smallholder Irrigation as a Poverty Alleviation Tool in Sub-Saharan Africa. World Dev. 2012, 40, 110–123. [Google Scholar] [CrossRef]
- de Fraiture, C.; Giordano, M. Small Private Irrigation: A Thriving but Overlooked Sector. Agric. Water Manag. 2014, 131, 167–174. [Google Scholar] [CrossRef]
- UNDP. Independent Country Programme Evaluation Burkina Faso. 2020. Available online: http://web.undp.org/evaluation/evaluations/adr/burkina-faso.shtml (accessed on 31 May 2022).
- Ibrahim, B.; Karambiri, H.; Polcher, J.; Yacouba, H.; Ribstein, P. Changes in Rainfall Regime over Burkina Faso under the Climate Change Conditions Simulated by 5 Regional Climate Models. Springer 2014, 42, 1363–1381. [Google Scholar] [CrossRef]
- Diallo, A. Changement climatique et migrations humaines au Sénégal: Une approche en termes de vulnérabilité du système socio-écologique. Rev. Régulation Capital. Inst. Pouvoirs 2019, 26, 15800. [Google Scholar] [CrossRef]
- Chesworth, W. (Ed.) Encyclopedia of Soil Science; Encyclopedia of Earth Sciences Series; Springer Netherlands: Dordrecht, The Netherlands, 2008; ISBN 978-1-4020-3994-2. [Google Scholar]
- MARHR/DGIHRH. Geographic Information System Data of Burkina Faso. Available online: https://geospatial.com/resources/country-data/burkina-faso/ (accessed on 31 May 2022).
- Sop, T.K.; Oldeland, J. Local Perceptions of Woody Vegetation Dynamics in the Context of a ‘Greening Sahel’: A Case Study from Burkina Faso. Land Degrad. Dev. 2013, 24, 511–527. [Google Scholar] [CrossRef]
- Sawadogo, H. Using Soil and Water Conservation Techniques to Rehabilitate Degraded Lands in Northwestern Burkina Faso. Int. J. Agric. Sustain. 2011, 9, 120–128. [Google Scholar] [CrossRef]
- Nyamekye, C.; Thiel, M.; Schönbrodt-Stitt, S.; Zoungrana, B.J.-B.; Amekudzi, L.K. Soil and Water Conservation in Burkina Faso, West Africa. Sustainability 2018, 10, 3182. [Google Scholar] [CrossRef]
- Barbier, B.; Yacouba, H.; Karambiri, H.; Zoromé, M.; Somé, B. Human Vulnerability to Climate Variability in the Sahel: Farmers’ Adaptation Strategies in Northern Burkina Faso. Environ. Manage 2009, 43, 790–803. [Google Scholar] [CrossRef]
- CIEH. Essais de débit Simplifies sur Forages d’hydraulique Villageoise (Simplified Flow Testing on Village Boreholes). Comité Interafricain d’Etudes (CIEH), Série Hydraulique Villageoise, Ouagadougou, Burkina Faso. Available online: http://documentation.2ie-edu.org/cdi2ie/opac_css/index.php?lvl=notice_display&id=10155 (accessed on 31 May 2022).
- MacDonald, A.M.; Barker, J.A.; Davies, J. The Bailer Test: A Simple Effective Pumping Test for Assessing Borehole Success. Hydrogeol. J. 2008, 16, 1065–1075. [Google Scholar] [CrossRef]
- Reddy, D.V.; Nagabhushanam, P. Search for Hydraulic Connectivity between Surface Reservoirs and Surrounding Aquifers in the Reservoir-Triggered Seismic Environment (Koyna Region, India) Using Hydrochemical and Isotopic Signatures. J. Seismol. 2016, 20, 43–62. [Google Scholar] [CrossRef]
- Piccoli, I.; Furlan, L.; Lazzaro, B.; Morari, F. Examining Conservation Agriculture Soil Profiles: Outcomes from Northeastern Italian Silty Soils Combining Indirect Geophysical and Direct Assessment Methods. Eur. J. Soil Sci. 2020, 71, 1064–1075. [Google Scholar] [CrossRef]
- Ishida, S.; Tsuchihara, T.; Yoshimoto, S.; Imaizumi, M. Sustainable Use of Groundwater with Underground Dams. Jpn. Agric. Res. Q. 2011, 45, 51–61. [Google Scholar] [CrossRef]
- Bazie, C. Etude D’avant-Projet Détaillé de Fermes Piscicoles et Maraichères Sous Pompage Photovoltaique dans les Localités de Moussodougou et de Tiéfora; International Institute for Water and Environmental Engineering (2iE): Ouagadougou, Burkina Faso, 2021. [Google Scholar]
- Zhu, H.; Qiu, N.; Wang, C.; Si, Q.; Wu, J.; Deng, F.; Liu, X. Prediction of Cavitation Evolution and Cavitation Erosion on Centrifugal Pump Blades by the DCM-RNG Method. Scanning 2021, 2021, e6498451. [Google Scholar] [CrossRef] [PubMed]
- Carvajal, F.; Agüera, F.; Sánchez-Hermosilla, J. Water Balance in Artificial On-Farm Agricultural Water Reservoirs for the Irrigation of Intensive Greenhouse Crops. Agric. Water Manag. 2014, 131, 146–155. [Google Scholar] [CrossRef]
- Bounoua, S.; Tomas, S.; Labille, J.; Molle, B.; Granier, J.; Haldenwang, P.; Izzati, S.N. Understanding Physical Clogging in Drip Irrigation: In Situ, in-Lab and Numerical Approaches. Irrig. Sci. 2016, 34, 327–342. [Google Scholar] [CrossRef]
- Keita, A. Subsurface Drainage of Valley Bottom Irrigated Rice Schemes in Tropical Savannah: Case Studies of Tiefora and Moussodougou in Burkina Faso; CRC Press/Balkema: Leiden, The Netherlands, 2015; ISBN 978-1-138-02816-6. [Google Scholar]
- de Kreij, C.; van der Burg, A.M.M.; Runia, W.T. Drip Irrigation Emitter Clogging in Dutch Greenhouses as Affected by Methane and Organic Acids. Agric. Water Manag. 2003, 60, 73–85. [Google Scholar] [CrossRef]
- Friedlander, L.; Tal, A.; Lazarovitch, N. Technical Considerations Affecting Adoption of Drip Irrigation in Sub-Saharan Africa. Agric. Water Manag. 2013, 126, 125–132. [Google Scholar] [CrossRef]
- Iglesias, I.; Salvia, J.; Torguet, L.; Montserrat, R. The Evaporative Cooling Effects of Overtree Microsprinkler Irrigation on ‘Mondial Gala’ Apples. Sci. Hortic. 2005, 103, 267–287. [Google Scholar] [CrossRef]
- Feng, Y.; Wei, J.; Zhang, G.; Sun, X.; Wang, W.; Wu, C.; Tang, M.; Gan, Z.; Xu, X.; Chen, S.; et al. Effects of Cooling Measures on ‘Nijisseiki’ Pear (Pyrus Pyrifolia) Tree Growth and Fruit Quality in the Hot Climate. Sci. Hortic. 2018, 238, 318–324. [Google Scholar] [CrossRef]
- Piri, H.; Naserin, A. Effect of Different Levels of Water, Applied Nitrogen and Irrigation Methods on Yield, Yield Components and IWUE of Onion. Sci. Hortic. 2020, 268, 109361. [Google Scholar] [CrossRef]
- Paul, M.; wa Gĩthĩnji, M. Small Farms, Smaller Plots: Land Size, Fragmentation, and Productivity in Ethiopia. J. Peasant Stud. 2018, 45, 757–775. [Google Scholar] [CrossRef]
- Zorom, M.; Barbier, B.; Mertz, O.; Servat, E. Diversification and Adaptation Strategies to Climate Variability: A Farm Typology for the Sahel. Agric. Syst. 2013, 116, 7–15. [Google Scholar] [CrossRef]
- Akurugu, B.A.; Chegbeleh, L.P.; Yidana, S.M. Characterisation of Groundwater Flow and Recharge in Crystalline Basement Rocks in the Talensi District, Northern Ghana. J. Afr. Earth Sci. 2020, 161, 103665. [Google Scholar] [CrossRef]
- Savadogo, N.A.; Nakolendousse, S.; Diallo, S. Étude comparée de I’apport des méthodes électromagnetique MaxMin et électriques dans l’implantation des foragès à gros débits dans les régions de socle cristallin du Burkina Faso. J. Afr. Earth Sci. 1997, 24, 169–181. [Google Scholar] [CrossRef]
- Shinde, M.G.; Pawar, D.D.; Kale, K.D.; Dingre, S.K. Performance of Cabbage at Different Irrigation Levels under Drip and Microsprinkler Irrigation Systems *. Irrig. Drain. 2021, 70, 581–592. [Google Scholar] [CrossRef]
- Magoum, I. BURKINA FASO: Two SDWFs Provide Drinking Water to Households in Nébiélianayou. Available online: https://www.afrik21.africa/en/burkina-faso-two-sdwfs-provide-drinking-water-to-households-in-nebielianayou/ (accessed on 9 May 2022).
- Coates, R.W.; Delwiche, M.J.; Brown, P.H. Control of Individual Microsprinklers and Fault Detection Strategies. Precis. Agric. 2006, 7, 85–99. [Google Scholar] [CrossRef]
- Or, T.; Gourley, S.W.D.; Kaliyappan, K.; Yu, A.; Chen, Z. Recycling of Mixed Cathode Lithium-Ion Batteries for Electric Vehicles: Current Status and Future Outlook. Carbon Energy 2020, 2, 6–43. [Google Scholar] [CrossRef] [Green Version]
Site Name | Longitude (DD) | Latitude (DD) | Annual Rainfall (mm) | Climate |
---|---|---|---|---|
Boussé (Niou) | 1.9407 W | 12.7720 N | 630 | Sudano-Sahelian |
Kouassanga | 1.3380 W | 12.6595 N | 600 | Sudano-Sahelian |
Ladwenda | 1.2602 W | 12.6443 N | 600 | Sudano-Sahelian |
Ramitenga | 1.3831 W | 12.5642 N | 600 | Sudano-Sahelian |
Louda | 1.0625 W | 13.0107 N | 500 | Sahelian |
Tangasgo | 1.0701 W | 13.1441 N | 510 | Sahelian |
IIyala | 1.1125 W | 13.2343 N | 530 | Sahelian |
Ansouri | 1.7607 W | 13.3087 N | 520 | Sahelian |
Rouni | 1.7548 W | 13.2913 N | 500 | Sahelian |
Raka | 1.6273 W | 13.1819 N | 500 | Sahelian |
Site | Climatic Zone | Number of Wells | Diameter D (m) | Depth P (m) (A) | Static Level NS (m) | Distance to Closest Dam (m) (B) | Subsoil | Test Flow Rate Q (m3/h) | CIEH Daily Expl. Water VE (A) (m3/day) | Observation |
---|---|---|---|---|---|---|---|---|---|---|
Niou | Sudano-Sahelian | 4 | 1.8 ± 0.0 | 10.9 ± 3.4 | 6.4 ± 0.4 | N.A. | Clayey | N.A. | N.A. | NS: 02/2019 |
Kouassanga | Sudano-Sahelian | 3 | 1.8 ± 0.0 | 7.5 ± 2.6 | N.A. | 300.0 | Clayey | N.A. | N.A. | NS: 02/2019 |
Ladwenda | Sudano-Sahelian | 3 | 1.8 ± 0.0 | 5.4 ± 1.2 | 3.5 ± 0.2 | 115.0 | Clayey | 0.1 ± 0.0 | 3.6 ± 1.1 | NS: 02/2019 |
Ramitenga | Sudano-Sahelian | 2 | 1.8 ± 0.0 | 7.0 ± 0.5 | 4.6 ± 0.4 | 250.0 | Clayey | 0.2 | 4.3 | NS: 02/2019 |
Louda | Sahelian | 3 | 1.8 | 10.0 | 6.4 ± 0.3 | 1060.0 | Sandy | 2.1 ± 0.5 | 6.1 ± 0.6 | NS: 02/2019 |
Tangasgo | Sahelian | 3 | 1.8 | 12.0 | 10.8 | N.A. | Clayey | 0.12 | 0.40 | NS: 02/2019 |
Ilyala | Sahelian | 3 | 1.8 | 12.0 | N.A. | 260.0 | Clayey | 0.0 | - | Pumping from a water stream |
Ansouri | Sahelian | 4 | 1.8 | 15 | N.A. | N.A. | Clayey | 2.4 | 0.0 | Empty after 1:30 pumping |
Rouni | Sahelian | 3 | 1.8 | 12 | N.A. | N.A. | Clayey | 2.4 | 3.6 ± 3.0 | Empty after 2:00 pumping |
Raka | Sahelian | 4 | 1.8 | 8 | N.A. | N.A. | Clayey | 2.4 | 2.3 ± 0.4 | Empty after 2:00 pumping |

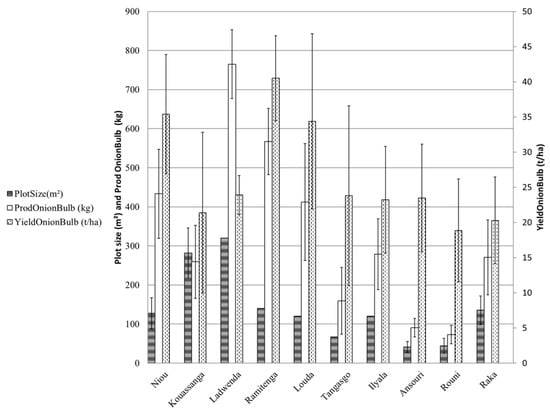

Site | Season | Cycle (j) | No. Farmers | Plot Size (m²) | Prod Onion Bulb (kg) | Yield Onion Bulb (t/ha) |
---|---|---|---|---|---|---|
Niou | 2018–2019 | 150 | 12 | 128 ± 40 (a) | 433 ± 114 | 35 ± 8 |
Kouassanga | 2018–2019 | 150 | 12 | 282 ± 64 | 259 ± 93 | 21 ± 11 |
Ladwenda | 2018–2019 | 150 | 12 | 320 ± 0 | 765 ± 88 | 24 ± 3 |
Ramitenga | 2018–2019 | 150 | 12 | 140 ± 0 | 567 ± 85 | 41 ± 6 |
Louda | 2018–2019 | 150 | 10 | 120 ± 0 | 413 ± 150 | 34 ± 12 |
Tangasgo | 2018–2019 | 150 | 10 | 67 ± 0 | 159 ± 86 | 24 ± 13 |
Ilyala | 2018–2019 | 150 | 10 | 120 ± 0 | 279 ± 91 | 23 ± 8 |
Ansouri | 2018–2019 | 150 | 10 | 41 ± 14 | 91 ± 23 | 23 ± 8 |
Rouni | 2018–2019 | 150 | 11 | 44 ± 19 | 73 ± 24 | 19 ± 7 |
Raka | 2018–2019 | 150 | 12 | 135 ± 37 | 270 ± 96 | 20 ± 6 |
Irrigation Scheme (a) | No. of Waterpoints | Thickness of Alterations (b) (m) | Drilled Depth DD (m) | Positive Borehole (%) | Water Inflow Depth VInf (m) | Estimated Flow (m3/h) | Test Flow (c) (m3/h) | Vicinity of Surf. Water (d) |
---|---|---|---|---|---|---|---|---|
Niou | 14 | 54 ± 12 | 67 ± 08 | 64% | 35 ± 28 | 03 ± 03 | 02 ± 02 | No |
Boussé | 15 | 32 ± 12 | 57 ± 18 | 53% | 18 ± 18 | 02 ± 02 | 00 ± 01 | Yes |
Kouassanga | 18 | 18 ± 07 | 58 ± 14 | 50% | 16 ± 18 | 05 ± 15 | 01 ± 01 | Yes |
Ladwenda | 15 | 18 ± 06 | 57 ± 10 | 60% | 25 ± 23 | 01 ± 02 | 01 ± 01 | Yes |
Ramitenga | 8 | 26 ± 11 | 60 ± 16 | 50% | 22 ± 29 | 01 ± 01 | 00 ± 01 | Yes |
Louda | 16 | 25 ± 13 | 59 ± 14 | 69% | 30 ± 23 | 03 ± 04 | 00 ± 00 | Yes |
Tangasgo | 24 | 23 ± 15 | 65 ± 23 | 58% | 17 ± 18 | 01 ± 01 | 00 ± 00 | Non |
Ilyala | 6 | 19 ± 13 | 58 ± 11 | 50% | 19 ± 21 | 01 ± 01 | 00 ± 00 | Yes |
Ansouri | 10 | 33 ± 21 | 75 ± 15 | 70% | 27 ± 31 | 01 ± 01 | 00 ± 01 | No |
Rouni | 10 | 33 ± 21 | 75 ± 15 | 70% | 27 ± 31 | 01 ± 01 | 00 ± 01 | No |
Raka | 13 | 31 ± 21 | 71 ± 27 | 62% | 33 ± 35 | 02 ± 02 | 03 ± 07 | No |
