Development of Novel Transparent Radiation Shielding Glasses by BaO Doping in Waste Soda Lime Silica (SLS) Glass

Abstract

In the current study, BaO was doped in Bi₂O₃-ZnO-B₂O₃-SLS glass to develop lead-free radiation shielding glasses and to solve the dark brown of bismuth glass. The melt-quenching method was utilized to fabricate (x) BaO (1 − x)[0.3 ZnO 0.2 Bi₂O₃ 0.2 B₂O₃ 0.3 SLS] (where x are 0.01, 0.02, 0.03, 0.04, and 0.05 mol) at 1200 °C. Soda lime silica glass waste (SLS), which is mostly composed of 74.1% SiO₂, was used to obtain SiO₂. The mass attenuation coefficient (${\mu }_m$) was investigated utilizing X-ray fluorescence (XRF) at 16.61, 17.74, 21.17, and 25.27 keV and narrow beam geometry at 59.54, 662, and 1333 keV. Moreover, the other parameters related to gamma ray shielding properties such as half-value layer (HVL), mean free path (MFP), and effective atomic number ($Z_{eff}$) were computed depending on ${\mu }_m$ values. The results indicated that HVL and MFP decreased, whereas ${\mu }_m$ increased with an increase in BaO concentration. According to these results, it can be concluded that BaO doped in Bi₂O₃-ZnO-B₂O₃-SLS glass is a nontoxic, transparent to visible light, and a good shielding material against radiation.

1. Introduction

Heavy metal oxide glasses such as PbO, Bi₂O₃, and BaO are considered as one of the desirable shielding materials that are used for radiation protection because they possess a lot of interesting properties that make them suitable for radiation protection, such as high density, transparency to visible light, stability in air and water, high interaction cross-section, high infrared transparency, and good absorption of radiation [1,2]. Research interests in the field of radiation shielding materials have changed to using ecofriendly materials instead of PbO due to the toxicity of lead [3,4].

Recently, many research groups have classified Bi₂O₃ glass as an ideal candidate for radiation protection, and they have confirmed that the ability of Bi₂O₃ glass to attenuate photons enhances with the increase in the content of Bi₂O₃ [3,5,6,7].

However, there are few issues with the use of high concentrations of Bi₂O₃ in glass, such as the color of the glass becoming dark brown or black and the melting temperature increasing [8]. As a result, researchers in the materials sciences and the glasses developers have a technical problem in developing highly high transmission Bi₂O₃ glass.

Soda lime silica (SLS) glass is one of the most widely used industrial glass products, accounting for up to 90–95% of global glass production and is used for flat glass or container wares and windowpanes. However, SLS glass waste needs a long time to decompose in addition to the limited landfill sites. This contributes to the accumulation of glass waste. To solve environmental problems, researchers are interested in reusing glass waste as an alternative source of SiO₂. There are several benefits to using SLS glass waste as a source of SiO₂. This reduces production costs, in addition to the good optical and mechanical characteristics of SLS glass waste, such as high thermal stability, high transparency, low melting point, and perfect chemical stability [9,10,11].

The aim of the current study is to prepare glass samples consisting of soda lime silica waste glass that have the ability to attenuate photons’ intensity, which can be used as radiation protection, in addition to improving the optical properties by reducing the dark brown or black color of glass samples. Furthermore, SLS glass waste is utilized as a source of silicon dioxide (SiO₂) to reduce the accumulation of SLS glass waste and also reduce production costs. The mass attenuation coefficient was measured at 16.61, 17.74, 21.17, and 25.27 keV utilizing X-ray fluorescence (XRF) and narrow beam geometry at 59.54, 662, and 1333 keV. Moreover, other parameters related to radiation shielding, such as the half-value layer (HVL), mean free path (MFP), the effective atomic number ($Z_{eff}$ ), and the effective electron density ($N_{eff}$) were tested and reported in this study at photon energies of 59.54, 662, and 1333 keV.

2. Materials and Methods

2.1. Glasses Preparation

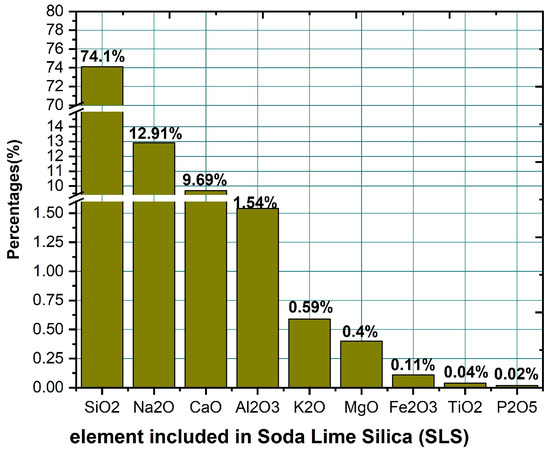

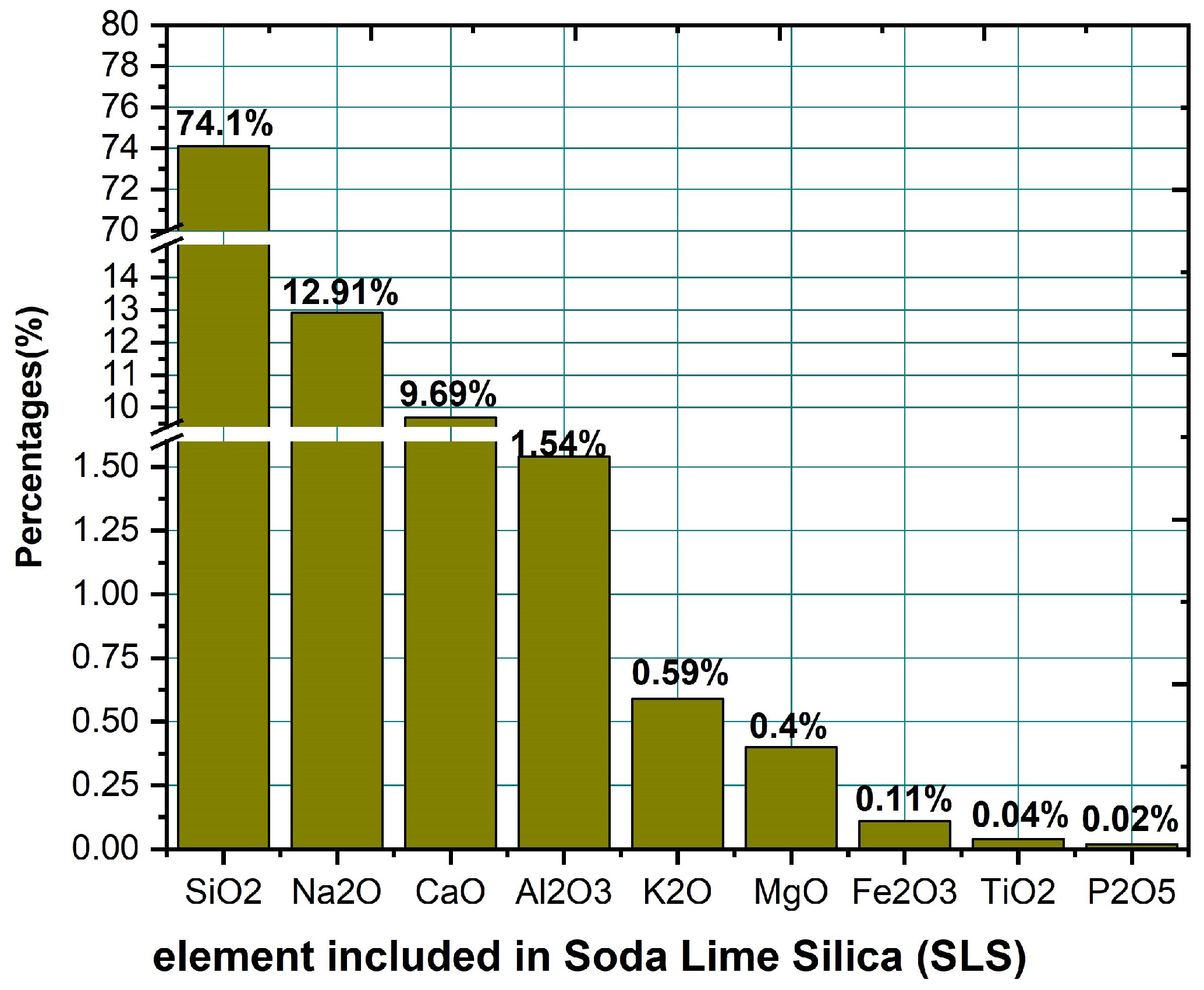

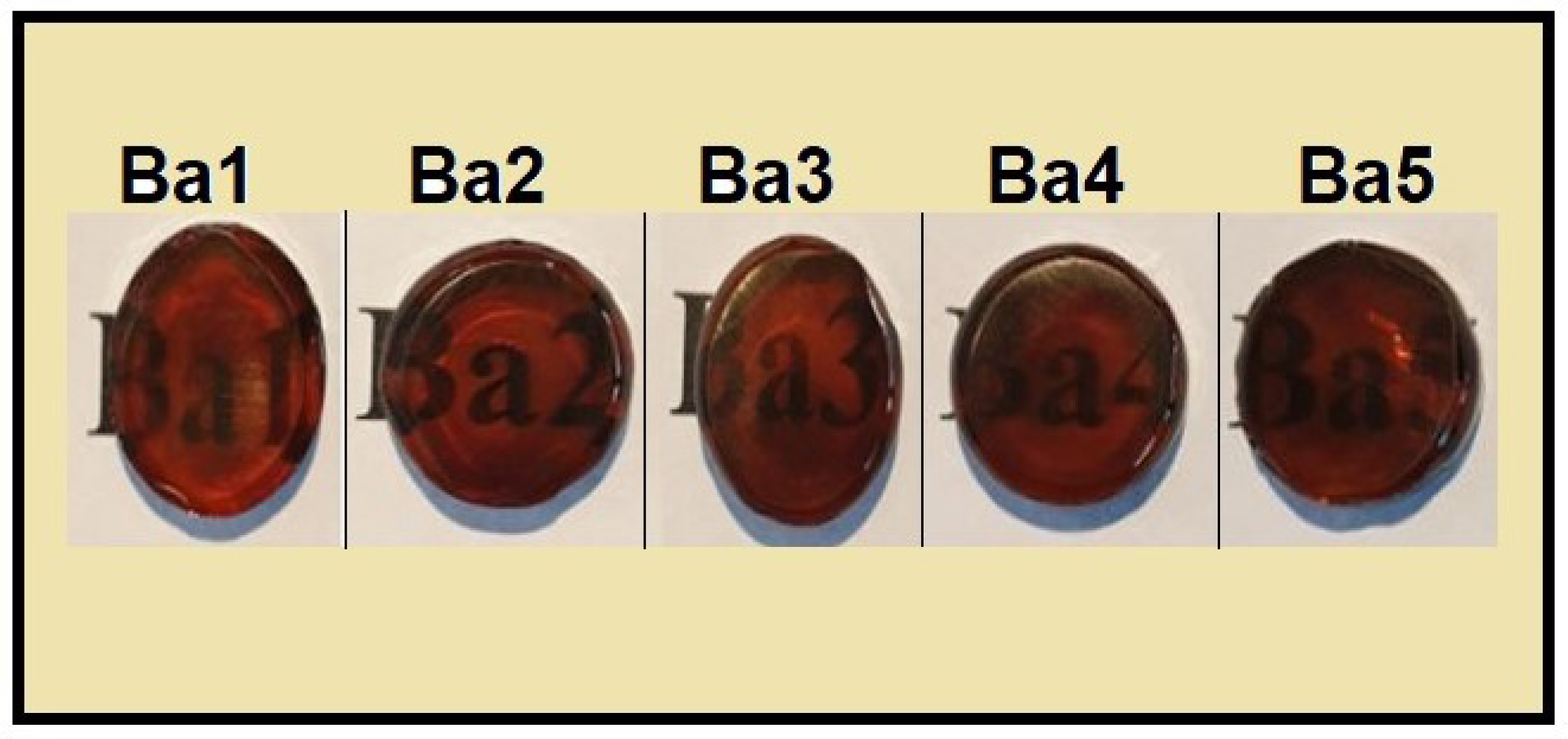

In the current study, glass samples with the chemical composition of (x) BaO (1 − x)[0.3 ZnO 0.2 Bi₂O₃ 0.2 B₂O₃ 0.3 SLS] (where x are 0.01, 0.02, 0.03, 0.04, and 0.05 mol) were fabricated using the melt quenching technique. SLS glass waste was used to reuse SiO₂ contained in it by cleaning and crushing it into a powder utilizing a mortar and pestle. All chemical components such as Bi₂O₃, ZnO, B₂O₃, SLS, and BaO were mixed completely for 10 min in an agate mortar and pestle and transferred to an alumina crucible. After that, the crucible was inserted in the electric furnace to melt at a temperature of 1200 °C for 1.5 h. The melted mixture was poured immediately into the preheated cylinder brass plate and then annealed for 2 h at approximately 350 °C in order to prevent internal mechanical stress and strains. Finally, the glass samples were polished after they had cooled to room temperature. These glasses have a thickness of 6 mm and were labeled Ba1, Ba2, Ba3, Ba4, and Ba5, which correspond to doping levels of 0.01, 0.02, 0.03, 0.04, and 0.05 mol BaO (see Figure 1).

The properties of the crystal structure of the prepared glass samples were tested using a Bruker D8 Advance X-ray diffractometer with Cu Ka radiation, and the X’Pert HighScore software was utilized. The wavelength of the X-ray tube is 1.54180 Å, and it operates at 40 kV, 40 mA. The diffractograms of the glass samples of one phase are in the range of 10° $\le \theta \le$ 90°.

2.2. Physical Properties

According to Archimedes’ principle, the density of the glass samples $\rho$ is computed utilizing distilled water as the immersion liquid. The following formula was used to compute density [12].

$$\rho =\frac{W_a}{W_a-W_b}{\rho }_{distilledwater}$$

(1)

where $\rho$ indicates glass sample density in (g) cm⁻³, ${\rho }_{\left(distilledwater\right)}$ denotes distilled water density (1 g) cm⁻³, ($W_a$) denotes the weight g of the glass sample in air, and ($W_b$) denotes the weight of the glass sample.

Molar volume was measured using the following formula [13]:

$$V_m=\frac{M_{wt}}{\rho }$$

(2)

where $M_{wt}$ indicates the molecular weight of a substance, and $\rho$ the density of the glass sample.

Oxygen packing density OPD was computed utilizing the following equation [14]:

$$OPD=1000\times \frac{c}{V_m}$$

(3)

where c denotes the total number of oxygen atoms in the represented composition.

The ion concentration of $B{a}^{+2}$ (N) can be obtained as [15]:

$$N=(mole\%ofB{a}^{+2})\frac{N_A\rho }{M_{wt}}$$

(4)

Polaron radius ($r_p$), inter-nuclear distance ($r_i$), and field strength (F) were measured depending on ion concentration by using the following equations [16].

$$r_p=\frac{1}{2}{\left(\frac{\pi }{6N}\right)}^{\frac{1}{3}}$$

(5)

$$r_i={\left(\frac{1}{N}\right)}^{\frac{1}{3}}$$

(6)

$$F=\frac{Z}{{r_p}^2}$$

(7)

where $N_A$ is the Avogadro’s number, and Z is the atomic number.

2.3. Radiation Shielding Features: Theoretical Approach

The Lambert Beer law was used to compute the experimental mass attenuation coefficient ${\mu }_m$ depending on the following formula [17,18,19].

$${\mu }_m=\frac{ln\left(\frac{I_{°}}{I}\right)}{\rho x}$$

(8)

whereas the theoretical value of ${\mu }_m$ of mixture or compound was measured using the Phy-X/PSD software [20].

$${\mu }_m=\sum _i{w}_i{\left({\mu }_m\right)}_i$$

(9)

where I and $I_{°}$ indicate the intensity of photons recorded in the detector with and without the glass sample, x indicates glass thickness, and $w_i$ the weight fraction of the component in the compound. The half-value layer (HVL) and mean free path (MFP) are measured using the following equations [21,22]:

$$HVL=\frac{0.693}{\mu }$$

(10)

$$MFP=\frac{1}{\mu }$$

(11)

The total atomic cross-section ${\sigma }_{t,a}$ for materials and electronic cross-section ${\sigma }_{t,el}$ were used to calculate effective atomic number $Z_{eff}$ and electron density $N_{eff}$ through the following formulas [23,24].

$${\sigma }_{t,a}=\frac{{\mu }_m}{N_A{\sum }_i\frac{w_i}{A_i}}$$

(12)

$${\sigma }_{t,el}=\frac{1}{N_A}\sum _i\frac{f_i{A}_i}{Z_i}\left({\mu }_i\right)$$

(13)

$$Z_{eff}=\frac{{\sigma }_{t,a}}{{\sigma }_{t,el}}$$

(14)

$$N_{eff}=\frac{{\mu }_m}{{\sigma }_{t,el}}$$

(15)

where $A_i$ and $N_A$ denote the atomic weight and Avogadro’s number of the ith element in the composition materials, respectively. $f_i$ denotes the number of atoms of element i relative to the total number of atoms of all elements in the composition materials, and $Z_i$ is the known atomic number of the ith element in the composition materials.

3. Radiation Shielding Features: Experimental Approach

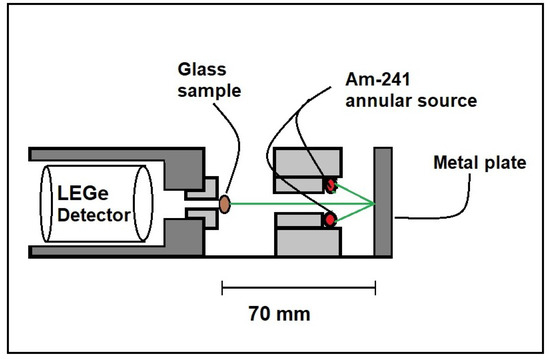

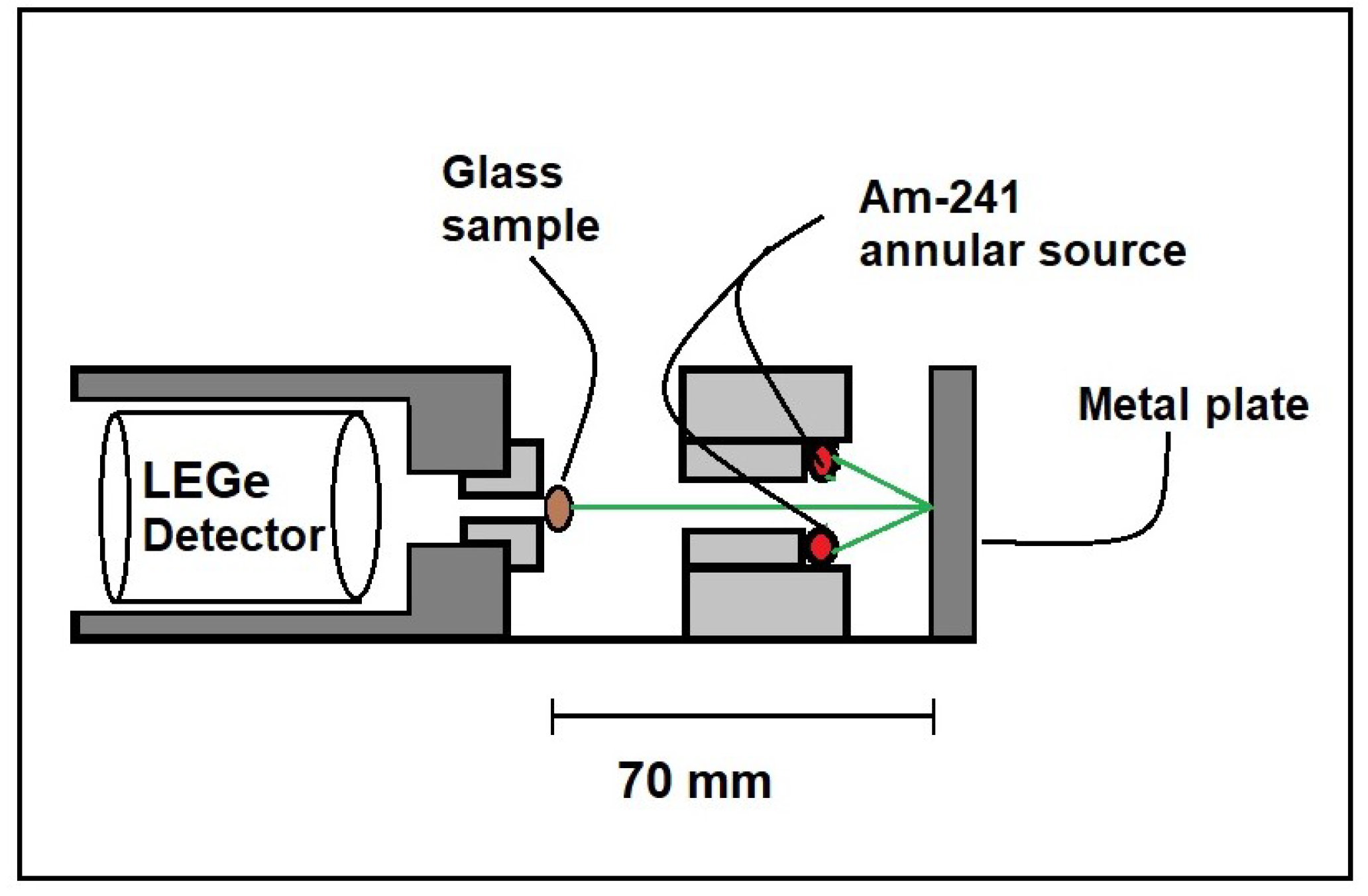

The experimental ${\mu }_m$ of the prepared glass was measured through Equation (8) using X-ray fluorescent equipment (XRF) and narrow beam gamma ray transmission geometry. Figure 2 shows the setup for X-ray fluorescence (XRF). XRF photons were generated through irradiating high-purity metal plates such as Tin (Sn), Palladium (Pd), Molybdenum (Mo), and Niobium (Nb), which are detailed in

Table 1. Metal plates used in X-ray fluorescence (XRF) configuration.

Plate	Atomic Number (Z)	Thickness (mm)	Purity (%)	$\mathit{K}\mathit{\alpha }1$ Energy (keV)
Niobium (Nb)	41	0.14	99.8	16.61
Molybdenum (Mo)	42	0.11	99.9	17.74
Palladium (Pd)	46	0.1	99.9	21.17
Tin (Sn)	50	0.28	99.999	25.27

by using 59.54 keV of 100 mCi Am-241. The low-energy germanium (LEGe) detector was used to detect photons that were transmitted through glass samples.

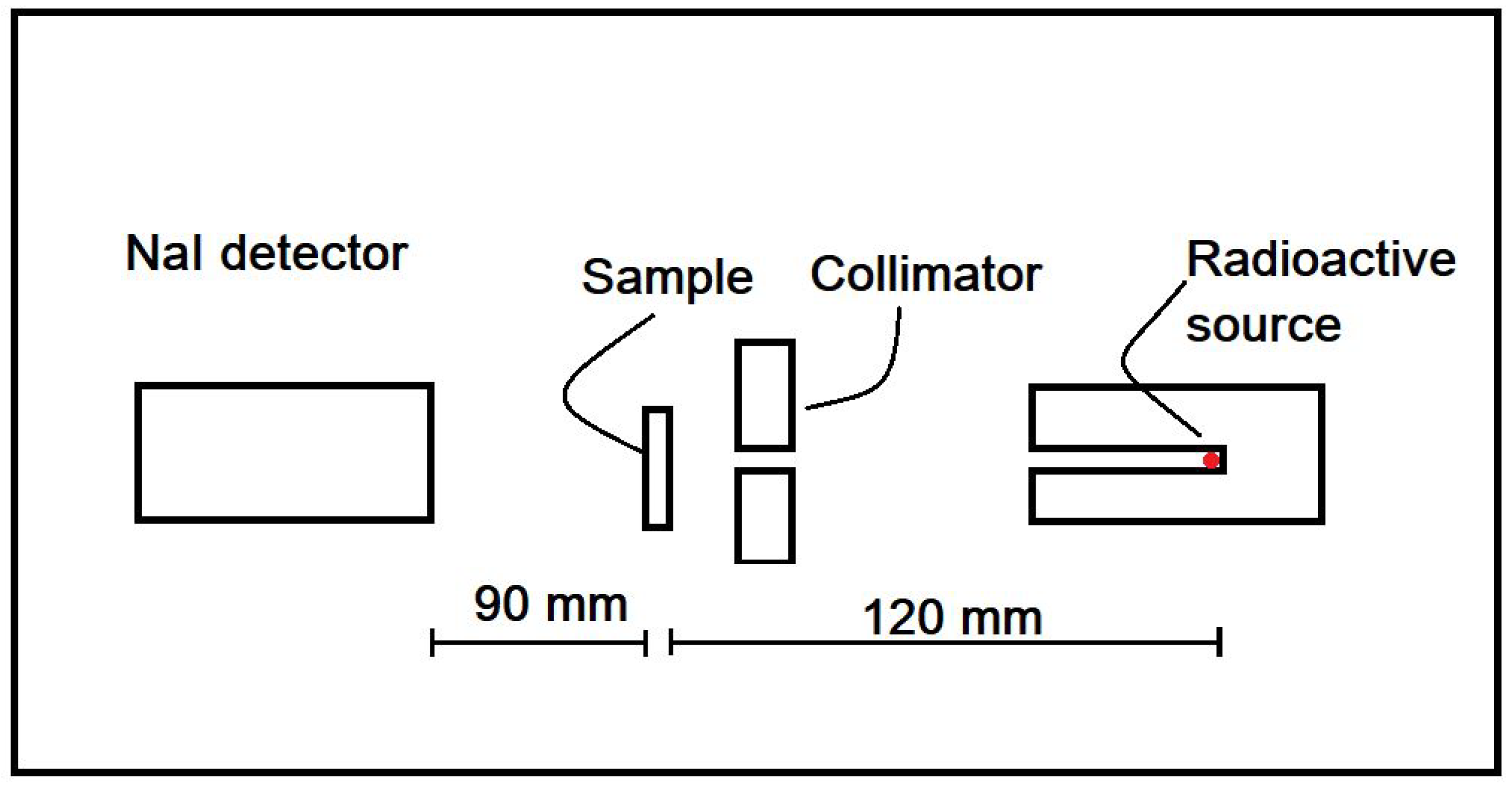

Figure 3 illustrates the setup of the narrow beam geometry. Am-241 of 45 $\mathsf{\mu }$ Ci, Cs-137 of 5 $\mathsf{\mu }$ Ci, and Co-60 of 5 $\mathsf{\mu }$ Ci were utilized to measure the ${\mu }_m$ of the glass samples at energies of 59.54, 662, and 1333 keV, respectively. The Ludlum detector, composed of a flat-face crystal of thallium-activated sodium iodide (NaI [Tl]), was used to detect photons that passed through the glass samples.

4. Results and Discussion

4.1. Structural Properties

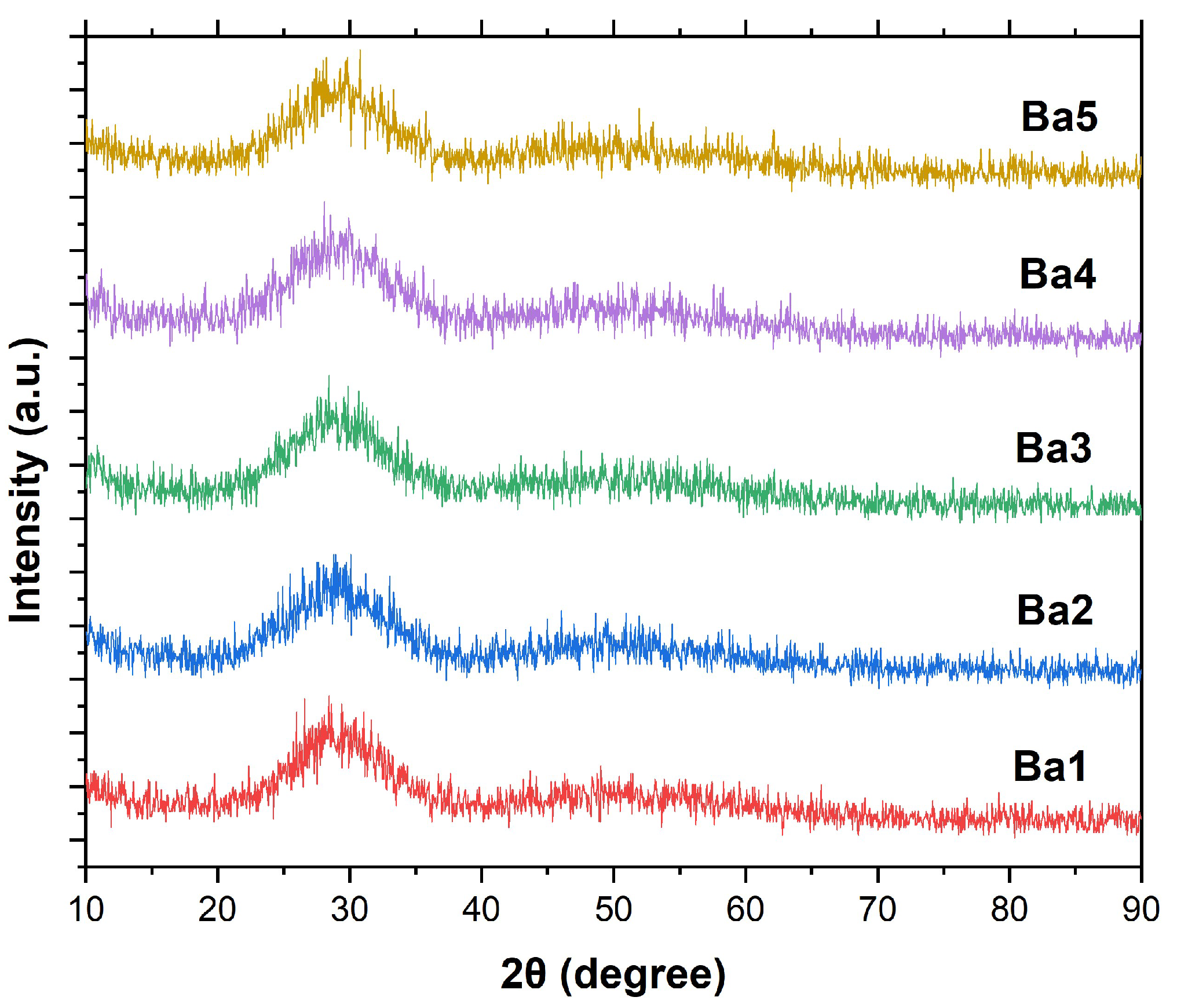

Figure 4 illustrates the XRD pattern of BaBiZnB-SLS glass samples within the range of 10° $\le \theta \le$ 90°. It can be seen that all fabricated glasses are amorphous in nature due to the absence of sharp peaks and discrete lines. Furthermore, a broad hump was observed in all fabricated glasses between 25° and 35° [25]. The energy-dispersive X-ray (EDX) technique was used to analyze the chemical content of BaBiZnB-SLS glass samples. It can be observed that these glass samples included elements such as oxygen (O), boron (B), silicon (Si), bismuth (Bi), bismuth (Zn), and barium (Ba), as illustrated in Figure 5. The chemical compositions of the SLS glass waste was analyzed utilizing energy dispersive X-ray fluorescence at Universiti Sains Malaysia’s Centre for Global Archaeological Research. As shown in Figure 6, SLS contains multichemical compounds such as 74.1% SiO₂ as well as other minor elements [26].

4.2. Physical Properties

The physical characteristics values of BaBiZnB-SLS glass samples were measured and are illustrated in

Table 2. Physical characteristics of BaBiZnB-SLS glass samples.

Measurement	Ba1	Ba2	Ba3	Ba4	Ba5
Molecular weight (g)	149.59	149.63	149.67	149.71	149.74
Density (g/cm3)	5.157 ± 0.001	5.161 ± 0.004	5.221 ± 0.004	5.249 ± 0.001	5.256 ± 0.01
Molar volume (cm3/mole)	29.01	28.99	28.67	28.52	28.49
Oxygen packing density, (g-atom/L)	72.01	71.67	72.11	72.09	71.77
Ba-ion concentration (${10}^{20}$ ion/cm3)	2.08	4.15	6.30	8.45	10.57
Internuclear distance (Å)	16.89	13.40	11.66	10.58	9.82
Polaron radius (Å)	6.80	5.40	4.70	4.26	3.96
Field strength (${10}^{16}$ cm2)	1.21	1.92	2.54	3.08	3.58

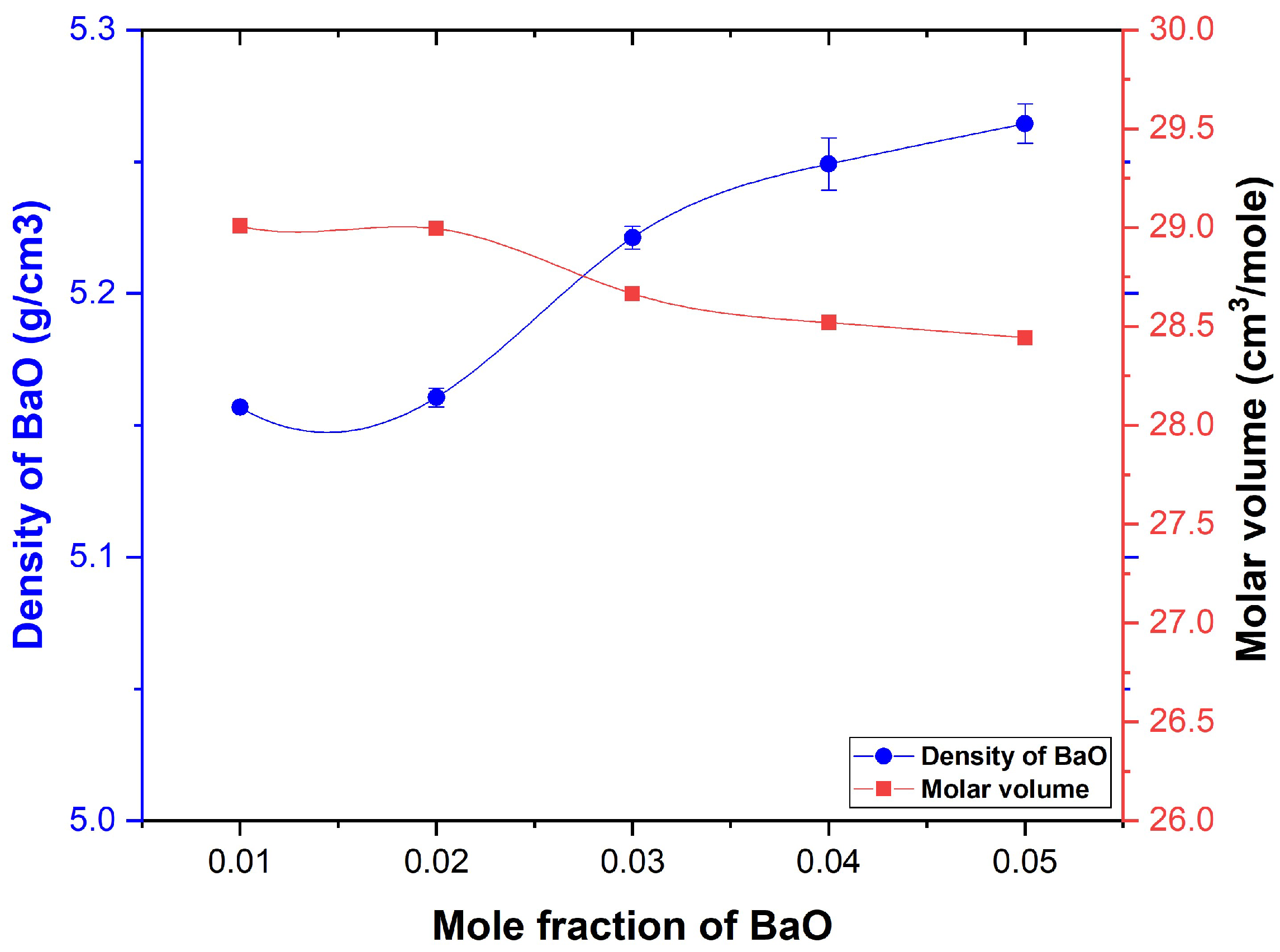

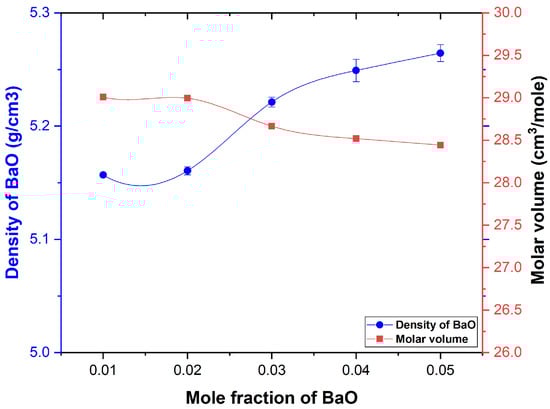

. Figure 7 clarifies the $\rho$ and $V_m$ variation of the prepared glass samples as a function of BaO mol. It can be seen that the $\rho$ slightly increased from 5.157 to 5.256 g cm⁻³ with increasing BaO content. The $\rho$ increase is due to the replacement of the Bi₂O₃-ZnO-B₂O₃-SLS (molecular weight are 149.66 g mol⁻¹) with BaO (molecular weight is 153.33 g mol⁻¹). Furthermore, according to Figure 7, it can be seen that $V_m$ values decreased from 29.1 to 28.49 cm³/mol, indicating resistance to the formation of nonbridging oxygens as well as shrinkage of the glass structure [12,27]. The other physical and structural parameters such as oxygen packing density (OPD), Ba-ion concentration, $r_i$, $r_p$, and field strength F of the glass samples were measured to describe BaO’s influence on the BiZnB-SLS glass network. The measured parameters are listed in Table 2. The result indicates that the OPD, $r_i$, and $r_p$ decreased with increasing BaO concentration. On the other hand, Ba-ion concentration and field strength were increased, hence confirming that the glass network has become more compact [28].

4.3. Attenuation of Gamma Rays

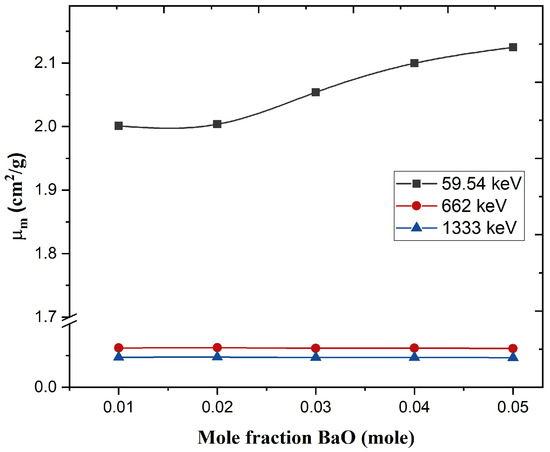

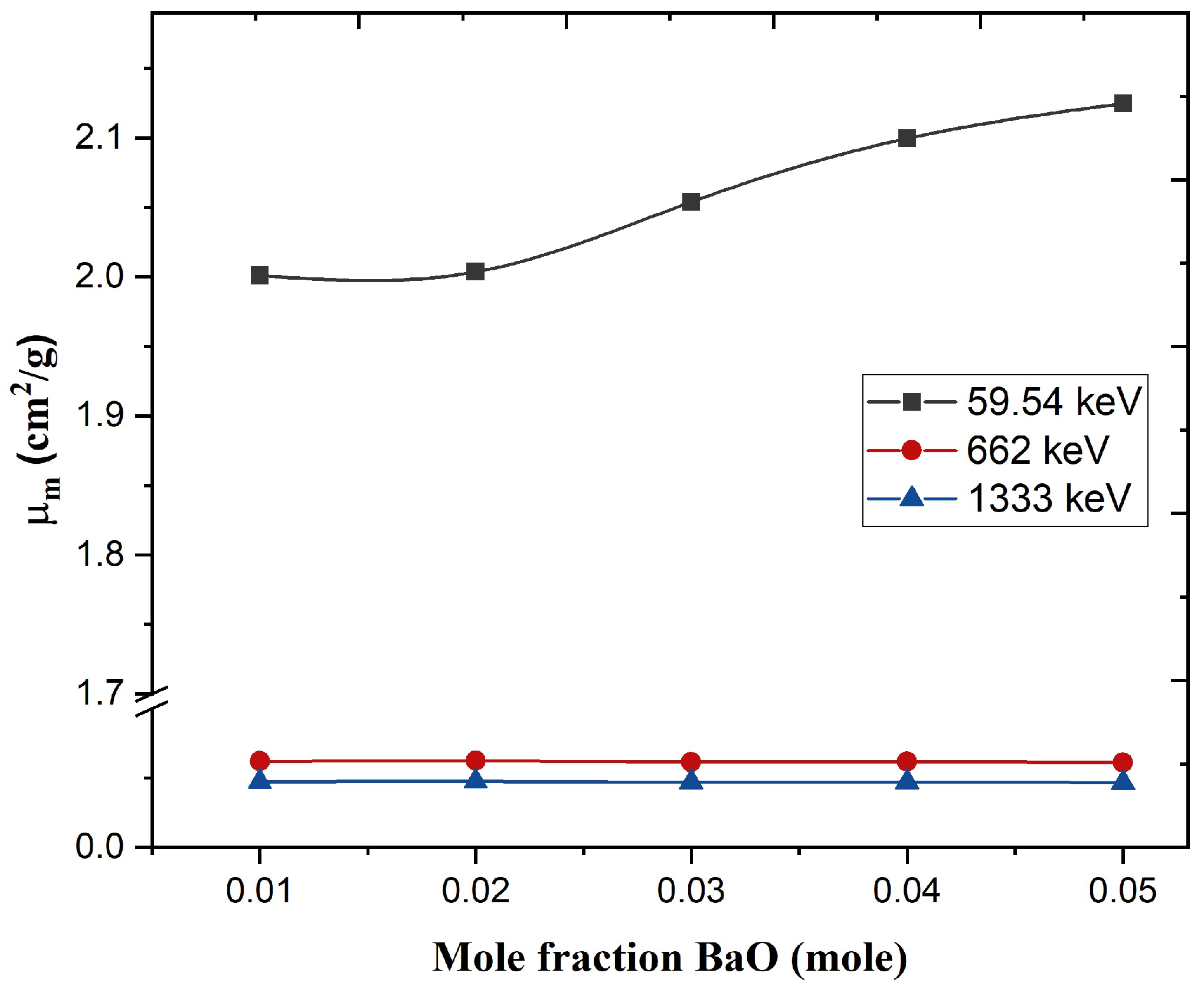

The mass attenuation coefficient of BiZnB-SlS glass doped BaO was measured utilizing the X-ray fluorescence technique XRF and narrow beam geometry. The experimental ${\mu }_m$ values using XRF for prepared glass were investigated at photon energies of 16.61, 17.74, 21.17, and 25.27 keV and narrow beam geometry at photon energies of 59.54, 662, and 1333 keV. The measured ${\mu }_m$ values can be seen in

Table 3. The experimental mass attenuation coefficient ${\mu }_m$ (cm²g⁻¹) for prepared glass a 59.54, 662, and 1333 keV energy photon.

Samples	${\mathit{\mu }}_{\mathit{m}}$ at 59.54 keV	${\mathit{\mu }}_{\mathit{m}}$ at 662 keV	${\mathit{\mu }}_{\mathit{m}}$ at 1333 keV
Ba1	2.0011 ± 0.06	0.0621 ± 0.005	0.0473 ± 0.005
Ba2	2.0037 ± 0.09	0.0624 ± 0.008	0.0476 ± 0.007
Ba3	2.0540 ± 0.08	0.0616 ± 0.004	0.0469 ± 0.0054
Ba4	2.0997 ± 0.05	0.0618 ± 0.009	0.0471 ± 0.013
Ba5	2.1248 ± 0.12	0.0612 ± 0.007	0.0467 ± 0.0054

. It is worth mentioning that the prepared glasses stop almost all the photons with energies of 16.61, 17.74, 21.17, and 25.27 keV, and most of the photons cannot reach the detector. The results indicated that the fabricated glass samples have the ability to prevent photons from penetrating glass and reach the detector when photon energy is less than 25.27 keV. Figure 8 shows the ${\mu }_m$ of glass samples as a function of BaO mole fraction. For the energy range from 59.54 to 662 keV, ${\mu }_m$ decreased sharply with gamma energy increasing since the photoelectric effect was dominant in this energy range. However, from 662 to 1333 keV, ${\mu }_m$ decreased slightly with increasing gamma rays, whereas the Compton effect was dominant in this range [7,29]. According to Figure 8, it can be seen that ${\mu }_m$ was increased with increasing BaO concentration at 59.54 keV due to the utilization of BaO whose molecular weight is 153.33 g/mol as compared to the Bi₂O₃-ZnO-B₂O₃-SLS glasses whose molecular weight is 149.55 g/mole. However, ${\mu }_m$ values remained approximately constant at 662 and 1333 keV with increasing BaO concentration. The mass attenuation coefficient at 59.54 keV is higher than at 662 and 1333 keV because the main interaction process at 59.54 is photoelectric [30,31]. The experimental ${\mu }_m$ error was computed depending on the error in transmitted and incident gamma ray intensities, thickness, and density. The calculated error in ${\mu }_m$ values was less than 4%.

Numerous shielding characteristics, such as the $N_{eff}$, $Z_{eff}$, HVL, and MFP, can be calculated using ${\mu }_m$ values as demonstrated in

Table 4. HVL (cm), MFP (cm), $Z_{eff}$, and $N_{eff}$ (${10}^{23}$) (electrons/g) of glass system at 59.54, 662, and 1333 keV.

Sample	59.54 keV HVL	MFP	Zeff	Neff	662 keV HVL	MFP	Zeff	Neff	1333 keV HVL	MFP	Zeff	Neff
Ba1	0.0672	0.0969	63.66	8.808	2.1643	3.1230	24.30	3.405	2.8389	4.0966	20.83	2.9019
Ba2	0.0670	0.0967	63.43	8.616	2.1523	3.1057	24.37	3.405	2.8210	4.0707	20.90	2.9018
Ba3	0.0646	0.0932	63.20	8.431	2.1549	3.1096	24.43	3.405	2.8299	4.0836	20.98	2.9017
Ba4	0.0629	0.0907	62.98	8.252	2.1378	3.0848	24.49	3.405	2.8033	4.0452	21.05	2.9015
Ba5	0.0621	0.0896	62.77	8.079	2.1549	3.1096	24.55	3.404	2.8210	4.0707	21.12	2.9014

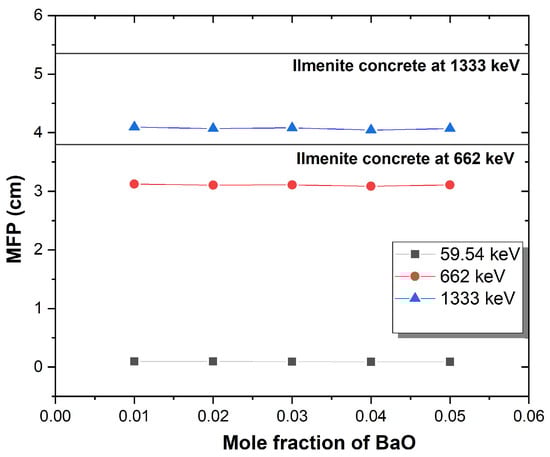

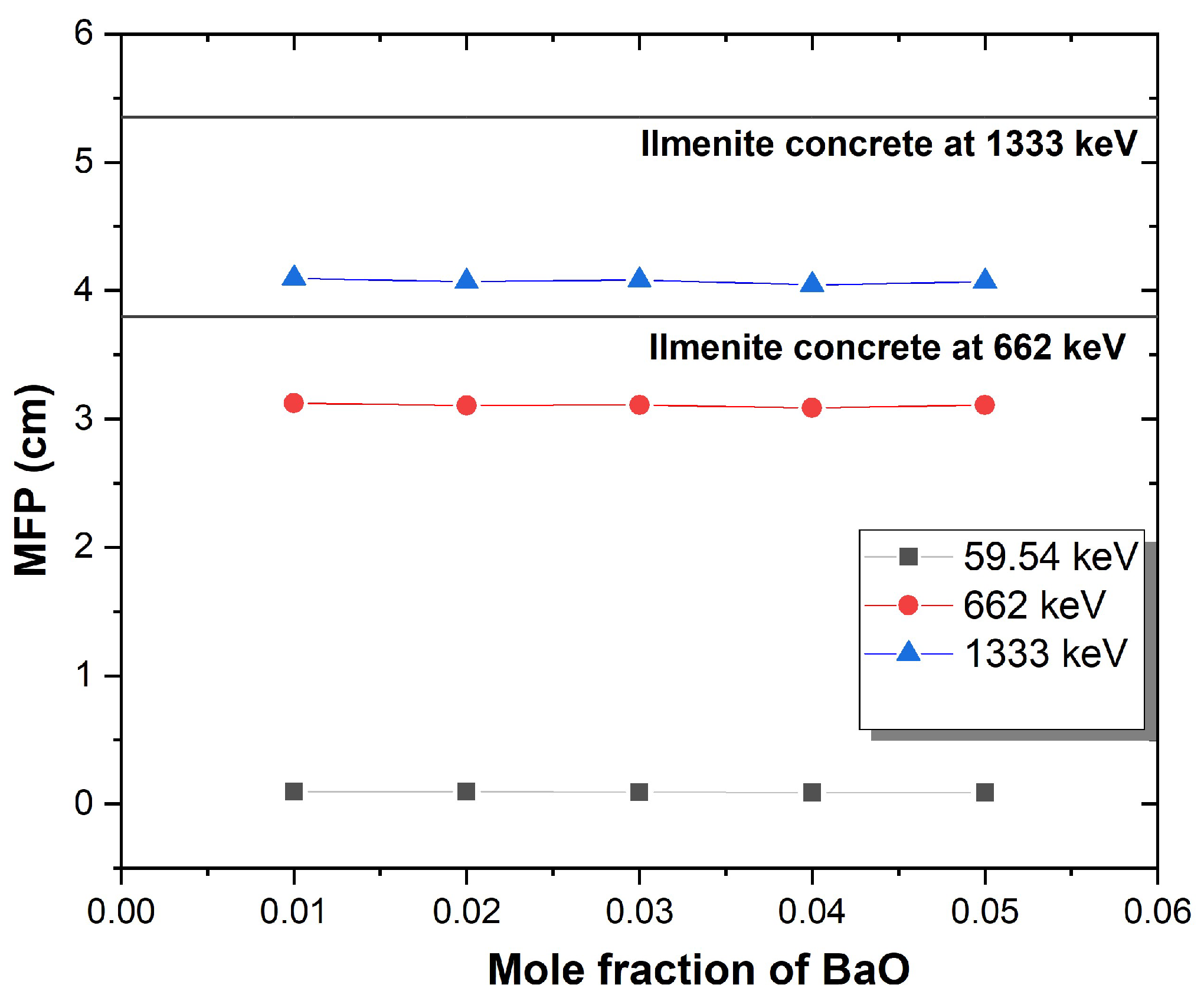

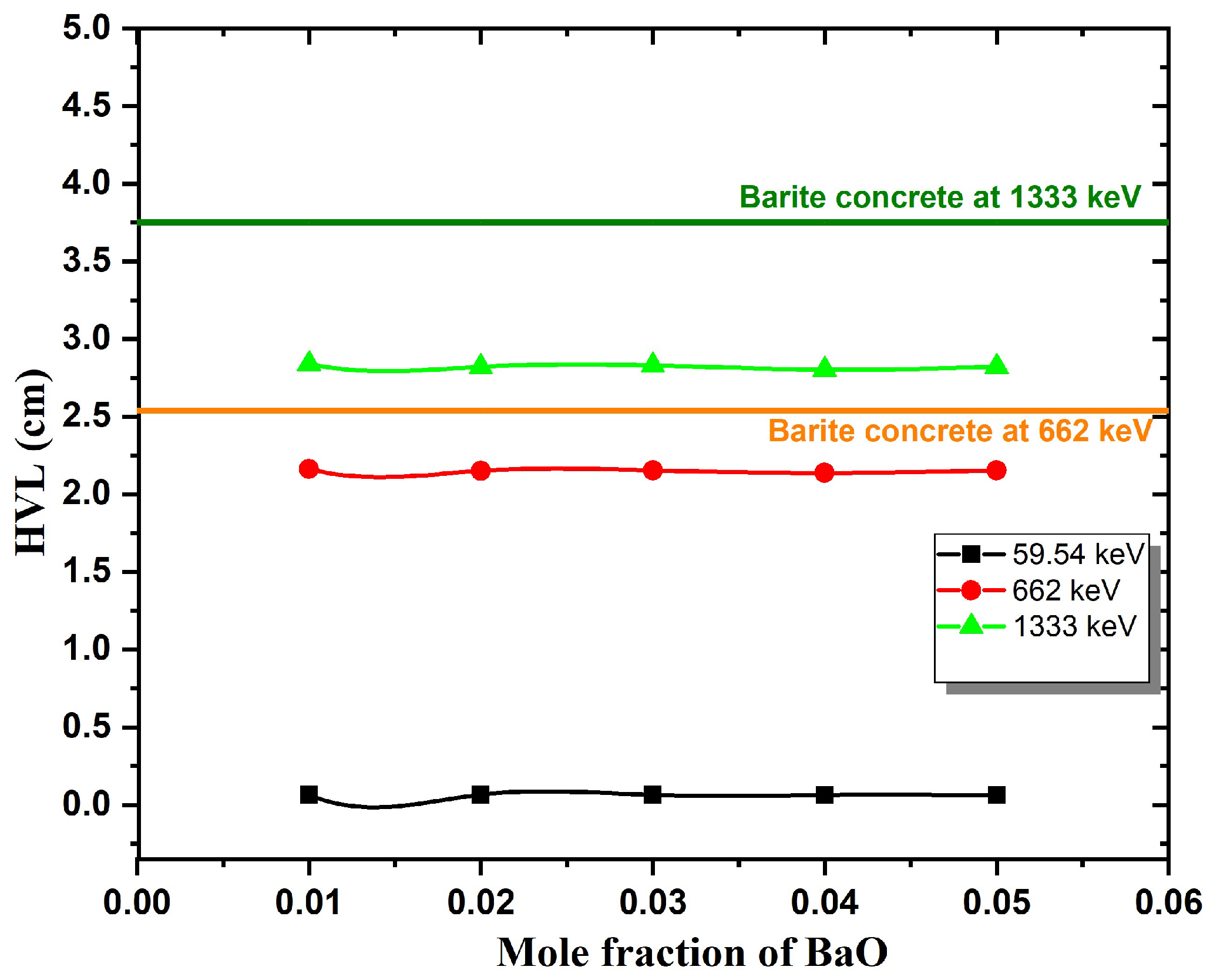

. According to Table 4 and Figure 9, HVL values increased as gamma energy increased. Furthermore, HVL decreased as BaO concentration increased. In comparison to Barite concrete at 662 and 1333 keV, the current glasses have a lower half-value thickness [27]. Figure 10 illustrates the change in the mean free path of the glasses as a function of the BaO concentration. MFP values were increased as a result of increased photon energy. In addition, MFP decreased as a result of increased BaO content. These values have been compared with Ilmenite concrete at 662 and 1333 keV. It is observed that BaZnB-SLS glasses have lower MFP values than ilmenite concrete. HVL and MFP results support that current glasses have better shielding properties and can be used as radiation shields [7]. $Z_{eff}$ and $N_{eff}$ values are mentioned in Table 4. It is obvious that the $Z_{eff}$ and $N_{eff}$ values of glass samples have decreased with increasing photon energy. As well, $Z_{eff}$ values increased with increased BaO content at 662 and 1333 keV, while they slightly decreased at 59.54 keV. This may be due to the atomic number of barium 56 compared with bismuth 83. The high atomic number indicates that glasses have powerfully absorbed photons [32].

5. Conclusions

The glass systems (x) BaO (1 − x)[0.3 ZnO 0.2 Bi₂O₃ 0.2 B₂O₃ 0.3 SLS] (where x are 0.01, 0.02, 0.03, 0.04, and 0.05 mol) were fabricated by using the melt quenching method to be used as a radiation shield and have demonstrated to be a suitable gamma ray shielding material. XRD results confirmed the amorphous nature of the BaBiZnB-SLS glass samples. The XRF analysis revealed that the SLS glass primary composition is 74.1% SiO₂. ${\mu }_m$, HVL, MFP, $Z_{eff}$, and $N_{eff}$ were examined. The results showed that glass density and ${\mu }_m$ increased and HVL and MFP decreased with an increase in BaO concentration in the glass samples. On the other hand, glass samples are capable of absorbing gamma rays with energies less than 25.27 keV. The study results confirmed that glass samples can be used to develop a lead-free radiation shielding glass that is effective in the specified energy range. In addition, the glass samples are transparent.
