Simplified Route for Deposition of Binary and Ternary Bismuth Sulphide Thin Films for Solar Cell Applications

Abstract

For photovoltaic applications, undoped and Ni²⁺ doped Bi₂S₃ thin films were chemically deposited onto glass substrates at room temperature. Elemental diffraction analysis confirmed the successful Ni²⁺ incorporation in the range of 1.0 to 2.0 at. %, while X-ray Diffraction analysis revealed that orthorhombic crystal lattice of Bi₂S₃ was conserved while transferring from binary to ternary phase. Scanning electron microscopy images reported homogeneous and crack-free morphology of the obtained films. Optoelectronic analysis revealed that the bandgap value was shifted from 1.7 to 1.1 eV. Ni²⁺ incorporation also improved the carrier concentration, leading to higher electrical conductivity. Resultant optoelectronic behavior of ternary Bi_2−x Ni_xS₃ thin films suggests that doping is proved to be an effectual tool to optimize the photovoltaic response of Bi₂S₃ for solar cell applications.

1. Introduction

The recent boom in population along with environmental and geophysical issues are forcing to switch from fossil fuels to green and sustainable energy resources [1,2,3]. To cope with this demand, there is a need to search and design new materials for renewable technologies [4,5,6]. Doping emerged as a powerful tool in the quest of designing new materials, especially for photovoltaic applications. As it can assist in improving the optoelectronic behavior by manipulating the characteristic properties of the parent material [7,8,9]. Due to its high incoming photon to electron conversion efficiency, bismuth sulphide (Bi₂S₃) thin films are gaining a lot of interest as a component of solar cells. The superior absorption coefficient (α > 10⁵ cm⁻¹) in the visible region [10] n-type electrical conductivity [11] and good structural and chemical stability [12]. According to Beer lambert’s law, Bi₂S₃ thin films with 200 nm thickness can absorb 95% of incident radiation. They have a direct optical band gap of 1.2–2.0 eV [10] depending on the method of sample preparation and crystal quality [13]. But its high resistance of Bi₂S₃ thin films can be reduced by increasing the carrier mobility with the help of doping.

The dopant, introduced as an impurity is taken as an effectual means of varying the physical and chemical properties [14,15,16,17,18]. For instance, the optical band gap of amorphous GeS films doped with bismuth is reduced, as a result of the structural disorder [19]. Antimony doped CdSe polycrystalline thin films showed good optoelectronic performance as compared to undoped ones [20]. Similarly, Sb₂S₃ thin films doped with 1% Sn for solar applications are reported [21]. In situ Hg²⁺ has been successfully introduced into the crystal lattice of PbS by doping through the chemical bath deposition practice and resulted in varied structural, optical and morphological changes [22]. The concentration of dopant is important as the properties of the resultant materials are dictated by the concentration of dopant [23]. Upon doping, impurity states are created which appear within a bandgap or outside of it as antimony doped CdSe band gap was found to decrease from 1.79 to 1.61 eV up to 0.1 mole% concentrations and was increased with further increase in the concentration of dopant [20].

Finding appropriate dopant(s) and optimization of dopant concentration is important to define, in order to alter the properties of a material appreciably. Current research work is aimed to investigate the potential of bismuth sulphide Bi₂S₃ thin films to be employed as an n-type nanomaterial for efficient solar harvesting. Structural, morphological, and optoelectronic properties of Bi₂S₃thin films will be tried to enhance by doping of earth-abundant bivalent cation i.e., Ni²⁺. The objective of this manuscript is threefold: viz: (a) to deposit the films of Ni-doped Bi₂S₃ by chemical bath deposition technique (b) to predict the mechanism of Ni-doped Bi₂S₃ thin films deposition, and (c) to study the optical, structural and electrical features of the deposited films.

2. Methodology

Thioacetamide (CH₃CSNH_2, Aldrich, 99%), bismuth nitrate (Bi(NO₃)₃.5H₂O, BDH, 98%), ethylene diamine tetraacetic acid (C₁₀H₁₆N₂O₈, Sigma-Aldrich Chemie Gmbh, Taufkirchen, Germany, 99%), and nickel nitrate (Ni(NO₃)₃.6H₂O, BDH, 98%) were employed as obtained for thin films construction. The substrates were commercially available microscopic glass slides (2.5 × 7.5 cm²) that had been thoroughly cleaned. Hot H₂O, ethanol, chromic acid, and double distilled water were used in the cleaning process. The slides were then vacuum dried at 100 °C for 1 h. Different molar solutions of penta hydrated bismuth nitrate and hexa hydrated nickel nitrate in an acidic media were used to create the solution bath. Equimolar thioacetamide and ethylenediaminetetraacetic acid (EDTA) aqueous solutions were added in equal ratios in the above solution. In order to deposit pure and nickel doped samples in the range of 1–2 at. % Ni, six baths were prepared with varying concentrations of bismuth nitrate and nickel nitrate to deposit films and films were labeled as 0 at. % Ni, 1.0 at. % Ni, 1.25 at. % Ni, 1.50 at. % Ni, 1.75 at. % Ni, and 2.0 at. % Ni. A deionized water solution was used to react Ni²⁺ and Bi³⁺ ions with S²⁻ ions. Five minutes were spent stirring the resulting combinations of liquids in baths. The beaker was used to dip glass films vertically. It took six hours to produce specular, uniform dark brown layers.

3. Material Characterizations

The crystallinity and phase composition of thin films were examined using an X-ray diffractometer from PANalytical Xpert’ Pro (Malvern Panalytical B.V., Almelo, Netherlands) with Cu K irradiation (k = 1.54060). Perkin Elmer Lambda 25 spectrophotometer was used to capture UV-vis spectra. The JEOL model JSM-6360A SEM was used for the scanning electron microscopic examinations and elemental analyses. The morphology is characterized by an AFM (atom force microscope) nanoscope digital equipment with a silicon nitride cantilever in contact mode. Hall effect experiments were examined using a nano-chip reliability grade hall effect device. To validate the optical properties of thin films, the ellipsometry method (sensor) was used.

4. Results and Discussion

A number of stages occurred in a bath, including first achieving equilibrium between the complexing agent and the solvent, then forming the metal-ligand complex. The rate-determining step during Bi₂S₃ and Ni-doped Bi₂S₃ formation are attributed to the decomposition of the complex between metal precursors i.e., bismuth as well as nickel and complexing agent (EDTA). A complexing agent controls the over-growth of particles. It’s a time-consuming procedure that allows crystallites to be properly oriented and grain structure to be enhanced [24]. EDTA complexes with Bi and other metals have been widely documented, with high formation constants [25].

$$\mathrm{Bi}{\left(\mathrm{N}{\mathrm{O}}_{{}_3}\right)}_3\times 5{\mathrm{H}}_2\mathrm{O}+\mathrm{E}\mathrm{D}\mathrm{T}{\mathrm{A}}^{-4}\to {\left[\mathrm{Bi}\left(\mathrm{E}\mathrm{D}\mathrm{T}\mathrm{A}\right)\right]}^{-1}+5{\mathrm{H}}_2\mathrm{O}$$

(1)

$$\mathrm{N}\mathrm{i}{\left(\mathrm{N}{\mathrm{O}}_{{}_3}\right)}_3\times 6{\mathrm{H}}_2\mathrm{O}+\mathrm{E}\mathrm{D}\mathrm{T}{\mathrm{A}}^{-4}\to {\left[\mathrm{N}\mathrm{i}\left(\mathrm{E}\mathrm{D}\mathrm{T}\mathrm{A}\right)\right]}^{-2}+6{\mathrm{H}}_2\mathrm{O}$$

(2)

Thioacetamide, used as sulphur precursor, in acidic medium shows abstraction reaction [26]. After the chalcogenide source is hydrolyzed, the metal complex and sulpher ions form a solid precipitate.

$${\mathrm{CH}}_3-\mathrm{CS}-{\mathrm{NH}}_2+{\mathrm{H}}^{+}\to \to {\mathrm{CH}}_3-\mathrm{CS}\stackrel{\underset{\oplus }{}}{{\mathrm{H}}_2}-{\mathrm{NH}}_2\to {\mathrm{CH}}_3-\mathrm{C}=\mathrm{N}{\stackrel{\oplus }{\mathrm{H}}}_2+{\mathrm{H}}_2\mathrm{S}$$

(3)

In aqueous medium, H₂S releases S⁻ ion [27].

$${\mathrm{H}}_2\mathrm{S}\to {\mathrm{H}}^{+}+\mathrm{H}{\mathrm{S}}^{-}\hspace{1em}\hspace{1em}\hspace{1em}{K}_1=5.7\times {10}^{-7}$$

(4)

$$\mathrm{H}{\mathrm{S}}^{-}\to {\mathrm{H}}^{+}+{\mathrm{S}}^{2-}\hspace{1em}\hspace{1em}\hspace{1em}{K}_1=1.2\times {10}^{-17}$$

(5)

Overall reaction to form Ni-doped Bi₂S₃ is as follows:

$${\left[\mathrm{Bi}\left(\mathrm{EDTA}\right)\right]}^{2-}+{\left[\mathrm{Ni}\left(\mathrm{EDTA}\right)\right]}^{1-}+{\mathrm{CH}}_3-\mathrm{CS}-{\mathrm{NH}}_2\stackrel{\hspace{1em}{\mathrm{H}}_2\mathrm{O}\hspace{1em}}{\to }{\mathrm{Bi}}_{2-\mathrm{x}}{\mathrm{Ni}}_{\mathrm{x}}{\mathrm{S}}_3+{\mathrm{CH}}_3-\mathrm{CO}-{\mathrm{NH}}_2+2\mathrm{EDTA}$$

(6)

Figure 1 shows the thickness of the films as determined by an ellipsometer. For the same deposition time (6 h), differences in the thickness of the films with variable Ni content suggest a change in the precipitation response. Variations in EDTA’s selectivity for one metal ion (Bi) over the other (Ni) and differences in the strength of one metal-EDTA complex over the other might be related to changes in the precipitation process and, ultimately, film thickness [28]. In the present studies, the drastic decrease in the thickness of the films from 269.99 to 159.09 nm (as shown in Figure 1) reveals that Ni addition slowed down the precipitation reaction and hence slow deposition of the Ni-doped Bi₂S₃ precipitates resulted for the same period of deposition time i.e., six hr.

XRD data is presented in

Table 1. Crystallographic parameters calculated from XRD data for undoped and selected Ni-doped Bi₂S₃ thin films.

Ni Content (at. %)	Calculated Lattice Constants			Volume of Cell (Å3)	Average Crystallite Size (nm)	X-ray Density (gcm−3)
	a (Å)	b (Å)	c (Å)
0	11.11	11.71	3.52	458	288	7.46
1.0	11.10	11.68	3.89	509	235	6.71
1.5	11.12	11.22	4.16	519	211	6.58
2.0	11.65	11.16	4.02	522	159	6.54

Standard values for the ICSD No: 01-075-1306 (a = 11.11 Å, b = 11.25 Å and c = 3.97 Å)

. XRD patterns are shown in Figure 2. In XRD, interplanar spacing, known as d-spacing of a crystal is used for characterization and identification. i.e.,

$$n\lambda =2dsin$$

(7)

where n is an integer θ is the Bragg’s angle, λ is the X-ray wavelength. Lattice parameters “a, b and c”, unit cell volume “V_cell”, Scherrer crystallite size “D” and X-ray density “ρ_X-ray” were calculated using the Equations (10)–(13).

$$\frac{1}{d^2}=\frac{h^2}{a^2}\hspace{0.17em}+\hspace{0.17em}\frac{k^2}{b^2}\hspace{0.17em}+\hspace{0.17em}\frac{l^2}{c^2}$$

(8)

$$V_{cell}\hspace{0.17em}=\hspace{0.17em}abc$$

(9)

$$D=\frac{k\lambda }{\beta \cos {\theta }_B}$$

(10)

$${\rho }_{X-ray}=\frac{ZM}{V_{cell}{N}_A}$$

(11)

where hkl are corresponding indices to each line in the pattern, d is the value of d-spacing of lines in XRD pattern, β is the full width at half maximum of intensity and is equal to 1.542 Å, Z is the number of molecules per formula unit, M is the molar mass, k the constant which is equal to 0.94, V_cell and N_A have their usual meanings.

The polycrystalline nature of Bi₂S₃ and Bi_2−xNi_xS₃ thin films is shown by the sharp and well-defined peaks they display, with randomly oriented crystallites preferring growth along 021 planes. The measured diffracted peaks at 27.5°, 35.0°, and 49.3° correspond to planes (021), (240), and (251). Which are in excellent agreement with the orthorhombic structure Bi₂S₃ (ICSD No: 01-075-1306) and show that the material belongs to the bismuthinite phase of bismuth sulphide with lattice parameters a = 11.11, b = 11.25, and c = 3.97, all of which are in good accord with the standard pattern. No additional impurity peaks matching to Ni or Ni related as well as Bi related peaks suggest the formation of a single phase of Bi₂S₃ with high Ni homogeneity.

Defects are produced as a result of dopant inclusion, causing lattice deformation and a change in the XRD peak locations. The external entity, i.e., dopant, causes the XRD peak locations to move to either a higher or lower angle as a consequence of the resulting strain [29]. The shifting of diffracted peaks at 2θ~35.0° towards a larger angle gives a clear indication of the incorporation of Ni into Bi₂S₃ lattice [30]. The grain sizes of the films were computed using the Scherrer formula and found to be smaller when Ni ions were added, as shown in Table 1; probably due to Ni incorporation more number of nucleation centers and cites create resulting consequent reduction in grain size occurs [31].

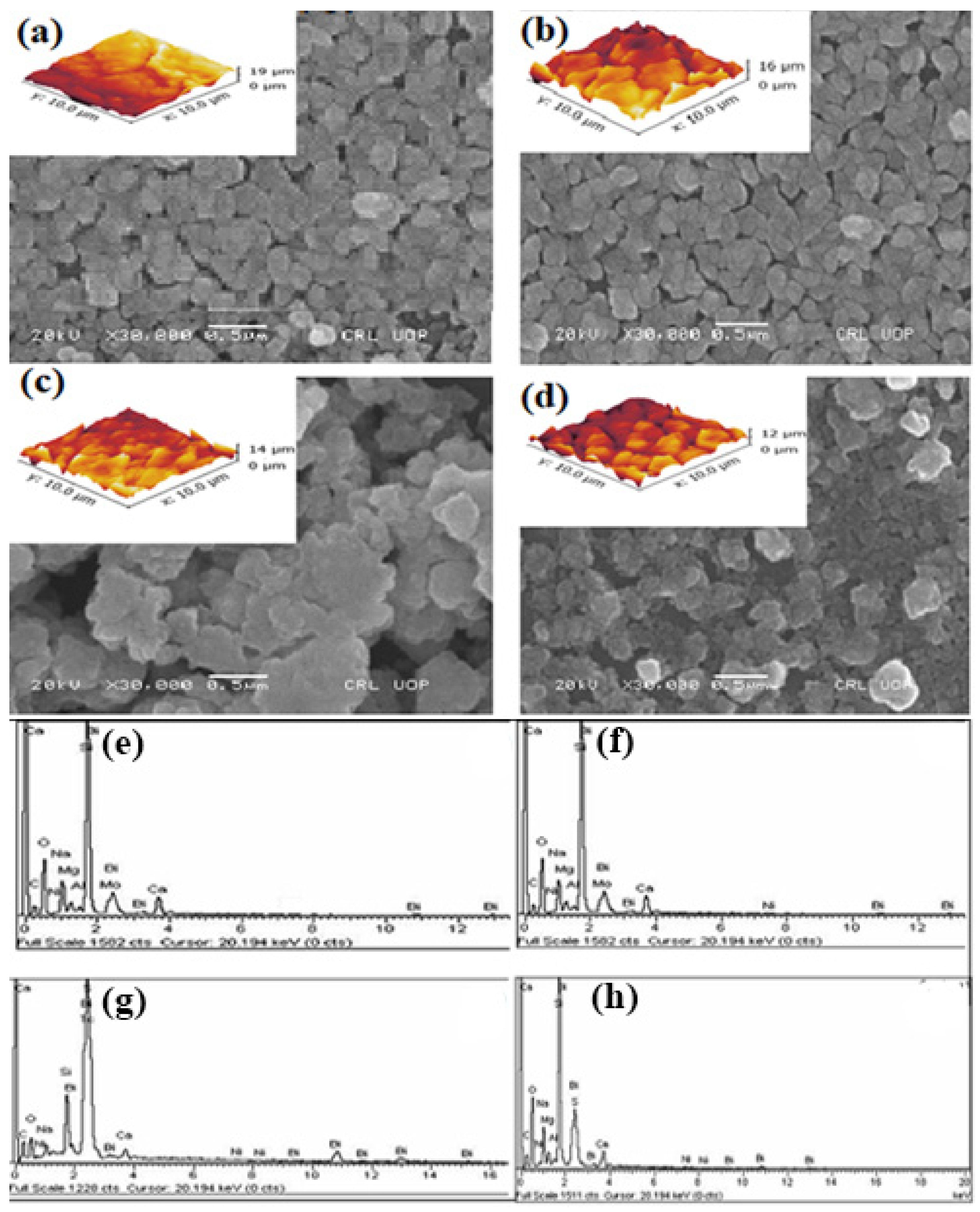

The surface morphologies of undoped Bi₂S₃ and Ni-doped thin films deposited are shown in Figure 3. A noticeable difference was observed between the morphological behavior of the films with the addition of Ni from 0–2 at. %. Figure 3a i.e., 0 at. % Ni reveals the morphology of undoped samples having a compact, homogeneous and interconnected particles. Figure 3b illustrates the surface morphology of the sample containing 1 at. percent Ni, which indicates the production of discrete and well-separated agglomerations of particles with tiny particle sizes as compared to pure Bi₂S₃, while the texture of the particles was not changed. Furthermore, in Figure 3c, an increase in dopant, i.e., 1.5 at. percent Ni, reveals that a sample with 1.5 at. percent Ni contains irregularly shaped particles with a wide range of sizes. The increase in dopant ratio from 0 to 2 at. percent Ni seems to reduce particle size in general. Particles were discovered to grow at the cost of previously deposited particles, resulting in agglomeration as a result of tiny grain overgrowth on previously deposited particles with uneven boundaries. Higher dopant concentration films formed on the substrate were found to be loosely organised. The morphologies of the deposited samples at various dopant concentrations are connected to the compositions of the samples, which are determined by the nickel to bismuth ratio.

Three-dimensional AFM micrographs reveal morphology with little hillocks and a narrow tip, which are widely dispersed small clusters. The particles have distinct borders, and the particle size, roughness, and structure height decrease as the dopant ratio rises. A drop in film thickness may be ascribed to a decrease in film roughness with increased Ni content. The dopant concentration was increased from 1% to 2% Ni. Figure 4 illustrates the spectrum absorbance and transmittance of undoped, and doped bismuth sulphide film samples generated at room temperature.

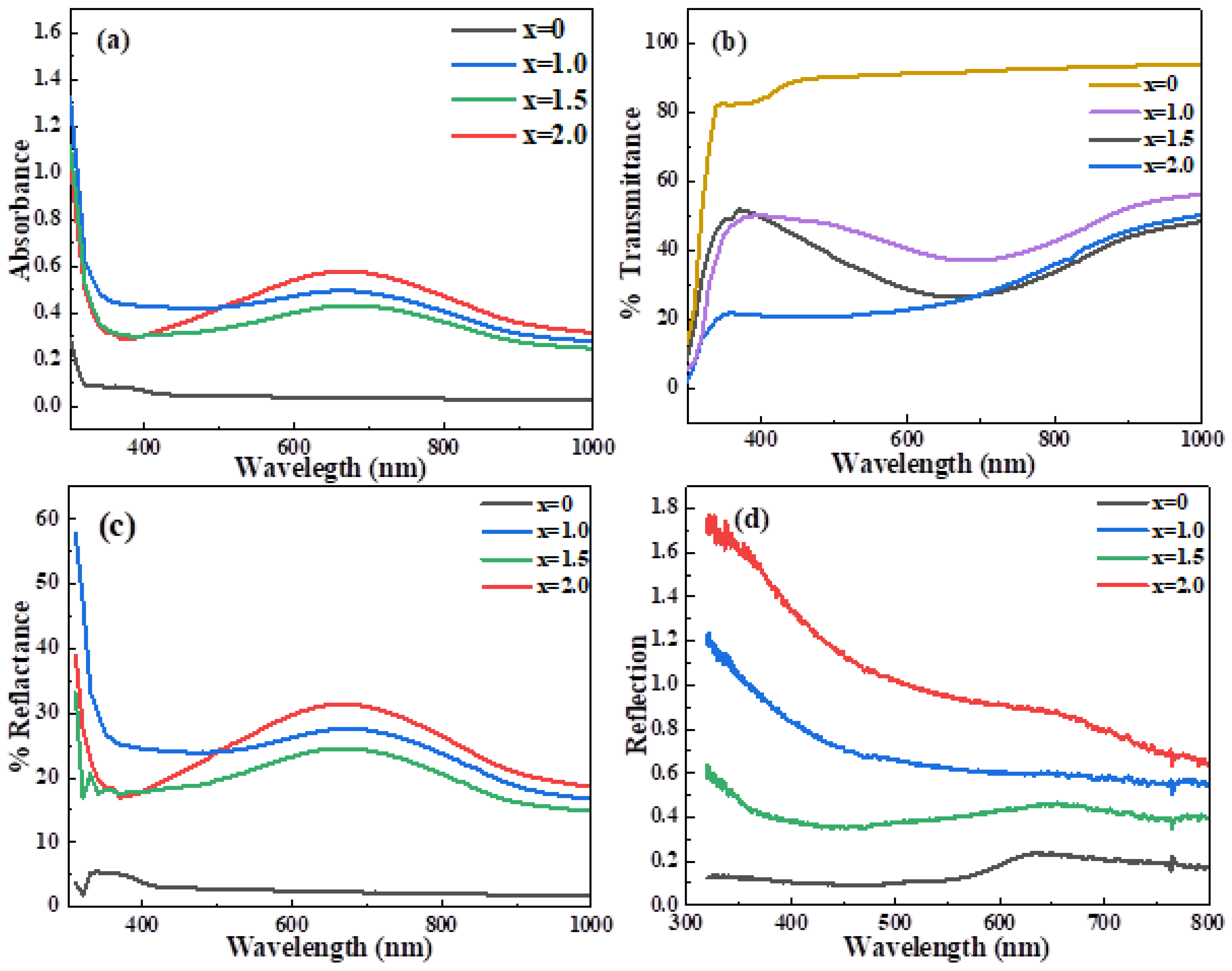

For doped and undoped materials, the fluctuation of absorbance (A) and % transmittance was investigated in the 300–1000 nm region. The doped thin films’ strong absorbance in the 400–900 nm range, as illustrated in Figure 4a, suggests that they might be used as absorber layers in solar cells [28]. Figure 4b shows that binary bismuth sulphide thin film exhibited high transmittance i.e., more than 80%, although high transmittance values for thin-film reflect good surface homogeneity [32] which was reduced down to 40% upon doping. Figure 4c,d depicts the % age reflectance and reflection respectively.

The bandgap is the energy required to transfer an electron from the valance band into the conduction band and is usually affected by the number of factors i.e., deposition method, degree of crystallinity or amorphous of the deposited films and ratios of constituents i.e., Bi, Ni and S in doped and undoped Bi₂S₃ thin films [33]. The bandgaps of the constructed films were estimated by two techniques i.e., from k-spectra of the ellipsometry and by Tauc equation using the following relations respectively:

$$\alpha =\frac{4\pi k}{\lambda }$$

(12)

$${(\alpha h\nu )}^n\hspace{0.17em}=\hspace{0.17em}A(h\nu -E_g)$$

(13)

where α: absorption coefficient

ν: frequency

h: Planks constant

E_g: bandgap

A: proportionality constant.

Figure 5 depicts direct authorised transitions in the present investigation (n:2). The films’ band gaps were estimated using UV-vis spectroscopy and ranged from 1.7 to 1.2 eV using ellipsometry. Due to the nature of the methodologies, which maintain sensitivity to distinct ranges of absorption coefficients, the bandgap values predicted by both processes differed somewhat [34] but they are in excellent agreement with the literature values which vary from 1.1 to 1.8 [35,36]. There is an inverse connection between grain sizes and optical band gap values, which corresponds to the quantum confinement effect. The band structure is exhibited and declines in bandgap values are detected owing to the participation of discrete impurity levels, since bandgap is also reliant on the composition of thin films, which differs between samples [37]. Among other factors, the crystallinity of thin films is also responsible for alteration in bandgap values [38].

The refractive index (n) and extinction coefficient (k) effect the dielectric constant (ε)

ε = (n − ik)

(14)

Electrical conductivity (σ_e) is determined from the values of wavelength (λ), refractive index (n) and speed of light (c = 2.8 × 10⁸ m/s). Mathematically, it can be calculated by Equation (15).

σ_e (Ω cm⁻¹) = 2π/λnc

(15)

Thermal conductivity (σ_t) is determined by Equation (16).

σ_t (W/mk) = LT σ_e

(16)

L is Lorentz number, 2.45 × 10⁻⁸ W ΩK⁻² and T is temperature.

Optical conductivity is calculated by mathematical Equation (17).

σ_o (s⁻¹) = αnc/4π

(17)

Table 2. Optical parameters calculated from UV-Vis. spectroscopic analysis for undoped and Ni-doped S₃ thin films.

Parameters	Conc. of Ni (at. %)
	0	1.0	1.25	1.5	1.75	2.0
α × 104 (cm−1)	0.42	1.07	1.69	2.16	2.74	3.74
ε	0.08	4.56	5.00	6.81	7.30	8.76
σe × 103 (Ω cm−1)	0.345	0.010	0.042	0.044	0.063	0.079
σo × 1012 (s−1)	1.33	1.06	1.33	1.85	2.01	2.9
σt × 10−4 (Ω cm/K)	0.0063	1.03	1.15	1.72	1.68	2.08

compares the results determined by UV-Vis. spectroscopy and ellipsometric spectroscopy with the influence of Ni content on refractive index and extinction coefficient. Using UV-vis spectroscopy data, the values of the refractive index and extinction coefficient were estimated using formulae.

Table 2 shows the values absorption coefficient, dielectric constants, electrical, optical, and thermal conductivity from optical characteristics. In metals, optical conductivity (σ_o) and extinction coefficient (k) values are high [39] so that reflectance approaches unity [40] while, in semiconductors, both values are reduced and hence reflectance is also reduced thereby giving higher transparency than in metals.

Figure 6 relates the comparison and behavior of refractive index (n) and extinction coefficient (k), (calculated by UV-Vis. spectroscopy and spectroscopic ellipsometry). Refractive index (n) was found to be increased with the increase in Ni content from 1.4 to 3.0 calculated from UV-Vis. spectroscopy, and in the case of ellipsometry from 1.2 to 1.8. Extinction coefficient (k) showed inverse behavior i.e., values were decreased from 1.05 to 0.75, calculated from absorbance data and 0. 9 to 0.3 for data obtained from ellipsometry. On the basis of these findings, it is clear that with increasing the Ni content, low extinction coefficient (k) and high refractive index (n) enhance the capability of these films as absorber materials in solar cells.

An area of one square centimeter was subjected for Hall studies. In the present study, all the films are n-type. Mobility values reported for the pure films are 47.7 cm²/Vs are higher than the reported value i.e., 28 cm²/Vs [41]. With the addition of Ni content in the matrix, values of carrier concentration are being increased which ultimately lead to decrease in the mobility values as reported in

Table 3. Hall studies of undoped and selected Ni-doped Bi₂S₃ films.

Ni Conc. (at. %)	I (µA)	Resistivity (Ω cm) × 102	Conductivity (Ω−1 cm−1) × 102	Carrier Conc. (cm−2) × 1011	Sheet Carrier Mobility (cm2/Vs) × 102
0	0.1	2.99	0.393	−0.016	4.77
1.0	0.1	0.188	5.4	−2.62	3.14
1.5	0.1	0.276	3.62	−2.71	0.35
2.0	0.1	0.431	2.32	−11.8	0.06

. Here there is a need to relate the effect of these studies with another important parameter i.e., variation in thickness of each sample, upon changes in dopant concentration. Owing to the dependence of all optoelectronic, structural and morphological properties on the thickness of thin films, comparative analysis at constant thickness by optimizing time for samples with different dopant content would be more valuable to identify the other possible areas of applications.

5. Conclusions

In brief, nickel-doped bismuth sulphide thin films having good lateral homogeneity, with energy bandgap between 1.1 and 1.7 eV and grain size having 27 to 144 nm have been successfully deposited in acidic medium via chemical bath deposition technique. Structural changes are found to have a significant effect on the performance of the material and possible area of application of the films is also highlighted based on the electrical, optical and solid-state features of the film. The optical characteristics of the films are modified by dopant incorporation by modifying the lattice parameters and thickness of the films, as shown by the correlation between the optical band gap and lattice parameters. Bandgap and optical features of the films indicate that almost all the films were found to be good absorbers in the appreciated range in the UV-Vis. regions; hence, they could be effective photovoltaic absorbers. The deductions from the spectrophotometers showed that average values n ranged from 1.9 and 2.0, k ranged between 0.026 and 0.036 were observed for different Ni/Bi ratios. Top view scan and AFM observations indicate that the surfaces of the films have been affected by the Ni contributions. Based on the findings, we determined that the Ni concentration in the ternary chalcogenide affects all of the distinctive properties of the deposited films.
