Spatial and Temporal Evolution of the Chinese Artificial Intelligence Innovation Network

Abstract

Sustainable development has become a concern of all countries globally, and Artificial Intelligence technology emerges at this historic moment. However, few researchers have studied the innovation activities of the Artificial Intelligence industry from the macro-level. This paper focuses on the topological structure and the spatial pattern of the AI patent citation network in China over from 2000–2016. Our main research results are as follows: The network has experienced a striking growth in terms of the size and the number of linkages since 2000, but it has also developed unequally across regions. In the later stages, the network has formed a scale-free network that exhibits small-world property. The network nodes have shown an assortative trait property while weighted preferential attachment has not been significant. In addition, the high values of centrality and numerous linkages between nodes concentrate in the eastern part of China, especially in the Yangtze River Delta, Pearl River Delta, and Bohai Rim. Our results suggest that the AI innovation policies should expand the targets of technological exchange and cultivate more nodes as intermediaries of local knowledge transmission necessary to expand the network and develop the AI industry.

1. Introduction

Under the traditional economic development pattern, the high consumption of production factors and the consequent high pollution are the two persistent issues that hinder sustainable development [1,2,3,4]. Innovation is a new engine of regional growth [5,6]. It has become a key factor in maintaining regional competitiveness and sustainable development [7] since knowledge capital has replaced human and financial capital as a major factor in driving economic development [7,8]. As a shared resource, knowledge could flows freely among innovation objects. The literature has long brought to the fore the role of face-to-face communication and codified knowledge in the transmission of knowledge [9,10,11,12]. For instance, Jaffe et al. (1993) have examined knowledge flows within the US [13], while Maurseth and Verspagen (2002) and Fischer et al. (2006) have focused on European countries [14,15]. In addition, Jaffe and Trajtenberg (2002) and Adams (2002) have compared the source of knowledge flows between colleges and universities, labs, and firms and have examined different channels of transmission [16,17], such as collaboration, talent flow, and a disembodied direct channel of codified information which could facilitate the diffusion of technical knowledge [18].

Furthermore, recent studies have employed social network analysis (SNA) to investigate the structure of an innovation network and its characteristics based on patent data [19,20]. Through four indices of centrality, De Prato and Nepelski (2012) find that the position of a node in the innovation network has a very strong impact on patent collaboration with other nodes [20]. Specifically, a node’s strength and closeness centrality influence positively the technological cooperation between countries, while the degree centrality of nodes shows the opposite result. Based on the example of applied patents in the field of biotechnology, Li et al. (2015) argue that innovation networks can differ in terms of size, degree, linkage, and other network indicators. In addition, they find an obvious expansion in network size over time for both science network and technology network. Furthermore, they highlight the presence of a preferential attachment feature in the patent co-applicant network [21]. Analyzing the citation of US biomedical chemistry patents in Europe, Breschi and Lissoni (2009) describe the evolutionary characteristics of the innovation network and identify the significance of the innovator flow in knowledge spillovers [22]. Another example is Ter Wal (2013) who analyzes the biotechnology patent in Germany and discovers that the importance of geographic proximity in this network has declined over time [23]. It can be seen that the study of the topology structure on innovation networks based on SNA can help to gain insight into the development situations and trends of the industry. At the same time, the geographically presented pattern of innovation networks can provide policy advice for the regional development planning of industries.

Although many researchers have studied the innovation network in China [24,25], most have evaluated all sectors together, hence leading to estimates that did not reflect the heterogeneity across sectors [26,27]. In addition, only a handful of contributions have focused on the country’s Artificial Intelligence (AI) network. AI is a frontier sector in innovation activity, which has been broadly used in various disciplines, supporting to accomplish most of the targets across Sustainable Development Goals (SDGs) [28]. AI is explained as the investigation of intelligent problem-solving behavior and the creation of intelligent computer systems [29], which has been a key driver of technological revolution since the beginning of the 21st century, assisting human beings to figure out the issues of economic, social and scientific more efficiently and rapidly [30], such as improving transportation that keeps safety for drivers and pedestrians by applying driverless technology, developing economics that eradicates poverty through boosting productivity, alleviating environmental pollution by increasing resources utilization efficiency [29,31,32]. For China, it is crucial to develop AI to tackle large challenges of societal importance, as seen in an aging population [33], resource shortage [34], economic restructuring, and industrial upgrading [35], which hinder sustainable development. As of 2016, China owned a total of 76,876 AI patents which is slightly more than the US (67,276) and Japan (44,755).

Hence, we are aware of the importance of the AI sector in innovation activity. Meanwhile, we realized that the AI sector has a far-reaching impact on sustainable development, and it had been developed over the past time in China. Thus, discussing the evolution of the AI sector in China is meaningful. To our knowledge, there is no research that depicts the development evolution of the AI sector based on topological and spatial structure. We remedy this gap by focusing on the changes in the AI network across Chinese cities from 2000–2016. We employ social network analysis (SNA) to study the topological structure and the spatial pattern of the Chinese AI patent citation network. Compared to the ordinary innovation network, such as the cooperation network and the inventor network, patent citation provides a document trail [15] that makes it easier to trace and measure the learning process [14,16]. It offers the advantage of formally accounting for the direction and the intensity of the knowledge flows [9]. In addition, while several contributions focus on the factors that explain knowledge flows in the patent citation process [36,37,38,39], this paper lays particular emphasis on highlighting the characteristics of the patent creation-citation network itself. Furthermore, this paper distinguishes itself from the literature by focusing on the innovation network at the urban scale in order to better investigate the spatial heterogeneity present in knowledge transmission that we could not get from a study at the regional or country level [25,40].

This paper proceeds as follows: in Section 2, we discuss the data and the methodology. Section 3 and Section 4 explain the topological structure and the spatial pattern of the Chinese AI innovation network respectively. The last section summarizes the results and provides some concluding remarks.

2. Materials and Methods

2.1. Research Method

Based on graph theory [41,42], we start by constructing the Chinese AI patent citation network noted G = (V, E), where V is the number of nodes in the network, one for each city. E is the number of edges in the network, which represents the citation relationship between cities. We use the degree centrality of cities as the nodes’ weight and the number of citations between cities as the edges’ weight. We employ SNA, which involves Network Centrality Model and Complexity, as our research methods, which are usually used by scholars to analyze the innovation network.

2.1.1. Network Centrality Model

Ponds et al. (2007), Varga and Parag (2009), Alderson et al. (2010), Eisingerich et al. (2010), and Neal (2011) argue that a city’s innovation capacity is tied to that city’s centrality in the network [43,44,45,46,47]. The authors argue that inventors in central areas could receive more information from more partners compared to others who work in peripheral places. We rely on three centrality indices traditionally used in the literature [20] to reflect the position of a city in the innovation network:

(1) Degree centrality, $C_D$, refers to the number of nodes that connect to the target node [48]. In our case, it corresponds to the number of cities that city $i$ is connected with:

$$C_D\left(i\right) = {{\displaystyle \sum }}_{j = 1}^n{w}_{ij},$$

(1)

where $w_{ij}$ is the cell of an adjacent matrix. If the citation exists, the cell of the matrix is 1; otherwise, it is 0.

(2) Betweenness centrality, $C_B$, measures the proportion of the shortest paths that go through the target node [49]. When the value is large, the target node has a large controlling power over the network. In our case, it represents the ability of the city to act as the “gatekeeper of the exchange of information”:

$$C_B\left(i\right) = {{\displaystyle \sum }}_{j = 1;k = 1;j\ne k\ne i}^n\frac{N_{jk}\left(i\right)}{N_{jk}},$$

(2)

where $N_{jk}\left(i\right)$ denotes the number of shortest paths between node $j$ and node $k$ that go through node $i$.

(3) Strength centrality, $C_S$, is the sum of the weight of the edges that associate with target node [50]. In our case, it means the total number of citations about city:

$$C_S\left(i\right) = {{\displaystyle \sum }}_{j\in N_i}{t}_{ij},$$

(3)

where $N_i$ denotes the set of adjacent nodes to node $i$ and $t_{ij}$ means the total number of citations between nodes $i$ and $j$.

2.1.2. Network Complexity

According to Strogatz (2001) and Wagner and Leydesdorff (2005), complex networks are characterized by self-organization, self-similar, scale-free, and small-world features that can be measured through several network indices [51,52]. One of the crucial indices describing the topological features of a network is the degree distribution of nodes [21]. By tradition, the degree distribution is measured through a power-law function which takes the following form: $f\left(x\right) = a{x}^{-k}$ where $a$ is a constant, $x$ stands for the degree of a node, $k$ is an exponent greater than zero that measures the heterogeneity across nodes and $f\left(x\right)$ stands for the number of nodes. Small values of $k$ indicate that the heterogeneity across nodes is strong. Furthermore, when the degree distribution follows a power-law function, the network is called a scale-free network [53].

In addition, Newman (2002) examines assortativity, which tests whether the nodes connect primarily to similar or dissimilar nodes [54]. Barabási and Albert (1999) call this characteristic the ‘preferential attachment’ and define it as the preference behavior of nodes when they choose connections [53]. We define the adjoining neighbors’ average degree centrality of node $i$ as:

$$k_{nn,i} = \frac{1}{N_{k_j}}{{\displaystyle \sum }}_{j = 1}^N{k}_j,$$

(4)

The adjoining neighbors’ average degree centrality of nodes with degree $k$, $k_{nn}\left(k\right)$ is defined as:

$$k_{nn}\left(k\right) = \frac{1}{N_k}{{\displaystyle \sum }}_{i,k_i = k}{k}_{nn,i},$$

(5)

where $j$ is the connected node of node $i$, $k_j$ is the degree centrality of node $j$, $N_{k_j}$ is the number of connected nodes to node $i$, and $N_k$ is the number of nodes connected to node $i$ whose degree is $k$.

In the absence of degree correlations, $k_{nn}\left(k\right)$ does not depend on $k$, and $k_{nn}\left(k\right)$ is a constant. A positive correlation between $k$ and $k_{nn}\left(k\right)$ means that the nodes tend to connect to other nodes with a similar value of $C_D$. In contrast, if the nodes with high $C_D$ have a majority of neighbors with low $C_D$, the correlation is negative, and the network displays a disassortative structure.

However, $k_{nn}\left(k\right)$ is defined solely on the basis of the unweighted topological structure. When combined with the weight, the correlation result will provide us with additional insights into the hierarchical and structural organization of the network.

In order to figure out the inconsistency, we employ a weighting matrix that includes both weight and topological properties. We put forward the adjoining neighbors’ average strength centrality of node $i$ as follows:

$$k_{nn,i}^w = \frac{1}{N_{k_j^w}}{{\displaystyle \sum }}_{j = 1}^N{k}_j^w,$$

(6)

where $N_{k_j^w}$ means the number of connected nodes to node $i$, $k_j^w$ is the strength centrality of node $j$. Similarly, if the correlation between the degree $k^w$ and $k_{nn}^w\left(k^w\right)$ is positive, the nodes tend to connect to other nodes with a similar value of $C_S$. In contrast, if the nodes with high $C_S$ have a majority of neighbors with low $C_S$, the correlation is negative and the network displays a disassortative structure. Otherwise, $k_{nn}^w\left(k^w\right)$ does not depend on $k^w$, which means that there is no weighted preferential attachment feature.

In summary, Equation (6) evaluates the weighted assortative properties by checking the actual relationship between the nodes of the network based on the strength of their ties.

2.2. Data Resource

Our analysis is based on data from the Patent Office of the People’s Republic of China. Departing from previous patent extraction (International Patent Classification codes), AI technologies are embedded in various disciplines. Thus, we collect patents based on the patent information keywords, including image recognition, automatic speech recognition, machine learning, neural network, human-computer interaction, robotics, natural language processing, fuzzy system, expert system, and decision-support system, which Derwent innovation suggests. We have extracted information about the address of the inventors, the patent number, the patent description, and all the advanced patents cited by each patent. Due to the extremely low number of AI patents in China before 2000, we limit our study to the 2000–2016 period. It should be noted that using patents as the indicator can not represent individuals’ entire innovation activity and innovation capacity [55]. While in our work, we focus on the directed knowledge flow that some other indicators (e.g., new product avenue) can not express well. Since this paper focuses on the Chinese network, the study area includes mainland China, Hong Kong, Macao, and Taiwan.

3. Topological Structure of AI Innovation Network

3.1. Network Evolution and Agglomeration

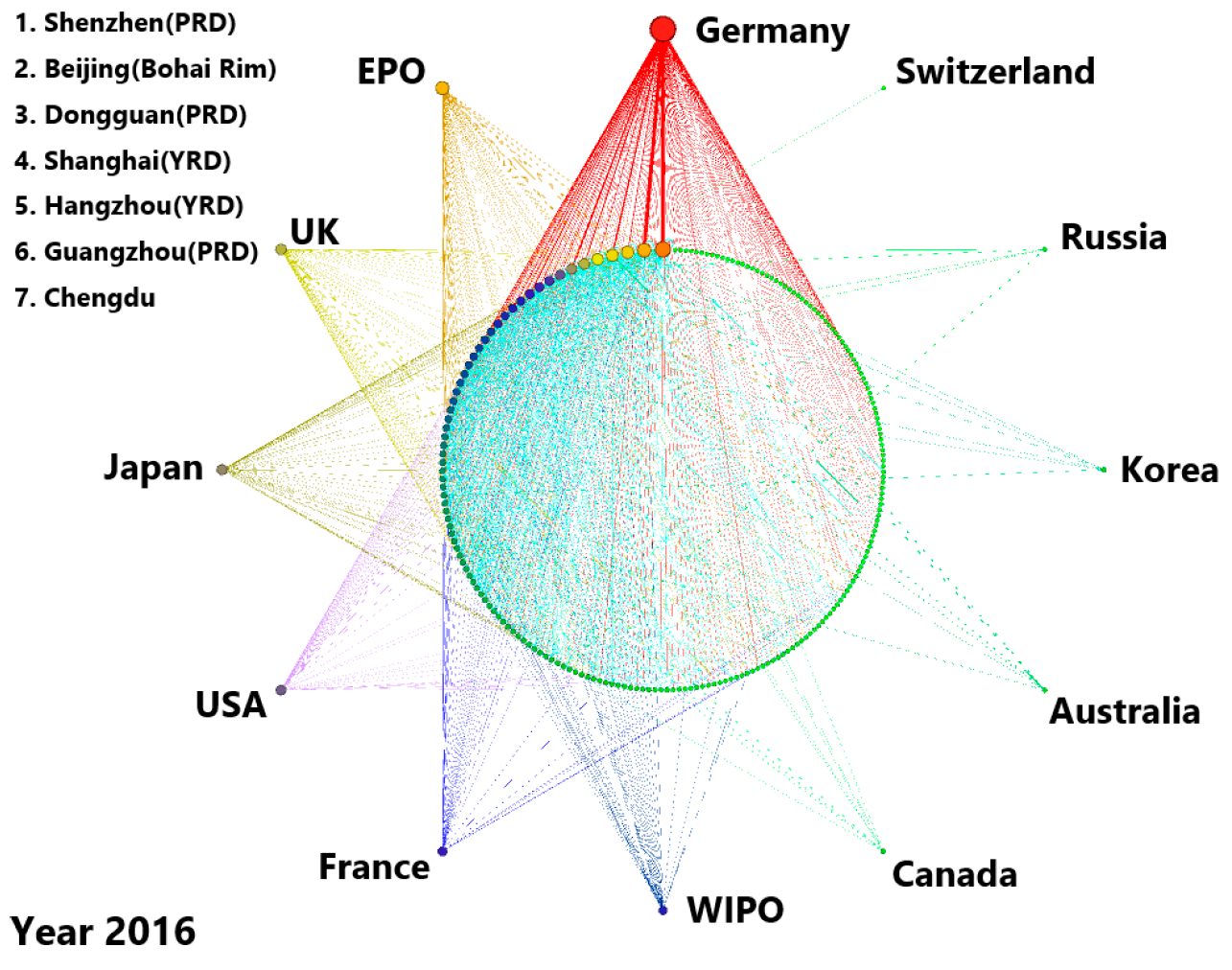

This study employs the Chinese AI patent citation matrix to produce the network graph reported in Figure 1. In addition, the network statistics are presented in

Table 1. Properties of Chinese AI patent citation network.

	Year 2000	Year 2005	Year 2011	Year 2013	Year 2016
Number of nodes	9	35	90	114	217
Number of edges	8	39	181	346	1457
Average Degree Centrality	0.89	1.11	2.01	3.04	6.71
Average Betweenness Centrality	0	$2.58\times {10}^{-5}$	$1.25\times {10}^{-4}$	$5.46\times {10}^{-4}$	$9.39\times {10}^{-4}$
Average Strength Centrality	40	49.09	120.67	154.33	495.33
Average Clustering Coefficient	0	0.064	0.078	0.114	0.245
Average Path Length	1	1	1.34	1.88	2.11

. Both cover the selected years of 2000, 2005, 2011, 2013, and 2016. In Figure 1, the foreign nodes are located in the outer part of the graph while the domestic ones are inside. The size of the nodes shows the degree centrality ($C_D$) of each city. It corresponds to the citation scale that occurs with the current city. The $C_D$ of nodes diminishes in a counter-clockwise direction for both domestic and foreign. The thickness of the line shows the intensity of the citations between cities. We report all the foreign nodes and the top Chinese nodes for each year.

In 2000, the network was composed of only 9 nodes and 8 edges. Seven Chinese nodes were not associated with any other cities in China but only with US and German. Foshan was the only non-provincial capital among them while the other domestic nodes were core cities. By 2005, just a few new nodes had entered the network, thus adding sparse connections to it. In the second decade of the 21st-century, China followed in the footsteps of numerous developed countries by deploying successive AI development strategies related to Big Data and Internet Plus. More obvious changes occurred in the network scale in 2011 as the number of nodes increased from 35 to 90 and the number of edges changed from 39 to 181. At that time, there were 8 foreign nodes in the network. However, a substantial number of Chinese nodes cited foreign patents heavily while citations between domestic patents remained low (29.28% of all linkages). This result indicates that even though many cities had developed AI, most of them relied on foreign technology mainly. The network configuration changed over 2011–2013 with the emergence of massive connections. While the number of nodes increased by only 24 during this time, the number of edges increased from 181 to 346. This evolution indicates that previously unrelated nodes started to connect with each other. By 2016, the number of nodes and edges increased to 205 and 1457, respectively. More foreign places were cited (up to 12). Without exception, these foreign nodes were technologically advanced regions located in Western Europe (Germany, the UK, and France) and in North America (the US and Canada). Although the number of nodes increased by the same number as in the previous time period, the network doubled its average degree centrality ($C_D$) compared to 2013.

In general, there is a significant growth in each network indicator from 2000–2016. The increase in the number of nodes indicates that more cities had participated in the AI R&D activity. While edges, whether domestic or international, increased rapidly over the study period, we find that the AI inventors cited domestic patents more frequently over the more recent years. In addition, the average degree centrality increased from 0.89 in 2000 to 6.71 in 2016, which shows that the connection choices of nodes became richer. This result also implies that cities are not bounded to their original citation path, they are willing to cite from new technologically-advanced regions. Besides, the increasing average clustering coefficient indicates the level of network cohesiveness was enhanced [53], which suggests a growing network connectivity and a network becoming more mature.

Although the network matured over the study period, the development of the network is unevenly spread across nodes. Based on Figure 1, we find that the majority of nodes had connected with few hubs in 2016. This result is confirmed by a Gini coefficient of 0.680 and a coefficient of variation (CV) of 1.693 for $C_D$ in 2016. As for the other two centrality indices, the Gini coefficient of $C_B$ reached 0.942, and the CV was 4.687 in 2016. The Gini coefficient of $C_S$ was close to 0.890, and the CV was 6.309 in the same year. These two indicators suggest that the high values of $C_D$, $C_B$, and $C_S$ are mostly occurring in the minority nodes. In addition, in 2016, newly created patents in China cited past German patents 44,103 times, an amount that was far larger than the sum of citations of other foreign countries or institutions (5124 times).

Table 2. Centrality Indices.

Rank	Degree Centrality		Betweenness Centrality		Strength Centrality
	City	Value	City	Value	City	Value
2000
1	Germany	7	Germany	0	Germany	179
2	Taipei	2	Taipei	0	Beijing	80
3	Beijing	1	Beijing	0	Nanjing	30
4	Shanghai	1	Shanghai	0	Taipei	20
5	Nanjing	1	Nanjing	0	Shenzhen	20
6	Guangzhou	1	Guangzhou	0	Shanghai	10
7	Shenzhen	1	Shenzhen	0	Guangzhou	10
8	Foshan	1	Foshan	0	Foshan	10
9	USA	1	USA	0	USA	1
10	N/A		N/A		N/A
2011
1	Germany	77	Shenzhen	5.92 × 10−3	Germany	5064
2	Shenzhen	24	Dongguan	4.47 × 10−3	Beijing	847
3	Beijing	18	Hangzhou	4.26 × 10−4	Shanghai	509
4	EPO	15	Beijing	2.98 × 10−4	Shenzhen	443
5	Shanghai	14	Guangzhou	1.28 × 10−4	Suzhou	330
6	Shenyang	14	N/A		Hangzhou	233
7	Dongguan	12	N/A		Nanjing	190
8	Hangzhou	11	N/A		Jinan	188
9	Harbin	9	N/A		Xi’an	179
10	Changzhou	9	N/A		Chengdu	169
2013
1	Germany	86	Shenzhen	1.34 × 10−2	Germany	7520
2	Shenzhen	35	Suzhou	9.85 × 10−3	Beijing	1359
3	Beijing	33	Beijing	9.07 × 10−3	Shenzhen	842
4	Suzhou	32	Hefei	7.29 × 10−3	Suzhou	725
5	EPO	30	Shanghai	5.24 × 10−3	Shanghai	583
6	Shanghai	24	Hangzhou	4.20 × 10−3	Chengdu	494
7	Hangzhou	23	Xi’an	3.78 × 10−3	Nanjing	376
8	USA	22	Foshan	2.21 × 10−3	Guangzhou	338
9	Japan	22	Dongguan	2.02 × 10−3	EPO	302
10	Hefei	21	Guangzhou	1.86 × 10−3	Xi’an	258
2016
1	Germany	178	Shenzhen	5.04 × 10−2	Germany	44,103
2	Shenzhen	123	Beijing	2.65 × 10−2	Shenzhen	9249
3	Beijing	105	Dongguan	1.80 × 10−2	Beijing	8567
4	Dongguan	87	Chengdu	1.34 × 10−2	Chengdu	3303
5	Shanghai	83	Hangzhou	1.30 × 10−2	Shanghai	3209
6	Hangzhou	81	Guangzhou	1.20 × 10−2	Guangzhou	2296
7	EPO	78	Shanghai	1.10 × 10−2	Dongguan	2051
8	Guangzhou	74	Wuhan	6.50 × 10−3	EPO	2007
9	Chengdu	70	Xi’an	5.08 × 10−3	Suzhou	1981
10	Wuhan	58	Taizhou	4.23 × 10−3	Hangzhou	1550

lists the top 10 areas for each centrality index and selected year. It is worth noting that not all nodes with a high $C_D$ presented a high value in $C_B$ at the same time, which indicates that not all active nodes played a major role in information transmission. De Prato and Nepelski (2012) claim that there is a strong correlation between $C_D$ and $C_S$ [20]. In our case, however, nodes with high values of $C_D$ do not always display high values of $C_S$, which demonstrates that nodes have diverse connection properties. This result helps us identify two kinds of nodes: the first type corresponds to nodes with a high $C_S$ but a low $C_D$ at the beginning of the period, which tend to expand their linking target. The second type is nodes with a low $C_S$ but a high $C_D$. These are nodes that focus on intensifying their strength of existing linkages. As the network develops, the former type experiences a decrease in the value of $C_S$. This behavior is verified in Table 2 which reports how several nodes that appear in the top list of cities based on $C_S$ but not based on $C_D$ in 2011 fell off from the top list of $C_S$ in 2013 and 2016. These cities followed their own “innovation path dependency” [56] by sticking to cities they absorbed knowledge from in the past. However, these cities seem to have lost their competitive advantages at the end of the period. This result is consistent with observations by Rubera et al. (2016), Almirall and Casadesus-Masanell (2010), and Prabhu et al. (2005) who point out that external searches allow innovative subjects to escape path dependency and broaden their knowledge base [57,58,59]. New network connections help units enter a new innovation path and develop new products [58,59,60,61]. For instance, Shenzhen, which has had the highest $C_D$ since 2011, became the leader of $C_S$ five years later. This phenomenon indicates that absorbing diversified knowledge is more effective in the long-term development of a city than concentrating on limited resources in AI activity.

3.2. Network Complexity

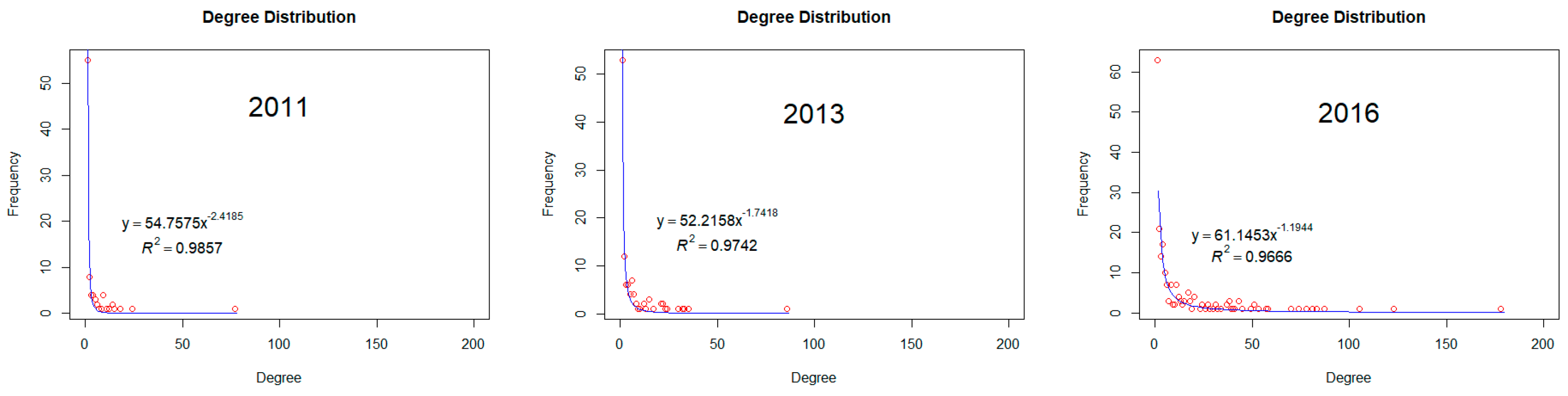

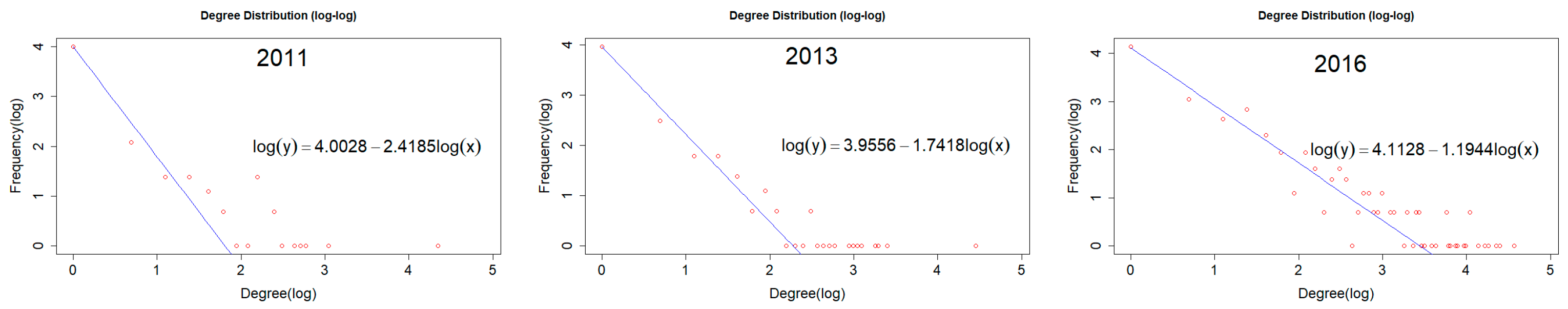

Firstly, we examine the fit of the power function described in Section 2.1.2 based on the $C_D$ value of nodes. Figure 2 shows the fitted curves and associated R² values.

We find that the R² values are between 0.966 and 0.986, hence indicating that the degree distribution of the Chinese AI innovation network follows the power-law function. It means that the majority of the high values of $C_D$ concentrate on the minority nodes and that the network holds the traits of a scale-free network. This result confirms the unbalanced development of the network described in the previous subsection. To be specific, the value of the exponent indicator k decreases from 2.418 in 2011 to 1.194 in 2016, indicating that the discrepancy of nodes in terms of $C_D$ has widened while the network scale expands rapidly. The value of k in 2016 is much smaller than the value in any other year, not only because the $C_D$ of the leading nodes had increased dramatically but also because a large number of fresh nodes with a low $C_D$ have emerged. It is worth noting that even if the degree distribution follows the power-law function, the result didn’t give a conclusive answer that the power-law distribution is favored over alternative distributions [62]. Since the sample size of our case, we can’t tell power-law and log-normal apart after excluding the exponential and stretched exponential or Weibull behaviors.

Secondly,

Table 3. Preferential attachment.

	Unweighted Preferential Attachment		Weighted Preferential Attachment
Year	Correlation Coefficient	p-Value	Correlation Coefficient	p-Value
2011	0.241	0.000	0.043	0.256
2013	0.285	0.000	0.016	0.676
2016	0.184	0.001	−0.077	0.177

reports the correlation between the nodes’ value of $C_D$ and the average $C_D$ of their partners in 2011, 2013, and 2016. These figures are based on Equations (5) and (6).

The results are positive and significant, which means that the network structure presents an assortative trait. However, the result of the weighted preferential attachment is not significant, which demonstrates that there is no obvious tendency for the nodes with high $C_S$ to link with nodes with the same properties. This phenomenon indicates that nodes become attractive based on the number of linkages rather than their intensity.

Furthermore, compared to a random network of the same scale, the average clustering coefficient (C₂₀₁₆ = 0.245) in 2016 is much larger than that of the random one (C_random = 0.136), and the average path length of both is roughly equal (L~L_random). This result exhibits a “small-world behavior”, which is an optimal structure for an efficient diffusion of knowledge [63].

4. Spatial Pattern of AI Innovation Network

In the network graph (Figure 1), two nodes might appear close by based on the intensity of their relationship, even if they are located far away from each other geographically. In this section, we mix the nodes’ information with their geographical location in order to investigate the spatial pattern of the Chinese AI innovation activities.

4.1. Network Connection

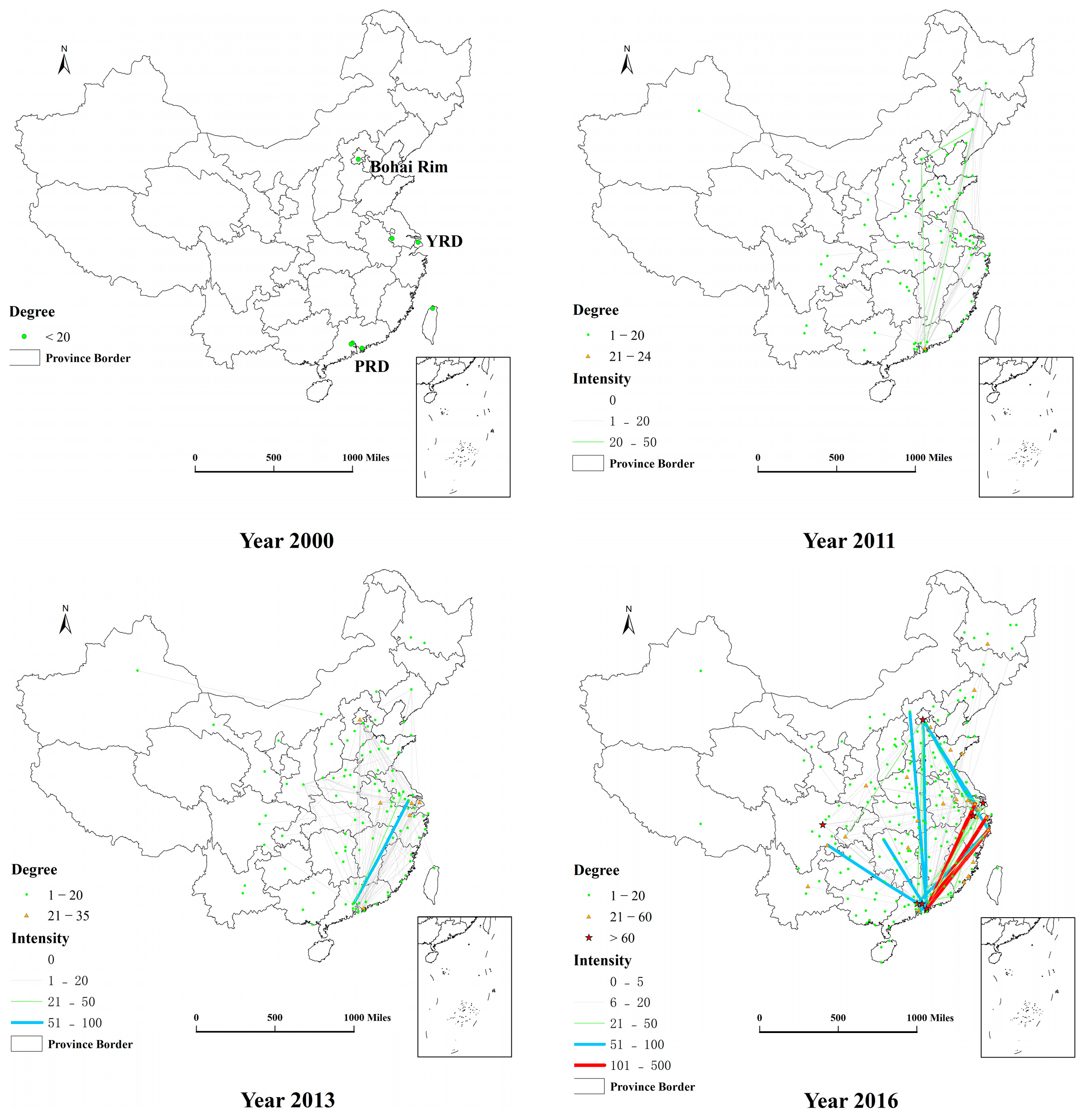

Figure 3 maps the geographical distribution of the citations. There are three types of nodes that represent different levels of degree centrality across Chinese cities. The thickness and shade of the links denote the intensity of the AI patent citations.

Based on Figure 3, we recognize several domestic nodes without edges, which indicates that these cities cite foreign patents only. All the domestic nodes were insular at the beginning period. As more connections formed between domestic nodes, the citation network in 2011 and 2013 presented a quadrilateral skeleton. Meanwhile, the majority of the edges were located in the eastern part of China, especially between the Yangtze River Delta (YRD), the Pearl River Delta (PRD), and the Bohai Rim. By 2016, more interlaced and sophisticated connections appeared between cities, revealing a diamond shape. At the same time, the proportion of isolated nodes decreased significantly, which suggests an increased focus on domestic AI technology. Yet, several areas remained without nodes or links. They are mostly regions in the western and middle parts of the country as well as some sparsely populated and underdeveloped areas located elsewhere.

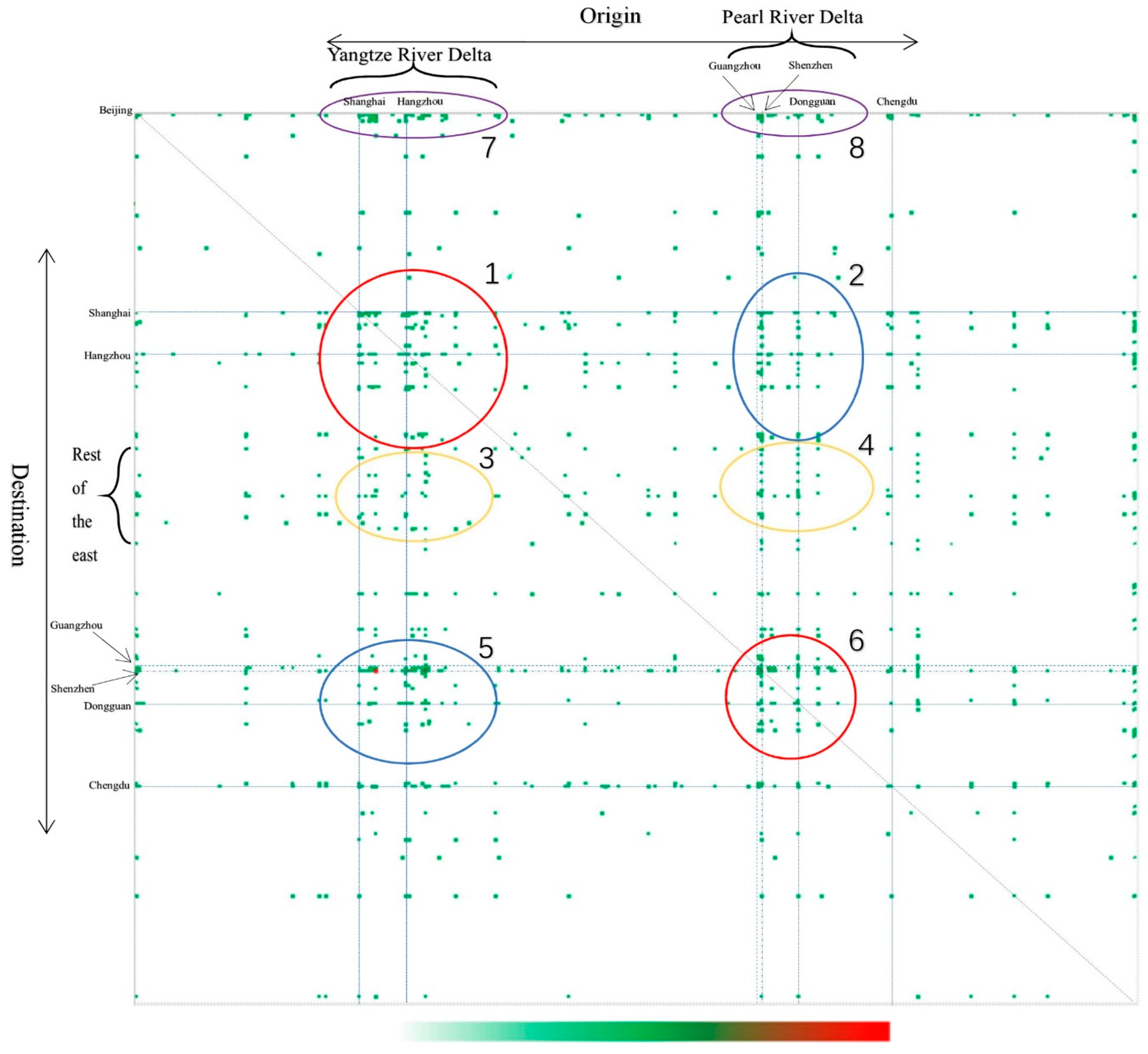

In order to investigate further the geographical distribution of the network and the directionality of the flows, Figure 4 reports the heatmap of the citation intensity for the aggregate data and the entire period. In this figure, the regions are grouped into a two-level hierarchy: 34 provinces or municipalities and 300 prefecture-level cities. The rows of the matrix indicate the origin of the citation and the columns represent the destination. The color of the elements varies from white to green to red, describing the citation intensity from low to high.

Figure 4 confirms the dominance of PRD, YRD, and the Bohai Rim described earlier in the patent network. However, these three regions have distinct link behaviors. For PRD, we find that the darker-shaded dots and the highest point density appear in Ellipse 5. It means that AI inventors in PRD favor YRD’s patents. Intra-regional citations, shown on the diagonal of the graph, are mostly present in a few places like Shenzhen and Guangzhou as indicated in Circle 6. In contrast, YRD relies mostly on local rather than remote citations due to the majority of dark-shaded cells appearing in Circle 1. While the point distribution in Circle 1 is much more homogeneous than the intra-citation of PRD (Circle 6), showing that citations inside YRD are relatively dispersed. When it comes to Bohai Rim, we note that the point density is higher in Ellipses 7 and 8 than in other places, which indicates that cities in this area tend to cite patents from YRD and PRD more often than from elsewhere in China.

From the analysis above, we can conclude that, as a whole, the Eastern region dominates the AI patent citation network in China even if the network has developed over the years. We also note that the distribution is heterogeneous in space because several AI-intensive areas display widely different characteristics. YRD focuses more on self-citation and local spillovers, while PRD and Bohai Rim focus on remote transmission. At the same time, linkages within YRD are relatively scattered compared to those within PRD which concentrates in few places. Furthermore, the intensity of the citations between regions are asymmetric. Almost all areas tend to cite more from YRD than from other regions, but the reverse is not true. Thus, the citation intensity varies by citation object and direction.

4.2. Centrality of Node

Based on Equations (1)–(3), Figure 5 shows the spatial distribution of Degree ($C_D$), Betweenness ($C_B$), and Strength ($C_S$) centrality, respectively, in 2000, 2011, 2013, and 2016. For clarity purposes, we label the core cities in the $C_D$ graph, and for the year 2016 only.

In 2000, all the cities in the network were located in the eastern coastal region. That year Taipei was the city with the highest $C_D$ and it connected Germany and the US. The remaining nodes had relationships with Germany only. However, the city with the highest $C_S$ was Beijing, with a value of 80. At that time, the $C_B$ value of each city was zero because there is no interaction between domestic nodes.

By 2011, more cities had participated in the AI innovation network, including some new creative cities, such as Hangzhou and Dongguan. High values of centrality began to appear in PRD, YRD, and Bohai Rim. Shenzhen had 24 edges, which supersedes Taipei as the location with the most connected domestic node, while the highest $C_S$ was still Beijing, way ahead of Shanghai (2nd) and Shenzhen (3rd). In addition, we find that only five cities (Shenzhen, Dongguan, Hangzhou, Beijing, and Guangzhou) serve as an intermediary agent of the network despite the presence of almost one hundred cities in the network. They are all located in the three AI-developed areas and their $C_B$ value ranged from 1 × 10⁻⁴ to 6 × 10⁻³. The small value indicates the other nodes did not rely heavily on these five transfer stations to connect with others, which reveals that the domestic AI knowledge exchange was scarce at that time.

By 2013, it became obvious that the agglomeration of high values of centrality in PRD, YRD, and Bohai Rim had intensified. Shenzhen was leading in the value of $C_D$ while Beijing was holding its position in terms of $C_S$. Precisely because of the rapid development, which results in the two cities becoming the major players in the transmission of information across the country’s network. In other words, Beijing ($C_B$ = 9.07 × 10⁻³) and Shenzhen ($C_B$ = 1.34 × 10⁻²) situated on the shortest path between many dyads. It is worth noting that Xi’an, a city located in the mid-western part of China, started to increase its role in the transmission of knowledge at the regional level. This facilitated the development of local AI around Xi’an as noted by the high value of $C_S$ that appeared across several mid-western cities.

By 2016, an increasing number of nodes with high centrality had concentrated in the eastern part of China, especially in terms of $C_B$. The eastern coastal cities accounted for eleven of the top fifteen most connected places as determined by the value of $C_D$. As such, there were nine eastern coastal cities in the top list of $C_S$. It should be noted that several nodes located in the western or mid-western part of China became more active in the AI business. Here, the most prominent example is Chengdu, a city that was not active in AI during our initial period but occupied the top position across the three centrality indices by 2016, as reported in Table 2. This phenomenon led the spatial distribution of centrality to take a diamond shape. The polygon shape of the innovation network shows that numerous hubs started to emerge and close innovation relationships started to build, as one would expect from a mature network [21]. In addition, more cities became involved in the transmission of information, which improved the knowledge spillovers across cities in several local areas.

5. Conclusions

As a force driving regional development, scientific and technological innovation plays an increasingly important role in regional competitiveness and sustainable development. Past literature shows that the spatial characteristics of innovation activities are becoming a major focus in economic geography [64,65]. This article has built on patent information across Chinese AI businesses to investigate the topological structure and spatial pattern of the innovation network and knowledge spillovers at the urban level from 2000 to 2016.

Based on network indices, we find that the network’s topological structure has experienced a remarkable maturation process over the study period. It has taken the form of an expansion of the network scale and an improvement in connectivity. During this time, most of the high values were concentrated in a few nodes, demonstrating an agglomeration phenomenon that intensified over time in all centrality indices, especially in degree distribution. This pattern is supported by the decreasing exponent of the power-law function, which also shows that a large number of relations were fragile despite the increasing average degree of the network. However, even if the degree distribution follows the power-law function, it is difficult to say the power law is favored over the log-normal distribution. We also find that the degree distribution is indicative of a so-called scale-free network which is characterized by nodes that link to counterparts who possess a similar degree (assortative trait) but not a similar weighted degree. This result indicates that the main driver of connections is the number of cities that one node is linked to instead of the intensity of these relationships. This demonstrates that the innovation objects tend to connect ones who are recognized as good by all rather than just a few. This feature is identical to what Jaffe and de Rassenfosse (2017) found for the US innovation network [66]. Even if the weighted preferential attachment was not significant in our case, future research should consider it for understanding the characteristic of innovation objects in the knowledge learning process accurately. We also find that the Chinese AI network displayed a small-world feature over the course of its maturity, which could facilitate the information diffusion and exchange. In addition, the difference in the ranking of three centrality indices indicates that the key factor for nodes’ long-term development is absorbing diversified knowledge.

We also find that an increasing number of nodes with high centrality were located in the eastern part of China. Indeed, for each of the three centrality indices, the number of nodes with a high value decrease as one moves westward and the East-West gap has increased as time passes. As such, the greatest mass of intra- and inter-regional connections appeared in the eastern coastal region of China, especially in the Yangtze River Delta, the Pearl River Delta, and the Bohai Rim, so that cities located elsewhere often connect with cities from these three areas. The gap in the AI industry development increased between the eastern part of the country and the hinterland for several reasons. First, the R&D resource endowment of the eastern area is far superior to that of the other places since it was a pioneer of the Chinese reform and opening in 1978. Second, highly-skilled workers and returnees prefer to work in the eastern area [67], because the majority of the AI enterprises set up factories there. By 2016, 44.8%, 28.7%, and 16.9% of all Chinese AI businesses were located in Bohai Rim, YRD, and PRD, respectively. Nine of the top ten AI companies are located in these regions. An example is Huawei, located in Shenzhen (PRD), which created the AI chip and 5G communication, and Alibaba, located in Hangzhou (YRD), which launched Cloud computing, AI Finance, and AI transport. Third, due to its geographical location, the eastern part of China has access to advanced knowledge embedded in international trade and foreign investments [68,69]. Finally, numerous international conferences facilitating the transmission of AI knowledge, such as the World Artificial Intelligence Conference, were held in eastern cities. At the same time, our results highlight that the spatial pattern of network linkages moved from a random distribution to a quadrilateral skeleton over time. We find that the AI citation has not been constrained by the geographical distance at all, since the main citation flows occurred across hubs located far away from each other. Additionally, different regions display diverse citation properties. YRD, for example, was endocentric while PRD was extraverted.

Previous studies demonstrated the connection between AI and sustainable development, and we realize the importance of developing AI for the social, environment, and economy. Our research reveals the evolution of AI in China, which results can lead to several important innovation policy advice to develop the AI sector and support sustainable development. First, we find that one means by which citations could be improved further in the country is by expanding the means of technological exchange and cooperate more broadly. Learning from diversified sources benefits inventors as they can acquire heterogeneous knowledge, which increases the intensity of the innovative relations between cities. Second, our results indicate that a key to the expansion of the citation network has been the increase in nodes with a high value of betweenness centrality. As such, we believe that the government should focus its efforts on this type of node as it has the capacity of promoting AI developments in its surrounding areas. For the central government, they should pay more attention to cultivating more large nodes in the western area. With regards to local government, promoting innovation staff to learn advanced knowledge from the eastern area could develop AI rapidly. Third, we find that intensifying the knowledge and technology exchange with individuals from external areas can greatly promote the development of AI in China. AI is embedded in various disciplines and industries [28], while the resource endowments and industry structure are different across regions due to the vast area of China. Therefore, the grow up of the AI industry requires close inter-regional linkage and exchange. Different from the traditional innovation pattern, open innovation relies not only on internal knowledge and resources of innovation objects but on externals also [70,71,72], which can accelerate the knowledge diffusion and achieve a better innovation performance [72,73,74]. It has become an effective strategy for promoting regional economic growth and strengthening regional competitiveness [75,76,77]. Thus, it is necessary that develop AI with open innovation pattern to facilitate sustainable development of the economy in China. Finally, we believe that AI technology can accelerate China’s progress toward SDGs. However, we can not ignore the negative side of developing AI, such as individual information leakage and cyber security [28]. Thus, the fast growth of AI needs to be supported by the necessary regulatory insight and oversight of AI technologies. Otherwise, it could result in gaps in transparency, safety, and ethical standards.
