A Convolution–Non-Convolution Parallel Deep Network for Electricity Theft Detection
Abstract
:1. Introduction
- The features of the electricity consumption time series of normal users and electricity thieves were analyzed, and it was found that compared with those of electricity thieves, the electricity consumption time series of normal users have more obvious periodic characteristics;
- A novel CNCP-based method for electricity theft detection was proposed in which two heterogeneous deep neural networks were used to capture the features of the electricity consumption time series in different time scales effectively, therefore yielding better detection results.
2. Materials and Methods
2.1. Dataset
2.2. Data Preprocessing

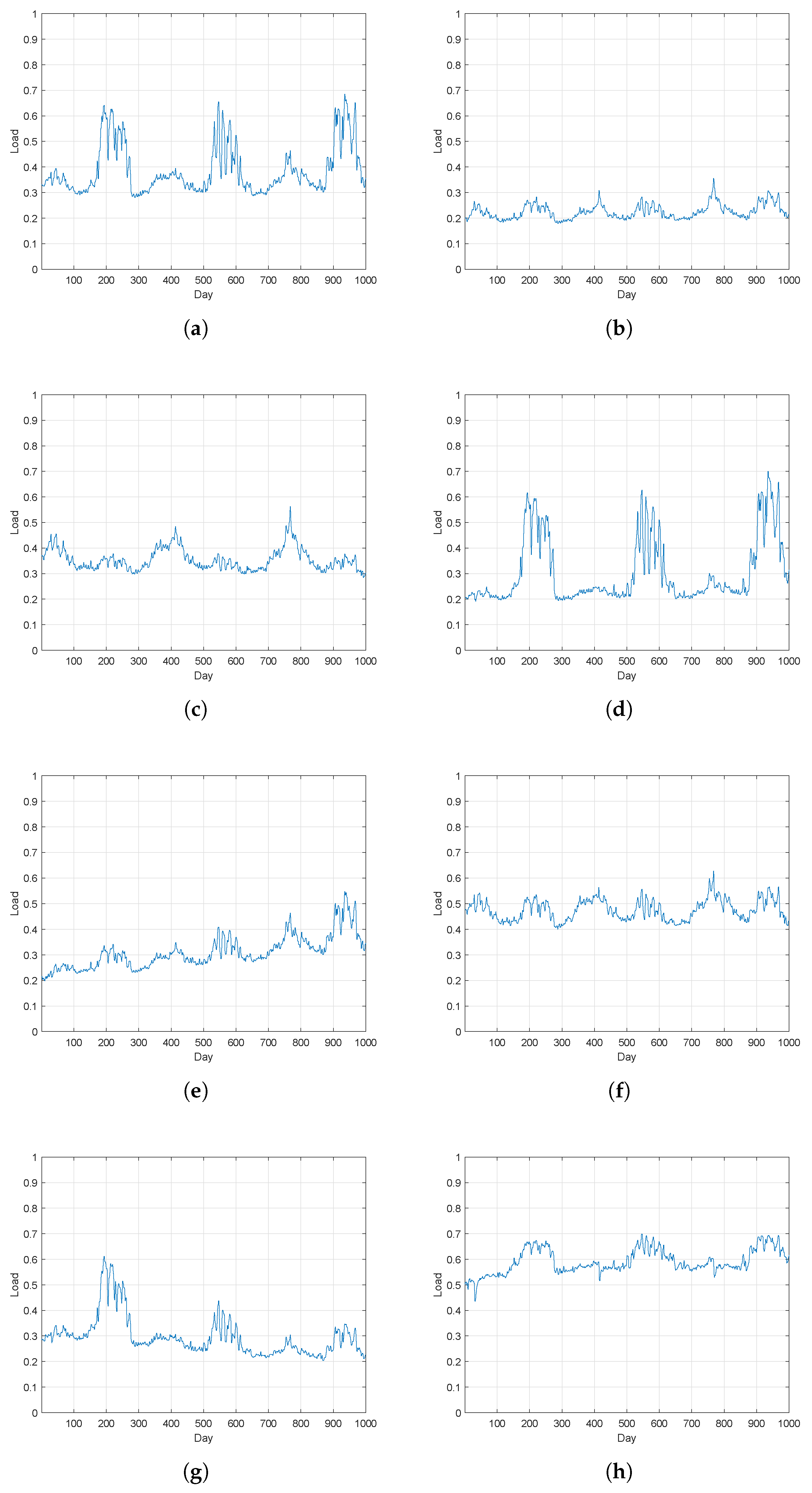

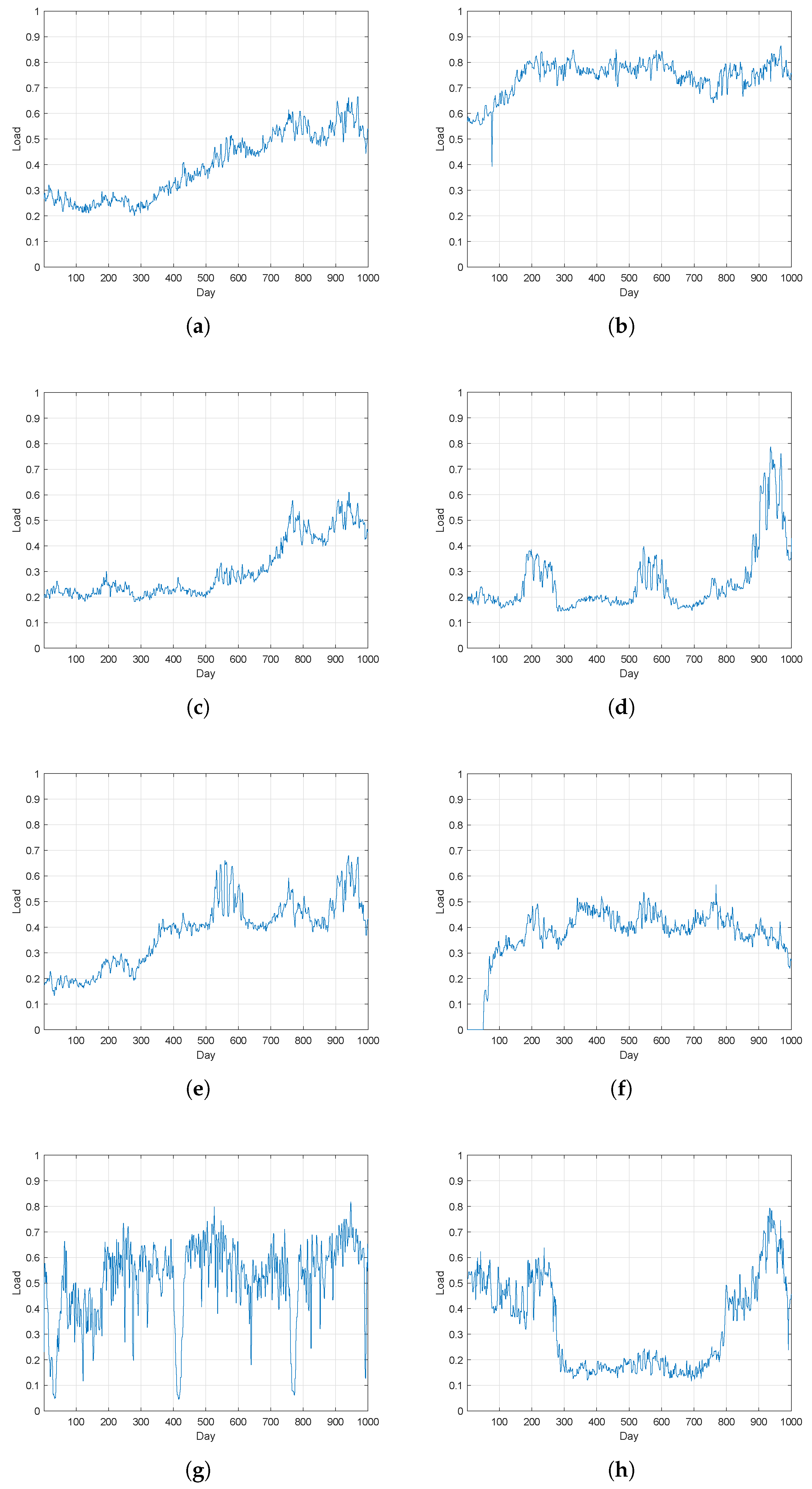

2.3. Analysis of Electricity Consumption Features of Normal Residents and Electricity Thieves

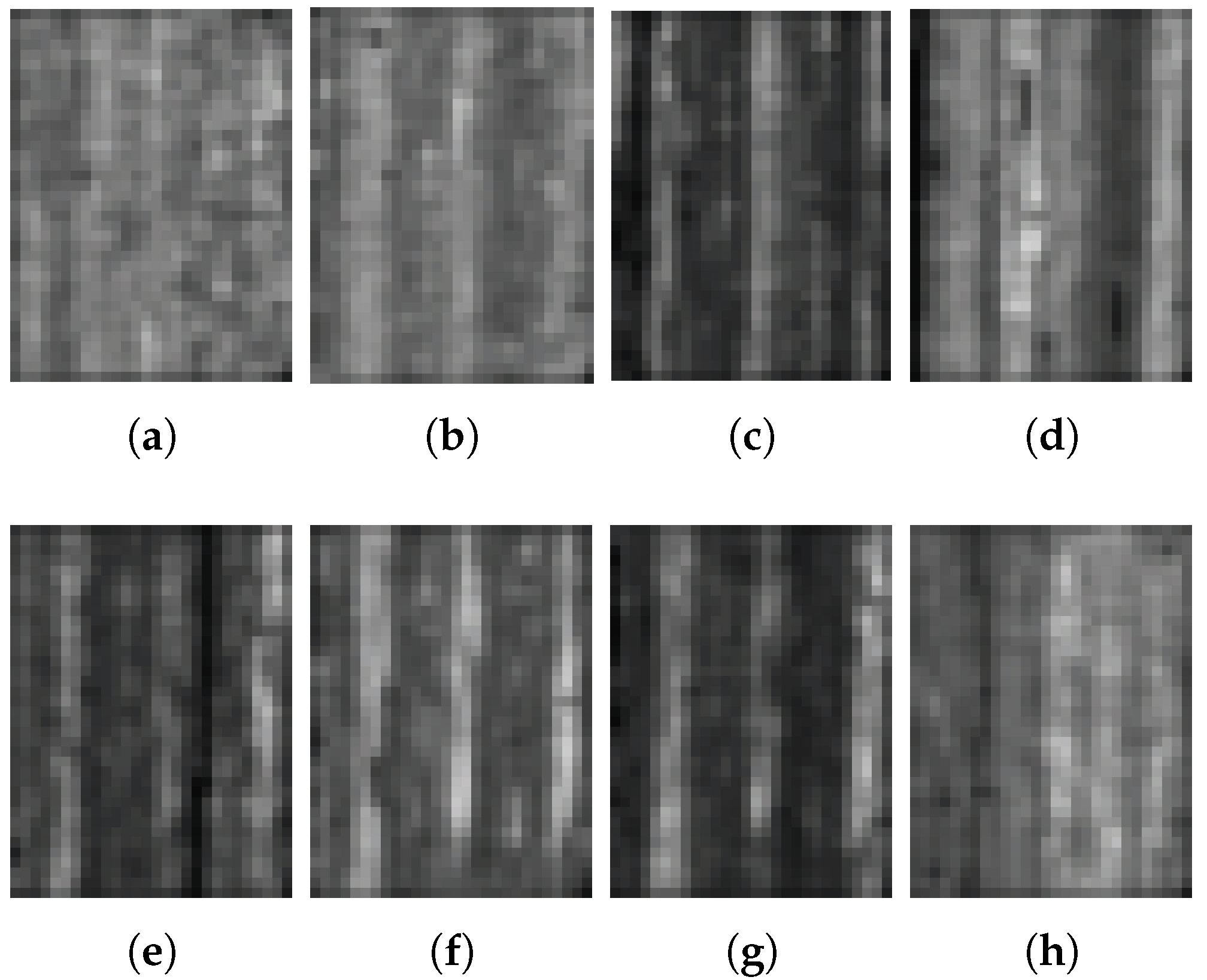

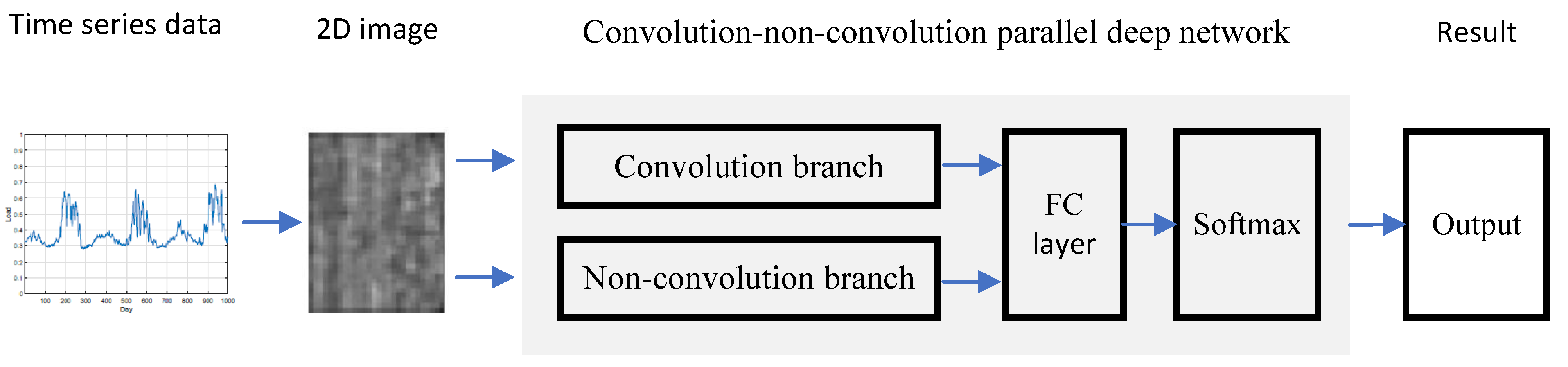

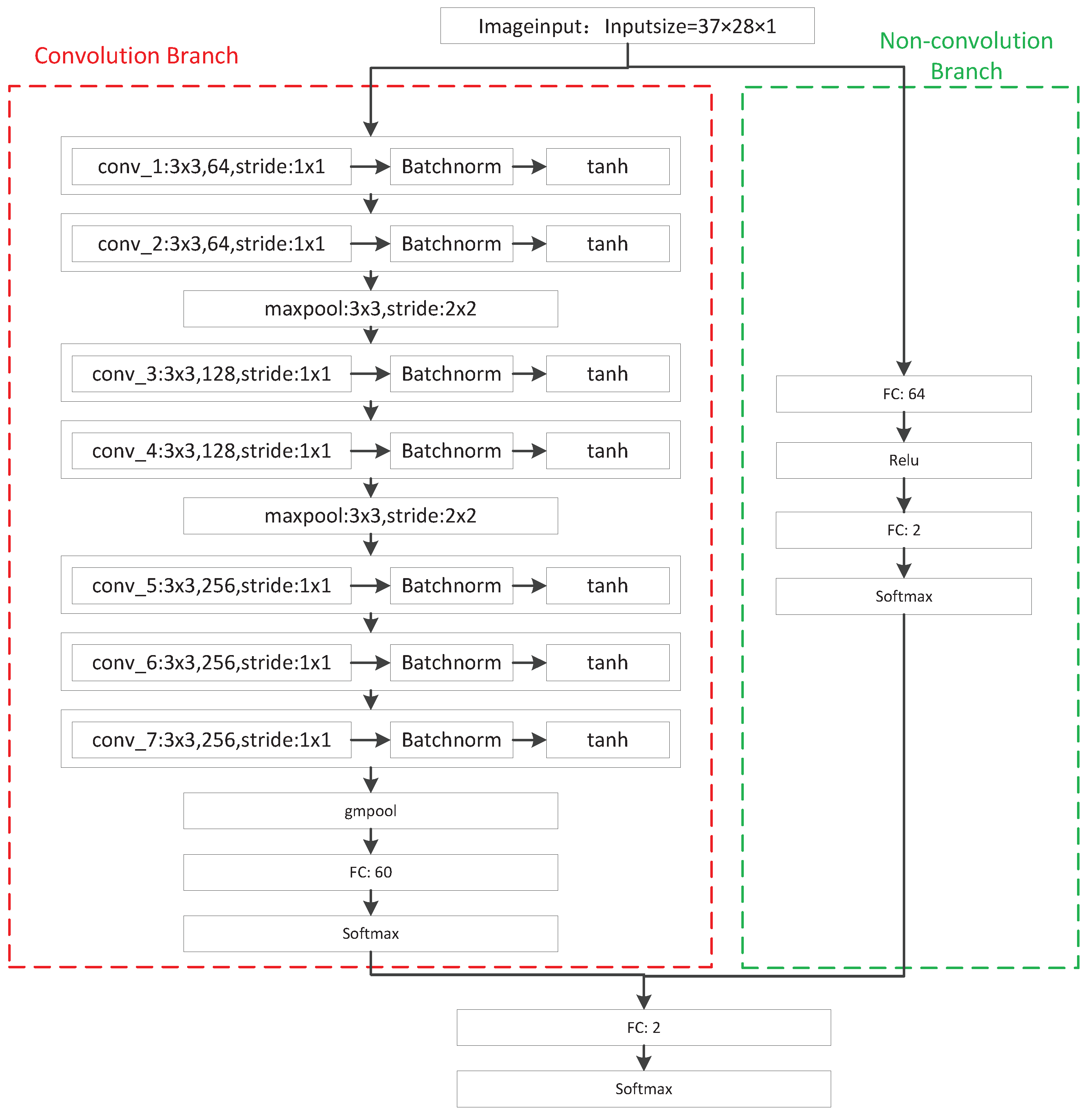

2.4. A Novel CNCP-Network-Based Detection Method
2.5. Solution of Imbalance Data
3. Results
3.1. Optimal Structure Determination

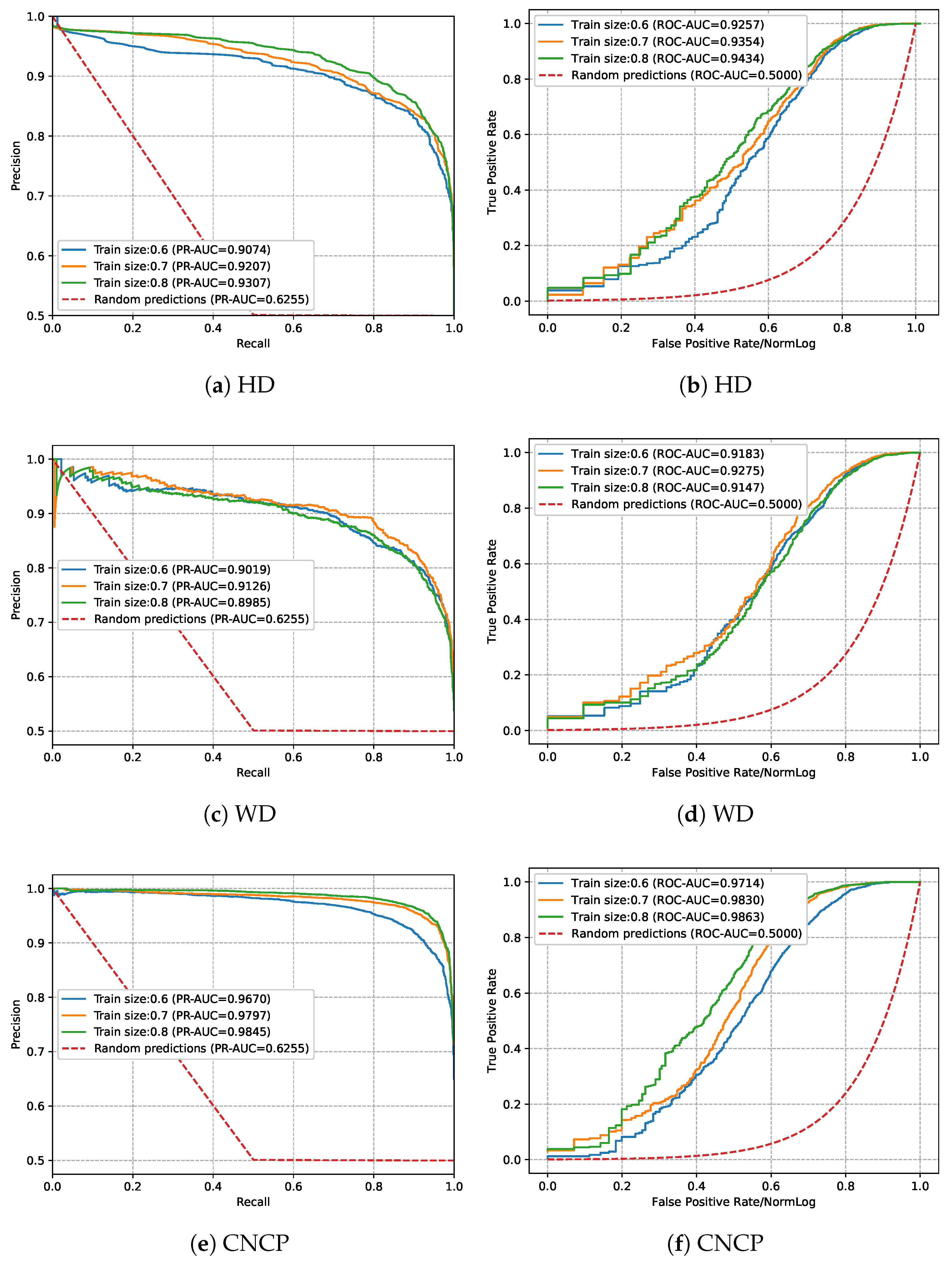

3.2. Comparison with Other Methods
3.2.1. Parameters Setting of SVM, LR, and XGBoost
3.2.2. Parameters Setting of WD
3.2.3. Parameters Setting of HD
3.3. Complexity Analysis
4. Discussion
5. Conclusions
