5.2. Keyword Cluster Analysis
To better grasp the thematic modules of rural living environment upgrade research hotspots, cluster knowledge mapping analysis was conducted based on keyword co-occurrence to explore the research class clusters and structural features in the field of rural living environment upgrade, and a total of 12 cluster labels were obtained, as shown in
Figure 4, namely: #0 human living environment, #1 domestic sewage, #2 rural, #3 rural toilets, #4 countermeasure suggestions, #5 rural toilet improvement, #6 domestic waste, #7 nitrogen removal and phosphorus removal, #8 separate collection, #9 environmental sanitation, #10 artificial wetland, and #11 rural revitalization. The cluster mapping shows that the module value of clusters Q = 0.8657, which is greater than the critical value of 0.3, and the average profile value S = 0.9659, which is greater than the critical value of 0.7, indicating that the class cluster structure of clusters is significant and has high confidence for further analysis.
The above keyword co-occurrence analysis on the rural living environment upgrade and its four key tasks only analyzes the research hot topics corresponding to the high-frequency keywords, which cannot comprehensively grasp the research history in rural living environment upgrade as a whole. Therefore, it is necessary to summarize the research themes of rural living environment upgrades by combining traditional literature review methods. Thus, based on the 12 clustering tags (

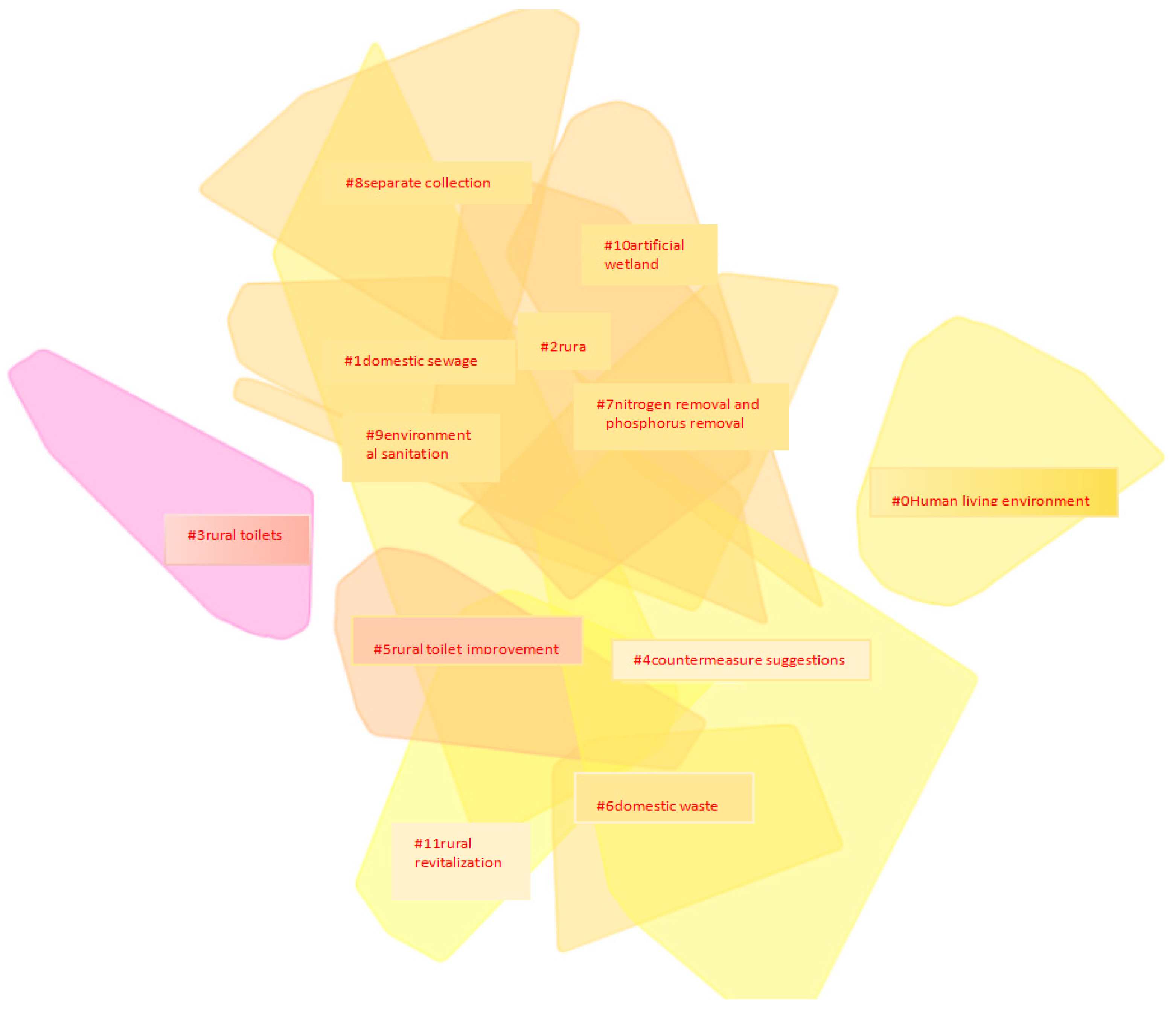

Figure 5) formed and their corresponding keywords, this study refines the hot research topics in this field into the following four areas.
- (1)
Study on the Connotation and Governance Model of Rural Living Environment
This type of research content is the overall framework of rural living environment upgrades in the concept, connotation, and essential research throughout the entire research history of rural living environment upgrade, with the role of outline, including the connotation of rural living environment analysis and rural living environment upgrade governance model exploration. (1) The connotation of rural living environment analysis: Most of the existing literature mentions improving the rural living environment from the connotation analysis of the rural living environment, which has a certain basic role. At present, the academic community agrees that the rural living environment alone as a concept has been talked about is the beginning of the 1990s. Mr. Wu Liangyong proposed the science of human settlements. From a broad level define, the concept of the rural living environment, the academic community agrees with the definition made by Mr. Wu Liangyong, i.e., that rural living environment covers the rural human environment, social environment, geospatial environment, natural ecological environment, and artificial environment [
64]. However, from a narrower perspective, different scholars, because of the differences in their disciplinary background based on Mr. Wu’s definition of the concept of rural living environment and diversified interpretations, cover disciplines such as architectural planning, ecology and environment, and human geography [
65,
66]. (2) Research on the governance model of rural living environment upgrade: Relevant scholars deeply investigate villages, use typical cases to dig out the potential laws of rural living environment governance, and summarize the theoretical logic behind the phenomenon. Although the focus of the governance models is different, they all emphasize the need to coordinate the functions and roles of the government, market, rural residents, and other actors in the governance process [
67,
68].
- (2)
Study on the Development Status of Rural Living Environment Remediation
The content of such studies is time sensitive. At different times, relevant scholars have analyzed the current situation or the existing real problems of rural living environment upgrade from the macro and micro levels, respectively, and put forward diversified solutions to countermeasures. (1) At the macro level, the existing studies mainly summarize the progress of governance from an overall perspective and point out the existence of many common problems, such as inadequate policy implementation, insufficient investment in infrastructure and equipment, poor technical adaptability, and low operational management and care efficiency, and propose countermeasures to strengthen top-level design, improve infrastructure construction, and realize technical and model innovation. (2) The questionnaire survey method is mainly used at the micro level. There is a large-scale survey based on the national scale and combined with the regional characteristics of different regions through the village level and rural resident level survey content to summarize the regional rural habitat environment improvement situation. The survey contents at the village level include infrastructure supply status, environmental sanitation status, household waste and household waste generation, rural toilet renovation status, and village appearance improvement status. Yu, Fajian et al. quantified the amount of domestic sewage and household waste generated in rural areas in Eastern, Central, and Western China, and found that the overall amount of generation was increasing, and there were significant regional differences [
69]. Based on a survey of 211 villages in 24 provinces, Huang Zhenhua et al. found that the problems of low coverage of household waste treatment facilities, unscientific treatment of household waste, inadequate toilet renovation, lagging road greening, and haphazard construction are still prominent [
70]. The rural resident level mainly examines the specific behaviors of villagers’ participation in habitat improvement. Zhao Xia takes the rural areas of Beijing and Hebei as an example and finds that household waste is dumped and placed everywhere, and private construction of village houses and premises is still more common [
71]. In addition, the summary of micro-level experience mostly focuses on improving public services and infrastructure, sound long-term management mechanisms, and enhancing villagers’ awareness of their main responsibilities.
- (3)
Research on the Evaluation of Effectiveness and Influencing Factors of Rural living environment upgrade
This research theme is characterized by multi-scale research, covering the evaluation of governance effects and analysis of influencing factors in different regions and different time years, especially after the rural revitalization strategy was proposed and relevant research results have emerged. (1) Evaluation of the effects of rural habitat environment improvement. From the research scale, it can be divided into national level, provincial level, and rural resident level. The research scale can be divided into national, provincial, and rural resident levels. At the national level, Liang Chen et al. [
72] constructed a rural habitat environment index system based on ecological, production, and living functions. The research results showed that the quality of the rural habitat environment in 30 provinces and cities had been significantly improved. Still, the gap between different regions tends to widen gradually. Deng Xiyue et al. [
73] took Sichuan province as an example at the provincial level. They measured the evolution of rural habitat quality from 2005 to 2019. The results showed that the quality of the rural living environment gradually improved, with significant regional differences among municipalities and a spatial pattern of “high in the east and low in the west”. At the level of rural residents, the satisfaction of rural residents with the effect of rural living environment upgrading was measured by issuing questionnaires. Xu Yixin et al. [
74] found through the survey that the satisfaction of rural residents with the improvement of rural living environment quality was high. Still, the participation of rural residents was low. (2) Research on the influencing factors of rural living environment upgrade: at the macro level, the improvement of the rural living environment is influenced by various factors such as natural geographic conditions, economic development level, and regional culture; at the micro level, rural residents mostly use econometric analysis to study the influencing factors of rural residents’ willingness to participate in household waste treatment and garbage classification and management [
75,
76].
- (4)
Research on the Treatment Model and Technology of Rural Living Environment Upgrade
The academic community has specifically explored their treatment models and the application of treatment technologies around the key tasks of rural living waste treatment, rural living waste treatment, and rural toilet renovation, and in particular, the research literature related to rural living waste treatment is the most abundant. (1) Rural living waste treatment models and technologies: There are three modes of rural living waste treatment in China, namely, decentralized treatment mode, village centralized treatment mode, and into the urban drainage network mode [
77]. Rural living waste treatment technology mainly includes soil percolation technology, artificial wetland technology, solar-powered sewage treatment technology, and biofilm treatment technology, etc. [
78]. The differences in natural geographic conditions and topographical features lead to different treatment modes and technology selection. (2) Rural living waste treatment modes and technologies. Nowadays, many rural areas adopt the waste treatment model of “household storage, village collection, town transfer and county treatment”, which is difficult to achieve separate storage, and is unified by the government and lacks long-term funding, so some scholars propose a separate treatment model, which can realize part of the waste can be treated locally at source and improve the recycling rate [
79]. The existing rural living waste treatment technology mainly includes incineration treatment, composting technology, and sanitary landfill, etc. Ren Yue et al. studied a household waste sorting and disposal technology, which can achieve a resource utilization rate of more than 90% through the biological enzyme liquefaction method [
80]. (3) The model and technology of rural toilet transformation: Rural residents live in scattered areas, with a wide variety of toilet types, and fecal matter is mainly treated separately. Some scholars currently study the characteristics of sanitary toilets, such as the three-compartment fecal septic tank type the and fecal matter–urine separation type, and evaluate the effect of fecal waste treatment technologies such as anaerobic fermentation, aerobic fermentation, drying, and incineration to achieve harmless and resourceful treatment [
81].
5.3. The Rural Living Environment Upgrade Research Stage

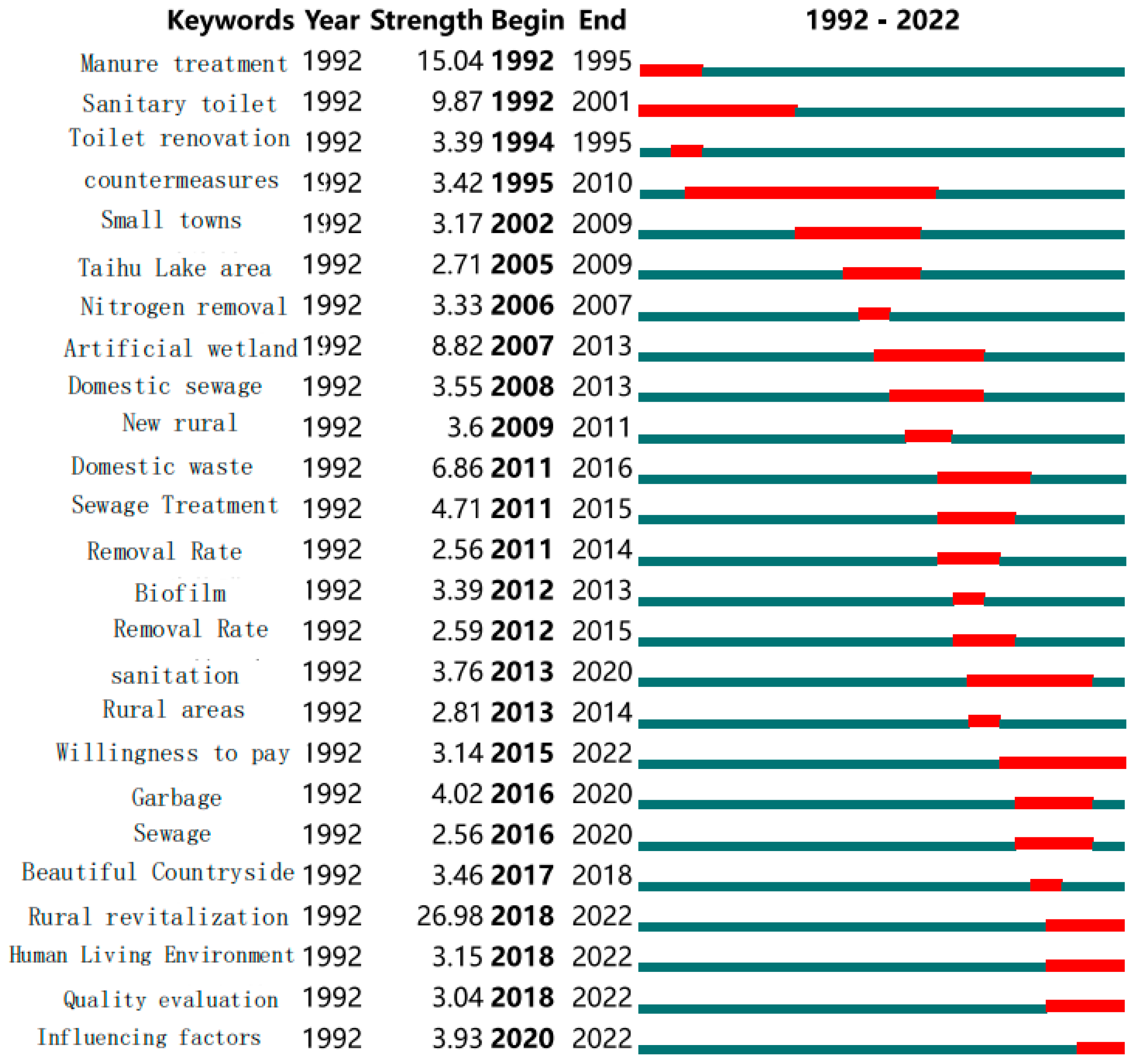

Twenty-five burst words were obtained by automatic software measurement. The red line indicates the length of time and the year in which the keyword appears.
Figure 6 shows that the early scholars focused on rural toilet improvement research, with the main target of “fecal matter treatment” and “sanitary toilets”. In recent years, research has been conducted around keywords such as “rural revitalization”, “human living environment”, and “quality evaluation”. With the analysis of publications, policy evolution, and the emergent words in several stages, the evolution of research on rural living environment upgrading in Chinese academia from 1992 to 2022 can be divided into three stages.
The first stage is the initial stage (1992–2003). The academic research on rural habitat environment began at the end of the 20th century, during which the sciences of human settlement were just introduced into China. The corresponding policy system of the rural habitat environment still needs to be formed. Hence, the research on rural living environments was relatively small, and the number of publications was also small [
82]. Most of the research topics are focused on the transformation of rural toilets and rural living waste treatment, and the form of research is mainly backgrounding investigation and countermeasure suggestions. Rural toilet reform research topics include the prevalence rate of sanitary toilets and biogas construction; the research topics of rural living waste include the research of artificial wetlands, biofilm, and other sewage treatment technologies.
The second phase is the expansion phase (2004–2017) years. During this period, the relationship between urban and rural areas changed and entered a stage of development in which cities backed seeding countryside and industry-assisted agriculture. The state began to focus on improving rural living conditions and living environment, and rural infrastructure construction and public services were significantly enhanced. Academics have started to pay attention to the construction of new rural areas, beautiful countryside, and rural habitat construction, and the number of articles issued has shown a rapid increase [
83]. In this context, more and more scholars began to cut from the perspective of environmental science, agricultural economics, and sociology. The research content was further refined, including waste classification, toilet renovation, sewage treatment technology research, village planning, governance, etc.
The third stage is the mature development stage (from 2018 to the present). Along with the rural revitalization strategy, a series of policies on rural habitat environment have been introduced one after another, with the improvement of rural habitat environment and the improvement of rural residents’ sense of access and happiness as the focus of the work. During this period, key tasks such as “carrying out the toilet and fecal treatment, promoting rural living waste treatment, advancing rural living waste treatment in phases,” and improving the appearance of villages have been clearly defined. At present, the improvement of the rural living environment has entered the stage of centralized improvement, and “harmonious countryside” and “ecological livability” have become the new label of rural living environment [
84,
85].
