The Numerical Simulation of the Pressure Law and Control of the Hard Roof Face in the Far Field
Abstract
:1. Introduction

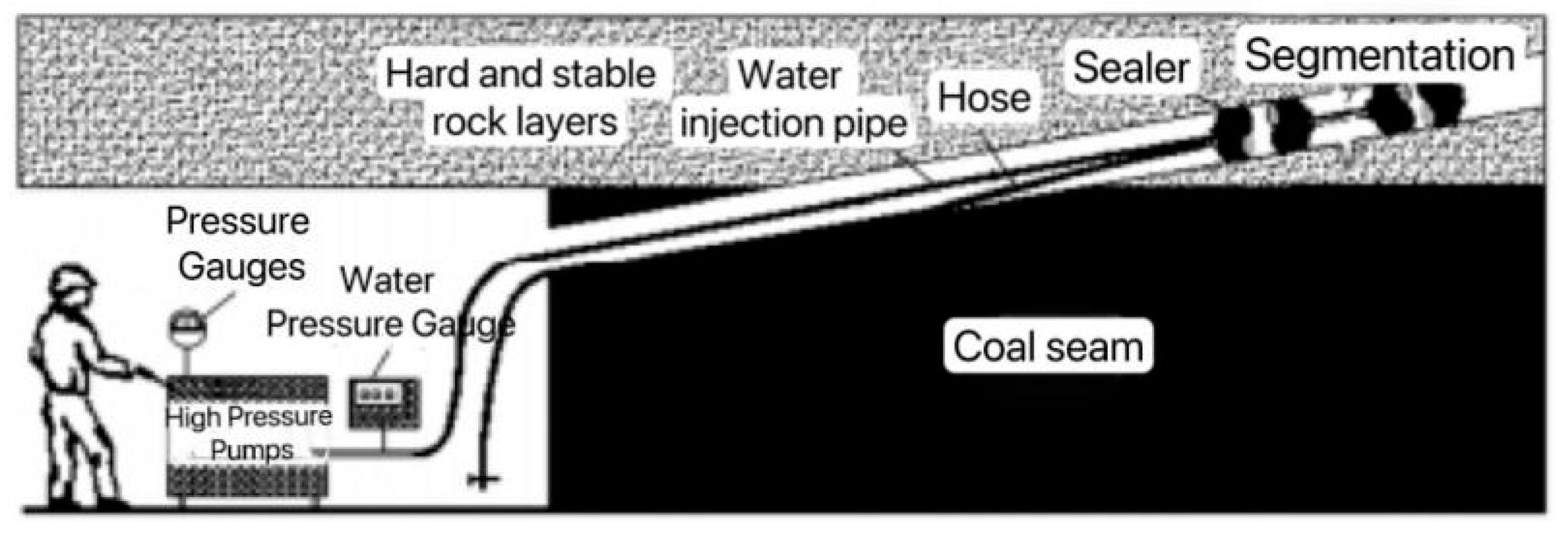

2. Coal Rock Excavation and Hydraulic Fracturing Flow–Solid Coupling Theory
2.1. The Rock Stress Equilibrium Equation
- —Stress component.
- —The component of the outer normal vector, dimensionless.
- —Surface force component.
- —Displacement component.
- —The specified displacement component on the boundary.
- —The boundary of the force.
- —The boundary of the displacement force.

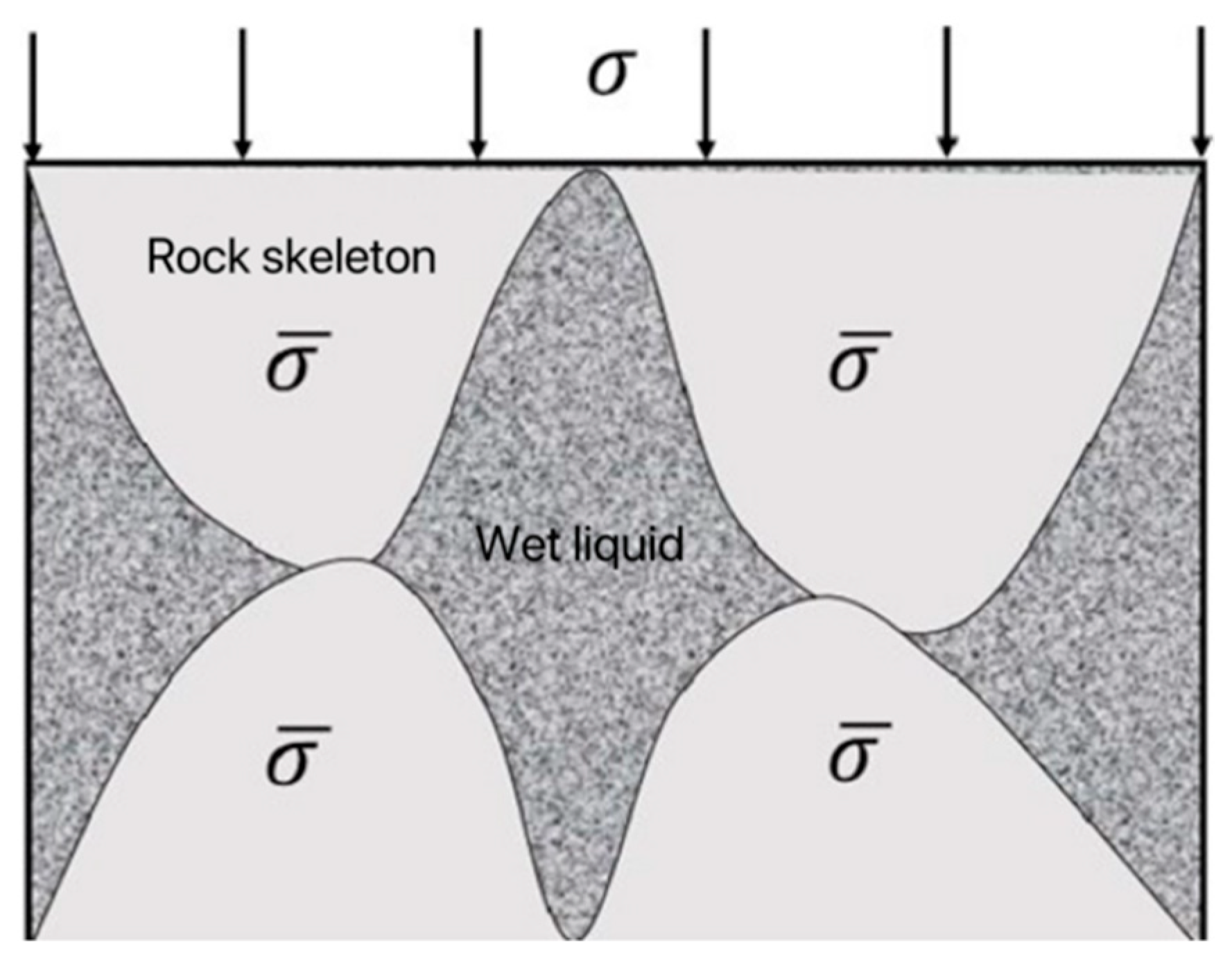

2.2. Fluid Seepage Equilibrium Equation

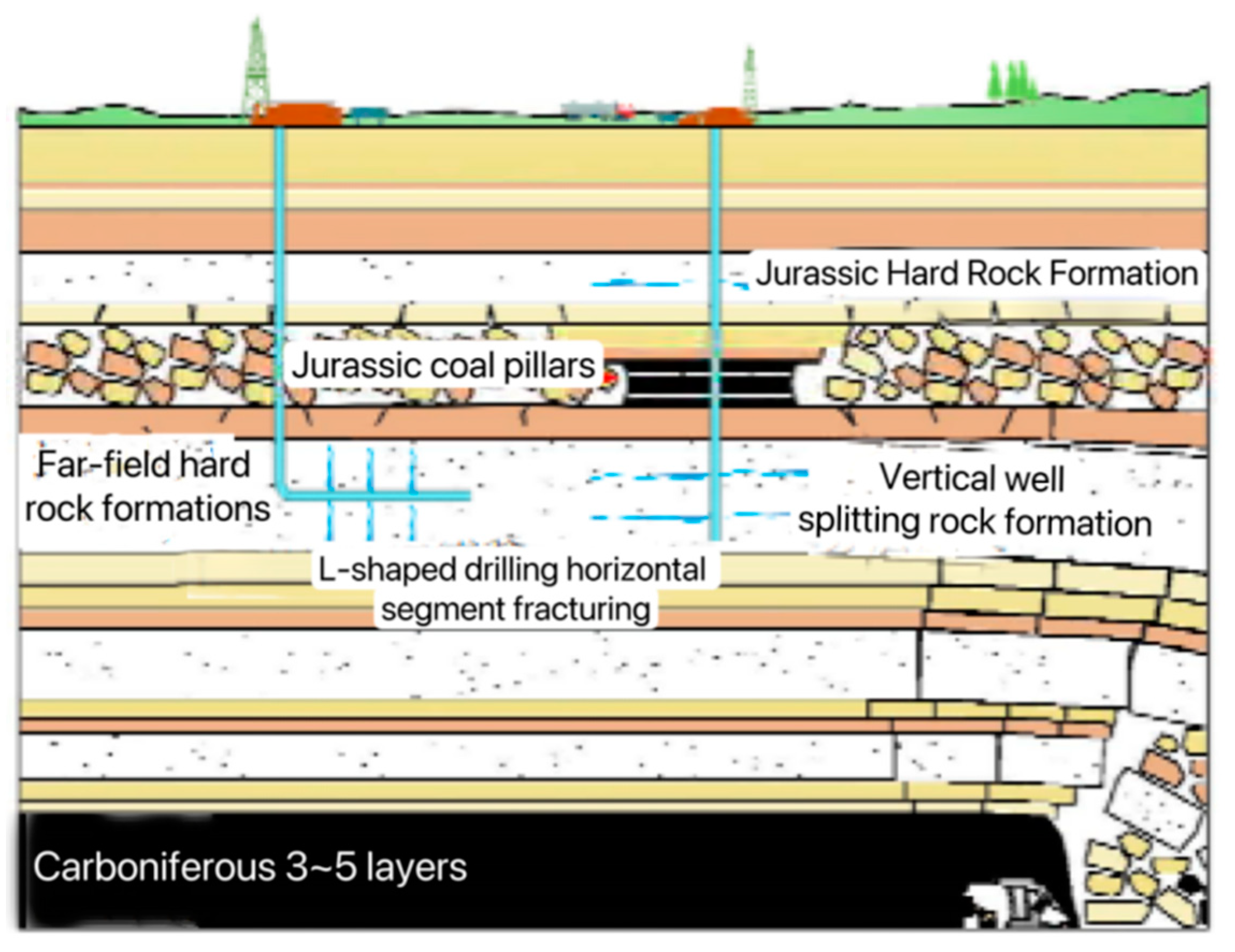

3. Engineering Background
4. The Stress Distribution Pattern of the Hard Top Plate

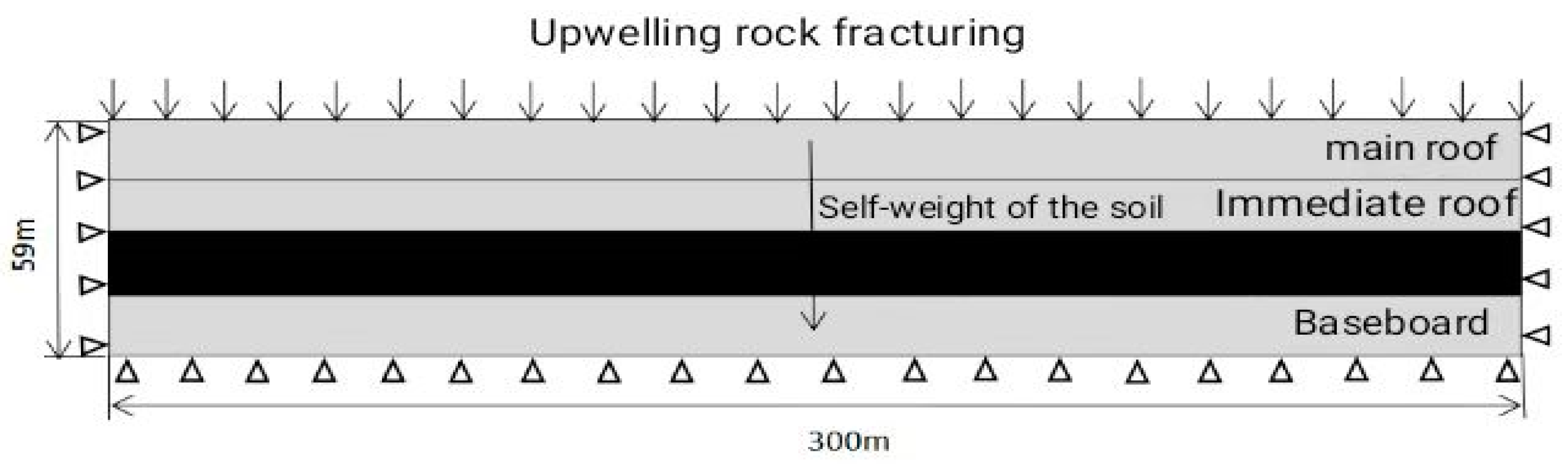

4.1. Numerical Model Construction

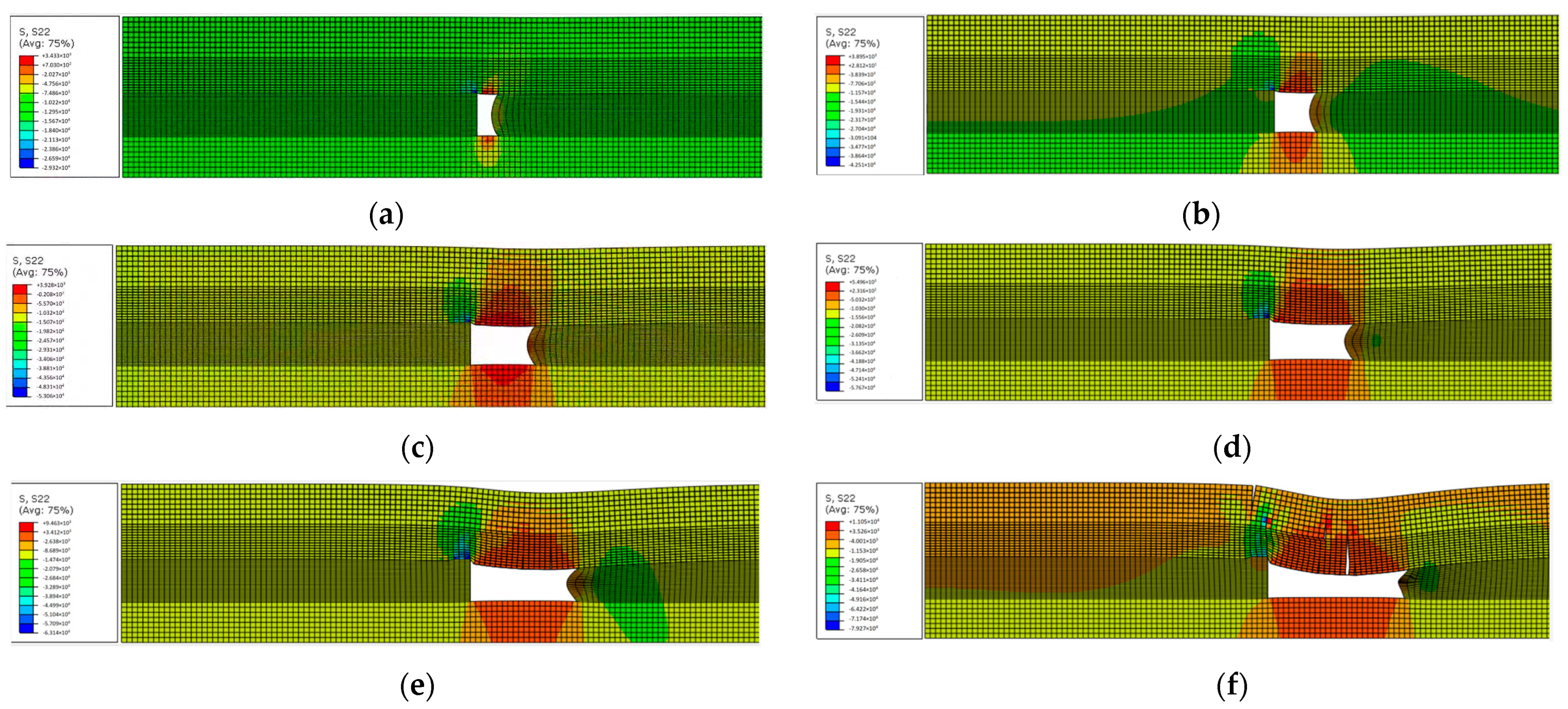

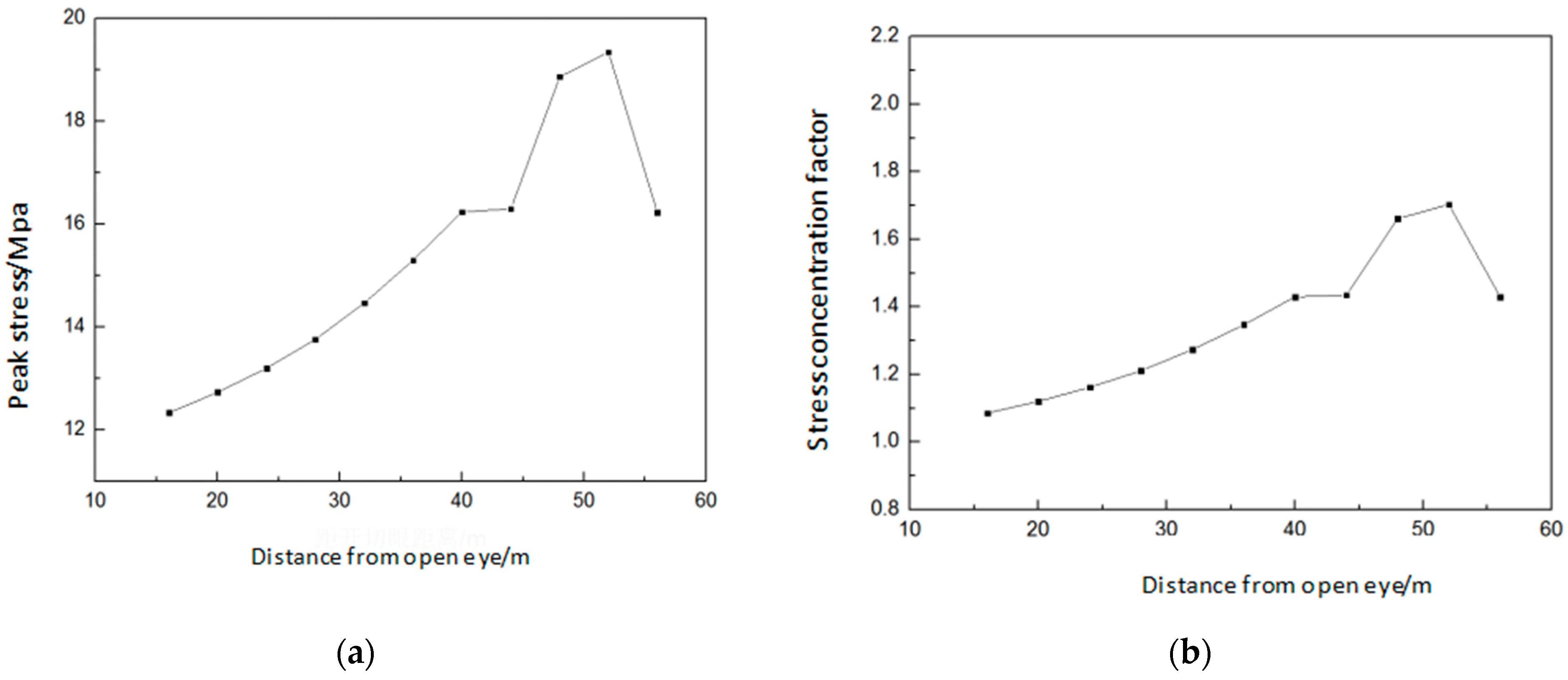

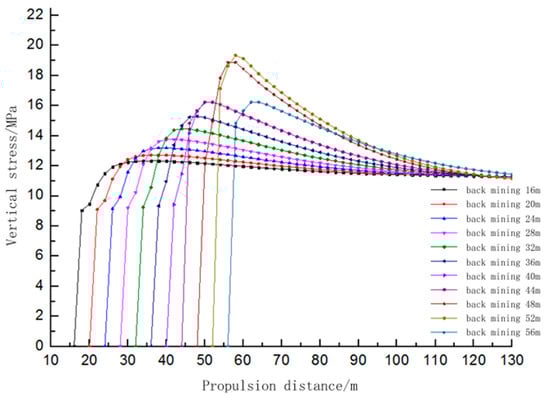

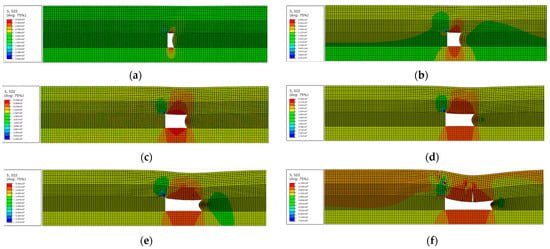

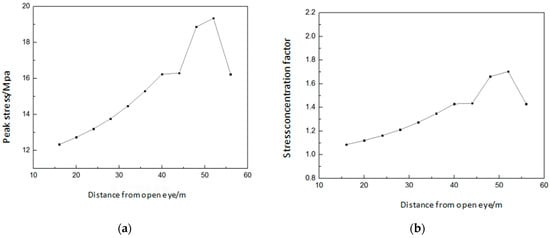

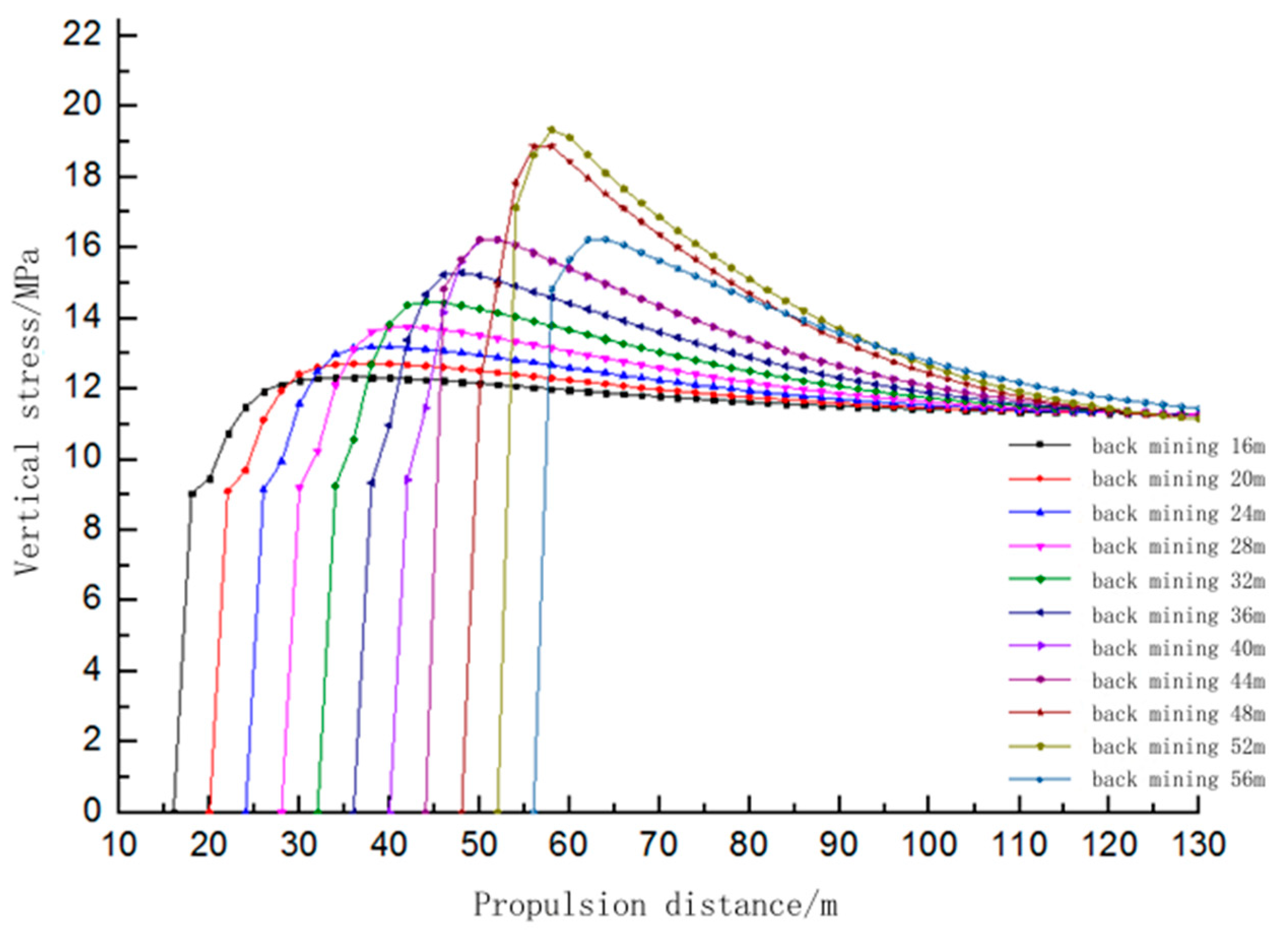

4.2. Analysis of the Numerical Calculation Results
4.3. Numerical Simulation Validation

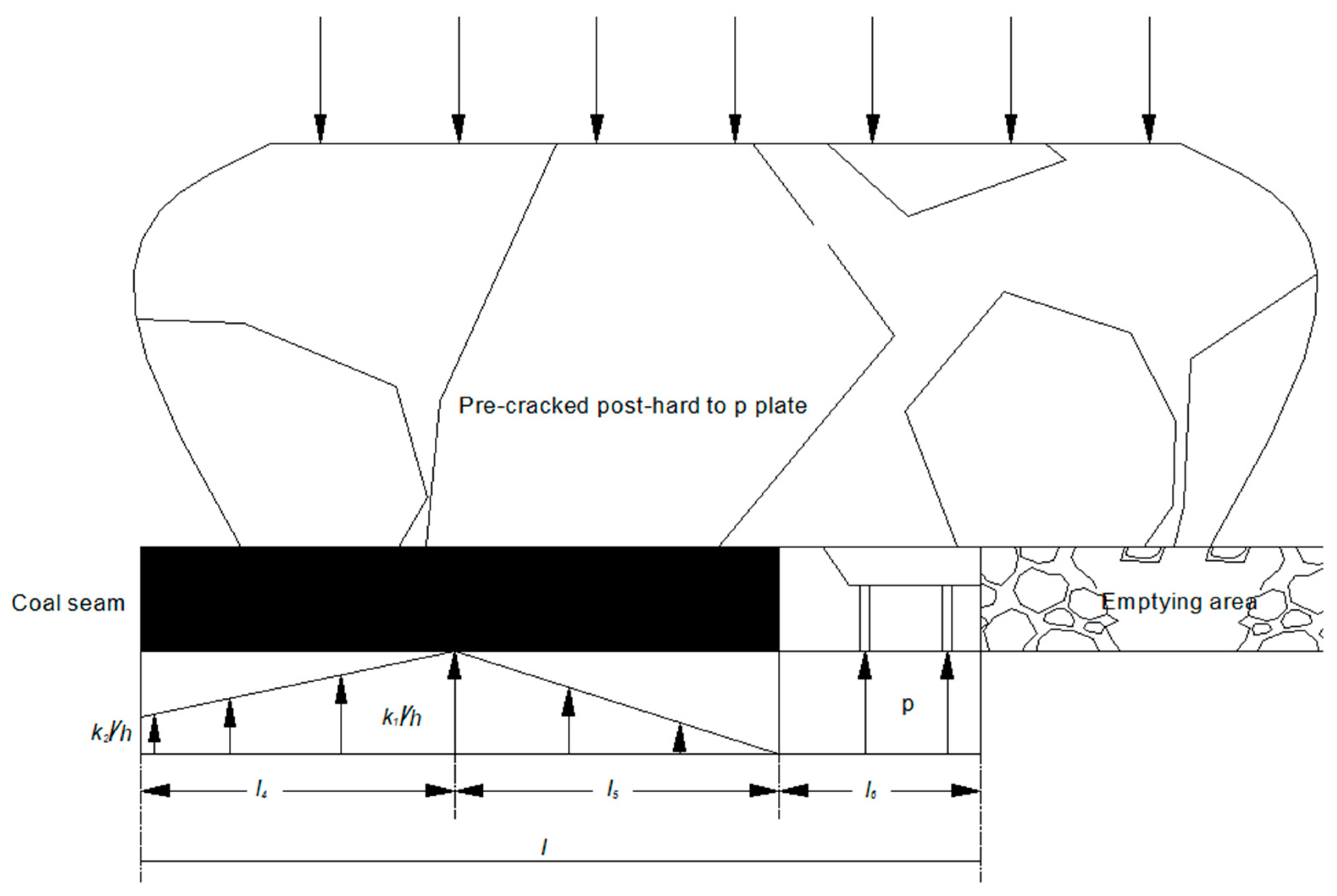

5. The Reasonable Fracture-Weakening Step of the Hard Top Ground
- —refers to the volume mass of the rock layer above the working face.
- —denotes the thickness of the rock layer above.
- —the overlying rock layer number.
- —represents the average volume mass of the overlying rock.
- and —denote the support pressure coefficients.

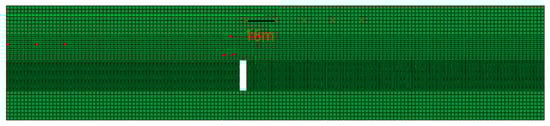

6. The Numerical Simulation of the Prefabricated Fractures in Hard Top Slabs Using Ground Fracturing Technology

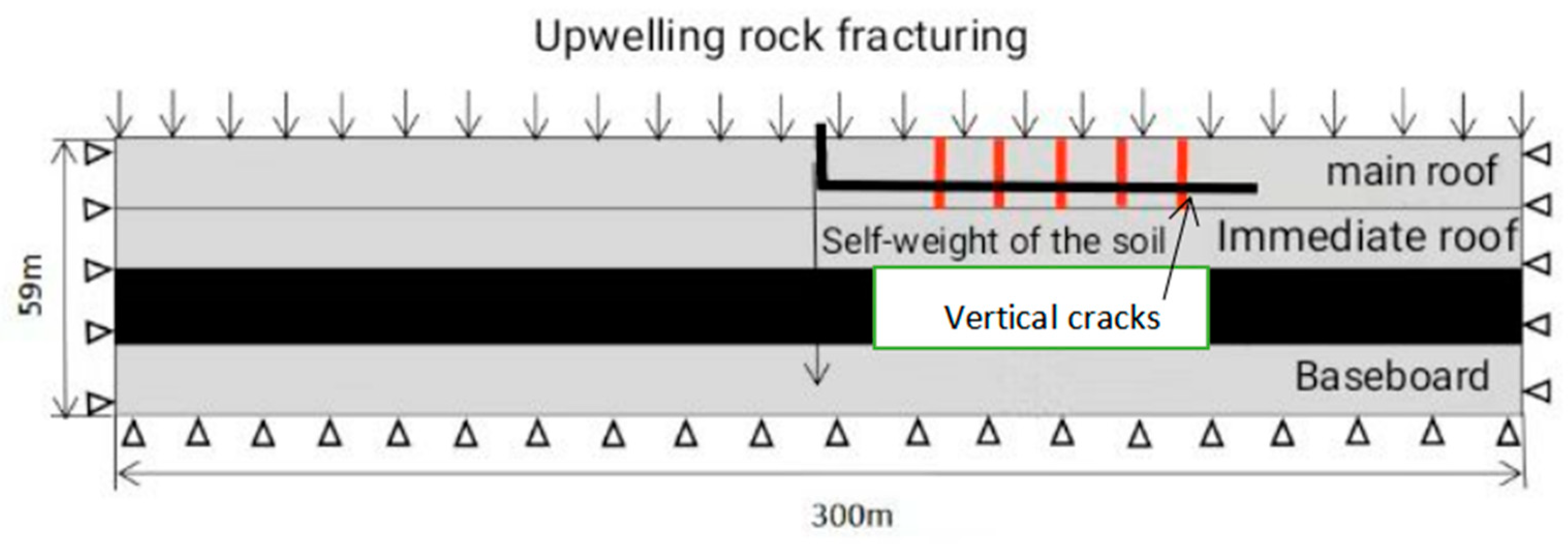

6.1. Establishing the Numerical Simulation

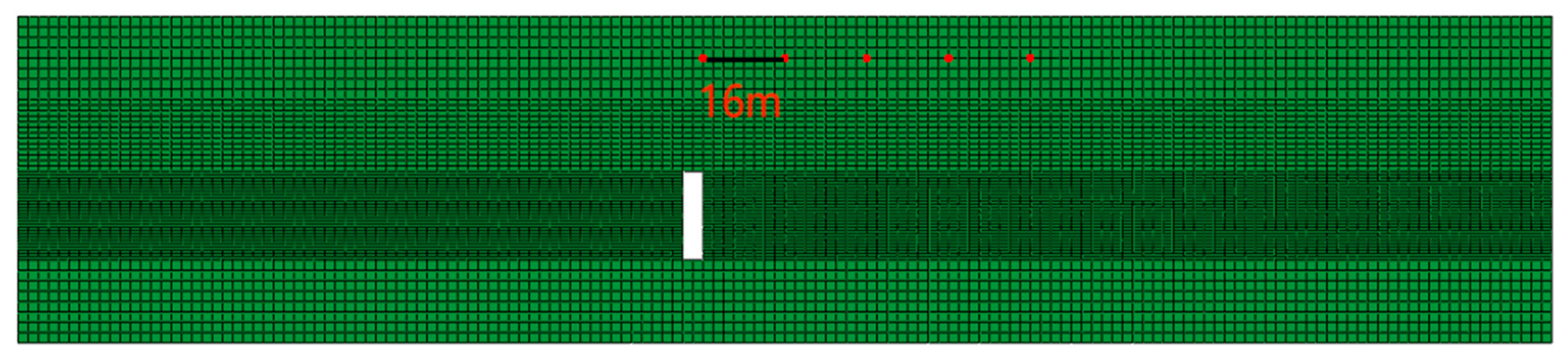

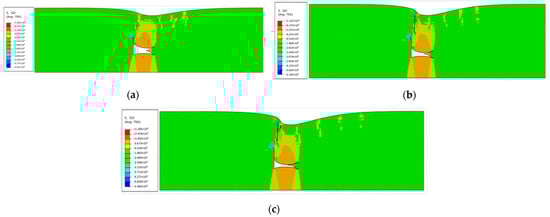

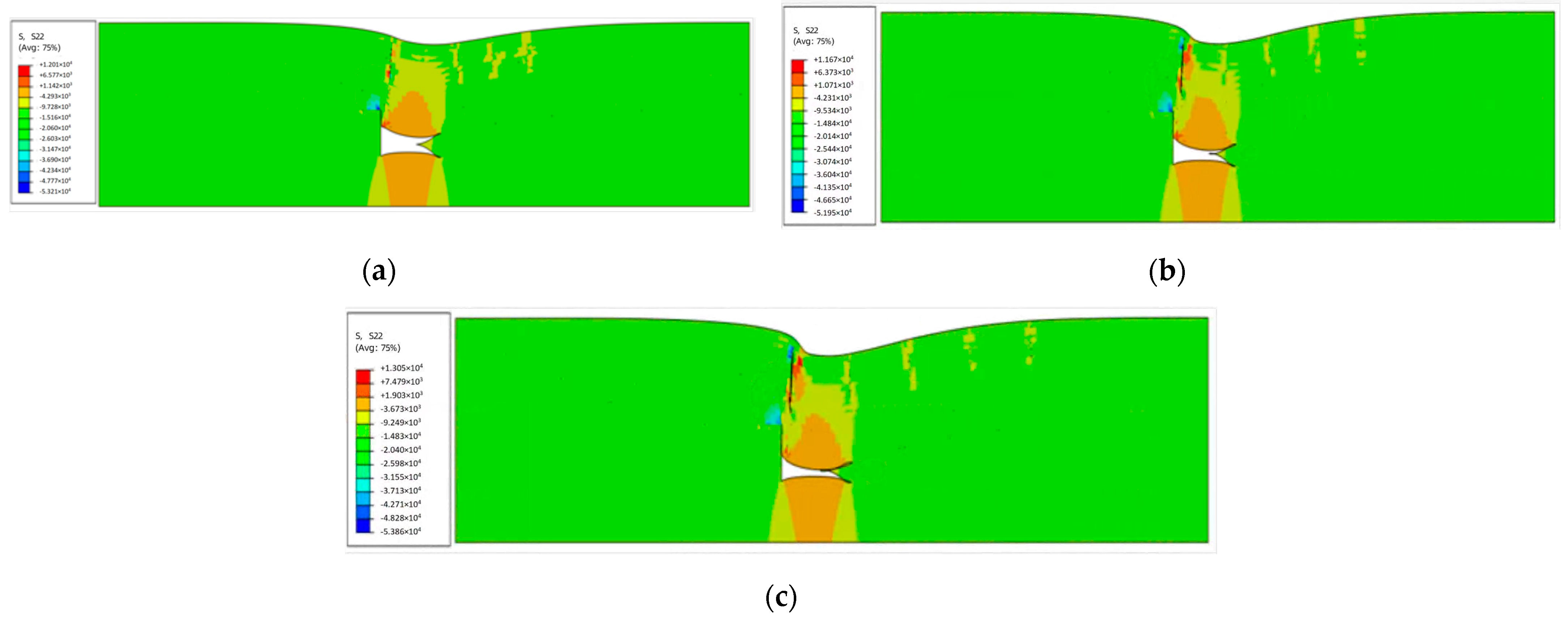

6.2. Analysis of the Numerical Calculation Results
7. Conclusions
- (1)
- The simulation results showed an initial hard top slab pressure step of about 52 m, with an error rate of 0.07% compared to the measured results, verifying the simulation’s accuracy.
- (2)

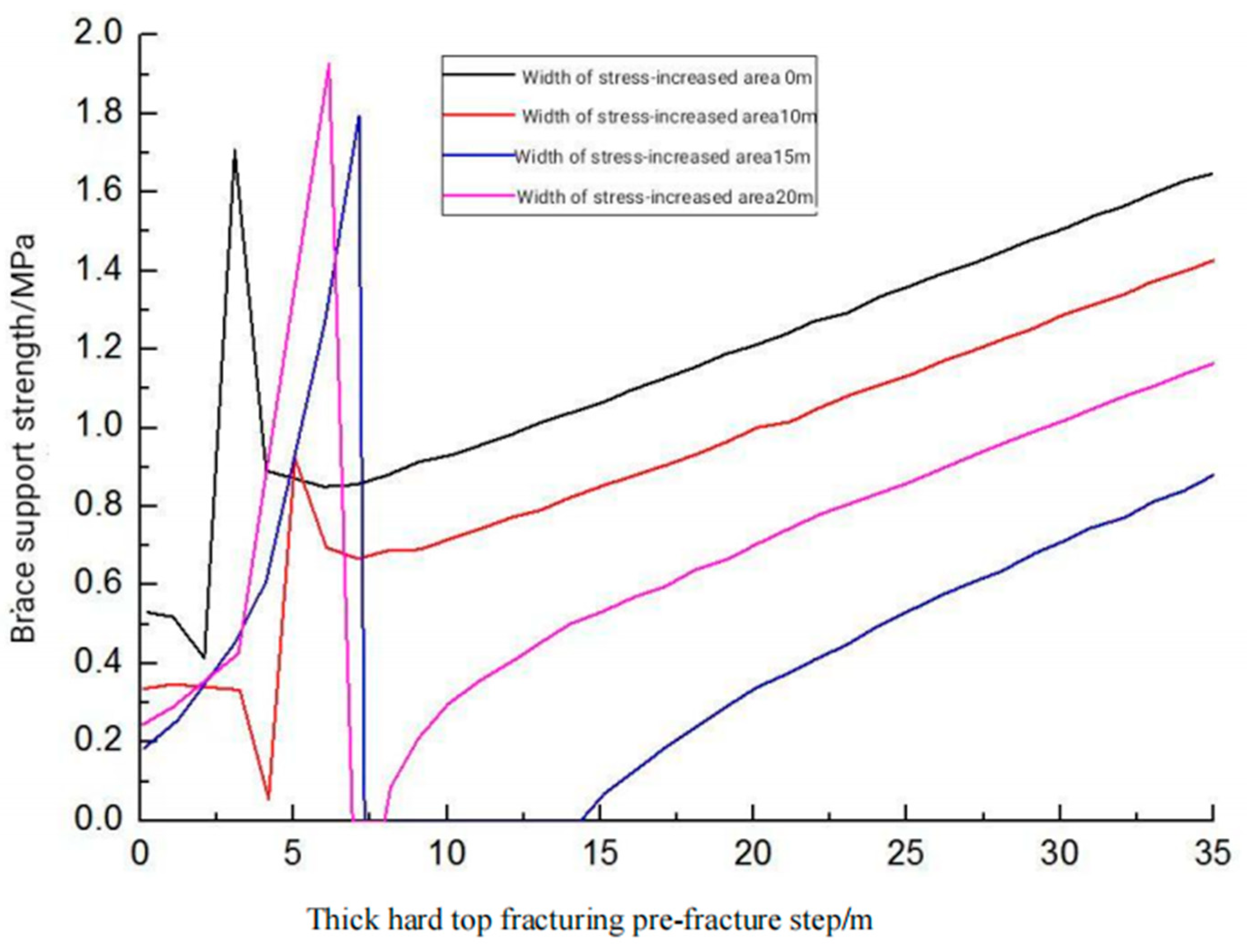

- A correlation analysis of the support strength equation was conducted using the control variable method to determine the relationship between the fracture prediction step and the support strength, identifying a fracture spacing range of 13–24 m.
- (3)

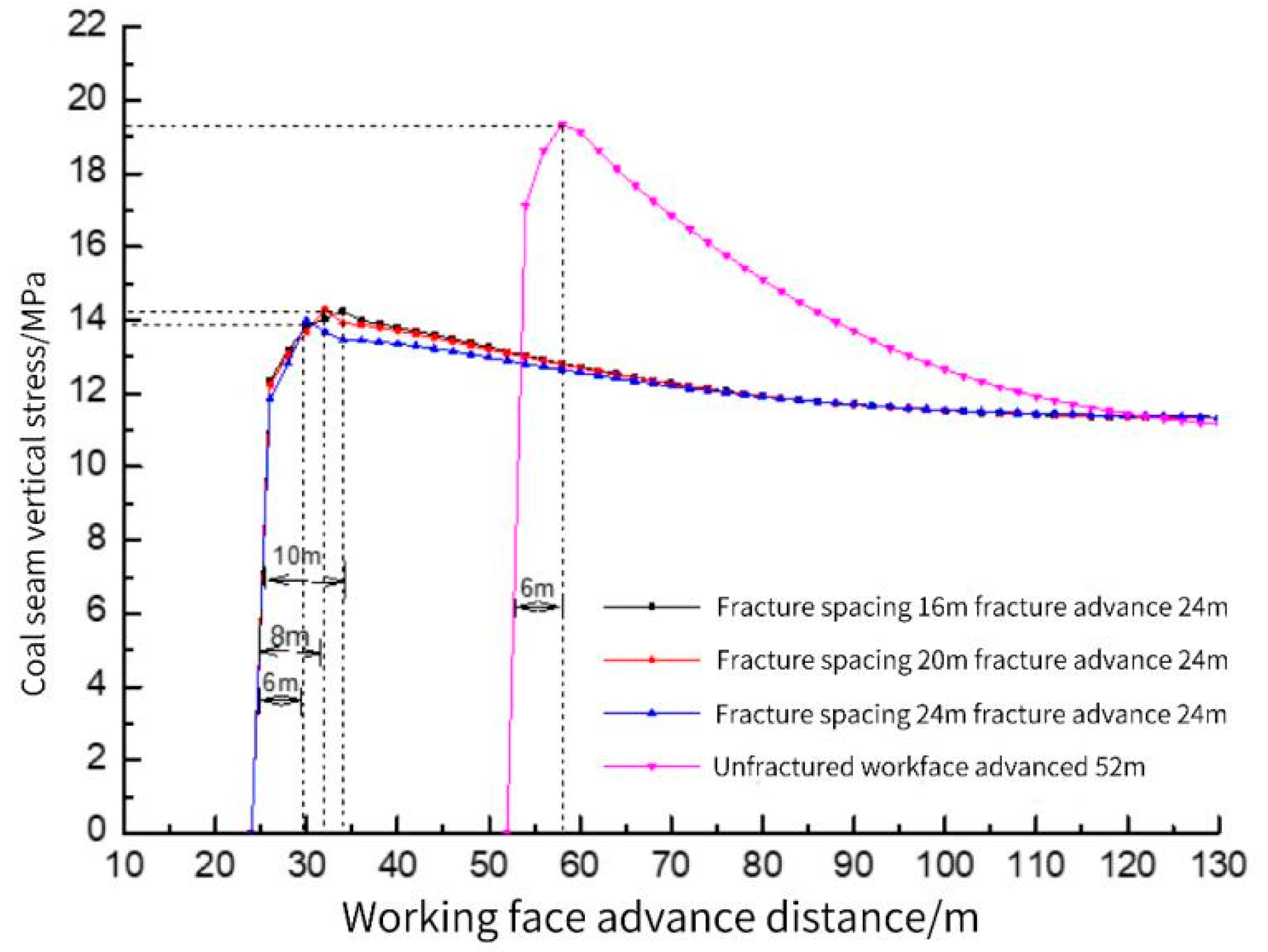

- A combined coal seam excavation and hydraulic fracturing numerical model was established. Fracture spacings of 16 m, 20 m, and 24 m significantly weakened the vertical stress at the coal seam working face when the roof broke, while the degree of reduction was mostly the same. The peak vertical stress occurred the furthest from the working face at the 16 m fracture spacing. Therefore, the pressure from the broken roof had the least impact on the working face, which was more conducive to safe mining practices.
