1. Introduction
The latest progress of Internet of Things (IoT) technology makes smart cities no longer a dream. Smart city systems are cyber-physical ecosystems that strengthen the collective intelligence of cities through the interconnection of various infrastructures to provide more intelligent and efficient services, such as smart healthcare, smart transportation, and smart education [
1,
2]. Today, cities all over the world, such as New York, Paris, London and Tokyo, have tended to apply new technologies to become smart cities. It is estimated that the number of intelligent infrastructures for digital city services will reach about 1.3 billion by 2024 [
3]. And the size of the global smart cities market will increase approximately twofold between 2020 and 2025, increasing from
$410.8 billion in 2020 to
$820.7 billion in 2025 [
4]. Although smart city technologies have brought numerous benefits to improve the quality of people’s lives, they also brought a variety of security vulnerabilities and risks, opening up doors to attackers, which could cause significant economic losses [
1,
5,
6].
Due to the reliance on resource-limited IoT devices and hyper-connected IoT networks, smart cities are being exposed to numerous security threats [
7]. In 2019, the city of New Orleans spent
$7.2 million to recover from a cyber-attack [
8]. In January 2021, a cyberattack even enabled an attacker to alter chemical concentrations in a local water supply system [

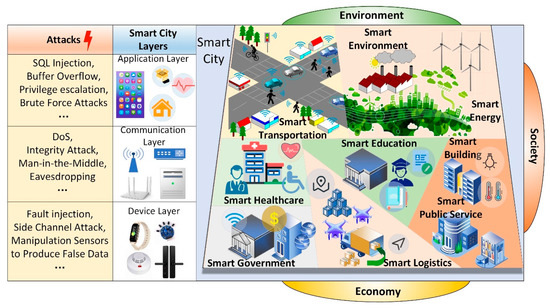

9]. In fact, various cyberattacks could occur in smart cities. For example, by controlling the traffic signals, attackers could create accidents in smart cities [
10]. By injecting false routes to smart vehicles, attackers could cause collisions in smart cites [
11]. Through the surveillance of cameras, attackers could spy on citizens and access to citizens’ personal data [
12].
Existing studies [
5,
6,
13] have pointed out that when the traditional city infrastructure system is connected to the network by using the control system based on information and communication technology, various security risks in the information network will be introduced into the city infrastructure system. This will seriously affect the security and stability of the city infrastructure system. Specifically, smart city systems usually integrate a large number of software and hardware devices as system components, such as SCADA systems, sensors, microcontrollers, routers, and telecommunication switches [
6]. Most of these interconnected devices are produced by different manufacturers, using different versions of hardware and software, and complying with different security standards [
14]. These devices may have security vulnerabilities, for example, Schneider Modicon M580 controller commonly used in smart grid systems has vulnerability CVE-2021-22792, and Raspberry Pi 3 Model B+ widely used in smart home systems has vulnerability CVE-2018-18086 [
15]. The vulnerabilities vary from engineers’ design errors to backdoors [
14]. Vulnerabilities in these system components can be easily exploited by various types of network attacks [
2,
3,
6,
16]. By exploiting the vulnerabilities of poorly protected devices, attackers can successfully attack the target device through device-to-device interaction [
3,
14]. Hacking or infecting one network-connected device provides the possibility of infecting other devices in smart cities [
3], which could lead to large-scale damage or even paralysis of the city’s critical infrastructure [
14,
17,
18,
19,
20,
21,
22]. Existing studies [
14,
17,
18,
19,
20,
21,
22] call this problem as cascading failure. The widely adopted definition of cascading failure given in [
17] is as follows: disruption in one infrastructure causes the failure of a component in a second infrastructure, which subsequently causes a disruption in the second infrastructure.
Vulnerabilities pose a great threat to the security of smart city systems [
2,
3,
6,
16], and cascading failures further amplify the threat [
14]. Cascading failures may lead to serious losses in smart cities, such as large-scale power outages [
18,
19], serious traffic paralysis [
21] and large-scale water outages [
22]. Therefore, identifying vulnerabilities and potential cascading failures in the design stage of smart city systems is essential to prevent huge social, environmental and economic losses. Due to the highly interconnected nature of the smart city system, security problems in one area of the network may cause cascading failures in the whole smart city system [
14]. So, security is a crucial factor that must be considered during the design and implementation of smart city systems [
1,
2,
3,
5,
6,
7,
13,
14]. Existing research studies [
2,
3,
6,
14,
16,
17,
18,
19,
20,
21,
22] in the field of security analysis of smart city systems mostly focus on the analysis of the negative impact of vulnerabilities and cascading failures on the systems and do not support the analysis of the consequential social, environmental and economic losses of smart cities at the design stage of smart city systems to guide the security design of smart city systems. To solve this problem, this paper combines the techniques of UML modeling, formal modeling and verification, and KPIs evaluation to support KPI-guided security by design for smart city systems.
Model-based system design approach follows the principle of “Security by Design” and can be integrated into Model-Driven Engineering (MDE) to identify security flaws in the early design phase of systems. In recent years, numerous studies [
23,
24,
25,
26,
27,
28,
29,
30] have applied model-based approach to perform security analysis on systems. However, when these methods are applied to smart cities, there are still shortcomings. Some formal methods [
24,
25,
26] require engineers to write complex formal specifications or security properties, which is a huge challenge for most system engineers. Some approaches [
23,
27,
28] use simple and intuitive Unified Modeling Language (UML) to facilitate engineers’ understanding but lack precise semantics to support formal verification. Some studies [
29,
30] combine UML and formal languages to verify UML models through the techniques of model transformation and formal verification. However, these methods [
29,
30] do not focus on the modeling and verification of smart cities, and do not support the detection of potential mission failures of smart city systems under security threats. In the area of security analysis on smart cities, although numerous research efforts [
3,
5,
6,
31,
32,
33,
34,
35,
36,
37] have been made, most existing techniques focus on security risk analysis and risk assessment of smart cities, rather than providing security design modeling approach to ensure security by design of smart city systems.
To fill the research gap, this paper presents a novel KPI-guided model-based design approach and accompanying prototype tool, named SCKPISec (
Smart
City
KPI-guided
Security). The smart city Key Performance Indicators (KPIs) are important indicators to evaluate the urban development from the dimensions of society, environment and economy [
37,
38]. Improving the KPIs of smart cities are important goals in smart city governance. If smart city systems have vulnerabilities that are exploited by attackers, it may lead to system failures and incidents, resulting in unacceptable KPI losses. The innovation of SCKPISec is that it integrates model-based system design, formal verification and KPIs evaluation of smart cities. SCKPISec first takes advantage of the extension mechanism of UML by extending the UML diagrams to support the modeling of smart city systems. Then it applies the model transformation and model checking techniques to verify the formal models for violations of security properties to detect potential mission failures of smart city systems under security threats. On this basis, KPI losses can be evaluated according to corresponding mission failures, which can help to intuitively determine whether the design of the smart city system is secure enough to avoid unacceptable KPI losses.
Compared with existing studies, SCKPISec has several advantages. First, SCKPISec provides UML profile for system modeling, which allows engineers from different domains to understand the models easily. Second, unlike existing security analysis approaches [
3,
5,
6,
31,
32,
33,
34,
35,
36,
37] for smart cities, SCKPISec applies MDE techniques and follows the principle of “Security by Design”. It can identify potential mission failures of smart city systems under threats in the early design stage. Third, different from existing model-based security analysis approaches [
23,
24,
25,
26,
27,
28,
29,
30], SCKPISec guides the security design of smart city systems with KPIs, which can assist engineers to enhance the security design of smart city systems to avoid unacceptable KPI losses. Fourth, through model transformation, SCKPISec automatically generates formal models, so that engineers do not need to write formal specifications manually, which reduces the burden of engineers learning formal methods.
This paper makes the following contributions:
- (1)
This paper proposes a KPI-guided smart city system security design approach SCKPISec. This approach guides the security design of smart city systems with KPIs. Through the modeling and verification of smart city systems, SCKPISec can identify potential mission failures that can cause KPI losses under security threats and evaluate the KPI losses quantitatively. To the best of our knowledge, this is the first study that provides an effective way for the security design of smart city systems under the guidance of KPIs.
- (2)
To support model-based design of smart city systems, this paper presents a four-layer model consisting of the mission layer, the function layer, the architecture layer, and the security layer. By utilizing the extension mechanism of UML, the SCKPISec UML profile is proposed to support the establishment of the four-layer models for smart city systems using graphical UML models, which provides a basis for engineers from different domains to participate in system design of smart cities.
- (3)
This paper presents an automatic formal modeling and verification approach to detect potential mission failures under security threats that can cause unacceptable KPI losses in smart cities. The UML model analysis technique and model transformation technique are utilized to automatically transform the UML models into formal models and then automatically verified by using the Alloy Analyzer [
39]. We evaluated the proposed approach through case studies of two representative smart city systems. The source code of SCKPISec and the experimental data are available online [
40].
The structure of this paper is as follows.
Section 2 introduces the background and the running example.
Section 3 presents the overview of SCKPISec.
Section 4 presents the UML profile of SCKPISec.
Section 5 describes the automatic formal modeling and verification approach.
Section 6 evaluates SCKPISec through case studies.
Section 7 discusses related works.
Section 8 concludes the paper.
3. Overview of SCKPISec
In order to achieve “Security by Design” guided by KPIs, the model-based security design approach of smart city systems should be able to evaluate KPIs of smart cities under security threats through the design models of smart city systems. Therefore, the proposed approach needs to satisfy the following requirements: R1. This approach can be used to establish design models for smart city systems and capture the security threats faced by the systems through models. R2. This approach can be used to analyze the impact of security threats on smart city systems through the established models, and quantitatively evaluate potential KPI losses of smart cities under security threats.
- (A)
UML Modeling
In order to satisfy requirement R1, it is necessary to propose a modeling approach for the design of smart city systems. Quamara et al. propose the state-of-the-art multi-layered model-based security design approach for systems [
61]. In their approach, a three-layer design model that consists of mission layer, function layer and architecture layer is proposed, which can consistently decompose high-level mission-centric system specifications into detailed and specific system architecture. Based on the three-layer design model [
61] proposed by Quamara et al., this paper proposes a four-layer model for KPI-guided security design of smart city systems. The proposed model consists of mission layer, function layer, architecture layer and security layer. The mission layer describes the high-level system missions related to KPIs, the contributions of missions to KPIs, and KPI losses caused by possible mission failures. The function layer describes the functions obtained by decomposing the missions. The architecture layer represents the system as a set of components that implement the system functions and describes the interaction between components. The security layer describes security threats faced by systems as well as the applied security control mechanisms and the costs.
To describe security threats faced by smart city systems through models, specific model elements need to be designed. The widely used Microsoft’s STRIDE method [
60] for threat analysis classifies threat types into six categories: Spoofing, Tampering, Reputation, Information Disclosure, Denial of Service and Escalation of Privilege. This paper refers to this classification to describe the threat types to analyze the impact of possible attacks on smart city systems. Smart city systems are usually integrated by a large number of software and hardware components. Attackers can exploit vulnerabilities of components to harm the systems. The widely used vulnerability database Common Vulnerabilities and Exposures (CVE) [
15] reports common vulnerabilities of software and hardware products. In order to model the vulnerabilities of smart city systems, this paper refers to CVE database and designs corresponding modeling elements to describe the vulnerabilities of components in smart city systems.
UML is a widely used modeling language in the area of MDE. This paper chooses UML as the modeling language because UML has the following advantages: (1) UML is highly-abstracted without limiting programming languages used in the system development process, and (2) the UML profile provides an extension mechanism based on stereotypes, which allows users to define model elements with specific semantics by extending UML diagrams.
UML provides a series of models such as class diagram, use case diagram, component diagram, etc. Suitable UML diagrams are selected to establish the four-layer design model presented in this paper. The mission layer requires to describe KPIs, missions, and relations between KPIs and missions. The function layer requires to describe missions, functions, and the relations between missions and functions. The security layer requires to describe security threats faced by the systems and security control mechanisms applied to mitigate the threats. The UML class diagram can describe objects and their relationships, which well suits the above requirements. Hence, we choose UML class diagram to establish the mission model, the function model and the security model. The architecture layer requires to describe the components of the system and the interfaces between components. Therefore, UML component diagram is selected to establish the architecture model.
By extending standard model elements in UML class diagram and UML component diagram, this paper defines a set of stereotypes in SCKPISec UML profile to represent the model elements to establish the mission model, the function model, the architecture model and the security model (see
Section 4 for details).
- (B)
Formal Modeling and Verification
In order to satisfy requirement R2, it is necessary to propose an approach to analyze the potential KPI losses of smart cities caused by security threats through models. In smart city systems, vulnerabilities of components can cause different types of component failures under attacks of different types of threats. The interconnected nature of smart city systems makes failures spread among components, leading to functional and security mission failures. The mission failures can lead to KPIs losses of smart cities, which can make the KPIs unable to reach the expected levels. Hence, the proposed approach requires to be able to detect component failures, failure propagation and mission failures caused by security threats through models. For this purpose, the model checking technique is applied in the SCKPISec approach.
Model checking is a formal method widely used in the field of system security analysis. This method verifies whether the system satisfies specific properties, such as security properties, by searching the finite state space of the system. Alloy is the formal modeling language proposed by the software design group of Massachusetts Institute of Technology. In this paper, we choose Alloy as the formal modeling language because it has the following three advantages: First, Alloy is a concise specification language that is compatible with the UML, which facilities the model transformation from SCKPISec UML models to Alloy models. Second, Alloy is based on set theory and supports the modeling of transitive closure, which is necessary to describe and analyze failure propagation in smart city systems. Third, the Alloy Analyzer [
39] can automatically check the security properties of the models and generate the counterexamples for the violations of properties, which provides a basis for automatic identification of various possible mission failures of smart city design models under threats.
In this paper, model transformation technique is applied to support automatic formal modeling. First, the necessary information for model checking is extracted by analyzing the UML models that are established by using the SCKPISec profile. Then, the model transformation technique is applied to transform the corresponding UML models into Alloy models, which are then automatically verified by Alloy Analyzer [
39] to identify possible mission failures of the smart city system under security threats. According to the mission failures detected by model checking and the calculation methods of KPI losses described in the mission model, the smart city KPIs under security threats can be calculated. If the values of KPIs fail to meet the expectation, it means that the security threats faced by the smart city system will cause unacceptable KPI losses. This indicates that further design to enhance the security of the smart city system is necessary.
- (C)
The SCKPISec Approach
MIKADO [
41] is the sate-of-the-art approach for smart city KPIs evaluation. Using MIKADO to evaluate KPIs consists of five phases: the analysis phase, the implementation phase, the preparation phase, the execution phase and the visualization phase. According to the requirements R1 and R2 for KPI-guided security design of smart cities, we modified and expanded the five phases in MIKADO and presented the five phases to use SCKPISec for KPI-guided security by design of smart cities. The overview of SCKPISec is shown in

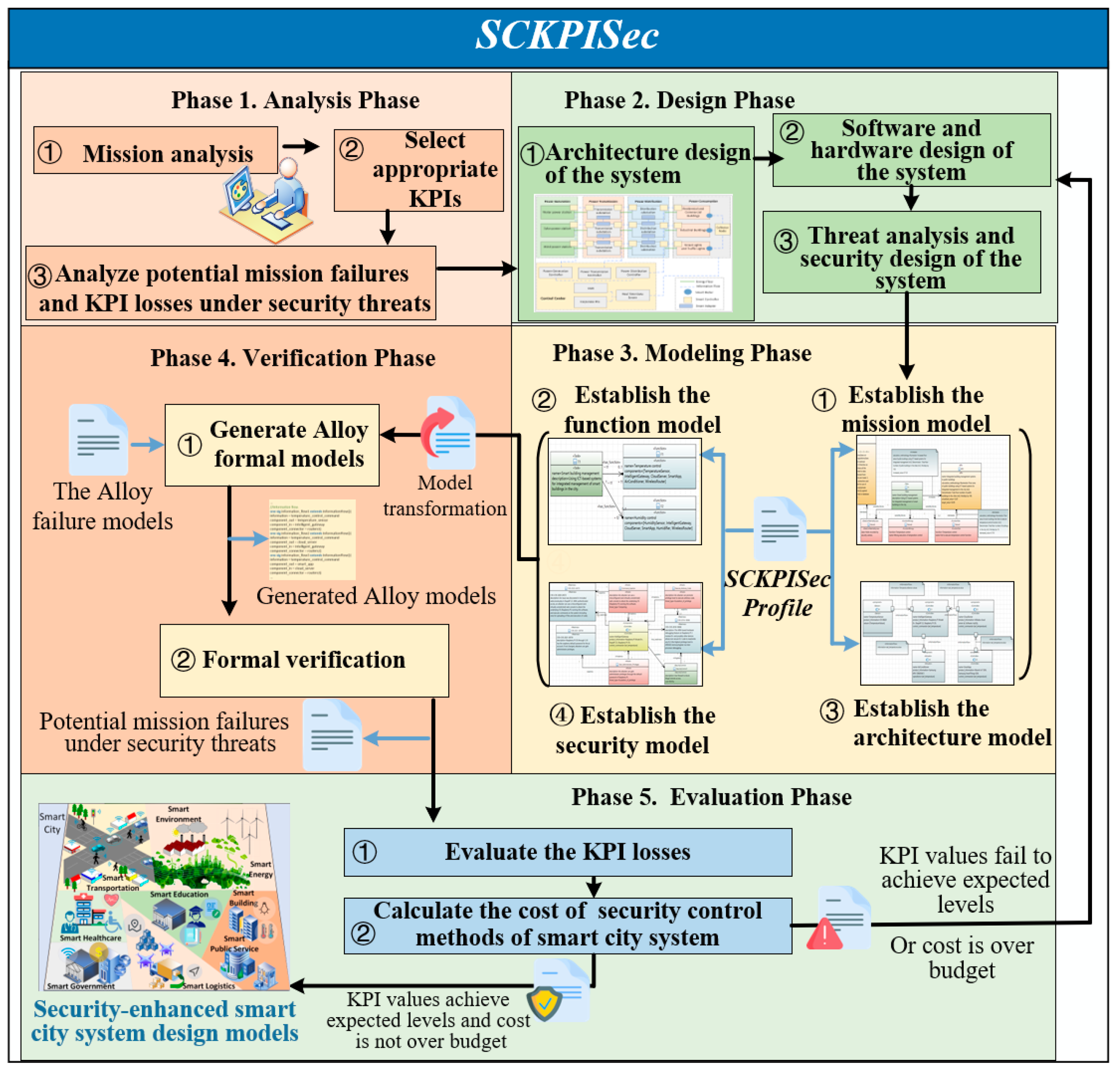

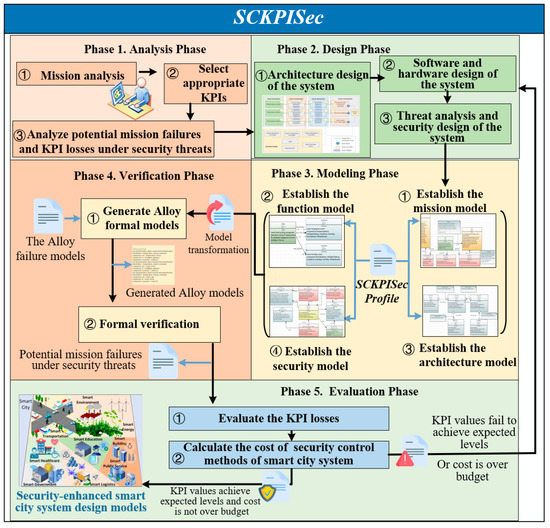

Figure 2.
Phase 1. Analysis Phase
In the analysis phase, engineers should analyze the missions of the smart city system. First, they need to identify the missions of the smart city system. Then they should select appropriate KPIs according to the smart city planning to guide the design process of the system. After that, engineers need to analyze potential mission failures and corresponding KPI losses under security threats.
For example, in the running example, the mission of the smart city system is “smart management of public buildings”, which is recorded as T1. The KPI selected for this mission is
introduced in
Section 2.2. Possible failures of this mission include failure of temperature control and failure of humidity control. For each mission failure, the formula for the calculation of KPI losses is defined according to ITU KPIs [
42], as shown in Equation (2) in
Section 2.
Phase 2. Design Phase
In the design phase, engineers first design the system architecture to describe the components of the system and the interfaces between components. Then the software and hardware design of the system is carried out, and the products of the software and hardware are determined. After that, engineers need to conduct the threat analysis and security design of the system by identifying the vulnerabilities of the system and potential security threats that can harm the system and apply appropriate security control mechanisms to protect the system.
In the running example, first, the architecture of the intelligent management system for public buildings is designed, and the components as well as the connections between the components are pointed out. For example, the system contains temperature sensors and intelligent gateways that are connected. Then the products of the components are determined. For example, this system uses the commonly used Raspberry Pi 3 Model B+ as the intelligent gateway. Then, the vulnerability CVE-2018-18086 of Raspberry Pi 3 Model B+, which allows non-secure code to be written to the memory with high privilege level in remote debugging, can be found in the CVE database. On this basis, appropriate security control methods can be applied. For example, using the firewall to prevent illegal remote access.
Phase 3. Modeling Phase
In the modeling phase, engineers need to design the smart city system model by using the proposed four-layer smart city design model that consists of the mission layer, the function layer, the architecture layer and the security layer. And engineers should use the SCKPISec UML profile to establish the model for each layer. The detailed steps of modeling are presented in
Section 4.
Phase 4. Verification Phase
In the verification phase, the SCKPISec tool [
40] generates the formal models from the established UML models by model transformation. Then, SCKPISec verifies the formal models automatically by using the Alloy Analyzer [
39] and the presented Alloy failure models to point out the mission failures of smart city system under security threats. The verification approach is described in detail in
Section 5.
Phase 5. Evaluation Phase
In the evaluation phase, according to the formal verification results, engineers need to evaluate the KPI losses caused by mission failures by using the KPI calculation method specified in the UML mission model. Then, they need to calculate the cost of the smart city security design according to the cost of each security control mechanism specified in the UML security model. If the KPI values of the designed smart city system achieves expected levels and the cost is not over budget, then it is a security-enhanced smart city system design model that satisfies the KPI requirements. Otherwise, the smart city system should be redesigned to enhance system security under threats.
4. SCKPISec UML Profile
By extending standard model elements in the UML class diagram and component diagram, this paper proposes a series of UML stereotypes to represent the model elements in the mission model, the function model, the architecture model and the security model, as shown in
Table 1.
In the following, we use the running example introduced in
Section 2.2 to concretely describe the stereotypes and the steps of using the stereotypes to establish the models.
4.1. The Mission Model
In order to design a secure smart city system under the guidance of KPIs, it is necessary to evaluate KPIs of the smart city through models. The KPIs are directly affected by the mission execution of the smart city system. Therefore, it is necessary to model the missions and corresponding KPIs. This paper proposes the mission model to describe high-level missions of smart city systems and the impact of missions on smart city KPIs. The mission model provides a basis for calculating the KPI losses caused by security threats and determining whether the smart city design model can achieve the expected KPI levels under threats.

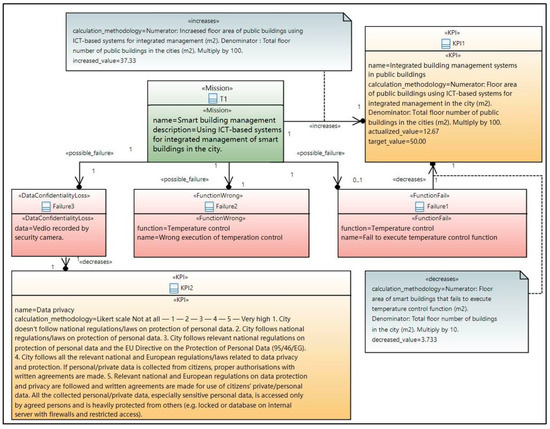

In the following, the mission model shown in
Figure 3 is used as an example to explain the stereotypes and the modeling steps of the mission model.
Step 1. Use the stereotype <<Mission>> to model the missions.
The stereotype <<Mission>> extends the standard UML model element Class to describe the missions of the smart city system. For example, in
Figure 3, the mission T1 marked with <<Mission>> represents the smart building management mission in the running example.
Step 2. Use the stereotype <<KPI>> to model the KPIs.
According to the KPIs metamodel proposed in the state-of-the-art KPIs evaluation approach MIKADO [
41], this paper presents the UML stereotype <<KPI>>. <<KPI>> has four properties,
name,
calculation_methodology,
actualized_value, and
target_value. For example, in
Figure 3, KPI1 marked with <<KPI>> represents
in the running example. As shown in
Figure 3,
name and
calculation_methodology of KPI1 are obtained from ITU KPIs [
42],
actualized_value is 12.67, which is calculated by
calculation_methodology, and the expected KPI value is set to 50 by city managers.
Step 3. Use the stereotype <<increases>> to model the increase in the KPI value.
The stereotype <<increases>> extends the standard UML model element
Association and has the property
calculation_methodology to indicate the method for the calculation of the increase in the KPI value, as well as the property
increased_value to indicate the increased value of the KPI. For example, in
Figure 3, the arrow marked with <<increases>> indicates that the mission T1 can increase the value of KPI1. The calculation formula of the increase in the value of KPI1 is shown in Equation (3), where
represents the increased floor area of urban public buildings controlled by ICT systems in the smart city. Assume that in the running example, T1 is designed to enable KPI1 toincrease by 37.33 to reach the target value 50 set by city managers, then the value of the property
increased_value of <<increases>> should be set to 37.33, as shown in
Figure 3.
Step 4. Use the stereotypes <<FunctionWrong>> and <<FunctionFail>> to model wrong executions of functions and function failures respectively. Use the stereotype <<DataConfidentialityLoss>>, <<DataIntegrityLoss>>, and <<DataAvailabilityLoss>> to model the security problems. Use the stereotype <<possible_failure>> to indicate possible functional and security problems of a mission.
In this paper, the problems that can cause KPI losses during the execution of missions are divided into functional problems and security problems. Function problems are divided into wrong executions of functions and function execution failures, which are represented by <<FunctionWrong>> and <<FunctionFail>> respectively. For example, in
Figure 3, Failure1 marked with <<FunctionFail>> describes that the temperature control function cannot be executed, and Failure2 marked with <<FunctionWrong>> describes that the temperature control function executes in an unexpected way, such as improperly heating the room when the command is cooling the room.
For data security, this paper uses the widely used CIA (Confidentiality Integrity Availability) paradigm and presents the stereotypes << DataConfidentialityLoss>>, <<DataIntegrityLoss>>, and <<DataAvailabilityLoss>> to describe the loss of confidentiality, integrity, and availability of data respectively. For example, in
Figure 3, Failure3 describes that the video data recorded by the security camera in the smart building may be leaked.
Step 5. Use the stereotype <<decreases>> to model the KPI losses caused by the problems in the executions of missions.
The stereotype <<decreases>> extends the standard UML model element
Association and has the property
calculation_methodology to describe the calculation method of the KPI losses, as well as the property
decreased_value to describe the decrease in the value of the KPI. In the running example, the formula for the calculation of the decrease in the value of KPI1 caused by Failure1 is shown in Equation (2) in
Section 2, to which
calculation_methodology of <<decreases>> is set. In this example, the importance weight of temperature control function in mission T1 is set to 0.1. Suppose that in the worst case, all the newly added intelligent management systems for public buildings suffer from Failure1, then the decrease in the value of KPI1 calculated by Equation (2) is 3.733. So, in
Figure 3,
decreased_value of <<decreases>> is set to 3.733.
4.2. The Function Model
Smart city missions usually include the implementation of a set of smart city system functions. In order to analyze the impact of security threats on smart city mission executions through models, it is necessary to model the functions included in the missions. So, the function model is proposed. The function model provides a basis for analyzing function failures of corresponding missions caused by component failures. On this basis, KPI losses resulted from mission failures can be calculated. In the following, the function model shown in

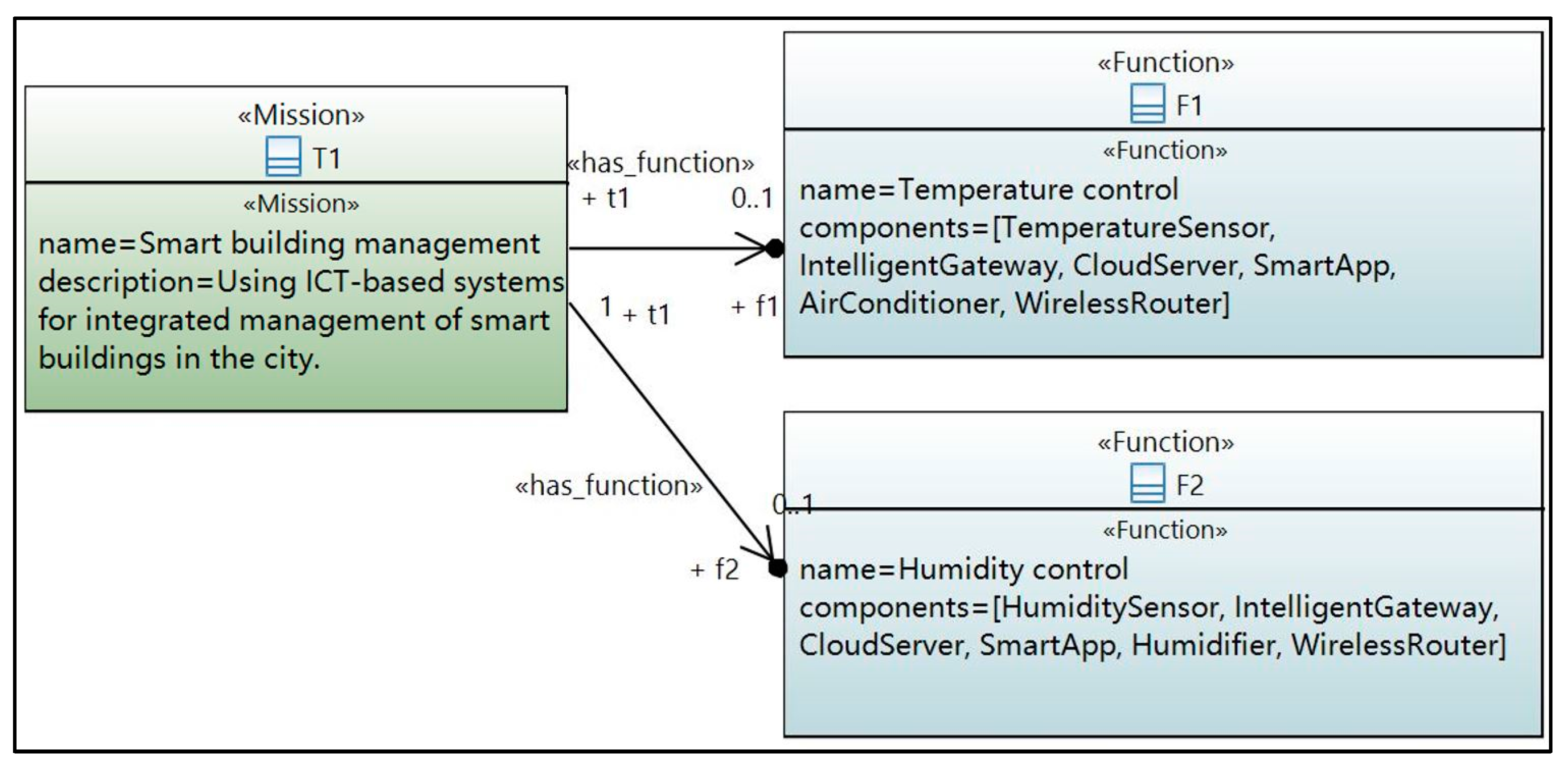

Figure 4 is used as an example to explain the stereotypes and the modeling process of the function model.
Step 1. Use the stereotype <<Mission>> to model smart city missions and use the stereotype <<Function>> to model the functions included in smart city missions.
The stereotype <<Mission>> has been introduced in detail in
Section 4.1. In the function model, <<Mission>> describes missions consisting of functions. The stereotype <<Function>> extends the standard UML model element Class and has the properties name and components, which are used to describe the function name and the components that are involved in the execution of the function respectively. For example, in
Figure 4, F1 marked with <<Function>> is the temperature control function in the running example, and the components involved in the execution of this function are temperature sensor, intelligent gateway, cloud server, etc.
Step 2. Use the stereotype <<has_function>> to model the relation between missions and functions contained in the missions.
The stereotype <<has_Function>> extends the standard UML model element Association. The arrow points from the mission to the function contained in the mission. For example, in
Figure 4, the arrow marked with <<has_Function>> indicates that the mission T1 includes the temperature control function F1 and the humidity control function F2.
4.3. The Architecture Model
Component failures can cause functional and security problems in the function executions of smart city systems, which will lead to functional and security failures of missions and KPI losses of smart cities. Complex interactions between components in smart city systems enable component failures to propagate. In order to analyze the impact of component failure and failure propagation through models, it is necessary to model the components and the relations between the components. For this purpose, we propose the architecture model. In the following, the architecture model shown in
Figure 5 is used as an example to explain the stereotypes and the modeling process of the architecture model.
Step 1. Use the stereotype <<component>> to model the components in the system.
This paper defines the stereotype <<component>> to model the components in systems. The <<component>> stereotype has the property
product_information to describe product information of components, through which vulnerabilities of components can be pointed out by searching the CVE database [
15].

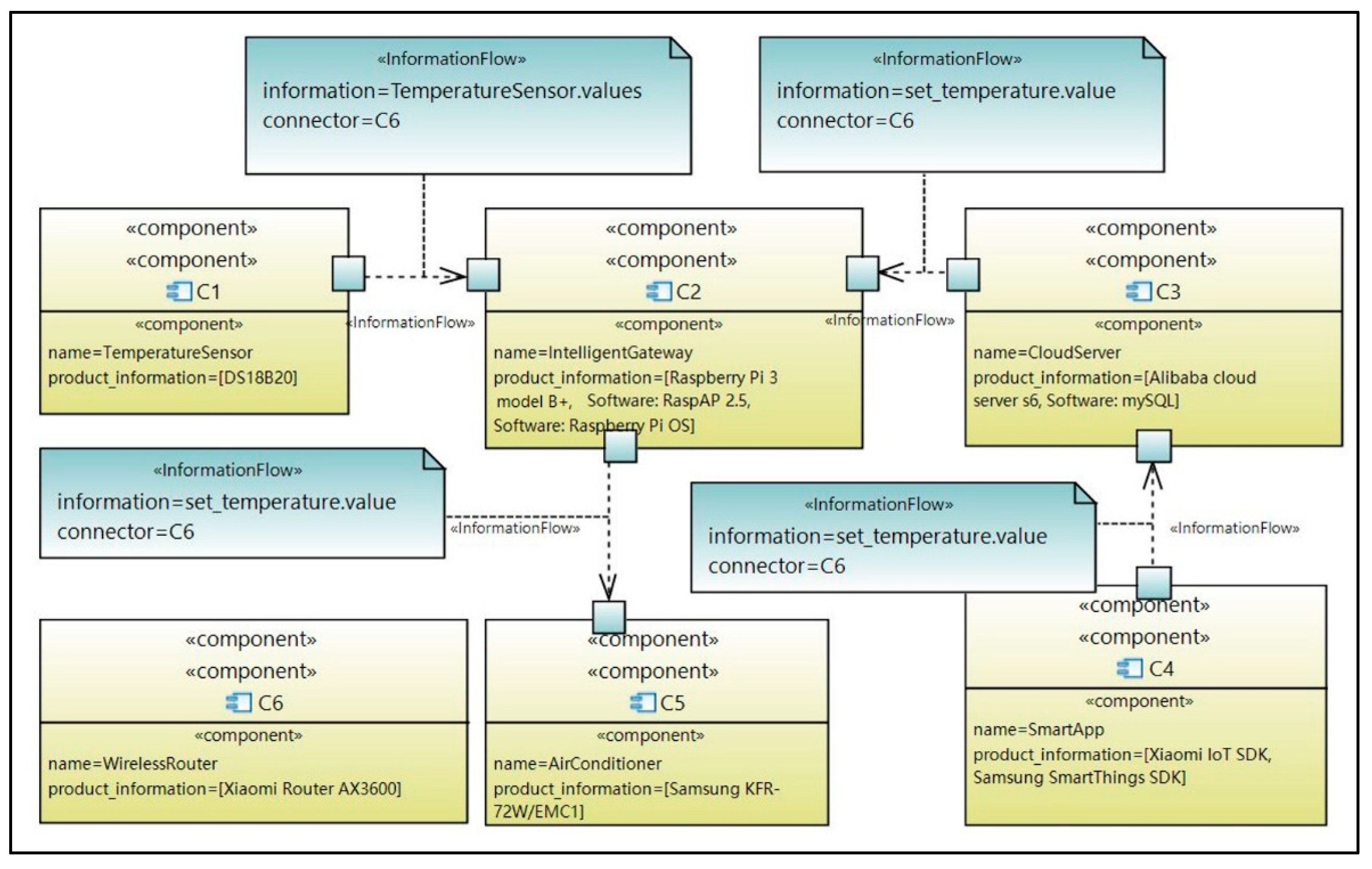

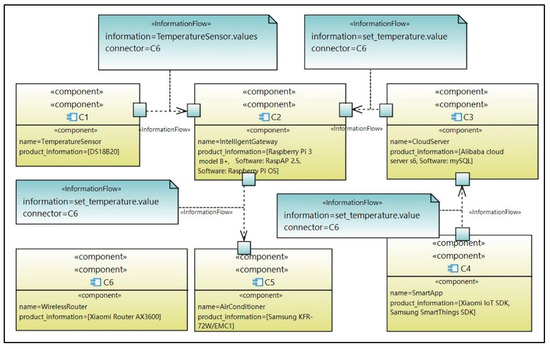

Figure 5 shows the excerpt of the architecture model of the intelligent management system for public buildings, where components are marked with <<component>>, such as the temperature sensor C1, the intelligent gateway C2, and the cloud server C3.
Step 2. Use the stereotypes <<InformationFlow>>, <<EnergyFlow>> and <<MaterialFlow>> to model the information flow, energy flow and material flow between components.
The state-of-the-art research study [
62] divides flows between components into signal flows, energy flows and material flows. Considering that there are not only signal transmissions, but also transmissions of data and messages between smart city components, this paper replaces the signal flow with the information flow and divides the flows between smart city components into information flows, energy flows and material flows. Information flow describes information transmission between components, such as data and control commands. Energy flow refers to energy transmission between components, such as power transmission of smart grids. And material flow describes material exchange between components, such as transmissions of chemical reagent in sewage treatment.
To represent the three types of flows through models, the stereotypes <<InformationFlow>>, <<EnergyFlow>> and <<MaterialFlow>> are defined by extending the standard UML model element Dependency, where the properties information, energy and material describe the transmitted information, energy, and material respectively. And the property connector describes the component responsible for the transmission. For example, in
Figure 5, the information flow from the temperature sensor C1 to the intelligent gateway C2 is marked with <<InformationFlow>>, and the transmitted information is the temperature data sensed by C1.
Information flows, energy flows and material flows can describe the relations between components, which provides a basis for analyzing the failure propagation of components. The analysis method of failure propagation is detailed in
Section 5.3.
4.4. The Security Model
Smart city systems integrate a large number of software and hardware components. Attackers can exploit vulnerabilities of components to cause component failures, which can result in mission failures of smart city systems, leading to KPI losses of smart cities. Therefore, it is crucial to apply security control mechanisms to protect smart city systems against security threats. In order to analyze the impact of security threats on smart city KPIs through models, it is necessary to model the security threats to components in smart city systems. Then, security control mechanisms to protect components should be designed according to the security analysis results of smart city systems under security threats. This paper proposes the security model to describe the security threats faced by smart city systems and the security control mechanisms applied to components in the systems. In the following, the security model shown in
Figure 6 is used as an example to explain the stereotypes and the modeling process of the security model.
Step 1. Use the stereotype <<Component>> to model the components in smart city systems and use the stereotypes <<Vulnerability>> and <<has_vulnerability>> to model vulnerabilities of components.
The stereotype <<Vulnerability>> has properties CVE and description to describe the CVE ID and the detailed description of the vulnerability respectively. For example, in

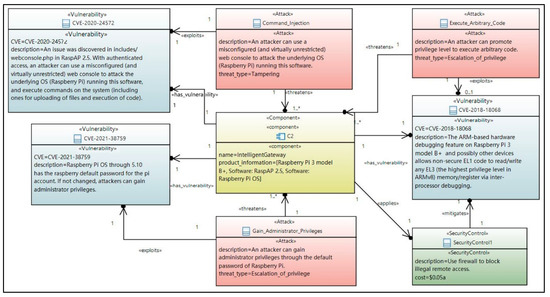

Figure 6, the property
product_information of intelligent gateway C2 marked with <<Component>> indicates that the product selected for intelligent gateway is Raspberry Pi 3 Model B+. The intelligent gateway C2 is connected to vulnerability CVE-2018-18086 by the arrow marked with <<has_vulnerability>>, indicating that C2 has vulnerability CVE-2018-18086. The property description of <<Vulnerability>> describes that the vulnerability is “Allowing non-secure code to be written to the memory with high privilege level in remote debugging”.
Step 2. Use the stereotype <<Attack>> to model attacks, use the stereotype <<exploits>> to describe the attack exploits the vulnerability, and use the stereotype <<threatens>> to describe the attack threatens the components.
Attacks that can exploit the vulnerabilities are provided in the CVE database [
15]. To model the attacks, we define the stereotype <<Attack>> that extends the standard UML model element Class and has the property
threat_type to describe the type of the threat. The value of
threat_type should be selected from the six classes of STRIDE threats [
60] introduced in
Section 3. The stereotypes <<exploits>> and <<threatens>> extend the standard UML model element Association. The arrow of <<exploits>> points from the attack to the vulnerability it exploits, and the arrow of <<threatens>> points from the attack to the component it threatens. For example, in
Figure 6, the attack
Execute_Arbitrary_Code marked with <<Attack>> can exploit the vulnerability CVE-2018-18086 and promote the privilege level to execute arbitrary code. The attack points to component C2 through the arrow marked with <<threatens>>, indicating that the attack threatens the security of component C2 that uses Raspberry Pi 3 Model B+.
Step 3. Use the stereotypes <<SecurityControl>>, <<applies>>, <<mitigates>> to model the security control mechanisms applied by systems.
The state-of-the-are research study [
23] proposed a set of UML stereotypes for security risk analysis, such as <<SecurityControl>> that describes the security defense method of system. This paper uses the stereotype <<SecurityControl>> proposed in [
23] and adds the property
cost to the stereotype to describe the cost of security control method. For example, in
Figure 6,
SecurityControl1 marked with<<SecurityControl>> describes that the firewall is used to prevent illegal remote access. The arrow marked with <<applies>> indicates that Component C2 applies this security control method. And the arrow marked with <<mitigates>> describes that this security control method can mitigate the threat caused by the vulnerability CVE-2018-18086.
The vulnerabilities, attacks, security control mechanisms described in the security model provide a basis for analyzing component failures caused by attacks. On this basis, this paper analyzes the failure propagation between components according to the relations between components described in the architecture model and verifies whether the existing security control mechanisms can ensure that the system will not have the two types of functional failures and three types of security failures defined in the mission model under threats. The verification results of mission failures are used to calculate the smart city KPI losses under security threats. In addition, this paper describes the cost of security control mechanisms in the security model, which enables smart city planners to balance the cost of using security control mechanisms and the possible KPI losses under security threats in the design phase of smart city systems.
5. Formal Modeling and Verification Based on Alloy
This section introduces the proposed formal modeling and verification approach based on Alloy. This approach supports automatic generation of Alloy models by using the model transformation technique and supports automatic verification of possible mission failures with the help of the Alloy Analyzer [
39]. Based on the verification results of mission failures, potential losses of smart city KPIs under threats can be calculated.
This section first introduces the proposed UML model analysis method and the UML-Alloy model transformation method, and then presents the Alloy failure model and explains how to use Alloy Analyzer [
39] for model checking, and finally describes how to evaluate KPIs according to the model checking results.
5.1. UML Model Parsing
As UML models cannot support formal verification, it requires to transform UML models into formal models. First, the UML models are parsed to obtain the details of model elements. As the Papyrus modeling environment [
63] supports the definition of UML profile, which is necessary for SCKPISec, we choose Papyrus [
63] as the UML modeling environment. Each UML model established in Papyrus [
63] consists of three files: di, notation, and uml. The uml file uses XML to describe the UML model and can be analyzed to extract the information expressed through models. In the following, we take the XML code fragment of the UML mission model shown in

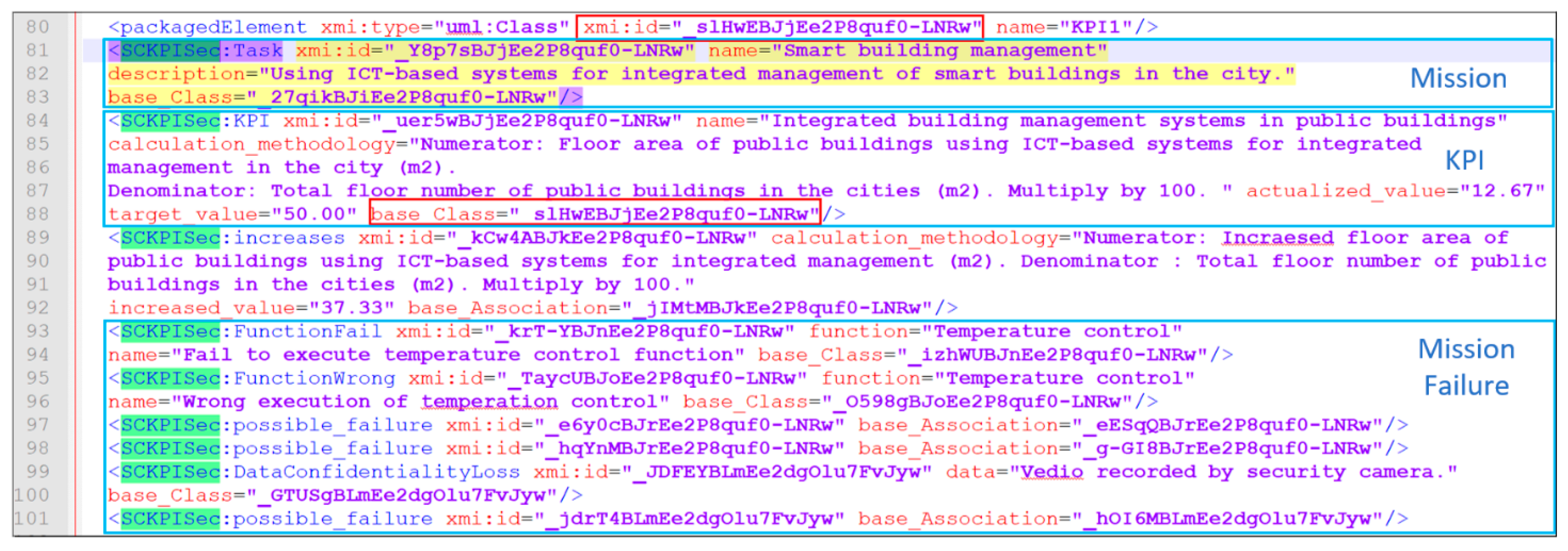

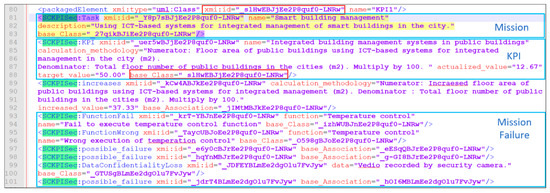

Figure 7 as an example to introduce the UML model parsing process.
Parsing UML models requires to traverse uml files to read all model elements. The root node of the uml file is <uml: Model> and all model elements are recorded in the descendant nodes of this node. Each node of model element has the attribute name to indicate the name of the model element, and the attribute xmi: type to indicate the type of the model element. The model elements applied SCKPISec stereotypes are all started with <SCKPISec:> and have the attribute base_element to indicate the model element to which the stereotype is applied. The value of base_element is the ID of this model element in the uml file.
For example, by parsing the XML code in line 80 of
Figure 7, the model element named
KPI1 can be read. This model element has standard UML type of
Class, and its ID is
_slHwEBJjEe2P8quf0-LNRw. Then, by searching the ID in the file, the SCKPISec stereotype applied to this model element can be found to extract the detailed model information contained in the stereotype. For example, according to the ID of
KPI1, the “base_Class” attribute shown in line 88 of
Figure 7 can be retrieved, which is an attribute of the model element <SCKPISec: KPI> shown in lines 84–88 of
Figure 7. This indicates that
KPI1 applies the <<KPI>> stereotype defined in the SCKPISec profile. And the information of the name and the calculation methodology can be extracted from the attributes of this model element. Similarly, the detailed information of intelligent management mission of public buildings can be extracted from the model element <SCKPISec: Mission> shown in lines 81–83 of
Figure 7. According to the values of each attribute in the model elements, such as <SCKPISec: FunctionFail> in lines 93–101, the details of various types of mission failures can be extracted.
The parsing process of the other three types of UML models, i.e., the function model, the architecture model and the security model, is the same as the above-mentioned process of the mission model, except that the model elements to be parsed are model elements in other three types of models. We have implemented the UML model parsing method in the developed SCKPISec tool [
40] using Java language. The SCKPISec tool integrated Java’s XML API dom4j Jar that can be used to read UML models in XML format. Through UML parsing, necessary information can be extracted from the four types of smart city UML design models, which provides a basis for subsequent model transformation.
5.2. UML-Alloy Model Transformation
In smart city systems, vulnerabilities of components can cause component failures which can further lead to mission failures resulting in KPI losses. In order to use Alloy Analyzer [
39] to verify possible mission failures automatically, the proposed SCKPISec UML models need to be transformed into Alloy models.
Table 2 shows the mappings between SCKPISec UML model elements and Alloy model elements.
As shown in the first line of
Table 2, the stereotype defined in the SCKPISec UML profile is the abstract type definition, so it is transformed into the abstract signature to represent the abstract type in the Alloy model. For example, the stereotype <<Mission>> is transformed to “abstract sig Mission”. As shown in lines 2–3 of
Table 2, in the UML model, ‘*’ indicates that the number is more than 1, which is mapped to the set in the Alloy model, and ‘1′ indicates that the number is 1, which is mapped to one in the Alloy model. As shown in line 4 of
Table 2, the missions applied the stereotype <<Mission>>, which are connected to the functions applied the stereotype <<Function>> by the relations applied the stereotype <<has_function>> in the mission model, are transformed into mission instances extending the abstract signature
Mission in the Alloy model, where the components are extracted from the property
components of <<Function>>. The obtained mission instances in Alloy are utilized to analyze the impact of component failures on mission failures.
As shown in line 5 of
Table 2, the information flow from component
a to component
b that applies the stereotype <<InformationFlow>> is mapped to the instance of the abstract signature
InformationFlow, where
information,
component_out,
component_in, and
component_connector are obtained from the property
information, the source model element, the target model element and the property
connector of the information flow in the UML model respectively. Similarly, the stereotypes <<EnergyFlow>> and <<MaterialFlow>> are mapped to the instances of
EnergyFlow and
MaterialFlow in the Alloy model, as shown in lines 6–7 of
Table 2.
As shown in line 8 of
Table 2, the model elements that apply the stereotypes <<component>> and <<has_vulnerability>> are transformed to the instances of the abstract signature
Component in the Alloy model, where vulnerabilities of components are obtained from the model elements connected to <<component>> by arrows marked with <<has_vulnerability>> in the UML model. The obtained component instances in Alloy are utilized to analyze the component failures under attacks. As shown in line 9 of
Table 2, the model elements applying the stereotype <<Attack>>, the model elements connected with <<Attack>> by arrows marked with <<threatens>> and <<exploits>> in the UML model are transformed to the attack instances of the abstract signature
Attack in the Alloy model, where
threat_type describes the STRIDE threat type of the attack,
target describes the target component that the attack threatens, and
target_vulnerabilities describes the vulnerabilities that can be exploited by the attack. The obtained attack instances in Alloy are utilized to analyze component failures under attacks. As shown in line 10 of
Table 2, the vulnerability applied the stereotype <<Vulnerability>> is transformed to the instance of the abstract signature
Vulnerability in the Alloy model to indicate the vulnerability of the component.
To transform SCKPISec UML models to Alloy models, first, UML models are parsed to extract information of the UML model elements, then corresponding Alloy models are generated according to the mappings shown in
Table 2. We have implemented UML-Alloy model transformation in the developed SCKPISec tool [
40] by using Java language.
5.3. The Alloy Failure Model
As mentioned above, vulnerabilities exploited by attacks may cause component failures, component failures can propagate in smart city systems and result in mission failures of systems, which cause KPI losses that are especially concerned by city planners. To detect failures by using model checking technique, it requires to define the above-mentioned conceptions, including component failure, mission failure, and failure propagation in Alloy models. For this purpose, we present the Alloy failure model to express component failure, mission failure, and failure propagation.
To describe failure propagation between components, it is necessary to describe relations between components. For this purpose, we present the Alloy model to describe the dependency between components, as shown in
Table 3. According to three types of flows, i.e., information flow, energy flow and material flow introduced in
Section 4, the three types of dependency relations between components are defined, i.e., information dependency (lines 1–7), energy dependency (lines 8–10), and material dependency (lines 11–13). If the information, energy, or material flows from component c1 to component c, then c has corresponding dependency on c1. The Alloy fact defined in lines 14–16 in
Table 3 indicates that if component c depends on component c1, then c1 is in the dependency set of c. The definition of dependency set is the basis for defining failure propagation between components.
Different types of component failures will occur when components are compromised under different types of attacks. In functional aspects, the state-of-the-art research work [
64] categorized component failures into four classes: omission, commission, value, and crash failures. Referring to their work [
64], in this paper, we use
component_failure_omission, component_failure_commission, component_failure_value, and component_failure_crash to represent the four types of functional component failures. In security aspects, we refer to the widely used CIA (Confidentiality Integrity Availability) paradigm and uses
component_failure_data_leakage,
component_failure_data_tamper and
component_failure_data _unavailable to represent the loss of confidentiality, integrity and availability of component data.
Table 4 shows the mappings between STRIDE threats and the above mentioned seven types of component failures. In functional aspects,
spoofing,
tampering,
denial_of_service, and
escalation_of_privilege can cause omission failures where components ignore messages and fail to perform any operations.
spoofing,
tampering, and
escalation_of_privilege can cause commission failures where components execute functions incorrectly.
spoofing,
tampering, and
escalation_of_privilege can cause value failures where values of component data are incorrect.
spoofing,
tampering,
denial_of_service, and
escalation_of_privilege can lead to component crash failures.
As shown in
Table 4, in security aspects, attacks of
information_disclosure type can lead to data leakage of components. Attacks of
tampering type can cause important data to be tampered with false values, causing data tampering failures of components.
Denial_of_service attacks can cause users to be unable to obtain required data, causing data unavailable failures. Attacks of
escalation_of_privilege type can cause components to execute malicious operations, causing component failures of data leakage, data tampering, and data unavailable.
Based on the mappings between STRIDE threats and component failures shown in
Table 4, we proposed the Alloy predicates of the component failures. As shown in
Table 5, taking the Alloy predicate of omission failure as an example, the value of the predicate
component_failure_omission[c] is true only if component
c has omission failure. There are two cases that omission failures will occur: (1) Component
c is the target of attack
a,
w is a vulnerability of component
c that can be exploited by attack
a, and the threat type of attack
a is one of the threat types that can cause omission failures. The formal definition is shown in lines 2–5 of
Table 5. (2) Component
c suffers from omission failure caused by failure propagation from component
c1 that is in the dependency set of component
c, as shown in line 6 of
Table 5, where
failure_propagation_omission[c1,c] is the failure propagation predicate that will be introduced in the following. In line 8 of
Table 5, the Alloy fact is defined which means that if predicate
component_failure_omission[c] is true then c is in the set of components that have omission failures and vice versa.
Based on the component dependencies shown in
Table 3 and component failures shown in
Table 4, the propagation of component failures can be defined. Alloy supports the use of the symbol ‘^’ to represent closure sets. The dependency transitive closure of component c is denoted as
c. ^ dependency_set to represent the set of components that component c directly or indirectly depends on. In functional aspects, crash or omission failures of a component may lead to omission failures of other components that require to get messages, energy, or materials from it. Commission failures of a component may cause commission failures of other components that rely on it to perform operations. Value failures of a component may lead to value failures of other components that rely on the data from the component to execute operations.
In security aspects, data leakage failures will not directly cause failures of other components, so there is no failure propagation. Data tampering failures of a component will cause data tampering failures of other components that rely on this component’s data to generate data, as incorrect data will be generated by using the tampered data. Data unavailable failures of a component will cause data unavailable failures of other components that rely on data of this component.
In safety-critical smart city systems, any possible failure should be avoided as far as possible. Therefore, when conducting security analysis in the design stage of systems, it is usually required to consider the worst case, that is, all possible failure propagations occur.
Table 6 shows Alloy predicates of component failure propagations. For example, lines 11–13 in
Table 6 indicate that if component
c1 is in the dependency closure set of component
c, and
c1 has an omission failure or a crash failure, then
c has the omission failure propagated from
c1.
Smart city systems provide smart services by completing missions such as the smart building management mission. Failures of components will lead to mission failures of smart city systems.
Table 7 shows the mappings between mission failures and component failures. In functional aspects, two types of mission failures,
mission_failure_fail and
mission_failure_wrong_action, are defined, representing that the functions of missions fail to execute and execute incorrectly respectively. In security aspects, based on the CIA paradigm, three types of mission failures are defined, i.e.,
mission_failure_data_leakage,
mission_failure_data_tamper,
mission_failure_data_unavailable, representing that security problems of data confidentiality, data integrity, and data availability occur in the missions.
Omission failures of components can cause commands to be omitted and functions unable to be executed. Crash failures can cause functions unavailable. So both omission failures and crash failures can cause mission_failure_fail. Value failures and commission failures of components can cause components to execute wrong actions using false data or commands, leading to mission_failure_wrong_action. In security aspects, data leakage failures, data temper failures and data unavailable failures of components can cause data leakage, data tampering and data unavailable of missions implemented by the components, leading to mission_failure_data_leakage, mission_failure_data_tamper, and mission_failure_data _unavailable, respectively.
According to the mappings between mission failures and component failures shown in
Table 7, this paper uses Alloy predicates to define the formal model of mission failures, as shown in
Table 8. Taking the predicate
mission_failure_fail [f: Function] in lines 2–4 of
Table 8 as an example, it represents the failure of mission execution. For mission
t and component
c that responsible to execute function
f in mission
t, if omission or crash failures occur to component
c, then mission
t will have mission failure caused by the function failure of
f, and the value of predicate mission
_failure_fail[f] is true.
5.4. Model Checking
Model checking is a formal verification method that automatically verifies whether the system behavior has the expected properties by searching the finite state space of the system model. The SCKPISec method proposed in this paper uses Alloy Analyzer [
39] and model checking technique to verify whether the generated Alloy model of smart city systems have the above mentioned five types of mission failures under attacks. For model checking, this paper uses the following assertions to represent that the smart city system does not have the five types of mission failures. The assertion
assert f1 {no f: Function|mission_failure_fail [f]} represents that no function execution failure will occur to any mission in the system. The assertion
assert f2 {no f: Function|mission_failure_wrong_action [f]} represents that no function execution errors will occur to any mission in the system. The assertion
assert f3 {no f: Function|mission_failure_data_tamper [f]} represents that the mission data will not be tampered with for any mission in the system. The assertion
assert f4 {no f: Function|mission_failure_data_leakage [f]} means that no data leakage will occur to any mission in the system. The assertion
assert f5 {no f: Function|mission_failure_data_unavailable [f]} means that no data unavailability will occur to any mission in the system.
The generated Alloy models and the above assertions are input to the Alloy Analyzer [
39] for model checking. The Alloy Analyzer [
39] can automatically generate the counter examples to indicate possible mission failures in the system. For example, for the models in the running example introduced in
Section 4, the model checking results given by Alloy Analyzer [
39] is that the assertions
f1 and
f2 of mission
T1 fail to pass the verification. The reason is that the privilege escalation attack can exploit the vulnerability CVE-2018-18086 of the intelligent gateway, which can cause failures and wrong actions in the temperature control function of smart building management mission.
5.5. KPI Evaluation
This paper evaluates the value of the KPIs according to the evaluation method and calculation formula given by ITU KPI [
42] and CityKeys [
43]. In the modeling phase of the SCKPISec method, the designer selects the KPIs according to ITU KPI [
42] and CityKeys [
43], and uses the model elements in the UML mission model to describe the calculation method of each KPI. Also, the UML mission model describes the improvement of KPI value by successful completed smart city missions and the KPI losses caused by different types of mission failures. On this basis, the corresponding KPI losses can be calculated according to the mission failure verification results of the Alloy model.
For example, in the running example, according to the verification results mentioned in
Section 5.4, failures and wrong actions in the temperature control function may occur in mission T1, the smart building management mission. Assuming that the importance weights of these two types of functional problems, failures and wrong actions, are the same, both are equal to 0.1, then the total KPI losses
is equal to 7.466 as the KPI losses caused by failure of temperature control function is 3.733 as mentioned in
Section 4.1. The calculation formula of
under attack is shown in Equation (4). As described in
Section 4.1, the missoin T1 enables the value of
to increase to the target value of 50. But under attack, the above two functional problems of temperature control function cause this value to decrease by 7.466. According to Equation (4), the value of
under attack is equal to 50 minus 7.466, i.e., 42.534, failing to reach the target value of 50.
Applying security control mechanisms to protect smart city systems can increase the KPI values to the target values. In the running example, the KPI losses caused by the failure or wrong action of the temperature control function can be avoided by using the firewall to prevent illegal remote access to the intelligent gateway. In many cases, compared with system functions, system security protection is often paid less attention, so the budget of security defense costs is often insufficient to deal with the increasingly severe security threats. SCKPISec provides smart city planners with clear and intuitive data to evaluate the KPIs of smart cities under security threats and the corresponding security defense costs, which provides theoretical basis for city planners to adjust the security defense budget of the system according to the target KPI values of urban planning. In the running example, city planners may increase the security defense budget of the system to implement firewalls as the KPI evaluation results cannot reach the target value.
6. Evaluation
We evaluated the SCKPISec approach by answering the following three research questions.
RQ1. How is the feasibility of SCKPISec in KPI-guided security design of smart city systems?
RQ2. How is the applicability of SCKPISec UML models in KPI-guided security design of smart city systems?
RQ3. How does SCKPISec perform in terms of model transformation and formal verification?
To answer RQ1–RQ3, this paper takes the smart city project of Nanjing, a big city in China, as the case study to evaluate the SCKPISec approach.
Background of case study: In recent years, Nanjing is striding forward into the era of smart city. As one of the first pilot cities for smart city projects in China, Nanjing has already been able to provide smart city services such as scanning the code to take a bus, facial recognition payment, digital government, and online taxation. In 2020, Nanjing city released the plan of building a world-class digital economy city. The intelligent transformation of traditional public buildings and traditional power grids are important in Nanjing’s smart city plan. Implementing intelligent management systems in public buildings can help managers monitor the energy efficiency of public buildings and conduct intelligent management, so as to provide citizens with a more comfortable and energy-saving living and working environment. With the rapid growth of power consumption and the urgent need to reduce carbon emissions, the deployment of smart grids has become a general trend. Smart grids can not only save energy and reduce emissions, but also improve power safety. For example, after Schneider Electric helped Jiangsu Liyang People’s Hospital to upgrade its traditional power supply and distribution system to smart power system, the hospital saved 28% of its energy costs and improved its equipment reliability by 22%. The intelligent management system of public buildings and the smart grid system are very common and important systems in smart cities. Therefore, this paper chose (1) intelligent management system of public buildings, and (2) smart grid system as the systems to be designed in the case study to evaluate SCKPISec.
In the case study, five smart city KPIs related to smart buildings and smart grids are selected from the widely used ITU KPIs [
42] and CITYkeys [
43] to guide the design process of smart city systems, as shown in
Table 9. KPI1 is selected to guide the design of intelligent management system of public buildings, while KPI2 and KPI3 are selected for the design of the smart grid system. Both KPI4 and KPI5 are related to security and are utilized to guide the design of both above mentioned systems.
6.1. Feasibility and Applicability Evaluation (RQ1, RQ2)
This paper evaluates the feasibility and applicability of SCKPISec by case studies using SCKPISec approach for the KPI-guided security design of the intelligent management system of public buildings and the smart grid system.
6.1.1. Case 1: Improve the Security of Smart Building System in the Design Stage
The intelligent management system for public buildings, which is also known as the smart building system, can automatically adjust the indoor temperature, humidity and luminance within the comfortable range of human body. And the smart locks, security cameras, safety alarms in the system can ensure the safety of citizens’ living and working environments. Inspired by existing research studies [
65,
66,

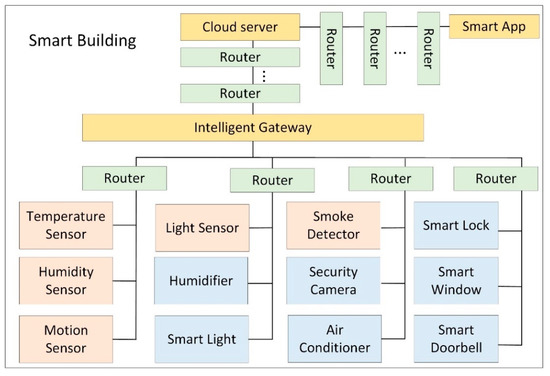

67], this paper proposes an example of typical smart building system, as shown in
Figure 8. This system includes sensors, such as temperature sensor, light sensor, mobile sensor, to sense the environment, as well as actuators, such as humidifier, smart light, air conditioner, to perform automation functions. The system has a local intelligent gateway, which directly manages and controls the intelligent devices in the smart building through routers. The local intelligent gateway interacts with the cloud server to upload data and receive commands. Users use the smart app to manage smart devices in smart buildings by accessing the cloud sever.
In Case 1, we use the SCKPISec approach to design the intelligent management system for public buildings. The mission (denoted as T1) is to increase the coverage of smart public buildings in the smart city. The smart city KPIs related to T1 include
Integrated building management systems in public buildings (KPI1),
data privacy (KPI4) and
cybersecurity (KPI5) shown in
Table 9. The calculation method of KPI1 has been introduced in
Section 2.2.
Table 10 shows the evaluation methods of KPI4 and KPI5 provided in CITYkeys [
43].
Supposing that
S is the total area of public buildings in Nanjing city,
is the public building area with intelligent management systems in Nanjing before performing mission T1. According to Equation (1), the value of KPI1 before performing T1 can be calculated by
. The goal of T1 is to increase the smart public building area from
to
to let the value of KPI1 be doubled to
. In security aspects, according to the evaluation methods shown in
Table 10, before the new intelligent management systems were implemented, values of KPI4 and KPI5 were both 5. The security goal of mission T1 is to maintain the values of KPI4 and KPI5 not to decrease.
After the analysis of mission T1 and the design of the smart building system, we established the SCKPISec UML models of the smart building system, including the mission model, the function model, the architecture model and security model. The established models are publicly available on Github [
40]. Due to space limitation, this paper only presents the main contents of models that are related to security analysis and KPI evaluation, as shown in
Table 11 and
Table 12.
Table 11 shows eight basic functions of the smart building system, the components that are responsible to perform the functions, and the KPIs affected by the failures or errors in the execution of the functions.
Table 12 shows the product information and details of vulnerabilities of the components with CVE vulnerabilities.
Then, SCKPISec automatically generated the Alloy model from the established UML models and verified the models by using Alloy Analyzer [
39].
Table 13 shows the verification results of the smart building system design model under attacks, where the assertions f1–f5 failing to pass the verification represents function execution failure (f1), function execution error (f2), data confidentiality problem (f3), data integrity problem (f4), and the data availability problem (f5), respectively.
Supposing that in the worst case, all the attacks shown in
Table 13 occur, then all the functions of mission T1 will fail to execute or incorrectly execute. In this situation, mission T1 cannot increase the value of KPI1, and the value of KPI1 is still equal to
v. In security aspects, the attacks shown in
Table 13 will lead to data leakage, data tampering, and data unavailability, which will reduce the values of KPI4 and KPI5, making the values lower than five.
In order to reach the target KPI values, the security control mechanisms are applied to the smart building system, as shown in
Table 14. In
Table 14,
$a is the initial cost of the system. The total cost of the system increased by
$0.206a after applying the security control mechanisms. After applying the security control mechanisms, the results of our remodeling and verification of the system show that the system does not have any functional and security failures under attacks, and the evaluation values of KPI1, KPI4 and KPI5 reach the target values.
6.1.2. Case 2: Improve the Security of Smart Grid System in the Design Stage
Smart grid targets to achieve the goals of reliable, safe, economic, efficient and environmentally friendly power grid through advanced sensing, measurement, control technologies and intelligent decision support systems. For wide-area monitoring, smart grid systems always involve a large number of communication devices situated in remote locations, which causes the smart grid system to face severe network security threats. The smart grid system is responsible for power production, transmission and distribution, which is closely related to people’s everyday life. If vulnerabilities of smart grids are successfully exploited by attackers, it may lead to large-scale power outages, resulting in the paralysis of the urban infrastructure systems and causing huge social, environmental and economic losses to cities. Therefore, it is crucial to improve the security of smart grid system in the design stage.

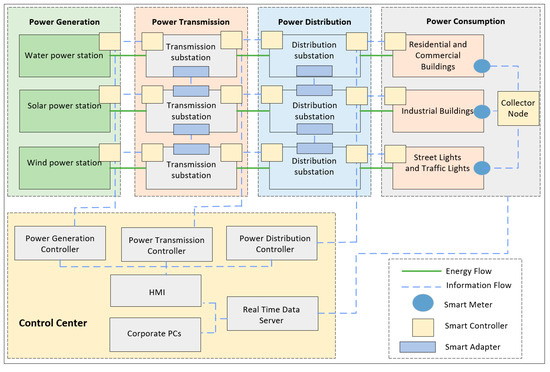

Figure 9 shows an example of the smart grid system proposed in this paper with reference to the smart grid framework proposed in [
68]. As shown in
Figure 9, the smart grid system realizes the monitoring and control of the power grid by the control center through intelligent devices, including smart controllers, smart meters, and smart adapters distributed in power stations, transmission substations, distribution substations, and the buildings consume the power.
In Case 2, we use the SCKPISec approach to design the smart grid system. The mission (denoted as T2) is to improve the stability of the urban grid system by intelligent transformation from traditional grids to smart grids. The smart city KPIs related to T2 are
electricity system outage frequency (KPI2),
electricity system outage time (KPI3), and
network security (KPI5) shown in
Table 9. The calculation formulas of KPI2 and KPI3 provided by ITU KPIs [
42] are shown in Equation (5) and Equation (6) respectively. In Equation (5),
is the total number of users served by the power system who experience power outages in a year,
is the total number of users served by the power system. In Equation (6),
is the sum of all customer interruption durations (mins) within one year,
is the total number of customer interruptions. The data is provided by the local electrical utility. The calculation method of KPI 5 has been introduced in
Section 6.1.1.
Supposing that before the intelligent transformation of power grids in Nanjing city, the total number of power grid customers is N, the total number of interrupted customers is , the sum of all customer interruption durations is , and the total number of customer interruptions is within one year. According to Equation (5) and Equation (6), the value of KPI2 before the intelligent transformation is , and the value of KPI3 is . The goal of mission T2 is to transform traditional power grids in Nanjing city into smart grids to reduce the values of KPI2 and KPI3. In security aspect, the goal of T2 is to maintain the value KPI5 not to decrease.
After analyzing mission T2, we designed and established the SCKISec UML models of the smart grid system. The established models are publicly available online [
40]. Due to the limited space, the main contents of models that are related to security analysis and KPI evaluation are shown in
Table 15 and
Table 16.
Table 15 shows the five basic functions of the smart grid system, the components that realize the functions, and the KPIs affected by the failures and errors of functions.
Table 16 shows the list of components with CVE vulnerabilities in the smart grid system.
As shown in
Table 15, the smart grid system has four functions that are used to control and monitor the grid, i.e., power generation control (Func1), power transmission control (Func2), power distribution control (Func3) and power consumption monitoring (Func4). Engineers can monitor the smart grid through the data stored in the real time data server through the human machine interface (HMI), and send control commands to the power generation controllers. The power generation controllers then transmit commands to the smart controllers of each power station through the control network. Finally, commands from smart controllers are executed by power generation equipment in power stations. In addition to the functions that directly control and monitor the power grid, the smart grid system also has the corporate analysis function (Func5), which is used for the financial analysis of the corporate’s power supply and demand balance. The financial departments obtain data such as power consumption data from the real time data server and use corporate LAN for network communication.
Table 17 shows the verification results of the smart grid system under attacks, where assertions f1–f5 represents function execution failure (f1), function execution error (f2), data confidentiality problem (f3), data integrity problem (f4), and the data availability problem (f5), respectively. Taking the denial of service (DoS) attack shown in line 1 of
Table 17 as an example, the power generation controller, i.e., the Modicon PLC controller, has the vulnerability CVE-2021-22792. This vulnerability is exploited by DoS to execute code in a malicious project file. The STRIDE threat type of this attack is DoS. As shown in line 1 of
Table 17, the verification result of assertion f1 for Func1 is false. This indicates that DoS attack can cause the power generation controller to fail to send control commands and lead to the failure of the power generation function (Func1).
Supposing that in the worst case, all the attacks shown in
Table 17 occur, then the functions Func1–Func5 of mission T2 will fail to execute or incorrectly execute, resulting in an increase in the values of KPI2 and KPI3. In this case, the smart grid system is unable to achieve the goal of improving the stability of the power grid. In security aspect, the occurrence of these eight attacks will lead to data leakage, data tampering, and data unavailability, reducing the value of KPI5.
In order to let the KPIs achieve the expected levels, for the components with vulnerabilities, the security control mechanisms shown in
Table 18 are applied, where
$a is the initial cost of the system. After the application of the security control mechanisms, the total cost of the system increased by
$0.64a. The results of our remodeling and verification of the smart grid system show that the system does not have any functional and security failures under attacks, and the evaluation values of KPI2, KPI3 and KPI5 reach the target values.
6.1.3. Results and Discussion of RQ1 (Feasibility)
In Case 1 and Case 2, we designed the smart building system and the smart grid system by using the SCKPISec approach. In the experiment, we used SCKPISec UML profile to establish the UML design models of the smart building system and the smart grid system. The designed UML models contain 1560 lines and 1639 lines of XML code respectively. By using the model transformation and formal verification functions provided by SCKPISec, we found 138 problems that affect smart city KPIs in the design models.
In Case 1, we selected three KPIs, i.e., KPI1, KPI4 and KPI5, to guide the security design of the smart building system. By using the model transformation and formal verification functions of SCKPISec, we found 84 functional problems and 14 security problems in the design models of the smart building system. These problems can make the KPIs unable to reach the target values. The verification results are shown in
Table 13. According to the verification results, we applied the security control mechanisms shown in
Table 14 to the smart building system. The improved system passed the verification and can let the KPIs reach the expected values.
In Case 2, we selected three KPIs, i.e., KPI2, KPI3, and KPI5 to guide the security design of the smart grid system. By using the SCKPISec approach, we found that in the design models of the smart grid system, there were 30 functional problems and 10 security problems that can lead to unacceptable KPI losses under security threats. The verification results are shown in
Table 17. After applying the security control mechanisms shown in
Table 18, the smart building system passed the verification and could let the KPIs reach the expected values.
The experiment results of Case 1 and Case 2 show that the SCKPISec approach can be used to analyze whether the smart city system can achieve the expected smart city KPIs under security threats. In addition, the results show that it is important and necessary to apply security control mechanisms to avoid unacceptable KPI losses. Considering that both the systems in Case 1 and Case 2 are common and representative systems in smart cities that can represent general smart city systems, we can draw the following conclusion: the SCKPISec approach is very feasible in the security design of smart city systems. The answer to RQ1 is: SCKPISec has high feasibility in KPI-guided security design of smart city systems.
6.1.4. Results and Discussion of RQ2 (Applicability)

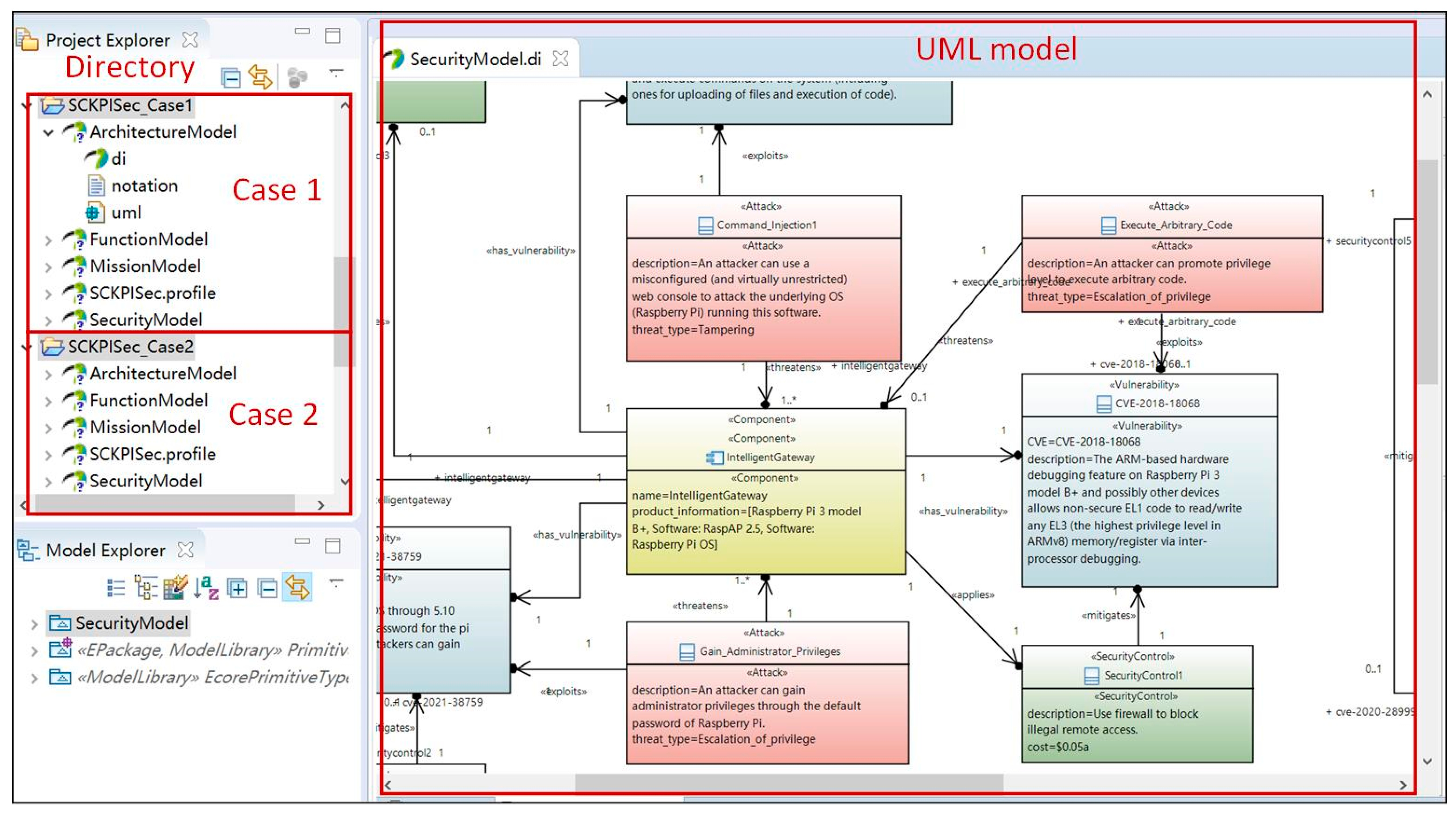

In Case 1 and Case 2, we established security design models of smart city systems by using SCKPISec UML models. The file directory of models in Case1 and Case2 and the screenshot of the modeling view in Papyrus modeling environment [
63] are shown in
Figure 10. Due to limited space, all models in the experiment have been uploaded to Github [
40].
By verifying the established models and evaluating the KPIs according to the verification results, we found the functional and security problems that can cause unacceptable KPI losses. This indicates that the modeling elements provided by SCKPISec are suitable for the KPI-guided security design of smart city systems.
More specifically, among the four types of SCKPISec UML models, the mission model can be used to model the missions of the smart city system, the KPIs related to the missions, and the KPI losses caused by mission failures, the function model can be used to model the functions included in the missions, the architecture model can be used to describe the components that implement the functions and the relations between the components, and the security model can be used to model the security threats to the smart city systems, the vulnerabilities of systems, and the security control mechanisms applied to systems. By establishing these four types of UML models of the smart city system, SCKPISec can: (1) verify whether the smart city system has component failures and failure propagations under security threats, (2) verify whether component failures and failure propagations will lead to mission failures that cause KPI losses, (3) evaluate the KPI values of smart cities under attacks to judge whether the designed smart city system can make the KPIs reach the target values. So, the answer to RQ2 is: SCKPISec UML models have high applicability in KPI-guided security design of smart city systems.
6.2. Efficiency Evaluation (RQ3)
In the efficiency evaluation, we recorded the time cost by SCKPISec to perform model transformation and formal verification in Case 1 and Case 2.
6.2.1. Experiment
The efficiency evaluation experiment was conducted on a 64-bit Windows desktop computer with the following configuration: 3.19 GHz CPU, 16 GB RAM. The computer is installed with Eclipse Papyrus 2018 [
63], Alloy 4.0 [
39], and the SCKPISec tool [
40]. We recorded the time taken for SCKPISec to generate and verify formal models recorded by the SCKPISec tool using the Java function
System.currentTimeMillis(). The results are averaged over 30 runs to avoid the statistics bias. We also collected information about the scales of the UML models and the scales of the formal models generated by SCKPISec.
6.2.2. Results and Discussion of RQ3 (Efficiency)
Table 19 shows the time taken by the SCKPISec tool to perform model transformation and formal verification, as well as the scale information of the UML models and the generated Alloy models in Case 1 and Case 2. As shown in
Table 19, in Case 1, SCKPISec transformed the UML design model (1560 lines of XML code) of smart building system into the Alloy model (332 lines). This process took 1.176 s. Then 3.238 s were taken for the model checking. The whole process took 4.414 s. In Case 2, SCKPISec transformed the smart city design model (1639 lines of XML code) to the Alloy model (343 lines), which took 1.180 s. And the formal verification process took 3.311 s. The whole process of model transformation and verification took 4.491 s.
In
Table 19, the scale of the UML model is larger than the generated Alloy model because in the UML model there are many tags for marking model elements and IDs of model elements assigned by Papyrus [
63]. Although these XML codes will not be transformed to the Alloy language, they are important for SCKPISec to find the information to be extracted from UML models.
The experimental results in
Table 19 show that SCKPISec can complete model transformation and formal verification in a relatively short time for the common smart city systems in daily life. Considering that the configuration of the computer used in the experiment is very common in laboratories and enterprises, we can draw the following conclusion: SCKPISec has high efficiency in terms of model transformation and formal verification. According to this conclusion, the answer to RQ3 is: SCKPISec has high efficiency in the model transformation and formal verification of models.
6.3. Threats to Validity
(A) Internal Validity. The SCKPISec approach generates formal specifications in the Alloy language automatically from UML models and verify the models automatically, thus reducing the internal threats caused by manual formal modeling and verification.
(B) Construct Validity. To avoid threats to construct validity, this paper uses the commonly used metrics in evaluation experiments of model-driven engineering approaches: feasibility, applicability and efficiency, to comprehensively evaluate SCKPISec. This paper evaluates the feasibility and applicability of SCKPISec by using SCKPISec to design two typical smart city systems and evaluates the efficiency of SCKPISec by recording the average time required for the SCKPISec tool to perform model transformation and formal verification on the UML design models of smart city systems.
(C) Conclusion Validity. To eliminate threats to the conclusion validity of the efficiency evaluation experiment caused by recording the time manually, this paper uses the Java function in the SCKPISec tool to accurately record the time taken by SCKPISec for formal modeling and verification. And the results are averaged over 30 runs to avoid the statistics bias.
(D) External Validity. Due to the limited time and manpower, in the current research work, we have selected two representative important systems in different fields that are common in smart cities, i.e., smart building system and smart grid system, to evaluate the SCKPISec approach, which reduces the external threats to a certain extent. The lack of large-scale user experiments poses a threat to the validity of our experimental results. In the future, we will invite external practitioners and researchers to use SCKPISec and continuously improve SCKPISec.
Another external threat is that the UML models in the case study of this paper were all established by the authors. The correctness of the verification results obtained by using SCKPISec depends on the correctness of UML models. In SCKPISec, we use CVEs for threat modeling. CVE database describes the attacks that can exploit the vulnerabilities but does not give the STRIDE threat types of the attacks. At present, the SCKPISec method requires designers to determine attack types according to the CVE vulnerability description. For example, in Case 2, for the smart grid system, the CVE vulnerability of Schneider M580 power generation controller is “There is a null pointer reference vulnerability in Modicon M580 CPU, which may lead to denial of service of Modicon PLC controller/simulator when the controller application is updated with a malicious project file.” According to the description, the designer can easily point out that the attack is “updating the controller application with a malicious project file”, and the STRIDE threat type is denial of service. In the future, we will try to apply the natural language processing technique to automatically determine attacks and attack types, and on this basis, automatic threat modeling can be realized. At present, the threat modeling of SCKPISec still needs to be done manually by designers. If the designer establishes an incorrect threat model, for example, sets the wrong threat type for an attack, SCKPISec will give incorrect verification results.
