NbCl5 Functionalized Perlite: A Potent and Recyclable Catalyst for Synthesis of Pyrans

by
Komalavalli Lakshminarayanan
1,†,
Monisha Sivanandhan
1,
Subramaniyan Ramasundaram
2,†,
Tae Hwan Oh
2,
Kinjal J. Shah
3,†,
Kumaravel Saranraj
4,
Amutha Parasuraman
1,* and
Krishnakumar Balu
5,*
1
Department of Chemistry, PSGR Krishnammal College for Women, Coimbatore 641004, India
2
School of Chemical Engineering, Yeungnam University, Gyeongsan 38436, Republic of Korea
3
College of Urban Construction, Nanjing Tech University, Nanjing 211800, China
4
Department of Electrical Engineering, National Taipei University of Technology, Taipei 10608, Taiwan
5
Departamento de Ingeniería y Ciencia de los Materiales y del Transporte, E.T.S. de Ingenieros, Universidad de Sevilla, Avda. Camino de los Descubrimientos s/n, 41092 Sevilla, Spain
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Sustainability 2023, 15(4), 3678; https://doi.org/10.3390/su15043678
Submission received: 30 December 2022 / Revised: 13 February 2023 / Accepted: 14 February 2023 / Published: 16 February 2023
(This article belongs to the Special Issue Semiconducting Nanomaterials for Effective Environmental Remediation and Organic Synthesis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Niobium pentachloride functionalised perlite was prepared via a solid state dispersion technique, which was utilized as an efficient heterogeneous catalyst for the synthesis of pyrans. The immobilisation of NbCl5 over perlite was examined by Fourier-transform infrared (FT-IR) spectroscopy, X-ray diffraction (XRD), Thermogravimetric analysis (TGA), scanning electron microscope (SEM) with energy dispersive spectra (EDS), and Brunauer, Emmett and Teller (BET) surface area measurements. The wt% of NbCl5-loaded perlite was optimized based on the adequacy with respect to the yield of the pyrans in various solvents. The recyclability of the catalyst was validated in synthesizing pyrans and the results marked its efficiency up to five runs. The efficacy of the NbCl5/perlite catalyst was found to be comparable and better with respect to the other heterogeneous catalysts reported. The structures of pyrans were confirmed by FT-IR, 1H and 13C NMR spectral techniques. The proposed recyclable heterogeneous NbCl5/perlite catalyst simplifies the protocol, and has minimal chemical waste, a lower reaction time and a high-yield.

1. Introduction

Catalysis is an essential mechanism for feasible chemical reactions and processs, and it is the principal backbone of green science. Lately, there has been growing concern in the field of chemical processes, due to the impact of their contaminating side products on the environment; thus, designing new methodology as per the principles of green chemistry is inescapable [1,2,3,4,5]. Therefore, it is necessary to succeed environmentally hazardous and corrosive chemicals with an effective, reusable and less toxic catalyst. This can be successfully accomplished by exploiting a new era of heterogeneous catalysts, which have been evidenced to be more beneficial than homogeneous catalysts. The incorporation of heterogeneous catalysts into synthetic processes in order to prepare novel compounds is, indeed, a cost-effective and environmentally sustainable approach. They are also recognized for their simple and easy handling, their low cost and for generating organic compounds with a better yield [6,7,8,9,10]. Heterogeneous catalysts lead the basis of manufacturing primarily due to their reusability and stability. There are several reports available in the literature that are related to heterogeneous catalyst-assisted synthetic organic transformations with regio and stereo selectivity [11,12]. Generally, this process is involved in a different phase to the reactants. The most common form is seen in solid-based materials and acts as an efficient catalyst in the organic transformation reactions in which the reactants (liquid or gas) adsorb the surface of the catalysts.
Currently, Lewis acid-based heterogeneous catalysts are popular due to their innoxious and economic nature, and their compelling ability to proceed the heterocyclic compound synthesis [11,12,13,14]. The Lewis acids are known to be a better candidate for incorporation into a solid support; they have excellent polarisability and a good coordinating capacity [15]. Although they are associated with limited availability, a high cost and toxicity, in most cases, precious metal catalysts are used. In light of this, plentiful inexpensive and non-toxic transition metal-based catalysts have been employed in the current field of research. In this sense, a NbCl5-mediated catalyst has been used significantly in the synthesis of various organic compounds [16,17]. Nevertheless, it suffers from disadvantages, including a corrosive nature, toxicity, difficulty in separation and reusability. Therefore, it is appropriate to immobilize Lewis acids over an efficient solid support.
Perlite is an amorphous and volcanic eruption rock that possesses silica as its most abundant constituent, has a considerable amount of oxides of Al, Fe, Mg, Ca, K, Na and has a 3–5% moisture content [18]. Its features, which include chemical inertness, better expansion capabilities and an appreciable surface area, have extended its applications in fields such as dye removal [19], sorption studies [20], catalysis [21], and heavy metal removal [22], etc. The porous nature of perlite makes it a remarkable solid support for Lewis acids. Pharmacologically active pyran and its derivatives have received increasing attention as a result of its application in anti-biotic [23], anti-inflammatory [24], anti-microbial agent [25], anticancer [26,27], and antitubercular pharmaceuticals [28], among others. The catalytic efficiencies of most of the developed new heterogenous catalysts are generally compared with this specially made catalyst [29]. Furthermore, this catalyst is very cheap and available in large quantities for organic transformation reactions. Hence, this framework takes advantage of the above-mentioned properties of perlite and is a continuation of our efforts to investigate the applications of solid acid in synthetic organic transformations [30]. We had reported BiCl3-modified perlite as an effective catalyst for selective organic transformation reactions [30], in which quinoxalines and dihydropyrimidinones were synthesized. Consequently, the inclusion of BiCl3 in the perlite enhances the acidity of the material and facilitates the acid-catalyzed reactions.
The growth of an environmentally friendly heterogeneous catalyst is absolutely critical for the construction of valuable synthetic targets. Laura Ferrand et al. [16] reported Nb (III)/(V)-based catalytic systems for C−O and C−N bond formations. They reported an efficient method for the intramolecular hydrofunctionalization of alkenes with high yields and selectiveness, and that the Nb-based materials were efficient catalysts for the synthesis of pyran, furan, pyrrolidine, piperidine, lactone, and lactam derivatives, as well as of spirocyclic compounds in high yields. Shu-Tao Ga et al. [17] reported NbCl5 as an efficient catalyst for the synthesis of 1,5-benzodiazepine derivatives from o-phenylenediamine (o-PD) and ketones. The reaction was performed under mild conditions (50 °C) in n-hexane medium. The authors used a series of symmetrical and unsymmetrical ketones with o-PD and in all the cases, the corresponding 1,5-benzodiazepines were produced with good yields (85–96%). Henceforth, this study focuses on the synthesis of a NbCl5-impregnated perlite catalyst and on testing its catalytic efficiency in the synthesis of pyrans. This perlite-supported NbCl5 avoids the problems caused by a homogeneous catalyst, which is an apparent environmentally benign catalyst with fascinating activity and reusability.

2. Experimental

2.1. Materials and Methods

Perlite, NbCl5 and the other reagents were procured from Merck. The reagents and solvents were utilized as purchased without any further purification. The prepared NbCl5/perlite was characterized by various spectral techniques, namely, BET, TGA, SEM-EDS, XRD and FT-IR. The synthesized pyrans were validated by NMR and IR spectral methods. Brunauer–Emmett–Teller (BET) analysis of the catalysts was carried out using Quantachrome Instruments to perform a surface area analysis, and TG-DTA analysis was performed within a range of 0–1000 °C using a NETZSCH STA 449F3 STA449F3A-0929-M instrument. Carl ZEISS Scanning Electron Microscopy (SEM) attached to an Energy-Dispersive X-ray Spectrometer (EDS) was employed for obtaining SEM images. X-ray diffraction patterns were obtained using an Empyrean X-ray diffractometer with Cu Kα irradiation (λ = 1.5416 A°) working at 20 kv. The structure of the compounds synthesized were characterized by the infrared spectrum using a SCHIMADZU FT-IR spectrometer, and 1H and 13C NMR spectra were acquired from a BRUCKER 500 MHz spectrometer with DMSO as solvent.

2.2. Preparation of NbCl5 Loaded Perlite

The catalyst was obtained via a simple dispersion procedure. Then, 1 g of pre-treated perlite [29,30] and 0.1 g NbCl5 were suspended in 10 mL of 2-propanol separately. NbCl5 suspension was added in drops to a perlite–propanol suspension and stirred vigorously for 4 h at an ambient temperature. Then, the solvent was evaporated, dried at 120 °C for 2 h and calcinated at 250 °C for 2 h to obtain 10 wt% NbCl5-loaded perlite. The other wt% of the NbCl5-loaded perlites were prepared with respective amounts of NbCl5.

2.3. General Method for Preparation of Diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate

An ethanolic solution of ethyl acetoacetate (EAA, 4 mmol) and substituted aldehydes (2 mmol) was refluxed at 80 °C in the presence of NbCl5/perlite (0.15 g) for 15–30 min. The progress of the reaction was monitored by thin-layer chromatography (TLC). Then, the catalyst was removed by filtration, the excess solvent was evaporated and the crude product was recrystallized from ethanol. The formed pyrans were confirmed using IR and NMR spectral technique. The corresponding 1H and 13C NMR spectra are given as Supplementary information (Figures S1–S16).
  • Diethyl-2,6-dimethyl-4-phenyl-4H-pyran-3,5-dicarboxylate (1a)
IR υ (cm−1) = 2976.81, 2329.46, 1707.26, 1630.58, 1455.86, 1377.93, 1214.52, 1097.62, 1033.51; 1H NMR (500 MHz, DMSO-d6) δ (ppm): 7.3–7.7 (m, Ar-H), 4.86 (s, 1H,H-4), 4.14–4.11 (q, 4H, CH2-ester), 2.26 (s, 6H, CH3), 1.14–1.12 (t, 6H, ester CH3): 13C NMR (500 MHz, DMSO-d6) δ (ppm): 68.75 (C=O), 167.42 (C-2,6), 145.86–128.30 (Ar-C), 102.27 (C-3,5), 59.44 (CH2-ester), C-4 merged with DMSO region, 18.68 (CH3), 14.64 (ester CH3).
  • Diethyl-4-(2-chlorophenyl)-2,6-dimethyl-4H-pyran-3,5-dicarboxylate (1b)
IR υ (cm−1) = 2939.02, 1691.57, 1626.74, 1465.90,1224.80, 1083.99, 837.11, 744.52; 1H NMR (500 MHz, DMSO-d6) δ (ppm): 7.19–7.16 (m, Ar-H), 3.98–3.95 (q,4H, CH2-ester), 3.69 (s,1H,H-4), 2.24 (s,6H, CH3), 1.15–1.13 (t, 6H, ester CH3): 13C NMR (500 MHz, DMSO-d6) δ (ppm): 167.32 (C=O), 146.68 (C-2,6), 145.83–127.62 (Ar-C), 102.22 (C-3,5), 61.48 (CH2-ester), 37.20 (C-4), 18.53 (CH3), 14.63–14.47 (ester CH3).
  • Diethyl-4-(4-chlorophenyl)-2,6-dimethyl-4H-pyran-3,5-dicarboxylate (1c)
IR υ (cm−1) = 2972.31, 2818.00, 2810.28, 1687.71, 1578.38, 1224.80, 1209.37 1055.06, 806.25; 1H NMR (500 MHz, DMSO-d6) δ (ppm): 7.95–7.54 (m, Ar-H), 4.27–4.24 (q, 4H, CH2-ester), 4.08 (s, 1H,H-4), 2.44 (s,6H,CH3), 1.26–1.24 (t,6H, ester CH3): 13C NMR (500 MHz, DMSO-d6) δ (ppm): 167.30 (C=O), 161.44 (C-2,6), 140.47- 131.58 (Ar-C), 103.26 (C-3,5), C-4 merged with DMSO region,56.50 (CH2-ester), 18.99 (CH3), 14.18 (ester CH3).
  • Diethyl-4-(4-bromophenyl)-2,6-dimethyl-4H-pyran-3,5-dicarboxylate (1d)
IR υ (cm−1) = 3051.39, 2956.87, 2831.50, 1689.64, 1579.61, 1392.61, 1271.09, 1209.37, 1037.70, 804.32; 1H NMR (500 MHz, DMSO-d6) δ (ppm): 7.86–7.84 (m, Ar-H), 4.25–4.22 (q,4H,CH2-ester), 4.09 (s,1H, H-4), 2.44 (s,6H,CH3), 1.19–1.17 (t,6H, ester CH3): 13C NMR (500 MHz, DMSO-d6): δ ppm: 167.08 (C=O), 162.04 (C-2,6), 140.62–132.53 (Ar-C), 104.61 (C-3,5), 61.84 (CH2- ester), C-4 merged with DMSO region, 26.50 (CH3), 14.44 (ester CH3).
  • Diethyl-4-(4-fluorophenyl)-2,6-dimethyl-4H-pyran-3,5-dicarboxylate (1e)
IR υ (cm−1) = 2960.73, 2347.37, 1693.50, 1647.52, 1473.62, 1212.23, 1099.43, 1070.49,812.03; 1H NMR (500 MHz, DMSO): δH ppm: 7.29–7.00 (m, Ar-H), 4.85 (s, 1H,H-4), 4.00–3.97 (q,4H,CH2 ester), 2.26 (s,6H, CH3), 1.15–1.13 (t,6H, ester CH3): 13C NMR (500 MHz, DMSO-d6) δ ppm: 167.49 (C=O), 165.72, 167.31 (C-2,6), 144.90–129.56 (Ar-C), 102.23 (C-3,5), 59.48 (CH2-ester), 38.75 (C-4), 18.61 (CH3), 14.61 (ester CH3).
  • Diethyl-4-(3,4,5-trimethoxyphenyl)-2,6-dimethyl-4H-pyran-3,5-dicarboxylate (1f)
IR υ (cm−1) = 2962.66, 2837.29, 1695.43, 1587.42, 1460.11, 1421.54, 1336.67, 1313.52, 1226.73, 114.86, 999.13, 833.25, 717.52; 1H NMR (500 MHz, DMSO-d6) δ (ppm): 7.24 (s, Ar-H), 4.25–4.22 (q,4H, CH2-ester), 4.08 (s,1H, H-4), 3.86 (s,6H, Ar-m-OCH3), 3.76 (s,3H, Ar-p-OCH3), 2.29 (s,6H, CH3), 1.23–1.21 (t,6H, ester CH3): 13C NMR (500 MHz, DMSO-d6) δ (ppm): 167.88 (C=O), 153.78 (C-2,6), 153.39–132.11 (Ar-H), 107.15 (C-3,5), 61.74 (CH2-ester), 60.64–56.30 (Ar-OCH3), C-4 merged with DMSO region, 26.30 (CH3), 14.42 (ester CH3).
  • Diethyl-4-(3,4-dimethylphenyl)-2,6-dimethyl-4H-pyran-3,5-dicarboxylate (1g)
IR υ (cm−1) = 2939.52, 2339.65, 1697.36, 1624.30, 1377.17, 1234.44, 1087.85, 804.32; 1H NMR (500 MHz, DMSO-d6) δ (ppm): 7.8–7.6 (m, Ar-H), 3.98–3.95 (q, 4H, CH2- ester), 3.88 (s,1H, H-4), 2.42–2.25 (m, 12H, Ar-CH3 and CH3), 1.20–1.18 (t, 6H, ester CH3): 13C NMR (500 MHz, DMSO-d6) δ (ppm): 167.77 (C=O), 152.12 (C-2,6), 142.12–128.99 (Ar-C), 109.64 (C-3,5), 58.24 (CH2-ester), C-4 merged with DMSO region, 19.90–19.73 (Ar-CH3), 19.66 (CH3), 14.75 (ester CH3).
  • Diethyl-4-(4-methylphenyl)-2,6-dimethyl-4H-pyran-3,5-dicarboxylate (1h)
IR υ (cm−1) = 2961.73, 2533.04, 2342.03, 1687.15, 1403.07,1254.94, 1211.30, 1087.56, 950.91,819.83; 1H NMR (500 MHz, DMSO-d6) δ (ppm): 7.84–7.45 (m, Ar-H), 4.81 (s,1H, H-4), 4.15–4.12 (q, 4H, CH2 ester), 2.36 (s, 3H, Ar-CH3), 2.20 (s,6H, CH3), 1.19–1.17 (t,6H,ester CH3): 13C NMR (500 MHz, DMSO-d6) δ (ppm): 167.77 (C=O), 163.49 (C-2,6), 145.59–130.13 (Ar-C), 102.44 (C-3,5), C-4 merged with DMSO region, 61.22 (CH2- ester), 21.59 (Ar-CH3), 18.67 (CH3), 14.65 (ester CH3).

3. Results and Discussion

Perlite, an inexpensive volcanic mineral consisting mainly of alumina and silica has been used as a solid support in the fabrication of the heterogeneous catalyst NbCl5/perlite. NbCl5/perlite was prepared via a simple dispersion method. The novel NbCl5/perlite catalyst was validated using FT-IR, SEM-EDS, XRD, TGA and BET techniques. The results acquired from these methods supported the formation of NbCl5/perlite successfully.

3.1. Characterisation of NbCl5/Perlite

The NbCl5-impregnated solid acid catalyst loading over the surface of perlite was examined by FT-IR studies. The FT-IR spectra of pure perlite, NbCl5 and NbCl5/perlite are shown in Figure 1. FT-IR spectra of pure perlite and NbCl5/perlite show absorption bands between 1030 and 1100 cm−1, which were assigned to Si–O stretching vibrations of the O–Si–O group. Furthermore, an O–Si–O bending vibration was observed between 400 and 500 cm−1. The stretching and bending modes of the OH groups on the surface of perlite (mainly Si–OH groups and surface-adsorbed water molecules) were depicted between 3500–3630 cm−1 and 1510–1630 cm−1, respectively. When comparing the spectrum of NbCl5 (Figure 1c) with NbCl5/perlite, the additional band at 686 cm−1 in NbCl5/perlite (Figure 1d) corresponds to Nb compound [31].
In order to investigate the crystalline nature of the modified perlite, the X-ray diffraction pattern of NbCl5/perlite is given Figure 2b, along with pure perlite (Figure 2a) for comparison. The broad peak at the 2θ value of 26° indicated the amorphous nature of perlite (Figure 2). The XRD pattern of NbCl5/perlite (Figure 2b) is almost comparable with pure perlite, and the additional peaks at the 2θ values of 8.9°, 18.1°, 31.7°, 45.5° and 56.5° that are attributed to Nb [32,33] (partial oxidation of NbCl5 into its oxides form) reveal the successful immobilization of NbCl5 onto the perlite surface.
The surface morphology of the catalyst prepared was examined by SEM technique. Figure 3 depicts the SEM images in different magnifications signifying the irregular shape, layer-like arrangement and surface roughness of NbCl5/perlite. The energy-dispersive spectra (EDS) of perlite [30] and NbCl5/perlite are given in the supporting information (Figure S17). The energy-dispersive spectrum of NbCl5/perlite implies the existence of Fe, Na Si, Al, O, K, and Ca, as in case of pure perlite, with further peaks at 2.1 and 2.2 KeV for Nb. The elemental percentage composition of NbCl5/perlite is given in Table 1. From the table, approximately 9.59% of Nb is loaded in pure perlite and the effective loading of NbCl5 on perlite is confirmed.
The thermal stability of the catalyst was examined by the Thermogravimetric analysis (TGA). The TGA of perlite and NbCl5/perlite are shown in Figure 4a,b, respectively. For bare perlite, there was no significant mass loss observed until 600 °C, with the initial mass loss observed (about 0.28%) corresponding to the removal of adsorbed water molecules. From Figure 4b, an initial steady mass loss of 3.1% until 200 °C corresponded to the removal of water molecules; then, from 200–550 °C, there is a gradual loss of approximately 6% NbCl5 from the solid surface, followed by a reliable mass loss of 6.4% from 550–590 °C, which is owing to the rapid removal of NbCl5 [32]. An additional mass loss above 590 °C might be a result of the dehydroxylation of perlite, as anticipated (Figure S18) [33]. However, NbCl5/perlite was synthesized at 250 °C, and no significant loss of NbCl5 occurred. In addition, the partial oxidation of NbCl5 was evidenced by XRD measurements. The surface analysis of the prepared catalyst was studied using BET analysis. Surface area, pore volume and diameter were analyzed from BET results and were found to be significantly lower than pure perlite, possibly due to the loading of NbCl5 over perlite (Table 2).

3.2. Synthesis of Diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate and Optimization Process

Pyrans establish an important class of ring oxygen containing heterocycles, and they are important biologically active compounds with good antibacterial, antitumor and antibiotic effects [24,25]. The viability of the NbCl5/perlite catalyst was studied by preparing 4-substituted pyrans from EAA (Ethyl acetoacetate) and aromatic aldehydes in its presence (Scheme 1).
The optimization of pyran synthesis was originally carried out using EAA and benzaldehyde in order to yield diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate in the presence of NbCl5/perlite. To study the effectiveness of different wt % of NbCl5/perlite, 5–25 wt% of NbCl5/perlite was prepared and tested in the synthesis of pyrans (Figure 5) and the efficiency of the loading was validated. The yields obtained with various wt% catalysts were compared. The wt% NbCl5 increased from 5 to 10%, and the percentage of yield also incresed from 89 to 95. Further, with the increase in the wt% of NbCl5 over perlite, the yield was slightly decreased (beyond 10 wt%). The best yield was obtained with 10 wt % NbCl5-loaded perlite. It has been noted that only a 7% enhancement in the yield was observed from 5 wt% to 10 wt% of NbCl5/perlite. The 7% enhancement in the yield is not the subject of negotiation, and even 1% of the impurity will affect the purity of the synthesized compounds. Therefore, we determine that the 10 wt% NbCl5 is the optimum concentration over perlite for this reaction. Under the same conditions, the reaction was performed with pure NbCl5 and gave a 78% yield. Henceforth, the preparation of substituted pyrans was carried out with 10 wt% NbCl5/perlite.
The condensation reaction of benzaldehyde (2 mmol) and ethyl acetoacetate (4 mmol), catalyzed by NbCl5/perlite, was performed as a representative reaction for the pyrans preparation with varying amounts of catalyst, from 0.01 to 0.20 g (Table 3). There was no formation of the product observed when the reaction was performed without catalyst. When the concentration of the catalyst was increased from 0.01 to 0.15 g, the formation of the diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5- dicarboxylate increased from 87 to 95% (Table 3). This may be due to an increase in the number of NbCl5/perlite particles. When the catalyst was above 0.15 g, a slight decrease in the yield was observed (0.2 g, 93%). The reaction carried out with 0.15 g of catalyst produced a significant yield. The optimum catalyst loading was found to be 0.15 g for the formation of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5- dicarboxylate.
The reaction temperature of the catalytic activity of the NbCl5/perlite catalyst was studied at temperature levels from 60 to 120 °C (Table 4). This study was performed to determine the effect of temperature on the diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate formation with a standardized catalytic amount. The formation of the product was found to be a little low, at 60 °C (Table 4, entry 1, 72%). The product formation enhanced with an increase in the reaction temperature from 60 to 80 °C (Table 4, entry 3, 95%). However, on increasing the reaction temperature further to 120 °C, no significant variation in the yield was observed (Table 4, entries 4–7). Hence, 80 °C is the optimum temperature for this reaction. Thus, the temperature was maintained at 80 °C and the analogous reaction was carried out using different solvents, namely dichloromethane (DCM), ethanol (EtOH), acetonitrile (CH3CN) and water (H2O), under the same conditions in order to study the effect of the solvent (Table 5). In the solvent ethanol, the reaction produced a quantitative yield (Table 5, entry 2, 95%) of product within 15 min. It was found that the reaction in water required a longer time (12 h) to give a 65% (Table 5, entry 4) yield of product. DCM and CH3CN gave moderate yields, and also required a longer time.
The reaction carried out in ethanolic medium produced a high yield within 15 min; therefore, ethanol was chosen as the solvent for the further reactions. Thence, the pyran synthesis in the presence of 0.15 g of the catalyst at 80 °C and using ethanol as a solvent was found to be in good agreement. Owing to the plausible outcomes, an identical reaction was performed on several aromatic aldehydes in order to examine the fluctuation in the time and yield of the substituted pyrans with different substituents (Table 6).
It is evident from Table 6 that the proposed scheme is applicable for a variety of aldehydes. All the reactions with substituted aldehyes and using ethanol as a solvent proceeded very cleanly at 80 °C, and no undesirable side-reactions were observed; however, the yields were slightly influenced by the substituents. Table 6 shows that electron-withdrawing groups, such as chloro, bromo and fluoro, favored the formation of the product (Table 6, products 1b–1e). In contrast, electron-donating groups (Table 6, products 1f–1h) gave a slightly lower yield.
The efficiency of the prepared catalyst was correlated with the available results (Table 7). Our results are comparable with other methods, and our method gave high yields with a shorter reaction time. The catalyst used in the reaction was removed by simple filtration, and the catalyst’s ability to be reused for the reaction of pyrans from benzaldehyde has been estimated. The catalyst was separated by simple filtration. The product was washed with hot ethanol, dried and reused for further reaction. The reusability of the catalyst was remarkable up to five runs without abating its activity (Table 8). The Lewis acidity of the catalyst plays a important role in the reaction mechanism [38]; this is a plausible mechanism that involves Knoevenagel condensation, Michael addition, and then the intermolecular ring closure that causes the formation of substituted-4H-pyran derivatives catalyzed by NbCl5/perlite [35]. It is probable that a Knoevenagel condensation reaction occurred between aromatic aldehyde with the first equivalent of EAA and formed a benzylidene derivative; due to the keto-enol tautomerism in the ester, the aromatic aldehyde predominantly attacked the carbon, and it is believed that complexation occurred between NbCl5/perlite and the aromatic aldehydes. Due to this interaction, the carbonyl carbon of the aromatic aldehyde becomes more electrophilic, and the electron-deficient carbonyl carbon can easily be attacked by the keto-enol tautomerism of the ester. The formed intermediate reacts with the second equivalent of the ester (Michael addition), and is followed by the ring closing to obtain pyran derivatives.

4. Conclusions

In conclusion, an effective solid acid catalyst, NbCl5/perlite, was introduced for the synthesis of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate. The yields obtained with various wt% of catalyst were compared, and it was found that the best yield was obtained with 10 wt% of NbCl5-loaded perlite. For the present reaction, the optimum catalyst loading was found to be 0.15 g. The reaction carried out in ethanolic (EtOH) medium produced a high yield within 15 min when compared with dichloromethane, CH3CN and H2O. The notable features of the proposed scheme are that the catalyzed reaction tends to proceed in less time, that it has a remarkable yield and that the catalysts are easily separated at the end of the reaction. It was found that the catalyst had the ability to be used in several reaction cycles and that it could undergo five runs without any notable change in the activity. Thence, we have demonstrated that the catalyst NbCl5/perlite is benign and acts as a better activator for the transformation of pyran and its analogues.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/su15043678/s1, The data that support the findings of this study are available. Spectral data of the compounds Figure S1. 1H NMR spectrum of 1a, Figure S2. 13C NMR spectrum of 1a, Figure S3. 1H NMR spectrum of 1b, Figure S4. 13C NMR spectrum of 1b, Figure S5. 1H NMR spectrum of 1c, Figure S6. 13C NMR spectrum of 1c, Figure S7. 1H NMR spectrum of 1d, Figure S8. 13C NMR spectrum of 1d, Figure S9. 1H NMR spectrum of 1e, Figure S10. 13C NMR spectrum of 1e, Figure S11. 1H NMR spectrum of 1f, Figure S12. 13C NMR spectrum of 1f, Figure S13. 1H NMR spectrum of 1g, Figure S14. 13C NMR spectrum of 1g, Figure S15. 1H NMR spectrum of 1h, Figure S16. 13C NMR spectrum of 1h, Figure S17. Energy dispersive spectra of perlite (a) and NbCl5/perlite (b) and Figure S18. TGA spectrum of NbCl5/perlite up to 1200 °C.

Author Contributions

K.L.: Prepared the materials and performed the reactions; M.S.: Methodology, and data curation; S.R.: Materials characterization, writing—review and editing; T.H.O.: Software, validation, resources, and data curation; K.J.S.: Resources, data curation, writing—review and editing; K.S.: Materials characterization; A.P.: Conceptualization, Writing—original draft preparation and supervision; K.B.: Conceptualization, original draft correction and supervision. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful to the GRG trust, Coimbatore, for their financial support in our work. Krishnakumar Balu would like to thank the Ministry of Universities and the Recovery, Transformation and Resilience Plan from the Spanish government for the “María Zambrano grant 2021” by the European Union—NextGenerationEU.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available on request from the corresponding author. The data are not publicly available because of privacy or ethical restriction.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miao, Z.; Zhao, H.; Song, H.; Chou, L. Ordered mesoporous zirconium oxophosphate supported tungsten oxide solid acid catalysts: The improved Brønsted acidity for benzylation of anisole. RSC Adv. 2014, 4, 22509–22519. [Google Scholar] [CrossRef]
  2. Koukabi, N.; Kolvari, E.; Zolfigol, M.A.; Khazaei, A.; Shaghasemi, B.S.; Fasahati, B. A Magnetic Particle Supported Sulfonic Acid Catalyst: Tuning Catalytic Activity Between Homogeneous and Heterogeneous Catalysis. Adv. Synth. Catal. 2012, 354, 2001–2008. [Google Scholar] [CrossRef]
  3. Rahmani, S.; Amoozadeh, A.; Kolvari, E. Nano titania-supported sulfonic acid: An efficient and reusable catalyst for a range of organic reactions under solvent free conditions. Catal. Commun. 2014, 56, 184–188. [Google Scholar] [CrossRef]
  4. Zolfigol, M.A. Silica sulfuric acid/NaNO2 as a novel heterogeneous system for production of thionitrites and disulfides under mild conditions. Tetrahedron 2001, 57, 9509–9511. [Google Scholar] [CrossRef] [Green Version]
  5. Zareyee, D.; Serehneh, M. Recyclable CMK-5 supported sulfonic acid as an environmentally benign catalyst for solvent-free one-pot construction of coumarin through Pechmann condensation. J. Mol. Catal. A Chem. 2014, 391, 88–91. [Google Scholar] [CrossRef]
  6. Elhamifar, D.; Nasr-Esfahani, M.; Karimi, B.; Moshkelgosha, R.; Shábani, A. Ionic liquid and sulfonic acid based bifunctional periodic mesoporous organosilica (BPMO-IL-SO3H) as a highly efficient and reusable nanocatalyst for the biginelli reaction. ChemCatChem 2014, 6, 2593–2599. [Google Scholar] [CrossRef]
  7. Naeimi, H.; Nazifi, Z.S. Sulfonated diatomite as heterogeneous acidic nanoporous catalyst for synthesis of 14-aryl-14-H-dibenzo[a,j]xanthenes under green conditions. Appl. Catal. A Gen. 2014, 477, 132–140. [Google Scholar] [CrossRef]
  8. Hasan, Z.; Jhung, S.H. Facile in situ syntheses of highly water-stable acidic sulfonated mesoporous silica without surfactant or template. Eur. J. Inorg. Chem. 2014, 3420–3426. [Google Scholar] [CrossRef]
  9. Nemati, F.; Heravi, M.M.; Saeedi Rad, R. Nano-Fe3O4 encapsulated-silica particles bearing sulfonic acid groups as a magnetically separable catalyst for highly efficient Knoevenagel condensation and Michael addition reactions of aromatic aldehydes with 1,3-cyclic diketones. Chin. J. Catal. 2012, 33, 1825–1831. [Google Scholar] [CrossRef]
  10. Bandgar, B.P.; Patil, A.V.; Chavan, O.S. Silica supported fluoroboric acid as a novel, efficient and reusable catalyst for the synthesis of 1,5-benzodiazepines under solvent-free conditions. J. Mol. Catal. A Chem. 2006, 256, 99–105. [Google Scholar] [CrossRef]
  11. Nasseri, M.A.; Allahresani, A.; Esmaeili, A.A. Niobium Pentachloride Catalyzed One-Pot Multicomponent Condensation Reaction of β-Naphthol, Aryl Aldehydes and Cyclic 1,3-Dicarbonyl Compounds. Lett. Org. Chem. 2014, 11, 91–96. [Google Scholar] [CrossRef]
  12. Li, B.; Leng, K.; Zhang, Y.; Dynes, J.J.; Wang, J.; Hu, Y.; Ma, D.; Shi, Z.; Zhu, L.; Zhang, D.; et al. Metal-organic framework based upon the synergy of a Brønsted acid framework and Lewis acid centers as a highly efficient heterogeneous catalyst for fixed-bed reactions. J. Am. Chem. Soc. 2015, 137, 4243–4248. [Google Scholar] [CrossRef] [PubMed]
  13. Shimizu, K.I.; Onodera, W.; Touchy, A.S.; Siddiki, S.M.A.H.; Toyao, T.; Kon, K. Lewis Acid-Promoted Heterogeneous Platinum Catalysts for Hydrogenation of Amides to Amines. Chem. Sel. 2016, 4, 736–740. [Google Scholar] [CrossRef]
  14. Rezayati, S.; Ramazani, A. Metal-based Lewis acid catalysts for conversion of a variety of aldehydes with acetic anhydride to gem 1,1-diacetates. Res. Chem. Intermed. 2020, 46, 3757–3799. [Google Scholar] [CrossRef]
  15. Corma, A.; Domine, M.E.; Valencia, S. Water-resistant solid Lewis acid catalysts: Meerwein-Ponndorf-Verley and Oppenauer reactions catalyzed by tin-beta zeolite. J. Catal. 2003, 215, 294–304. [Google Scholar] [CrossRef]
  16. Ferrand, L.; Tang, Y.; Aubert, C.; Fensterbank, L.; Mouriès-Mansuy, V.; Petit, M.; Amatore, M. Niobium-Catalyzed Intramolecular Addition of O-H and N-H Bonds to Alkenes: A Tool for Hydrofunctionalization. Org. Lett. 2017, 19, 2062–2065. [Google Scholar] [CrossRef] [Green Version]
  17. Gao, S.T.; Liu, W.H.; Ma, J.J.; Wang, C.; Liang, Q. NbCl5 as an efficient catalyst for the synthesis of 1,5-benzodiazepine derivatives. Synth. Commun. 2009, 39, 3278–3284. [Google Scholar] [CrossRef]
  18. Tekin, N.; Kadinci, E.; Demirbaş, Ö.; Alkan, M.; Kara, A.; Doǧan, M. Surface properties of poly(vinylimidazole)-adsorbed expanded perlite. Microporous Mesoporous Mater. 2006, 93, 125–133. [Google Scholar] [CrossRef]
  19. Vijayakumar, G.; Tamilarasan, R.; Dharmendirakumar, M. Adsorption, Kinetic, Equilibrium and Thermodynamic studies on the removal of basic dye Rhodamine-B from aqueous solution by the use of natural adsorbent perlite. J. Mater. Environ. Sci. 2012, 3, 157–170. [Google Scholar]
  20. Acemioǧlu, B. Batch kinetic study of sorption of methylene blue by perlite. Chem. Eng. J. 2005, 106, 73–81. [Google Scholar] [CrossRef]
  21. Nasrollahzadeh, M.; Sajadi, S.M.; Rostami-Vartooni, A.; Bagherzadeh, M.; Safari, R. Immobilization of copper nanoparticles on perlite: Green synthesis, characterization and catalytic activity on aqueous reduction of 4-nitrophenol. J. Mol. Catal. A Chem. 2015, 400, 22–30. [Google Scholar] [CrossRef]
  22. Kalyani, S.; Priya, J.A.; Rao, P.S.; Krishnaiah, A. Removal of copper and nickel from aqueous solutions using chitosan coated on perlite as biosorbent. Sep. Sci. Technol. 2005, 40, 1483–1495. [Google Scholar] [CrossRef]
  23. Rbaa, M.; Hichar, A.; Dohare, P.; Anouar, E.H.; Lakhrissi, Y.; Lakhrissi, B.; Berredjem, M.; Almalki, F.; Rastija, V.; Rajabi, M.; et al. Synthesis, Characterization, Biocomputational Modelling and Antibacterial Study of Novel Pyran Based on 8-Hydroxyquinoline. Arab. J. Sci. Eng. 2021, 46, 5533–5542. [Google Scholar] [CrossRef]
  24. Mohareb, R.M.; Zaki, M.Y.; Abbas, N.S. Synthesis, anti-inflammatory and anti-ulcer evaluations of thiazole, thiophene, pyridine and pyran derivatives derived from androstenedione. Steroids 2015, 98, 80–91. [Google Scholar] [CrossRef] [PubMed]
  25. Ramiz, M.M.M.; El-Sayed, W.A.; El-Tantawy, A.I.; Abdel-Rahman, A.A.H. Antimicrobial activity of new 4,6-disubstituted pyrimidine, pyrazoline, and pyran derivatives. Arch. Pharm. Res. 2010, 33, 647–654. [Google Scholar] [CrossRef] [PubMed]
  26. Reddy, T.N.; Ravinder, M.; Bikshapathi, R.; Sujitha, P.; Kumar, C.G.; Rao, V.J. Design, synthesis, and biological evaluation of 4-H pyran derivatives as antimicrobial and anticancer agents. Med. Chem. Res. 2017, 26, 2832–2844. [Google Scholar] [CrossRef]
  27. Dong, Y.; Nakagawa-Goto, K.; Lai, C.Y.; Morris-Natschke, S.L.; Bastow, K.F.; Lee, K.H. Antitumor agents 287. Substituted 4-amino-2H-pyran-2-one (APO) analogs reveal a new scaffold from neo-tanshinlactone with in vitro anticancer activity. Bioorg. Med. Chem. Lett. 2011, 21, 2341–2344. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Ferreira, S.B.; Carvalho da Silva, F.; Bezerra, F.A.F.M.; Lourenço, M.C.S.; Kaiser, C.R.; Pinto, A.C.; Ferreira, V.F. Synthesis of α- and β-pyran naphthoquinones as a new class of antitubercular agents. Arch. Pharm. 2010, 343, 81–90. [Google Scholar] [CrossRef]
  29. Barbosa, S.L.; Lima, C.D.; Almeida, M.A.R.; Mourão, L.S.; Ottone, M.; Nelson, D.L.; Klein, S.I.; Zanatta, L.D.; Clososki, G.C.; Caires, F.J.; et al. The preparation of benzyl esters using stoichiometric niobium (V) chloride versus niobium grafted SiO2 catalyst: A comparison study. Heliyon 2018, 4, e00571. [Google Scholar] [CrossRef] [Green Version]
  30. Brindha, K.; Amutha, P.; Krishnakumar, B.; Sobral, A.J.F.N. BiCl3-modified perlite as an effective catalyst for selective organic transformations: A green protocol. Res. Chem. Intermed. 2019, 45, 4367–4381. [Google Scholar] [CrossRef]
  31. Diniz, K.M.; Gorla, F.A.; Ribeiro, E.S.; Olimpio do Nascimento, M.B.; Corrêa, R.J.; Tarley, C.R.T.; Segatelli, M.G. Preparation of SiO2/Nb2O5/ZnO mixed oxide by sol-gel method and its application for adsorption studies and on-line preconcentration of cobalt ions from aqueous medium. Chem. Eng. J. 2014, 239, 233–241. [Google Scholar] [CrossRef]
  32. Moggi, P.; Devillers, M.; Ruiz, P.; Predieri, G.; Cauzzi, D.; Morselli, S.; Ligabue, O. Oxidative dehydrogenation of propane on pure and silica-dispersed multimetallic oxides based on vanadium and niobium prepared via hydrolytic and non-hydrolytic sol-gel methods. Catal. Today 2003, 81, 77–85. [Google Scholar] [CrossRef]
  33. Kolvari, E.; Koukabi, N.; Hosseini, M.M. Perlite: A cheap natural support for immobilization of sulfonic acid as a heterogeneous solid acid catalyst for the heterocyclic multicomponent reaction. J. Mol. Catal. A Chem. 2015, 397, 68–75. [Google Scholar] [CrossRef]
  34. Safaei Ghomi, J.; Teymuri, R.; Ziarati, A. A green synthesis of 3,4-dihydropyrimidine-2(1H)-one/thione derivatives using nanosilica-supported tin(II) chloride as a heterogeneous nanocatalyst. Mon. Chem. 2013, 144, 1865–1870. [Google Scholar] [CrossRef]
  35. Siqueira, M.S.; Silva-Filho, L.C. NbCl5-promoted the synthesis of 4H-pyrans through multicomponent reaction. Tetrahedron Lett. 2016, 57, 5050–5052. [Google Scholar] [CrossRef]
  36. Davoodnia, A.; Allameh, S.; Fazli, S.; Tavakoli-Hoseini, N. One-pot synthesis of 2-amino-3-cyano-4-arylsubstituted tetrahydrobenzo[b] pyrans catalysed by silica gel-supported polyphosphoric acid (PPA-SiO2) as an efficient and reusable catalyst. Chem. Pap. 2011, 65, 714–720. [Google Scholar] [CrossRef]
  37. Ziarani, G.M.; Abbasi, A.; Badiei, A.; Aslani, Z. An efficient synthesis of Tetrahydrobenzo[b]pyran derivatives using sulfonic acid functionalized silica as an efficient catalyst. J. Chem. 2011, 8, 293–299. [Google Scholar] [CrossRef] [Green Version]
  38. Ravi, K.; Krishnakumar, B.; Swaminathan, M. BiCl3-loaded montmorillonite K10: A new solid acid catalyst for solvent-free synthesis of bis(indolyl)methanes. Res. Chem. Intermed. 2015, 41, 5353–5364. [Google Scholar] [CrossRef]
  39. Abdollahi-Alibeik, M.; Nezampour, F. Synthesis of 4H-benzo[b]pyrans in the presence of sulfated MCM-41 nanoparticles as efficient and reusable solid acid catalyst. React. Kinet. Mech. Catal. 2013, 108, 213–229. [Google Scholar] [CrossRef]
  40. Mansoor, S.S.; Logaiya, K.; Aswin, K.; Sudhan, P.N. An appropriate one-pot synthesis of 3,4-dihydropyrano[c]chromenes and 6-amino-5-cyano-4-aryl-2 -methyl-4H -pyrans with thiourea dioxide as an efficient, reusable organic catalyst in aqueous medium. J. Taibah Univ. Sci. 2015, 9, 213–226. [Google Scholar] [CrossRef] [Green Version]
Sustainability 15 03678 g001 550

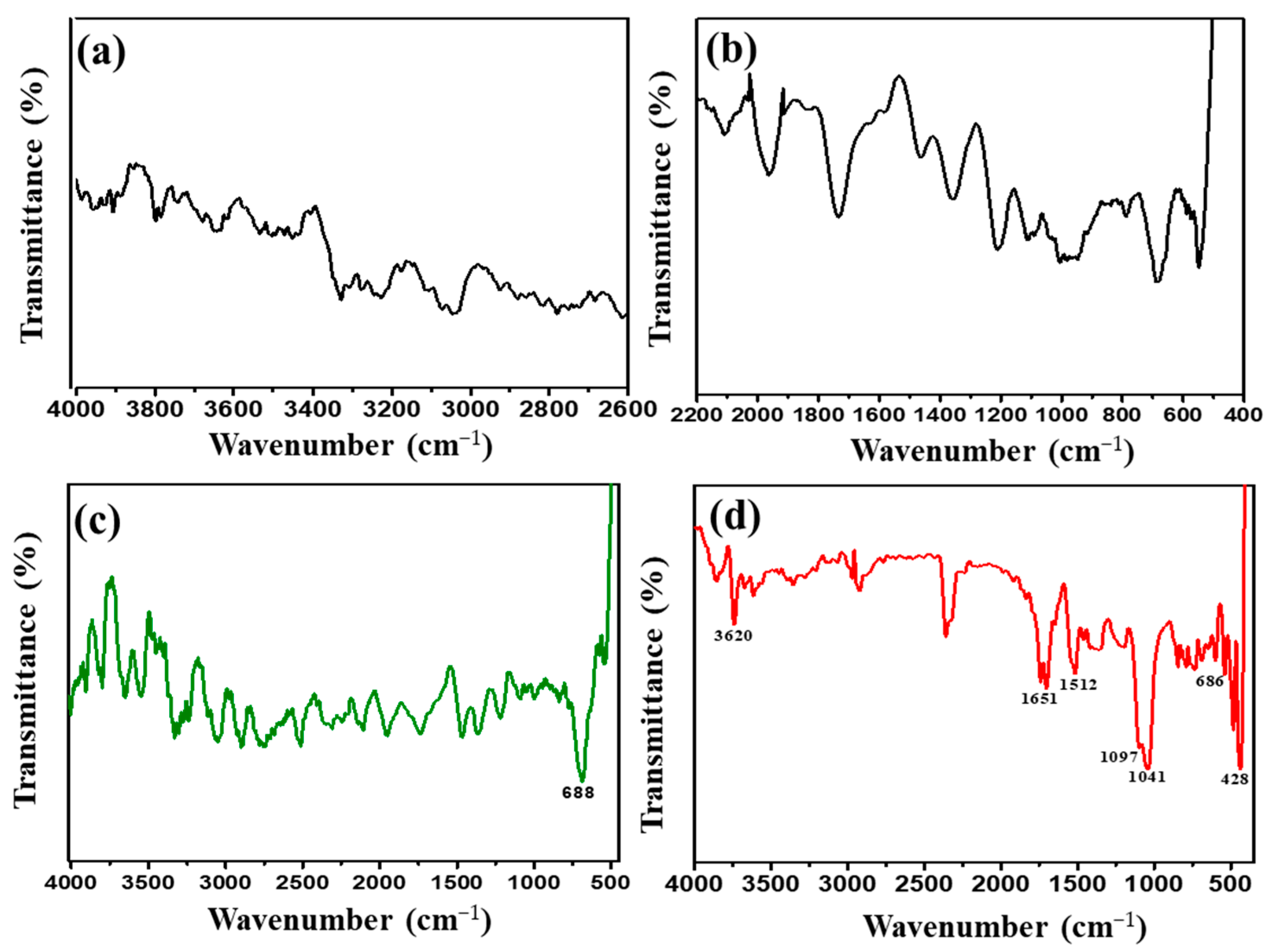

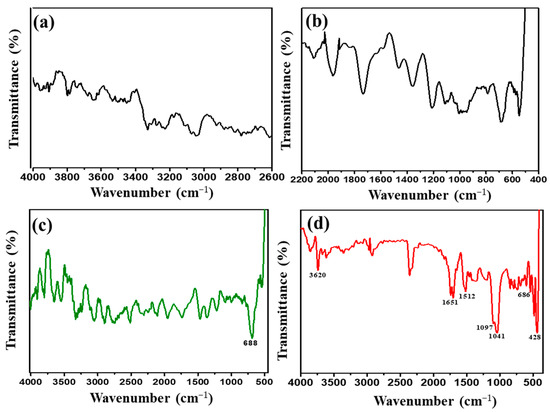

Figure 1. FT-IR Spectra of perlite (a,b), NbCl5 (c) and NbCl5/perlite (d).
Figure 1. FT-IR Spectra of perlite (a,b), NbCl5 (c) and NbCl5/perlite (d).
Sustainability 15 03678 g001
Sustainability 15 03678 g002 550

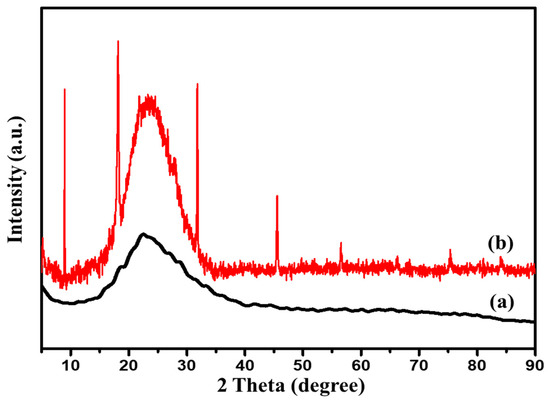

Figure 2. XRD patterns of perlite (a) and NbCl5/perlite (b).
Figure 2. XRD patterns of perlite (a) and NbCl5/perlite (b).
Sustainability 15 03678 g002
Sustainability 15 03678 g003 550
Figure 3. SEM images of NbCl5/perlite 2 μm (a) and 10 µm (b).
Figure 3. SEM images of NbCl5/perlite 2 μm (a) and 10 µm (b).
Sustainability 15 03678 g003
Sustainability 15 03678 g004 550

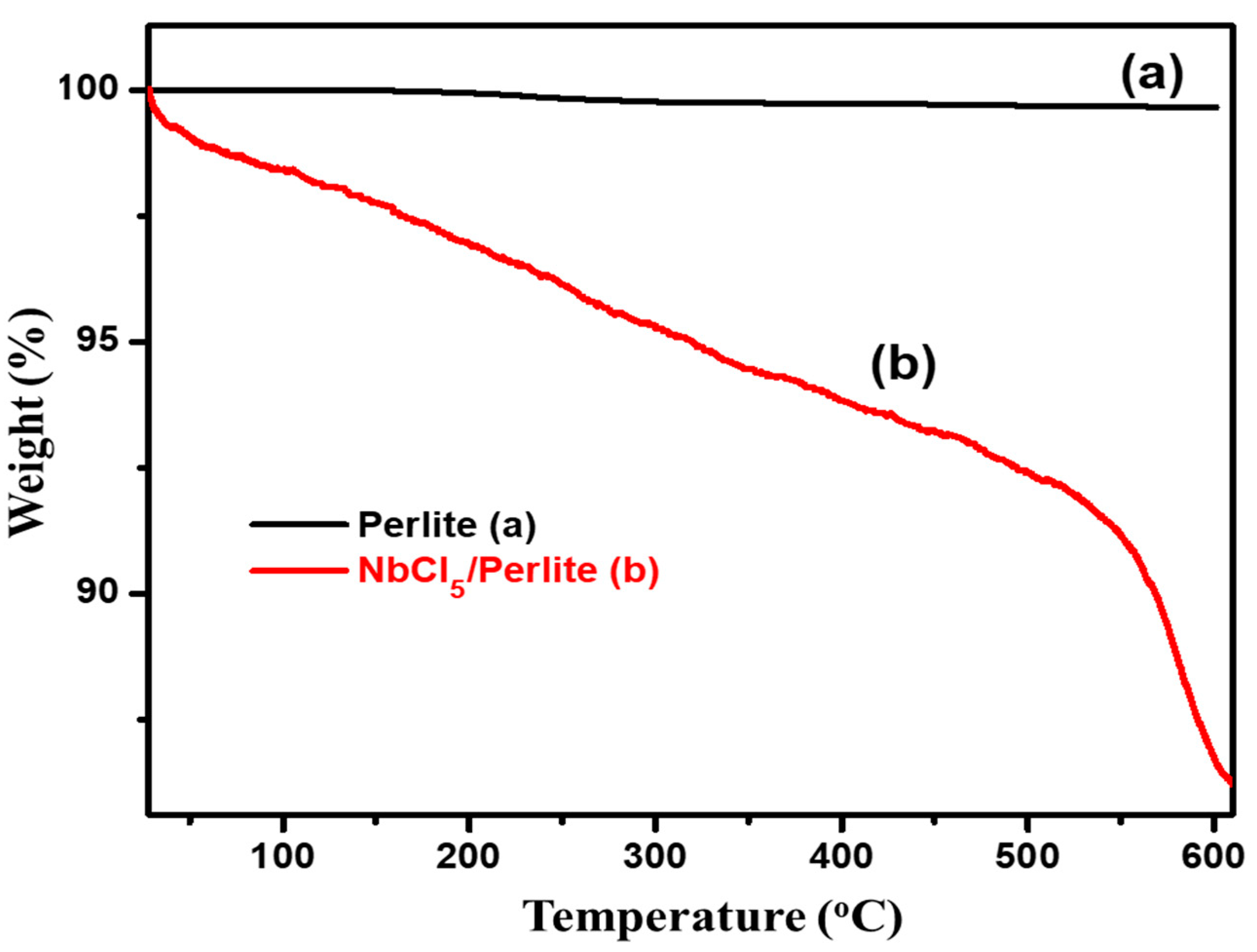

Figure 4. TGA spectra of perlite (a) and NbCl5/perlite (b).
Figure 4. TGA spectra of perlite (a) and NbCl5/perlite (b).
Sustainability 15 03678 g004
Sustainability 15 03678 sch001 550

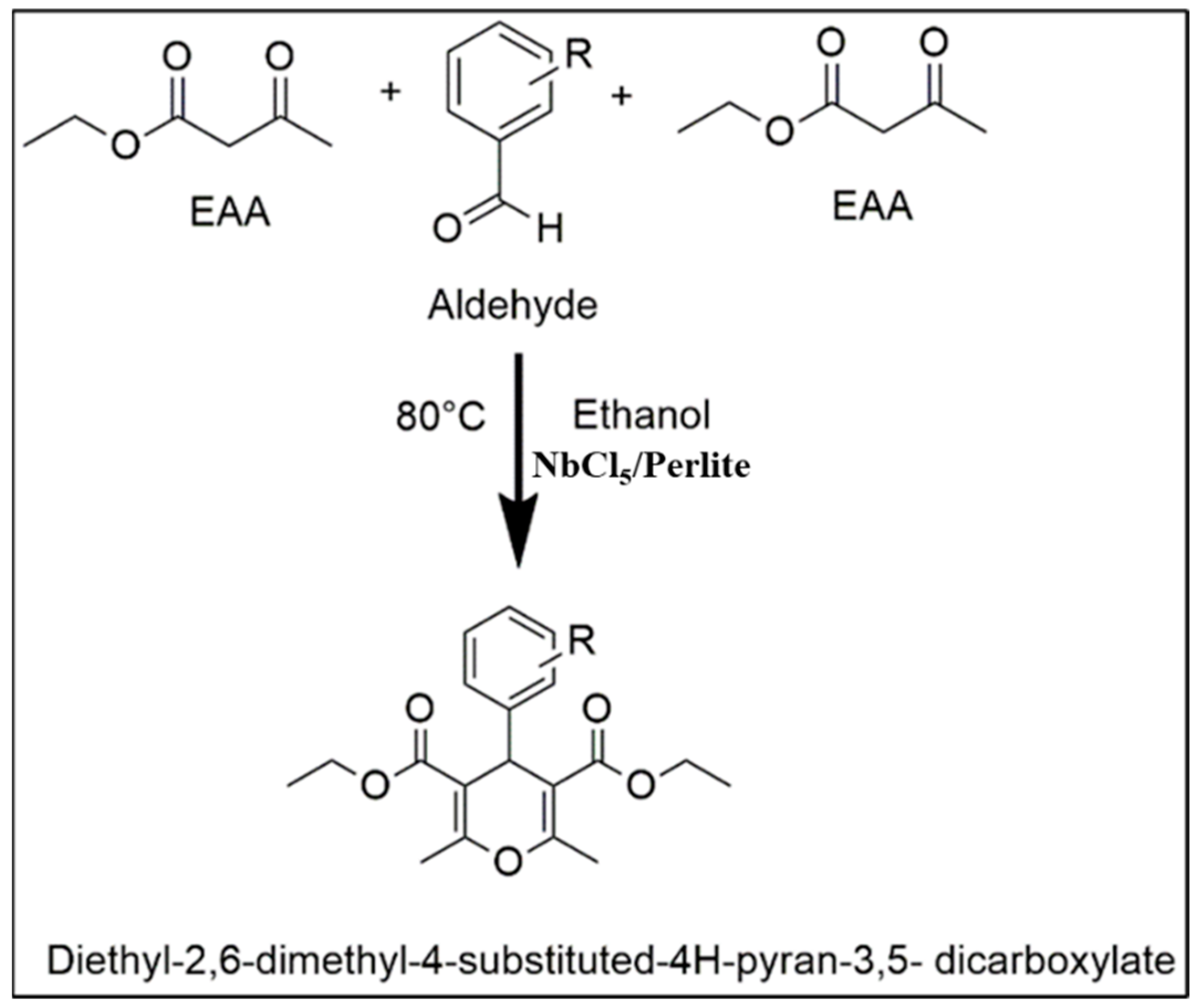

Scheme 1. Synthesis of Pyrans.
Scheme 1. Synthesis of Pyrans.
Sustainability 15 03678 sch001
Sustainability 15 03678 g005 550

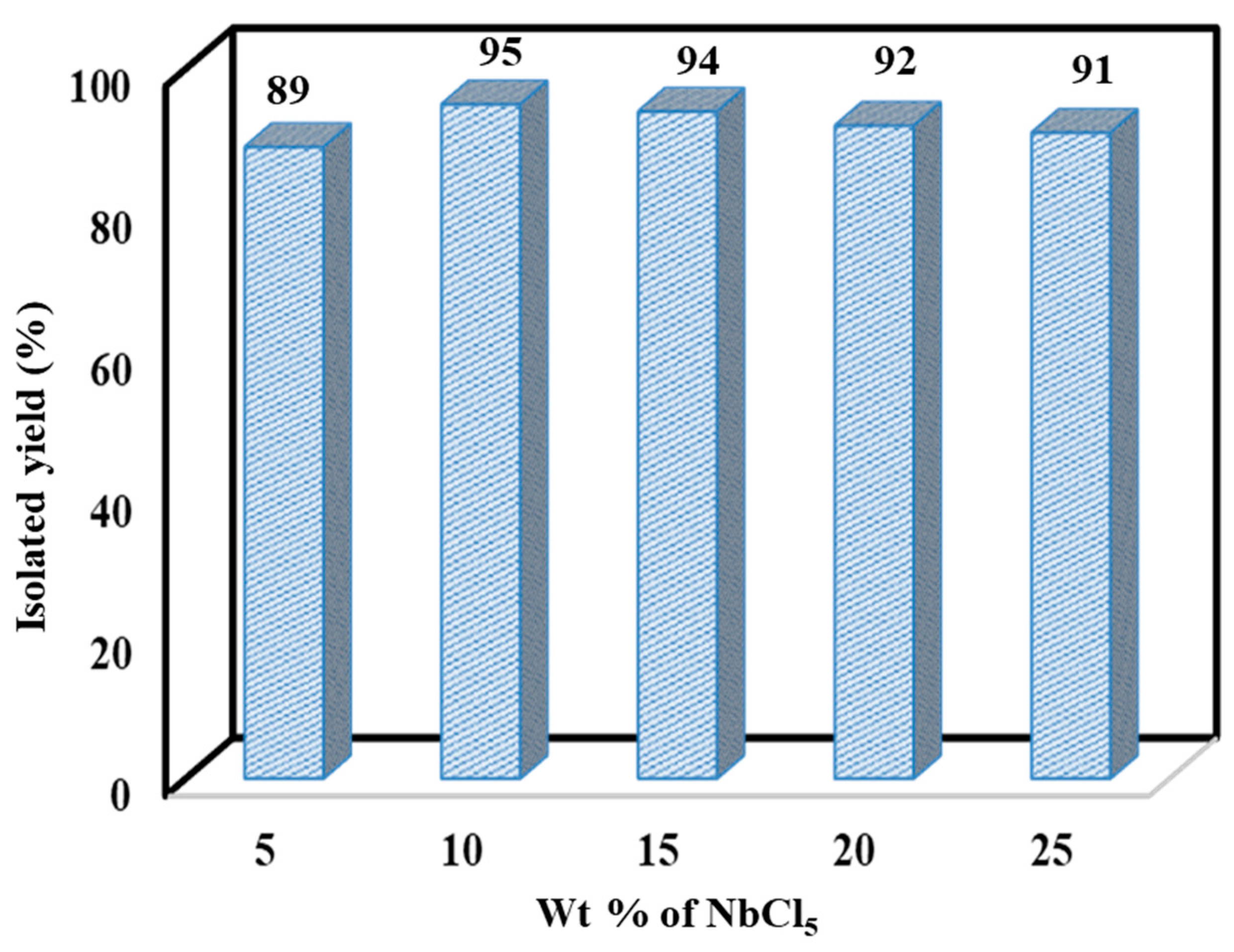

Figure 5. Optimization of NbCl5 on perlite for the synthesis of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate.
Figure 5. Optimization of NbCl5 on perlite for the synthesis of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate.
Sustainability 15 03678 g005
Table
Table 1. Percentage composition of elements in NbCl5/perlite.
Table 1. Percentage composition of elements in NbCl5/perlite.
SampleOFeNaAlSiKCaNb
Perlite20.281.043.0911.0560.244.330.82-
NbCl5/Perlite41.290.962.286.4835.533.460.979.59
Table
Table 2. Surface parameters of perlite and NbCl5/perlite.
Table 2. Surface parameters of perlite and NbCl5/perlite.
CatalystSurface Area (m2/g)Pore Volume (cm3/g)Pore Diameter (A°)
Perlite1.8742.899 × 10−33.910
NbCl5/Perlite1.2171.461 × 10−23.473
Table
Table 3. Effect of catalyst loading in the synthesis of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate.
Table 3. Effect of catalyst loading in the synthesis of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate.
S.No.CatalystCatalyst Amount (g)b Yield %
1.--None
2.NbCl5/perlite0.0187
3.NbCl5/perlite0.0589
4.NbCl5/perlite0.192
5.NbCl5/perlite0.1595
6.NbCl5/perlite0.293
Reaction Conditions: Benzaldehyde (2 mmol), EAA (4 mmol), Solvent = ethanol (≈5–10 mL), Time = 15 min at 80 °C; b Isolated Yield.
Table
Table 4. Effect of temperature in the synthesis of diethyl-2,6-dimethyl-4-substituted -4H-pyran-3,5- dicarboxylate.
Table 4. Effect of temperature in the synthesis of diethyl-2,6-dimethyl-4-substituted -4H-pyran-3,5- dicarboxylate.
S.No.Temperature (°C)b Yield %
1.6072
2.7086
3.8095
4.9095
5.10095
6.11095
7.12095
Reaction Conditions: Benzaldehyde (2 mmol), EAA (4 mmol), Solvent = ethanol (≈5–10 mL), Time = 15 min; b Isolated Yield.
Table
Table 5. Effect of solvent in the synthesis of diethyl 2,6- dimethyl-4-substituted-4H-pyran-3,5- dicarboxylate.
Table 5. Effect of solvent in the synthesis of diethyl 2,6- dimethyl-4-substituted-4H-pyran-3,5- dicarboxylate.
S.No.Solvents Usedb Yield%Time
1.Dichloromethane8010 h
2.Ethanol9515 min
3.CH3CN708 h
4.Water6512 h
Reaction Conditions: Benzaldehyde (2 mmol), EAA (4 mmol), Time = 15 min; b Isolated yield.
Table
Table 6. Preparation of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate using NbCl5/perlite.
Table 6. Preparation of diethyl-2,6-dimethyl-4-substituted-4H-pyran-3,5-dicarboxylate using NbCl5/perlite.
ProductRProduct StructureYield (%)Time (min)Melting Point (°C)Ref.
M.Pt (°C)
1aHSustainability 15 03678 i001951570–7172–73 [34]
1b2-ClSustainability 15 03678 i002911060–6162–64 [35]
1c4-ClSustainability 15 03678 i003931062–6461–63 [34]
1d4-BrSustainability 15 03678 i004941082–8481–83 [34]
1e4-FSustainability 15 03678 i005921080–8281–83 [36]
1f3,4,5- (OCH3)3Sustainability 15 03678 i006911585–8686–87 [37]
1g3,4-(CH3)2Sustainability 15 03678 i007892580–82-
1h4-(CH3)Sustainability 15 03678 i008852075–7679 [35]
Table
Table 7. Effectiveness of NbCl5/perlite compared with other reported catalysts in the synthesis of 4-substituted pyrans.
Table 7. Effectiveness of NbCl5/perlite compared with other reported catalysts in the synthesis of 4-substituted pyrans.
S.No.Catalyst aCatalyst AmountConditionsTimeYield %References
1.PPA-SiO20.1 g100 °C10 min90 [36]
2.SM-55025 mgReflux80 min61 [39]
3.TUD10 mol%70 °C30 min90 [40]
4.SiO2-Pr-SO3H0.03 gReflux35 min85 [37]
5.NbCl51 mol%RT72 h76 [35]
6.NbCl5/Perlite0.15 g80 °C15 min95 Our work
Catalyst a PPA-SiO2 = silica gel-supported polyphosphoric acid; SM-550 = Sulfated MCM-41 nanoparticles prepared at 550 °C; TUD = Thiourea dioxide organic catalyst; SiO2-Pr-SO3H = Sulfonic acid functionalized silica.
Table
Table 8. The reusability of the NbCl5/perlite in the synthesis of diethyl 2,6- dimethyl-4- substituted-4H-pyran-3,5-dicarboxylate.
Table 8. The reusability of the NbCl5/perlite in the synthesis of diethyl 2,6- dimethyl-4- substituted-4H-pyran-3,5-dicarboxylate.
Run12345
Yield (%)9595939191
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lakshminarayanan, K.; Sivanandhan, M.; Ramasundaram, S.; Oh, T.H.; Shah, K.J.; Saranraj, K.; Parasuraman, A.; Balu, K. NbCl5 Functionalized Perlite: A Potent and Recyclable Catalyst for Synthesis of Pyrans. Sustainability 2023, 15, 3678. https://doi.org/10.3390/su15043678

AMA Style

Lakshminarayanan K, Sivanandhan M, Ramasundaram S, Oh TH, Shah KJ, Saranraj K, Parasuraman A, Balu K. NbCl5 Functionalized Perlite: A Potent and Recyclable Catalyst for Synthesis of Pyrans. Sustainability. 2023; 15(4):3678. https://doi.org/10.3390/su15043678

Chicago/Turabian Style

Lakshminarayanan, Komalavalli, Monisha Sivanandhan, Subramaniyan Ramasundaram, Tae Hwan Oh, Kinjal J. Shah, Kumaravel Saranraj, Amutha Parasuraman, and Krishnakumar Balu. 2023. "NbCl5 Functionalized Perlite: A Potent and Recyclable Catalyst for Synthesis of Pyrans" Sustainability 15, no. 4: 3678. https://doi.org/10.3390/su15043678

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
