Analysis of Territorial Risks and Protection Factors for the Business Continuity of Data Centers
Abstract
:1. Introduction
2. Problem Framing
3. Knowledge Base for Assessing Data Centers’ Exposure and Vulnerability to Multiple Hazards
3.1. Literature Review
- A.
- “Risks/threats/hazards” subgroup descriptive of the potential disasters and failures (resulting in huge economic loss) faced by data centers as complex systems. This subgroup was used to analyze the main incidents occurring in data centers as a consequence of natural hazards in Section 3.3.
- B.
- “Availability, security and business continuity” subgroup about efficient measures/standards/methods for maintaining protection and service continuity of data centers during failures. This subgroup was used to support the development of the methodology as described in Section 4.
- C.
- “Geographical distribution/Location selection” subgroup discussing strategies for backup of critical business data across multiple data centers (in different geographical locations), avoiding simultaneous failure of backup and primary servers. This subgroup was used to help fine tune the methodology described in Section 4.
3.2. State of the Art of the Main Standard in the Context of Territorial, Environmental and Climate Change Risk Assessment of Data Centers
- Local site-level risks due to extreme weather events or phenomena (such as sea level rise) that may lead to a prolonged change in site conditions;
- Territorial (regional/provincial) risks that are not directly related to the site, but which may nevertheless have important impacts on the availability of supplies, services and/or personnel.
- (a)
- Geographically located at a distance from the primary data processing site to ensure a distinct risk profile and prevent it from being affected by the same event affecting the primary site;
- (b)
- Capable of ensuring the continuity of critical services in an identical manner to the primary site;
- (c)
- Immediately accessible to the staff to ensure the continuity of critical services if the primary data processing site becomes unavailable.

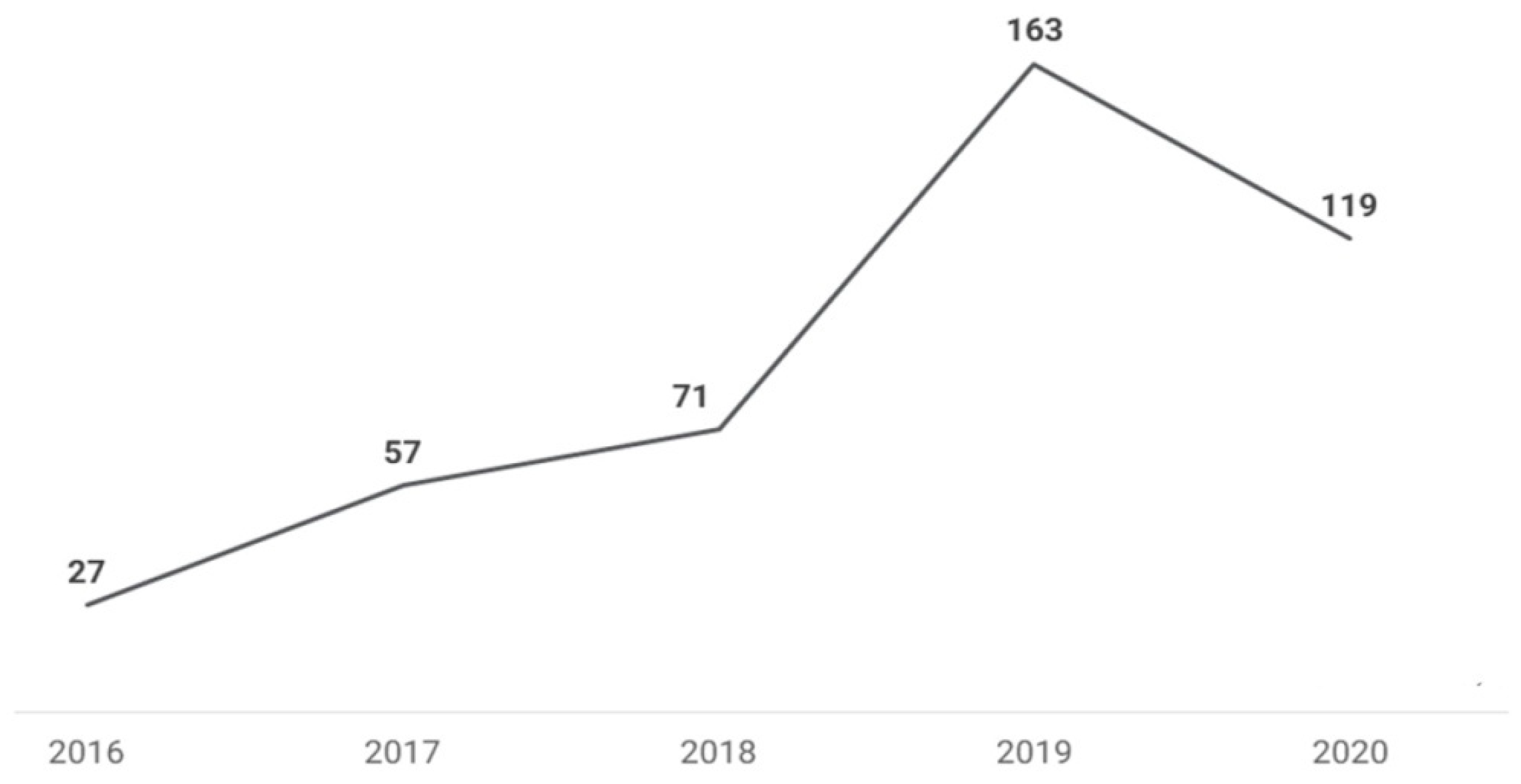

3.3. Analysis of the Main Incidents Occurring in Data Centers as a Consequence of Natural Hazards

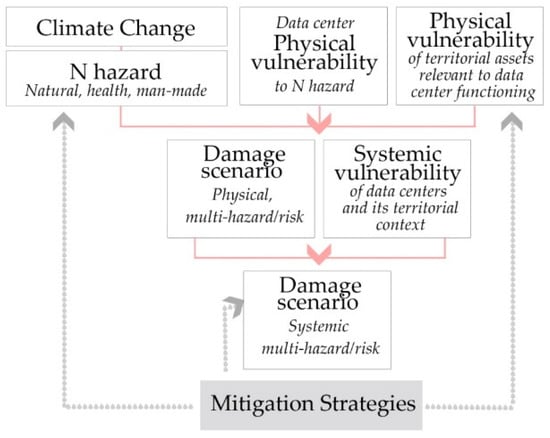

4. Analytical Methodology for the Assessment of Territorial Risks and Protection Factors for the Business Continuity of Data Centers

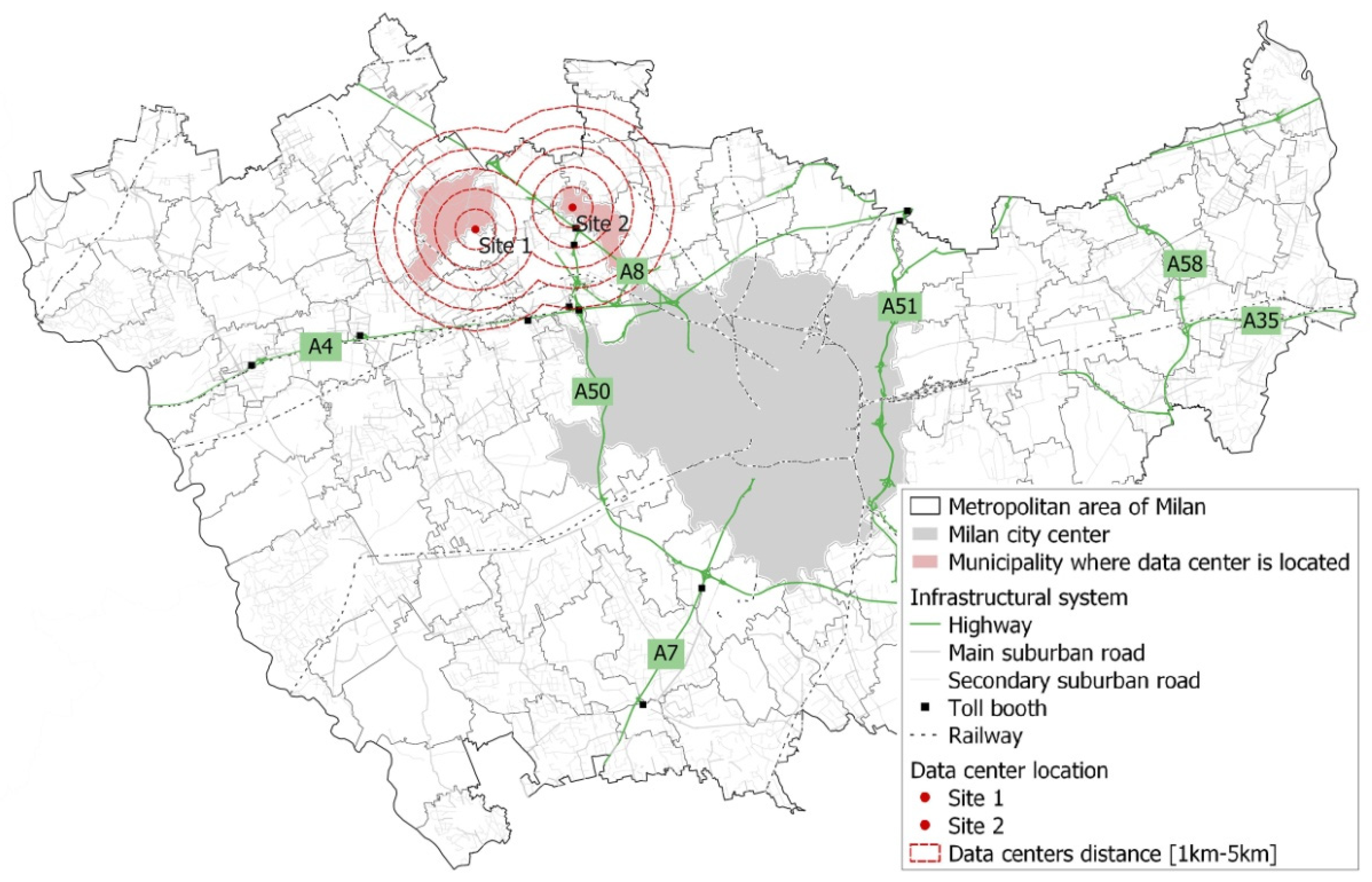

5. Application in the Metropolitan Area of Milan

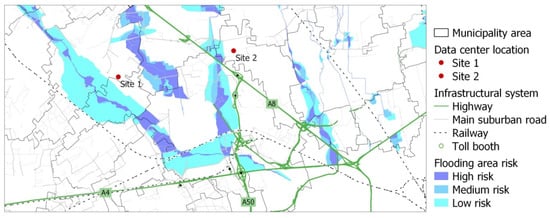

- Flood risk—The areas in which the selected data centers are located are not characterized by the same hydraulic risk. Considering the Flood Risk Management Plan (Figure 5), site 1 is close to flood-prone areas within the main hydrographic system of the Olona river, whereas site 2 is located near minor streams (Lura and Guisa). The direct impact on both data centers is low; but, in the case of a flood event impacting highway A4, accessibility to both sites could be similarly compromised. In this case, the search for alternative routes is crucial.

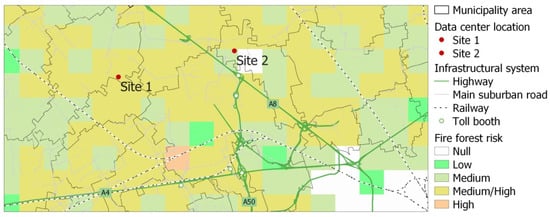

- Forest fire risk—The areas where the selected data centers are located are not characterized by the same forest fire risk; however, both sites may be indirectly affected by possible traffic disruptions (highway A4 and ring road A50), limiting the accessibility to the areas. Considering the Integrated Regional Risk Mitigation Program of Lombardia Region [49], site 1 is located in a medium-/high-forest-fire-risk area and site 2 in a medium-forest-fire-risk area (Figure 6). Furthermore, prolonged periods of drought and the presence of temporary storage of waste in/near the site should not be overlooked as possible causes of fire ignition. Mitigation measures should deal with the monitoring of green areas (mainly in summer) and the management of waste containers near/in data center areas.

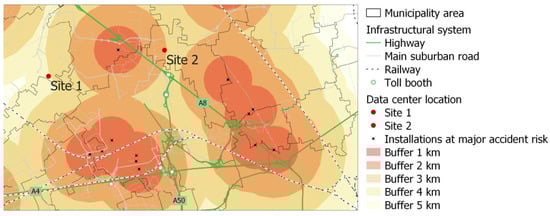

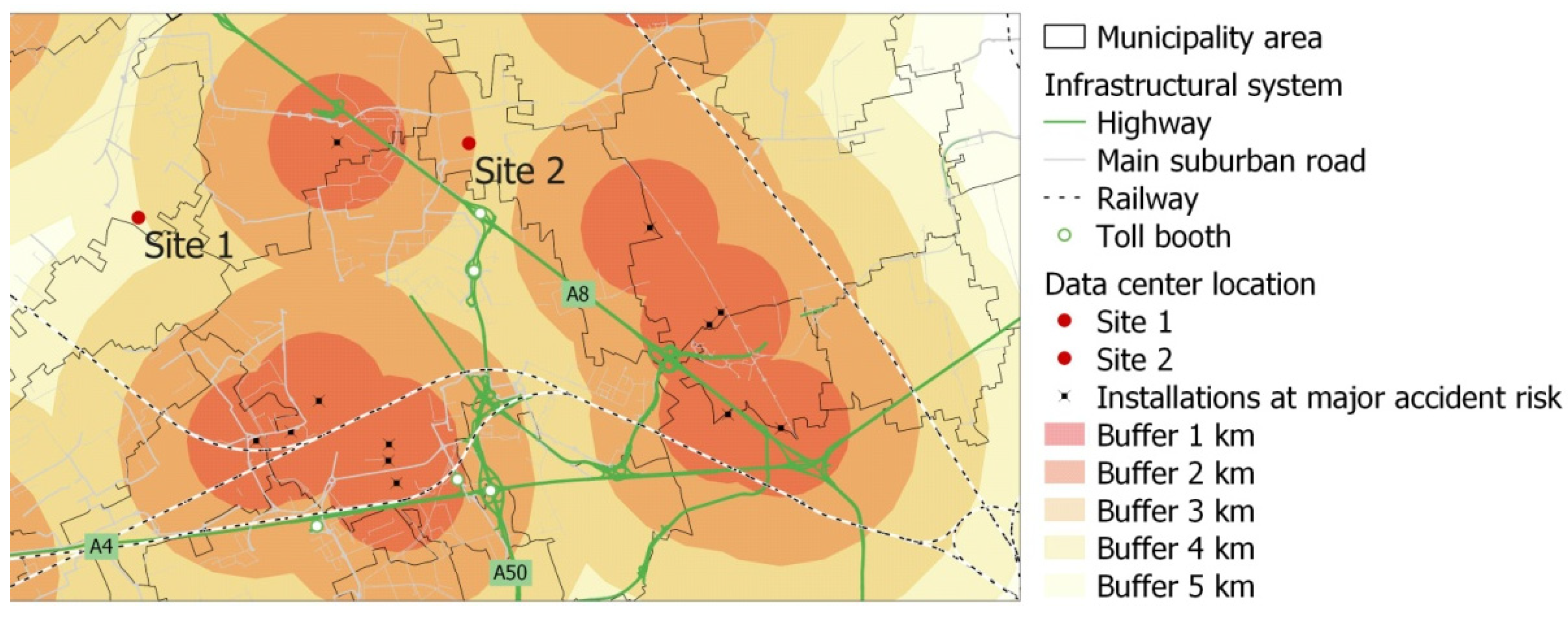

- Proximity to hazardous installations—Several hazardous installations are located in the metropolitan area of Milan [50]. With regard to the selected case study (Figure 7), the risk is higher for site 2, which is located close to two chemical plants (~2/3 km). In the case of fires/explosions and as a consequence of the spread of toxic fumes/harmful substances, the location of such installations should be taken into account when assessing the related direct and indirect impacts on both the sites. In fact, highway A4 and ring road A50 may be indirectly affected by a possible traffic disruption, limiting the accessibility to these areas. No installations at major risk of accident are located in the flood risk area (Na-tech risk).
- Transport of dangerous substances risk—In a territory, dangerous substances (flammable liquid material—ADR3) are transported by road and rail networks, as well as through special underground pipelines (oil and gas pipelines). The risk prediction and prevention program of Milan Province [51] describes the related risk level for all of the different transport categories, defining different classes of risk. With regard to the road system, highway A4 (Turin–Trieste) and the A50 ring road are classified as belonging to the R4 class (high risk, 250–1000 daily transits), and highway A8 (Milan-Varese) in the R2 class (moderate risk, 50–100 daily transits). The Milan–Turin railway is classified in R3 (medium risk, 100,000–150,000 tons/year). No pipelines affect the municipalities in which the selected data centers are located. In general, considering the high risk levels defined and the proximity of the data centers to the infrastructural system, potential impacts must be evaluated directly at both the sites, particularly in the case of explosions/fires and the consequent dispersion of harmful substances/fumes and indirectly on territorial networks/personnel as a consequence of the potential disruption of vehicle traffic and the limitation of accessibility to the data center area. The implementation of air circulation systems, alternative road systems, civil protection plans, and cooperation with firefighters are considered to be protective factors.
- Road accident risk—The risk prediction and prevention program of Milan Province [51] describes the accident risk level of all main arterial roads in the metropolitan area, classifying the A4 and A8 highways as belonging to the R4 class (high risk) and the A50 ring road to the R3 class (medium risk). As defined above for the transport of dangerous substances risk, both sites are characterized by the same level of risk responsible for potential direct and indirect impacts. Similarly, the implementation of air circulation systems, alternative road systems, civil protection plans, and cooperation with firefighters are proposed as protective factors.
6. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- World Bank. Information and Communications for Development. 2018: Data-Driven Development. Information and Communications for Development; World Bank: Washington, DC, USA, 2019. [Google Scholar]
- OECD. Good Governance for Critical Infrastructure Resilience, OECD Reviews of Risk Management Policies; OECD Publishing: Paris, France, 2019. [Google Scholar]
- Luiijf, E.; Klaver, M. Analysis and lessons identified on critical infrastructures and dependencies from an empirical data set. Int. J. Crit. Infrastruct. Prot. 2021, 35, 100471. [Google Scholar] [CrossRef]
- Puthal, D.; Nepal, S.; Ranjan, R.; Chen, J. Threats to Networking Cloud and Edge Datacenters in the Internet of Things. ACM Trans. Cyber-Phys. Syst. 2016, 4, 3351882. [Google Scholar] [CrossRef]
- Directive (EU) 2022/2555 of the European Parliament and of the Council of 14 December 2022 on Measures for a High Common Level of Cybersecurity across the Union, Amending Regulation (EU) No 910/2014 and Directive (EU) 2018/1972, and Repealing Directive (EU) 2016/1148 (NIS 2 Directive). Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32022L2555 (accessed on 12 December 2022).
- Menoni, S.; Pergalani, F.; Boni, M.P.; Petrini, V. Lifelines earthquake vulnerability assessment. In Managing Critical Infrastructure Risks; Linkov, I., Wenning, R.J., Kiker, G.A., Eds.; NATO Science for Peace and Security Series C: Environmental Security; Springer: Dordrecht, The Netherlands, 2007; pp. 111–132. [Google Scholar]
- Bonadonna, C.; Frischknecht, C.; Menoni, S.; Romerio, F.; Gregg, C.E.; Rosi, M.; Biass, S.; Asgary, A.; Pistolesi, M.; Guobadia, D.; et al. Integrating hazard, exposure, vulnerability and resilience for risk and emergency management in a volcanic context: The ADVISE model. J. Appl. Volcanol. 2021, 10, 7. [Google Scholar] [CrossRef] [PubMed]
- Menoni, S. Cities and factories. Special Issue in Urbanistica. INU J. Urban Plan. Biling. Ital.-Engl. 2002, 118, 63–93. [Google Scholar]
- van den Dool, F. Telecommunication system architectures: Dealing with complexity. Int. J. Commun. Syst. 1994, 7, 1–6. [Google Scholar] [CrossRef]
- Gabriel, C. Datacenter disater recovery and high availability. In Data Center Handbook; Geng, H., Ed.; Wiley & Sons: Hoboken, NJ, USA, 2015; pp. 641–657. [Google Scholar]
- Sengupta, S.; Annerva, K.M. Multi-site data distribution for disaster recovery-A planning framework. Future Gener. Comput. Syst. 2014, 41, 53–64. [Google Scholar] [CrossRef]
- Liu, Y.; Zhou, F.; Shang, T.; Torres-Moreno, J.-M. Power-efficient and Distance-adaptive Disaster Protection for Service Function Chain Provisioning. In Proceedings of the 2022 IEEE Global Communications Conference, GLOBECOM 2022—Proceedings, Rio de Janeiro, Brazil, 4–8 December 2022; pp. 4407–4412. [Google Scholar]
- Yang, C.L.; Yuan, B.J.C.; Huang, C.-Y. Key Determinant Derivations for Information Technology Disaster Recovery Site Selection by the Multi-Criterion Decision Making Method. Sustainability 2015, 7, 6149–6188. [Google Scholar] [CrossRef] [Green Version]
- Ferdousi, S.; Dikbiyik, F.; Habib, M.F.; Tornatore, M.; Mukherjee, B. Disaster-aware datacenter placement and dynamic content management in cloud networks. J. Opt. Commun. Netw. 2015, 7, 681–694. [Google Scholar] [CrossRef]
- Zschau, J. Where Are We with Multihazards, Multirisks Assessment Capacities? In Disaster Risk Management Knowledge Centre. SCIENCE FOR DISASTER RISK MANAGEMENT 2017 Knowing Better and Losing Less. 2017. Available online: https://drmkc.jrc.ec.europa.eu/portals/0/Knowledge/ScienceforDRM/ch02/ch02_subch0205.pdf (accessed on 6 June 2022).
- Gill, J.C.; Malamud, B.D. Reviewing and visualising the interactions of natural hazards. Rev. Geophys. 2014, 52, 680. [Google Scholar] [CrossRef] [Green Version]
- Gill, J.C.; Malamud, B.D. Hazard Interactions and interaction networks (cascades) within multi-hazard methodologies. Earth Syst. Dyn. 2016, 7, 659. [Google Scholar] [CrossRef] [Green Version]
- Menoni, S.; Boni, M.P. A systemic approach for dealing with chained damages triggered by natural hazards in complex human settlements. Int. J. Disaster Risk Reduct. 2020, 51, 101751. [Google Scholar] [CrossRef]
- Ceballos, J.; Dipasquale, R.; Feldman, R. Business continuity and security in datacenter interconnection. Bell Labs Tech. J. 2012, 17, 147–155. [Google Scholar] [CrossRef]
- Sieńko, P. Methods of securing and controlling critical infrastructure assets allocated in information and communications technology sector companies in leading. Securitologia 2015, 22, 107–123. [Google Scholar] [CrossRef] [Green Version]
- Engemann, K.J.; Miller, H.E. Risk and Data Center Planning. In Engineering and Management of Data Centers; Marx Gómez, J., Mora, M., Raisinghani, M., Nebel, W., O’Connor, R., Eds.; Service Science: Research and Innovations in the Service Economy; Springer: Berlin/Heidelberg, Germany, 2017; pp. 73–89. [Google Scholar]
- Horrocks, L.; Beckford, J.; Hodgson, N.; Downing, C.; Davey, R.; O’Sullivan, A. Adapting the ICT Sector to the Impacts of Climate Change. AEA Final. Rep. 2010, ED 49926, 5. [Google Scholar]
- Fu, G.; Horrocks, L.; Winne, S. Exploring impacts of Climate Change on UK’s ICT Infrastructure. Infrastruct. Asset Manag. 2016, 3, 42–52. [Google Scholar] [CrossRef] [Green Version]
- Adams, P.; Steeves, J.; Ashe, B.; Firth, J.; Rabb, B. Climate Risks Study for Telecommunications and Data Center Services. Report Prepared for the General Services Administration by Riverside Technology, Inc. and Acclimatise; Riverside Technology: Cambridge, WA, USA, 2014. [Google Scholar]
- Runhaar, A.C.; Uittenbroek, H.F.M.W.; van Rijswick, H.L.P.; Mees, P.P.J.; Driessen, H.K. Gilissen, Prepared for climate change? A method for the ex-ante assessment of formal responsibilities for climate adaptation in specific sectors. Reg. Environ. Change 2016, 16, 1389–1400. [Google Scholar] [CrossRef] [Green Version]
- Goodman, A. Adapting to Change. The Business of Climate Resilience; Business Expert Press: New York, NY, USA, 2016. [Google Scholar]
- Gomes, R.; Lapo, L.V. The adoption of IT security standards in a healthcare environment. Stud. Health Technol. Inform. 2008, 136, 765–770. [Google Scholar]
- Directive (EU) 2022/2557 of the European Parliament and of the Council of 14 December 2022 on the Resilience of Critical Entities and Repealing Council Directive 2008/114/EC. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:32022L2557 (accessed on 6 June 2022).
- ANSI/TIA-942; Telecommunications Infrastructure Standard for Data Centers. Telecommunications Industry Association: Washington, DC, USA, 2005.
- ISO/IEC 27031; Guidelines for Information and Communication Technology Readiness for Business Continuity. British Standards Institution (BSI): London, UK, 2011.
- EN 50060; Information Technology—Data Centre Facilities and Infrastructures. American Association: Los Angeles, CA, USA, 2019.
- ISO/IEC 24762; Guidelines for Information and Communications Technology Disaster Recovery Services. Canadian Standards Association: Toronto, ON, Canada, 2008.
- Uptime Institute. The gathering storm: Climate change and data center resiliency. In UI Intelligence Report 41; Uptime Institute: New York, NY, USA, 2020. [Google Scholar]
- Circular n. 285 of 17 December 2013 on “Supervisory Provision Banks”. Available online: https://www.bancaditalia.it/compiti/vigilanza/normativa/archivio-norme/circolari/c285/?dotcache=refresh (accessed on 29 May 2022).
- Proposal for a Regulation of The European Parliament and of The Council on Digital Operational Resilience for the Financial Sector and Amending Regulations (EC) No 1060/2009, (EU) No 648/2012, (EU) No 600/2014 and (EU) No 909/2014 COM/2020/595 Final. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A52020PC0595 (accessed on 6 June 2022).
- Uptime Institute. Annual outage analysis 2021, The causes and impacts of data center outage. In UI Intelligence Report 46; Uptime Institute: New York, NY, USA, 2021. [Google Scholar]
- Ponemon Institute, Cost of Data Center Outages, Data Center Performance Benchmark Series. 2016. Available online: www.vertiv.com/globalassets/documents/reports/2016-cost-of-data-center-outages-11-11_51190_1.pdf (accessed on 21 June 2022).
- Uptime Institute. Global Data Center Survey 2021, Growth stretches an evolving sector. In UI Intelligence 51; Uptime Institute: New York, NY, USA, 2021. [Google Scholar]
- IPCC. Climate Change 2022: Impacts, Adaptation, and Vulnerability. Contribution of Working Group II to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK, 2022. [Google Scholar]
- Peerenboom, J.; Fisher, R. Analyzing Cross-Sector Interdependencies. In Proceedings of the 40th Hawaii International International Conference on Systems Science, Waikoloa, HI, USA, 3–6 January 2007. [Google Scholar]
- ASCE. Adapting Infrastructure and Civil Engineering Practice to a Changing Climate; Olsen, R., Ed.; American Society of Civil Engineers—Committee on Adaptation to a Changing Climate: Reston, VA, USA, 2015. [Google Scholar]
- National Hurricane Center (NHC). Tropical Cyclone Reports. Available online: www.nhc.noaa.gov/ (accessed on 29 May 2022).
- Cushman & Wakefield. Italy Data Center Report; Cushman & Wakefield: Chicago, IL, USA, 2022. [Google Scholar]
- Park, J.; Seager, T.; Rao, P.S.C.; Convertino, M.; Linkov, I. Integrating risk and resilience approaches to catastrophe management in engineering systems. Risk Anal. 2013, 33, 356–367. [Google Scholar] [CrossRef]
- Chen, R.; Xie, Y.; Liu, Y. Defining, Conceptualizing, and Measuring Organizational Resilience: A Multiple Case Study. Sustainability 2021, 13, 2517. [Google Scholar] [CrossRef]
- American Institute of Chemical Engineers. Dow’s Fire and Explosion Hazard Index Guide; American Institute of Chemical Engineers: New York, NY, USA, 1994. [Google Scholar]
- Menoni, S.; Molinari, D.; Parker, D.; Ballio, F.; Tapsell, S. Assessing multifaceted vulnerability and resilience in order to design risk-mitigation strategies. Nat. Hazards 2012, 64, 2057–2082. [Google Scholar] [CrossRef]
- Arpa Lombardia—Regional Agency for the Protection of the Environment. Hydro-Nivo-Meteorological Data Collection. Available online: www.arpalombardia.it/Pages/Meteorologia/Richiesta-dati-misurati.aspx (accessed on 5 June 2022).
- Integrated Regional Risk Mitigation Program of Lombardia Region. Available online: https://sicurezza.servizirl.it/primviewer/ (accessed on 5 June 2022).
- Legislative Decree of 17 August 1999, n. 334 “Implementation of Directive 96/82/EC on the Control of Major-Accident Hazards Involving Certain Dangerous Substances”. Available online: https://www.agid.gov.it/sites/default/files/repository_files/approfondimentocircolare18062019_0.pdf (accessed on 6 June 2022).
- Province of Milan—Program of Prevision and Prevention of Risk. 2013. Available online: www.cittametropolitana.mi.it/protezione_civile/ORGANIZZAZIONE/Programma_Previsione_Prevenzione.html (accessed on 6 June 2022).
- Weick, K. Organizing for Transient Reliability: The Production of Dynamic Non-Events. J. Contingencies Crisis Manag. 2011, 19, 21–27. [Google Scholar] [CrossRef]
- Disaster Risk Management Knowledge Centre. Science for Disaster Risk Management 2017 Knowing Better and Losing Less. Available online: https://drmkc.jrc.ec.europa.eu/knowledge/science-for-drm/science-for-disaster-risk-management-2017 (accessed on 6 June 2022).
- Disaster Risk Management Knowledge Centre. Science for Disaster Risk Management 2020 Acting Today, Protecting Tomorrow. Available online: https://drmkc.jrc.ec.europa.eu/knowledge/science-for-drm/science-for-disaster-risk-management-2020 (accessed on 6 June 2022).
- Olsen, R.L.; Balachandran, K.; Hald, S.; Gutierrez Lopez, J.; Pedersen, J.M.; Stevanovic, M. Telecommunication Networks. In Intelligent Monitoring, Control, and Security of Critical Infrastructure Systems; Kyriakides, E., Polycarpou, M., Eds.; Studies in Computational Intelligence; Springer: Berlin/Heidelberg, Germany, 2015; Volume 565, pp. 67–100. [Google Scholar]
References | Subgroup A | Subgroup B | Subgroup C |
---|---|---|---|
Gomes, R., Lapo, L.V. (2008). The adoption of IT security standards in a healthcare environment. Studies in Health Technology and Informatics 136, pp. 765–770. | x | ||
Economics of Grids, Clouds, Systems, and Services—8th International Workshop, GECON 2011, Revised Selected Papers (2012) | x | ||
Ceballos, J., Dipasquale, R., Feldman, R. (2012). Business continuity and security in datacenter interconnection. Bell Labs Technical Journal 17(3), pp. 147–155 | x | x | |
Benz, S., De Sousa, L.P., Pedone, F. (2016) Stretching Multi-Ring Paxos. Proceedings of the ACM Symposium on Applied Computing 04–08-April-2016, pp. 492–499. | x | ||
Sengupta S., K.M. Annerva (2014), Multisite data distribution for disaster recovery—A planning framework, Future Generation Computer Systems Volume 41, December 2014, 53–64. | x | x | |
Yang C. L., B. J. C. Yuan, C-Y. Huang (2015) Key Determinant Derivations for Information Technology Disaster Recovery Site Selection by the Multi-Criterion Decision Making Method, Sustainability 2015, 7, 6149–6188 | x | x | |
Ferdousi, S., Dikbiyik, F., Habib, M.F., Tornatore, M., Mukherjee, B. (2015). Disaster-aware datacenter placement and dynamic content management in cloud networks. Journal of Optical Communications and Networking 7(7), pp. 681–694. | x | x | |
Faccioni, M. (2016). Complex Systems: Risk Model Based on Social Network Analysis. IEEE International Symposium on Industrial Electronics 2016-November, 7744859, pp. 22–27. | x | ||
Proceedings of the 2016 12th International Conference on the Design of Reliable Communication Networks, DRCN 2016 | x | x | |
Puthal, D., Nepal, S., Ranjan, R., Chen, J. (2016) Threats to Networking Cloud and Edge Datacenters in the Internet of Things. ACM Transactions on Cyber-Physical Systems 4(3), 3351882. | x | x | |
Li, X., Wang, H., Yi, S., Liu, S., Zhai, L., Jiang, C. (2019). Disaster-and-Evacuation-Aware Backup Datacenter Placement Based on Multi-Objective Optimization. IEEE Access 7, 6287639, pp. 48196–48208. | x | x | |
Jha, P., Sharma, A. (2021). Framework to Analyze Malicious Behaviour in Cloud Environment using Machine Learning Techniques. 2021 International Conference on Computer Communication and Informatics, ICCCI 2021 9402671 | x | ||
Das, S., Panda, K.G., Sen, D., Arif, W. (2021). Maximizing Last-Minute Backup in Endangered Time-Varying Inter-Datacenter Networks. IEEE/ACM Transactions on Networking 29(6), pp. 2646–2663. | x | ||
Liu, Y., Zhou, F., Chen, C., Zhu, Z., Shang, T., Torres-Moreno, J.-M. (2021). Disaster Protection in Inter-DataCenter Networks Leveraging Cooperative Storage. IEEE Transactions on Network and Service Management 18(3), 9459187, pp. 2598–2611. | x | x | |
Sharma, A., Jha, P., Singh, S. (2021). Data control in public cloud computing: Issues and challenges. Recent Advances in Computer Science and Communications 14(2), pp. 564–579. | x | ||
Liu, Y., Zhou, F., Shang, T., Torres-Moreno, J.-M. (2022). Power-efficient and Distance-adaptive Disaster Protection for Service Function Chain Provisioning. 2022 IEEE Global Communications Conference, GLOBECOM 2022—Proceedings pp. 4407–4412 | x |
Levels of Availability | Specifications of Protection and Redundancy | Business Continuity | Annual Downtown |
---|---|---|---|
Tier I Basic data center | No redundancy in the power supply and mechanical systems (air conditioning and fire protection). Limited protection against physical events. | 99.671% | 28.8 h |
Tier II Data center with limited redundancy | Single redundant components, single distribution path serving equipment. Power supply systems and mechanical systems (air conditioning and fire protection) have their main elements with N + 1 redundancy level. Better protection from physical events. | 99.741% | 22 h |
Tier III Data center with possibility of maintenance without availability interruptions | Multiple independent components and distribution paths to equipment. A part may be subject to maintenance by replacement (removal/overhaul without interruption of plant availability). Protection from most physical events. | 99.982% | 1.6 h |
Tier IV Data center exempt to single failure | Multiple independent components and distribution paths to equipment. Possible simultaneous maintenance without interruption of plant availability. Protection from almost all physical events. | 99.995% | 26 min |
Hazard and Territorial Scale of Event | Climate Change Impact | Multihazard, Multirisk | Impacts -> Mitigation Measures | |
---|---|---|---|---|
Direct Impact on Data Center ( | Indirect Impact on Territorial Networks & Personnel ( | |||
Seismic Regional | - | ⌘→ Landslides Tsunami | Collapse of walls, damage to plants (including generators) and equipment -> Seismic and anchoring structures | Damage to buildings and infrastructure, difficulties of access and personnel, damage to service networks -> Support of personnel outside the area, electric and water autonomy, radio connections |
Volcanic Regional for ash, local for other hazards | - | ⌘→ Landslides Tsunami ⌘ Seismic | High temperature plant damage; ash damage to all plant components -> Avoid locating near active volcanoes | Locally inaccessible area until end of phenomena, for ash relevant on accessibility and networks -> At least temporary relocation |
Hydraulic Regional, local | It could increase/decrease depending on the area | ⌘→ Landslides ⌘ Heavy rainfalls | Damage to plants by water contact or humidity -> Lift the installations with respect to level “0”, humidity control | Damage to transport, electricity and telecommunications networks -> Access redundancy, electric/water autonomy, radio connections and mobile devices (switch etc.) |
Tsunami Regional | - | ⌘→ Flooding | Damage to plants by water contact or humidity -> Avoid localization in at risk areas (coastal areas) | Damage to transport, electricity and telecommunications networks -> Support of personnel outside the area, access redundancy, electric and water autonomy, radio connections |
Hydro-geological Local and/or multisite | It could increase/decrease depending on the area | - | Damage to structures by direct impact -> Avoid localization in at risk areas (near or under landslide areas) | Interruptions of transport and electricity network (flooding of rooms) -> Redundancy of transport networks and electric autonomy, radio connections |
Avalanche Local and/or multisite | It could increase/decrease depending on the area | - | Damage to structures by direct impact and by water contact or humidity -> Avoid localization in at risk areas | Punctual damage to transport system and control units -> Redundancy or autonomy for a few hours |
Heavy rainfall Regional, wide area | Heavy rainfall events | ⌘→ Flooding Landslides | Damage due to winds and induced events (rainfall, flooding) -> Resistant structures (roofing) and lightning protection | Damage to transport, electricity and telecommunications networks -> Access redundancy, electric autonomy for a few hours, telecommunications network support |
Lightening Local | - | Damage to electrical equipment -> Lightning protection | Punctual damage to telecommunications system and electrical control units -> Devices protection | |
Heavy snowfall Regional | Decrease in annual average precipitation but occasional extreme events | - | Structural damages -> Resistant structures (roofing) | Damage to transport, electricity and telecommunications networks -> Access network redundancy, electric autonomy for a few hours/days, radio connections |
Wind storm Regional | ⌘ Flooding Heavy rainfalls | Structural damages, equipment damage due to dust -> Resistant structures (roofing), external ventilation shutdown, filter cleaning, server access blocks | Punctual damage to transport system (trees), electrical, transport and telecommunications control units -> Access network redundancy, electric autonomy for a few hours, telecommunications network support | |
Drought Regional | Trend in precipitation reduction on the basis of past data | - | Water availability problems -> Water system autonomy | Water deficit -> Autonomy for a few days/months, closed-loop systems |
Forest fire Regional, local | ⌘→ Landslides | Structural and plants damages -> Avoid localization in at risk areas | Damage to transport, electricity and telecommunications networks, air conditioning and filtration systems -> Electric autonomy and radio connections | |
Heat wave Regional | - | Plants damages -> Modernization of air conditioning systems and e use of electrical generators for self-production | Power outages due to overcharging of the public network -> Electric autonomy for a few hours/days by electrical generator | |
Sea level rise Regional | ⌘→ Coastal flooding | Plants damages due to water contact and humidity -> Avoid localization in at risk areas | Damage to transport, electricity and telecommunications networks -> Verification of dependence on coastal networks | |
Epidemic/Pandemic Regional, national | Several studies show a correlation with Climate Change | - | Impact on the availability of staff -> Remote work but need for presence of critical workers on site | Impact on population |
Installations at major accident risk Regional, local | - | ⌘→Na-tech due to: Flooding Earthquakes Landslides Tsunami Storms | Damage to structures if located in damage areas, dust infiltration and/or toxic substances -> Localization of the plants in damage, verification not Seveso plants | Interruption of the transport network -> Shift to air recirculation system |
Transport of dangerous substances Local | - | - | Damage to structures and electrical and telecommunications unit controls in case of proximity of the event -> Avoid location adjacent to high-speed roads | Interruption of the transport network -> On site in case of prolongedstay conditions |
Aquifer pollution Regional and local | - | ⌘← Flooding ⌘→ Installations at major accident risk | Damage to the cooling system -> Monitoring system of aquifer pollutants | Water supply disruption -> Shift to traditional conditioning, closed-loop systems |
Road accident Local | - | - | Damage to structures and electrical and telecommunications unit controls in case of proximity of the event -> Avoid location adjacent to high-speed roads | Interruption of the transport network -> On site in case of prolonged stay conditions |
Excavations/ road works Local | - | - | Power supply loss -> Diversification of access routes to data center | Power supply loss -> Redundancy of the networks |
Sabotage Local, multisite | - | - | Intentional damage to structures and plants -> Data protection measures and staff monitoring | Vandalism and/or terrorism in sensitive targets close to the data center -> Avoid localization near known sensitive targets |
⌘ Multirisk | ||||
⌘→ Multirisk: event that can be triggered by | ||||
⌘← Multirisk: hazard that can trigger another one |
Hazards | Summary of the Assessment for Individual Data Centers | Evaluation of the Direct Impact on the Primary–Recovery Data Center Configuration | Evaluation of Systemic Impacts on the Primary–Recovery Data Center Configuration | Available or Recommended Protection |
---|---|---|---|---|
Natural hazards | Site 1 Site 2 Site n | Comparison between the hazards levels fo the primary–recovery sites and assessment of the possibility of having both affected by the same event | Comparison between the hazards levels fo the primary–recovery sites and assessment of the possibility of having both affected by the same event | Recommended mitigation for the configuration as a whole |
Climate Change impacts | ||||
Hazardous installations | ||||
Health related hazards (epidemics, toxicbcontamination) | ||||
Accidents in the transportation system |
Risk | Hazard | Potential Impact Assessment ( | Protection Factors | |
---|---|---|---|---|
Site 1 | Site 2 | |||
Seismic | Sites are located in seismic zone 4 (low probability) | Seismic resistant buildings, power generators, road system redundancy | ||
Heavy rainfall | Rainy events have been less frequent but more intense in the last 15 years [48] | Resistant structures with sealed roofs, emergency generators, power grid redundancy, alternative traffic | ||
Windstorm | Increasing frequency of wind phenomena daily peaks (v > 100 km/h) [48] | Power supply medium voltage redundancy | ||
Drought | Rainy events have been less frequent in the last 15 years [48] | Redundancy of air conditioning systems | ||
Heat wave | In recent years, temperature peaks (~30/35 °C) have been more frequent [48] | Advanced/redundant air conditioning system, emergency generators | ||
Pandemic | Sites are characterized by the same risk | Emergency plans, infection spread control measures | ||
Hydraulic | Site 1 is close to potentially flood area of the main hydrographic system; site 2 is located near some minor streams | Organization of alternative roads system | ||
Forest fire | Site 1 is located in a medium-/high-forest-fire-risk area and site 2 in a medium-forest-fire-risk area [49] | Vegetation maintenance and on-site fire protection systems, civil protection plans, cooperation with firefighters | ||
Installations at major risk of accident | Site 2 is located close to two chemical plants [50] | Air circulation systems, alternative road system, civil protection plans, cooperation with firefighters | ||
Transport of dangerous substances | Road Proximity to A4 and A50, classified in R4 class (high risk), and A8, in R2 class (moderate risk) [51] | Interruption of the vehicular circulation with difficulty in accessibility of the area | ||
Railway Proximity to railway Milan-Turin classified in R3 (medium risk) [51] | Interruption of the vehicular circulation | |||
Pipelines No proximity [51] | Interruption of the vehicular circulation with difficulty in accessibility of the area | |||
Road accident | A4 and A8 classified in R4 class (high risk), A50 in R3 class (medium risk) [51] | Interruption of the highways or closure of the ring road junctions |
