Global Relation-Aware-Based Oil Detection Method for Water Surface of Catchment Wells in Hydropower Stations
Abstract
:1. Introduction
- Considering the problems of low brightness, high noise, and few extractable feature points in the image sample data caused by the catchment well environment, a sample data enhancement method is proposed. This method enhances the edge details of oil in the sample data through single-scale retinex histogram equalization, and dynamically stretches the overall image to enhance the contrast of oil in the image.
- For the purpose of strengthening the feature extraction of sample data in the detection phase, we propose an improved Yolov5s method. In this method, the backbone network is enhanced by a global relation-aware attention mechanism that highlights the main features of sample data and suppresses minor information at both the spatial and channel levels. This results in improved detection accuracy and a stronger anti-interference capability against the background.
- A deep learning-based method for pixel-level oil detection of catchment wells in hydropower stations is proposed, which has a good economic efficiency compared to other oil detection methods.
2. Proposed Methods

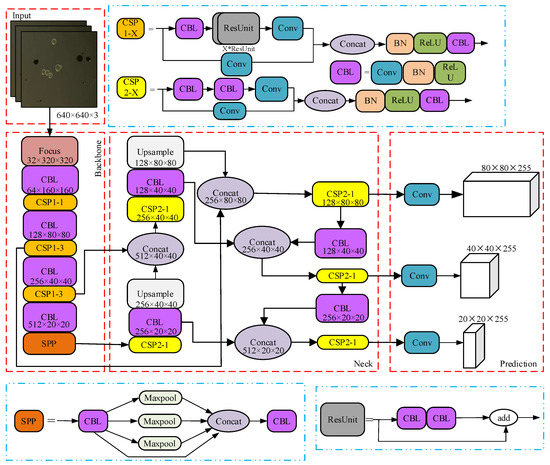

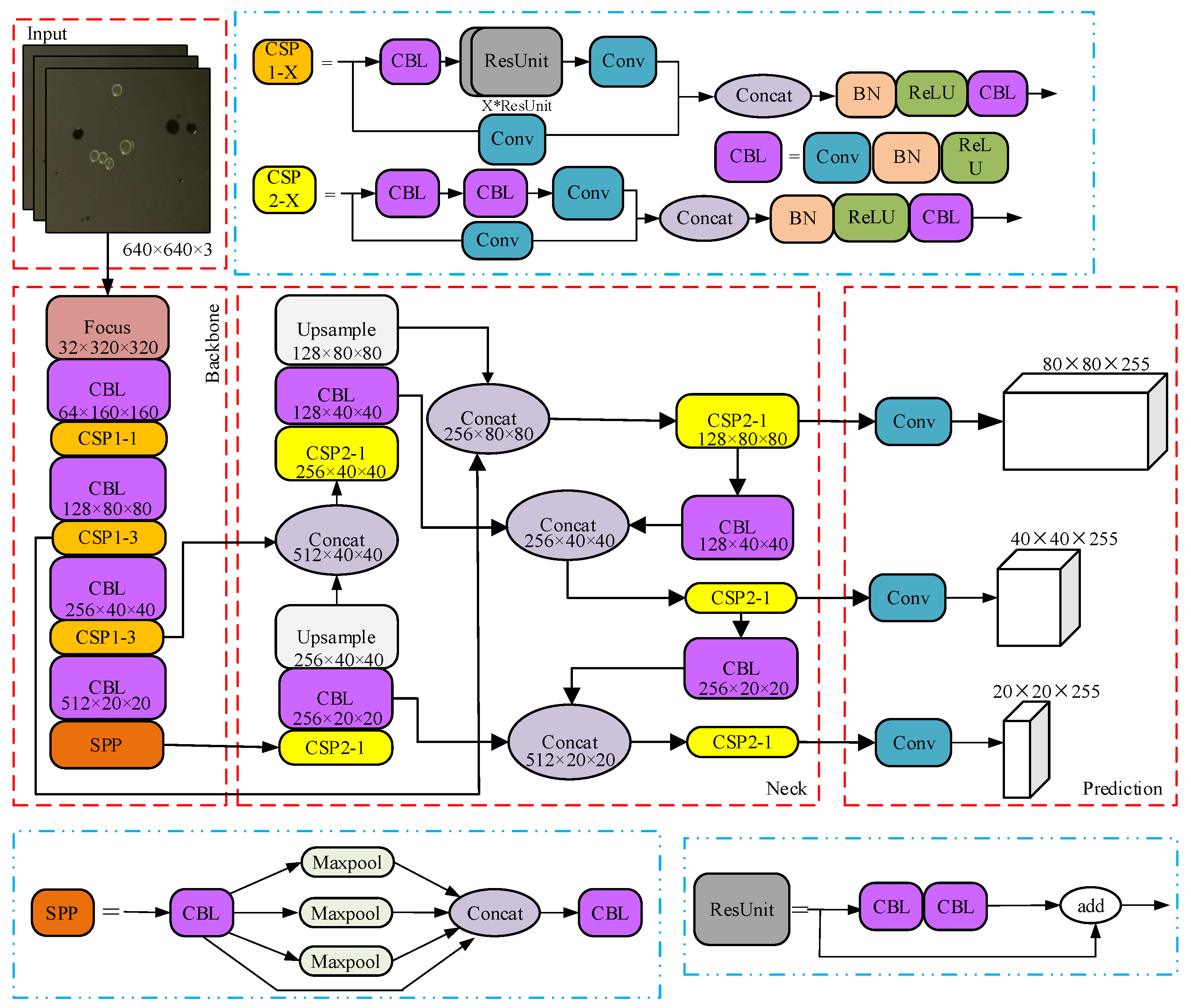

2.1. Yolov5s

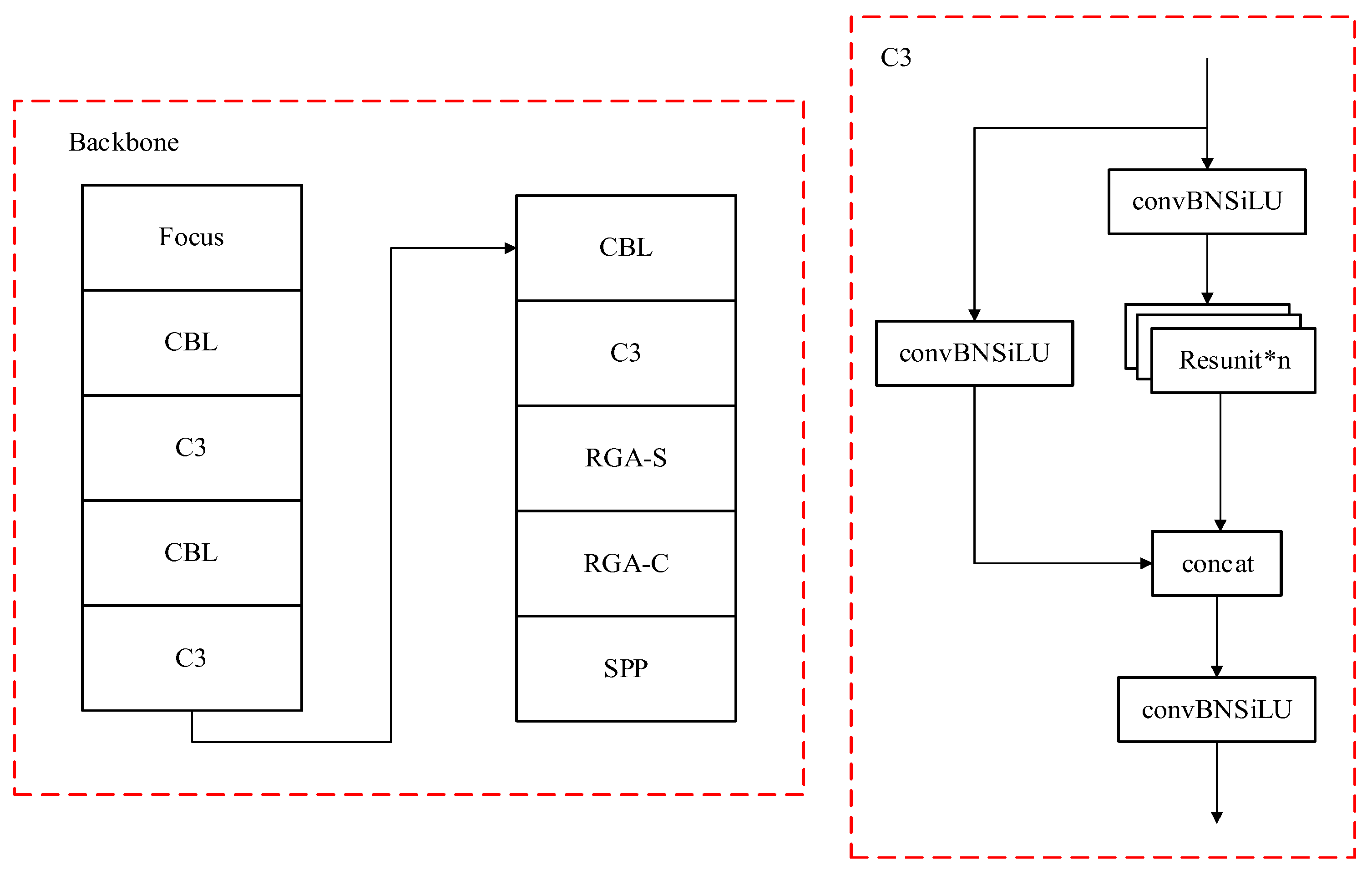

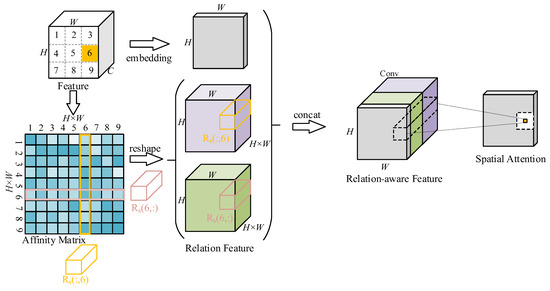

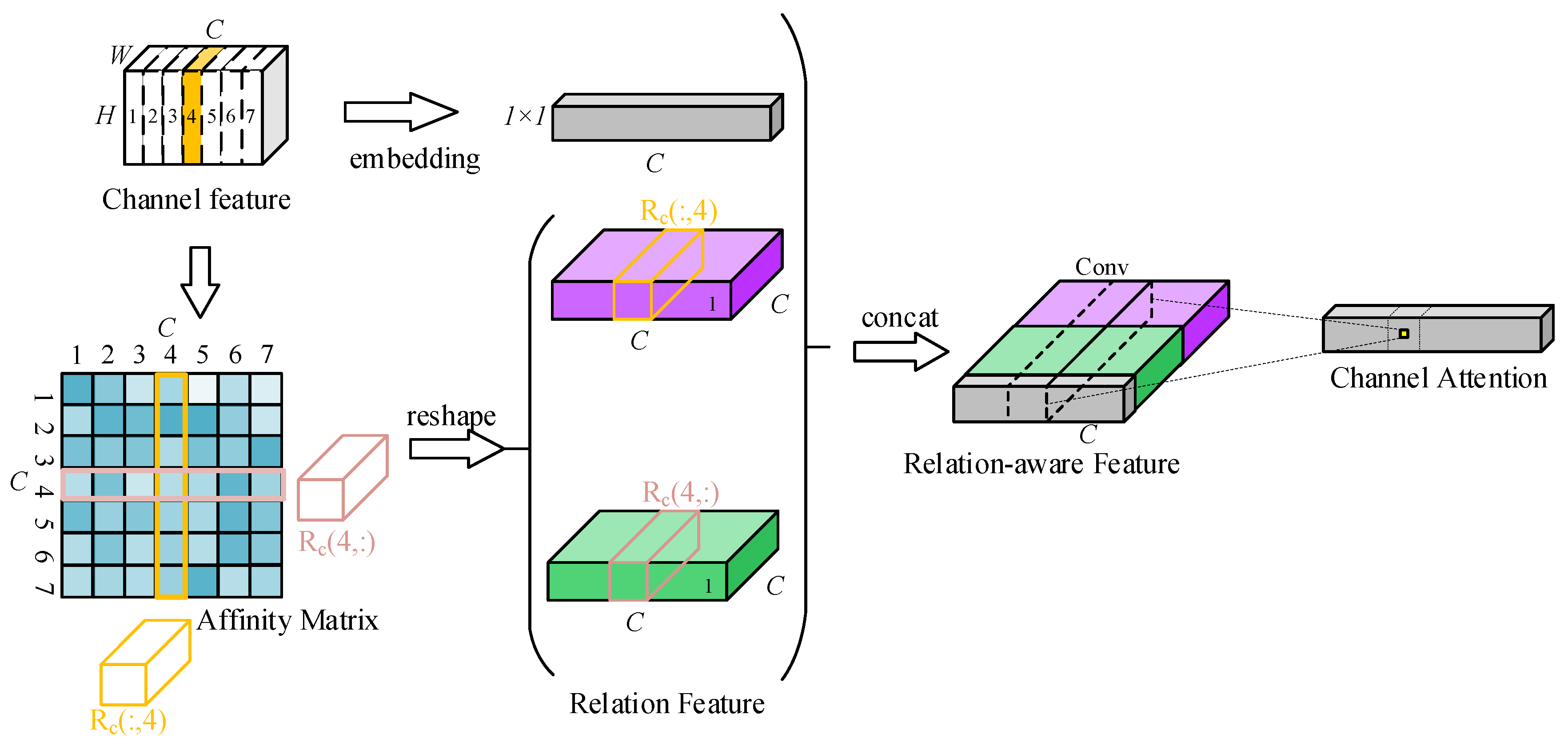

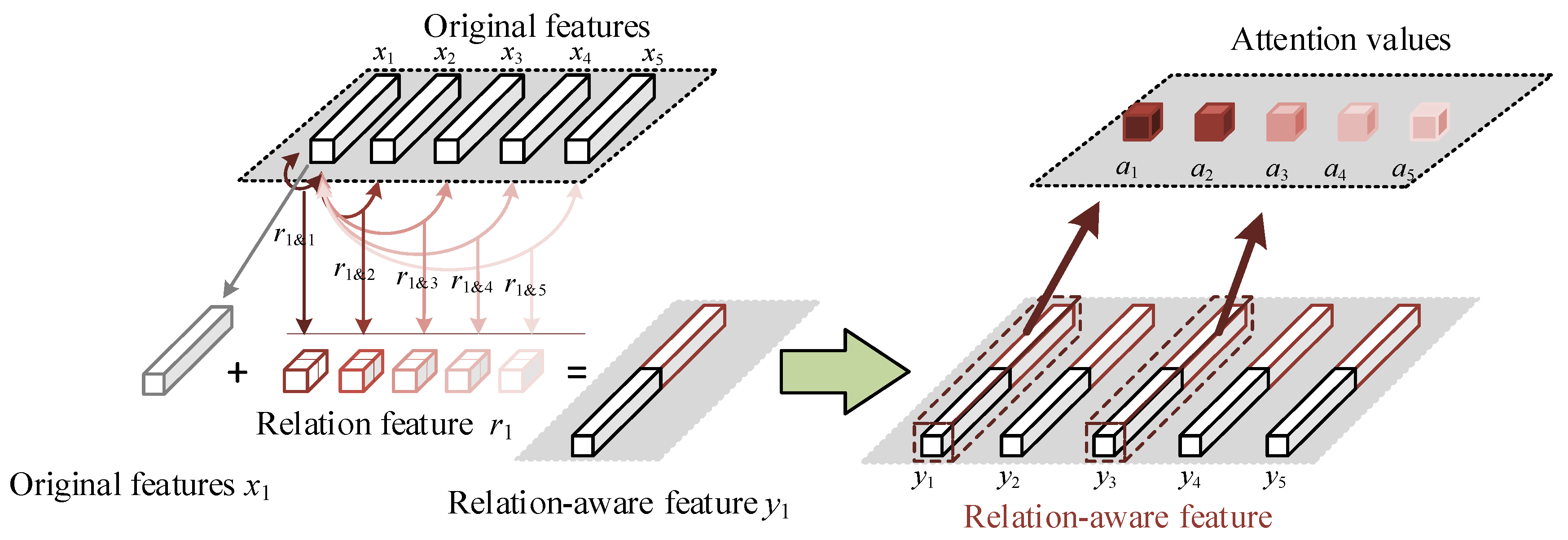

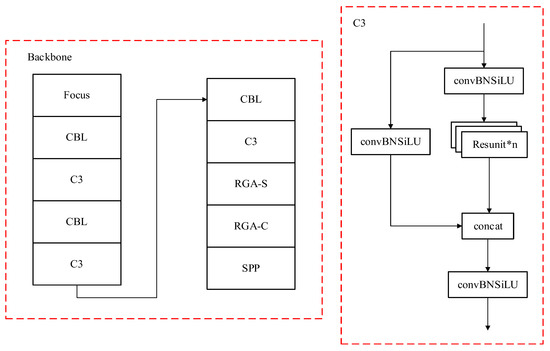

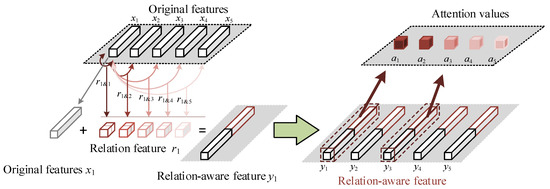

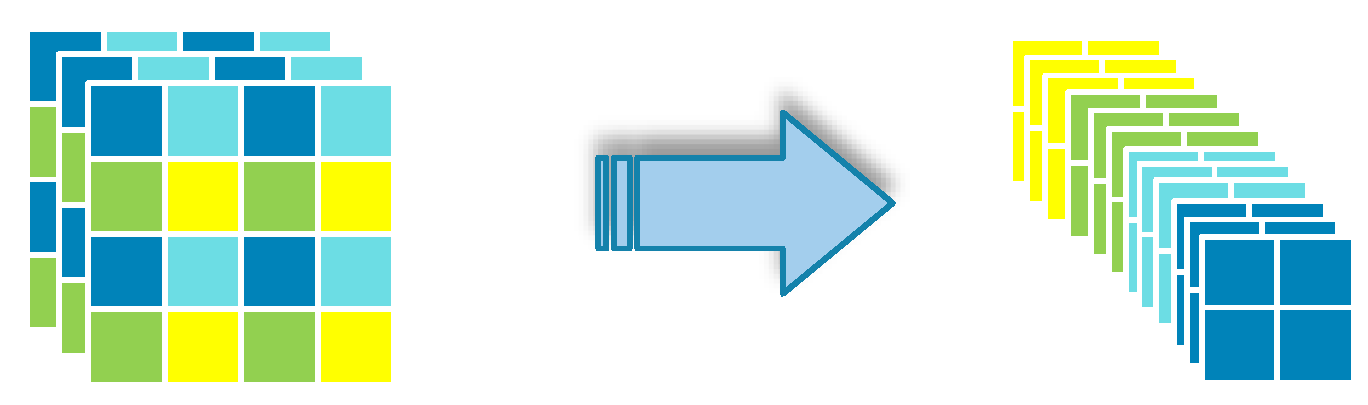

2.2. Global Relation-Aware-Based Yolov5s Algorithm

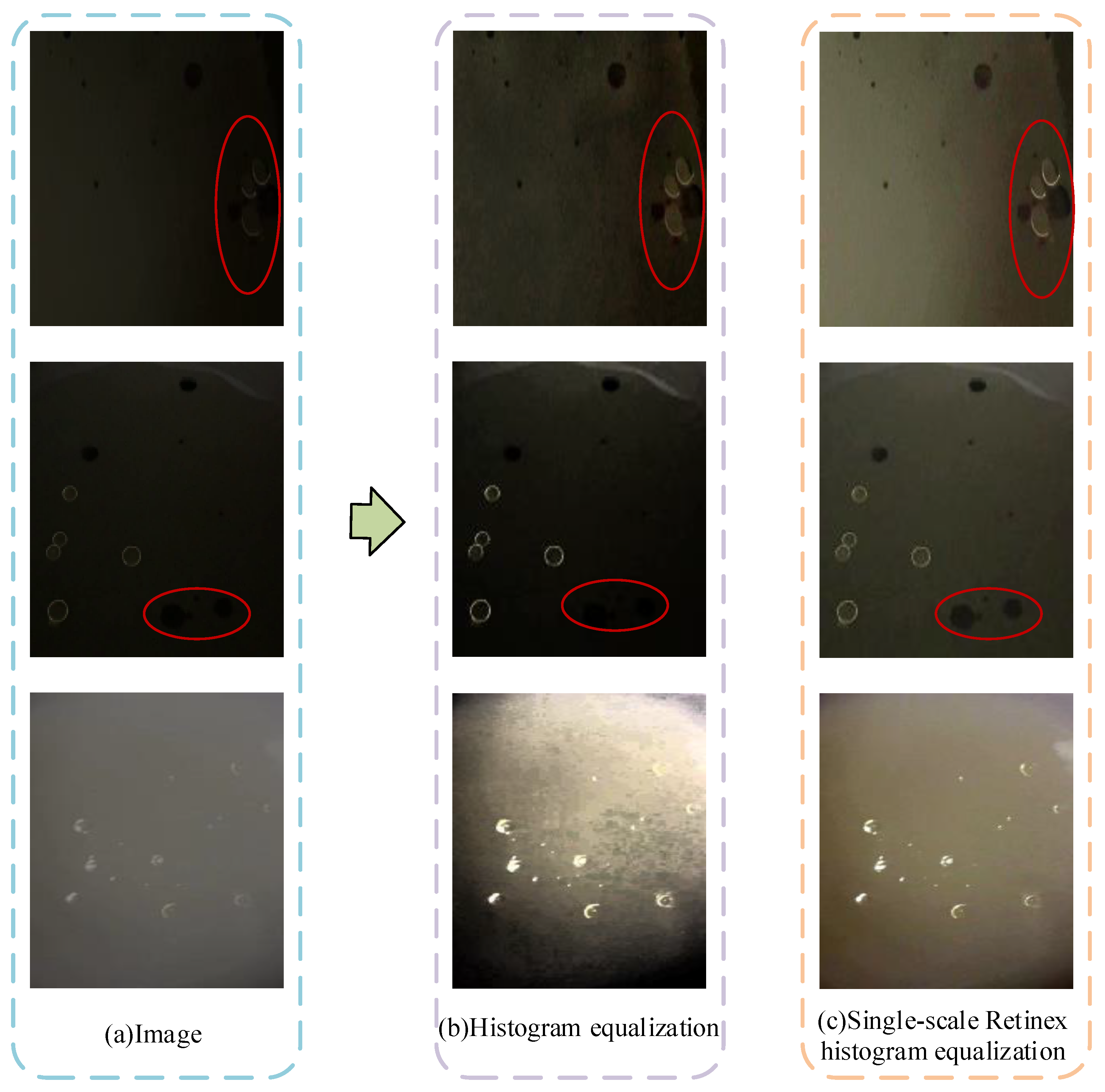

2.3. Single-Scale Retinex Histogram Equalization
3. Experimental Results and Discussion
3.1. Experimental Environments and Parameters
3.2. Experimental Data Sources

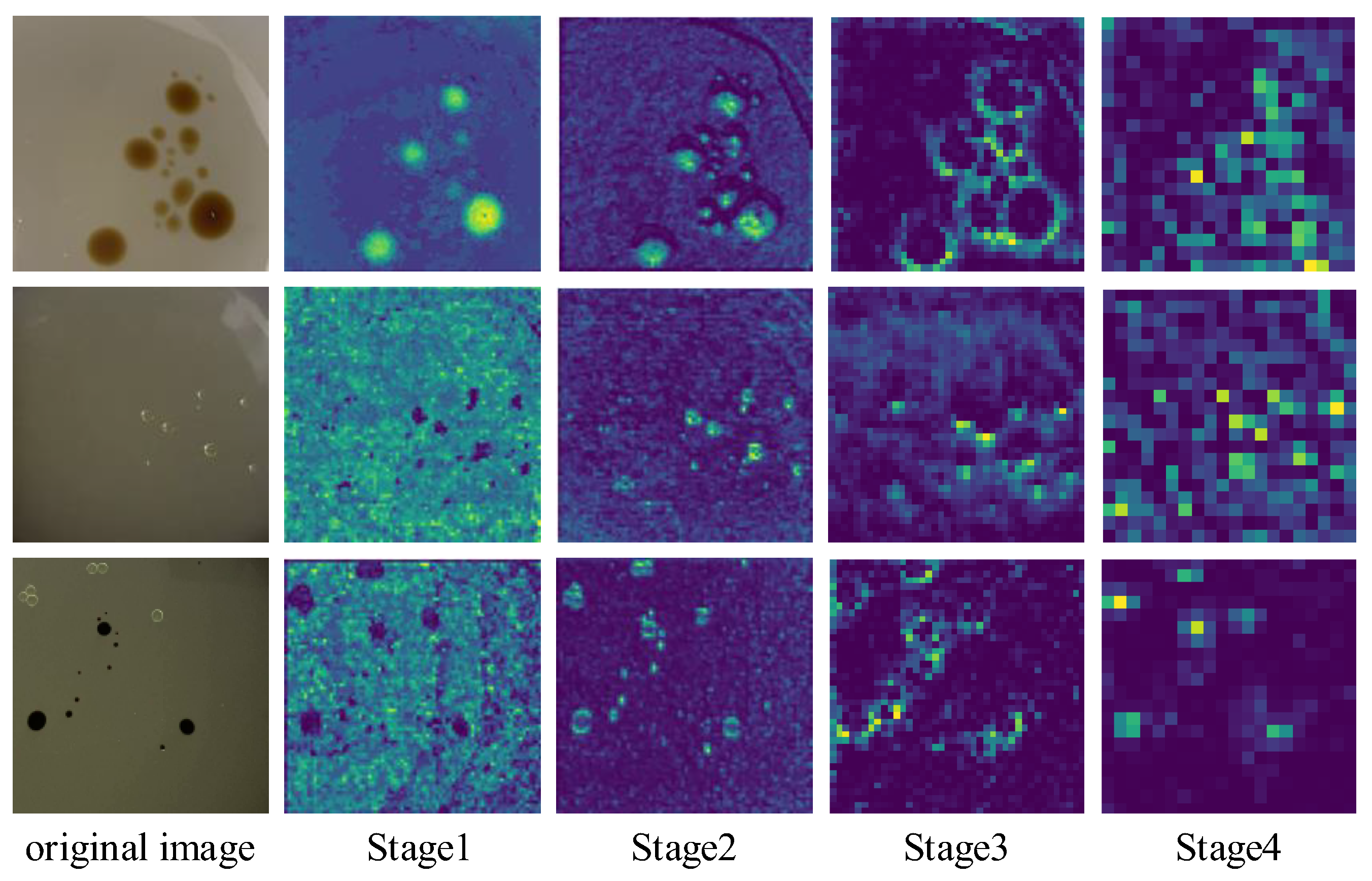

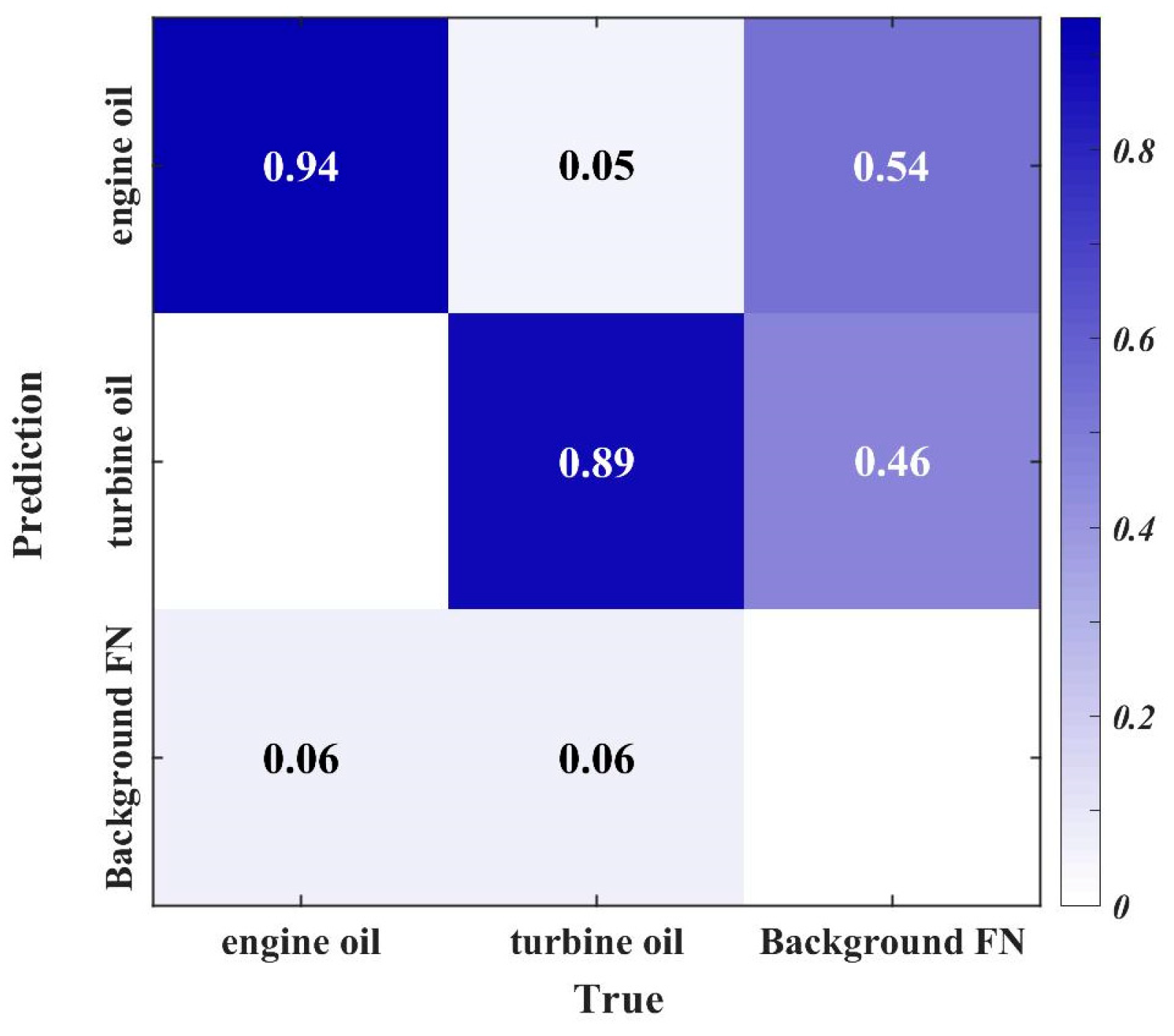

3.3. Results and Analysis
4. Conclusions
- (1)
- For the problems of poor sample quality and limited extractable feature points caused by the environment and insufficient light on the water surface of the catchment wells, a sample data preprocessing method is proposed. The sample dataset is processed using the SSR histogram equalization method to obtain images both of high brightness and of better visual effects of the oil pollution on the water’s surface, which benefits the deep learning model’s extraction of the target features of the oil pollution.
- (2)
- Considering the issues of missed and false detections in Yolov5s when detecting oil pollution, a global relationship-aware attention mechanism is embedded in the backbone network of Yolov5s to enhance the feature extraction of oil pollution, thus suppressing the interference of noise on detection and improving the detection accuracy of the algorithm.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Zafirakou, A.; Themeli, S.; Tsami, E.; Aretoulis, G. Multi-Criteria Analysis of Different Approaches to Protect the Marine and Coastal Environment from Oil Spills. J. Mar. Sci. Eng. 2018, 6, 125. [Google Scholar] [CrossRef]
- Moroni, D.; Pieri, G.; Tampucci, M. Environmental Decision Support Systems for Monitoring Small Scale Oil Spills: Existing Solutions, Best Practices and Current Challenges. J. Mar. Sci. Eng. 2019, 7, 19. [Google Scholar] [CrossRef]
- Tsivadze, A.Y.; Fridman, A.Y.; Tumanyan, B.P.; Novikov, A.K.; Polyakova, I.Y.; Sudarkin, A.P. Prospective Preparations for Accelerated Bioremediation of Oil-Contaminated Soils. Chem. Technol. Fuels Oils 2020, 56, 588–592. [Google Scholar] [CrossRef]
- Imran, A.; Prashant, S.; Hassan, Y.A.E.; Bhavtosh, S. Chiral Analysis of Ibuprofen Residues in Water and Sediment. Anal. Lett. 2009, 42, 1747–1760. [Google Scholar]
- Basheer, A.A. New generation nano-adsorbents for the removal of emerging contaminants in water. J. Mol. Liq. 2018, 261, 583–593. [Google Scholar] [CrossRef]
- Basheer, A.A. Chemical chiral pollution: Impact on the society and science and need of the regulations in the 21st century. Chirality 2018, 30, 402–406. [Google Scholar] [CrossRef]
- Basheer, A.A.; Ali, I. Stereoselective uptake and degradation of (+/-)-o, p-DDD pesticide stereomers in water-sediment system. Chirality 2018, 30, 1088–1095. [Google Scholar] [CrossRef]
- González-Reyes, G.A.; Bayo-Besteiro, S.; Vich Llobet, J.; Añel, J.A. Environmental and Economic Constraints on the Use of Lubricant Oils for Wind and Hydropower Generation: The Case of NATURGY. Sustainability 2020, 12, 4242. [Google Scholar] [CrossRef]
- Sun, J.; Zhang, Y.; Liu, B.; Ge, X.; Zheng, Y.; Fernandez-Rodriguez, E. Research on Oil Mist Leakage of Bearing in Hydropower Station: A Review. Energies 2022, 15, 2632. [Google Scholar] [CrossRef]
- Niclòs, R.; Doña, C.; Valor, E.; Bisquert, M. Thermal-Infrared Spectral and Angular Characterization of Crude Oil and Seawater Emissivities for Oil Slick Identification. IEEE Trans. Geosci. Remote Sens. 2014, 52, 5387–5395. [Google Scholar] [CrossRef]
- Liu, X.J.; Zhang, Y.J.; Zou, H.M.; Wang, F.; Cheng, X.; Wu, W.P.; Liu, X.Y.; Li, Y.S. Multi-source knowledge graph reasoning for ocean oil spill detection from satellite SAR images. Int. J. Appl. Earth Obs. Geoinf. 2023, 116, 103153. [Google Scholar] [CrossRef]
- Amri, E.; Dardouillet, P.; Benoit, A.; Courteille, H.; Bolon, P.; Dubucq, D.; Credoz, A. Offshore Oil Slick Detection: From Photo-Interpreter to Explainable Multi-Modal Deep Learning Models Using SAR Images and Contextual Data. Remote Sens. 2022, 14, 3565. [Google Scholar] [CrossRef]
- Tysiąc, P.; Strelets, T.; Tuszyńska, W. The Application of Satellite Image Analysis in Oil Spill Detection. Appl. Sci. 2022, 12, 4016. [Google Scholar] [CrossRef]
- Sun, S.J.; Chen, Y.; Chen, X.; Ai, B.; Zhao, J. Optical discrimination of emulsified oil in optically complex estuarine waters. Mar. Pollut. Bull. 2022, 184, 114214. [Google Scholar] [CrossRef] [PubMed]
- Sun, Z.; Sun, S.J.; Zhao, J.; Ai, B.; Yang, Q.S. Detection of Massive Oil Spills in Sun Glint Optical Imagery through Super-Pixel Segmentation. J. Mar. Sci. Eng. 2022, 10, 1630. [Google Scholar] [CrossRef]
- Zhao, D.; He, H. Detecting Oil Slicks Under the Heterogeneous Marine Environment Utilizing Multispectral Images. IEEE Geosci. Remote Sens. Lett. 2021, 18, 761–765. [Google Scholar] [CrossRef]
- Lu, L.; Ichimura, S.; Yamagishi, A.; Rokunohe, T. Oil Film Detection Under Solar Irradiation and Image Processing. IEEE Sens. J. 2020, 20, 3070–3077. [Google Scholar] [CrossRef]
- Zhu, Q.Q.; Zhang, Y.; Li, Z.Q.; Yan, X.R.; Guan, Q.F.; Zhong, Y.F.; Zhang, L.P.; Li, D.R. Oil Spill Contextual and Boundary-Supervised Detection Network Based on Marine SAR Images. IEEE Trans. Geosci. Remote Sens. 2022, 60, 1–10. [Google Scholar] [CrossRef]
- Tong, S.; Liu, X.; Chen, Q.; Zhang, Z.; Xie, G. Multi-Feature Based Ocean Oil Spill Detection for Polarimetric SAR Data Using Random Forest and the Self-Similarity Parameter. Remote Sens. 2019, 11, 451. [Google Scholar] [CrossRef]
- Chen, Y.; Wang, Z. Marine Oil Spill Detection from SAR Images Based on Attention U-Net Model Using Polarimetric and Wind Speed Information. Int. J. Environ. Res. Public Health 2022, 19, 12315. [Google Scholar] [CrossRef]
- Zhang, M.; Yang, J.; Liu, B.; Ma, X.; Zhao, B.; Ou, W. Research on On-line Monitoring Technology of Transmission Line Galloping Based on Edge Computing. In Proceedings of the 2021 IEEE 4th International Conference on Electronics Technology (ICET), Chengdu, China, 7–10 May 2021. [Google Scholar]
- Zhang, X.; Yang, L.; Huang, R.; Lyu, J.; Li, T. A Fast Detection Algorithm of Small Targets Based on YOLOv3. In Proceedings of the 2020 IEEE 4th Information Technology, Networking, Electronic and Automation Control Conference (ITNEC), Chongqing, China, 12–14 June 2020. [Google Scholar]
- Zhang, Y.; Huang, X.; Jia, J.; Zhu, Y.; Zhao, L.; Zhang, X. Detection and Condition Assessment of Icicle Bridging for Suspension Glass Insulator by Image Analysis. IEEE Trans. Instrum. Meas. 2020, 69, 7458–7471. [Google Scholar] [CrossRef]
- Zhu, J.G.; Guo, Y.; Yue, F.; Yuan, H.; Yang, A.; Wang, X.H.; Rong, M.Z. A Deep Learning Method to Detect Foreign Objects for Inspecting Power Transmission Lines. IEEE Access 2020, 8, 94065–94075. [Google Scholar] [CrossRef]
- Gao, Z.; Yang, G.; Li, E.; Liang, Z. Novel Feature Fusion Module-Based Detector for Small Insulator Defect Detection. IEEE Sens. J. 2021, 21, 16807–16814. [Google Scholar] [CrossRef]
- Wang, B.; Ma, F.; Ge, L.; Ma, H.; Wang, H.; Mohamed, M.A. Icing-EdgeNet: A Pruning Lightweight Edge Intelligent Method of Discriminative Driving Channel for Ice Thickness of Transmission Lines. IEEE Trans. Instrum. Meas. 2021, 70, 1–12. [Google Scholar] [CrossRef]
- Zhao, Z.; Qi, H.; Qi, Y.; Zhang, K.; Zhai, Y.; Zhao, W. Detection Method Based on Automatic Visual Shape Clustering for Pin-Missing Defect in Transmission Lines. IEEE Trans. Instrum. Meas. 2020, 69, 6080–6091. [Google Scholar] [CrossRef]
- Yang, L.; Fan, J.; Xu, S.; Li, E.; Liu, Y. Vision-Based Power Line Segmentation With an Attention Fusion Network. IEEE Sens. J. 2022, 22, 8196–8205. [Google Scholar] [CrossRef]
- Wei, B.; Xie, Z.; Liu, Y.; Wen, K.; Deng, F.; Zhang, P. Online Monitoring Method for Insulator Self-explosion Based on Edge Computing and Deep Learning. CSEE J. Power Energy Syst. 2022, 8, 1684–1696. [Google Scholar]
- Zhang, Z.; Lan, C.; Zeng, W.; Jin, X.; Chen, Z. Relation-Aware Global Attention for Person Re-Identification. In Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, WA, USA, 13–19 June 2020. [Google Scholar]
- Land, E.H. An alternative technique for the computation of the designator in the retinex theory of color vision. Proc. Natl. Acad. Sci. USA 1986, 83, 3078–3080. [Google Scholar] [CrossRef]
- Al-Hashim, M.A.; Al-Ameen, Z. Retinex-Based Multiphase Algorithm for Low-Light Image Enhancement. Trait. Du Signal 2020, 37, 733–743. [Google Scholar] [CrossRef]
- Li, P.; Tian, J.; Tang, Y.; Wang, G.; Wu, C. Deep Retinex Network for Single Image Dehazing. IEEE Trans. Image Process. 2021, 30, 1100–1115. [Google Scholar] [CrossRef]
- Liang, Z.; Zhang, W.; Ruan, R.; Zhuang, P.; Li, C. GIFM: An Image Restoration Method With Generalized Image Formation Model for Poor Visible Conditions. IEEE Trans. Geosci. Remote Sens. 2022, 60, 1–16. [Google Scholar] [CrossRef]
- Zhang, D.; Chen, S. Insulator Contamination Grade Recognition Using the Deep Learning of Color Information of Images. Energies 2021, 14, 6662. [Google Scholar] [CrossRef]
- Li, Y.; Wang, Z. RGB Line Pattern-Based Stereo Vision Matching for Single-Shot 3-D Measurement. IEEE Trans. Instrum. Meas. 2021, 70, 1–13. [Google Scholar] [CrossRef]
- Hu, J.; Jiang, Q.; Cong, R.; Gao, W.; Shao, F. Two-Branch Deep Neural Network for Underwater Image Enhancement in HSV Color Space. IEEE Signal Process. Lett. 2021, 28, 2152–2156. [Google Scholar] [CrossRef]
Methods | P/% | R/% | APe/% | APt/% | mAP@0.5/% |
---|---|---|---|---|---|
Yolov5s | 87.1 | 85.7 | 87.3 | 79.1 | 83.2 |
Yolov5s + RGA-S | 90.6 | 89.9 | 92.3 | 84.2 | 88.3 |
Yolov5s + RGA-C | 91.9 | 87.1 | 91.8 | 86.1 | 90.0 |
Yolov5s + RGA-SC | 93.6 | 90.3 | 93.9 | 87.6 | 90.8 |
Yolov5s + SSR Histogram | 89.7 | 86.0 | 91.0 | 81.2 | 86.1 |
The proposed algorithm | 93.5 | 89.7 | 94.1 | 89.0 | 91.6 |

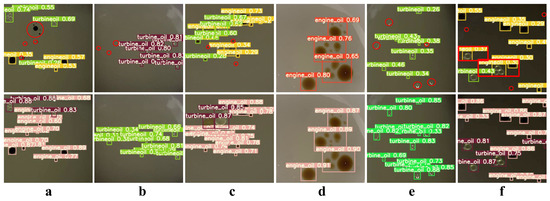

A | B | C | D | E | F | |
---|---|---|---|---|---|---|
Image | ||||||
Yolov5s | ||||||
Improved algorithms |

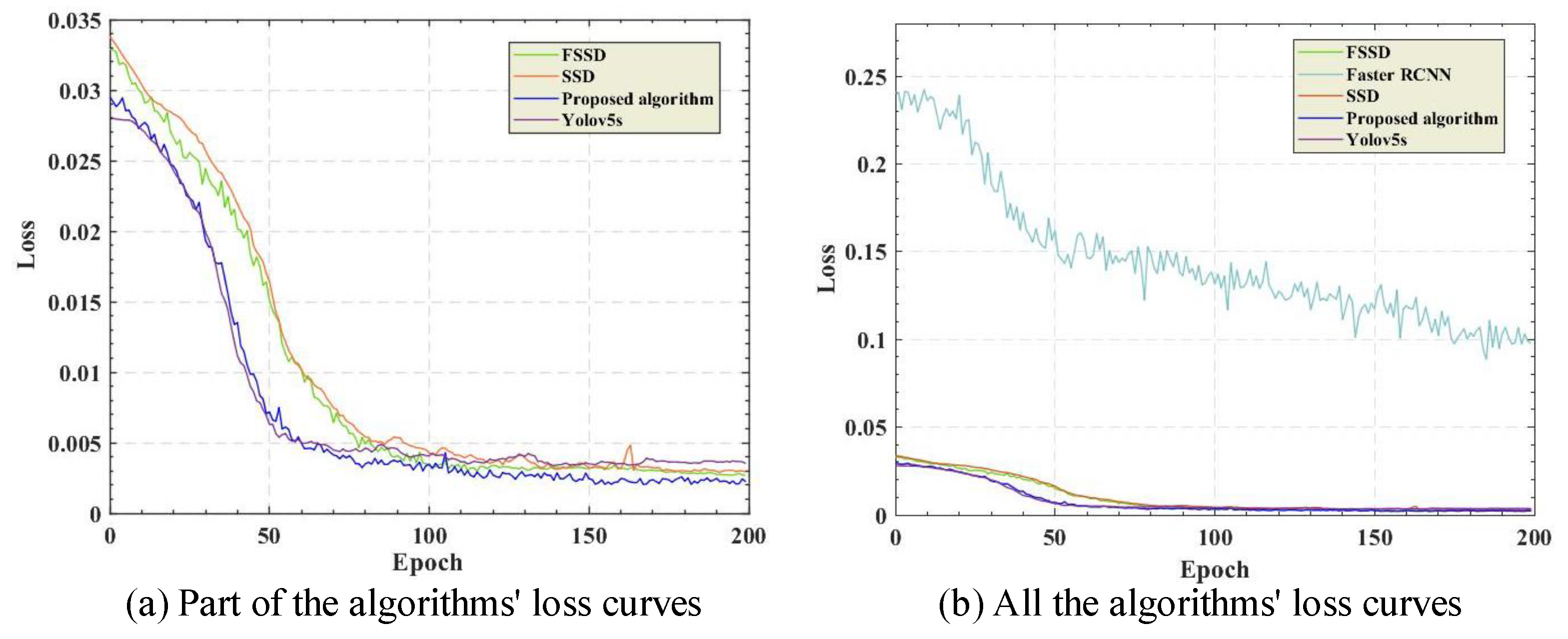

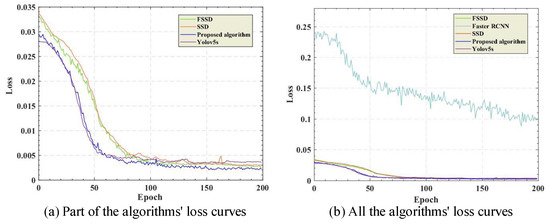

Algorithms | P/% | R/% | FPS/s | mAP@0.5/% | Weight/MB |
---|---|---|---|---|---|
Yolov5s | 87.2 | 84.3 | 190 | 86.7 | 14.8 |
Faster R-CNN | 85.7 | 83.1 | 24 | 79.3 | 547.0 |
FSSD | 91.3 | 88.0 | 82 | 90.4 | 128.8 |
SSD | 88.6 | 77.5 | 90 | 89.1 | 126.7 |
Improved algorithms | 94.0 | 89.9 | 185 | 93.0 | 15.0 |
Category 1 | Category 2 | Category 3 | Category 4 | |
---|---|---|---|---|
Yolov5s | ||||
Faster R-CNN | ||||
FSSD | ||||
SSD | ||||
Improved algorithms |
